BODY SEALING

BRM-21

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

BODY SEALING

Description

INFOID:0000000009176374

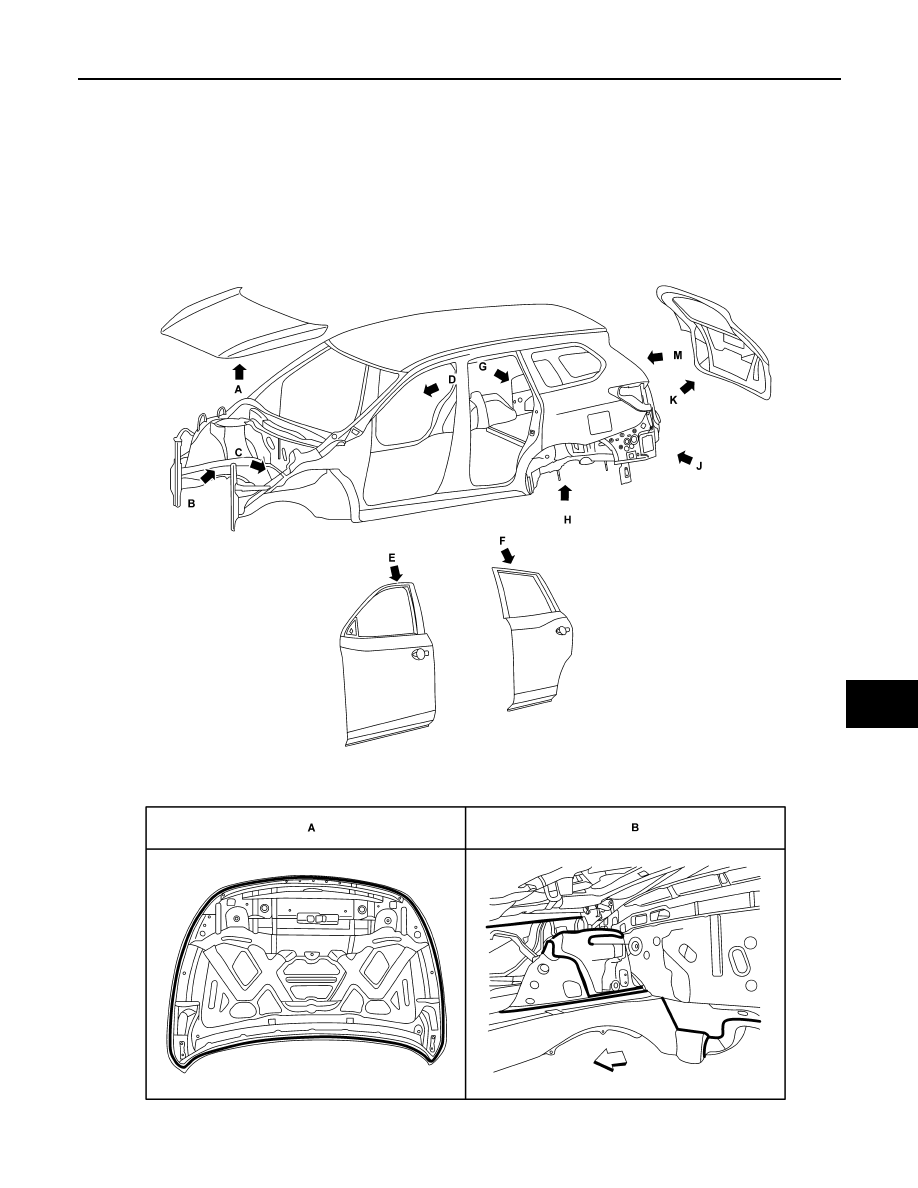

The following figure shows the areas which are sealed at the factory. Sealant which has been applied to these

areas should be smooth and free from cuts or gaps. Care should be taken not to apply an excess amount of

sealant and not to allow other unaffected parts to come into contact with the sealant.

ALKIA2749ZZ

BRM-22

< REMOVAL AND INSTALLATION >

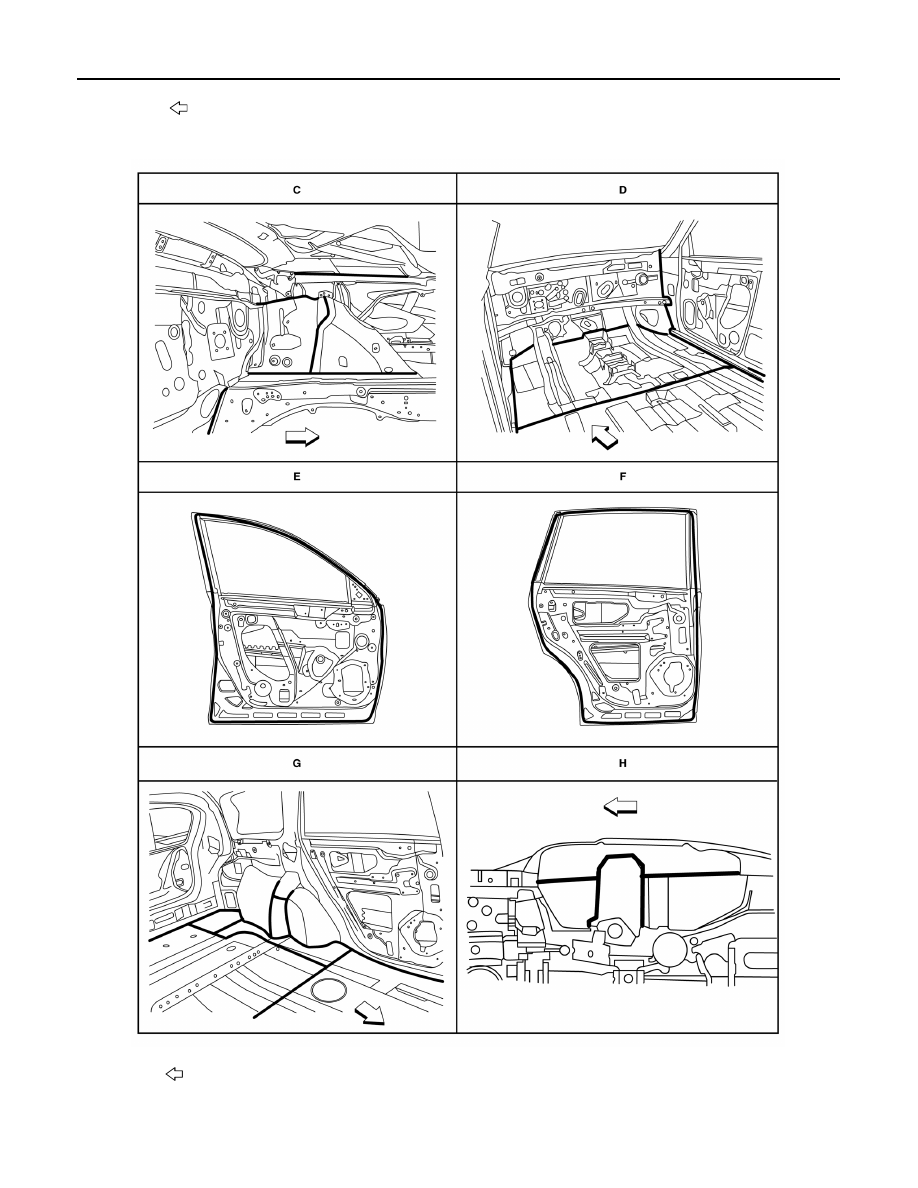

BODY SEALING

Front

Front

AWKIA2086ZZ

BODY SEALING

BRM-23

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

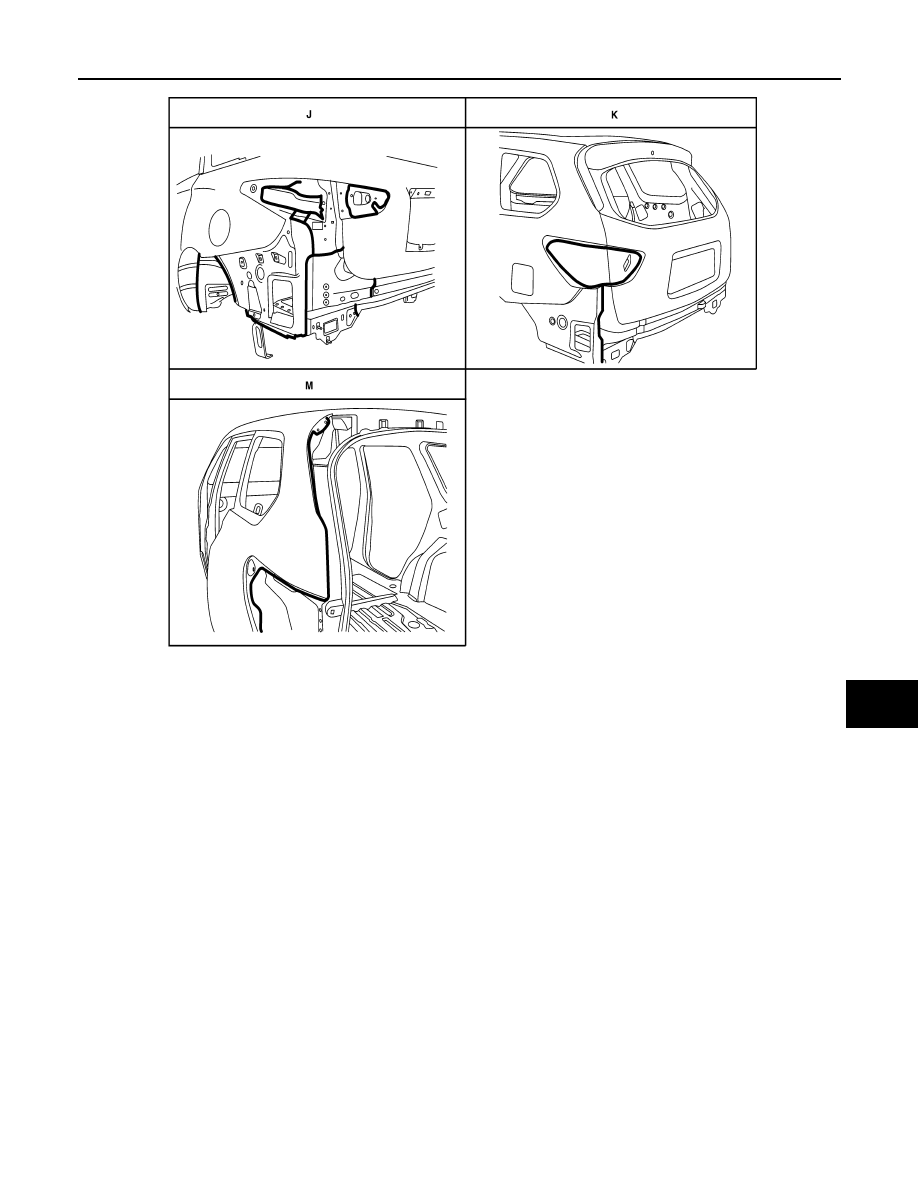

ALKIA2878ZZ

BRM-24

< REMOVAL AND INSTALLATION >

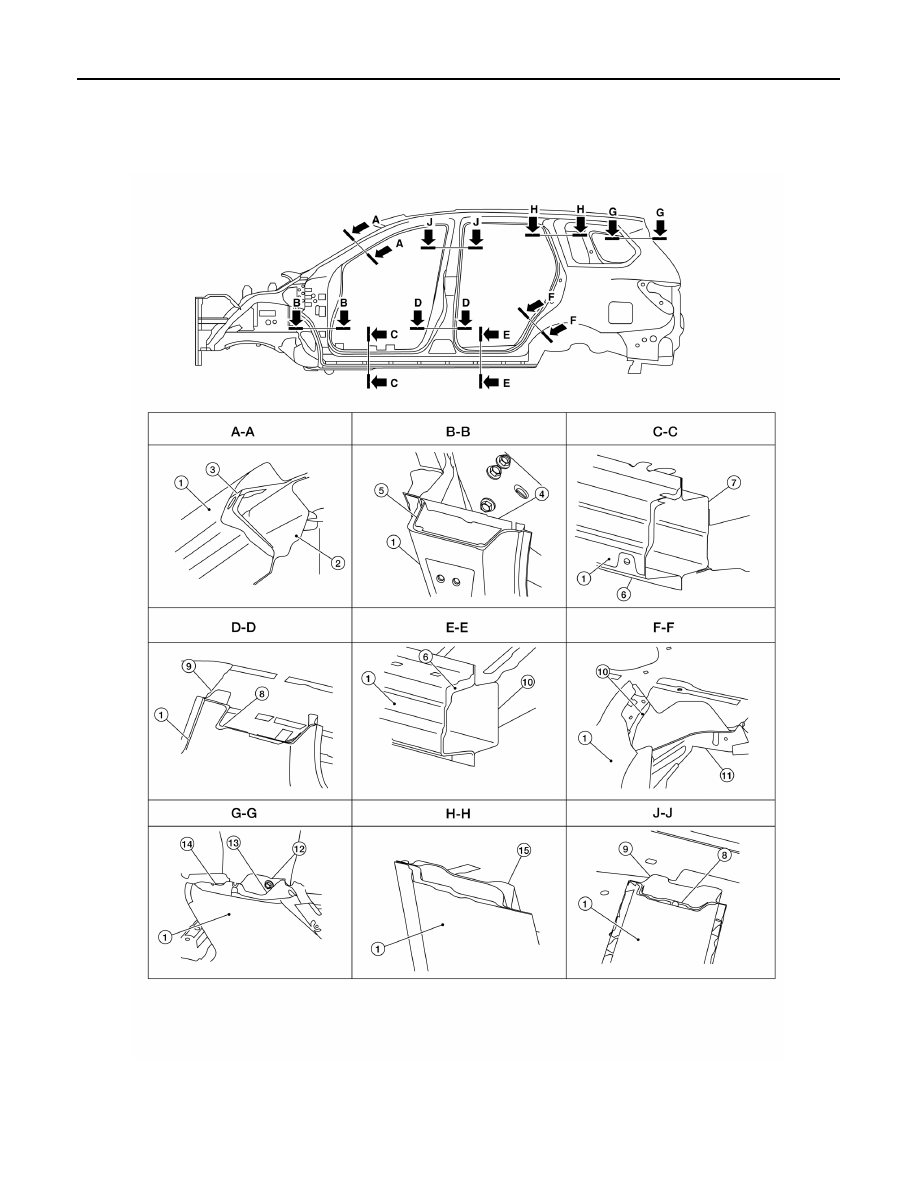

BODY CONSTRUCTION

BODY CONSTRUCTION

Body Construction

INFOID:0000000009176375

1.

Body side outer

2.

Front pillar inner upper

3.

Upper front pillar reinforcement

4.

Dash side inner

5.

Front hinge pillar lower reinforcement

6.

Outer sill reinforcement

7.

Inner sill

8.

Center pillar reinforcement

9.

Inner center pillar

ALKIA2748ZZ
