BODY COMPONENT PARTS

BRM-17

< PREPARATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Item

Part name

Material

1.

Roof corner reinforcement (LH)

SP121BQ

2.

Rear roof rail assembly

—

3.

Roof corner reinforcement (RH)

SP121BQ

4.

6th roof bow, standard roof

SP129BQ

5.

5th roof bow, standard roof

SP129BQ

6.

Standard roof

SP121AQ

7.

4th roof bow, standard roof

SP129BQ

8.

3rd roof bow, standard roof

SP123BQ

9.

Roof reinforcement assembly, standard roof

SP121BQ

10.

Front roof rail assembly

—

11.

Panoramic roof

SP121AQ

12.

Rear roof reinforcement assembly

SP121BQ

13.

Rear wheel inner assembly (RH, LH)

—

14.

Rear wheel inner front extension

SP781B

15.

Inner sill (RH, LH)

RP783-980

16.

Hood assembly

—

17.

Inner roof side rail complete (RH, LH)

—

18.

Center pillar inner (RH, LH)

SP153-980, SP783-590Q

19.

Front hinge pillar reinforcement assembly (RH, LH)

—

20.

Front pillar upper hinge brace (RH, LH)

SP153-590Q

21.

Front pillar lower hinge brace (RH, LH)

SP152-440Q

22.

Outer sill reinforcement assembly (RH, LH)

—

23.

Roof side outer reinforcement assembly (RH, LH)

—

24.

Center pillar reinforcement (RH, LH)

—

25.

Front body side outer (RH, LH)

SP782AMJQ

26.

Front door assembly (RH, LH)

—

27.

Front door outer (RH, LH)

SP785-340AMQ

28.

Rear door outer (RH, LH)

SP785-340AMQ

29.

Rear door assembly (RH, LH)

—

30.

Rear body side outer

SP782AMJQ

31.

Fuel filler base

SP1212BQ

32.

Striker retainer (RH, LH)

SP121BQ

33.

Rear wheel outer assembly

—

34.

Rear outer sill reinforcement assembly (RH, LH)

SP782-440Q

35.

Rear fender cover lower (RH, LH)

SP782AMJQ

36.

Rear fender cover upper (RH, LH)

SP782AMJQ

37.

Outer back pillar assembly (RH, LH)

—

38.

Rear pillar inner reinforcement assembly (RH, LH)

—

39.

Rear pillar seat belt anchor assembly (RH, LH)

SP231-370Q

40.

Rear fender brace (RH, LH)

SP221BQ

41.

Inner back pillar assembly (RH, LH)

—

42.

Inner rear pillar (RH, LH)

—

43.

Main back pillar assembly (RH, LH)

SP121BQ

44.

Rear combination lamp base assembly (RH, LH)

—

45.

Rear panel assembly

—

46.

Back door inner assembly

—

47.

Back door outer assembly

SP783

BRM-18

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

REMOVAL AND INSTALLATION

CORROSION PROTECTION

Description

INFOID:0000000009176371

To provide improved corrosion prevention, the following anti-corrosive measures have been implemented in

NISSAN production plants. When repairing or replacing body panels, it is necessary to use the same anti-cor-

rosive measures.

Anti-Corrosive Precoated Steel (Galvannealed Steel)

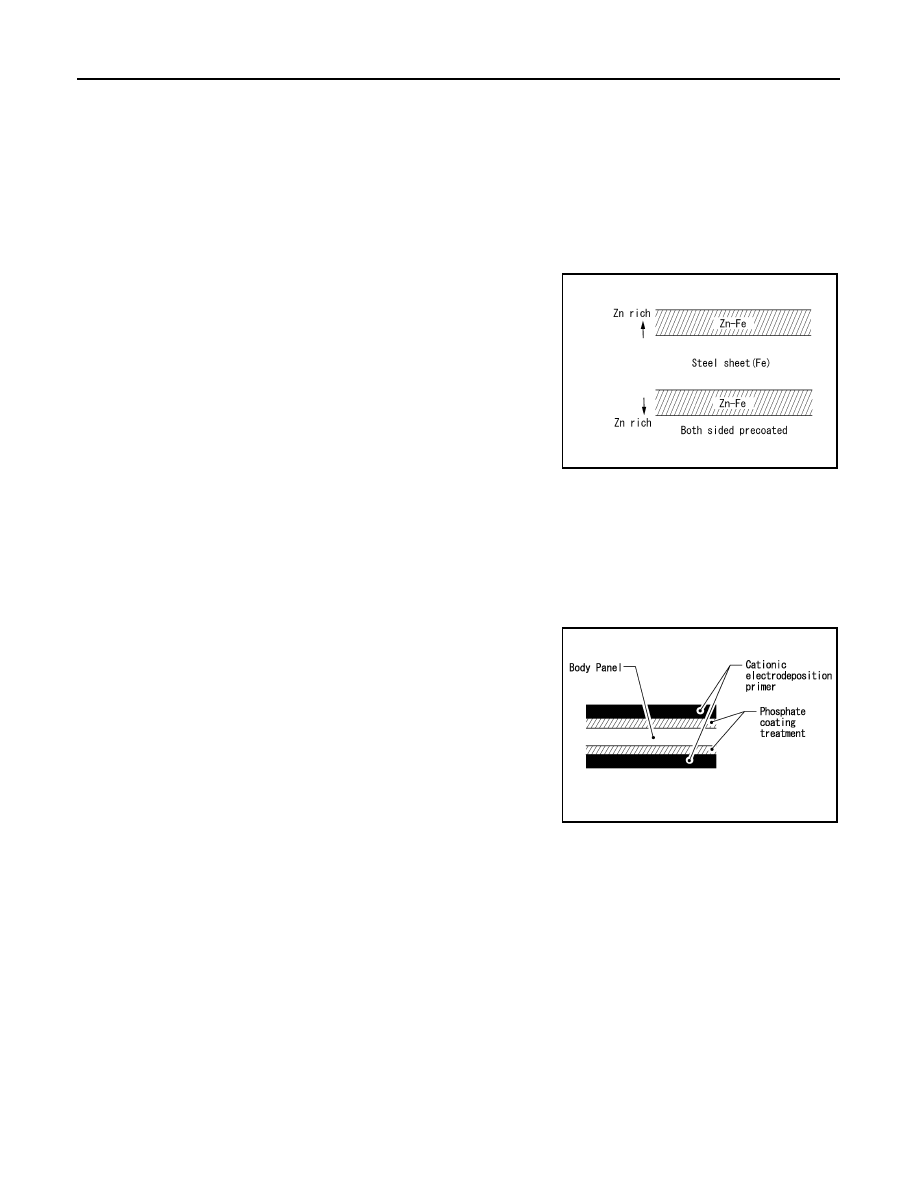

To improve repairability and corrosion resistance, a new type of anti-

corrosive precoated steel sheet has been adopted, replacing con-

ventional zinc-coated steel sheet.

Galvannealed steel is electroplated and heated to form zinc-iron

alloy, which provides excellent and long term corrosion resistance

with cationic electrodeposition primer.

Nissan Genuine Service Parts are fabricated from galvannealed steel. Therefore, it is recommended that

GENUINE NISSAN PARTS or equivalent be used for panel replacement to maintain the anti-corrosive perfor-

mance built into the vehicle at the factory.

Phosphate Coating Treatment and Cationic Electrodeposition Primer

A phosphate coating treatment and a cationic electrodeposition primer, which provide excellent corrosion pro-

tection, are employed on all body components.

CAUTION:

Confine paint removal during welding operations to an absolute

minimum.

Nissan Genuine Service Parts are also treated in the same manner. Therefore, it is recommended that GENU-

INE NISSAN PARTS or equivalent be used for panel replacement to maintain anti-corrosive performance built

into the vehicle at the factory.

Anti-Corrosive Wax

INFOID:0000000009176372

To improve corrosion resistance, anti-corrosive wax is applied inside the body sill and inside other closed sec-

tions. Accordingly, when replacing these parts, be sure to apply anti-corrosive wax to the appropriate areas of

the new parts. Select an excellent anti-corrosive wax which will penetrate after application and has a long shelf

life.

SIIA2294E

PIIA0095E

CORROSION PROTECTION

BRM-19

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Undercoating

INFOID:0000000009176373

The underside of the floor and wheelhouse are undercoated to prevent rust, vibration, noise and stone chip-

ping. Therefore, when such a panel is replaced or repaired, apply undercoating to that part. Use an undercoat-

ing which is rust preventive, soundproof, vibration-proof, shock-resistant, adhesive, and durable.

Precautions in Undercoating

1. Do not apply undercoating unless specified. Avoid areas such as the areas above the muffler and three-

way catalyst which are subjected to heat.

2. Do not undercoat the exhaust pipe or other parts which become hot.
3. Do not undercoat rotating parts.
4. Apply bitumen wax after applying undercoating.
5. After putting seal on the vehicle, put undercoating on it.

1.

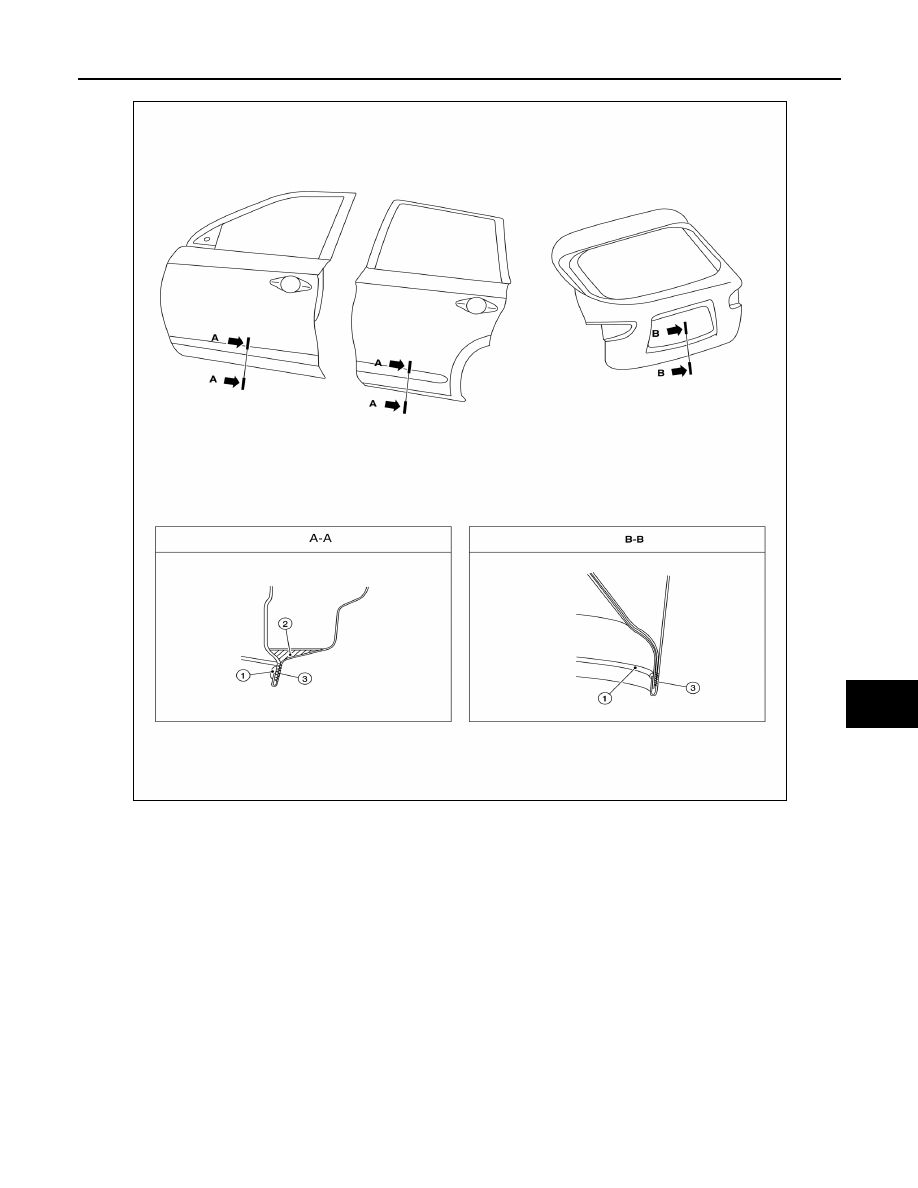

Body caulk

2.

Anti-corrosive wax

3.

Panel adhesive

ALKIA2405ZZ

BRM-20

< REMOVAL AND INSTALLATION >

CORROSION PROTECTION

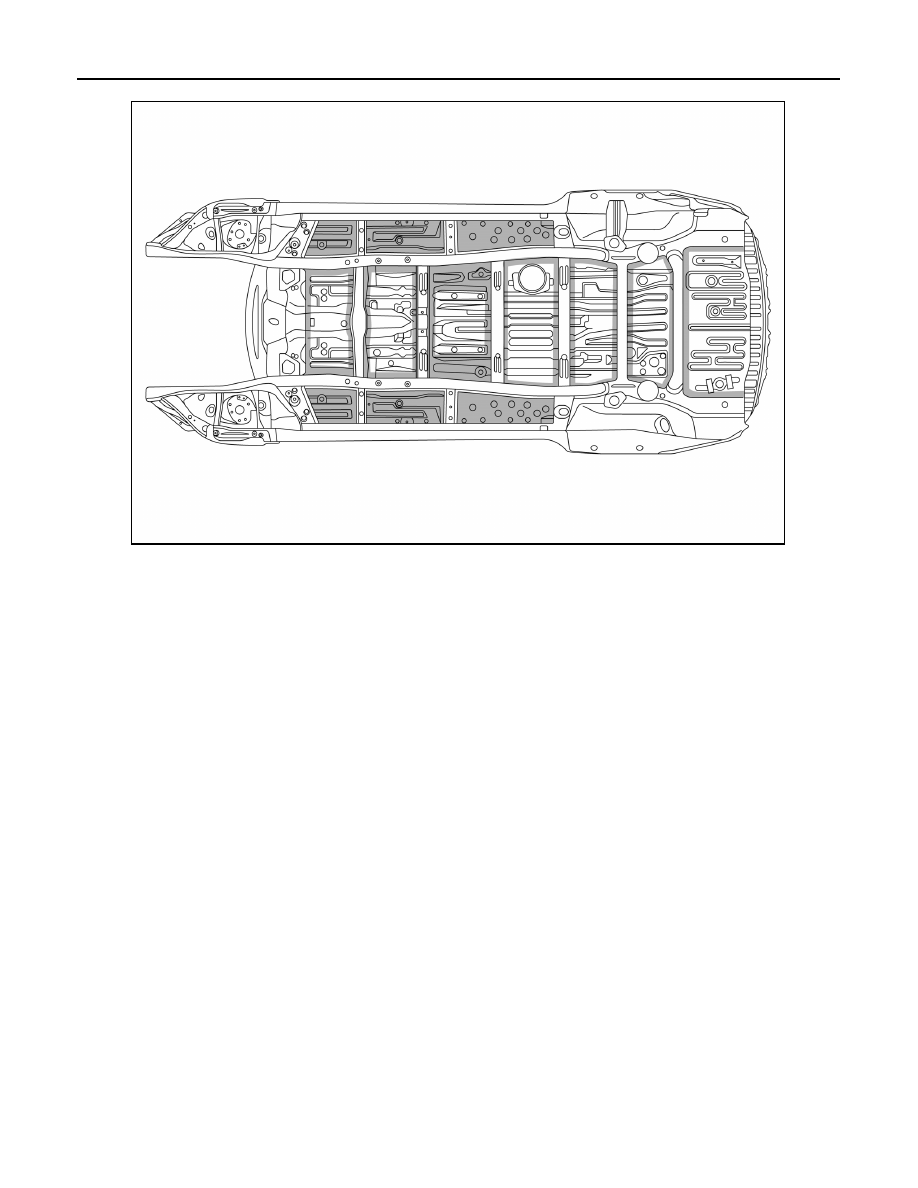

Undercoated areas are shaded.

ALKIA2437ZZ
