BODY ALIGNMENT

BRM-49

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the RH and LH sides of the vehicle.

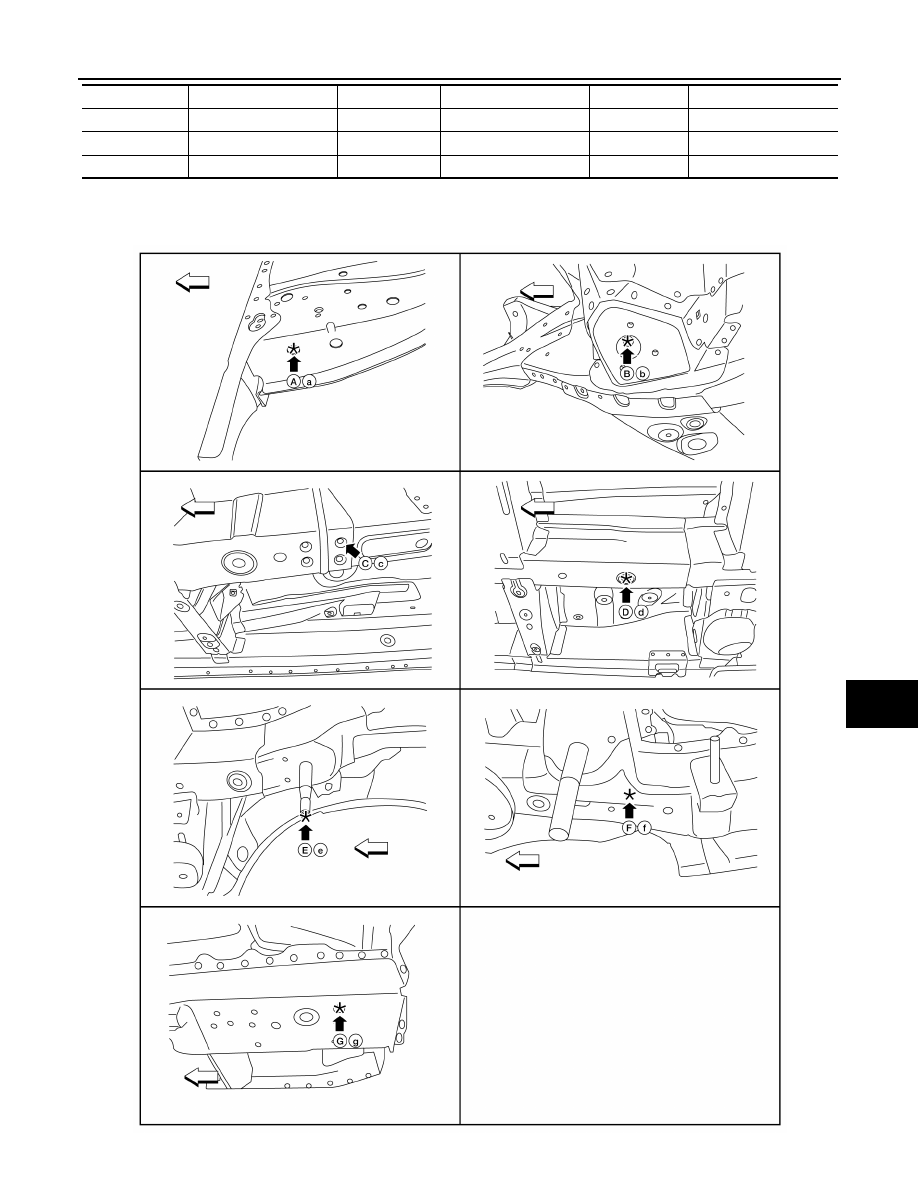

MEASUREMENT POINTS

d-E*

1142.51 (44.98)

D-g*

1845.85 (72.67)

E-e

1002.00 (39.45)

E-f*

1235.80 (48.65)

e-G*

1470.80 (57.91)

F-f

1130.19 (44.50)

F-f

1130.19 (44.50)

f-G*

1216.41 (47.89)

G-g

1187.54 (46.76)

Coordinates

Measurement

Coordinates

Measurement

Coordinates

Measurement

ALKIA2534ZZ

BRM-50

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

Unit: mm (in)

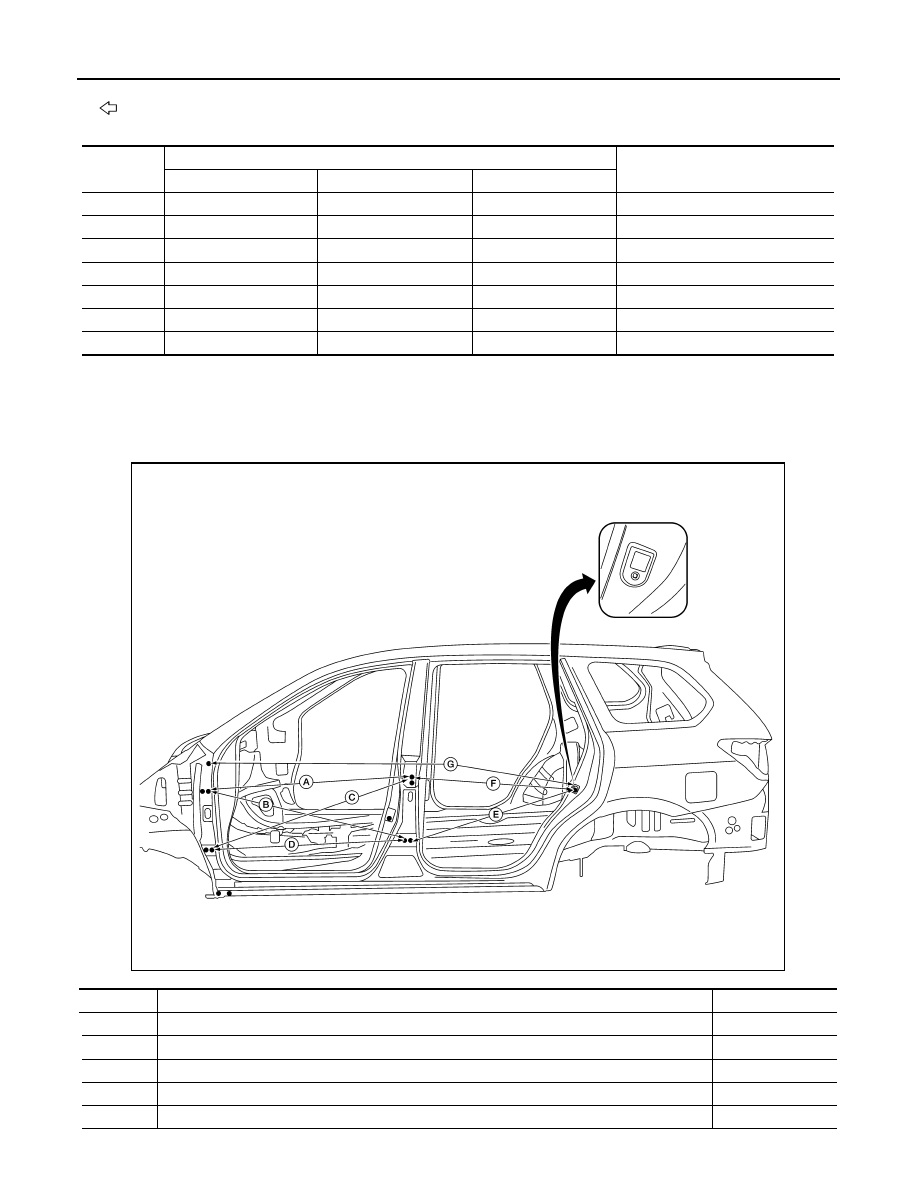

Passenger Compartment

INFOID:0000000009176393

MEASUREMENT

Dimensions are symmetrically identical on both the RH and LH side of the vehicle.

Unit: mm (in)

Front

Points

Coordinates

Remarks

X

Y

Z

A, a

±497.00 (±19.57)

±-555.50 (-12.87)

330.00 (12.99)

Hole 12.00 (0.47)

B, b

±327.00 (±12.87)

395.89 (15.59)

143.80 (5.66)

Hole 12.00 (0.47)

C, c

±437.06 (±17.21)

1212.19 (47.72)

171.93 (6.77)

Hole 9.00 (0.35)

D, d

±513.95 (±20.23)

1270.09 (50.00)

154.00 (6.06)

Hole 18.00

×16.00 (0.71×0.63)

E, e

±501.0 (±)

2683.00 (105.63)

135.90 (5.35)

Center of stud end

F, f

±556.09 (±21.89)

3273.92 (128.89)

336.33 (13.24)

Hole 10.00

×8.00 (0.36 x 0.31)

G, g

±593.79 (±23.38)

3643.54 (143.45)

340.93 (13.42)

Hole 11 (0.43)

Position

Description

Measurement

A

Front door rear upper hinge bolt hole to rear door upper hinge top bolt hole

1175 (46.3)

B

Front door upper hinge rear bolt hole to rear door lower hinge front bolt

1160 (45.7)

C

Front door lower hinge rear bolt hole to rear door upper hinge top bolt hole

1236 (48.7)

D

Front door lower hinge rear bolt hole to rear door lower hinge front bolt hole

1120 (44.1)

E

Rear door lower hinge rear bolt hole to rear door switch screw hole

963 (37.9)

ALKIA2850ZZ

BODY ALIGNMENT

BRM-51

< SERVICE DATA AND SPECIFICATIONS (SDS)

C

D

E

F

G

H

I

J

L

M

A

B

BRM

N

O

P

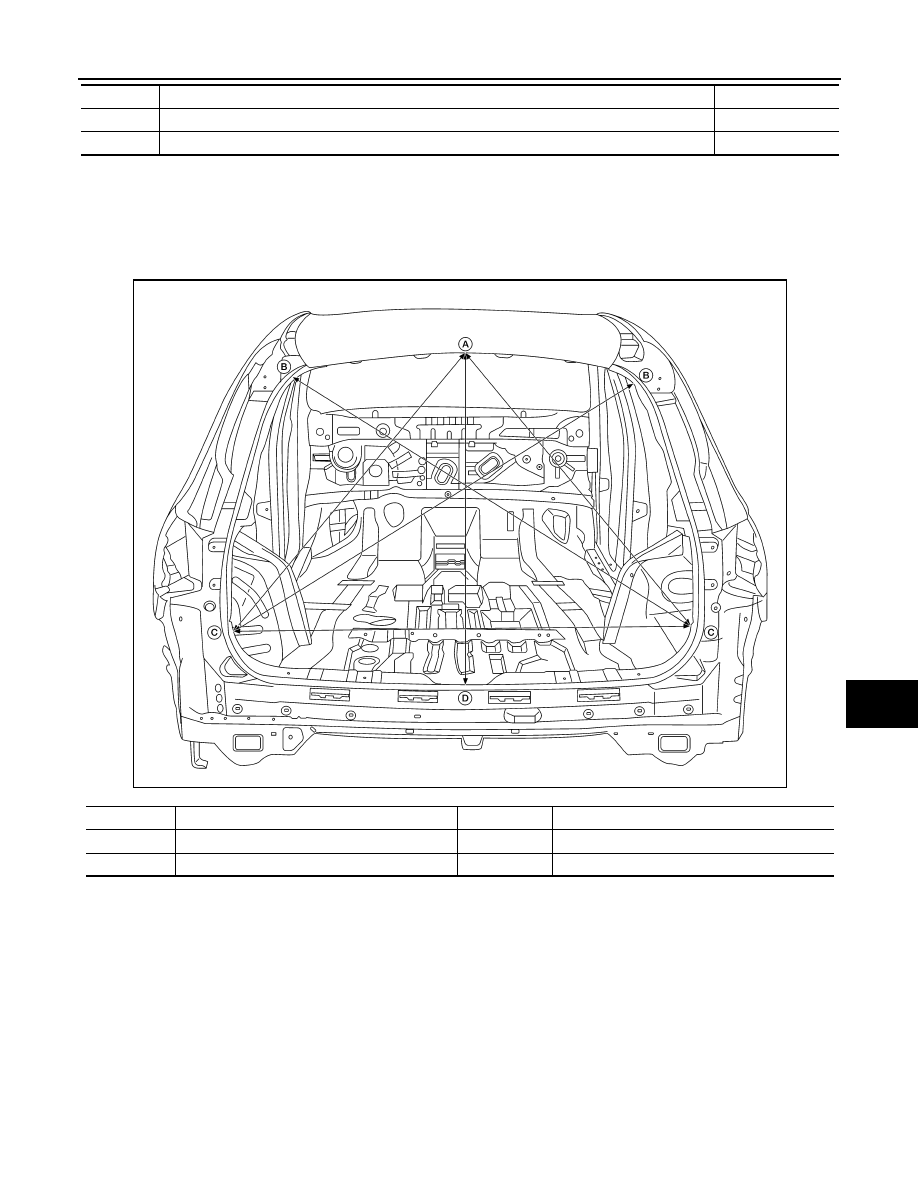

Rear Body

INFOID:0000000009176394

MEASUREMENT

Dimensions marked with

″*″ indicate symmetrically identical dimensions on both the RH and LH side of the

vehicle.

Unit: mm (in)

MEASUREMENT POINTS

F

Rear door upper hinge lower bolt hole to rear door switch screw hole

910 (35.8)

G

Front fender hinge pillar retaining bolt hole to rear door switch screw hole

2050 (80.7)

Position

Description

Measurement

Point

Measurements

Point

Measurements

*A - C

1050 (41.3)

*B - C

1387 (54.6)

 A - D

970 (38.2)

 C - C

1315 (51.8)

ALKIA2851ZZ

BRM-52

< SERVICE DATA AND SPECIFICATIONS (SDS)

BODY ALIGNMENT

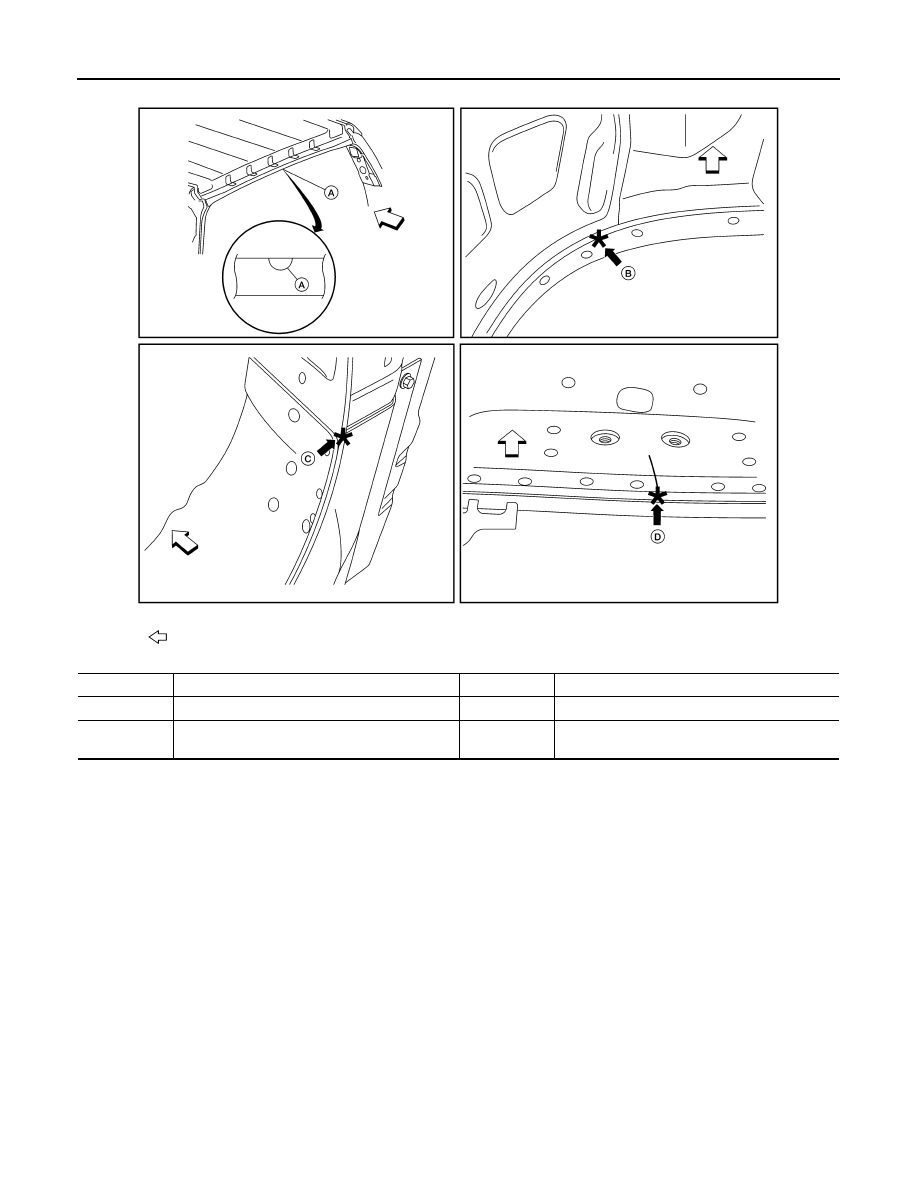

 Front

ALKIA2852ZZ

Point

Description

Point

Description

A

Roof flange end of center positioning mark

B

Back pillar main joggle

C

Upper rear panel joggle

D

Edge of rear panel between back door striker in-

stalling holes
