MICROPHONE

Removal and Installation

INFOID:0000000009763213

REMOVAL

1. Remove the front room/map lamp assembly. Refer to

INL-58, "Removal and Installation"

.

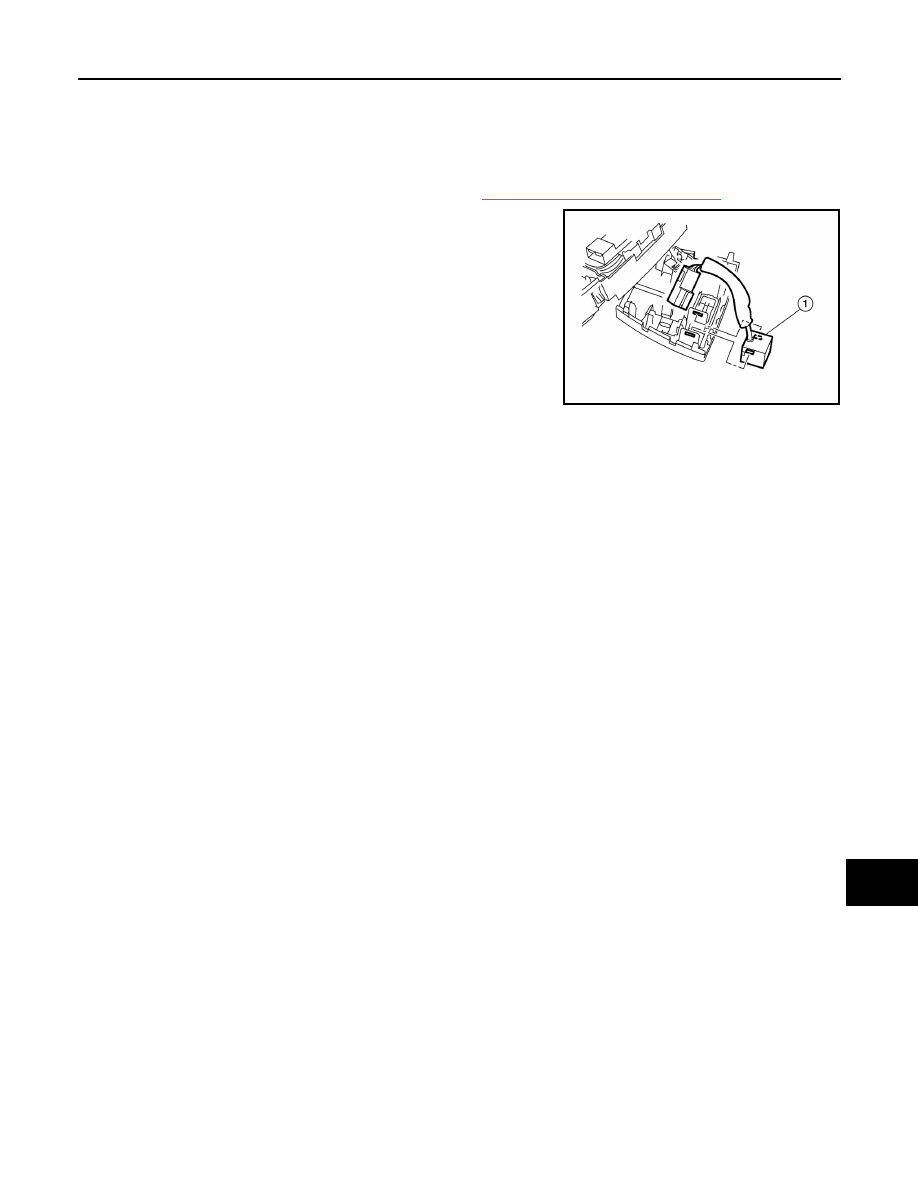

2. Remove the microphone (1) from the front room/map lamp

assembly.

CAUTION:

Carefully handle the pawls that retain the microphone to

avoid damaging.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

Make sure the microphone is firmly secure after installation.

AWNIA2584ZZ

AV-384

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

SATELLITE RADIO TUNER

SATELLITE RADIO TUNER

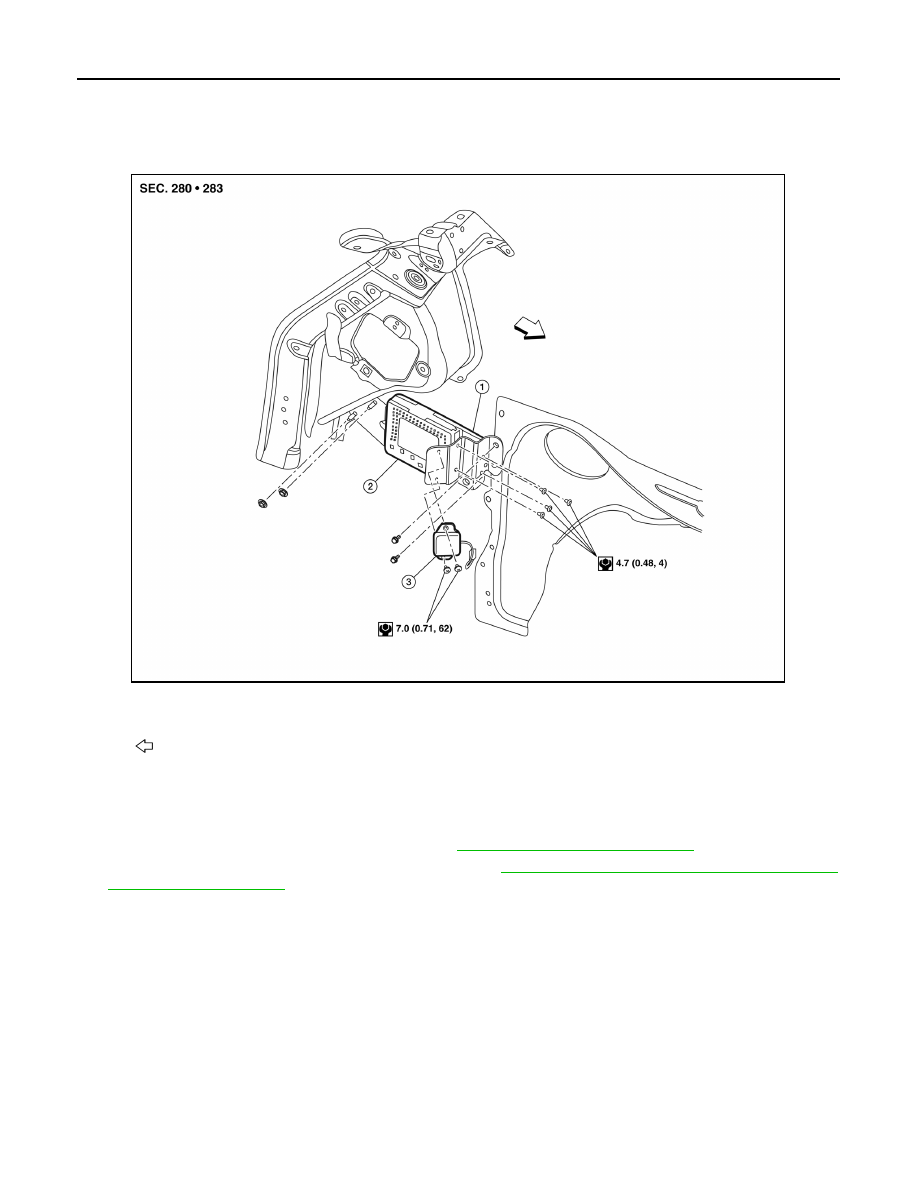

Exploded View

INFOID:0000000009763215

Removal and Installation

INFOID:0000000009763214

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

.

2. Remove the luggage side lower finisher (LH). Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

3. Disconnect the harness connectors from satellite radio antenna.
4. Remove the screws and the satellite radio tuner.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth control unit (if
equipped)

2.

Satellite radio tuner

3.

Bluetooth antenna

Front

ALNIA1464ZZ

AV

REAR VIEW CAMERA

AV-385

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR VIEW CAMERA

Removal and Installation

INFOID:0000000009763216

REMOVAL

1. Remove the back door outer finisher. Refer to

EXT-43, "Removal and Installation"

.

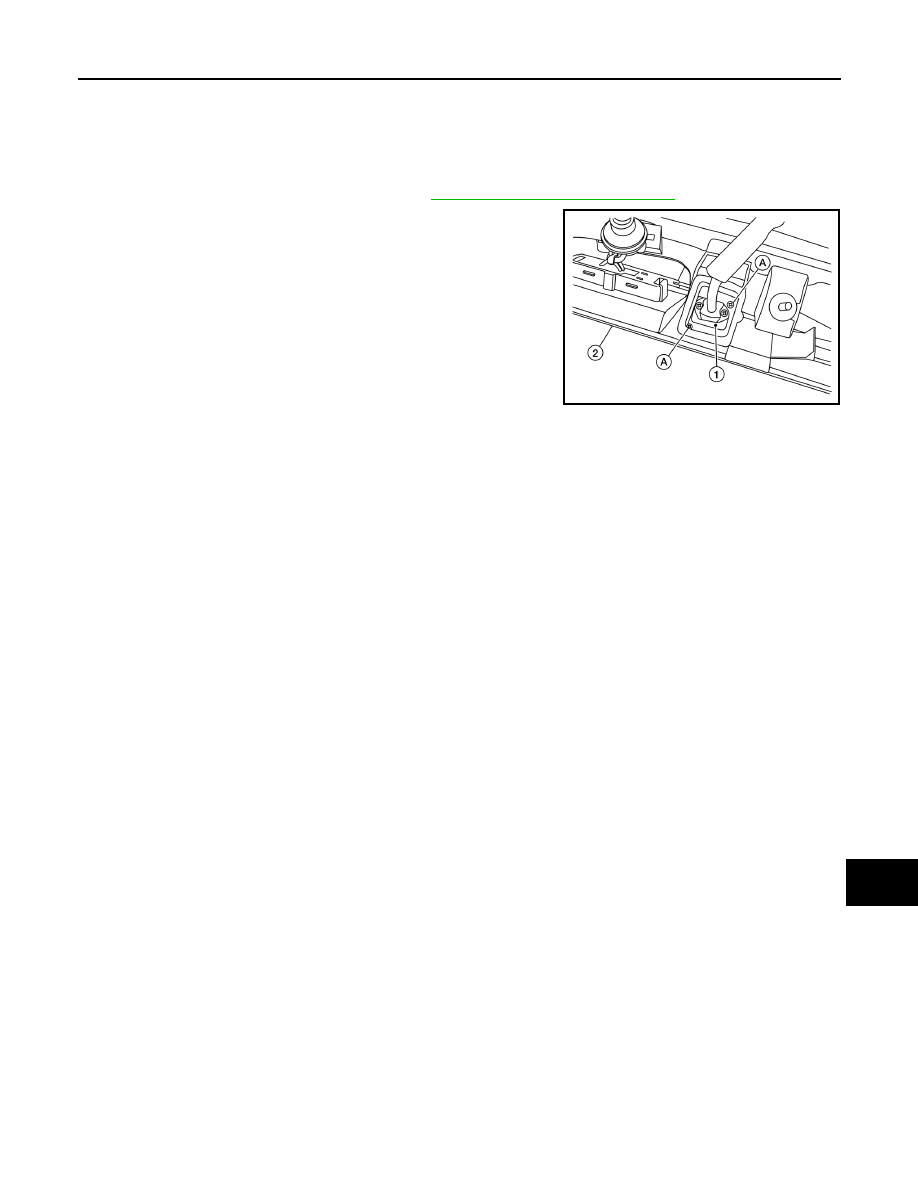

2. Remove rear view camera screws (A), then remove rear view

camera (1) from the back door outer finisher (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1427ZZ

AV-386

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

AUDIO ANTENNA

AUDIO ANTENNA

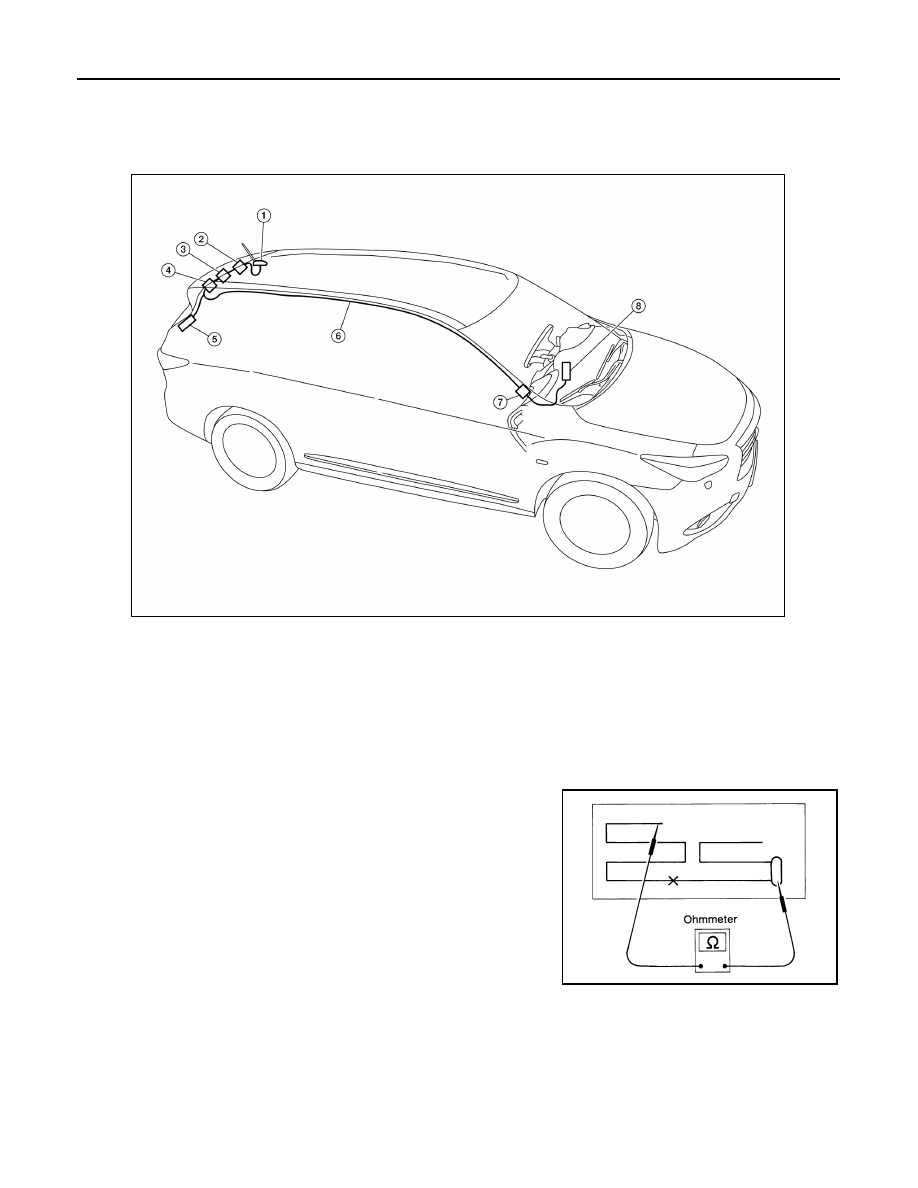

Location of Antennas

INFOID:0000000009174646

Window Antenna Repair

INFOID:0000000009174647

ELEMENT CHECK

1. Attach probe circuit tester (ohm setting) to antenna terminal on

each side.

1.

Antenna base (satellite antenna and antenna
amp)

2.

M502

3.

M501

4.

M503, M504

5.

M505

6.

Antenna Feeder

7.

M95, M500

8.

AV control unit M155

AWNIA2589ZZ

SEL250I
