AV

AUDIO ANTENNA

AV-387

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

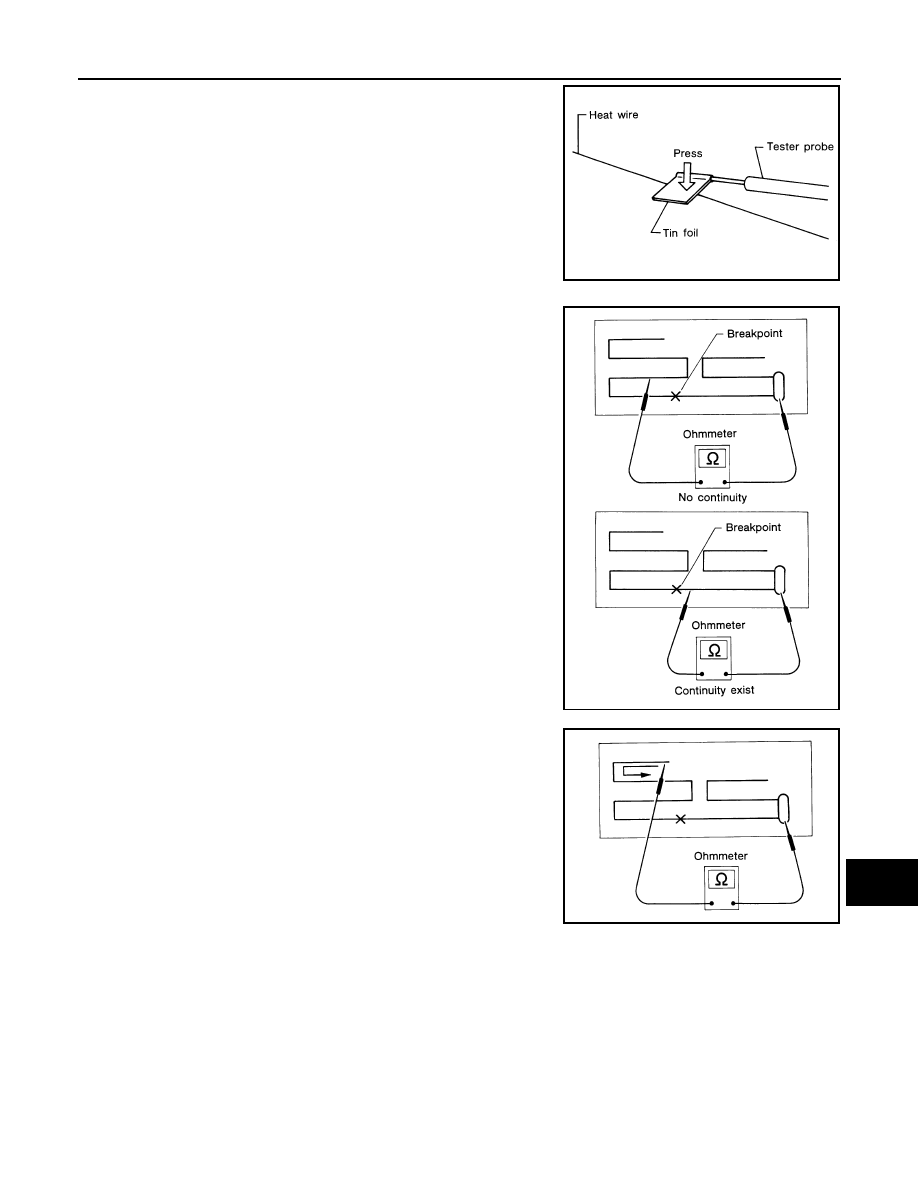

• When measuring continuity, wrap tin foil around the top of

probe. Then, press the foil against the wire with your finger.

2. If an element is broken, no continuity will exist.

3. To locate a break, move probe along element. Tester indication

will change abruptly when probe passes the broken point.

SEL122R

SEL252I

SEL253I

AV-388

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

BLUETOOTH® ANTENNA

BLUETOOTH® ANTENNA

Removal and Installation

INFOID:0000000009763982

REMOVAL

1. Remove luggage side lower finisher (LH). Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Disconnect the bluetooth antenna harness connector from bluetooth control unit.
3. Remove bolts and the bluetooth antenna from bracket.

INSTALLATION

Installation is in the reverse order of removal.

AV

SATELLITE RADIO ANTENNA

AV-389

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

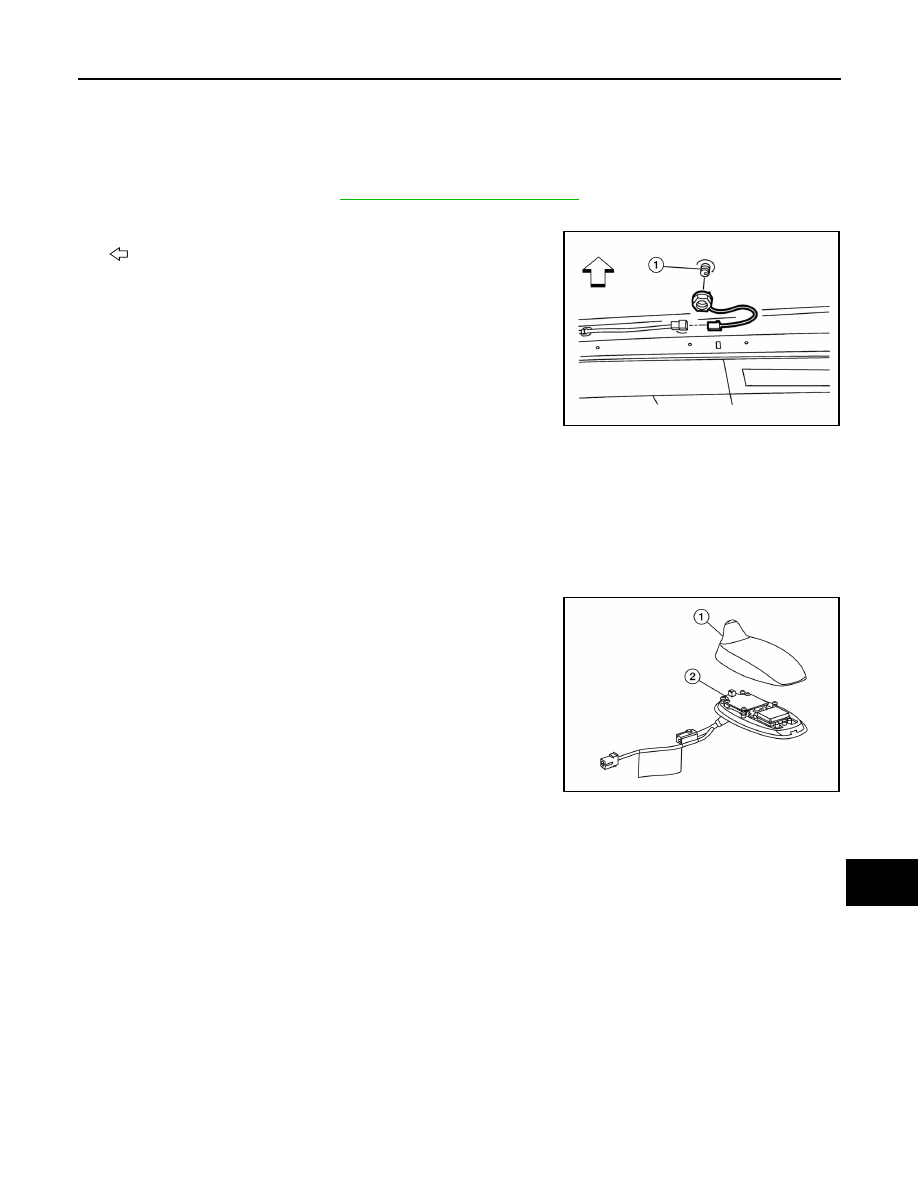

SATELLITE RADIO ANTENNA

Removal and Installation

INFOID:0000000009174648

REMOVAL

1. Lower headlining (rear). Refer to

INT-27, "Removal and Installation"

.

2. Disconnect harness connector from antenna feeder.
3. Remove nut from satellite antenna (1) and remove.

: Front

INSTALLATION

Installation is in the reverse order of removal.

CAUTION:

If the satellite antenna nut is not tightened to the specified torque, lower sensitivity of the antenna may

be experienced. If the nut is tightened tighter than the specified torque, this will deform the roof panel.

Disassembly and Assembly

INFOID:0000000009174649

DISASSEMBLY

Insert a suitable tool into gaps between satellite antenna (2) and the

cover (1), then remove the cover (1) from satellite antenna (2).

ASSEMBLY

Assembly is in the reverse order of disassembly.

AWNIA2587ZZ

ALNIA1335ZZ

AV-390

< PRECAUTION >

[PREMIUM AUDIO WITH NAVIGATION]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000009174650

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along

with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain

types of collision. Information necessary to service the system safely is included in the SR and SB section of

this Service Manual.

WARNING:

• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision which would result in air bag inflation, all maintenance must be performed by

an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag

Module, see the SR section.

• Do not use electrical test equipment on any circuit related to the SRS unless instructed to in this

Service Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or har-

ness connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

• When working near the Airbag Diagnosis Sensor Unit or other Airbag System sensors with the Igni-

tion ON or engine running, DO NOT use air or electric power tools or strike near the sensor(s) with a

hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing

serious injury.

• When using air or electric power tools or hammers, always switch the Ignition OFF, disconnect the

battery and wait at least three minutes before performing any service.

Cautions in Removing Battery Terminal and AV Control Unit (Models with AV Control
Unit)

INFOID:0000000009174651

CAUTION:

Remove battery terminal and AV control unit 30 seconds or more after turning the ignition switch OFF.

NOTE:

After the ignition switch is turned OFF, the AV control unit continues operating for approximately 30 seconds.

Therefore, data corruption may occur if battery voltage is cut off within 30 seconds.

Precaution for Trouble Diagnosis

INFOID:0000000009174652

AV COMMUNICATION SYSTEM

• Do not apply voltage of 7.0 V or higher to the measurement terminals.

• Use the tester with its open terminal voltage being 7.0 V or less.

• Be sure to turn ignition switch OFF and disconnect the battery cable from the negative terminal before

checking the circuit.

Precaution for Harness Repair

INFOID:0000000009174653

AV COMMUNICATION SYSTEM
