SUBWOOFER

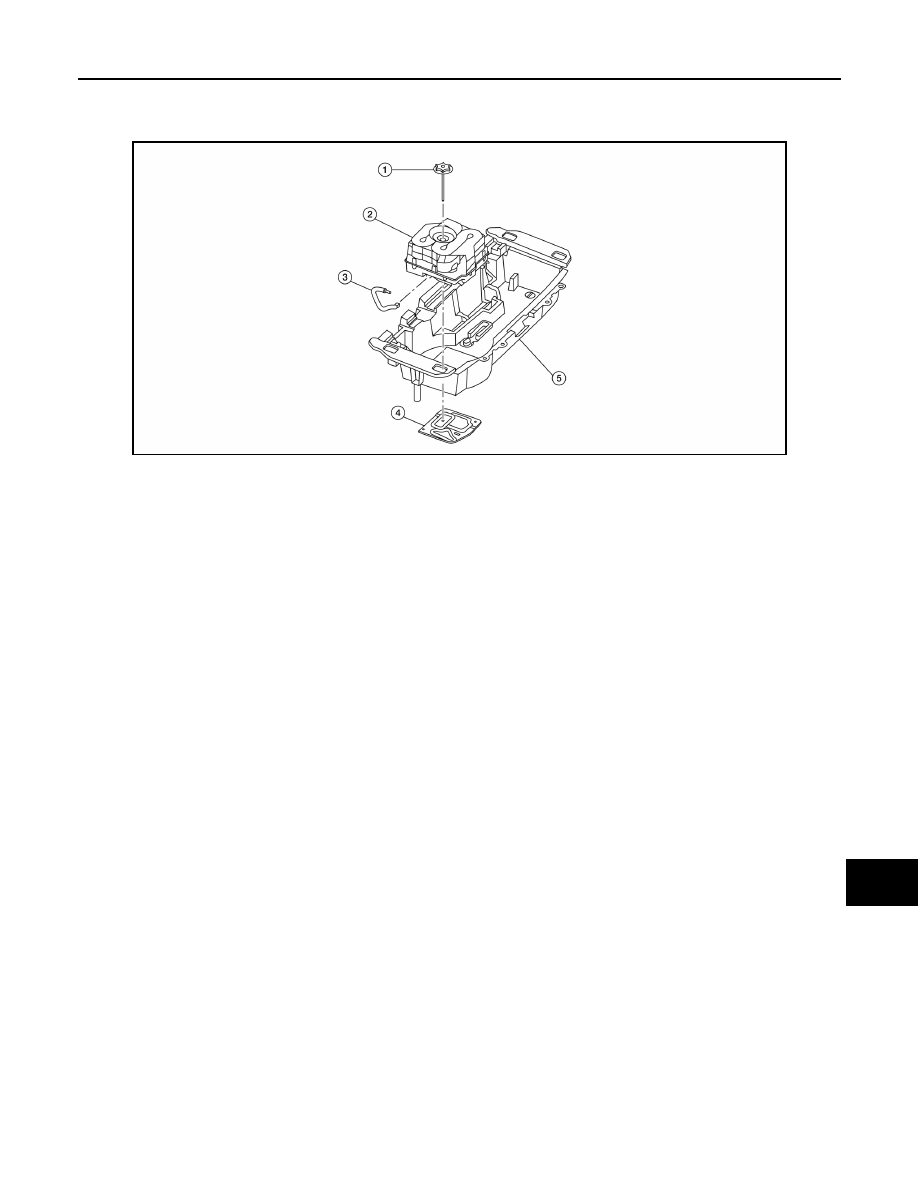

Exploded View

INFOID:0000000009174636

Removal and Installation

INFOID:0000000009174637

REMOVAL

1. Open the storage box lid.
2. Remove the spare tire clamp.
3. Lift subwoofer to disconnect the harness connector and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1328ZZ

1.

Spare tire clamp

2.

Subwoofer

3.

Harness

4.

Bracket

5.

Rear storage box

AV-380

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

USB INTERFACE

USB INTERFACE

Removal and Installation

INFOID:0000000009763211

REMOVAL

1. Remove shift selector finisher. Refer to

IP-18, "Exploded View"

.

2. Disconnect the harness connector from the USB interface.
3. Release the pawl from the back of USB interface, then remove USB interface.

INSTALLATION

Installation is in the reverse order of removal.

AV

FRONT AUXILIARY INPUT JACKS

AV-381

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

FRONT AUXILIARY INPUT JACKS

Removal and Installation

INFOID:0000000009763212

REMOVAL

1. Remove shift selector finisher. Refer to

IP-18, "Exploded View"

.

2. Disconnect the harness connector from the front auxiliary input jack.
3. Remove front auxiliary input jack screws and the front auxiliary input jack.

INSTALLATION

Installation is in the reverse order of removal.

AV-382

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

BLUETOOTH CONTROL UNIT

BLUETOOTH CONTROL UNIT

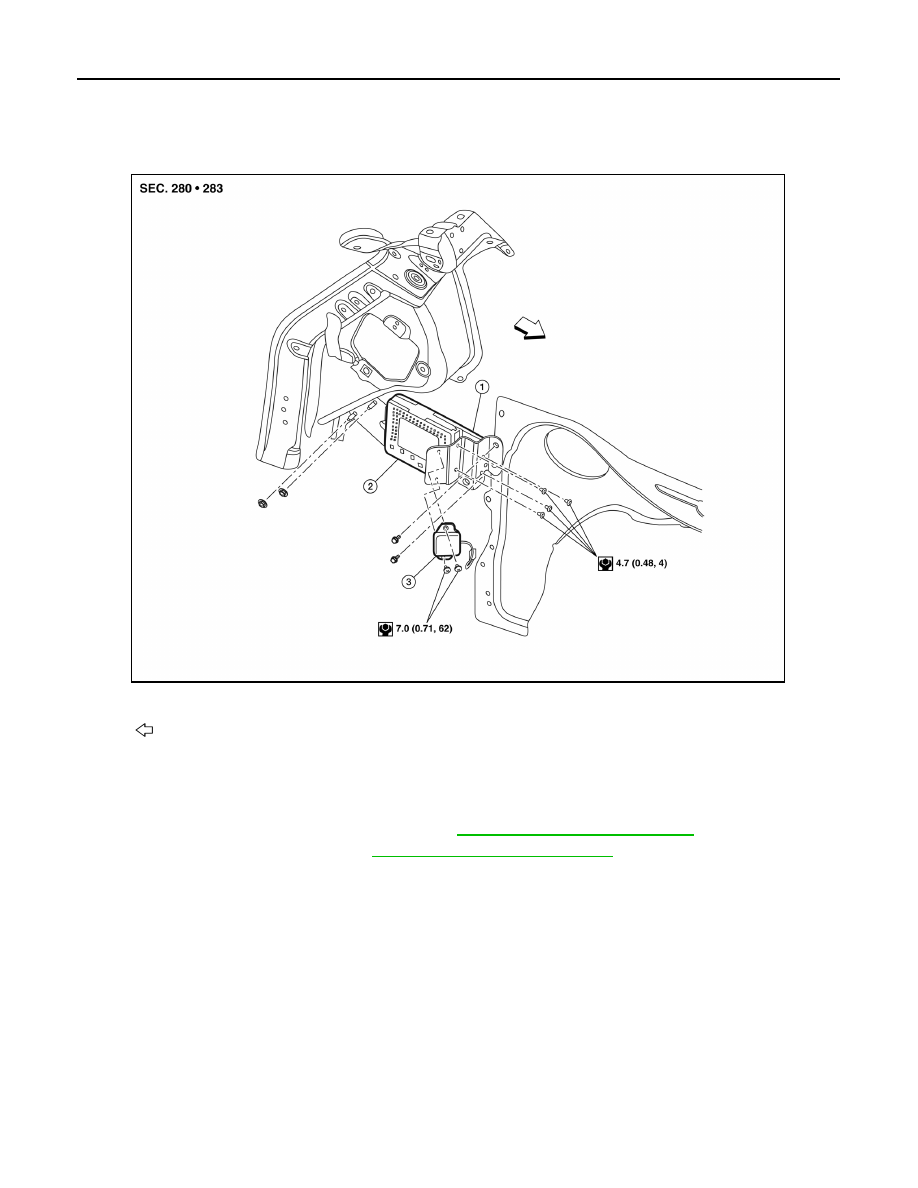

Exploded View

INFOID:0000000009174640

Removal and Installation

INFOID:0000000009174641

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

.

2. Remove satellite radio tuner. Refer to

AV-384, "Removal and Installation"

3. Disconnect the harness connectors from bluetooth control unit.
4. Remove bluetooth control unit screws and the bluetooth control unit.
5. Remove the bluetooth antenna screws and the bluetooth antenna.

INSTALLATION

Installation is in the reverse order of removal.

1.

Bluetooth control unit

2.

Satellite radio tuner (if equipped) 3.

Bluetooth antenna

Front
