INSTRUMENT PANEL SPEAKER/TWEETER

Removal and Installation

INFOID:0000000009763208

REMOVAL

1. Remove instrument panel tweeter grille. Refer to

IP-14, "Exploded View"

.

2. Remove the bolts (A), then pull out the instrument panel tweeter

(1).

3. Disconnect the harness connector from the instrument panel

tweeter (1) and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1423ZZ

AV-376

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

CENTER SPEAKER

CENTER SPEAKER

Removal and Installation

INFOID:0000000009174632

REMOVAL

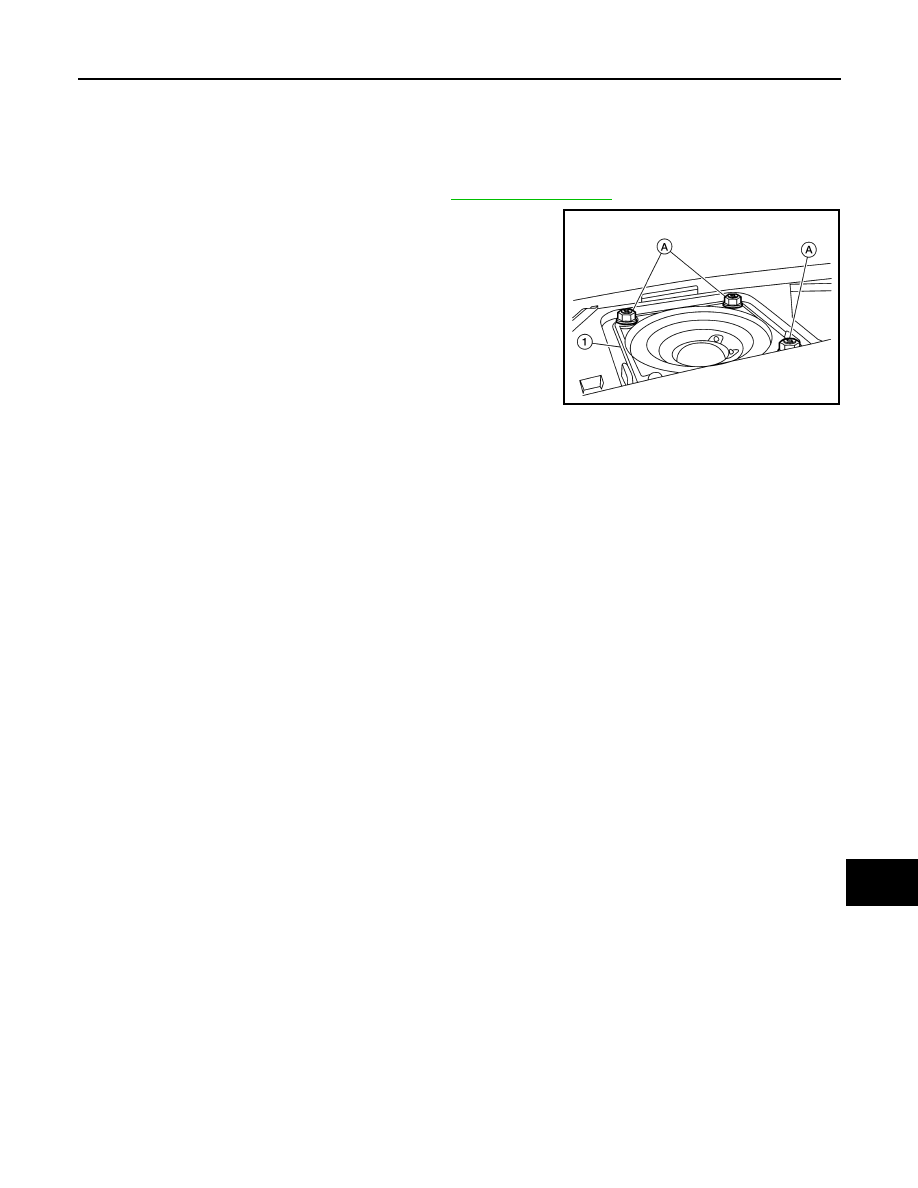

1. Remove center speaker grille. Refer to

IP-14, "Exploded View"

.

2. Remove the center speaker bolts (A).
3. Pull out the center speaker (1).
4. Disconnect the harness connector from the center speaker and

remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1196ZZ

AV

REAR DOOR SPEAKER

AV-377

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

REAR DOOR SPEAKER

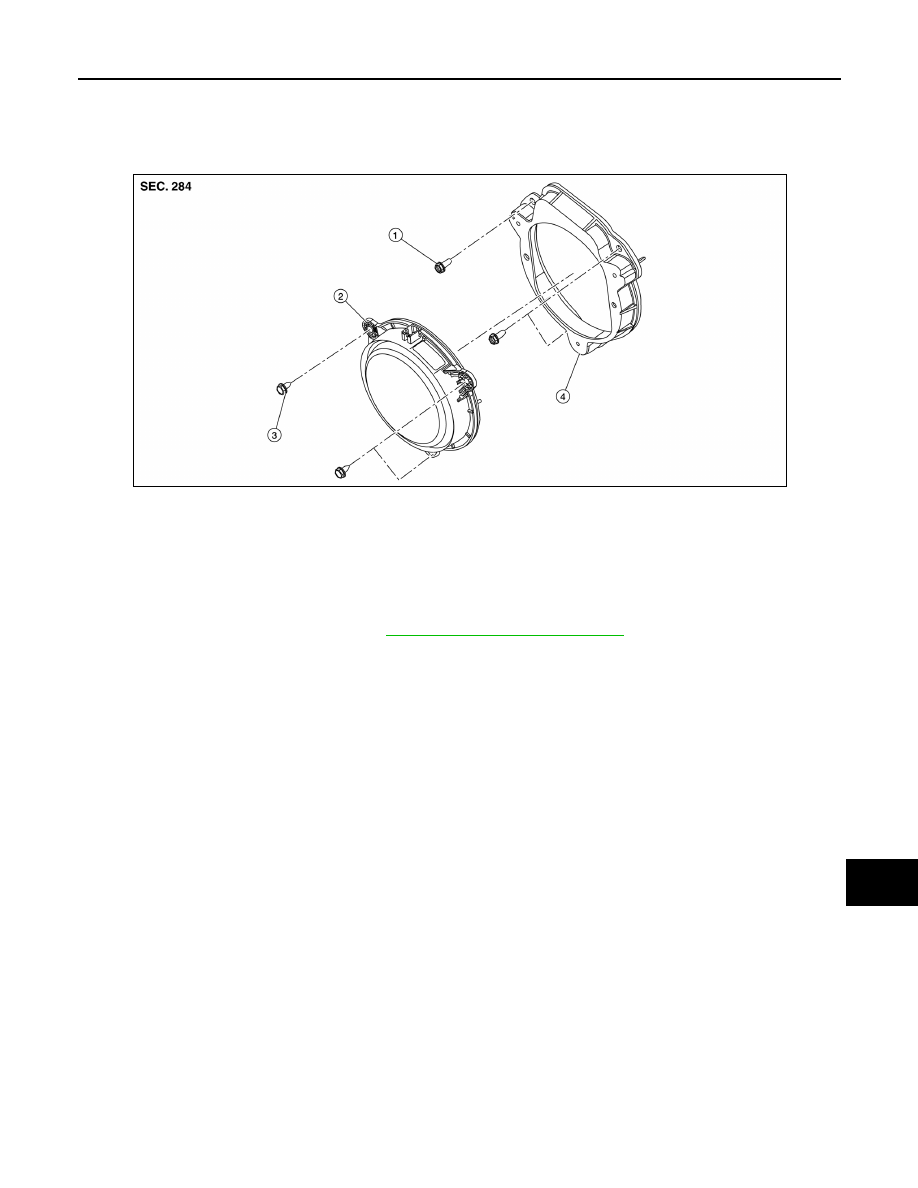

Exploded View

INFOID:0000000009763210

Removal and Installation

INFOID:0000000009763209

REMOVAL

1. Remove the rear door finisher. Refer to

INT-17, "Removal and Installation"

.

2. Remove the rear door speaker bolts.
3. Disconnect the harness connector from the rear door speaker and remove.
4. Remove the speaker bracket bolts and the speaker bracket from the rear door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1. Speaker bracket bolt

2. Rear door speaker

3. Speaker bolt

4. Speaker bracket

ALNIA1330ZZ

AV-378

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

REAR SPEAKERS

REAR SPEAKERS

Removal and Installation

INFOID:0000000009174635

REMOVAL

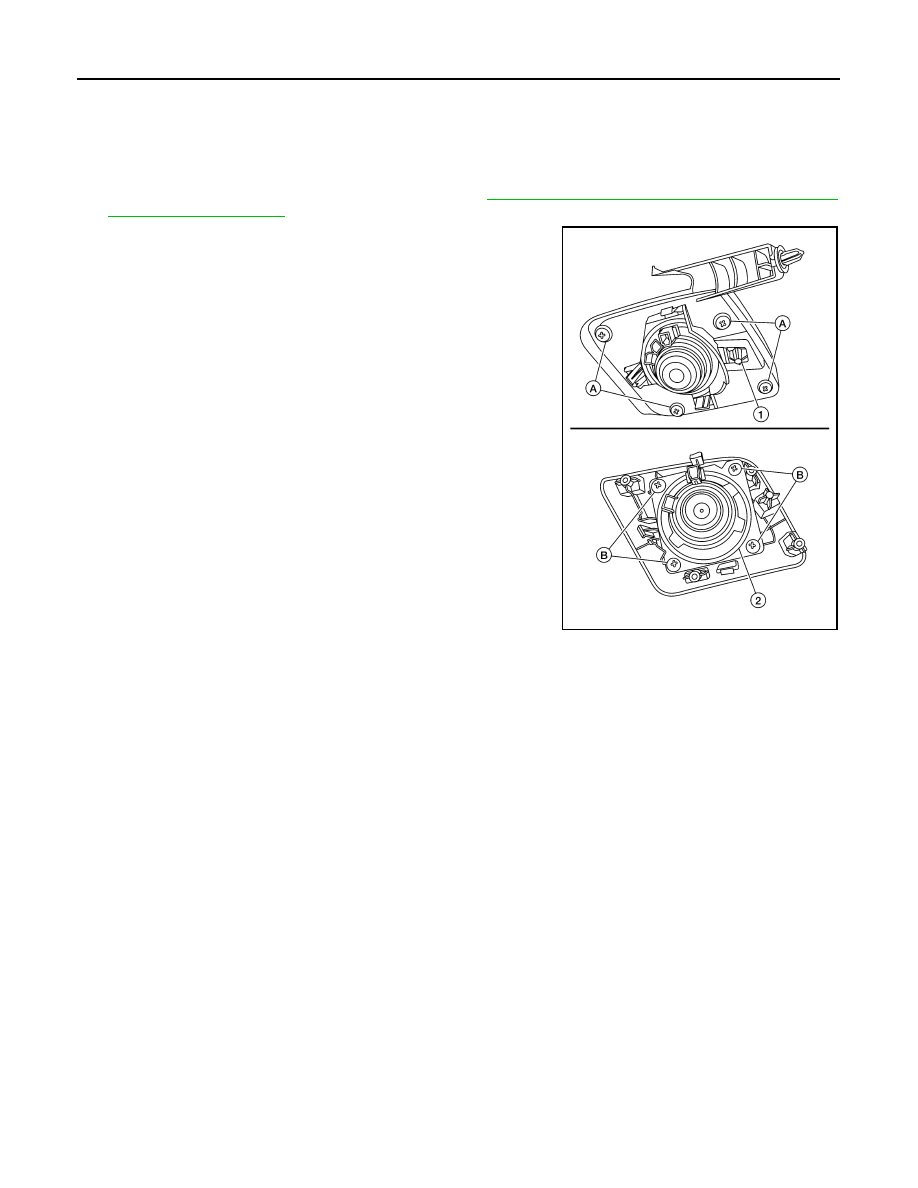

1. Remove the luggage side lower finisher. Refer to

INT-31, "LUGGAGE SIDE LOWER FINISHER :

Removal and Installation"

.

2. Remove rear side speaker screws (A), then remove the rear

side and grille assembly (1) from the luggage side lower finisher.

3. Remove the screws (B) from the rear side speaker grille, then

remove the rear side speaker (2).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1428ZZ
