AV

A/C AND AV SWITCH ASSEMBLY

AV-367

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

A/C AND AV SWITCH ASSEMBLY

Removal and Installation

INFOID:0000000009763203

REMOVAL

1. Remove cluster lid C lower. Refer to

IP-22, "CLUSTER LID C LOWER : Removal and Installation"

.

2. Remove the A/C and AV switch assembly lower screws.
3. Release upper pawls and remove A/C and AV switch assembly.

INSTALLATION

Installation is in the reverse order of removal.

AV-368

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

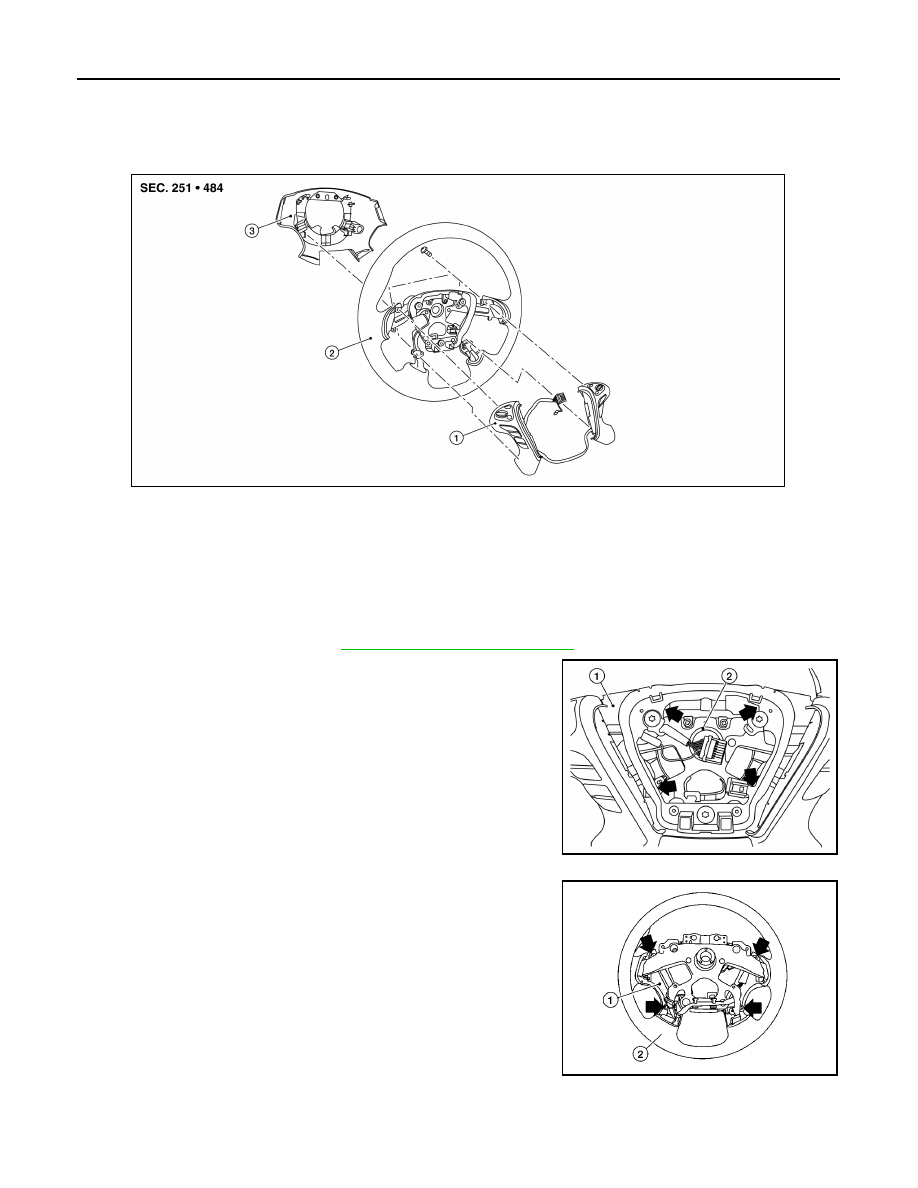

STEERING SWITCH

STEERING SWITCH

Exploded View

INFOID:0000000009174622

Removal and Installation

INFOID:0000000009174623

REMOVAL

NOTE:

The steering switches are serviced as an assembly.
1. Remove steering wheel. Refer to

ST-44, "Removal and Installation"

.

2. Release pawls and remove steering wheel rear finisher (1) from

steering wheel (2).

3. Remove steering switches screws.
4. Remove steering switches (1) from steering wheel (2).

INSTALLATION

Installation is in the reverse order of removal.

1.

Steering switches

2.

Steering wheel

3.

Steering wheel rear finisher

ALOIA0025ZZ

ALOIA0026ZZ

ALOIA0027ZZ

AV

DISPLAY UNIT

AV-369

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

C

D

E

F

G

H

I

J

K

L

M

B

A

O

P

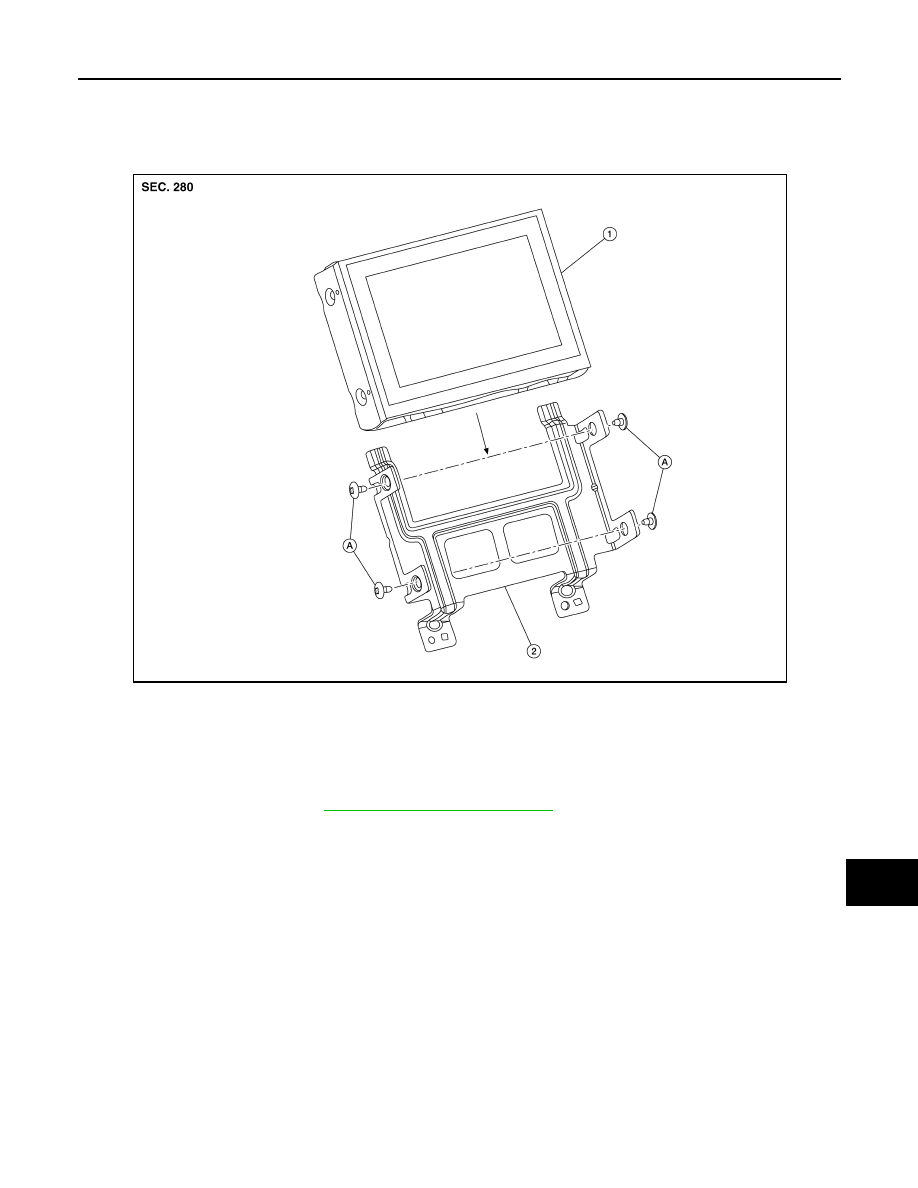

DISPLAY UNIT

Exploded View

INFOID:0000000009763205

Removal and Installation

INFOID:0000000009763204

REMOVAL

1. Remove cluster lid D. Refer to

IP-24, "Removal and Installation"

.

2. Remove the display unit screws, then pull out the display unit and bracket.
3. Disconnect the harness connector from the display unit and remove.
4. Remove the display unit bracket screws and the display unit from the display unit bracket (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

1.

Display unit

2.

Display unit bracket

A. Display unit bracket screws

ALNIA1430ZZ

AV-370

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

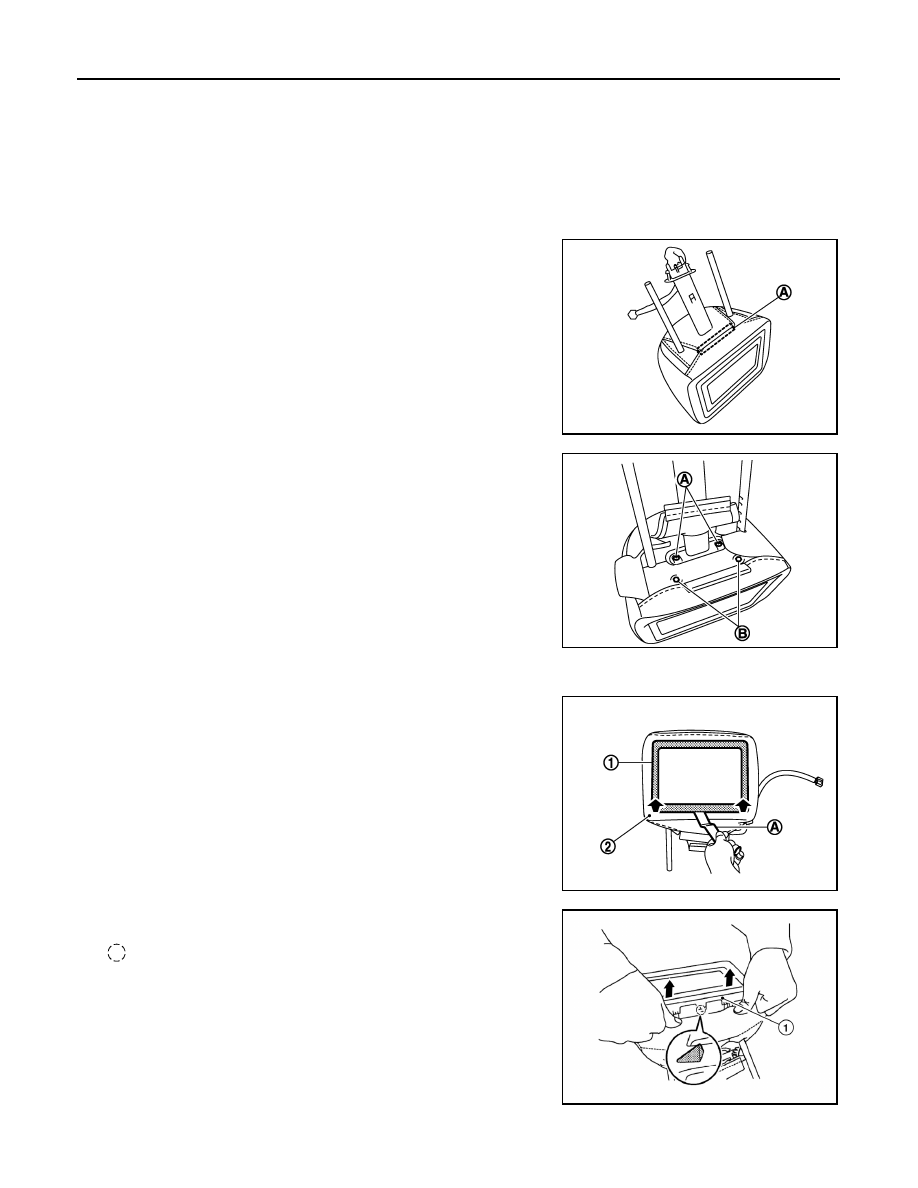

HEADREST DISPLAY UNIT

HEADREST DISPLAY UNIT

Removal and Installation

INFOID:0000000009174626

REMOVAL

CAUTION:

• Do not press on the panel surface of display (glass area).

• Do not press or pull out the movable part of display.
1. Remove the headrest trim retainer (A).

2. Remove the headrest display harness and upper tube screws

(A), then remove headrest display unit bolts (B).

3. Remove the headrest display escutcheon and headrest display.
a. Insert a suitable tool (A) between lower side of headrest display

escutcheon (1) and headrest trim (2) and pull out lower side of

escutcheon.

b. Pull out headrest display escutcheon (1) to the position that pawl

is visible and disengage pawl.

: Pawl

c.

Pull out lower side of headrest display escutcheon from headrest.

JMJIA4069ZZ

JMJIA4070ZZ

JMJIA4071ZZ

AWNIA2554ZZ
