HEADREST DISPLAY UNIT

AV-371

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

CAUTION:

Be careful not to damage pawls on upper side headrest display escutcheon.

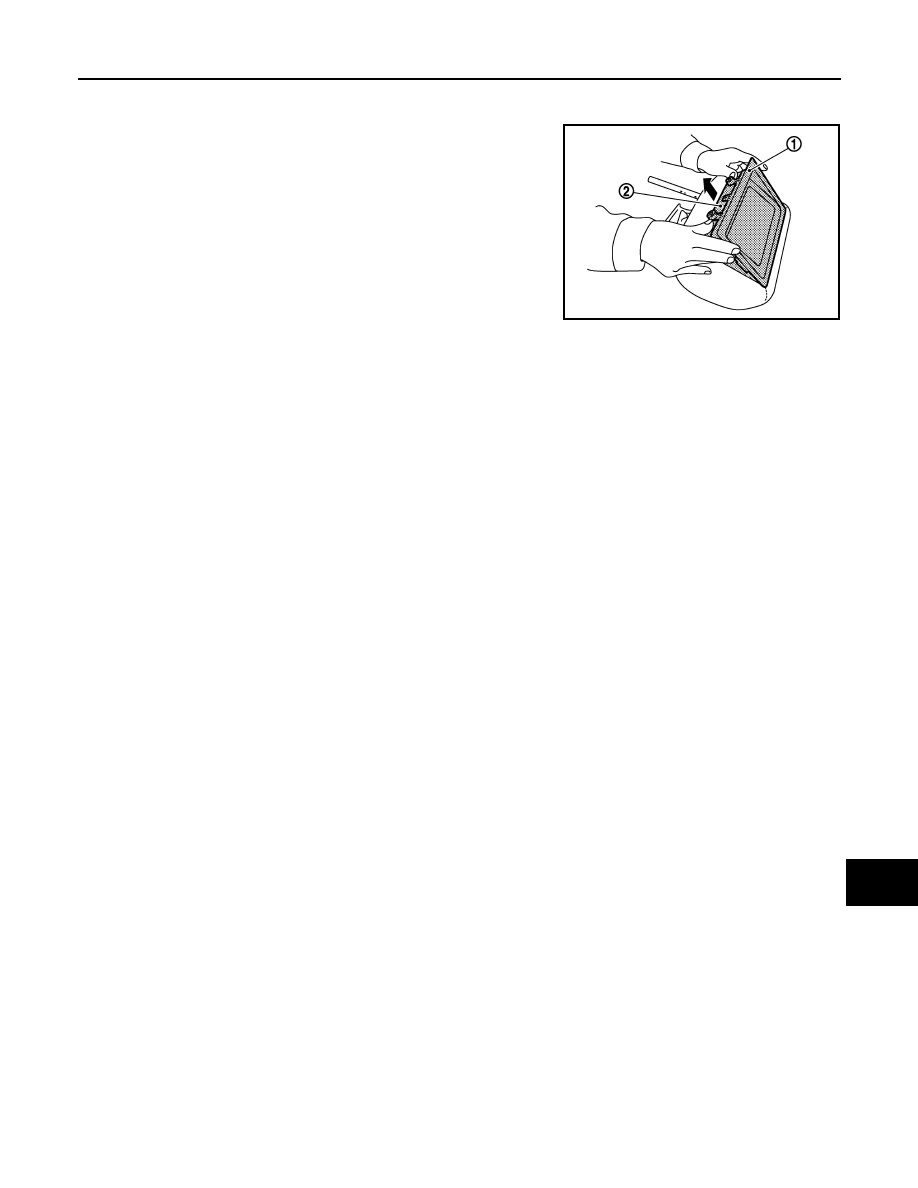

d. Pull downward and remove headrest display escutcheon (1) and

headrest display unit (2) by pulling them out and removing pins

on upper side of display.

e. Disconnect inner harness connector.
f.

Press headrest display escutcheon to the headrest display unit side. Disconnect pawls on upper side and

remove headrest display escutcheon.

4. Remove the headrest display harness upper tube from headrest trim.

INSTALLATION

Installation is in the reverse order of removal.

JMJIA4233ZZ

AV-372

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

BOSE SPEAKER AMP

BOSE SPEAKER AMP

Removal and Installation

INFOID:0000000009174627

REMOVAL

1. Disconnect the negative battery terminal. Refer to

PG-90, "Removal and Installation"

2. Remove third row seat. Refer to

SE-107, "Removal and Installation"

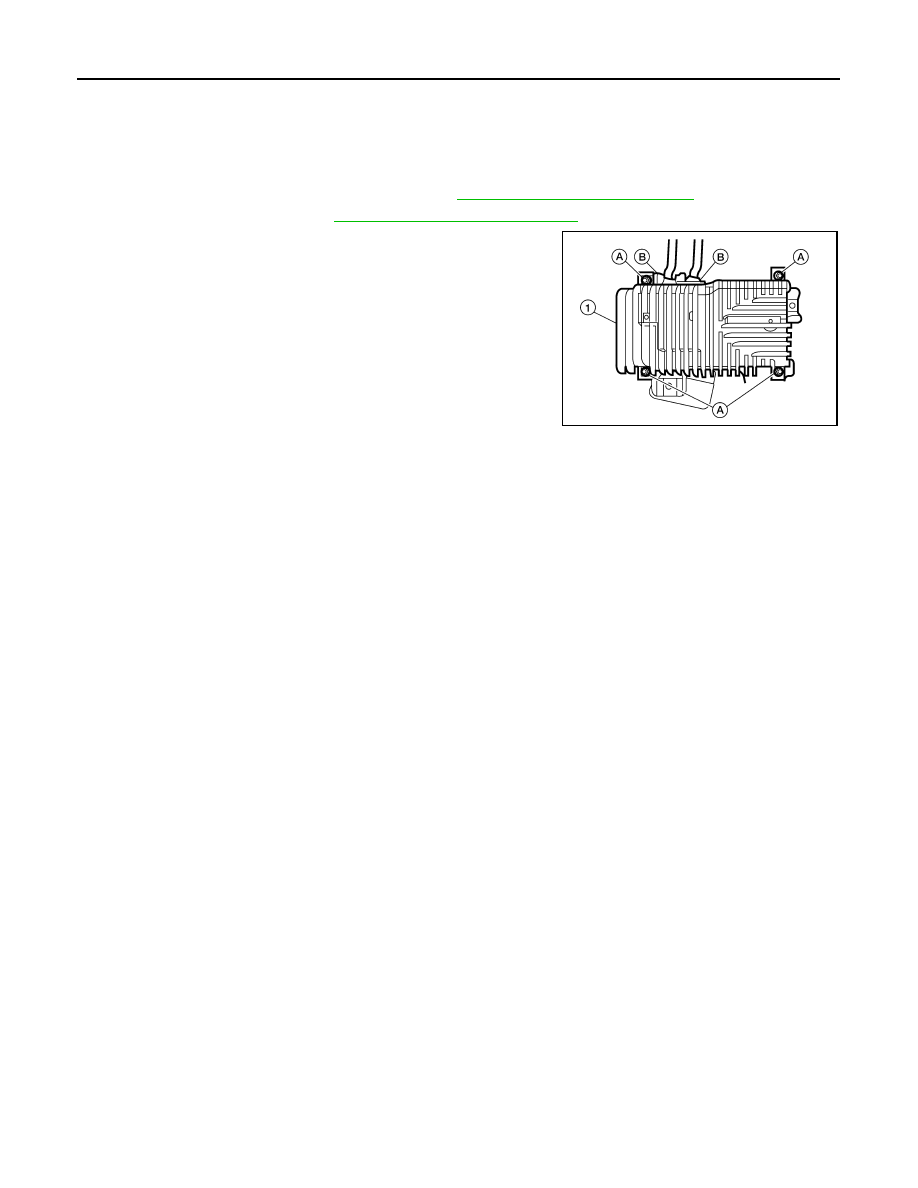

3. Remove Bose speaker amp screws (A).
4. Disconnect the harness connectors (B) from the Bose speaker

amp. and remove.

INSTALLATION

Installation is in the reverse order of removal.

ALNIA0918ZZ

FRONT DOOR SPEAKER

AV-373

< REMOVAL AND INSTALLATION >

[MID AUDIO WITH BOSE]

FRONT DOOR SPEAKER

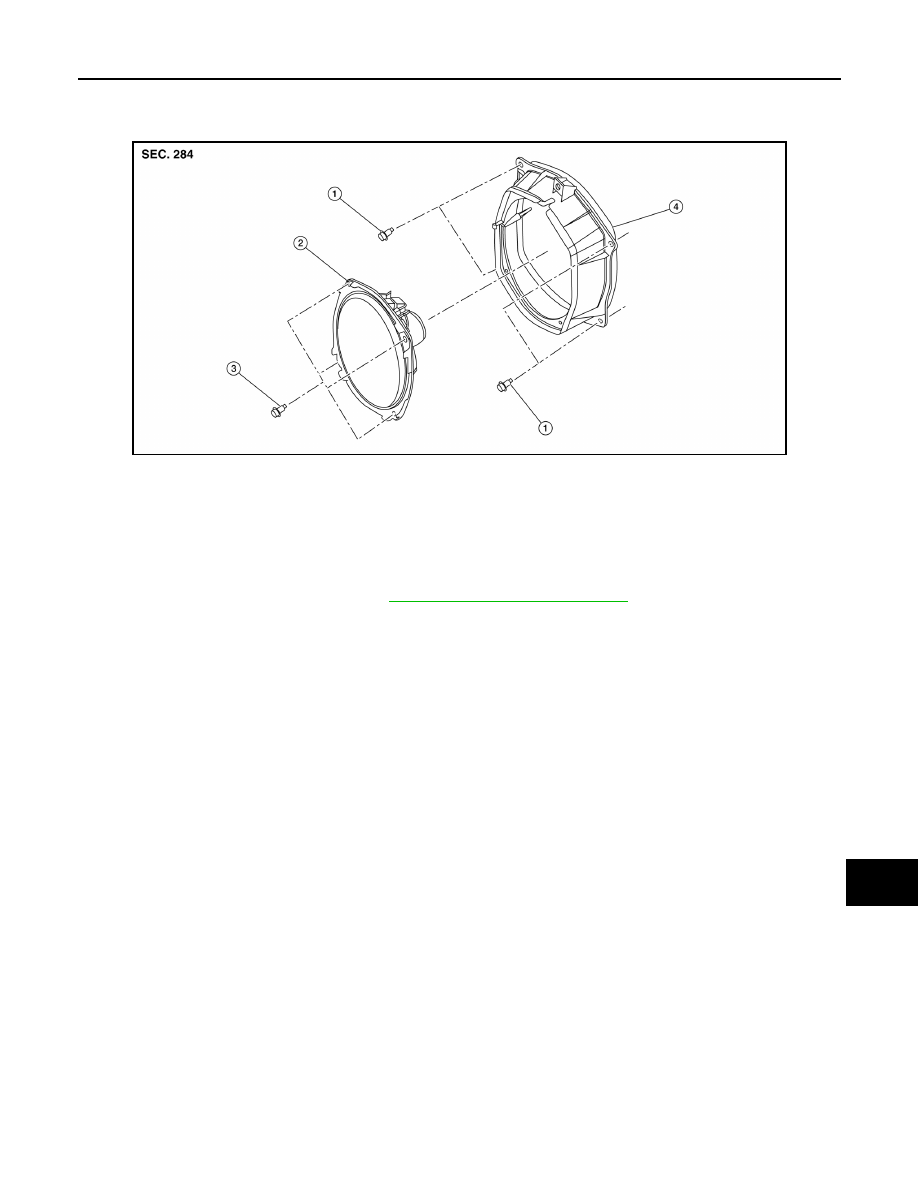

Exploded View

INFOID:0000000009763207

Removal and Installation

INFOID:0000000009763206

REMOVAL

1. Remove the front door finisher. Refer to

INT-15, "Removal and Installation"

2. Remove the front door speaker bolts.
3. Pull out the front door speaker from the speaker bracket.
4. Disconnect the harness connector from front door speaker and remove.
5. Remove the speaker bracket bolts and the speaker bracket from front door (if necessary).

INSTALLATION

Installation is in the reverse order of removal.

ALNIA1329ZZ

1. Speaker bracket bolt

2. Front door speaker

3. Speaker bolt

4. Speaker bracket
