SE-106

< REMOVAL AND INSTALLATION >

SECOND ROW SEATS

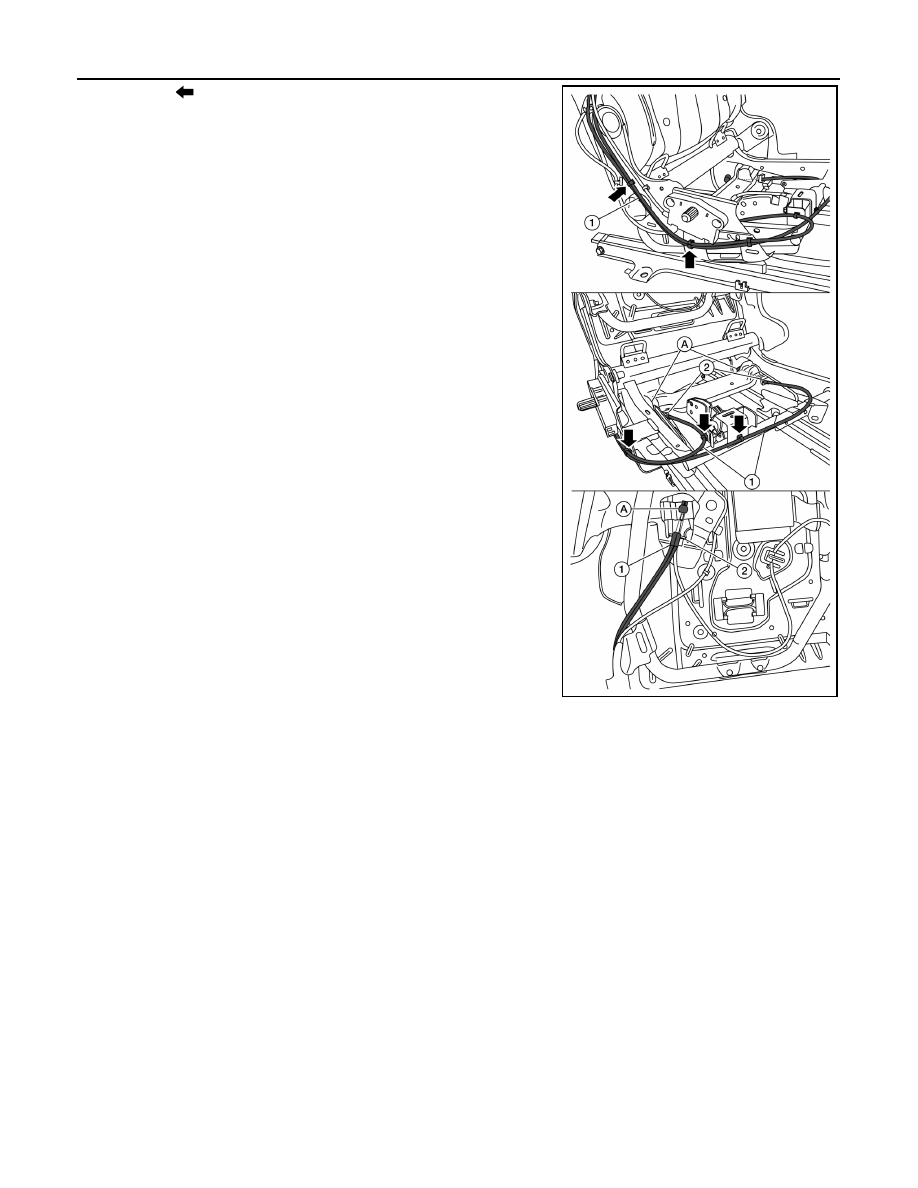

2. Release (

) the track tilt release cable (1) from the seat frame

assembly.

CAUTION:

Note the cable routing for correct installation.

3. Remove the track tilt release cable (1) from the seat frame

assembly (2) and release cable ends (A).

4. Remove the track tilt release cable (1).

Installation

Installation is in the reverse order of removal.

CAUTION:

Route cables correctly for proper function.

ALJIA0880ZZ

THIRD ROW SEATS

SE-107

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

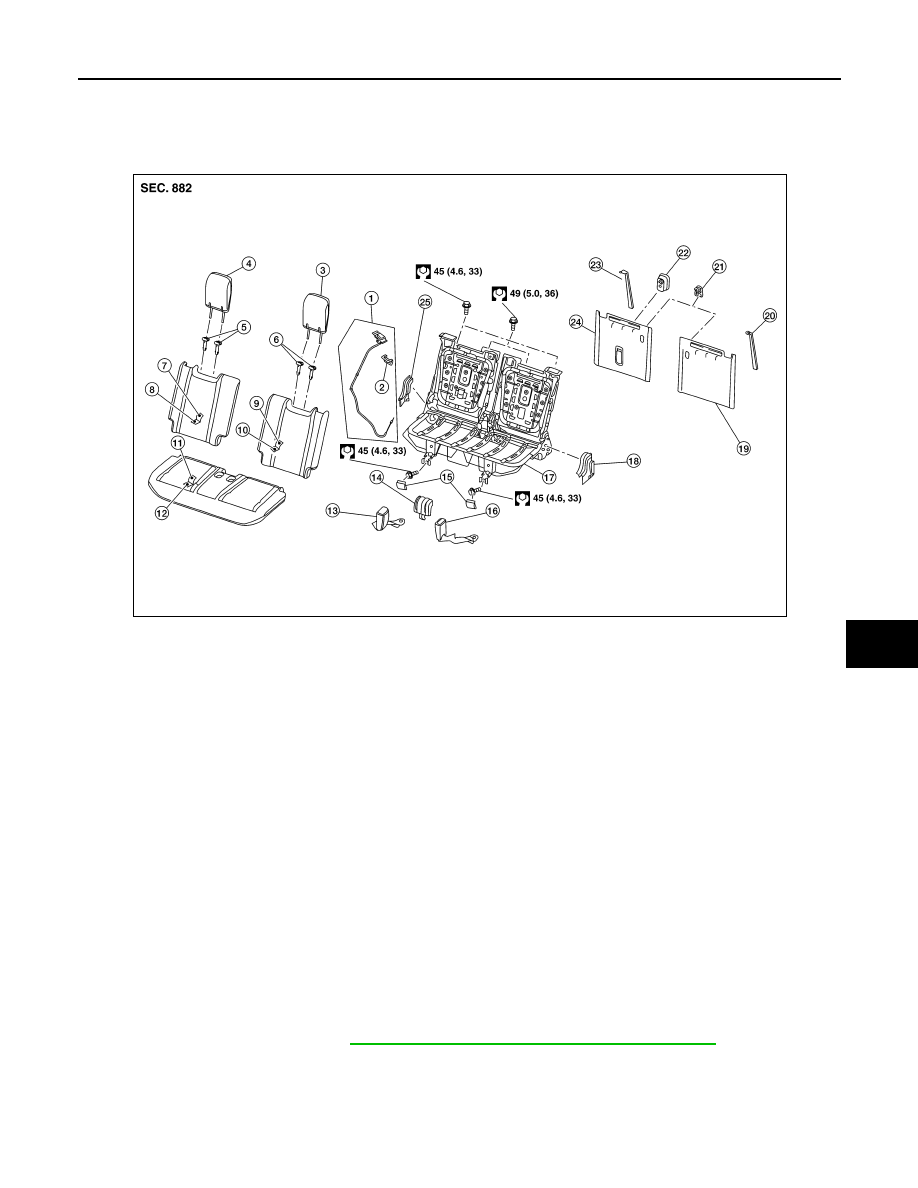

THIRD ROW SEATS

Exploded View

INFOID:0000000009727787

Removal and Installation

INFOID:0000000009727788

CAUTION:

• Before removal and installation, use shop cloths to protect parts from damage.

• During removal and installation, an assistant is required to protect against injury or damage.

REMOVAL

1. Release the pawls and remove the seat bolt finishers.
2. Remove the seat front bolts.
3. Pull the seatback release lever and fold down the seatbacks (LH/RH).
4. Remove the storage box. Refer to

INT-33, "STORAGE BOX : Removal and Installation"

.

5. Remove the four bolts, then remove the jack and jack bracket as an assembly.

1.

Seatback release lever and cable
(LH/RH)

2.

Seatback release lever finisher (LH/
RH)

3.

Headrest (LH)

4.

Headrest (RH)

5.

Headrest holders (RH)

6.

Headrest holders (LH)

7.

Seatback trim (RH)

8.

Seatback pad (RH)

9.

Seatback trim (LH)

10. Seatback pad (LH)

11. Seat cushion trim

12. Seat cushion pad

13. Seat belt buckle (RH)

14. Seat hinge finisher (center)

15. Seat bolt finisher

16. Seat belt buckle (LH)

17. Seat frame assembly

18. Seat hinge finisher (LH)

19. Seatback board (LH)

20. Seatback pull strap (LH)

21. Seatback cargo hook

22. Tether anchor finisher

23. Seatback pull strap (RH)

24. Seatback board (RH)

25. Seatback hinge finisher (RH)

AWJIA1017ZZ

SE-108

< REMOVAL AND INSTALLATION >

THIRD ROW SEATS

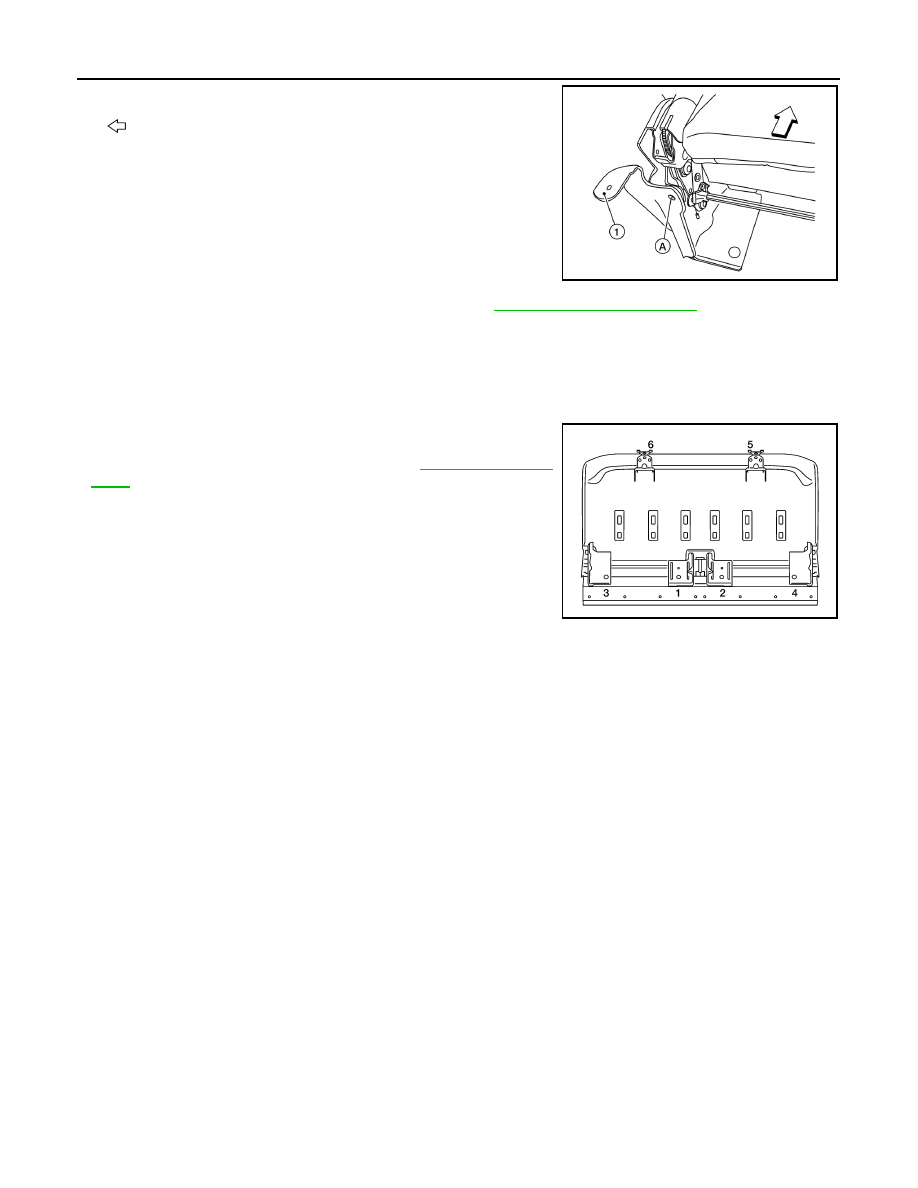

6. Release the clip (A) and remove the rear side cover (1).

LH side shown, RH side similar

: Front

7. Remove the two seat belt buckle anchor bolts. Refer to

SB-17, "Third Row Seat Belt"

.

8. Remove the seat rear bolts.
9. Remove the third row seat from the vehicle.

INSTALLATION

Installation is in the reverse order of removal.

NOTE:

• When installing the third row seat, tighten the bolts in the order

shown.

• Tighten the seat bolts to specification. Refer to

SE-107, "Exploded

View"

.

ALJIA0839ZZ

AWJIA1016ZZ

FRONT SEAT

SE-109

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

UNIT DISASSEMBLY AND ASSEMBLY

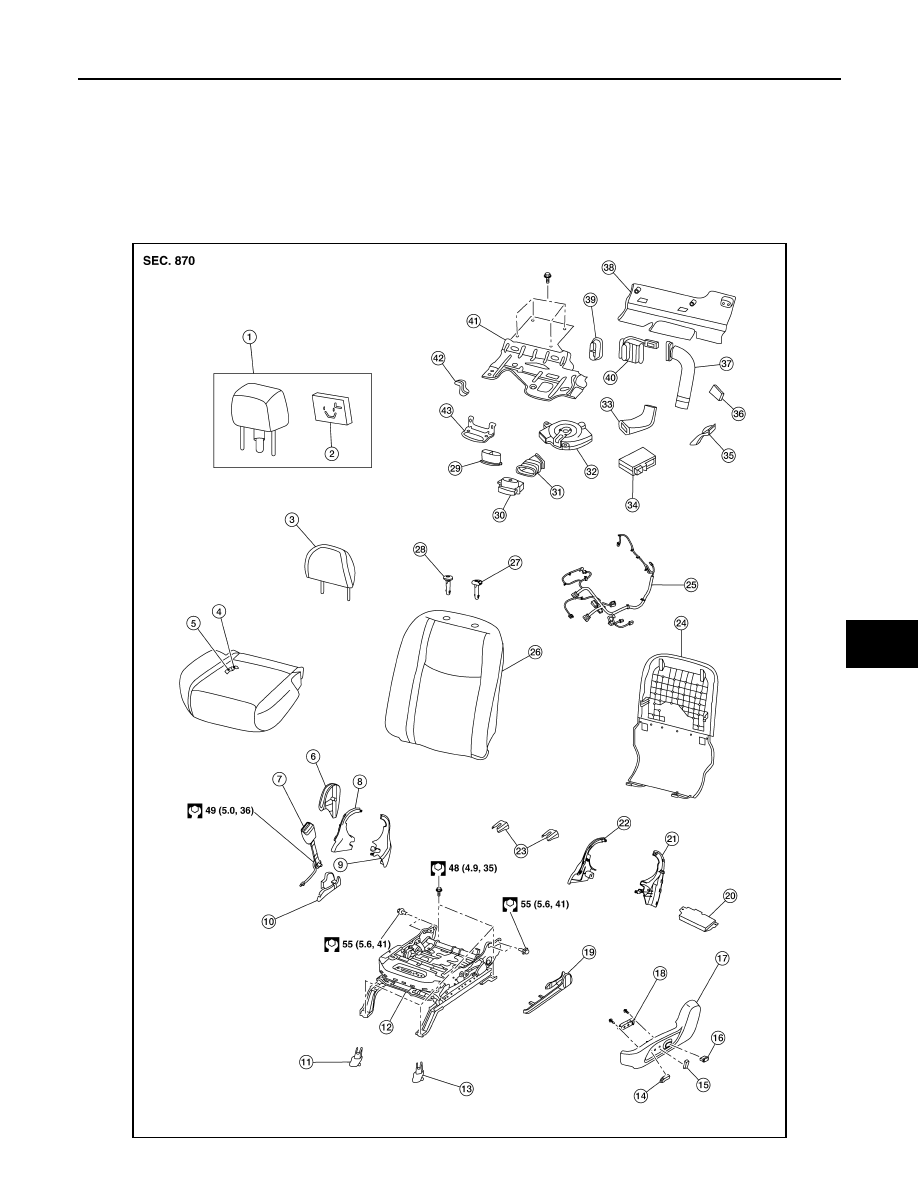

FRONT SEAT

Exploded View

INFOID:0000000009727789

DRIVER SEAT WITH CLIMATE CONTROL

AWJIA0997ZZ
