SECOND ROW SEATS

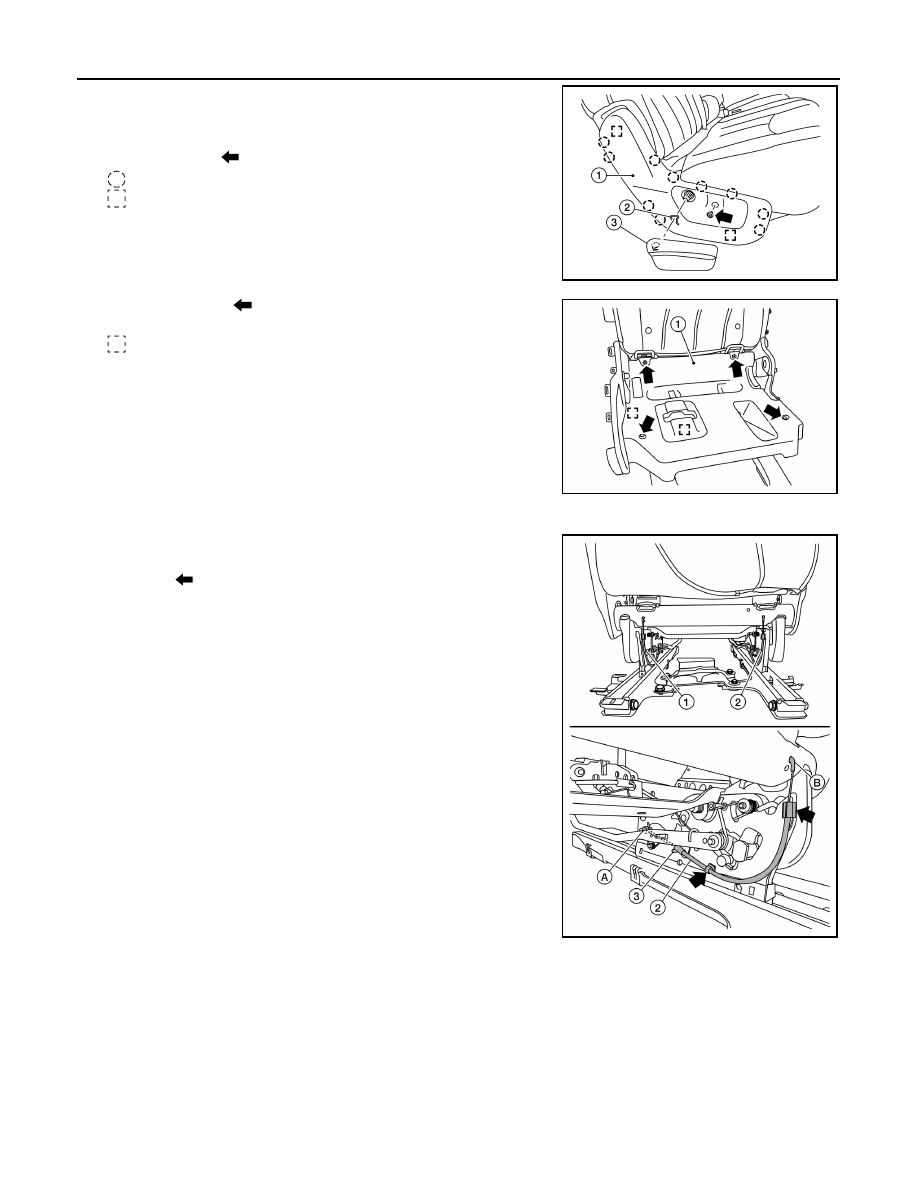

2. Remove the recline lever.
a. Remove snap ring (2) upward using a suitable tool.
b. Remove recline lever (3).
3. Remove screw (

) and the seat cushion outer finisher (RH) (1).

: Pawl
: Metal clip

4. Remove screws (

) and lift seat cushion latch finisher (1) to

remove.

: Metal clip

5. Remove two screws and the rear finisher.
6. Remove the seat slide release cable (1) or (2) as necessary,

from the seat frame assembly (3).

a. Release (

) the seat slide release cable (1).

CAUTION:

Note the cable routing for correct installation.

b. Separate the seat slide release cable (1) from the seat frame

assembly (3).

c.

Release cable end (A) and remove the seat slide release cable

(1)

Installation

Installation is in reverse order of removal.

CAUTION:

Route cables correctly for proper function.

Recline Release Cable Assembly

INFOID:0000000009727784

LH SEAT

Removal

AWJIA0956ZZ

ALJIA0856ZZ

ALJIA0869ZZ

SECOND ROW SEATS

SE-103

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1. Remove the LH seat seatback. Refer to

SE-126, "LH SEAT : Seatback"

.

NOTE:

It is not necessary to separate the seatback trim from the seatback pad.

2. Remove screws (A).
3. Release (

) the recline release cable assembly from the seat

frame assembly.

CAUTION:

Note the cable routing for correct installation.

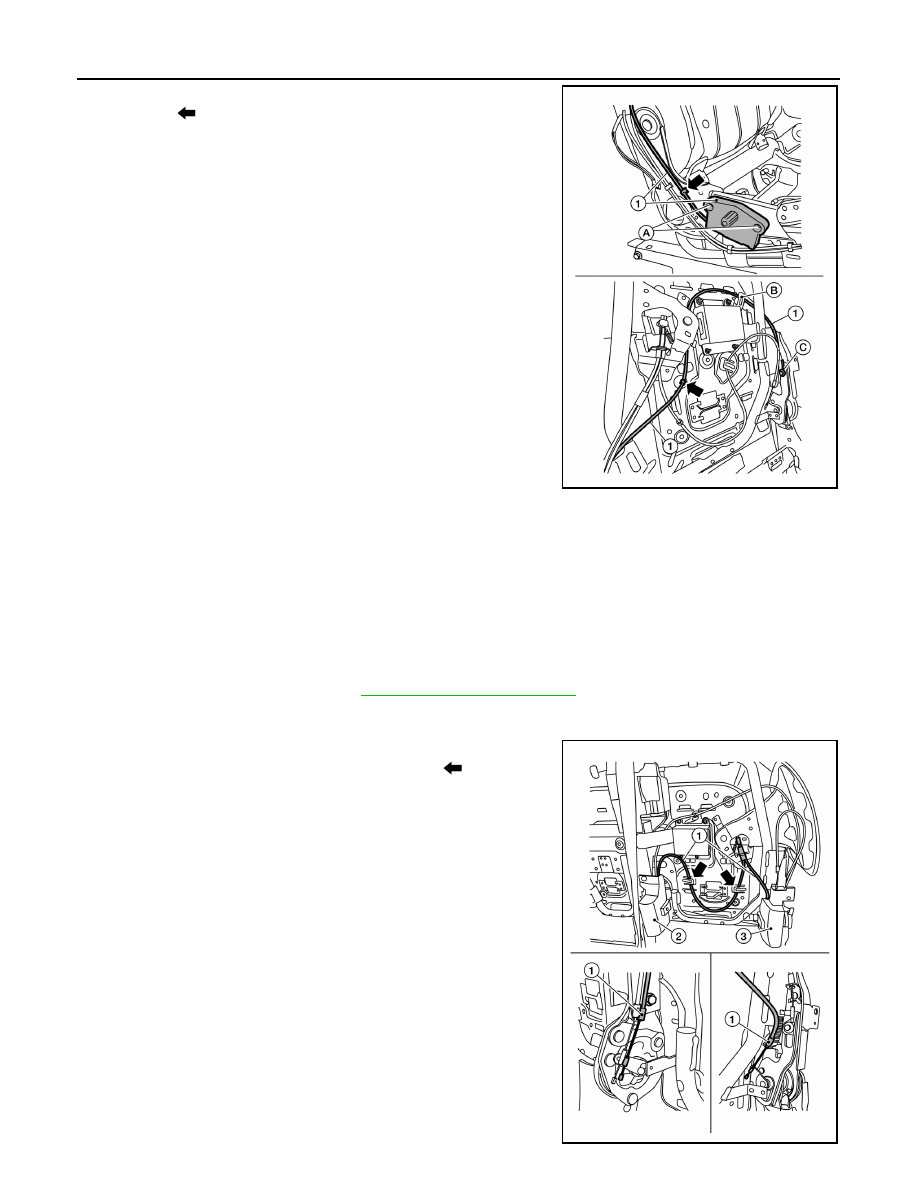

4. Remove the support finishers (2) and (3).
5. Remove the recline release cable assembly (1) from the RH

side.

6. Remove the recline release cable assembly (1) from the LH

side.

Installation

Installation is in the reverse order of removal.

CAUTION:

Route cables correctly for proper function.

RH SEAT

Removal

1. Remove the RH seat seatback. Refer to

SE-129, "RH SEAT : Seatback"

.

NOTE:

It is not necessary to separate the seatback trim from the seatback pad.

2. Remove the support finisher.

ALJIA0878ZZ

ALJIA0877ZZ

SE-104

< REMOVAL AND INSTALLATION >

SECOND ROW SEATS

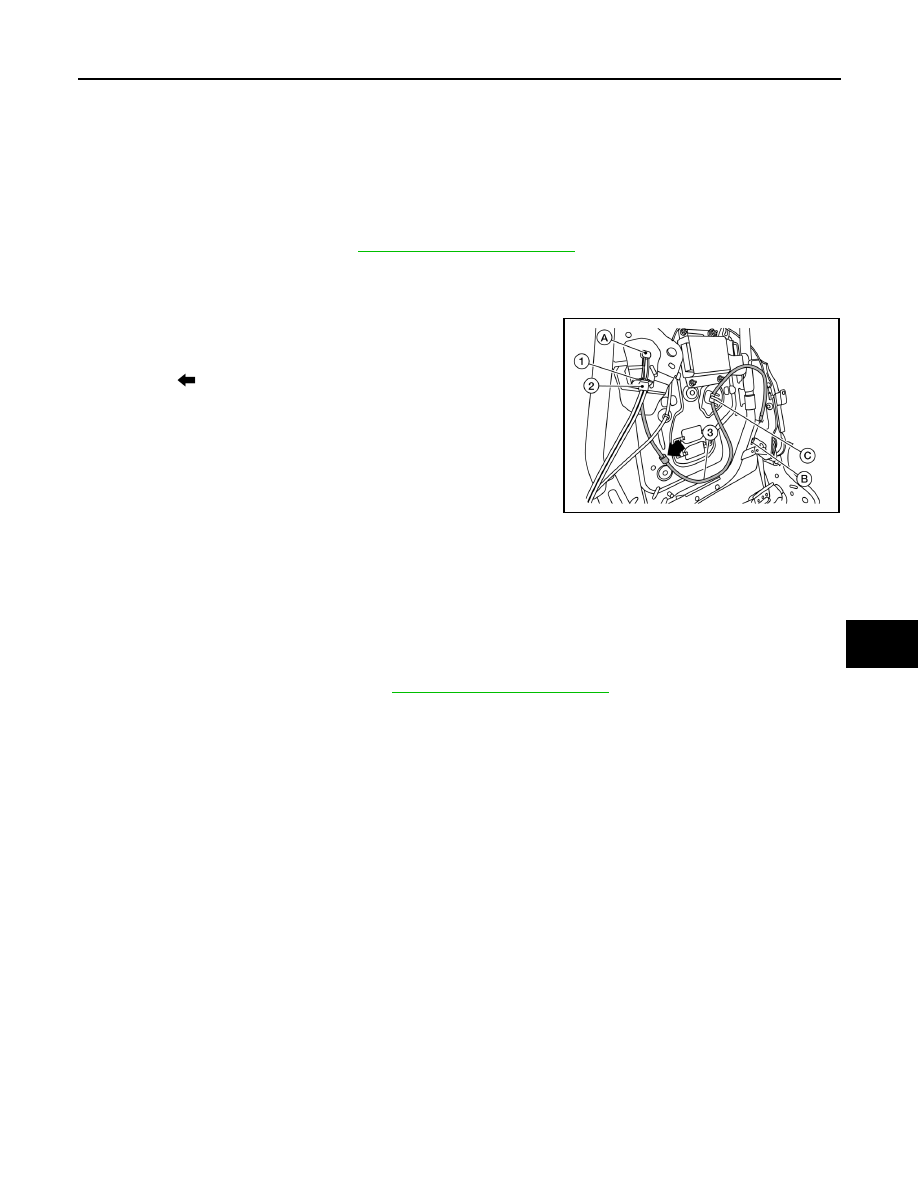

3. Remove the recline release cable assembly screws (A).
4. Release (

) the recline release cable assembly (1) from the

seat frame assembly.

CAUTION:

Note the cable routing for correct installation.

5. Remove the recline release cable assembly (1) from routing

guide (B).

6. Remove the recline release cable assembly end (C) and the

recline release cable assembly (1).

Installation

Installation is in the reverse order of removal.

CAUTION:

Route cables correctly for proper function.

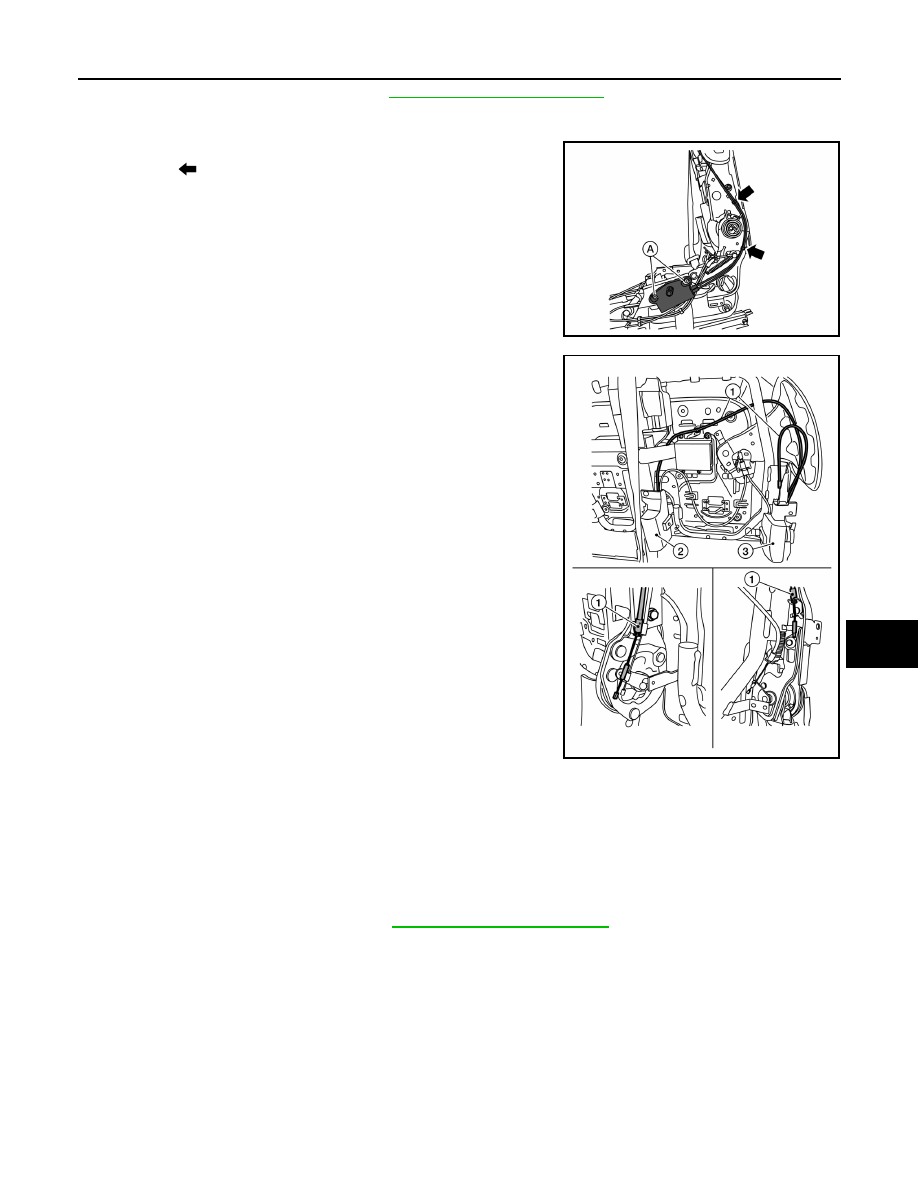

EZ Entry Cable

INFOID:0000000009727785

LH SEAT

Removal

1. Remove LH seat seatback. Refer to

SE-126, "LH SEAT : Seatback"

.

NOTE:

It is not necessary to separate the seatback trim from the seatback pad.

2. Remove support finishers (2) and (3).
3. Remove EZ entry cable (1) from routing guides (

).

CAUTION:

Note the cable routing for correct installation

4. Remove the EZ entry cable (1) from the RH side.
5. Remove the EZ entry cable (1) from the LH side.
6. Remove the EZ entry cable.

ALJIA0881ZZ

ALJIA0879ZZ

SECOND ROW SEATS

SE-105

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

Installation

Installation is in the reverse order of removal.

CAUTION:

Route cables correctly for proper function.

RH SEAT

Removal

1. Remove the RH seatback. Refer to

SE-129, "RH SEAT : Seatback"

.

NOTE:

It is not necessary to separate the seatback trim from the seatback pad.

2. Remove the support finisher.
3. Remove the EZ entry cable (3) from the routing guide (C).

CAUTION:

Note the cable routing for correct installation.

4. Release (

) the EZ entry cable (3) from the seat frame assem-

bly.

5. Remove the track tilt release cable (2) from the seat frame

assembly (1) and release cable end (A).

6. Remove cable end (B) and the EZ entry cable (3).

Installation

Installation is in the reverse order of removal.

CAUTION:

Route cables correctly for proper function.

RH Seat Track Tilt Release Cable

INFOID:0000000009727786

Removal

1. Remove the RH seat seatback. Refer to

SE-129, "RH SEAT : Seatback"

.

NOTE:

It is not necessary to separate the seatback trim from the seatback pad.

ALJIA0882ZZ
