SECOND ROW SEATS

1. Slide the LH seat to the full forward position and slide the RH seat to the full rearward position.
2. Remove outer finisher (LH) (1).

: Pawl
: Clip

3. Pull seat belt buckle through bottom of RH seat cushion.
4. Disconnect the harness connectors from the RH seat cushion heater (if equipped) and release the har-

ness from attachments.

NOTE:

Take note of harness routing and attachment location for correct installation.

5. Remove the support strut at bottom.
6. Remove seat cushion pivot bolt (

), then the RH seat cushion

(1).

Installation

Installation is in the reverse order of removal.

Seat Cushion Release Cable

INFOID:0000000009727782

LH SEAT

Removal

1. Remove the LH seat cushion. Refer to

SE-97, "Seat Cushion"

.

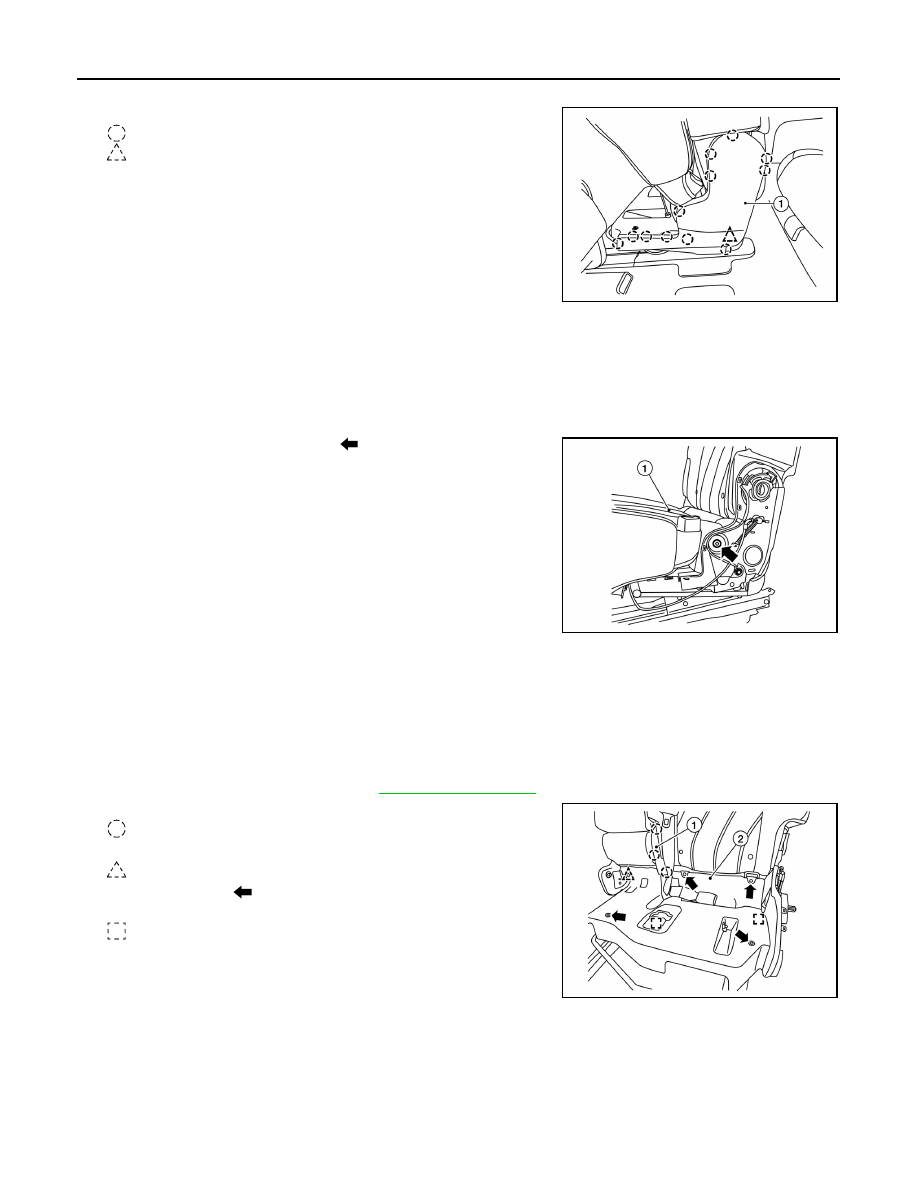

2. Release pawls and remove the recline finisher (center) (1).

: Pawl

3. Release clip.

: Clip

4. Remove screws (

) and lift seat cushion latch finisher (2) to

remove.

: Metal clip

ALJIA0852ZZ

ALJIA0853ZZ

ALJIA0854ZZ

SECOND ROW SEATS

SE-99

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

5. Remove the seat cushion release cable (1) from seat cushion

latch (2).

6. Release (

) the seat cushion release cable (1) from the seat

frame assembly (3).

CAUTION:

Note the cable routing for correct installation,

7. Release cable end (A) and remove seat cushion release cable.

Installation

Installation is in reverse order of removal.

CAUTION:

Route cables correctly for proper function.

RH SEAT

Removal

1. Remove RH seat cushion. Refer to

SE-97, "Seat Cushion"

.

2. Remove the recline lever.
a. Remove snap ring (2) upward using a suitable tool.
b. Remove recline lever (3).
3. Remove screw (

) and the seat cushion outer finisher (RH) (1).

: Pawl
: Metal clip

4. Remove screws (

) and lift seat cushion latch finisher (1) to

remove.

: Metal clip

ALJIA1109ZZ

AWJIA0956ZZ

ALJIA0856ZZ

SE-100

< REMOVAL AND INSTALLATION >

SECOND ROW SEATS

5. Release (

) the seat cushion release cable (1) from the seat

frame assembly (3).

CAUTION:

Note the cable routing for correct installation.

a. Remove the seat cushion release cable (1) from the seat cush-

ion latch (2).

b. Separate the cushion release cable (1) from the seat frame

assembly (3).

c.

Release cable end (A) and remove seat cushion release cable

(1).

Installation

Installation is in reverse order of removal.

CAUTION:

Route cables correctly for proper function.

Seat Slide Release Cable

INFOID:0000000009727783

LH SEAT

Removal

1. Remove LH seat cushion. Refer to

SE-97, "Seat Cushion"

.

2. Release pawls and remove the recline finisher (center) (1).

: Pawl

3. Release clip.

: Clip

4. Remove screws (

) and lift the seat cushion latch finisher (2) to

remove.

: Metal clip

ALJIA0876ZZ

ALJIA0854ZZ

SECOND ROW SEATS

SE-101

< REMOVAL AND INSTALLATION >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

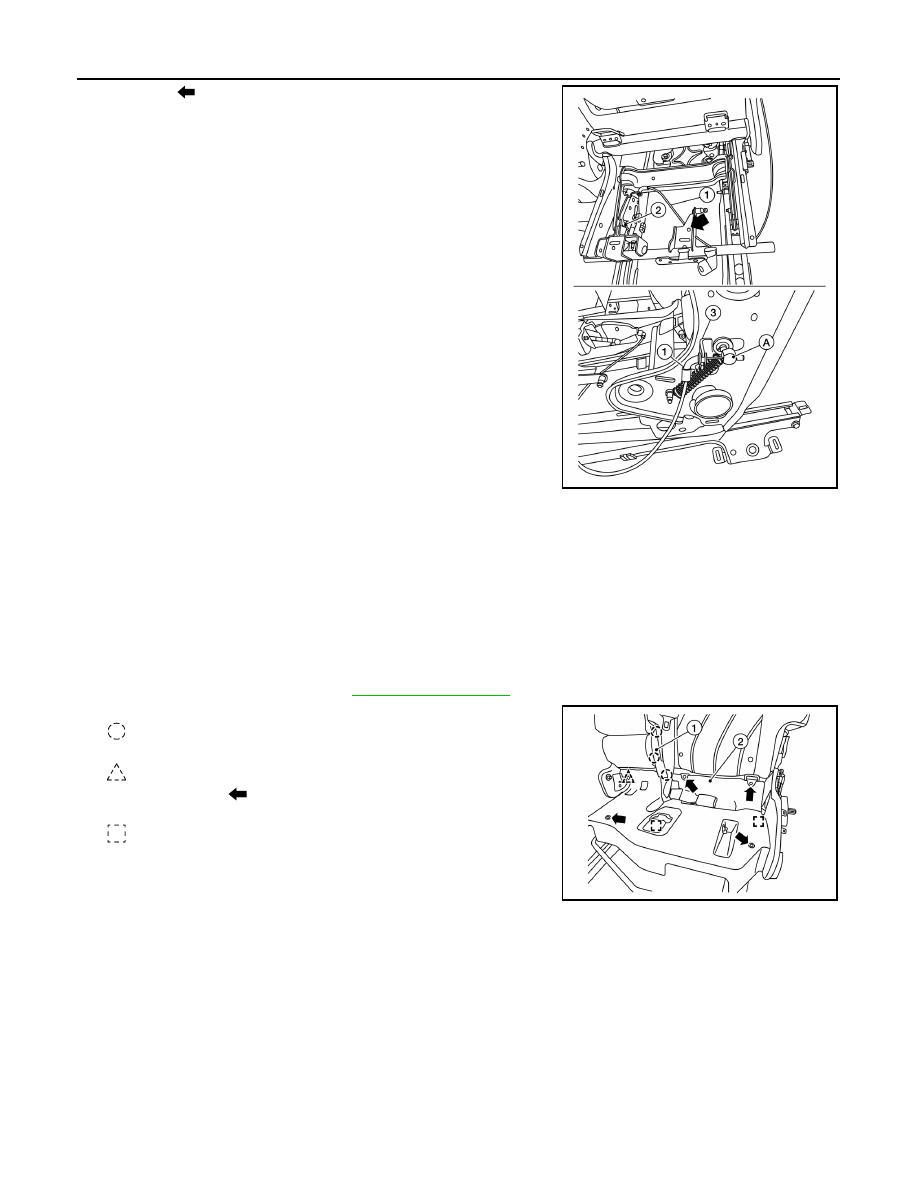

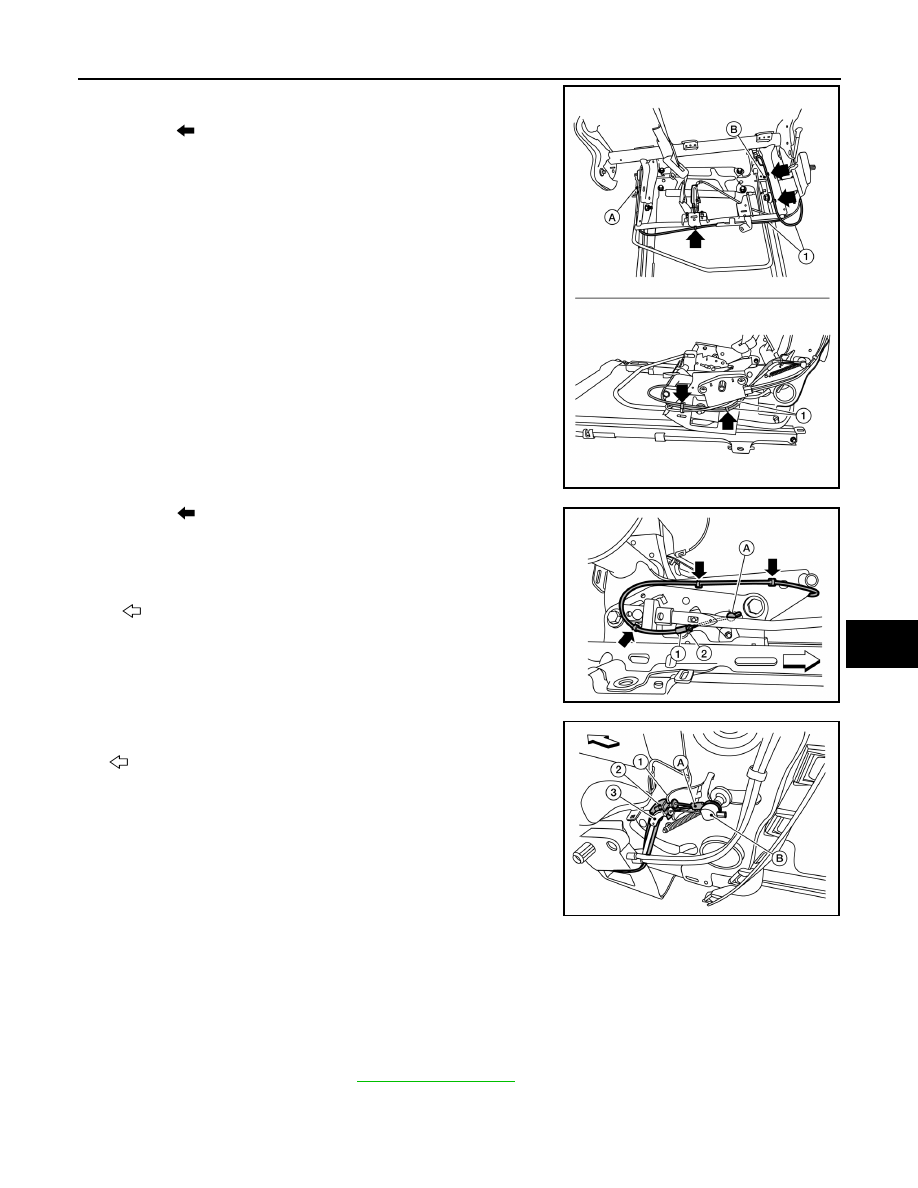

5. Remove the seat slide release cable (1) from both RH side (A)

and LH side (B) of seat frame assembly.

a. Release (

) the seat slide release cable (1) from the seat frame

assembly.

CAUTION:

Note the cable routing for correct installation.

b. Release (

) the seat slide release cable (1).

c. Separate the seat slide release cable (1) from the seat frame

assembly (2).

d. Release cable end (A).

• RH side shown, LH side similar.

: Front

6. Separate the seat cushion release cable (3) from the seat slide

release cable (2).

: Front

7. Release cable end (B) and position the seat cushion release

cable (3) aside.

8. Separate the seat slide release cable (2) from the seat frame

assembly (1).

9. Remove the seat slide release cable end (A) and the seat slide

release cable.

Installation

Installation is in reverse order of removal.

CAUTION:

Route cables correctly for proper function.

RH SEAT

Removal

1. Remove RH seat cushion. Refer to

SE-97, "Seat Cushion"

.

ALJIA1110ZZ

ALJIA1111ZZ

ALJIA0859ZZ
