FRONT SEAT

1.

Headrest assembly with display unit 2.

Headrest display unit

3.

Headrest without display unit

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion outer finisher (RH)

7.

Seat belt buckle

8.

Seat cushion inner finisher (RH)
(front)

9.

Seat cushion inner finisher (RH)
(rear)

10. Slide finisher outer (RH)

11. Front slide finisher (RH)

12. Seat frame assembly

13. Front slide finisher (LH)

14. Seat slide knob

15. Seat recline knob

16. Lumbar support switch

17. Seat cushion outer finisher (LH) 18. Power seat switch

19. Slide finisher outer (LH)

20. Power seat control unit

21. Seat cushion inner finisher (LH)

(rear)

22. Seat cushion inner finisher (LH)

(front)

23. Rear slide finisher

24. Seatback board

25. Seat harness

26. Seatback assembly

27. Headrest holder (locked)

28. Headrest holder (free)

29. Thermal electric device nozzle

30. Seat cushion thermal electric de-

vice

31. Lower blower duct

32. Blower motor with filter

33. Angle duct

34. Climate controlled seat control unit

35. Thermal electric device clip

36. Upper blower duct clip

37. Upper blower duct

38. Lower rear cover

39. Thermal electric device nozzle

40. Seatback thermal electric device

41. Blower motor bracket

42. Thermal electric device harness

bracket

43. Thermal electric device bracket

FRONT SEAT

SE-111

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

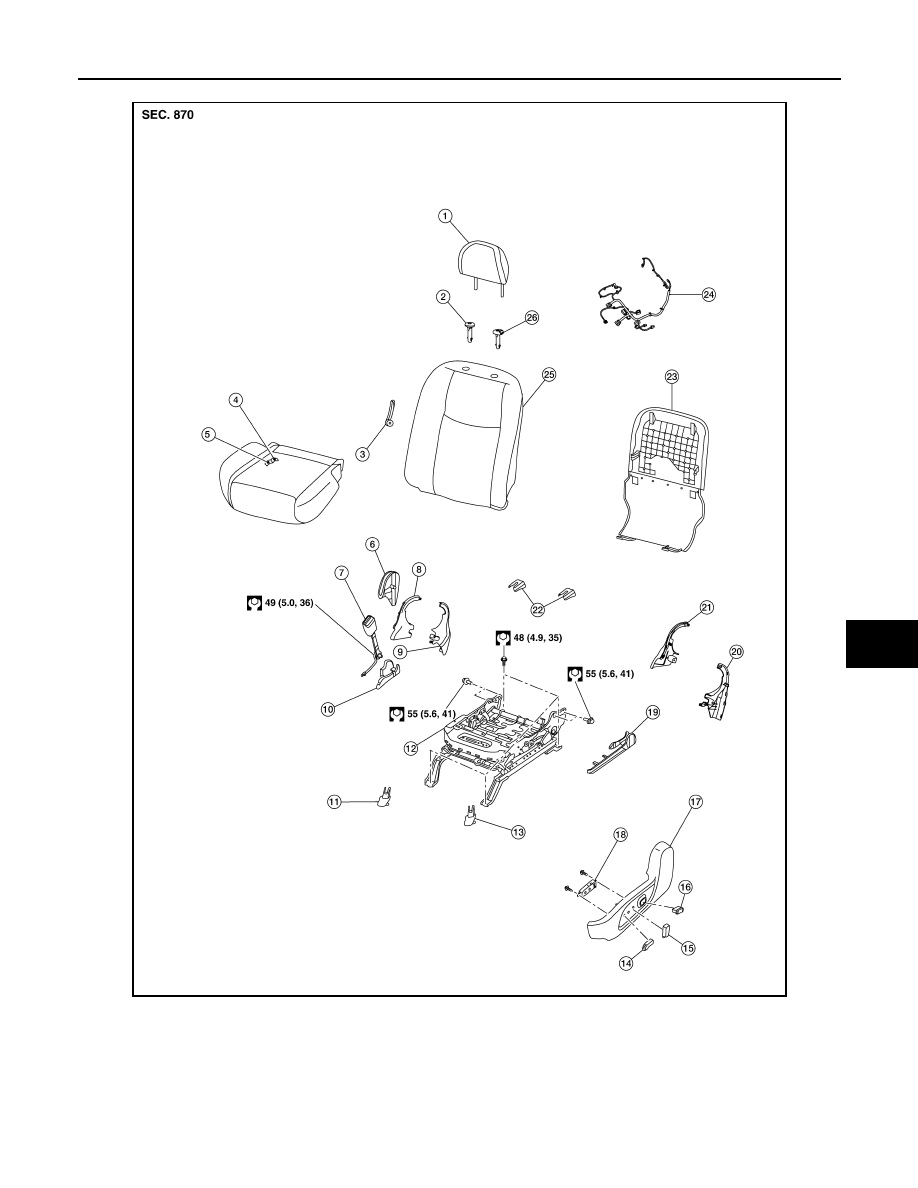

DRIVER SEAT WITHOUT CLIMATE CONTROL

AWJIA0998ZZ

1.

Headrest

2.

Headrest holder (free)

3.

Lumbar lever (if equipped)

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion outer finisher (RH)

7.

Seat belt buckle

8.

Seat cushion inner finisher (RH)
(front)

9.

Seat cushion inner finisher (RH)
(rear)

10. Slide finisher outer (RH)

11. Front slide finisher (RH)

12. Seat frame assembly

13. Front slide finisher (LH)

14. Seat slide knob

15. Seat recline knob

SE-112

< UNIT DISASSEMBLY AND ASSEMBLY >

FRONT SEAT

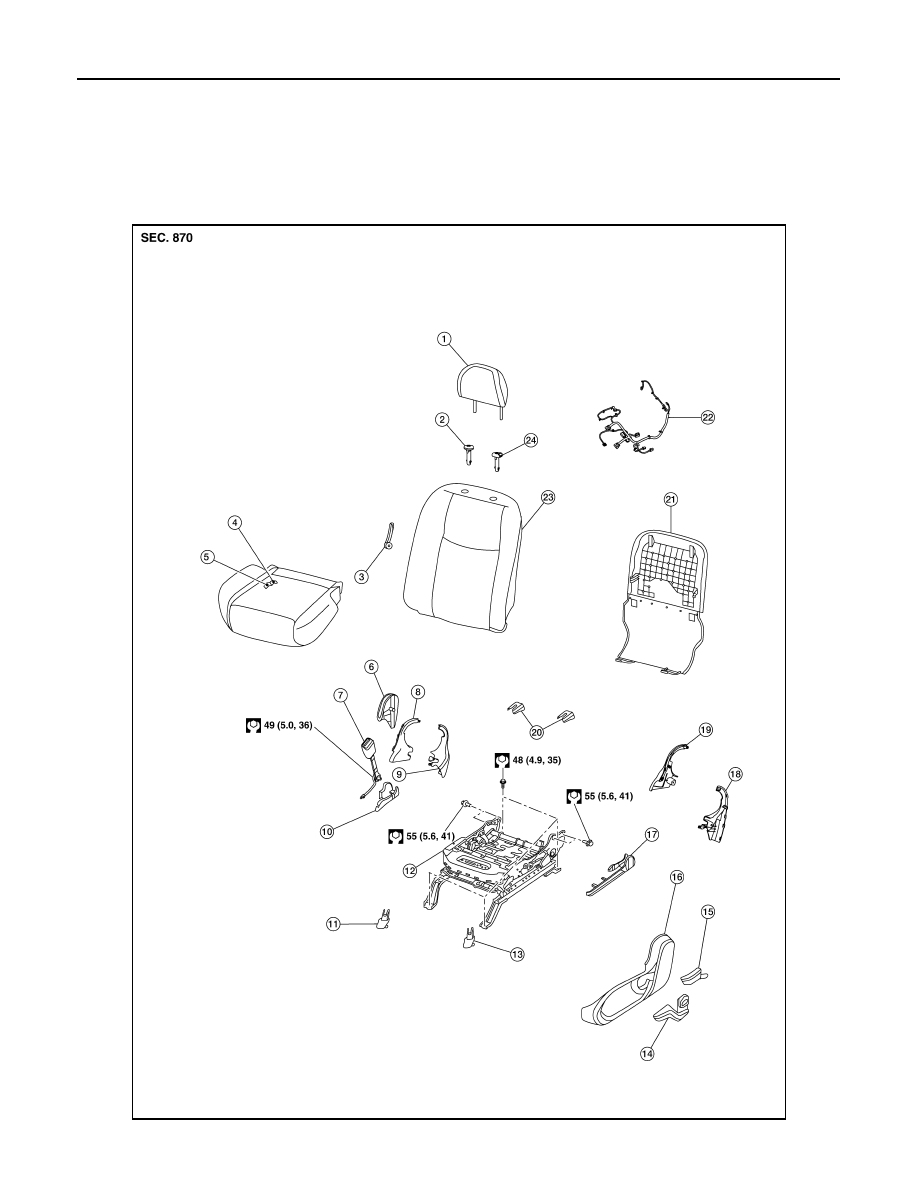

DRIVER SEAT - MANUAL

16. Lumbar support switch (if

equipped)

17. Seat cushion outer finisher (LH)

18. Power seat switch

19. Slide finisher outer (LH)

20. Seat cushion inner finisher (LH)

(rear)

21. Seat cushion inner finisher (LH)

(front)

22. Rear slide finisher

23. Seatback board

24. Seat harness

25. Seatback assembly

26. Headrest holder (locked)

AWJIA1167ZZ

FRONT SEAT

SE-113

< UNIT DISASSEMBLY AND ASSEMBLY >

C

D

E

F

G

H

I

K

L

M

A

B

SE

N

O

P

1.

Headrest

2.

Headrest holder (free)

3.

Lumbar lever

4.

Seat cushion trim

5.

Seat cushion pad

6.

Seat cushion outer finisher (RH)

7.

Seat belt buckle

8.

Seat cushion inner finisher (RH)
(front)

9.

Seat cushion inner finisher (RH)
(rear)

10. Slide finisher outer (RH)

11. Front slide finisher (RH)

12. Seat frame assembly

13. Front slide finisher (LH)

14. Lift lever

15. Recline lever finisher

16. Seat cushion outer finisher (LH) 17. Slide finisher outer (LH)

18. Seat cushion inner finisher (LH)

(rear)

19. Seat cushion inner finisher (LH)

(front)

20. Rear slide finisher

21. Seatback board

22. Seat harness

23. Seatback assembly

24. Headrest holder (locked)
