Nissan Pathfinder. Manual - part 8

ADP-24

< SYSTEM DESCRIPTION >

SYSTEM

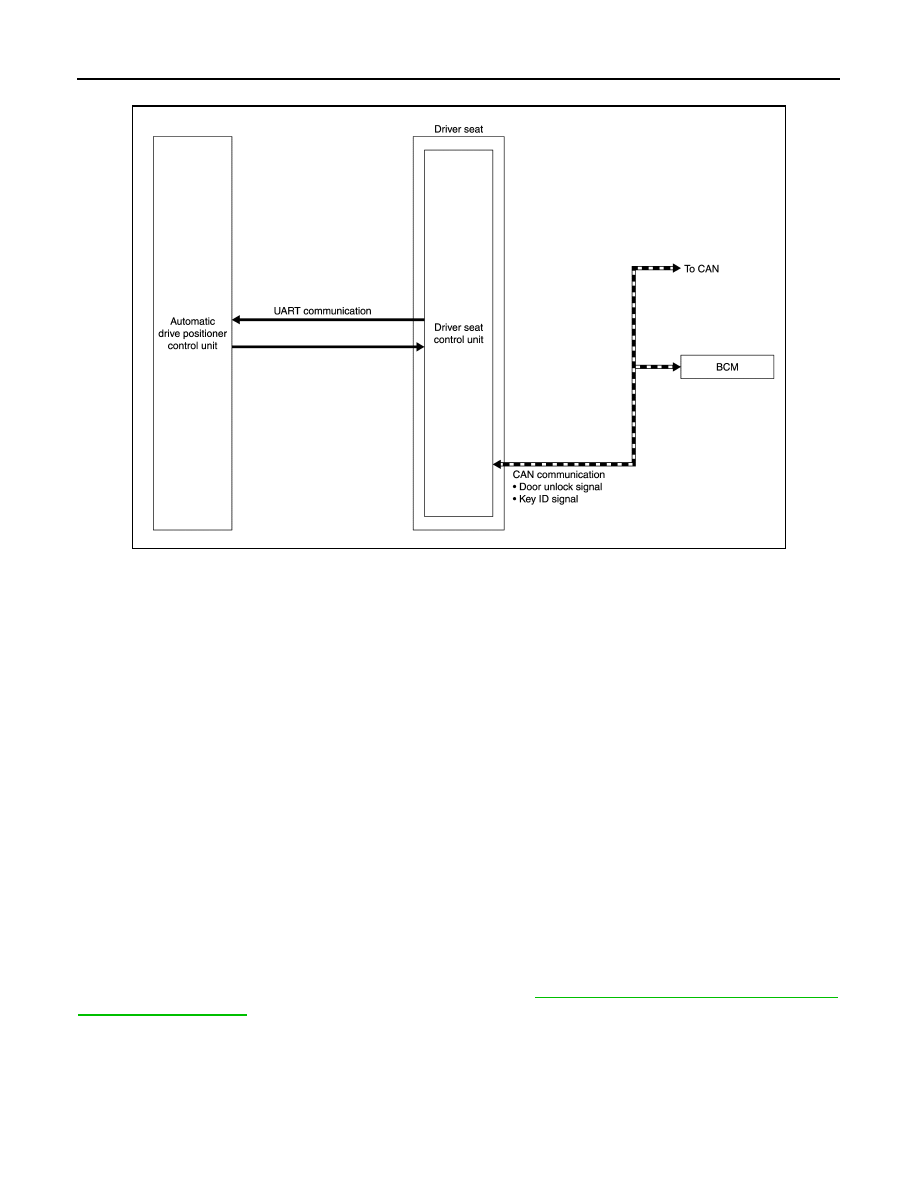

INTELLIGENT KEY INTERLOCK FUNCTION : System Diagram

INFOID:0000000009176532

INTELLIGENT KEY INTERLOCK FUNCTION : System Description

INFOID:0000000009176533

• By associating Intelligent Key and automatic drive positioner system, the unlock operation of Intelligent Key

or driver side door request switch performs memory function and entry/exit assist function.

• Registration of Intelligent Key interlock function can register a different key ID to the driver seat control unit,

one by one, for memory switch 1 and 2. A total of 2 key IDs can be registered.

• When ignition switch is OFF, and door unlock operation is performed using Intelligent Key or driver side door

request switch, driver seat automatically adjusts to a driving position other than seat sliding. Seat sliding and

steering column tilt perform return operation and are set to standby status.

• In standby status, when ignition switch is operated from OFF to ACC, return operation sets seat sliding and

steering column tilt to a registered position.

NOTE:

• When another key ID is newly registered to a key switch to which a key ID is already registered, the previ-

ously registered key ID is overwritten and becomes unusable.

• When starter signal turns ON during return operation, the operation is interrupted, starter signal turns from

ON to OFF, and operation restarts.

OPERATION PROCEDURE

1. Unlock driver door by Intelligent Key or driver side door request switch.

2. Operation other than memory function of seat sliding is performed. Seat sliding and steering column tilt

perform exit assist operation.

3. Turn ignition switch ACC.

4. Driver seat and steering column will return from the exiting position to entry position.

NOTE:

Further information for Intelligent Key interlock function. Refer to

ADP-74, "INTELLIGENT KEY INTERLOCK

STORING : Description"

.

OPERATION CONDITION

Satisfy all of the following items. The Intelligent Key interlock function is not performed if these items are not

satisfied.

JMJIA5859GB

SYSTEM

ADP-25

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

DETAIL FLOW

Fail Safe

INFOID:0000000009176534

The fail-safe mode may be activated if the following symptoms are observed.

Item

Request status

Ignition position

OFF

Intelligent Key interlock function

Registered

Switch inputs
• Power seat switch
• Tilt & telescopic switch (if equipped)
• Door mirror control switch
• Set switch
• Memory switch

OFF

(Not operated)

CVT shift selector

P position

Order

Input

Output

Control unit condition

1

• Door unlock signal

(CAN)

• Key ID signal (CAN)

—

Driver seat control unit receives the door unlock signal and the key
ID signal from BCM when unlocking the door with Intelligent Key or
driver side door request switch.

2

—

—

Driver seat control unit performs the seat slide and steering tilt move
directly to the exit assist function. Other loads move to the exit assist
function after performing memory function.

3

—

—

Driver seat control unit performs the entry assist function.

Operating in

fail-safe mode

Malfunction Item

Related

DTC

Diagnosis

Only manual functions operate normally.

CAN communication

U1000

ADP-77

CONTROL UNIT

U1010

ADP-78

EEPROM

B2130

ADP-87

Only manual functions, except door mirror, operate normally.

UART communication

B2128

ADP-85

Only manual functions, except seat sliding, operate normally.

Seat sliding output

B2112

ADP-79

Only manual functions, except seat reclining, operate normally.

Seat reclining output

B2113

ADP-81

Only manual functions, except steering tilt, operate normally.

Steering column tilt output

B2116

ADP-83

ADP-26

< SYSTEM DESCRIPTION >

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

CONSULT Function (AUTO DRIVE POS.)

INFOID:0000000009176535

CAUTION:

After disconnecting the CONSULT vehicle interface (VI) from the data link connector, the ignition must

be cycled OFF

→ ON (for at least 5 seconds) → OFF. If this step is not performed, the BCM may not go

to "sleep mode", potentially causing a discharged battery and a no-start condition.

The auto drive positioner system can be checked and diagnosed for component operation with CONSULT.

APPLICATION ITEMS

SELF-DIAGNOSIS RESULTS

Refer to

ADP-35, "DTC Index"

.

ACTIVE TEST

CAUTION:

When driving vehicle, do not perform active test.

DATA MONITOR

Diagnostic mode

Description

ECU Identification

Displays part numbers of driver seat control unit parts.

Self Diagnostic Result

Performs self-diagnosis for the auto drive positioner system and displays the results.

Active Test

Drive each output device.

Data Monitor

Displays input signals transmitted from various switches and sensors to driver seat con-
trol unit in real time.

Work support

Changes the setting of each function.

Test item

Description

SEAT SLIDE

Activates/deactivates the sliding motor LH.

SEAT RECLINING

Activates/deactivates the reclining motor LH.

SEAT LIFTER FR

Activates/deactivates the lifting motor LH (front).

SEAT LIFTER RR

Activates/deactivates the lifting motor LH (rear).

TILT MOTOR

Activates/deactivates the tilt motor.

TELESCO MOTOR

Activates/deactivates the telescopic motor.

MIRROR MOTOR RH

Activates/deactivates the mirror motor (passenger side).

MIRROR MOTOR LH

Activates/deactivates the mirror motor (driver side).

MEMORY SW INDCTR

Turns ON/OFF the memory indicator.

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents

DETENT SW

“ON/OFF”

×

×

The selector lever position “OFF (P position) / ON (other
than P position)” judged from the detention switch signal.

P RANG SW CAN

“ON/OFF”

×

×

ON/OFF status judged from the P range switch signal.

STARTER SW

“ON/OFF”

×

×

Ignition key switch ON (START, ON) /OFF (ACC, OFF) sta-
tus judged from the ignition switch signal.

R RANGE (CAN)

“ON/OFF”

×

×

ON/OFF status judged from the R range switch signal.

VEHICLE SPEED

—

×

×

Display the vehicle speed signal received from combination
meter by numerical value [km/h].

DOOR SW–FL

“OPEN/

CLOSED”

×

×

ON/OFF status judged from the door switch (front driver
side) signal.

DOOR SW–FR

“OPEN/

CLOSED”

×

×

ON/OFF status judged from the door switch (front passen-
ger side) signal.

DIAGNOSIS SYSTEM (DRIVER SEAT CONTROL UNIT)

ADP-27

< SYSTEM DESCRIPTION >

C

D

E

F

G

H

I

K

L

M

A

B

ADP

N

O

P

IGN ON SW

“ON/OFF”

×

×

ON/OFF status judged from the ignition switch signal.

ACC ON SW

“ON/OFF”

×

×

ON/OFF status judged from the ACC switch signal.

KEY ON SW

“ON/OFF”

×

×

ON/OFF status judged from the key on switch signal.

KYLS DR UNLK

“ON/OFF”

×

×

ON/OFF status judged from the driver side door unlock ac-
tuator output switch signal.

KEYLESS ID

—

×

×

Key ID status judged from the key ID signal.

VHCL SPEED (ABS)

“RCV”

×

×

Vehicle speed status judged from vehicle speed signal.

HANDLE

“RHD/LHD”

×

×

RHD/LHD status judged from handle position signal.

TRANSMISSION

“A/T”

×

×

CVT status judged from transmission.

SET SW

“ON/OFF”

×

×

ON/OFF status judged from the setting switch signal.

MEMORY SW1

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 1 sig-
nal.

MEMORY SW2

“ON/OFF”

×

×

ON/OFF status judged from the seat memory switch 2 sig-
nal.

SLIDE SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (forward) sig-
nal.

SLIDE SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the sliding switch (backward)
signal.

RECLN SW–FR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (forward)
signal.

RECLN SW–RR

“ON/OFF”

×

×

ON/OFF status judged from the reclining switch (backward)
signal.

LIFT FR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (up) sig-
nal.

LIFT FR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch front (down)
signal.

LIFT RR SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (up) sig-
nal.

LIFT RR SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the lifting switch rear (down)
signal.

MIR CON SW–UP

“ON/OFF”

×

×

ON/OFF status judged from the mirror switch (up) signal.

MIR CON SW–DN

“ON/OFF”

×

×

ON/OFF status judged from the mirror switch (down) signal.

MIR CON SW–RH

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (passenger side) signal.

MIR CON SW–LH

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (driver side) signal.

MIR CHNG SW–R

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (switching to right) signal.

MIR CHNG SW–L

“ON/OFF”

×

×

ON/OFF status judged from the door mirror remote control
switch (switching to left) signal.

TILT SW-UP

“ON/OFF”

–

×

ON/OFF status judged from the ADP steering switch (up)
signal.

TILT SW-DOWN

“ON/OFF”

–

×

ON/OFF status judged from the ADP steering switch (down)
signal.

TELESCO SW-FR

“ON/OFF”

–

×

ON/OFF status judged from the ADP steering switch (for-
ward) signal.

TELESCO SW-RR

“ON/OFF”

–

×

ON/OFF status judged from the ADP steering switch (back-
ward) signal.

Monitor Item

Unit

Main

Signals

Selection

From

Menu

Contents
