Qashqai J11. Transaxle & Transmission - part 13

TM-194

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a dial indicator. And then calculate mean value.

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

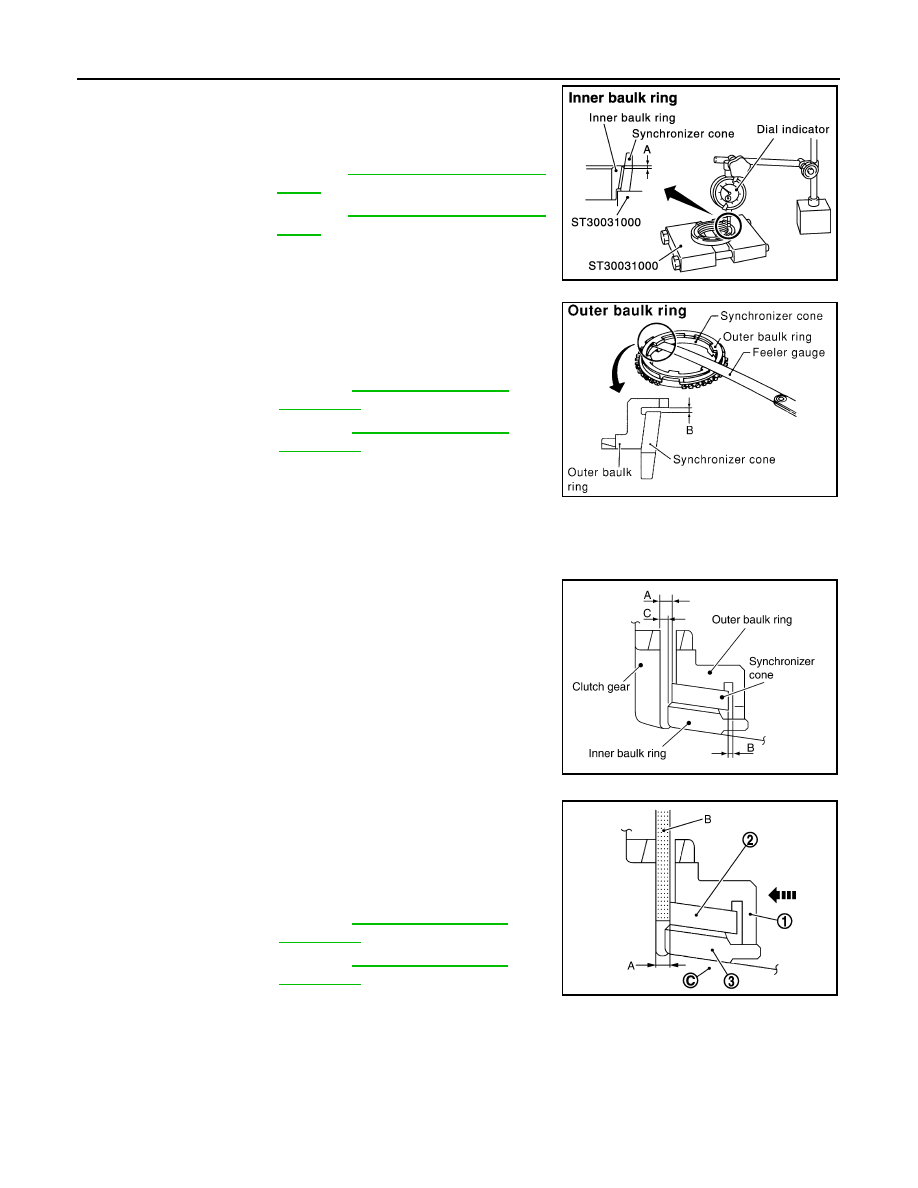

Baulk Ring Clearance for Triple Cone Synchronizer

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A”, “B”, and “C” are controlled with outer
baulk ring, synchronizer cone, and inner baulk ring as a set.
Replace them as a set if the clearances are outside the limit
value.

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a feeler gauge (B) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (C). And then calculate mean value.

Clearance “A”

Standard value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

SCIA0951E

Clearance “B”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

SCIA1084E

R9M

: 1st and 2nd

PCIB1358E

Clearance “A”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

JPDIC0034ZZ

MAINSHAFT AND GEAR

TM-195

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

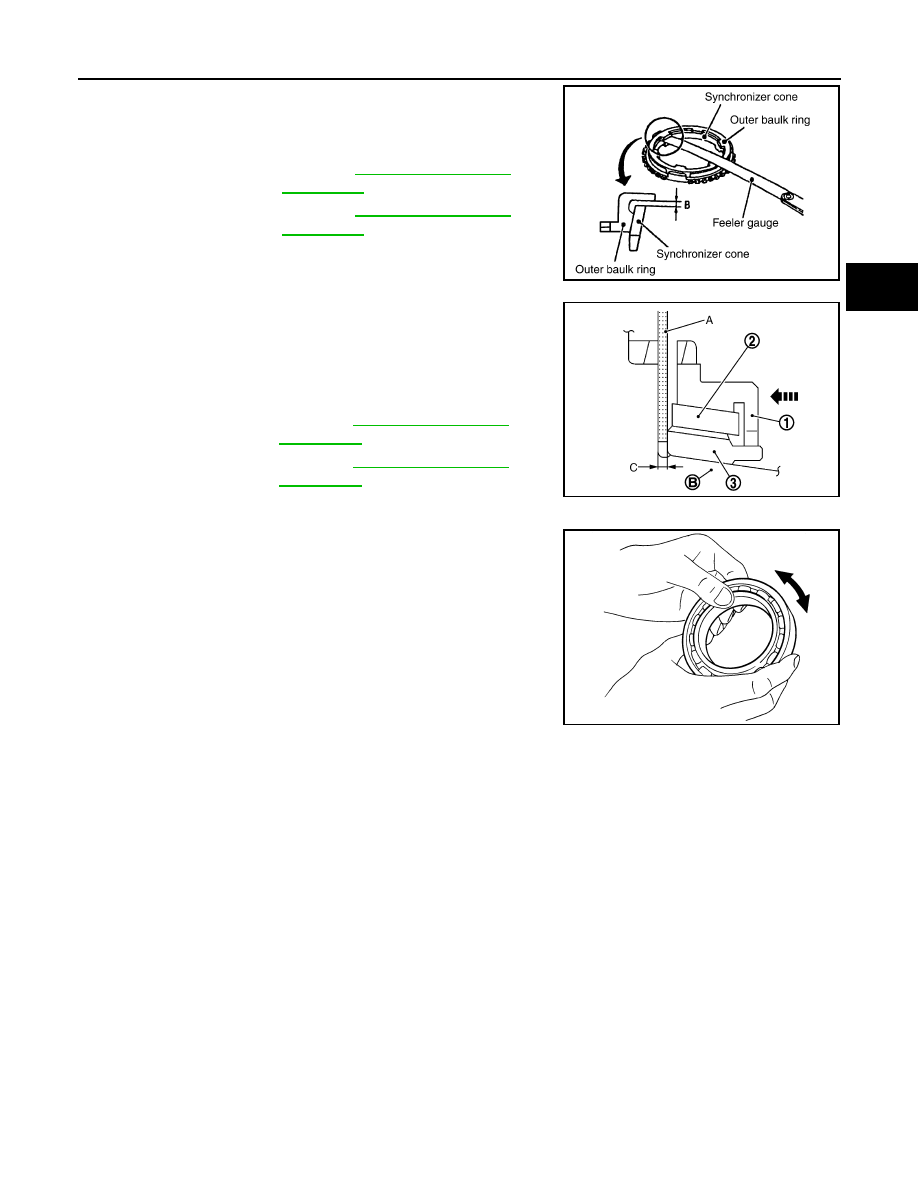

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

3.

Measure the clearance “C” at 2 points or more diagonally oppo-
site using a feeler gauge (A) when pressing outer baulk ring (1),
synchronizer cone (2), and inner baulk ring (3) toward gear taper
cone (B). And then calculate mean value.

BEARING

Check items below. If necessary, replace them with new ones.
• Damage and rough rotation of bearing

Clearance “B”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

PCIB1360E

Clearance “C”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

JPDIC0035ZZ

MTF0041D

TM-196

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

REVERSE IDLER SHAFT AND GEAR

REVERSE IDLER SHAFT AND GEAR

Exploded View

INFOID:0000000010288527

Refer to

TM-150, "4WD : Exploded View"

 .

Disassembly

INFOID:0000000010288528

1.

Remove reverse idler gear (rear), reverse coupling sleeve, and reverse insert springs simultaneously.

2.

Remove reverse idler gear needle bearing.

3.

Remove thrust needle bearing.

4.

Remove reverse baulk ring.

5.

Remove reverse idler gear (front).

6.

Remove reverse idler gear needle bearing.

7.

Remove thrust needle bearing.

8.

Remove retaining pin from reverse idler shaft.

Assembly

INFOID:0000000010288529

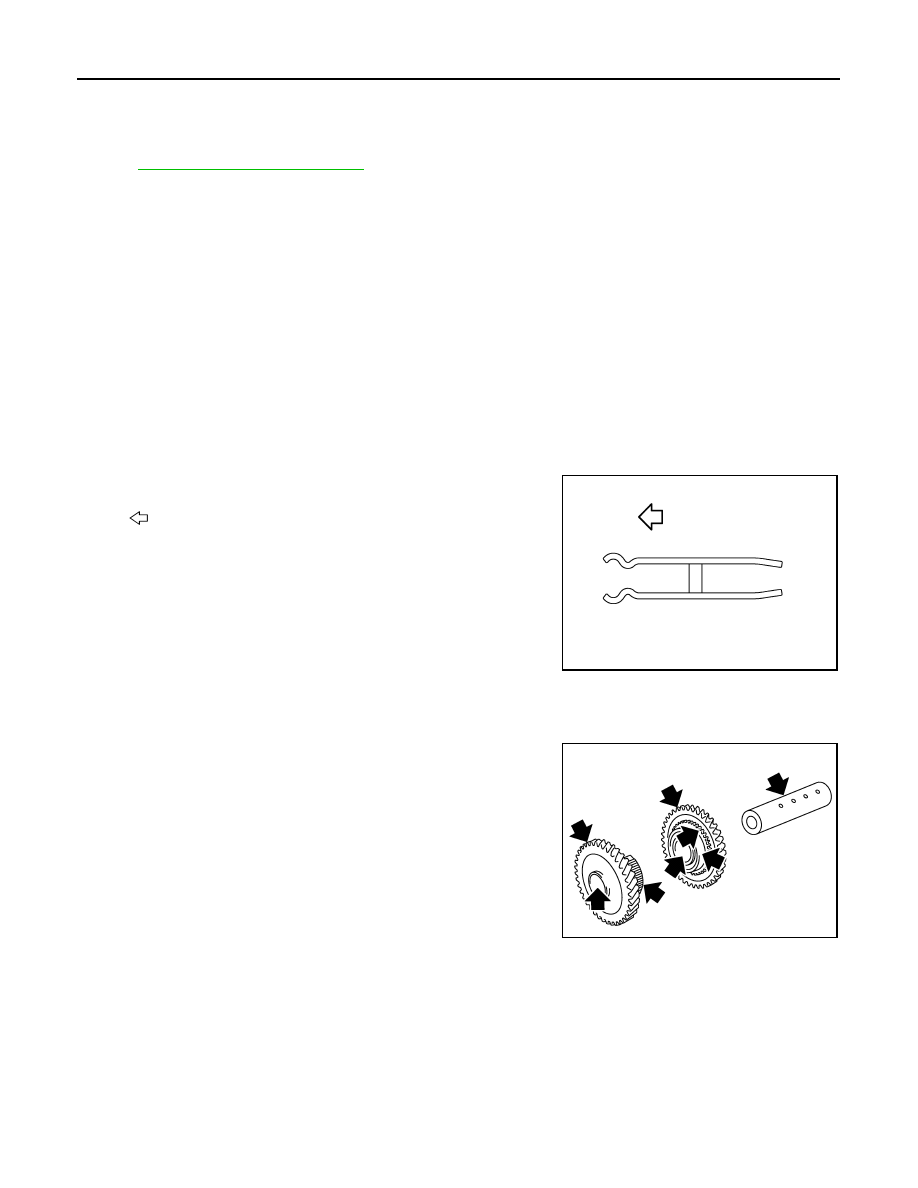

Note the following, and assemble in the reverse order of disassembly.

CAUTION:

• Be careful with orientation of reverse insert spring.

• Never reuse retaining pin.

Inspection

INFOID:0000000010288530

REVERSE IDLER SHAFT AND GEAR

Check items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear, bending, etc. of shaft
• Excessive wear, damage, peeling, etc. of gears
• Excessive wear, damage, peeling, etc. of cam side of clutch gears

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

: Transaxle front side

PCIB1924E

JPDIC0144ZZ

REVERSE IDLER SHAFT AND GEAR

TM-197

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

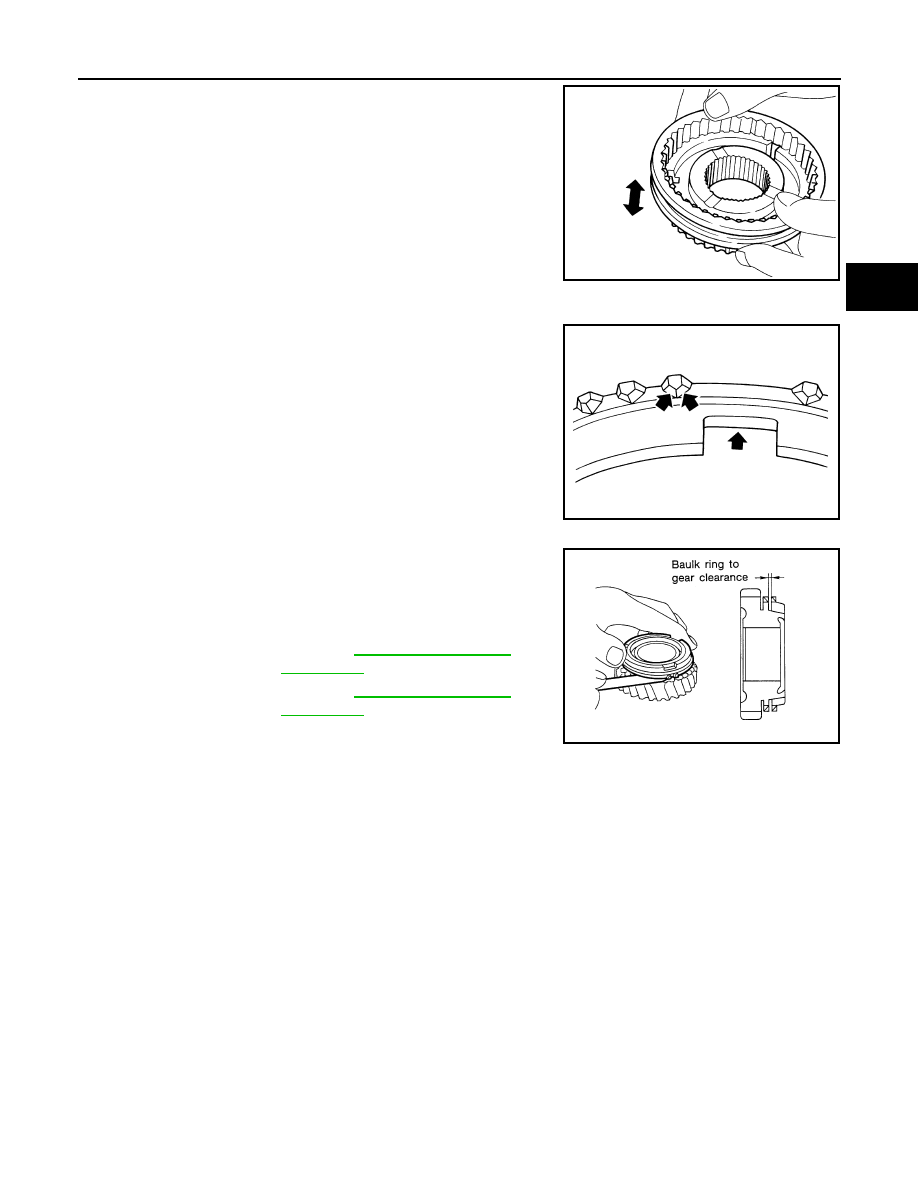

Check items below. If necessary, replace them with new ones.
• Damage and unusual wear on contact surfaces of coupling sleeve,

synchronizer hub of reverse idler gear (rear), and insert spring.

• Coupling sleeve and synchronizer hub of reverse idler gear (rear)

must move smoothly.

Baulk Ring

Check damage, or excessive wear on cam face of baulk ring or
working face of insert. If necessary, replace it with new ones.

Baulk Ring Clearance for Single Cone Synchronizer (Reverse)

Push baulk ring on the cone and measure the clearance between
baulk ring and cone. If the measurement is below limit, replace it with
a new one.

BEARING

Check items below. If necessary, replace them with new ones.
• Damage and rough rotation of bearing

SMT637A

SMT867D

Clearance

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

SMT140

TM-198

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

FINAL DRIVE

FINAL DRIVE

4WD

4WD : Exploded View

INFOID:0000000010288535

Refer to

TM-150, "4WD : Exploded View"

.

4WD : Disassembly

INFOID:0000000010288536

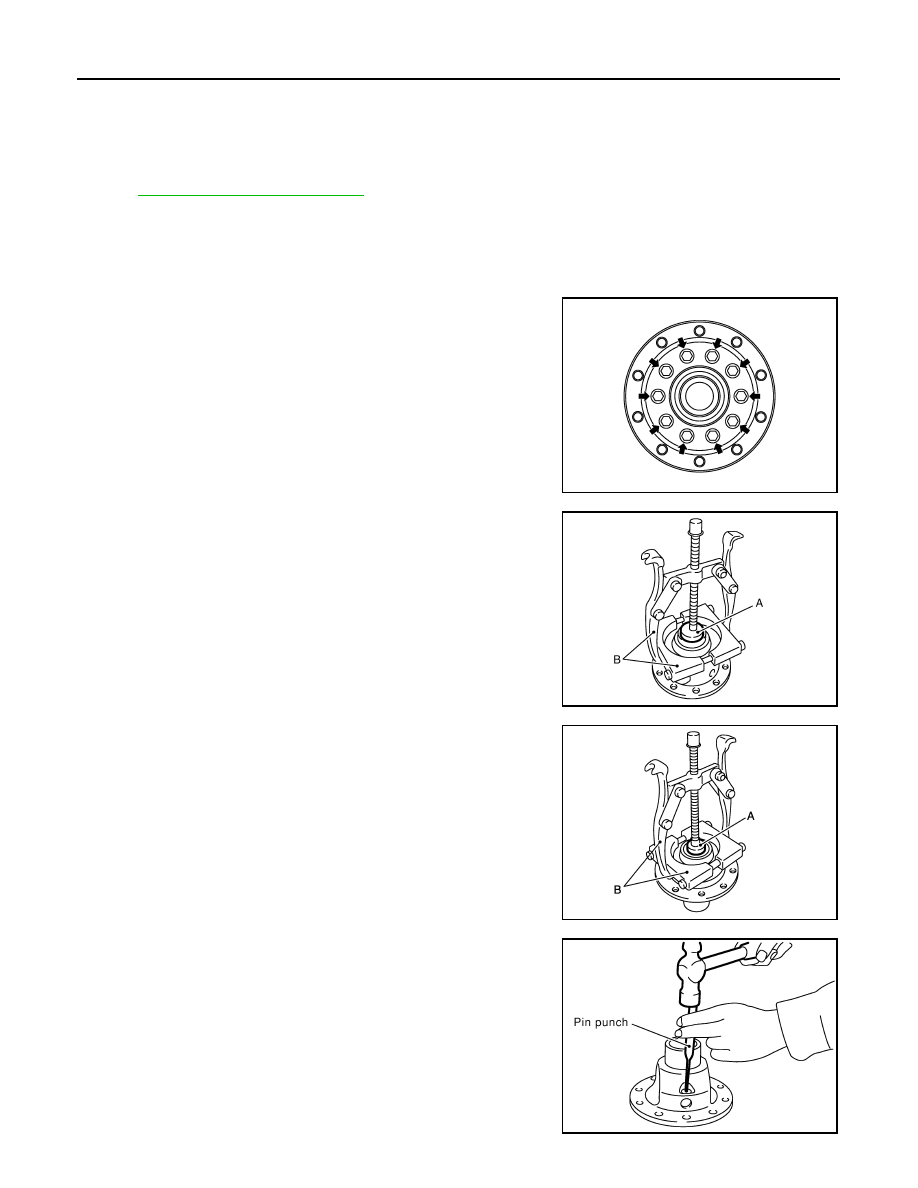

DIFFERENTIAL CASE

1.

Remove final gear mounting bolts and then separate the final gear from differential case.

2.

Remove reduction gear mounting bolts.

3.

Remove differential side bearing (clutch housing side) using the
drift (A) [SST: ST33061000] and pullers (B).

CAUTION:

Hook a puller on the inner race of differential side bearing.

4.

Remove reduction gear.

5.

Remove differential side bearing (transaxle case side) using the
drift (A) [SST: ST33061000] and pullers (B).

CAUTION:

Hook a puller on the inner race of differential side bearing.

6.

Remove retaining pin from differential case using a pin punch
and then remove pinion mate shaft.

7.

Rotate pinion mate gears and remove pinion mate gears, pinion
mate thrust washers, side gears, and side gear thrust washers
from differential case.

JPDIC0036ZZ

PCIB1876E

JPDIC0103ZZ

SCIA0908E

FINAL DRIVE

TM-199

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

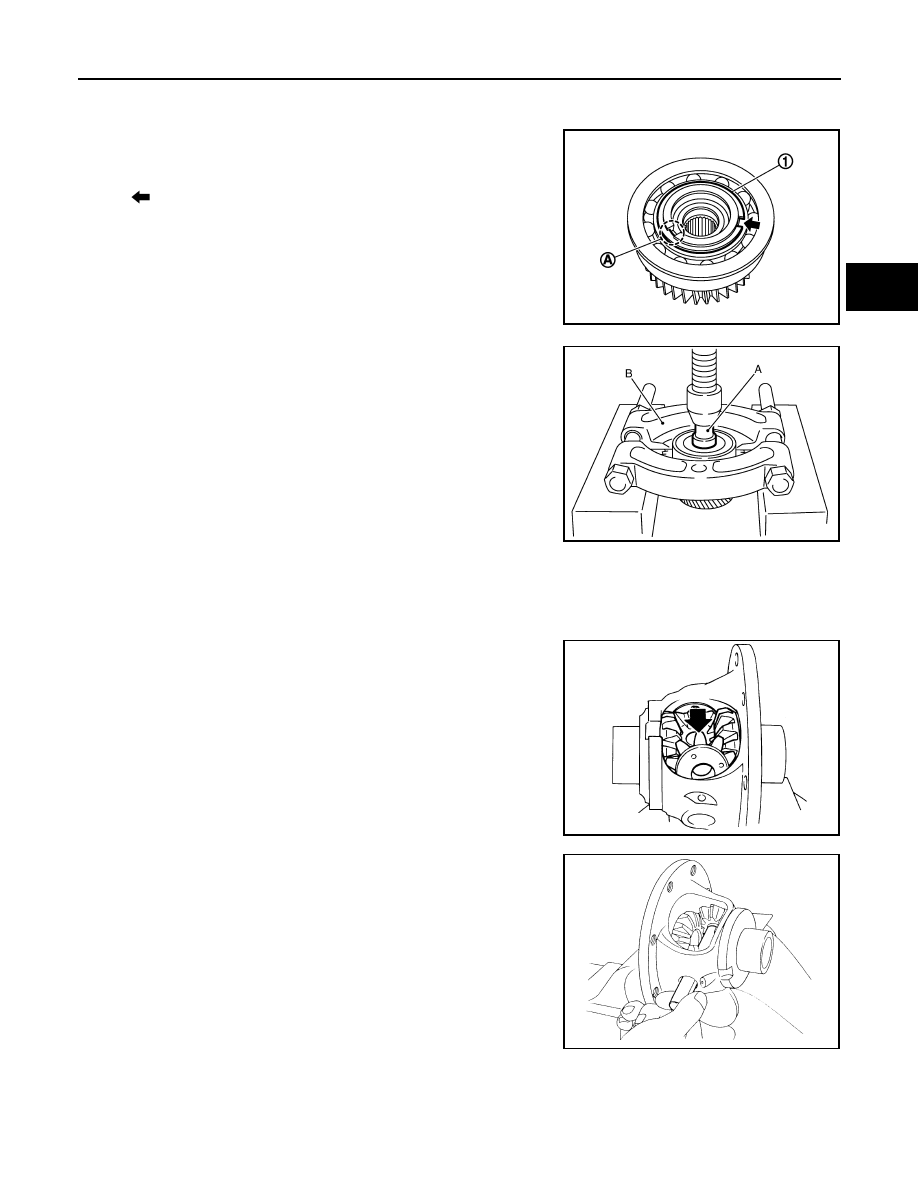

OUTPUT GEAR

1.

Remove snap ring (1).

2.

Remove output gear bearing using the drift (A) [SST:
ST30612000] and a puller (B).

4WD : Assembly

INFOID:0000000010288537

DIFFERENTIAL CASE

1.

Apply gear oil to sliding area of differential case, each gear, and thrust washer.

2.

Install side gear thrust washers and side gears into differential
case.

3.

While rotating pinion mate thrust washers and pinion mate
gears, aligning them diagonally, install them into differential
case.

4.

Insert pinion mate shaft into differential case.

CAUTION:

Be sure not to damage pinion mate thrust washers.

A

: Output gear groove

: Snap ring notch

JPDIC0040ZZ

JPDIC0038ZZ

SMT839

MTK0132D

TM-200

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

FINAL DRIVE

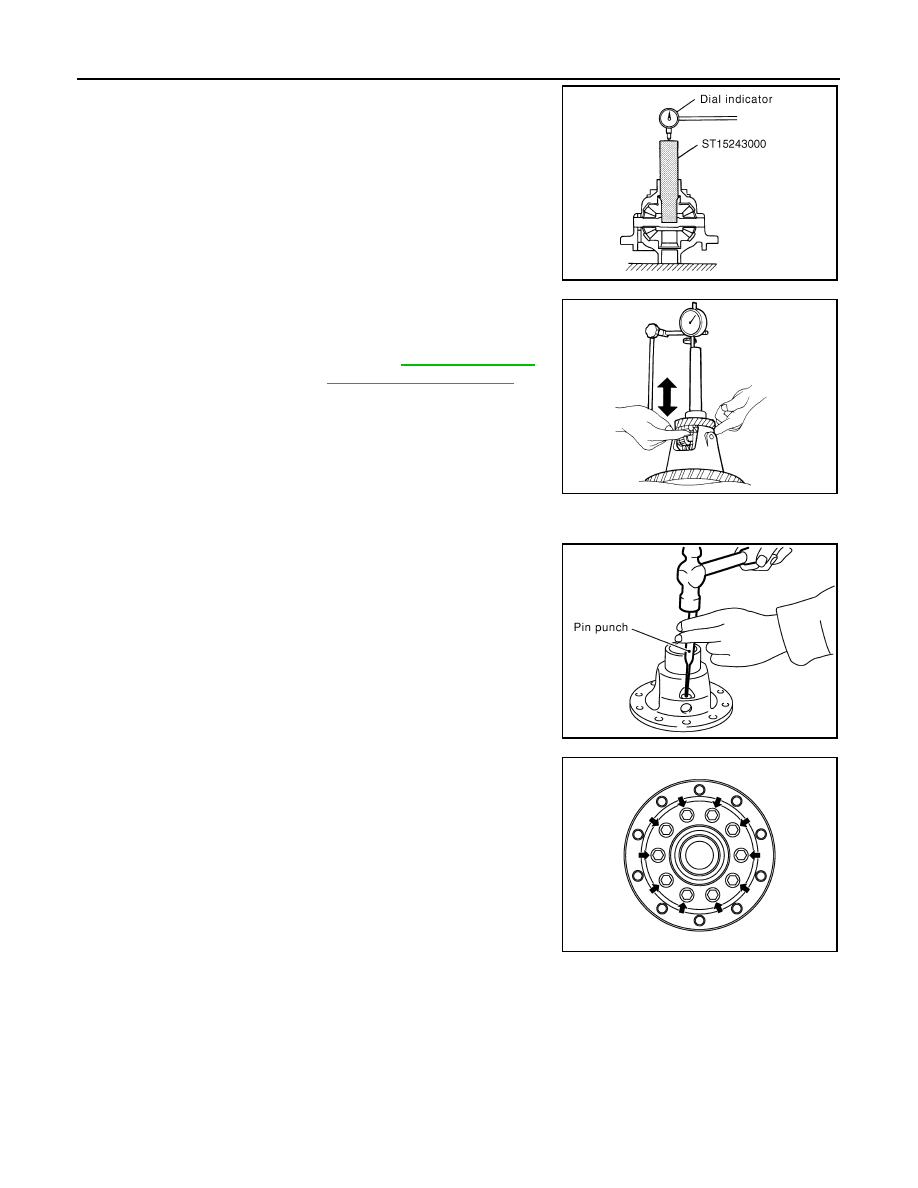

5.

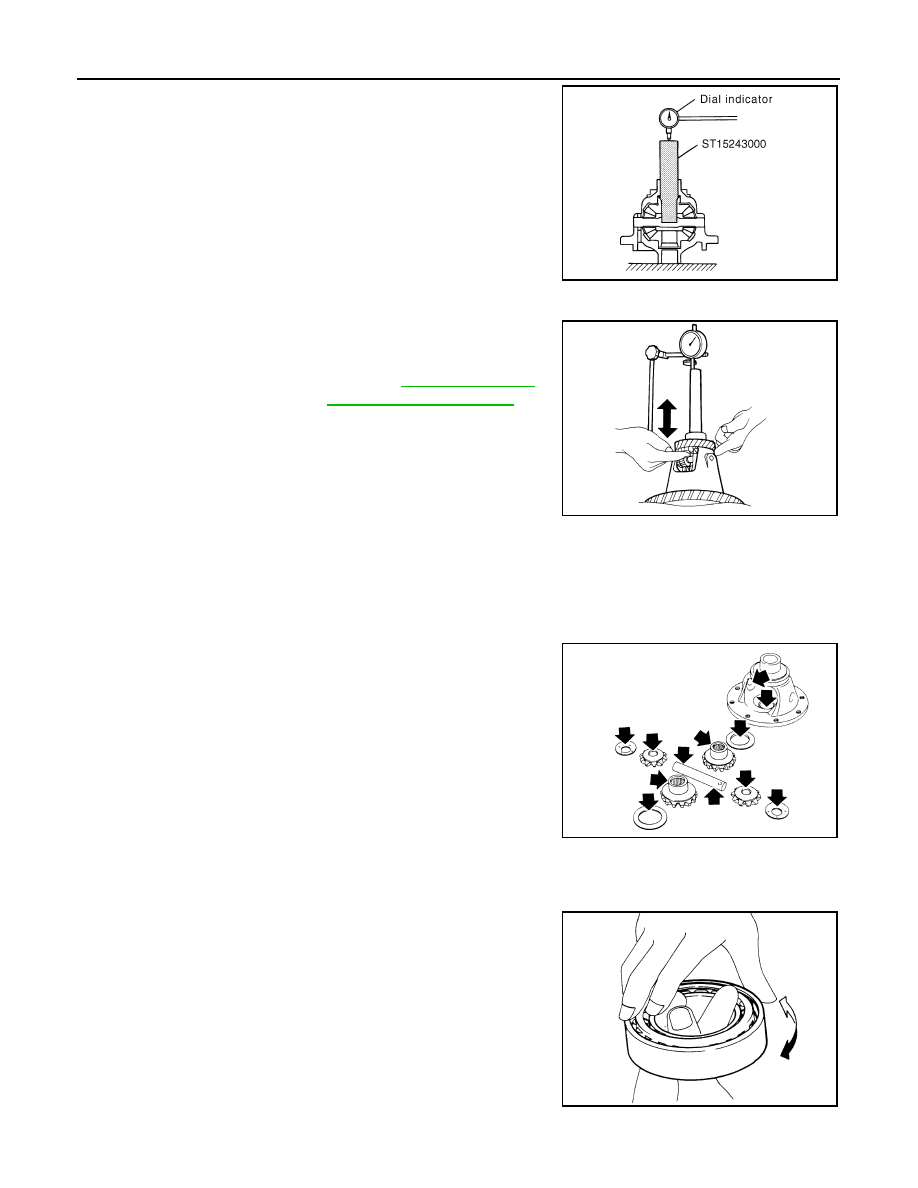

Measure end play of side gears following the procedure below.
Then select side gear thrust washer.

a.

Put differential case vertically so that its side gear to be mea-
sured faces upward.

b.

Place the drift and a dial indicator onto side gears.

c.

Move side gears up and down to measure the clearance and
select thrust washer so that it satisfies the standard value.

CAUTION:

• There should be no resistance and gears should rotate

freely.

• Place differential case upside down. Measure the end play

for opposite side-gears likewise securely.

• Only one thrust washer can be selected.

6.

Install retaining pin into pinion mate shaft using a pin punch.

CAUTION:

Never reuse retaining pin.

7.

Install reduction gear into differential case and tighten reduction
gear mounting bolts to the specified torque.

8.

Press in differential side bearing (clutch housing side) to differential case using the drifts.

CAUTION:

• Never reuse differential side bearing and differential side bearing outer race.
• Replace differential side bearing and differential side bearing outer race as a set.

PCIB0875E

Allowable Clearance be-
tween side gear and dif-
ferential case with thrust
washer

: Refer to

TM-209, "Differen-

tial Side Gear Clearance"

.

SMT611A

SCIA0908E

JPDIC0036ZZ

A

: Drift [SST: ST30720000]

B

: Drift [SST: KV38102510]

C

: Drift [Commercial service tool]

FINAL DRIVE

TM-201

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

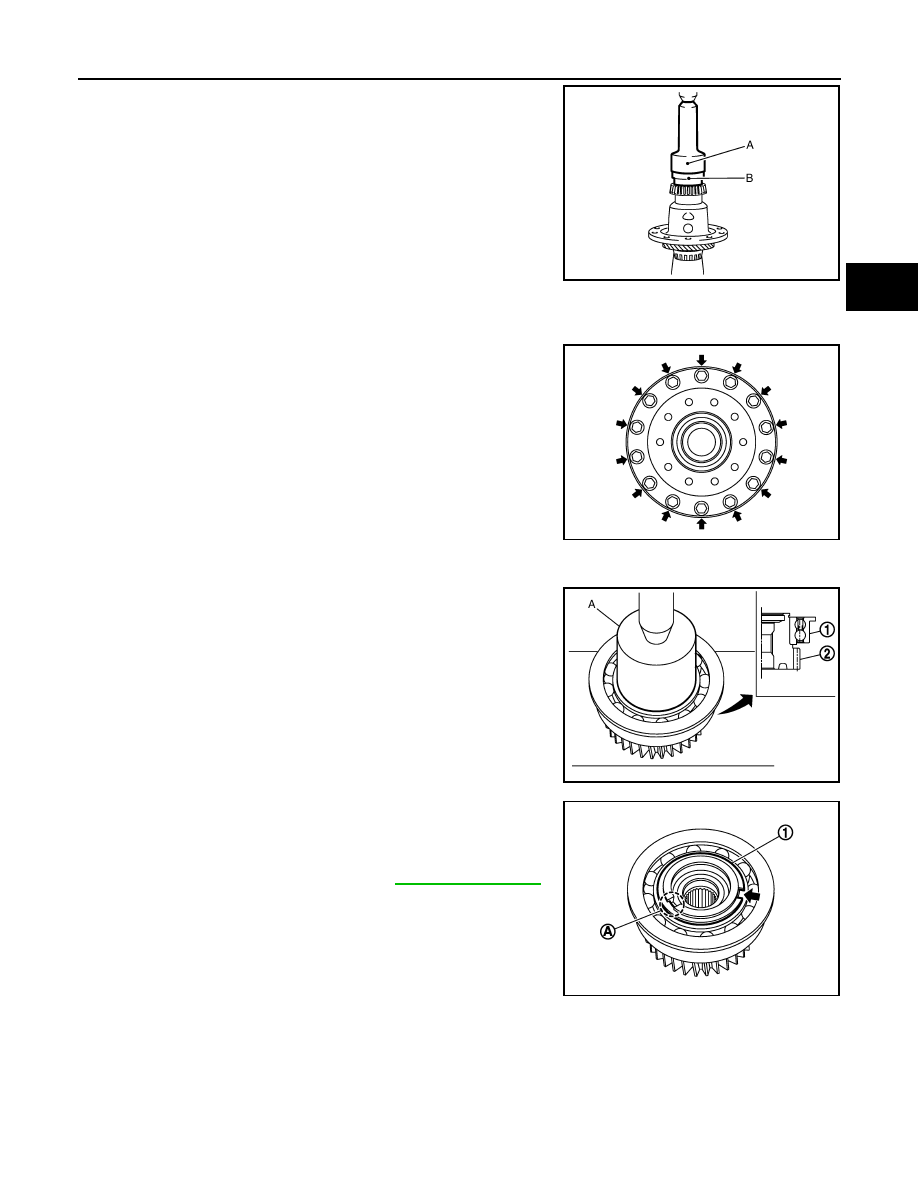

9.

Press in differential side bearing (transaxle case side) to differ-
ential case using the drifts.

CAUTION:

Replace differential side bearing and differential side bear-
ing outer race as a set.

10. Install final gear into differential case and tighten final gear mounting bolts to the specified torque.

• R9M

OUTPUT GEAR

1.

Install output gear bearing (1) to output gear (2) using the drift
(A) [Commercial service tool].

CAUTION:

Be careful with the orientation of output gear bearing.

2.

Install snap ring (1) onto output gear and make sure that end
play (gap between snap ring and groove) of output gear bearing
satisfies the standard value.

CAUTION:

• Only one snap ring can be selected.
• Never reuse snap ring.
• Never align snap ring notch with output gear groove (A)

when assembling.

4WD : Inspection

INFOID:0000000010288538

INSPECTION BEFORE DISASSEMBLY

A

: Drift [SST: ST30720000]

B

: Drift [SST: KV38102510]

JPDIC0079ZZ

JPDIC0149ZZ

JPDIC0039ZZ

End play standard value

: Refer to

TM-207, "End Play"

.

JPDIC0040ZZ

TM-202

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

FINAL DRIVE

Check the clearance between side gear and differential case as fol-
lows.
1.

Clean final drive assembly sufficiently to prevent side gear thrust
washer, differential case, side gear, and other parts from sticking
by gear oil.

2.

Put differential case vertically so that side gear to be measured faces upward.

3.

Place the drift and a dial indicator onto side gear. Move side
gear up and down, and measure the clearance.

CAUTION:

There should be no resistance and gears should rotate
freely.

4.

If not within specification, adjust the clearance by changing side
gear thrust washer thickness.

5.

Turn differential case upside down and measure the clearance between side gear and differential case on
the other side in the same way.

INSPECTION AFTER DISASSEMBLY

Gear, Washer, Shaft, and Case

• Check side gears, side gear thrust washers, pinion mate shaft, pin-

ion mate gears, pinion mate thrust washers and differential case. If
necessary, replace with a new one.

Gear

• Check output gear and reduction gear. If necessary, replace with a new one.

Bearing

Check for bearings damage and rough rotation. If necessary, replace
with a new one.

CAUTION:

When replacing tapered roller bearing, replace outer and inner
races as a set.

PCIB0875E

Allowable Clearance be-
tween side gear and dif-
ferential case with thrust
washer

: Refer to

TM-209, "Differen-

tial Side Gear Clearance"

.

SMT611A

MTK0135D

SPD715

SHIFT FORK AND FORK ROD

TM-203

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

SHIFT FORK AND FORK ROD

Exploded View

INFOID:0000000010288539

Refer to

TM-150, "4WD : Exploded View"

 .

Disassembly

INFOID:0000000010288540

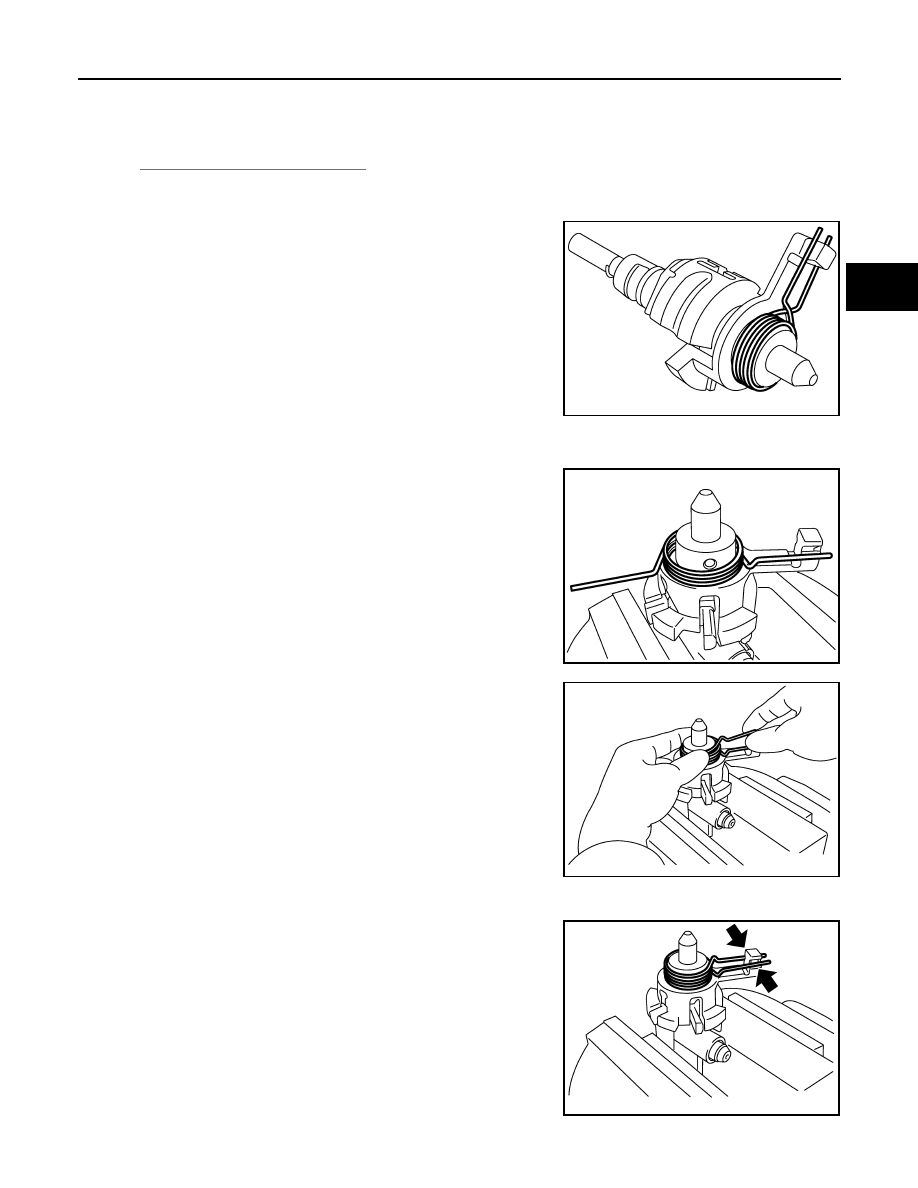

Remove return spring to striking rod assembly.

Assembly

INFOID:0000000010288541

1.

Temporarily install return spring to striking rod assembly.

CAUTION:

Be careful with the orientation of return spring.

2.

Attach one end of the return spring to striking interlock of striking
rod assembly while holding return spring.

CAUTION:

When installing, check that return spring is securely seated
in the groove of striking interlock of striking rod assembly.

PCIB1867E

PCIB1830E

PCIB1831E

PCIB1833E

TM-204

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

SHIFT FORK AND FORK ROD

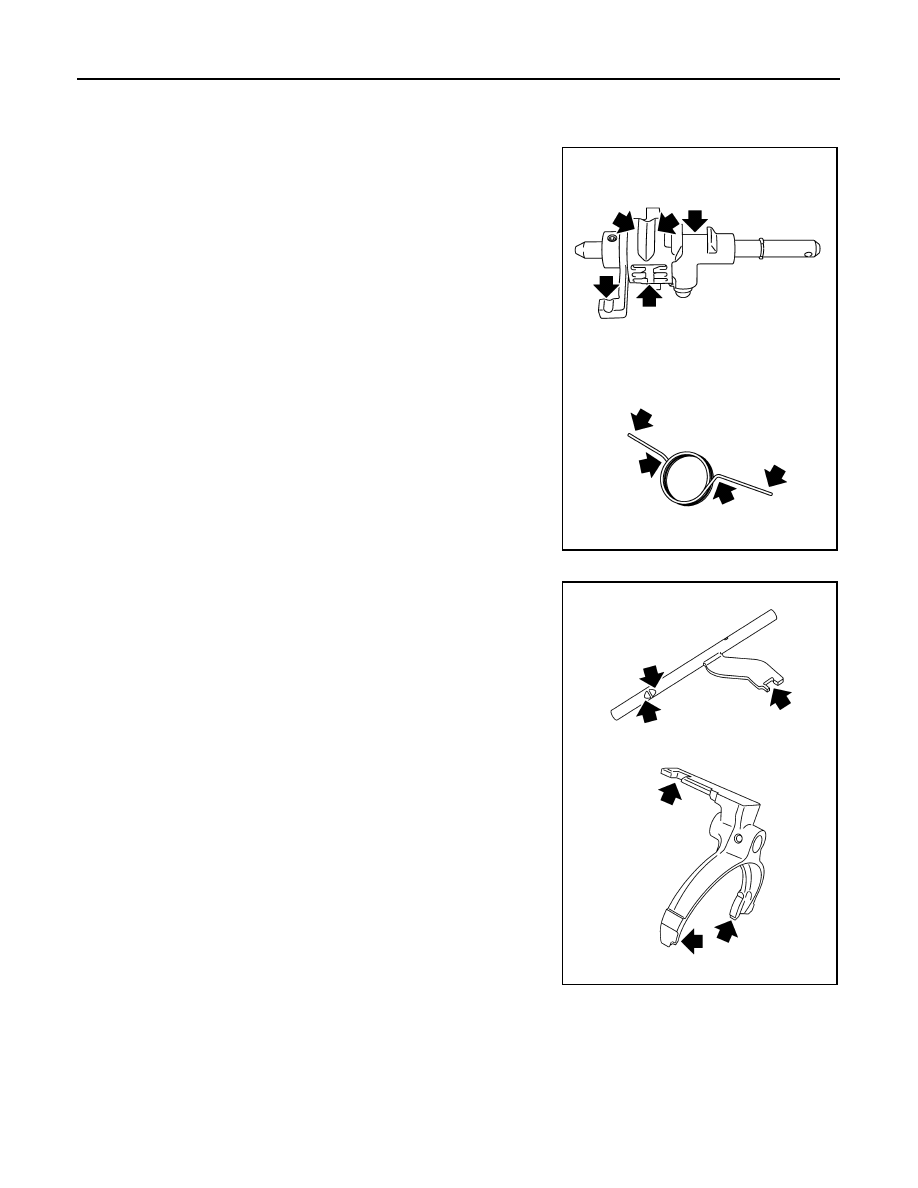

Inspection

INFOID:0000000010288542

STRIKING ROD ASSEMBLY AND RETURN SPRING

Check contact surfaces and sliding area for wear, damage, bending,
etc. If necessary, replace parts.

FORK ROD AND SHIFT FORK

• Check contact surfaces and sliding area for wear, damage, bend-

ing, etc. If necessary, replace parts.

JPDIC0145ZZ

PCIB1869E

SHIFT FORK AND FORK ROD

TM-205

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

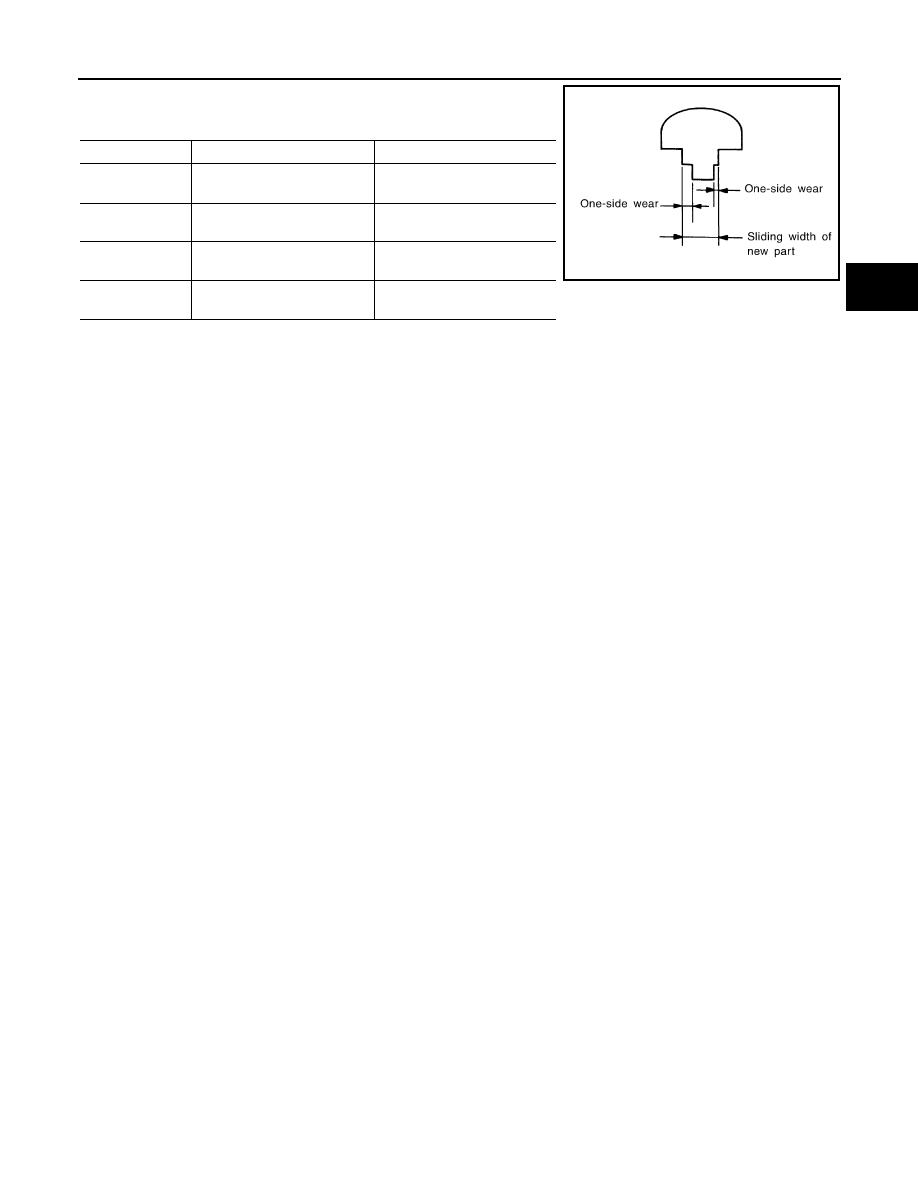

• Check if the width of shift fork hook (sliding area with coupling

sleeve) is within allowable specification below.

Item

One-side wear specification

Sliding width of new part

1st-2nd

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

3rd-4th

0.2 mm (0.008 in)

7.80 - 7.93 mm

(0.3071 - 0.3122 in)

5th-6th

0.2 mm (0.008 in)

6.10 - 6.23 mm

(0.2402 - 0.2453 in)

Reverse

0.2 mm (0.008 in)

12.80 - 12.93 mm

(0.5039 - 0.5091 in)

SMT801D

TM-206

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

SERVICE DATA AND SPECIFICATIONS (SDS)

General Specifications

INFOID:0000000010288543

TRANSAXLE

Engine type

R9M

Transaxle model

RS6F52A

Axle type

4WD

Model code number

JA60A

Number of speed

6

Synchromesh type

Warner

Shift pattern

Gear ratio

1st

3.727

2nd

2.043

3rd

1.322

4th

0.947

5th

0.723

6th

0.596

Reverse

3.641

Number of teeth

Input gear

1st

11

2nd

20

3rd

31

4th

38

5th

47

6th

52

Reverse

11

Main gear

1st

41

2nd

39

3rd

41

4th

36

5th

34

6th

31

Reverse

39

Reverse idler gear

Front

37

Rear

39

Oil level “L”

mm (in)

87.0 - 92.0 (3.425 - 3.622)

Oil capacity (Reference)

 (Imp pt)

2.0 (3-1/2)

PCIB1769E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-207

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

FINAL GEAR

End Play

INFOID:0000000010288544

Unit: mm (in)

Baulk Ring Clearance

INFOID:0000000010288545

Remarks

Reverse synchronizer

Installed

Double-cone synchronizer

3rd

Triple-cone synchronizer

1st and 2nd

Engine type

R9M

Transaxle model

RS6F52A

Axle type

4WD

Model code number

JA60A

Engine type

R9M

Transaxle model

RS6F52A

Axle type

4WD

Model code number

JA60A

Final gear ratio

4.266

Number of teeth

Final gear/Pinion

64/15

Side gear/Pinion mate gear

14/10

Items

Standard value

1st main gear

0.20 - 0.30 (0.0079 - 0.0118)

2nd main gear

0.06 - 0.16 (0.0024 - 0.0063)

6th main gear

0 - 0.1 (0 - 0.004)

3rd input gear

0.18 - 0.31 (0.0071 - 0.0122)

4th input gear

0.20 - 0.30 (0.0079 - 0.0118)

5th input gear

0.06 - 0.16 (0.0024 - 0.0063)

6th input gear

0.06 - 0.16 (0.0024 - 0.0063)

Reverse idler gear

0.04 - 0.10 (0.0016 - 0.0039)

6th input gear bushing

0 - 0.1 (0 - 0.004)

Input shaft

0 - 0.06 (0 - 0.0024)

Mainshaft

0 - 0.06 (0 - 0.0024)

Mainshaft C-ring

0 - 0.06 (0 - 0.0024)

Striking rod

0.05 - 0.152 (0.0020 - 0.0060)

Output gear bearing (For 4WD)

0 - 0.06 (0 - 0.0024)

Output gear assembly (For 4WD)

0 - 0.06 (0 - 0.0024)

TM-208

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

SERVICE DATA AND SPECIFICATIONS (SDS)

Unit: mm (in)

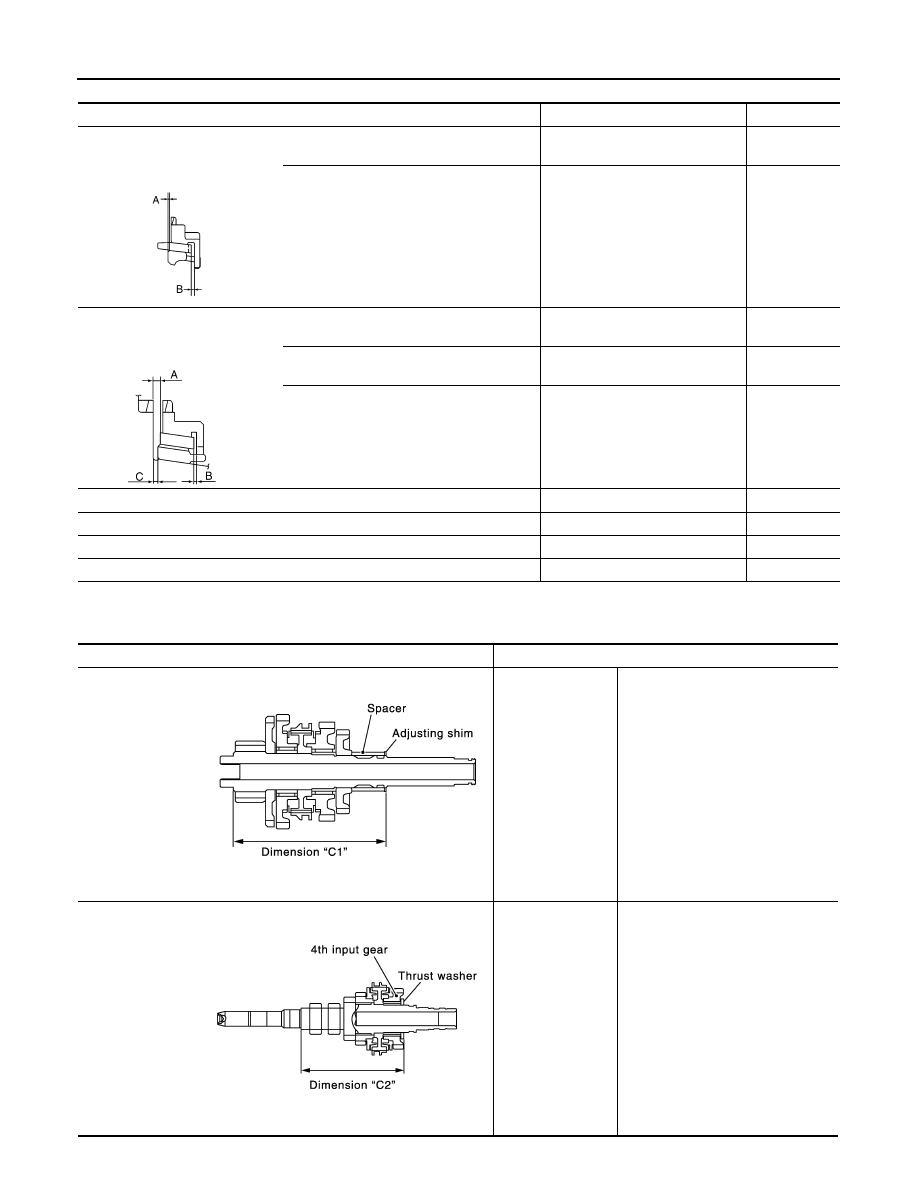

Dimension

INFOID:0000000010288546

Unit: mm (in)

Measurement point

Standard value

Limit value

3rd
(Double-cone synchronizer)

Clearance between synchronizer cone and
inner baulk ring end face “A”

0.6 - 0.8 (0.024 - 0.031)

0.2 (0.008)

Clearance between outer baulk ring pawl
and synchronizer cone “B”

0.6 - 1.1 (0.024 -0.043)

0.2 (0.008)

1st and 2nd
(Triple-cone synchronizer)

Clearance between synchronizer cone and
clutch gear end face “A”

0.6 - 1.2 (0.024 - 0.047)

0.3 (0.012)

Clearance between outer baulk ring pawl
and synchronizer cone “B”

0.6 - 1.1 (0.024 - 0.043)

0.2 (0.008)

Clearance between inner baulk ring and
clutch gear end face “C”

0.7 - 1.1 (0.028 - 0.043)

0.3 (0.012)

4th

0.9 - 1.45 (0.035 - 0.057)

0.7 (0.028)

5th

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

6th

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

Reverse

0.95 - 1.4 (0.037 - 0.055)

0.7 (0.028)

PCIB0249E

PCIB0835J

Measurement point

Standard value

Mainshaft:
Dimension “C1”

JA60A

182.85 - 182.95 (7.199 - 7.203)

Input shaft:
Dimension “C2”

JA60A

161.8 - 161.9 (6.370 - 6.374)

SCIA1009E

SCIA1008E

SERVICE DATA AND SPECIFICATIONS (SDS)

TM-209

< SERVICE DATA AND SPECIFICATIONS (SDS)

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Differential Side Bearing Preload

INFOID:0000000010288547

Unit: mm (in)

*: Install shims which are “deflection of differential case” + “L” in thickness.

Differential Side Gear Clearance

INFOID:0000000010288548

Unit: mm (in)

Differential side bearing preload: L*

JA60A

0.15 - 0.21 (0.0059 - 0.0083)

Allowable clearance between side gear and differential case with thrust washer

0.1 - 0.2 (0.004 - 0.008)
