Qashqai J11. Transaxle & Transmission - part 12

TM-178

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

TRANSAXLE ASSEMBLY

2.

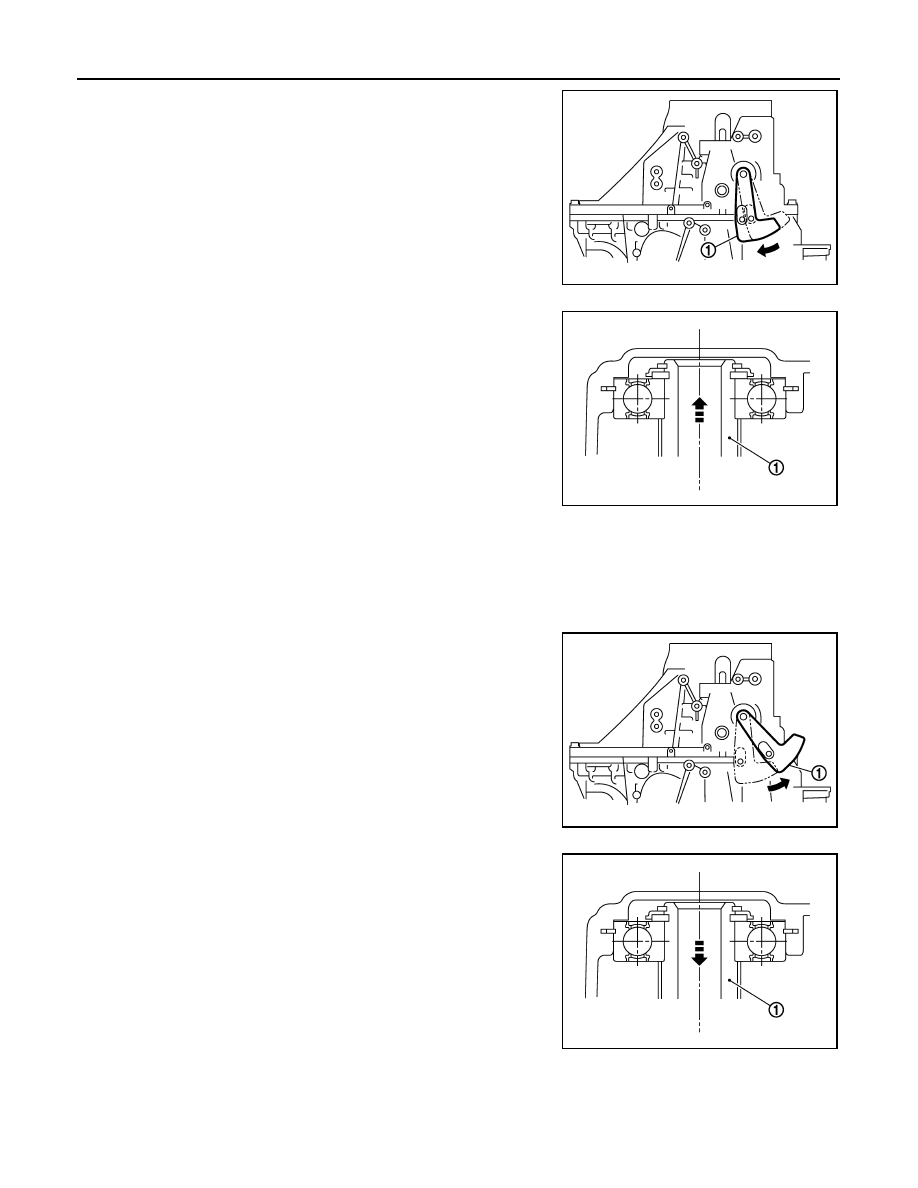

Shift the shifter lever A (1) to 2nd gear position.
NOTE:
• The 2nd gear position is attained when shifter lever A is in the

position shown in the figure.

• When transaxle is shifted to the 2nd gear position, mainshaft

assembly (1) is lifted.

3.

Seat snap ring in the groove on mainshaft rear bearing. If snap ring is not seated in the groove on main-
shaft rear bearing, remove transaxle case and repeat the procedure 1 from step c.

4.

Shift the shifter lever A to 1st gear position, and then shift it to 2nd gear position. Repeat 3 times.
NOTE:
• The mainshaft rear bearing position will be stabilized by shifting between 1st gear position and 2nd gear

position alternately.

• The 1st gear position is attained when shifter lever A (1) is in

the position shown in the figure.

• When transaxle is shifted to the 1st gear position, mainshaft

assembly (1) is declined.

PCIB1809E

PCIB1923E

PCIB1881E

PCIB1934E

TRANSAXLE ASSEMBLY

TM-179

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

5.

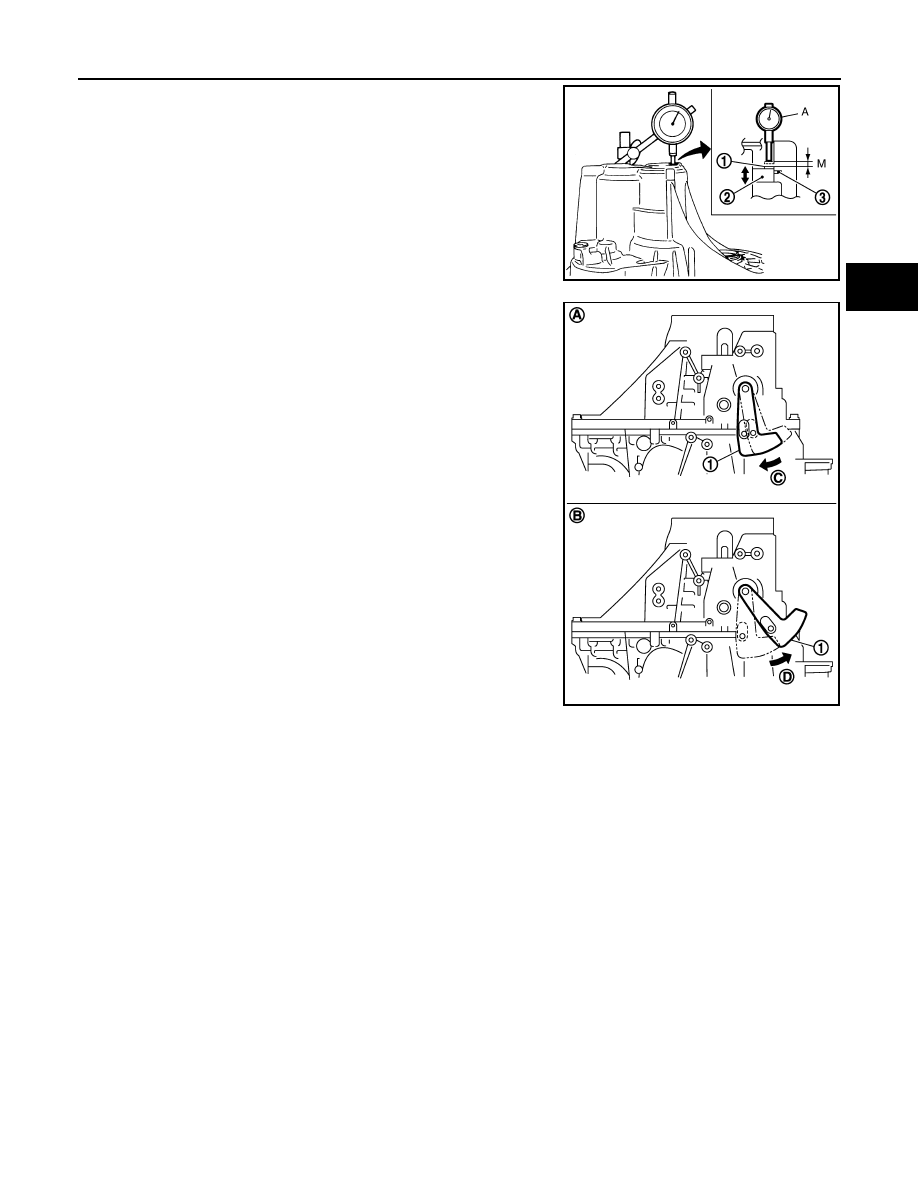

Set the dial indicator (A) to dummy adjusting shim (1) through
the bore plug mounting hole.

6.

Shift the shifter lever A (1) to 2nd gear position (A), and then
rotate it in the direction of the arrow (C) in the figure until it stops.
Using this position as the reference point, measure the amount
of movement when shifting shifter lever A to 1st gear position (B)
and rotating it in the direction of the arrow (D) in the figure until it
stops. This measurement is the "M" dimension.

7.

When measurement "M" is 0 - 0.06 mm (0 - 0.0024 in), adjust-
ment terminates, and the dummy adjusting shim becomes regu-
lar adjusting shim. Select adjusting shim from the computed
expressions when measurement "M" is over 0.06 mm (0.0024
in).

2

: Mainshaft rear bearing

3

:  Snap  ring

PCIB1827E

PCIB1935E

TM-180

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

INPUT SHAFT AND GEAR

INPUT SHAFT AND GEAR

Exploded View

INFOID:0000000010288519

Refer to

TM-150, "4WD : Exploded View"

 .

Disassembly

INFOID:0000000010288520

1.

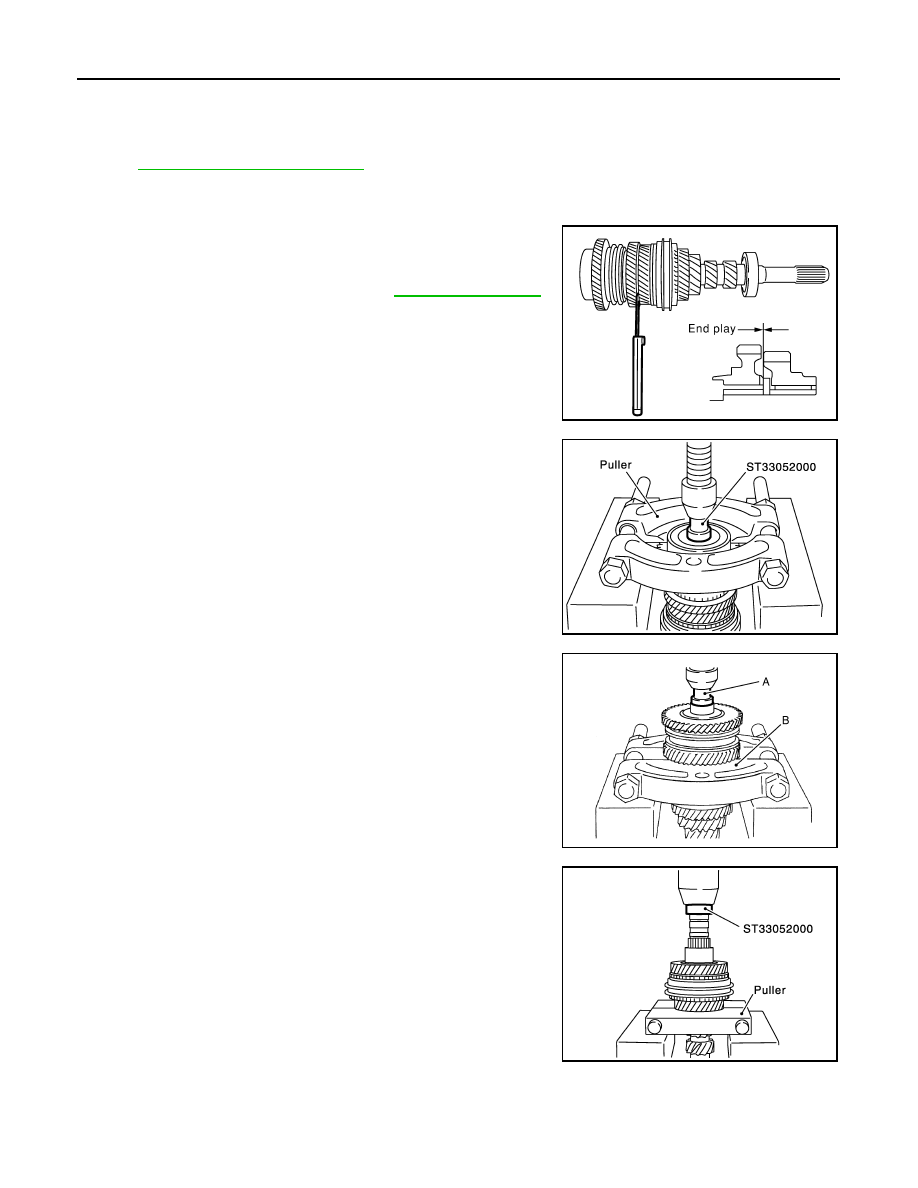

Before disassembling, measure end play for 3rd, 4th, 5th, and
6th input gears.

2.

Remove oil channel.

3.

Press out input shaft rear bearing using the drift and a puller.

4.

Remove snap ring.

5.

Press out 6th input gear, 6th needle bearing, 6th input gear
bushing, 5th-6th synchronizer hub assembly, and 5th input gear
using the drift (A) [SST: ST33052000] and a puller (B).

6.

Remove 5th needle bearing.

7.

Press out 5th input gear bushing, thrust washer, 4th input gear,
4th needle bearing, 4th input gear bushing, 3rd-4th synchronizer
hub assembly, and 3rd input gear using the drift and a puller.

8.

Remove 3rd needle bearing.

End play standard value

: Refer to

TM-207, "End Play"

.

SCIA0966E

SCIA0967E

PCIB1882E

SCIA0919E

INPUT SHAFT AND GEAR

TM-181

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

9.

Press out input shaft front bearing using a puller.

Assembly

INFOID:0000000010288521

1.

Install 3rd needle bearing to input shaft.

2.

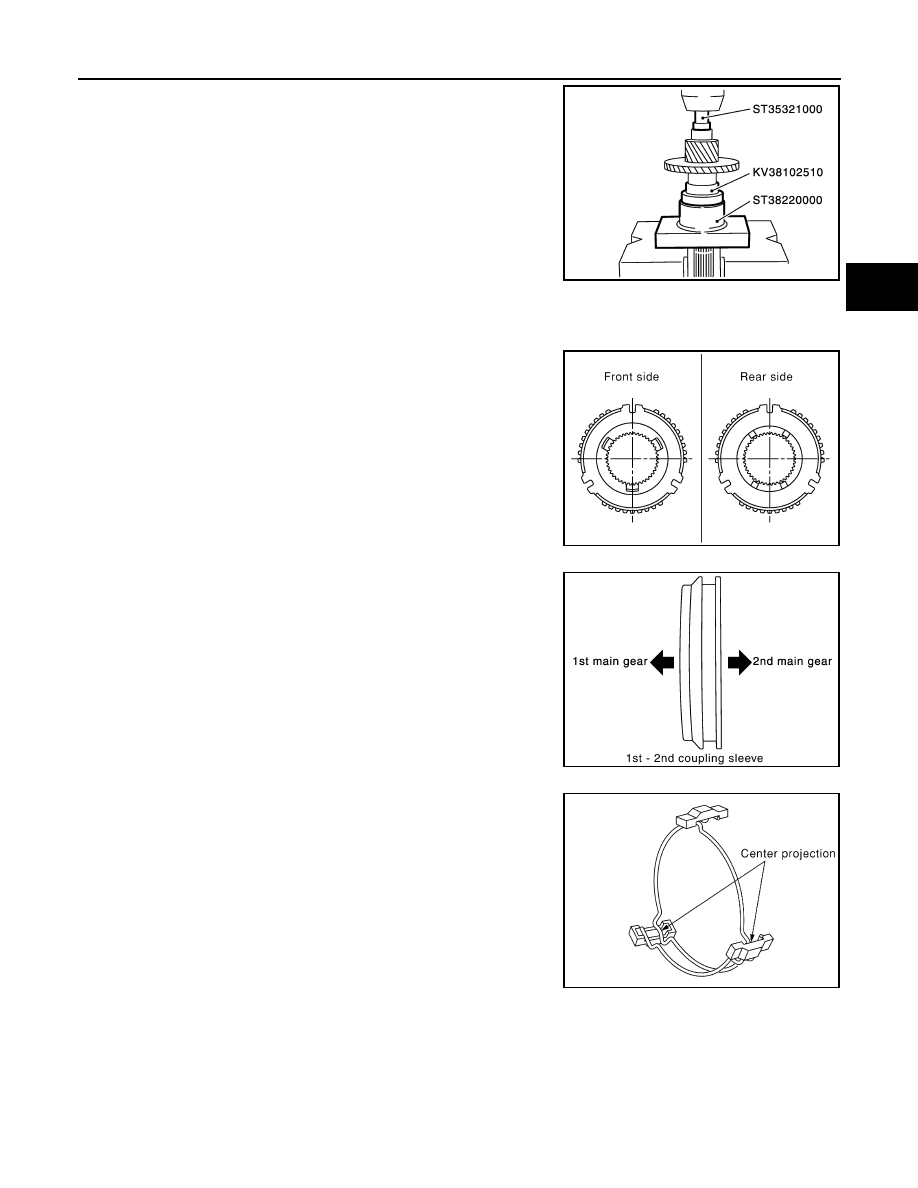

Install 3rd input gear, 3rd inner baulk ring, 3rd synchronizer cone, and 3rd outer baulk ring to input shaft.

CAUTION:

Replace 3rd inner baulk ring, 3rd synchronizer cone, and 3rd outer baulk ring as a set.

3.

Install 3rd-4th spread springs, 3rd-4th shifting inserts, and 3rd-4th synchronizer hub onto 3rd-4th coupling
sleeve.

CAUTION:

• Be careful with orientation of 3rd-4th synchronizer hub.
• Never reuse 3rd-4th synchronizer hub and 3rd-4th cou-

pling sleeve.

• Replace 3rd-4th synchronizer hub and 3rd-4th coupling

sleeve as a set.

• Be careful with orientation of 3rd-4th coupling sleeve.

• Be sure not to hook center projection of 2 spread springs

on same shifting insert.

SCIA0920E

SCIA0921E

PCIB0799E

SCIA1083E

TM-182

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

INPUT SHAFT AND GEAR

4.

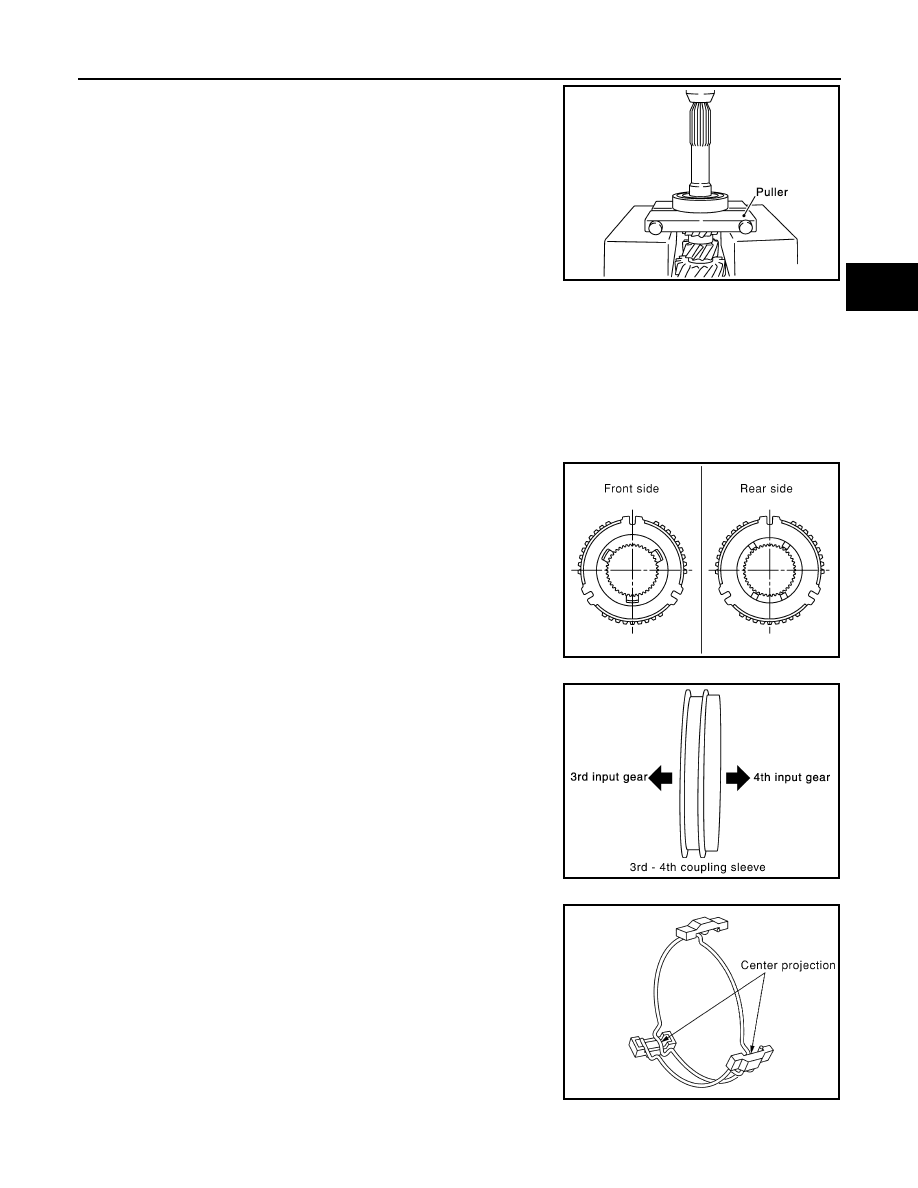

Press in 3rd-4th synchronizer hub assembly using the press
stand.

CAUTION:

Align grooves of 3rd-4th shifting insert and 3rd outer baulk
ring.

5.

Press in 4th input gear bushing using the press stand.

6.

Install 4th baulk ring.

7.

Install 4th needle bearing and 4th input gear to input shaft.

8.

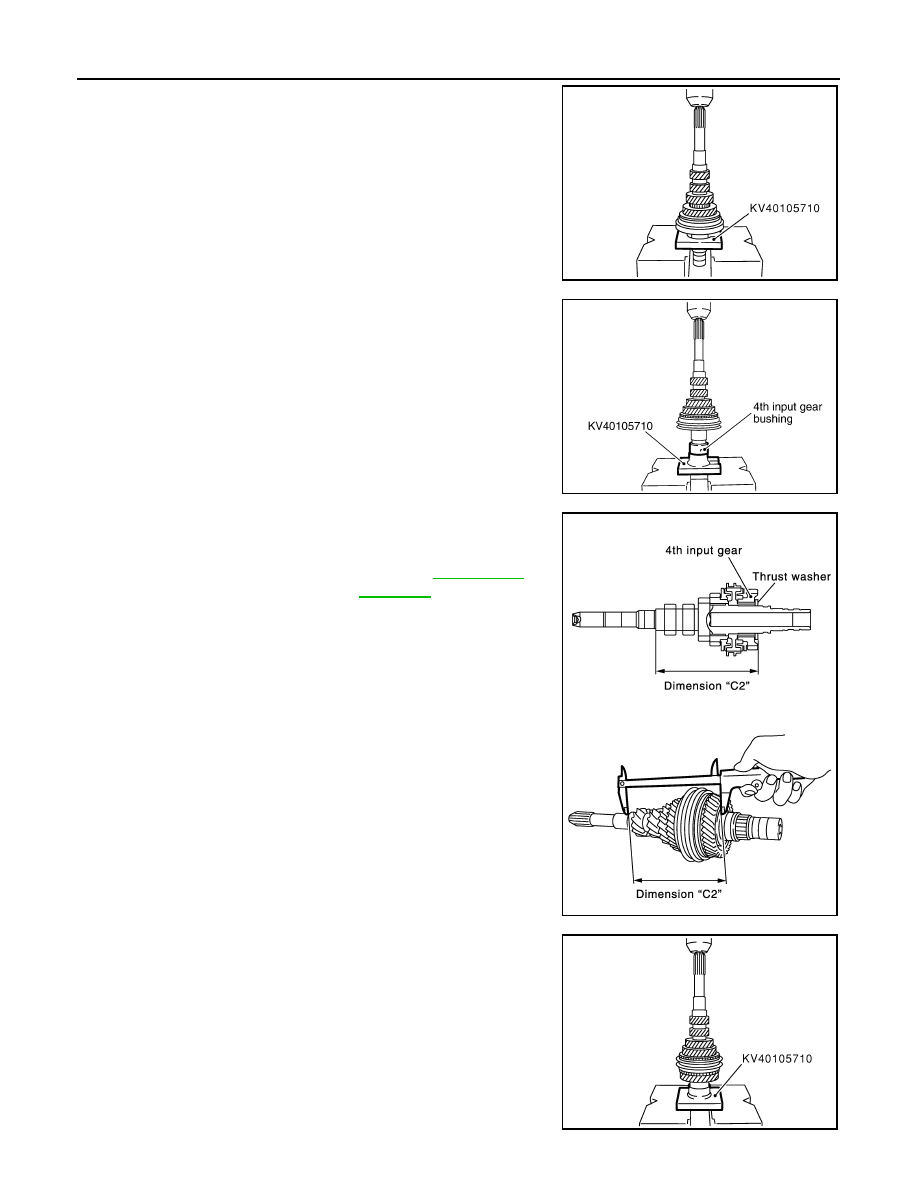

Select thrust washer so that dimension “C2” satisfies the stan-
dard value below. Then install thrust washer onto input shaft.

CAUTION:

Only one thrust washer can be selected.

9.

Press in 5th input gear bushing using the press stand.

CAUTION:

Never reuse 5th input gear bushing.

10. Install 5th needle bearing and 5th input gear to input shaft.

11. Install 5th baulk ring.

SCIA0922E

PCIB0800E

Standard value for dimen-
sion “C2”

: Refer to

TM-208, "Di-

mension"

.

SCIA0925E

SCIA0926E

INPUT SHAFT AND GEAR

TM-183

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

12. Install 5th-6th synchronizer hub, 5th-6th spread springs, and 5th-6th shifting inserts onto 5th-6th coupling

sleeve.

CAUTION:

• Be careful with orientation of 5th-6th synchronizer hub.

• Never reuse 5th-6th synchronizer hub and 5th-6th cou-

pling sleeve.

• Replace 5th-6th synchronizer hub and 5th-6th coupling

sleeve as a set.

• Be careful with orientation of 5th-6th coupling sleeve.

• Be sure not to hook center projection of 2 spread springs

on same shifting insert.

13. Press in 5th-6th synchronizer hub assembly using the press

stand.

CAUTION:

Align grooves of 5th-6th shifting insert and 5th baulk ring.

A

:Transaxle front side

B

:Transaxle rear side

PCIB1883E

A

: 5th input gear side

B

: 6th input gear side

PCIB1884E

SCIA1083E

SCIA0928E

TM-184

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

INPUT SHAFT AND GEAR

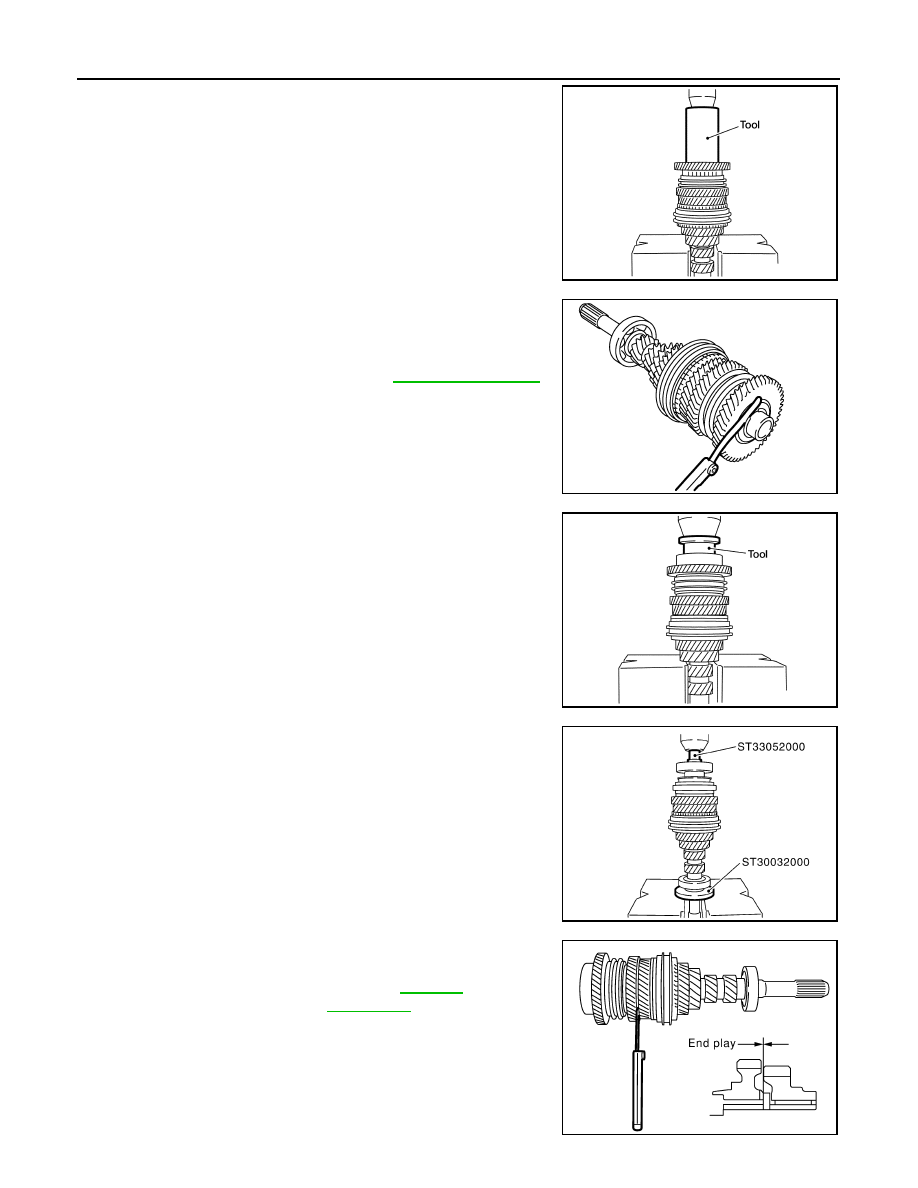

14. Install 6th needle bearing, 6th input gear, 6th baulk ring onto 6th

input gear bushing and then press in 6th input gear bushing onto
input shaft using the drift [SST: ST33200000].

15. Install snap ring onto input shaft and make sure that end play

(gap between snap ring and groove) of 6th input gear bushing
satisfies the standard value.

• If measurement is outside the standard range, select snap

ring.

CAUTION:

Never reuse snap ring.

16. Press in input shaft rear bearing using the drift [SST:

ST30901000].

CAUTION:

Install input shaft rear bearing with its brown surface facing
the 6th input gear side.

17. Press in input shaft front bearing using the drifts.

18. Install oil channel onto input shaft.

19. Check end play of 3rd, 4th, 5th, and 6th input gears.

WCIA0309E

End play standard value

:Refer to

TM-207, "End Play"

.

SCIA0970E

WCIA0310E

PCIB0825E

End play standard value

: Refer to

TM-207,

"End Play"

.

SCIA0966E

INPUT SHAFT AND GEAR

TM-185

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Inspection

INFOID:0000000010288522

INPUT SHAFT AND GEAR

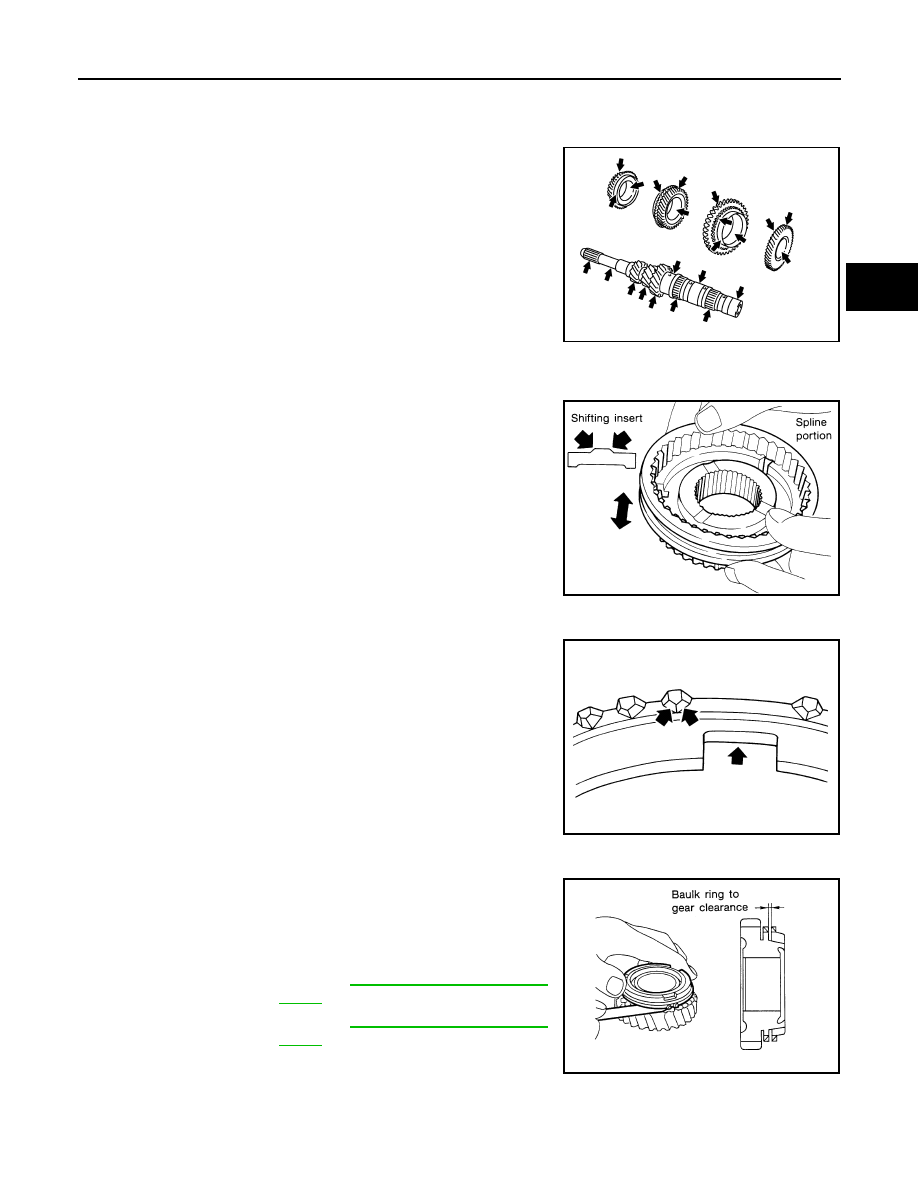

Check items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear, bending, etc. of shaft
• Excessive wear, damage, peeling, etc. of gears
• Excessive wear, damage, peeling, etc. of cam side of clutch gears

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

Check items below. If necessary, replace them with new ones.
• Damage and excessive wear of contact surfaces of coupling

sleeve, synchronizer hub and shifting insert

• Coupling sleeve and synchronizer hub must move smoothly.

Baulk Ring and Spread Spring

Check items below. If necessary, replace them with new ones.
• If any crack, damage, or excessive wear is found on cam face of

baulk ring or working face of insert, replace it.

Baulk Ring Clearance for Single Cone Synchronizer (4th, 5th, and 6th)

Push baulk ring on the cone and measure the clearance between
baulk ring and cone. If measurement is below limit, replace it with a
new one.

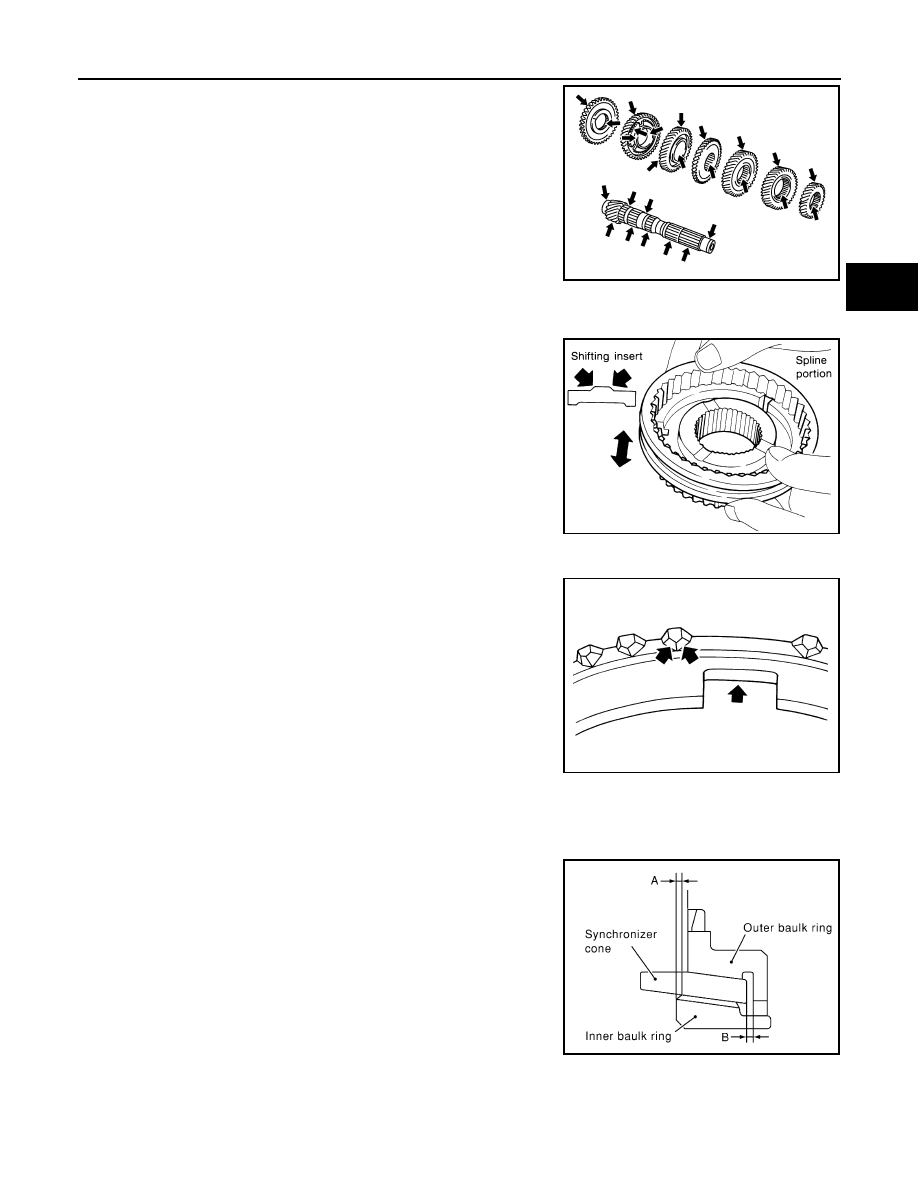

Baulk Ring Clearance for Double Cone Synchronizer (3rd)

JPDIC0142ZZ

SMT387A

SMT867D

Clearance

Standard value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

SMT140

TM-186

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

INPUT SHAFT AND GEAR

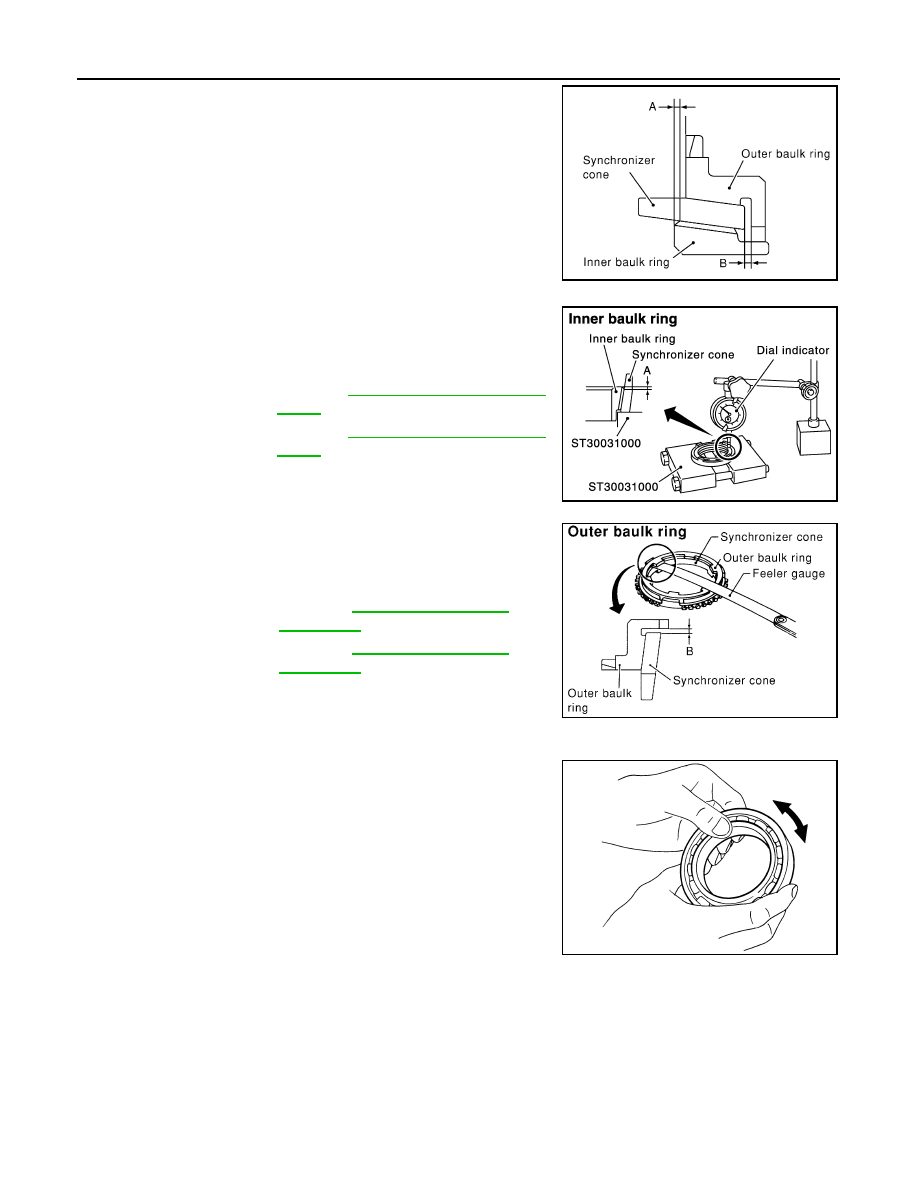

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A” and “B” are controlled with outer baulk
ring, synchronizer cone, and inner baulk ring as a set. Replace
them as a set if the clearances are outside the limit value.

1.

Measure the clearance “A” at 2 points or more diagonally oppo-
site using a dial indicator. And then calculate mean value.

2.

Measure the clearance “B” at 2 points or more diagonally oppo-
site using a feeler gauge. And then calculate mean value.

BEARING

Check items below. If necessary, replace them with new ones.
• Damage and rough rotation of bearing

SCIA0950E

Clearance “A”

Standard value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

Limit value

: Refer to

TM-207, "Baulk Ring Clear-

ance"

.

SCIA0951E

Clearance “B”

Standard value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

Limit value

: Refer to

TM-207, "Baulk Ring

Clearance"

.

SCIA1084E

MTF0041D

MAINSHAFT AND GEAR

TM-187

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

MAINSHAFT AND GEAR

Exploded View

INFOID:0000000010288523

Refer to

TM-150, "4WD : Exploded View"

.

Disassembly

INFOID:0000000010288524

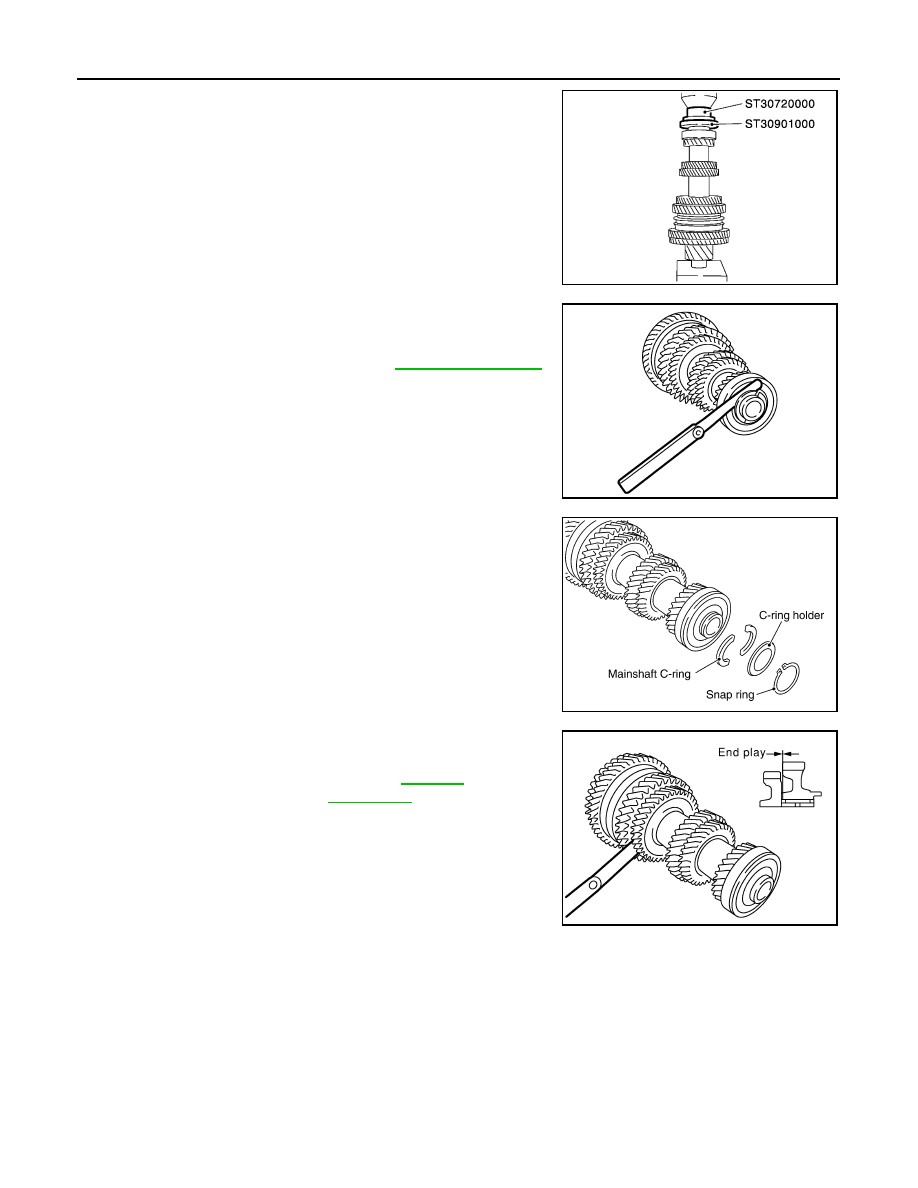

1.

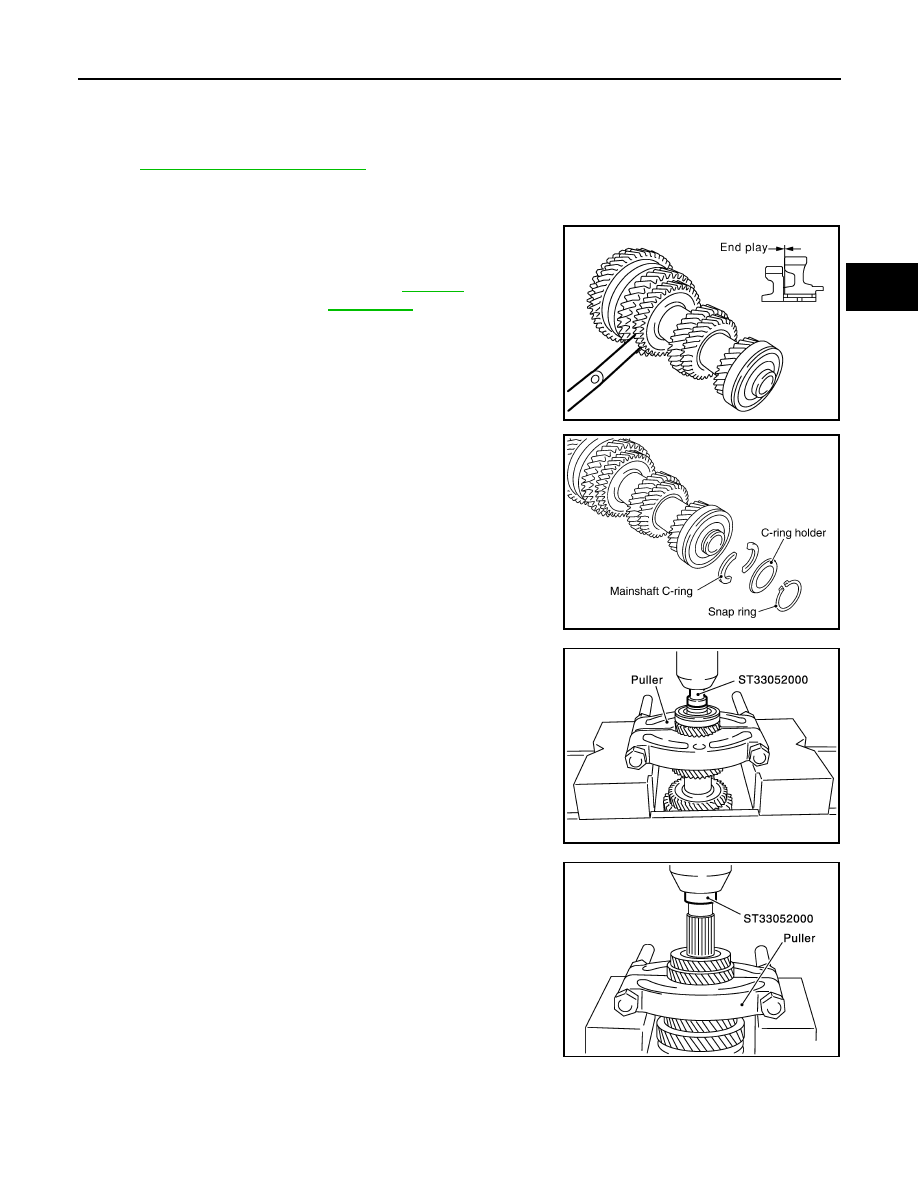

Before disassembling, measure the end play of 1st and 2nd
main gears.

2.

Remove snap ring.

3.

Remove C-ring holder and then remove mainshaft C-rings.

4.

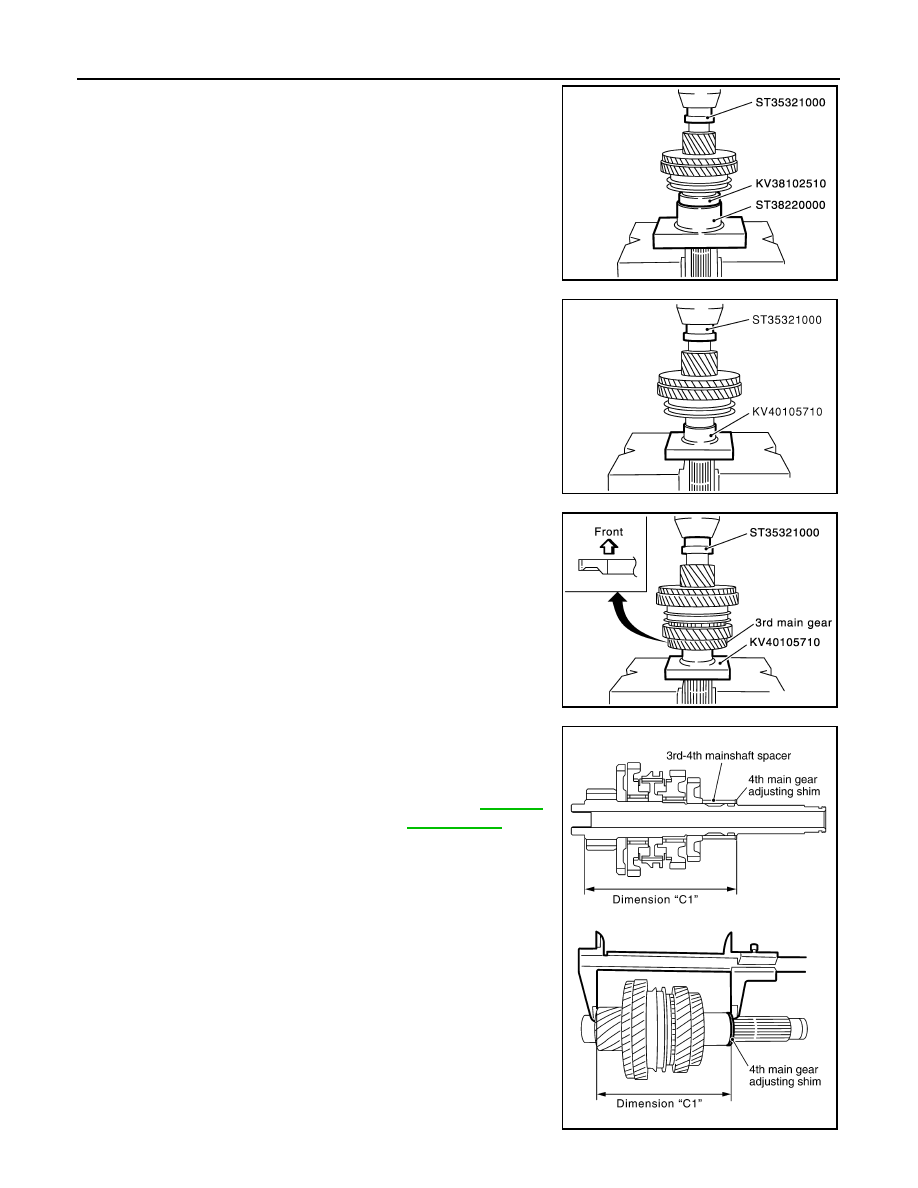

Press out mainshaft rear bearing, 6th main gear adjusting shim,
and 6th main gear using the drift and a puller.

5.

Remove 5th-6th mainshaft spacer.

6.

Press out 4th main gear and 5th main gear using the drift and a
puller.

7.

Remove 4th main gear adjusting shim.

8.

Remove 3rd-4th mainshaft spacer.

End play standard value

: Refer to

TM-207,

"End Play"

.

SCIA0973E

PCIB0805E

SCIA0976E

SCIA0937E

TM-188

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

9.

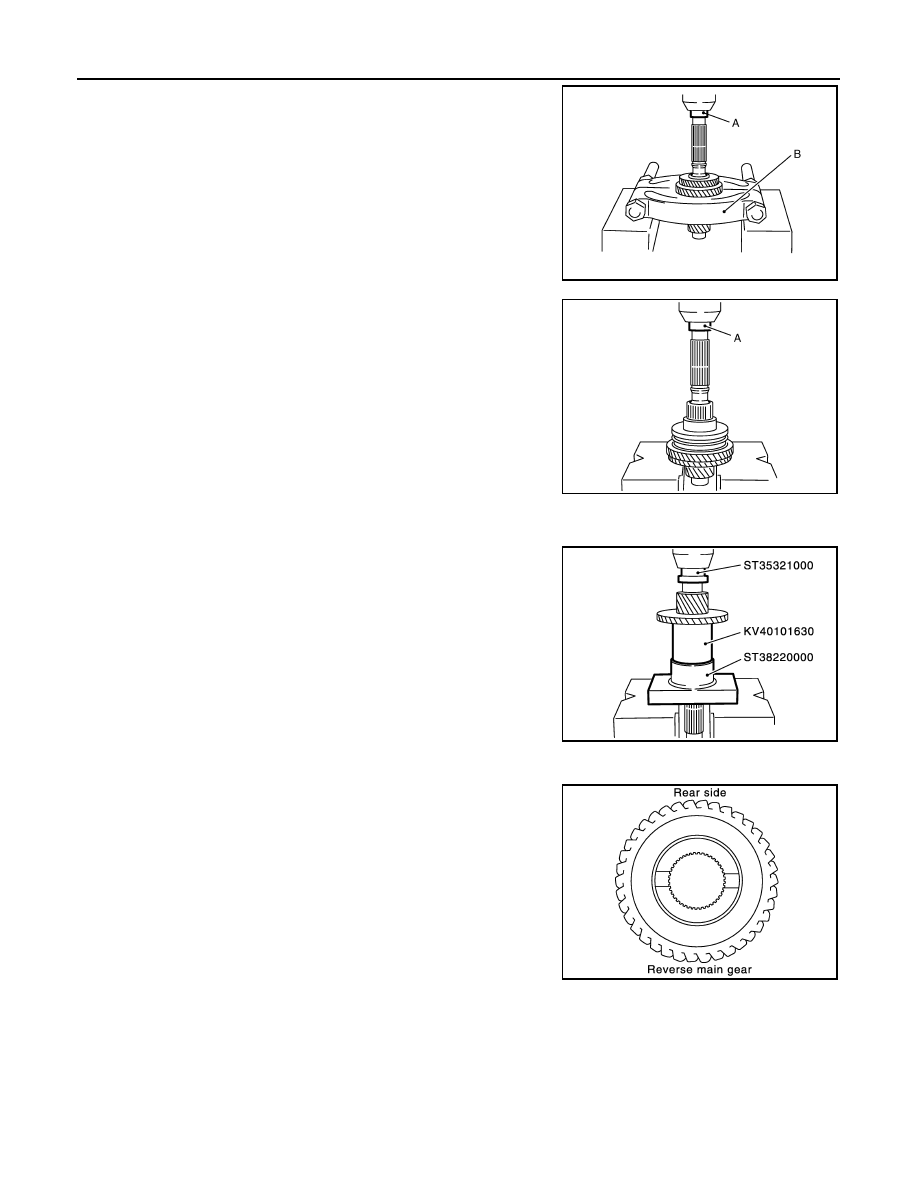

Press out 3rd main gear and 2nd main gear using the drift (A)
[SST: KV40105020] and a puller (B).

10. Remove 2nd needle bearing.

11. Press out 2nd main gear bushing, 1st-2nd synchronizer hub

assembly, 1st main gear, 1st needle bearing, 1st main gear
bushing, and reverse main gear using the drift (A) [SST:
KV40105020].

Assembly

INFOID:0000000010288525

1.

Press in reverse main gear using the drifts and the press stand.

CAUTION:

• Be careful with orientation of reverse main gear.
• Never reuse reverse main gear.

PCIB1885E

PCIB1886E

SCIA0939E

SCIA0992E

MAINSHAFT AND GEAR

TM-189

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

2.

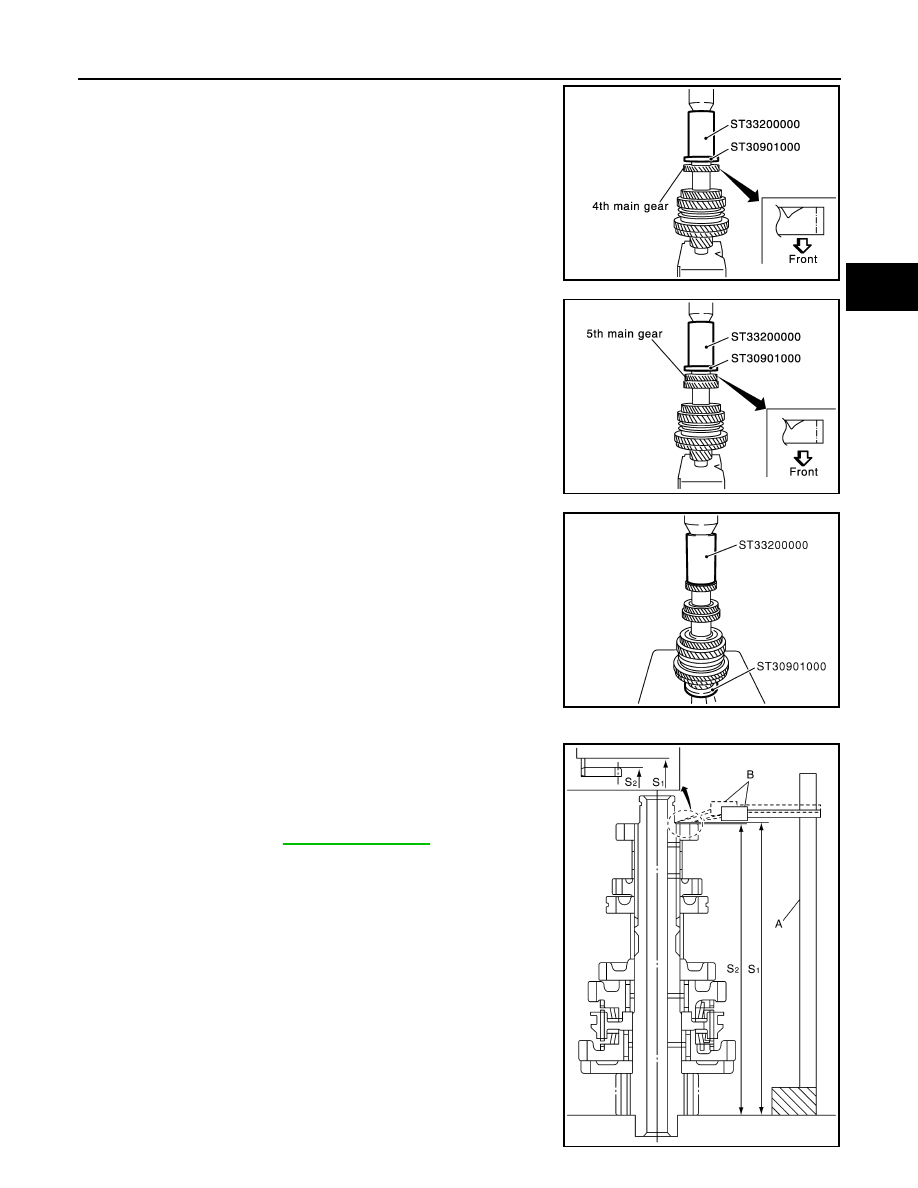

Press in 1st main gear bushing using the drifts and the press
stand.

3.

Install 1st needle bearing and then 1st main gear.

4.

Install 1st-2nd spread springs, 1st-2nd shifting inserts, and 1st-2nd synchronizer hub onto 1st-2nd cou-
pling sleeve.

CAUTION:

• Be careful with orientation of 1st-2nd synchronizer hub.
• Never reuse 1st-2nd synchronizer hub and 1st-2nd cou-

pling sleeve.

• Replace 1st-2nd synchronizer hub and 1st-2nd coupling

sleeve as a set.

• Be careful with orientation of 1st-2nd coupling sleeve.

• Be sure not to hook center projection of 2 spread springs

on same 1st-2nd shifting insert.

SCIA0940E

SCIA0921E

PCIB0803E

SCIA1083E

TM-190

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

5.

Install 1st inner baulk ring, 1st synchronizer cone, and 1st outer
baulk ring onto mainshaft and then press in 1st-2nd synchro-
nizer hub assembly onto mainshaft using the drifts and the press
stand.

CAUTION:

• Outer baulk ring, synchronizer cone, and inner baulk ring

on 2nd gear-side must have been removed.

• Be careful with orientation of coupling sleeve.
• Replace 1st inner baulk ring, 1st synchronizer cone, and

1st outer baulk ring as a set.

6.

Press in 2nd main gear bushing using the drift and the press
stand.

7.

Install 2nd outer baulk ring, 2nd synchronizer cone, and 2nd
inner baulk ring.

CAUTION:

Replace 2nd outer baulk ring, 2nd synchronizer cone, and
2nd inner baulk ring as a set.

8.

Install 2nd needle bearing and 2nd main gear.

9.

Press in 3rd main gear using the drift and the press stand.

CAUTION:

• Be careful with orientation of 3rd main gear.
• Never reuse 3rd main gear.

10. Install 3rd-4th mainshaft spacer.

11. Select 4th main gear adjusting shim so that dimension “C1” sat-

isfies the standard value below and install 4th main gear adjust-
ing shim onto mainshaft.

CAUTION:

Only one adjusting shim can be selected.

SCIA0941E

SCIA0942E

SCIA0943E

 Standard value for dimension “C1”

: Refer to

TM-208,

"Dimension"

.

PCIB0804E

MAINSHAFT AND GEAR

TM-191

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

12. Press in 4th main gear using the drifts.

CAUTION:

• Be careful with orientation of 4th main gear.
• Never reuse 4th main gear.

13. Press in 5th main gear using the drifts.

CAUTION:

• Be careful with orientation of 5th main gear.
• Never reuse 5th main gear.

14. Install 5th-6th mainshaft spacer.

15. Press in 6th main gear using the drifts.

CAUTION:

Never reuse 6th main gear.

16. Select 6th main gear adjusting shim and then install it onto mainshaft.

• Calculate thickness “S” of 6th main gear adjusting shim follow-

ing the procedure below so that end play dimension between
6th main gear and mainshaft rear bearing becomes the dimen-
sion shown below.

CAUTION:

Only one adjusting shim can be selected.

a.

Measure dimension “S

1

” and “S

2

” using a height gauge (A) and

pick tester (B).

b.

Install selected 6th main gear adjusting shim to mainshaft.

SCIA0945E

SCIA0946E

SCIA0977E

End play

:Refer to

TM-207, "End Play"

.

Dimension “S” = (S

1

 - S

2

) - End play

S

: Thickness of adjusting shim

S

1



: Dimension from mainshaft standard face to
mainshaft rear bearing press-fit end face

S

2



: Dimension from mainshaft standard face to
6th main gear end face

PCIB1887E

TM-192

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

MAINSHAFT AND GEAR

17. Press in mainshaft rear bearing using the drifts.

18. Install mainshaft C-rings onto mainshaft and check that end play

of mainshaft rear bearing satisfies the standard value.

• If measurement is outside the standard range, reselect main-

shaft C-rings.

19. Install C-ring holder and then install snap ring.

CAUTION:

Never reuse snap ring.

20. Check end play of 1st and 2nd main gears.

Inspection

INFOID:0000000010288526

MAINSHAFT AND GEAR

SCIA0978E

End play standard value

: Refer to

TM-207, "End Play"

.

SCIA0979E

PCIB0805E

End play standard value

: Refer to

TM-207,

"End Play"

.

SCIA0973E

MAINSHAFT AND GEAR

TM-193

< UNIT DISASSEMBLY AND ASSEMBLY >

[6MT: RS6F52A]

C

E

F

G

H

I

J

K

L

M

A

B

TM

N

O

P

Check items below. If necessary, replace them with new ones.
• Damage, peeling, dent, uneven wear, bending, etc. of shaft
• Excessive wear, damage, peeling, etc. of gears
• Excessive wear, damage, peeling, etc. of cam side of clutch gears

SYNCHRONIZER

Synchronizer Hub and Coupling Sleeve

Check items below. If necessary, replace them with new ones.
• Damage and unusual wear on contact surfaces of coupling sleeve,

synchronizer hub and shifting insert.

• Coupling sleeve and synchronizer hub must move smoothly.

Baulk Ring and Spread Spring

Check items below. If necessary, replace them with new ones.
• If any crack, damage, or excessive wear is found on cam face of

baulk ring or working face of insert, replace it.

Baulk Ring Clearance for Double Cone Synchronizer

Check the clearance between outer baulk ring, synchronizer cone,
and inner baulk ring as follows.

CAUTION:

The clearances “A” and “B” are controlled with outer baulk
ring, synchronizer cone, and inner baulk ring as a set. Replace
them as a set if the clearances are outside the limit value.

JPDIC0143ZZ

SMT387A

SMT867D

R9M

: —

SCIA0950E
