Qashqai J11. Transaxle & Transmission - part 14

TM-210

< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

PRECAUTION

PRECAUTIONS

Precaution for Supplemental Restraint System (SRS) "AIR BAG" and "SEAT BELT
PRE-TENSIONER"

INFOID:0000000010589198

The Supplemental Restraint System such as “AIR BAG” and “SEAT BELT PRE-TENSIONER”, used along
with a front seat belt, helps to reduce the risk or severity of injury to the driver and front passenger for certain
types of collision. Information necessary to service the system safely is included in the “SRS AIR BAG” and
“SEAT BELT” of this Service Manual.

WARNING:

Always observe the following items for preventing accidental activation.
• To avoid rendering the SRS inoperative, which could increase the risk of personal injury or death in

the event of a collision that would result in air bag inflation, all maintenance must be performed by
an authorized NISSAN/INFINITI dealer.

• Improper maintenance, including incorrect removal and installation of the SRS, can lead to personal

injury caused by unintentional activation of the system. For removal of Spiral Cable and Air Bag
Module, see “SRS AIR BAG”.

• Never use electrical test equipment on any circuit related to the SRS unless instructed to in this Ser-

vice Manual. SRS wiring harnesses can be identified by yellow and/or orange harnesses or harness
connectors.

PRECAUTIONS WHEN USING POWER TOOLS (AIR OR ELECTRIC) AND HAMMERS

WARNING:

Always observe the following items for preventing accidental activation.
• When working near the Air Bag Diagnosis Sensor Unit or other Air Bag System sensors with the

ignition ON or engine running, never use air or electric power tools or strike near the sensor(s) with
a hammer. Heavy vibration could activate the sensor(s) and deploy the air bag(s), possibly causing
serious injury.

• When using air or electric power tools or hammers, always switch the ignition OFF, disconnect the

battery, and wait at least 3 minutes before performing any service.

Precaution Necessary for Steering Wheel Rotation After Battery Disconnect

INFOID:0000000010765808

CAUTION:

Comply with the following cautions to prevent any error and malfunction.
• Before removing and installing any control units, first turn the ignition power source and accessory

power source to the OFF, then disconnect both battery cables.

• After finishing work, confirm that all control unit connectors are connected properly, then re-connect

both battery cables.

• Always use CONSULT to perform self-diagnosis as a part of each function inspection after finishing

work. If a DTC is detected, perform trouble diagnosis according to self-diagnosis results.

For vehicle with steering lock unit, if the battery is disconnected or discharged, the steering wheel will lock and
cannot be turned.
If turning the steering wheel is required with the battery disconnected or discharged, follow the operation pro-
cedure below before starting the repair operation.

OPERATION PROCEDURE

Connect both battery cables.
NOTE:
Supply power using jumper cables if battery is discharged.

Open driver door.

Turn the ignition switch to the ON position.
(At this time, the steering lock will be released.)

Turn the ignition switch to OFF position with driver door open.

Wait for 3 minutes or longer with driver door open.
NOTE:
• Do not close driver door because the steering wheel locks when driver door is closed.

PRECAUTIONS

TM-211

< PRECAUTION >

[CVT: RE0F10D]

• The auto acc function is adapted to this vehicle. For this reason, even when the ignition switch is turned

to OFF position, the accessory power source does not turned OFF and continues to be supplied for a
certain amount of time.

Disconnect both battery cables. The steering lock will remain released with both battery cables discon-
nected and the steering wheel can be turned.

Perform the necessary repair operation.

When the repair work is completed, re-connect both battery cables. With the brake pedal released, turn
the ignition switch from OFF position to ON position, then to LOCK position. (The steering wheel will lock
when the ignition switch is turned to LOCK position.)

Perform self-diagnosis check of all control units using CONSULT.

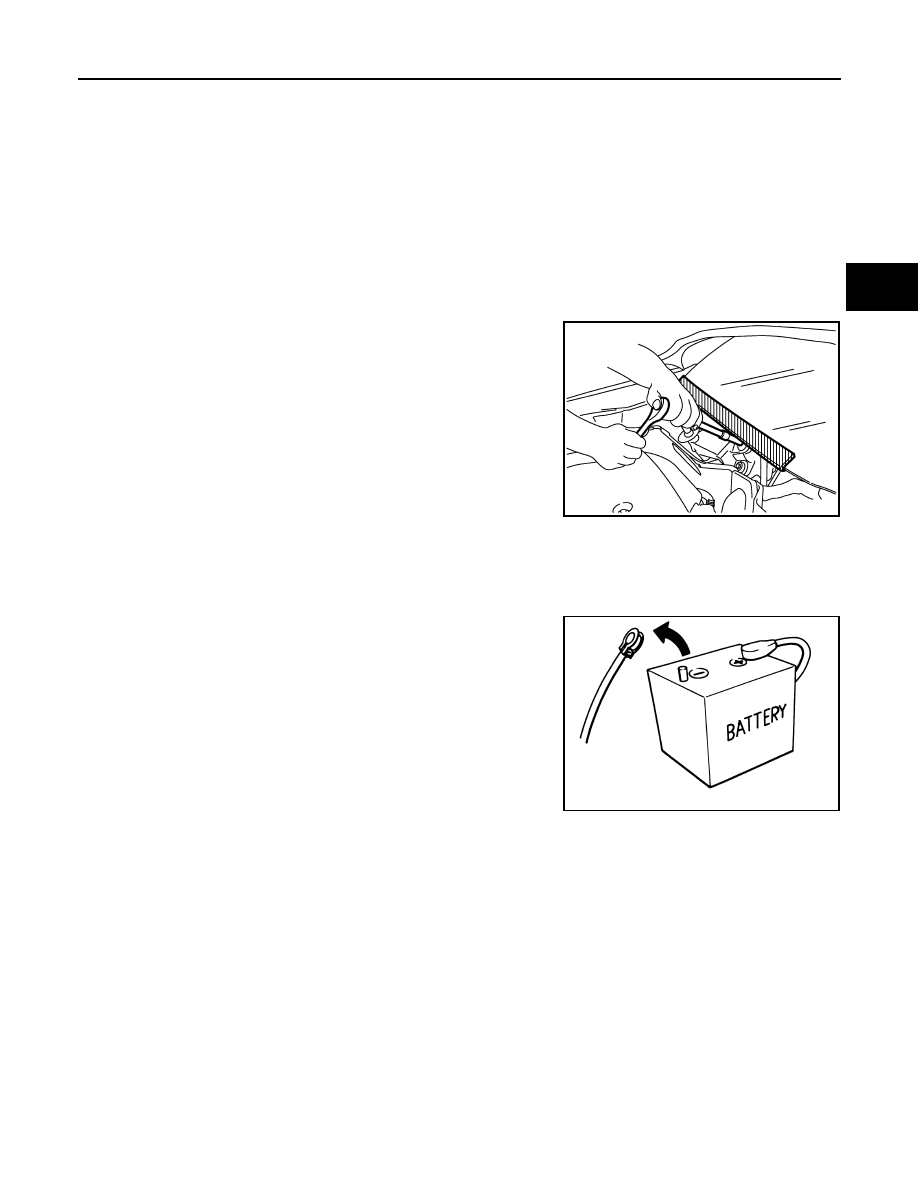

Precaution for Procedure without Cowl Top Cover

INFOID:0000000010589200

When performing the procedure after removing cowl top cover, cover
the lower end of windshield with urethane, etc to prevent damage to
windshield.

Precautions for Removing Battery Terminal

INFOID:0000000010765809

• With the adoption of Auto ACC function, ACC power is automatically supplied by operating the intelligent key

or remote keyless entry or by opening/closing the driver side door. In addition, ACC power is supplied even
after the ignition switch is turned to the OFF position, i.e. ACC power is supplied for a certain fixed time.

• When disconnecting the 12V battery terminal, turn off the ACC

power before disconnecting the 12V battery terminal, observing
“How to disconnect 12V battery terminal” described below.
NOTE:
Some ECUs operate for a certain fixed time even after ignition
switch is turned OFF and ignition power supply is stopped. If the
battery terminal is disconnected before ECU stops, accidental DTC
detection or ECU data damage may occur.

• For vehicles with the 2-batteries, be sure to connect the main bat-

tery and the sub battery before turning ON the ignition switch.
NOTE:
If the ignition switch is turned ON with any one of the terminals of
main battery and sub battery disconnected, then DTC may be detected.

• After installing the 12V battery, always check "Self Diagnosis Result" of all ECUs and erase DTC.

NOTE:
The removal of 12V battery may cause a DTC detection error.

HOW TO DISCONNECT 12V BATTERY TERMINAL

Disconnect 12V battery terminal according to Instruction 1 or Instruction 2 described below.
For vehicles parked by ignition switch OFF, refer to Instruction 2.

INSTRUCTION 1

Open the hood.

Turn key switch to the OFF position with the driver side door opened.

Get out of the vehicle and close the driver side door.

Wait at least 3 minutes. For vehicle with the engine listed below, remove the battery terminal after a lapse
of the specified time.

PIIB3706J

SEF289H

D4D engine

: 20 minutes

HRA2DDT

: 12 minutes

TM-212

< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

INSTRUCTION 2 (FOR VEHICLES PARKED BY IGNITION SWITCH OFF)

Unlock the door with intelligent key or remote keyless entry.
NOTE:
At this moment, ACC power is supplied.

Open the driver side door.

Open the hood.

Close the driver side door.

Wait at least 3 minutes.

CAUTION:

While waiting, never operate the vehicle such as locking, opening, and closing doors. Violation of
this caution results in the activation of ACC power supply according to the Auto ACC function.

Remove 12V battery terminal.

CAUTION:

After installing 12V battery, always check self-diagnosis results of all ECUs and erase DTC.

Precaution for TCM and Transaxle Assembly Replacement

INFOID:0000000010589202

CAUTION:

• To replace TCM, refer to

TM-280, "Description"

• To replace transaxle assembly, refer to

TM-282, "Description"

General Precautions

INFOID:0000000010589203

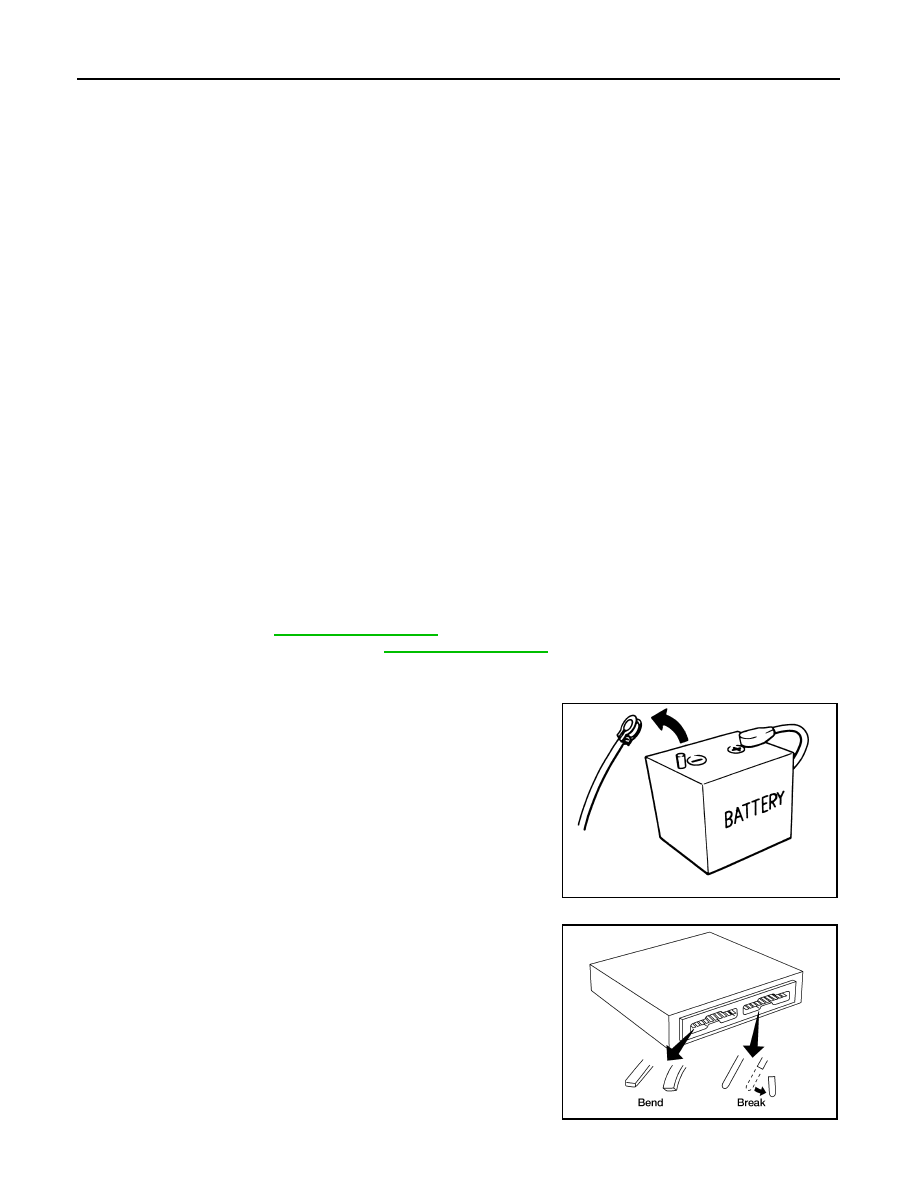

• Turn ignition switch OFF and disconnect the battery cable

from the negative terminal before connecting or disconnect-
ing the CVT assembly harness connector. Because battery
voltage is applied to TCM even if ignition switch is turned
OFF.

• When connecting or disconnecting pin connectors into or

from TCM, do not damage pin terminals (bend or break).
Check that there are not any bends or breaks on TCM pin ter-
minal, when connecting pin connectors.

K9K engine

: 4 minutes

M9R engine

: 4 minutes

R9M engine

: 4 minutes

V9X engine

: 4 minutes

SEF289H

AAT470A

PRECAUTIONS

TM-213

< PRECAUTION >

[CVT: RE0F10D]

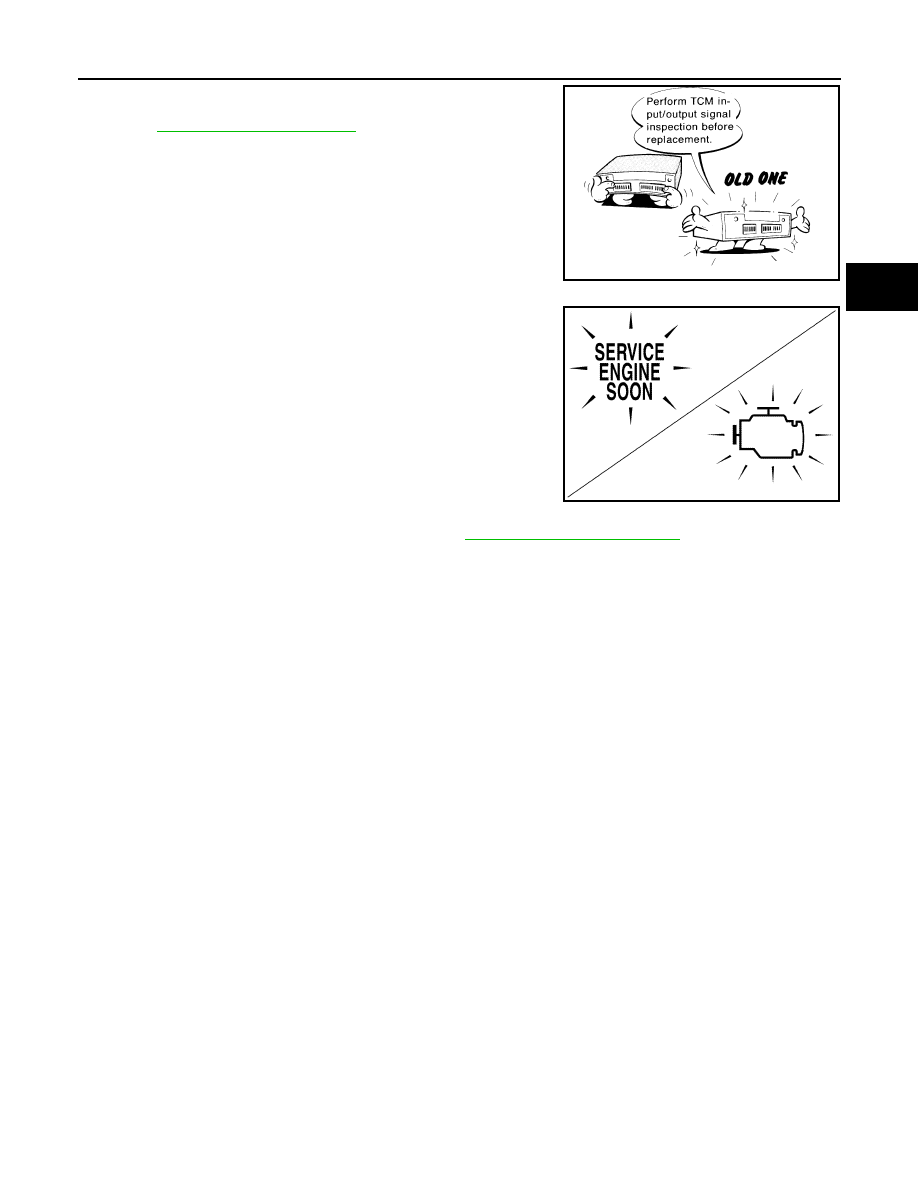

• Perform TCM input/output signal inspection and check

whether TCM functions normally or not before replacing TCM.
Refer to

TM-256, "Reference Value"

• Perform “DTC (Diagnostic Trouble Code) CONFIRMATION

PROCEDURE”.
If the repair is completed DTC should not be displayed in the
“DTC CONFIRMATION PROCEDURE”.

• Always use the specified brand of CVT fluid. Refer to

MA-59, "Fluids and Lubricants"

• Use lint-free paper not cloth rags during work.
• Dispose of the waste oil using the methods prescribed by law, ordinance, etc. after replacing the CVT fluid.

On Board Diagnosis (OBD) System of CVT and Engine

INFOID:0000000010589204

The TCM and ECM have an on board diagnostic system. It will light up the malfunction indicator lamp (MIL) to
warn the driver of a malfunction causing emission deterioration.

CAUTION:

• Be sure to turn the ignition switch OFF and disconnect the battery cable from the negative terminal

before any repair or inspection work. The open/short circuit of related switches, sensors, solenoid
valves, etc. will cause the MIL to light up.

• Be sure to connect and lock the connectors securely after work. A loose (unlocked) connector will

cause the MIL to light up due to an open circuit. (Be sure the connector is free from water, grease,
dirt, bent terminals, etc.)

• Be sure to route and secure the harnesses properly after work. Interference of the harness with a

bracket, etc. may cause the MIL to light up due to a short circuit.

• Be sure to connect rubber tubes properly after work. A misconnected or disconnected rubber tube

may cause the MIL to light up due to a malfunction of the EGR system or fuel injection system, etc.

• Be sure to erase the unnecessary malfunction information (repairs completed) from the TCM and

ECM before returning the vehicle to the customer.

Removal and Installation Procedure for CVT Unit Connector

INFOID:0000000010589205

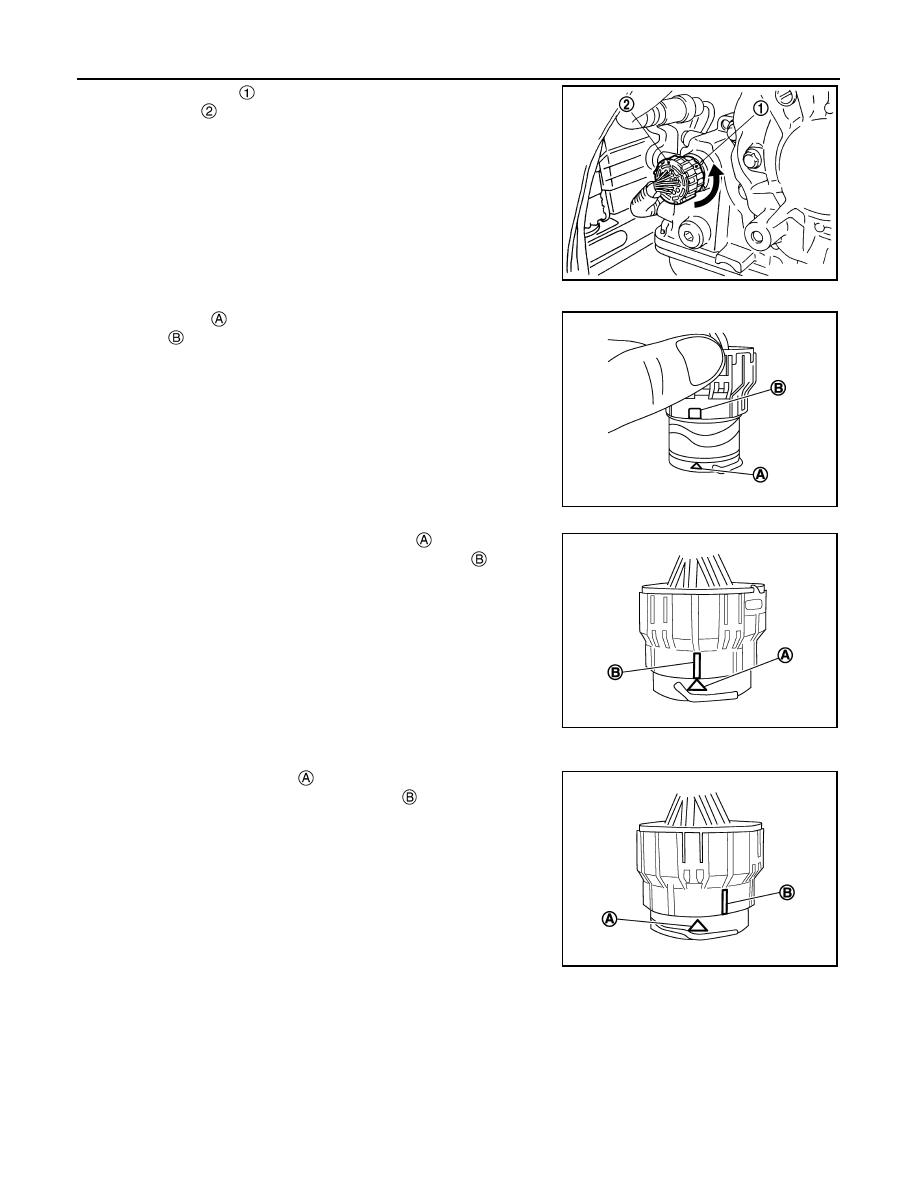

REMOVAL

MEF040DA

JSBIA1315ZZ

TM-214

< PRECAUTION >

[CVT: RE0F10D]

PRECAUTIONS

• Rotate bayonet ring

counterclockwise. Pull out CVT unit har-

ness connector

upward and remove it.

INSTALLATION

Align marking

on CVT unit harness connector terminal with

marking

on bayonet ring. Insert CVT unit harness connector.

Rotate bayonet ring clockwise.

Rotate bayonet ring clockwise until marking

on CVT unit har-

ness connector terminal body is aligned with the slit

on bayo-

net ring as shown in the figure (correctly fitting condition).

CAUTION:

• Securely align marking

on CVT unit harness connector

terminal body with bayonet ring slit

. Then, be careful

not to make a half fit condition as shown in the figure.

• Never mistake the slit of bayonet ring for other dent por-

tion.

SCIA6685J

JPDIA0294ZZ

JPDIA0295ZZ

JPDIA0296ZZ

PREPARATION

TM-215

< PREPARATION >

[CVT: RE0F10D]

PREPARATION

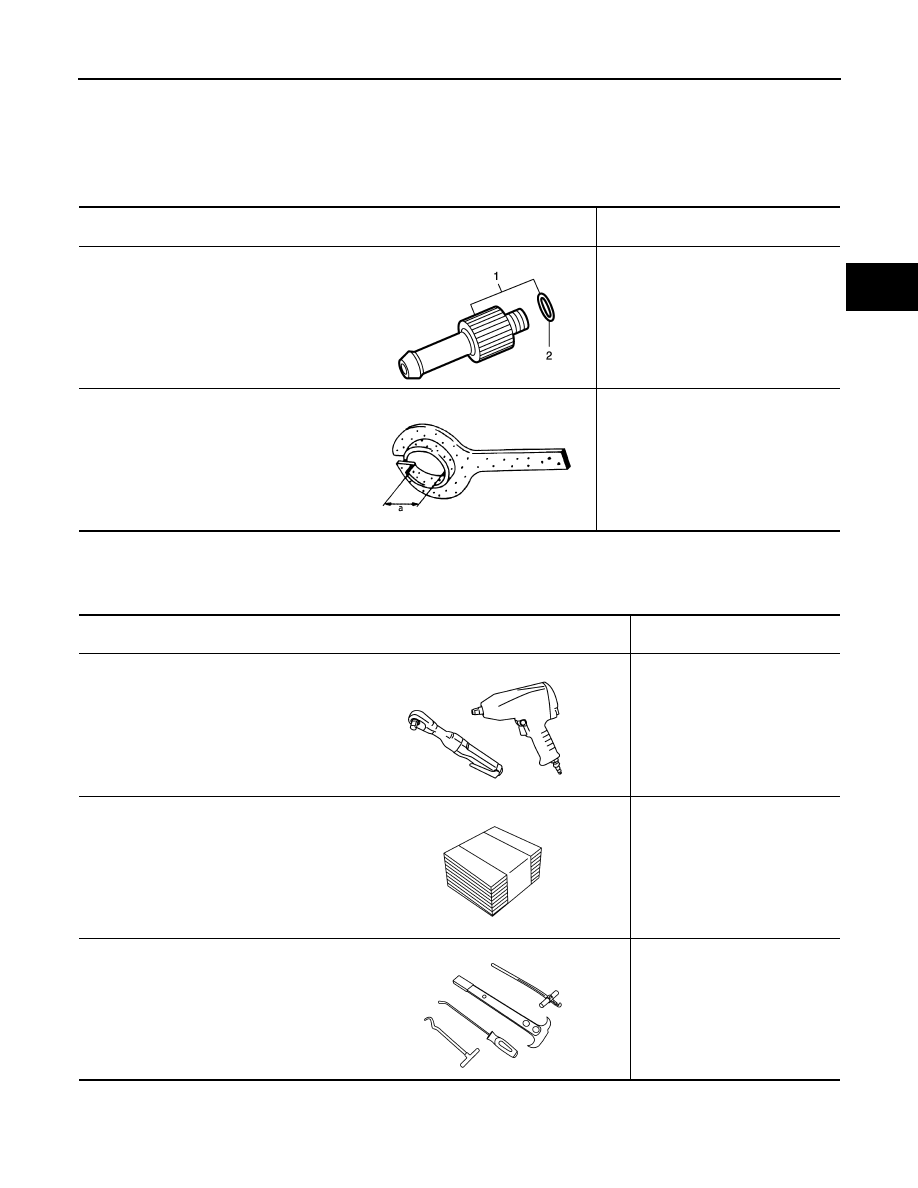

Special Service Tools

INFOID:0000000010589206

*: The O-ring as a unit part is set as a SST.

Commercial Service Tools

INFOID:0000000010589207

Tool number
Tool name

Description

KV311039S0
Charging pipe set

KV31103920*
O-ring

CVT fluid changing and adjustment

KV38107900
Protector
a: 32 mm (1.26 in) dia.

Installing drive shaft

JSDIA1844ZZ

PDIA1183J

Tool number
Tool name

Description

Power tool

Loosening nuts and bolts

Lint-free paper

Cleaning transaxle

Oil seal remover

Removing each oil seal

PBIC0190E

JSDIA4746ZZ

JSDIA4998ZZ

TM-216

< PREPARATION >

[CVT: RE0F10D]

PREPARATION

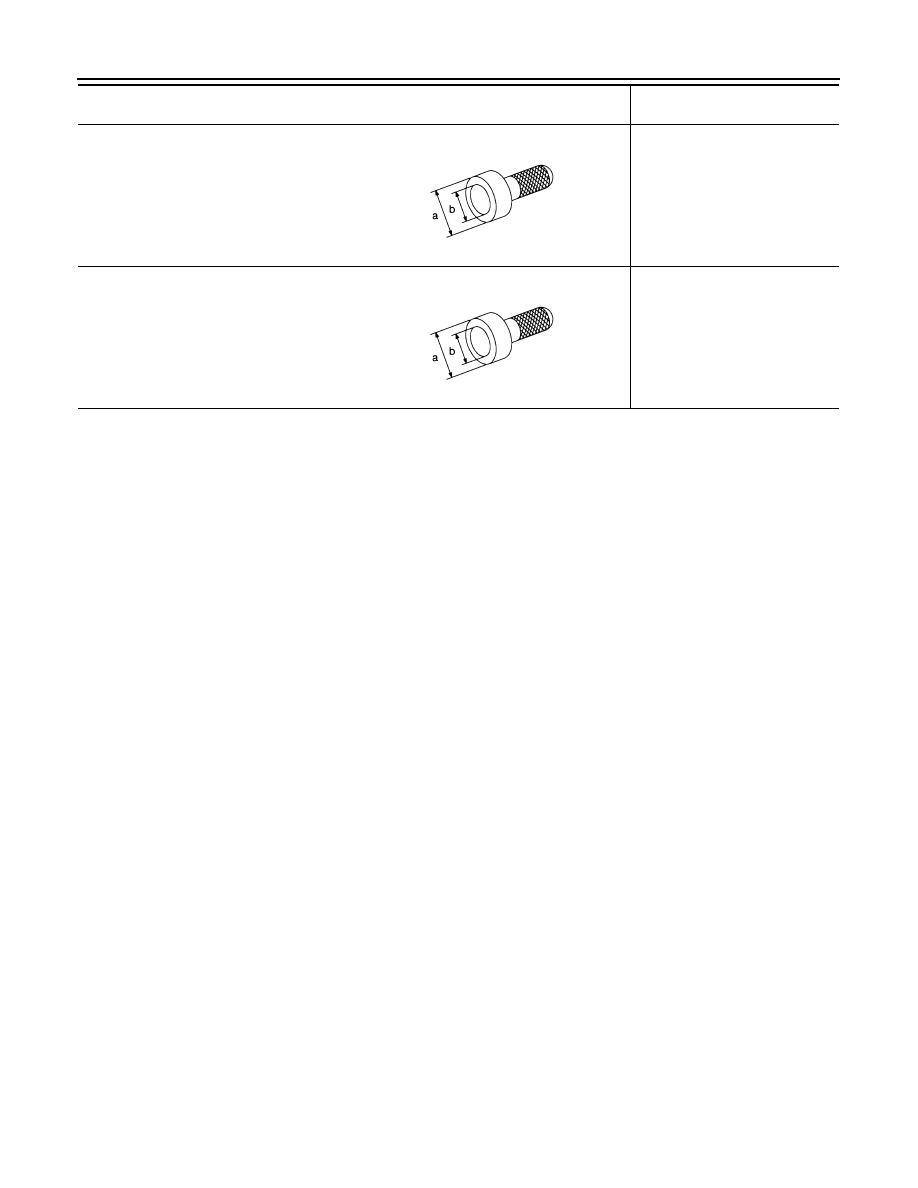

Drift
a: 56 mm (2.20 in) dia.
b: 50 mm (1.97 in) dia.

Installing differential side oil seal

Drift
a: 65 mm (2.56 in) dia.
b: 60 mm (2.36 in) dia.

Installing converter housing oil
seal

Tool number
Tool name

Description

NT115

COMPONENT PARTS

TM-217

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

SYSTEM DESCRIPTION

COMPONENT PARTS

CVT CONTROL SYSTEM

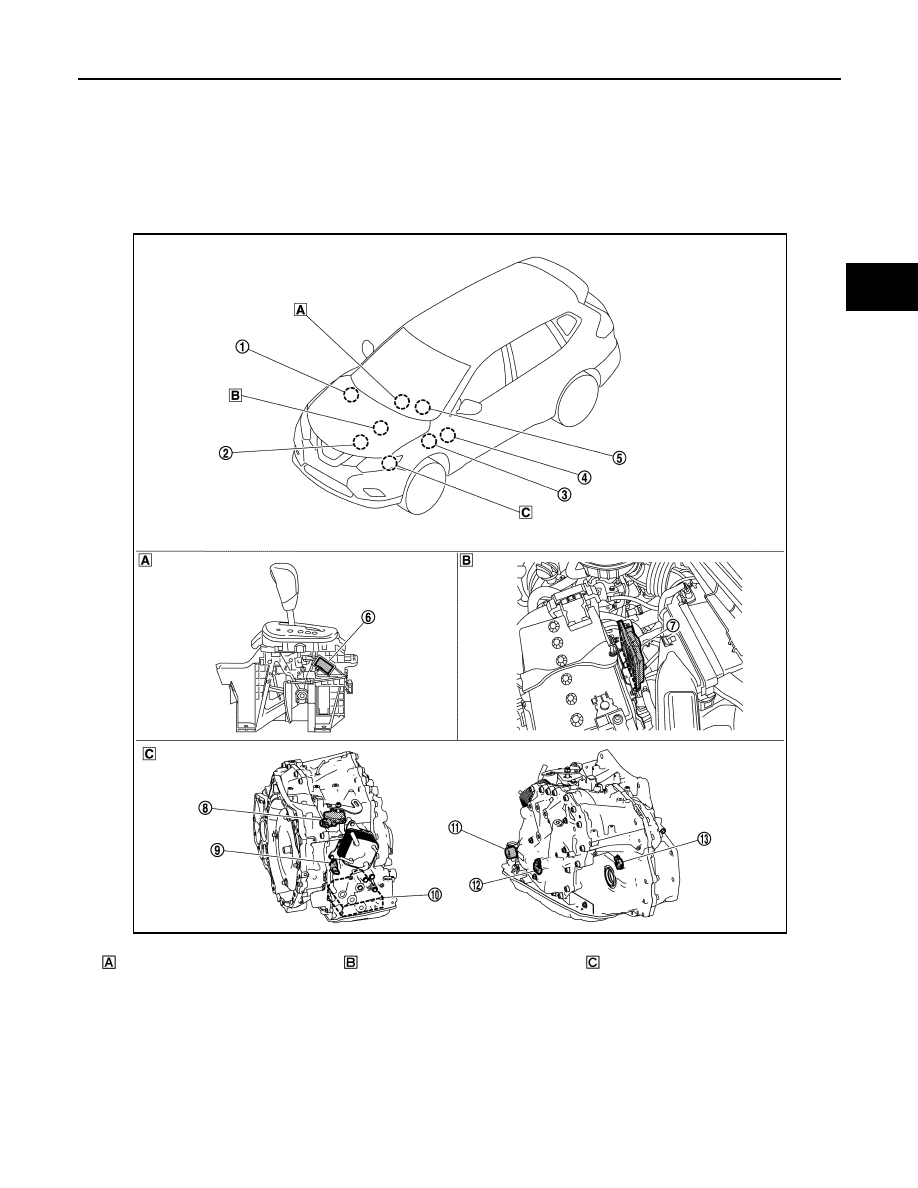

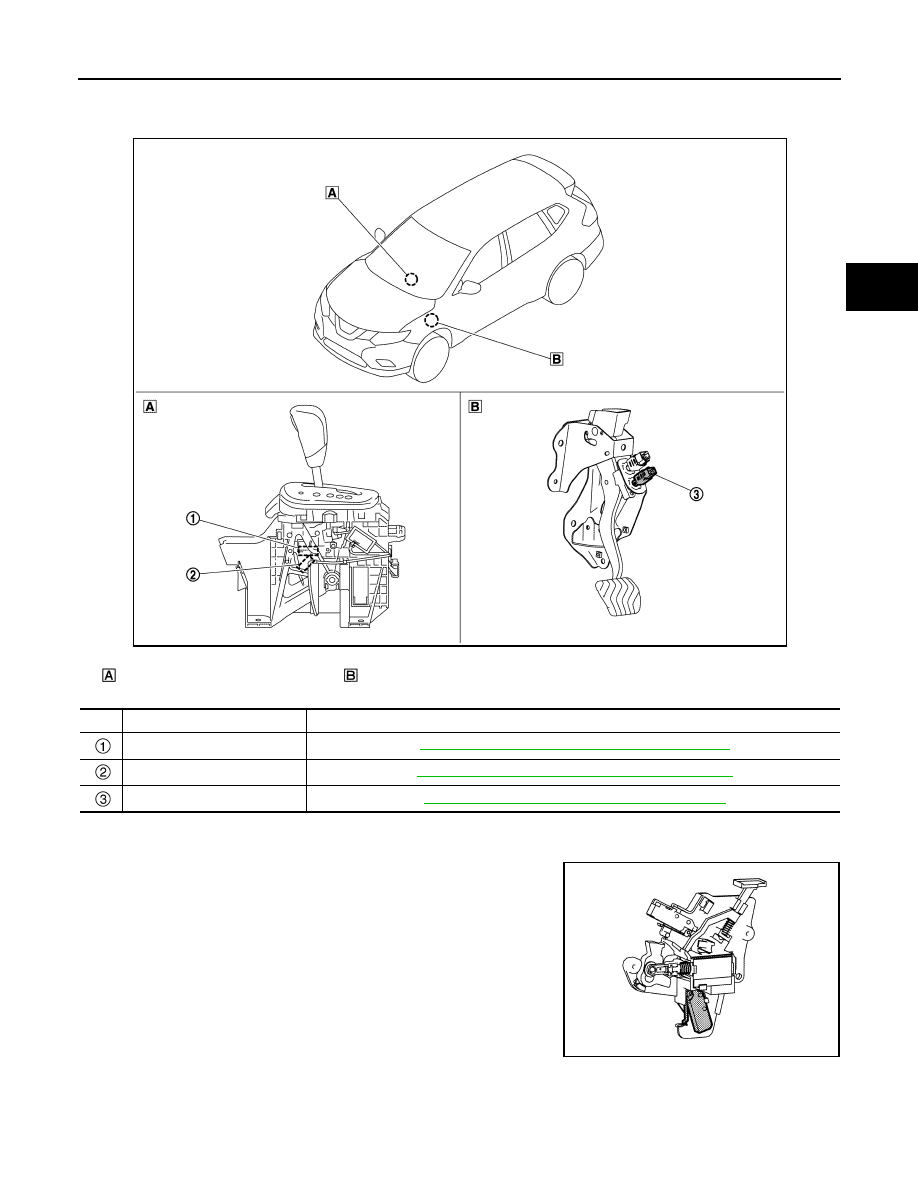

CVT CONTROL SYSTEM : Component Parts Location

INFOID:0000000010589208

Engine room, LH

Transaxle assembly

CVT shift selector assembly

JSDIA5307ZZ

TM-218

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

COMPONENT PARTS

No.

Component

Function

ABS actuator and electric unit (control unit)

Mainly transmits the following signal to TCM via CAN communication.
• ABS operation signal
• TCS operation signal
• VDC operation signal
• ABS malfunction signal
• Vehicle speed signal
• Decel G signal
Refer to

BRC-8, "Component Parts Location"

for detailed installation loca-

tion.

ECM

Mainly transmits the following signal to TCM via CAN communication.
• Engine and CVT integrated control signal

NOTE:
General term for the communication (torque-down permission, torque-
down request, etc.) exchanged between the ECM and TCM.

• Engine speed signal
• Engine coolant temperature signal
• Accelerator pedal position signal
• Closed throttle position signal
Mainly receives the following signals from TCM via CAN communication.
• Malfunctioning indicator lamp signal

• ECO mode signal

Refer to

ECM-14, "ENGINE CONTROL SYSTEM : Component Parts Lo-

cation"

for detailed installation location.

BCM

Mainly transmits the following signal to TCM via CAN communication.
• Stop lamp switch signal
Refer to

BCS-7, "BODY CONTROL SYSTEM : Component Parts Location"

for detailed installation location.

ECO mode switch

DMS-5, "ECO Mode Switch"

Combination meter

Mainly transmits the following signal to TCM via CAN communication.
• Manual mode signal
• Non-manual mode signal
• Manual mode upshift signal
• Manual mode downshift signal

• ECO mode switch signal

Mainly receives the following signals from TCM via CAN communication.
• Shift position signal
• Manual mode shift refusal signal
Refer to

MWI-6, "Component Parts Location"

for detailed installation loca-

tion.

Manual mode switch

TM-224, "CVT CONTROL SYSTEM : Manual Mode Switch"

TCM

TM-219, "CVT CONTROL SYSTEM : TCM"

Transmission range switch

TM-219, "CVT CONTROL SYSTEM : Transmission Range Switch"

Input speed sensor

TM-221, "CVT CONTROL SYSTEM : Input Speed Sensor"

Control
valve

CVT fluid temperature sensor

TM-221, "CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor"

Primary pressure sensor

TM-222, "CVT CONTROL SYSTEM : Primary Pressure Sensor"

Secondary pressure sensor

TM-222, "CVT CONTROL SYSTEM : Secondary Pressure Sensor"

Line pressure solenoid valve

TM-224, "CVT CONTROL SYSTEM : Line Pressure Solenoid Valve"

Primary pressure solenoid valve

TM-222, "CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve"

Secondary pressure solenoid valve

TM-223, "CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve"

Torque converter clutch solenoid

valve

TM-223, "CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid

Valve"

Select solenoid valve

TM-223, "CVT CONTROL SYSTEM : Select Solenoid Valve"

CVT unit connector

—

COMPONENT PARTS

TM-219

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

*1: For Russia, Ukraine, Kazakhstan, and Australia.
*2: These components are included in control valve assembly.

CVT CONTROL SYSTEM : TCM

INFOID:0000000010589209

• The TCM consists of a microcomputer and connectors for signal

input and output and for power supply.

• The vehicle driving status is judged based on the signals from the

sensors, switches, and other control units, and the optimal tran-
saxle control is performed.

• For TCM control items, refer to

TM-236, "CVT CONTROL SYS-

TEM : System Description"

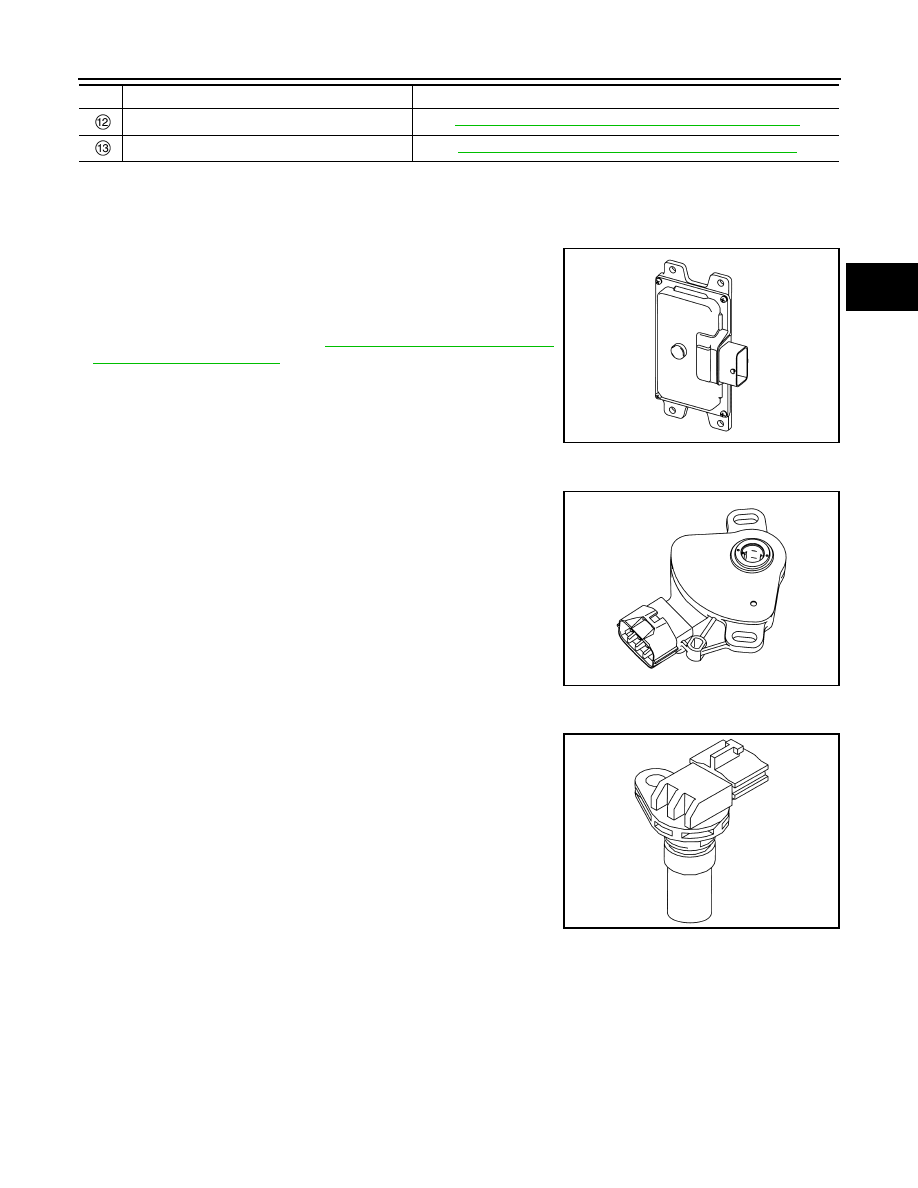

CVT CONTROL SYSTEM : Transmission Range Switch

INFOID:0000000010589210

• The transmission range switch is installed to upper part of tran-

saxle case.

• The transmission range switch detects the selector lever position.

CVT CONTROL SYSTEM : Primary Speed Sensor

INFOID:0000000010589211

• The primary speed sensor is installed to side cover of transaxle.
• The primary speed sensor detects primary pulley speed.

Primary speed sensor

TM-219, "CVT CONTROL SYSTEM : Primary Speed Sensor"

Output speed sensor

TM-220, "CVT CONTROL SYSTEM : Output Speed Sensor"

No.

Component

Function

JSDIA4183ZZ

JSDIA4184ZZ

JSDIA3073ZZ

TM-220

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

COMPONENT PARTS

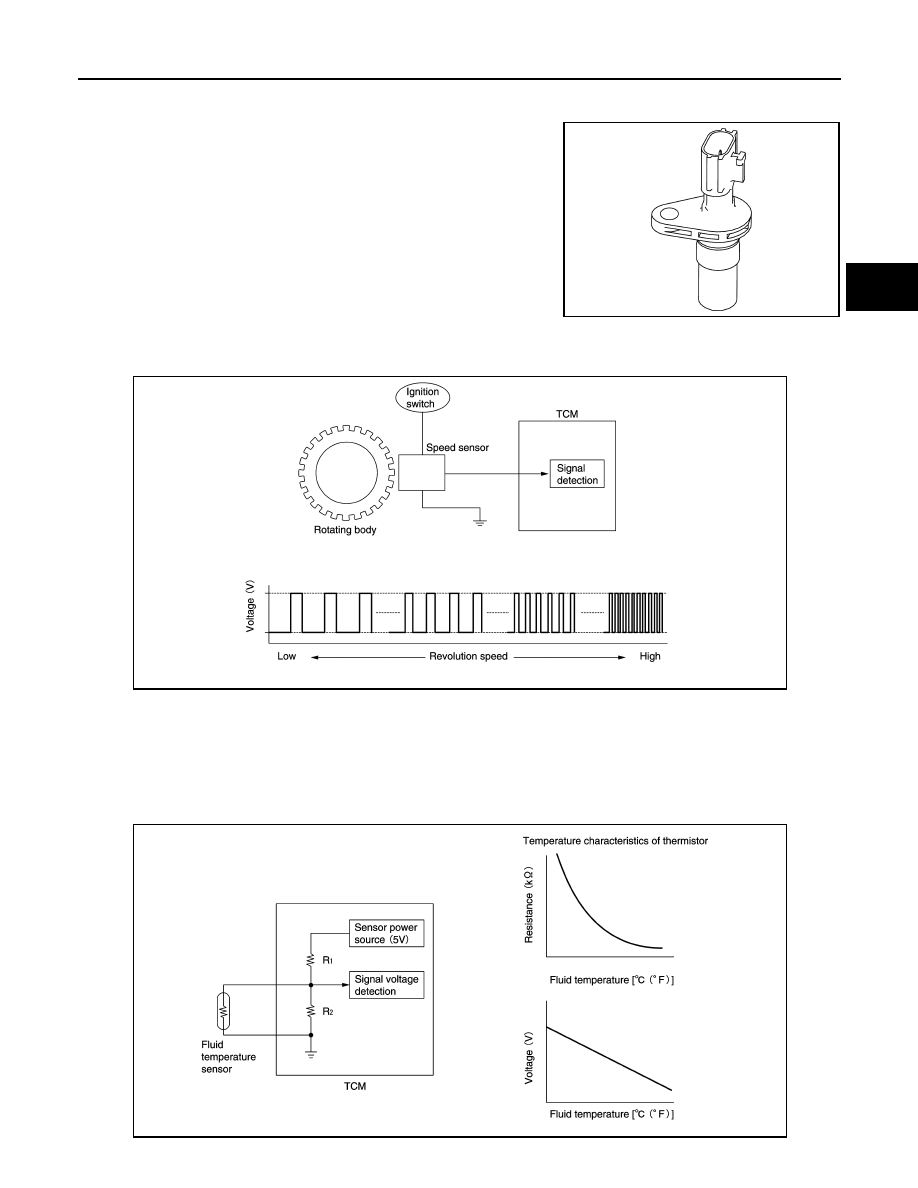

• The primary speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM

judges the rotating body speed from the pulse signal.

CVT CONTROL SYSTEM : Output Speed Sensor

INFOID:0000000010589212

• The output speed sensor is installed to back side of transaxle.
• The output speed sensor detects final gear speed.

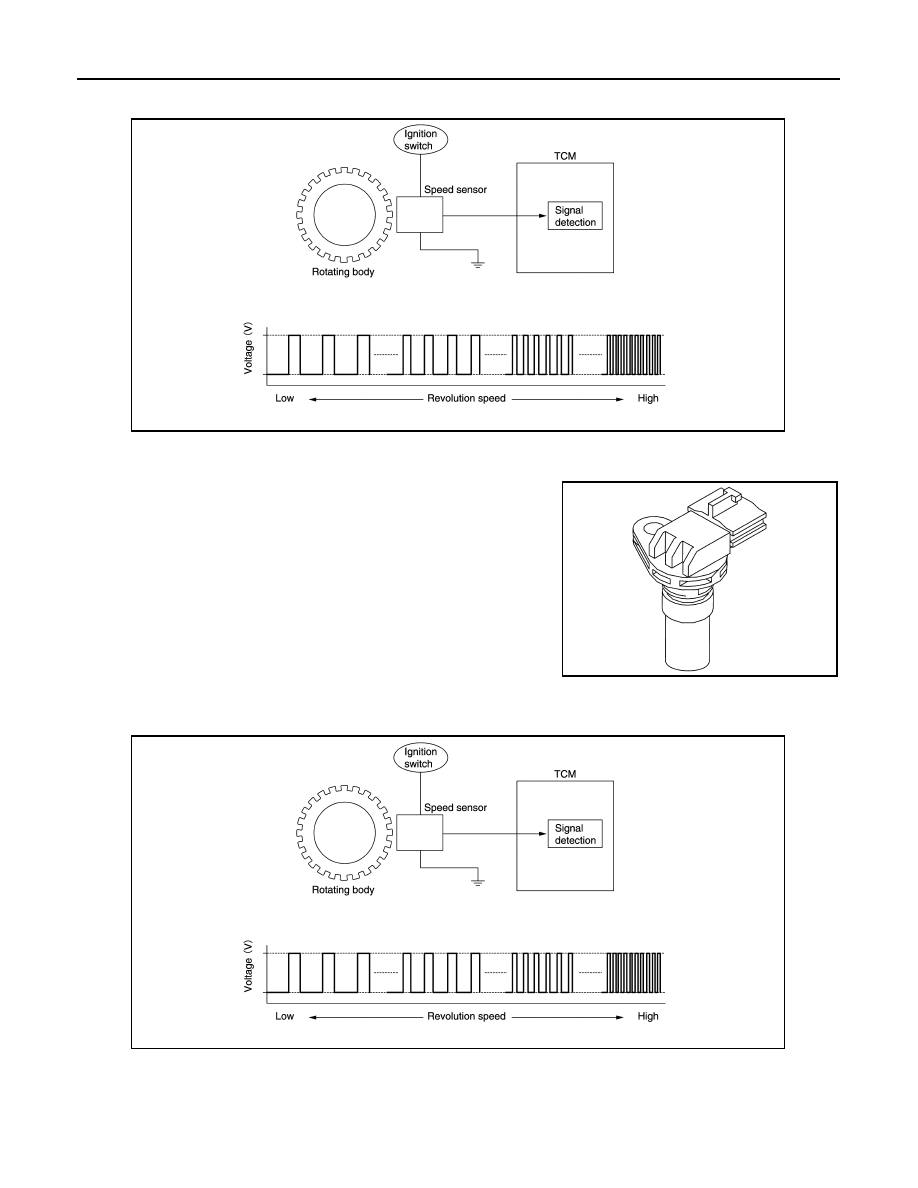

• The output speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM

judges the rotating body speed from the pulse signal.

JSDIA1824GB

JSDIA3073ZZ

JSDIA1824GB

COMPONENT PARTS

TM-221

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

CVT CONTROL SYSTEM : Input Speed Sensor

INFOID:0000000010589213

• The input speed sensor is installed to the front side of transaxle

case.

• The input speed sensor detects input shaft speed.

• The input speed sensor generates an ON-OFF pulse signal according to the rotating body speed. TCM

judges the rotating body speed from the pulse signal.

CVT CONTROL SYSTEM : CVT Fluid Temperature Sensor

INFOID:0000000010589214

• The CVT fluid temperature sensor is installed to control valve.
• The CVT fluid temperature sensor detects CVT fluid temperature in oil pan.
• The fluid temperature sensor uses a thermistor, and changes the signal voltage by converting changes in the

CVT fluid temperature to a resistance value. TCM evaluates the CVT fluid temperature from the signal volt-
age value.

JSDIA3074ZZ

JSDIA1824GB

JSDIA1825GB

TM-222

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

COMPONENT PARTS

CVT CONTROL SYSTEM : Primary Pressure Sensor

INFOID:0000000010589215

• The primary pressure sensor is installed to control valve.

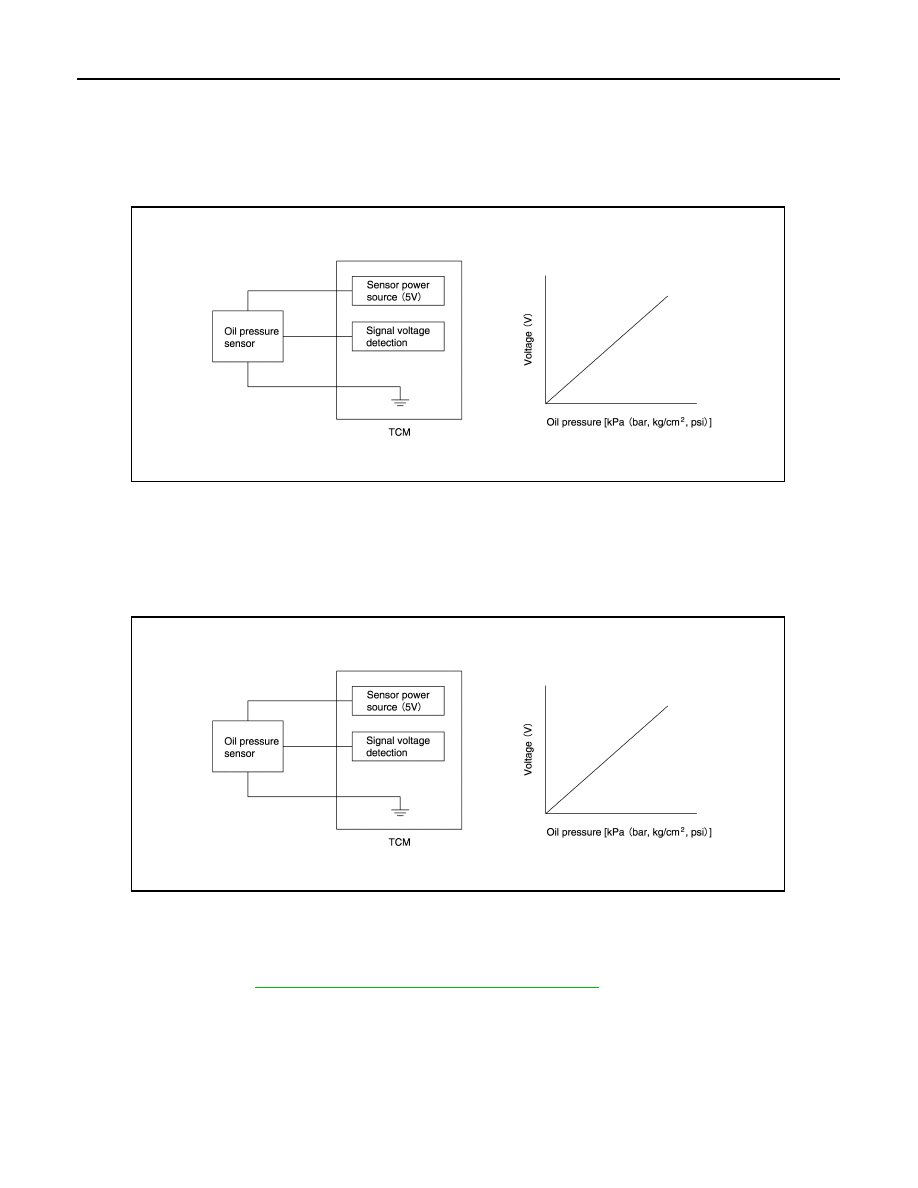

• The primary pressure sensor detects the pressure applied to the primary pulley.
• When pressure is applied to the ceramic device in the primary pressure sensor, the ceramic device is

deformed, resulting in voltage change. TCM evaluates the primary pressure from its voltage change. Voltage
is increased along with pressure increase.

CVT CONTROL SYSTEM : Secondary Pressure Sensor

INFOID:0000000010589216

• The secondary pressure sensor is installed to control valve.
• The secondary pressure sensor detects the pressure applied to the secondary pulley.
• When pressure is applied to the metal diaphragm in the secondary pressure sensor, the metal diaphragm is

deformed, resulting in voltage change. TCM evaluates the secondary pressure from its voltage change. Volt-
age is increased along with pressure increase.

CVT CONTROL SYSTEM : Primary Pressure Solenoid Valve

INFOID:0000000010589217

• The primary pressure solenoid valve is installed to control valve.
• The primary pressure solenoid valve controls the primary reducing valve. For information about the primary

reducing valve, refer to

TM-232, "TRANSAXLE : Component Description"

JSDIA1831GB

COMPONENT PARTS

TM-223

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

• The primary pressure solenoid valve uses the linear solenoid valve

[N/H (normal high) type].
NOTE:

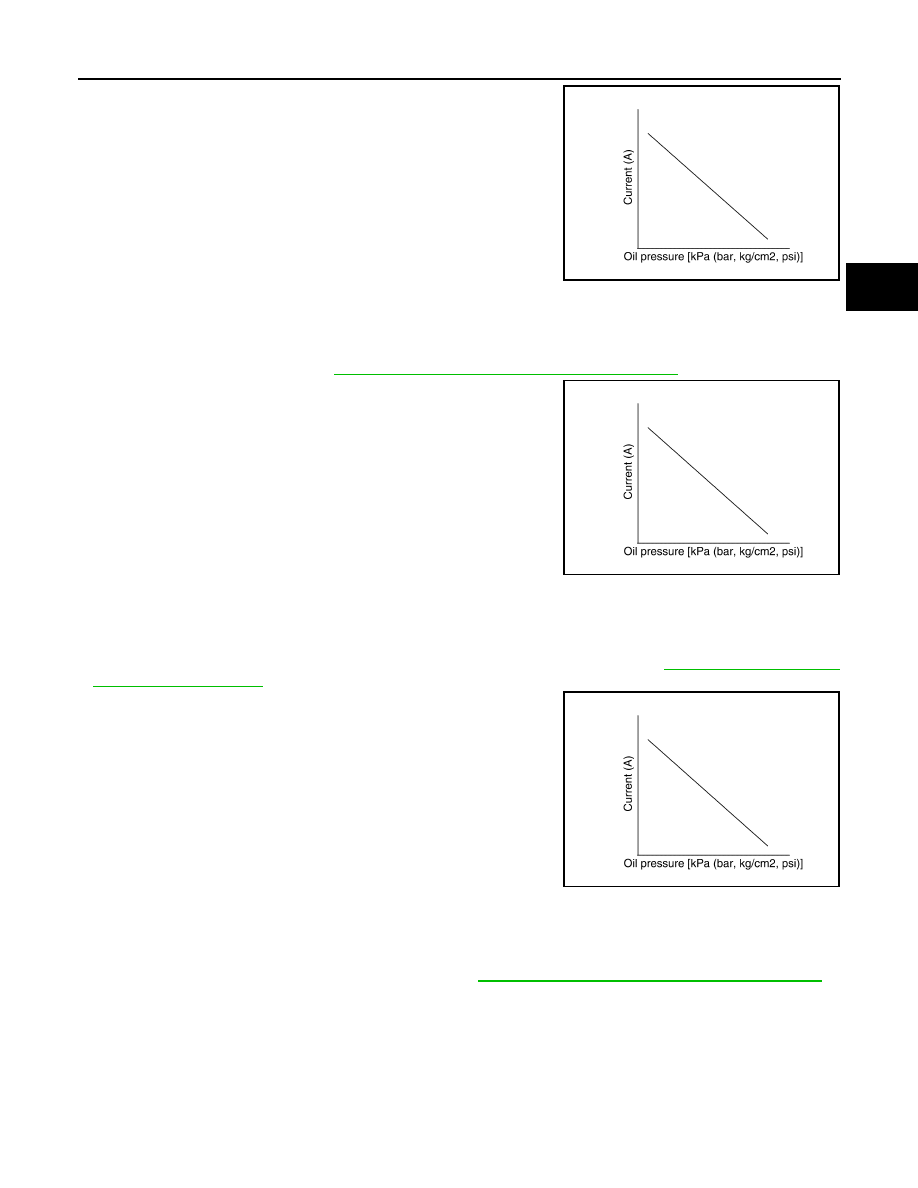

• The principle of the linear solenoid valve utilizes the fact that the

force pressing on the valve spool installed inside the coil
increases nearly in proportion to the current. This allows it to pro-
duce a fluid pressure that is proportional to this pressing force.

• The N/H (normal high) produces hydraulic control when the coil

is not energized.

CVT CONTROL SYSTEM : Secondary Pressure Solenoid Valve

INFOID:0000000010589218

• The secondary pressure solenoid valve is installed to control valve.
• The secondary pressure solenoid valve controls the secondary reducing valve. For information about the

secondary reducing valve, refer to

TM-232, "TRANSAXLE : Component Description"

• The secondary pressure solenoid valve uses the linear solenoid

valve [N/H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fact that the

force pressing on the valve spool installed inside the coil
increases nearly in proportion to the current. This allows it to pro-
duce a fluid pressure that is proportional to this pressing force.

• The N/H (normal high) produces hydraulic control when the coil

is not energized.

CVT CONTROL SYSTEM : Select Solenoid Valve

INFOID:0000000010589219

• The select solenoid valve is installed to control valve.
• The select solenoid valve adjusts the forward clutch engaging pressure and the reverse brake engaging

pressure. For information about the forward clutch and reverse brake, refer to

TM-232, "TRANSAXLE :

Component Description"

• The select solenoid valve uses the linear solenoid valve [N/H (nor-

mal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fact that the

force pressing on the valve spool installed inside the coil
increases nearly in proportion to the current. This allows it to pro-
duce a fluid pressure that is proportional to this pressing force.

• The N/H (normal high) type produces hydraulic control when the

coil is not energized.

CVT CONTROL SYSTEM : Torque Converter Clutch Solenoid Valve

INFOID:0000000010589220

• The torque converter clutch solenoid valve is installed to control valve.
• The torque converter clutch solenoid valve controls the torque converter clutch control valve. For information

about the torque converter clutch control valve, refer to

TM-232, "TRANSAXLE : Component Description"

JSDIA3647GB

TM-224

< SYSTEM DESCRIPTION >

[CVT: RE0F10D]

COMPONENT PARTS

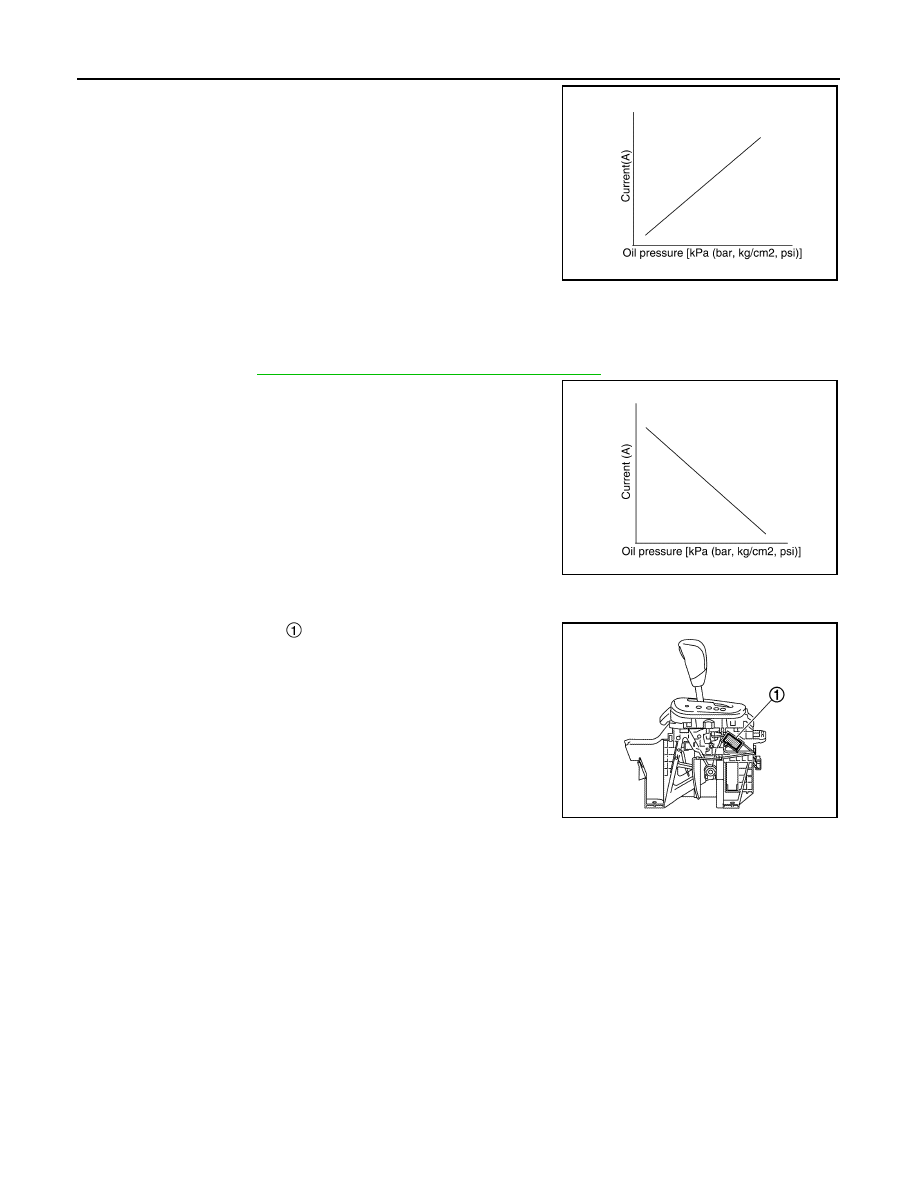

• The torque converter clutch solenoid valve utilizes a linear sole-

noid valve [N/L (normal low) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fact that the

force pressing on the valve spool installed inside the coil
increases nearly in proportion to the current. This allows it to pro-
duce a fluid pressure that is proportional to this pressing force.

• The N/L (normal low) type does not produce hydraulic control

when the coil is not energized.

CVT CONTROL SYSTEM : Line Pressure Solenoid Valve

INFOID:0000000010589221

• The line pressure solenoid valve is installed to control valve.
• The line pressure solenoid valve controls the pressure regulator valve. For information about the pressure

regulator valve, refer to

TM-232, "TRANSAXLE : Component Description"

• The line pressure solenoid valve uses the linear solenoid valve [N/

H (normal high) type].
NOTE:
• The principle of the linear solenoid valve utilizes the fact that the

force pressing on the valve spool installed inside the coil
increases nearly in proportion to the current. This allows it to pro-
duce a fluid pressure that is proportional to this pressing force.

• The N/H (normal high) produces hydraulic control when the coil

is not energized.

CVT CONTROL SYSTEM : Manual Mode Switch

INFOID:0000000010589222

• The manual mode switch

[mode select switch and position

select switch (upshift/downshift)] is installed in the CVT shift selec-
tor assembly.

• The mode select switch detects the position (the main shift gate

side or manual shift gate side) of the selector lever and transmits a
manual mode signal or a not manual mode signal to the combina-
tion meter. Then, the TCM receives a manual mode signal or non-
manual mode signal from the combination meter.

• The position select switch (upshift) detects that the selector lever is

shifted to the upshift side of the manual shift gate and transmits a
manual mode upshift signal to the combination meter. Then, the
TCM receives a manual mode upshift signal from the combination
meter.

• The position select switch (downshift) detects that the selector lever is shifted to the downshift side of the

manual shift gate and transmits a manual mode downshift signal to the combination meter. Then, the TCM
receives a manual mode downshift signal from the combination meter.

CVT CONTROL SYSTEM : Shift Position Indicator

INFOID:0000000010589223

TCM transmits shift position signal to combination meter via CAN communication. The actual shift position is
displayed on combination meter according to the signal.

SHIFT LOCK SYSTEM

JSDIA3648GB

JSDIA3647GB

JSDIA5308ZZ
