LG956 Wheel Loader. Manual - part 13





Operation & Maintenance Manual──LG956L Wheel Loader

 51

2 GEOMETRICAL DIMENSIONS

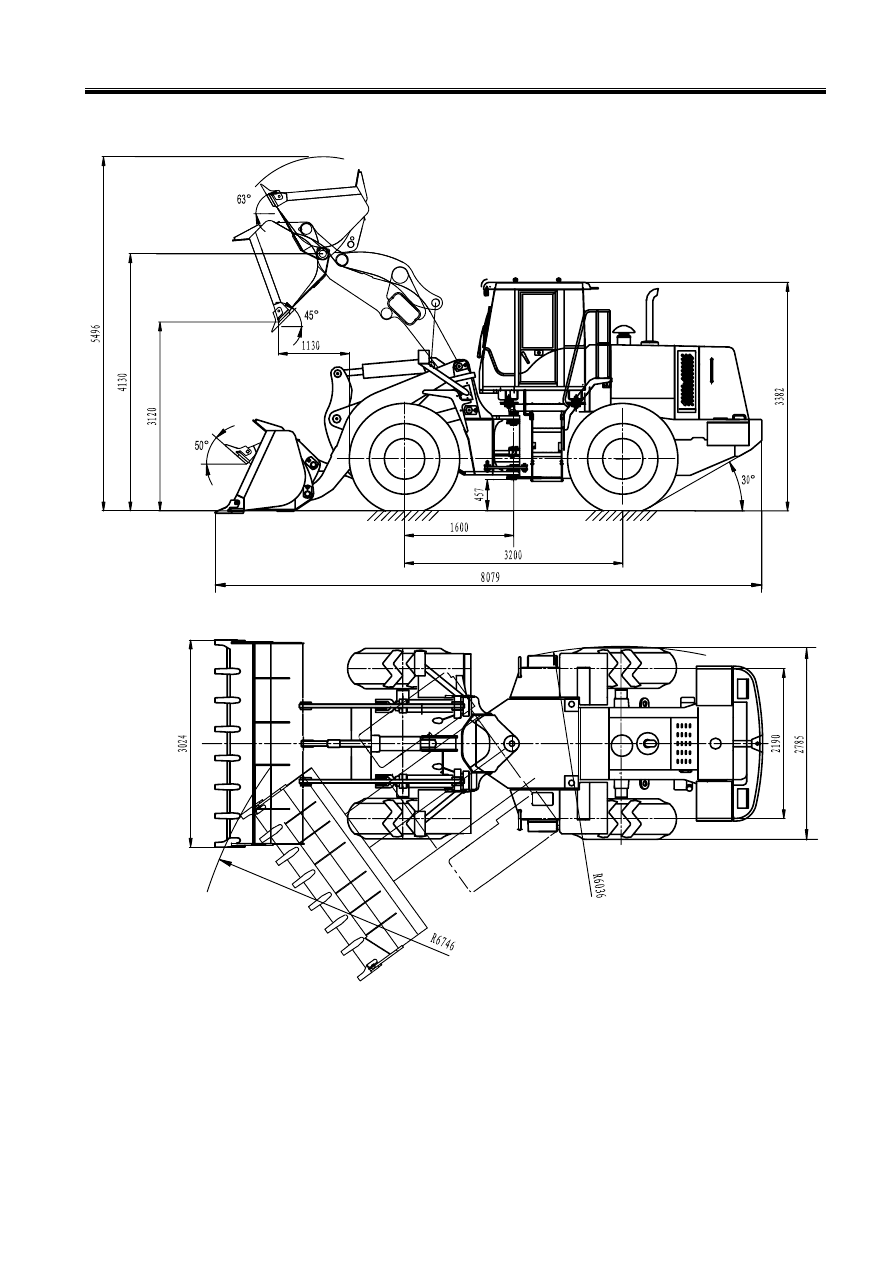

Figure 2-2 Geometrical dimensions of LG956L wheel loader mounted with standard lift arms (with the bucket of

2.7m

3








Operation & Maintenance Manual──LG956L Wheel Loader

 52







Figure 2-3 Geometrical dimensions of LG956L wheel loader mounted with standard lift arms (with the bucket of

3.0m

3







Operation & Maintenance Manual──LG956L Wheel Loader

 53

3 PRODUCT TYPE AND ITS MEANING



 LG   9   5   6   L



Upgrade code





              Template is 6



Load limit is 5 ton





Wheel loader



Shandong Lingong

4 NAMEPLATE

The nameplate is fixed on the left rear side of the front frame, describing the model, serial No.,

production date and manufacturer of the machine. The type of nameplate is shown in Fig. 2-4, 2-5,

2-6, 2-7 and 2-8. The other configurations of nameplate refer to

CHAPTER II - 8

TECHNICAL PERFORMANCE & PARAMETERS.





Figure 2-4 Nameplate of LG956L loader mounted with Weichai engine and standard lift arm (with bucket of 2.7m

3

)





Operation & Maintenance Manual──LG956L Wheel Loader

 54



Figure 2-5 Nameplate of LG956L loader mounted with Weichai engine and long lift arm (with bucket of 2.7m

3

)



Figure 2-6 Nameplate of LG956L loader mounted with Weichai engine and super-long lift arm (with bucket of

2.7m

3

)
