Operation & Maintenance Manual──LG956L Wheel Loader



z  Please stand aside if a tire starts to fall down. Never try to hold a tire since the tires for

engineering mechanisms are generally very heavy, and you may be seriously hurt.

8.20 Waste Materials

Do as follows to prevent pollution:

z  Never dump waste oil under ground or into the river.

z  Contain the oil vented from the machine in a container; never dump the oil directly onto the


z  Obey the relative rules and laws when dealing with harmful materials such as grease, fuel,

coolant, solvent, filter and storage battery.



9.1 Assemble and Disassemble the Machine

z  The danger always occurs when assembling and disassembling the machine. So keep the engine

speed low during loading and unloading the machine.

z  Load and unload machine on level ground and remain at a safe distance off the road.

z  Secure the tires well during loading and unloading the machine to make sure it will not move. Put

a cushion under the gangway.

z  Slope boards should be strong enough with sufficient length and width to form a safe slope. The

angle with the ground should not be larger than 15°. Keep a safe distance between slope board

and board, board and machine.

z  Make sure the height of the two sides of the board is uniform to ensure firm orientation.

z  Keep the board surface clean, free of lubricant, oil, ice and loose materials. Clean the dirt off the


z  Never turn around on the slope board. If it is necessary, turn outside the board and then drive


z  Lock the direction mechanism after assembly, wedge the tires and tie the machine tightly with


Operation & Maintenance Manual──LG956L Wheel Loader


9.2 Transportation on the Ground

z  Obey the rules about weight, height, width and length prescribed by national and local laws for

transporting the machine using a tow truck. Obey the traffic rules.

z  Know the weight, height, width and length of machine regulation before deciding the transport


z  Know the allowed limit of weight bearing when passing bridges or private buildings. Obey the

relative rules when driving on the public roads.

z  The machine may be unloaded when using other transportation. Please contact Shandong

Lingong Construction Machinery Co. Ltd. or their accredited representative.

9.3 Lifting

Use the hook of the front and rear frame to transport the

machine to ship or train.

Select proper lifting equipment according to the weight

of the loader, otherwise it is dangerous to surpass the

weight limit.

z  Notices for lifting:

‹  Make sure the loader is in the transporting state.

The front and rear frame should be in the middle

position. Lock the machine using the lock bar to prevent rotation of the front and rear frame

during lifting.

‹  All the control levers (or handles) should be in the middle position.

‹  Stop the engine, lock all the equipment using keys and then remove.

‹  No one is allowed to stay in the operator cab.

‹  Never lift the machine using steel wire connecting the two hooks on the front frame.

‹  It is allowed to lift the machine using 4 steel wires of the same length (no shorter than 7m).

‹  Keep the machine horizontal during lifting.

‹  Prevent damage to hood, operator cab, and hydraulic pipes.

‹  No person or car is allowed to pass under the machine during lifting.

‹  Draw back the lock bar to turn the machine after lifting.

Operation & Maintenance Manual──LG956L Wheel Loader


z  Connect the turning equipment using the lock bar after lifting onto the ship (train), wedge the tire

and bind the machine tightly to prevent movement during transportation.

Operation & Maintenance Manual──LG956L Wheel Loader

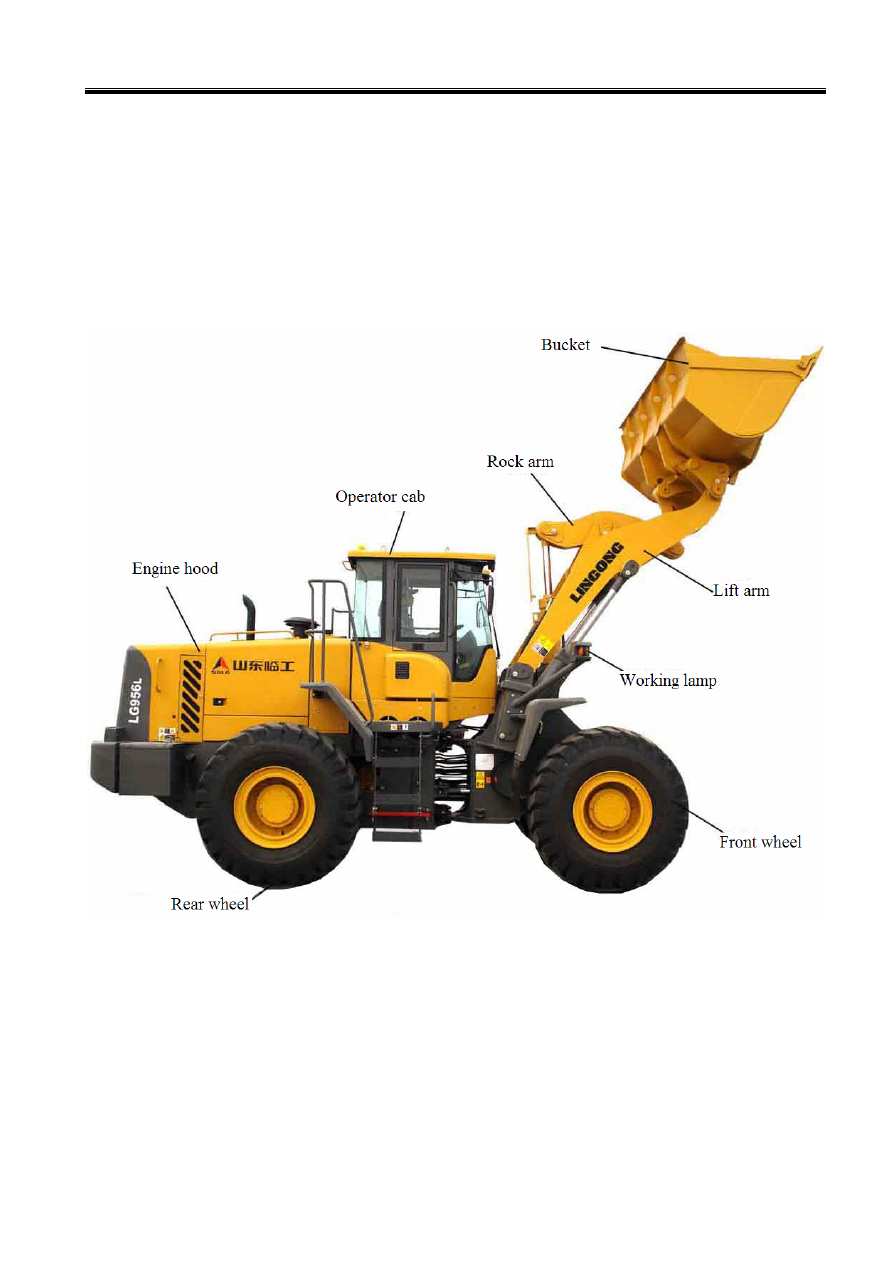

Figure 2-1 General view and components’ name of LG956L wheel loader
