NOTE

l

When the operation mode is set to OFF, the
selected condition just before setting to OFF
is retained.

l

The BSW operates when all of the following
conditions are met.

The operation mode is put in ON.

The  select  position  is  in  a  position  other
than “P” (PARK) and “R” (REVERSE).

The speed of your vehicle is approximate-
ly 10 km/h (6 mph) or higher.

When the sensor detects an ap-

proaching vehicle

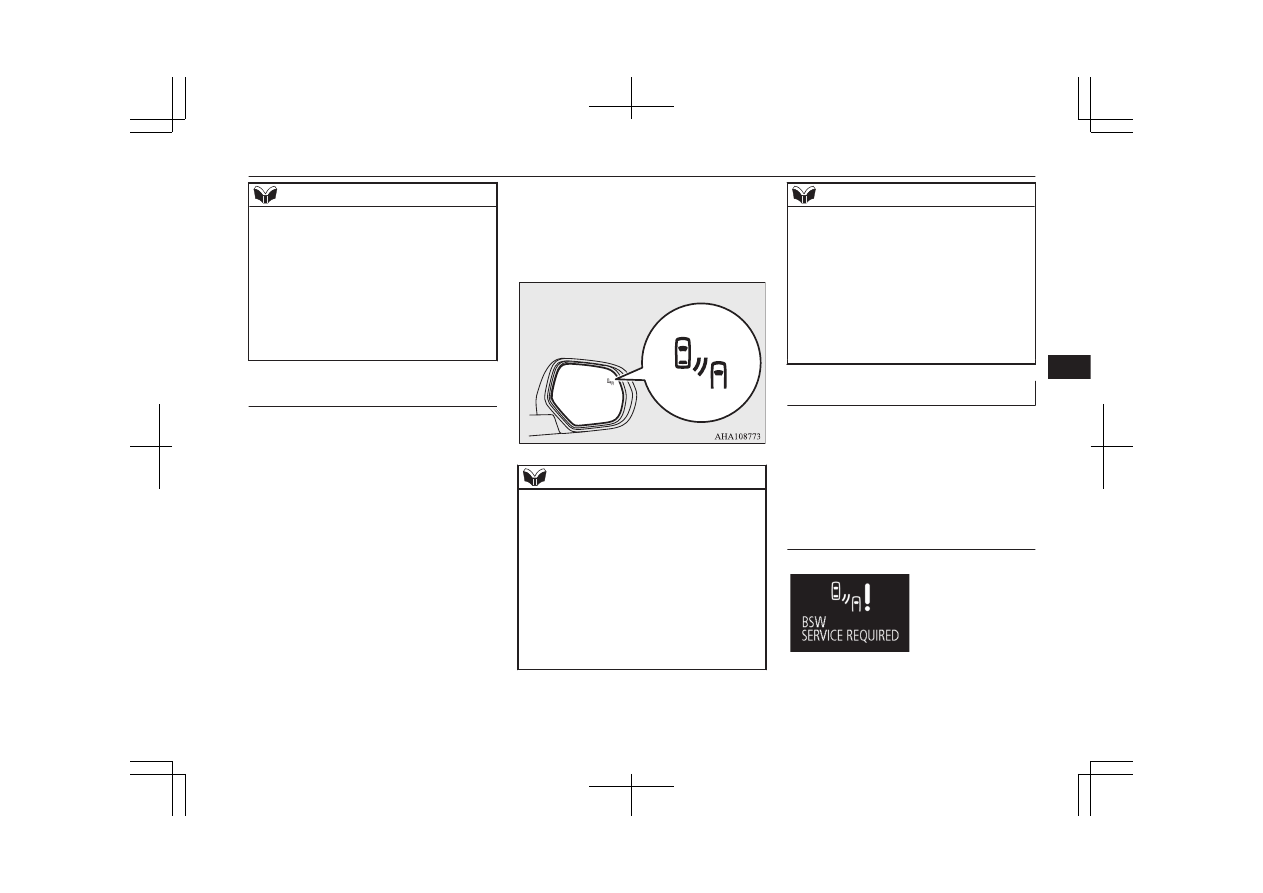

When the BSW indication lamp in the instru-
ment cluster is on, if a vehicle is approaching
your  vehicle  in  the  detection  area,  the  Blind
Spot  Warning  lamp  in  the  outside  rear-view
mirror illuminates.

If the turn-signal lever is operated to the side
where the Blind Spot Warning lamp is illumi-
nated,  the  Blind  Spot  Warning  lamp  will
blink and the system will beep three times to
alert the driver.

NOTE

l

The Blind Spot Warning lamp in the outside
rear-view  mirror  may  come  on  or  blink  in
the following conditions.

When driving very near the guardrail or a
concrete wall.

When  driving  on  the  entrance  and  outlet
of a tunnel or very near to the wall or near
the evacuation area inside a tunnel.

When turning at an intersection in a town
area.

Under  adverse  weather  conditions  (rain,
snow, sand storms etc.).

NOTE

When  you  drive  your  vehicle  with  blow-
ing up the water, snow or sand etc. on the
road.

When driving near a pothole and tramline.

l

Set the BSW to OFF when towing.

l

The Blind Spot Warning lamp in the outside
rear-view  mirror  may  not  be  visible  due  to
strong  direct  sunlight  or  the  glare  from  the
headlamps  of  vehicles  behind  you  during
night driving.

System problem warning

E00692500029

If a problem occurs with the system, a visual
warning specific to the type of the problem is
given together with an audible alarm.
The  warnings  are  combined  with  the  Rear
Cross Traffic Alert (RCTA) system.

When there is a malfunction in
the system or the sensor

E00692600020

Blind Spot Warning (BSW) (with Lane Change Assist)*

7-85

OGGE19E1

Starting and driving

7

When the warning display appears, the BSW
does  not  operate  normally  because  there  are
some  malfunctions  in  the  system  or  the  sen-
sor.  Have  the  vehicle  inspected  at  a
MITSUBISHI MOTORS Authorized Service
Point as soon as possible.

NOTE

l

When the warning display appears, the BSW
will be deactivated.

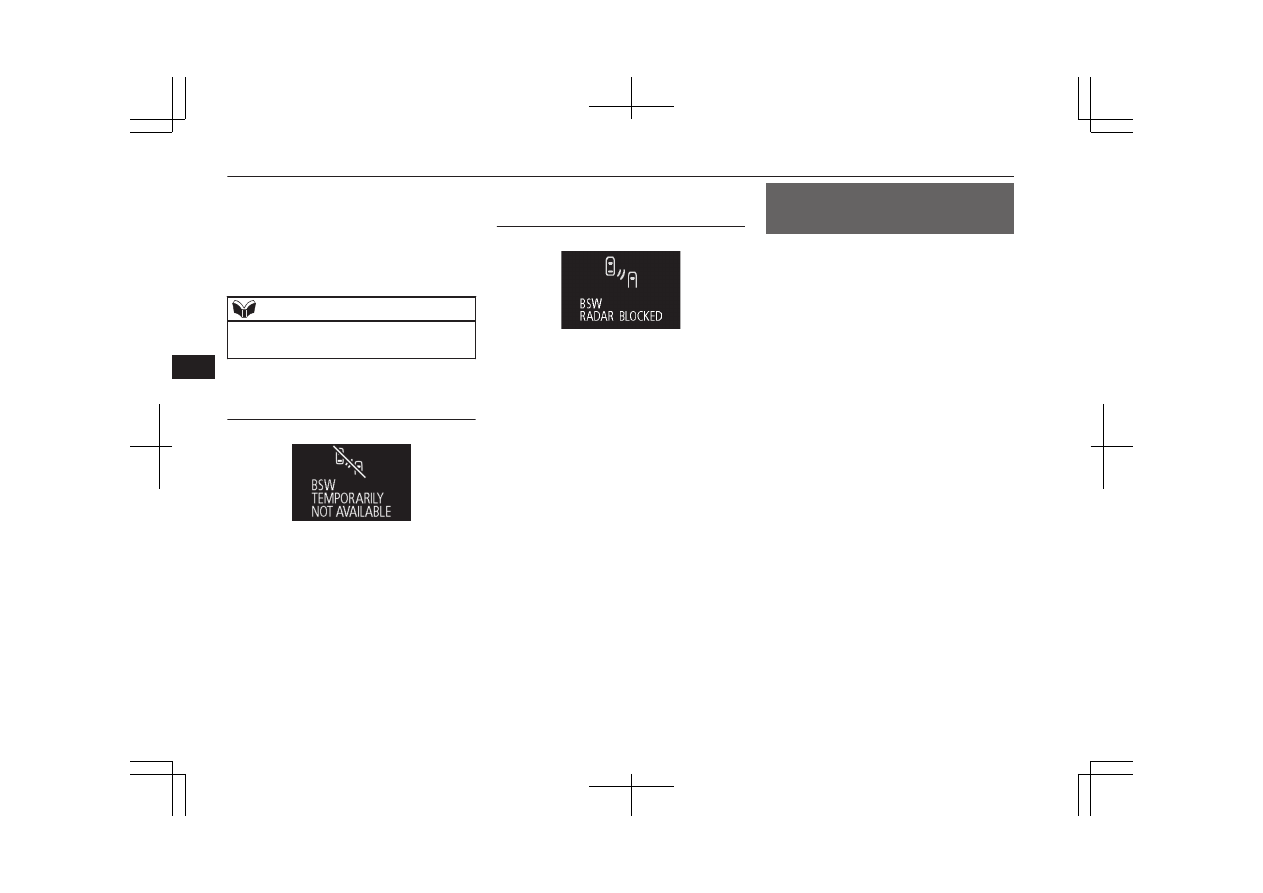

When the sensor is temporarily
not available

E00692700021

When the warning display appears, the sensor
is  temporarily  not  available  for  some  reason
such  as  the  environmental  condition  or  in-
crease  of  the  sensor  temperature.  When  the
warning  display  does  not  disappear  after
waiting  for  a  while,  contact  a  MITSUBISHI
MOTORS Authorized Service Point.

When there are foreign objects
on the sensor

E00692800165

When the warning display appears, the sensor
cannot detect a vehicle travelling side by side
or  an  approaching  vehicle,  because  foreign
objects,  such  as  dirt,  snow  or  ice,  adhere  to
the bumper surface around the sensor.
Remove dirt, freezing or foreign material on
the bumper surface around the sensor.
When the warning display does not disappear
after  having  cleaned  the  sensor,  contact  a
MITSUBISHI MOTORS Authorized Service
Point.

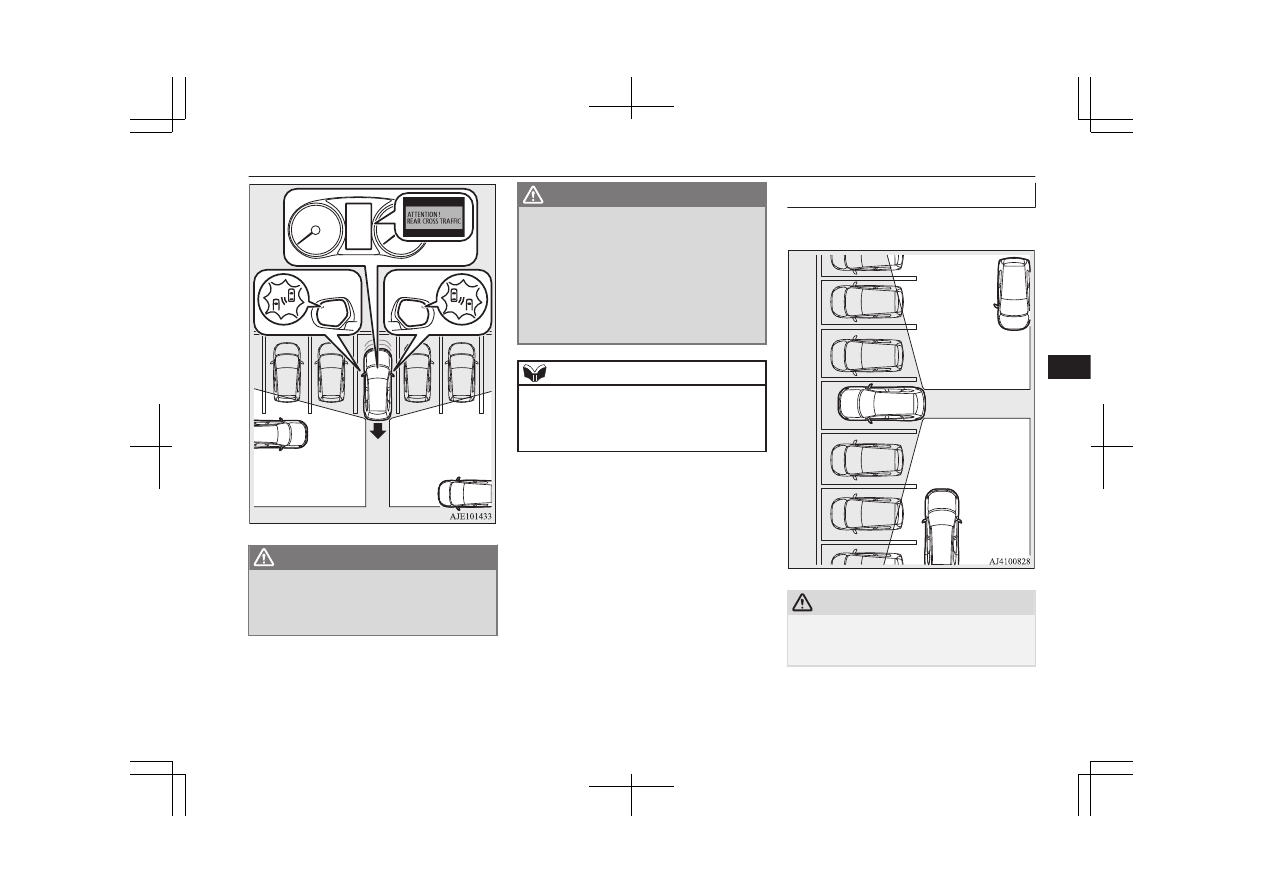

Rear Cross Traffic Alert
(RCTA)*

E00652400257

The  Rear  Cross  Traffic  Alert  (RCTA)  is  an
aid  system  for  backing  up.  When  the  RCTA
system  detects  vehicles  approaching  from
sides  while  your  vehicle  is  reversing,  the
Blind Spot Warning lamps in the outside rear-
view  mirrors  on  both  sides  will  blink  and  a
buzzer will sound to alert the driver. A warn-
ing message will also appear on the informa-
tion screen of the multi-information display.

Rear Cross Traffic Alert (RCTA)*

7-86

OGGE19E1

Starting and driving

7

WARNING

l

Before  using  the  RCTA,  read  this  entire
section to fully understand the limitations
of  this  system.  Failure  to  follow  instruc-
tions could result in an accident.

WARNING

l

Never  rely  solely  on  the  RCTA  when
backing  up.  The  RCTA  is  an  aid  system.
It  is  not  a  substitute  for  your  safe  and
careful driving. Always check visually be-
hind and all around your vehicle for other
vehicles, persons, animals or obstructions.
The  performance  of  the  RCTA  may  vary
depending  on  driving,  traffic  and/or  sur-
rounding conditions.

NOTE

l

The Blind Spot Warning lamps in the outside
rear-view  mirrors  on  both  sides  will  blink,
even  when  only  one  vehicle  is  approaching
from one side.

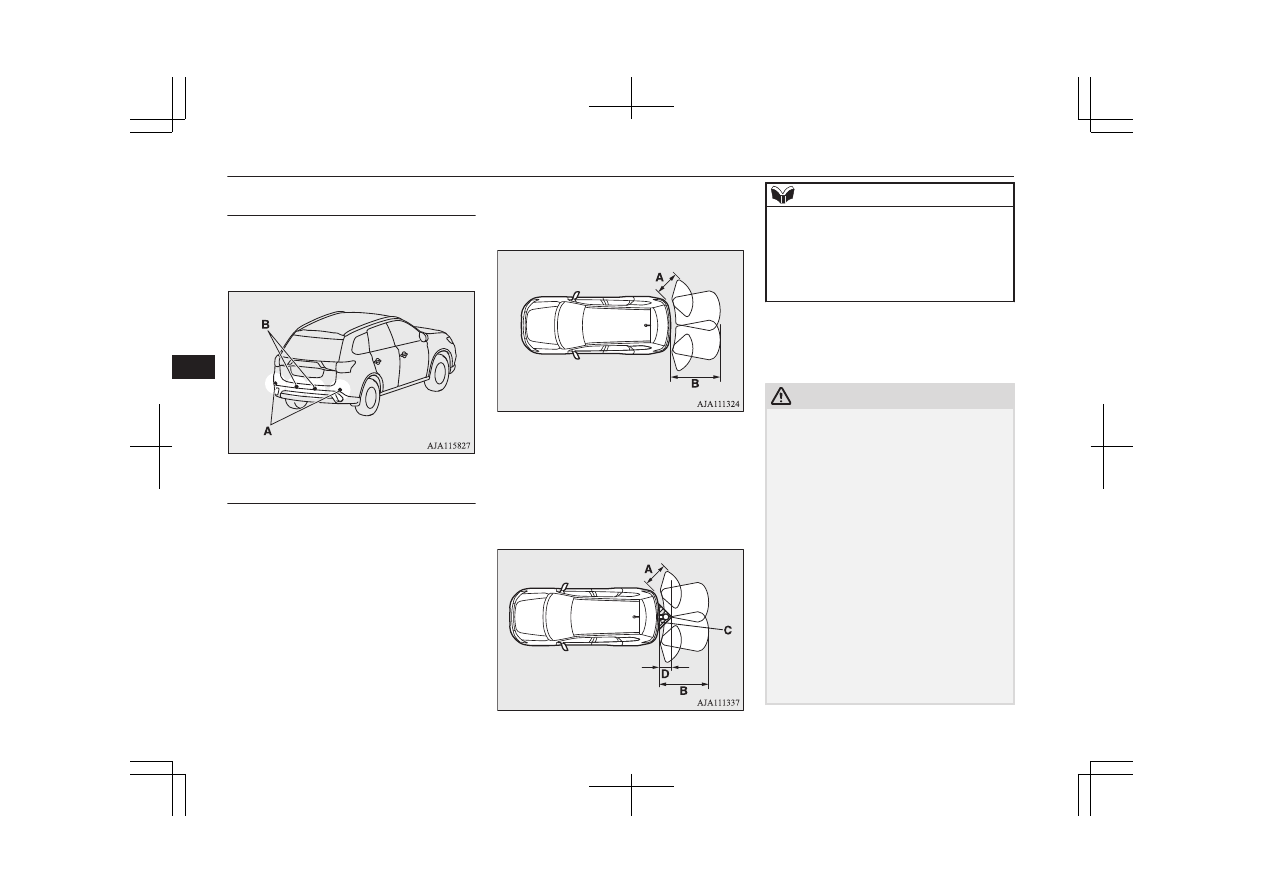

Detection areas

The detection area is shown as illustrated.

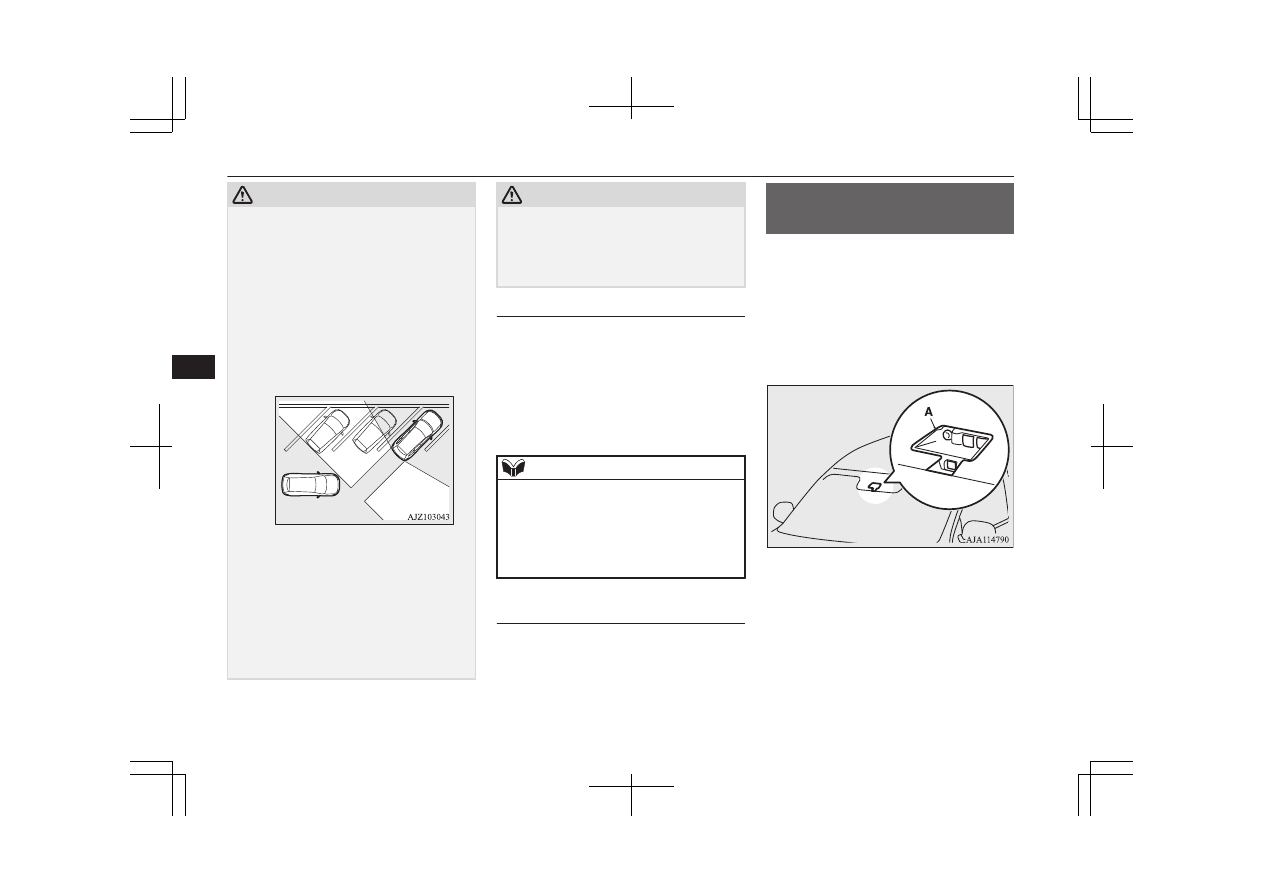

CAUTION

l

In certain situations, the RCTA may not de-
tect a vehicle in the detection areas. Some of
these situations include:

Rear Cross Traffic Alert (RCTA)*

7-87

OGGE19E1

Starting and driving

7

CAUTION

When the reversing speed of your vehicle
is  approximately  18  km/h  (11  mph)  or
higher.

When the speed of an approaching vehicle
is approximately 7 km/h (5 mph) or less.

If the sensor detection area is blocked by
a nearby object, such as a wall or parked
vehicle.

When  a  vehicle  is  approaching  from
straight behind your vehicle.

When your vehicle is exiting from an an-
gled parking spot.

Immediately  after  the  RCTA  has  been
turned on.

Immediately  after  the  operation  mode  of
the power switch has been put in ON.

When the bumper surface around the sen-
sor is covered with dirt, snow and ice, etc.

When  the  sensor  becomes  extremely  hot
or cold, such as after the vehicle has been
parked  for  a  prolonged  time  under  the
blazing sun or in cold weather.

CAUTION

l

If the bumper has experienced an impact, the
sensor  may  have  been  damaged  and  the
RCTA  may  not  function  properly.  Have  the
vehicle  inspected  at  a  MITSUBISHI
MOTORS Authorized Service Point.

To operate

1. Press  the  BSW  switch  while  the  opera-

tion mode is put in ON.
(Refer  to  “Blind  Spot  Warning  (BSW):
To operate” on page 7-84.)

2. When  the  select  position  is  put  in  the

“R”  (REVERSE)  position,  the  RCTA
will operate.

NOTE

l

Set the RCTA to OFF when towing.

l

The Blind Spot Warning lamp in the outside
rear-view  mirror  may  not  be  visible  due  to
strong  direct  sunlight  or  the  glare  from  the
headlamps  of  vehicles  behind  you  during
night driving.

When  a  problem  is  detected  in

the system

If the system detects a problem, a warning is
displayed  on  the  information  screen  in  the
multi-information display.
Refer  to  “Blind  Spot  Warning  (BSW):  Sys-
tem problem warning” on page 7-85.

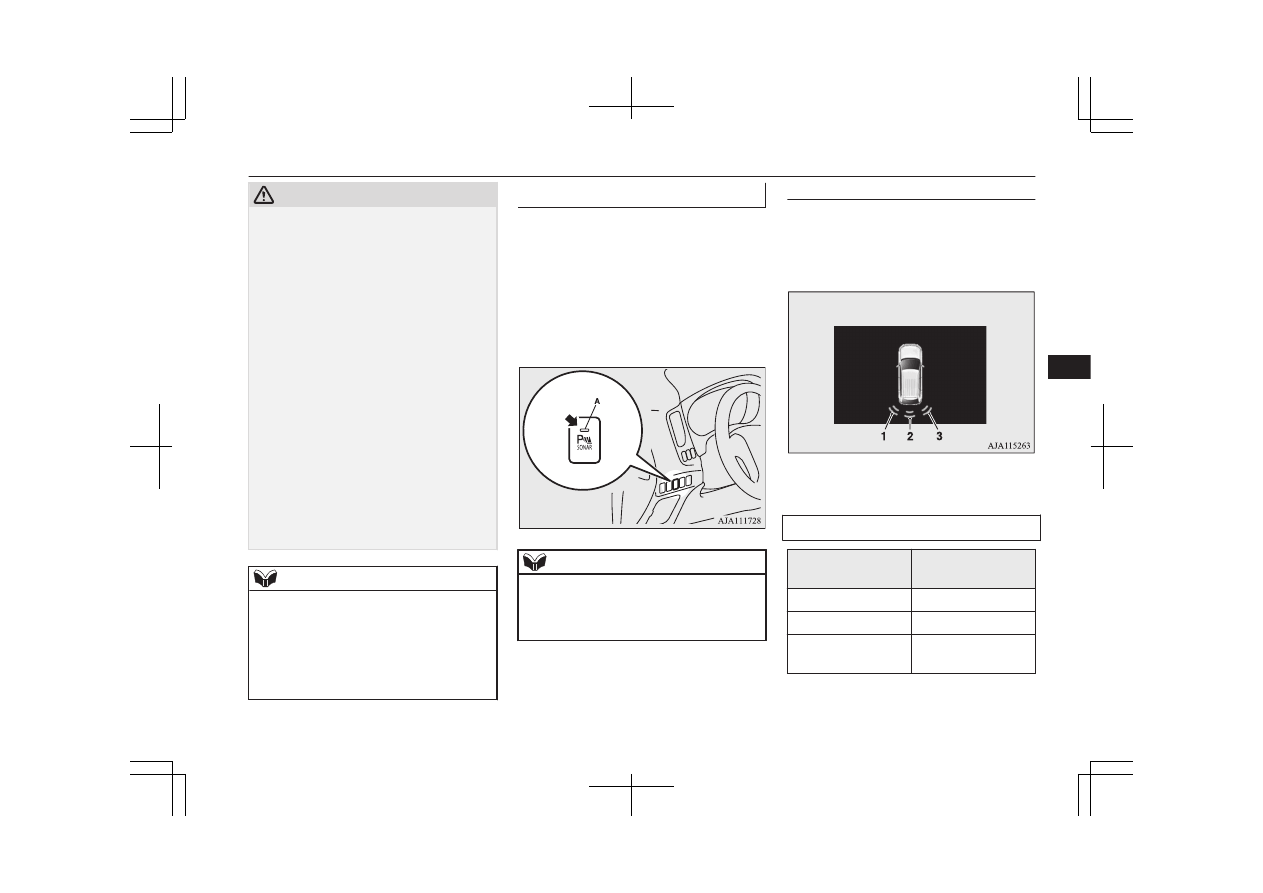

Lane Departure Warning
(LDW)*

E00635701281

By recognizing through a sensor (A) the lane
in  which  your  vehicle  is  running,  the  LDW
gives  you  a  warning  when  your  vehicle  is
likely  to  drift  from  its  lane  with  an  audible
alarm and a visual alarm displayed on the in-
formation  screen  of  the  multi-information
display.

Lane Departure Warning (LDW)*

7-88

OGGE19E1

Starting and driving

7

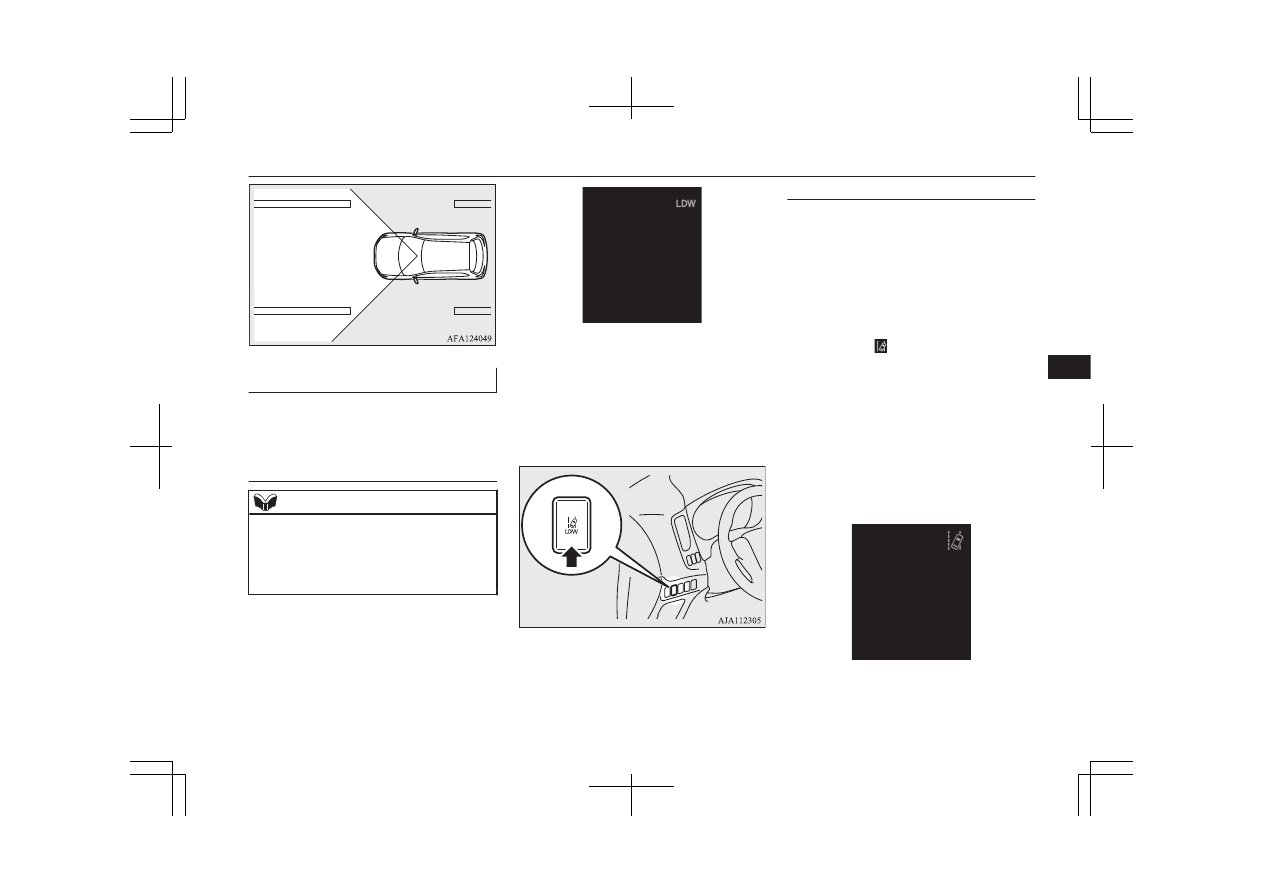

How to operate the LDW

E00635801325

The  indication  on  the  information  screen  of
the multi-information display changes as fol-
lows depending on the state of the system.

To turn on/off the LDW

NOTE

l

The  LDW  is  turned  on  when  the  vehicle  is
shipped from the factory.

l

The  currently  selected  LDW  setting  (on  or
off) is stored even when the operation mode
of the power switch is put in OFF.

To turn on the LDW, press the LDW switch.
The  “LDW”  indicator  will  appear  on  the  in-
formation  screen  of  the  multi  information
display  and  the  system  is  placed  in  the  ‘ON
state’.

To turn off the LDW, press the LDW switch.
The  “LDW”  indicator  on  the  information
screen  of  the  multi  information  display  will
then  go  out  and  the  system  is  placed  in  the
‘OFF state’.
To  return  the  LDW  to  the  ‘ON  state’,  press
the LDW switch again.

Standby state

In the standby mode, the system is capable of
recognizing the lane in which your vehicle is
positioned and issuing audible warning when
your vehicle goes out of the lane.
The  system  automatically  shifts  from  the
‘ON state’ to the ‘standby state’ if all of the
following conditions are simultaneously met.
The “LDW” indicator in the information dis-
play changes to   indicator (green).

l

The  vehicle  speed  is  approximately
65 km/h (40 mph) or higher.

l

The turn-signal lever is not operated.

l

The hazard lamp is not activated.

l

Environmental  conditions  are  adequate
for  the  system  to  recognize  the  lane
markings on both sides.

l

The  system  has  been  placed  in  the  ‘ON
state’.

Lane Departure Warning (LDW)*

7-89

OGGE19E1

Starting and driving

7

NOTE

l

The  system  stays  in  the  “ON”  state  for  ap-
proximately 7 seconds after the hazard lamp
has stopped flashing or the turn-signal lever
has returned to the home position.

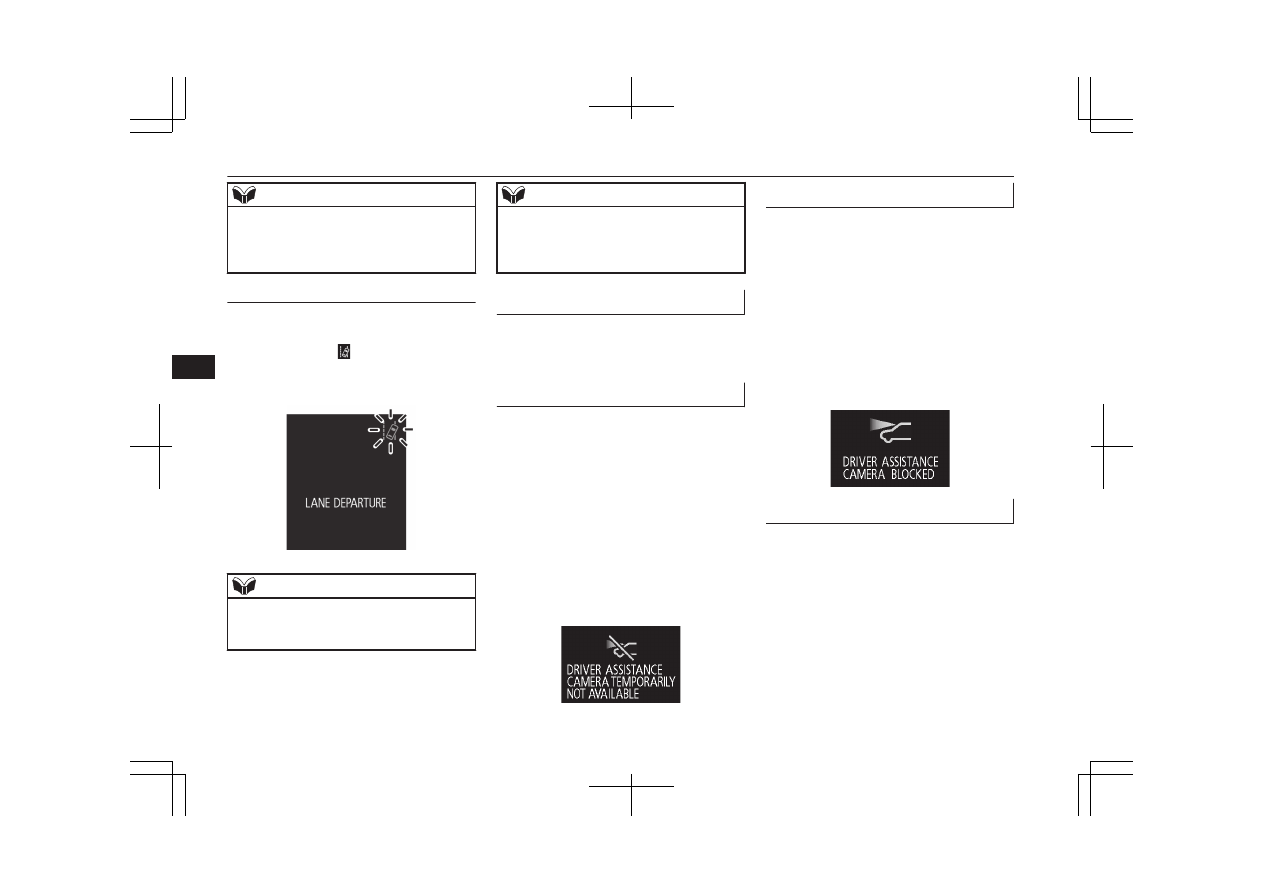

Lane departure warning

A buzzer sounds intermittently and indication
of “LANE DEPARTURE” appears in the in-
formation  display,

  indicator  flashing  in

amber when your vehicle is about to leave or
has left the lane in the standby mode.

NOTE

l

If the warning continues for approximately 3
seconds or more, the system switches to the
standby mode before the warning stops.

NOTE

l

If  the  lane  markers  are  only  on  one  side  of
the road, the LDW will operate only for the
appropriate  side  where  the  lane  marker  is
drawn.

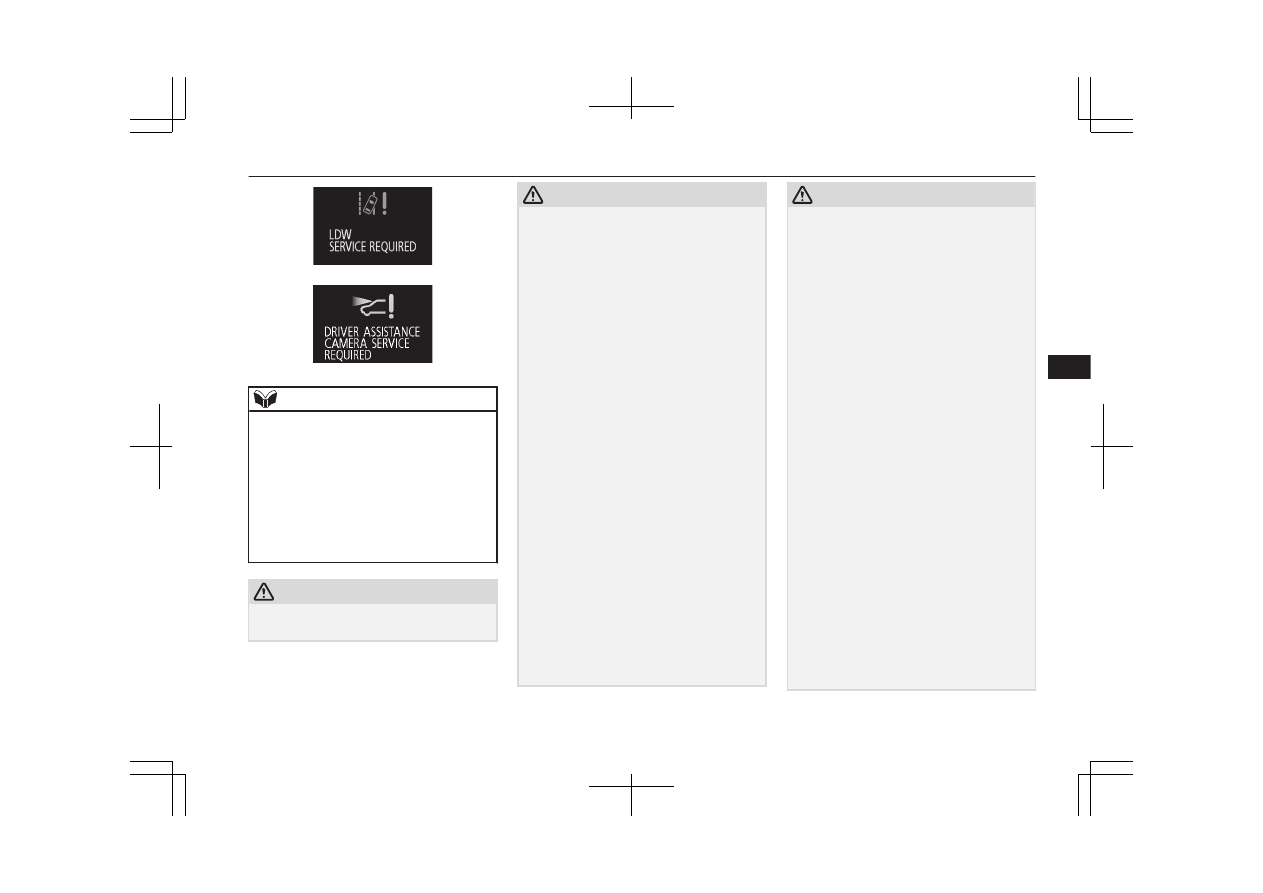

System problem warning

E00635901049

If a problem occurs with the system, a visual
warning specific to the type of the problem is
given together with an audible alarm.

Too hot or cold sensor

E00638700054

The  alarm  shown  below  is  displayed  if  the
system becomes temporarily unavailable due
to  a  too  high  or  low  temperature  of  the  sen-
sor.
If  the  temperature  of  the  sensor  reaches  the
predetermined value, the system automatical-
ly recovers the normal state.
If  the  alarm  continues  showing,  there  is  a
possibility  that  the  LDW  has  a  malfunction.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  for  inspection  of  the  sys-
tem.

Windscreen is dirty

E00652600028

The  alarm  shown  below  is  displayed  if  the
system becomes temporarily unavailable due
to  dirt  on  the  windscreen  at  the  sensor  por-
tion.
After having cleaned the windscreen, the sys-
tem will automatically return to operation.
If  the  alarm  continues  showing,  there  is  a
possibility that the sensor has a malfunction.
Contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  for  inspection  of  the  sen-
sor.

LDW deactivation due to fault

E00638800114

The  alarm  shown  below  is  displayed  if  the
LDW goes into a non-initialized state due to
a fault.
If

this

happens,

please

contact

a

MITSUBISHI MOTORS Authorized Service
Point for inspection of the system.

Lane Departure Warning (LDW)*

7-90

OGGE19E1

Starting and driving

7

NOTE

l

If the sensor or its surrounding area reaches
an extremely high temperature when parking
the  vehicle  under  a  blazing  sun,  the  “LDW
SERVICE  REQUIRED”  message  may  ap-
pear.
If  the  message  remains  even  after  the  tem-
perature of the sensor or its surrounding area
has  been  in  range,  please  contact  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

CAUTION

l

LDW  has  its  performance  limitations.  Do
not over-rely on the system.

CAUTION

l

LDW is not designed to lessen risks associ-
ated with not looking ahead carefully (atten-
tion drawn to something on the side, absent-
mindedness,  etc.)  or  poor  visibility  caused
by bad weather etc. Keep steering your vehi-
cle correctly and drive safely.

l

The system may not operate correctly in the
following  conditions.  If  required,  set  the
LDW switch to “OFF.”

When driving on a road whose lane mark-
ings  (white  or  yellow)  are  worn  out  or
smeared with dirt to an extent not recog-
nizable by the system.

When  lane  markings  are  vague,  typically
during  a  drive  in  the  rain,  snow,  fog  or
dark  area,  or  when  running  against  the
sun.

When  the  vehicle  is  moving  in  a  place
where lane markings are interrupted, such
as  a  toll  booth  entrance  and  motorway
junction.

When running on a road portion with in-
completely  removed  old  lane  markings,
shadows,  lingering  snow,  truck-like  pud-
dles  mistakable  for  lane  markings  (espe-
cially  after  the  rain  when  road  surface  is
reflecting  light)  or  similar  confusing  fac-
tors.

When  running  in  a  lane  other  than  the
cruising lane and passing lane.

When  running  beside  a  closed  lane  sec-
tion  or  in  a  provisional  lane  in  a  traffic
work zone.

CAUTION

When  running  in  an  extremely  narrow
lane.

When  the  following  distance  between
your  vehicle  and  a  vehicle  in  front  be-
comes  extremely  reduced  (especially
when a marking is hidden by a vehicle in
front this is running too close to the mark-
ing).

When entering a junction or other point of
road where lanes are laid out complicated-
ly.

When  passing  a  road  section  where  the
number  of  lanes  increases/decreases  or
multiple lanes are crossing each other.

When  the  lane  is  marked  by  double  or
otherwise special lines.

When driving on a winding or rough road.

When driving on a slippery road covered
by rain water, snow, ice, etc.

When  passing  through  a  place  where  the
brightness suddenly changes, like the inlet
or outlet of a tunnel.

When turning steep curves.

When  the  road  surface  is  reflecting  the
light  shining  from  the  direction  opposite
to the running direction.

Vehicle largely lurches when it is running
over  steps  or  other  irregularities  of  the
road surface.

When the headlamp illumination is inade-
quate because of contaminated or deterio-
rated  lenses  or  improperly  aimed  head-
lamps.

Lane Departure Warning (LDW)*

7-91

OGGE19E1

Starting and driving

7

CAUTION

When the vehicle is leaning much to one
side due to heavy luggage on it or improp-
erly adjusted tyre pressures.

When  oncoming  vehicles’  headlamps
shine the sensor.

When  the  vehicle  is  equipped  with  non-
standard  tyres  (including  excessively
worn  tyres),  is  using  a  snow  traction  de-
vice  (tyre  chains),  or  has  non-specified
components  such  as  a  modified  suspen-
sion.

When the windscreen is covered with wa-
ter droplets, snow, dust, etc.

l

Follow the instructions given below to keep
your LDW in good operating conditions.

Always keep the windscreen clean.

Avoid applying a strong shock or pressure
to the sensor. Do not attempt to detach or
disassemble it.

Do  not  put  anything  like  a  sticker  on  the
area  in  front  of  the  sensor  lens  of  the
windscreen.

Use only MITSUBISHI MOTORS GEN-
UINE  Parts  when  replacing  the  wind-
screen wipers.

Tyre pressure monitoring
system (TPMS)

E00637100282

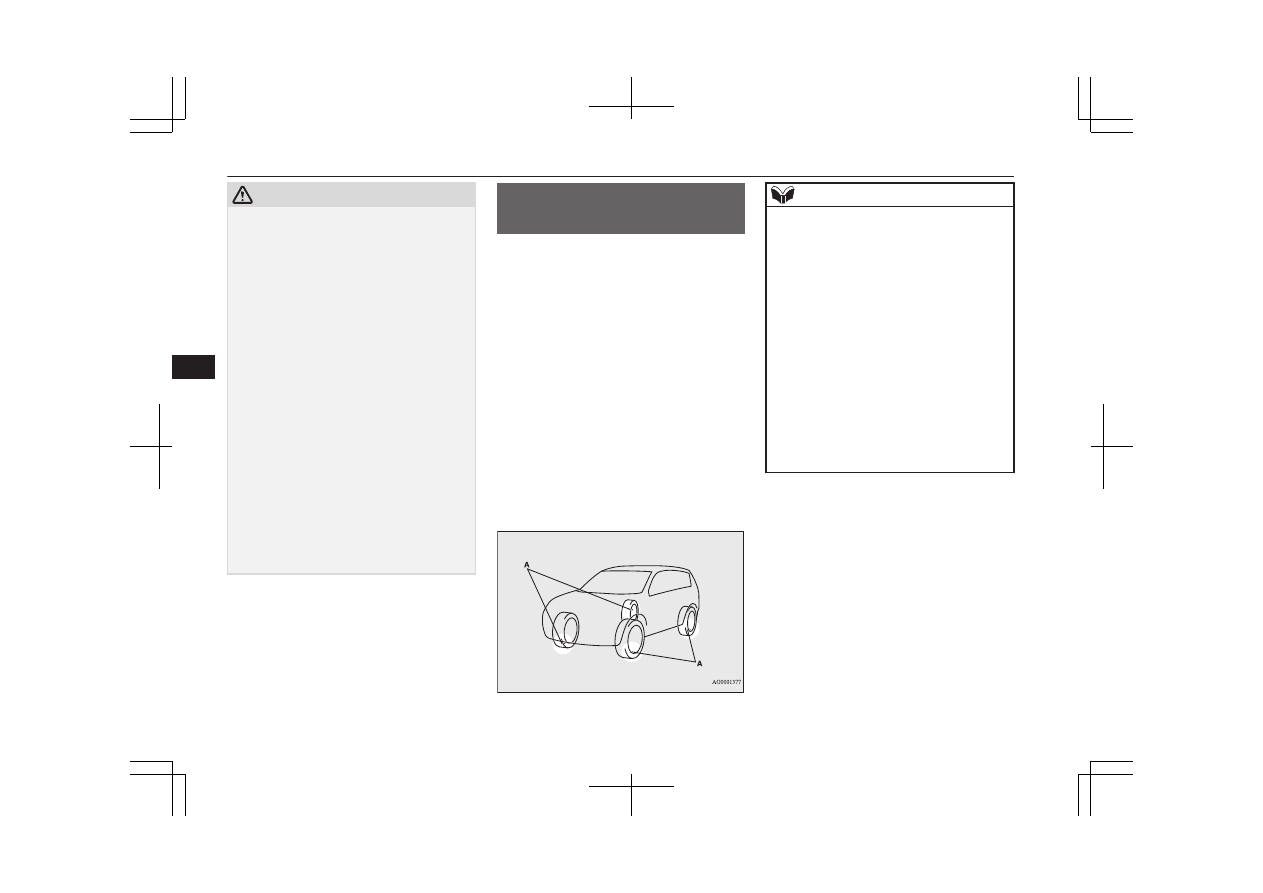

The tyre pressure monitoring system (TPMS)
uses tyre inflation pressure sensors (A) on the
wheels to monitor the tyre inflation pressures.
The system only indicates when a tyre is sig-
nificantly under-inflated.

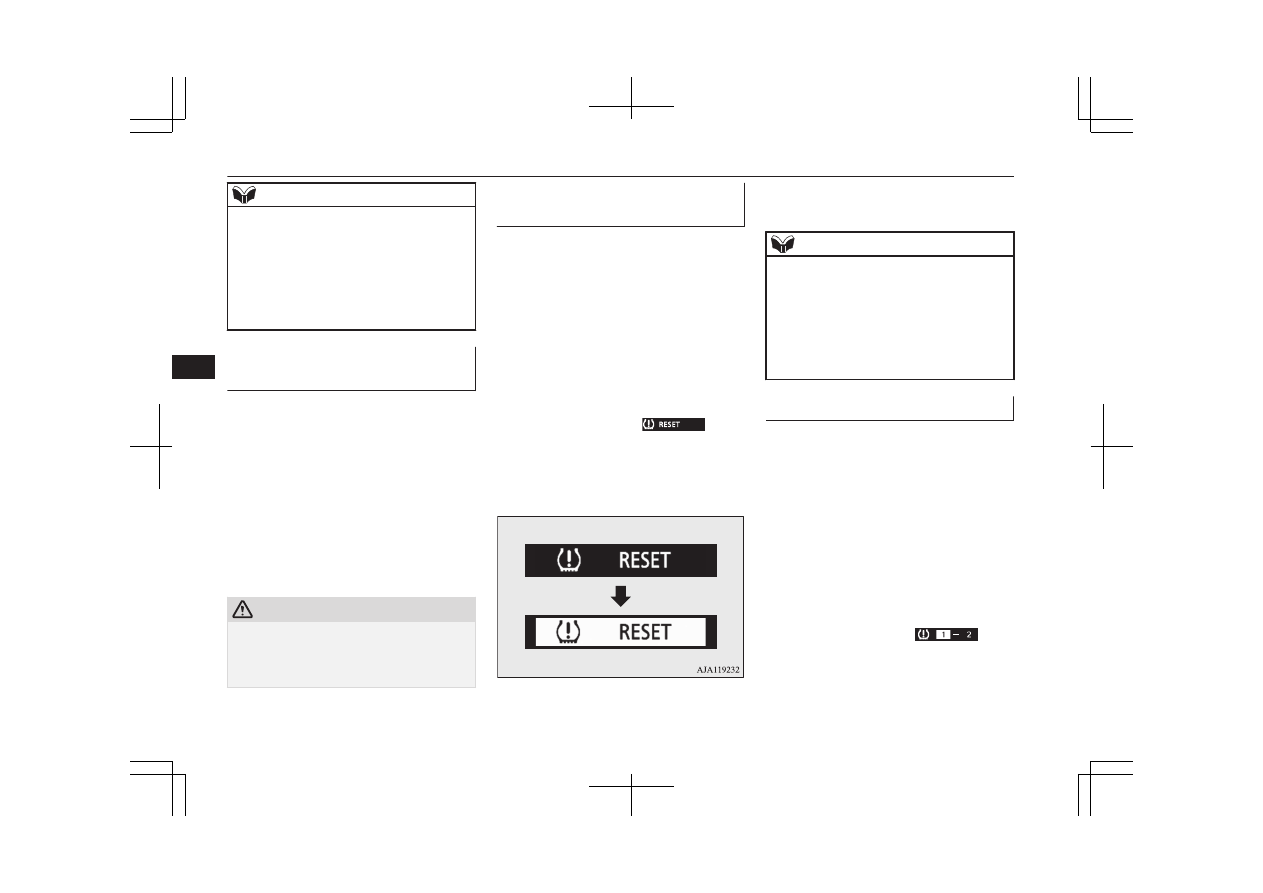

The  base  tyre  pressure  can  be  set  at  desired
value by the driver with the reset function ex-
ecution. (The low pressure warning threshold
is set based on the reset.)

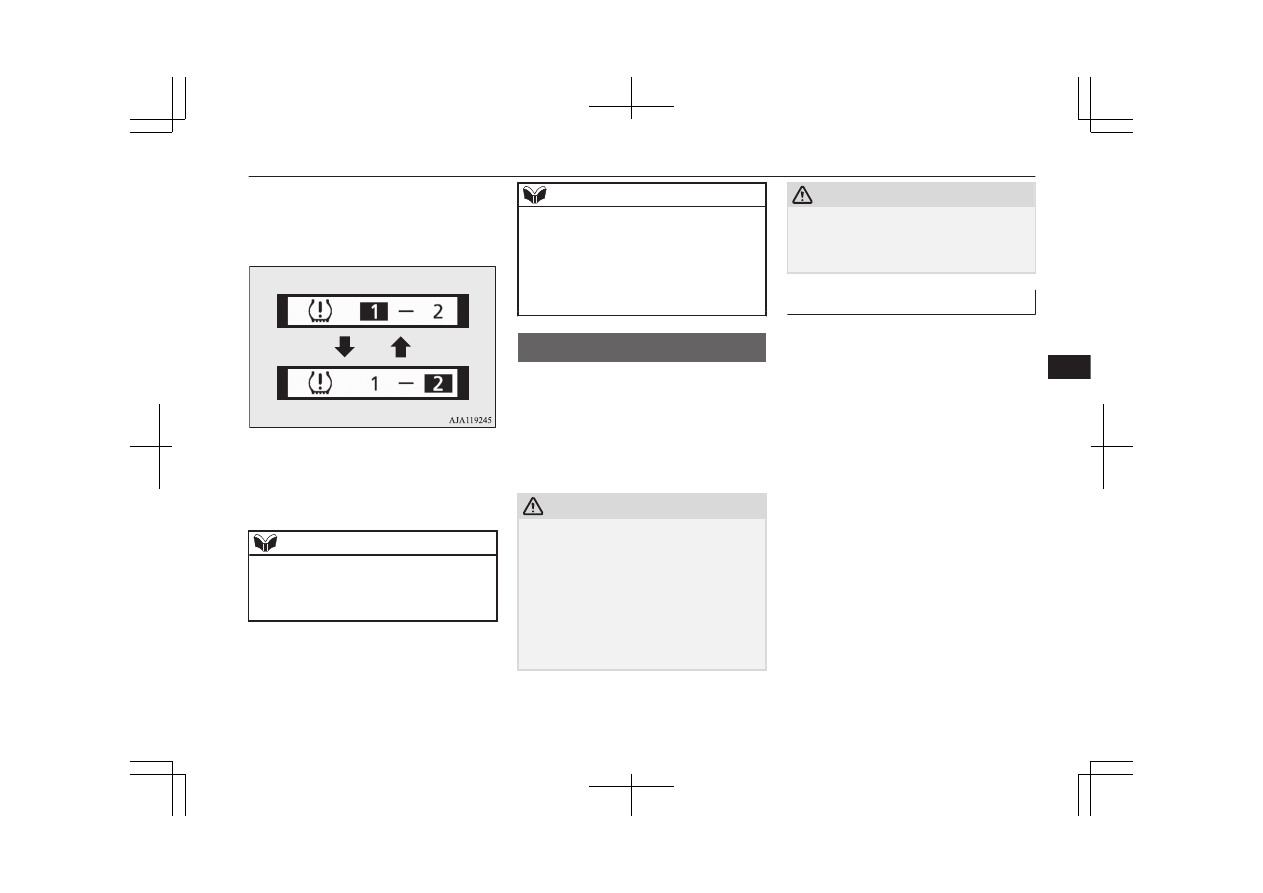

The tyre inflation pressure sensor IDs for two
sets  of  tyres  can  be  registered  by  a
MITSUBISHI MOTORS Authorized Service
Point, and the valid ID set can be switched by
the  Multi-information  display  switch  (It’s
beneficial in case of seasonal tyre change be-
tween summer tyre and winter tyre.)

NOTE

l

The  tyre  pressure  monitoring  system
(TPMS)  is  not  a  substitute  for  regularly
checking tyre inflation pressures.
Be sure to check the tyre inflation pressures
as described in “Tyres” on page 11-10.

l

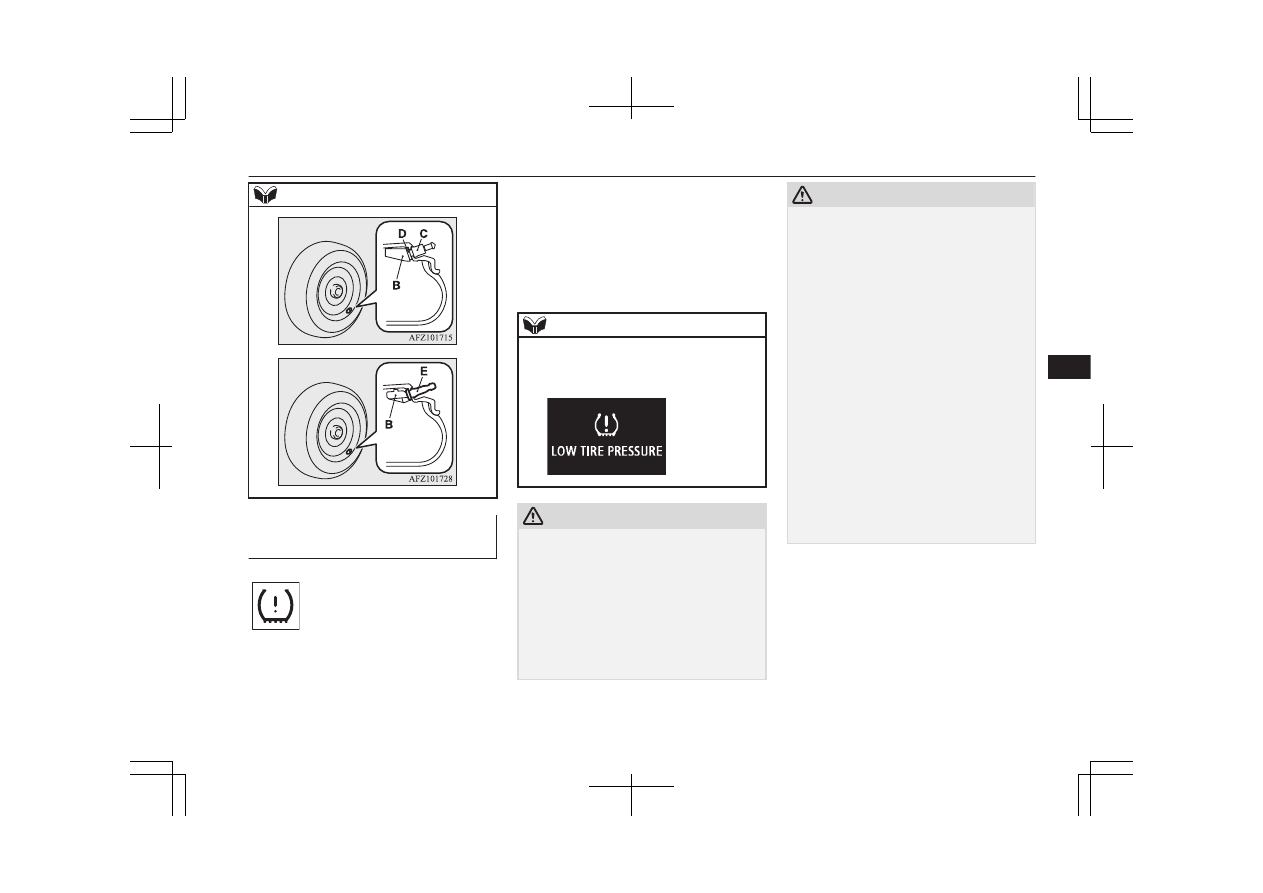

The  tyre  inflation  pressure  sensor  (B)  is  in-
stalled in the illustrated location.

On vehicles with the type 1 sensor which
has  the  metallic  air  valve  (C),  replace
grommet  and  washer  (D)  with  the  new
ones when the tyre is replaced.

On vehicles with the type 2 sensor which
has  the  rubber  air  valve  (E),  replace  the
rubber  air  valve  (E)  with  the  new  one
when the tyre is replaced.

For

details,

please

contact

your

MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

Tyre pressure monitoring system (TPMS)

7-92

OGGE19E1

Starting and driving

7

NOTE

Type 1

Type 2

Tyre pressure monitoring sys-

tem warning lamp/display

E00637200078

When  the  operation  mode  is  put  in  ON,  the
tyre  pressure  monitoring  system  warning
lamp normally illuminates and goes off a few
seconds later.


If one or more of the vehicle tyres is signifi-
cantly  under-inflated,  the  warning  lamp  will
remain illuminated while the operation mode
is in ON.
Refer to “If the warning lamp/display illumi-
nates  while  driving”  on  page  7-94
and  take
the necessary measures.

NOTE

l

In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.

CAUTION

l

If  the  warning  lamp  does  not  illuminate
when  the  operation  mode  is  put  in  ON,  it
means that the tyre pressure monitoring sys-
tem  (TPMS)  is  not  working  properly.  Have
the  system  inspected  by  a  MITSUBISHI
MOTORS Authorized Service Point.
In  such  situations,  a  malfunctioning  of  the
system may be preventing the monitoring of
the  tyre  pressure.  Avoid  sudden  braking,
sharp turning and high-speed driving.

CAUTION

l

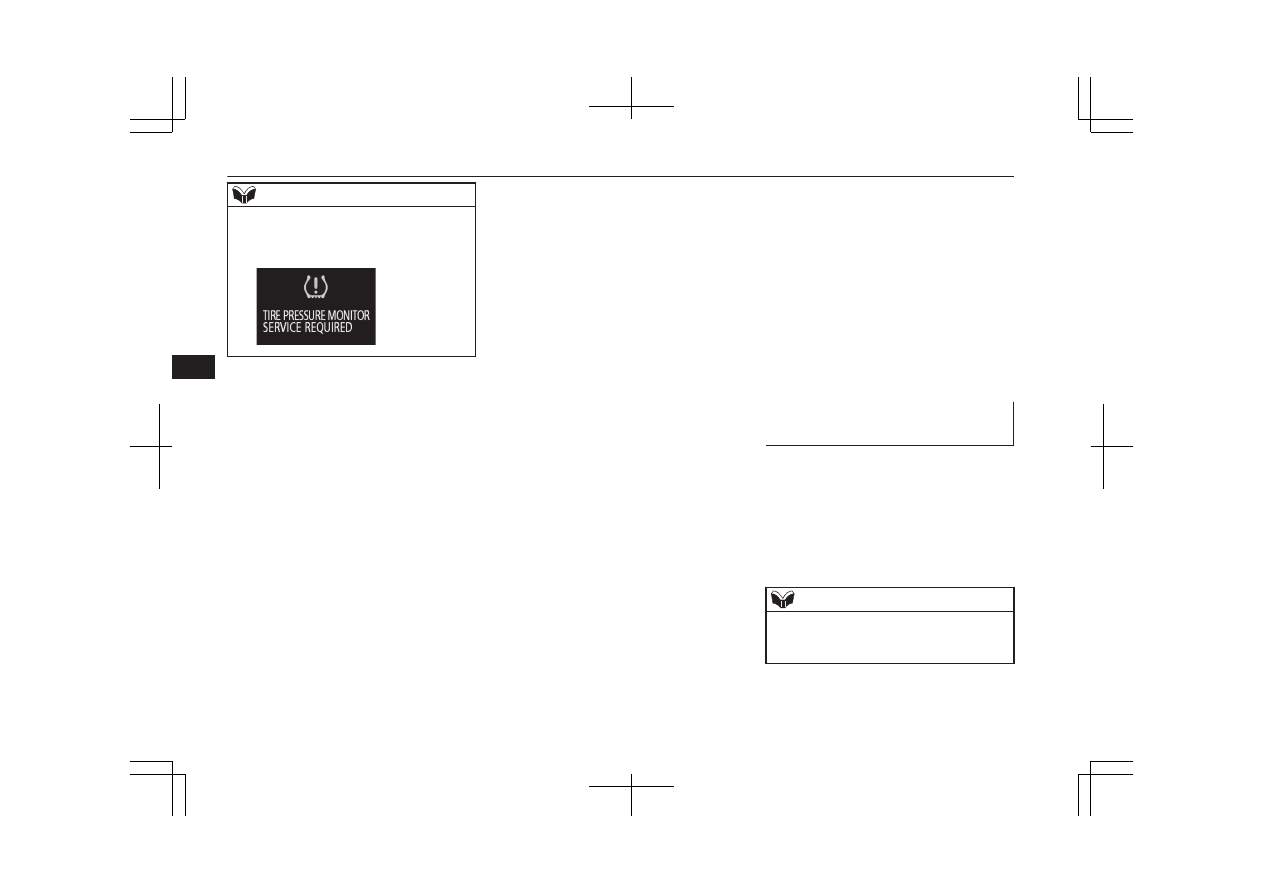

If a malfunction is detected in the tyre pres-
sure  monitoring  system  (TPMS),  the  warn-
ing lamp will blink for approximately 1 mi-
nute and then remain continuously illumina-
ted.  The  warning  lamp  will  issue  further
warnings  each  time  the  Plug-in  Hybrid  EV
System  is  restarted  as  long  as  the  malfunc-
tion exists.
Check to see whether the warning lamp goes
off after few minutes driving.
If it then goes off during driving, there is no
problem.
However,  if  the  warning  lamp  does  not  go
off,  or  if  it  blinks  again  when  the  Plug-in
Hybrid EV System is restarted, have the ve-
hicle  inspected  by  a  MITSUBISHI
MOTORS Authorized Service Point.
In  such  situations,  a  malfunctioning  of  the
system may be preventing the monitoring of
the  tyre  pressure.  For  safety  reasons,  when
the  warning  lamp  appears  while  driving,
avoid  sudden  braking,  sharp  turning  and
high-speed driving.

Tyre pressure monitoring system (TPMS)

7-93

OGGE19E1

Starting and driving

7

NOTE

l

In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.

Each  tyre,  including  the  spare  (if  so  equip-
ped),  should  be  checked  monthly  when  cold
and  inflated  to  the  inflation  pressure  recom-
mended  by  the  vehicle  manufacturer  on  the
tyre  inflation  pressure  label.  (If  your  vehicle
has tyres of a different size than the size indi-
cated on the tyre inflation pressure label, you
should  determine  the  proper  tyre  inflation
pressure for those tyres.)
As an added safety feature, your vehicle has
been  equipped  with  the  tyre  pressure  moni-
toring system (TPMS) that illuminates a low
tyre  pressure  telltale  when  one  or  more  of
your tyres is significantly under-inflated.
Accordingly, when the low tyre pressure tell-
tale  illuminates,  you  should  stop  and  check
your  tyres  as  soon  as  possible,  and  inflate
them to the proper pressure. Driving on a sig-
nificantly  under-inflated  tyre  causes  the  tyre
to overheat and can lead to tyre failure.

Under-inflation  also  reduces  fuel  efficiency
and  tyre  tread  life,  and  may  affect  the  vehi-
cle’s handling and stopping ability.
Please note that the tyre pressure monitoring
system (TPMS) is not a substitute for proper
tyre  maintenance,  and  it  is  the  driver’s  re-
sponsibility to maintain correct tyre pressure,
even  if  under-inflation  has  not  reached  the
level to trigger illumination of the tyre pres-
sure  monitoring  system  (TPMS)  low  tyre
pressure telltale.
Your  vehicle  has  also  been  equipped  with  a
warning lamp to indicate when the system is
not operating properly.
The warning lamp is combined with the low
tyre pressure telltale.
When  the  system  detects  a  malfunction,  the
telltale  will  flash  for  approximately  one  mi-
nute  and  then  remain  continuously  illumina-
ted. This sequence will continue upon subse-
quent  vehicle  start-ups  as  long  as  the  mal-
function exists.
When  the  warning  lamp  is  illuminated,  the
system  may  not  be  able  to  detect  or  signal
low tyre pressure as intended.

The tyre pressure monitoring system (TPMS)
malfunctions may occur for a variety of rea-
sons,  including  the  installation  of  replace-
ment or alternate tyres or wheels on the vehi-
cle that prevent the tyre pressure monitoring
system  (TPMS)  from  functioning  properly.
Always  check  the  tyre  pressure  monitoring
system  (TPMS)  malfunction  telltale  after  re-
placing one or more tyres or wheels on your
vehicle  to  ensure  that  the  replacement  or  al-
ternate tyres and wheels allow the tyre pres-
sure  monitoring  system  (TPMS)  to  continue
to function properly.

If the warning lamp/display il-

luminates while driving

E00637300079

1. If  the  warning  lamp  illuminates,  avoid

hard braking, sharp steering manoeuvres
and  high  speeds.  You  should  stop  and
adjust  the  tyres  to  the  proper  inflation
pressure  as  soon  as  possible.  Adjust  the
spare  tyre  at  the  same  time.  Refer  to
“Tyres” on page 11-10.

NOTE

l

In addition, the warning display will be dis-
played on the information screen in the mul-
ti-information display.

Tyre pressure monitoring system (TPMS)

7-94

OGGE19E1

Starting and driving

7

NOTE

l

When  inspecting  or  adjusting  the  tyre  pres-
sure,  do  not  apply  excessive  force  to  the
valve stem to avoid breakage.

l

After  inspecting  or  adjusting  the  tyre  pres-
sure,  always  reinstall  the  valve  cap  on  the
valve stem.
Without the valve cap, dirt or moisture could
get into the valve, resulting in damage to the
tyre inflation pressure sensor.

l

Do  not  use  metal  valve  caps,  which  may
cause a metal reaction, resulting in corrosion
and  damage  of  the  tyre  inflation  pressure
sensors.

l

Once  adjustments  have  been  made,  the
warning lamp will go off after a few minutes
of driving.

2. If the warning lamp remains illuminated

after you have been driving for about 10
minutes  after  you  adjust  the  tyre  infla-
tion  pressure,  one  or  more  of  the  tyres
may  have  a  puncture.  Inspect  the  tyre
and if it has a puncture, have it repaired
by  a  MITSUBISHI  MOTORS  Author-
ized Service Point as soon as possible.

WARNING

l

If  the  warning  lamp/display  illuminates
while  you  are  driving,  avoid  hard  brak-
ing,  sharp  steering  manoeuvres  and  high
speeds.
Driving  with  an  under-inflated  tyre  ad-
versely  affects  vehicle  performance  and
can result in an accident.

CAUTION

l

The  warning  lamp/display  may  not  illumi-
nate immediately in the event of a tyre blow-
out or rapid leak.

NOTE

l

To avoid the risk of damage to the tyre infla-
tion  pressure  sensors,  have  any  punctured
tyre  repaired  by  a  MITSUBISHI  MOTORS
Authorized Service Point. If the tyre repair is
not done by a MITSUBISHI MOTORS Au-
thorized  Service  Point,  damage  to  the  tyre
inflation  pressure  sensor  is  not  covered  by
your warranty.

l

Do not use an aerosol puncture-repair spray
on any tyre.
Such a spray could damage the tyre inflation
pressure sensors.
Have  any  puncture  repaired  by  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

NOTE

l

Using  the  tyre  repair  kit  may  damage  the
tyre  inflation  pressure  sensor.  The  vehicle
must promptly be inspected and repaired by
a MITSUBISHI MOTORS Authorized Serv-
ice Point after using the tyre repair kit.

The tyre pressure monitoring system (TPMS)
may not work normally in the following cir-
cumstances:

l

A  wireless  facility  or  device  using  the
same frequency is near the vehicle.

l

Snow  or  ice  is  stuck  inside  the  fenders
and/or on the wheels.

l

The  tyre  inflation  pressure  sensor’s  bat-
tery is dead.

l

Wheels  other  than  MITSUBISHI
MOTORS  GENUINE  wheels  are  being
used.

l

Wheels that are not fitted with tyre infla-
tion pressure sensors are being used.

l

Wheels  whose  ID  codes  are  not  memo-
rized by the vehicle are used.

l

A  window  tint  that  affects  the  radio
wave signals is installed.

Tyre pressure monitoring system (TPMS)

7-95

OGGE19E1

Starting and driving

7

NOTE

l

Tyre inflation pressures vary with the ambi-
ent temperature. If the vehicle is subjected to
large  variations  in  ambient  temperature,  the
tyre inflation pressures may be underinflated
(causing the warning lamp/display come on)
when  the  ambient  temperature  is  relatively
low.  If  the  warning  lamp/display  comes  on,
adjust the tyre inflation pressure.

Whenever the tyres and wheels

are replaced with new ones

E00637400025

If  new  wheels  with  new  tyre  inflation  pres-
sure sensors are installed, their ID codes must
be  programmed  into  the  tyre  pressure  moni-
toring  system.  Have  tyre  and  wheel  replace-
ment  performed  by  a  MITSUBISHI
MOTORS Authorized Service Point to avoid
the  risk  of  damaging  the  tyre  inflation  pres-
sure sensors. If the wheel replacement is not
done  by  a  MITSUBISHI  MOTORS  Author-
ized Service Point, it is not covered by your
warranty.

CAUTION

l

The use of non-genuine wheels will prevent
the  proper  fit  of  the  tyre  inflation  pressure
sensors,  resulting  air  leakage  or  damage  of
the sensors.

Reset of low tyre pressure

warning threshold

E00637500169

The  threshold  is  set  based  on  the  tyre  pres-
sure  which  the  reset  function  is  executed  by
following procedure.

1. Operate  the  multi-information  display

switch  to  switch  the  information  screen
to the menu screen.
Refer  to  “Multi  information  display
switch” on page 6-06.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi-information  dis-

play switch to select “

” (reset

of low tyre pressure warning threshold).

3. Hold  down  the  multi-information  dis-

play switch for about 3 seconds or more,
the buzzer sounds.

4. The warning lamp start flashing slowly.

5. Drive for a while. The reset is completed

if the warning lamp goes out.

NOTE

l

The reset function should be executed every
time when the tyre pressure or tyre rotation
is adjusted.

l

The reset function should be executed when
the  tyre  is  cold.  If  it  is  executed  when  the
tyre  is  warm  (e.g.  after  driving),  there  may
be  a  low  tyre  pressure  warning  earlier  than
usual.

Tyre ID set change

E00637600173

In  case  that  2  sets  of  tyre  inflation  pressure
sensor  ID  are  registered  in  the  receiver,  the
valid tyre ID set can be changed by following
procedure.

1. Operate  the  multi-information  display

switch  to  switch  the  information  screen
to the menu screen.
Refer  to  “Multi  information  display
switch” on page 6-06.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi-information  dis-

play switch to select “

” (tyre

ID set change).

Tyre pressure monitoring system (TPMS)

7-96

OGGE19E1

Starting and driving

7

3. Hold  down  the  multi-information  dis-

play switch for about 3 seconds or more.
The setting changes the selected tyre ID
set.

4. The valid tyre ID set is changed, and the

number  of  the  tyre  pressure  monitoring
system  (TPMS)  SET  indicator  is
changed.

NOTE

l

Each time this procedure is done, the tyre ID
set is changed. (1 - 2 - 1 - 2 …)

l

The tyre ID set is NOT changed, in case that
only 1 set of ID is registered.

NOTE

l

When  changing  the  tyre  ID  set,  the  reset
function  of  low  tyre  pressure  warning
threshold  is  automatically  started.  (The
warning  lamp  starts  flashing  slowly.)  If  the
tyre  is  warm  at  this  time,  the  reset  function
should  be  executed  again  when  the  tyre  is
cold.

Reversing sensor system*

E00615501515

This  system  operates  when  you  are  backing
the vehicle. It uses corner and back sensors to
detect an obstacle and the information screen
in the multi information display and the buz-
zer to inform you of the approximate distance
to the obstacle.

CAUTION

l

The  reversing  sensor  system  assists  you  in
determining  the  approximate  distance  be-
tween  the  vehicle  and  an  obstacle  located
behind the vehicle. It has limitations in terms
of detectable areas and objects, and may not
properly  detect  some  objects.  Therefore,  do
not place excessive confidence in the revers-
ing sensor system and operate the vehicle as
carefully as you would do with a vehicle not
equipped with this system.

CAUTION

l

Make  sure  to  check  the  surroundings  with
your own eyes to ensure safety. Do not oper-
ate  the  vehicle  by  relying  on  the  reversing
sensor system alone.

Obstacle detection areas

E00615601718

The  detection  areas  of  the  corner  and  back
sensors  are  limited  to  those  shown  in  the  il-
lustration.  Moreover,  the  sensors  are  unable
to  detect  low  or  thin  objects  or  objects  near
the  rear  bumper.  Thus,  make  sure  to  check
the surroundings as you operate the vehicle in
a safe manner.

Reversing sensor system*

7-97

OGGE19E1

Starting and driving

7

Corner  and  back  sensor  loca-

tions

There  are  two  corner  sensors  (A)  at  the  cor-
ners of the rear bumper, and two back sensors
(B) in the centre of the rear bumper.

Reversing  sensor  system  detec-

tion areas

Depending  on  whether  the  vehicle  is  equip-
ped with a towing bar, you can change the re-
versing  sensor  system  between  the  standard
mode  and  the  towing  bar  mode.  The  towing
bar  mode  changes  the  system  to  exclude  the
area in which the towing bar is mounted from
the detection areas.
Vehicles without a towing bar

The detection areas are within approximately
60  cm  (A)  from  the  corner  sensors,  125  cm
(B) from the back sensors.

Vehicles with a towing bar
The detection areas are within approximately
60  cm  (A)  from  the  corner  sensors,  125  cm
(B) from the back sensors. The non-detection
areas (C) are within approximately 20 cm (D)
from the bumper.

NOTE

l

The sensors do not detect objects located in
the  area  directly  below  or  near  the  bumper.
If  the  height  of  an  object  is  lower  than  the
mounted position of the corner or back sen-
sors, the sensors may not continue detecting
it even if they detected it initially.

For information on how to change the detec-
tion areas, please refer to “Changing the de-
tection areas” on page 7-100.

CAUTION

l

The reversing sensor system may not operate
properly under the following conditions:

The  sensors  or  surroundings  have  been
wiped by hand.

The  stickers  or  accessories  have  been  at-
tached to the sensors or surroundings.

The  sensors  or  surroundings  are  covered
with ice, snow, or mud.

When  the  temperature  difference  is  too
large.

The sensors are frozen.

The system receives ultrasonic noise from
other sources (the horns of other vehicles,
motorcycle  engines,  brakes,  radios,  pour-
ing  rain,  splashing  water,  snow  traction
device (tyre chains), etc.).

The  sensors  are  extremely  hot  or  cold
(while the vehicle is parked for a long pe-
riod of time under a blazing sun or in cold
weather).

Reversing sensor system*

7-98

OGGE19E1

Starting and driving

7

CAUTION

The vehicle tilts significantly.

The  vehicle  is  driven  on  a  rough  road
(with a bumpy, gravel, hilly, or grassy sur-
face).

The vehicle is too close to an obstacle.

Immediately  after  Plug-in  Hybrid  EV
System starting.

l

The reversing sensor system may not proper-
ly detect the following objects:

Objects that are thin, such as wire nets or
ropes.

Objects that absorb sound waves, such as
snow.

Objects  that  are  shaped  with  a  sharp  an-
gle.

Objects  with  a  smooth  surface,  such  as
glass.

Objects that are low, such as kerbstones.

l

If  the  bumper  has  been  exposed  to  an  im-
pact,  the  sensors  may  fail  and  prevent  the
system  from  functioning  properly.  Have  the
vehicle  inspected  at  a  MITSUBISHI
MOTORS Authorized Service Point.

NOTE

l

The  buzzer  may  sound  lower  than  the  nor-
mal warning sound when the reversing sen-
sor system is receiving ultrasonic noise from
other  sources,  but  this  is  not  a  malfunction.
The  buzzer  will  stop  sounding  and  the  sys-
tem will return to normal operation after the
noise is no longer received.

To operate

E00615702136

To operate the system, move the selector lev-
er  to  the  “R”  position  while  the  operation
mode is put in ON. When the reversing sen-
sor  system  is  operated,  the  reversing  sensor
system  operation  indication  lamp  (A)  will
turn on. To stop the operation, push the “SO-
NAR”  switch;  the  reversing  sensor  system
operation indication lamp (A) goes out.

NOTE

l

Only when the select position is the “R” po-
sition,  the  reversing  sensor  system  can  be
operated  or  be  stopped  by  using  the  “SO-
NAR” switch.

Warning for obstacles

If  there  is  an  obstacle  behind  the  vehicle,  a
warning  will  be  issued  with  the  information
screen in the multi information display and a
warning buzzer.

1- Corner sensor (left)
2- Back sensor
3- Corner sensor (right)

Corner sensor

Vehicle to obstacle

distance

Warning display/

sound cycle

Approx. 60 to 40 cm

Intermittent

Approx. 40 to 30 cm

Fast intermittent

Within approx.

30 cm

Continuous

Reversing sensor system*

7-99

OGGE19E1

Starting and driving

7

Back  sensor  (vehicles  without  a  towing
bar)

Vehicle to obstacle

distance

Warning display/

sound cycle

Approx. 125 to

80 cm

Intermittent

Approx. 80 to 40 cm

Fast intermittent

Within approx.

40 cm

Continuous

Back sensor (vehicles with a towing bar)

Vehicle to obstacle

distance

Warning display/

sound cycle

Approx. 125 to

100 cm

Intermittent

Approx. 100 to

60 cm

Fast intermittent

Within approx.

60 cm

Continuous

CAUTION

l

The distances given are to be used for refer-
ence only, as errors may be caused by vari-
ous  factors,  such  as  temperature,  humidity,
or the shape of the obstacles.

NOTE

l

When the sensors are detecting different ob-
stacles  at  the  same  time,  the  information
screen in the multi information display indi-
cates  the  directions  of  the  obstacles  each
sensors are detecting. However, closer obsta-
cles  are  given  priority  over  other  detected
obstacles  and  the  warning  buzzer  sounds  to
inform you of closer obstacles.

Changing the detection areas

E00615801257

The  detection  areas  can  be  changed  as  fol-
lows:

Vehicles with a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release  it.  The  buzzer  sounds  twice  to  indi-
cate that the detection area has been changed.

Vehicles without a towing bar
While the operation of the system is stopped
at the “SONAR” switch, push the “SONAR”
switch approximately 3 seconds or more, and
release it. The buzzer sounds once to indicate
that the detection area has been changed.

NOTE

l

The  detection  area  will  not  change  if  you
keep  the  “SONAR”  switch  pushed  for  10
seconds or more.

l

After pushing the “SONAR” switch, revers-
ing  sensor  system  operation  differs  accord-
ing to the detection area setting.

Setting when towing bar is not equipped
When  the  selector  lever  is  moved  to  the
“R” position, the reversing sensor system
will operate even if the corner sensor op-
eration was stopped by pushing the “SO-
NAR” switch.

Setting when towing bar is equipped
When the reversing sensor system opera-
tion  was  stopped  by  pushing  the  “SO-
NAR” switch, the reversing sensor system
will  not  operate  until  the  Plug-in  Hybrid
EV  System  has  been  stopped  even  if  the
selector  lever  is  moved  to  the  “R”  posi-
tion.
To  resume  the  reversing  sensor  system
operation,  push  the  “SONAR”  switch  or
stop  and  restart  the  Plug-in  Hybrid  EV
System, and then move the selector lever
to the “R” position.

Reversing sensor system*

7-100

OGGE19E1

Starting and driving

7















Content   ..  18  19  20  21   ..
