The FCM brake assist function operates at
the following vehicle speed:

Against a vehicle: Approximately
15 km/h (9 mph) to 80 km/h (50 mph).

Against a pedestrian: Approximately
15 km/h (9 mph) to 65 km/h (40 mph).

CAUTION

The  brake  assist  function  may  not  be  trig-
gered  when  the  brake  pedal  is  operated  in
certain ways.
Do not overly rely on the system; if your ve-
hicle is in danger of collision, take all neces-
sary  collision-evading  actions,  such  as  de-
pressing the brake pedal strongly regardless
of whether the system is activated or not.

FCM braking function

E00635501380

If the system judges that there is a high risk
of your vehicle colliding with a vehicle or a
pedestrian  in  front,  the  system  applies  the
brakes moderately to encourage you to apply
the brakes.
If  the  system  judges  that  a  collision  is  un-
avoidable, it initiates emergency braking con-
trol  to  mitigate  collision-caused  damages  or,
if the situation permits, to avoid a collision.
When the emergency braking control is trig-
gered, you are warned of the hazard with vis-
ual and audible alarms like with the forward
collision warning function.

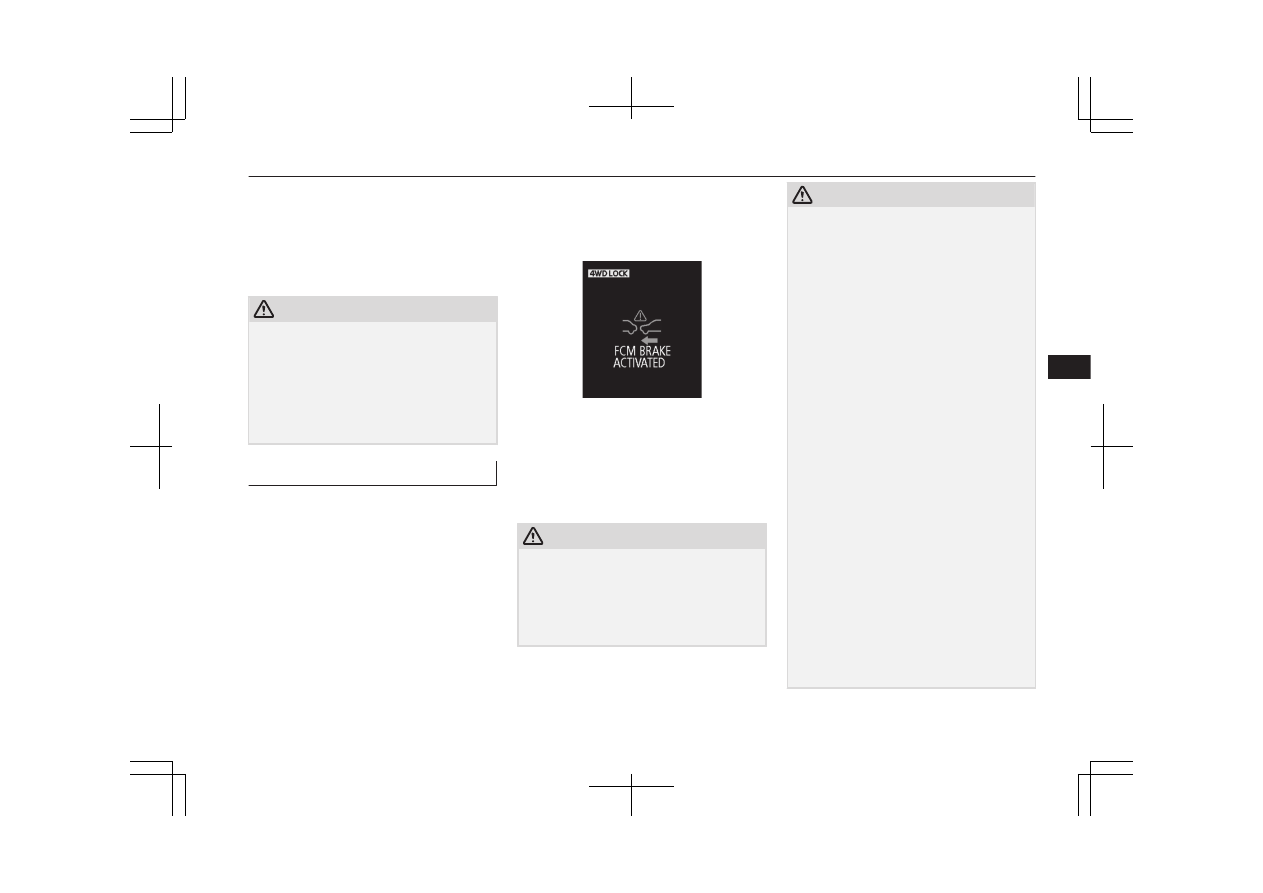

Once the emergency braking has worked, you
are alerted to this by a message on the infor-
mation screen of the multi-information dis-
play.

The FCM braking function operates at the
following vehicle speed:

Against a vehicle: Approximately
5 km/h (3 mph) to 80 km/h (50 mph).

Against a pedestrian: Approximately
5 km/h (3 mph) to 65 km/h (40 mph).

CAUTION

Do not use the FCM as a normal braking.

After your vehicle has stopped following the
activation of the FCM, automatic braking is
released. As the vehicle will then start creep-
ing, be sure to depress the brake pedal to
hold the vehicle stationary.

CAUTION

When applying the brake during the auto-
matic braking condition the pedal will feel
firm.
This is not abnormal.
You can apply more pressure to the pedal to
assist in braking.

In the following situations, the system pro-
vides neither control nor alarming.

•

When a vehicle or a pedestrian suddenly
cuts in front of your vehicle.

•

When the distance from a vehicle or a pe-
destrian in front is extremely short.

•

To an oncoming vehicle.

•

When the select position is in the “P”
(PARK) or the “R” (REVERSE) position.

•

When the FCM has detected a problem in
the system.

If the ASC is deactivated, the FCM braking
function will not operate. Refer to “Active
Stability Control (ASC)” on page 7-43.

The FCM may or may not detect a motorcy-
cle, bicycle or wall depending on the situa-
tion. The FCM is not designed to detect
these objects.

The forward collision warning function
and/or the FCM braking function may not
activate in the following situations.

•

When a vehicle suddenly appear just in
front of your vehicle.

•

When a vehicle cuts in front of your vehi-
cle very closely.

•

When the vehicle in front is offset to the
left or right.

Forward Collision Mitigation System (FCM)*

7-69

OGGE19E1

Starting and driving

CAUTION

•

When the vehicle in front is towing a
trailer.

•

A freight trailer that is not carrying a con-
tainer.

•

The vehicle has a protruding load from
the carrier.

•

The vehicle has a low vehicle height.

•

The vehicle has an extremely high ground
clearance.

•

When a vehicle in front is extremely dirty.

•

When a vehicle in front is covered with
snow.

•

When a vehicle in front has a large glass
surface.

•

When a vehicle in front does not have re-
flectors (lamp reflector) or the position of
the reflector is low.

•

When a vehicle in front is a car carrier or
a similar shaped vehicle.

•

When there is a different object near the
vehicle.

•

When driving on a road with many and
successive curves, including when pass-
ing their entrances and outlets.

•

When accelerating and decelerating
quickly.

•

When  the  system  recognizes  driver’s
steering,  accelerating,  braking  or  gear
shifting  actions  as  evasive  actions  to
avoid collision.

•

When you are driving on a road with
steep and alternating up and down slopes.

•

When driving on a slippery road covered
by rain water, snow, ice etc.

CAUTION

•

When a road surface is surging, and there
is unevenness.

•

When driving in dark areas, such as in a
tunnel or at night.

•

When your vehicle changed lanes, and
your vehicle approached immediately be-
hind the vehicle in front.

•

During a certain time after your vehicle
turns left or right.

•

When you are carrying extremely heavy
loads in the rear seats or luggage area.

•

After the Plug-in Hybrid EV System has
been running for an extended period of
time.

•

When using a windscreen washer.

•

windscreen

wipers

are

not

MITSUBISHI MOTORS GENUINE
parts or equivalent.

•

When the sensor becomes extremely hot
or cold.

•

If the auxiliary battery becomes weak or
runs down.

•

When the sensor is affected by strong
light, such as direct sunlight or the head-
lamps of an oncoming vehicle.

•

Under adverse weather conditions (rain,
snow, sand storms, etc.)

•

When the windscreen of the sensor por-
tion is covered with dirt, water droplets,
snow and ice, etc.

•

When water, snow or sand on the road are
extorted by the vehicle in front or an on-
coming vehicle.

CAUTION

The FCM may not detect a pedestrian in cer-
tain situations. Some of these include:

•

It the pedestrian is shorter than approxi-
mately 1 m or taller than approximately 2
m.

•

If the pedestrian is wearing loose-fitting
clothes.

•

If part of a pedestrian’s body is hidden,
such as when holding an umbrella, large
bag, etc.

•

If a pedestrian bends forward, sits or lies
on the road.

•

When a pedestrian is pushing/pulling
something, such as a stroller, bicycle or
wheelchair.

•

When pedestrians gather in a group.

•

When a pedestrian’s clothing appears to
be nearly the same colour or brightness as
its surroundings.

•

When a pedestrian is very close to an ob-
ject, such as a vehicle.

•

When a pedestrian is in a dark area, such
as at night or in a tunnel.

•

When the pedestrian is walking fast or
running.

•

When a pedestrian suddenly rushes in
front of the vehicle.

•

When the position of a pedestrian is close
to the edge of the vehicle.

Forward Collision Mitigation System (FCM)*

7-70

OGGE19E1

Starting and driving

CAUTION

Factors such as the positional relationship
between your vehicle and a vehicle in front,
driver’s own technique of steering the vehi-
cle and irregularly moving traffic due to ac-
cidents or vehicle trouble may deter the
FCM control and alarm from functioning.

When the system recognizes driver’s steer-
ing or accelerating actions as evasive actions
to avoid collision, the FCM control and
alarm functions may be cancelled.

The FCM control and alarm functions may
be triggered in the following situations.

•

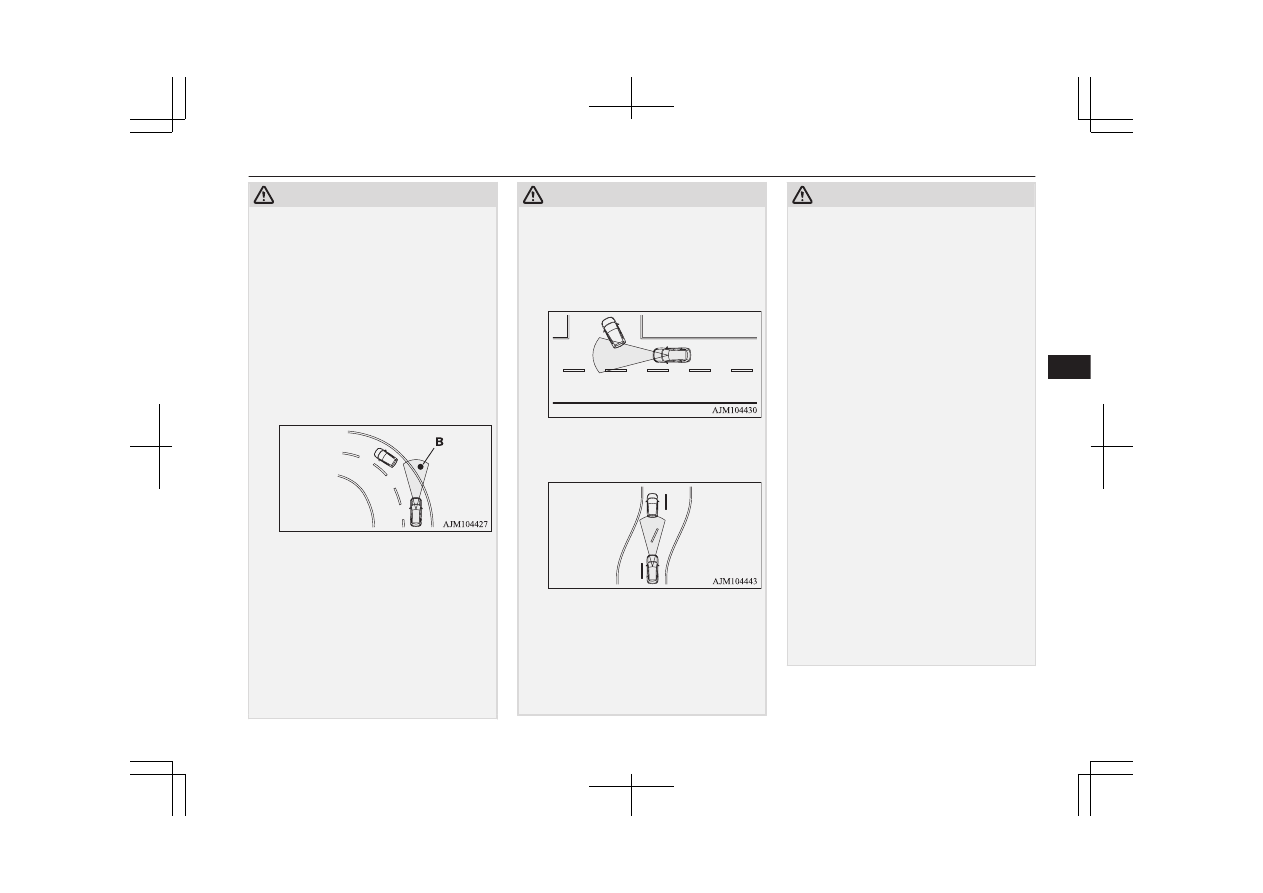

When there is a structure (B) beside the
entrance of a curve and intersection.

•

When running on a narrow iron bridge.

•

When passing through a gate with small
head or side clearances.

•

When there are metallic objects, steps or
projections on the road surface.

•

When quickly approaching a vehicle in
front to overtake it.

•

When passing an electronic toll collection
gate.

•

When running under an overpass, a pe-
destrian overpass or a small tunnel.

•

When running in Multi-storey car park.

CAUTION

•

When the road gradiently and suddenly
changes while running.

•

When stopping very close to a wall or a
vehicle in front.

•

When passing close to a vehicle, pedes-
trian or object.

•

When driving on the road that the vehicle
in front runs in offset position from your
vehicle.

•

When passing through an area where ob-
jects may contact the vehicle, such as
thick grass, tree branches, or a banner.

•

When there are patterns on the road that
may be mistaken for a vehicle or a pedes-
trian.

•

When a vehicle cuts into your path in the
detecting range of the sensor.

CAUTION

•

When an oncoming vehicle is positioned
straight ahead of your vehicle on a curved
road.

•

When passing through a plastic curtain
etc.

•

When the FCM detects a long object car-
ried on your vehicle, such as skies or a
roof carrier.

•

When driving through fog, steam, smoke
or dust.

•

When the windscreen of the sensor por-
tion is covered with dirt, water droplets,
snow and ice, etc.

Turn off the system beforehand when the ve-
hicle is placed in any of the following situa-
tions as the system can operate unexpected-
ly.

•

When using an automatic car wash.

•

When your vehicle’s wheels are driven by
the Plug-in Hybrid EV System on a lift.

•

When your vehicle is towed or your vehi-
cle tows another vehicle.

•

When your vehicle is carried on a truck.

•

When enjoying sports driving on a circuit.

•

When your vehicle is on a chassis dyna-
mometer or free rollers.

•

When the tyre pressure is not correct.

•

When snow traction device (tyre chains)
are attached.

•

If the windscreen on or surrounding the
sensor is cracked or scratched.

Forward Collision Mitigation System (FCM)*

7-71

OGGE19E1

Starting and driving

NOTE

A sound will be heard during the activation
of automatic braking, this is a function of the
brake control and is not abnormal.

FCM and UMS ON/OFF

switch

E00635601323

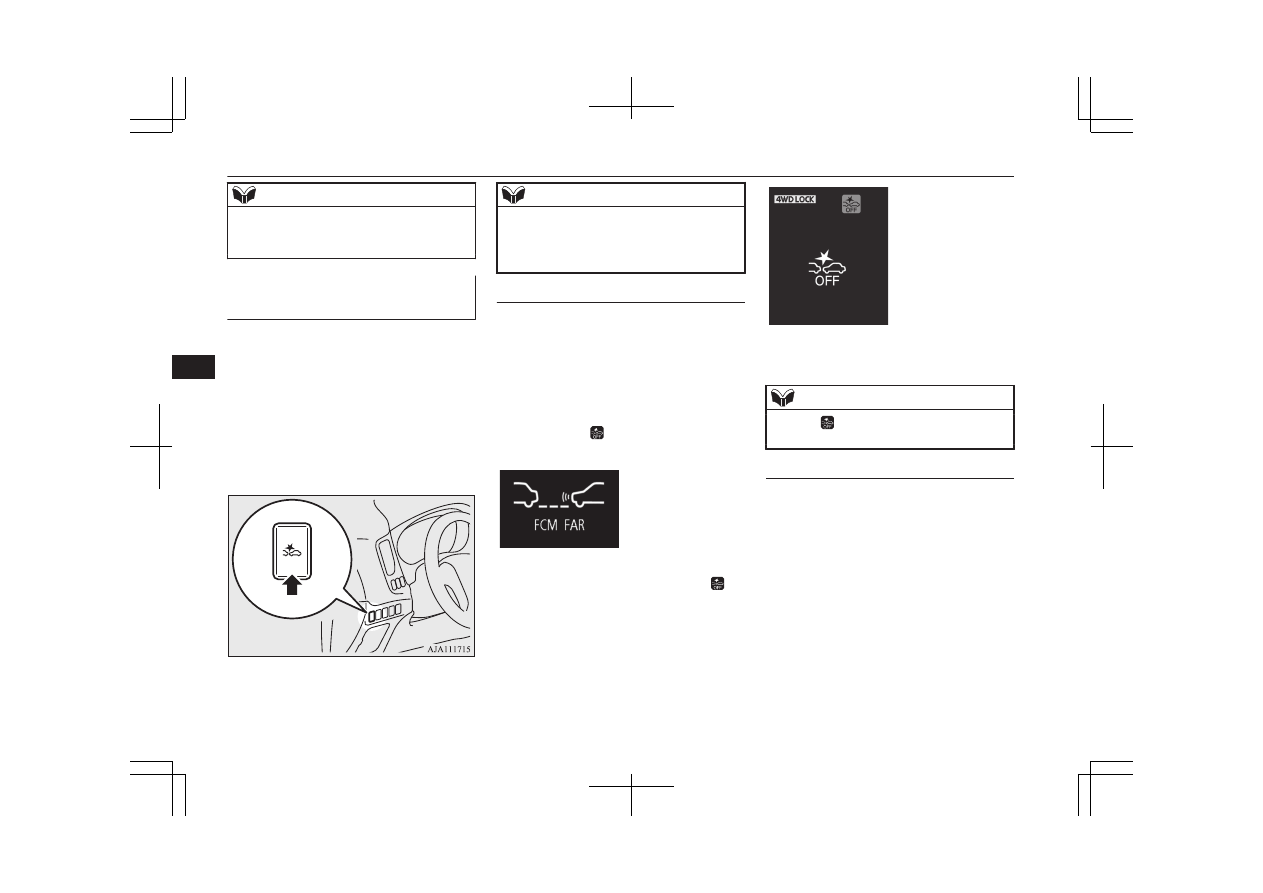

This  switch  is  used  to  turn  on  and  off  the
FCM  and  UMS  and  also  to  select  your  de-
sired collision alarm timing.
When  the  switch  is  held  pressed,  the
ON/OFF state of the FCM and UMS changes
from ON to OFF and vice versa. If you give
the switch a short press with the FCM in the
ON state, you can change the collision alarm
timing.

NOTE

When the FCM and UMS ON/OFF switch is
held pressed to change the ON/OFF state of
the FCM, the ON/OFF state of the UMS is
also changed at the same time.

To turn on/off the system

You can switch the system from OFF to ON
or ON to OFF if you hold the FCM and UMS
ON/OFF  switch  pressed  when  the  operation
mode is set to “ON”.
Once the system is turned on, the information
screen  of  the  multi-information  display
shows the collision alarm timing currently se-
lected,  and  the

indicator on the screen

goes out.

When you turn off the system, the following
message appears on the screen and the

in-

dicator comes on.

Cycling the operation mode to ON will set
the FCM back ON.

NOTE

The

indicator is combined with the

“UMS OFF” indicator.

To change alarm timing

Give  a  short  press  to  the  FCM  and  UMS
ON/OFF  switch  to  change  the  timing  at
which the frontal collision alarm is triggered.
Every  time  you  press  the  switch,  the  alarm

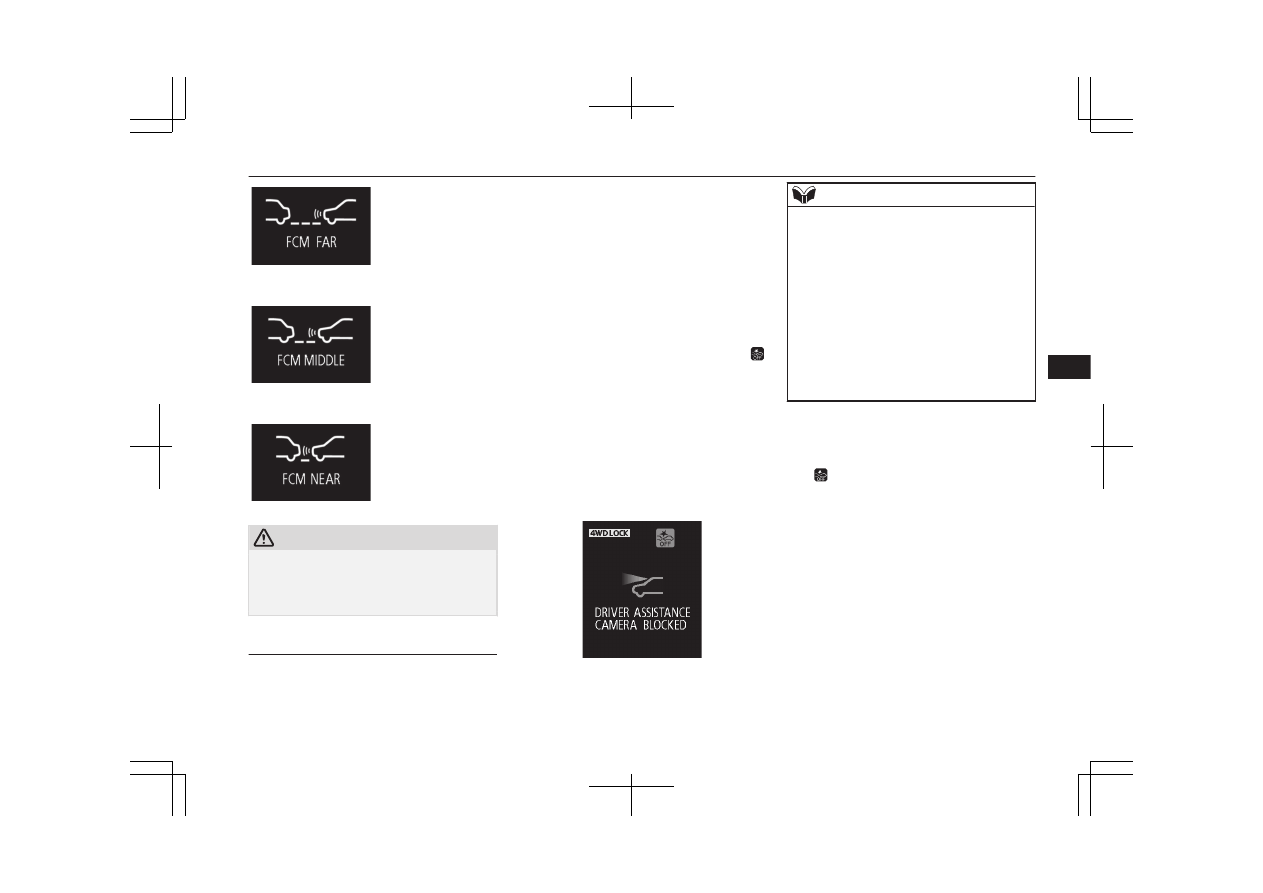

timing  changes  between  three  levels:  “FAR”
(earlier  alarming),  “MIDDLE”  (normally
alarming) or “NEAR” (later alarming).
As  you  make  selection,  the  selected  alarm
timing is displayed on the information screen
of  the  multi-information  display.  Even  after
turning off the FCM or setting the operation
mode to “OFF”, the system retains your last
selected alarm timing in memory.
When “FAR” is selected

Forward Collision Mitigation System (FCM)*

7-72

OGGE19E1

Starting and driving

When “MIDDLE” is selected

When “NEAR” is selected

CAUTION

For  the  FCM  brake  prefill,  the  FCM  brake
assist  and  the  FCM  braking  functions,  the
function  triggering  timing  cannot  be
changed.

When a problem is detected

E00652100023

When the FCM system determines that its
performance has been degraded, the FCM
will become inoperative.

This can occur when:

Foreign objects, such as dirt, snow or
ice, adhere to the windscreen of the sen-
sor portion.

There are adverse weather conditions,
such as rain, snow, sand storms, etc.

A vehicle in front or an oncoming vehi-
cle is splashing water, snow or dirt.

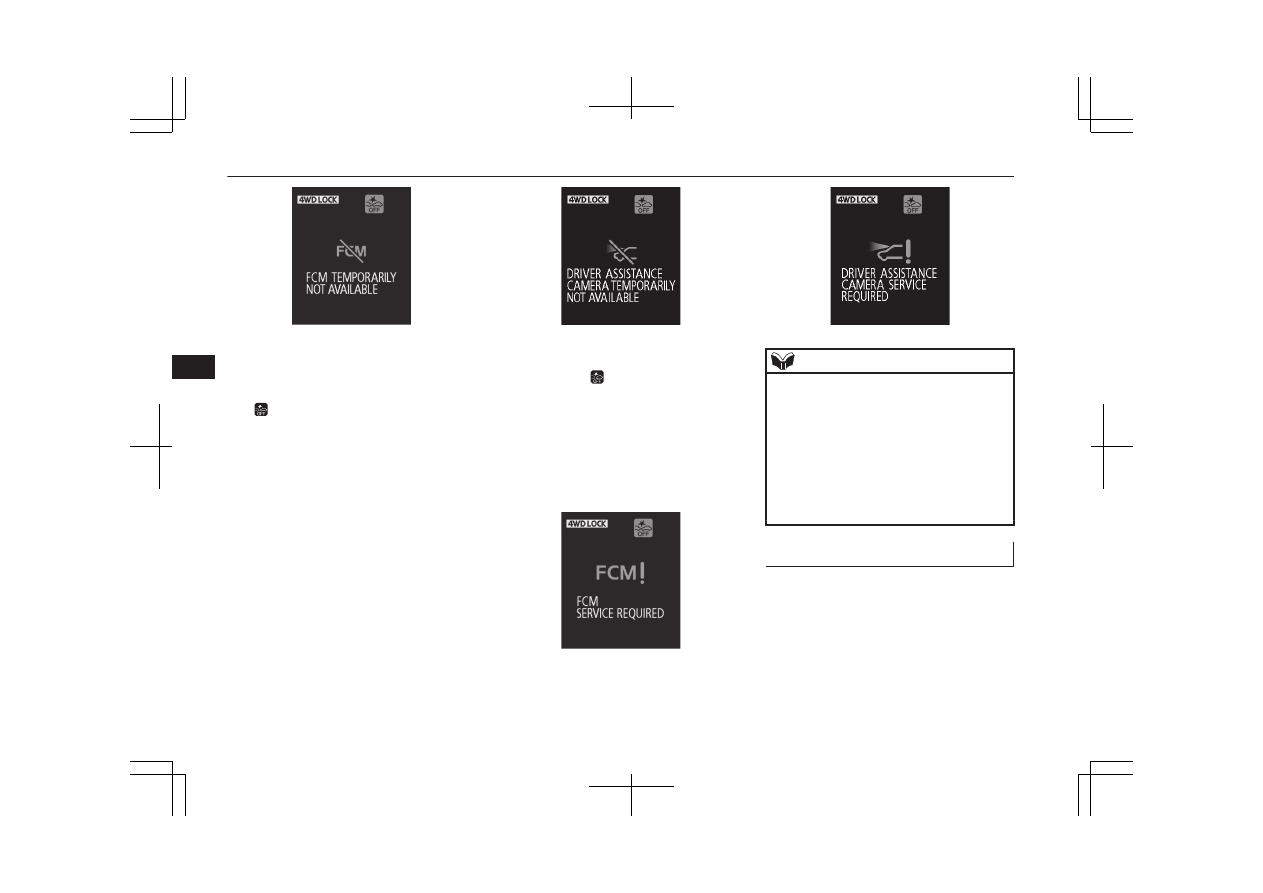

The  “DRIVER  ASSISTANCE  CAMERA
BLOCKED” message will appear and the
indicator  will  appear  on  the  information
screen of the multi-information display.
When  the  sensor  performance  returns,  the
FCM functions will resume operation.
If  the  display  keeps  showing  the  message,
there  is  a  possibility  that  the  sensor  has  a
malfunction.  Contact  a  MITSUBISHI
MOTORS  Authorized  Service  Point  for  in-
spection of the sensor.

NOTE

The  “DRIVER  ASSISTANCE  CAMERA
BLOCKED”  message  may  temporarily  ap-
pear on the information screen when the sen-
sor  cannot  detect  a  vehicle,  a  pedestrian  or
an  object  within  range.  This  is  not  a  mal-
function. When a vehicle or an object comes
within range, the FCM function will resume
and the message will go off.

The “DRIVER ASSISTANCE CAMERA
BLOCKED” message may appear on the in-
formation screen when driving on a non-
busy road with a few vehicles and obstacles
in front.

If the system becomes temporarily unavaila-
ble for some reason, the following message
may appear.
The

indicator will appear on the informa-

tion  screen  of  the  multi-information  display
and  the  FCM  will  automatically  be  turned
off.  If  the  display  keeps  showing  the  mes-
sage, there is a possibility that the FCM has a
malfunction.  Contact  a  MITSUBISHI
MOTORS  Authorized  Service  Point  for  in-
spection of the system.

Forward Collision Mitigation System (FCM)*

7-73

OGGE19E1

Starting and driving

If  the  system  becomes  temporarily  unavaila-
ble  due  to  a  high  or  low  temperature  of  the
sensor,  the  following  warning  message  will
appear.
The

indicator will appear on the informa-

tion  screen  of  the  multi-information  display
and  the  FCM  will  automatically  be  turned
off.  After  the  temperature  of  the  sensor  has
been  in  range,  the  system  will  automatically
return to operation.
If  the  display  keeps  showing  the  message,
there is a possibility that the FCM has a mal-
function. Contact a MITSUBISHI MOTORS
Authorized  Service  Point  for  inspection  of
the system.

If the FCM detects a malfunction in the sys-
tem, either one of the following messages
will appear, the

indicator will appear on

the information screen of the multi-informa-
tion display and the FCM will automatically
be turned off.
If the message remains even after the opera-
tion mode is put in OFF and then turned back
to ON, please contact a MITSUBISHI
MOTORS Authorized Service Point.

NOTE

If the sensor or its surrounding area reaches
an extremely high temperature when parking
the  vehicle  under  a  blazing  sun,  the  “FCM
SERVICE  REQUIRED”  message  may  ap-
pear.
After the temperature of the sensor or its sur-
rounding area has been in range, if the mes-
sage  remains  even  after  restarting  the  en-
gine,  please  contact  a  MITSUBISHI
MOTORS Authorized Service Point.

Handling of the sensor

E00652200125

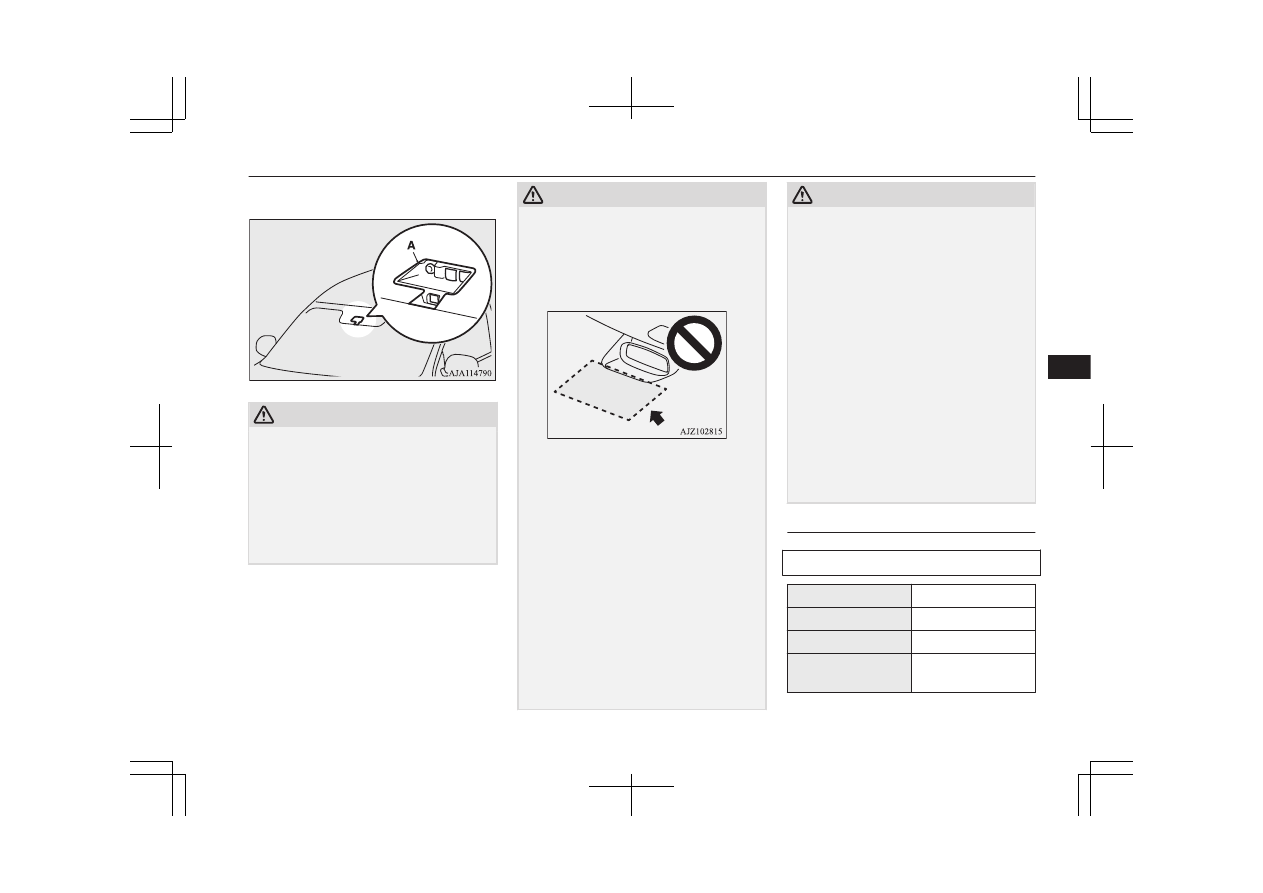

The sensor (A) is located inside the wind-
screen as shown in the illustration.
The sensor is shared in the following sys-
tems:

FCM

Lane Departure Warning (LDW)

Forward Collision Mitigation System (FCM)*

7-74

OGGE19E1

Starting and driving

Automatic High-Beam (AHB)

CAUTION

To maintain proper performance of the
FCM, LDW and AHB;

•

Always keep clean the windscreen.
If the inside of the windscreen where the
sensor is installed becomes dirty or fog-
ged, contact a MITSUBISHI MOTORS
Authorized Service Point.

•

Do not apply an impact or load on the
sensor or its surrounding area.

CAUTION

•

Do not put anything including a sticker or
film to the outer side of the windscreen in
front of or surrounding area of the sensor.
Also, do not put anything including a
sticker or film on the both inner and outer
side of the windscreen under the sensor.

•

Do not attempt to detach or disassemble
the sensor.

•

If the windscreen is misted, remove the
mist from the windscreen by using the de-
mister switch.

•

Maintain the wiper blades in good condi-
tion.
Refer to “Wiper blades” on page 10-06.
When replacing the wiper blades, use on-
ly MITSUBISHI MOTORS GENUINE
parts or equivalent.

•

Do not dirty or damage the sensor.

•

Do not spray glass cleaner on the sensor.
Also, do not spill liquid, such as a bever-
age, on the sensor.

•

Do not install an electronic device, such
as an antenna, or a device that emits
strong electric waves near the sensor.

CAUTION

•

Always use tyres of the same size, same
type and same brand and that have no sig-
nificant wear differences.

•

Do not modify the vehicle’s suspensions.

If the windscreen on the sensor or in the sur-
rounding  area  of  the  sensor  is  cracked  or
scratched,  the  sensor  may  not  detect  an  ob-
ject properly. This could cause a serious ac-
cident. Turn off the FCM and have your ve-
hicle  inspected  as  soon  as  possible  at  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
If  you  need  to  replace  the  windscreen,  con-
tact  a  MITSUBISHI  MOTORS  Authorized
Service Point.

The sensor emits infrared rays when the op-
eration mode is in ON. Do not look into the
sensor by using optical goods such as a mag-
nifying glass. The infrared ray might injure
your eyes.

Laser radar specifications

Laser classification

Max average power

45 mW

Pulse duration

33 ns

Wavelength

905 nm

Divergent angle (ho-
rizon x vertical)

28° x 12°

Forward Collision Mitigation System (FCM)*

7-75

OGGE19E1

Starting and driving

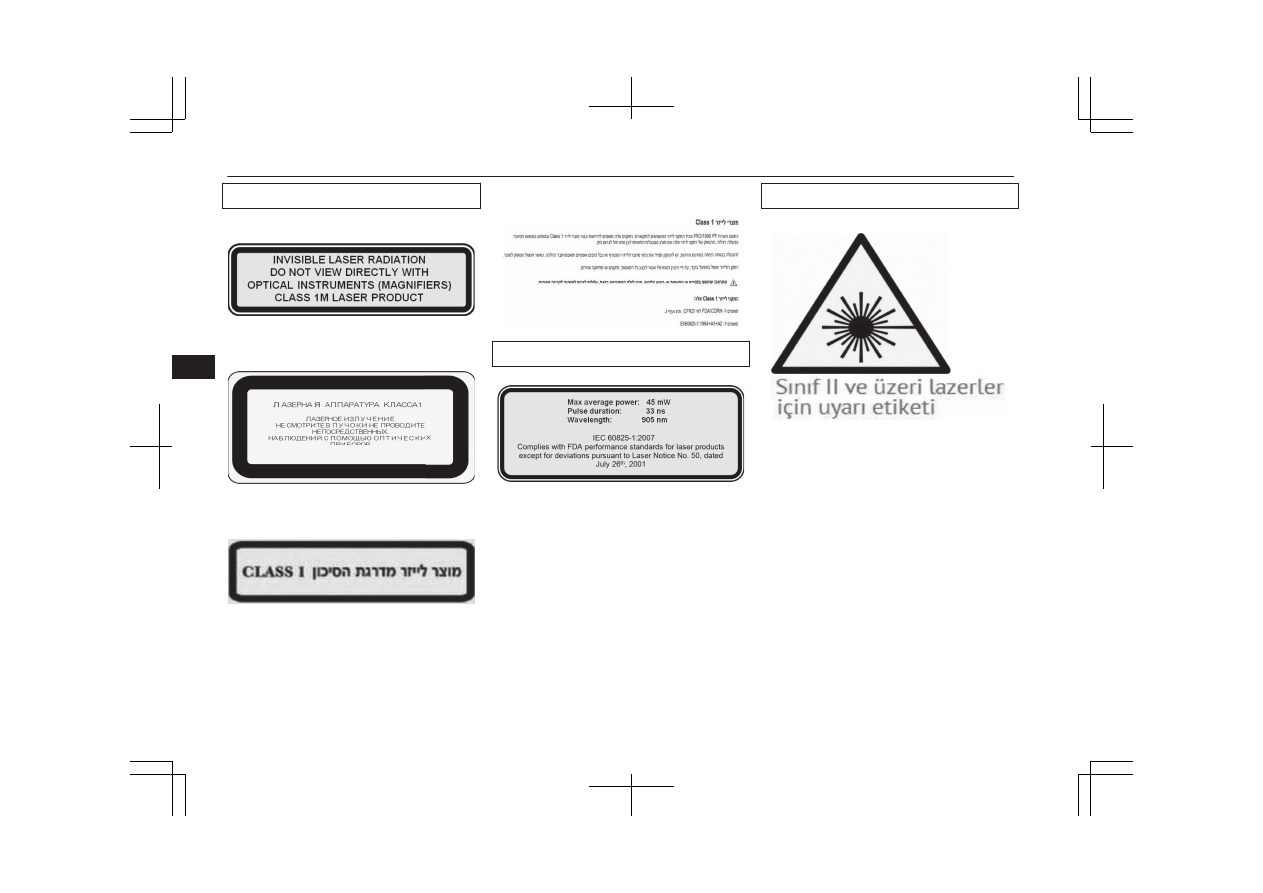

Laser classification label
For Europe

For Kazakhstan and Belarus

For Israel

Laser explanatory label

Laser warning label

Forward Collision Mitigation System (FCM)*

7-76

OGGE19E1

Starting and driving

Ultrasonic misacceleration Mitigation System (UMS)*

E00643400280

The Ultrasonic misacceleration Mitigation System (UMS) operates to prevent sudden starts and mitigate collision-caused damages by suppress-
ing the motor output for up to approximately 5 seconds when the system judges that the system is detected the vehicle or obstacles within ap-
proximately 4 m in front and behind your vehicle and judges that accelerator pedal was depressed promptly and too strongly such as misopera-
tion of it. This system operates when the vehicle is at stop or is moving forward or backward at less than approximately 10 km/h.
When the UMS operates, the warning display appears on the information screen of the multi information display, and the buzzer sounds intermit-
tently.
The UMS ON/OFF is switched in conjunction with the ON/OFF state of the Forward Collision Mitigation (FCM). (Vehicles equipped with
FCM)

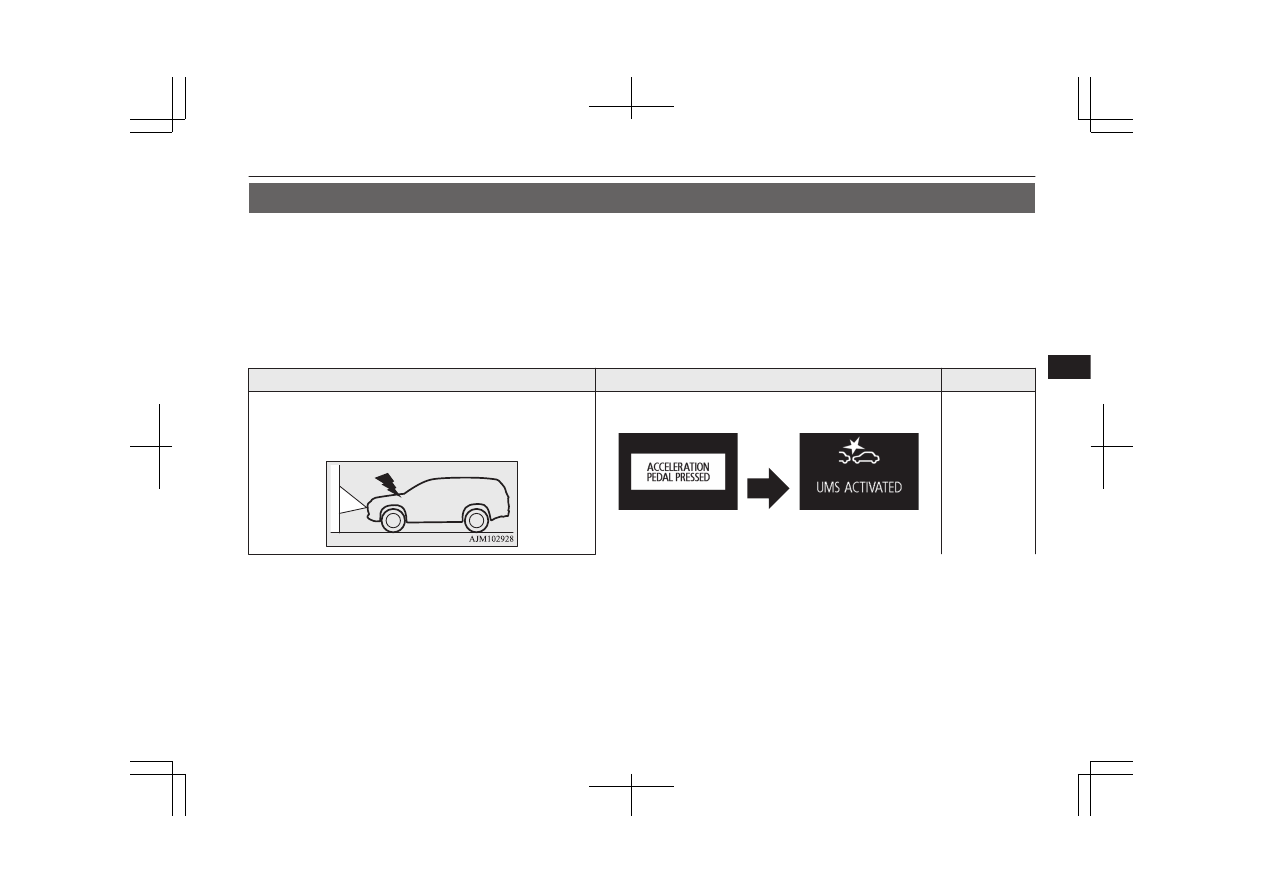

Situation

Operation display

Buzzer

When an obstacle is detected in front of your vehicle with the
select position in the “D”, if the accelerator pedal is depressed
promptly and too strongly, the motor output is suppressed for
up to approximately 5 seconds.

Intermittent
beeping sound

Ultrasonic misacceleration Mitigation System (UMS)*

7-77

OGGE19E1

Starting and driving

Situation

Operation display

Buzzer

When an obstacle is detected behind your vehicle with the se-
lector lever in the “R” position, if the accelerator pedal is de-
pressed promptly and too strongly, the motor output is sup-
pressed for up to approximately 5 seconds.

WARNING

Do not overly rely on the UMS. It is never a substitute for your safe and careful driving. Always be careful to operate the accelerator pedal perceiv-
ing the environmental conditions. Misoperation can lead to a serious accident.

As the UMS is not a function to keep the stop condition of the vehicle, depress the brake pedal according to the environmental condition.

Depending on the situation, the system does not operate even if the vehicle or the obstacle in front and behind your vehicle and this may cause the
vehicle to start suddenly and lead to a serious accident.

If the vehicle is trapped in the railway crossing because the system is activated as the crossing barrier is misrecognised as an obstacle, escape from
the railway crossing without any panic by one of the following methods.

•

Release the foot from the accelerator pedal and lightly depress the pedal again.

•

Turn the system OFF. (Continuously press the FCM and UMS ON/OFF switch for more than 3 seconds.)

•

Continuously depress the accelerator pedal for more than 5 seconds.

•

Repeat to press the accelerator pedal quickly to its full stroke more than three times.

Do not perform inspection of the system operation on your own. Depending on the situation, this may cause the system to not operate properly and
lead to a serious accident.

Ultrasonic misacceleration Mitigation System (UMS)*

7-78

OGGE19E1

Starting and driving

CAUTION

The UMS does not operate in the following conditions:

•

The operation mode is other than ON.

•

The UMS is set to OFF by operating the FCM and UMS ON/OFF switch.

•

The select position is in the “P” or “N” position.

•

The Active stability control (ASC) is set to OFF by operating the “ASC OFF switch” on page 7-44.

It sometimes happens that a motorcycle, bicycle or pedestrian are detected as obstacles, but these are not the object of the UMS operation.

The UMS may not operate in the following conditions.

•

The sensors or surroundings have been wiped by hand.

•

The stickers or accessories have been attached to the sensors or surroundings.

•

When driving in the place which the outside temperature changes suddenly (tunnel or garage etc.).

•

Under adverse weather conditions (rain, strong winds, snow, sand storms, etc.).

•

When approaching an obstacle too closely.

•

When a vehicle cuts in front or behind your vehicle very closely.

•

When your vehicle changed the course and approached immediately behind an obstacle.

•

When only a part of the obstacle is within the detection areas of the sensor.

•

When the rain, snow, water or dirt adheres to the sensor.

•

When the sensor is extremely hot or cold (while the vehicle is parked for a long period of time under a blazing sun or in cold weather).

•

Immediately after Plug-in Hybrid EV System starting.

•

When driving on a road with many and successive curves, including when passing their entrances and outlets.

•

When you are driving on a road with steep and alternating up and down slopes.

•

When a road surface is surging, and there is unevenness.

•

When the system judges driver’s steering or gear shifting actions as evasive actions to avoid collision.

•

For a short period after the system judges the repeated depression of the accelerator pedal at a few seconds interval as a release operation.

•

When the vehicle body is extremely inclined by carrying heavy loads or improper adjustment of the tyre pressure.

•

When the driving is unstable due to an accident or trouble.

•

The system receives ultrasonic noise from other sources (the horns of other vehicles, motorcycle engines, brakes, radios, pouring rain, splashing water,
snow traction device (tyre chains), etc.).

•

Obstacle is not vertical to the ground, the obstacle is not at right angles to vehicle traveling direction, or when there is uneven walls and wavy walls.

Ultrasonic misacceleration Mitigation System (UMS)*

7-79

OGGE19E1

Starting and driving

CAUTION

The UMS operation may be cancelled when the system judges the handle operation as evasive actions or when the obstacle moves out of the detectable area
of the sensor.

The UMS may be triggered in the following situations.

•

When water, snow or sand on the road are extorted by the vehicle in front or an oncoming vehicle.

•

When there are objects, steps or projections on the road surface.

•

When the parking gate or railway barrier is raised imperfectly.

•

When running the road, the gradient changes suddenly.

•

When passing through the mass of the steam, fog or smoke.

•

When driving in close to the vehicle ahead, and when stopping in close to the forward/ backward vehicle or a wall.

•

When there is an obstacle in a curb or an intersection.

•

When your vehicle joins the main line from parallel parking.

•

When there is a ultrasonic near your vehicle by horn of other vehicle, engine sound of a motorcycle, air brake noise of a large vehicle, a vehicle detector
and sonar of a vehicle etc.

•

When an electrical equipment on the market (radio antenna etc.) is installed near the sensor.

•

When driving on a gravel road.

•

When the surrounding area is overgrown with weeds.

Turn off the system by pressing the FCM and UMS ON/OFF switch beforehand when the vehicle is placed in any of the following situations as the system
can operate unexpectedly.

•

When getting out from a road groove or a mud.

•

When using an automatic car wash.

•

When an elevator for vehicle or a mechanical parking is used.

•

When your vehicle’s wheels are driven by the motor on a lift.

•

When your vehicle is towed or your vehicle tows another vehicle.

•

When your vehicle is carried on a truck.

•

When driving on a circuit.

•

When your vehicle is on a chassis dynamometer or free rollers.

•

When the tyre pressure is not correct.

•

When snow traction device (tyre chains) are attached.

Ultrasonic misacceleration Mitigation System (UMS)*

7-80

OGGE19E1

Starting and driving

CAUTION

Improperly handling the system components may result in such problems as degraded sensor performance and ultimately in an accident.
Be sure to take the following precautions to keep the system in good operating conditions.

•

Avoid application of strong shock loads to the sensor.

•

The sensor should be kept clean.

•

Do not cover the sensor with a sticker or anything.

•

Do not modify the suspension of your vehicle.

If the bumper has been exposed to an impact, the sensors may fail and prevent the system from functioning properly. Have the vehicle inspected a
MITSUBISHI MOTORS Authorized Service Point.

Obstacle detection areas

E00643500047

The detection areas of the sensors are limited.
Moreover, the sensors are unable to detect
low or thin objects or objects near the rear
bumper. Make sure to check the surroundings
as you operate the vehicle in a safe manner.

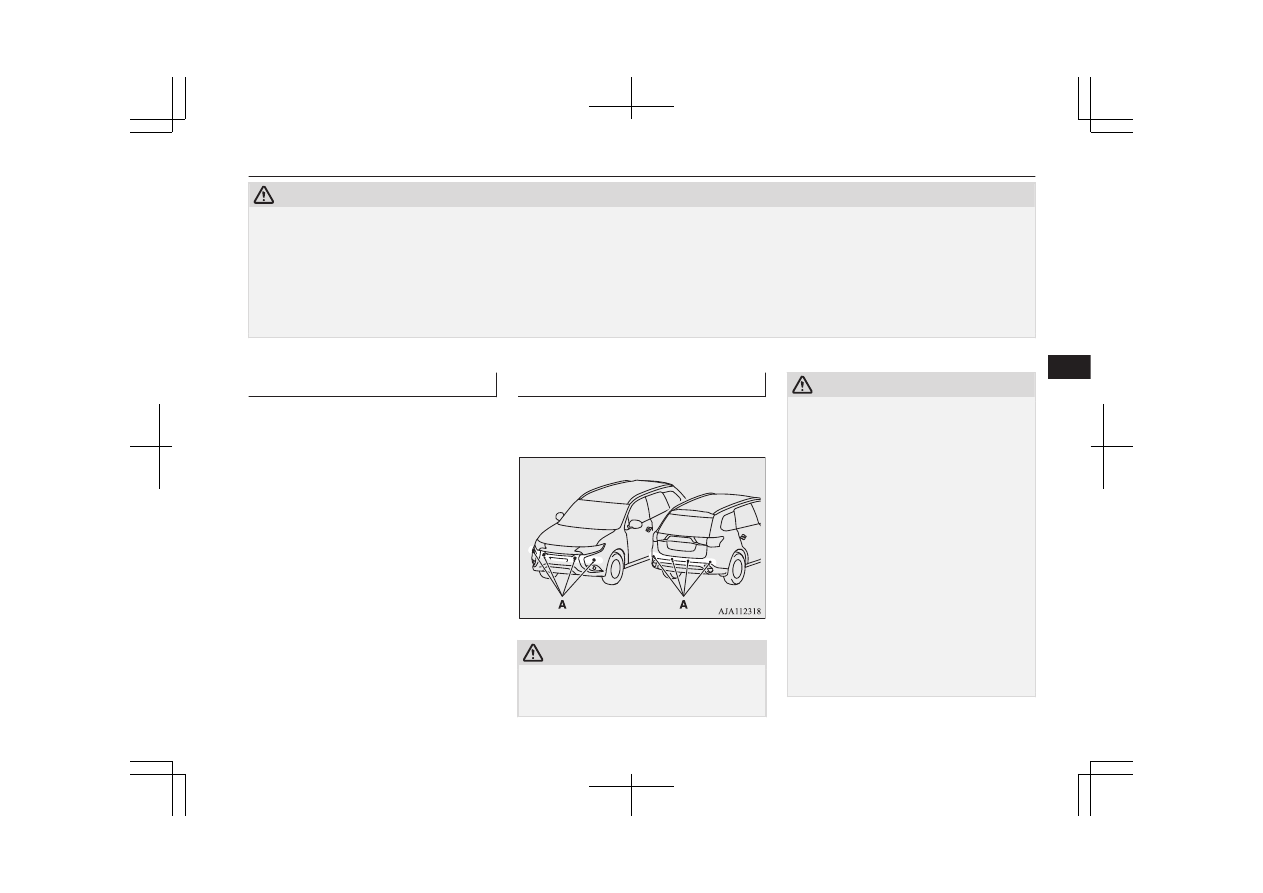

Sensor locations

E00643600165

There are the sensors (A) on each of four pla-
ces of the front bumper and the rear bumper.

CAUTION

The UMS may not operate because the sen-
sor cannot detect the vehicle in front or ob-
stacle as follows.

CAUTION

•

Vehicle towing a trailer etc.

•

A freight trailer that is not carrying a con-
tainer.

•

Vehicle that has a protruding load from
the carrier.

•

An obstacle with a low height.

•

Vehicle that has an extremely high ground
clearance.

•

Vehicle that is extremely stained.

•

Vehicle or obstacle that is covered with
snow.

•

The vehicle is the specific shape such as
the carrier car.

•

Obstacles that have the shape of the pole
such as the road marker or the streetlight.

•

Obstacles that exists in the high position
from the ground.

•

Obstacles that are soft and absorb ultra-
sonic easily, such as spongy material or
snow.

Ultrasonic misacceleration Mitigation System (UMS)*

7-81

OGGE19E1

Starting and driving

CAUTION

•

Obstacles that are shaped with a sharp an-
gle.

•

A fence with large mesh.

•

Moving object.

•

When there is a loud noise or an ultrason-
ic near your vehicle by horn of other vehi-
cle, engine sound of a motorcycle, air
brake noise of a large vehicle, a vehicle
detector and sonar of a vehicle etc.

•

When an electrical equipment on the mar-
ket (radio antenna etc.) is installed near
the sensor.

•

When there is a obstacle that is not recog-
nized between your vehicle and the obsta-
cle that can be recognized.

NOTE

The sensors do not detect objects located in
the  area  directly  below  or  near  the  bumper.
If  the  height  of  an  object  is  lower  than  the
mounted position of the sensors, the sensors
may  not  continue  detecting  it  even  if  they
detected it initially.

To turn on/off the UMS

E00643800095

The UMS is automatically turned ON by set-
ting the operation mode to ON. In addition,
the UMS ON/OFF is switched in conjunction
with the ON/OFF state of the FCM.
Refer to “FCM and UMS ON/OFF switch”
on page 7-72.

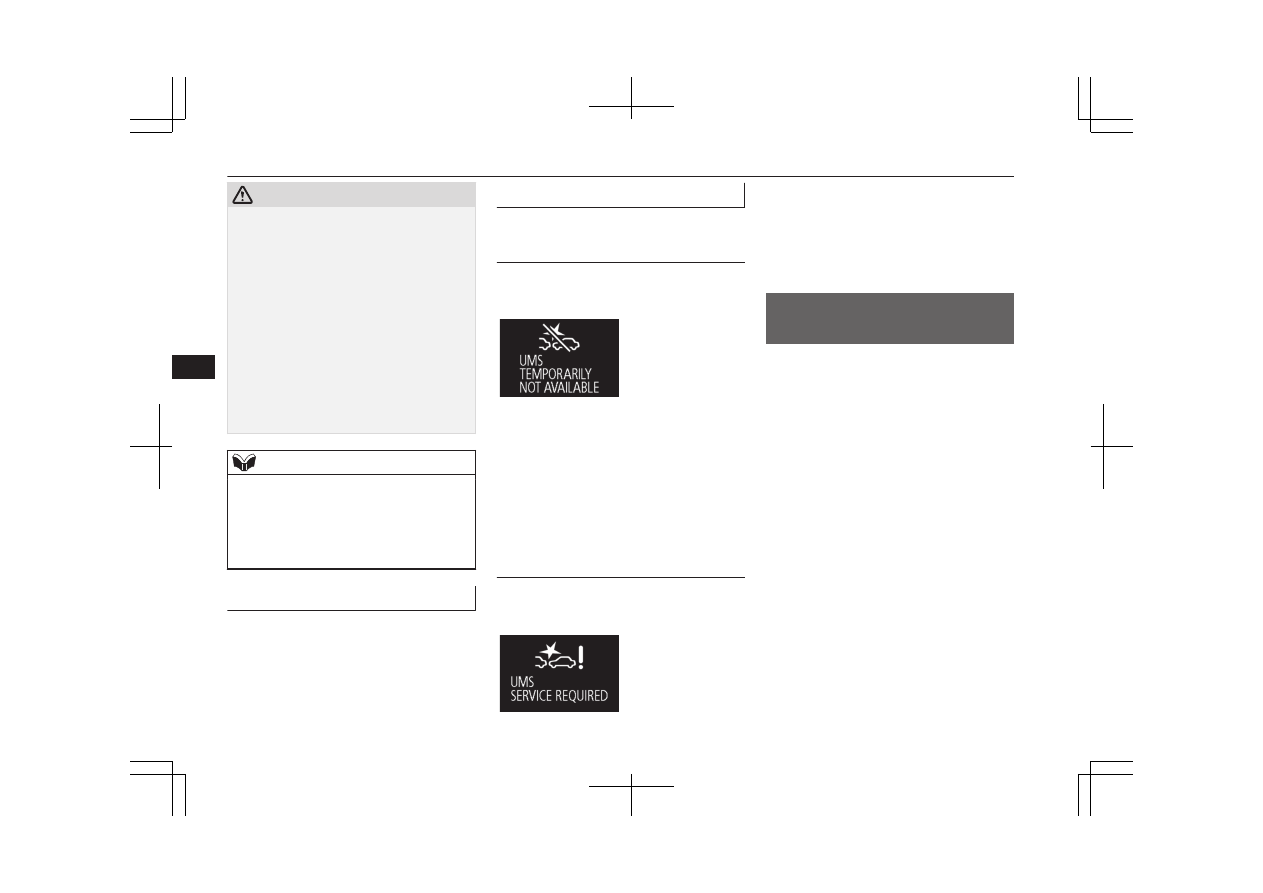

Warning display

E00643900025

When the sensor is temporarily
not available

E00647600033

Example: When the front and/or rear sensors
are temporarily not available

When  the  warning  display  appears,  the  sen-
sors  are  temporarily  not  available  for  some
reason  such  as  the  environmental  condition
or  increase  of  the  sensor  temperature.  When
the  warning  display  appears  continuously,
contact  a  MITSUBISHI  MOTORS  Author-
ized Service Point.

When there is a malfunction in
the sensor or the system

E00644000108

Example: When there is a malfunction in
both sensors.

When the warning display appears, the UMS
does  not  operate  normally  because  there  are
some  malfunctions  in  the  system.  Have  the
vehicle  inspected  at  a  MITSUBISHI
MOTORS  Authorized  Service  Point  as  soon
as possible.

Blind Spot Warning (BSW)
(with Lane Change Assist)*

E00644300156

The Blind Spot Warning (BSW) is a driving
aid system that alerts the driver when another
vehicle, which may not be visible through the
outside  rear-view  mirror,  is  travelling  in  the
next lane behind your vehicle.
When a vehicle in the next lane is travelling
at  the  same  speed  or  faster  in  the  detection
areas,  the  Blind  Spot  Warning  lamp  in  the
corresponding  outside  rear-view  mirror  will
illuminate. If the turn-signal lever is operated
to  the  side  where  the  Blind  Spot  Warning
lamp  is  illuminated,  the  Blind  Spot  Warning
lamp  will  blink  and  the  system  will  beep
three times to alert the driver.

Blind Spot Warning (BSW) (with Lane Change Assist)*

7-82

OGGE19E1

Starting and driving

Depending  on  the  relative  speed  between
your  vehicle  and  a  vehicle  in  the  next  lane,
the Blind Spot Warning system will detect up
to  approximately  70  m  from  your  vehicle.
(Lane Change Assist)

WARNING

Before using the BSW, read this entire
section to fully understand the limitations
of this system. Failure to follow instruc-
tions could result in an accident.

Never  rely  solely  on  the  BSW  system
when  changing  lanes.  The  BSW  is  an  aid
only.  It  is  not  a  substitute  for  your  safe
and careful driving. Always check visually
behind  and  all  around  your  vehicle  for
other  vehicles.  The  performance  of  the
BSW  may  vary  depending  on  driving,
traffic and/or road conditions.

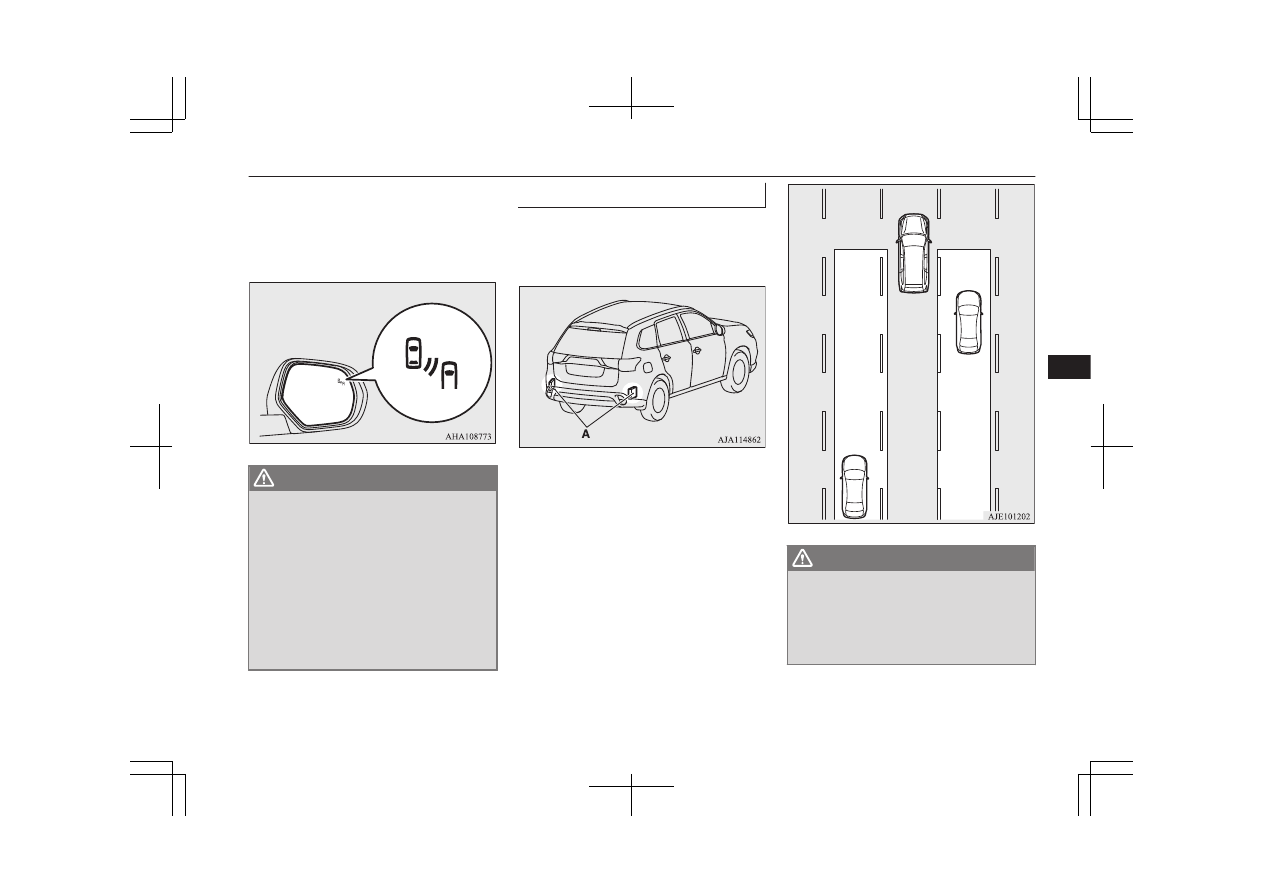

Detection areas

E00644400388

The BSW uses two sensors (A) located inside
the rear bumper.
The detection areas are shown as illustrated.

WARNING

In  certain  situations,  the  BSW  may  not
detect  a  vehicle  in  the  detection  areas  or
the  detection  may  be  delayed.  Some  of
these include:

•

When a small motorcycle or a bicycle is
behind your vehicle.

Blind Spot Warning (BSW) (with Lane Change Assist)*

7-83

OGGE19E1

Starting and driving

WARNING

•

When a vehicle is travelling alongside
of your vehicle at nearly the same speed
for prolonged periods of time.

•

When the heights of the next lane and
your lane are different.

•

Immediately after the BSW has been
turned on.

•

Immediately after the power switch is
turned on.

•

Under adverse weather conditions,
such as rain, snow, strong winds or
sand storms.

•

When your vehicle comes too close to
another vehicle.

•

While multiple vehicles are overtaking
your vehicle.

•

When driving near a pot hole and
tramline.

•

When a surrounding vehicle or an on-
coming vehicle is splashing water, snow
or dirt.

•

When driving on a curve including the
beginning and the end of the curve.

•

When driving on a road with alternat-
ing up and down steep slopes.

•

When driving on a bumpy or rough
road.

•

When the rear of your vehicle is weigh-
ed down or your vehicle is leaning to
the right or left due to the weight of
passengers and luggage or the improp-
er adjustment of tyre pressure.

•

When the bumper surface around the
sensor is covered with dirt, snow and
ice, etc.

WARNING

•

When the sensor is extremely hot or
cold (while the vehicle is parked for a
long period of time under a blazing sun
or in cold weather).

•

When a bicycle carrier or accessory is
installed to the rear of the vehicle.

CAUTION

To maintain proper performance of the
BSW, follow the instructions below.

•

Always keep the bumper surface around
the sensor clean.

•

Avoid impacting the sensor or its sur-
rounding area.

•

Do not put a sticker on the sensor or its
surrounding bumper surface.

•

Do not paint the sensor or its surrounding
bumper surface.

•

Do not modify the sensor or its surround-
ing area.

If the bumper has experienced an impact, the
sensor  may  have  been  damaged  and  the
BSW  may  not  function  properly.  Have  the
vehicle  inspected  at  a  MITSUBISHI
MOTORS Authorized Service Point.

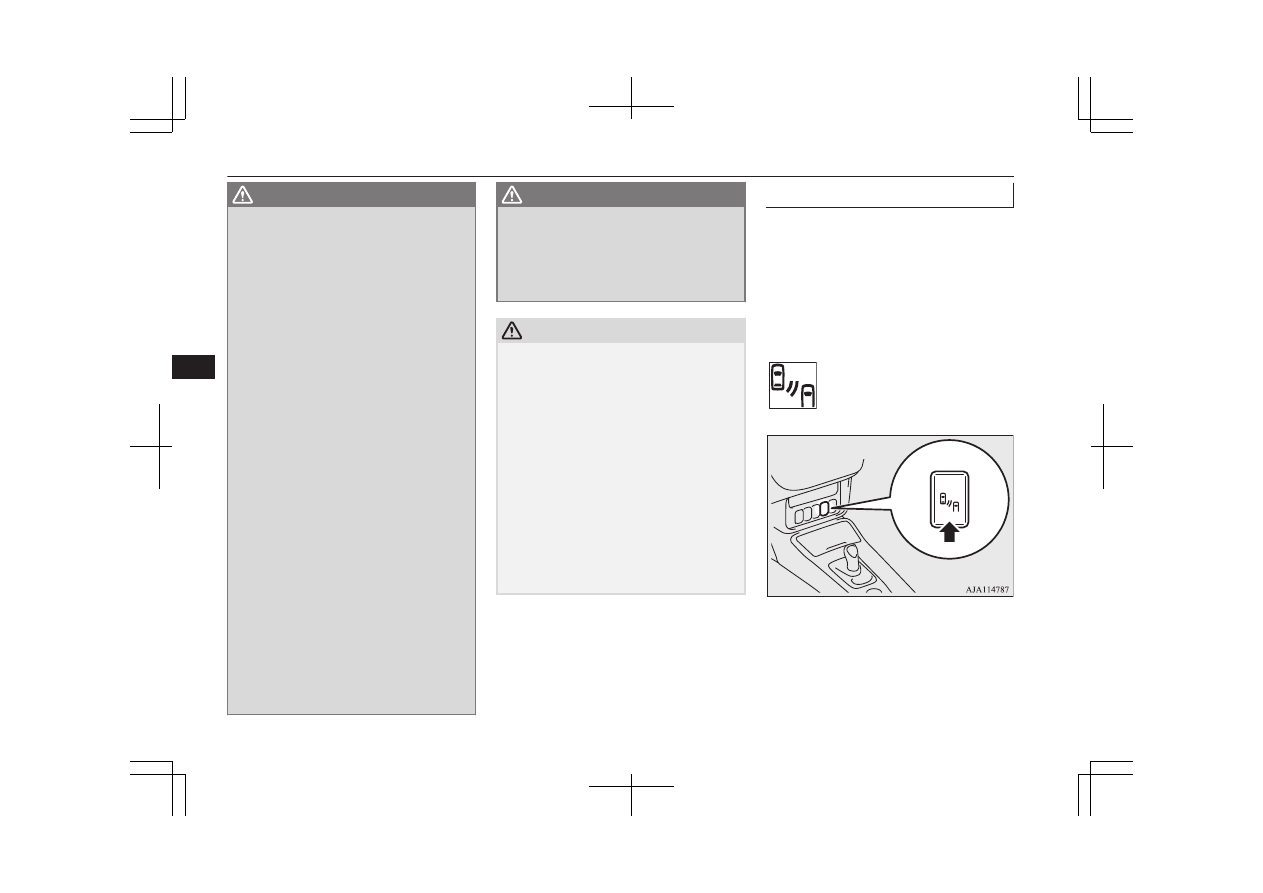

To operate

E00652300298

When  the  BSW  switch  is  pressed  while  the
operation  mode  is  ON,  the  BSW  indication
lamp in the instrument cluster comes on and
the BSW goes into the stand by state. When
the  BSW  switch  is  pressed  again,  the  BSW
indication lamp in the instrument cluster goes
off and the BSW turns off.
Indication lamp

If you turn the BSW ON/OFF, the Rear Cross
Traffic Alert (RCTA) also turns ON/OFF at
the same time.

Blind Spot Warning (BSW) (with Lane Change Assist)*

7-84

OGGE19E1

Starting and driving

Content .. 17 18 19 20 ..
