Mitsubishi Outlander PHEV (2019 year). Instruction - part 13

Screen

System operation status

Reference

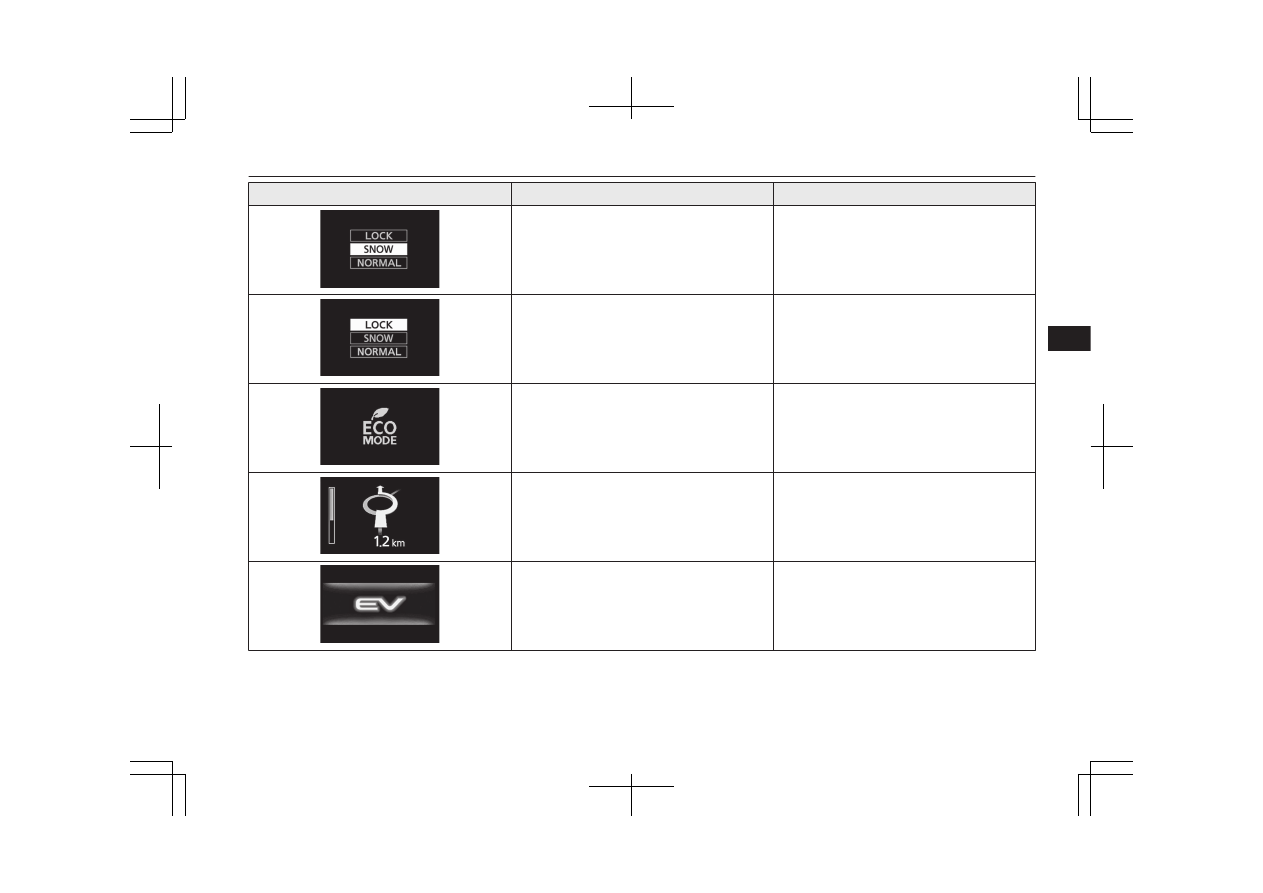

When “SNOW” mode of S-AWC is selec-
ted

Refer to “S-AWC drive mode” on page 7-21.

When “LOCK” mode of S-AWC is selec-
ted

Refer to “S-AWC drive mode” on page 7-21.

When the mode is changed by the ECO
mode switch.

Refer to “ECO mode switch” on page 6-68.

When approaching the guidance location,
etc.

Refer to “Navigation information display” on
page 6-47.

When the EV priority mode is activated.

Refer to “EV switch” on page 7-25.

Indication lamp, warning lamp, and information screen display list

6-51

OGGE19E1

Instruments and controls

Screen

System operation status

Reference

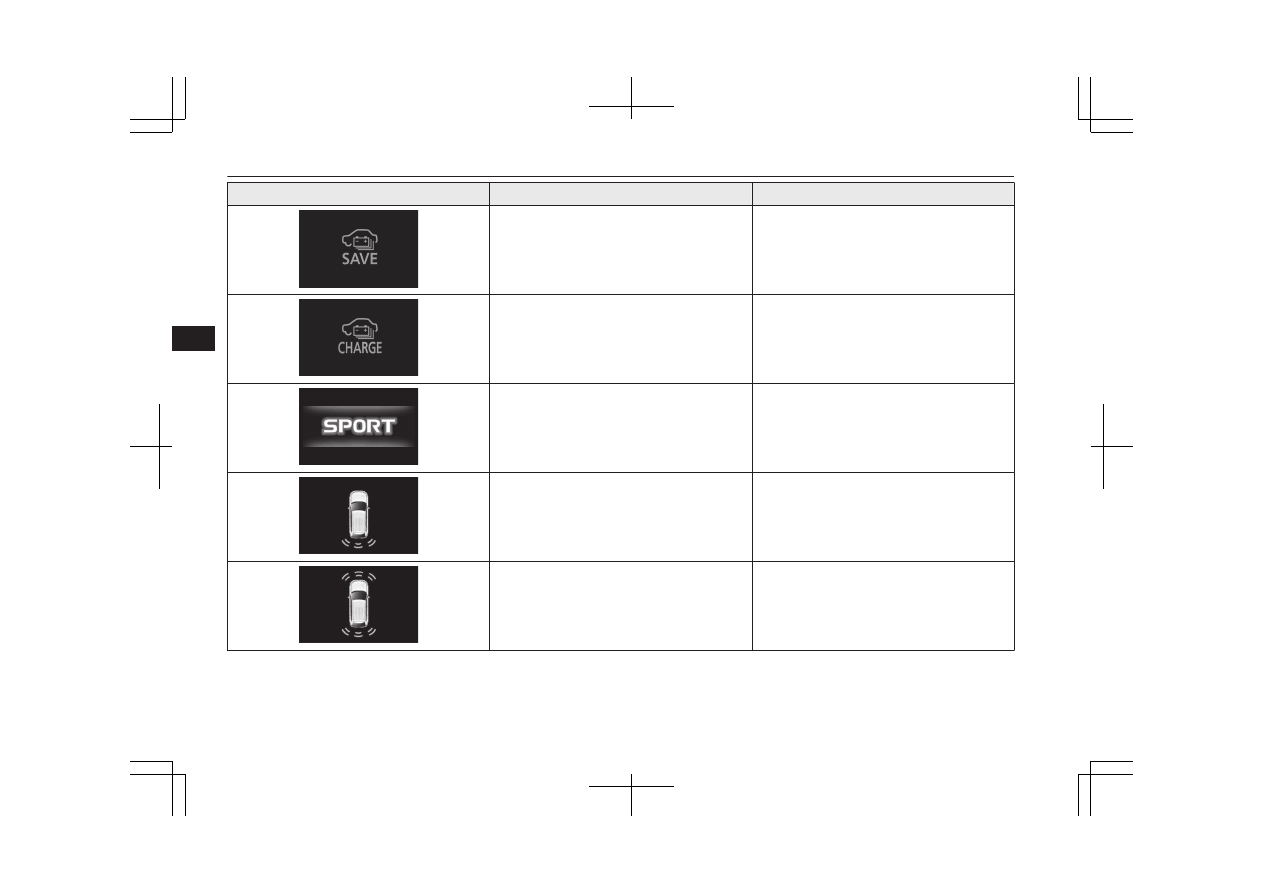

When the battery save mode is activated.

Refer to “Battery save mode” on page 7-29.

When the battery charge mode is activa-
ted.

Refer to “Battery charge mode” on page 7-29.

When the SPORT mode is activated

Refer to “SPORT mode switch” on page
7-31.

When the reversing sensor system detects
an obstruction.

Refer to “Reversing sensor system” on page
7-97.

When the parking sensors detect an obsta-
cle.

Refer to “Parking sensors (Front/Rear)” on
page 7-101.

Indication lamp, warning lamp, and information screen display list

6-52

OGGE19E1

Instruments and controls

Screen

System operation status

Reference

When the Forward Collision Mitigation
System (FCM) is activated or the timing of
an alarm is changed.

Refer to “FCM and UMS ON/OFF switch” on
page 7-72.

When the Forward Collision Mitigation
System (FCM) is deactivated.

Refer to “FCM and UMS ON/OFF switch” on
page 7-72.

When the Ultrasonic misacceleration Mit-
igation System (UMS) is deactivated.

Refer to “To turn on/off the UMS” on page
7-82.

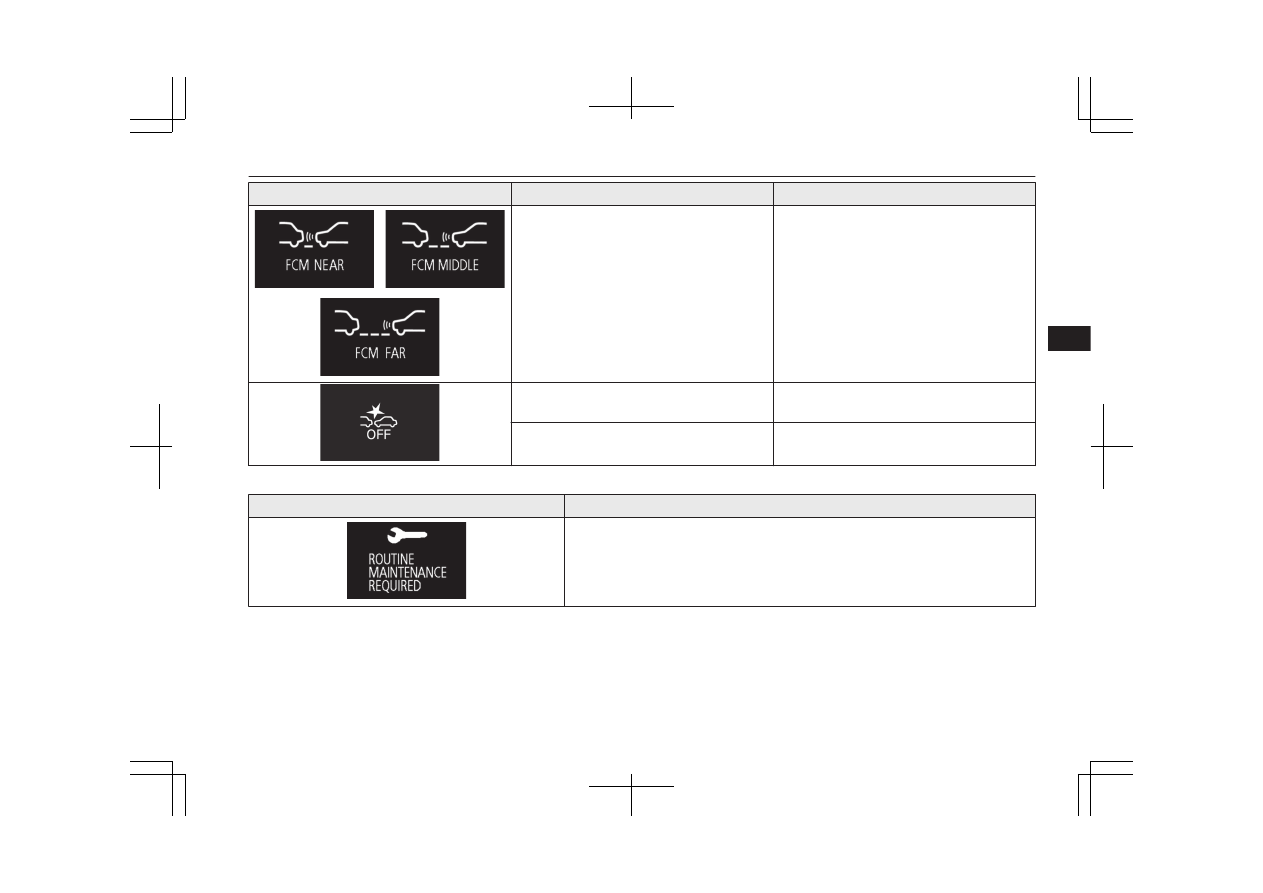

This informs you that a periodic inspection is due.

Screen

Solution

We recommend you to have it checked. Refer to “Service reminder” on page 6-13.

Indication lamp, warning lamp, and information screen display list

6-53

OGGE19E1

Instruments and controls

The setting for rest interval can be changed.

Screen

Solution

Stop the vehicle in a safe place, stop the Plug-in Hybrid EV system, and take a rest.
Use this display as rough guide for taking rests during a long drive.
The interval from the start of your trip until this message is displayed can be set.
Refer to “Changing the time until REST REMINDER is displayed” on page 6-22.
The display and buzzer alert the driver when the set time is reached. If you continue
to drive without having a rest, the buzzer sounds about every 5 minutes to encourage
you to take a rest.

In the following cases, the time driven is reset and the display returns to the pre-
vious display screen. After this, when the set time is reached again, the buzzer
and display encourage you to take a rest.

• The buzzer sounds 3 times.
• Put the operation mode in OFF.
• The multi information display switch is held for about 2 seconds or more.

Indication lamps

E00501600100

Turn-signal indication lamps/

Hazard warning indication

lamps

E00501701427

These indication lamps blink
in the following situations.

When  the  turn-signal
lever  is  moved  to  acti-
vate a turn-signal lamp.
Refer  to  “Turn-signal
lever” on page 6-67.

When the hazard warning flasher switch
is pressed to activate the hazard warning
lamps.
Refer to “Hazard warning flasher
switch” on page 6-67.

When  the  hazard  warning  lamps  auto-
matically activate due to sudden braking
while  driving.  (Vehicle  equipped  with
emergency stop signal system)
Refer  to  “Emergency  stop  signal  sys-
tem” on page 7-39.

High-beam indication lamp

E00501800173

This indication lamp illumi-
nates when the high-beam is
used.

Indication lamps

6-54

OGGE19E1

Instruments and controls

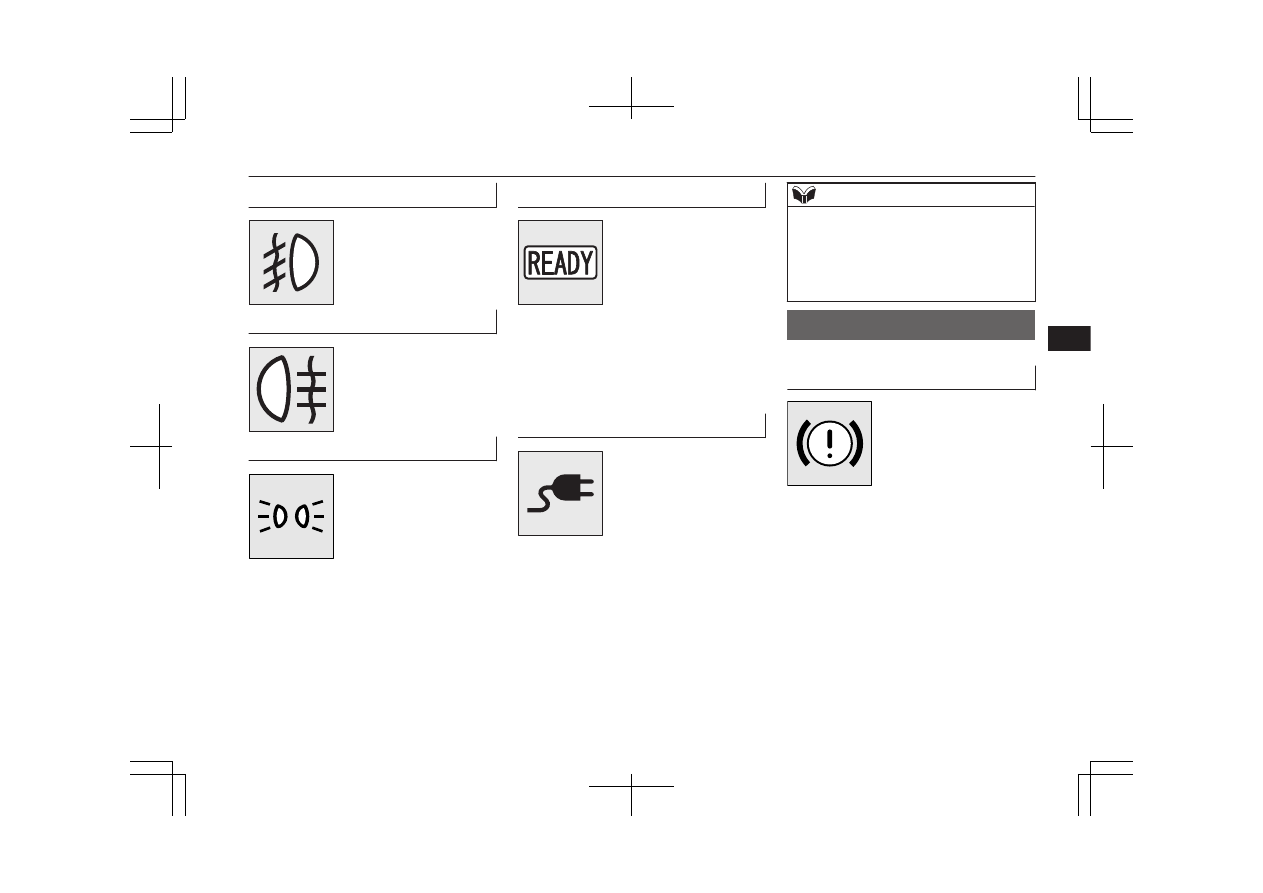

Front fog lamp indication lamp

E00501901650

This lamp illuminates while
the front fog lamps are on.

Rear fog lamp indication lamp

E00502001241

This lamp illuminates while
the rear fog lamp is on.

Position lamp indication lamp

E00508900173

This indication lamp illumi-
nates while the position
lamps are on.

Ready indicator

E00530101061

The  ready  indicator  keeps
flashing  until  the  Plug-in
Hybrid EV System is activa-
ted.  When  the  Plug-in  Hy-
brid  EV  System  has  activa-
ted normally and the vehicle

becomes ready to run, the lamp stops flashing
and stays lit. Refer to “Starting the Plug-in
Hybrid EV System” on page 7-13.
If the indicator keeps flashing, the vehicle
cannot be driven.

Charging indicator

E00530201062

This  indicator  flashes  when
the  EV  charging  cable  or
quick  charging  cable  is  con-
nected.
After that, the lamp switches
to  being  illuminated  when

charging starts and goes out when charging is
completed.

NOTE

Although  it  is  possible  to  start  the  Plug-in
Hybrid EV System if quick charging has not
finished  normally,  the  charging  indicator  is
continuously blinking.
Refer  to  “Charging  troubleshooting  guide”
on page 3-28.

Warning lamps

E00502400147

Brake warning lamp (red)

E00502504016

This  lamp  illuminates  when
the  operation  mode  of  the
power  switch  is  put  in  ON,
and goes off after a few sec-
onds.
Always  make  sure  that  the

lamp goes off before driving.
With the operation mode in ON, the brake
warning lamp illuminates under the following
conditions:

When the parking brake lever has been
engaged.

When the brake fluid level in the reser-
voir falls to a low level.

When the braking system is an abnor-
mality.

With the operation mode in ON, a buzzer
sounds under the following condition:

Warning lamps

6-55

OGGE19E1

Instruments and controls

The vehicle speed exceeds 8 km/h
(5 mph) with the parking brake applied.

CAUTION

In the situations listed below, brake perform-
ance  may  be  compromised  or  the  vehicle
may  become  unstable  if  brakes  are  applied
suddenly;  consequently,  avoid  driving  at
high speeds or applying the brakes suddenly.
Furthermore,  the  vehicle  should  be  brought
to  a  stop  in  a  safe  location  and  to  have  it
checked.

•

The brake warning lamp does not illumi-
nate when the parking brake is applied or
does not turn off when the parking brake
is released.

•

The ABS warning lamp and brake warn-
ing lamp illuminate at the same time.
For details, refer to “ABS warning lamp/
display” on page 7-41.

•

The brake warning lamp remains illumi-
nated during driving.

The vehicle should be brought to a halt in
the following manner when brake perform-
ance has deteriorated.

•

Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it
pressed down hard.

CAUTION

•

Should  the  brakes  fail,  use  regenerative
braking  to  reduce  your  speed  and  keep
pulling the Electric parking brake switch.
(Refer to “Electric parking brake” on page
7-03.)
Depress  the  brake  pedal  to  operate  the
stop lamp to alert the vehicles behind you.

Electric parking brake warn-

ing lamp (yellow)

E00568900100

This  warning  lamp  will  illu-
minate  when  there  is  a  fault
in the Electric parking brake
system.
Normally, this warning lamp
illuminates  when  the  opera-

tion mode of the power switch is put in ON,
and goes off in a few seconds.

CAUTION

When the warning lamp remains on or does
not  come  on,  there  is  a  possibility  that  the
parking  brake  cannot  be  operated  or  re-
leased.  Immediately  contact  the  nearest
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point. When the warning lamp comes on
during driving, immediately stop the vehicle
in  a  safe  place,  and  contact  your
MITSUBISHI  MOTORS  Authorized  Serv-
ice  Point.  If  you  inevitably  have  to  park,
park the vehicle on level and stable ground,
press the electrical parking switch and place
chocks or blocks.

Check engine warning lamp

E00502602938

This lamp is a part of an on-
board  diagnostic  system
which  monitors  the  emis-
sions, engine control system.
If  a  problem  is  detected  in
one  of  these  systems,  this

lamp illuminates or flashes.
Although your vehicle will usually be driva-
ble and not need towing, we recommend you
to have the system checked as soon as possi-
ble.

Warning lamps

6-56

OGGE19E1

Instruments and controls

This lamp will also illuminate when the oper-
ation mode of the power switch is put in ON,
and goes off after the Plug-in Hybrid EV Sys-
tem has started. If it does not go off after the
Plug-in Hybrid EV System has started, we
recommend you to have the vehicle checked.

CAUTION

Prolonged driving with this lamp on may
cause further damage to the emission control
system. It could also affect fuel economy
and drivability.

If the lamp does not illuminate when the op-
eration mode is put in ON, we recommend
you to have the system checked.

If the lamp illuminates while the Plug-in Hy-
brid EV System is operating, avoid driving
at high speeds and have the system inspected
by a MITSUBISHI MOTORS Authorized
Service Point as soon as possible.

NOTE

The engine electronic control module ac-
commodating the onboard diagnostic system
has various fault data (especially about the
exhaust emission) stored.

This data will be erased if a auxiliary battery
cable is disconnected which will make a rap-
id diagnosis difficult. Do not disconnect a
auxiliary battery cable when the check engine
warning lamp is ON.

Auxiliary battery charge warn-

ing lamp

E00502702287

This  warning  lamp  will  illu-
minate  when  there  is  a  fault
with  the  charging  system  of
the auxiliary battery.
Normally,  when  the  opera-
tion  mode  of  the  power

switch is put in ON, this warning lamp will
illuminate. Then, when the Plug-in Hybrid
EV System is started and the ready indicator
illuminates, the warning lamp will go out.

CAUTION

If the warning lamp stays on after the ready
indicator illuminates, there may be a prob-
lem with the charging system for the auxili-
ary battery.

•

Immediately park your vehicle in a safe
place and we recommend you to have it
checked.

•

Do not charge the auxiliary battery.

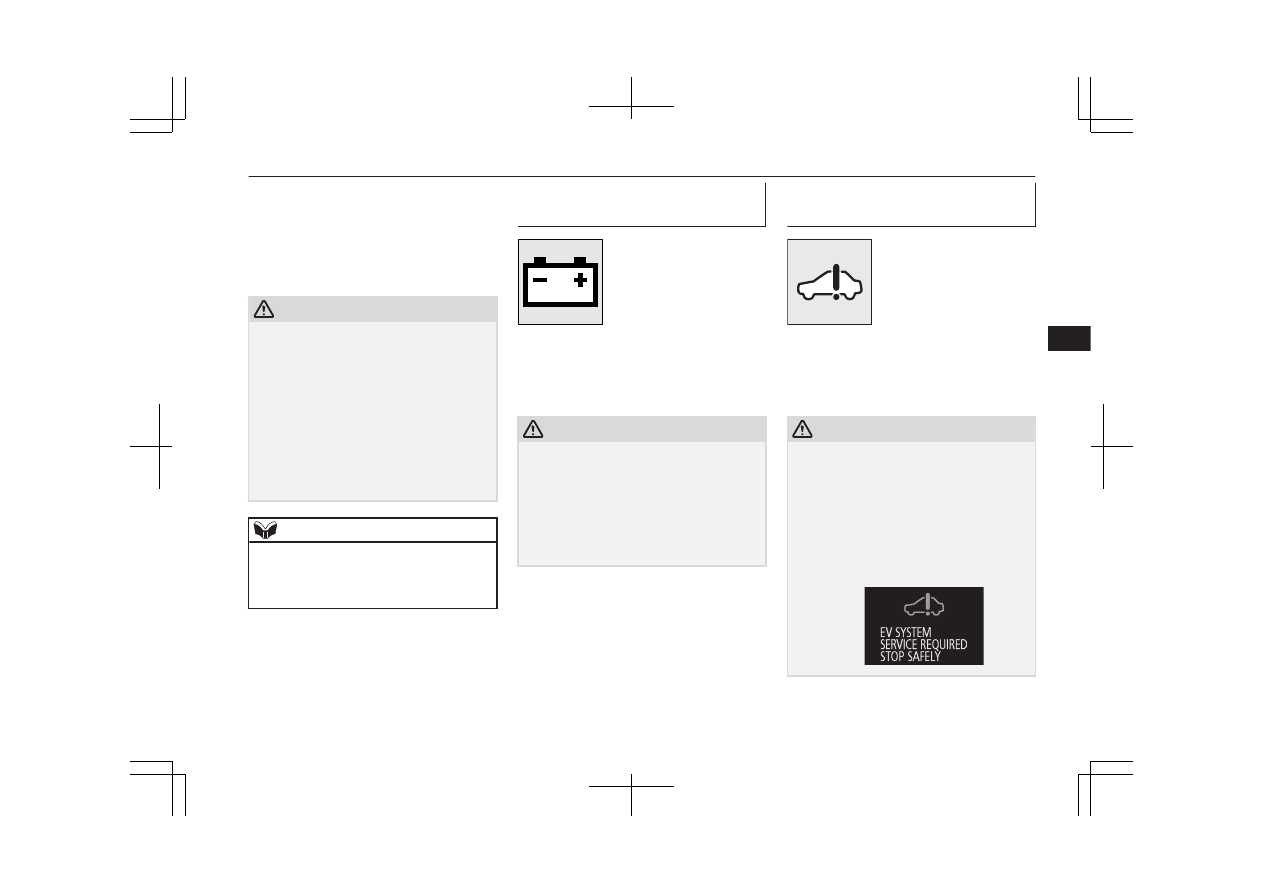

Plug-in Hybrid EV System

warning lamp

E00537300049

This  warning  lamp  will  illu-
minate  when  there  is  a  fault
at  the  Plug-in  Hybrid  EV
System.
Refer  to  “Service  precau-
tions” on page 11-02.

Normally, this warning lamp illuminates
when the operation mode of the power switch
is put in ON, and goes off after a few sec-
onds.

CAUTION

If  the  warning  lamp  illuminates  and  “EV
SYSTEM  SERVICE  REQUIRED  STOP
SAFELY” warning is displayed on the multi
information  display  while  the  Plug-in  Hy-
brid EV System is running, park your vehi-
cle  in  a  safe  place  as  soon  as  possible  and
contact  a  MITSUBISHI  MOTORS  Author-
ized  Service  Point  to  have  the  system
checked.

Warning lamps

6-57

OGGE19E1

Instruments and controls

Regenerative brake warning

lamp

E00537200048

This  warning  lamp  will  illu-
minate  when  the  regenera-
tive  brake  cannot  be  used,
while the Plug-in Hybrid EV
System is operating.
The  warning  is  also  dis-

played on the multi information display.
Normally, this warning lamp illuminates
when the operation mode of the power switch
is put in ON, and goes off after the Plug-in
Hybrid EV System is activated.

CAUTION

If the lamp illuminates while the Plug-in Hy-
brid EV System is operating, we recommend
you to have the vehicle inspected by a
MITSUBISHI MOTORS Authorized Serv-
ice Point.

Information screen display

E00524601117

Brake warning display

E00524701525

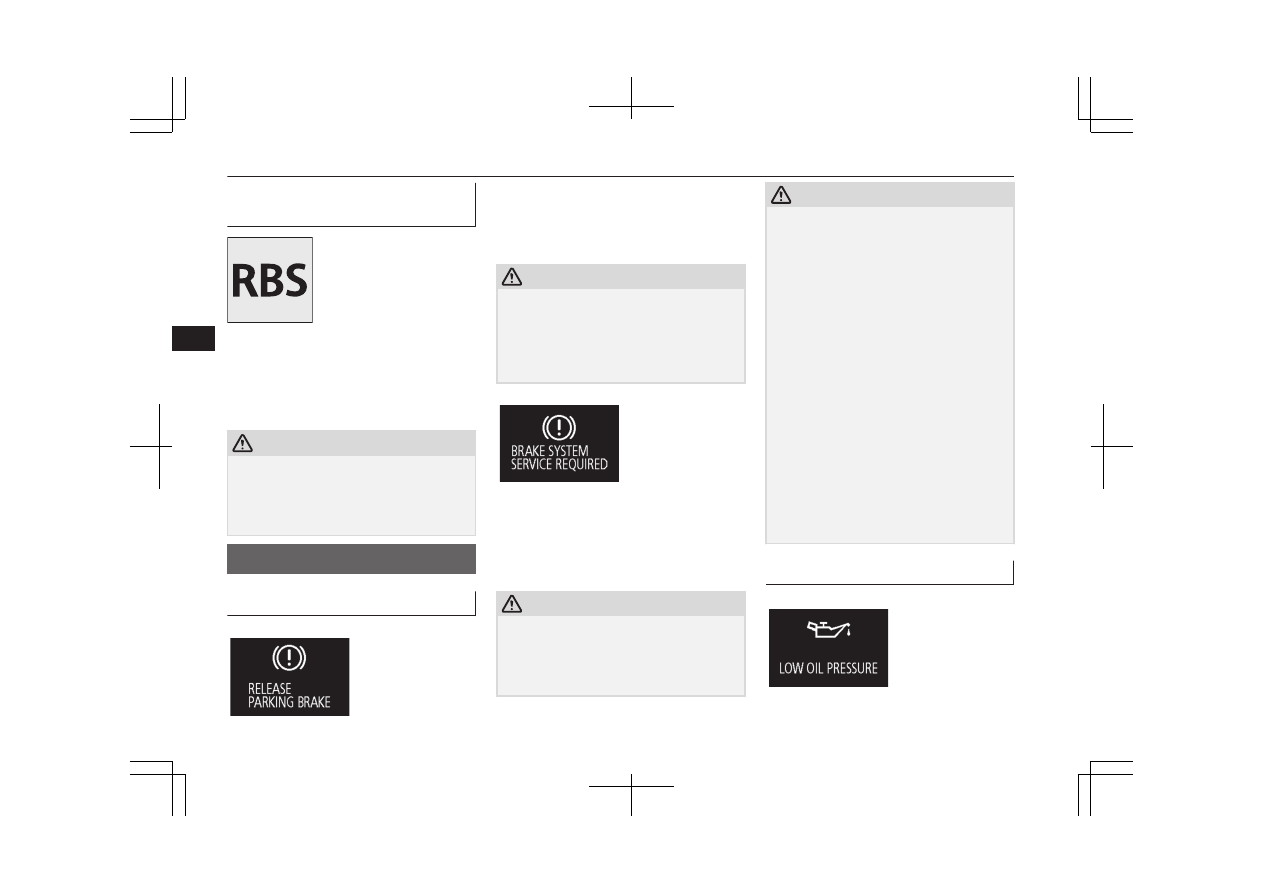

This  warning  is  displayed  if  you  drive  with
the  parking  brake  still  applied.  The  warning
lamp  in  the  instrument  cluster  only  illumi-
nates when the parking brake is applied.

CAUTION

If a vehicle is driven without releasing the
parking brake, the brake will be overheated,
resulting in ineffective braking and possible
brake failure.
If this warning is displayed, release the park-
ing brake.

When the operation mode of the power
switch is put in ON, if the brake fluid is low,
this warning is displayed.
The warning lamp in the instrument cluster
also illuminates.

CAUTION

If this warning stays illuminated and does
not go out while driving, there is a danger of
ineffective braking. In this case, immediately
park your vehicle in a safe place and we rec-
ommend you to have it checked.

CAUTION

If the brake warning display is displayed and
the brake warning lamp and the ABS warn-
ing  lamp  are  illuminated  at  the  same  time,
the  braking  force  distribution  function  will
not  operate,  so  the  vehicle  may  be  destabi-
lised  during  sudden  braking.  Avoid  sudden
braking and high-speed driving, stop the ve-
hicle in a safe place, and we recommend you
to have it checked.

The vehicle should be brought to a halt in
the following manner when brake perform-
ance has deteriorated.

•

Depress the brake pedal harder than usual.
Even if the brake pedal moves down to
the very end of its possible stroke, keep it
pressed down hard.

•

Should the brakes fail, use the regenera-
tive brake to reduce your speed and keep
pulling the Electric parking brake switch.
(Refer to “Electric parking brake” on page
7-03)
Depress the brake pedal to operate the
stop lamp to alert the vehicles behind you.

Oil pressure warning display

E00524901309

Information screen display

6-58

OGGE19E1

Instruments and controls

If the engine oil pressure drops while the
Plug-in Hybrid EV System is operating, the
warning display is displayed on the informa-
tion screen in the multi information display.

CAUTION

If  the  vehicle  is  driven  while  the  engine  oil
is  low,  or  the  oil  level  is  normal  but  the
warning  is  displayed,  the  engine  may  burn
out and be damaged.

If the warning is displayed while the Plug-in
Hybrid EV System is operating, immediately
park your vehicle in a safe place and check
the engine oil level.

If the warning is displayed while the engine
oil level is normal, have it inspected.

Combination headlamps
and dipper switch

E00506004732

Headlamps

NOTE

When  entering  a  country  in  which  vehicles
are driven on the opposite side of the road to
the  country  in  which  your  vehicles  is  sup-
plied,  necessary  measures  have  to  be  taken
to avoid dazzling oncoming traffic.
However,  headlamps  on  this  vehicle  do  not
need any adjustment.

Do not leave the lights on for a long time
while the Plug-in Hybrid EV System is sta-
tionary (not operating). A run-down auxili-
ary battery could result.

When it rains, or when the vehicle has been
washed, the inside of the lens sometimes be-
comes foggy, but this does not indicate a
functional problem.
When the lamp is switched on, the heat will
remove the fog. However, if water gathers
inside the lamp, we recommend you to have
it checked.

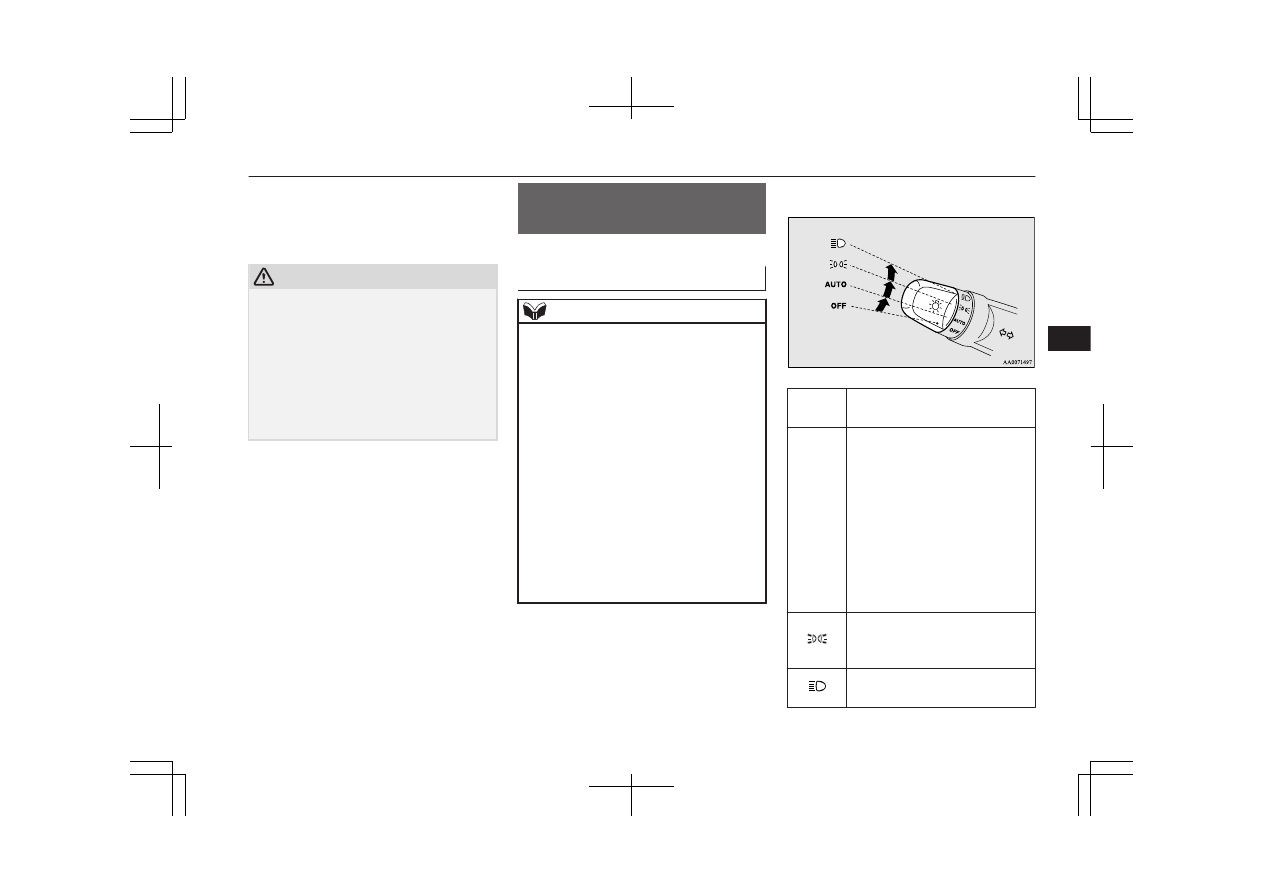

Rotate the switch to turn on the lamps.

OFF

All lamps off {except daytime
running lamps}

AUTO

When the operation mode of the
power switch is ON, headlamps,
position-, tail-, licence plate-, in-
strument panel lamps and down-
light are turned on and off auto-
matically in accordance with out-
side light level. {The daytime
running lamps will go on while
the tail lamps are off.} All lamps
go off automatically when the
operation mode is put in OFF.

Position, tail, licence plate, in-
strument panel lamps and down-
light on

Headlamps and other lamps go
on

Combination headlamps and dipper switch

6-59

OGGE19E1

Instruments and controls

NOTE

The  sensitivity  of  the  automatic  on/off  con-
trol can be adjusted. For further information,
contact  a  MITSUBISHI  MOTORS  Author-
ized Service Point.
On  vehicles  equipped  with  the  Smartphone
Link  Display  Audio  or  the  MITSUBISHI
Multi-Communication  System  (MMCS),
screen  operations  can  be  used  to  make  the
adjustment.
Refer to the separate owner’s manual for de-
tails.

When  the  headlamps  are  turned  off  by  the
automatic  on/off  control  with  the  operation
mode  in  ON,  the  front  fog  lamps  and  rear
fog lamps also go off. When the headlamps
are subsequently turned back on by the auto-
matic on/off control, the front fog lamps also
come  on  but  the  rear  fog  lamp  stays  off.  If
you wish to turn the rear fog lamp back on,
operate the switch again.

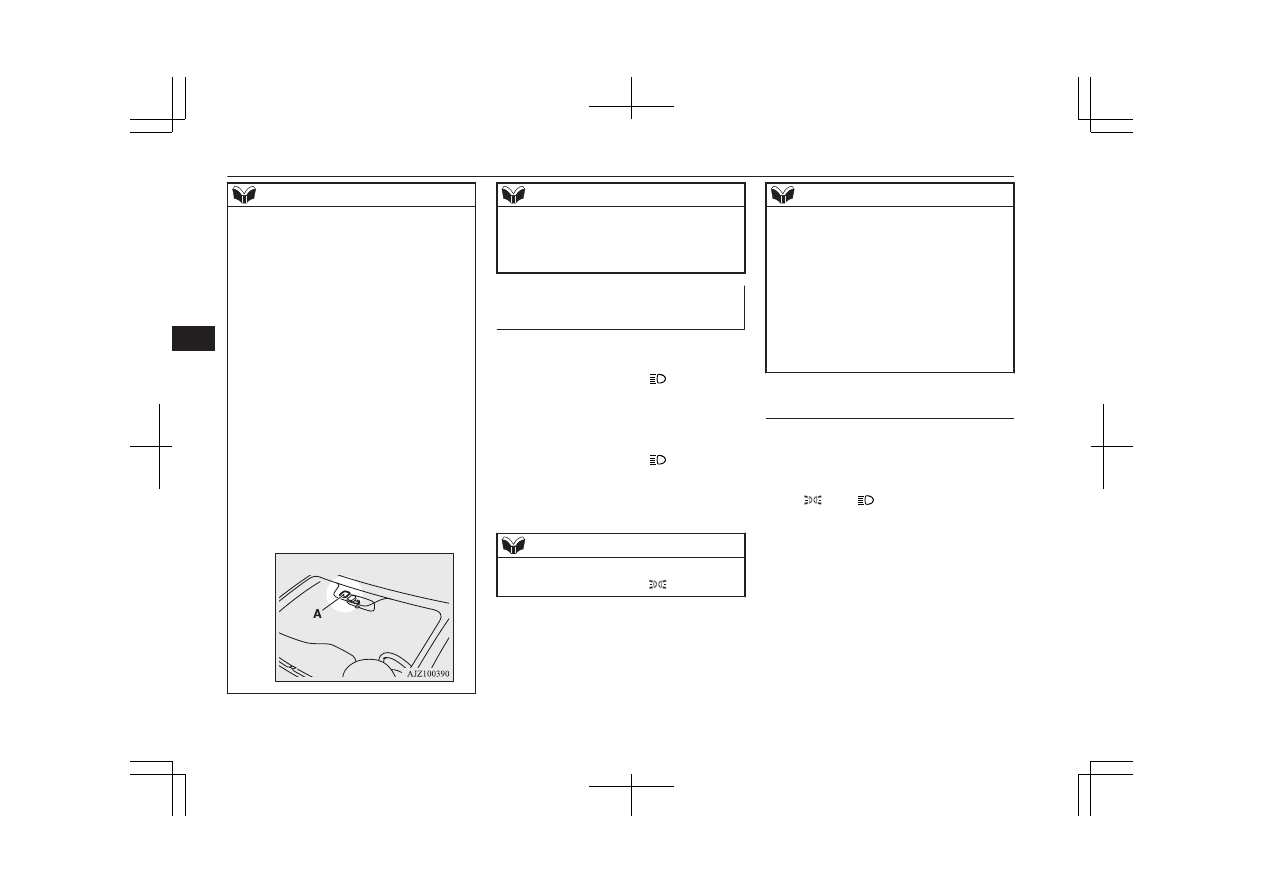

Do not cover the sensor (A) for the automat-
ic on/off control by affixing a sticker or label
to the windscreen.

NOTE

If  the  lamps  do  not  turn  on  or  off  with  the
switch  in  the  “AUTO”  position,  manually
operate  the  switch  and  we  recommend  you
to have your vehicle checked.

Lamps (headlamps, fog lamps,

etc.) auto-cutout function

If the operation mode of the power
switch is put in OFF or ACC while the
lamp switch is in the “

” position, the

lamps will turn off automatically when
the driver’s door is opened.

If the operation mode of the power
switch is put in OFF or ACC while the
lamp switch is in the “

” position, the

lamps will remain on for about 3 mi-
nutes while the driver’s door is shut and
will then automatically turn off.

NOTE

The lamp auto-cutout will not function when
the lamp switch is in the “

” position.

NOTE

The  lamp  auto-cutout  function  can  also  be
disabled.
For further information, we recommend you
to  consult  a  MITSUBISHI  MOTORS  Au-
thorized Service Point.
On  vehicles  equipped  with  the  Smartphone
Link  Display  Audio  or  the  MITSUBISHI
Multi-Communication  System  (MMCS),
screen  operations  can  be  used  to  make  the
adjustment.  Refer  to  the  separate  owner’s
manual for details.

When you want to keep the

lamps on:

1. Turn the lamp switch in the “OFF” posi-

tion while the operation mode of the
power switch is in OFF or ACC.

2. Turn on the lamps with the switch in the

“”

or “”

position again, then the

lamps will remain on.

Combination headlamps and dipper switch

6-60

OGGE19E1

Instruments and controls

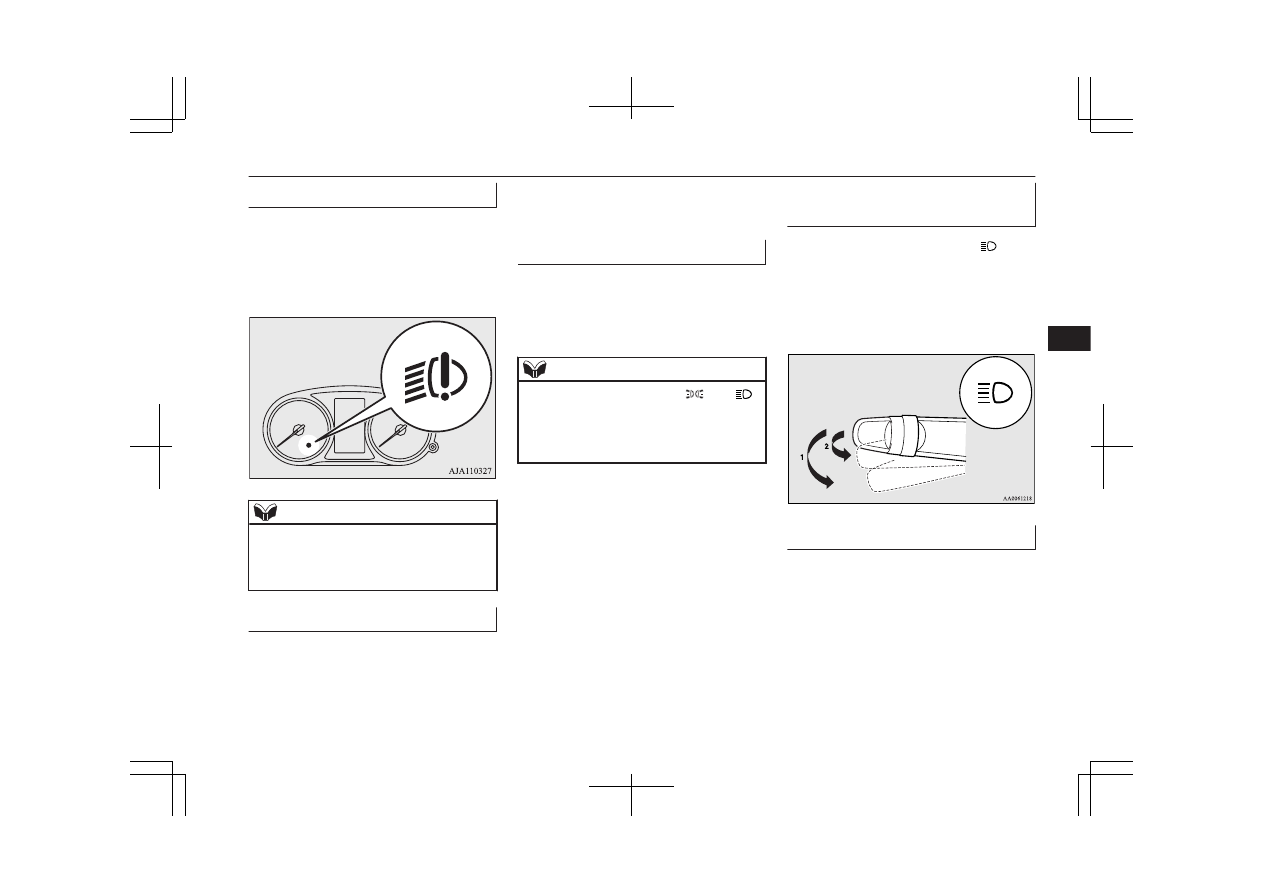

LED headlamp warning lamp*

E00538101041

This warning lamp will illuminate when there
is a fault in the LED headlamps. Also, “LED
HEADLIGHT SERVICE REQUIRED” is
displayed on the information screen in the
multi information display for the driver.

NOTE

If  the  warning  lamp  illuminates,  there  may
be  a  fault  on  the  unit.  Have  the  vehicle
checked  at  a  MITSUBISHI  MOTORS  Au-
thorized Service Point.

Lamp monitor buzzer

E00506101631

If the driver’s door is opened when the opera-
tion mode of the power switch is put in ACC
or OFF with the lamps illuminated, a buzzer
will sound to remind the driver to turn off the
lamps.

The buzzer will automatically stop if the au-
to-cutoff function is activated, the lamp
switch is turned off, or the door is closed.

Daytime running lamps

E00530601226

The  daytime  running  lamps  come  on  when
the  operation  mode  is  ON  and  the  lamp
switch  is  in  the  “OFF”  or  “AUTO”  position
and the tail lamps are off.

NOTE

If the lamp switch is in the “

” or “

”

position, or if the tail lamps are on when the
lamp switch is in the “AUTO” position, the
daytime running lamps come on as position
lamps.

Dipper (High/Low beam

change)

E00506201557

When the lamp switch is in the “

” posi-

tion, the beam changes from high to low (or
low  to  high)  each  time  the  lever  is  pulled
fully  (1).  While  the  high-beam  is  on,  the
high-beam  indication  lamp  in  the  instrument
cluster will also illuminate.

Headlamp flasher

E00506300199

The high-beams flash when the lever is
pulled slightly (2), and will go off when it is
released.
When the high-beam is on, the high-beam in-
dication lamp in the instrument cluster will il-
luminate.

Combination headlamps and dipper switch

6-61

OGGE19E1

Instruments and controls

NOTE

The high-beams can also flash when the
lamp switch is OFF.

If you turn the lamps off with the headlamps
set to high-beam, the headlamps are auto-
matically returned to their low-beam setting
when the lamp switch is next turned to the
“

” position.

Automatic high-beam system*

E00538200117

The system switches the headlamp beams
(high/low) when the sensor (A) senses an il-
luminant such as lights of a vehicle in front
or oncoming vehicle or street lamp.

WARNING

The  headlamp  beams  (high/low)  may  not
be  switched  automatically  under  certain
circumstances.  Do  not  overestimate  the
system. It is the responsibility of the driv-
er  to  switch  the  headlamp  beams  (high/
low) manually to suit each driving condi-
tion.
Refer  to  “Dipper  (High/Low  beam
change)” on page 6-61

How to use the AHB

E00551500250

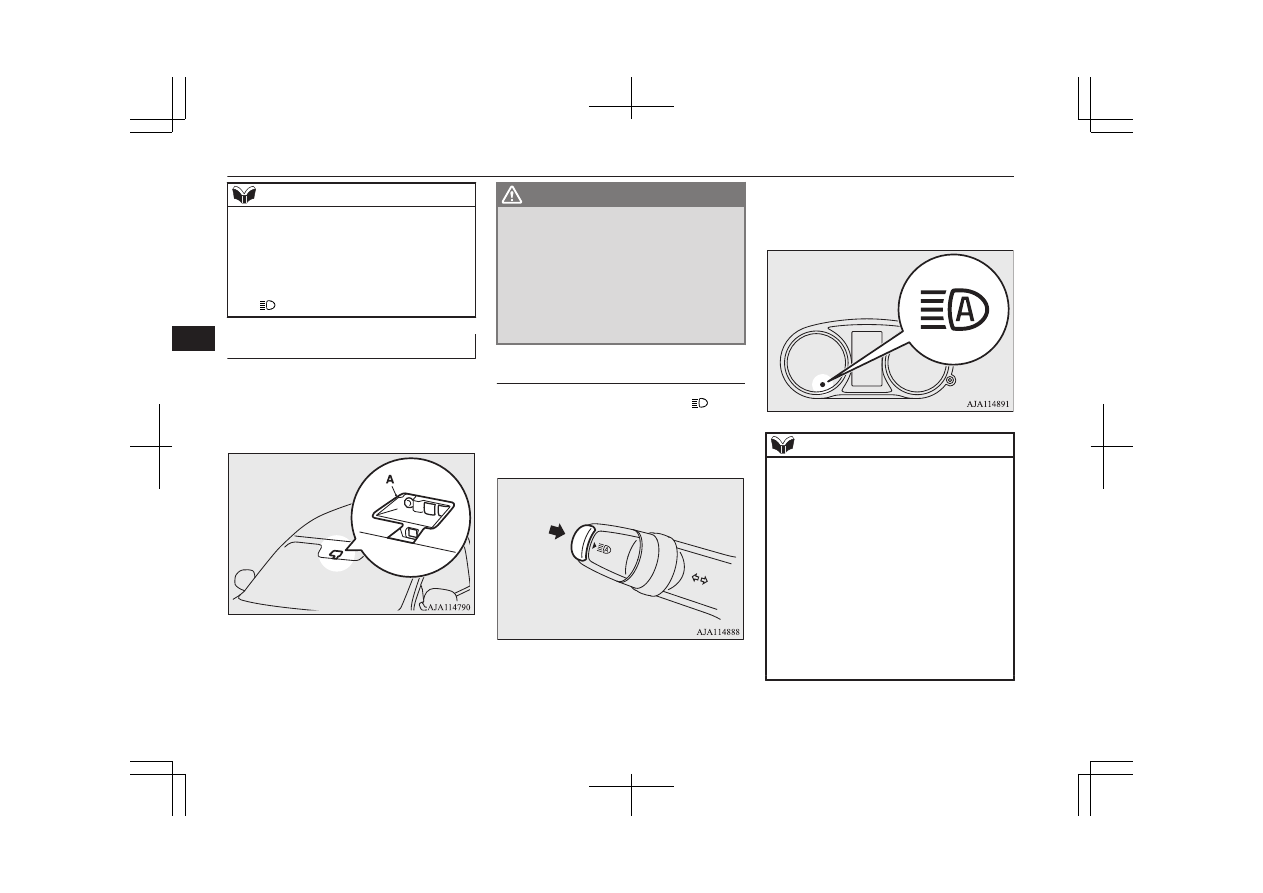

1. Rotate the lamp switch to the “

” posi-

tion or “AUTO” position when the Plug-
in Hybrid EV System is operating.

2. Press the AHB switch.

The AHB is activated and the indicator
will illuminate.

If the AHB switch is pressed again, the
AHB will be deactivated and the AHB
indicator will go off.

NOTE

If the headlamps are on when the lamp
switch is in the “AUTO” position, the AHB
works.

You can switch the headlamp beams (high/
low) manually by operating the lever even if
the AHB is working.
Refer to “Dipper (High/Low beam change)”
on page 6-61
If the lever is operated manually, the AHB
indicator will go off and the AHB will be de-
activated.
Refer to “Manual switching” on page 6-62.

The AHB is not deactivated when you pull
the lever slightly (operation of the headlamp
flasher).

Combination headlamps and dipper switch

6-62

OGGE19E1

Instruments and controls

Manual switching

Switching to low beam

1. Pull the lever towards you.
2. The AHB indicator will go off.
3. The AHB switch is pressed again, the

AHB will activated.

Switching to high-beam

1. Pull the lever towards you.
2. The AHB indicator will go off and the

high-beam indicator illuminates.

3. The AHB switch is pressed again, the

AHB will activated.

Automatic switching conditions

E00551600059

The high-beam headlamps illuminate when
all of the following conditions are met:

Your vehicle speed exceeds approxi-
mately 40 km/h (25 mph).

It is dark ahead of your vehicle.

There are no vehicles in front or oncom-
ing vehicles, or none of their exterior
lamps are illuminated.

The low beam headlamps illuminate when
any of the following conditions occur:

Your vehicle speed does not exceed ap-
proximately 30 km/h (19 mph).

It is bright ahead of your vehicle.

An exterior lamp of a vehicle in front or
oncoming vehicle is illuminating.

NOTE

The headlamps may not be switched from
high-beam to low beam under the following
circumstances.

•

A vehicle in front or oncoming vehicle is
hindered by any object such as continuous
bends, elevated median/island, traffic
signs, roadside trees.

•

Your vehicle passes an oncoming vehicle
suddenly on a bend with poor visibility.

•

Another vehicle crosses ahead of your ve-
hicle.

The headlamps may remain at low beam (or
be switched from high-beam to low beam)
when a reflective object (e.g. street lamp,
traffic signal, noticeboard and signboard) re-
flects light.

Any of the following factors may influence
the headlamp beam switching timing:

•

How brightly the exterior lamps of a vehi-
cle in front or oncoming vehicle illumi-
nate.

•

Movement or direction of a vehicle in
front or oncoming vehicle.

•

Only right or left exterior lamp of a vehi-
cle in front or oncoming vehicle is illumi-
nating.

•

A vehicle in front or oncoming vehicle is
a motorcycle.

•

Road conditions (gradient, bends and road
surface).

•

The number of occupants and luggage
load.

NOTE

The AHB recognises environmental condi-
tions by sensing a light source ahead of your
vehicle. Therefore, you may feel like some-
thing is not quite right when the headlamp
beams are switched automatically.

The system may not detect a light vehicle
such as a bicycle.

The system may not detect an ambient
brightness precisely. This causes the traffic
to be dazzled by high-beam or the low beam
to be maintained. In such cases, you should
switch the headlamp beams manually.

•

In bad weather (heavy rain, fog, snow or
sandstorm).

•

The windscreen is dirty or fogged up.

•

The windscreen is cracked or broken.

•

The sensor is deformed or dirty.

•

A light that is similar to the headlamps or
tail lamps is shining around your vehicle.

•

A vehicle in front or oncoming vehicle is
driven  without  lights,  the  exterior  lamps
are  dirty  or  discoloured,  or  the  direction
of  the  headlamp  beams  is  adjusted  im-
properly.

•

It becomes dark and bright suddenly and
continuously around your vehicle.

•

Your vehicle is driven on uneven surfaces.

•

Your vehicle is driven on a winding road.

•

A reflective object such as a noticeboard
or a mirror reflects a light ahead of your
vehicle.

Combination headlamps and dipper switch

6-63

OGGE19E1

Instruments and controls

NOTE

•

When lamps of the vehicle in front or
headlamps of an oncoming vehicle blend
into the other lamps.

•

The rear end of a vehicle in front (such as
a container truck) reflect a strong light.

•

Your vehicle’s headlamp is broken or
dirty.

•

Your vehicle is inclined due to a flat tyre
or towing.

•

The warning display appears.
(Refer to “System problem warning” on
page 6-64.)

Observe the precautions below to maintain
good usage conditions:

•

Do not attempt to disassemble the sensor.

•

Do not affix a sticker or label on the
windscreen near the sensor.

•

Avoid overload.

•

Do not modify your vehicle.

•

When the windscreen is replaced, use the
MITSUBISHI MOTORS GENUINE
parts.

System problem warning

E00551700063

If a problem occurs with the system, the fol-
lowing warning display will appear to the
type of the problem.

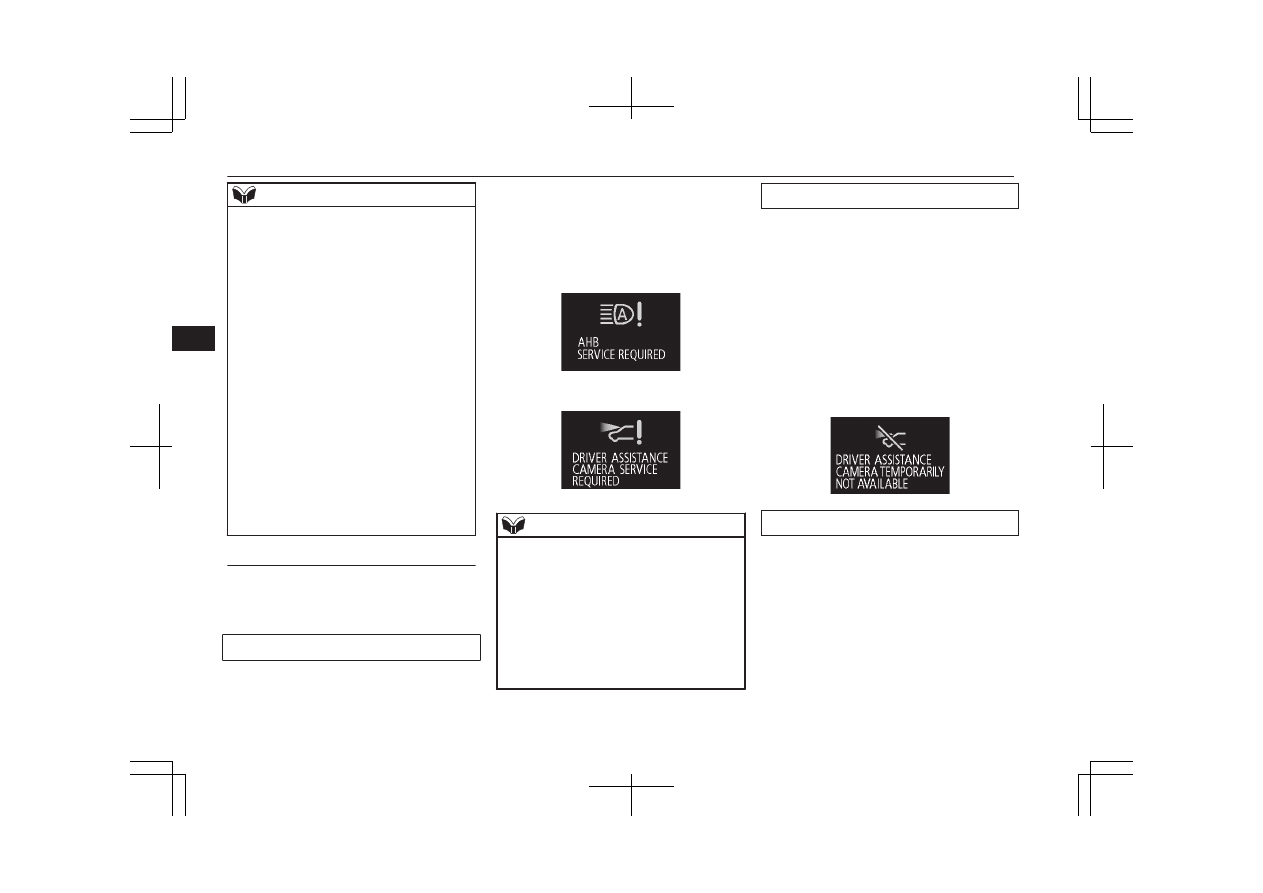

The AHB deactivation due to fault
If a failure is detected in the system, the fol-
lowing warning display will appear and the
AHB will automatically be turned off.

If the warning display remains even after the
operation mode of the power switch is put in
OFF and then turned back to ON, please con-
tact a MITSUBISHI MOTORS Authorized
Service Point.
[When the AHB is malfunctioning]

[When the sensor is malfunctioning]

NOTE

If the sensor or its surrounding area reaches
an extremely high temperature when parking
the  vehicle  under  a  blazing  sun,  the  “AHB
SERVICE  REQUIRED”  warning  display
may appear.
If the warning display remains even after the
temperature of the sensor or its surrounding
area  has  been  in  range,  please  contact  a
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.

Sensor is too hot or cold
If  the  system  becomes  temporarily  unavaila-
ble  due  to  a  high  or  low  temperature  of  the
sensor,  the  following  warning  display  will
appear.
After the temperature of the sensor has been
in range, the system will automatically return
to operation.
If the warning display does not disappear af-
ter  waiting  for  a  while,  there  is  a  possibility
that  the  AHB  has  a  malfunction.  Contact  a
MITSUBISHI MOTORS Authorized Service
Point for inspection of the system.

Windscreen is dirty
If the AHB determines that its performance
has been degraded, the warning display will
appear.
This can occur when:

Foreign objects, such as dirt, snow or
ice, adhere to the windscreen of the sen-
sor portion.

There are adverse weather conditions,
such as rain, snow, sand storms, etc.

A vehicle in front or an oncoming vehi-
cle is splashing water, snow or dirt.

Combination headlamps and dipper switch

6-64

OGGE19E1

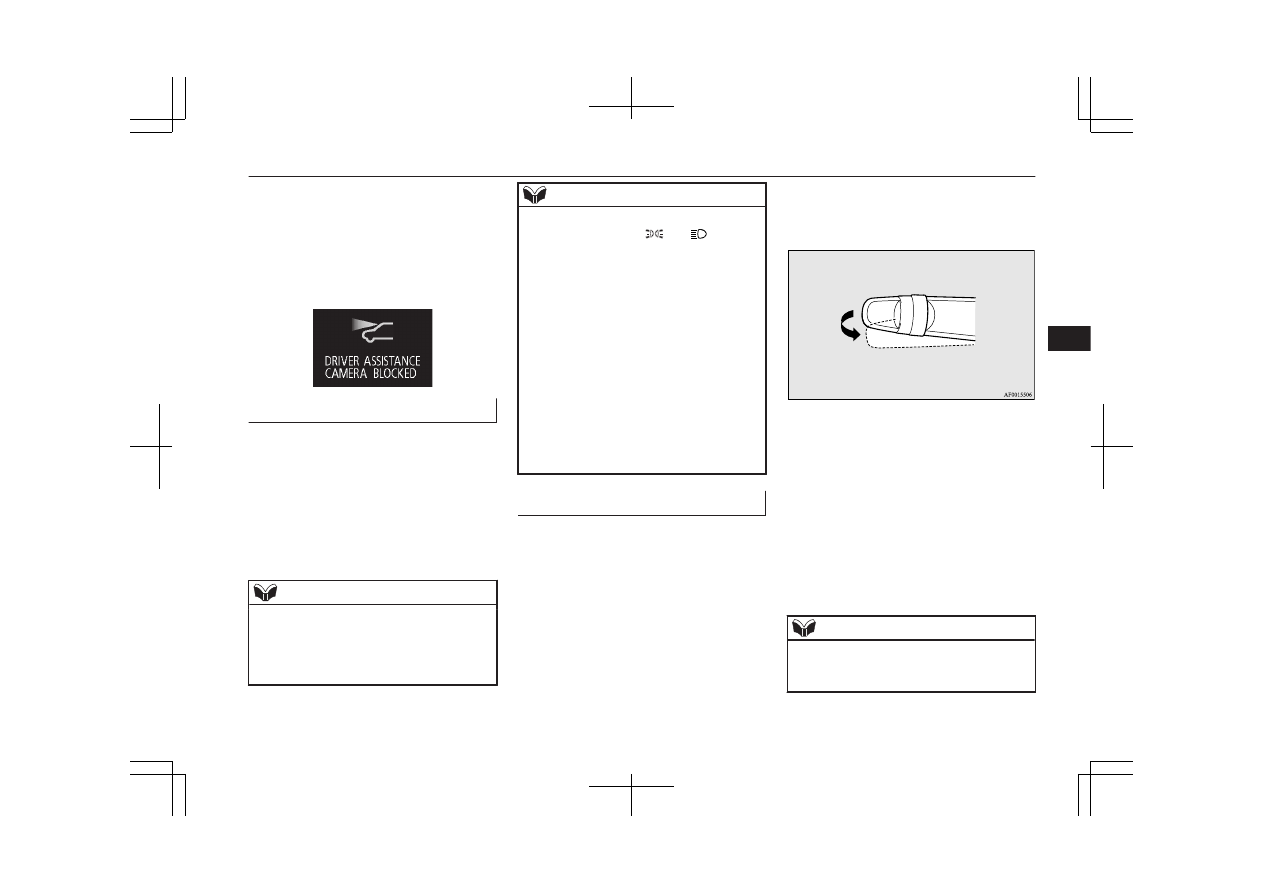

Instruments and controls

When  the  sensor  performance  returns,  the
AHB will resume operation.
If the warning display does not disappear af-
ter  waiting  for  a  while,  there  is  a  possibility
that  the  sensor  has  a  malfunction.  Contact  a
MITSUBISHI MOTORS Authorized Service
Point for inspection of the sensor.

Welcome light

E00528902072

This  function  turns  on  the  position  and  tail
lamps  for  about  30  seconds  after  the  UN-
LOCK switch on the remote control transmit-
ter  is  pressed  when  the  combination  head-
lamps  and  dipper  switch  is  in  the  “OFF”  or
“AUTO”  position.  The  welcome  light  func-
tion will operate only when it is dark outside
the vehicle.

NOTE

While the welcome light function is operat-
ing, perform one of the following operations
to cancel the function.

•

Push the LOCK switch on the remote
control transmitter.

NOTE

•

Turn the combination headlamps and dip-
per switch to the “

” or “

” position.

•

Put the operation mode of the power
switch in ON.

It is possible to modify functions as follows:

•

The headlamps can be set to come on in
the low beam setting.

•

The welcome light function can be deacti-
vated.

For further information, please contact your
MITSUBISHI  MOTORS  Authorized  Serv-
ice Point.
On  vehicles  equipped  with  the  Smartphone
Link  Display  Audio  or  the  MITSUBISHI
Multi-Communication  System  (MMCS),
screen  operations  can  be  used  to  make  the
adjustment.  Refer  to  the  separate  owner’s
manual for details.

Coming home light

E00529001826

This function turns on the headlamps in the
low beam setting for about 30 seconds after
the operation mode is put in OFF.

1. Turn the combination headlamps and

dipper switch to the “OFF” or “AUTO”
position.

2. Put the operation mode of the power

switch in OFF.

3. Within 60 seconds of putting the opera-

tion mode in OFF, pull the turn signal
lever towards you.

4. The headlamps will come on in the low

beam setting for about 30 seconds. After
the headlamps go off, the headlamps can
be turned on again in the low beam set-
ting for about 30 seconds by pulling the
turn signal lever towards you within 60
seconds of putting the operation mode in
OFF.
To turn on the headlamps again after 60
seconds of putting the operation mode in
OFF, repeat the process from step 1.

NOTE

While the coming home light function is op-
erating, perform one of the following opera-
tions to cancel the function.

Combination headlamps and dipper switch

6-65

OGGE19E1

Instruments and controls

NOTE

•

Pull the lever towards you.

•

Turn the combination headlamps and dip-
per switch to the “

” or “

” position.

•

Put the operation mode in ON.

It is possible to modify functions as follows:

•

The time that the headlamps remain on
can be changed.

•

The coming home light function can be
deactivated.

Headlamp levelling

E00517400031

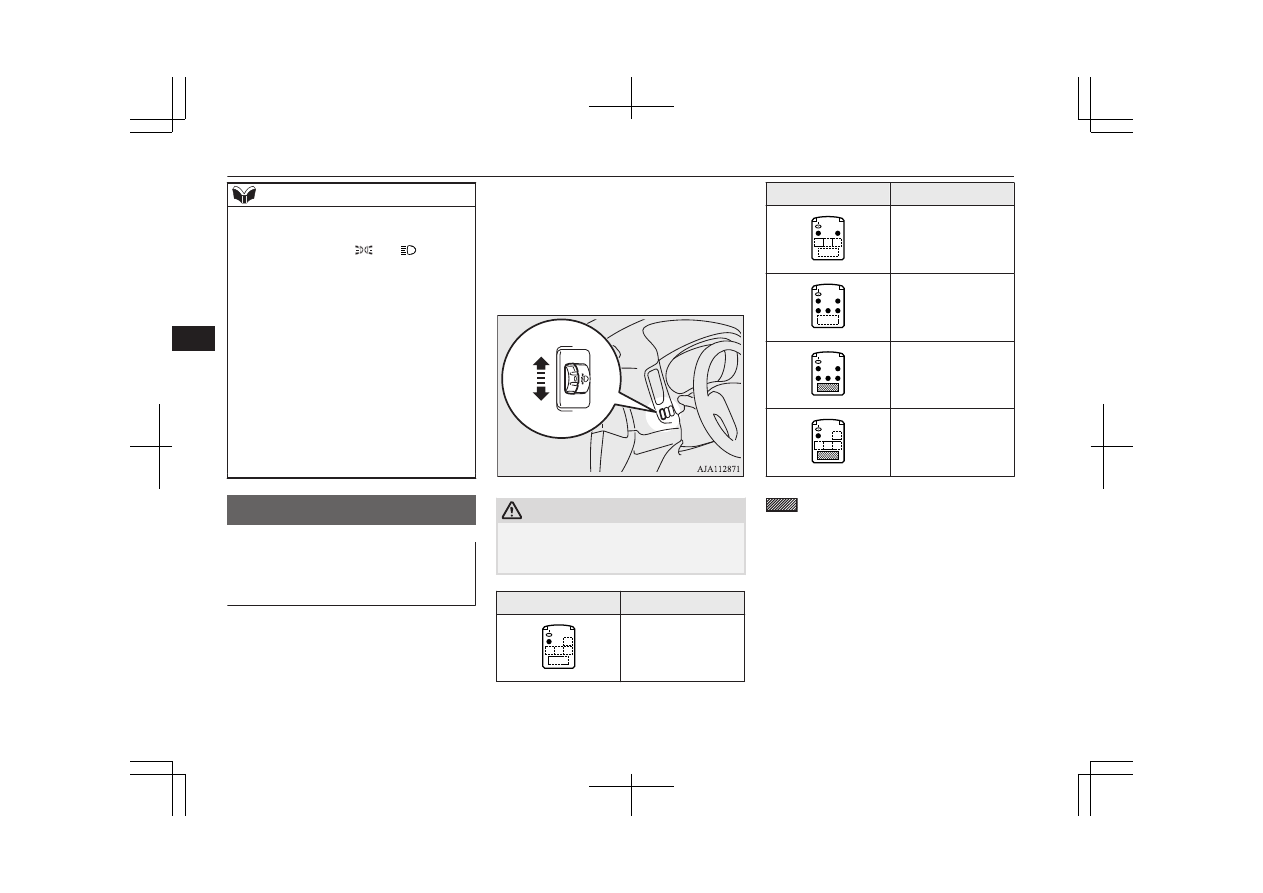

Headlamp levelling switch (ex-

cept for vehicle with LED

headlamps)

E00517502023

The angle of the headlamp beam varies de-
pending on the load carried by the vehicle.

The headlamp levelling switch can be used to
adjust the headlamp illumination distance
(when the lower beam is illuminated) so that
the headlamps’ glare does not distract other
drivers.
Set the switch according to the following ta-
ble.

CAUTION

Always perform adjustments before driving.
Do not attempt to adjust while driving, as it
could cause an accident.

Vehicle condition

Switch position

“0”

Vehicle condition

Switch position

“0”

“1”

“2”

●:1 person

:Full luggage loading

Switch position
0-

Driver only/Driver + 1
front passenger

Switch position
1-

5 passengers (including
driver)

Switch position
2-

5 passengers (including
driver) + Full luggage
loading/Driver + Full lug-
gage loading

Headlamp levelling

6-66

OGGE19E1

Instruments and controls

Content .. 11 12 13 14 ..
