2. Lightly  press  the  multi  information  dis-

play switch to select “AVG (average fuel
consumption)”.

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to switch from A/1 (Auto reset mode) to
M/2/P  (Manual  reset  mode),  or  from
M/2/P to A/1.
The  setting  is  changed  to  the  selected
mode condition.

Manual reset mode

l

When  the  average  fuel  consumption  is
being  displayed,  if  you  hold  down  the
multi-information  meter  switch,  the
average  fuel  consumption  displayed  at
that time is reset.

l

When  the  operation  mode  is  changed
from ACC or OFF to ON, the mode set-
ting is automatically switched from man-
ual to auto.
Switching  to  auto  occurs  automatically.
If  switching  to  manual  mode  is  done,
however,  the  data  from  the  last  reset  is
displayed.

Auto reset mode

l

When  the  average  fuel  consumption  is
being  displayed,  if  you  hold  down  the
multi-information  meter  switch,  the
average  fuel  consumption  displayed  at
that time is reset.

l

When  the  operation  mode  is  in  ACC  or
OFF  for  about  4  hours  or  longer,  the
average  fuel  consumption  display  is  au-
tomatically reset.

NOTE

l

The  average  fuel  consumption  display  can
be  reset  separately  for  the  auto  reset  mode
and for the manual reset mode.

l

The memory of the auto reset mode or man-
ual  reset  mode  for  the  average  fuel  con-
sumption  display  is  erased  if  the  auxiliary
battery is disconnected.

Changing the fuel consumption
display unit

E00523001778

The display unit for fuel consumption can be
switched. The distance and amount units are
also switched to match the selected fuel con-
sumption unit.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.

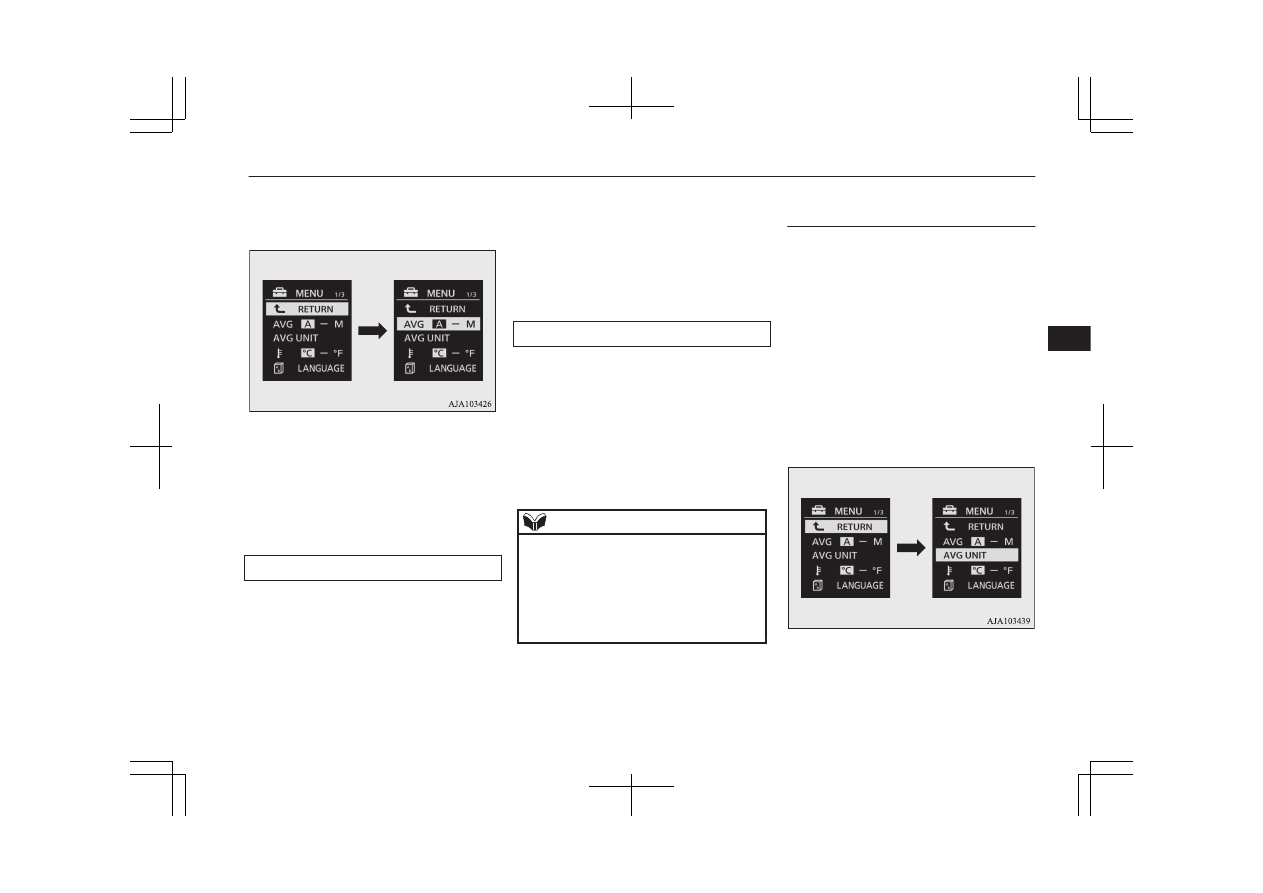

Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  “AVG  UNIT  (fuel
consumption display setting)”.

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to display “AVG UNIT”.

Multi information display

6-19

OGGE19E1

Instruments and controls

6

4. Lightly  press  the  multi  information  dis-

play switch to select the units.

5. Press and hold the multi information dis-

play switch for about 2 seconds or more
to change the setting to the selected unit.

NOTE

l

The  display  units  for  the  average  fuel  con-
sumption and the driving range is switched,
but  the  units  for  the  indicating  needle
(speedometer), the odometer and the tripme-
ter will remain unchanged.

The distance units is also switched in the fol-
lowing  combinations  to  match  the  selected
fuel consumption unit.

Fuel consumption

Distance (driving

range)

L/100 km

km

mpg (US)

mile(s)

mpg (UK)

mile(s)

km/L

km

Changing the temperature unit

E00523101913

The  display  unit  for  temperature  can  be
switched.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.

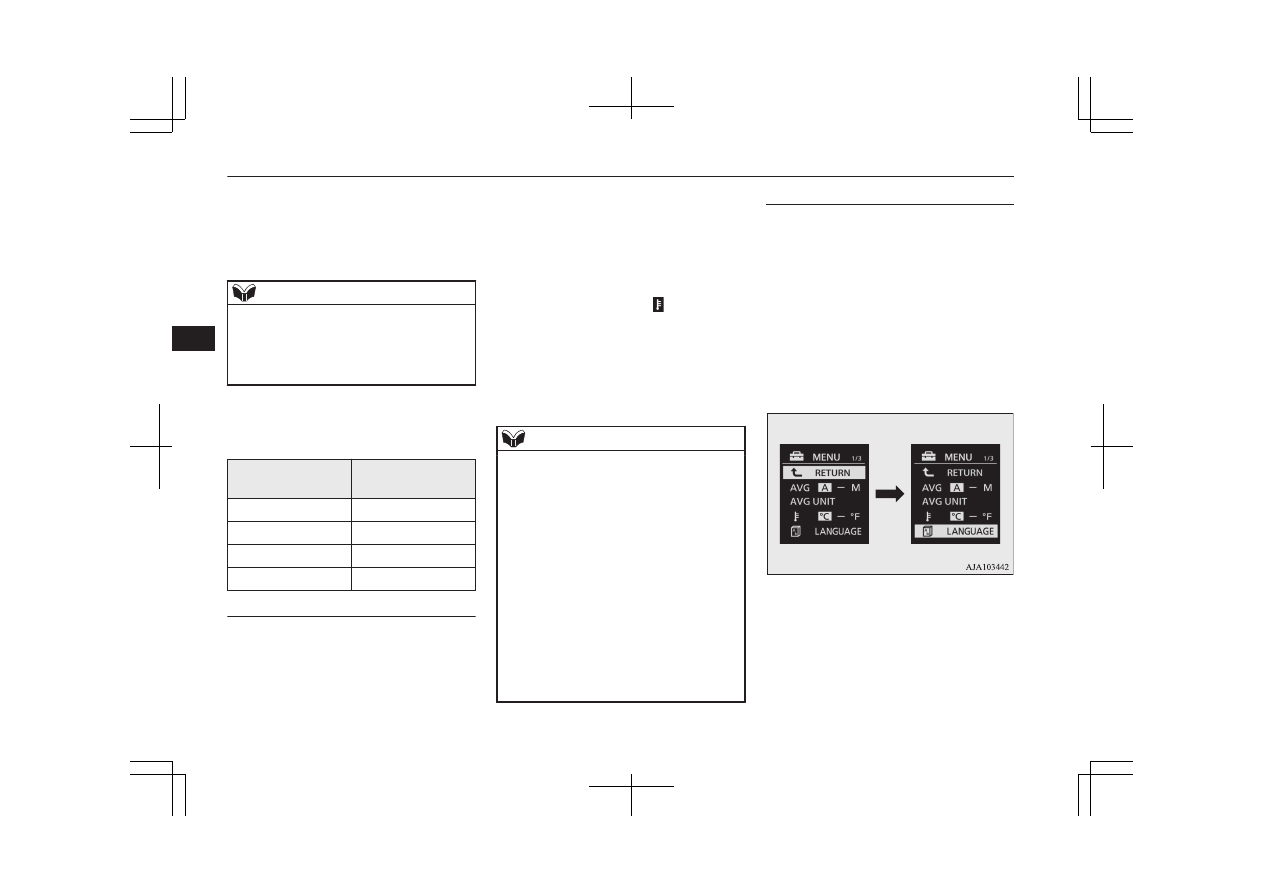

Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  “ ”  (temperature
unit setting).

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to switch in from °C to °F, or from °F to
°C.  The  setting  is  changed  to  the  selec-
ted temperature unit.

NOTE

l

The  temperature  value  on  air  conditioner
panel is switched in conjunction with outside
temperature  display  unit  of  the  multi  infor-
mation display.
However,  “°C”  or  “°F”  are  not  shown  to
temperature display of an air conditioner.

l

On  vehicles  equipped  with  the  Smartphone
Link  Display  Audio  or  the  MITSUBISHI
Multi-  Communication  System  (MMCS),
the  temperature  value  of  Smartphone  Link
Display Audio or MITSUBISHI Multi-Com-
munication  System  (MMCS)  is  switched  in
conjunction  with  the  outside  temperature
display unit of the multi information display.
However,  “°C”  or  “°F”  is  not  shown  to  the
air conditioner screen of MITSUBISHI Mul-
ti- Communication System (MMCS).

Changing the display language

E00523201741

The  language  of  the  multi  information  dis-
play can be switched.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  “LANGUAGE”
(language setting).

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to display “LANGUAGE”.

4. Lightly  press  the  multi  information  dis-

play  switch  to  select  the  desired  lan-
guage.

Multi information display

6-20

OGGE19E1

Instruments and controls

6

5. If  you  hold  down  the  multi  information

display  switch  for  about  2  seconds  or
more, the setting is changed to the selec-
ted language.

NOTE

l

If “---” is selected in the language setting, a
warning  message  is  not  displayed  when
there  is  a  warning  display  or  interrupt  dis-
play.

Changing the language cooper-
ative control

E00523301827

The  language  used  in  MITSUBISHI  Multi-
Communication  System  (MMCS)  (if  so
equipped),  Bluetooth

®

  2.0  interface  (if  so

equipped)  or  Multi  Around  Monitor  (if  so
equipped)  can  be  changed  automatically  to
the same language as that shown in the multi
information display.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play switch to select

 “ ”

(language cooperative control).

3. Press and hold the multi information dis-

play  switch  to  switch  from  A/1  (lan-
guage  cooperation  enabled)  to  M/2/P
(language cooperation disabled), or from
M/2/P to A/1.
The  setting  is  changed  to  the  selected
condition.

NOTE

l

The language display modified with the lan-
guage setting can be switched in the follow-
ing manner.

•

When  A  or  1  has  been  selected  with  the
language  cooperative  control,  the  lan-
guage for MITSUBISHI Multi-Communi-
cation  System  (MMCS),  Bluetooth

®

  2.0

interface  or  Multi  Around  Monitor  is  au-
tomatically  changed  to  the  language  se-
lected for the multi information display.
However, this changing function may not
work depending on the language selected
for the multi information display.

•

When  M,  2  or  P  has  been  selected  with
the language cooperative control, the lan-
guage for MITSUBISHI Multi-Communi-
cation  System  (MMCS),  Bluetooth

®

  2.0

interface  or  Multi  Around  Monitor  is  not
automatically changed to the language se-
lected for the multi information display.

l

The  language  on  the  display  of  the  audio
system (if so equipped) is not automatically
changed even if you select A or 1 of the lan-
guage cooperation control.

Operation sound setting

E00523400690

You can turn off the operation sounds of the
multi information display switch and rheostat
illumination button.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer to “Changing function settings” on
page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  " "  (operation
sound setting).

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to switch from ON (operation sound on)
to  OFF  (operation  sound  off),  or  from
OFF to ON.
The  setting  is  changed  to  the  selected
condition.

NOTE

l

The operation sound setting only deactivates
the operation sound of the multi information
display switch and rheostat illumination but-
ton.  The  warning  display  and  other  sounds
cannot be deactivated.

Multi information display

6-21

OGGE19E1

Instruments and controls

6

Changing the time until “REST
REMINDER” is displayed

E00523501702

The  time  until  the  display  appears  can  be
changed.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  “ALARM”  (rest
time setting).

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to display “ALARM”.

4. Lightly  press  the  multi  information  dis-

play  switch  to  select  the  time  until  the
display.

5. Press and hold the multi information dis-

play switch for about 2 seconds or more,
the  setting  is  changed  to  the  selected
time.

NOTE

l

The  drive  time  is  reset  when  the  operation
mode of the power switch is put in OFF.

Changing the turn-signal sound

E00529100396

It is possible to change the turn-signal sound.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select

  (changing  the

turn-signal sound).

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to switch from 1 (turn-signal sound 1) to
2 (turn-signal sound 2), or from 2 to 1.
The setting changes to the selected turn-
signal sound.

Reset of EV/Total cruising
range

E00532200027

The  learned  value  for  EV  cruising  range  re-
sets to the initialized value.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  “
RESET” (Reset of EV cruising range).

3. When  you  press  and  hold  the  multi  in-

formation display switch for about 3 sec-
onds or more, the buzzer sounds and the
learned value resets to the default values.

Returning to the factory set-
tings

E00523602205

Many of the function settings can be returned
to their factory settings.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

2. Lightly  press  the  multi  information  dis-

play  switch  to  select  “
RESET”  (returning  to  the  factory  set-
tings).

3. When  you  press  and  hold  the  multi  in-

formation display switch for about 5 sec-
onds or more, the buzzer sounds and all
of  the  function  settings  are  returned  to
the factory settings.

NOTE

l

The factory settings are as follows.

•

Average  fuel  consumption  reset  mode:  A
(Auto reset)

•

Fuel consumption display unit: L/100 km

Multi information display

6-22

OGGE19E1

Instruments and controls

6

NOTE

•

Temperature unit: °C (Celsius)

•

Display  language:  ENGLISH  or  RUSSI-
AN

•

Cooperative  language  setting:  A  (lan-
guage cooperation enabled)

•

Operation sounds: ON (Operation sounds
on)

•

“REST REMINDER” display: OFF

•

Turn-signal sound: Turn-signal sound 1

l

The low tyre pressure warning threshold and
tyre ID set cannot be returned to their facto-
ry settings.

l

The  learned  value  for  EV  cruising  range
does not return to the initialized value.

Multi information display

6-23

OGGE19E1

Instruments and controls

6

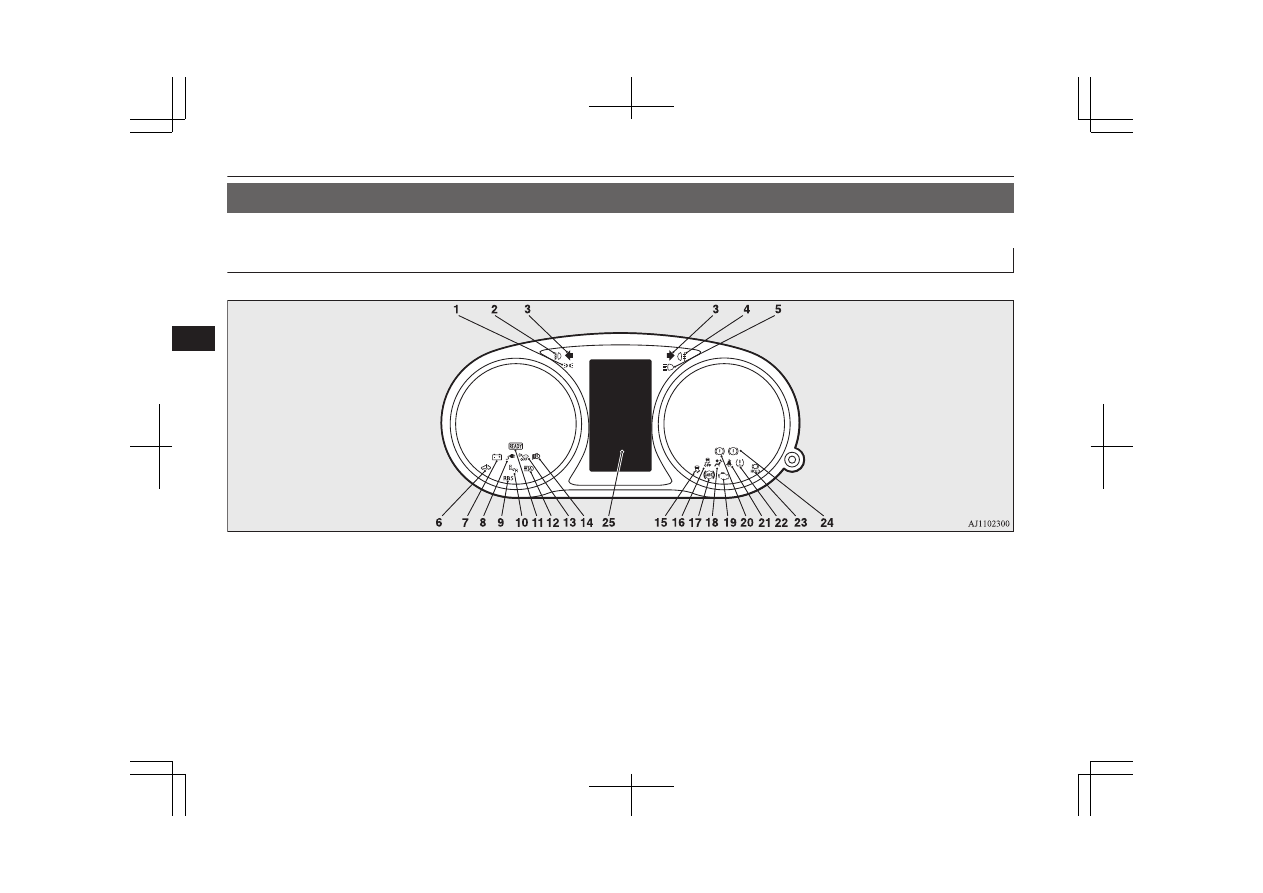

16- Active Stability Control (ASC) OFF in-

dication lamp

® p. 7-45

17- Anti-lock brake system (ABS) warning

lamp

® p. 7-41

18- Supplement Restraint System (SRS)

warning lamp

® p. 5-35

19- Check engine warning lamp

® p. 6-56

20- Electric parking brake warning lamp

(yellow)

® p. 7-03

21- Seat belt warning lamp

® p. 5-11

22- Tyre pressure monitoring system warn-

ing lamp

® p. 7-93

23- Brake auto hold indication lamp

® p. 7-35

24- Brake warning lamp (red)

® p. 6-55

25- Information screen display list

® p. 6-25



Information screen display list

E00523901344

When there is information to be announced, such as lamp reminder, the buzzer sounds and the screen switches to the displays shown below.
Refer to the appropriate page and take the necessary measures.
When the cause of the warning display is eliminated, the warning display goes out automatically.
Refer to “Warning display list” on page 6-26.
Refer to “Navigation information display” on page 6-47.
Refer to “Other interrupt displays” on page 6-48.

NOTE

l

A warning may be displayed on the information screen and the buzzer may sound in the following rare cases.
This is caused by the system picking up interference such as noise or strong electromagnetic waves, and is not a functional problem.

•

An extremely strong electromagnetic wave is received from a source such as an illegal radio set, a spark from a wire, or a radar station.

•

Abnormal voltage or a static electricity discharge is generated by the operation of installed electrical equipment (including after-market parts).

If the warning display appears many times, we recommend you to consult a MITSUBISHI MOTORS Authorized Service Point.



Indication lamp, warning lamp, and information screen display list

6-25

OGGE19E1

Instruments and controls

6

Warning display list

E00524002727

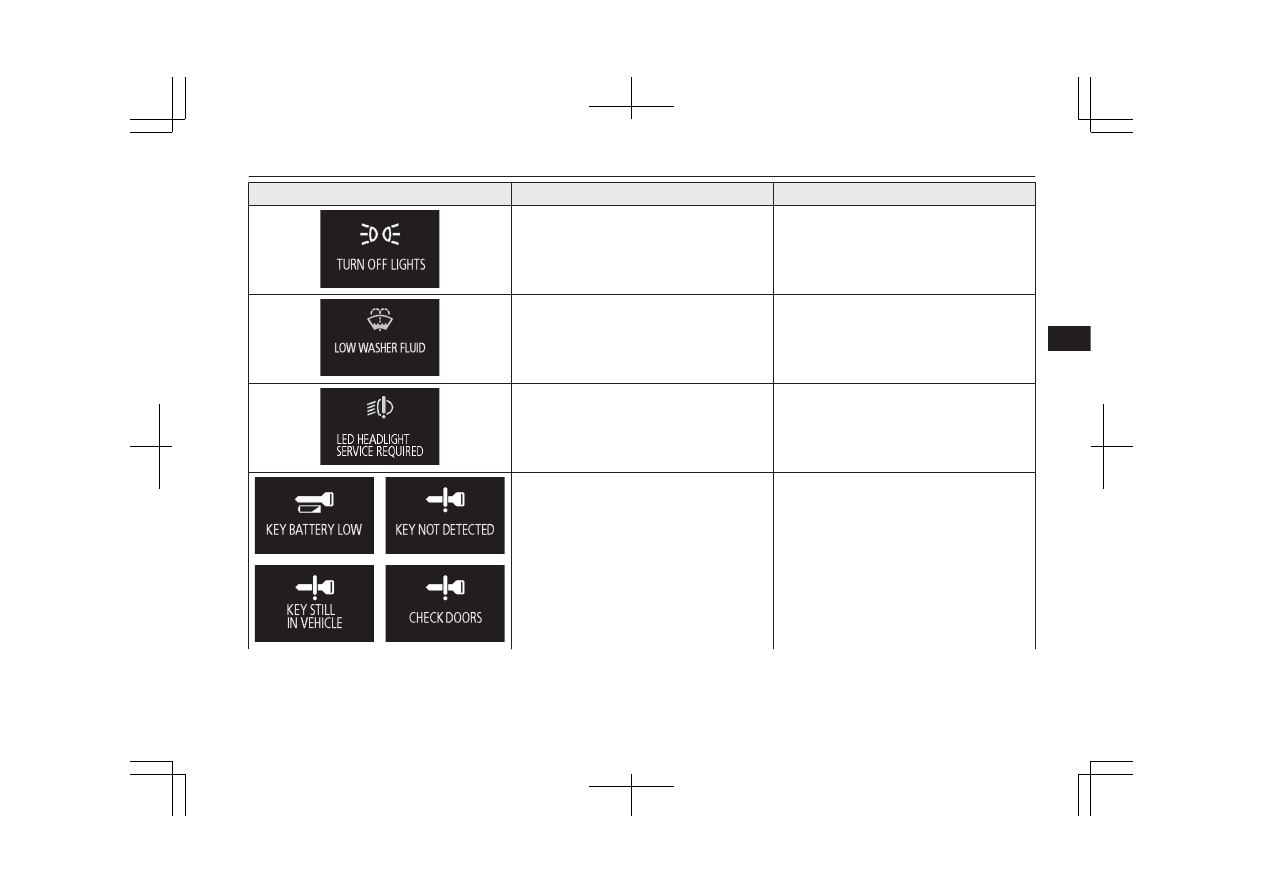

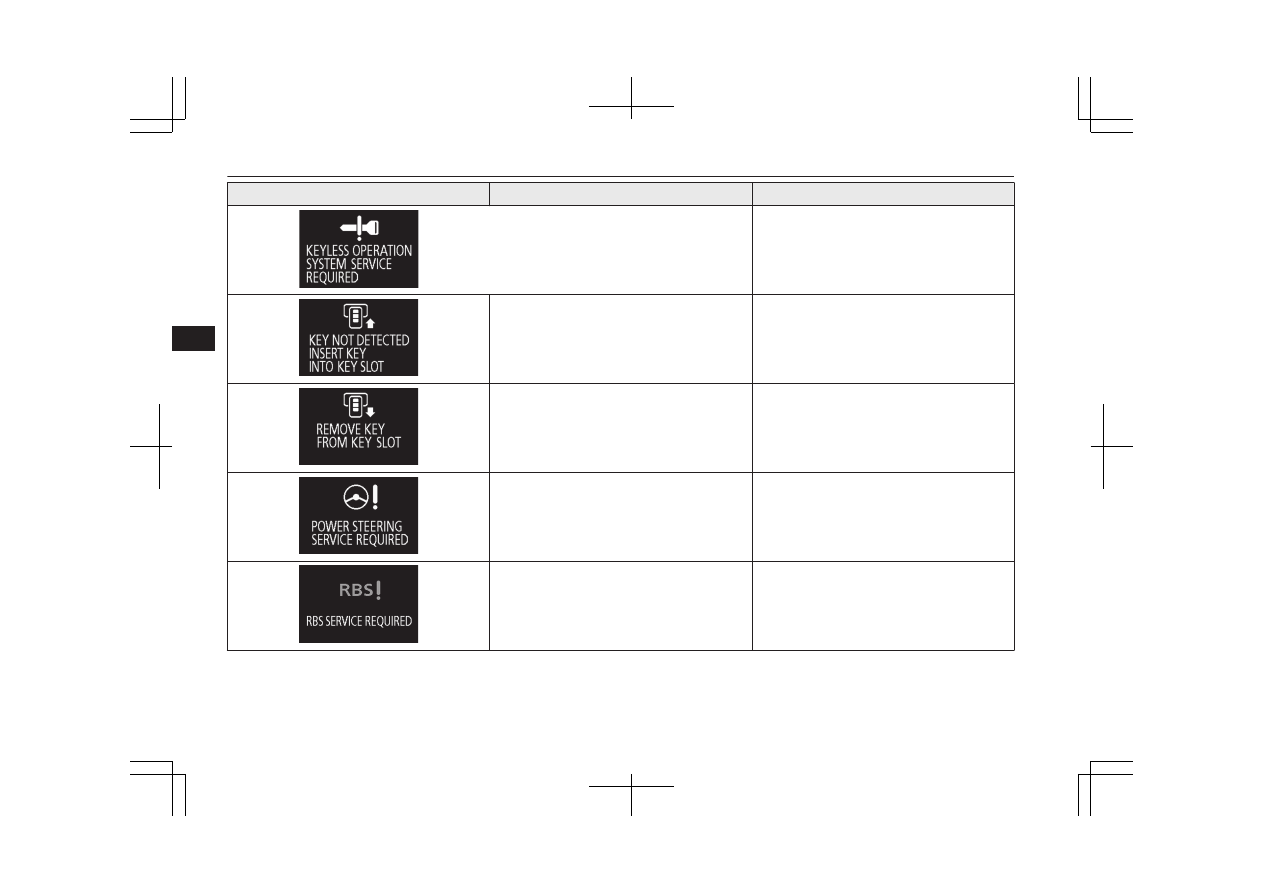

Screen

Cause

Solution (Reference)

l

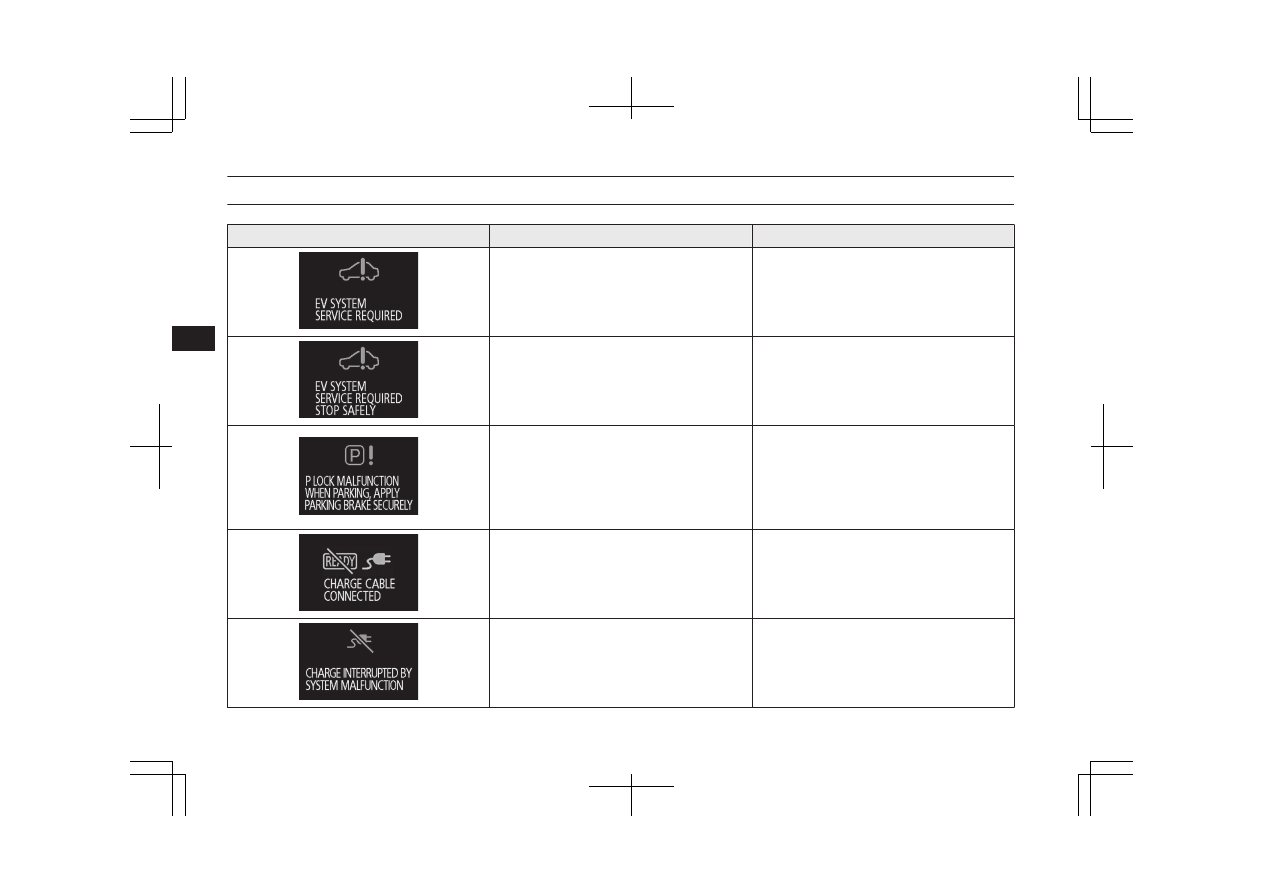

One  or  more  failure  is  occurring  in  the
Plug-in Hybrid EV System.

l

Have  your  vehicle  inspected  by  a
MITSUBISHI  MOTORS  Authorized
Service Point.

l

One  or  more  failure  is  occurring  in  the
Plug-in Hybrid EV System.

l

Immediately  park  the  vehicle  in  a  safe
place  and  contact  a  MITSUBISHI
MOTORS Authorized Service Point.

l

The  parking  lock  unit  is  in  failure.  The
Plug-in Hybrid EV System cannot be kept
in  standstill  condition  without  applying
the parking brake.

l

Park  the  vehicle  at  a  safe,  flat  place  and
apply  the  parking  brake.  Contact  a
MITSUBISHI  MOTORS  Authorized
Service Point.
Refer  to  “Electrical  Parking  switch”  on
page 7-18.

l

You  are  attempting  to  set  the  operation
mode to “ON” when the charge connector
is connected to the charge port.

l

Disconnect the charge connector from the
charge  port  before  operating  the  power
switch.

l

Charging  was  interrupted  due  to  system
failure or EV charging cable failure.

l

There is a system failure or the EV charg-
ing  charge  cable  is  faulty.  Immediately
stop  using  the  cable  and  contact  a
MITSUBISHI  MOTORS  Authorized
Service Point.

Indication lamp, warning lamp, and information screen display list

6-26

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

l

Normal charging

• Charging  was  interrupted  due  to  poor

connection of the EV charging cable or
power failure.

l

Quick charging

• Charging  was  stopped  by  your  opera-

tion.

• Charging was interrupted after the pre-

determined set time.

• Charging was interrupted due to a poor

connection of the EV charging cable or
an electrical power failure.

• Charging was interrupted because there

is a problem in the vehicle or the quick
charger.

l

Normal charging

• Connect the EV charging cable correct-

ly. Refer to “Normal charging” on page
3-10.

• If charging is interrupted due to a pow-

er  failure,  charging  will  resume  auto-
matically when the power source is re-
set.

l

Quick charging

• Connect the EV charging cable correct-

ly.  Refer  to  “Quick  charging”  on  page
3-17.

• If charging is interrupted due to a pow-

er  failure,  start  the  charging  procedure
again from the beginning after the pow-
er source is reset.

• If  the  warning  display  appears  in  the

meter  of  the  vehicle  or  on  the  quick
charger  display,  follow  the  instructions
and take the necessary measures.

Indication lamp, warning lamp, and information screen display list

6-27

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

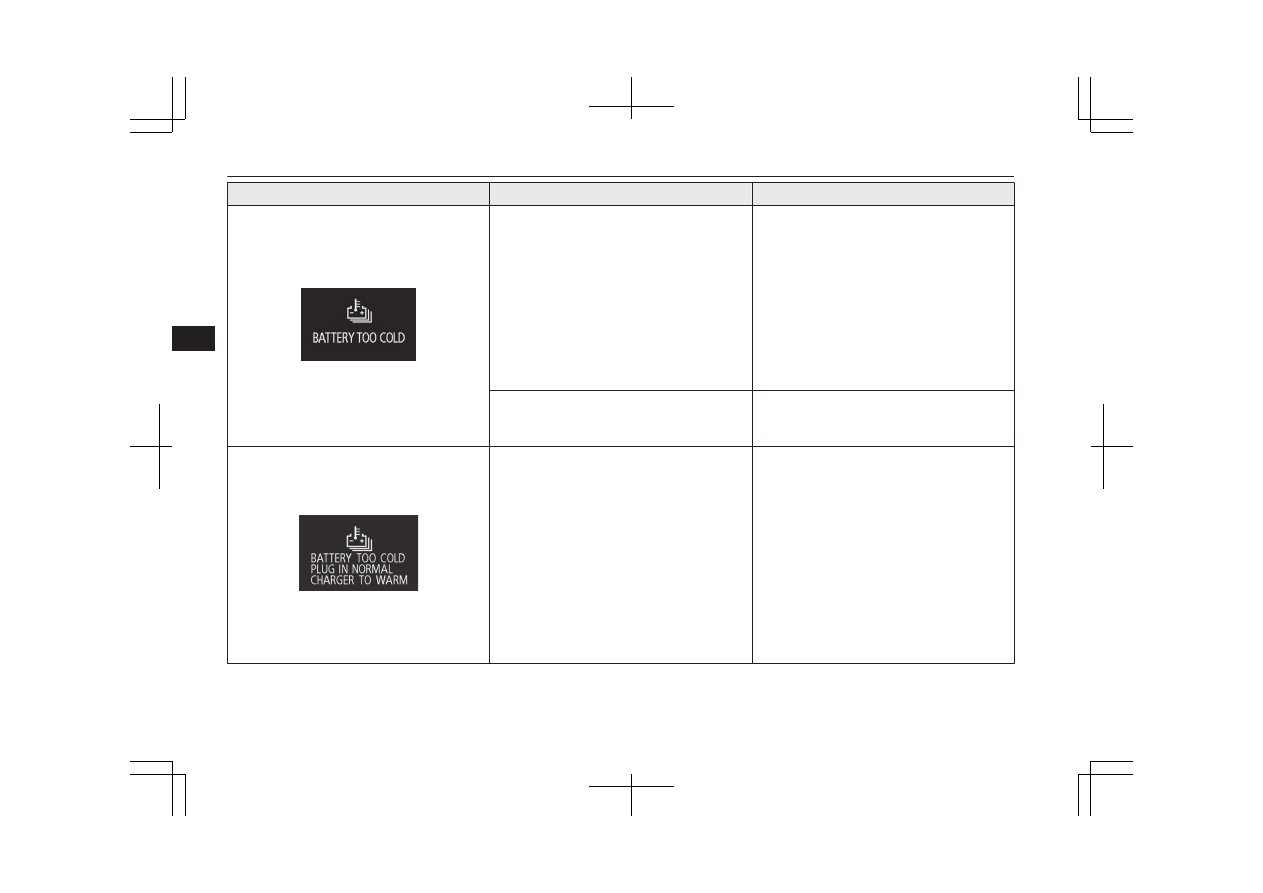

l

The drive battery temperature is too cold.

l

When  the  vehicle  is  under  running,  stop
the  vehicle  in  a  safe  place  and  contact  a
MITSUBISHI  MOTORS  Authorized
Service Point.

l

When  the  vehicle  is  parked  during  the
daytime, wait for the outside temperature
to rise and re-start the Plug-in hybrid sys-
tem once the outside temperature has ris-
en.
Refer  to  “Cautions  and  actions  to  deal
with intense cold” on page 2-10.

l

The battery charge mode is selected when
the drive battery temperature is cold.

l

You  do  not  have  to  take  any  actions,  but
the  time  needed  to  charge  the  drive  bat-
tery will become longer.

l

The  drive  battery  is  extremely  cold.  The
Plug-in  Hybrid  EV  System  will  not  start
until the drive battery is warm enough.

l

Even if the drive battery is fully charged,
connect  the  EV  charging  cable  (normal
charger). Then, the drive battery warming
system is operated and the drive battery is
automatically warmed up. While the drive
battery  warning  system  is  operating,
“BATTERY  TOO  COLD”  will  be  dis-
played. (Vehicles equipped with drive bat-
tery warming system)
Refer  to  “Charging  from  rated  AC
220-240 V outlet” on page 3-12.
Refer  to  “Cautions  and  actions  to  deal
with intense cold” on page 2-10

Indication lamp, warning lamp, and information screen display list

6-28

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

l

The drive battery is extremely cold.

l

Stop the vehicle at a safe place if the vehi-
cle is under running.
When the vehicle has been parked during
the daytime, wait for the outside tempera-
ture to rise and re-start the Plug-in Hybrid
EV  system  once  the  outside  temperature
has risen.
Refer  to  “Cautions  and  actions  to  deal
with intense cold” on page 2-10

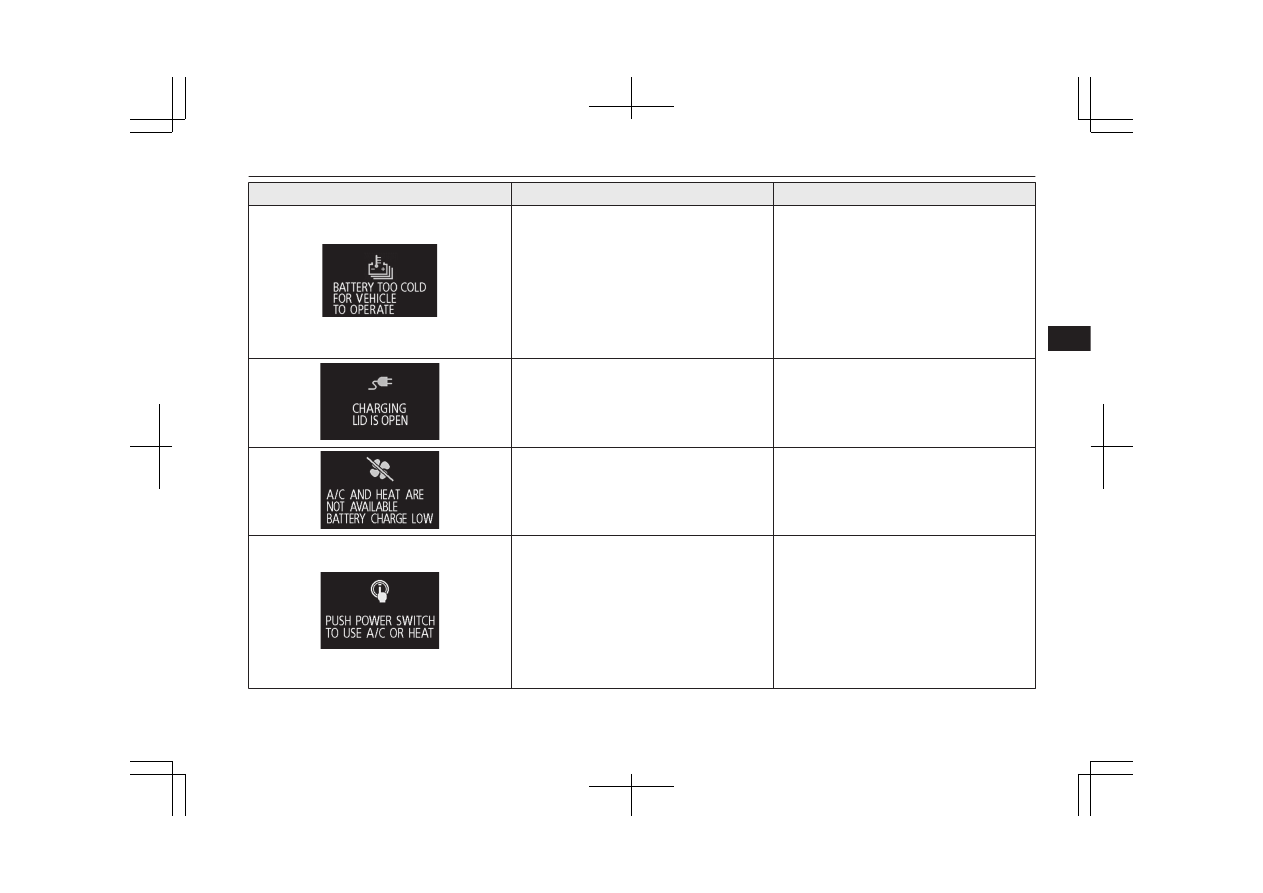

l

Charging lid is open.

l

Close the charge lid.
Refer  to  “Charging  from  rated  AC
220-240 V outlet” on page 3-12.

l

When  the  air  conditioner  stops  because
the drive battery level becomes low by us-
ing the air conditioner during charging.

l

Turn  the  power  switch  to  OFF  once  the
drive battery has been charged sufficient-
ly, then turn the power switch to ON. The
air conditioner can be used again.

l

When  the  air  conditioner  can  be  used
again in the following conditions.
The  drive  battery  is  sufficiently  charged
when  the  “A/C  AND  HEAT  ARE  NOT
AVAILABLE

BATTERY

CHARGE

LOW” indication is displayed or the drive
battery  is  sufficiently  heated  when  the
“BATTERY  TOO  COLD”  indication  is
displayed, etc.

l

Turn  the  power  switch  to  OFF  once,  and
then turn the power switch to ON. The air
conditioner can be used again.

Indication lamp, warning lamp, and information screen display list

6-29

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

l

When  the  operation  mode  of  the  power
switch is put in ON during charging.

l

The  electric  devices  can  be  used  during
charging. Refer to “How to use an electric
device during charging” on page 3-24.

l

EV priority mode is not available because
the drive battery level is low.

l

Refer to “EV switch” on page 7-25.

l

EV priority mode is not available because
the  cruise  control  or  the  Adaptive  Cruise
Control System (ACC) is operating.

l

EV priority mode is not available because
the drive battery is too cold.

l

EV priority mode is not available because
the EV priority mode is limited to protect
the Plug-in Hybrid EV System or the out-
side temperature is too low.

Indication lamp, warning lamp, and information screen display list

6-30

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

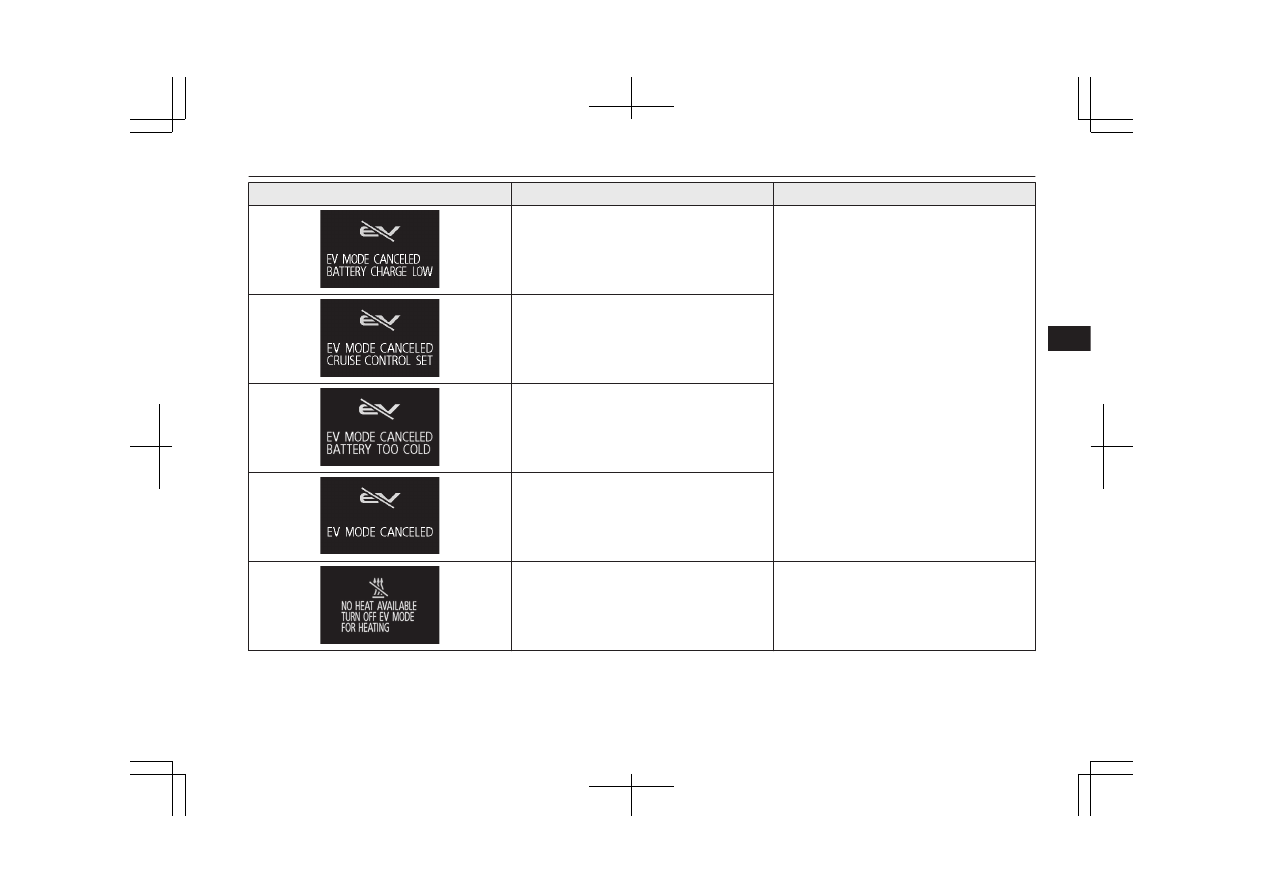

l

EV priority mode is cancelled because the
drive battery level is low.

l

EV priority mode is cancelled because the
vehicle  speed  of  the  cruise  control  or  the
Adaptive Cruise Control System (ACC) is
set.

l

EV priority mode is cancelled because the
drive battery temperature has become too
cold.

l

EV priority mode is cancelled because the
protecting  device  of  the  Plug-in  Hybrid
EV System is operated.

l

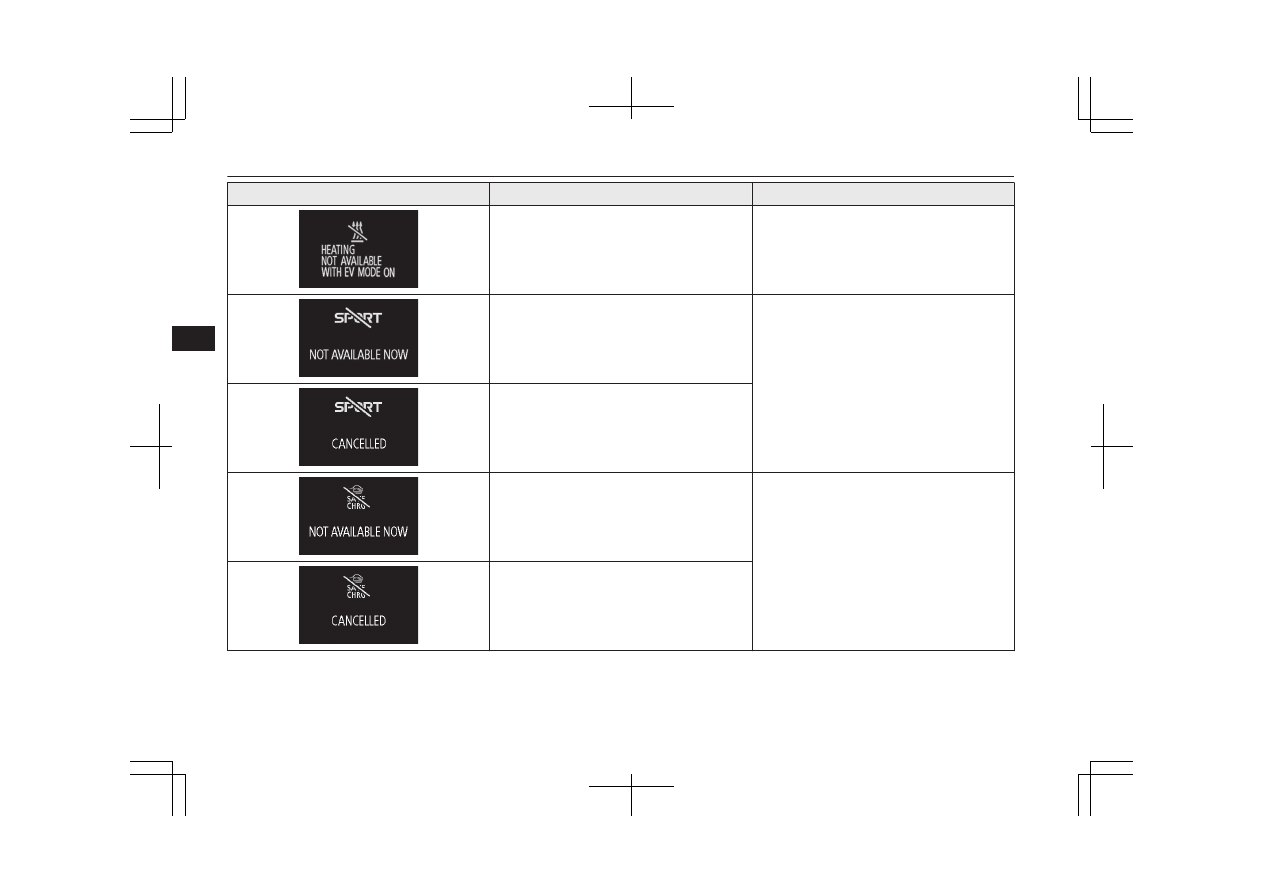

You  have  selected  the  warm  air  with  the
air conditioner switch while driving in the
EV priority mode.
(Vehicle without electric heater)

l

If you want to use the heating, cancel the
EV priority mode.
Refer to “EV switch” on page 7-25.

Indication lamp, warning lamp, and information screen display list

6-31

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

l

You  have  pressed  the  EV  switch  while
heating.
(Vehicle without electric heater)

l

If you want to use the EV priority mode,
stop the heating.
Refer  to  “Automatic  climate  control  air
conditioner” on page 8-06

l

SPORT mode is not available because the
remaining fuel quantity is low.

l

Refer  to  “SPORT  mode  switch”  on  page
7-31.

l

SPORT mode is cancelled because the re-
maining fuel quantity has become low.

l

Battery save mode or battery charge mode
is  not  available  because  the  engine  cool-
ant  temperature  is  high  or  the  remaining
fuel quantity is low.

l

Refer  to  “SAVE/CHARGE  mode  switch”
on page 7-28.

l

Battery save mode or battery charge mode
is  cancelled  because  the  engine  coolant
temperature  has  become  high  or  the  re-
maining fuel quantity has become low.

Indication lamp, warning lamp, and information screen display list

6-32

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

l

You have forgotten to turn off the lamps.

l

Refer  to  “Lamps  (headlamps,  fog  lamps,
etc.) auto-cutout function” on page 6-59.

l

The washer fluid is running low.

l

Replenish the container with washer fluid.
Refer to “Washer fluid” on page 11-08.
Refer  to  “Refill  capacities”  on  page
12-10.

l

There is a fault in the LED headlamps.

l

Have  your  vehicle  inspected  by  a
MITSUBISHI  MOTORS  Authorized
Service Point.
Refer  to  “LED  headlamp  warning  lamp”
on page 6-61.

l

There  is  a  fault  in  the  keyless  operation
system.

l

Refer  to  “Keyless  operation  system”  on
page 4-06.

Indication lamp, warning lamp, and information screen display list

6-33

OGGE19E1

Instruments and controls

6

Screen

Cause

Solution (Reference)

l

The keyless operation key is not detected.

l

Insert  the  keyless  operation  key  into  the
key slot.
Refer  to  “If  the  keyless  operation  key  is
not operating properly” on page 7-15.

l

You have forgotten to remove the keyless
operation key from the key slot.

l

Remove  the  keyless  operation  key  from
the key slot.
Refer  to  “Keyless  operation  key  remind-
er” on page 7-15.

l

There is a fault in the EPS.

l

Have  the  vehicle  inspected  by  a
MITSUBISHI  MOTORS  Authorized
Service Point as soon as possible.
Refer  to  “Electric  power  steering  system
(EPS)” on page 7-42.

l

The RBS (regenerative brake system) can-
not be used.

l

Have  your  vehicle  inspected  by  a
MITSUBISHI  MOTORS  Authorized
Service Point.

Indication lamp, warning lamp, and information screen display list

6-34

OGGE19E1

Instruments and controls

6















Content   ..  9  10  11  12   ..
