NOTE

l

Depending on the state of the vehicle (such
as during heating of the air conditioner), the
engine may start even if the needle of the en-
ergy usage indicator is indicated before zone
2 (the zone that the engine starts in high pos-
sibility).

l

Even when the EV priority mode is selected
and  the  engine  does  not  start,  the  needle  of
the energy usage indicator may indicate zone
2 (the zone that the engine starts in high pos-
sibility).

l

When the EV priority mode is selected, even
if  the  needle  of  the  energy  usage  indicator
enters zone 2, it will not start the engine un-
less it is over the specified point by pressing
the accelerator pedal.

l

Depending  on  the  vehicle  condition,  the
movement of the needle of the energy usage
indicator may be different or fluctuate.

l

Economical  driving  can  be  achieved  by  op-
erating  in  such  state  that  the  swing  of  the
needle is small within zone 1.

Charge zone

Indicates  the  charging  power  generated  by
the regenerative brake.
The more the needle moves, the more electric
energy is charged.
The needle of the energy usage indicator may
not enter the charge zone when the drive bat-
tery is close to full charge.

Also, if the needle of the energy usage indi-
cator  indicates  the  engine  output  zone,  the
needle does not indicate the charge zone even
when there is charging of the electrical ener-
gy by regenerative braking.

NOTE

l

With the charging power gauge of the multi
information  display,  you  can  check  the
charging power of electric energy generated
by  regenerative  braking  even  while  the  en-
gine is operating.

l

Both  the  display  of  the  charge  zone  by  the
energy  usage  indicator  needle  and  the  dis-
play of the charging power gauge in the mul-
ti  information  display  indicate  the  charging
power  of  electric  energy  by  regenerative
braking.

Engine output zone

Indicates  the  instantaneous  output  (kW)  of
the engine.

Meter illumination control

E00531301174

Each time you press the rheostat illumination
button, there is a sound and the brightness of
the instruments changes.

1- Brightness level
2- Rheostat illumination button

NOTE

l

You  can  adjust  to  8  different  levels  respec-
tively  for  when  the  position  lamps  are  illu-
minated and when they are not.

l

When the lamp switch is in a position other
than the “OFF” position, the meter illumina-
tion  switches  automatically  to  the  adjusted
brightness, depending on the brightness out-
side the vehicle.

Instruments

6-03

OGGE19E1

Instruments and controls

6

NOTE

l

The  brightness  level  of  the  instruments  is
stored when the operation mode of the pow-
er switch is put in OFF.

l

If you press and hold the button for about 2
seconds or more when the position lamps are
illuminated,  the  brightness  level  changes  to
the  maximum  level.  Pressing  and  holding
the button for about 2 seconds or more again
returns  the  brightness  level  to  the  previous
level.
On

vehicles

equipped

with

the

MITSUBISHI  Multi-Communication  Sys-
tem  (MMCS),  the  map  screen  colour  of
MITSUBISHI  Multi-Communication  Sys-
tem (MMCS) may not be switched to night-
time  setting  when  the  meter  illumination
brightness level is at the maximum.

Multi information display

E00519903158

Always stop the vehicle in a safe place before
operating.
The following information is included on the
multi information display: warnings, odome-
ter,  tripmeter,  average  fuel  consumption,  EV
cruising  range,  total  cruising  range,  EVHV
driving rate, energy flow, etc.

[When  the  operation  mode  of  the  power
switch is OFF]

1-  mark display screen

® p. 6-11

2- Information screen

® p. 6-07

Interrupt display screen

® p. 6-10

3- Drive  battery  level  display  screen

® p. 6-11

4- Odometer

® p. 6-13

5- “  ” or “  ” mark indicator

® p. 6-10

Multi information display

6-04

OGGE19E1

Instruments and controls

6

6- Door  ajar  warning  display  screen

® p. 6-11

NOTE

l

The  drive  battery  level  display  screen  ap-
pears when any of the doors or the tailgate is
opened during charging.

[When  the  operation  mode  of  the  power
switch is ON]

1- NORMAL mode indicator display
2- SNOW mode indicator display
3- LOCK mode indicator display

S-AWC  (Super  All  Wheel  Control)

® p. 7-20

4- ECO mode indicator display

ECO mode switch

® p. 6-68

5- SPORT mode indicator display

SPORT mode switch

® p. 7-31

6- Battery  charge  mode  display  screen

® p. 7-29

7- Battery  save  mode  display  screen

® p. 7-29

8- EV  priority  mode  display  screen

® p. 7-25

9-  mark display screen

® p. 6-11

10- Forward  Collision  Mitigation  System

(FCM) OFF display screen*

® p. 7-67

Ultrasonic  misacceleration  Mitigation
System  (UMS)  OFF  display  screen*

® p. 7-77

11- Lane Departure Warning (LDW) display

screen*

® p. 7-88

12- Cruise

control

display

screen*

® p. 7-45

Multi information display

6-05

OGGE19E1

Instruments and controls

6

13- Adaptive  Cruise  Control  System  (ACC)

display screen*

® p. 7-55

14- Speed

limiter

display

screen*

® p. 7-50

15- Drive  battery  level  display  screen

® p. 6-11

16- Odometer

® p. 6-13

17- “  ” or “  ” mark indicator

® p. 6-10

18- Information screen

® p. 6-09

19- Select position indicator

® p. 7-17

20- Fuel

remaining

display

screen

® p. 6-11

21- Outside  temperature  display  screen

® p. 6-13

22- Charging power gauge

® p. 6-12

Multi information display

switch

E00520001911

Each  time  the  multi  information  display
switch is operated, the buzzer sounds and the
multi  information  display  changes  between
information  such  as  warnings,  tripmeter,
average fuel consumption, EV cruising range,
total  cruising  range,  EVHV  driving  rate,  en-
ergy flow, etc.

It is also possible to change elements such as
the language and units used on the multi in-
formation  display  by  operating  the  multi  in-
formation display switch.

Multi information display

6-06

OGGE19E1

Instruments and controls

6

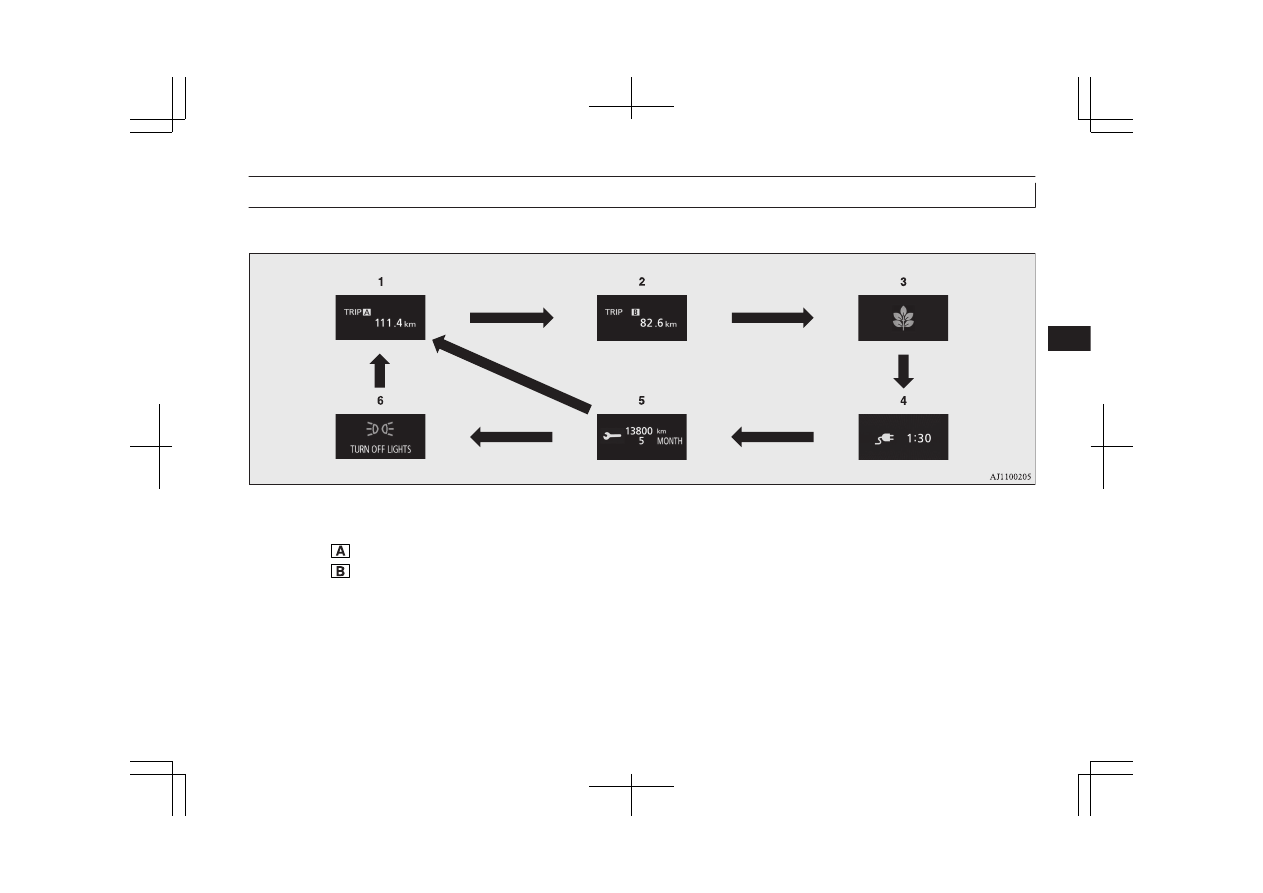

Information screen (when the operation mode is OFF)

E00520201968

Each time you lightly press the multi information display switch, the display screen switches in the following order.

*2

*1

*

1

: When there is no warning display

*

2

: When there is a warning display

1- Tripmeter   ® p. 6-13
2- Tripmeter   ® p. 6-13

3- ECO score display

® p. 6-17

4- Predicted charging time

® p. 3-10, 3-17

5- Service reminder

® p. 6-13

6- Redisplay of a warning display screen

® p. 6-10



Multi information display

6-07

OGGE19E1

Instruments and controls

6

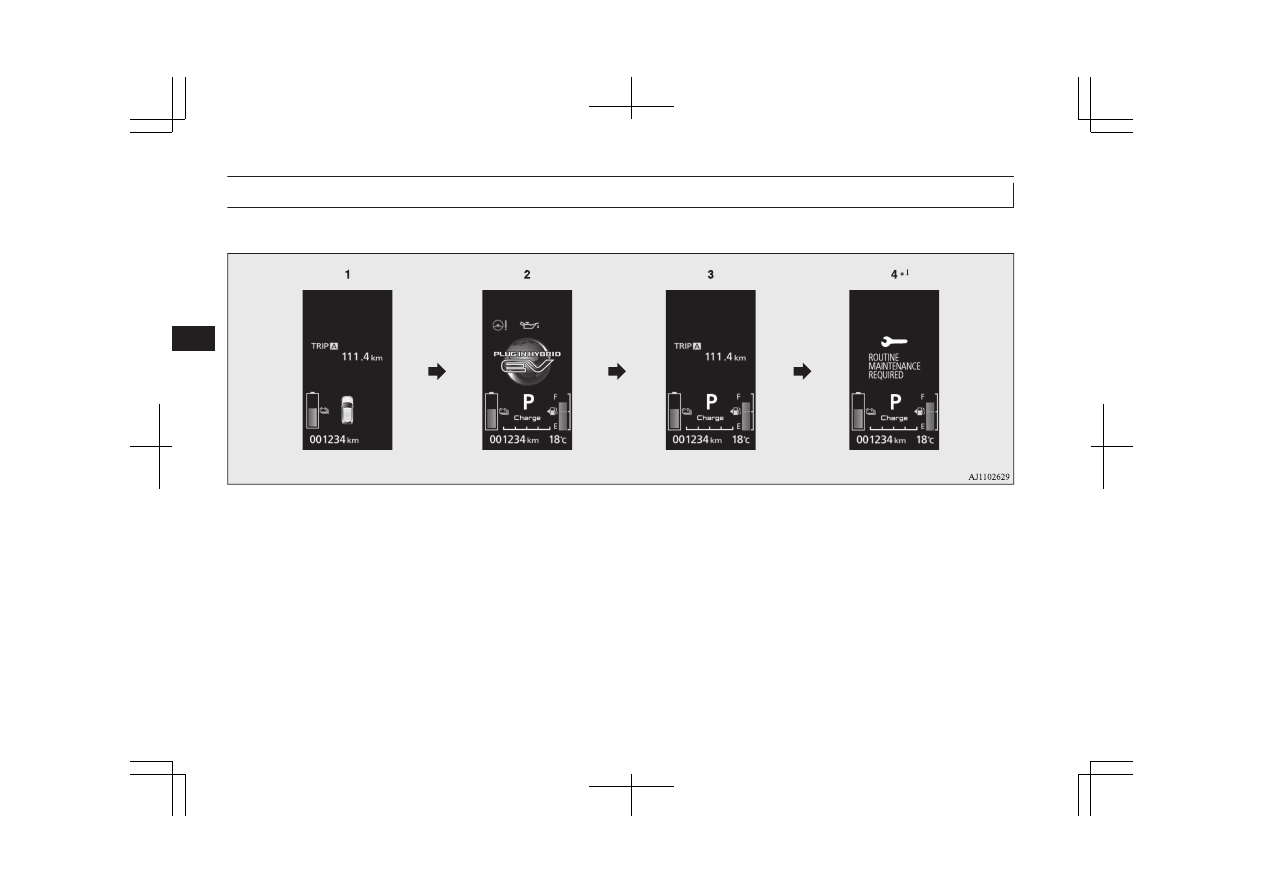

Information screen (when the operation mode is changed from OFF to ON)

E00520702351

When the operation mode is put in ON, the display screen switches in the following order.

*

1

: When the inspection time has arrived

1- Screen when the operation mode is OFF
2- System check screen

® p. 6-15

3- Screen when the operation mode is ON
4- Service reminder

® p. 6-13



Multi information display

6-08

OGGE19E1

Instruments and controls

6

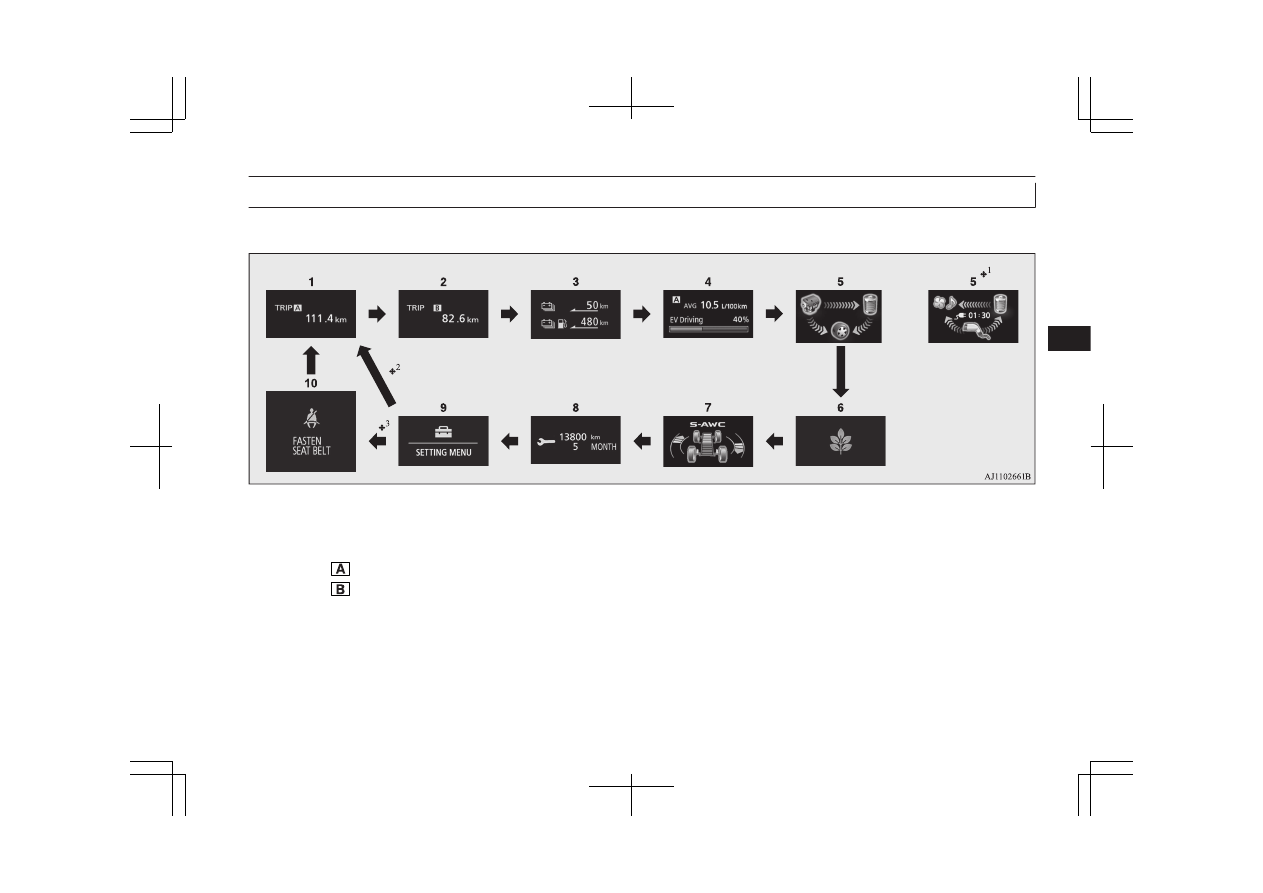

Information screen (when the operation mode is ON)

E00521102192

Each time you lightly press the multi information display switch, the display screen switches in the following order.

or

*

1

: When the vehicle is charged

*

2

: When there is no warning display

*

3

: When there is a warning display

1- Tripmeter   ® p. 6-13
2- Tripmeter   ® p. 6-13
3- EV cruising range display/Total cruising

range display

® p. 6-15

4- Average fuel consumption display

® p. 6-16
EVHV driving rate display

® p. 6-16

5- Energy flow display

® p. 6-16

or
Energy flow display during charging

® p. 3-26

6- ECO score display

® p. 6-17

7- S-AWC (Super-All Wheel Control) op-

eration display

® p. 7-22

8- Service reminder

® p. 6-13

9- Function setting screen

® p. 6-17

10- Redisplay of a warning display screen

® p. 6-10

Multi information display

6-09

OGGE19E1

Instruments and controls

6

NOTE

l

While driving, the service reminder is not displayed even if you operate the multi information display switch. Always stop the vehicle in a safe place before
operating.

l

While driving, the function setting screen is not displayed even if you operate the multi information display switch.
Before operation, park the vehicle in a safe place, firmly apply the parking brake, press the electrical parking switch, and shift to “P” (PARK) position.
Refer to “Changing the function settings” on page 6-17.

l

When there is information to be announced, such as a system fault, the buzzer sounds and the screen display is switched.
Refer to “Interrupt display screen” on page 6-10.



Interrupt display screen

E00522002084

Warning display

When  there  is  information  to  be  announced,
such as a system fault, the buzzer sounds and
the  information  screen  is  switched  to  the
warning display screen.
Refer to the warning list and take the neces-
sary measures.
Refer  to  “Warning  display  list”  on  page
6-26.
When  the  cause  of  the  warning  display  is
eliminated, the warning display goes out au-
tomatically.

To  return  to  the  screen  dis-

played  before  the  warning  dis-

play

Even  if  the  cause  of  the  warning  display  is
not  eliminated,  you  can  return  to  the  screen
that  was  displayed  before  the  warning  dis-
play.
If  you  press  the  multi  information  display
switch,  the  display  screen  switches  to  the
screen that was displayed before the warning
display and the   mark (A) is displayed.

If  you  want  to  switch  the  dis-

play

Warning  display  screens  with  a  “ ”  or  “ ”
mark  displayed  in  the  upper  right  of  the
screen can be switched. If you want to switch
the  display,  press  the  multi  information  dis-
play switch as follows.
“ ”: Press lightly.
“ ”:  Press  for  approximately  2  seconds  or
more.

Redisplay  of  a  warning  display

screen

When the   mark is displayed, if you lightly
press  the  multi  information  display  switch  a
few  times,  the  warning  display  screen  you
switched from is redisplayed.

Other interrupt displays

The  operation  status  of  each  system  is  dis-
played on the information screen.

Multi information display

6-10

OGGE19E1

Instruments and controls

6

Refer to the appropriate page in the warning
display list for further details.
Refer  to  “Other  interrupt  displays”  on  page
6-48.

 mark display screen

E00533901028

This  is  displayed  when  you  press  the  multi
information  display  switch  and  return  from
the  warning  display  screen  to  the  previous
screen.
This mark is also displayed if there is another
warning other than the one displayed.
When  the  cause  of  the  warning  display  is
eliminated, the   mark goes out automatical-
ly.

NOTE

l

When the   mark is displayed, the warning
display screen can be redisplayed on the in-
formation screen.
Refer  to  “Information  screen  (when  the  op-
eration mode is OFF)” on page 6-07.
Refer  to  “Information  screen  (when  the  op-
eration mode is ON)” on page 6-09.

Door ajar warning display

screen

E00522601979

If any of the doors or the tailgate is not com-
pletely closed, this displays the open door or
tailgate.
When  the  operation  mode  of  the  power
switch  is  ON,  if  the  vehicle  speed  exceeds
approximately  8  km/h  (5  mph)  while  a  door
is ajar, a buzzer sounds 4 times. This notifies
the driver that a door is ajar.

CAUTION

l

Before  moving  your  vehicle,  check  that  the
warning display does not appear.

Drive battery level display

screen

E00537700027

Indicates the remaining pow-
er in the drive battery.

Fuel remaining display screen

E00522201542

This displays the amount of fuel remaining.

F- Full
E- Empty

Multi information display

6-11

OGGE19E1

Instruments and controls

6

NOTE

l

It  may  take  several  seconds  to  stabilise  the
display after refilling the tank.

l

If  fuel  is  added  with  the  operation  mode  of
the  power  switch  is  in  ON,  the  fuel  gauge
may incorrectly indicate the fuel level.

l

The  arrow  (A)  indicates  that  the  fuel  tank
filler is located on the left side of the body.

Fuel remaining warning display

E00522402495

When the fuel is reduced to approximately 7
litres,  the  information  screen  switches  to  the
interrupt display of the fuel remaining warn-
ing display, and the “ ” mark (B) on the fuel
remaining  display  flashes  slowly  (approxi-
mately  once  per  second).  After  a  few  sec-
onds, the information screen returns from the
fuel  remaining  warning  display  to  the  previ-
ous screen.

If the remaining fuel level is reduced further,
the information screen switches to the fuel re-
maining  warning  display  and  the  “ ”  mark
(B)  on  the  fuel  remaining  display  flashes
quickly (approximately twice per second).

CAUTION

l

If  the  warning  display  appears,  refuel  as
soon as possible.
If  the  vehicle  runs  out  of  fuel,  the  engine
will  not  start  even  in  a  situation  need  to  be
generated  electricity,  the  following  condi-
tions will occur.

•

The driving performance falls (since only
the  electrical  power  stored  in  the  drive
battery can be used for the driving).

•

The heating performance cannot be avail-
able  (except  for  vehicles  with  an  electric
heater).

•

The effectiveness of the heater is insuffi-
cient (vehicles with electric heater).

CAUTION

•

The  catalytic  converter  may  be  damaged
due to excessive high temperature.

NOTE

l

On inclines or curves, the display may be in-
correct  due  to  the  movement  of  fuel  in  the
tank.

l

The  battery  save  mode  or  battery  charge
mode are cancelled or may not be activated
even  if  the  battery  save  mode  switch  or  the
battery  charge  mode  is  selected,  depending
on  the  remaining  quantity  of  the  drive  bat-
tery or the control condition of the system.

Charging power gauge

E00538400021

The charging power gauge shows momentary
charging  power  of  the  electric  energy  that  is
generated by regenerative braking.

Charging power with regenerative brake

Low

High

Multi information display

6-12

OGGE19E1

Instruments and controls

6

NOTE

l

The charging power gauge does not include
the  electric  power  generation  by  the  engine
operation.

l

The charging power gauge does not indicate
the  running  condition  of

  bat-

tery charge.

l

The movement of the gauge decreases as the
drive battery level is nearly full.

Outside temperature display

screen

E00522101509

This  shows  the  temperature
outside the vehicle.

NOTE

l

The  display  setting  can  be  changed  to  the
preferred units (°C or °F).
Refer to “Changing the function settings” on
page 6-17.

l

Depending  on  factors  such  as  the  driving
conditions,  the  displayed  temperature  may
vary from the actual outside temperature.

Odometer

E00527800083

The  odometer  indicates  the  distance  travel-
led.

Tripmeter

E00527901078

The tripmeter indicates the distance travelled
between two points.

Example usage of tripmeter

 and tripmeter

It  is  possible  to  measure  two  currently
travelled  distances,  from  home  using
tripmeter

 and from a particular point

on the way using tripmeter

.

To reset the tripmeter

To  return  the  display  to  0,  hold  down  the
multi-information  display  switch  for  about  2
seconds  or  more.  Only  the  currently  dis-
played value will be reset.

Example
If  tripmeter

  is  displayed,  only  tripmeter

 will be reset.

NOTE

l

When  disconnecting  the  auxiliary  battery
terminal,  the  memory  of  tripmeter

  and

  are  cleared,  and  the  display  returns  to

“0”.

Service reminder

E00522502021

Displays the approximate time until the next
periodic

inspection

recommended

by

MITSUBISHI  MOTORS.  “---”  is  displayed
when the inspection time has arrived.

NOTE

l

Depending on the vehicle specifications, the
displayed time may differ from the next peri-
odic  inspection  time  recommended  by
MITSUBISHI MOTORS.
In addition, the display settings for the next
periodic inspection time can be modified.
To modify the display settings, have it adjus-
ted at a MITSUBISHI MOTORS Authorized
Service Point.
For  more  details,  consult  a  MITSUBISHI
MOTORS Authorized Service Point.

1. Displays the time until the next periodic

inspection.

Multi information display

6-13

OGGE19E1

Instruments and controls

6

NOTE

l

The  distance  is  shown  in  units  of  100  km
(100  miles).  The  time  is  shown  in  units  of
months.

2. This informs you that a periodic inspec-

tion is due. We recommend you to con-
sult  a  MITSUBISHI  MOTORS  Author-
ized Service Point.

At that time, when the ignition switch is
switched  from  “OFF”  to  “ON”,  the
warning  display  is  displayed  for  a  few
seconds on the information screen.

3. After  your  vehicle  is  inspected  at  a

MITSUBISHI  MOTORS  Authorized
Service  Point,  it  displays  the  time  until
the next periodic inspection.

To reset

The “---” display can be reset while the igni-
tion switch or the opertion mode is in OFF.

When  the  display  is  reset,  the  time  until  the
next periodic inspection is displayed and the
warning display is no longer displayed when
the ignition switch is switched from “OFF” to
“ON”.

1. When  you  lightly  press  the  multi  infor-

mation  display  switch  a  few  times,  the
information display switches to the serv-
ice reminder display screen.

2. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  display  “ ”  and  make  it  flash.  (If
there  is  no  operation  for  about  10  sec-
onds with flashing, the display returns to
the previous screen.)

3. Lightly  press  the  multi  information  dis-

play switch while the icon is flashing to
change  the  display  from  “---”  to
“CLEAR”.  After  this,  the  time  until  the
next  periodic  inspection  will  be  dis-
played.

CAUTION

l

The customer is responsible for making sure
that periodic inspection and maintenance are
performed.
Inspections  and  maintenance  must  be  per-
formed  to  prevent  accidents  and  malfunc-
tions.

NOTE

l

“---” display cannot be reset when the opera-
tion mode is in ON.

Multi information display

6-14

OGGE19E1

Instruments and controls

6

NOTE

l

When  “---”  is  displayed,  after  a  certain  dis-
tance  and  a  certain  period  of  time,  the  dis-
play is reset and the time until the next peri-
odic inspection is displayed.

l

If you accidentally reset the display, we rec-
ommend  you  to  consult  a  MITSUBISHI
MOTORS Authorized Service Point.

System check screen

E00531001070

When  the  operation  mode  is  put  in  ON,  the
system check screen is displayed for about 4
seconds.  If  there  is  no  fault,  the  information
screen  (when  the  operation  mode  is  ON)  is
displayed.
If there is a fault, the screen changes to warn-
ing display.
Refer  to  “Warning  display  list”  on  page
6-26.

NOTE

l

The  system  check  screen  display  varies  de-
pending on the customer’s equipment.

EV cruising range display/

Total cruising range display

E00537600042

This  displays  the  approximate  driving  range
(how many more kilometres or miles you can
drive).

EV cruising range display (A)
This displays the distance that can be traveled
with the remaining power in the drive battery.
Total cruising range display (B)
This displays the distance that can be traveled
with the remaining power in the drive battery
and the remaining amount of fuel.

NOTE

l

The EV cruising range may vary depending
on the driving conditions and your personal
driving habits.
The EV cruising range is calculated from the
following information.

•

Current remaining power in the drive bat-
tery.

•

The most recent electric power consump-
tion rate.

NOTE

•

Operation status of the air-conditioner.
If the preceding driving condition is in the
following  situations,  the  EV  cruising
range display may show less distance than
before  even  though  there  is  almost  the
same  level  of  remaining  power  in  the
drive battery.

•

When much electricity is consumed from
the drive battery, such as in a traffic jam,
hill-climbing or high-speed driving.

•

When the air conditioner is operating.

Treat  the  distance  displayed  as  just  a  rough
guideline.
In  addition,  disconnecting  the  auxiliary  bat-
tery  cable  will  reset  the  EV  cruising  range
and the EV cruising range display may show
a  different  distance  from  the  previous  dis-
tance.

l

The learned value for the EV cruising range
can be reset by operating the multi informa-
tion display switch.
If  the  EV  cruising  range  display  shows  an
extremely different distance, please reset the
learned value to the initialized value.
For  details,  refer  to  “Reset  of  EV/Total
cruising range” on page 6-22.

l

When the drive battery is charged or the ve-
hicle is refuelled, the cruising range display
is  updated.  However,  if  the  charge  level  is
low or the refueling amount is small, it can-
not  be  updated  correctly.  Fully  charge  the
battery or refill to full tank whenever possi-
ble.

Multi information display

6-15

OGGE19E1

Instruments and controls

6

NOTE

l

On  rare  occasions,  the  value  displayed  for
the  driving  range  may  change  if  you  are
parked on an extremely steep incline. This is
due to the movement of fuel in the tank and
does not indicate a malfunction.

l

The  display  setting  can  be  changed  to  the
preferred units (km or miles).
Refer to “Changing the function settings” on
page 6-17.

l

When the EV cruising range falls below ap-
proximately 1 km (1 mile), the EV cruising
range display shows “---”.

l

When the total cruising range falls below ap-
proximately  50  km  (30  miles),  the  total
cruising range display shows “---”.

Average fuel consumption dis-

play

E00531201128

This  displays  the  average  fuel  consumption
from the last reset to the present time.
There are the following 2 mode settings.
Refer to “Changing the reset mode for aver-
age fuel consumption” on page 6-18.
For  information  on  how  to  change  the  aver-
age fuel consumption display setting, refer to
“Changing  the  function  settings”  on  page
6-17.

NOTE

l

The  average  fuel  consumption  display  can
be  reset  separately  for  the  auto  reset  mode
and for the manual reset mode.

l

“---” is displayed when the average fuel con-
sumption cannot be measured.

l

The  initial  (default)  setting  is  “Auto  reset
mode”.

l

The  average  fuel  consumption  depends  on
the  driving  condition  (road  condition,  driv-
ing  behavior,  etc.).  The  displayed  fuel  con-
sumption may vary from the actual fuel con-
sumption.  Treat  the  fuel  consumption  dis-
played as just a rough guideline.

l

The memory of the auto reset mode or man-
ual  reset  mode  for  the  average  fuel  con-
sumption  display  is  erased  if  the  auxiliary
battery is disconnected.

l

The  display  setting  can  be  changed  to  the
preferred units {km/L, mpg (US), mpg (UK)
or L/100 km}.
Refer to “Changing the function settings” on
page 6-17.

EVHV driving rate display

E00537500038

This  displays  the  ratios  of  the  time  travelled
with  electric  power  and  the  time  travelled
with both electric power and engine power.

The  ratio  of  the  time  traveled  with  electric
power  is  displayed  with  a  bar  graph  (blue)
and in a percentage.

NOTE

l

When  the  drive  battery  is  fully  charged,
EVHV  driving  rate  is  reset  and  display  be-
comes 100 %.

Energy flow display

E00537400040

This displays the flow of energy.

A- Engine

B- Drive battery
C- Tyre

Multi information display

6-16

OGGE19E1

Instruments and controls

6

Blue arrow-

Flow  of  electric  en-
ergy

Amber arrow-

Flow of other energy

Display  of  energy  flow  (exam-

ple)

When driving with electric energy

When driving with fuel (petrol) energy

When  driving  with  both  electric  energy
and fuel (petrol) energy

When charging the drive battery

When there is no energy flow

NOTE

l

During charging, the energy flow display for
charging  is  displayed.  For  details,  refer  to
“Energy  flow  display  during  charging”  on
page 3-26.

ECO Score

E00531601207

ECO  score  indicates  the  points  you  have
scored  on  fuel-efficient  driving  by  the  num-
ber of leaves as follows:

[When the operation mode is ON]
The display shows the score you achieved in
the last several minutes.


[When the operation mode is put in OFF]
The display shows the overall ECO score the
function has counted from the time when the
operation  mode  is  set  to  “ON”  to  the  time
when it is set to “OFF”.

ECO drive level

Low

High

Changing the function settings

E00522702254

The “Display language”, “Temperature unit”,
“Fuel  consumption  unit”,  and  “Average  fuel
consumption  and  speed  reset  method”  etc.
setting can be modified as desired.

1. Stop the vehicle in a safe place.

Firmly  apply  the  parking  brake,  and
press  the  electrical  parking  switch  and
shift to “P” (PARK) position.

2. Lightly  press  the  multi  information  dis-

play switch a few times to switch the in-
formation  screen  to  the  function  setting
screen.

Multi information display

6-17

OGGE19E1

Instruments and controls

6

Refer  to  “Information  screen”  on  page
6-09.

CAUTION

l

For safety, stop the vehicle before operating.
While driving, even if you operate the multi
information display switch, the function set-
ting screen is not displayed.

3. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.

NOTE

l

To  return  the  menu  screen  to  the  function
setting  screen,  press  and  hold  the  multi  in-
formation display switch for about 2 seconds
or more.

l

If  no  operations  are  made  within  about  30
seconds of the menu screen being displayed,
the  display  returns  to  the  function  setting
screen.

4. Select  the  item  to  change  on  the  menu

screen and change to the desired setting.
Refer  to  the  following  items  for  further
details on the operation methods.

Refer  to  “Changing  the  reset  mode  for
average  fuel  consumption”  on  page
6-18.
Refer  to  “Changing  the  fuel  consump-
tion display unit” on page 6-19.
Refer  to  “Changing  the  temperature
unit” on page 6-20.
Refer  to  “Changing  the  display  lan-
guage” on page 6-20.
Refer to “Changing the language cooper-
ative control” on page 6-21.
Refer  to  “Operation  sound  setting”  on
page 6-21.
Refer  to  “Changing  the  time  until
“REST  REMINDER”  is  displayed”  on
page 6-22.
Refer  to  “Changing  the  turn-signal
sound” on page 6-22.

Refer  to  “Reset  of  low  tyre  pressure
warning threshold” on page 7-96.
Refer  to  “Tyre  ID  set  change”  on  page
7-96.
Refer  to  “Reset  of  EV/Total  cruising
range” on page 6-22
Refer  to  “Returning  to  the  factory  set-
tings” on page 6-22.

NOTE

l

If the auxiliary battery is disconnected, these
function settings are reset from memory and
return  automatically  to  the  factory  settings
(except  the  low  tyre  pressure  warning
threshold and tyre ID set).

Changing the reset mode for
average fuel consumption

E00522902243

The  mode  conditions  for  the  average  fuel
consumption  display  can  be  switched  be-
tween “Auto reset” and “Manual reset”.

1. Press and hold the multi information dis-

play switch for about 2 seconds or more
to  switch  from  the  setting  mode  screen
to the menu screen.
Refer  to  “Changing  the  function  set-
tings” on page 6-17.

Multi information display

6-18

OGGE19E1

Instruments and controls

6
