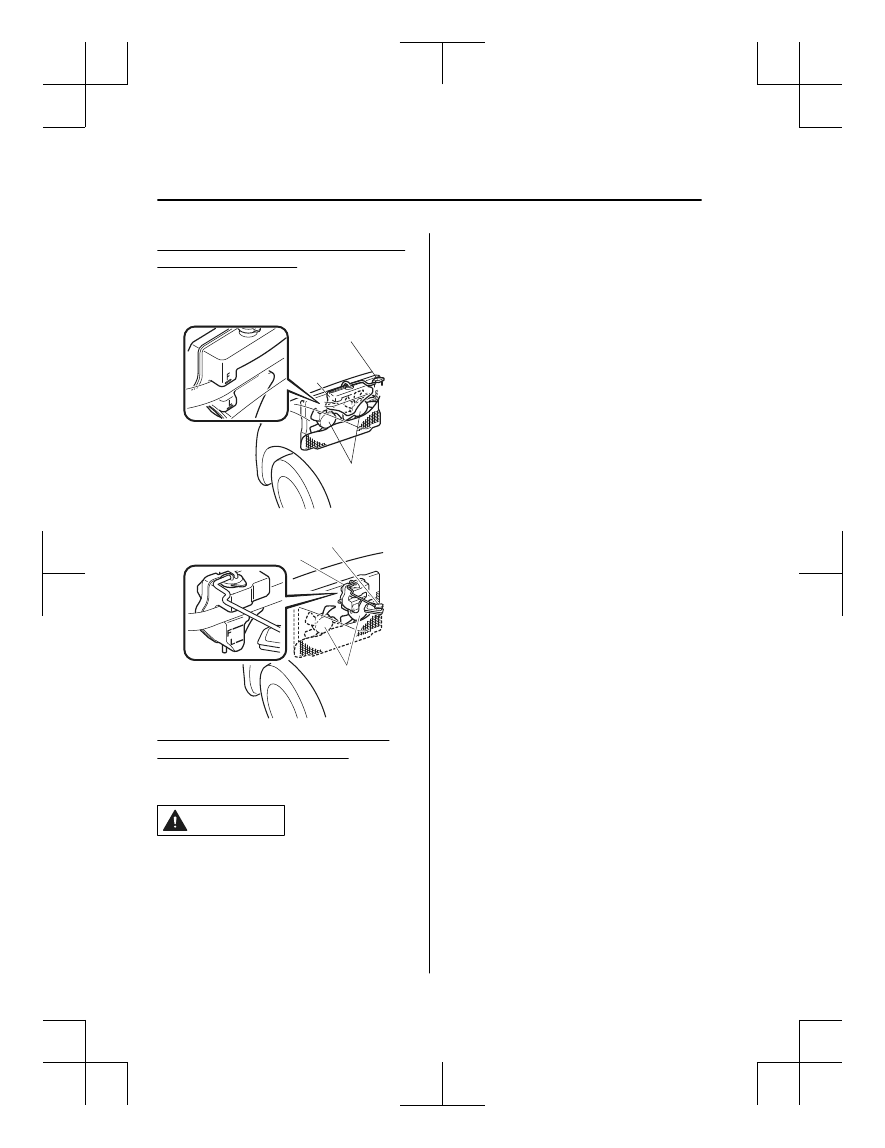

Fuse Panel Description

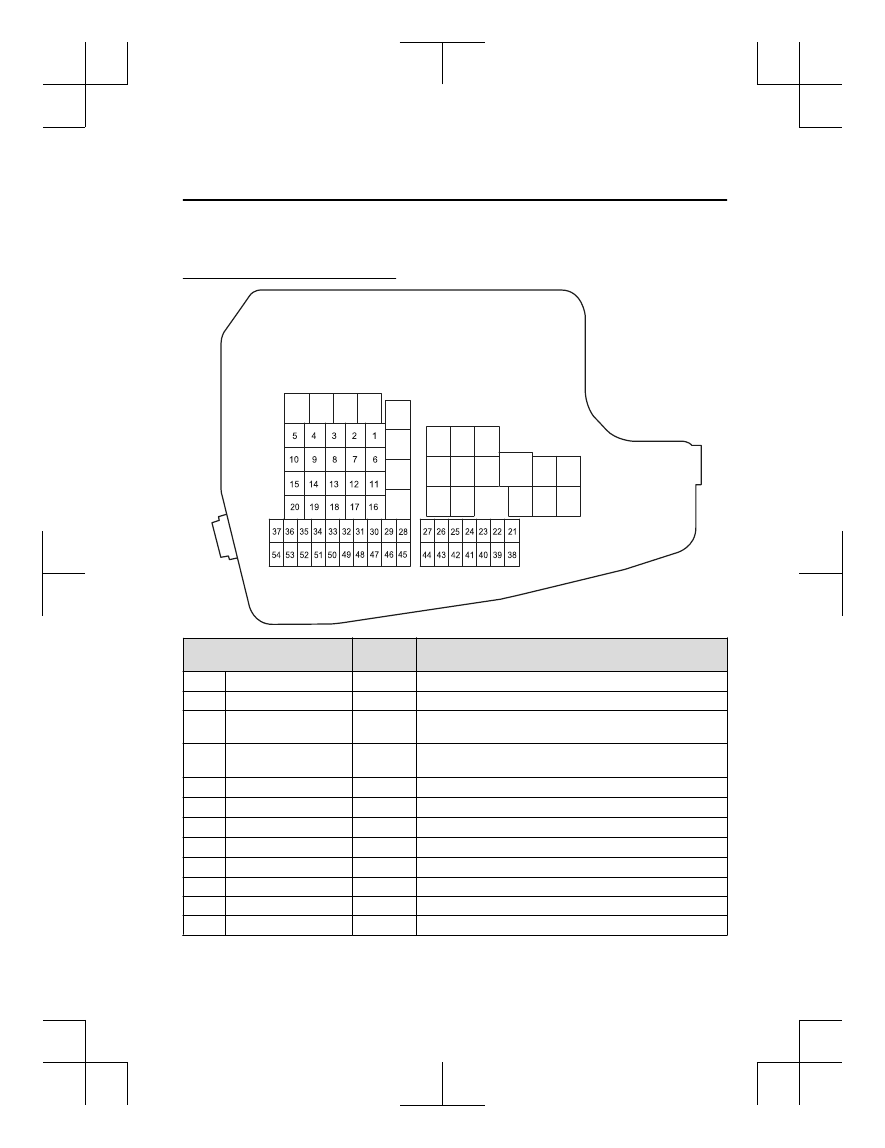

Fuse block (Engine compartment)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

CABIN.+B

50 A

For protection of various circuits

IG2

30 A

For protection of various circuits

INJECTOR

ENG.SUB

30 A

Engine control system

SCR1

EVVT

20 A

Engine control system

P.WINDOW1

30 A

Power windows

R.HEATER

20 A

―

ADD FAN DE

40 A

Cooling fan

WIPER.DEI

20 A

Windshield wiper de-icer

DEFOG

30 A

Rear window defogger

DCDC DE

40 A

For protection of various circuits

EPB R

20 A

Electric parking brake (EPB) (RH)

EPB L

20 A

Electric parking brake (EPB) (LH)

Maintenance and Care

Owner Maintenance

*Some models.

6-45

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

AUDIO

DCDC REG

30 A

Audio system

FAN GE

30 A

Cooling fan

ENG.MAIN

40 A

Engine control system

ABS/DSC M

50 A

ABS, Dynamic stability control system

FAN DE

40 A

Cooling fan

WIPER

20 A

Front window wiper and washer

HEATER

40 A

Air conditioner

ADD FAN GE

30 A

Cooling fan

ENGINE.IG1

7.5 A

Engine control system

C/U IG1

15 A

For protection of various circuits

AUDIO2

7.5 A

Audio system

METER2

7.5 A

Instrument cluster

ENGINE3

15 A

Engine control system

ENGINE2

15 A

Engine control system

ENGINE1

15 A

Engine control system

15 A

Transaxle control system, Ignition switch

H/CLEAN

20 A

―

A/C

7.5 A

Air conditioner

AT PUMP

15 A

Transaxle control system

HORN

15 A

Horn

R.WIPER

15 A

Rear window wiper

H/L HI

20 A

Headlight high beam

ST.HEATER

15 A

Heated steering wheel

FOG

15 A

―

ENG.+B

7.5 A

Engine control system

H/L LOW L

15 A

Headlight low beam (LH)

ENGINE4

15 A

Engine control system

INTERIOR1

15 A

For protection of various circuits

METER1

10 A

Instrument cluster

SRS1

7.5 A

Air bag

AUDIO1

15 A

Audio system

BOSE

25 A

Bose Sound System-equipped model

ABS/DSC S

30 A

ABS, Dynamic stability control system

FUEL PUMP

15 A

Fuel system

Maintenance and Care

Owner Maintenance

6-46

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

FUEL WARM

25 A

Fuel warmer

TAIL

15 A

Taillights, License plate lights, Parking lights

SCR2

FUEL PUMP2

25 A

―

HAZARD

25 A

Hazard warning flashers, Turn signal lights, Parking lights

H/L LOW R

15 A

Headlight low beam (RH)

OUTLET

25 A

Accessory sockets

STOP

10 A

Brake lights

ROOM

25 A

For protection of various circuit

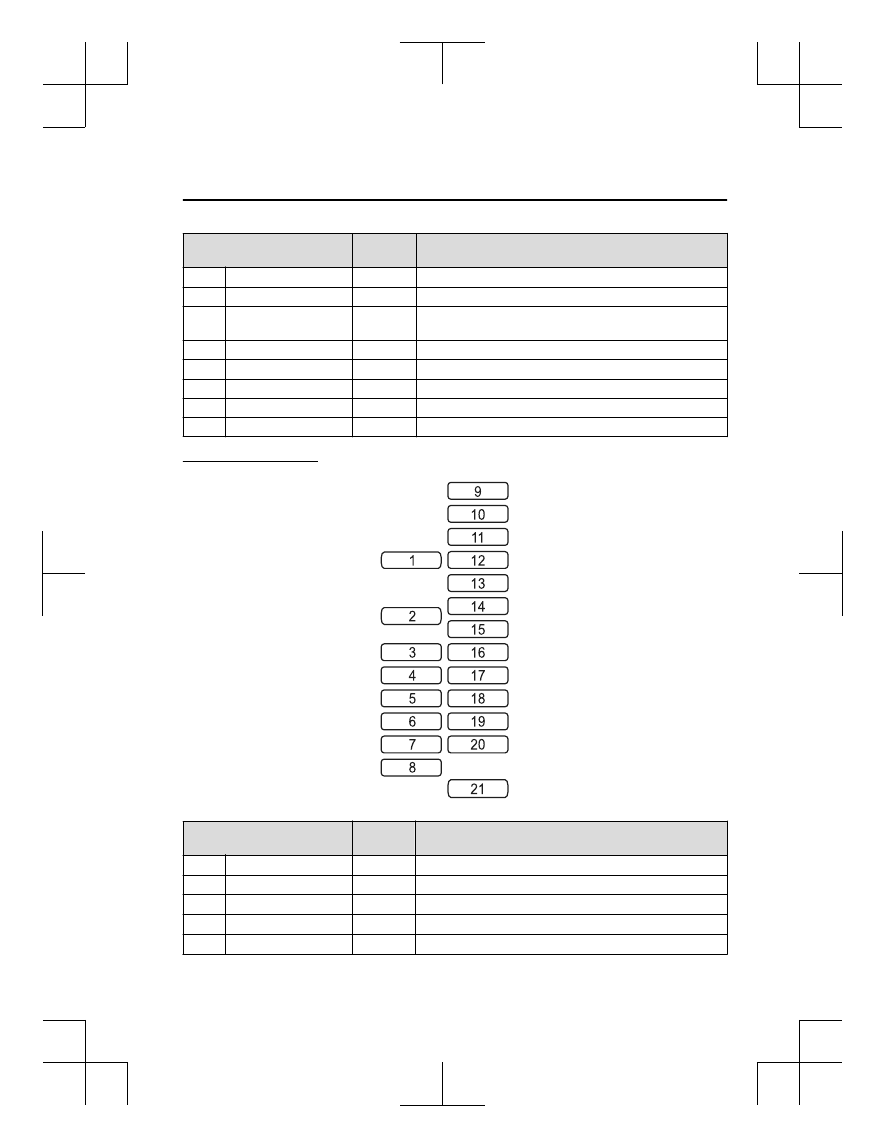

Fuse block (Left side)

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

P.SEAT D

30 A

Power seat

P.WINDOW3

30 A

Power windows

R.OUTLET3

15 A

Accessory sockets

P.WINDOW2

25 A

Power windows

ESCL

15 A

Trailer hitch

Maintenance and Care

Owner Maintenance

*Some models.

6-47

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

DESCRIPTION

FUSE

RATING

PROTECTED COMPONENT

D.LOCK

25 A

Power door locks

SEAT WARM

20 A

Seat warmer

SUNROOF

10 A

Moonroof

F.OUTLET

15 A

Accessory sockets

MIRROR

7.5 A

Power control mirror

R.OUTLET1

15 A

―

SCR3

15 A

―

SCR4

15 A

―

R.OUTLET2

15 A

Accessory sockets

USB

7.5 A

USB power outlet

PLG

20 A

Power liftgate

M.DEF

7.5 A

Mirror defogger

R.SEAT W

20 A

Rear seat warmer

INTERIOR2

15 A

For protection of various circuit

AT IND

7.5 A

AT shift indicator

P.SEAT P

30 A

Power seat

Maintenance and Care

Owner Maintenance

6-48

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Exterior Care

The paintwork on your Mazda represents
the latest technical developments in
composition and methods of application.

Environmental hazards, however, can
harm the paint's protective properties, if
proper care is not taken.

Here are some examples of possible
damage, with tips on how to prevent them.

Etching Caused by Acid Rain or
Industrial Fallout

Occurrence

Industrial pollutants and vehicle emissions
drift into the air and mix with rain or dew
to form acids. These acids can settle on a
vehicle's finish. As the water evaporates,
the acid becomes concentrated and can
damage the finish.
And the longer the acid remains on the
surface, the greater the chance is for
damage.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you
suspect that acid rain has settled on your
vehicle's finish.

Damage Caused by Bird Dropping,
Insects, or Tree Sap

Occurrence

Bird droppings contain acids. If these are
not removed they can eat away the clear
and color base coat of the vehicle's
paintwork.

When insects stick to the paint surface and
decompose, corrosive compounds form.
These can erode the clear and color base
coat of the vehicle's paintwork if they are
not removed.

Tree sap will harden and adhere
permanently to the paint finish. If you
scratch the sap off while it is hard, some
vehicle paint could come off with it.

Prevention

It is necessary to have your Mazda washed
and waxed to preserve its finish according
to the instructions in this section. This
should be done as soon as possible.

Bird droppings can be removed with a soft
sponge and water. If you are traveling and
these are not available, a moistened tissue
may also take care of the problem. The
cleaned area should be waxed according to
the instructions in this section.
Insects and tree sap are best removed with
a soft sponge and water or a commercially
available chemical cleaner.

Another method is to cover the affected
area with dampened newspaper for 1 to 2
hours. After removing the newspaper,
rinse off the loosened debris with water.

Maintenance and Care

Appearance Care

6-49

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Water Marks

Occurrence

Rain, fog, dew, and even tap water can
contain harmful minerals such as salt and
lime. If moisture containing these minerals
settles on the vehicle and evaporates, the
minerals will concentrate and harden to
form white rings. The rings can damage
your vehicle's finish.

Prevention

It is necessary to wash and wax your
vehicle to preserve its finish according to
the instructions in this section. These steps
should be taken immediately after you find
water marks on your vehicle's finish.

Paint Chipping

Occurrence

Paint chipping occurs when gravel thrown
in the air by another vehicle's tires hits
your vehicle.

How to avoid paint chipping

Keeping a safe distance between you and
the vehicle ahead reduces the chances of
having your paint chipped by flying
gravel.

NOTE



The paint chipping zone varies with the
speed of the vehicle. For example, when
traveling at 90 km/h (56 mph), the paint
chipping zone is 50 m (164 ft).



In low temperatures a vehicle's finish
hardens. This increases the chance of
paint chipping.



Chipped paint can lead to rust forming
on your Mazda. Before this happens,
repair the damage by using Mazda
touch-up paint according to the
instructions in this section. Failure to
repair the affected area could lead to
serious rusting and expensive repairs.

all

label and container directions

when using a chemical cleaner or polish.
Read all warnings and cautions.

▼

Maintaining the Finish

Washing

CAUTION



When the ignition is switched ON and
the wiper lever is in the AUTO position,
the windshield wipers may operate
automatically in the following cases:



The area of the windshield above the
rain sensor is touched or wiped with a
cloth.



The windshield or the rain sensor area
in the cabin is hit.

When the ignition is switched ON and
the wiper lever is in the AUTO position,
do not touch the windshield or the
windshield wipers Otherwise, the
windshield wipers will operate
automatically which could catch your
fingers or damage the windshield wipers.
When removing ice or snow, or cleaning
the windshield, always make sure the
wiper lever is in the OFF position.

Maintenance and Care

Appearance Care

6-50

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



Do not spray water in the engine
compartment. Otherwise, it could result
in engine-starting problems or damage
to electrical parts.



When washing and waxing the vehicle,
be careful not to apply excessive force to
any single area of the vehicle roof.
Otherwise, you could dent the vehicle.

To help protect the finish from rust and
deterioration, wash your Mazda
thoroughly and frequently, at least once a
month, with lukewarm or cold water.

If the vehicle is washed improperly, the
paint surface could be scratched. Here are
some examples of how scratching could
occur.

Scratches occur on the paint surface when:



The vehicle is washed without first
rinsing off dirt and other foreign matter.



The vehicle is washed with a rough, dry,
or dirty cloth.



The vehicle is washed at a car wash that
uses brushes that are dirty or too stiff.



Cleansers or wax containing abrasives
are used.

NOTE



Mazda is not responsible for scratches
caused by automatic car washes or
improper washing.



Scratches are more noticeable on
vehicles with darker paint finishes.

To minimize scratches on the vehicle's
paint finish:



Rinse off any dirt or other foreign matter
using lukewarm or cold water before
washing.



Use plenty of lukewarm or cold water
and a soft cloth when washing the
vehicle. Do not use a nylon cloth.



Rub gently when washing or drying the
vehicle.



Take your vehicle only to a car wash
that keeps its brushes well maintained.



Do not use abrasive cleansers or wax
that contain abrasives.

CAUTION



Do not use steel wool, abrasive cleaners,
or strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodized aluminum
parts. This may damage the protective
coating; also, cleaners and detergents
may discolor or deteriorate the paint.

Pay special attention to removing salt, dirt,
mud, and other foreign material from the
underside of the fenders, and make sure
the drain holes in the lower edges of the
doors and rocker panels are clean.

Insects, tar, tree sap, bird droppings,
industrial fallout, and similar deposits can
damage the finish if not removed
immediately. When prompt washing with
plain water is ineffective, use a mild soap
made for use on vehicles.

Thoroughly rinse off all soap with
lukewarm or cold water. Do not allow
soap to dry on the finish.

After washing the vehicle, dry it with a
clean chamois to prevent water spots from
forming.

Maintenance and Care

Appearance Care

6-51

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

WARNING

Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:

Driving with wet brakes is dangerous.
Increased stopping distance or the vehicle
pulling to one side when braking could
result in a serious accident. Light braking
will indicate whether the brakes have been
affected.

When using an automatic car wash



Retract the door mirrors.



The automatic car wash brushes could
reduce the paint luster or hasten paint
deterioration.

When using a high water pressure car
wash

High water temperature and high water
pressure car washers are available
depending on the type of car wash
machine. If the car washer nozzle is put
too close to the vehicle, the force of the
spray could damage or deform the
molding, affect the sealability of parts, and
allow water to penetrate the interior. Keep
a sufficient space (30 cm (12 in) or more)
between the nozzle and the vehicle. In
addition, do not spend too much time
spraying the same area of the vehicle, and
be very careful when spraying between
gaps in doors and around windows.

Waxing

Your vehicle needs to be waxed when
water no longer beads on the finish.

Always wash and dry the vehicle before
waxing it. In addition to the vehicle body,
wax the metal trim to maintain its luster.

1. Use wax which contains no abrasives.

Wax containing abrasives will remove
paints and could damage bright metal
parts.

2. Use a good grade of natural wax for

metallic, mica, and solid colors.

3. When waxing, coat evenly with the

sponge supplied or a soft cloth.

4. Wipe off the wax with a soft cloth.

NOTE

A spot remover to remove oil, tar, and
similar materials will usually also take off
the wax. Rewax these areas even if the rest
of the vehicle does not need it.

▼

Repairing Damage to the Finish

Deep scratches or chips on the finish
should be repaired promptly. Exposed
metal quickly rusts and can lead to major
repairs.

CAUTION

If your Mazda is damaged and needs metal
parts repaired or replaced, make sure the
body shop applies anti-corrosion materials
to all parts, both repaired and new. This
will prevent them from rusting.

▼

Bright-Metal Maintenance



Use tar remover to remove road tar and
insects. Never do this with a knife or
similar tool.



To prevent corrosion on bright-metal
surfaces, apply wax or chrome
preservative and rub it to a high luster.

Maintenance and Care

Appearance Care

6-52

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



During cold weather or in coastal areas,
cover bright-metal parts with a coating
of wax or preservative heavier than
usual. It would also help to coat them
with noncorrosive petroleum jelly or
some other protective compound.

CAUTION

Do not use steel wool, abrasive cleaners, or
strong detergents containing highly
alkaline or caustic agents on
chrome-plated or anodized aluminum
parts. This may result in damage to the
protective coating and cause discoloration
or paint deterioration.

▼

Underbody Maintenance

Road chemicals and salt used for ice and
snow removal and solvents used for dust
control may collect on the underbody. If
not removed, they will speed up rusting
and deterioration of such underbody parts
as fuel lines, frame, floor pan, and exhaust
system, even though these parts may be
coated with anti-corrosive material.

Thoroughly flush the underbody and
wheel housings with lukewarm or cold
water at the end of each winter. Try also to
do this every month.

Pay special attention to these areas
because they easily hide mud and dirt.

will do more harm than good to wet
down the road grime without removing
it.

The lower edges of doors, rocker panels,
and frame members have drain holes that

should not be clogged. Water trapped there
will cause rusting.

WARNING

Dry off brakes that have become wet by
driving slowly, releasing the accelerator
pedal and lightly applying the brakes
several times until the brake performance
returns to normal:

▼

Aluminum Wheel Maintenance

A protective coating is provided over the
aluminum wheels. Special care is needed
to protect this coating.

CAUTION

Do not use any detergent other than mild
detergent. Before using any detergent,
verify the ingredients. Otherwise, the
product could discolor or stain the
aluminum wheels.

NOTE



Do not use a wire brush or any abrasive
cleaner, polishing compound, or solvent
on aluminum wheels. They may damage
the coating.



Always use a sponge or soft cloth to
clean the wheels.

Maintenance and Care

Appearance Care

6-53

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Rinse the wheels thoroughly with
lukewarm or cold water. Also, be sure to
clean the wheels after driving on dusty
or salted roads to help prevent
corrosion.



Avoid washing your vehicle in an
automatic car wash that uses high-speed
or hard brushes.



(19-inch wheel vehicle)

If your aluminum wheels lose luster,
apply wax which contains no polishing
powder.

▼

Plastic Part Maintenance



When cleaning the plastic lenses of the
lights, do not use gasoline, kerosene,
rectified spirit, paint, thinner, highly
acidic detergents, or strongly alkaline
detergents. Otherwise, these chemical
agents can discolor or damage the
surfaces resulting in a significant loss in
functionality. If plastic parts become
inadvertently exposed to any of these
chemical agents, flush with water
immediately.



If plastic parts such as the bumpers
become inadvertently exposed to
chemical agents or fluids such as
gasoline, oil, engine coolant, or battery
fluid, it could cause discoloration,
staining, or paint peeling. Wipe off any
such chemical agents or fluids using a
soft cloth immediately.



High water temperature and high water
pressure car washers are available
depending on the type of high pressure
car washer device. If the car washer
nozzle is put too close to the vehicle or
aimed at one area for an extended period
of time, it could deform plastic parts or
damage the paint.



Do not use wax containing compounds
(polish). Otherwise, it could result in
paint damage.



In addition, do not use an electrical or
air tool to apply wax. Otherwise, the
frictional heat generated could result in
deformation of plastic parts or paint
damage.

Maintenance and Care

Appearance Care

6-54

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Interior Care

WARNING

Do not spray water into the vehicle cabin:

Spraying water into the vehicle cabin is
dangerous as electrical devices such as the
audio and switches could get wet resulting
in a malfunction or vehicle fire.

NOTE



Do not wipe the interior using alcohol,
chlorine bleach, or organic solvents
such as thinner, benzene, and gasoline.
Otherwise, it may cause discoloration or
stains.



Rubbing hard with a stiff brush or cloth
may cause damage.

If the vehicle interior becomes soiled by
any of the following, wipe it off
immediately using a soft cloth.
Leaving it uncleaned could cause
discoloration, stains, cracks, or peeling of
the coating, and it will make it hard to
wipe off later.



Beverage or fragrance



Grease or oil



Soiling

▼

Seat Belt Maintenance

1. Clean the soiled area by lightly

dabbing it with a soft cloth soaked in a
mild detergent (approx. 5%) diluted
with water.

2. Wipe off the remaining detergent using

a cloth soaked in clean water and
wrung out well.

3. Before retracting seat belts which have

been pulled out for cleaning, dry them

off thoroughly and make sure there is
no remaining moisture on them.

WARNING

If a seat belt appears frayed or has
abrasions, have it replaced by an
Authorized Mazda Dealer:

If a seat belt is used under such a condition,
it cannot function at its full capacity which
could result in serious injury or death.

Use a mild detergent to remove soiling
from a seat belt:

If organic solvents are used for cleaning the
seat belts or they become stained or
bleached, there is the possibility of them
becoming weakened and as a result, they
may not function at their full capacity
which could cause serious injury or death.

NOTE

Clean seat belts diligently if they get dirty.
Leaving them uncleaned will make it
difficult to clean them later, and it may
affect the smooth retracting of the seat
belt.

▼

Vinyl Upholstery Maintenance

1. Remove dust and sand using a vacuum

cleaner.

2. Wipe the soiled area with a soft cloth

soaked in a mild detergent (approx.
5 %) diluted with water.

3. Wipe off the remaining detergent using

a cloth soaked in clean water and
wrung out well.

▼

Upholstery Maintenance

1. Clean the soiled area by lightly

dabbing it with a soft cloth soaked in a

Maintenance and Care

Appearance Care

6-55

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

mild detergent (approx. 5%) diluted
with water.

2. Wipe off the remaining detergent using

a cloth soaked in clean water and
wrung out well.

▼

Leather Upholstery Maintenance

1. Remove dust and sand using a vacuum

cleaner.

2. Wipe off the soiled area with a soft

cloth and a suitable, special cleaner or
a soft cloth soaked in a mild detergent
(about 5%) diluted with water.

3. Wipe off the remaining detergent using

a cloth soaked in clean water and
wrung out well.

4. Remove moisture with a dry, soft cloth

and allow the leather to further dry in a
well-ventilated, shaded area. If the
leather gets wet such as from rain,
remove the moisture and dry it as soon
as possible.

NOTE



Because genuine leather is a natural
material, its surface is not uniform and
it may have natural scars, scratches,
and wrinkles.



To maintain the quality for as long as
possible, periodical maintenance, about
twice a year, is recommended.



If the leather upholstery comes into
contact with any of the following, clean
it immediately.
Leaving it uncleaned could cause
premature wear, mold, or stains.



Sand or dirt



Grease or oil, such as hand cream



Alcohol, such as in cosmetic or hair
dressing items



If the leather upholstery gets wet,
promptly remove moisture with a dry
cloth. Remaining moisture on the
surface may cause deterioration such as
hardening and shrinkage.



Exposure to direct sunlight for long
periods may cause deterioration and
shrinkage. When parking the car under
direct sunlight for long periods, shade
the interior using sunshades.



Do not leave vinyl products on the
leather upholstery for long periods.
They may affect the leather quality and
coloring. If the cabin temperature
becomes hot, the vinyl may deteriorate
and adhere to the genuine leather.

▼

Plastic Part Maintenance

CAUTION

Do not use polishing agents.
Depending on the product ingredients,
they could cause discoloration, stains,
cracks or peeling of the coating.

▼

Instrument Panel Top (Soft pad)
Maintenance

Extremely soft material is used for the soft
pad surface. If the soft pad surface is
rubbed harshly with a dry cloth, it could
result in the surface being damaged and
leaving white scratch marks.
1. Wipe the soiled area with a soft cloth

soaked in a mild detergent (approx.
5%) diluted with water.

2. Wipe off the remaining detergent using

a cloth soaked in clean water and
wrung out well.

Maintenance and Care

Appearance Care

6-56

*Some models.

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

▼

Panel Maintenance

If a panel becomes soiled, wipe it off with
a soft cloth soaked in clean water and
thoroughly wrung out.
If some areas require further cleaning, use
the following procedure:
1. Wipe the soiled area with a soft cloth

soaked in a mild detergent (approx.
5 %) diluted with water.

2. Wipe off the remaining detergent using

a cloth soaked in clean water and
wrung out well.

NOTE

Be particularly careful when cleaning
shiny surface panels and metallic parts
such as plating as they can be scratched
easily.

▼

Active Driving Display
Maintenance

The dust-proof sheet has a coating. When
cleaning, do not use a hard or
rough-surface cloth, or cleaning detergent.
In addition, if a chemical solvent gets on
the active driving display, wipe it off
immediately. The dust-proof sheet could
be damaged and the surface coating could
be scratched. Use a fine, soft cloth such as
those used for cleaning eyeglasses.

NOTE

Use of compressed air when cleaning the
dust-proof sheet is recommended.

▼

Cleaning the Window Interiors

If the windows become covered with an
oily, greasy, or waxy film, clean them with
glass cleaner. Follow the directions on the
container.

CAUTION



Do not scrape or scratch the inside of the
window glass. It could damage the
thermal filaments and the antenna lines.



When washing the inside of the window
glass, use a soft cloth dampened in
lukewarm water, gently wiping the
thermal filaments and the antenna lines.
Use of glass cleaning products could
damage the thermal filaments and the
antenna lines.

▼

Cleaning the Floor Mats

Rubber floor mats should be cleaned with
mild soap and water only.

WARNING

Do not use rubber cleaners, such as tire
cleaner or tire shine, when cleaning rubber
floor mats:

Cleaning the rubber floor mats with rubber
cleaning products makes the floor mats
slippery.
This may cause an accident when
depressing the accelerator or brake pedal
or when getting in or out of the vehicle.

After removing the floor mats for
cleaning, always reinstall them securely
(page 3-48).

Maintenance and Care

Appearance Care

*Some models.

6-57

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

If Trouble Arises

Helpful information on what to do if a problem arises with the vehicle.

Parking in an Emergency................. 7-2

Parking in an Emergency..............7-2

Flat Tire..............................................7-3

Spare Tire and Tool Storage......... 7-3
Changing a Flat Tire..................... 7-6

Battery Runs Out............................ 7-13

Jump-Starting............................. 7-13

Emergency Starting.........................7-16

Starting a Flooded Engine.......... 7-16
Push-Starting.............................. 7-16

Overheating......................................7-17

Overheating................................ 7-17

Emergency Towing.......................... 7-19

Towing Description.................... 7-19

Tiedown Hooks

......................... 7-20

Warning/Indicator Lights and
Warning Sounds.............................. 7-22

If a Warning Light Turns On or
Flashes........................................ 7-22
Message Indicated on Multi-
information Display

.................. 7-37

Warning Sound is Activated....... 7-39

When Liftgate Cannot be
Opened..............................................7-44

When Liftgate Cannot be
Opened........................................7-44

Active Driving Display Does Not
Operate.............................................7-45

If the Active Driving Display Does
Not Operate................................ 7-45

*Some models.

7-1

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

▼

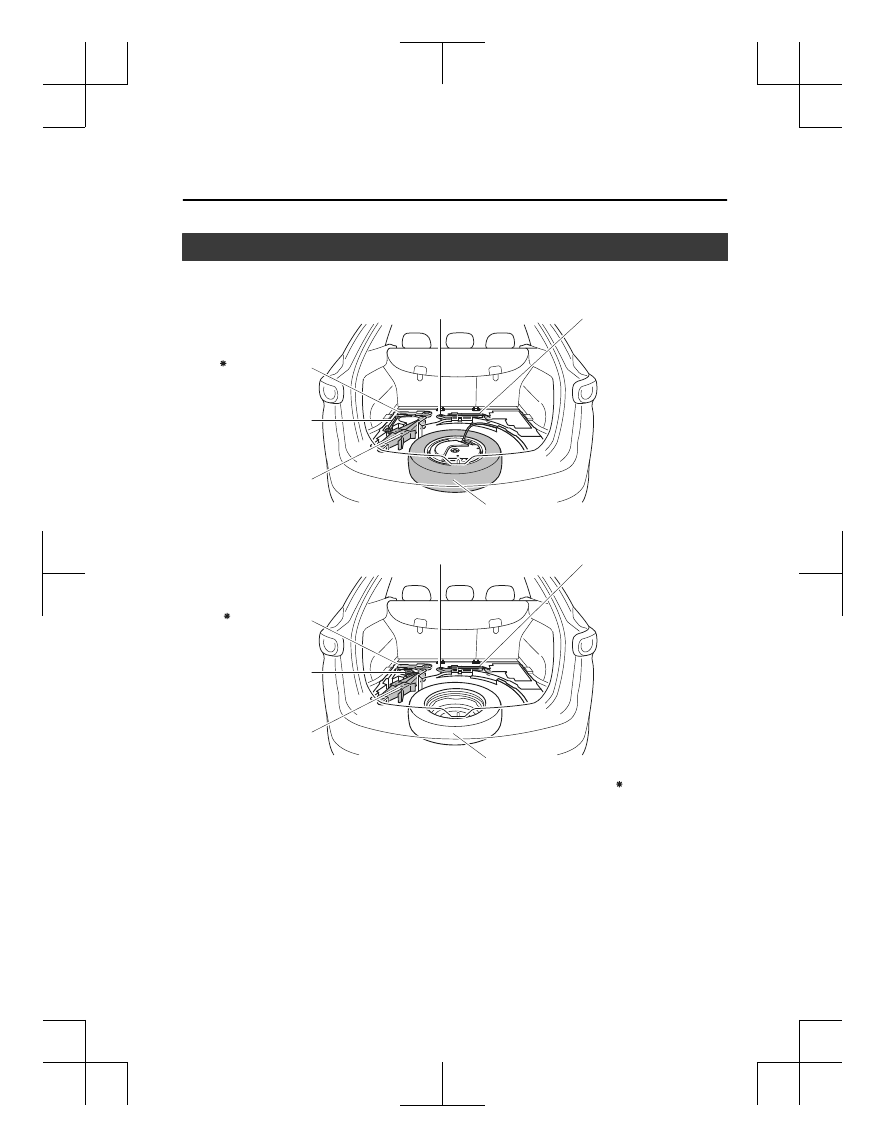

Jack

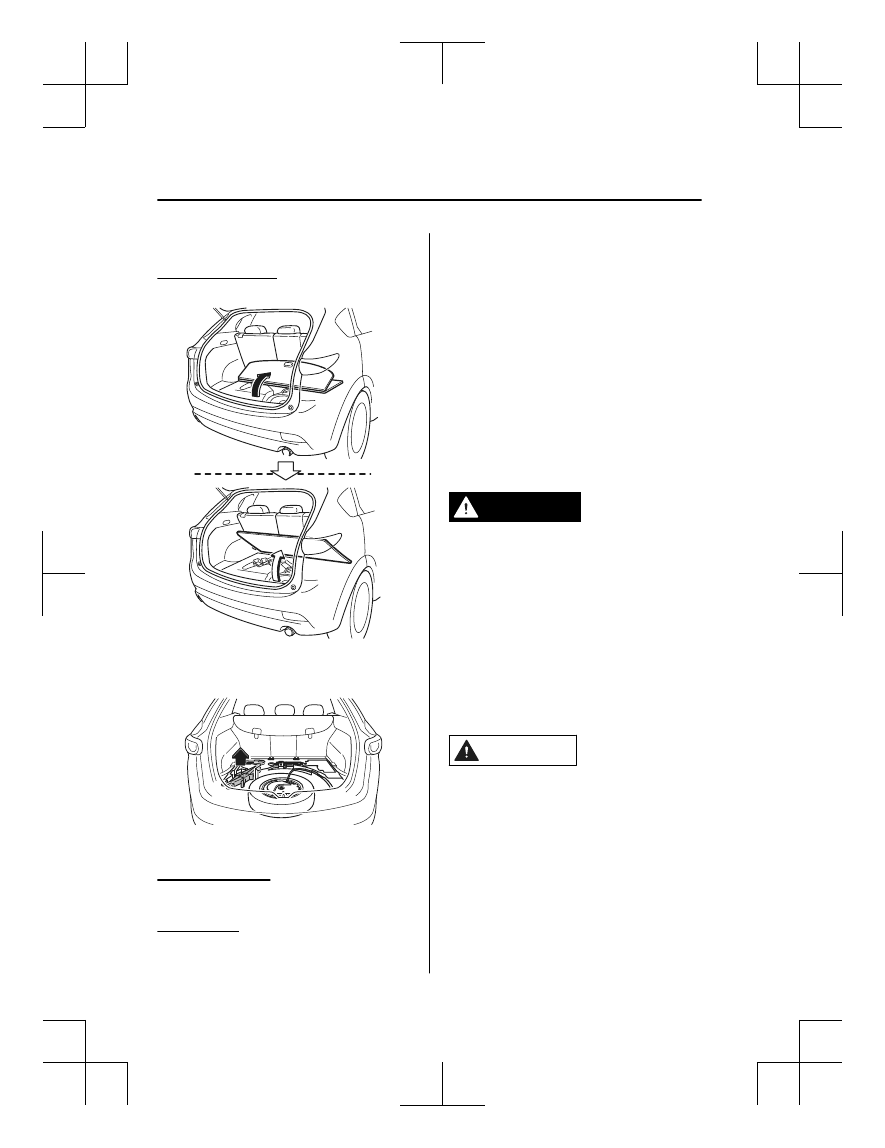

To remove the jack

1. Open the luggage board, and lift it.

2. Remove the jack.

To secure the jack

Perform the removal procedure in reverse.

Maintenance



Always keep the jack clean.



Make sure the moving parts are kept
free from dirt or rust.



Make sure the screw thread is
adequately lubricated.

▼

Spare Tire

Your Mazda has a temporary spare tire.
The temporary spare tire is lighter and
smaller than a conventional tire, and is
designed only for emergency use and
should be used only for VERY short
periods. Temporary spare tires should
NEVER be used for long drives or
extended periods.

WARNING

Do not install the temporary spare tire on
the front wheels (driving wheels):

Driving with the temporary spare tire on
one of the front driving wheels is
dangerous. Handling will be affected. You
could lose control of the vehicle, especially
on ice or snow bound roads, and have an
accident. Move a regular tire to the front
wheel and install the temporary spare tire
to the rear.

CAUTION



When using the temporary spare tire,
driving stability may decrease compared
to when using only the conventional tire.
Drive carefully.



To avoid damage to the temporary spare
tire or to the vehicle, observe the
following precautions:



Do not exceed 80 km/h (50 mph).

If Trouble Arises

Flat Tire

7-4

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50



Avoid driving over obstacles. Also, do
not drive through an automatic car
wash. This tire's diameter is smaller
than a conventional tire, so the ground
clearance is reduced.



Do not use a tire chain on this tire
because it will not fit properly.



Do not use your temporary spare tire
on any other vehicle, it has been
designed only for your Mazda.



Use only one temporary spare tire on
your vehicle at the same time.

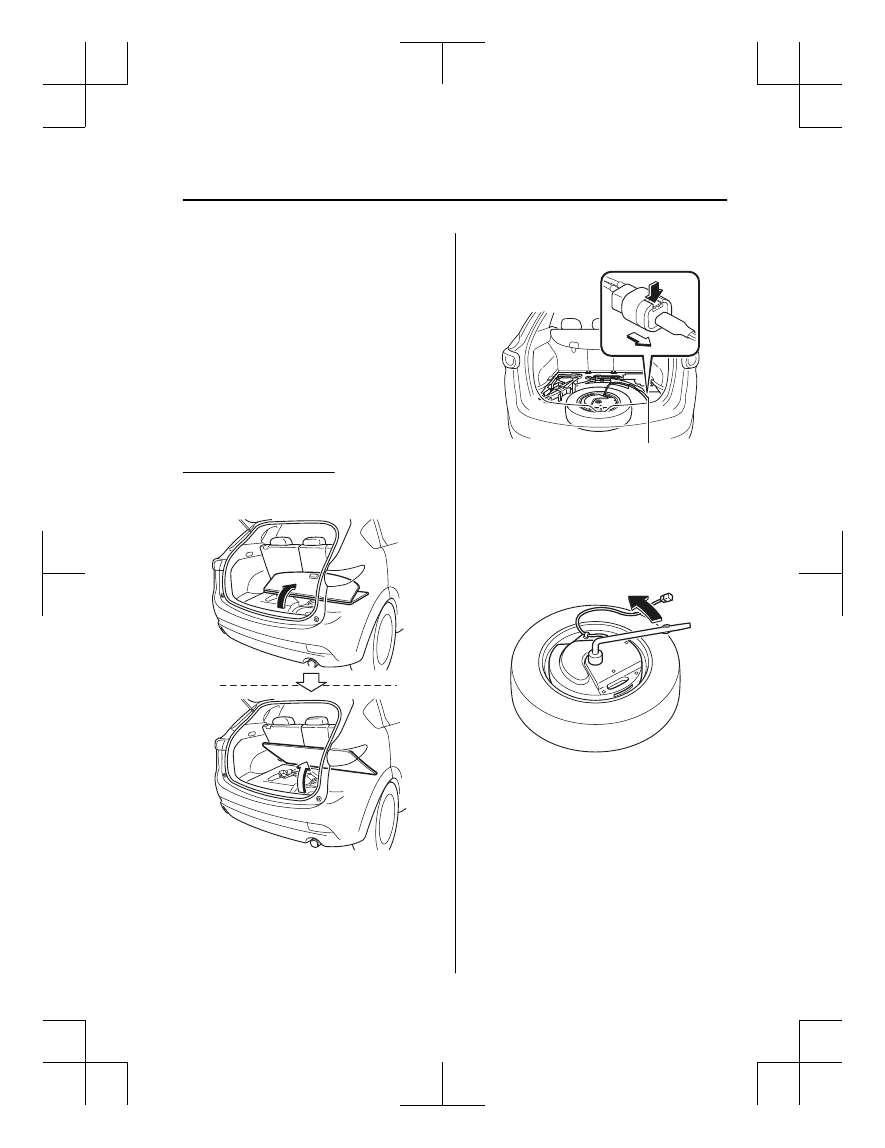

To remove the spare tire

1. Open the luggage board, and remove

it.

2. For vehicles equipped with a

sub-woofer, uncouple the connector.

Connector

NOTE

Extra strength may be required to
uncouple the connector. Be sure to
squeeze the tab firmly.

3. For vehicles equipped with a

sub-woofer, loosen the hold-down bolt
and remove the woofer and spare tire.

If Trouble Arises

Flat Tire

7-5

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

For vehicles not equipped with a
sub-woofer, turn the spare tire
hold-down bolt counterclockwise and
remove the spare tire.

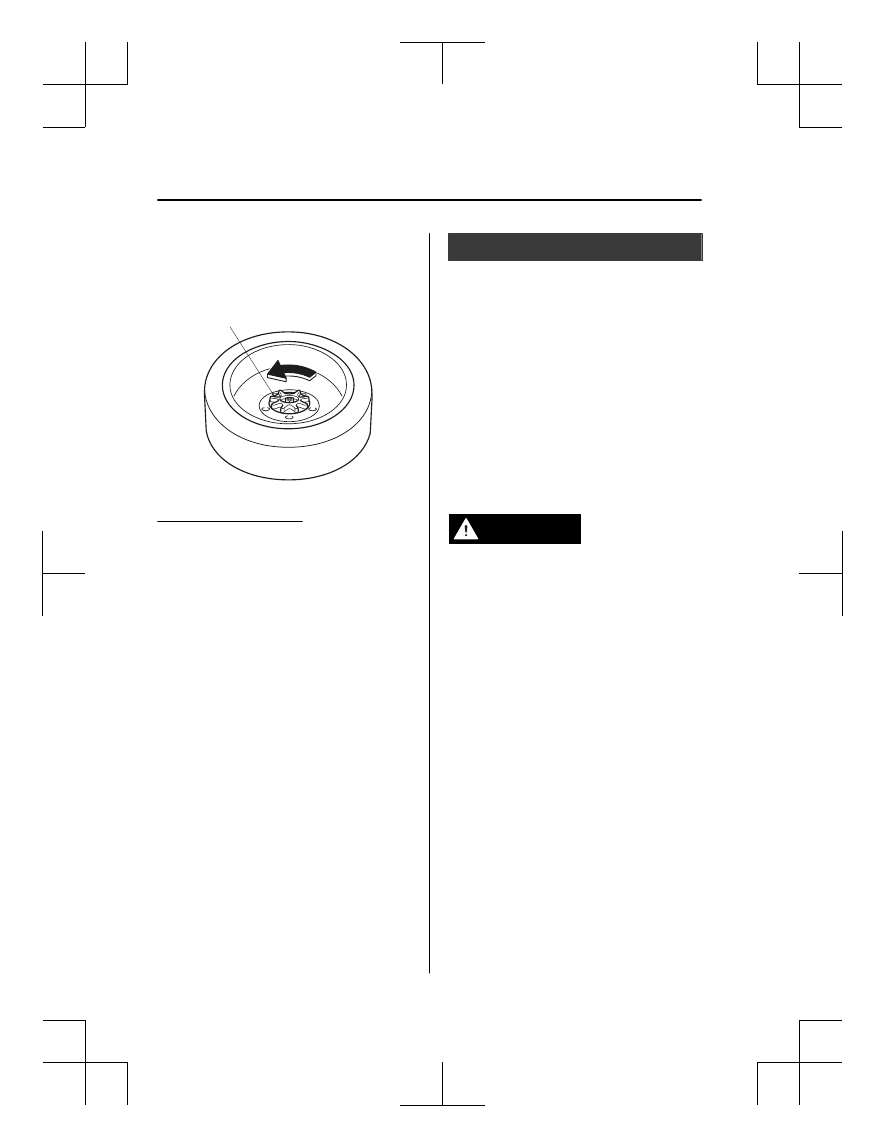

Spare tire hold-down bolt

To secure the spare tire

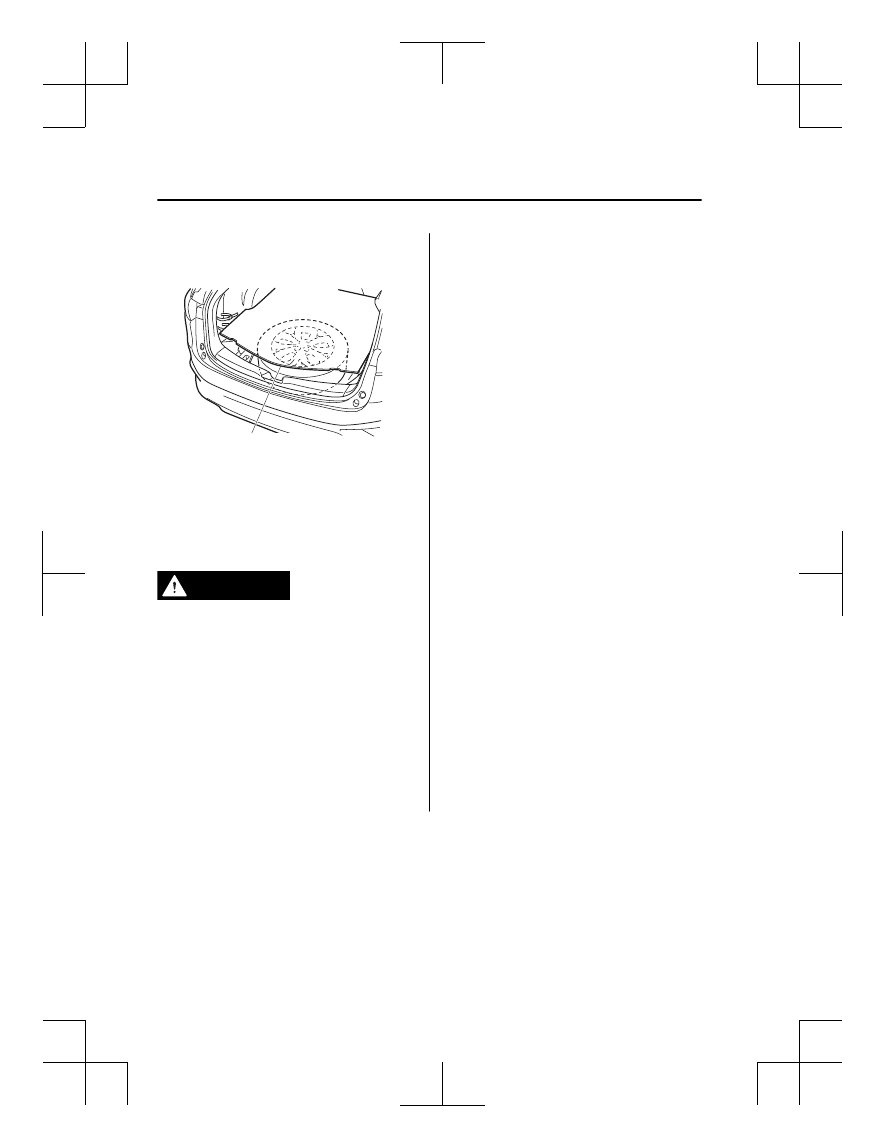

Store the spare tire in the reverse order of
removal. After storing, verify that the
spare tire is stored securely.

Changing a Flat Tire

NOTE

If the following occurs while driving, it
could indicate a flat tire.



Steering becomes difficult.



The vehicle begins to vibrate
excessively.



The vehicle pulls in one direction.

If you have a flat tire, drive slowly to a
level spot that is well off the road and out
of the way of traffic to change the tire.
Stopping in traffic or on the shoulder of a
busy road is dangerous.

WARNING

Be sure to follow the directions for
changing a tire:

Changing a tire is dangerous if not done
properly. The vehicle can slip off the jack
and seriously injure someone.
No person should place any portion of their
body under a vehicle that is supported by a
jack.

Never allow anyone inside a vehicle
supported by a jack:

Allowing someone to remain in a vehicle
supported by a jack is dangerous. The
occupant could cause the vehicle to fall
resulting in serious injury.

NOTE

Make sure the jack is well lubricated
before using it.

1. Park on a hard, level surface off the

right-of-way and firmly set the parking
brake.

If Trouble Arises

Flat Tire

7-6

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

2. Shift into Park (P) and turn off the

engine.

3. Turn on the hazard warning flasher.
4. Have passengers get out of the vehicle

and away from the vehicle and traffic.

5. Remove any luggage, the jack, tools,

and spare tire (page 7-3).

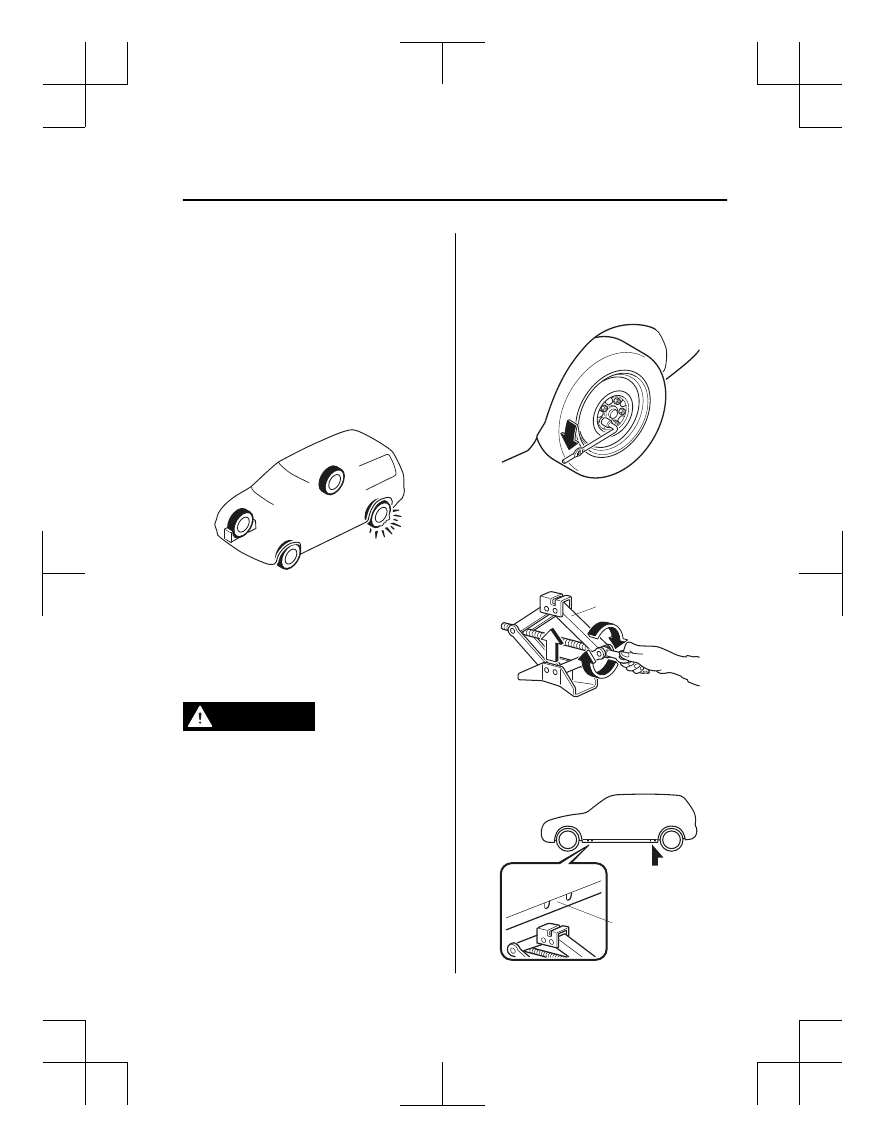

6. Block the wheel diagonally opposite

the flat tire. When blocking a wheel,
place a tire block both in front and
behind the tire.

NOTE

When blocking a tire, use rocks or
wood blocks of sufficient size if
possible to hold the tire in place.

▼

Removing a Flat Tire

WARNING

When jacking-up a vehicle, always shift the
selector lever to P position, apply the
parking brake, and place wheel blocks in
the position diagonally opposed to the
jack:

Changing a flat tire without using wheel
blocks is dangerous because the vehicle
may move and fall off the jack even with
the selector lever is in P position, which
could result in an accident.

1. Loosen the lug nuts by turning them

counterclockwise one turn each, but do
not remove any lug nuts until the tire
has been raised off the ground.

2. Place the jack on the ground.
3. Turn the jack screw in the direction

shown in the figure and adjust the jack
head so that it is close to the jack-up
position.

Jack head

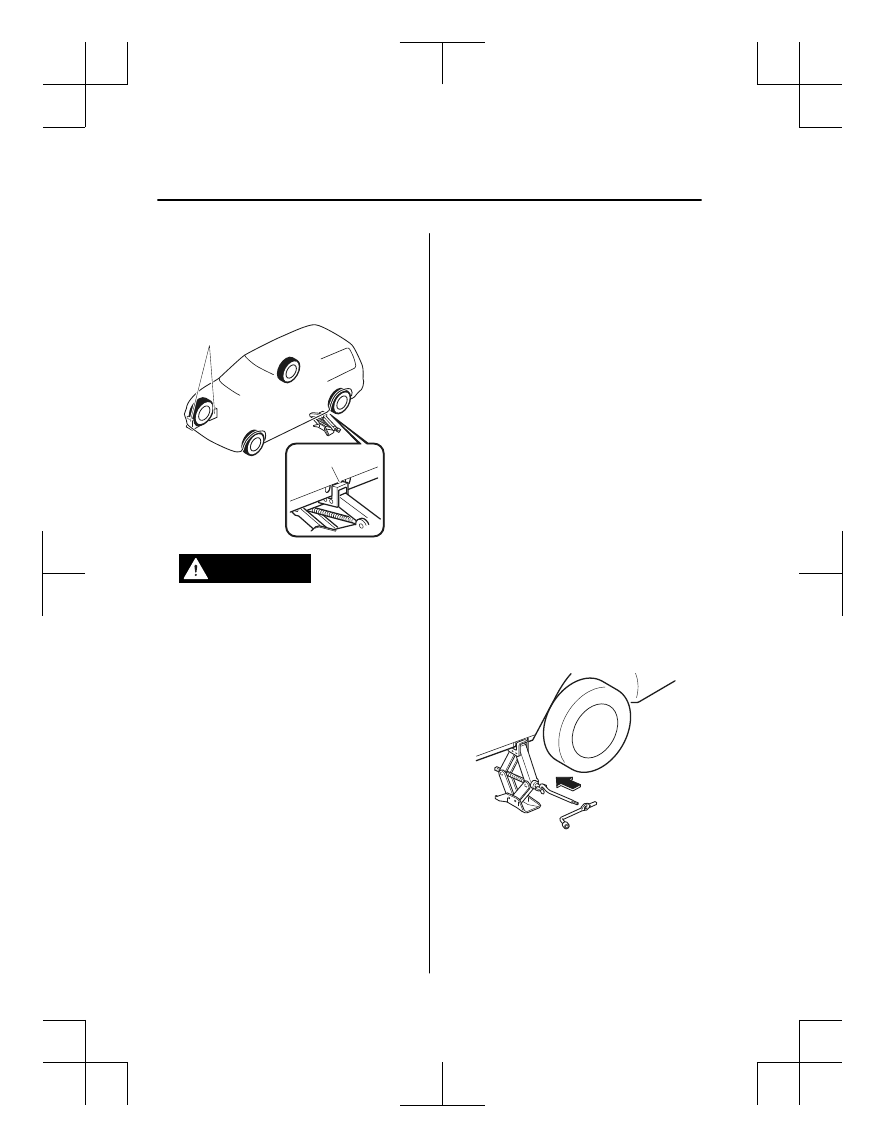

4. Place the jack under the jack-up

position closest to the tire being
changed with the jack head squarely
under the jack-up point.

Jacking position

If Trouble Arises

Flat Tire

7-7

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

5. Continue raising the jack head

gradually by rotating the screw with
your hand until the jack head is
inserted into the jack-up position.

Tire blocks

Jacking position

WARNING

Use only the front and rear jacking
positions recommended in this manual:

Attempting to jack the vehicle in
positions other than those
recommended in this manual is
dangerous. The vehicle could slip off
the jack and seriously injure or even kill
someone. Use only the front and rear
jacking positions recommended in this
manual.

Do not jack up the vehicle in a position
other than the designated jack-up
position or place any objects on or
under the jack:

Jacking up the vehicle in a position
other than the designated jack-up
position or placing objects on or under
the jack is dangerous as it could deform
the vehicle body or the vehicle could fall
off the jack resulting in an accident.

Use only the jack provided with your
Mazda:

Using a jack that is not designed for
your Mazda is dangerous. The vehicle
could slip off the jack and seriously
injure someone.

Never place objects under the jack:

Jacking the vehicle with an object
under the jack is dangerous. The jack
could slip and someone could be
seriously injured by the jack or the
falling vehicle.

NOTE

When raising the jack head into the
jacking position and aligning the
groove in the jack head with the rail
under the vehicle body, the top of the
jack head contacts the vehicle's
underbody without the rail contacting
the bottom of the groove.

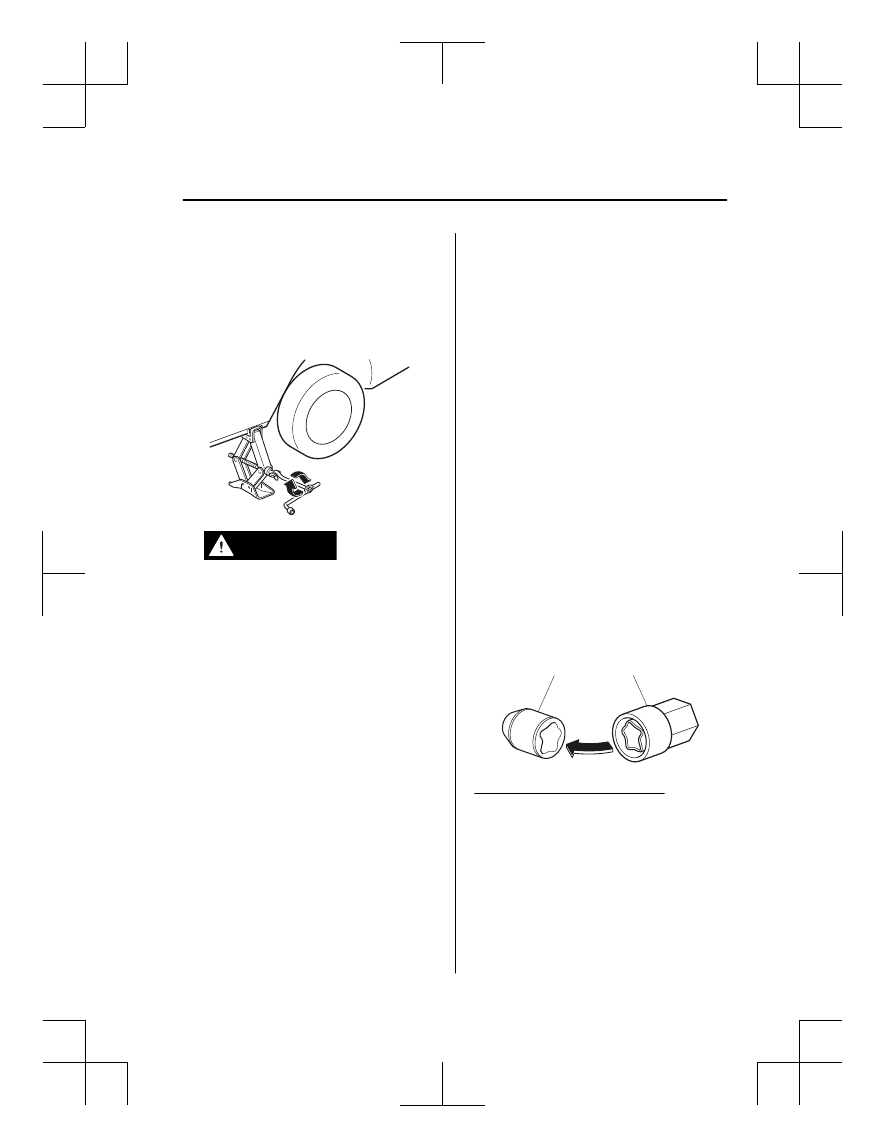

6. Insert the jack lever and attach the lug

wrench to tire jack.

If Trouble Arises

Flat Tire

7-8

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

7. Turn the jack handle clockwise and

raise the vehicle high enough so that
the spare tire can be installed. Before
removing the lug nuts, make sure your
Mazda is firmly in position and that it
cannot slip or move.

WARNING

Do not jack up the vehicle higher than
is necessary:

Jacking up the vehicle higher than is
necessary is dangerous as it could
destabilize the vehicle resulting in an
accident.

Do not start the engine or shake the
vehicle while it is jacked up:

Starting the engine or shaking the
vehicle while it is jacked up is
dangerous as it could cause the vehicle
to fall off the jack resulting in an
accident.

Never go under the vehicle while it is
jacked up:

Going under the vehicle while it is
jacked up is dangerous as it could result
in death or serious injury if the vehicle
were to fall off the jack.

8. Remove the lug nuts by turning them

counterclockwise; then remove the
wheel and center cap.

▼

Locking Lug Nuts

If your Mazda is equipped with the
optional antitheft wheel lug nuts, a special
key must be used to unlock the locking lug
nut for each wheel. The key is stored in
the glove compartment, center console
storage, storage box, or trunk. Register the
key and lug nuts with the lock
manufacturer by filling out the registration
card and mailing it in using the
accompanying envelope. If the key is lost,
consult an Authorized Mazda Dealer or
use the lock manufacturer’s order form to
order a new key.
Antitheft wheel lug nuts cannot be
installed on a steel wheel spare tire. When
installing a temporary spare tire, use one
of the original lug nuts in place of the
locking lug nut. The original lug nuts are
stored inside your Mazda.

Special key

Antitheft lug nut

To remove an antitheft lug nut

1. Obtain the special key for the antitheft

lug nut.

2. Place the special key on top of the

antitheft lug nut, and be sure to hold
the key square to it. If you hold the key
at an angle, you may damage both key
and nut. Do not use a power impact
wrench.

If Trouble Arises

Flat Tire

7-9

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

3. Place the lug wrench on top of the key

and apply pressure. Turn the wrench
counterclockwise.

To install the antitheft lug nut

1. Place the special key on top of the nut,

and be sure to hold the key square to it.
If you hold the key at an angle, you
may damage both key and nut. Do not
use a power impact wrench.

2. Place the lug wrench on top of the

special key, apply pressure, and turn it
clockwise.

Nut tightening torque

N·m (kgf·m, ft·lbf)

108―147 (12―14,

80―108)

▼

Mounting the Spare Tire

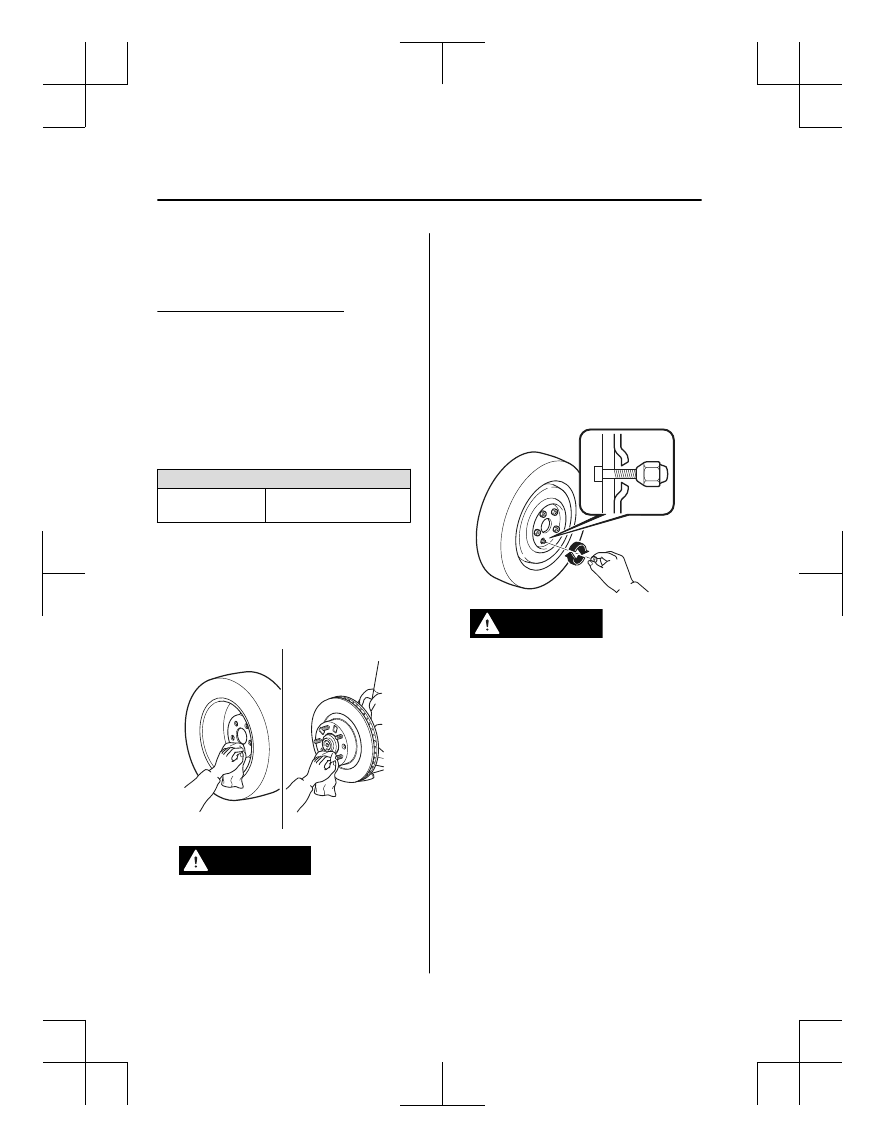

1. Remove dirt and grime from the

mounting surfaces of the wheel and
hub, including the hub bolts, with a
cloth.

WARNING

Make sure the mounting surfaces of the
wheel, hub and lug nuts are clean
before changing or replacing tires:

When changing or replacing a tire, not
removing dirt and grime from the
mounting surfaces of the wheel, hub
and hub bolts is dangerous. The lug
nuts could loosen while driving and
cause the tire to come off, resulting in
an accident.

2. Mount the spare tire.
3. Install the lug nuts with the beveled

edge inward; tighten them by hand.

WARNING

Do not apply oil or grease to lug nuts
and bolts and do not tighten the lug
nuts beyond the recommended
tightening torque:

Applying oil or grease to lug nuts and
bolts is dangerous. The lug nuts could
loosen while driving and cause the tire
to come off, resulting in an accident. In
addition, lug nuts and bolts could be
damaged if tightened more than
necessary.

4. Turn the lug wrench counterclockwise

and lower the vehicle.

If Trouble Arises

Flat Tire

7-10

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

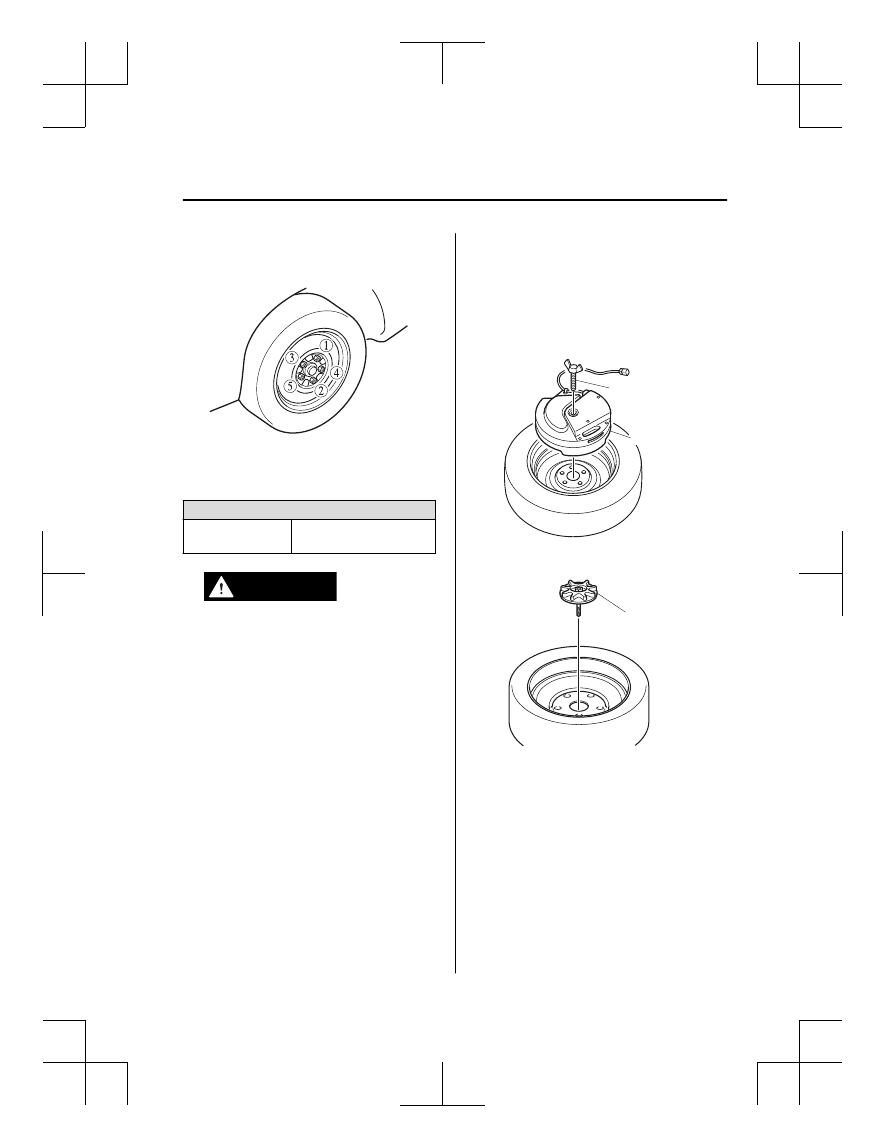

5. Use the lug wrench to tighten the nuts

in the order shown.

If you are unsure of how tight the nuts
should be, have them inspected at an
Authorized Mazda Dealer.

Nut tightening torque

N·m (kgf·m, ft·lbf)

108―147 (12―14,

80―108)

WARNING

Always securely and correctly tighten
the lug nuts:

Improperly or loosely tightened lug
nuts are dangerous. The wheel could
wobble or come off. This could result in
loss of vehicle control and cause a
serious accident.

Be sure to reinstall the same nuts you
removed or replace them with metric
nuts of the same configuration:

Because the wheel studs and lug nuts
on your Mazda have metric threads,
using a non-metric nut is dangerous.
On a metric stud, it would not secure
the wheel and would damage the stud,
which could cause the wheel to slip off
and cause an accident.

6. Remove the center cap by tapping it

from the backside of the wheel using
the lug wrench.

7. Store the damaged tire, using the flat

tire hold-down bolt to hold it in place.

(With sub-woofer)

Flat tire
hold-down bolt

Sub-woofer

(Without sub-woofer)

Flat tire
hold-down bolt

If Trouble Arises

Flat Tire

7-11

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Jump-Starting

Jump-starting is dangerous if done incorrectly. So follow the procedure carefully. If you feel
unsure about jump-starting, we strongly recommend that you have a competent service
technician do the work.

WARNING

Read the following precautions carefully before using the battery or inspecting to

ensure safe and correct handling:

Always wear eye protection when working near the battery:

Working without eye protection is dangerous. Battery fluid contains SULFURIC ACID which
could cause blindness if splashed into your eyes. Also, hydrogen gas produced during normal
battery operation, could ignite and cause the battery to explode.

Wear eye protection and protective gloves to prevent contact with battery fluid:

Spilled battery fluid is dangerous.
Battery fluid contains SULFURIC ACID which could cause serious injuries if it gets in eyes, or on
the skin or clothing. If this happens, immediately flush your eyes with water for 15 minutes or
wash your skin thoroughly and get medical attention.

Always keep batteries out of the reach of children:

Allowing children to play near batteries is dangerous. Battery fluid could cause serious injuries
if it gets in the eyes or on the skin.

Keep flames and sparks away from battery cells and do not allow metal tools to

contact the positive ( ) or negative ( ) terminal of the battery when working near a battery.
Do not allow the positive ( ) terminal to contact the vehicle body:

Flames and sparks near battery cells are dangerous. Hydrogen gas, produced during normal
battery operation, could ignite and cause the battery to explode. An exploding battery can
cause serious burns and injuries. Keep all flames including cigarettes and sparks away from
battery cells.

If Trouble Arises

Battery Runs Out

7-13

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Keep all flames and sparks away from battery cells because hydrogen gas is produced

from battery cells while charging the battery or adding battery fluid:

Do not jump-start a frozen battery or one with a low fluid level:

Jump-starting a frozen battery or one with a low fluid level is dangerous. It may rupture or
explode, causing serious injury.

Connect the negative cable to a good ground point away from the battery:

Connecting the end of the second jumper cable to the negative ( ) terminal of the discharged
battery is dangerous.
A spark could cause the gas around the battery to explode and injure someone.

Route the jumper cables away from parts that will be moving:

Connecting a jumper cable near or to moving parts (cooling fans, belts) is dangerous. The
cable could get caught when the engine starts and cause serious injury.

CAUTION

Use only a 12 V booster system. You can damage a 12 V starter, ignition system, and other
electrical parts beyond repair with a 24 V power supply (two 12 V batteries in series or a 24 V
motor generator set).

1. Move the booster vehicle so that its battery is as close as possible to your vehicle's

battery.

2. Make sure that the power such as for the headlights and air conditioner is turned off.

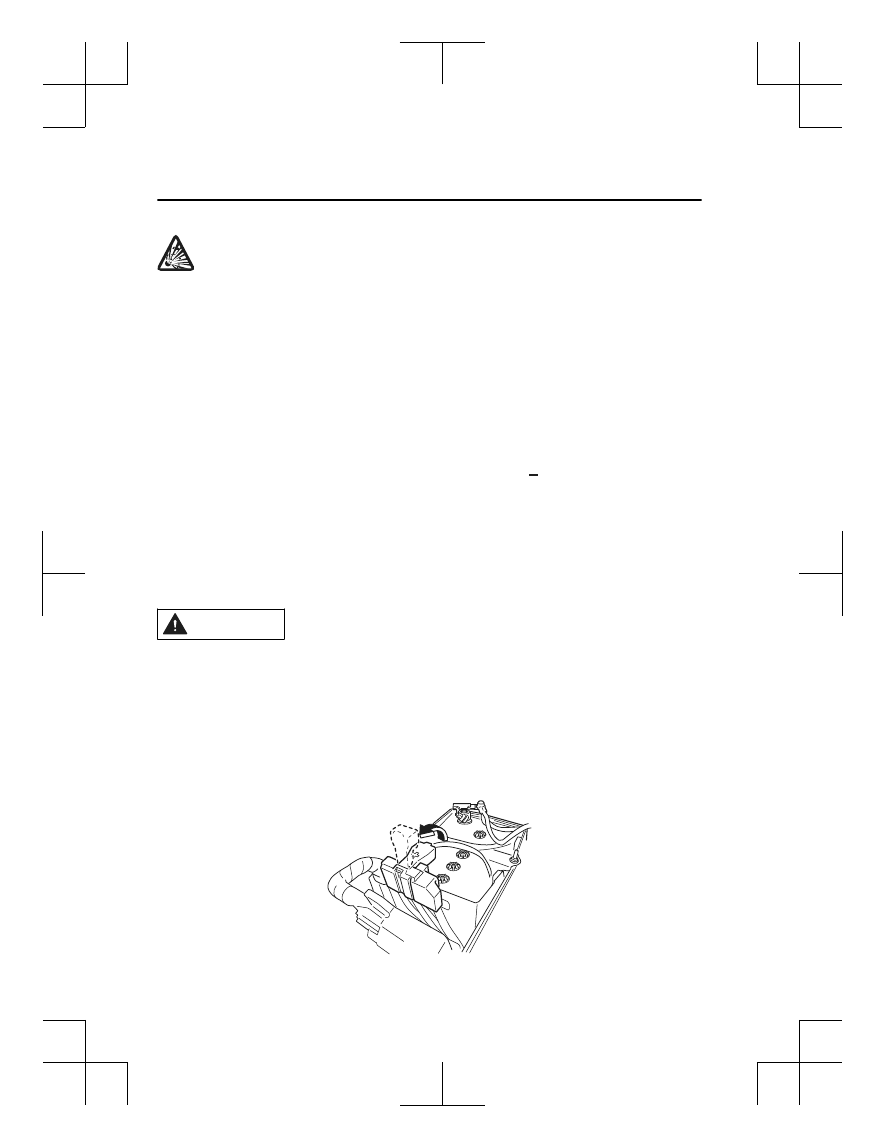

3. Remove the battery cover.

If Trouble Arises

Battery Runs Out

7-14

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

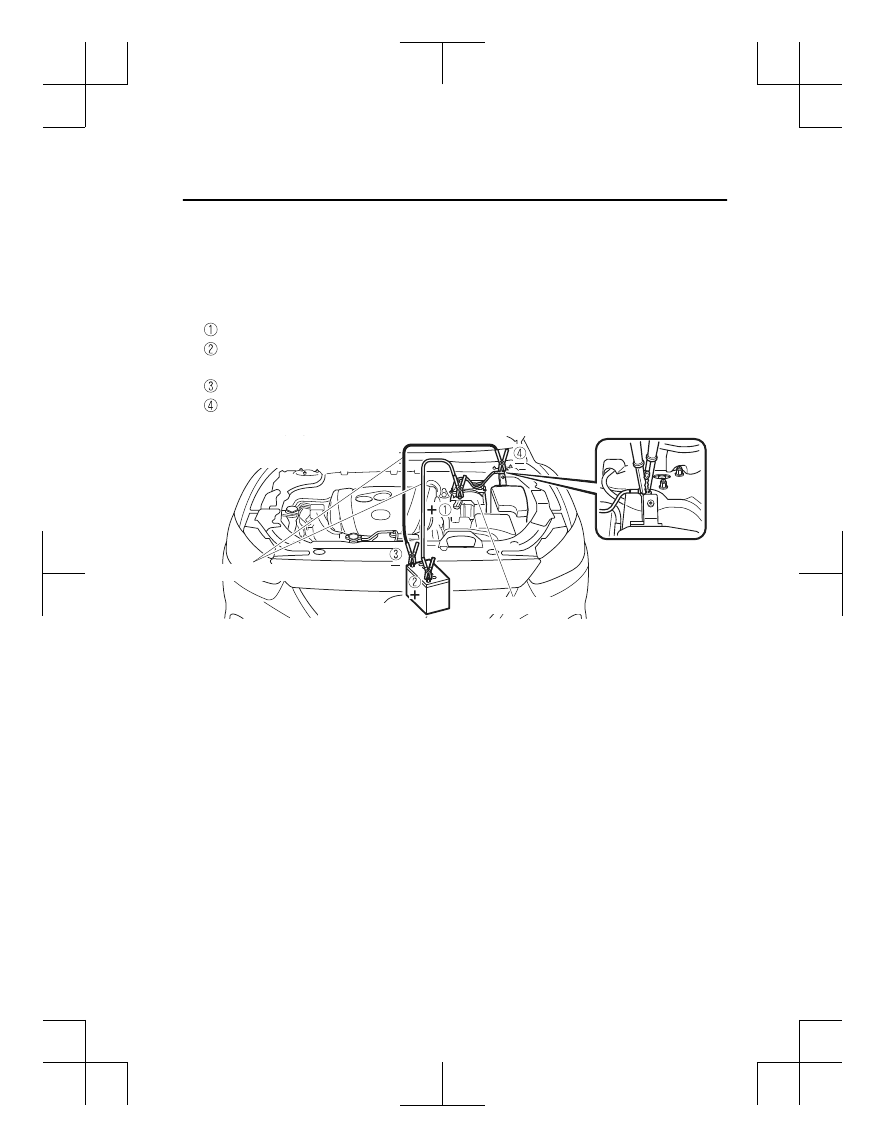

4. Turn off the booster vehicle's engine and connect the jumper cables in the following

order.
Make sure that the jumper cables are securely connected so that they do not disconnect
due to engine vibrations.

1st lead

Positive (+) terminal on the discharged battery
Positive (+) terminal on booster vehicle's battery

2nd lead

Negative (-) terminal on booster vehicle's battery
Location shown in the figure (do not connect to the negative (-) terminal of the

battery)

Booster battery

Discharged battery

Jumper cables

Connect cables in numerical order
and disconnect in reverse order.

5. Start the booster vehicle's engine and rev the engine.
6. Start the engine of your vehicle. Run the engines for about 3 minutes to temporarily

charge the battery of your vehicle.

7. Disconnect the jumper cables in the reverse order of their connection.
8. Install the battery cover.
9. Have your vehicle inspected by an Authorized Mazda Dealer as soon as possible.

If Trouble Arises

Battery Runs Out

7-15

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Starting a Flooded Engine

If the engine fails to start, it may be
flooded (excessive fuel in the engine).

Follow this procedure:

1. If the engine does not start within 5

seconds on the first try, wait 10
seconds and try again.

2. Make sure the parking brake is on.
3. Depress the accelerator all the way and

hold it there.

4. Depress the brake pedal, then press the

push button start. If the engine starts,
release the accelerator immediately
because the engine will suddenly rev
up.

5. If the engine fails to start, crank it

without depressing the accelerator.

If the engine still does not start using the
previous procedure, have your vehicle
inspected by an Authorized Mazda Dealer.

Push-Starting

Do not push-start your Mazda.

WARNING

Never tow a vehicle to start it:

Towing a vehicle to start it is dangerous.
The vehicle being towed could surge
forward when its engine starts, causing the
2 vehicles to collide. The occupants could
be injured.

NOTE

You cannot start a vehicle with an
automatic transaxle by pushing it.

If Trouble Arises

Emergency Starting

7-16

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Overheating

If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on, the
vehicle loses power, or you hear a loud
knocking or pinging noise, the engine is
probably too hot.

WARNING

Pull over to a safe location, then switch

the ignition off and make sure the fan is
not running before attempting to work
near the cooling fan:

Working near the cooling fan when it is
running is dangerous. The fan could
continue running indefinitely even if the
engine has stopped and the engine
compartment temperature is high. You
could be hit by the fan and seriously
injured.

Do not remove either cooling

system cap when the engine and radiator
are hot:

When the engine and radiator are hot,
scalding coolant and steam may shoot out
under pressure and cause serious injury.

Open the hood ONLY after steam is no
longer escaping from the engine:

Steam from an overheated engine is
dangerous. The escaping steam could
seriously burn you.

If the temperature gauge indicates
overheating or the high engine coolant
temperature warning light turns on:

1. Drive safely to the side of the road and

park off the right-of-way.

2. Shift into park (P).
3. Apply the parking brake.
4. Turn off the air conditioner.
5. Check whether coolant or steam is

escaping from the engine
compartment.

If steam is coming from the engine
compartment:

Do not go near the front of the vehicle.
Stop the engine.
Wait until the steam dissipates, then
open the hood and start the engine.

If neither coolant nor steam is
escaping:

Open the hood and idle the engine
until it cools.

CAUTION

If the cooling fan does not operate
while the engine is running, the engine
temperature will increase. Stop the
engine and call an Authorized Mazda
Dealer.

6. Make sure the cooling fan is operating,

then turn off the engine after the
temperature has decreased.

7. When cool, check the coolant level.

If it is low, look for coolant leaks from
the radiator and hoses.

If Trouble Arises

Overheating

7-17

CX-5_8MC3-EA-23G_Edition1_old

2023-5-8 11:05:50

Mazda CX-5 (2024 year). Manual in english - page 17
