Parking Sensor System Operation

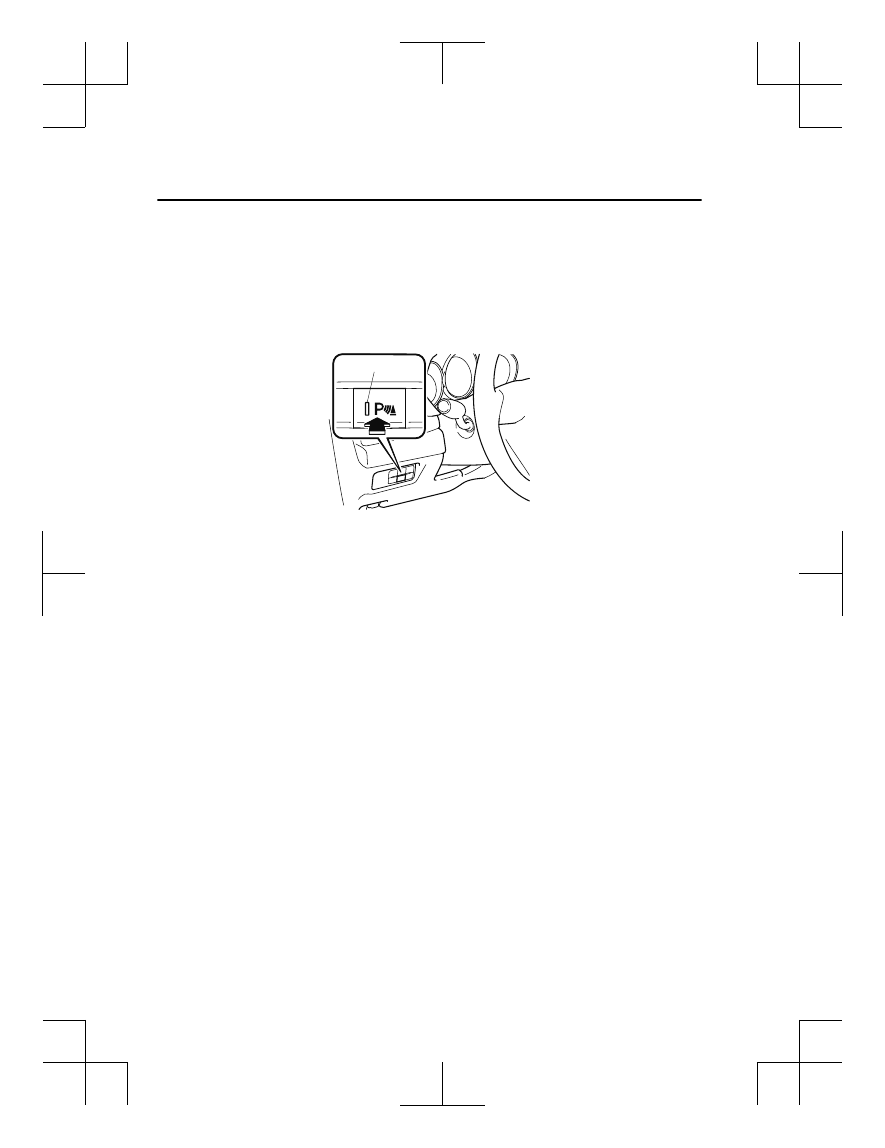

When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds
and the indicator light turns on.
When the ignition is switched ON with the parking sensor activated, the indicator light turns
on.
Press the switch again to stop the operation.

Indicator light

Operation conditions

The parking sensor system can be used when all of the following conditions are met:



The ignition is switched ON.



The parking sensor switch is turned on.

NOTE



The detection indicator and buzzer of the front sensors/front corner sensors do not
operate when the selector lever is in the P position.



The detection indicator and buzzer sound do not activate when the parking brake is
applied.

▼

Obstruction Detection Indication

The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-306

As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.

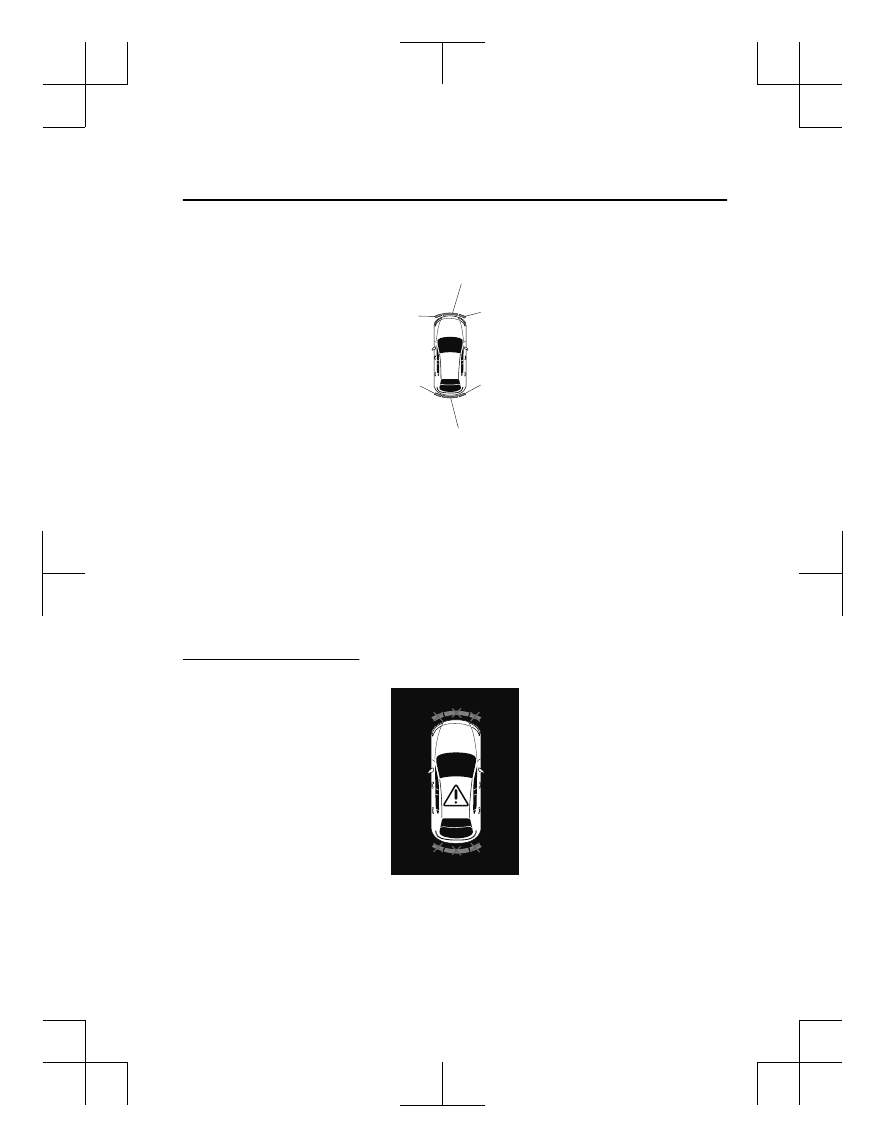

Rear sensor ultrasonic gauge

Left front corner
ultrasonic sensor gauge

Left rear corner
ultrasonic sensor gauge

Right front corner
ultrasonic sensor gauge

Right rear corner
ultrasonic sensor gauge

Front ultrasonic sensor gauge

NOTE

The detection indicator can be switched between display and non-display and the buzzer
volume can be changed.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When the detection indicator is set to “Display”, even with the 360° view monitor not
displayed, if a front ultrasonic sensor or a front corner ultrasonic sensor detects an
obstruction, the 360° view monitor switches automatically to display. When an obstruction
is no longer detected, the display switches to the display before the obstruction was
detected. However, while the 360° view monitor is displayed, it continues to display no
matter if an obstruction is detected or not.

System problem notification

The indication displays if the system has a malfunction.

Check the reason for the indication displaying on the center display or multi-information
display.
Refer to If a Warning Light Turns On or Flashes on page 7-22.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-307

▼

Parking Sensor Warning Beep

The beeper sounds as follows while the system is operating.

Front ultrasonic sensor, Rear ultrasonic sensor

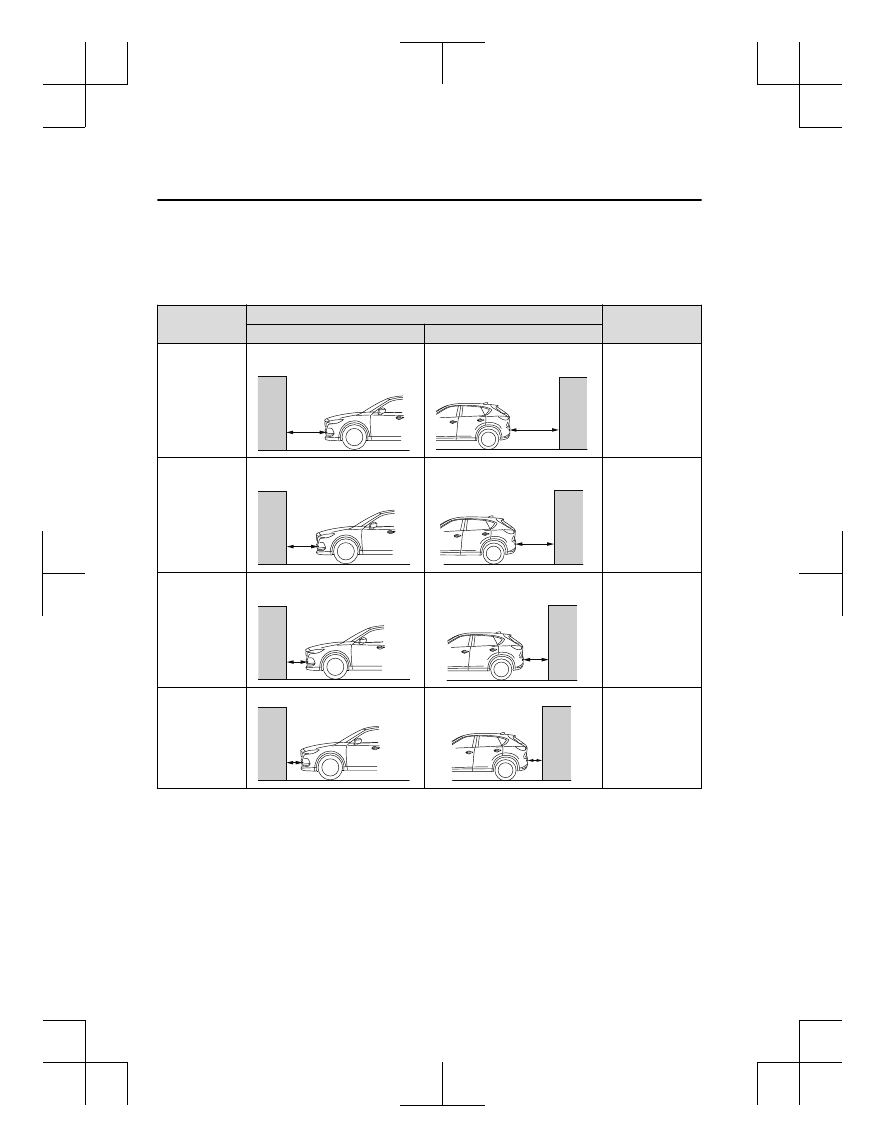

Distance Detec

‐

tion area

Distance between vehicle and obstruction

Beeper sound

Front ultrasonic sensor

Rear ultrasonic sensor

Farthest distance

Approx. 100

―

60 cm (39.3

―

23.6

in)

Approx. 150

―

60 cm (59.0

―

23.6

in)

Slow intermittent
sound

Far distance

Approx. 60

―

45 cm (23.6

―

17.7

in)

Approx. 60

―

45 cm (23.6

―

17.7

in)

Medium intermit

‐

tent sound

Middle distance

Approx. 45

―

35 cm (17.7

―

13.7

in)

Approx. 45

―

35 cm (17.7

―

13.7

in)

Fast intermittent
sound

Close distance

Within approx. 35 cm (13.7 in)

Continuous sound

1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-308

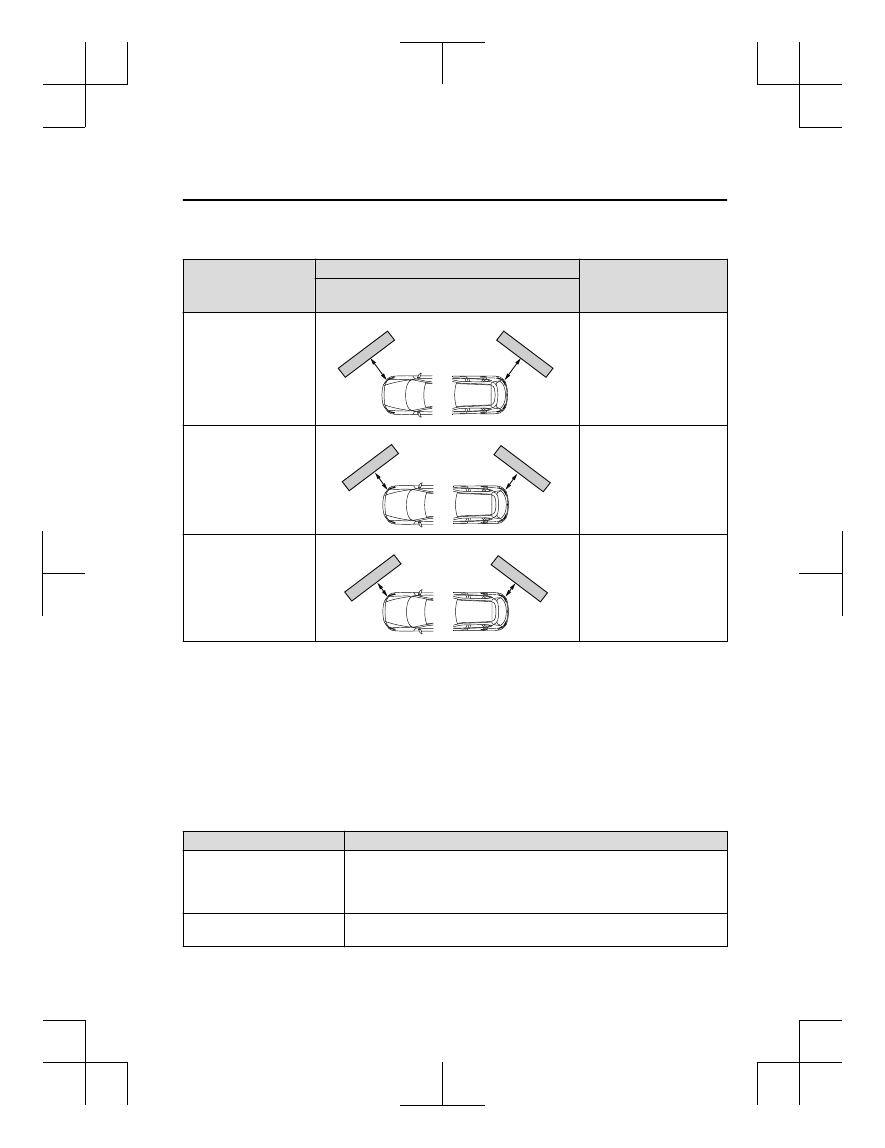

Front corner ultrasonic sensor, Rear corner ultrasonic sensor

Distance Detection area

Distance between vehicle and obstruction

Beeper sound

Front corner ultrasonic sensor/Rear corner ultra

‐

sonic sensor

Far distance

Approx. 55

―

38 cm (21.6

―

14.9 in)

Medium intermittent sound

Middle distance

Approx. 38

―

25 cm (14.9

―

9.8 in)

Fast intermittent sound

Close distance

Within approx. 25 cm (9.8 in)

Continuous sound

1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

NOTE



If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.

▼

When Warning Indicator/Beep is Activated

The system notifies the driver of an abnormality by activating the beep sound and the
indicator light.

Indicator/Beep

How to check

The indicator light flashes when
the parking sensor switch is
pressed at a vehicle speed of 10
km/h (6 mph) or less.

The system may have a malfunction. Have the vehicle inspected at an Author

‐

ized Mazda Dealer as soon as possible.

The beep sound is not heard.

The system may have a malfunction. Have the vehicle inspected at an Author

‐

ized Mazda Dealer as soon as possible.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-309

Indicator/Beep

How to check

The intermittent sound of the
buzzer is heard 5 times.

Remove any foreign material from the sensor area. If the system does not re

‐

cover, have the vehicle inspected at an Authorized Mazda Dealer.

A certain obstruction detection
indicator is continuously dis

‐

played.

Refer to Obstruction Detection Indication on page 4-297.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-310

Interior Features

Use of various features for ride comfort, including air-conditioning
system and audio system.

Climate Control System....................5-2

Operating Tips.............................. 5-2
Vent Operation..............................5-3
Manual Type.................................5-5
Fully Automatic Type...................5-9

Mazda Connect (Mazda Connect
(Type A))...........................................5-14

What is Mazda Connect ?...........5-14
Mazda Connect Basic
Operations...................................5-17

Mazda Connect (Mazda Connect
(Type B))...........................................5-33

What is Mazda Connect ?...........5-33

Mazda Connect Basic
Operations...................................5-37
Connected Service (If
applicable).................................. 5-53

Interior Equipment......................... 5-55

Sunvisors.................................... 5-55
Interior Lights.............................5-56
Accessory Sockets...................... 5-60
USB Power Outlet

.................... 5-62

Wireless Charger (Qi)

............... 5-63

Cup Holder................................. 5-66
Bottle Holder.............................. 5-67
Storage Compartments............... 5-68

*Some models.

5-1

Operating Tips



Operate the climate control system with
the engine running.



To prevent the battery from being
discharged, do not leave the fan control
dial/switch on for a long period of time
with the ignition switched ON when the
engine is not running.



Clear all obstructions such as leaves,
snow and ice from the hood and the air
inlet in the cowl grille to improve the
system efficiency.



Use the climate control system to defog
the windows and dehumidify the air.



The recirculate mode should be used
when driving through tunnels or while
in a traffic jam, or when you would like
to shut off outside air for quick cooling
of the interior.



Use the outside air position for
ventilation or windshield defrosting.



If the vehicle has been parked in direct
sunlight during hot weather, open the
windows to let warm air escape, then
run the climate control system.



Run the air conditioner about 10
minutes at least once a month to keep
internal parts lubricated.



Have the air conditioner checked before
the weather gets hot. Lack of refrigerant
may make the air conditioner less
efficient.
The refrigerant specifications are
indicated on a label attached to the
inside of the engine compartment. If the
wrong type of refrigerant is used, it
could result in a serious malfunction of
the air conditioner. Consult a
professional, government certified
repairer for the inspection or repair

because a special device is required for
the air conditioner maintenance.
For details, consult an Authorized
Mazda Dealer.

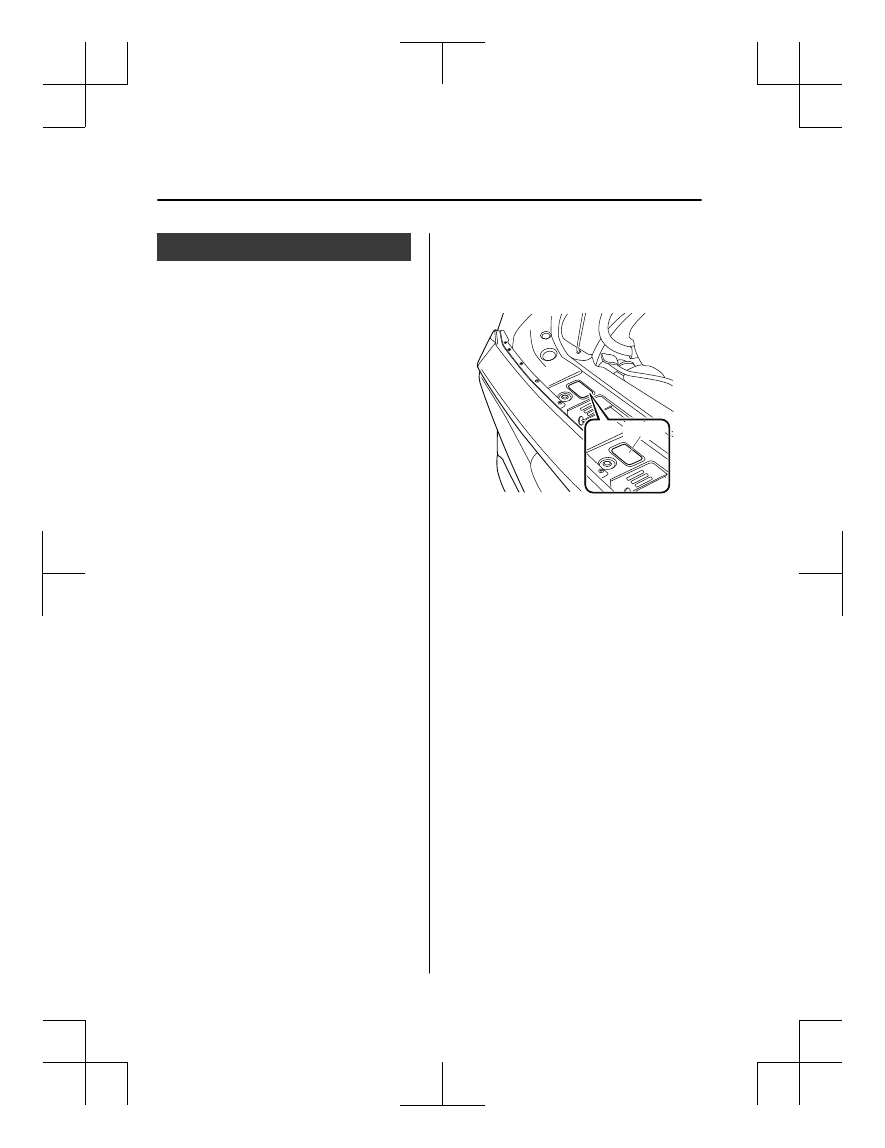

Label

Interior Features

Climate Control System

5-2

Vent Operation

▼

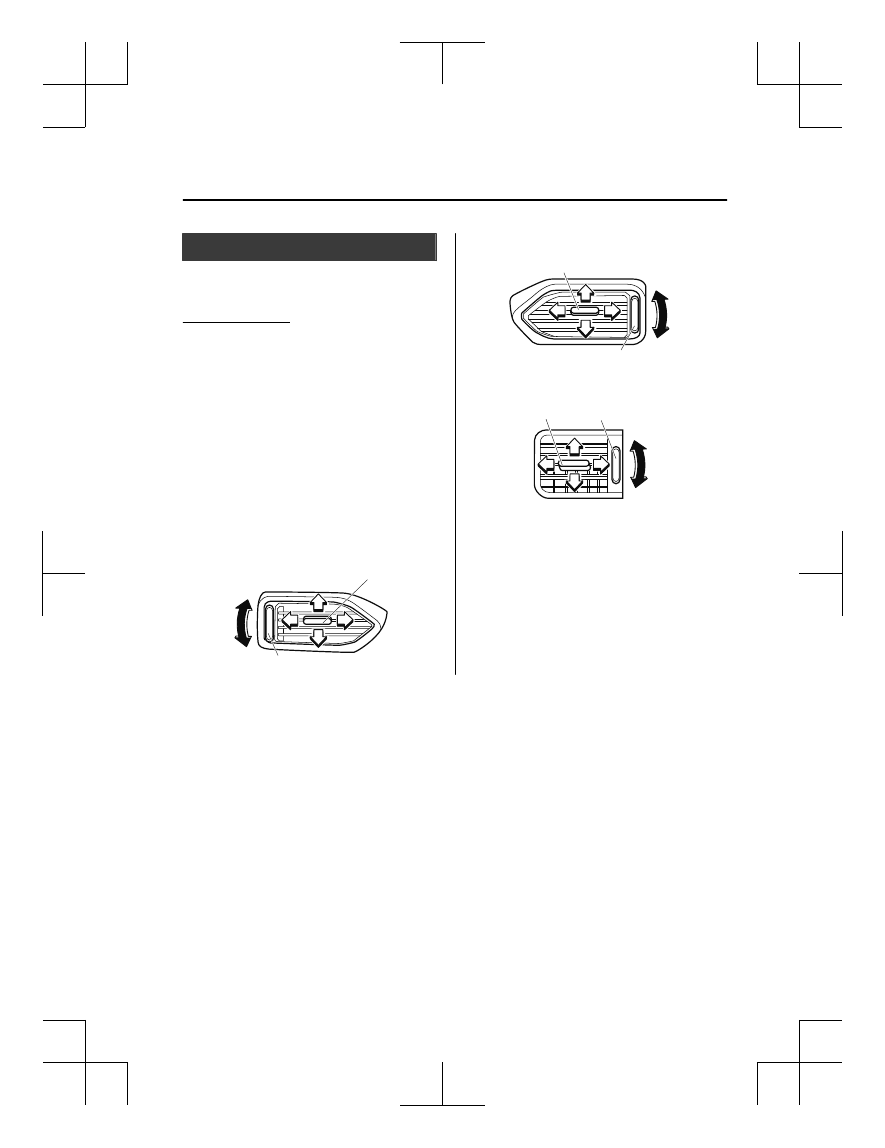

Adjusting the Vents

Directing airflow

To adjust the direction of airflow, move
the adjustment knob.

NOTE



When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.



The air vents can be fully opened and
closed by operating the dial.

Side Vents

Knob

Dial

Open

Center Vents

Knob

Dial

Open

Rear Vents

Knob

Dial

Open

Interior Features

Climate Control System

*Some models.

5-3

▼

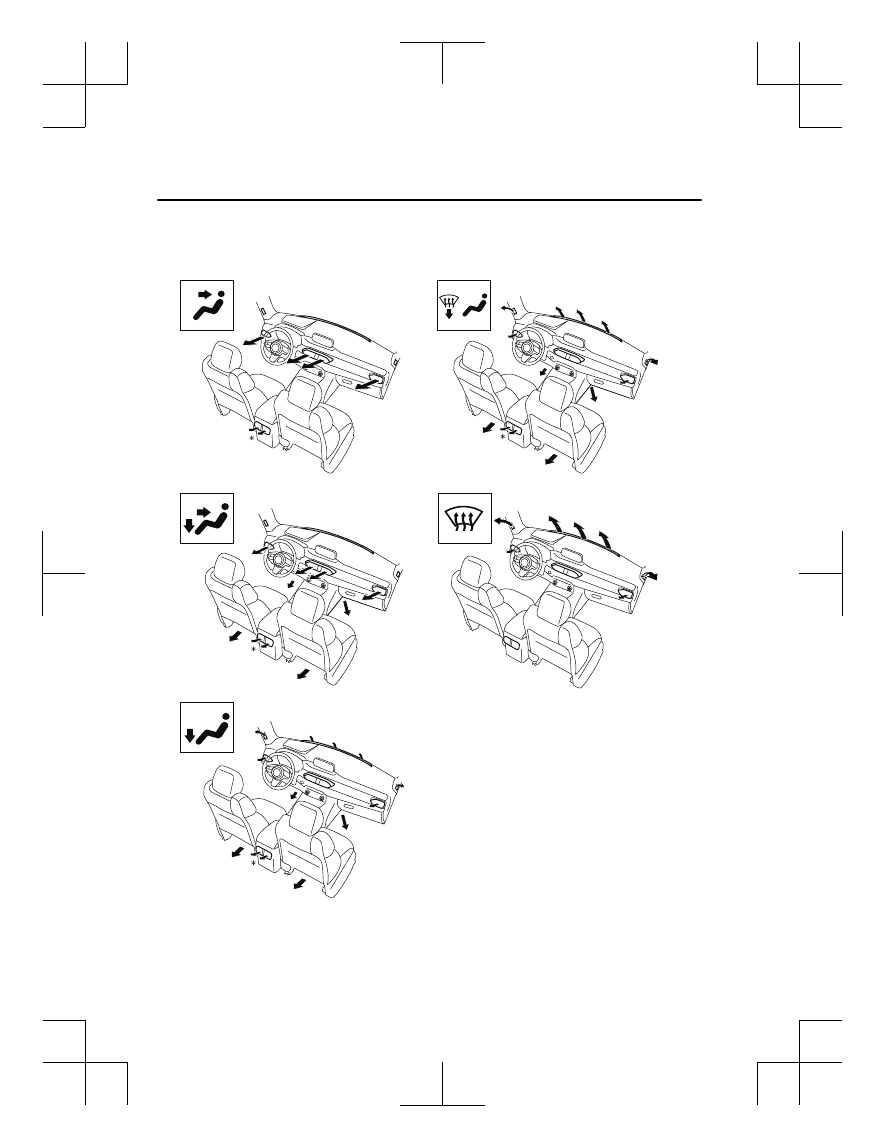

Selecting the Airflow Mode

Dashboard Vents

Dashboard and Floor Vents

Floor Vents

Defroster and Floor Vents

Defroster Vents

* With rear vents

NOTE

The location airflow exits the air vents and the airflow amount may change depending on
the open or close status of the air vents.

Interior Features

Climate Control System

5-4

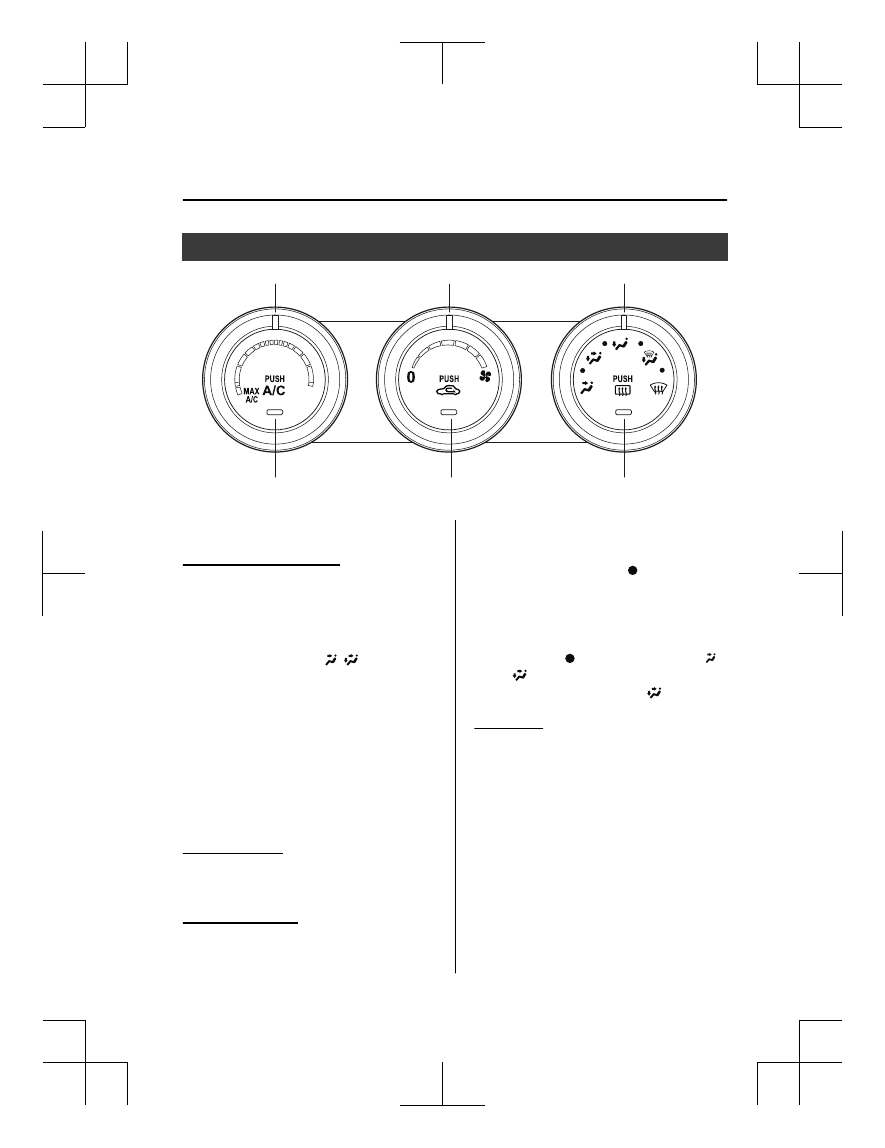

Manual Type

A/C switch

Air intake selector switch

Rear window defogger switch

Mode selector dial

Fan control dial

Temperature control dial

▼

Control Switches

Temperature control dial

This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.

NOTE

When the mode is set to , or a
position in between them with the fan
control dial in a position other than 0 and
the temperature control dial in the
maximum cold position, the air intake
selector switches to the recirculated air
position and the A/C turns on
automatically.
If A/C is not desired, press the A/C switch
to turn it off.

Fan control dial

This dial allows variable fan speeds.
The fan has seven speeds.

Mode selector dial

Turn the mode selector dial to select
airflow mode (page 5-4).

NOTE



The mode selector dial can be set at the
intermediate positions ( ) between each
mode. Set the dial to an intermediate
position if you want to split the airflow
between the two modes.



For example, when the mode selector
dial is at the   position between the
and   positions, airflow from the floor
vent is less than that of the   position.

A/C switch

Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.

Press the switch once again to turn the air
conditioner off.

NOTE

The air conditioner may not function when
the outside temperature approaches 0 °C
(32 °F).

Interior Features

Climate Control System

5-5

Air intake selector

This switch controls the source of air
entering the vehicle.

Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.

Recirculated air position (indicator light
illuminated)

Outside air is shut off. Air within the
vehicle is recirculated. Use this position
when going through tunnels, driving in
congested traffic (high engine exhaust
areas), or when quick cooling is desired.

Outside air position (indicator light
turned off)

Outside air is allowed to enter the cabin.
Use this position for ventilation or
windshield defrosting.

WARNING

Do not use the

position in cold or rainy

weather:

Using the

position in cold or rainy

weather is dangerous as it will cause the
windows to fog up. Your vision will be
hampered, which could lead to a serious
accident.

NOTE



The recirculated air position is the
default position whenever the ignition is
switched ON, the climate control system
is on, and the outside temperature
exceeds about 73°F (23

℃



To exit the default recirculated air
position, press the air intake selector
switch to select the outside air position.



When the air intake selector switch is set
to the outside air position and the
outside temperature exceeds about 73°F
(23

℃

), the climate control system may

automatically select the recirculated air
position to improve the efficiency of the
climate control system.

Rear window defogger switch

Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-83.

▼

Heating

1. Set the mode selector dial to the

position.

2. Set the air intake selector to the outside

air position (indicator light turns off).

3. Set the temperature control dial to the

hot position.

4. Set the fan control dial to the desired

speed.

5. If dehumidified heating is desired, turn

on the air conditioner.

NOTE



If the windshield fogs up easily, set the
mode selector dial to the position.



If cooler air is desired at face level, set
the mode selector dial at the position
and adjust the temperature control dial
to maintain maximum comfort.



The air to the floor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).

Interior Features

Climate Control System

5-6

▼

Cooling

1. Set the mode selector dial to the

position.

2. Set the temperature control dial to the

cold position.

3. Set the fan control dial to the desired

speed.

4. Turn on the air conditioner by pressing

the A/C switch.

5. After cooling begins, adjust the fan

control dial and temperature control
dial as needed to maintain maximum
comfort.

CAUTION

If the air conditioner is used while driving
up long hills or in heavy traffic, monitor the
high engine coolant temperature warning
indication/warning light to see if it is
illuminated or flashing (page 7-22).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or flashing, turn the air
conditioner off (page 7-17).

NOTE



When maximum cooling is desired, set
the temperature control dial to the
extreme cold position and set the air
intake selector to the recirculated air
position, then turn the fan control dial
fully clockwise.



If warmer air is desired at floor level,
set the mode selector dial at the
position and adjust the temperature
control dial to maintain maximum
comfort.



The air to the floor is warmer than air
to the face (except when the temperature
control dial is set at the extreme hot or
cold position).

▼

Ventilation

1. Set the mode selector dial to the

position.

2. Set the air intake selector to the outside

air position (indicator light turns off).

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

▼

Windshield Defrosting and
Defogging

1. Set the mode selector dial to the

position.

2. Set the temperature control dial to the

desired position.

3. Set the fan control dial to the desired

speed.

4. If dehumidified heating is desired, turn

on the air conditioner.

WARNING

Do not defog the windshield using the
position with the temperature control set
to the cold position:

Using the

position with the temperature

control set to the cold position is
dangerous as it will cause the outside of the
windshield to fog up. Your vision will be
hampered, which could lead to a serious
accident. Set the temperature control to
the hot or warm position when using the

position.

Interior Features

Climate Control System

5-7

NOTE



For maximum defrosting, turn on the air
conditioner, set the temperature control
dial to the extreme hot position, and turn
the fan control dial fully clockwise.



If warm air is desired at the floor, set the
mode selector dial to the position.



In the or

position, the air

conditioner is automatically turned on
and the outside air position is
automatically selected to defrost the
windshield. In the or

position, the

outside air position cannot be changed
to the recirculated air position.

▼

Dehumidifying

Operate the air conditioner in cool or cold
weather to help defog the windshield and
side windows.
1. Set the mode selector dial to the

desired position.

2. Set the air intake selector to the outside

air position (indicator light turns off).

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

5. Turn on the air conditioner by pressing

the A/C switch.

NOTE

One of the functions of the air conditioner
is dehumidifying the air and, to use this
function, the temperature does not have to
be set to cold. Therefore, set the
temperature control dial to the desired
position (hot or cold) and turn on the air
conditioner when you want to dehumidify
the cabin air.

Interior Features

Climate Control System

5-8

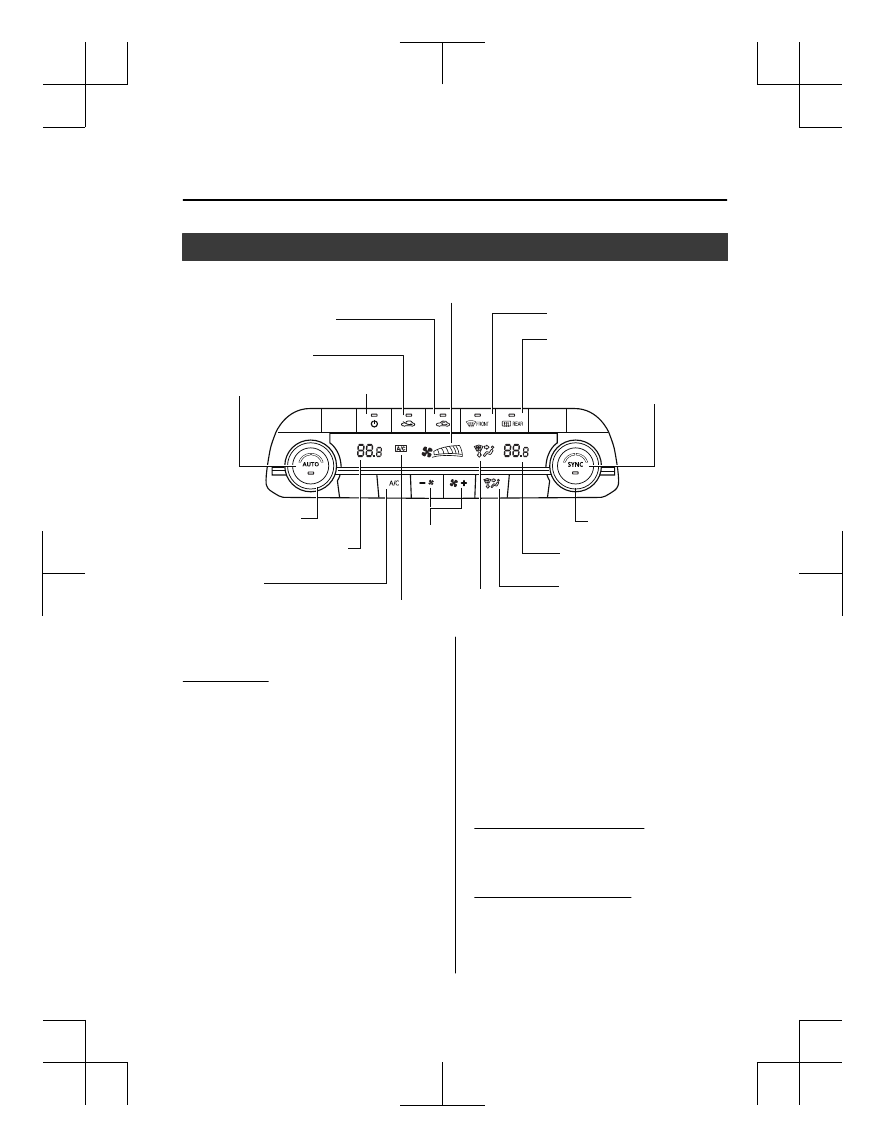

Fully Automatic Type

Climate control system information is displayed on the display.

AUTO switch

SYNC (synchronized
temperature) switch

Passenger temperature
control dial

Driver temperature
control dial

Rear window defogger switch

Windshield defroster switch

A/C switch

Power switch

Mode selector switch

Fan control
switch

Air intake selector
(outside air position)

Air intake selector
(recirculated air position)

Airflow display

Temperature setting display
(driver’s side)

Temperature setting display
(Passenger’s side)

A/C mode display

Mode selector
display

▼

Control Switches

AUTO switch

By pressing the AUTO switch the
following functions will be automatically
controlled in accordance with the selected
set temperature:



Airflow temperature



Amount of airflow



Selection of airflow mode



Outside/Recirculated air selection



Air conditioner operation

NOTE

AUTO switch indicator light



When on, it indicates auto operation,
and the system will function
automatically.



If any of the following switches are
operated while in auto control, the
AUTO switch indicator turns off.



Mode selector switch



Fan control switch



Windshield defroster switch
The functions for switches other than
those operated continue to operate in
auto control.

Power switch (Fan On/Off)

The climate control system turns on or off
by pressing the power switch.

Temperature control dial

This dial controls temperature. Turn it
clockwise for hot and counterclockwise
for cold.

Interior Features

Climate Control System

5-9

Turn the temperature control dial to adjust
the temperature between 15 °C (60 °F) and
29 °C (84 °F).



When the SYNC switch is on:
Turn the driver temperature control dial
to control the temperature throughout
the entire cabin.



When the SYNC switch is off:
Turn the driver or front passenger
temperature control dial to
independently control the temperature
on each side of the cabin.

NOTE



The climate control system changes to
the individual operation mode (SYNC
switch indicator light turns off) by
turning the front passenger temperature
control dial even when the SYNC switch
is on, which allows individual control of
the set temperature for the driver and
front passenger.



When you set the temperature to the
lower or upper limit, “Lo” or “Hi” is
displayed.



The temperature units for the
temperature setting display can be
changed in conjunction with the
temperature units for the outside
temperature display.
(Instrument cluster Type A)
Refer to Outside Temperature Display
on page 4-18.
(Instrument cluster Type B)
Refer to Outside Temperature Display
on page 4-36.
(Instrument cluster Type C)
Refer to Outside Temperature Display
on page 4-50.

Fan control switch

The fan has 7 speeds. The selected speed
will be displayed.

Mode selector switch

The desired airflow mode can be selected
(page 5-4).

NOTE



With the airflow mode set to the
position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and air
at a comparably lower temperature will
flow through the central, left and right
vents.



To set the air vent to

, press the

windshield defroster switch.



In the or

position, the air

conditioner is automatically turned on
and the outside air position is
automatically selected to defrost the
windshield. In the or

position, the

outside air position cannot be changed
to the recirculated air position.

A/C switch

Pressing the A/C switch while the AUTO
switch is turned on will turn off the air
conditioner (cooling/dehumidifying
functions).
The on/off of the air conditioner switches
each time the A/C switch is pressed.

NOTE



The air conditioner operates when the
A/C switch is pressed while the air
conditioner is turned off.



The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

Interior Features

Climate Control System

5-10

Air intake selector

Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.

Recirculated air position (

)

Outside air position (

)

Outside air is allowed to enter the cabin.
Use this position for ventilation or
windshield defrosting.

WARNING

Do not use the

position in cold or rainy

weather:

Using the

position in cold or rainy

weather is dangerous as it will cause the
windows to fog up. Your vision will be
hampered, which could lead to a serious
accident.

NOTE



The recirculated air position is the
default position whenever the ignition is
switched ON, the climate control system
is on, and the outside temperature
exceeds about 73°F (23

℃



To exit the default recirculated air
position, press the air intake selector
switch to select the outside air position.



When the air intake selector switch is set
to the outside air position and the
outside temperature exceeds about 73°F
(23

℃

), the climate control system may

automatically select the recirculated air
position to improve the efficiency of the
climate control system.

SYNC (Synchronized Temperature)
switch

Use the SYNC switch to change the mode
between the individual operation (driver
and passenger) and interconnection
(simultaneous) modes.

Interconnection mode (indicator light
turns on)

The set temperature for the driver and
front passenger is controlled
simultaneously.

Individual operation mode (indicator
light turns off)

The set temperature can be controlled
individually for the driver and front
passenger.

Windshield defroster switch

Press the switch to defrost the windshield
and front door windows.
Refer to Windshield Defrosting and
Defogging on page 5-12.

Rear window defogger switch

Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-83.

Interior Features

Climate Control System

5-11

Content .. 27 28 29 30 ..
