Mazda CX-5 (2022 year). Manual in english - page 27

As an added safety feature, your vehicle has been equipped with a tire pressure monitoring
system (TPMS) that illuminates a low tire pressure telltale when one or more of your tires is
significantly under-inflated. Accordingly, when the low tire pressure telltale illuminates, you
should stop and check your tires as soon as possible, and inflate them to the proper
pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can
lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may
affect the vehicle's handling and stopping ability.
Please note that the TPMS is not a substitute for proper tire maintenance, and it is the
driver's responsibility to maintain correct tire pressure, even if under-inflation has not
reached the level to trigger illumination of the TPMS low tire pressure telltale.
Your vehicle has also been equipped with a TPMS malfunction indicator to indicate when
the system is not operating properly.
The TPMS malfunction indicator is combined with the low tire pressure telltale. When the
system detects a malfunction, the telltale will flash for approximately one minute and then
remain continuously illuminated. This sequence will continue upon subsequent vehicle
start-ups as long as the malfunction exists. When the malfunction indicator is illuminated,
the system may not be able to detect or signal low tire pressure as intended. TPMS
malfunctions may occur for a variety of reasons, including the installation of replacement
or alternate tires or wheels on the vehicle that prevent the TPMS from functioning properly.
Always check the TPMS malfunction telltale after replacing one or more tires or wheels on
your vehicle to ensure that the replacement or alternate tires and wheels allow the TPMS to
continue to function properly.



To avoid false readings, the system samples for a little while before indicating a problem. As
a result it will not instantaneously register a rapid tire deflation or blow out.

▼

System Error Activation

When the warning light flashes, there may
be a system malfunction. Consult an
Authorized Mazda Dealer.
A system error activation may occur in the
following cases:



When there is equipment or a device
near the vehicle using the same radio
frequency as that of the tire pressure
sensors.



When a metallic device such as a
non-genuine navigation system is
equipped near the center of the
dashboard, which may block radio
signals from the tire pressure sensor to
the receiver unit.



When using the following devices in the
vehicle that may cause radio
interference with the receiver unit.



A digital device such as a personal
computer.



A current converter device such as a
DC-AC converter.



When excess snow or ice adheres to the
vehicle, especially around the wheels.



When the tire pressure sensor batteries
are exhausted.



When using a wheel with no tire
pressure sensor installed.



When using tires with steel wire
reinforcement in the sidewalls.



When using tire chains.

When Driving

Tire Pressure Monitoring System

4-274

▼

Tires and Wheels

CAUTION

When inspecting or adjusting the tire air
pressures, do not apply excessive force to
the stem part of the wheel unit. The stem
part could be damaged.

Changing tires and wheels

The following procedure allows the TPMS
to recognize a tire pressure sensor's unique
ID signal code whenever tires or wheels
are changed, such as changing to and from
winter tires.

NOTE

Each tire pressure sensor has a unique ID
signal code. The signal code must be
registered with the TPMS before it can
work. The easiest way to do it is to have
an Authorized Mazda Dealer, change your
tire and complete ID signal code
registration.

When having tires changed at an
Authorized Mazda Dealer

When an Authorized Mazda Dealer,
changes your vehicle's tires, they will
complete the tire pressure sensor ID signal
code registration.

When changing tires yourself

If you or someone else changes tires, you
or someone else can also undertake the
steps for the TPMS to complete the ID
signal code registration.
1. After tires have been changed, switch

the ignition ON, then back to ACC or
OFF.

2. Wait for about 15 minutes.

3. After about 15 minutes, drive the

vehicle at a speed of at least 25 km/h
(16 mph) for 10 minutes and the tire
pressure sensor ID signal code will be
registered automatically.

NOTE

If the vehicle is driven within about 15
minutes of changing tires, the tire pressure
monitoring system warning light will flash
because the sensor ID signal code would
not have been registered. If this happens,
park the vehicle for about 15 minutes,
after which the sensor ID signal code will
register upon driving the vehicle for 10
minutes.

Replacing tires and wheels

CAUTION



When replacing/repairing the tires or
wheels or both, have the work done by
an Authorized Mazda Dealer, or the tire
pressure sensors may be damaged.



The wheels equipped on your Mazda are
specially designed for installation of the
tire pressure sensors. Do not use
non-genuine wheels, otherwise it may
not be possible to install the tire pressure
sensors.

Be sure to have the tire pressure sensors
installed whenever tires or wheels are
replaced.
When having a tire or wheel or both
replaced, the following types of tire
pressure sensor installations are possible.



The tire pressure sensor is removed
from the old wheel and installed to the
new one.

When Driving

Tire Pressure Monitoring System

4-275



The same tire pressure sensor is used
with the same wheel. Only the tire is
replaced.



A new tire pressure sensor is installed to
a new wheel.

NOTE



The tire pressure sensor ID signal code
must be registered when a new tire
pressure sensor is purchased. For
purchase of a tire pressure sensor and
registration of the tire pressure sensor
ID signal code, consult an Authorized
Mazda Dealer.



When reinstalling a previously removed
tire pressure sensor to a wheel, replace
the grommet (seal between valve body/
sensor and wheel) for the tire pressure
sensor.

When Driving

Tire Pressure Monitoring System

4-276

Rear View Monitor (Mazda Connect (Type A))

The rear view monitor provides visual images of the rear of the vehicle when reversing.

WARNING

Always drive carefully confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:

Reversing the vehicle by only looking at the screen is dangerous as it may cause an accident
or a collision with an object. The rear view monitor is only a visual assist device when
reversing the vehicle. The images on the screen may be different from the actual conditions.

CAUTION



Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dangerous and could result in injury or vehicle
damage or both.



Icy or snow-covered roads.



Tire chains or a temporary spare tire is installed.



The liftgate is not fully closed.



The vehicle is on a road incline.



When the display is cold, images may course across the monitor or the screen and may be
dimmer than usual, which could cause difficulty in confirming the surrounding conditions
of the vehicle. Always drive carefully confirming the safety of the rear and the surrounding
conditions by looking directly with your eyes.



Do not apply excessive force to the camera. The camera position and angle may deviate.



Do not disassemble, modify, or remove it as it may no longer be waterproof.



The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,
wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe off
with a soft cloth immediately.



Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.

NOTE



If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.



If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not operate correctly.



When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.

When Driving

Rear View Monitor (Mazda Connect (Type A))

*Some models.

4-277



If the vehicle's front, side, or rear has been involved in a collision, the alignment of the
rear view parking camera (location, installation angle) may have deviated. Always
consult an Authorized Mazda Dealer to have the vehicle inspected.



If “No camera signal.” is indicated in the display, there could be a problem with the
camera. Have your vehicle inspected at an Authorized Mazda Dealer.

▼

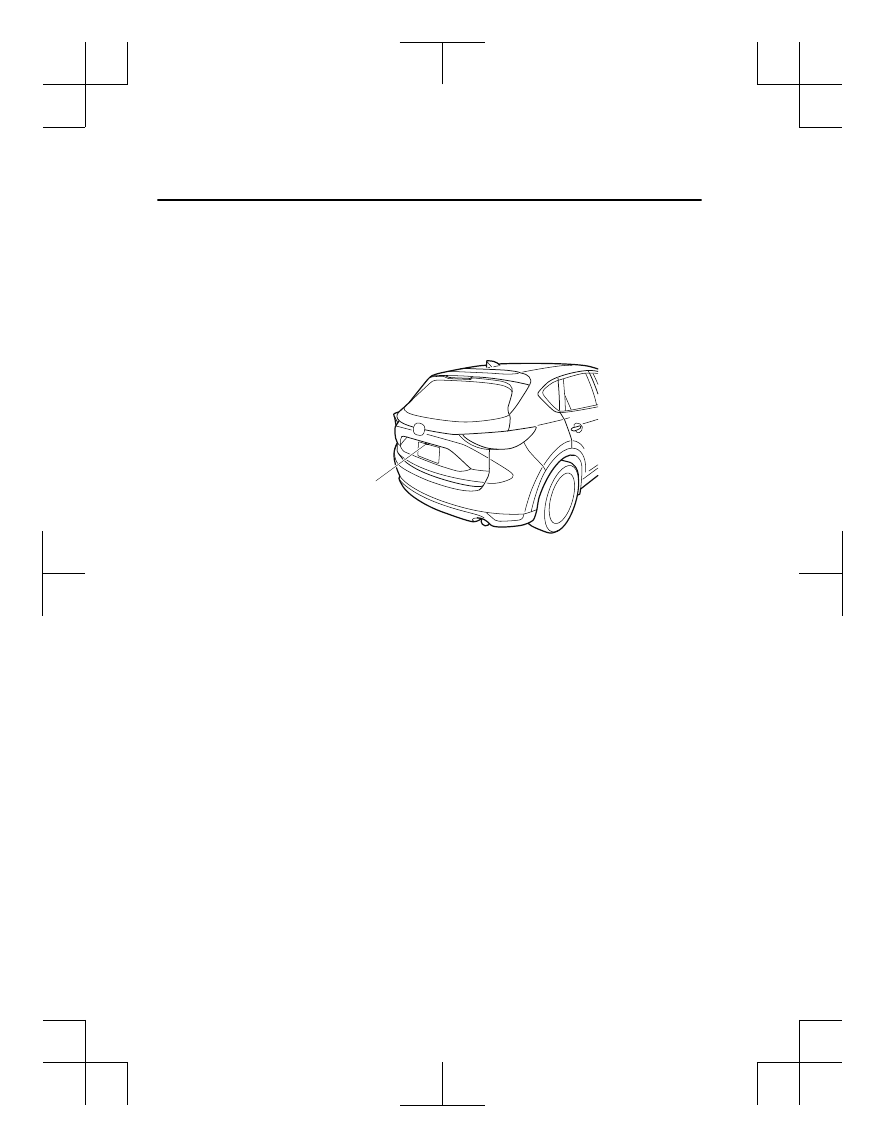

Rear View Parking Camera Location

Rear view parking camera

▼

Switching to the Rear View Monitor Display

Shift the selector lever to R with the ignition switched ON to switch the display to the rear
view monitor display.

NOTE

When the selector lever is shifted from R to another selector lever position, the screen
returns to the previous display.

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-278

▼

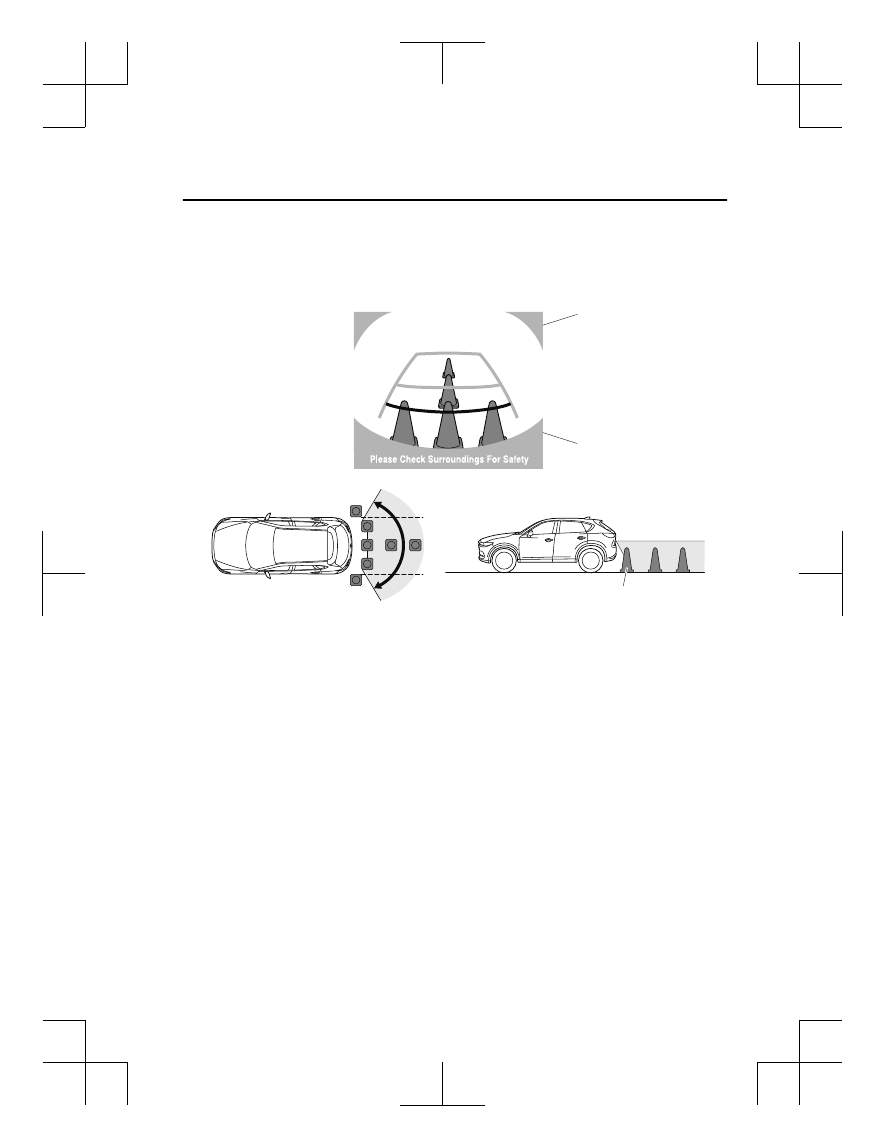

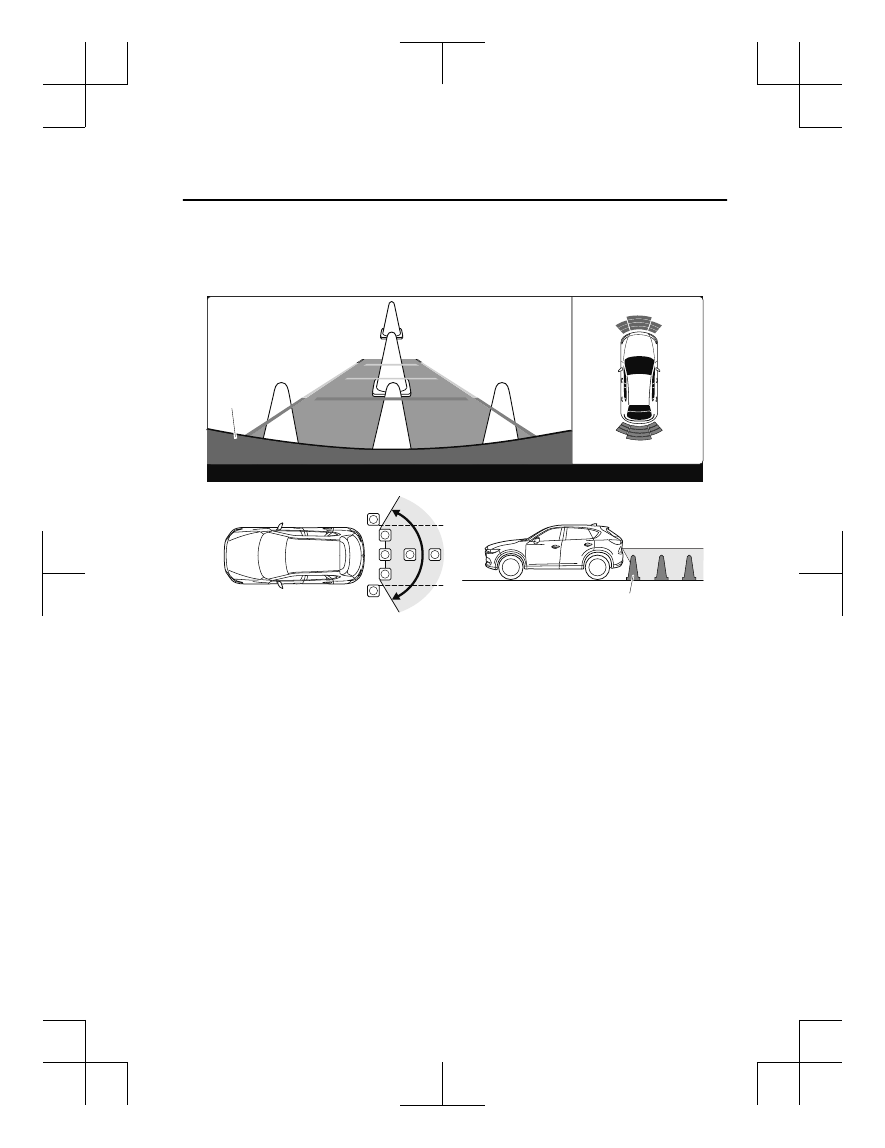

Displayable Range on the Screen

The images on the screen may be different from the actual conditions.

(Screen display)

Garnish

Bumper

(Actual view)

Object

NOTE



The displayable range varies depending on the vehicle and road conditions.



The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.



The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.



Some optionally installed vehicle accessories may be picked up by the camera. Do not
install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of reflective material.



It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.



In darkened areas.



When the temperature around the lens is high/low.



When the camera is wet such as on a rainy day or during periods of high humidity.



When foreign material such as mud is stuck around the camera.



When the camera lens reflects sunlight or headlight beams.



Image display may be delayed if the temperature around the camera is low.

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-279

▼

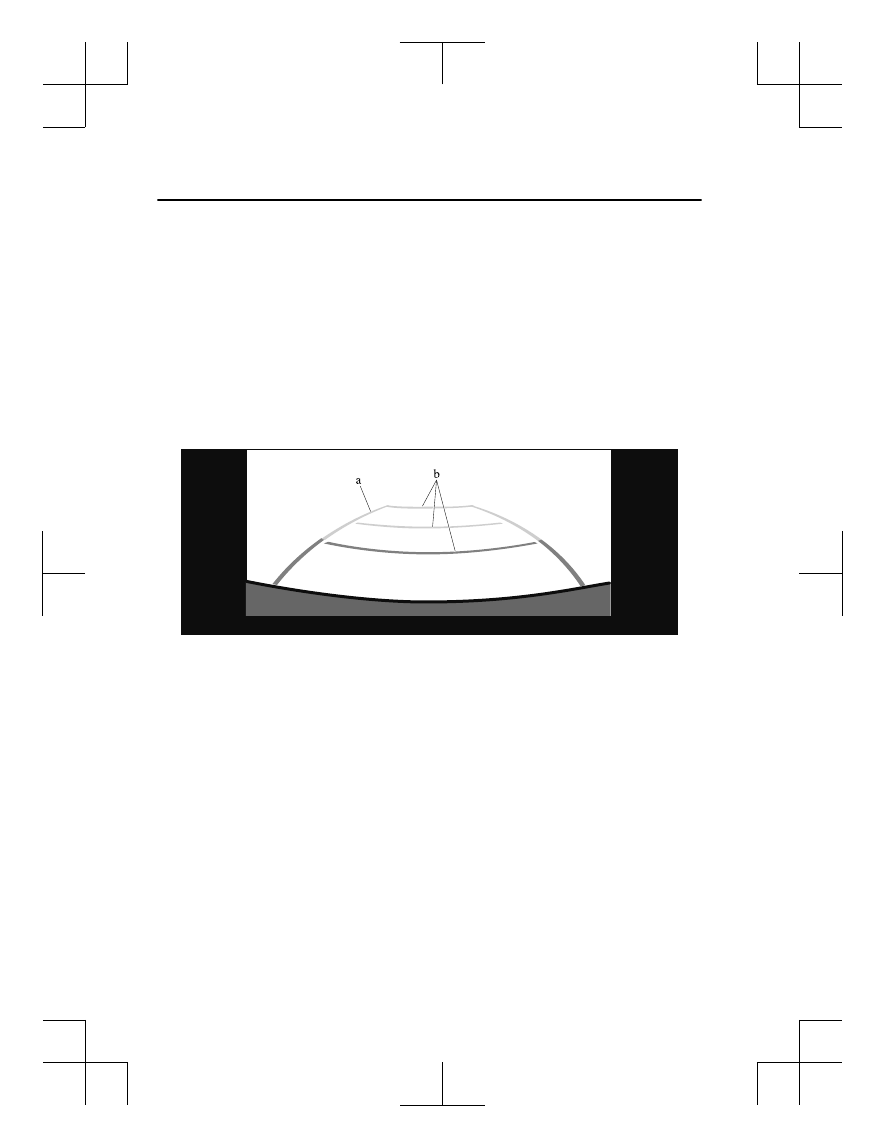

Viewing the Display

Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.

a) Vehicle width guide lines (yellow)

These guide lines serve as a reference to the approximate width of the vehicle.

b) Distance guide lines.

These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).



The red line indicates the point about 0.5 m (19.7 in) from the rear bumper. The yellow
lines indicate the points about 1.0 m (39.4 in) and 2.0 m (78 in) from the rear bumper.

CAUTION

The guide lines on the screen are fixed lines. They are not synced to the driver's turning of the
steering wheel. Always be careful and check the area to the vehicle's rear and the surrounding
area directly with your eyes while backing up.

▼

Rear View Monitor Operation

The operation of the rear view monitor when reversing the vehicle varies depending on the
traffic, road, and vehicle conditions. The amount of steering and the timing also varies
depending on conditions, so confirm the surrounding conditions directly with your eyes and
steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.

NOTE

Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).

1. Shift the selector lever to R to switch the display to the rear view monitor display.

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-280

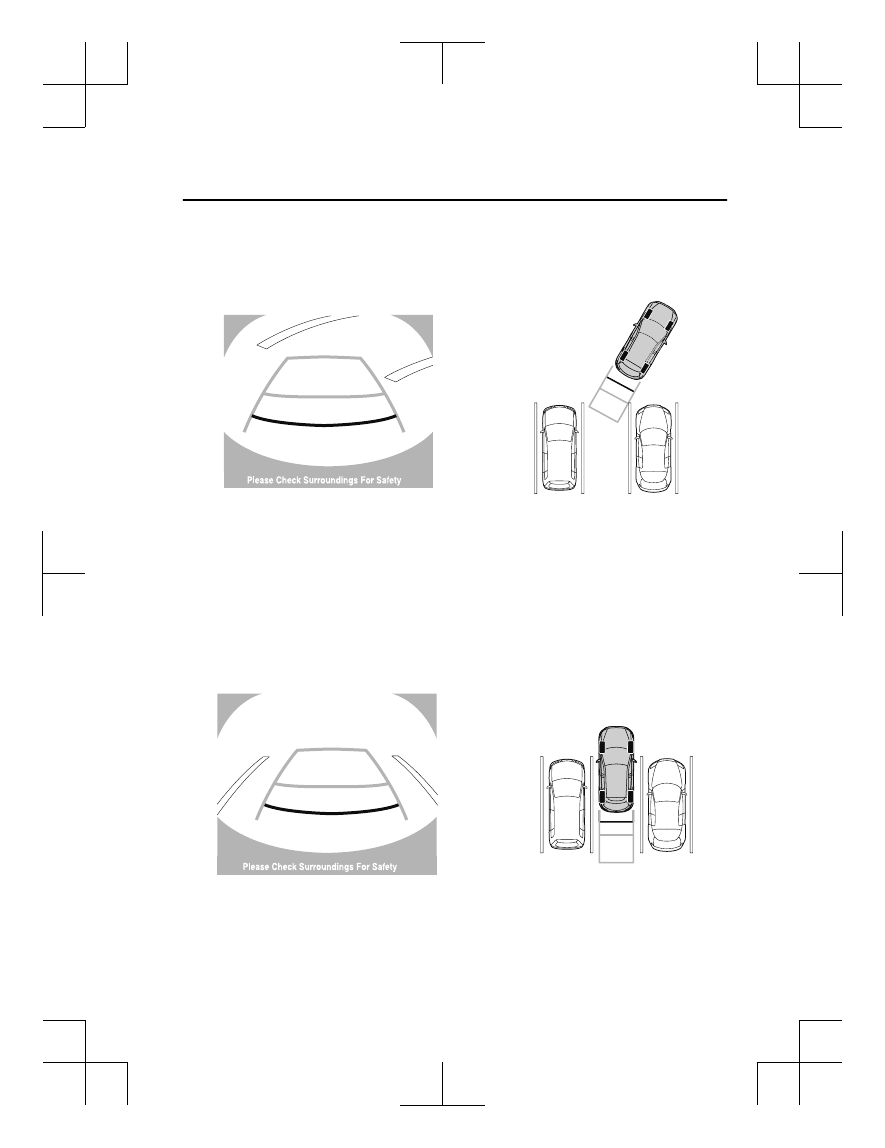

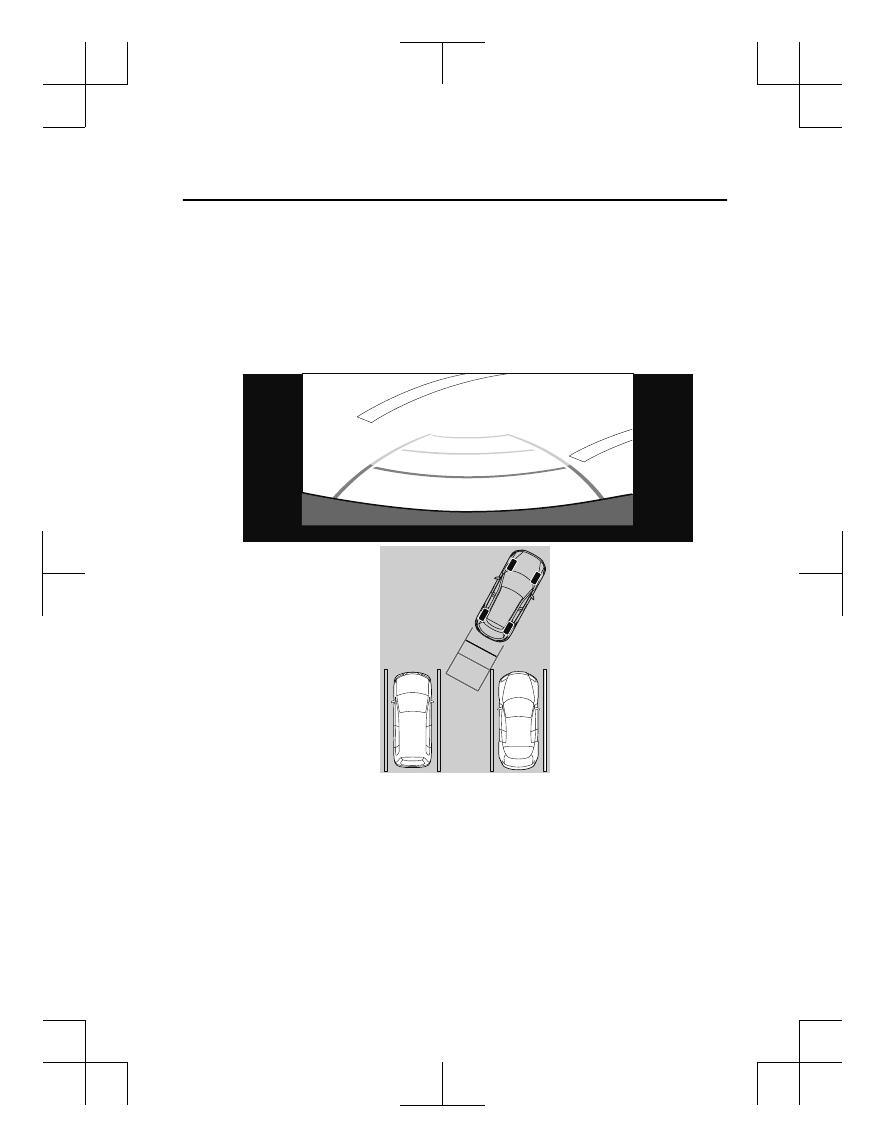

2. Confirming the surrounding conditions, reverse the vehicle.

(Display condition)

(Vehicle condition)

3. After your vehicle begins entering the parking space, continue backing up slowly so that

the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.

4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to

the left and right sides of the parking space.

5. Once they are parallel, straighten the wheels and back your vehicle slowly into the

parking space. Continue checking the vehicle's surroundings and then stop the vehicle in
the best possible position.

(Display condition)

(Vehicle condition)

6. When the selector lever is shifted from R to another selector lever position, the screen

returns to the previous display.

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-281

NOTE



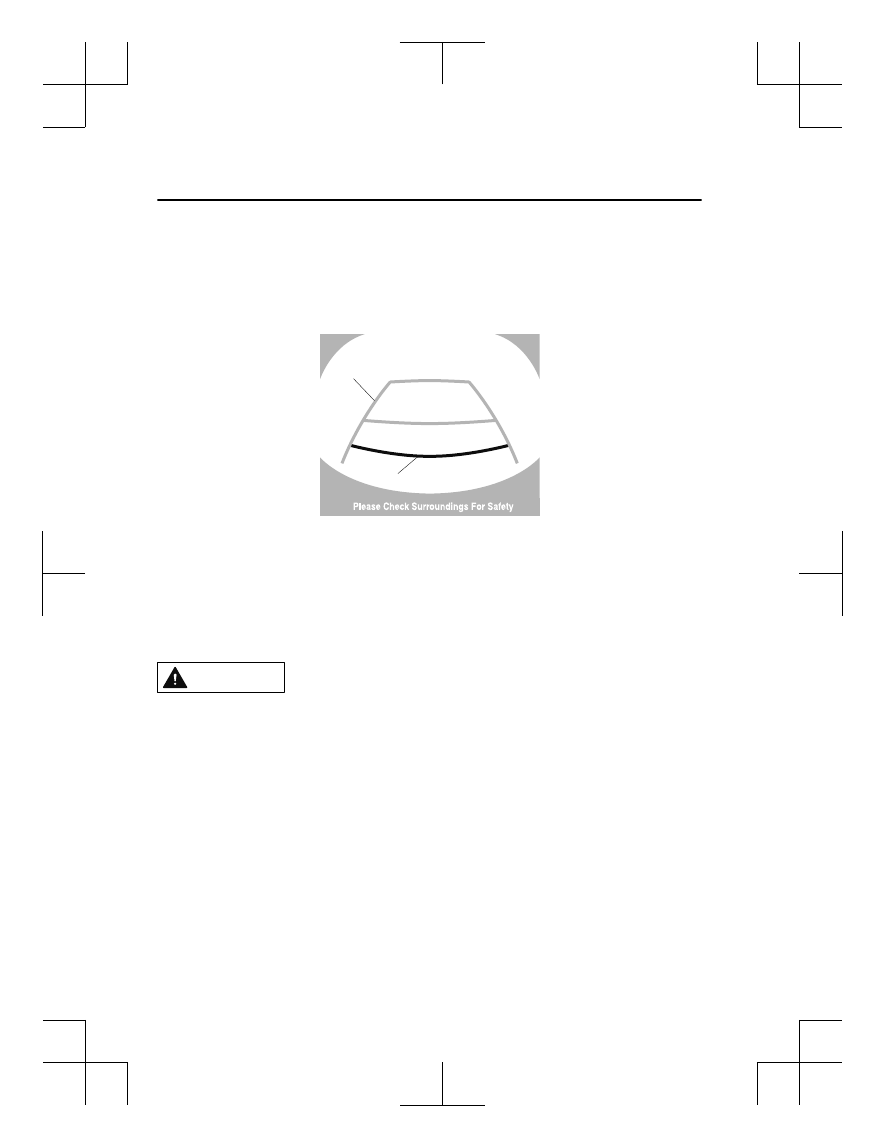

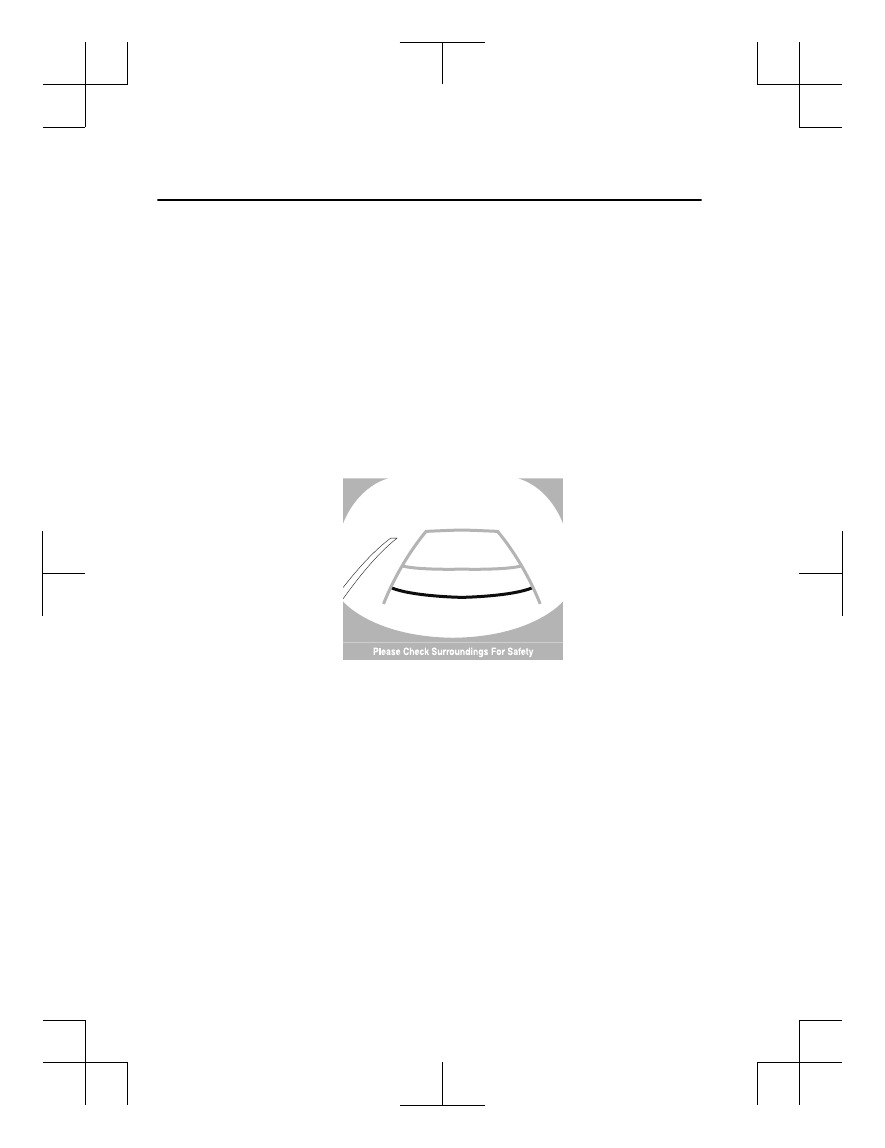

If the parking space has division lines, straighten the wheels when the vehicle width
guide lines are parallel to them.



Because there may be a difference between the displayed image, such as indicated
below, and the actual conditions when parking, always verify the safety at the rear of
the vehicle and the surrounding area directly with your eyes.



In the image of the parking space (or garage) displayed on the screen, the back end
and distance guide lines may appear aligned in the monitor, but they may not
actually be aligned on the ground.



When parking in a space with a division line on only one side of the parking space,
the division line and the vehicle width guide line appear aligned in the monitor, but
they may not actually be aligned on the ground.

▼

Variance Between Actual Road Conditions and Displayed Image

Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-282

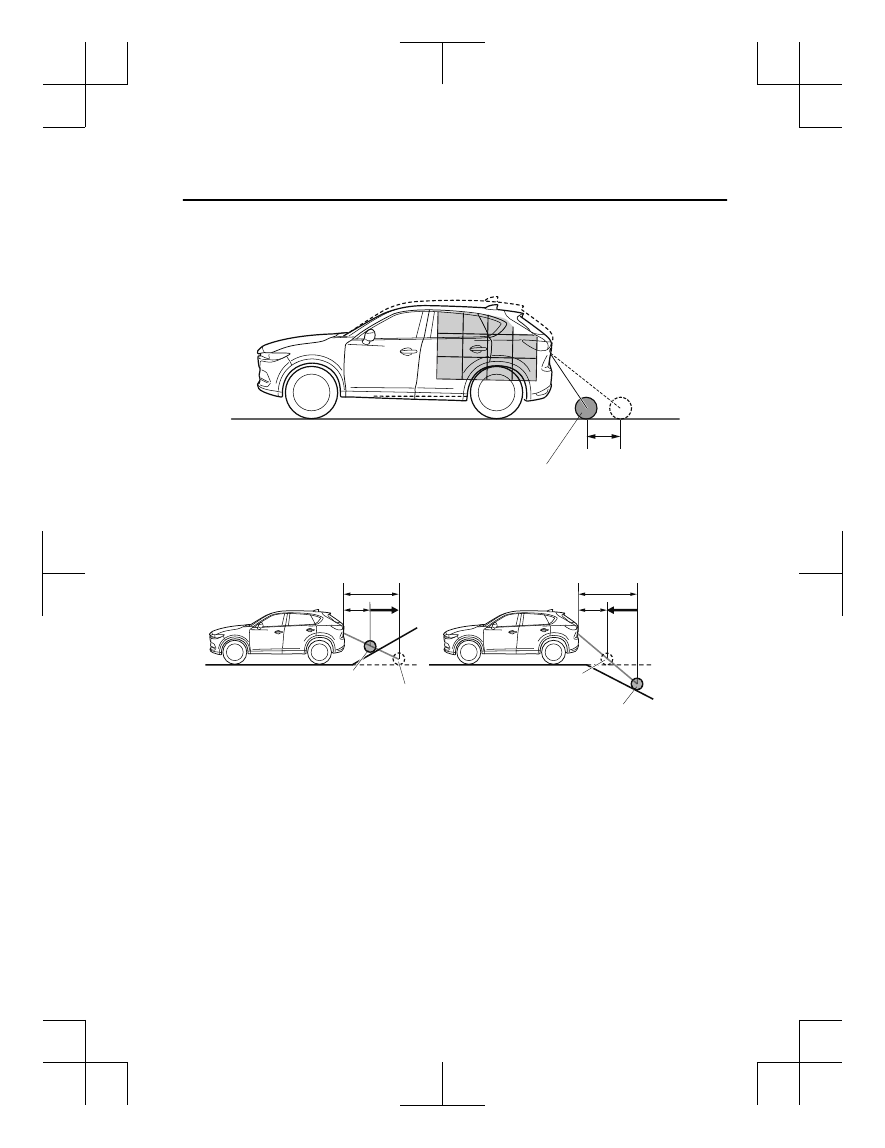

When the vehicle is tilted due to the weight of passengers and load

When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.

Variance

Object

When there is a steep grade behind the vehicle

When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.

Appears
farther than
actual
distance

Object at actual
position

Object at actual position

Object on screen

A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.

Object on screen

Appears
closer than
actual
distance

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-283

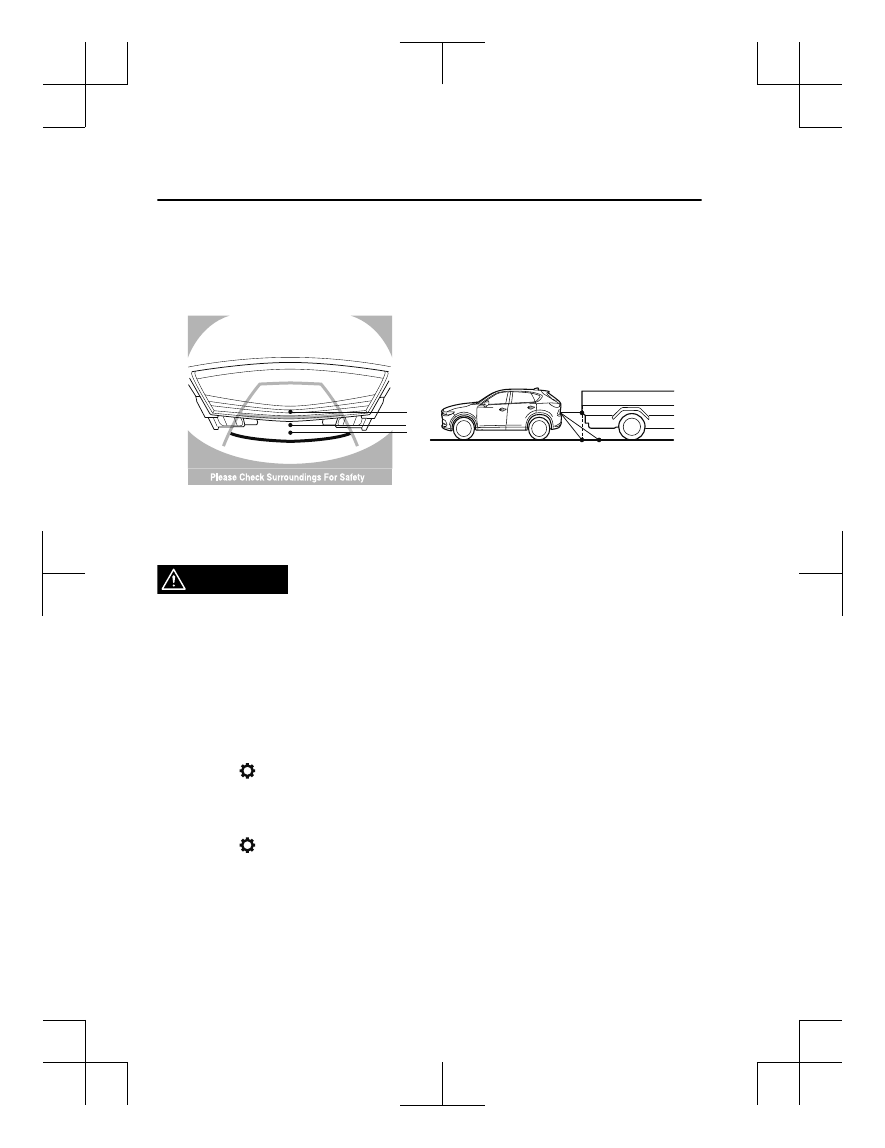

Three-dimensional object on vehicle rear

Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.

C B

(Actual distance) B>C=A

Sensed distance on screen A>B>C

(Screen display)

(Actual condition)

▼

Picture Quality Adjustment

WARNING

Always adjust the picture quality of the rear view monitor while the vehicle is stopped:

Do not adjust the picture quality of the rear view monitor while driving the vehicle. Adjusting
the picture quality of the rear view monitor such as brightness, contrast, color, and tint while
driving the vehicle is dangerous as it could distract your attention from the vehicle operation
which could lead to an accident.

Picture quality adjustment must be done while the selector lever is in reverse (R).
There are four settings which can be adjusted including, brightness, contrast, tint, and color.
When adjusting, pay sufficient attention to the vehicle surroundings.
1. Select the icon on the screen to display the tabs.
2. Select the desired tab item.
3. Adjust the brightness, contrast, tint, and color using the slider.

If you need to reset, press the reset button.

4. Select the icon on the screen to close the tab.

When Driving

Rear View Monitor (Mazda Connect (Type A))

4-284

Rear View Monitor (Mazda Connect (Type B))

The rear view monitor provides visual images of the rear of the vehicle when reversing.

WARNING

Always drive carefully confirming the safety of the rear and the surrounding conditions by
looking directly with your eyes:

CAUTION



Do not use the rear view monitor under the following conditions: Using the rear view
monitor under the following conditions is dangerous and could result in injury or vehicle
damage or both.



Icy or snow-covered roads.



Tire chains or a temporary spare tire is installed.



The liftgate is not fully closed.



The vehicle is on a road incline.



Do not apply excessive force to the camera. The camera position and angle may deviate.



Do not disassemble, modify, or remove it as it may no longer be waterproof.



Do not rub the camera cover forcefully with an abrasive or hard brush. The camera cover or
lens may be scratched which might affect the images.

NOTE



If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it
cannot be wiped off, use a mild detergent.



If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view
monitor may not operate correctly.



When replacing the tires, consult an Authorized Mazda Dealer. Replacing the tires could
result in deviation of the guide lines which appear on the display.

When Driving

Rear View Monitor (Mazda Connect (Type B))

*Some models.

4-285



If “No camera signal.” is indicated in the display, there could be a problem with the
camera. Have your vehicle inspected at an Authorized Mazda Dealer.

▼

Rear View Parking Camera Location

Rear view parking camera

▼

Switching to the Rear View Monitor Display

Shift the selector lever to reverse (R) position with the ignition switched ON to switch the
display to the rear view monitor display.

NOTE

When the selector lever is shifted from reverse (R) position to another selector lever
position, the screen returns to the previous display.

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-286

▼

Displayable Range on the Screen

The images on the screen may be different from the actual conditions.

(Screen display)

Object

Bumper

(Actual view)

NOTE



The displayable range varies depending on the vehicle and road conditions.



If the camera lens is touched or there is any dirt on it, it could affect the screen image.
Wipe the lens using a soft cloth.



The displayable range is limited. Objects under the bumper or around the bumper ends
cannot be displayed.



The distance appearing in the displayed image is different from the actual distance
because the rear view parking camera is equipped with a specific lens.



Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).



It may be difficult to see the display under the following conditions, however, it does not
indicate a malfunction.



In darkened areas.



When the temperature around the lens is high/low.



When the camera is wet such as on a rainy day or during periods of high humidity.

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-287



When foreign material such as mud is stuck around the camera.



When the camera lens reflects sunlight or headlight beams.



The surroundings are illuminated by vehicle lights, fluorescent lights, or LED lights
(display may flicker).



Extremely small dark or white dots appear on the screen (dots may flicker).



Image display may be delayed if the temperature around the camera is low.

▼

Viewing the Display

Guide lines which indicate the width of the vehicle are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.

a) Vehicle width guide lines

Guide lines serve as a reference to the approximate width of the vehicle.

b) Distance guide lines

These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).
The red line indicates the point about 0.5 m (19 in) from the rear bumper.
The yellow lines indicate the points about 1.0 m (39 in) and 2.0 m (78 in) from the rear
bumper.

▼

Rear View Monitor Operation

NOTE

Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-288

1. Shift the selector lever to reverse (R) position to switch the display to the rear view

monitor display.

2. Confirming the surrounding conditions, reverse the vehicle.
3. After your vehicle begins entering the parking space, continue backing up slowly so that

the distance between the vehicle width lines and the sides of the parking space on the
left and right are roughly equal.

(Display condition)

(Vehicle condition)

4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to

the left and right sides of the parking space.

5. Once they are parallel, straighten the wheels and back your vehicle slowly into the

parking space. Continue checking the vehicle's surroundings and then stop the vehicle in

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-289

Content .. 25 26 27 28 ..
