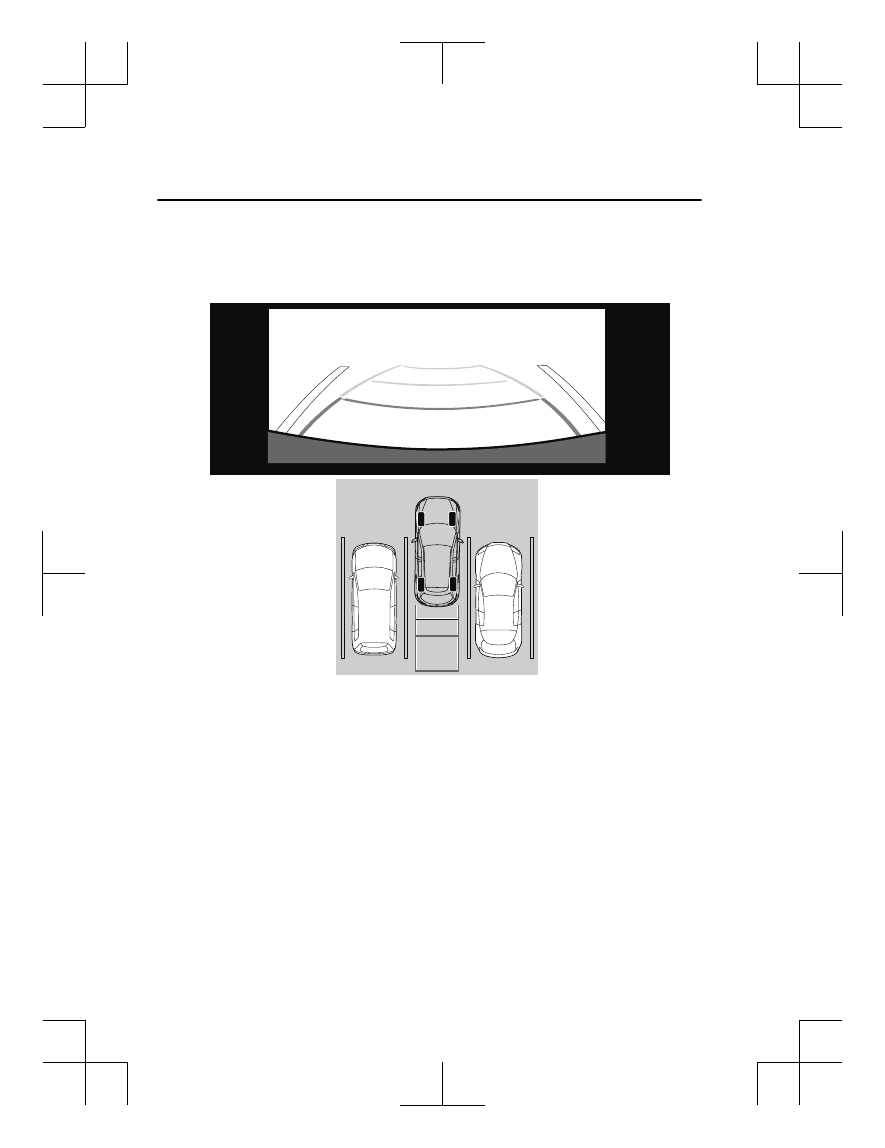

the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)

(Display condition)

(Vehicle condition)

6. When the selector lever is shifted from reverse (R) position to another selector lever

position, the screen returns to the previous display.

NOTE

Because there may be a difference between the displayed image, such as indicated below,
and the actual conditions when parking, always verify the safety at the rear of the vehicle
and the surrounding area directly with your eyes.



In the image of the parking space (or garage) displayed on the screen, the back end and
distance guide lines may appear aligned in the monitor, but they may not actually be
aligned on the ground.

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-290



When parking in a space with a division line on only one side of the parking space, the
division line and the vehicle width guide line appear aligned in the monitor, but they may
not actually be aligned on the ground.

▼

Variance Between Actual Road Conditions and Displayed Image

Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.

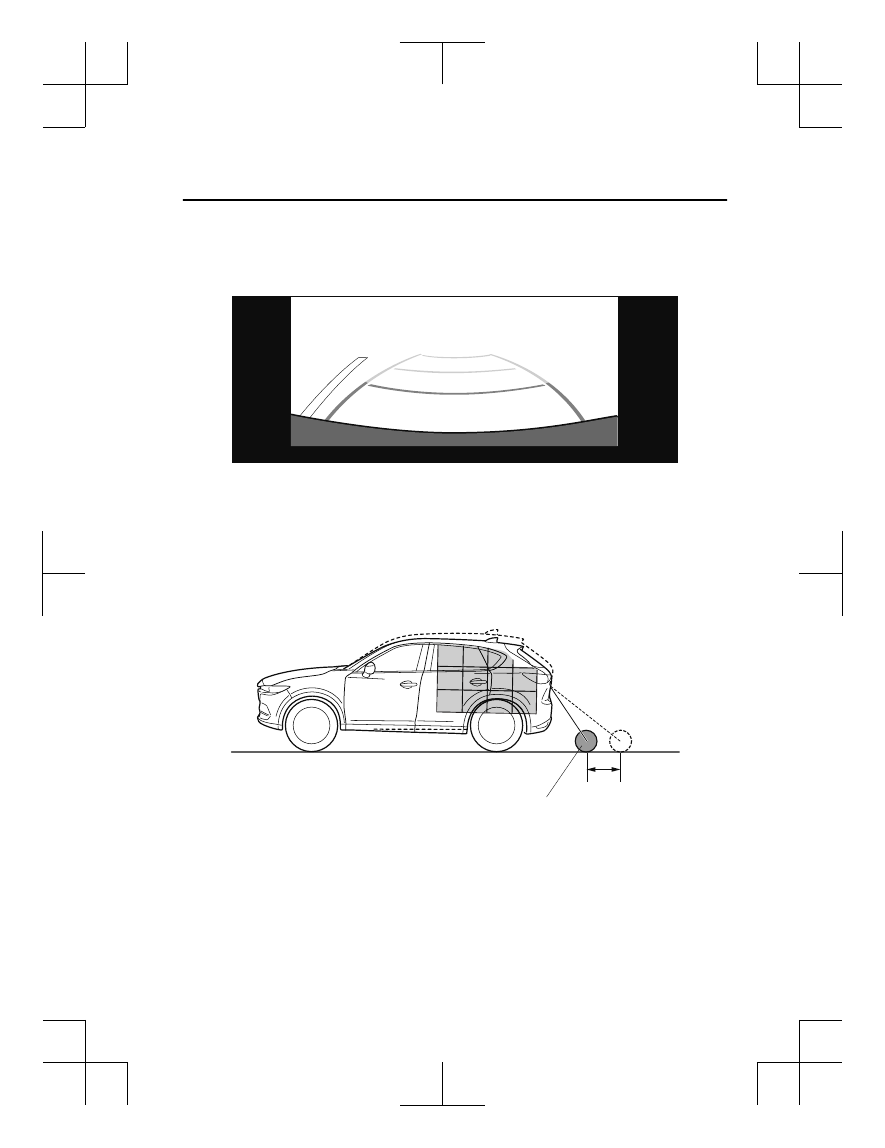

When the vehicle is tilted due to the weight of passengers and load

When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.

Variance

Object

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-291

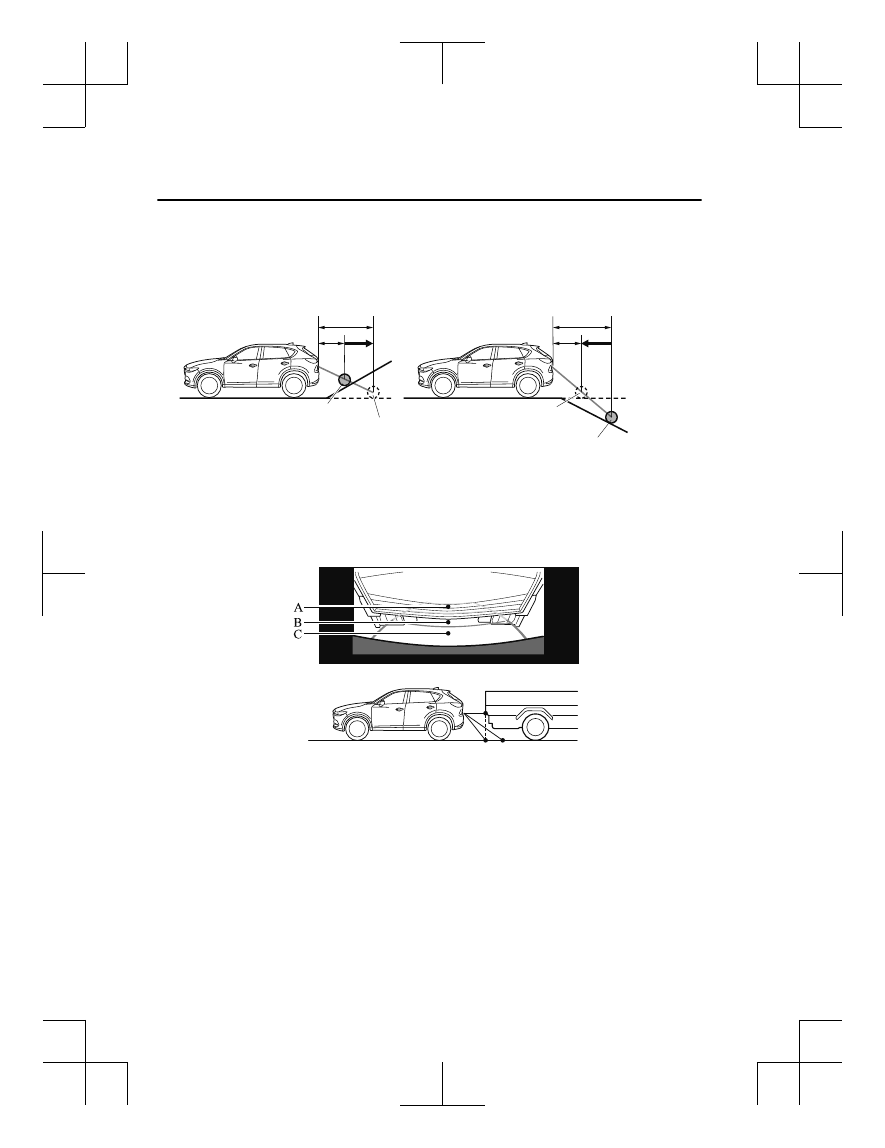

When there is a steep grade behind the vehicle

When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.

Appears
farther than
actual
distance

Object at actual
position

Object at actual position

Object on screen

A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.

Object on screen

Appears
closer than
actual
distance

Three-dimensional object on vehicle rear

Because the distance guide lines are displayed based on a flat surface, the distance to the
three-dimensional object displayed on the screen is different from the actual distance.

(Screen display)

(Actual view)

(Actual distance) B>C=A

Sensed distance on screen A>B>C

C B

When Driving

Rear View Monitor (Mazda Connect (Type B))

4-292

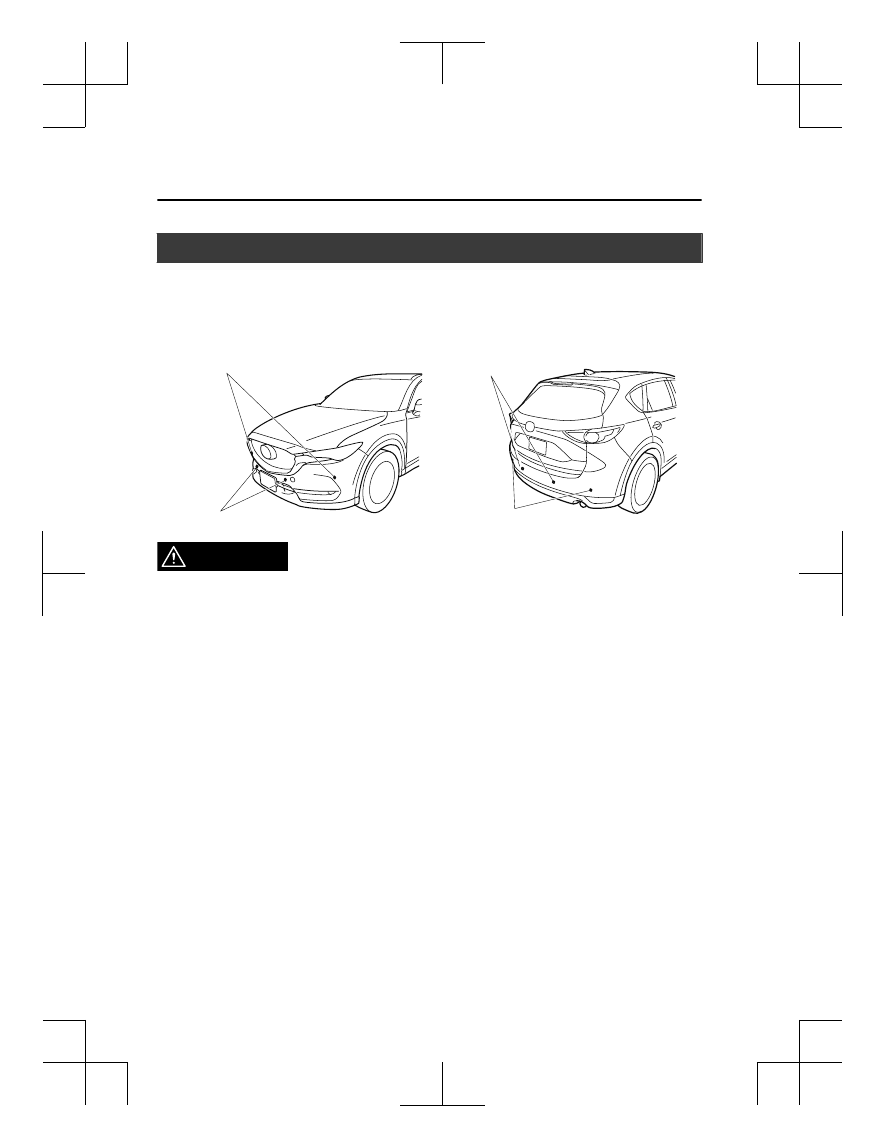

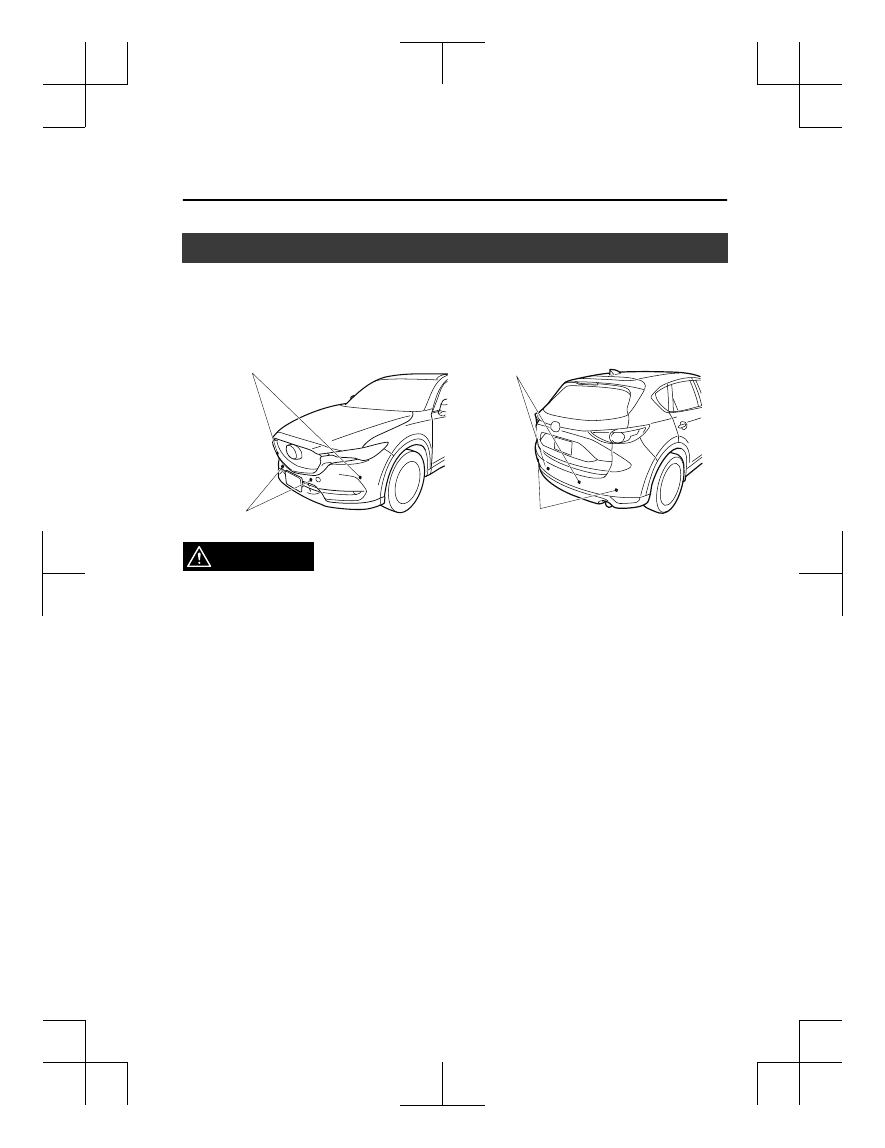

Parking Sensor System (Mazda Connect (Type A))

The parking sensors use ultrasonic sensors which detect obstructions around the vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify the driver of the approximate distance from the
vehicle to the surrounding obstruction.

Rear corner ultrasonic sensor

Front corner ultrasonic sensor

Rear ultrasonic sensor

Front ultrasonic sensor

WARNING

Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:

This system can assist the driver in operating the vehicle in the forward and backward
directions while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always confirm the safety
around your vehicle visually when driving.

NOTE



Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.



Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.



The system may not operate normally under the following conditions:



Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).



The sensor area is frozen (Returns to normal operation when the ice is thawed).



The sensor is covered by a hand.



The sensor is excessively shocked.



The vehicle is excessively tilted.



Under extremely hot or cold weather conditions.



The vehicle is driven on bumps, inclines, gravel, or grass covered roads.

When Driving

Parking Sensor System (Mazda Connect (Type A))

*Some models.

4-293



Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.



The vehicle is driven in heavy rain or in road conditions causing water-splash.



A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.



The vehicle is moving towards a tall or square curbstone.



An obstruction is too close to the sensor.



Obstructions under the bumper may not be detected. Obstructions that are lower than the
bumper or thin which may have been initially detected may no longer be detected as the
vehicle approaches more closely to the obstruction.



The following types of obstructions may not be detected:



Thin objects such as wire or rope



Things which absorb sonic waves easily such as cotton or snow



Angular shaped objects



Very tall objects, and those which are wide at the top



Small, short objects



Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.



The system may have a malfunction if the beep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.



The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.



The beeper which indicates a system malfunction may not be heard if the ambient
temperature is extremely cold, or mud, ice, or snow adheres to the sensor area. Remove
any foreign material from the sensor area.



When installing a trailer hitch, consult an Authorized Mazda Dealer.

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-294

▼

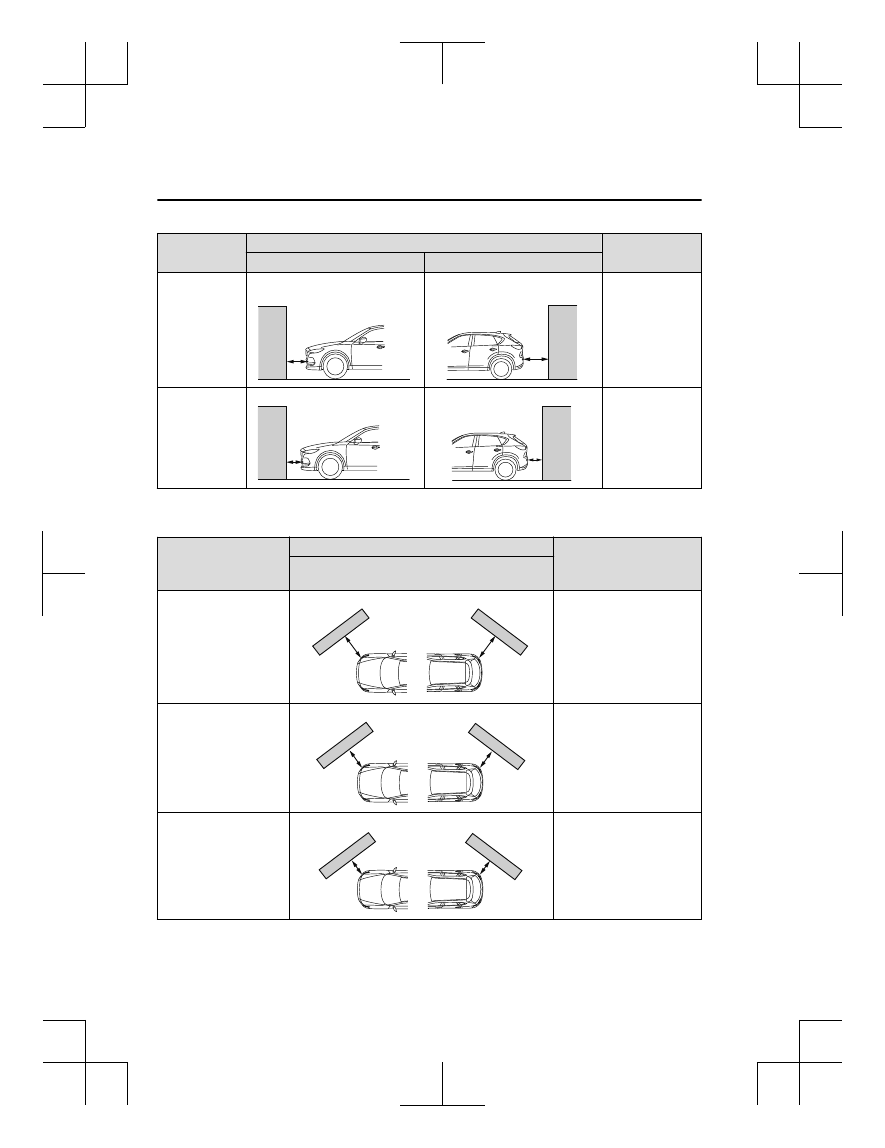

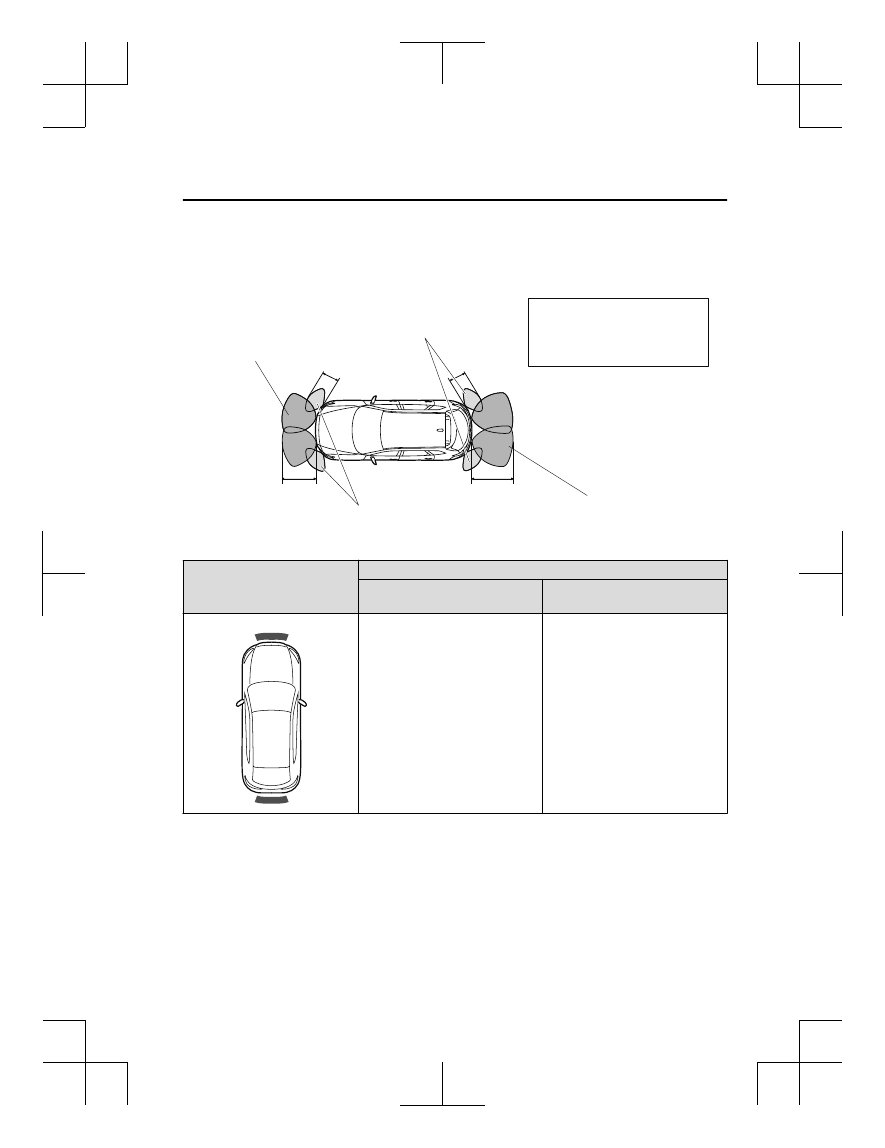

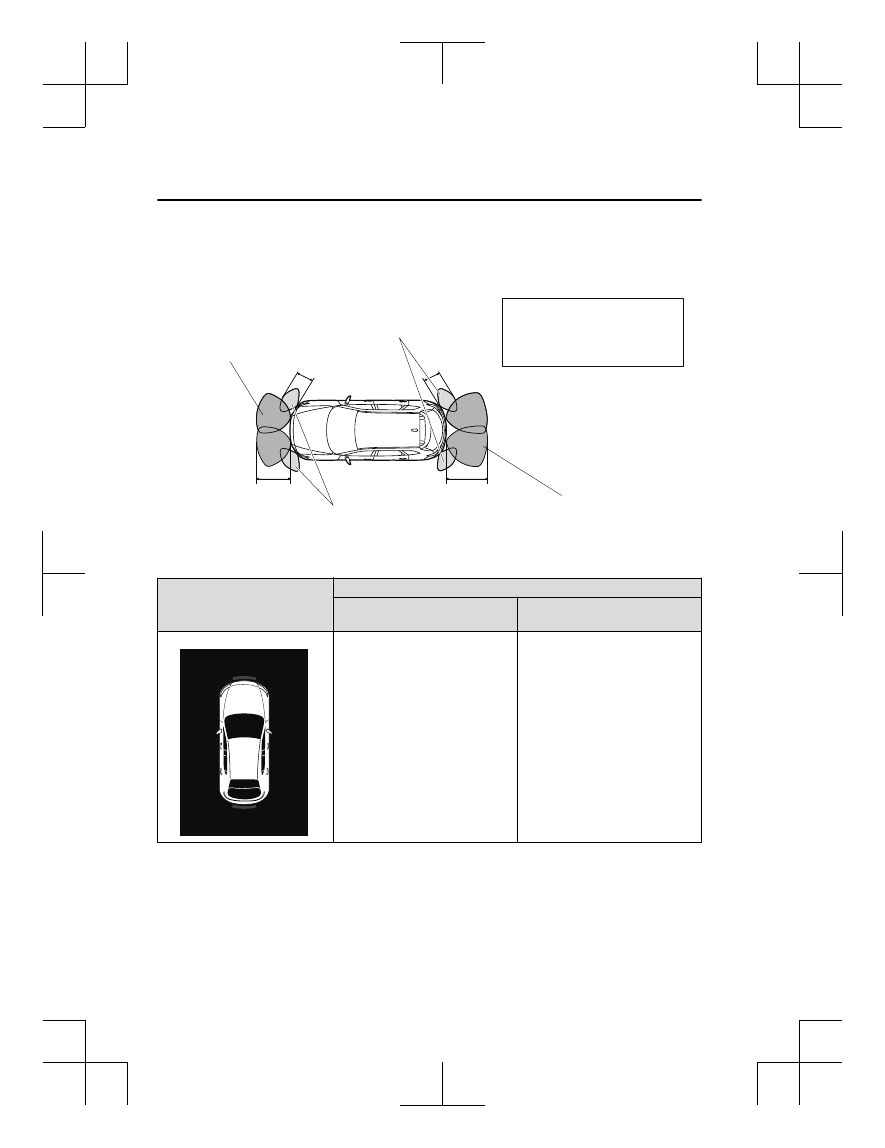

Sensor Detection Range

The sensors detect obstructions within the following range.

Front ultrasonic sensor detection range

Front corner ultrasonic sensor detection range

Rear ultrasonic sensor detection range

Rear corner ultrasonic sensor detection range

A: About 55 cm (About 21.6 in)
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
D: About 150 cm (About 59.0 in)

Viewing distance display

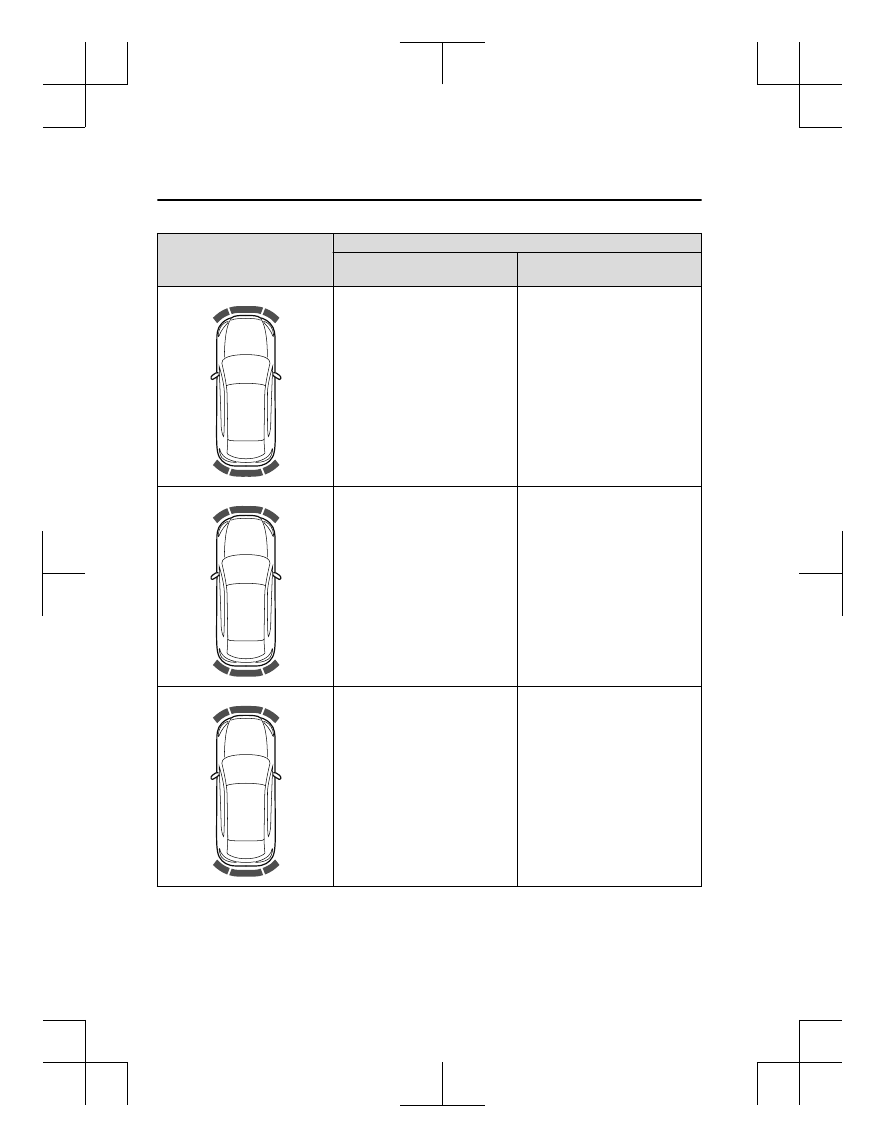

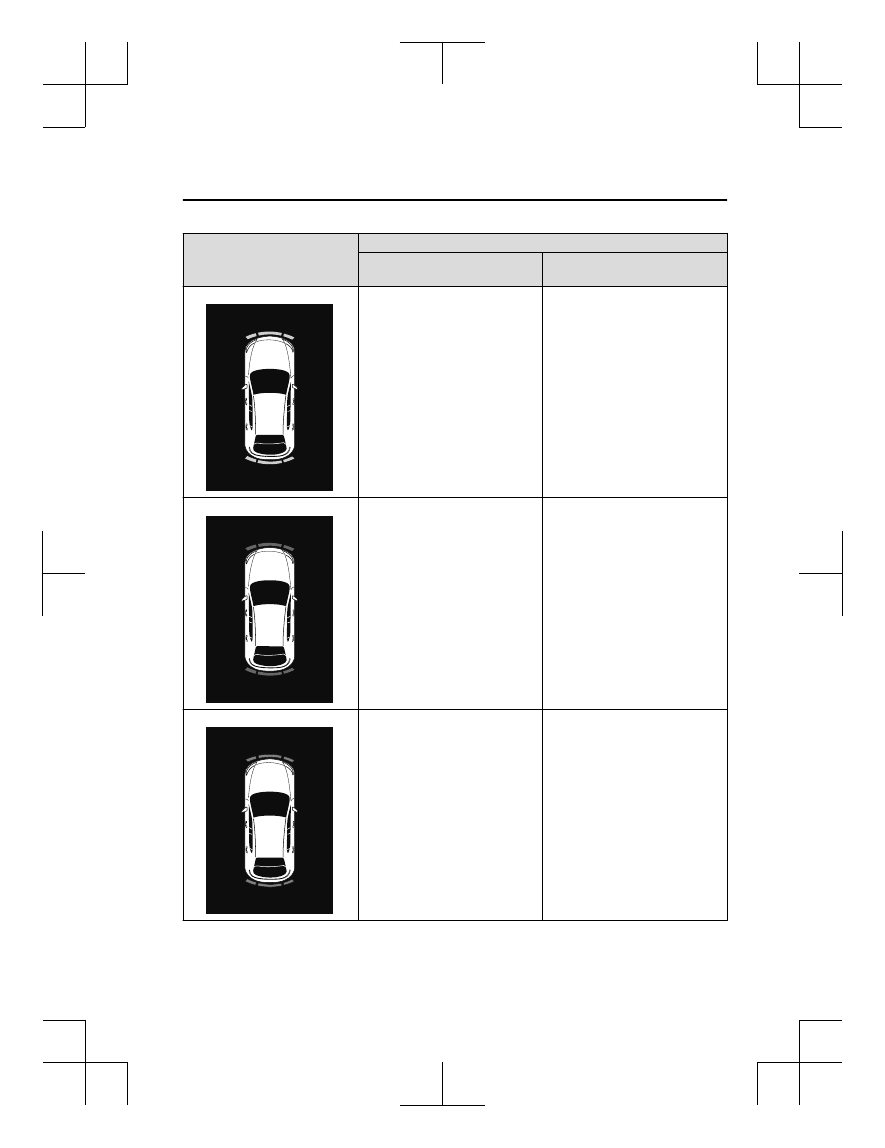

Display

Distance between vehicle and obstruction

Front ultrasonic sensor/Front ul

‐

trasonic corner sensor

Rear ultrasonic sensor/Rear ultra

‐

sonic corner sensor

Green

Front ultrasonic sensor:

Approx. 100

―

60 cm (39.3

―

23.6

in)

Rear ultrasonic sensor:

Approx. 150

―

60 cm (59.0

―

23.6

in)

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-295

Display

Distance between vehicle and obstruction

Front ultrasonic sensor/Front ul

‐

trasonic corner sensor

Rear ultrasonic sensor/Rear ultra

‐

sonic corner sensor

Yellow

Front ultrasonic sensor:

Approx. 60

―

45 cm (23.6

―

17.7 in)

Front corner ultrasonic sensor:

Approx. 55

―

38 cm (21.6

―

14.9 in)

Rear ultrasonic sensor:

Approx. 60

―

45 cm (23.6

―

17.7 in)

Rear corner ultrasonic sensor:

Approx. 55

―

38 cm (21.6

―

14.9 in)

Amber

Front ultrasonic sensor:

Approx. 45

―

35 cm (17.7

―

13.7 in)

Front corner ultrasonic sensor:

Approx. 38

―

25 cm (14.9

―

9.8 in)

Rear ultrasonic sensor:

Approx. 45

―

35 cm (17.7

―

13.7 in)

Rear corner ultrasonic sensor:

Approx. 38

―

25 cm (14.9

―

9.8 in)

Red

Front ultrasonic sensor:

Within approx. 35 cm (13.7 in)

Front corner ultrasonic sensor:

Within approx. 25 cm (9.8 in)

Rear ultrasonic sensor:

Within approx. 35 cm (13.7 in)

Rear corner ultrasonic sensor:
Within approx. 25 cm (9.8 in)

▼

Parking Sensor System Operation

When the parking sensor switch is pressed with the ignition switched ON, the buzzer sounds
and the indicator light turns on.

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-296

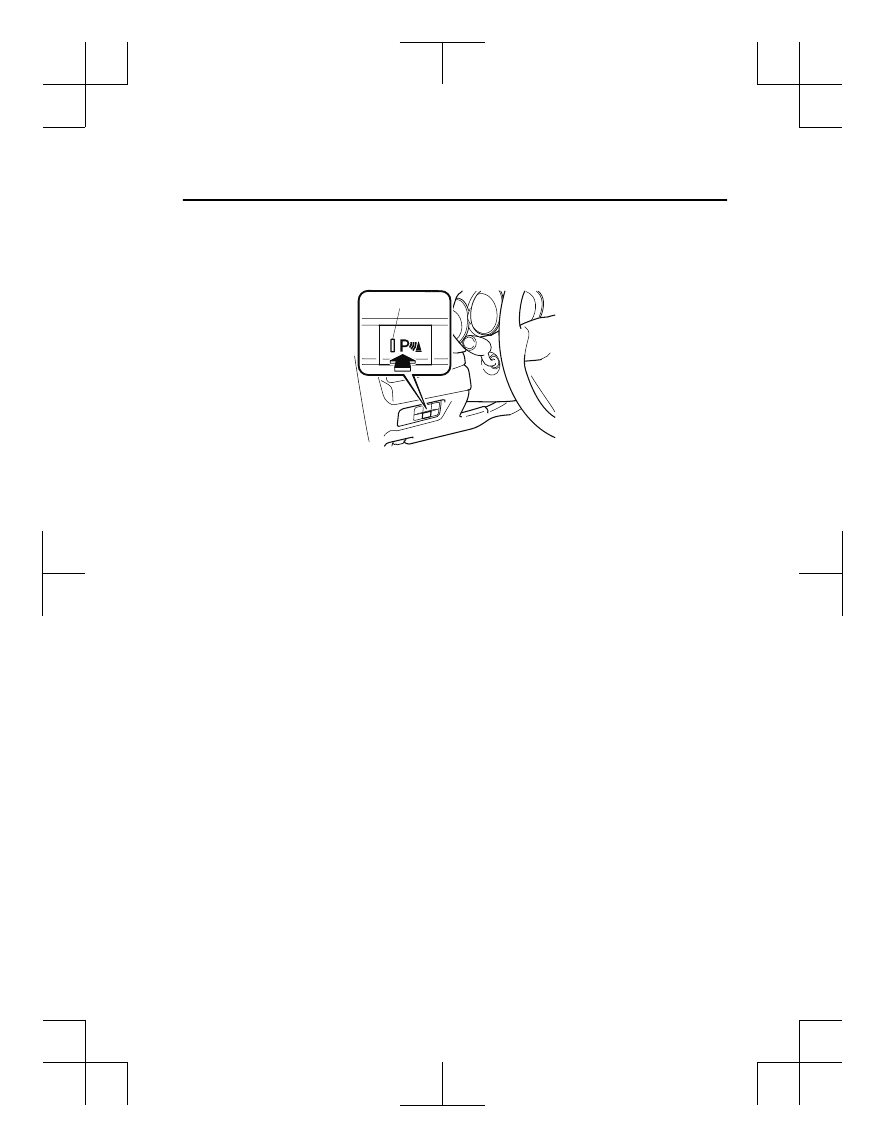

When the ignition is switched ON with the parking sensor activated, the indicator light turns
on.
Press the switch again to stop the operation.

Indicator light

Operation conditions

The parking sensor system can be used when all of the following conditions are met:



The ignition is switched ON.



The parking sensor switch is turned on.

NOTE



The detection indicator and buzzer of the front ultrasonic sensors/front corner ultrasonic
sensors do not operate when the selector lever is in the P position.



The detection indicator and buzzer sound do not activate when the parking brake is
applied.

▼

Obstruction Detection Indication

The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-297

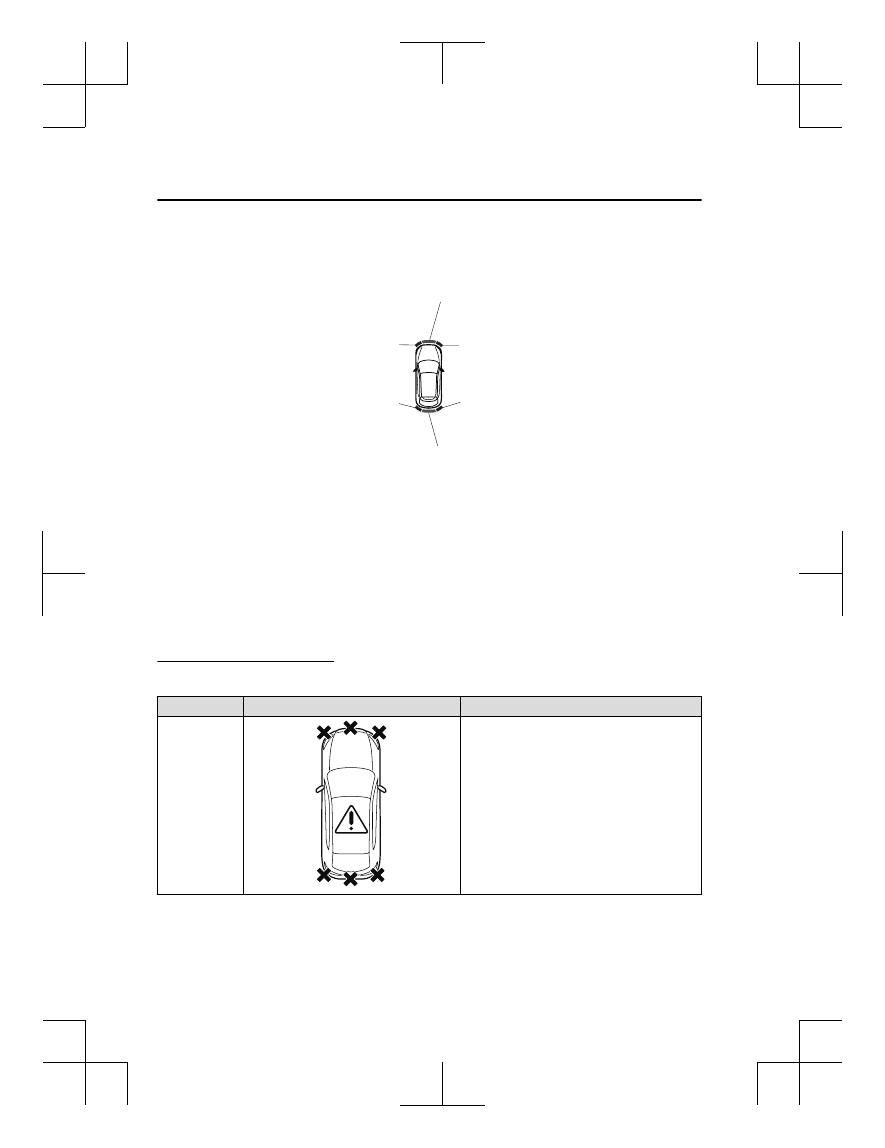

As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.

Rear ultrasonic sensor

Left front corner
ultrasonic sensor

Left rear corner
ultrasonic sensor

Right front corner
ultrasonic sensor

Right rear corner
ultrasonic sensor

Front ultrasonic sensor

NOTE

The detection indicator can switch between display and non-display.
Refer to the Settings section in the Mazda Connect Owner's Manual.
When the detection indicator is set to “Display”, even with the 360° view monitor not
displayed, if a front ultrasonic sensor or a front corner ultrasonic sensor detects an
obstruction, the 360° view monitor switches automatically to display. When an obstruction
is no longer detected, the display switches to the display before the obstruction was
detected. However, while the 360° view monitor is displayed, it continues to display no
matter if an obstruction is detected or not.

System problem notification

If a problem occurs, the driver is notified of the problem by the following indications.

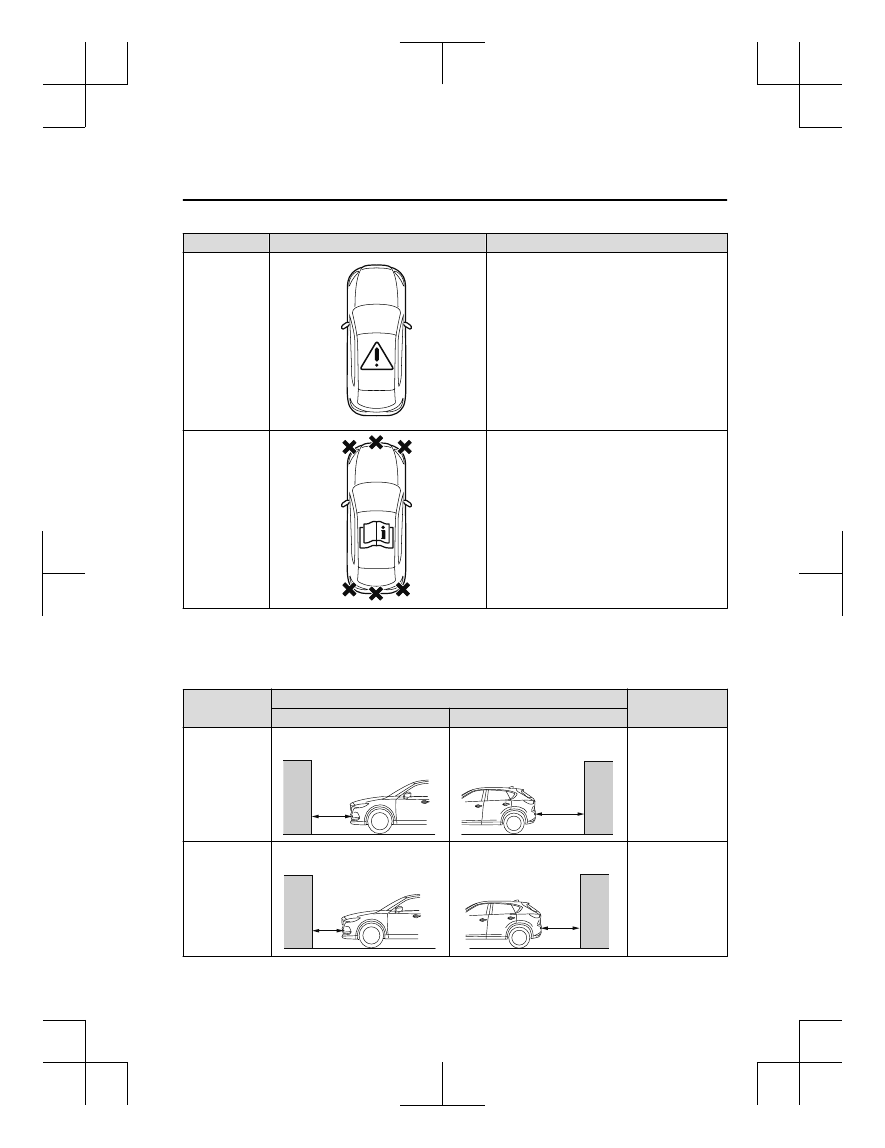

Detection Indicator

Solution

Disconnection

The system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Deal

‐

er as soon as possible.

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-298

Detection Indicator

Solution

System mal

‐

function

The system may have a malfunction. Have the
vehicle inspected at an Authorized Mazda Deal

‐

er as soon as possible.

Frost/soiling

Foreign matter may be on the sensor area corre

‐

sponding to the obstruction detection indication
shown. If the system does not recover, have the
vehicle inspected at an Authorized Mazda Deal

‐

er.

▼

Parking Sensor Warning Beep

The beeper sounds as follows while the system is operating.

Front Ultrasonic Sensor, Rear Ultrasonic Sensor

Distance detec

‐

tion area

Distance between vehicle and obstruction

Beeper sound

Front ultrasonic sensor

Rear ultrasonic sensor

Farthest distance

Approx. 100

―

60 cm (39.3

―

23.6

in)

Approx. 150

―

60 cm (59.0

―

23.6

in)

Slow intermittent
sound

Far distance

Approx. 60

―

45 cm (23.6

―

17.7

in)

Approx. 60

―

45 cm (23.6

―

17.7

in)

Medium intermit

‐

tent sound

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-299

Distance detec

‐

tion area

Distance between vehicle and obstruction

Beeper sound

Front ultrasonic sensor

Rear ultrasonic sensor

Middle distance

Approx. 45

―

35 cm (17.7

―

13.7

in)

Approx. 45

―

35 cm (17.7

―

13.7

in)

Fast intermittent
sound

Close distance

Within approx. 35 cm (13.7 in)

Continuous sound

1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

Front Corner Ultrasonic Sensor, Rear Corner Ultrasonic Sensor

Distance detection area

Distance between vehicle and obstruction

Beeper sound

Front corner ultrasonic/Rear corner ultrasonic

sensor

Far distance

Approx. 55

―

38 cm (21.6

―

14.9 in)

Medium intermittent sound

Middle distance

Approx. 38

―

25 cm (14.9

―

9.8 in)

Fast intermittent sound

Close distance

Within approx. 25 cm (9.8 in)

Continuous sound

1 The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-300

NOTE

If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone, the
corresponding beep sound is heard.

▼

When Warning Indicator/Beep is Activated

The system notifies the driver of an abnormality by activating the beep sound and the
indicator light.

Indicator/Beep

How to check

The indicator light flashes when
the parking sensor switch is
pressed at a vehicle speed of 10
km/h (6 mph) or less.

The system may have a malfunction. Have the vehicle inspected at an Author

‐

ized Mazda Dealer as soon as possible.

The beep sound is not heard.

The system may have a malfunction. Have the vehicle inspected at an Author

‐

ized Mazda Dealer as soon as possible.

The intermittent sound of the
buzzer is heard 5 times.

Remove any foreign material from the sensor area. If the system does not re

‐

cover, have the vehicle inspected at an Authorized Mazda Dealer.

A certain obstruction detection
indicator is continuously dis

‐

played.

Refer to Obstruction Detection Indication on page 4-297.

When Driving

Parking Sensor System (Mazda Connect (Type A))

4-301

Parking Sensor System (Mazda Connect (Type B))

Rear corner ultrasonic sensor

Front corner ultrasonic sensor

Rear ultrasonic sensor

Front ultrasonic sensor

WARNING

Do not rely completely on the parking sensor system and be sure to confirm the safety around
your vehicle visually when driving:

NOTE



Do not install any accessories within the detection ranges of the sensors. It may affect the
system operation.



Depending on the type of obstruction and the surrounding conditions, the detection range
of a sensor may narrow, or the sensors may not be able to detect obstructions.



The system may not operate normally under the following conditions:



Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when
removed).



The sensor area is frozen (Returns to normal operation when the ice is thawed).



The sensor is covered by a hand.



The sensor is excessively shocked.



The vehicle is excessively tilted.



Under extremely hot or cold weather conditions.



The vehicle is driven on bumps, inclines, gravel, or grass covered roads.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-302

*Some models.



Anything which generates ultrasound is near the vehicle, such as another vehicle's
horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle, or
another vehicle's sensors.



The vehicle is driven in heavy rain or in road conditions causing water-splash.



A commercially-available fender pole or an antenna for a radio transmitter is installed
to the vehicle.



The vehicle is moving towards a tall or square curbstone.



An obstruction is too close to the sensor.



The following types of obstructions may not be detected:



Thin objects such as wire or rope



Things which absorb sonic waves easily such as cotton or snow



Angular shaped objects



Very tall objects, and those which are wide at the top



Small, short objects



Always have the system inspected at an Authorized Mazda Dealer if any shock is applied
to the bumpers, even in a minor accident. If the sensors are deviated, they cannot detect
obstructions.



The system may have a malfunction if the beep does not operate or the indicator light
does not illuminate when the parking sensor switch is turned on. Consult an Authorized
Mazda Dealer.



The system may have a malfunction if the beep sound which indicates a system
malfunction is heard and the indicator light flashes. Consult an Authorized Mazda Dealer.



When installing a trailer hitch, consult an Authorized Mazda Dealer.

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-303

▼

Sensor Detection Range

The sensors detect obstructions within the following range.

Front ultrasonic sensor detection range

Front corner ultrasonic sensor detection range

Rear ultrasonic sensor detection range

Rear corner ultrasonic sensor detection range

A: About 55 cm (About 21.6 in)
B: About 55 cm (About 21.6 in)
C: About 100 cm (About 39.3 in)
D: About 150 cm (About 59.0 in)

Viewing distance display

Display

Distance between vehicle and obstruction

Front ultrasonic sensor/Front cor

‐

ner ultrasonic sensor

Rear ultrasonic sensor/Rear cor

‐

ner ultrasonic sensor

Green

Front ultrasonic sensor:

Approx. 100

―

60 cm (39.3

―

23.6

in)

Rear ultrasonic sensor:

Approx. 150

―

60 cm (59.0

―

23.6

in)

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-304

Display

Distance between vehicle and obstruction

Front ultrasonic sensor/Front cor

‐

ner ultrasonic sensor

Rear ultrasonic sensor/Rear cor

‐

ner ultrasonic sensor

Yellow

Front ultrasonic sensor:

Approx. 60

―

45 cm (23.6

―

17.7 in)

Front corner ultrasonic sensor:

Approx. 55

―

38 cm (21.6

―

14.9 in)

Rear ultrasonic sensor:

Approx. 60

―

45 cm (23.6

―

17.7 in)

Rear corner ultrasonic sensor:

Approx. 55

―

38 cm (21.6

―

14.9 in)

Amber

Front ultrasonic sensor:

Approx. 45

―

35 cm (17.7

―

13.7 in)

Front corner ultrasonic sensor:

Approx. 38

―

25 cm (14.9

―

9.8 in)

Rear ultrasonic sensor:

Approx. 45

―

35 cm (17.7

―

13.7 in)

Rear corner ultrasonic sensor:

Approx. 38

―

25 cm (14.9

―

9.8 in)

Red

Front ultrasonic sensor:

Within approx. 35 cm (13.7 in)

Front corner ultrasonic sensor:

Within approx. 25 cm (9.8 in)

Rear ultrasonic sensor:

Within approx. 35 cm (13.7 in)

Rear corner ultrasonic sensor:
Within approx. 25 cm (9.8 in)

When Driving

Parking Sensor System (Mazda Connect (Type B))

4-305

Mazda CX-5 (2022 year). Manual in english - page 28
