Interior Features

Audio Set [Type A (non-touchscreen)]

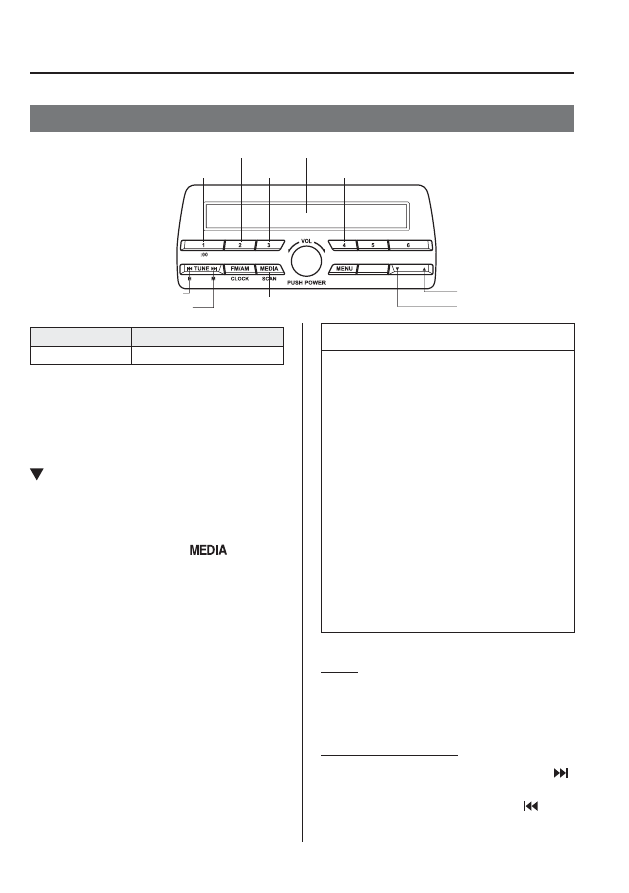

How to use USB mode

Media/Scan button

Folder down button

Folder up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/Reverse button
Track up/Fast-forward button

Type

Playable data

USB mode

MP3/WMA/AAC

¿ le

This unit does not support a USB 3.0
device. In addition, other devices may not
be supported depending on the model or
OS version.

Playback

1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the

audio system on.

3. Press the media button (

) to

switch to the USB mode and start
playback.

NOTE

Some devices such as smart phones

may require a setting change to allow
operation using a USB connection.

When the USB device is not

connected, the mode does not switch
to USB mode.

When there is no playable data in the

USB device, “ NO CONTENTS ” is
À ashed.

Playback of the USB device is in the

order of the folder numbers. Folders
which have no MP3/WMA/AAC
¿ les are skipped.

Do not remove the USB device while

in the USB mode. The data may be
damaged.

Pause

    To stop playback, press the play/pause
button  ( 4 ).
  Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button ( )
to advance through a track at high speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.

5–39

Interior Features

Audio Set [Type A (non-touchscreen)]

Track search

    Press the track up button (   ) once to skip
forward to the beginning of the next track.
  Press the track down button (   ) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
  Press the track down button (   ) after a
few seconds have elapsed to start playback
from the beginning of the current track.

Folder search

    To change to the previous folder, press the
folder down button (   ), or press the folder
up button (   ) to advance to the next
folder.

Music scan

This function scans the titles in a folder
currently being played and plays ten
seconds of each song to aid you in

¿ nding

a song you want to listen to.
Press and hold the scan button (

)

during playback to start the scan play
operation (the track number will

À ash).

Press and hold the scan button (

)

again to cancel scan playback.

NOTE

If the unit is left in scan, normal
playback will resume where scan was
selected.

Repeat playback

Track repeat

1. Press the repeat button ( 1 ) during

playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
( is displayed next to RPT at the
bottom of the display area).

2. To cancel the repeat playback, press the

button again after 3 seconds.

Folder repeat

1. Press the repeat button ( 1 ) during

playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed ( is
displayed next to RPT at the bottom of
the display area).

2. Press the button again to cancel the

repeat playback.

Random playback

Tracks are randomly selected and played.

Folder random

1. Press the random button ( 2 ) during

playback to play the tracks in the folder
randomly. “ FOLDER RDM ” is
displayed ( is displayed next to RDM
at the bottom of the display area).

2. To cancel the random playback, press

the button again after 3 seconds.

5–40

Interior Features

Audio Set [Type A (non-touchscreen)]

All random

1. Press the random button ( 2 ) during

playback, and then press the button
again within 3 seconds to play the
tracks in the USB device randomly.
“ ALL RDM ” is displayed ( is
displayed next to RDM at the bottom of
the display area).

2. Press the button again to cancel the

random playback.

Switching the display

The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

Button

Information displayed

on audio display

File number/Elapsed

time

Folder number/File

number

File name

Folder name

Album name

Song name

Artist name

NOTE

The information (artist name, music

name) is displayed only when the
USB device information in the USB
device has information which can be
displayed on the screen.

This unit cannot display some

characters. Characters which cannot
be displayed are indicated by an
asterisk ( ).

Display scroll

Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.

NOTE

The number of characters which can be
displayed is restricted.

MEMO

5–41

5–42

Interior Features

Audio Set [Type A (non-touchscreen)]

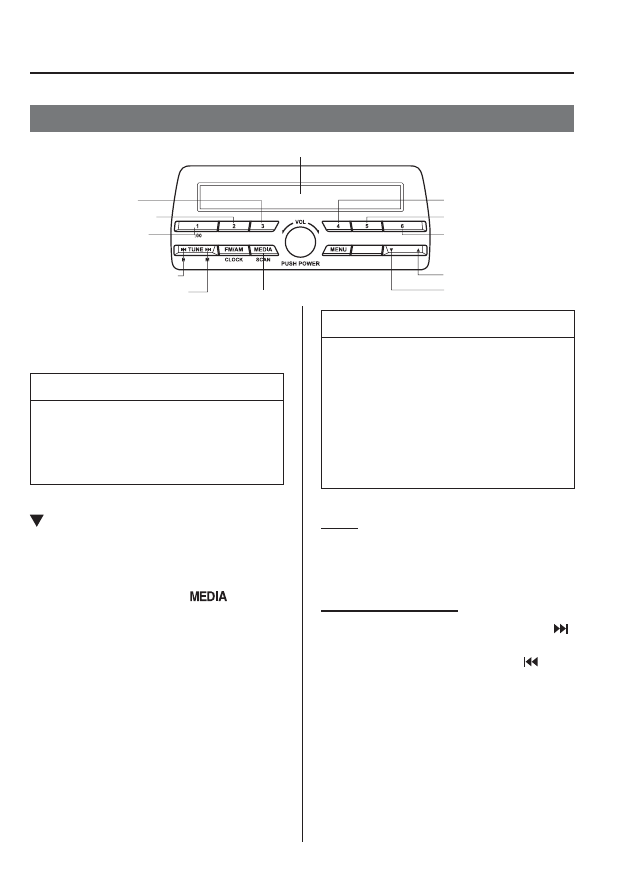

How to use iPod mode

Media/Scan button

List down button

List up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/Reverse button
Track up/Fast-forward button

Category down button

Category up button

An iPod may not be compatible depending
on the model or OS version. In this case,
an error message is displayed.

NOTE

The iPod functions on the iPod cannot
be operated while it is connected to the
unit because the unit controls the iPod
functions.

Playback

1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the

audio system on.

3. Press the media button (

) to

switch to the iPod mode and start
playback.

NOTE

When an iPod is not connected, the

mode does not switch to the iPod
mode.

When there is no playable data in the

iPod, “ NO CONTENTS ” is

À ashed.

Do not remove the iPod while in the

iPod mode. Otherwise, the data could
be damaged.

Pause

    To stop playback, press the play/pause
button  ( 4 ).
  Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button ( )
to advance through a track at high speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.

5–43

Interior Features

Audio Set [Type A (non-touchscreen)]

Track search

    Press the track up button (   ) once to skip
forward to the beginning of the next track.
  Press the track down button (   ) within a
few seconds (depends on iPod software
version) after playback begins to track
down to the beginning of the previous
track.
  Press the track down button (   ) after a
few seconds (depends on iPod software
version) have elapsed to start playback
from the beginning of the current track.

Category search

Press the category down button ( 5 ) to
select the previous category and press the
category up button ( 6 ) to select the next
category.

NOTE

The types of categories include Playlist,
Artist, Album, Song, Podcast, Genre,
Composer, and Audio book.

List search

Press the list down button ( ) to select the
previous list and press the list up button
( ) to select the next list.

NOTE

When the selected category is Song or
Audio book, there is no list.

Music scan

This function scans the titles in a list
currently being played and plays 10
seconds of each song to aid you in

¿ nding

a song you want to listen to.
Press and hold the scan button (

)

during playback to start the scan play
operation (the track number will

À ash).

Press and hold the scan button (

)

again to cancel scan playback.

NOTE

If the unit is left in scan, normal
playback will resume where scan was
selected.

Repeat playback

1. Press the repeat button ( 1 ) during

playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
( is displayed next to RPT at the
bottom of the display area).

2. Press the button again to cancel the

repeat playback.

5–44

Interior Features

Audio Set [Type A (non-touchscreen)]

Random playback

Tracks are randomly selected and played.

Song random

1. Press the random button ( 2 ) during

playback to play the tracks in the list
randomly. “ SONG RDM ” is displayed
( is displayed next to RDM at the
bottom of the display area).

2. To cancel the random playback, press

the button again after 3 seconds.

Album random

1. Press the random button ( 2 ) during

playback, and then press the button
again within 3 seconds to play the
tracks in the iPod randomly. “ ALBUM
RDM ” is displayed ( is displayed
next to RDM at the bottom of the
display area).

2. Press the button again to cancel the

random playback.

NOTE

The track number being played
randomly is in the order of the iPod
shuf

À e table.

Switching the display

The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

Button

Information displayed

on audio display

File number/Elapsed

time

File number

Category name

Artist name

Album name

Song name

NOTE

The information (artist name, music

name) is displayed only when the
iPod has information which can be
displayed.

This unit cannot display some

characters. Characters which cannot
be displayed are indicated by an
asterisk ( ).

Display scroll

13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.

NOTE

The number of characters which can be
displayed is restricted.

5–45

Interior Features

Audio Set [Type A (non-touchscreen)]

Error Indications

If you see an error indication on the
display, take appropriate action according
to the following methods. If you cannot
clear the error indication, take the vehicle
to an expert repairer, we recommend an
Authorised Mazda Repairer.

CHECK CD

If “ CHECK CD ” is displayed, it means
that there is some CD malfunction. Check
the CD for damage, dirt, or smudges, and
then properly reinsert it. If the message
appears again, insert another known good
CD.

CHECK USB

When the message “ CHECK USB ” is
displayed, it indicates that there is some
error in the USB device. Verify that the
content recorded in the USB device has
MP3/WMA/AAC

¿ les and re-connect

correctly.

CHECK iPod

If the message “ CHECK iPod ” is
displayed, it indicates that there is a
malfunction in the iPod. Verify that the
content recorded in the iPod has playable
¿ les and connect correctly.

5–46

Interior Features

Audio Set [Type A (non-touchscreen)]

*Some models.

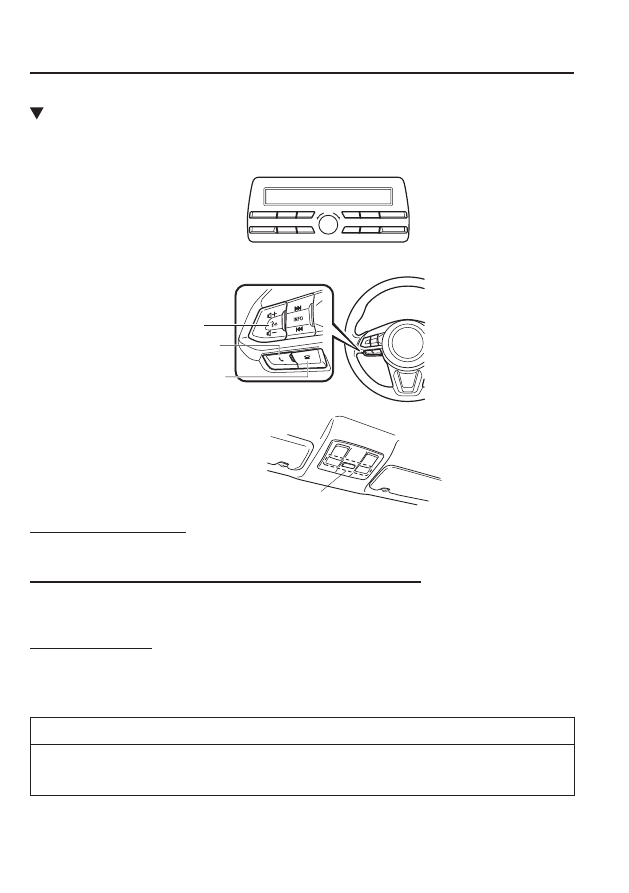

Bluetooth

Introduction

Bluetooth

Hands-Free outline

When a Bluetooth

device (mobile phone) is connected to the vehicle's Bluetooth

unit via

radio wave transmission, a call can be made or received by pressing the talk button, pick-
up button, or hang-up button on the audio remote control switch, or by operating the centre
display. For example, even if a device (mobile phone) is in your coat pocket, a call can be
made without taking the device (mobile phone) out and operating it directly.

Bluetooth

audio outline

When a portable audio unit equipped with the Bluetooth

communication function is paired

to the vehicle, you can listen to music stored on the paired portable audio device from the
vehicle's speakers. It is not necessary to connect the portable audio device to the vehicle's
external input terminal. After programming, operate the vehicle audio control panel to play/
stop the audio.

NOTE

For your safety, a device can be paired only when the vehicle is parked. If the vehicle

starts to move, the pairing procedure will end. Park the vehicle in a safe place before
pairing.

The communication range of a Bluetooth

equipped device is about 10 meters (32 ft)

or less.

Basic audio operation is available using voice commands even if Bluetooth

is not

connected.

For safety reasons, operation of the centre display is disabled while the vehicle is being

driven. However, items not displayed in grey can be operated using the commander
switch while the vehicle is being driven.

5–47

Interior Features

Audio Set [Type A (non-touchscreen)]

CAUTION

Some Bluetooth

mobile devices are not compatible with the vehicle. Consult an

Authorised Mazda Repairer, Mazda's call centre or Web support centre for information
regarding Bluetooth

mobile device compatibility:

Phone:
(Germany)
0800 4263 738 (8:00—18:00 Central European Time)
(Except Germany)
00800 4263 7383 (8:00—18:00 Central European Time)
(Worldwide)

49 (0) 6838 907 287 (8:00—18:00 Central European Time)
Web:
http://www.mazdahandsfree.com

Applicable Bluetooth

speci

¿ cation (Recommended)

Ver. 2.0

5–48

Interior Features

Audio Set [Type A (non-touchscreen)]

Component Parts

Microphone

Talk button, Pick-up button and Hang-up button

Microphone

Audio unit

Talk button

Hang-up button

Pick-up button

Microphone (hands-free)

The microphone is used for speaking voice commands or when making a Hands-free call.

Talk button, Pick-Up button and Hang-Up button (hands-free)

The basic functions of Bluetooth

Hands-Free can be used for such things as making calls or

hanging up using the talk, pick-up and hang-up buttons on the steering wheel.

Volume adjustment

The power/volume dial of the audio unit is used to adjust the volume. Turn the dial to the
right to increase volume, to the left to decrease it.
The volume can also be adjusted using the volume button on the steering wheel.

NOTE

If the volume is lower compared to other audio modes, increase the volume from the
device side.

5–49

Interior Features

Audio Set [Type A (non-touchscreen)]

*Some models.

Bluetooth

Preparation

Bluetooth

Hands-Free

Preparation

Pairing code setting

The 4-digit pairing code setting for
registration of your cell phone (pairing)
can be set beforehand.

NOTE

The initial setting value is “0000”.

1. Press the pick-up button or talk button

with a short press.

2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:

Pair, Edit, Delete, List, or Set pin
Code.”

6. Say: [Beep] “Set pin code”
7. Prompt: “Your current pin code is

XXXX. Do you want to change it to a
different pairing pin code?”

8. Say: [Beep] “Yes”
9. Prompt: “Please say a 4-digit pairing

code.”

10.   Say:  [Beep] “YYYY”
11.   Prompt:  “YYYY is this correct?”
12.   Say:  [Beep] “Yes” or “No”
   13.  If “Yes”, go to Step 14. If “No”, the

procedure returns to Step 9.

14. Prompt: “Your new pairing pin code is

YYYY. Use this pin code when pairing
devices to the Hands free system. Do
you want to pair a device now?”

15. Say: [Beep] “Yes” or “No”
16. If “Yes”, the system switches to the

device registration mode. If “No”, the
system returns to standby status.

Device pairing (Bluetooth

Hands-

Free)

To use Bluetooth

Hands-Free, the device

equipped with Bluetooth

has to be paired

to the Bluetooth

unit using the following

procedure.
A maximum of seven devices including
hands-free mobile phones and Bluetooth

audio devices can be paired to one vehicle.

NOTE

A device can be paired only when

the vehicle is parked. If the vehicle
starts to move, the pairing procedure
will end. Pairing is dangerous while
driving - pair up your device before
you start driving. Park the car in a
safe place before paired.

If a Bluetooth

device has already

been paired to the vehicle as a
Bluetooth

audio device, it does not

need to be paired again when using
the device as a hands-free mobile
phone. Conversely, it does not need
to be paired again as a Bluetooth

audio device if it has already been
paired as a hands-free mobile phone.

Since the communication range of

a Bluetooth

equipped device is

about 10 meters (32 ft), if a device is
placed within a 10-meter
(32 ft) radius of the vehicle, it may
be detected/paired unintentionally
while another device is being paired.

5–50

Interior Features

Audio Set [Type A (non-touchscreen)]

1. Activate the Bluetooth

application of

the device.

NOTE

For the operation of the device, refer to
its instruction manual.

2. Press the pick-up button or talk button

with a short press.

3. Say: [Beep] “Setup”
4. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

5. Say: [Beep] “Pairing options”
6. Prompt: “Select one of the following:

Pair, edit, delete, list, or set pin code.”

7. Say: [Beep] “Pair”
8. Prompt: “Start the pairing process on

your Bluetooth

device. Your pin code

is 0000 (XXXX). Input this on your
Bluetooth

device. See device manual

for instructions.”

9. Using the device, perform a search

for the Bluetooth

device (Peripheral

device).

NOTE

For the operation of the device, refer to
its instruction manual.

10. Select “Mazda” from the device list

searched by the device.

11. Input the 4-digit pairing code to the

device.

12. Prompt: “Please say the name of the

device after the beep.”

13. Say: [Beep] “XXXX - - -” (Speak a

“device tag”, an arbitrary name for the
device.)

Example: “Stan's device.”

NOTE

Say a paired “device tag” within
10 seconds.
If more than two devices are to be
paired, they cannot be paired with the
same or similar “device tag”.

14. Prompt: “Adding XXXXXX - - - (Ex.

“Stan's device”) (Device tag). Is this
correct?”

15. Say: [Beep] “Yes”
16. Prompt: “Pairing complete”

After a device is registered, the system
automatically identi

¿ es the device. By

activating Bluetooth

Hands-Free again,

or by activating Bluetooth

Hands-Free

¿ rst after switching the ignition from
OFF to ACC, the system reads out a voice
guidance, “XXXXXX - - - (Ex. “Stan's
device”) (Device tag) is connected”.

NOTE

When the pairing is completed, the

symbol is displayed.

Some Bluetooth

audio devices need

a certain amount of time before the
symbol is displayed.

Device registration can also be done

by operating the audio unit.

Depending on the device, the

registration status may be lost after a
certain period of time. If this occurs,
repeat the entire process from Step 1.

5–51

Interior Features

Audio Set [Type A (non-touchscreen)]

Registered device read-out

Bluetooth

Hands-Free can read-out the

devices registered to its system.

NOTE

Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to
be effective.

1. Press the pick-up button or talk button

with a short press.

2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:

Pair, edit, delete, list, or set pin code.”

6. Say: [Beep] “List”

7. Prompt: “XXXXX..., XXXXX...,

XXXXX... (Ex. Device A, device B,
device C)” (The voice guidance reads
out the device tags registered to the
hands-free system.)

Press the talk button with a short press
during the read-out at the desired
device, and then say one of the
following voice commands to execute
it.

“Select phone”: Selects device

(Mobile phone) when the talk button
is short-pressed.

“Select music player”: Selects device

(Music player) when the talk button is
short-pressed.

“Edit”: Edits device when the talk

button is short-pressed.

“Continue”: Continues the list read-

out.

“Delete”: Deletes the registered

device when the talk button is short-
pressed.

“Previous”: Returns to the previous

device in read-out when the talk
button is short-pressed.

8. Prompt: “End of list, would you like to

start from the beginning?”

9. Say: [Beep] “No”
10. Prompt: “Returning to main menu.”

5–52

Interior Features

Audio Set [Type A (non-touchscreen)]

Device selection (Bluetooth

Hands-Free)

If several devices have been paired, the
Bluetooth

unit links the device last

paired. If you would like to link a different
paired device, it is necessary to change the
link. The order of device priority after the
link has been changed is maintained even
when the ignition is switched off.

(Hands-free phone)

1. Press the pick-up button or talk button

with a short press.

2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

4. Say: [Beep] “Select phone”
5. Prompt: “Please say the name of

the device you would like to select.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device B),
XXXXX... (Ex. device C). Which
device please?”

6. Say: [Beep] “X” (Say the number for

the mobile phone to be connected.)

7. Prompt: “XXXXX... (Ex. device B...)

(Registered device tag) is this correct?”

8. Say: [Beep] “Yes”
9. Prompt: “XXXXX... (Ex. device B...)

(Device tag) selected.”

(Music player)

1. Press the pick-up button or talk button

with a short press.

2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

4. Say: [Beep] “Select music player”
5. Prompt: “Please say the name of

the device you would like to select.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device B),
XXXXX... (Ex. device C). Which
device please?”

6. Say: [Beep] “X” (Say the number for

the music player to be connected.)

7. Prompt: “XXXXX... (Ex. device B...)

(Registered device tag) is this correct?”

8. Say: [Beep] “Yes”
9. Prompt: “XXXXX... (Ex. device B...)

(Device tag) selected.”

NOTE

When the selected device connection

is completed, the or symbol is
displayed.

Some Bluetooth

audio devices need

a certain amount of time before the
or symbol is displayed.

Device (Music player) selection can

also be done by operating the panel
button.

5–53

Interior Features

Audio Set [Type A (non-touchscreen)]

Deleting a device (Bluetooth

Hands-Free)

Registered devices (Mobile phone) can be
deleted individually or collectively.

NOTE

Do this function only when parked. It is
too distracting to attempt while driving
and you may make too many errors to
be effective.

1. Press the pick-up button or talk button

with a short press.

2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:

Pair, edit, delete, list, or set pin code.”

NOTE

A registered device (Mobile phone) can
be deleted using the registration list.

6. Say: [Beep] “Delete”
7. Prompt: “Please say the name of

the device you would like to delete.
Available devices are XXXXX... (Ex.
device A), XXXXX... (Ex. device
B), XXXXX... (Ex. device C), or all.
Which device please?”

8. Say: [Beep] “X” (Say the number of

the device to be deleted.)

NOTE

Say “All” to delete all devices (Mobile
phone).

9. Prompt: “Deleting XXXXX... (Ex.

device B...) (Registered device tag). Is
this correct?”

10. Say: [Beep] “Yes”
11. Prompt: “Deleted”

Registered device editing

(Bluetooth

Hands-Free)

1. Press the pick-up button or talk button

with a short press.

2. Say: [Beep] “Setup”
3. Prompt: “Select one of the following:

Pairing options, con

¿ rmation prompts,

language, password, select phone or
select music player.”

4. Say: [Beep] “Pairing options”
5. Prompt: “Select one of the following:

Pair, edit, delete, list, or set pin code.”

6. Say: [Beep] “Edit”
7. Prompt: “Please say the name of the

device you would like to edit. Available
devices are XXXXX... (Ex. device A),
XXXXX... (Ex. device B), XXXXX...
(Ex. device C). Which device please?”

8. Say: [Beep] “X” (Say the number of

the device to be edited.)

9. Prompt: “New name please?”
10. Say: [Beep] “XXXXX... (Ex. device

C)” (Speak a “device tag”, an arbitrary
name for the device.)

11. Prompt: “XXXXX... (Ex. device C)

(Device tag), is this correct?”

12. Say: [Beep] “Yes”
13. Prompt: “New name saved.”

Content .. 23 24 25 26 ..
