Mazda 2 (2017 year). Instruction - part 23

5–6

Interior Features

Air-Conditioning System

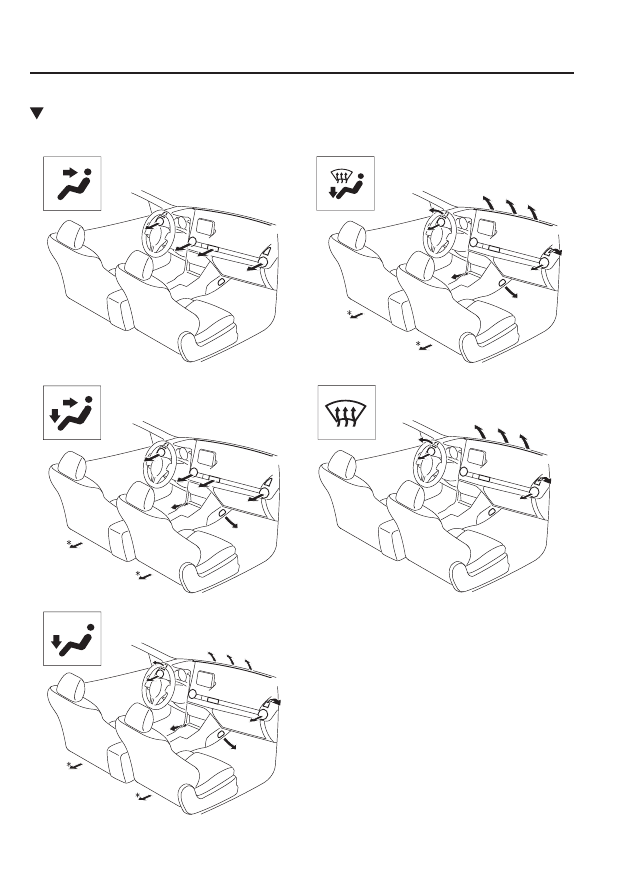

Selecting the Air

À ow Mode

Instrument panel Vents

Instrument panel and Floor Vents

Floor Vents

Defroster and Floor Vents

Defroster Vents

* With rear vents

5–7

Interior Features

Air-Conditioning System

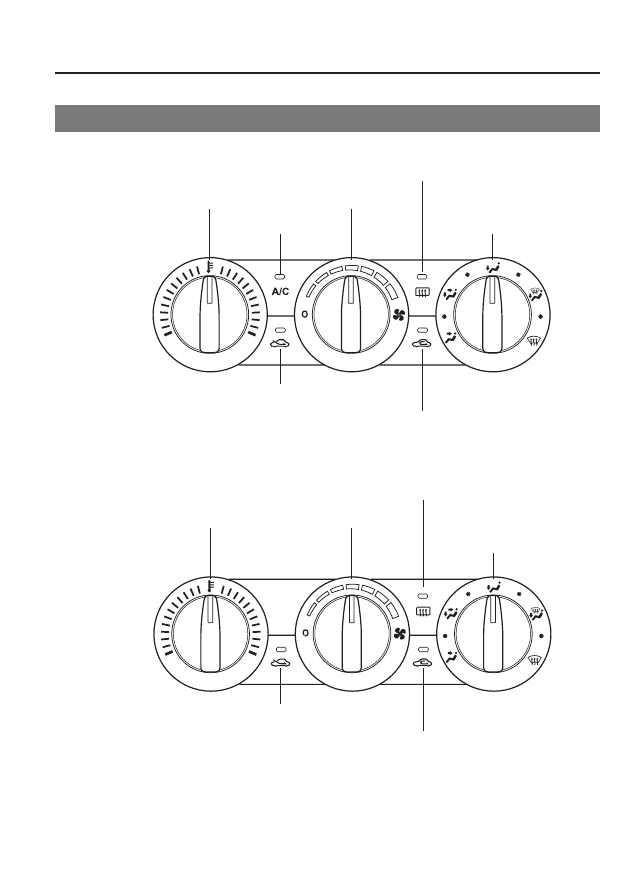

Manual Type

Temperature control dial

Fan control dial

Rear window defogger switch

A/C switch

Air intake selector (outside air position)

Air intake selector (recirculated air position)

Mode selector dial

Type A

Temperature control dial

Fan control dial

Rear window defogger switch

Air intake selector (outside air position)

Air intake selector (recirculated air position)

Mode selector dial

Type B

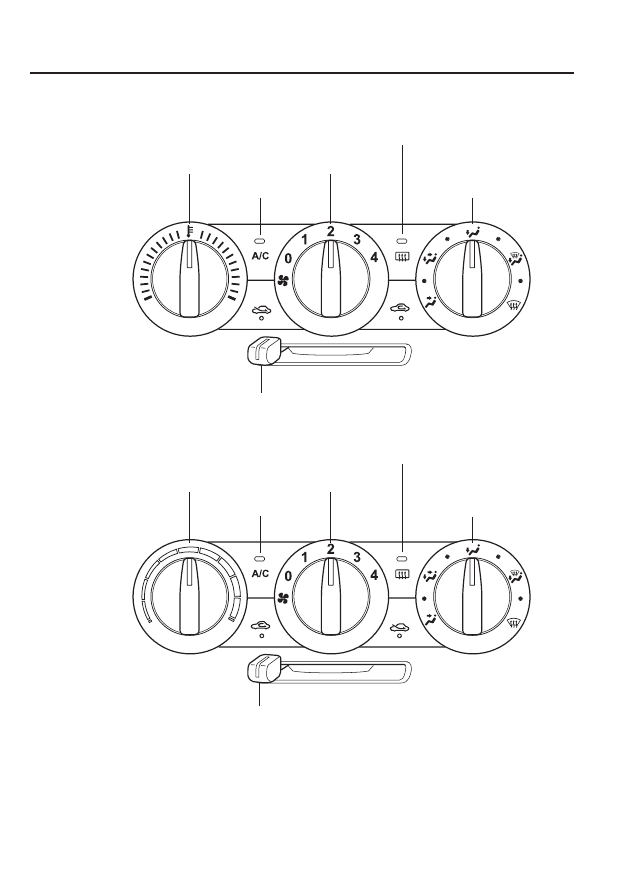

5–8

Interior Features

Air-Conditioning System

Temperature control dial

Fan control dial

Rear window defogger switch

A/C switch

Air intake selector

Mode selector dial

Temperature control dial

Fan control dial

Rear window defogger switch

Air intake selector

Mode selector dial

Type C

Type D

5–9

Interior Features

Air-Conditioning System

Control Switches

Temperature control dial

     (Type A/Type B/Type C)
  This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.
   (Type D)
  This dial controls the air temperature when
using the air conditioner. Turn it clockwise
for cold.

Fan control dial

    This dial allows variable fan speeds.
   (Type A/Type B)
  This fan has seven speeds.
   (Type C/Type D)
0—Fan  off
1—Low  speed
2—Medium  low  speed
3—Medium  high  speed
4—High  speed

Mode selector dial

Turn the mode selector dial to select
air

À ow mode (page 5-6 ).

NOTE

The mode selector dial can be set at

the intermediate positions ( )
between each mode. Set the dial to
an intermediate position if you want
to split the air

À ow between the two

modes.

For example, when the mode selector

dial is at the position between the
and positions, air

À ow from the

À oor vent is less than that of the
position.

A/C switch (Type A/Type C/Type D)

     (Type A)
  Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is in any position except OFF.
   (Type C/Type D)
  Press the A/C switch to turn the air
conditioner on. The indicator light on the
switch will illuminate when the fan control
dial is set at position 1, 2, 3, or 4.
  Press the switch once again to turn the air
conditioner off.

NOTE

The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

Air intake selector (Type A/Type B)

This switch controls the source of air
entering the vehicle.
Press the air intake selector switch to
alternate between the outside air and
recirculated air positions.

Recirculated air position (

)

Outside air is shut off. Air within the
vehicle is recirculated.

Outside air position (

)

Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.

5–10

Interior Features

Air-Conditioning System

*Some models.

WARNING

Do not use the recirculated air position
in cold or rainy weather:
Using the recirculated air position in
cold or rainy weather is dangerous as it
will cause the windows to fog up. Your
vision will be hampered, which could
lead to a serious accident.

Air intake selector (Type C/Type D)

    This lever controls the source of air
entering the vehicle.

  It is recommended that under normal
conditions the switch be kept in the
outside air position.

Recirculated air position (

)

Outside air is shut off. Air within the
vehicle is recirculated.

Outside air position (

)

     (Type C)
  Outside air is taken into the vehicle. Use
this position for normal ventilation and
heating.
   (Type D)
  Outside air is taken into the vehicle. Use
this position for normal ventilation.

WARNING

Do not use the position in cold or
rainy weather:
Using the

position in cold or rainy

weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.

Rear window defogger switch

Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-78 .

Heating

1. Set the mode selector dial to the

position.

2. (Type A/Type B)

Set the air intake selector to the outside
air position.

(Type C)

Set the air intake selector to the

position.

3. Set the temperature control dial to the

hot position.

4. Set the fan control dial to the desired

speed.

5. (Type A/Type C)

If dehumidi

¿ ed heating is desired, turn

on the air conditioner.

NOTE

If the windscreen fogs up easily, set

the mode selector dial to the
position.

(Type A/Type C)

If cooler air is desired at face level,

set the mode selector dial to the
position and adjust the temperature
control dial to maintain maximum
comfort.

The air to the

À oor is warmer than

air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).

5–11

Interior Features

Air-Conditioning System

Cooling (With air conditioner)

1. Set the mode selector dial to the

position.

2. Set the temperature control dial to the

cold position.

3. Set the fan control dial to the desired

speed.

4. Turn on the air conditioner by pressing

the A/C switch.

5. After cooling begins, adjust the fan

control dial and temperature control
dial as needed to maintain maximum
comfort.

CAUTION

If the air conditioner is used while
driving up long hills or in heavy traf

¿ c,

monitor the engine coolant temperature
warning light to see if it is illuminated or
À ashing (page 4-38 ).
The air conditioner may cause engine
overheating. If the warning light is
illuminated or

À ashing, turn the air-

conditioning off (page 7-29 ).

NOTE

(Type A/Type B)

When maximum cooling is desired,

set the temperature control dial to
the extreme cold position and set the
air intake selector to the recirculated
air position, then turn the fan control
dial fully clockwise.

(Type C/Type D)

When maximum cooling is desired,

set the temperature control dial to the
extreme cold position and set the air
intake selector to the recirculated air
position, then set the fan control dial
to position 4.

(Type A/Type C)

If warmer air is desired at

À oor level,

set the mode selector dial to the
position and adjust the temperature
control dial to maintain maximum
comfort.

The air to the

À oor is warmer than

air to the face (except when the
temperature control dial is set at the
extreme hot or cold position).

5–12

Interior Features

Air-Conditioning System

Ventilation

1. Set the mode selector dial to the

position.

2. (Type A/Type B)

Set the air intake selector to the outside
air position.

(Type C/Type D)

Set the air intake selector to the

position.

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

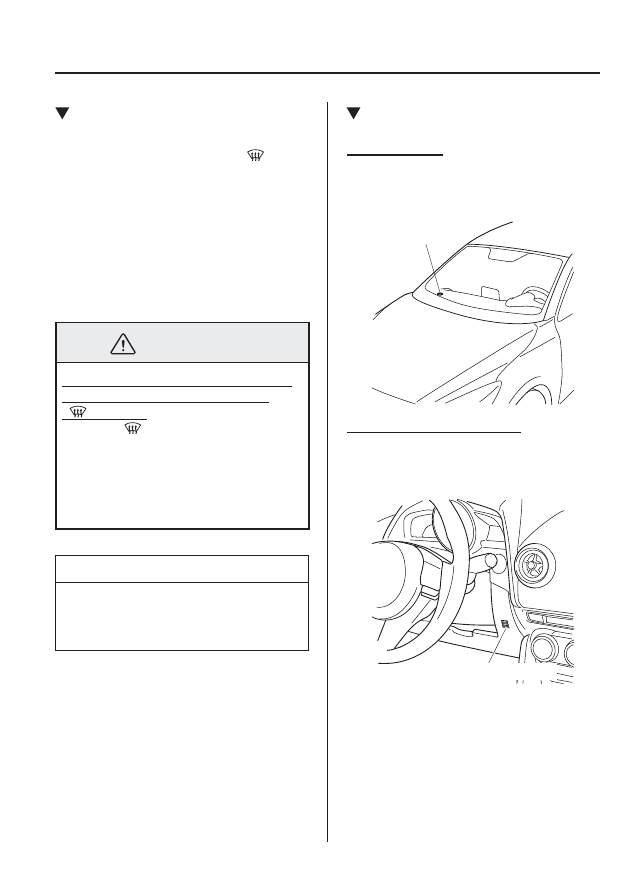

Windscreen Defrosting and

Defogging

1. Set the mode selector dial to the

position.

2. (Type C/Type D)

Set the air intake selector to the

position.

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

5. (Type A/Type C)

If dehumidi

¿ ed heating is desired, turn

on the air conditioner.

(Type D)

Press the A/C switch to turn on the air
conditioner.

WARNING

Do not defog the windscreen using the
    position with the temperature
control set to the cold position (Type A/
Type B/Type C):
Using the     position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident. Set the
temperature control to the hot or warm
position when using the      position.

Do not leave the air conditioner in the
    position with the temperature
control set to cold after the windscreen
has defogged (Type D):
Leaving the air conditioner in the
position with the temperature control
set to cold after the windscreen has
defogged is dangerous as the outside of
the windscreen will fog up. Your vision
will be hampered, which could lead to a
serious accident.
Set the mode selector dial except the
position and turn on the windscreen
wipers to clear the window.

5–13

Interior Features

Air-Conditioning System

NOTE

(Type A)

For maximum defrosting, turn on the

air conditioner, set the temperature
control dial to the extreme hot
position, and turn the fan control dial
fully clockwise.

(Type C)

For maximum defrosting, turn on the

air conditioner, set the temperature
control dial to the extreme hot
position, and the fan control dial to
position 4.

(Type A/Type C)

If warm air is desired at the

À oor, set

the mode selector dial to the
position.

(Type A/Type B)

In the position, the outside air

position is automatically selected.
The air intake selector cannot be
changed to the recirculated air
position.

Dehumidifying (With air

conditioner)

Operate the air conditioner in cool or cold
weather to help defog the windscreen and
side windows.

1. Set the mode selector dial to the desired

position.

2. (Type A)

Set the air intake selector to the outside
air position.

(Type C/Type D)

Set the air intake selector to the

position.

3. Set the temperature control dial to the

desired position.

4. Set the fan control dial to the desired

speed.

5. Turn on the air conditioner by pressing

the A/C switch.

NOTE

(Type A/Type C)
One of the functions of the air
conditioner is dehumidifying the air
and, to use this function, the temperature
does not have to be set to cold.
Therefore, set the temperature control
dial to the desired position (hot or cold)
and turn on the air conditioner when you
want to dehumidify the cabin air.

5–14

Interior Features

Air-Conditioning System

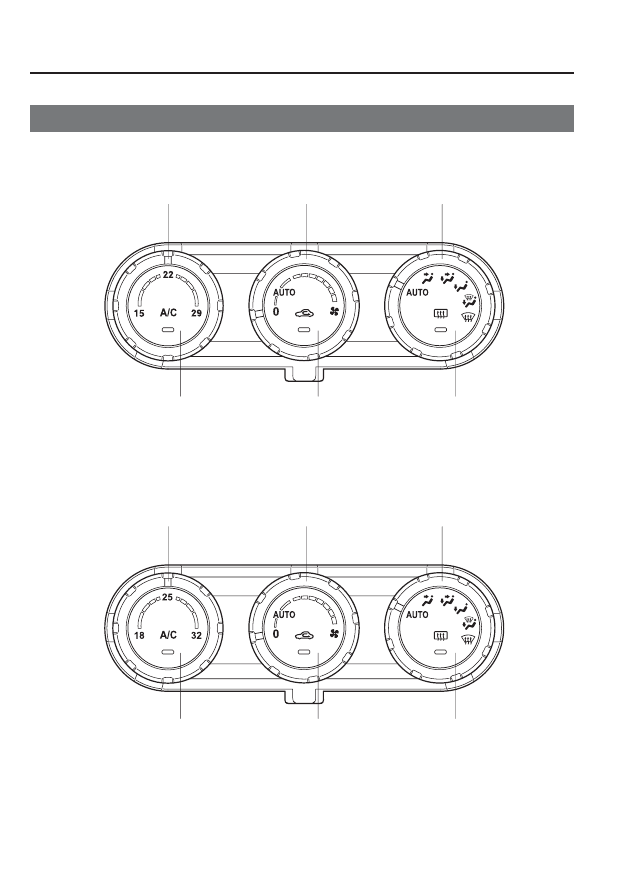

Fully Automatic Type

Temperature control dial

Fan control dial

Mode selector dial

A/C switch

Air intake selector switch

Rear window defogger switch

European model

Except European model

Temperature control dial

Fan control dial

Mode selector dial

A/C switch

Air intake selector switch

Rear window defogger switch

5–15

Interior Features

Air-Conditioning System

Control Switches

Temperature control dial

This dial controls temperature. Turn it
clockwise for hot and anticlockwise for
cold.

Fan control dial

The fan has seven speeds.

AUTO position

The amount of air

À ow will be

automatically controlled in accordance
with the set temperature.

Except AUTO position

The air

À ow amount can be adjusted to the

desired level by turning the dial.

0 position

To turn off the system, set the dial to 0
position.

Mode selector dial

Turn the mode selector dial to select
air

À ow mode (page 5-6 ).

AUTO position

The air

À ow mode automatically adjusts to

the selected temperature.

Except AUTO position

The desired air

À ow position can be

selected by turning the dial.

NOTE

With the air

À ow mode set to the

position and the temperature control
dial set at a medium temperature,
heated air is directed to the feet and
air at a comparably lower
temperature will

À ow through the

central, left and right vents.

When the fan control dial is ON, and

the mode selector dial is in the
position, the air conditioner is
automatically turned on and the
outside air position is automatically
selected to defrost the windscreen.

A/C switch

The air-conditioning (cooling/
dehumidifying functions) can be turned on
or off by pressing the switch while the fan
control dial is at a position other than 0.
The indicator light turns on while the air-
conditioning is operating.

NOTE

The air conditioner may not function
when the outside temperature
approaches 0 °C (32 °F).

5–16

Interior Features

Air-Conditioning System

Air intake selector

Outside or recirculated air positions can be
selected. Press the switch to select outside/
recirculated air positions.

Recirculated air position (indicator light
illuminated)

Outside air is shut off. Use this position
when going through tunnels, driving in
congested traf

¿ c (high engine exhaust

areas) or when quick cooling is desired.

Outside air position (indicator light
turned off)

Outside air is allowed to enter the
cabin. Use this mode for ventilation or
windscreen defrosting.

WARNING

Do not use the position in cold or
rainy weather:
Using the

position in cold or rainy

weather is dangerous as it will cause
the windows to fog up. Your vision will
be hampered, which could lead to a
serious accident.

Rear window defogger switch

Press the rear window defogger switch to
defrost the rear window.
Refer to Rear Window Defogger on page
4-78 .

Operation of Automatic Air-

conditioning

1. Set the mode selector dial to the AUTO

position.

2. Set the air intake selector to the outside

air position (indicator light turned off).

NOTE

If the recirculated air position is used
for long periods in cold weather or high
humidity, the windscreen may fog up
more easily.

3. Set the fan control dial to the AUTO

position.

4. Press the A/C switch to operate the air-

conditioning (turn indicator light on).

5. Set the temperature control dial to the

desired position.

6. To turn off the system, set the fan

control dial to the 0 position.

NOTE

Setting the temperature to maximum

hot or cold will not provide the
desired temperature at a faster rate.

When selecting heat, the system will

restrict air

À ow until it has warmed to

prevent cold air from blowing out of
the vents.

5–17

Interior Features

Air-Conditioning System

Windscreen Defrosting and

Defogging

    Set the mode selector dial to the
position and turn the fan control dial to the
desired speed.
  In this position, the outside air position
is automatically selected, and when the
fan control dial is ON, the air conditioner
automatically turns on. The air conditioner
will directly dehumidify the air to the
front windscreen and side windows (page
5-6 ).  Air

À ow amount will be increased.

WARNING

Set the temperature control to the hot
or warm position when defogging
( position):
Using the position with the
temperature control set to the cold
position is dangerous as it will cause
the outside of the windscreen to fog up.
Your vision will be hampered, which
could lead to a serious accident.

NOTE

Use the temperature control dial to
increase the air

À ow temperature and

defog the windscreen more quickly.

Sunlight/Temperature Sensor

Sunlight sensor

Do not place objects on the sunlight
sensor. Otherwise, the interior temperature
may not adjust correctly.

Sunlight sensor

Interior temperature sensor

Do not cover the interior temperature
sensor. Otherwise, the interior temperature
may not adjust correctly.

Interior temperature sensor

5–18

Interior Features

Before Using the Audio System

*Some models.

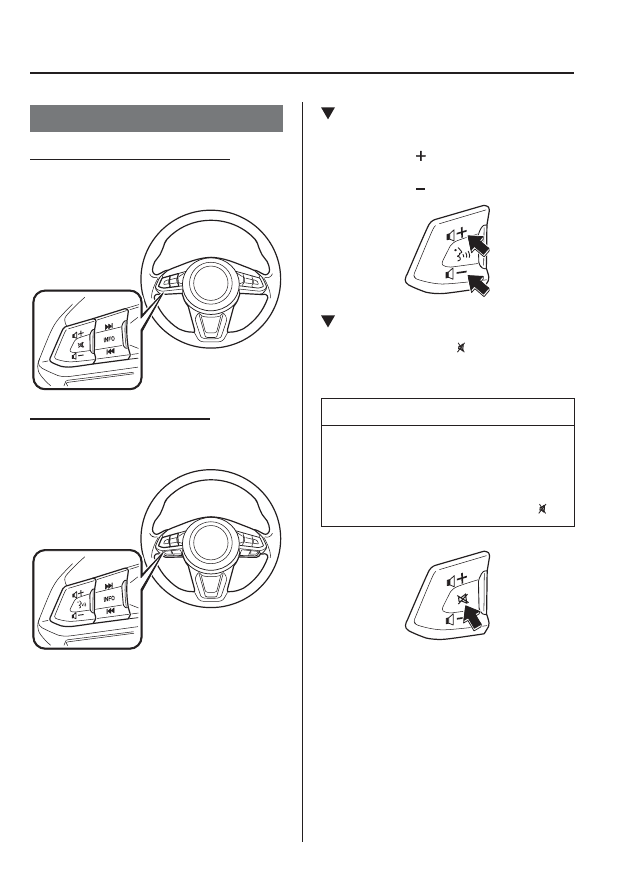

Audio Control Switch

Without Bluetooth

Hands-Free

With Bluetooth

Hands-Free

Adjusting the Volume

To  increase  the  volume,  press  up  the
volume switch (   ).
  To decrease the volume, press down the
volume switch (   ).

Mute Switch

Press the mute switch ( ) once to mute
audio, press it again to resume audio
output.

NOTE

If the ignition is switched off with the
audio muted, the mute will be cancelled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch ( ).

5–19

Interior Features

Before Using the Audio System

*Some models.

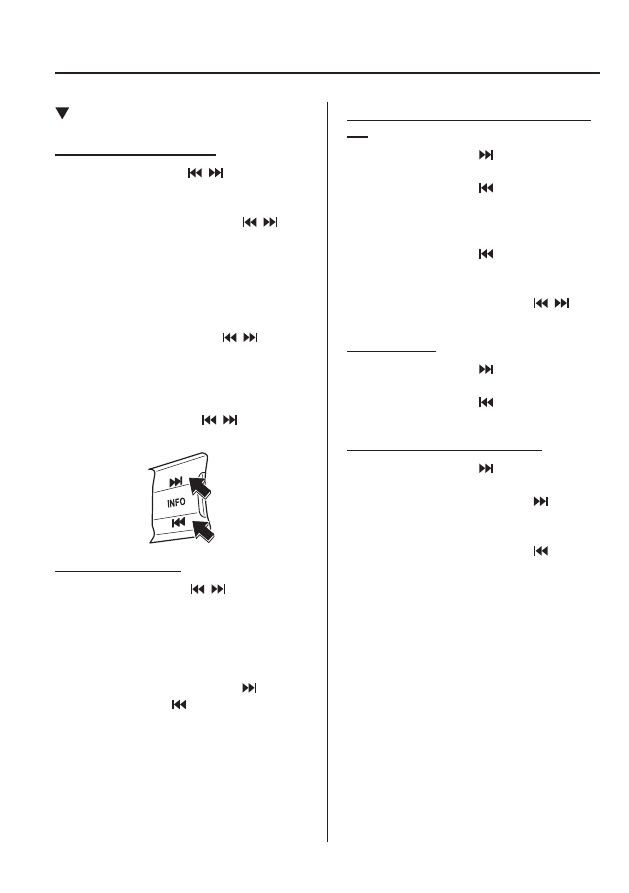

Seek Switch

/MW

/LW

/FM radio

Press the seek switch (

). The radio

switches to the next/previous stored station
in the order that it was stored.
Press and hold the seek switch ( ,

) to

seek all usable stations at a higher or lower
frequency whether programmed or not.

  Radio stations which have been previously
stored in the auto memory tuning (Type A)/
favourite radio (Type B) can be called up
by pressing the seek switch (   ,

) while

any radio station stored in the auto memory
tuning (Type A)/favourite radio (Type B) is
being received. Radio stations can be
called up in the order they were stored with
each press of the switch ( ,

DAB radio (Type B)

Press the Seek switch (

) while

listening to DAB radio to call up a station
previously stored to the favourites list.
With each operation of the switch, radio
stations can be called up in the order they
were stored.
Press and hold the seek switch ( ) to go
to the next station, ( ) to return to the
previous station.

USB Audio/Bluetooth

Audio (Type B)/

Press the seek switch (

) to skip forward

to the beginning of the next track.
  Press the seek switch (   ) within a few
seconds after playback begins to track
down to the beginning of the previous
track.
  Press the seek switch (   ) after a few
seconds have elapsed to start playback
from the beginning of the current track.
  Press and hold the seek switch (   ,

) to

continuously switch the tracks up or down.

DVD (Type B)

Press the seek switch (

) to skip forward

to the beginning of the next chapter.
Press the seek switch ( ) to return to the
beginning of the previous chapter.

Aha

™

/Stitcher

™

Radio (Type B)

Press the seek switch (

) to skip forward

to the beginning of the next track.
Press and hold the seek switch ( ) to
evaluate the playback of the current song
as “Like”.
Press and hold the seek switch ( ) to
evaluate the playback of the current song
as “Dislike”.

5–20

Interior Features

Before Using the Audio System

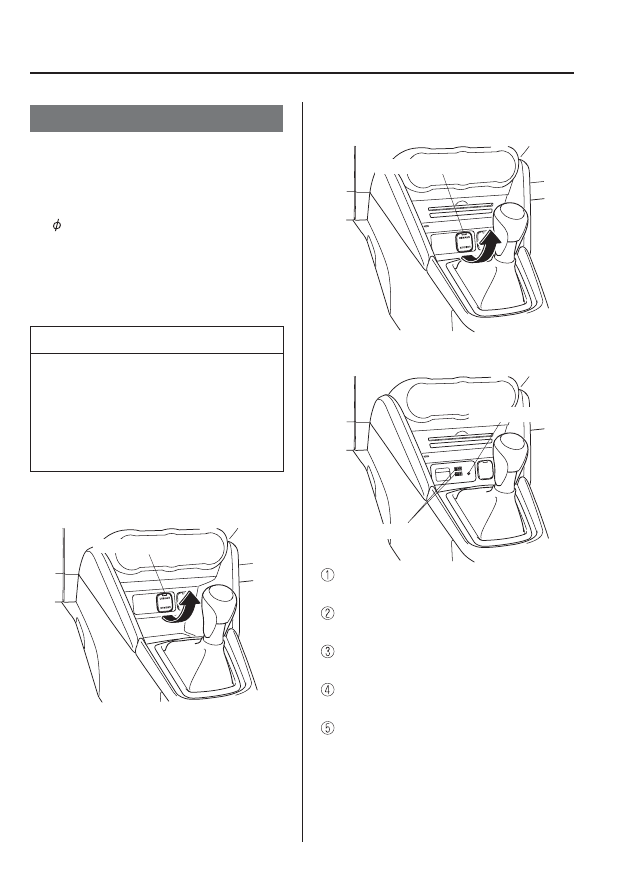

AUX/USB mode

Audio  can  be  heard  from  the  vehicle's
speakers by connecting a commercially-
available portable audio unit to the
auxiliary jack.
A  commercially-available,  non-impedance
(3.5   ) stereo mini plug lead is required.
Contact an expert repairer, we recommend
an Authorised Mazda Repairer for details.
  In addition, audio can be played from the
vehicle audio device by connecting a USB
device to the USB port.

NOTE

(Type B)
The SD card slot is for the navigation
system. For vehicles with the navigation
system, the SD card (Mazda genuine)
with stored map data is inserted into the
SD card slot and used.

Type A (Without CD player)

Auxiliary jack/USB port

Type A (With CD player)

Auxiliary jack/USB port

Type B

USB port

Auxiliary jack

How to use AUX mode

(Type A) .................................page 5-37

How to use USB mode

(Type A) .................................page 5-38

How to use iPod mode

(Type A) .................................page 5-42

How to use AUX mode

(Type B) ...............................page 5-100

How to use USB mode

(Type B) ...............................page 5-101

5–21

Interior Features

Before Using the Audio System

WARNING

Do not adjust the portable audio unit
or a similar product while driving the
vehicle:
Adjusting the portable audio unit
or a similar product while driving
the vehicle is dangerous as it could
distract your attention from the vehicle
operation which could lead to a serious
accident. Always adjust the portable
audio unit or a similar product while
the vehicle is stopped.

CAUTION

Depending on the portable audio device,
noise may occur when the device is
connected to the vehicle accessory
socket. (If noise occurs, do not use the
accessory socket.)

NOTE

This mode may not be usable

depending on the portable audio
device to be connected.

Before using the auxiliary jack/USB

port, refer to the instruction manual
for the portable audio device.

Use a commercially-available,

non-impedance (3.5 ) stereo mini
plug for connecting the portable
audio unit to the auxiliary jack.
Before using the auxiliary jack, read
the manufacturer's instructions for
connecting a portable audio unit to
the auxiliary jack.

To prevent discharging of the battery,

do not use the auxiliary input for
long periods with the engine off or
idling.

When connecting a device to the

auxiliary jack or USB port, noise
may occur depending on the
connected device. If the device is
connected to the vehicle's accessory
socket, the noise can be reduced by
unplugging it from the accessory
socket.

Content .. 21 22 23 24 ..
