Mazda 2 (2017 year). Instruction

4–186

When Driving

Cruise Control

Cruise Main Indication (White),

Cruise Set Indication (White)/
Indicator Light (Green)

Cruise main indication (white)

The cruise main indication (white) is
displayed in the instrument cluster when
the cruise control system is activated.

Cruise set indication (white)/indicator
light (green)

The cruise set indication (white) is
displayed in the instrument cluster and the
cruise set indicator light (green) turns on
when a cruising speed has been set.

Activation/Deactivation

With adjustable speed limiter

    To activate the system, press the MODE
switch. The cruise main indication (white)
is displayed.
  To deactivate the system, press the OFF/
CAN   switch.
  The cruise main indication (white) turns
off.

NOTE

When the MODE switch is pressed
while the cruise control system is
operating, the cruise control system
switches to the adjustable speed limiter.

Without adjustable speed limiter

    To activate the system, press the ON
switch. The cruise main indication (white)
is displayed.
  To deactivate the system, press the OFF/
CAN   switch.
  The cruise main indication (white) turns
off.

WARNING

Always turn off the cruise control
system when it is not in use:
Leaving the cruise control system in an
activation-ready state while the cruise
control is not in use is dangerous as
the cruise control could unexpectedly
activate if the activation button is
accidentally pressed, and result in loss
of vehicle control and an accident.

4–187

When Driving

Cruise Control

NOTE

When the ignition is switched OFF, the
system status before it was turned off is
maintained. For example, if the ignition
is switched OFF with the cruise control
system operable, the system will be
operable when the ignition is switched
ON the next time.

To Set Speed

1. (With adjustable speed limiter)

Activate the cruise control system by
pressing the MODE switch. The cruise
main indication (white) is displayed.

(Without adjustable speed limiter)

Activate the cruise control system by
pressing the ON switch. The cruise
main indication (white) is displayed.

2. Accelerate to the desired speed, which

must be more than 25 km/h (16 mph).

3. Set the cruise control by pressing the

SET switch at the desired speed. The
cruise control is set at the moment the
SET switch is pressed. Release the
accelerator pedal simultaneously. The
cruise set indication (white) is
displayed and the cruise set indicator
light (green) turns on.

NOTE

The cruise control speed setting

cannot be performed under the
following conditions:

(Automatic transaxle)

The selector lever is in the P or N

position.

(Manual transaxle)

The shift lever is in the neutral

position.

The parking brake is applied.

(Vehicles with adjustable speed

limiter)

The MODE switch for the

adjustable speed limiter is pressed.

Release the SET or RES / switch

at the desired speed, otherwise the
speed will continue increasing while
the RES / switch is pressed and
held, and continue decreasing while
the SET switch is pressed and held
(except when the accelerator pedal is
depressed).

On a steep grade, the vehicle may

momentarily slow down while
ascending, or speed up while
descending.

The cruise control will cancel if the

vehicle speed decreases below
21 km/h (13 mph) when climbing a
steep grade.

The cruise control may cancel at

about 15 km/h (9 mph) below the
preset speed such as when climbing a
long, steep grade.

4–188

When Driving

Cruise Control

To Increase Cruising Speed

Follow either of these procedures.

To increase speed using cruise control
switch

Press  the   RES /    switch and hold it. Your
vehicle will accelerate. Release the switch
at the desired speed.

Press  the   RES /    switch and release it
immediately to adjust the preset speed.
Multiple operations will increase the
preset speed according to the number of
times it is operated.

Increasing speed with a single RES /
switch operation

Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)

To increase speed using accelerator
pedal

Depress the accelerator pedal to accelerate
to the desired speed. Press the SET
switch and release it immediately.

NOTE

Accelerate if you want to speed up
temporarily when the cruise control is
on. Greater speed will not interfere with
or change the set speed. Take your foot
off the accelerator to return to the set
speed.

To Decrease Cruising Speed

Press  the  SET    switch and hold it. The
vehicle will gradually slow.
  Release the switch at the desired speed.

Press  the  SET    switch and release it
immediately to adjust the preset speed.
Multiple operations will decrease the
preset speed according to the number of
times it is operated.

Decreasing speed with a single SET
switch operation

Instrument cluster display for vehicle
speed indicated in km/h: 1 km/h (0.6 mph)
Instrument cluster display for vehicle
speed indicated in mph: 1 mph (1.6 km/h)

To Resume Cruising Speed at

More Than 25 km/h (16 mph)

    If some other method besides the OFF/
CAN  switch was used to cancel cruising
speed (such as applying the brake pedal)
and the system is still activated, the most
recent set speed will automatically resume
when the RES /    switch is pressed.
  If vehicle speed is below 25 km/h
(16 mph), increase the vehicle speed up to
25 km/h (16 mph) or more and press the
RES /     switch.

4–189

When Driving

Cruise Control

To Temporarily Cancel

To temporarily cancel the system, use one
of these methods:

Slightly depress the brake pedal.

(Manual transaxle)

Depress the clutch pedal.

Press the OFF/CAN switch.

If the RES / switch is pressed when the
vehicle speed is 25 km/h (16 mph) or
higher, the system reverts to the previously
set speed.

NOTE

If any of the following conditions

occur, the cruise control system is
temporarily cancelled.

The parking brake is applied.

(Vehicles with adjustable speed

limiter)

The MODE switch for the

adjustable speed limiter is pressed.

(Automatic transaxle)

The selector lever is in the P or N

position.

(Manual transaxle)

The shift lever is in the neutral

position.

When the cruise control system is

temporarily cancelled by even one of
the applicable cancel conditions, the
speed cannot be re-set.

(Automatic transaxle)

The cruise control cannot be

cancelled while driving in manual
mode (selector lever shifted from
D to M position). Therefore, engine
braking will not be applied even
if the transaxle is shifted down
to a lower gear. If deceleration is
required, lower the set speed or
depress the brake pedal.

To Deactivate

When a cruising speed has been
set (cruise set indication (white) is
displayed/cruise set indicator light
(green) turns on)

Long-press the OFF/CAN switch or press
the OFF/CAN switch 2 times.

When a cruising speed has not been
set (cruise main indication (white) is
displayed)

Press the OFF/CAN switch.

4–190

When Driving

Tyre Pressure Monitoring System

*Some models.

Tyre Pressure Monitoring System

The Tyre Pressure Monitoring System (TPMS) monitors the air pressure of all four tyres. If
the air pressure of one or more tyres is too low, the system warns the driver by indicating the
tyre pressure monitoring system warning light in the instrument cluster and operating a beep
sound. The system monitors the tyre pressures indirectly using the data sent from the ABS
wheel speed sensors.
To allow the system to operate correctly, the system needs to be initialized with the speci

¿ ed

tyre pressure (value on the tyre pressure label). Follow the procedure and perform the
initialization.
Refer to Tyre Pressure Monitoring System Initialization on page 4-192 .
The warning light

À ashes when the system has a malfunction.

Refer to Warning Lights on page 4-38 .

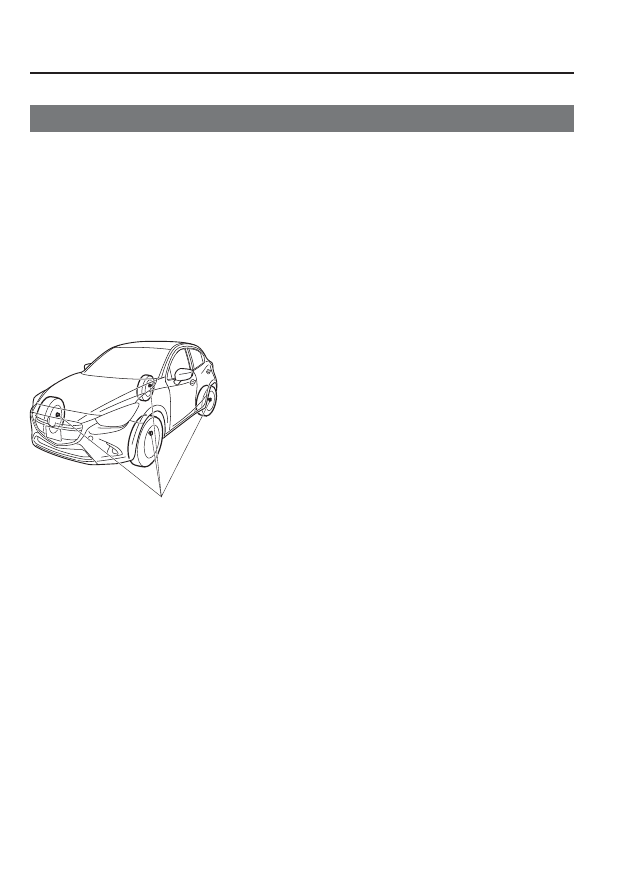

ABS wheel speed sensor

4–191

When Driving

Tyre Pressure Monitoring System

CAUTION

Each tyre, including the spare (if provided), should be checked monthly when cold

and in

À ated to the inÀ ation pressure recommended by the vehicle manufacturer on the

vehicle placard or tyre in

À ation pressure label. (If your vehicle has tyres of a different

size than the size indicated on the vehicle placard or tyre in

À ation pressure label, you

should determine the proper tyre in

À ation pressure for those tyres.)

As an added safety feature, your vehicle has been equipped with a tyre pressure

monitoring system (TPMS) that illuminates a low tyre pressure telltale when one or
more of your tyres is signi

¿ cantly under-inÀ ated. Accordingly, when the low tyre

pressure telltale illuminates, you should stop and check your tyres as soon as possible,
and in

À ate them to the proper pressure. Driving on a signi¿ cantly under-inÀ ated tyre

causes the tyre to overheat and can lead to tyre failure. Under-in

À ation also reduces

fuel ef

¿ ciency and tyre tread life, and may affect the vehicle's handling and stopping

ability.

Please note that the TPMS is not a substitute for proper tyre maintenance, and it is the

driver's responsibility to maintain correct tyre pressure, even if under-in

À ation has not

reached the level to trigger illumination of the TPMS low tyre pressure telltale.

Your vehicle has also been equipped with a TPMS malfunction indicator to indicate

when the system is not operating properly.

The TPMS malfunction indicator is combined with the low tyre pressure telltale.

When the system detects a malfunction, the telltale will

À ash for approximately

one minute and then remain continuously illuminated. This sequence will continue
upon subsequent vehicle start-ups as long as the malfunction exists. When the
malfunction indicator is illuminated, the system may not be able to detect or signal
low tyre pressure as intended. TPMS malfunctions may occur for a variety of reasons,
including the installation of replacement or alternate tyres or wheels on the vehicle that
prevent the TPMS from functioning properly. Always check the TPMS malfunction
telltale after replacing one or more tyres or wheels on your vehicle to ensure that the
replacement or alternate tyres and wheels allow the TPMS to continue to function
properly.

To avoid false readings, the system samples for a little while before indicating a

problem. As a result it will not instantaneously register a rapid tyre de

À ation or blow

out.

4–192

When Driving

Tyre Pressure Monitoring System

NOTE

Because this system detects slight changes in tyre conditions, the timing of the warning
may be faster or slower in the following cases:

The size, manufacturer, or the type of tyres is different from the speci

¿ cation.

The size, manufacturer, or the type of a tyre is different from the others, or the level of

tyre wear is excessively different between them.

A run-

À at tyre, studless tyre, snow tyre, or tyre chains are used.

An emergency tyre is used (The tyre pressure monitoring system warning light may

À ash and then continue illuminating).

A tyre is repaired using the emergency

À at tyre repair kit.

The tyre pressure is excessively higher than the speci

¿ ed pressure, or the tyre pressure

is suddenly lowered for some reason such as a tyre burst during driving.

The vehicle speed is lower than about 15 km/h (9.3 mph) (including when the vehicle

is stopped), or the drive period is shorter than 5 minutes.

The vehicle is driven on an extremely rough road or a slippery, icy road.

Hard steering and rapid acceleration/deceleration are repeated such as during

aggressive driving on a winding road.

Load on the vehicle is applied to a tyre such as by loading heavy luggage to one side of

the vehicle.

System initialization has not been implemented with the speci

¿ ed tyre pressure.

Tyre Pressure Monitoring System

Initialization

In the following cases, system
initialization must be performed so that the
system operates normally.

A tyre pressure is adjusted.

Tyre rotation is performed.

A tyre or wheel is replaced.

The battery is replaced or completely

drained.

The tyre pressure monitoring system

warning light is illuminated.

Initialization method

1. Park the car in a safe place and

¿ rmly

apply the parking brake.

2. Let the tyres cool, then adjust the tyre

pressure of all four (4) tyres to the
speci

¿ ed pressure indicated on the tyre

pressure label located on the driver's
door frame (door open).

Refer to Tyres on page 9-10 .

3. Switch the ignition ON.

4–193

When Driving

Tyre Pressure Monitoring System

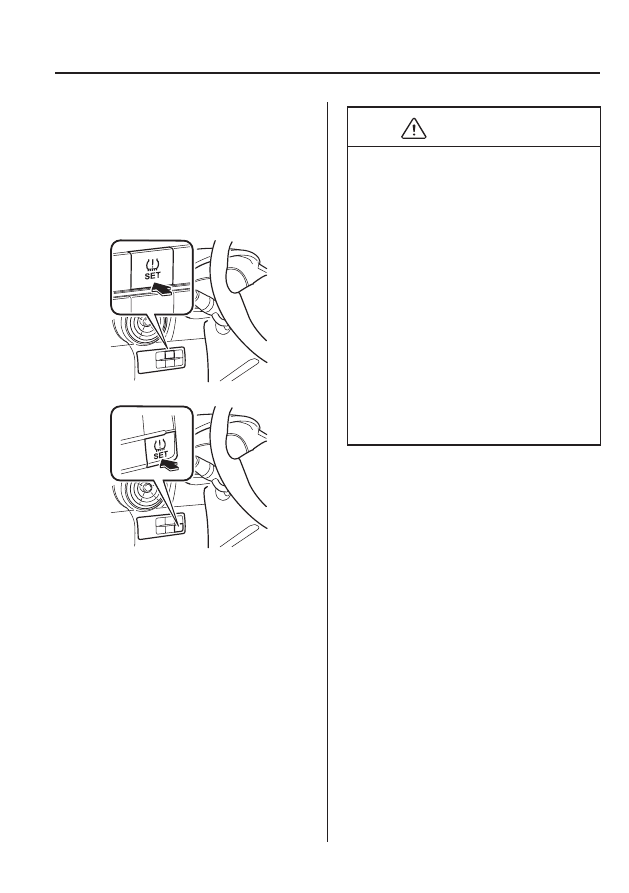

4. Press and hold the tyre pressure

monitoring system set switch and
verify that the tyre pressure monitoring
system warning light in the instrument
cluster

À ashes twice and a beep sound

is heard once.

Type A

Type B

CAUTION

If the system initialization is performed
without adjusting the tyre pressure, the
system cannot detect the normal tyre
pressure and it may not illuminate the
tyre pressure monitoring system warning
light even if a tyre pressure is low, or
it may illuminate the light even if the
pressures are normal.
Adjust the tyre pressure on all four
tyres and initialize the system when
the warning light is turned on. If the
warning light turns on for a reason other
than a

À at tyre, the tyre pressure of all

four tyres may have decreased naturally.
The system initialization will not be
performed if the switch is pressed while
the vehicle is being driven.

4–194

When Driving

Diesel Particulate Filter (SKYACTIV-D 1.5)

Diesel Particulate Filter
(SKYACTIV-D 1.5)

The diesel particulate

¿ lter collects and

removes most of the particulate matter
(PM) in the exhaust gas of a diesel engine.
PM collected by the diesel particulate
¿ lter is cleared during normal driving,
however, PM may not be removed and the
diesel particulate

¿ lter indicator light may

illuminate under the following conditions:

If the vehicle is driven at 15 km/h (9

mph) or less continuously.

If the vehicle is repeatedly driven for a

short period of time (10 minute or less)
or driven while the engine is cold.

If the vehicle is idled for a long time.

NOTE

The engine sound and exhaust gas smell
may change when PM is being removed
while driving.

Diesel Particulate Filter Indicator Light

When illuminated

The particulate matter (PM) cannot be
removed automatically and the amount of
collected PM reaches a speci

¿ ed amount.

After the engine has suf

¿ ciently warmed

up (engine coolant temperature of 80 °C
or more), depress the accelerator pedal and
drive the vehicle at a speed of 20 km/h
or more for about 15 to 20 minutes to
eliminate the PM.

When

À ashing

Contact an expert repairer, we recommend
an Authorised Mazda Repairer.

CAUTION

If the vehicle is continually driven as
usual with the diesel particulate

¿ lter

indicator light illuminated, PM increases
and the indicator light may start

À ashing.

If the diesel particulate

¿ lter indicator

light starts

À ashing, have the vehicle

inspected immediately at an expert
repairer, we recommend an Authorised
Mazda Repairer. If the vehicle is not
inspected and continues to be driven, the
engine may malfunction.

NOTE

When the diesel particulate

¿ lter

indicator light

À ashes, the engine

output is restricted to protect the diesel
particulate

¿ lter.

4–195

When Driving

Rear View Monitor

*Some models.

Rear View Monitor

The rear view monitor provides visual images of the rear of the vehicle when reversing.

WARNING

Always drive carefully con

¿ rming the safety of the rear and the surrounding conditions

by looking directly with your eyes:
Reversing the vehicle by only looking at the screen is dangerous as it may cause an
accident or a collision with an object. The rear view monitor is only a visual assist
device when reversing the vehicle. The images on the screen may be different from the
actual conditions.

CAUTION

Do not use the rear view monitor under the following conditions: Using the rear view

monitor under the following conditions is dangerous and could result in injury or
vehicle damage or both.

Icy or snow-covered roads.

Tyre chains or a temporary spare tyre is installed.

The liftgate/boot lid is not fully closed.

The vehicle is on a road incline.

When the display is cold, images may course across the monitor or the screen and

may be dimmer than usual, which could cause dif

¿ culty in con¿ rming the surrounding

conditions of the vehicle. Always drive carefully con

¿ rming the safety of the rear and

the surrounding conditions by looking directly with your eyes.

Do not apply excessive force to the camera. The camera position and angle may

deviate.

Do not disassemble, modify, or remove it as it may no longer be waterproof.

The camera cover is made of plastic. Do not apply degreasing agents, organic solvents,

wax, or glass coating agents to the camera cover. If any are spilled on the cover, wipe
off with a soft cloth immediately.

Do not rub the camera cover forcefully with an abrasive or hard brush. The camera

cover or lens may be scratched which might affect the images.

4–196

When Driving

Rear View Monitor

NOTE

If water, snow, or mud is stuck on the camera lens, wipe it off using a soft cloth. If it

cannot be wiped off, use a mild detergent.

If the camera temperature changes rapidly (Hot to cold, cold to hot), the rear view

monitor may not operate correctly.

When replacing the tyres, consult an expert repairer, we recommend an Authorised

Mazda Repairer. Replacing the tyres could result in deviation of the guide lines which
appear on the display.

If the vehicle's front, side, or rear has been involved in a collision, the alignment of

the rear view parking camera (location, installation angle) may have deviated. Always
consult an expert repairer, we recommend an Authorised Mazda Repairer to have the
vehicle inspected.

If “No Video Signal Available” is indicated in the display, there could be a problem

with the camera. Have your vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.

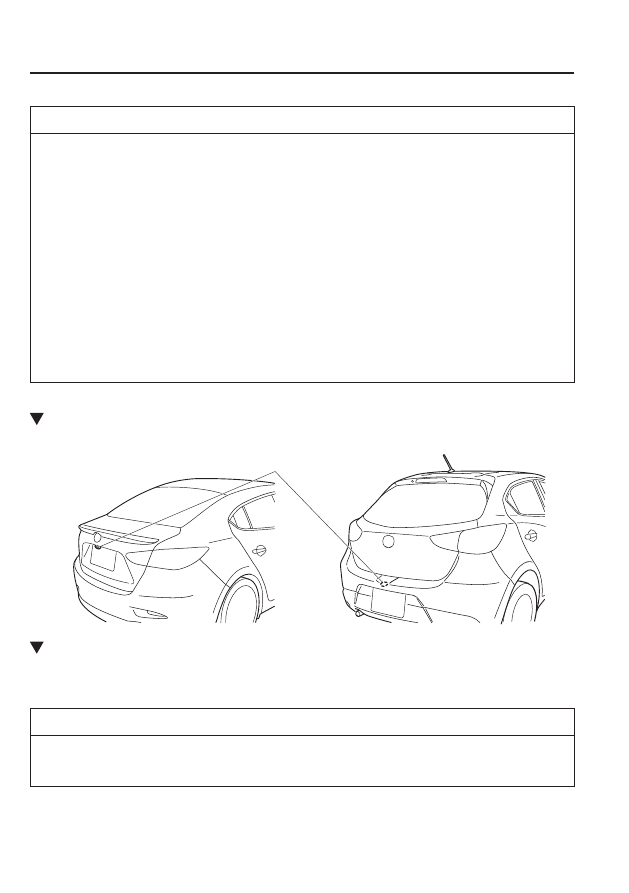

Rear View Parking Camera Location

Rear View Parking Camera

Saloon

Hatchback

Switching to the Rear View Monitor Display

Shift the shift lever to R with the ignition switched ON to switch the display to the rear view
monitor display.

NOTE

When the shift lever is shifted from R to another shift lever position, the screen returns to
the previous display.

4–197

When Driving

Rear View Monitor

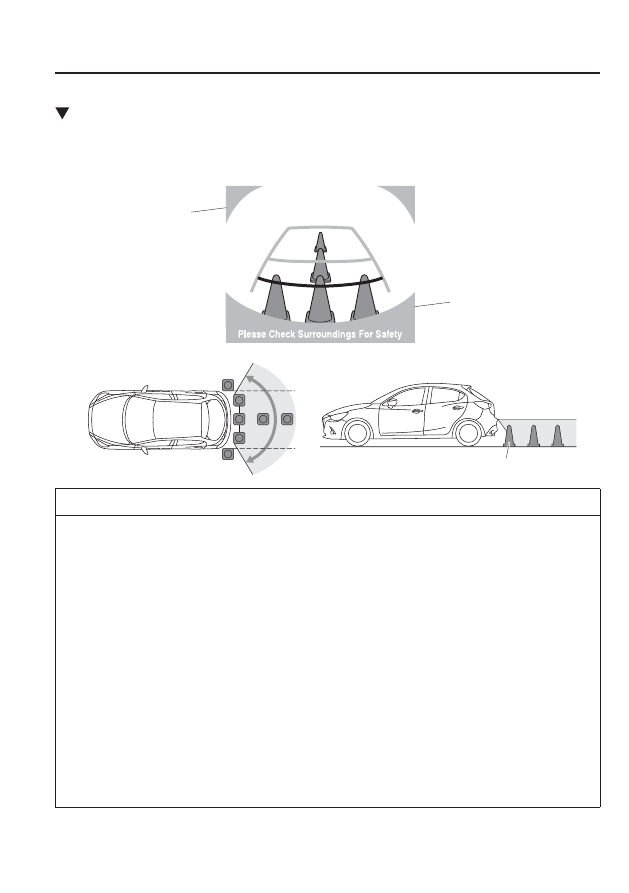

Displayable Range on the Screen

The images on the screen may be different from the actual conditions.

(Screen display)

Bumper

Object

(Actual view)

Boot lid (saloon)/
Bumper (hatchback)

NOTE

The displayable range varies depending on the vehicle and road conditions.

The displayable range is limited. Objects under the bumper or around the bumper ends

cannot be displayed.

The distance appearing in the displayed image is different from the actual distance

because the rear view parking camera is equipped with a speci

¿ c lens.

Some optionally installed vehicle accessories may be picked up by the camera. Do not

install any optional parts that can interfere with the camera view, such as illuminating
parts or parts made of re

À ective material.

It may be dif

¿ cult to see the display under the following conditions, however, it does

not indicate a malfunction.

In darkened areas.

When the temperature around the lens is high/low.

When the camera is wet such as on a rainy day or during periods of high humidity.

When foreign material such as mud is stuck around the camera.

When the camera lens re

À ects sunlight or headlight beams.

Image display may be delayed if the temperature around the camera is low.

4–198

When Driving

Rear View Monitor

Viewing the Display

Guide lines which indicate the width of the vehicle (yellow) are displayed on the screen as a
reference to the approximate width of the vehicle in comparison to the width of the parking
space you are about to back into.
Use this display view for parking your vehicle in a parking space or garage.

a) Vehicle width guide lines (yellow)

These guide lines serve as a reference to the approximate width of the vehicle.

b) Distance guide lines.

These guide lines indicate the approximate distance to a point measured from the
vehicle's rear (from the end of the bumper).

The red and yellow lines indicate the points about 50 cm (19 in) for the red line and

100 cm (39.3 in) for the yellow lines from the rear bumper (at the centre point of each
of the lines).

CAUTION

The guide lines on the screen are

¿ xed lines. They are not synced to the driver's turning

of the steering wheel. Always be careful and check the area to the vehicle's rear and the
surrounding area directly with your eyes while backing up.

4–199

When Driving

Rear View Monitor

Rear View Monitor Operation

The operation of the rear view monitor when reversing the vehicle varies depending on
the traf

¿ c, road, and vehicle conditions. The amount of steering and the timing also varies

depending on conditions, so con

¿ rm the surrounding conditions directly with your eyes and

steer the vehicle in accordance with the conditions.
Be well aware of the above cautions prior to using the rear view monitor.

NOTE

Images displayed on the monitor from the rear view parking camera are reversed images
(mirror images).

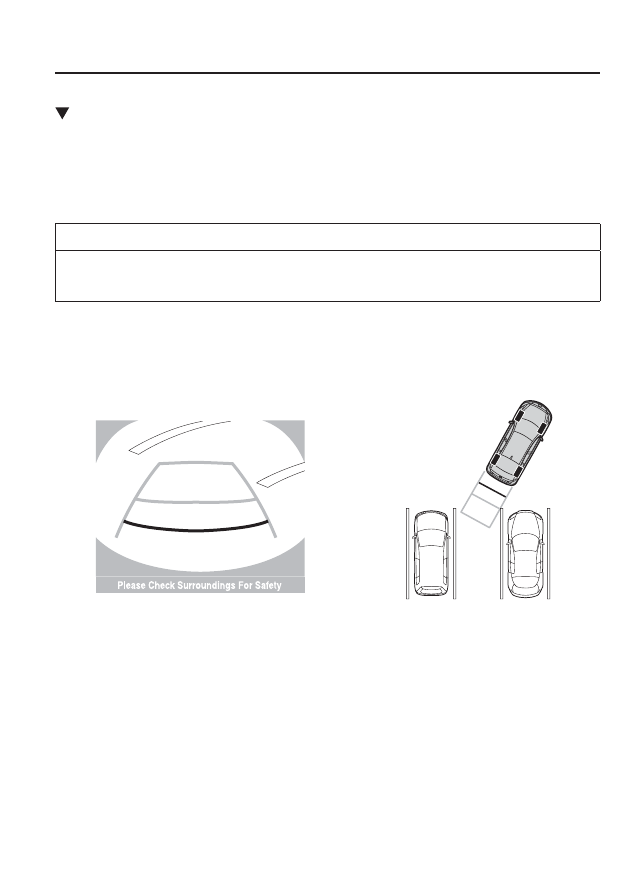

1. Shift the shift lever to R to switch the display to the rear view monitor display.
2. Con

¿ rming the surrounding conditions, reverse the vehicle.

(Display condition)

(Vehicle condition)

3. After your vehicle begins entering the parking space, continue backing up slowly so that

the distance between the vehicle width lines and the sides of the parking space on the left
and right are roughly equal.

4. Continue to adjust the steering wheel until the vehicle width guide lines are parallel to

the left and right sides of the parking space.

4–200

When Driving

Rear View Monitor

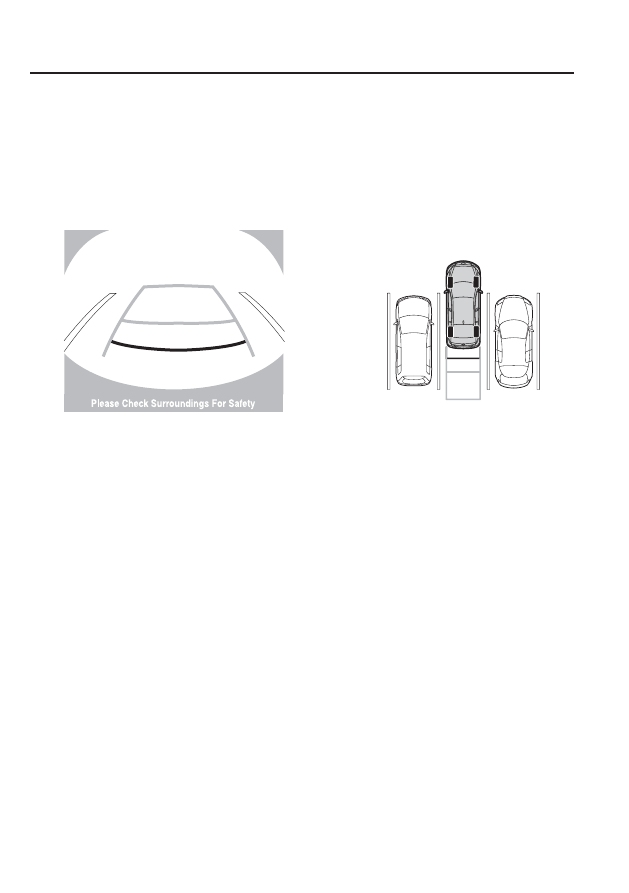

5. Once they are parallel, straighten the wheels and back your vehicle slowly into the

parking space. Continue checking the vehicle's surroundings and then stop the vehicle
in the best possible position. (If the parking space has division lines, check whether the
vehicle width guide lines are parallel to them.)

(Display condition)

(Vehicle condition)

6. When the shift lever is shifted from R to another shift lever position, the screen returns to

the previous display.

4–201

When Driving

Rear View Monitor

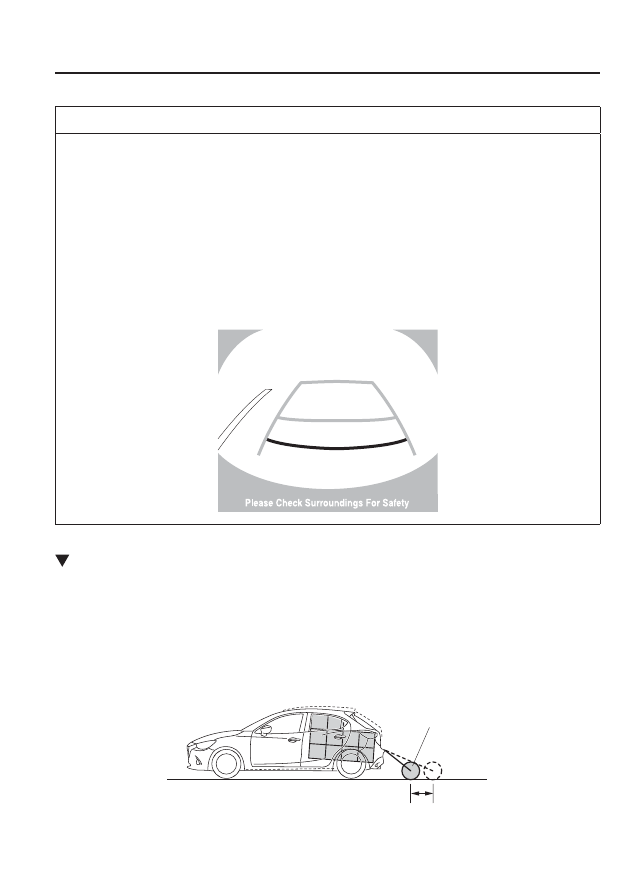

NOTE

Because there may be a difference between the displayed image, such as indicated below,
and the actual conditions when parking, always verify the safety at the rear of the vehicle
and the surrounding area directly with your eyes.

In the image of the parking space (or garage) displayed on the screen, the back end and

distance guide lines may appear aligned in the monitor, but they may not actually be
aligned on the ground.

When parking in a space with a division line on only one side of the parking space, the

division line and the vehicle width guide line appear aligned in the monitor, but they
may not actually be aligned on the ground.

Variance Between Actual Road Conditions and Displayed Image

Some variance occurs between the actual road and the displayed road. Such variance in
distance perspective could lead to an accident. Note the following conditions that may cause
a variance in distance perspective.

When the vehicle is tilted due to the weight of passengers and load

When the vehicle rear is lowered, the object displayed on the screen appears farther than the
actual distance.

Variance

Object

Mazda 2 (2017 year). Instruction - part 21
