Mazda 2 (2017 year). Instruction

4–154

When Driving

i-ACTIVSENSE

NOTE

(With cruise control)

When the vehicle set speed is displayed in the instrument cluster, press the RES /

switch to set the displayed vehicle speed.

(With Mazda Radar Cruise Control (MRCC))

When the vehicle set speed is displayed in the instrument cluster, press the RES switch

to set the displayed vehicle speed.

The system is temporarily cancelled when the vehicle is accelerated by depressing the

accelerator pedal strongly, however, it resumes when the vehicle speed decreases to the
set speed or less.

The vehicle speed may exceed the set speed on a down slope.

Temporarily Cancelling the System

The system is temporarily cancelled (stand-by status) when any of the following operations
is done while the adjustable speed limiter is displayed.

OFF/CAN switch is pressed

Accelerator pedal is strongly depressed

   With cruise control
Press  the   RES /    switch to resume the operation at the previous set speed. The adjustable
speed limiter display remains displayed.
   With Mazda Radar Cruise Control (MRCC)
  Press the RES  switch to resume the operation at the previous set speed. The adjustable speed
limiter display remains displayed.

NOTE

(With cruise control)

The set speed can be set by pressing the SET switch while the system is in stand-by

status.

(With Mazda Radar Cruise Control (MRCC))

The set speed can be set by pressing the SET or SET switch while the system is in

stand-by status.

The adjustable speed limiter is not cancelled by depressing the brake pedal.

4–155

When Driving

i-ACTIVSENSE

*Some models.

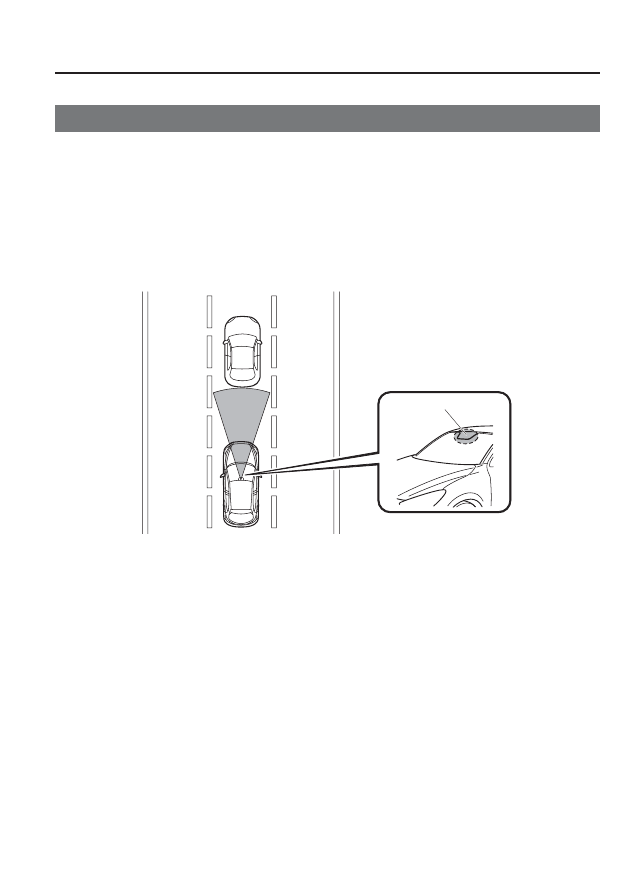

Smart City Brake Support [Forward] (SCBS F)

The Smart City Brake Support (SCBS) system is designed to reduce damage in the event
of a collision by operating the brake control (SCBS brake) when the system's laser sensor
detects a vehicle ahead and determines that a collision with a vehicle ahead is unavoidable.
It may also be possible to avoid a collision if the relative speed between your vehicle and a
vehicle ahead is less than about 20 km/h (12 mph).
In addition, when the driver depresses the brake pedal while the system is in the operation
range at about 4 to 30 km/h (2 to 18 mph), the brakes are applied

¿ rmly and quickly to

assist. (Brake Assist (SCBS brake assist))

Laser sensor

4–156

When Driving

i-ACTIVSENSE

WARNING

Do not rely on the Smart City Brake Support System (SCBS) as a substitute for safer
driving:
The Smart City Brake Support (SCBS) system cannot compensate for unsafe and
reckless driving, excessive speed, tailgating (following another vehicle too closely), and
driving on slippery roads such as wet, snowy, and icy roads (reduced tyre friction and
road contact because of water on the road surface). You can still have an accident.

Do not rely completely on the Smart City Brake Support (SCBS) system:

The Smart City Brake Support (SCBS) system is only designed to reduce damage in

the event of a collision. Over reliance on the system leading to the accelerator pedal
or brake pedal being mistakenly operated could result in an accident.

The Smart City Brake Support (SCBS) is a system which operates in response to a

vehicle ahead. The system may not be able to detect or react to two-wheeled vehicles
or pedestrians.

The laser sensor for the Smart City Brake Support (SCBS) system is installed near

the rearview mirror. To assure the correct operation of the Smart City Brake Support
(SCBS), heed the following cautions.

Do not apply stickers to the surface of the windscreen near the laser sensor

(including transparent stickers). Otherwise, the laser sensor may not be able to
detect vehicles ahead which could result in an accident.

Do not apply coating agent to the windscreen. Otherwise, the laser sensor may

not be able to detect vehicles or obstructions in front which could result in an
accident.

Do not disassemble the laser sensor.

If cracks or damage caused by

À ying gravel or debris is visible near the laser

sensor, stop using the Smart City Brake Support (SCBS) system immediately and
have your vehicle inspected by an expert repairer, we recommend an Authorised
Mazda Repairer. If the vehicle continues to be driven with cracks or scratch marks
left on the windscreen near the laser sensor, the system may operate unnecessarily
and cause an unexpected accident.

Refer to Stopping The Smart City Brake Support (SCBS) System Operation on

page 4-160 .

When replacing the windscreen wipers or windscreen, consult an expert repairer,

we recommend an Authorised Mazda Repairer.

Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the Smart City Brake Support (SCBS) system
not operating normally or mistakenly operating, which could cause a serious accident.

4–157

When Driving

i-ACTIVSENSE

WARNING

Turn off the Smart City Brake Support (SCBS) when the vehicle is running on a chassis
roller or being towed:
Turn off the Smart City Brake Support (SCBS) system to prevent mistaken operation
when the vehicle is running on a chassis roller or being towed.
Refer to the Stopping the Smart City Brake Support (SCBS) System Operation on page
4-160 on how to turn off the Smart City Brake Support (SCBS) system.

CAUTION

When driving off-road in areas where there is grass or forage, it is recommended that

the Smart City Brake Support (SCBS) system be turned off.

Always use tyres for all wheels that are of the speci

¿ ed size, and the same

manufacturer, brand, and tread pattern. In addition, do not use tyres with signi

¿ cantly

different wear patterns on the same vehicle as the Smart City Brake Support (SCBS)
system may not operate normally.

The laser sensor includes a function for detecting a soiled windscreen and informing

the driver, however, depending on the conditions, it may not detect plastic shopping
bags, ice or snow on the windscreen. In such cases, the system cannot accurately
determine a vehicle ahead and may not be able to operate normally. Always drive
carefully and pay attention to the road ahead.

4–158

When Driving

i-ACTIVSENSE

NOTE

The Smart City Brake Support (SCBS) system will not operate if the driver is

deliberately performing driving operations (accelerator pedal and steering wheel).

The Smart City Brake Support (SCBS) system will operate under the following

conditions.

The engine is running.

The Smart City Brake Support (SCBS) warning light (amber) does not illuminate.

The vehicle speed is between about 4 to 30 km/h (2 to 18 mph).

The Smart City Brake Support (SCBS) system is not turned off.

The DSC is not malfunctioning.

The Smart City Brake Support (SCBS) detects a vehicle ahead by emitting a near-

infrared laser beam and receiving the beam re

À ected off the reÀ ector of the vehicle

ahead, and then using it for the measurement. Consequently, the Smart City Brake
Support (SCBS) may not operate under the following conditions:

À ection of the laser is poor due to the shape of the vehicle ahead.

The vehicle ahead is signi

¿ cantly dirty.

Under bad weather condition, such as rain, fog and snow.

The window washer is being used or the windscreen wipers are not used when it's

raining.

The windscreen is dirty.

The steering wheel is turned completely left or right, or the vehicle is accelerated

rapidly and comes close to the vehicle ahead.

Trucks with low loading platforms and vehicles with an extremely low or high

pro

¿ le.

Vehicles with certain shapes such as a vehicle carrier.

Under the following conditions, the Smart City Brake Support (SCBS) system may not

operate normally.

Heavy luggage is loaded in the luggage compartment or on the rear seat.

If there is the possibility of partial contact with a vehicle ahead.

When driving on continuously curving roads, and entering and exiting exits.

Elongated luggage or cargo is loaded onto installed roof rails and covers the laser

sensor.

Exhaust gas from the vehicle in front, sand, snow, and water vapour rising from

manholes and grating, and water splashed into the air.

When towing a malfunctioning vehicle.

When driving with tyres having signi

¿ cantly different wear.

4–159

When Driving

i-ACTIVSENSE

*Some models.

NOTE

In the following cases, the laser sensor may inadvertently determine that there is a

vehicle ahead and the Smart City Brake Support (SCBS) system may operate.

Objects on the road at the entrance to a curve.

Vehicles passing in the opposite lane while making a curve.

Metal objects, bumps, or protruding objects on the road.

When passing through a toll gate equipped with a bar.

When passing under a vinyl curtain or

À ag.

Plastic objects such as pylons.

Two-wheeled vehicles, pedestrians, animals or standing trees.

(Manual transaxle)

If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed,

the engine stops.

When the system operates, the user is noti

¿ ed by the À ashing Smart City Brake

Support (SCBS) indicator light (red) and the active driving display

The Smart City Brake Support (SCBS) warning light (amber) turns on when the

system has a malfunction.

Refer to Warning Lights on page 4-38 .

4–160

When Driving

i-ACTIVSENSE

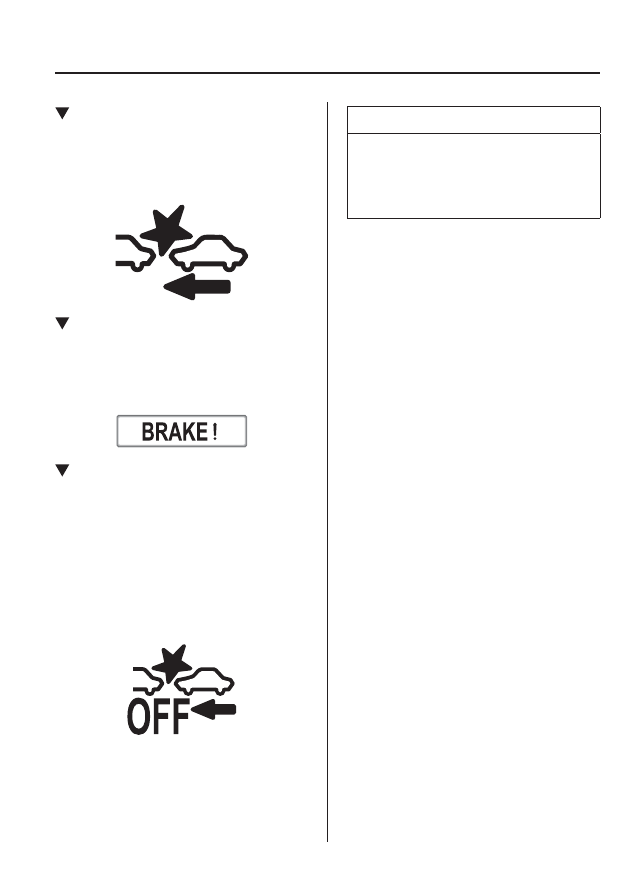

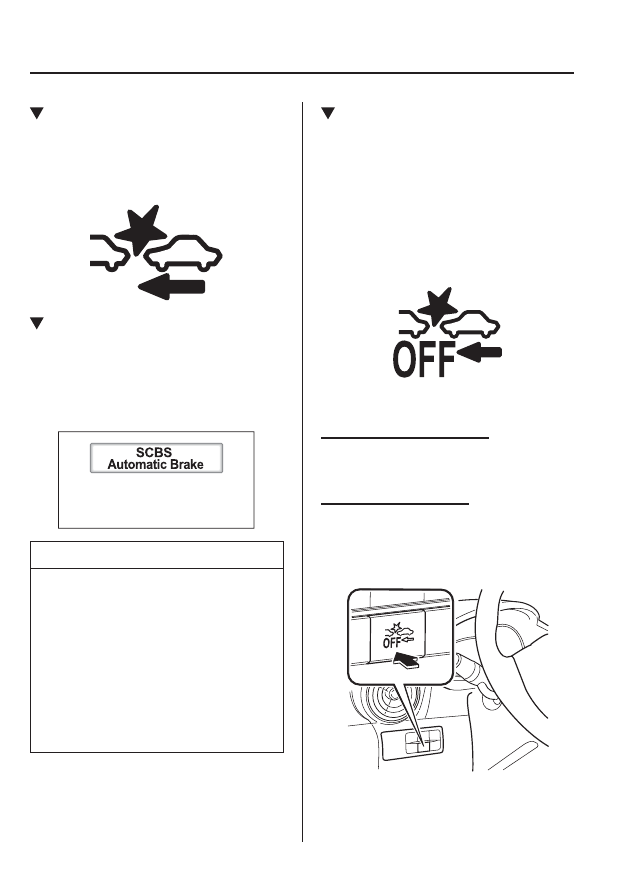

Smart City Brake Support (SCBS)

Indicator Light (Red)

If the Smart City Brake Support (SCBS) is
operating, the indicator light (red)

À ashes.

Automatic Brake Operation

Display

“SCBS Automatic Brake” is displayed in
the active driving display while the SCBS
brakes or the brake assist (SCBS brake
assist) is operating.

NOTE

The collision warning beep sounds

intermittently while the SCBS brake
or brake assist (SCBS brake assist) is
operating.

If the vehicle is stopped by the SCBS

operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and
the SCBS brake is automatically
released.

Stopping The Smart City Brake

Support [Forward] (SCBS F)
System Operation

    The Smart City Brake Support (SCBS)
system can be temporarily deactivated.
  When the Smart City Brake Support
(SCBS) system is turned off, the Smart
City Brake Support (SCBS) OFF indicator
light turns on.

When the engine is restarted, the system
becomes operational.

Without SCBS OFF switch

Refer to Personalisation Features on page
9-13 .

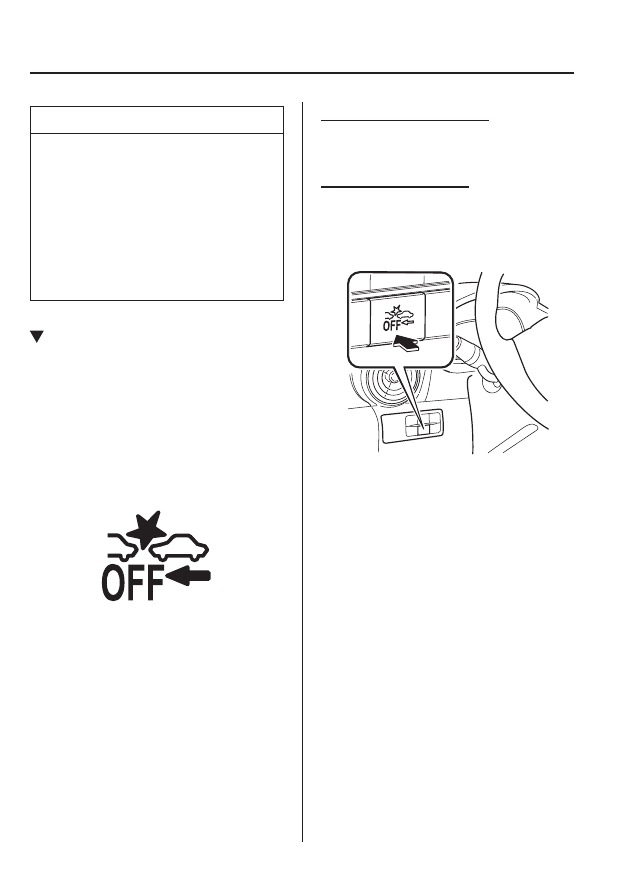

With SCBS OFF switch

Press the SCBS OFF switch to turn
off the system. The Smart City Brake
Support (SCBS) OFF indicator light in the
instrument cluster will illuminate.

Press the switch again to turn the system
back on. The Smart City Brake Support
(SCBS) OFF indicator light will turn off.

4–162

When Driving

i-ACTIVSENSE

WARNING

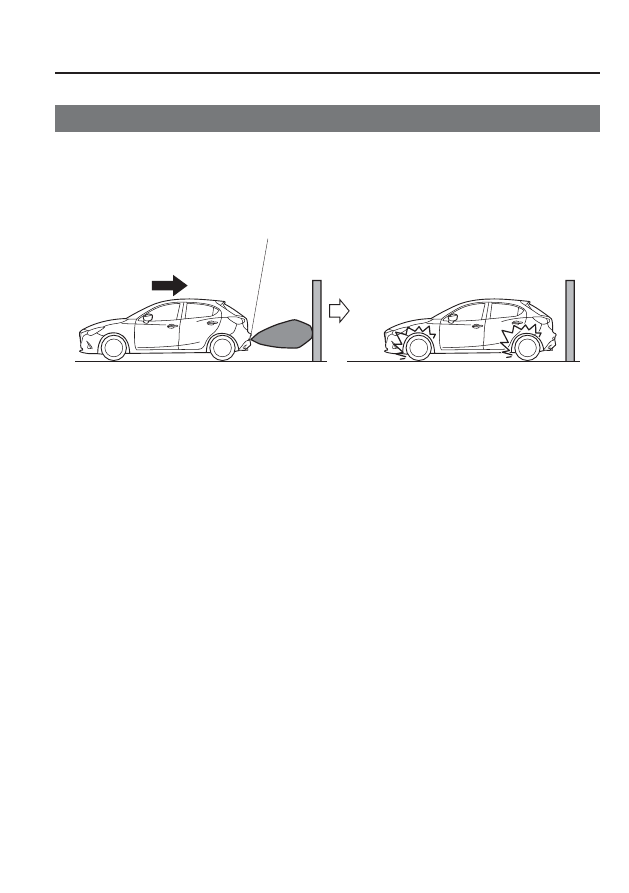

Do not rely completely on the Smart City Brake Support [Reverse] (SCBS R) system:

The Smart City Brake Support [Reverse] (SCBS R) system is only designed to

reduce damage in the event of a collision. Over reliance on the system leading to
the accelerator pedal or brake pedal being mistakenly operated could result in an
accident.

To assure the correct operation of the Smart City Brake Support [Reverse] (SCBS

R), heed the following cautions.

Do not apply a sticker to an ultrasonic sensor (rear) (including transparent

stickers). Otherwise, the ultrasonic sensor (rear) may not be able to detect vehicles
or obstructions which could result in an accident.

Do not disassemble an ultrasonic sensor (rear).

If cracks or damage caused by

À ying gravel or debris is visible around an

ultrasonic sensor (rear), stop using the Smart City Brake Support [Reverse] (SCBS
R) system immediately and have your vehicle inspected by an expert repairer, we
recommend an Authorised Mazda Repairer. If the vehicle continues to be driven
with cracks or scratch marks left around an ultrasonic sensor, the system may
operate unnecessarily and cause an unexpected accident.

Refer to Stopping the Smart City Brake Support [Reverse] (SCBS R) System

Operation on page 4-166 .

Consult an expert repairer, we recommend an Authorised Mazda Repairer for rear

bumper replacement.

Do not modify the suspension:
If the vehicle height or inclination is changed, the Smart City Brake Support [Reverse]
(SCBS R) system may not operate correctly because it cannot detect obstructions
correctly.

Do not apply a strong force to an ultrasonic sensor (rear):
When washing the vehicle, do not spray highly pressurised water against an ultrasonic
sensor (rear), or rub it strongly. In addition, do not hit the rear bumper forcefully
when loading and unloading cargo Otherwise, the sensors may not detect obstructions
correctly which could cause the Smart City Brake Support [Reverse] (SCBS R) system
to not operate normally, or it could operate unnecessarily.

4–163

When Driving

i-ACTIVSENSE

CAUTION

When driving off-road in areas where there is grass or foliage, it is recommended that

the Smart City Brake Support [Reverse] (SCBS R) system be turned off.

Always use tyres of the speci

¿ ed size and the same manufacturer, brand, and tread

pattern on all 4 wheels. In addition, do not use tyres with signi

¿ cantly different wear

patterns on the same vehicle. Do not use tyres with signi

¿ cantly different wear patterns

on the same vehicle. Otherwise, the Smart City Brake Support [Reverse] (SCBS R)
system may not operate normally.

If ice or snow is stuck on the ultrasonic sensors (rear) they may not be able to detect

obstructions correctly depending on the conditions. In such cases, the system may not
be able to perform controls correctly. Always drive carefully and pay attention to the
rear of the vehicle.

NOTE

The vehicle posture changes depending on the accelerator pedal, brake pedal and

steering wheel operations, which could make it dif

¿ cult for the system to recognise an

obstruction, or it could facilitate unnecessary detection. In such cases, the Smart City
Brake Support [Reverse] (SCBS R) may or may not operate.

The Smart City Brake Support [Reverse] (SCBS R) system will operate under the

following conditions.

The engine is running.

The change lever (manual transaxle vehicle) or the selector lever (automatic

transaxle vehicle) is in the R (reverse) position.

The vehicle speed is between about 2 to 8 km/h (2 to 4 mph).

The Smart City Brake Support [Reverse] (SCBS R) is not turned off.

The DSC is not malfunctioning.

The Smart City Brake Support [Reverse] (SCBS R) operates using ultrasonic sensors

(rear) which detect obstructions at the rear by emitting ultrasonic waves and then
receiving the returning waves re

À ected off the obstructions.

4–164

When Driving

i-ACTIVSENSE

NOTE

In the following cases, the ultrasonic sensors (rear) cannot detect obstructions and the

Smart City Brake Support [Reverse] (SCBS R) may not operate.

The height of the obstruction is low such as low walls or trucks with low loading

platforms.

The height of the obstruction is high such as trucks with high loading platforms.

The obstruction is small.

The obstruction is thin such as a signpost.

The obstruction is positioned away from the centre of the vehicle.

The surface of the obstruction is not pointed vertically relative to the vehicle.

The obstruction is soft such as a hanging curtain or snow stuck to a vehicle.

The obstruction is shaped irregularly.

The obstruction is extremely close.

In the following cases, the ultrasonic sensors (rear) cannot detect obstructions correctly

and the Smart City Brake Support [Reverse] (SCBS R) may not operate.

Something is stuck on the bumper near an ultrasonic sensor (rear).

The steering wheel is turned sharply, or the brake or accelerator pedal is operated.

There is another obstruction near one obstruction.

During inclement weather such as rain, fog and snow.

High or low humidity.

High or low temperatures

Strong winds.

The path of travel is not

À at.

Heavy luggage is loaded in the luggage compartment or on the rear seat.

Objects such as a wireless aerial, fog light, or illuminated number plate is installed

near an ultrasonic sensor (rear).

The orientation of an ultrasonic sensor (rear) has deviated for reasons such as a

collision.

The vehicle is affected by other sound waves such as the horn, engine noise,

ultrasonic sensor of another vehicle.

4–165

When Driving

i-ACTIVSENSE

NOTE

In the following cases, an ultrasonic sensor (rear) may detect something as a target

obstruction which could cause the Smart City Brake Support [Reverse] (SCBS R)
system to operate.

Driving on a steep slope.

Wheel blocks.

Hanging curtains, gate poles such as at toll gates and railroad crossing.

When travelling near objects such as foliage, barriers, vehicles, walls, and fences

along a road.

When driving off-road in areas where there is grass and forage.

When passing through low gates, narrow gates, car washing machines, and tunnels.

A towing bar is installed or a trailer is connected.

(Manual transaxle)

If the vehicle is stopped by the SCBS operation and the clutch pedal is not depressed,

the engine stops.

The Smart City Brake Support (SCBS) warning indication (amber) turns on when the

system has a malfunction.

Refer to Warning Lights on page 4-38 .

Smart City Brake Support (SCBS)

Indicator Light (Red)

If the Smart City Brake Support (SCBS) is
operating, the indicator light (red)

À ashes.

Automatic Brake Operation

Display

“SCBS Automatic Brake” is indicated in
the active driving display after the SCBS
brakes is operated.

4–166

When Driving

i-ACTIVSENSE

NOTE

The collision warning beep sounds

intermittently while the SCBS brake
is operating.

If the vehicle is stopped by the SCBS

operation and the brake pedal is not
depressed, the warning beep sounds
one time after about 2 seconds and
the SCBS brake is automatically
released.

Stopping the Smart City Brake

Support [Reverse] (SCBS R)
System Operation

The Smart City Brake Support [Reverse]
(SCBS R) system can be temporarily
deactivated.
When the Smart City Brake Support
[Reverse] (SCBS R) system is turned off,
the Smart City Brake Support (SCBS)
OFF indicator light turns on.

When the engine is restarted, the system
becomes operational.
When the DSC OFF switch is pressed to
stop the DSC operation, the Smart City
Brake Support [Reverse] (SCBS R) system
operation also stops and the Smart City
Brake Support (SCBS) OFF indicator light
turns on.

Without SCBS OFF switch

Refer to Personalisation Features on page
9-13 .

With SCBS OFF switch

Press the SCBS OFF switch to turn
off the system. The Smart City Brake
Support (SCBS) OFF indicator light in the
instrument cluster will illuminate.

Press the switch again to turn the system
back on. The Smart City Brake Support
(SCBS) OFF indicator light will turn off.

4–167

When Driving

i-ACTIVSENSE

*Some models.

Smart Brake Support (SBS)

The Smart Brake Support (SBS) system alerts the driver of a possible collision using a
display and warning sound if the radar sensor (front) and the Forward Sensing Camera
(FSC) determine that there is the possibility of a collision with a vehicle ahead while the
vehicle is being driven at about 15 km/h or faster (10 mph or faster). Furthermore, if the
radar sensor (front) and the Forward Sensing Camera (FSC) determines that a collision is
unavoidable, the automatic brake control is performed to reduce damage in the event of a
collision.
In addition, when the driver depresses the brake pedal, the brakes are applied

¿ rmly and

quickly to assist. (Brake Assist (SBS brake assist))

WARNING

Do not rely completely on the Smart Brake Support (SBS) system and always drive
carefully:
The Smart Brake Support (SBS) is designed to reduce damage in the event of
a collision, not avoid an accident. The ability to detect an obstruction is limited
depending on the obstruction, weather conditions, or traf

¿ c conditions. Therefore,

if the accelerator pedal or brake pedal is mistakenly operated it could result in an
accident. Always verify the safety of the surrounding area and depress the brake pedal
or accelerator pedal while keeping a safer distance from vehicles ahead or on-coming
vehicles.

CAUTION

In the following cases, turn the system off to prevent a mis-operation:

The vehicle is being towed or when towing another vehicle.

The vehicle is on a chassis roller.

When driving on rough roads such as in areas of dense grass or off-road.

4–168

When Driving

i-ACTIVSENSE

NOTE

The Smart Brake Support (SBS) system operates when all of the following conditions

are met:

The ignition is switched ON.

The Smart Brake Support (SBS) system is on.

The vehicle speed is about 15 km/h or faster (10 mph or faster).

The relative speed between your vehicle and the vehicle ahead is about 15 km/h or

faster (10 mph or faster).

The Dynamic Stability Control (DSC) is not operating.

The Smart Brake Support (SBS) system may not operate under the following

conditions:

If the vehicle is accelerated rapidly and it comes close to a vehicle ahead.

The vehicle is driven at the same speed as the vehicle ahead.

The accelerator pedal is depressed.

The brake pedal is depressed.

The steering wheel is being operated.

The selector lever is being operated.

The direction indicator is being used.

When the vehicle ahead is not equipped with tail lights or the tail lights are turned

off.

When warnings and messages, such as a dirty windscreen, related to the Forward

Sensing Camera (FSC) are being displayed in the centre display.

Although the objects which activate the system are four-wheeled vehicles, the radar

sensor (front) could detect the following objects, determine them to be an obstruction,
and operate the Smart Brake Support (SBS) system.

Objects on the road at the entrance to a curve (including guardrails and snow banks).

A vehicle appears in the opposite lane while cornering or rounding a curve.

When crossing a narrow bridge.

When passing under a low gate or through a tunnel or narrow gate.

When entering an underground parking area.

Metal objects, bumps, or protruding objects on the road.

If you suddenly come close to a vehicle ahead.

When driving in areas where there is high grass or forage.

Two-wheeled vehicles such as motorbikes or bicycles.

Pedestrians or non-metallic objects such as standing trees.

When the system operates, the user is noti

¿ ed by the active driving display.

The Smart Brake Support (SBS) warning indication (amber) turns on when the system

has a malfunction.

Refer to Warning Lights on page 4-38 .

4–169

When Driving

i-ACTIVSENSE

Smart Brake Support (SBS)

Indicator Light (Red)

If the Smart Brake Support (SBS) is
operating, the indicator light (red)

À ashes.

Collision Warning

If there is the possibility of a collision
with a vehicle ahead, the beep sounds
continuously and a warning is indicated in
the active driving display.

Stopping The Smart Brake

Support (SBS) System Operation

The  Smart  Brake  Support  (SBS)  system
can be temporarily deactivated.
  Refer to Personalisation Features on page
9-13 .
  When the Smart Brake Support (SBS)
system is turned off, the Smart Brake
Support (SBS) OFF indicator light turns
on.

When the engine is restarted, the system
becomes operational.

NOTE

If the Smart Brake Support (SBS)
system operation is turned off, the Smart
City Brake Support (SCBS) system
operation is turned off simultaneously.

Mazda 2 (2017 year). Instruction - part 19
