When Driving

i-ACTIVSENSE

*Some models.

Forward Sensing Camera (FSC)

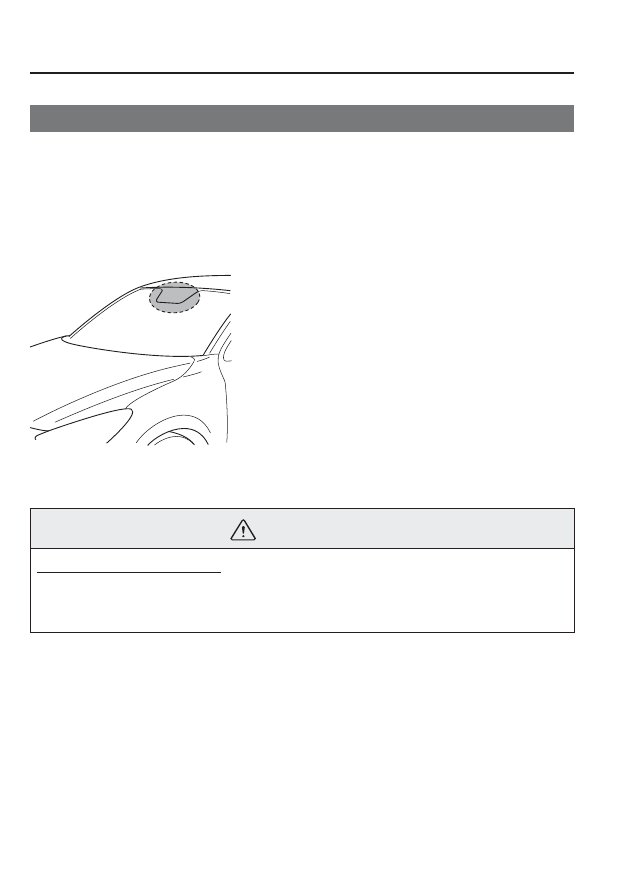

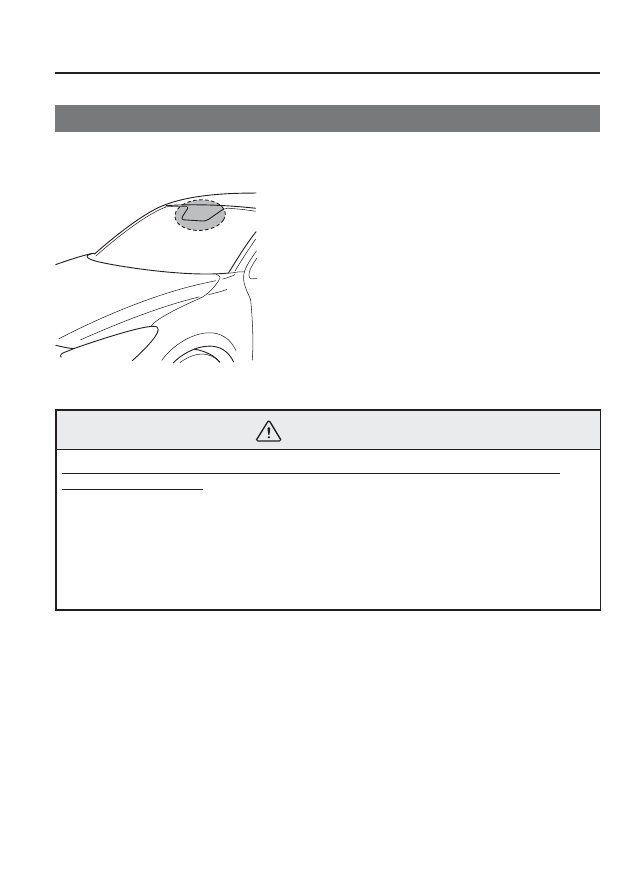

Your vehicle is equipped with a Forward Sensing Camera (FSC). The Forward Sensing
Camera (FSC) is positioned near the rearview mirror and used by the following systems.

High Beam Control System (HBC)

Adaptive LED Headlights (ALH)

Driver Attention Alert (DAA)

Lane Departure Warning System (LDWS)

Smart Brake Support (SBS)

The Forward Sensing Camera (FSC) determines the conditions ahead of the vehicle while
travelling at night and detects traf

¿ c lanes. The distance in which the Forward Sensing

Camera (FSC) can detect objects varies depending on the surrounding conditions.

WARNING

Do not modify the suspension:
If the vehicle height or inclination is changed, the system will not be able to correctly
detect vehicles ahead. This will result in the system not operating normally or
mistakenly operating, which could cause a serious accident.

4–171

When Driving

i-ACTIVSENSE

CAUTION

Do not apply accessories, stickers or

¿ lm to the windscreen near the Forward Sensing

Camera (FSC).

If the area in front of the Forward Sensing Camera (FSC) lens is obstructed, it will

cause the system to not operate correctly. Consequently, each system may not operate
normally which could lead to an unexpected accident.

Do not disassemble or modify the Forward Sensing Camera (FSC).

Disassembly or modi

¿ cation of the Forward Sensing Camera (FSC) will cause a

malfunction or mistaken operation. Consequently, each system may not operate
normally which could lead to an unexpected accident.

4–172

When Driving

i-ACTIVSENSE

CAUTION

Heed the following cautions to assure the correct operation of the Forward Sensing

Camera (FSC).

Be careful not to scratch the Forward Sensing Camera (FSC) lens or allow it to get

dirty.

Do not remove the Forward Sensing Camera (FSC) cover.

Do not place objects on the instrument panel which re

À ect light.

Always keep the windscreen glass around the camera clean by removing dirt or

fogging. Use the windscreen defroster to remove fogging on the windscreen.

Consult an expert repairer, we recommend an Authorised Mazda Repairer regarding

cleaning the interior side of the windscreen around the Forward Sensing Camera
(FSC).

Consult an expert repairer, we recommend an Authorised Mazda Repairer before

performing repairs around the Forward Sensing Camera (FSC).

The Forward Sensing Camera (FSC) is installed to the windscreen. Consult an expert

repairer, we recommend an Authorised Mazda Repairer for windscreen repair and
replacement.

When cleaning the windscreen, do not allow glass cleaners or similar cleaning

À uids

to get on the Forward Sensing Camera (FSC) lens. In addition, do not touch the
Forward Sensing Camera (FSC) lens.

When performing repairs around the rearview mirror, consult an expert repairer, we

recommend an Authorised Mazda Repairer.

Consult an expert repairer, we recommend an Authorised Mazda Repairer regarding

cleaning of the camera lens.

Do not hit or apply strong force to the Forward Sensing Camera (FSC) or the area

around it. If the Forward Sensing Camera (FSC) is severely hit or if there are cracks
or damage caused by

À ying gravel or debris in the area around it, stop using the

following systems and consult an expert repairer, we recommend an Authorised
Mazda Repairer.

High Beam Control System (HBC)

Adaptive LED Headlights (ALH)

Lane Departure Warning System (LDWS)

Driver Attention Alert (DAA)

Smart Brake Support (SBS)

The direction in which the Forward Sensing Camera (FSC) is pointed has been

¿ nely

adjusted. Do not change the installation position of the Forward Sensing Camera
(FSC) or remove it. Otherwise, it could result in damage or malfunction.

Always use tyres for all wheels that are of the speci

¿ ed size, and the same

manufacturer, brand, and tread pattern. In addition, do not use tyres with signi

¿ cantly

different wear patterns on the same vehicle as the system may not operate normally.

4–173

When Driving

i-ACTIVSENSE

CAUTION

The Forward Sensing Camera (FSC) includes a function for detecting a soiled

windscreen and informing the driver, however, depending on the conditions, it may not
detect plastic shopping bags, ice or snow on the windscreen. In such cases, the system
cannot accurately determine a vehicle ahead and may not be able to operate normally.
Always drive carefully and pay attention to the road ahead.

NOTE

In the following cases, the Forward Sensing Camera (FSC) cannot detect target objects

correctly, and each system may be unable to operate normally.

The height of the vehicle ahead is low.

You drive your vehicle at the same speed as the vehicle ahead.

Headlights are not turned on during the night or when going through a tunnel.

4–174

When Driving

i-ACTIVSENSE

NOTE

In the following cases, the Forward Sensing Camera (FSC) may not be able to detect

target objects correctly.

Under bad weather condition, such as rain, fog and snow.

The window washer is being used or the windscreen wipers are not used when it's

raining.

Ice, fog, snow, frost, rainfall, dirt, or foreign matter such as a plastic bag is stuck on

the windscreen.

Trucks with low loading platforms and vehicles with an extremely low or high

pro

¿ le.

When driving next to walls with no patterning (including fences and longitudinally

striped walls).

The tail lights of the vehicle ahead are turned off.

A vehicle is outside the illumination range of the headlights.

The vehicle is making a sharp turn, or ascending or descending a steep slope.

Entering or exiting a tunnel.

Heavy luggage is loaded causing the vehicle to tilt.

Strong light is shone at the front of the vehicle (back light or high-beam light from

on-coming vehicles).

There are many light emitters on the vehicle ahead.

When the vehicle ahead is not equipped with tail lights or the tail lights are turned

off at nighttime.

Elongated luggage or cargo is loaded onto installed roof rails and covers the Forward

Sensing Camera (FSC).

Exhaust gas from the vehicle in front, sand, snow, and water vapour rising from

manholes and grating, and water splashed into the air.

When towing a malfunctioning vehicle.

The vehicle is driven with tyres having signi

¿ cantly different wear.

The vehicle is driven on down slopes or bumpy roads.

There are water puddles on the road.

The surroundings are dark such as during the night, early evening, or early morning,

or in a tunnel or indoor parking lot.

The illumination brightness of the headlights is reduced or the headlight illumination

is weakened due to dirt or a deviated optical axis.

The target object enters the blind spot of the Forward Sensing Camera (FSC).

A person or object bursts onto the road from the shoulder or cuts right in front of

you.

You change lanes and approach a vehicle ahead.

When driving extremely close to the target object.

Tyre chains or a temporary spare tyre is installed.

The vehicle ahead has a special shape. For example, a vehicle towing a trailer house

or a boat, or a vehicle carrier carrying a vehicle with its front pointed rearward.

4–175

When Driving

i-ACTIVSENSE

NOTE

If the Forward Sensing Camera (FSC) cannot operate normally due to backlight or fog,

the system functions related to the Forward Sensing Camera (FSC) are temporarily
stopped and the following warning lights turn on. However, this does not indicate a
malfunction.

High Beam Control System (HBC) warning light (amber)

Adaptive LED Headlights (ALH) warning light (amber)

Lane Departure Warning System (LDWS) warning light

Smart Brake Support/Smart City Brake Support (SBS/SCBS) warning light (amber)

4–176

When Driving

i-ACTIVSENSE

*Some models.

Radar Sensor (Front)

Your vehicle is equipped with a radar sensor (front).
The following systems also use the radar sensor (front).

Mazda Radar Cruise Control (MRCC)

Distance Recognition Support System (DRSS)

Smart Brake Support (SBS)

The radar sensor (front) functions by detecting the radio waves re

À ected off a vehicle ahead

or an obstruction sent from the radar sensor.

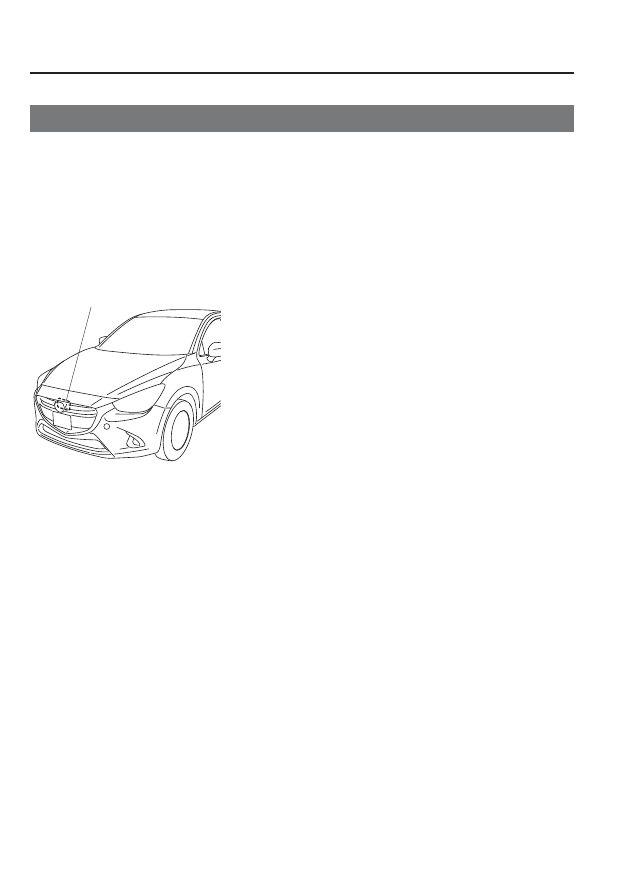

The radar sensor (front) is mounted behind the front emblem.

Radar sensor (front)

If the Smart Brake Support/Smart City Brake Support (SBS/SCBS) Warning Light (amber)
is illuminated, the area around the radar sensor may be dirty. Refer to “Warning Guidance”
in the centre display (Type B audio).
Refer to If a Warning Light Turns On or Flashes on page 7-35 .

4–177

When Driving

i-ACTIVSENSE

CAUTION

Heed the following precautions to assure correct operation of each system.

Do not adhere stickers (including transparent stickers) to the surface of the radiator

grille and front emblem in and around the radar sensor (front), and do not replace
the radiator grille and front emblem with any product that is not a genuine product
designed for use with the radar sensor (front).

The radar sensor (front) includes a function for detecting soiling of the radar sensor's

front surface and informing the driver, however, depending on the conditions, it may
require time to detect or it may not detect plastic shopping bags, ice or snow. If this
occurs, the system may not operate correctly, therefore always keep the radar sensor
(front) clean.

Do not install a grille guard.

If the front part of the vehicle has been damaged in a vehicle accident, the position of

the radar sensor (front) may have moved. Stop the system immediately and always
have the vehicle inspected at an Authorised Mazda Repairer.

Do not use the front bumper to push other vehicles or obstructions such as when

pulling out of a parking space. Otherwise, the radar sensor (front) could be hit and its
position deviated.

Do not remove, disassemble, or modify the radar sensor (front).

For repairs, replacement or paint work around the radar sensor (front), consult an

Authorised Mazda Repairer.

Do not modify the suspension. If the suspension are modi

¿ ed, the vehicle's posture

could change and the radar sensor (front) may not be able to correctly detect a vehicle
ahead or an obstruction.

4–178

When Driving

i-ACTIVSENSE

NOTE

Under the following conditions, the radar sensor (front) may not be able to detect

vehicles ahead or obstructions correctly and each system may not operate normally.

The rear surface of a vehicle ahead does not re

À ect radio waves effectively, such as

an unloaded trailer or an automobile with a loading platform covered by a soft top,
vehicles with a hard plastic tailgate, and round-shaped vehicles.

Vehicles ahead with low vehicle height and thus less area for re

À ecting radio waves.

Visibility is reduced due to a vehicle ahead casting off water, snow, or sand from its

tyres and onto your windscreen.

The boot/luggage compartment is loaded with heavy objects or the rear passenger

seats are occupied.

Ice, snow, or soiling is on the front surface of the front emblem.

During inclement weather such as rain, snow, or sand storms.

When driving near facilities or objects emitting strong radio waves.

Under the following conditions, the radar sensor (front) may not be able to detect

vehicles ahead or obstructions.

The beginning and end of a curve.

Roads with continuous curves.

Narrow lane roads due to road construction or lane closures.

The vehicle ahead enters the radar sensor's blind spot.

The vehicle ahead is running abnormally due to accident or vehicle damage.

Roads with repeated up and down slopes

Driving on poor roads or unpaved roads.

The distance between your vehicle and the vehicle ahead is extremely short.

A vehicle suddenly comes close such as by cutting into the lane.

To prevent incorrect operation of the system, use tyres of the same speci

¿ ed size,

manufacturer, brand, and tread pattern on all four wheels. In addition, do not use
tyres with signi

¿ cantly different wear patterns or tyre pressures on the same vehicle

(Including the temporary spare tyre).

If the battery power is weak, the system may not operate correctly.

If the vehicle is driven on a road with little traf

¿ c and few vehicles ahead or

obstructions for the radar sensor (front) to detect, the sensor detects that the radar
sensor (front) is dirty and the Smart Brake Support/Smart City Brake Support (SBS/
SCBS) Warning Light (amber) may be temporarily turned on. However, it does not
indicate a malfunction.

4–179

When Driving

i-ACTIVSENSE

*Some models.

Laser Sensor

The Smart City Brake Support (SCBS) laser sensor is installed at the top of the windscreen
near the rearview mirror.

Always keep the surface of the windscreen around the laser sensor clean to assure proper
operation of the Smart City Brake Support (SCBS) system.

WARNING

As there is the possibility of eye damage occurring from the laser, always heed the
following precautions:

Never remove the sensor.

A removed sensor will not meet the conditions for a class 1M laser under the IEC

60825-1 speci

¿ cation and therefore eye safety cannot be assured.

Do not peer into the sensor using optical instruments with a magni

¿ cation function

such as magnifying glasses, and microscopic and objective lenses within a distance
of 100 mm (3.94 in) from the sensor.

4–180

When Driving

i-ACTIVSENSE

  Laser sensor radiation data
  Maximum average power: 45 mW
  Pulse duration: 33 ns
Wavelength:  905  nm
  Divergence angle (horizontal×vertical): 28 degrees×12 degrees

4–181

When Driving

i-ACTIVSENSE

*Some models.

Radar Sensors (Rear)

Your vehicle is equipped with radar sensors (rear). The following systems also use the radar
sensors (rear).

Blind Spot Monitoring system (BSM)

Rear Cross Traf

¿ c Alert (RCTA)

The radar sensors (rear) function by detecting the radio waves re

À ected off a vehicle

approaching from the rear or an obstruction sent from the radar sensor.

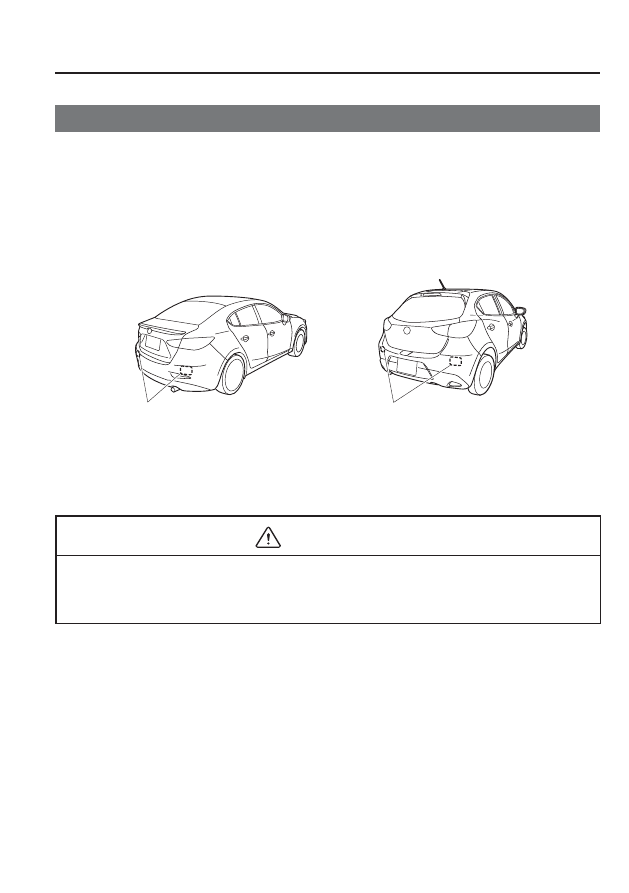

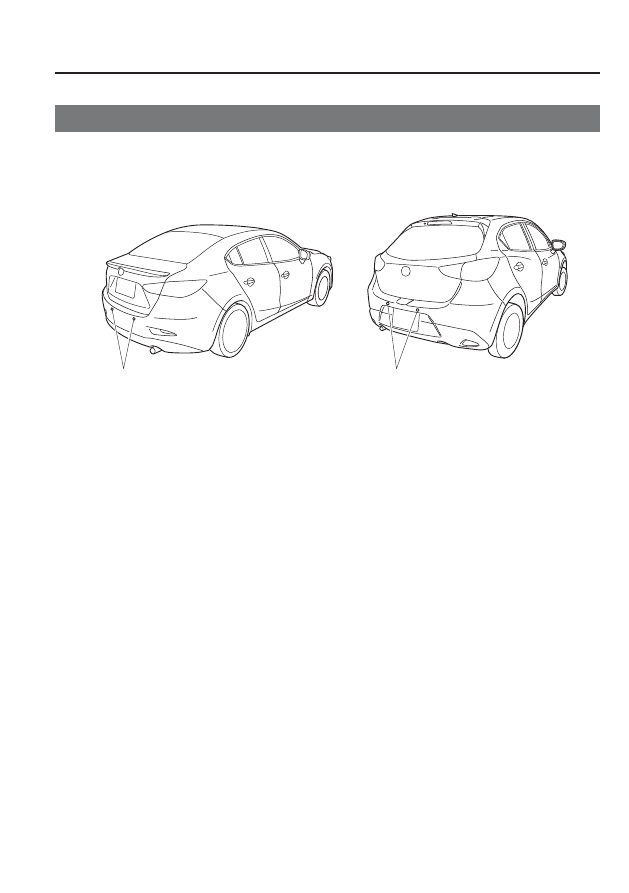

Saloon

Hatchback

Radar sensors (rear)

  The radar sensors (rear) are installed inside the rear bumper, one each on the left and right
sides.
  Always keep the surface of the rear bumper near the radar sensors (rear) clean so that the
radar sensors (rear) operate normally. Also, do not apply items such as stickers.
  Refer to Exterior Care on page 6-66 .

CAUTION

If the rear bumper receives a severe impact, the system may no longer operate normally.
Stop the system immediately and have the vehicle inspected at an Authorised Mazda
Dealer.

4–182

When Driving

i-ACTIVSENSE

NOTE

The detection ability of the radar sensors (rear) has limitations. In the following cases,

the detection ability may lower and the system may not operate normally.

The rear bumper near the radar sensors (rear) has become deformed.

Snow, ice or mud adheres to the radar sensors (rear) on the rear bumper.

Under bad weather conditions such as rain, snow and fog.

Under the following conditions, the radar sensors (rear) cannot detect target objects or

it may be dif

¿ cult to detect them.

Stationary objects on a road or a road side such as small, two-wheeled vehicles,

bicycles, pedestrians, animals, and shopping carts.

Vehicle shapes which do not re

À ect radar waves well such as empty trailers with a

low vehicle height and sports cars.

Vehicles are shipped with the direction of the radar sensors (rear) adjusted for each

vehicle to a loaded vehicle condition so that the radar sensors (rear) detect approaching
vehicles correctly. If the direction of the radar sensors (rear) has deviated for some
reason, have the vehicle inspected at an Authorised Mazda Dealer.

For repairs or replacement of the radar sensors (rear), or bumper repairs, paintwork,

and replacement near the radar sensors, consult an Authorised Mazda Dealer.

Turn off the system while pulling a trailer or while an accessory such as a bicycle

carrier is installed to the rear of the vehicle. Otherwise, the radio waves emitted by the
radar will be blocked causing the system to not operate normally.

The radar sensors are regulated by the relevant radio wave laws of the country in

which the vehicle is driven. If the vehicle is driven abroad, authorization from the
country in which the vehicle is driven may be required.

4–183

When Driving

i-ACTIVSENSE

*Some models.

Ultrasonic Sensor (Rear)

The ultrasonic sensors (rear) function by emitting ultrasonic waves which are re

À ected off

obstructions at the rear and the returning ultrasonic waves are picked up by the ultrasonic
sensors (rear).

Saloon

Hatchback

Ultrasonic sensor (rear)

The ultrasonic sensors (rear) are mounted in the rear bumper.

4–184

When Driving

Cruise Control

*Some models.

Cruise Control

With cruise control, you can set and automatically maintain any speed of more than about
25 km/h (16 mph).

WARNING

Do not use the cruise control under the following conditions:
Using the cruise control under the following conditions is dangerous and could result
in loss of vehicle control.

Hilly terrain

Steep inclines

Heavy or unsteady traf

¿ c

Slippery or winding roads

Similar restrictions that require inconsistent speed

4–185

When Driving

Cruise Control

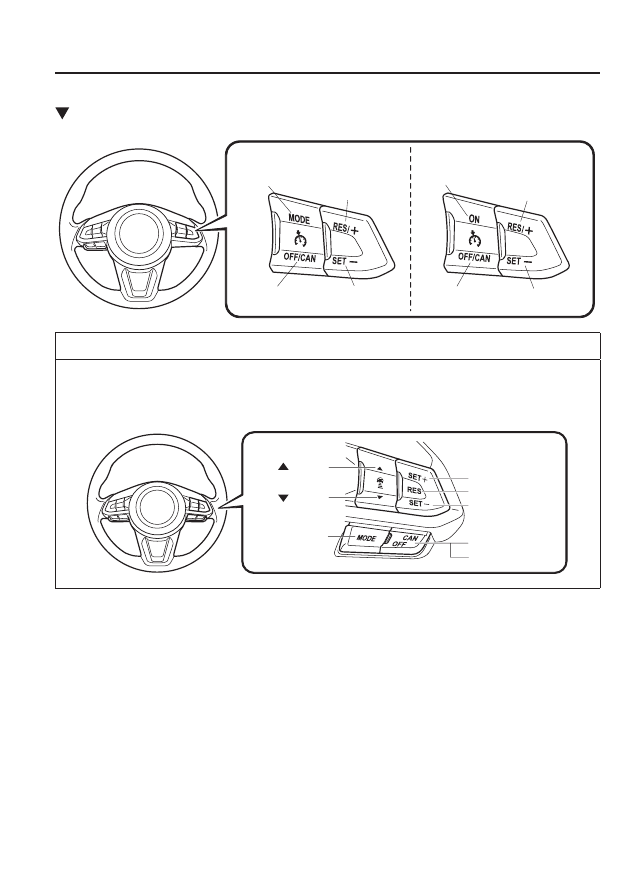

Cruise Control Switch

ON switch

RES/+ switch

Without Adjustable Speed
Limiter

SET- switch

OFF/CAN
switch

MODE switch

RES/+ switch

With Adjustable Speed
Limiter

SET- switch

OFF/CAN
switch

NOTE

If your Mazda has the following steering switch, your Mazda is equipped with the Mazda
Radar Cruise Control (MRCC) system.
Refer to Mazda Radar Cruise Control (MRCC) on page 4-135 .

CANCEL switch

RES switch

OFF switch

switch

MODE switch

SET- switch

SET+ switch

Content .. 18 19 20 21 ..
