4–202

When Driving

Rear View Monitor

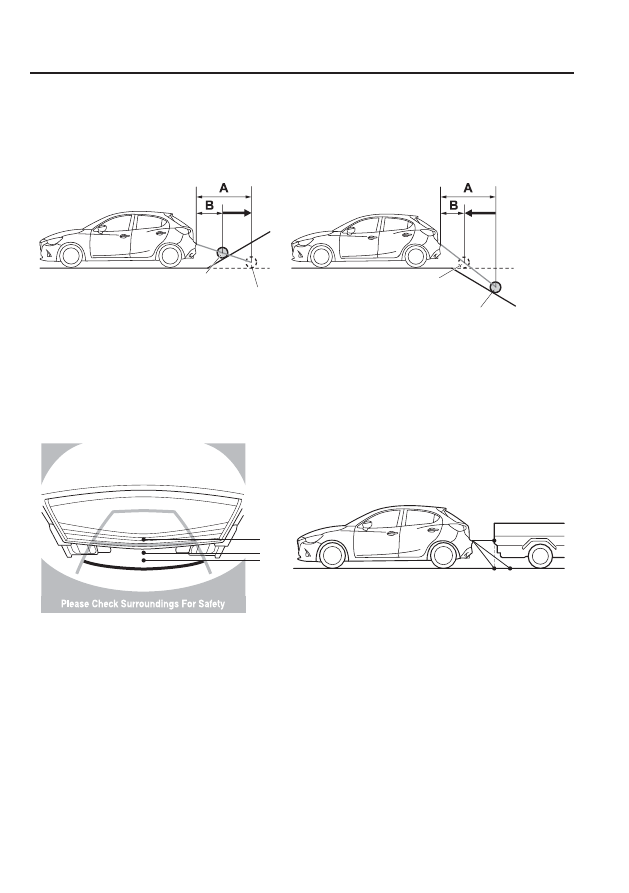

  When there is a steep grade behind the vehicle

    When there is a steep upgrade (downgrade) behind the vehicle, the object displayed on the
screen appears farther (downgrade: closer) than the actual distance.



Appears
farther than
actual
distance

Appears
closer than
actual
distance

Object at actual
position

Object at actual position

Object on screen

A: Distance between the vehicle and object displayed on the screen.
B: Actual distance between the vehicle and object.

Object on screen



  Three-dimensional object on vehicle rear

    Because the distance guide lines are displayed based on a

À at surface, the distance to the

three-dimensional object displayed on the screen is different from the actual distance.



A

A

C

B

C B

(Actual distance) B>C=A

Sensed distance on screen A>B>C

(Screen display)

(Actual condition)



4–203

When Driving

Rear View Monitor

           Picture  Quality Adjustment

 WARNING

 Always adjust the picture quality of the rear view monitor while the vehicle is stopped:
 Do not adjust the picture quality of the rear view monitor while driving the vehicle.
Adjusting the picture quality of the rear view monitor such as brightness, contrast,
colour, and tint while driving the vehicle is dangerous as it could distract your attention
from the vehicle operation which could lead to an accident.

  Picture quality adjustment can be done while the shift lever is in reverse (R).
  There are four settings which can be adjusted including, brightness, contrast, tint, and
colour. When adjusting, pay suf

¿ cient attention to the vehicle surroundings.



   1.   Select  the      icon on the screen to display the tabs.
   2.   Select  the  desired  tab  item.
   3.   Adjust the brightness, contrast, tint, and colour using the slider.


If you need to reset, press the reset button.

   4.   Select  the      icon on the screen to close the tab.



4–204

When Driving

Parking Sensor System

*Some models.

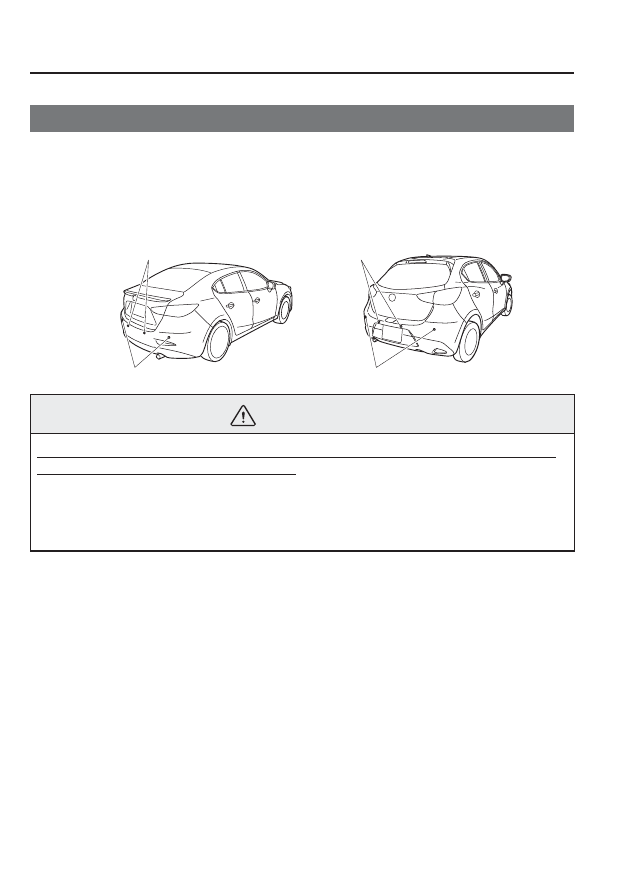

      Parking  Sensor  System

*



            The  parking  sensors  use  ultrasonic  sensors  which  detect  obstructions  around  the  vehicle
when the vehicle is driven at low speeds, such as during garage or parallel parking, and a
buzzer sound and detection indicator notify the driver of the approximate distance from the
vehicle to the surrounding obstruction.




Rear sensor

Rear sensor

Saloon

Hatchback

Rear corner sensor

Rear corner sensor



 WARNING

 Do not rely completely on the parking sensor system and be sure to con

¿ rm the safety

around your vehicle visually when driving:
 This system can assist the driver in operating the vehicle in the backward directions
while parking. The detection ranges of the sensors are limited, therefore, driving the
vehicle while relying only on the system may cause an accident. Always con

¿ rm the

safety around your vehicle visually when driving.

4–205

When Driving

Parking Sensor System

 NOTE



  Do not install any accessories within the detection ranges of the sensors. It may affect

the system operation.



  Depending on the type of obstruction and the surrounding conditions, the detection

range of a sensor may narrow, or the sensors may not be able to detect obstructions.



  The system may not operate normally under the following conditions:





  Mud, ice, or snow is adhering to the sensor area (Returns to normal operation when

removed).



  The sensor area is frozen (Returns to normal operation when the ice is thawed).



  The sensor is covered by a hand.



  The sensor is excessively shocked.



  The vehicle is excessively tilted.



  Under extremely hot or cold weather conditions.



  The vehicle is driven on bumps, inclines, gravel, or grass covered roads.



  Anything which generates ultrasound is near the vehicle, such as another vehicle's

horn, the engine sound of a motorcycle, the air brake sound of a large-sized vehicle,
or another vehicle's sensors.



  The vehicle is driven in heavy rain or in road conditions causing water-splash.



  A commercially-available wing pole or an aerial for a radio transmitter is installed to

the vehicle.



  The vehicle is moving towards a tall or square curbstone.



  An obstruction is too close to the sensor.



  Obstructions under the bumper may not be detected. Obstructions that are lower than

the bumper or thin which may have been initially detected but are no longer detected
as the vehicle approaches more closely.



  The following types of obstructions may not be detected:





  Thin objects such as wire or rope



  Things which absorb sonic waves easily such as cotton or snow



  Angular shaped objects



  Very tall objects, and those which are wide at the top



  Small,  short  objects



  Always have the system inspected at an expert repairer, we recommend an Authorised

Mazda Repairer if any shock is applied to the bumpers, even in a minor accident. If the
sensors are deviated, they cannot detect obstructions.



  The beeper which indicates a system malfunction may not be heard if the ambient

temperature is extremely cold, or mud, ice, or snow adheres to the sensor area.
Remove any foreign material from the sensor area.



  When installing a trailer hitch, consult an expert repairer, we recommend an

Authorised Mazda Repairer.

4–206

When Driving

Parking Sensor System

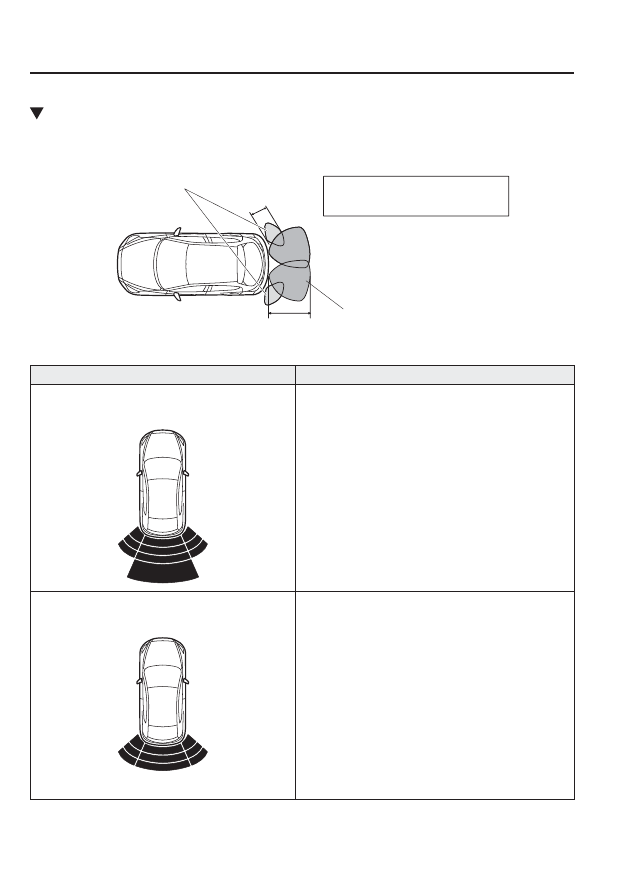

          Sensor Detection Range

            The  sensors  detect  obstructions  within  the  following  range.




Rear sensor detection range

Rear corner sensor detection range

B

A

A: About 50 cm (About 19 in)
B: About 150 cm (About 59.0 in)



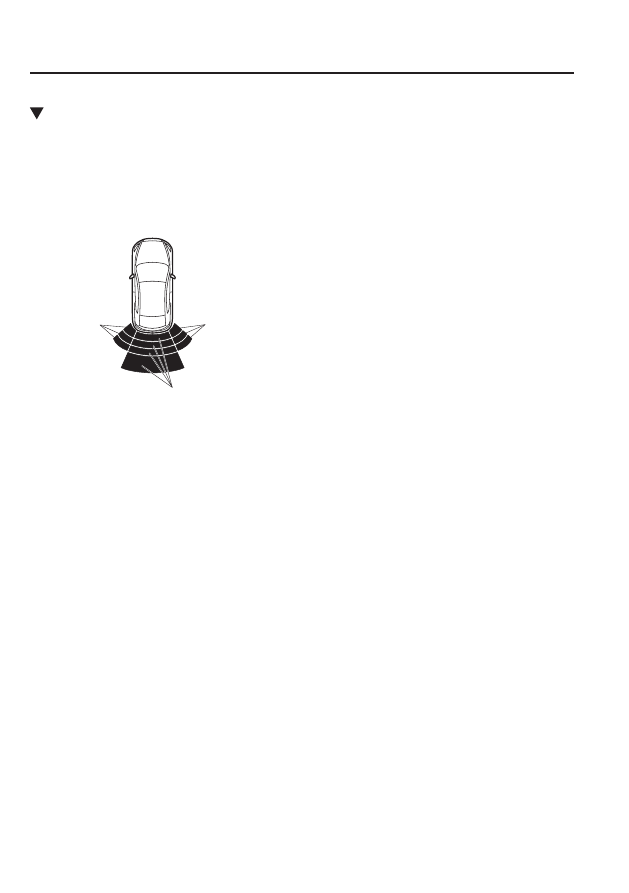

  Viewing  distance  display


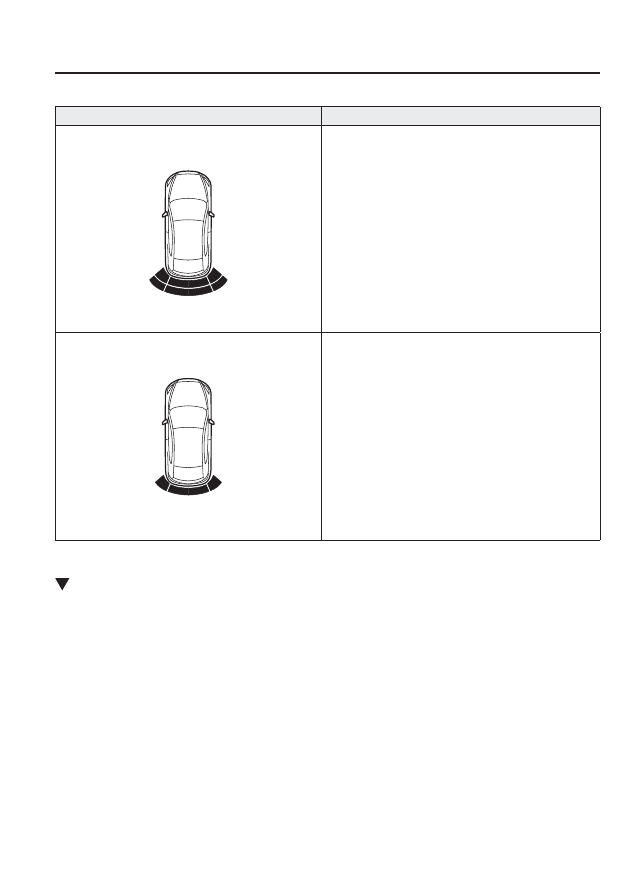

 Display

 Distance between vehicle and obstruction





 Rear  sensor:

  Approx. 150—60 cm (59.0—23.6 in)





 Rear  sensor:

  Approx. 60—45 cm (23.6—17.7 in)

  Rear  corner  sensor:

  Approx. 50—37 cm (19.6—14.6 in)

4–207

When Driving

Parking Sensor System

 Display

 Distance between vehicle and obstruction





 Rear  sensor:

  Approx. 45—35 cm (17.7—13.7 in)

  Rear  corner  sensor:

  Approx. 37—25 cm (14.6—9.8 in)





 Rear  sensor:

  Within approx. 35 cm (13.7 in)

  Rear  corner  sensor:

  Within approx. 25 cm (9.8 in)



           Park Assist Sensor System Operation

            When  the  ignition  is  switched  ON  and  the  shift  lever  (manual  transaxle)/selector  lever
(automatic transaxle) is shifted to the reverse (R), the beep sound activates and the system is
enabled for use.

4–208

When Driving

Parking Sensor System

           Obstruction Detection Indication

    The position of a sensor which has detected an obstruction is indicated. The gauge
illuminates in different areas depending on the distance to an obstruction detected by the
sensor.
  As the vehicle approaches closer to an obstruction, the zone in the gauge closer to the
vehicle illuminates.




Right corner
sensor gauge

Left corner
sensor gauge

Rear sensor gauge



4–209

When Driving

Parking Sensor System

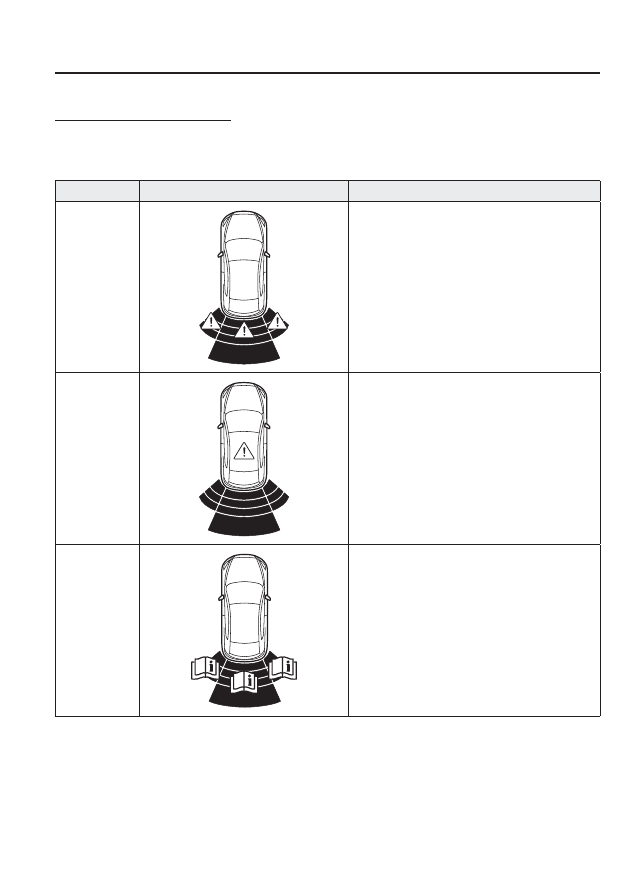

  System  problem  noti

¿ cation

    If any of the problems indicated in the table occurs, the driver is noti

¿ ed of the problem

depending on the type of system as shown.


 Disconnection

 Solution

 Disconnection





 The system may have a malfunction. Have
the vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer as soon
as possible.

 System

malfunction





 The system may have a malfunction. Have
the vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer as soon
as possible.

 Frost/soiling





 Foreign matter may be on the sensor area
corresponding to the obstruction detection
indication shown. If the system does not recover,
have the vehicle inspected at an expert repairer, we
recommend an Authorised Mazda Repairer.



4–210

When Driving

Parking Sensor System

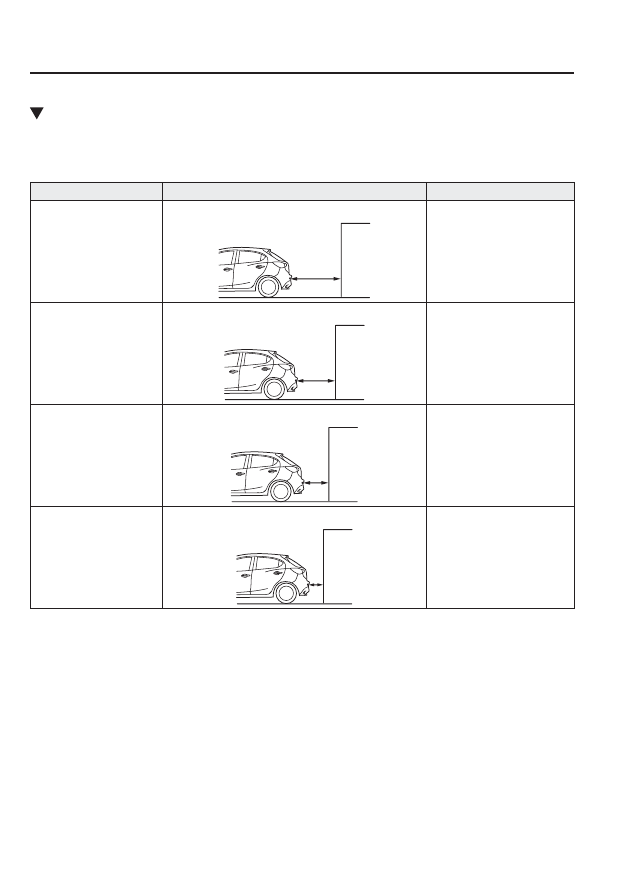

           Parking Sensor Warning Beep

    The beeper sounds as follows while the system is operating.

     Rear Sensor

 Distance detection area

 Distance between vehicle and obstruction

 Beeper sound

*1



 Farthest  distance

 Approx. 150—60 cm (59.0—23.6 in)





 Slow intermittent sound

 Far  distance

 Approx. 60—45 cm (23.6—17.7 in)





 Medium intermittent sound

 Middle  distance

 Approx. 45—35 cm (17.7—13.7 in)





 Fast intermittent sound

 Close  distance

 Within approx. 35 cm (13.7 in)





 Continuous  sound

     *1   The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.





4–211

When Driving

Parking Sensor System

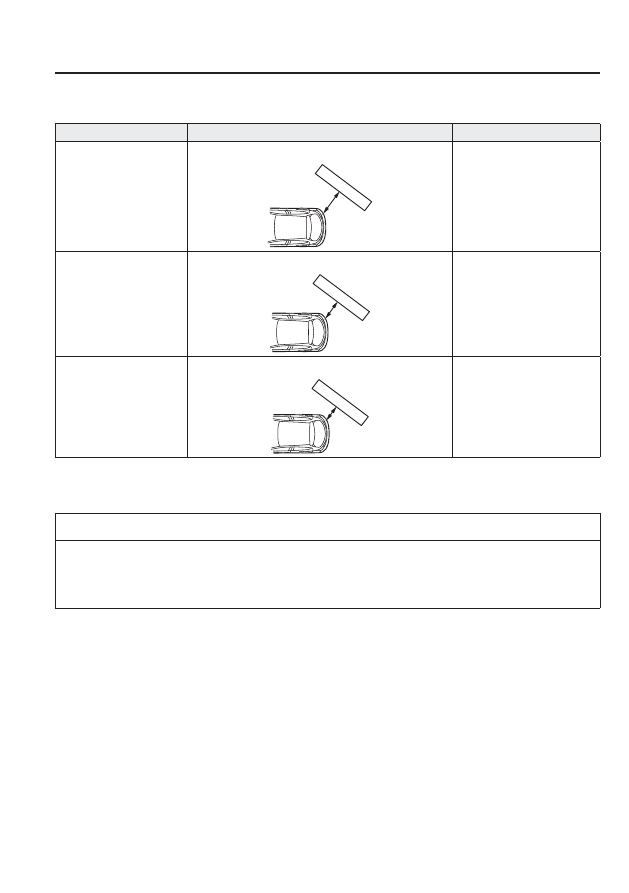

     Rear Corner Sensor

 Distance detection area

 Distance between vehicle and obstruction

 Beeper sound

*1



 Far  distance

 Approx. 50—37 cm (19.0—15.0 in)





 Medium intermittent sound

 Middle  distance

 Approx. 37—25 cm (14.0—9.8 in)





 Fast intermittent sound

 Close  distance

 Within approx. 25 cm (9.8 in)





 Continuous  sound

     *1   The rate at which the intermittent sound beeps increases as the vehicle approaches the obstruction.





 NOTE

 If an obstruction is detected in a zone for 6 seconds or more, the beep sound is stopped
(except for the close-distance zone). If the same obstruction is detected in another zone,
the corresponding beep sound is heard.

4–212

When Driving

Parking Sensor System

           When Warning Beep is Activated

    The  system  noti

¿ es the driver of an abnormality by activating the beep sound and the

indicator light.


 Indicator/Beep

 How  to  check

 The beep sound is not heard.

 The system may have a malfunction. Have the vehicle inspected at an expert
repairer, we recommend an Authorised Mazda Repairer as soon as possible.

 The intermittent sound of the
buzzer is heard

¿ ve times.

 Remove any foreign material from the sensor area. If the system does not
recover, have the vehicle inspected at an expert repairer, we recommend an
Authorised Mazda Repairer.

 A certain obstruction detection
indicator is continuously
displayed.

 Refer to Obstruction Detection Indication on page  4-208 .




5–1

*Some models.

5–1

5

Interior Features





    Use of various features for ride comfort, including air-conditioning and

audio system.


   Air-Conditioning  System  ....................  5-4

  Operating  Tips ................................  5-4
  Vent  Operation  ...............................  5-5
  Manual  Type  ..................................  5-7
  Fully  Automatic  Type ...................  5-14


  Before Using the Audio System ........  5-18

  Audio  Control  Switch

*

   .................  5-18

  AUX/USB  mode  ..........................  5-20
  Aerial ............................................  5-23


  Audio  Set
[Type A (non-touchscreen)] ..............  5-26

  Power/Volume/Sound  Controls ....  5-26
  Clock  ............................................  5-28
  Operating  the  Radio  .....................  5-30
  Operating the Compact Disc (CD)
Player

*

   ..........................................  5-34

  How to use AUX mode ................  5-37
  How to use USB mode .................  5-38
  How to use iPod mode .................  5-42
  Error  Indications  ..........................  5-45
 Bluetooth

®



*

  ...................................  5-46

  Bluetooth

®

 Preparation

*

   ...............  5-49

  Available  Language

*

   ....................  5-60

  Security  Setting

*

  ...........................  5-61

  Bluetooth

®

 Audio

*

   ........................  5-62

  Bluetooth

®

 Hands-Free

*

   ...............  5-65

  Voice  Recognition

*

  .......................  5-72

  Voice Recognition Learning Function
(Speaker Enrolment)

*

   ...................  5-73

 Troubleshooting

*

   ..........................  5-76



  Audio Set [Type B (touchscreen)] ....  5-80

  Basic  Operation  Method  ..............  5-80
  Home  screen .................................  5-85
  Volume/Display/Sound
Controls ........................................  5-86
  Operating  the  Radio  .....................  5-88
  Operating  the  Digital  Audio
Broadcasting (DAB) Radio

*

  .........  5-91

  Operating the Compact Disc
(CD) Player ..................................  5-94
Operating the Digital Versatile Disc
(DVD) Player

*

  ..............................  5-97

  How to use AUX mode ..............  5-100
  How to use USB mode ...............  5-101
  Bluetooth

®

 ..................................  5-107

  Bluetooth

®

 Preparation ...............  5-111

  Available  Language

*

   ..................  5-113

  Bluetooth

®

 Audio .......................  5-114

  How  to  Use  Aha

™

 .......................  5-118

  How to Use Stitcher

™

 Radio ......  5-122

  Bluetooth

®

 Hands-Free ..............  5-124

  Voice  Recognition  ......................  5-134
  Settings .......................................  5-137
  Applications  ...............................  5-139
  Troubleshooting  .........................  5-140


  Appendix ..........................................  5-144

  Things You Need to Know .........  5-144


5–2

  Interior  Equipment  .........................  5-156

  Sunvisors ....................................  5-156
  Interior  Lights  ............................  5-156
  Accessory  Sockets  .....................  5-159
  Cup  Holder .................................  5-160
  Bottle  Holder ..............................  5-160
  Storage  Compartments ...............  5-161

MEMO

5–3

5–4

Interior Features

Air-Conditioning System

              Operating Tips



 Operate the air-conditioning system with

the engine running.



 To prevent the battery from being

discharged, do not leave the fan control
dial on for a long period of time with the
ignition switched ON when the engine is
not running.



  (With i-stop)



 The air

À ow amount may decrease

slightly while the i-stop function is
operating.



 Clear all obstructions such as leaves,

snow and ice from the bonnet and the
air inlet in the cowl grille to improve the
system ef

¿ ciency.



 Use the air-conditioning system to defog

the windows and dehumidify the air.



 The recirculate mode should be used

when driving through tunnels or while in
a traf

¿ c jam, or when you would like to

shut off outside air for quick cooling of
the interior.



 Use the outside air position for

ventilation or windscreen defrosting.



 If the vehicle has been parked in direct

sunlight during hot weather, open the
windows to let warm air escape, then
run the air-conditioning system.



  (With  A/C  switch)



 Run the air conditioner about 10 minutes

at least once a month to keep internal
parts lubricated.



 Have the air conditioner checked before

the weather gets hot. Lack of refrigerant
may make the air conditioner less
ef

¿ cient.



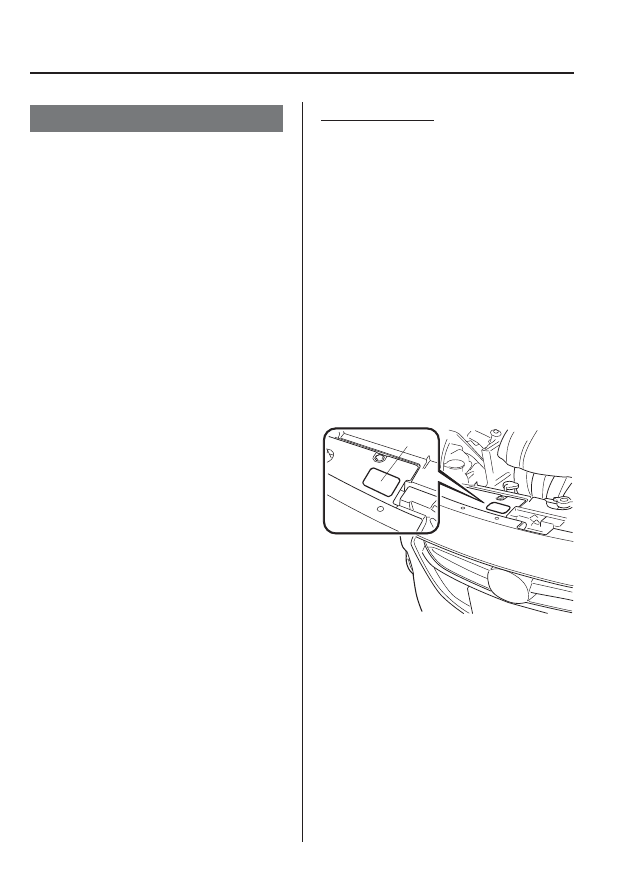

  The refrigerant speci

¿ cations are

indicated on a label attached to the
inside of the engine compartment. Check
the label before re

¿ lling the refrigerant.

If the wrong type of refrigerant is used,
it could result in a serious malfunction
of the air conditioner.



  For details, consult an expert repairer,

we recommend an Authorised Mazda
Repairer.





Label



5–5

Interior Features

Air-Conditioning System

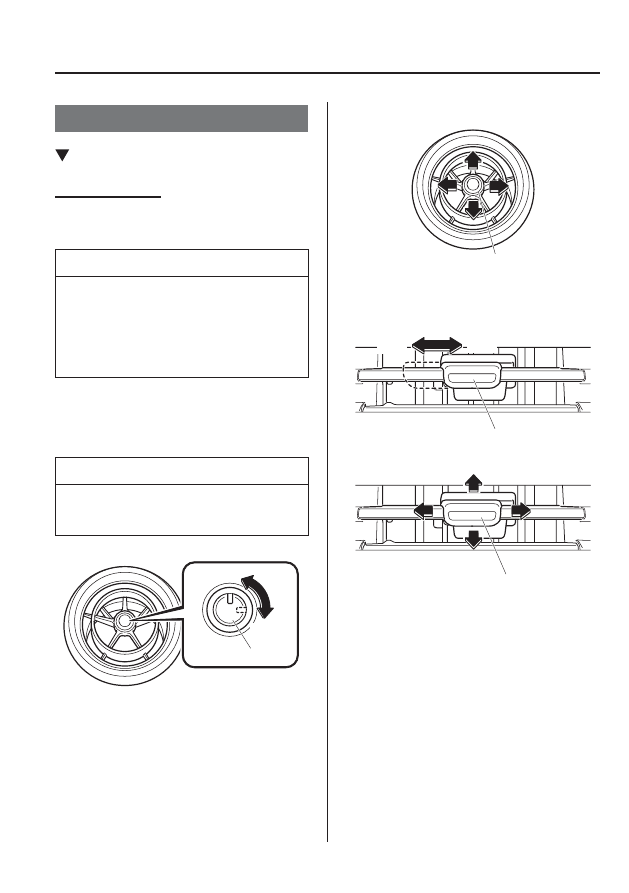

 Vent  Operation

                Adjusting  the  Vents

    Directing  air

À ow

    To adjust the direction of air

À ow, move the

adjustment knob.

 NOTE

 When using the air conditioner under
humid ambient temperature conditions,
the system may blow fog from the vents.
This is not a sign of trouble but a result
of humid air being suddenly cooled.

  Centre vents (driver) and Side vents

     Air vent open/close

 NOTE

 The air vents can be fully opened and
closed by operating the knob.



Open

Close

Knob



   Air

À ow direction adjustment



Knob



  Centre vents (front passenger)

     Air vent open/close



Open

Close

Knob



   Air

À ow direction adjustment



Knob
