Mazda 2 (2017 year). Instruction

5–22

Interior Features

Before Using the Audio System

How to connect USB port/

Auxiliary jack

Type A (Without CD player)

USB port Auxiliary jack

Type A (With CD player)

USB port Auxiliary jack

Type B

USB port Auxiliary jack

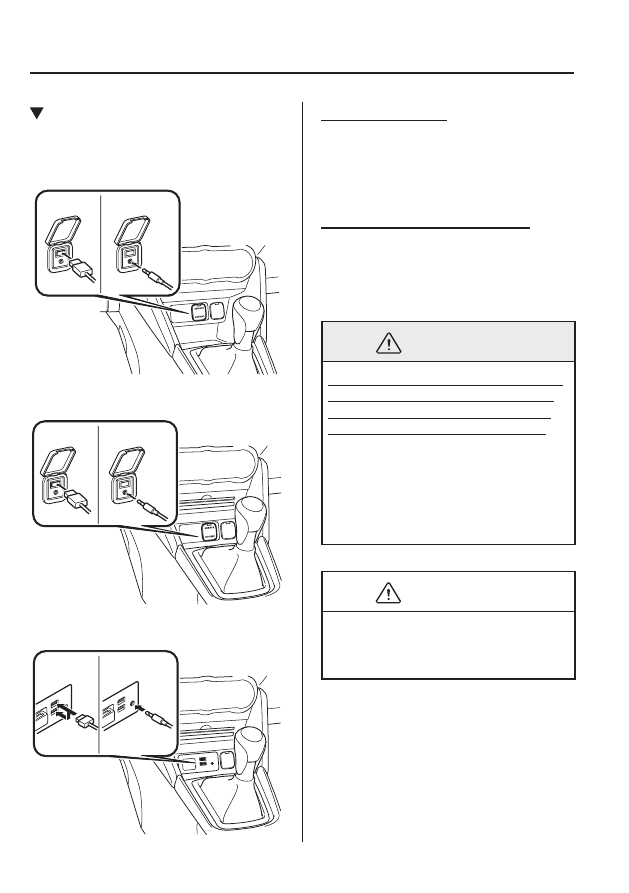

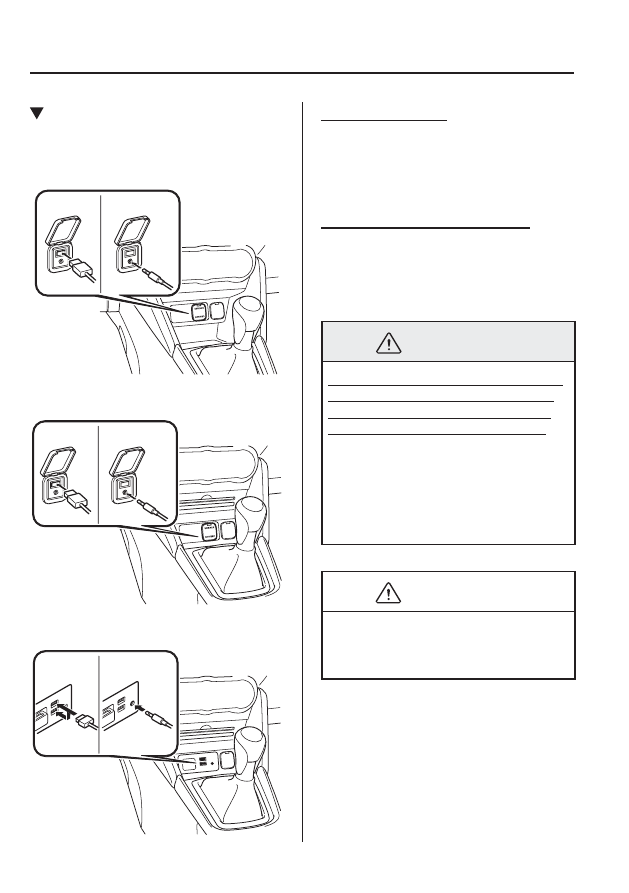

Connecting a device

1. If there is a cover on the AUX jack or

USB port, remove the cover.

2. Connect the connector on the device to

the USB port.

Connecting with a connector lead

1. If there is a cover on the AUX jack or

USB port, remove the cover.

2. Connect the device plug/connector lead

to the auxiliary jack/USB port.

WARNING

Do not allow the connection plug cord
to get tangled with the parking brake
or the shift lever (manual transaxle)/
selector lever (automatic transaxle):
Allowing the plug cord to become
tangled with the parking brake or
the shift lever (manual transaxle)/
selector lever (automatic transaxle) is
dangerous as it could interfere with
driving, resulting in an accident.

CAUTION

Do not place objects or apply force to
the auxiliary jack/USB port with the
plug connected.

5–23

Interior Features

Before Using the Audio System

*Some models.

NOTE

Insert the plug into the auxiliary jack/

USB port securely.

Insert or pull out the plug with the

plug perpendicular to the auxiliary
jack/USB port hole.

Insert or remove the plug by holding

its base.

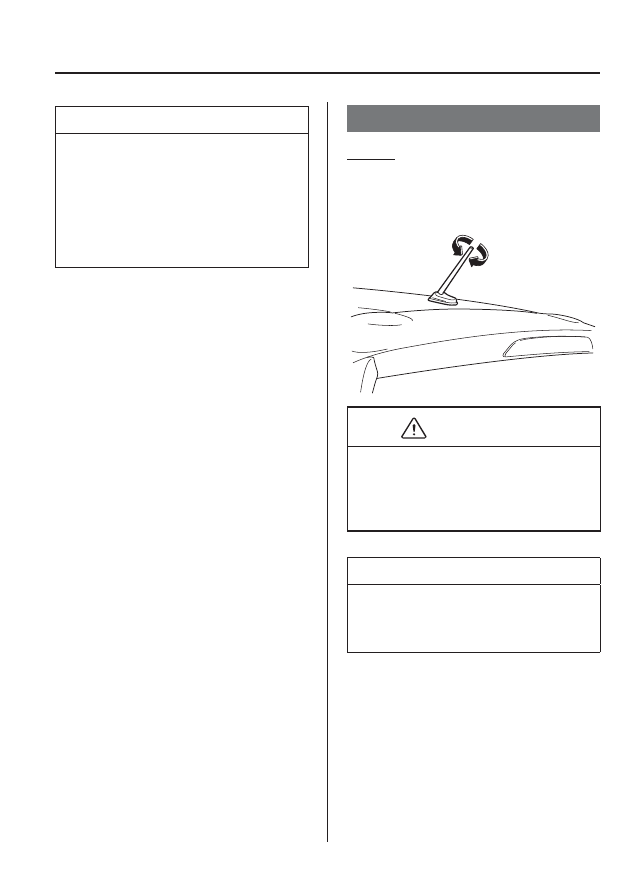

Aerial

Type A

    To remove the aerial, turn it anticlockwise.
  To install the aerial, turn it clockwise.
  Make sure the aerial is securely installed.

Install

Remove

CAUTION

To prevent damage to the aerial, remove
it before entering a car wash facility
or passing beneath a low overhead
clearance.

NOTE

When leaving your vehicle unattended,
we recommend that you remove the
aerial and store it inside the vehicle.

5–26

Interior Features

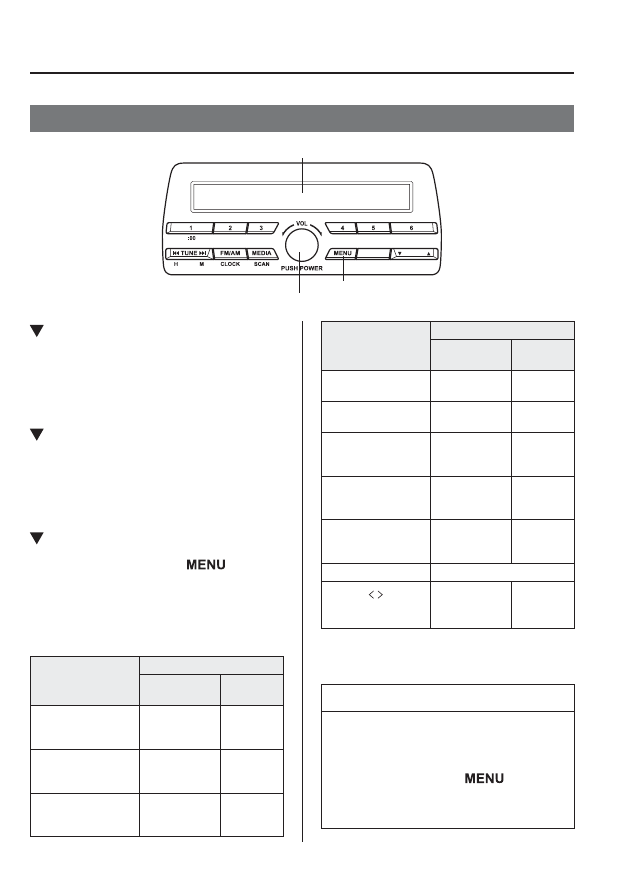

Audio Set [Type A (non-touchscreen)]

Power/Volume/Sound Controls

Power/Volume/Audio control dial

Menu button

Audio display

Power ON/OFF

Switch the ignition to ACC or ON. Press
the power/volume dial to turn the audio
system on. Press the power/volume dial
again to turn the audio system off.

Volume adjustment

To adjust the volume, turn the power/
volume dial. Turn the power/volume
dial clockwise to increase volume,
anticlockwise to decrease it.

Audio sound adjustment

1. Press the menu button (

) to select

the function. The selected function will
be indicated.

2. Turn the audio control dial to adjust the

selected functions as follows:

Indication

Setting value

Turn

Anticlockwise

Turn

Clockwise

(Setting Alternative

Frequency (AF))

Off

REG

(Setting Regional

Programme (REG))

Off

ALC

(Automatic volume

adjustment)

Level decrease

Level

increase

Indication

Setting value

Turn

Anticlockwise

Turn

Clockwise

BASS

(Low pitch sound)

Decrease bass

Increase

bass

TREB

(Treble sound)

Decrease treble

Increase

treble

FADE

(Front/back volume

balance)

Shift the sound

to the front

Shift the
sound to

the rear

BAL

(Left/right volume

balance)

Shift the sound

to the left

Shift the
sound to
the right

BEEP

(Audio operation

sound)

OFF

BT SETUP

Select mode

12HR

24HR

(12 HR/24 HR time

adjustment)

12HR

(Flashing)

24HR

(Flashing)

*1 With Radio Data System (RDS)
*2 Depending on the model, this function may not be

available.

NOTE

If not operated for several seconds, the
display returns to the previous display.
To reset bass, treble, fade, and balance,
press the menu button (

) for

2 seconds. The unit will beep and
“ CLEAR ” will be displayed.

5–27

Interior Features

Audio Set [Type A (non-touchscreen)]

*Some models.

AF (Setting Alternative Frequency
(AF))

    The AF function of the Radio Data System
(RDS) can be set on or off.
  Refer to Radio Data System (RDS) on
page   5-32 .

REG (Setting Regional Programme
(REG))

    The REG function of the Radio Data
System (RDS) can be set on or off.
  Refer to Radio Data System (RDS) on
page   5-32 .

ALC (Automatic volume adjustment)

The automatic level control (ALC)
changes the audio volume automatically
according to the vehicle speed. The faster
the vehicle speed, the higher the volume
increases. ALC has ALC OFF and ALC
LEVEL 1 to 7 modes. At ALC LEVEL 7,
the amount that the volume can increase
is at the maximum. Select the mode
according to the driving conditions.

BEEP (Audio operation sound)

The setting for the operation sound when
pressing and holding a button can be
changed. The initial setting is ON. Set to
OFF to mute the operation sound.

BT SETUP mode

Music and other audio such as voice data
recorded on portable audio devices and
mobile phones available on the market
which are equipped with the Bluetooth

transmission function can be listened to
via wireless transmission over the vehicle's
speakers. Using the BT SETUP mode,
these devices can be programmed to the
Bluetooth

unit or changed (page 5-49 ).

12HR

24HR (12 HR/24 HR time

adjustment)

Rotating the audio control dial switches
the display between 12 and 24-hour clock
time (page 5-28 ).

5–28

Interior Features

Audio Set [Type A (non-touchscreen)]

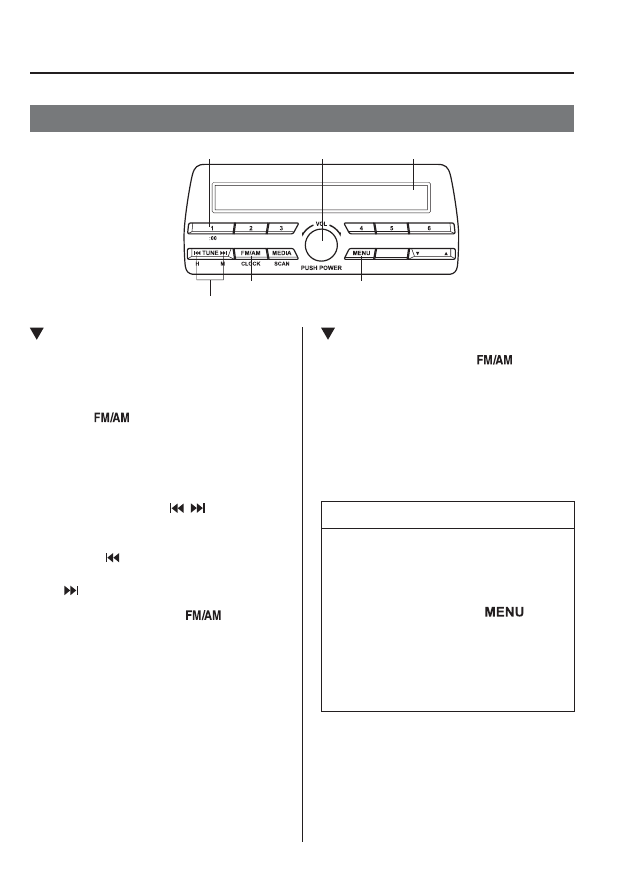

Clock

Audio display

Audio control dial

Hour/Minute set switch

:00 button

Menu button

Clock button

Setting the time

The clock can be set at any time when the
ignition is switched to ACC or ON.

1. To adjust the time, press the clock

button (

) for about 2 seconds until

a beep is heard.

2. The clock's current time will

À ash.

Time adjustment

To adjust the time, press the hour/

minute set button ( ,

) while the

clock's current time is

À ashing.

The hours advance while the hour set

button ( ) is pressed. The minutes
advance while the minute set button
( ) is pressed.

3. Press the clock button (

) again to

start the clock.

Time resetting

1. Press the clock button (

) for about

2 seconds until a beep is heard.

2. Press the :00 button ( 1 ).
3. When the button is pressed, the time

will be reset as follows:

(Example)

12:01—12:29

ĺ12:00

12:30—12:59

ĺ1:00

NOTE

When the :00 button ( 1 ) is pressed,

the seconds will start at “ 00 ”.

Switching between 12 and 24-hour

clock time:

Press the menu button (

)

several times until 12 and 24-hour
clock time are displayed. Turn the
audio control dial in either direction,
select the desired clock setting while
the preferred clock time is

À ashing.

5–30

Interior Features

Audio Set [Type A (non-touchscreen)]

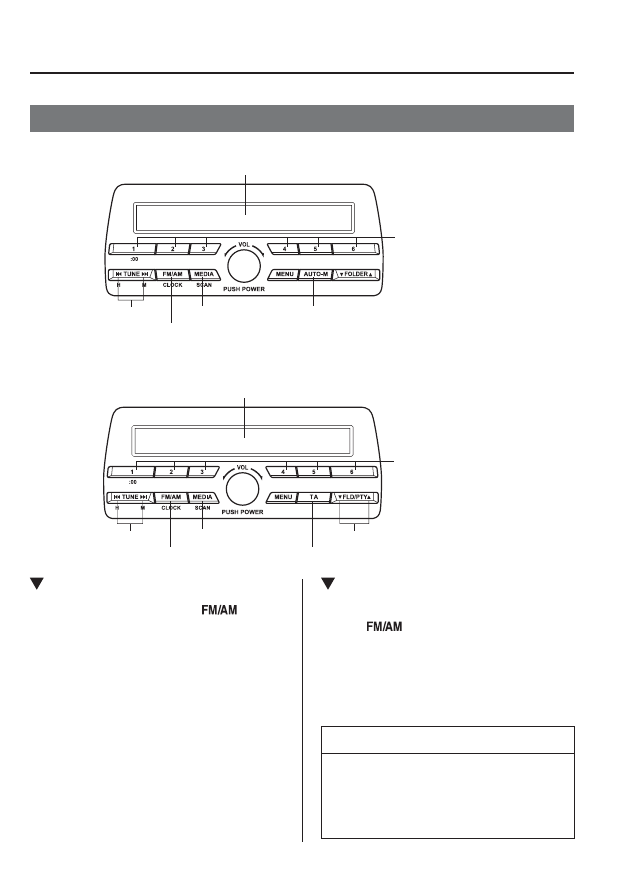

Operating the Radio

Without Radio Data System (RDS)

With Radio Data System (RDS)

Band selector button

Traffic announcement button

Channel preset buttons

Scan button

Tuning button

Programme-type information button

Audio display

Band selector button

Channel preset buttons

Scan button

Auto memory button

Tuning button

Audio display

Radio ON

Press a band selector button (

) to

turn the radio on.

Band selection

Successively pressing the band selector
button (

) switches the bands as

follows: FM1

ĺFM2ĺAM (Without

Radio Data System (RDS)), MW/LW
(With Radio Data System (RDS)).

The selected mode will be indicated.

NOTE

If the FM broadcast signal becomes
weak, reception automatically changes
from STEREO to MONO for reduced
noise.

5–31

Interior Features

Audio Set [Type A (non-touchscreen)]

Tuning

The radio has the following tuning
methods: Manual, Seek, Scan, Preset
channel, and Auto memory tuning. The
easiest way to tune stations is to set them
on preset channels.

Manual tuning

Select the station by pressing the tuning
button ( ,

) lightly.

Seek tuning

Automatic search for radio stations starts
when the tuning button ( ,

) is pressed

until a beep sound is heard. The search
stops when a station is found.

NOTE

If you continue to press and hold the
button, the frequency will continue
changing without stopping.

Scan tuning

Press and hold the scan button (

) to

automatically sample strong stations.
Scanning stops at each station for about 5
seconds. To hold a station, press and hold
the scan button (

) again during this

interval.

Preset channel tuning

The 6 preset channels can be used to
store 6 AM (Without Radio Data System
(RDS)), MW/LW (With Radio Data
System (RDS)) and 12 FM stations.

1. To set a channel

¿ rst select AM

(Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2. Tune to the
desired station.

2. Press a channel preset button for

about 2 seconds until a beep is heard.
The preset channel number or station
frequency will be displayed. The
station is now held in the memory.

3. Repeat this operation for the other

stations and bands you want to store.
To tune one in the memory, select AM
(Without Radio Data System (RDS)),
MW/LW (With Radio Data System
(RDS)), FM1, or FM2 and then press
its channel preset button. The station
frequency or the channel number will
be displayed.

5–32

Interior Features

Audio Set [Type A (non-touchscreen)]

*Some models.

Auto memory tuning (Without Radio
Data System (RDS))

    This is especially useful when driving in
an area where the local stations are not
known.

  Press and hold the auto memory button
(

) for about 2 seconds until a beep

is heard; the system will automatically
scan and temporarily store up to 6 stations
with the strongest frequencies in each
selected band in that area.

After scanning is completed, the station
with the strongest frequency will be tuned
and its frequency displayed. Press and
release the auto memory button (

)

to recall stations from the auto-stored
stations. One stored station will be
selected each time and its frequency and
channel number will be displayed.

NOTE

If no stations can be tuned after scanning
operations, “ A ” will be displayed.

Radio Data System (RDS)

NOTE

The radio data system (RDS) does
not function if it is out of the system's
service coverage area.

Alternative frequency (AF)

AF functions on FM stations. Press the
menu button (

) and select the AF

mode to turn it on and “ AF ” will be
displayed. If the radio reception of the
current station weakens, the system
switches to an alternative station
automatically.

If you wish to continue a regional
programme, press the menu button
(

) and select the REG mode to turn

it on. “ REG ON ” is displayed. To cancel
it, press the audio control dial and select
the REG mode to turn it off. “ REG OFF ”
is displayed.

Traf

¿ c announcement (TA)

If the traf

¿ c announcement button ( ) is

pressed, the unit switches to TA mode and
“ TA ”  is  displayed.

  If a TA broadcast is received while in the
TA mode, the TA broadcast intercedes
even while using other functions (FM,
CD, USB device, AUX, or BT audio), and
“ Traf

¿ c Info ” is displayed.

During a TA broadcast, press the traf

¿ c

announcement button (

) to end the

broadcast and return to the previous mode.

5–33

Interior Features

Audio Set [Type A (non-touchscreen)]

Programme-type information (PTY)

Some  FM  stations  transmit  programme-
type codes. This code enables alternative
stations transmitting the same programme-
type code to be found quickly.

  Press the programme-type information
button (   ,   ) while in FM mode. The
programme-type code and “ PTY ” will be
displayed during reception. If there is no
programme-type code, “ None ” will be
displayed.

(To choose a programme-type:)

1. Press the Programme-type information

button ( , ) when the programme-
type code is displayed.

2. Operate any one of the following:

Press the pre-programmed channel

preset button ( 1 to 6 ).

Press the Programme-type

information button ( , ).

(To scan for programme-type
information:)

1. Press the Programme-type information

button ( , ) when the programme-
type code is displayed.

2. Press the Programme-type information

button ( , ) until the beep sounds.

The unit will scan for broadcasts, if
none are found, “ Nothing ” will be
displayed and the unit will return to the
previously tuned band.

(To store programme types in the
channel preset buttons:)

1. Press the Programme-type information

button ( , ) when the programme-
type code is displayed.

2. Press the Programme-type information

button ( , ) and select the programme
type.

3. While the programme type is displayed,

press a channel preset button for about
2 seconds.

Emergency broadcast

    If an emergency broadcast is received,
the emergency broadcast intercedes even
while using other functions (FM, CD,
USB device, AUX, or BT audio), and
“ Alarm! ”  is  displayed.

  When the emergency broadcast ends, the
system will return to the previous mode.

5–34

Interior Features

Audio Set [Type A (non-touchscreen)]

*Some models.

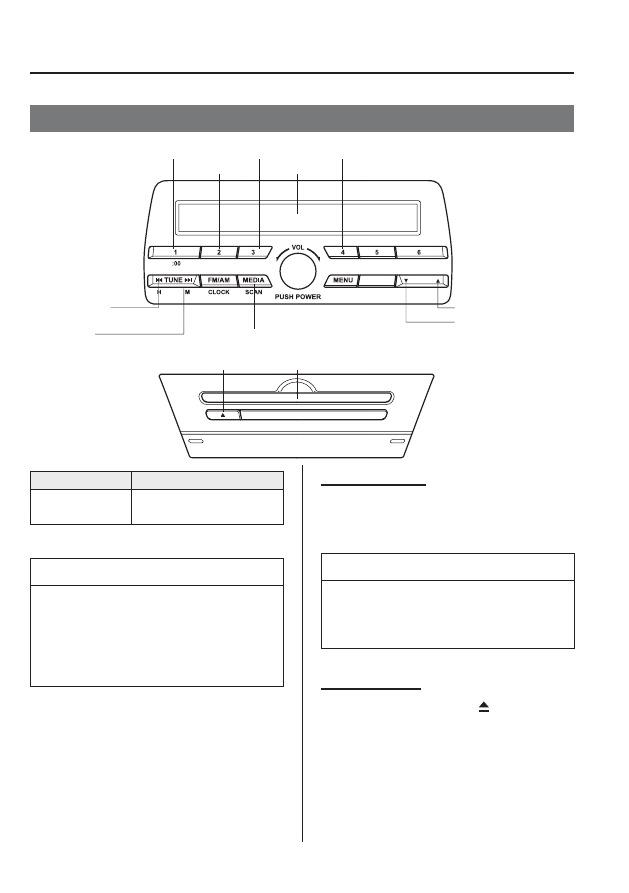

Operating the Compact Disc (CD) Player

CD eject button

CD slot

Media/Scan button

Folder down button

Folder up button

Play/Pause button

Random button

Repeat button

Audio display

Text button

Track down/

Reverse button
Track up/
Fast-forward button

Type

Playable data

Music/MP3/WMA/
AAC CD player

Music data (CD-DA)

MP3/WMA/AAC

¿ le

NOTE

If a disc has both music data (CD-
DA) and MP3/WMA/AAC

¿ les,

playback of the two or three

¿ le types

differs depending on how the disc was
recorded.

Inserting the CD

Insert the CD into the slot, label-side up.
The auto-loading mechanism will set the
CD and begin play.

NOTE

There will be a short lapse before play
begins while the player reads the digital
signals on the CD.

Ejecting the CD

Press the CD eject button ( ) to eject the
CD.

5–35

Interior Features

Audio Set [Type A (non-touchscreen)]

Playback

Press the media button (

) to switch

to CD mode and start playback.

NOTE

The CD mode cannot be selected if a
CD has not been inserted.

Pause

    To stop playback, press the Play/Pause
button  ( 4 ).
  Press the button again to resume playback.

Fast-forward/Reverse

Press and hold the fast-forward button ( )
to advance through a track at high speed.
Press and hold the reverse button ( ) to
reverse through a track at high speed.

Track search

    Press the track up button (   ) once to skip
forward to the beginning of the next track.
  Press the track down button (   ) within a
few seconds after playback begins to track
down to the beginning of the previous
track.
  Press the track down button (   ) after a
few seconds have elapsed to start playback
from the beginning of the current track.

Folder search (during MP3/WMA/AAC
CD playback)

    To change to the previous folder, press the
folder down button (   ), or press the folder
up button (   ) to advance to the next
folder.

Music scan

During music CD playback

This function scans the titles on a CD and
plays 10 seconds of each song to aid you
in

¿ nding a song you want to listen to.

Press and hold the scan button (

)

during playback to start the scan play
operation (the track number will

À ash).

Press and hold the scan button (

)

again to cancel scan playback.

During MP3/WMA/AAC CD playback

This function scans the titles in a folder
currently being played and plays 10
seconds of each song to aid you in

¿ nding

a song you want to listen to. Press and
hold the scan button (

) during

playback to start the scan play operation
(the track number will

À ash).

Press and hold the scan button (

)

again to cancel scan playback.

NOTE

If the unit is left in scan, normal
playback will resume where scan was
selected.

Repeat playback

During music CD playback

1. Press the repeat button ( 1 ) during

playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
( is displayed next to RPT at the
bottom of the display area).

2. Press the button again to cancel the

repeat playback.

5–36

Interior Features

Audio Set [Type A (non-touchscreen)]

During MP3/WMA/AAC CD playback

(Track repeat)

1. Press the repeat button ( 1 ) during

playback to play the current track
repeatedly. “ TRACK RPT ” is displayed
( is displayed next to RPT at the
bottom of the display area).

2. To cancel the repeat playback, press the

button again after 3 seconds.

(Folder repeat)

1. Press the repeat button ( 1 ) during

playback, and then press the button
again within 3 seconds to play the
tracks in the current folder repeatedly.
“ FOLDER RPT ” is displayed ( is
displayed next to RPT at the bottom of
the display area).

2. Press the button again to cancel the

repeat playback.

Random playback

Tracks are randomly selected and played.

During music CD playback

1. Press the random button ( 2 ) during

playback to play the tracks on the CD
randomly. “ DISC RDM ” is displayed
( is displayed next to RDM at the
bottom of the display area).

2. Press the button again to cancel the

random playback.

During MP3/WMA/AAC CD playback

(Folder random)

1. Press the random button ( 2 ) during

playback to play the tracks in the folder
randomly. “ FOLDER RDM ” is
displayed ( is displayed next to RDM
at the bottom of the display area).

2. To cancel the random playback, press

the button again after 3 seconds.

(CD random)

1. Press the random button ( 2 ) during

playback, and then press the button
again within 3 seconds to play the
tracks on the CD randomly. “ DISC
RDM ” is displayed ( is displayed
next to RDM at the bottom of the
display area).

2. Press the button again to cancel the

random playback.

Switching the display

The information displayed on the audio
display changes as follows each time the
text button ( 3 ) is pressed during playback.

Music CD

Button

Information displayed

on audio display

Track number/Elapsed

time

Track number

Track name

Album name

Artist name

5–37

Interior Features

Audio Set [Type A (non-touchscreen)]

MP3/WMA/AAC CD

Button

Information displayed

on audio display

File number/Elapsed

time

Folder number/File

number

File name

Folder name

Album name

Song name

Artist name

NOTE

The information viewable in the

display is only CD information (such
as artist name, song title) which has
been recorded to the CD.

This unit cannot display some

characters. Characters which cannot
be displayed are indicated by an
asterisk ( ).

Display scroll

Only 13 characters can be displayed at one
time. To display the rest of the characters
of a long title, press and hold the text
button ( 3 ). The display scrolls the next 13
characters. Press and hold the text button
( 3 ) again after the last 13 characters have
been displayed to return to the beginning
of the title.

NOTE

The number of characters which can be
displayed is restricted.

How to use AUX mode

1. Switch the ignition to ACC or ON.
2. Press the power/volume dial to turn the

audio system on.

3. Press the media button (

) of the

audio unit to change to the AUX mode.

NOTE

When the device is not connected to

the auxiliary jack, the mode does not
switch to the AUX mode.

Adjust the audio volume using the

portable audio device or audio unit.

Audio adjustments other than audio

volume can only be done using the
portable audio device.

If the connection plug is pulled out

from the auxiliary jack while in AUX
mode, noise may occur.

Mazda 2 (2017 year). Instruction - part 24
