508

7-2. Steps to take in an emergency

dure for starting the engine is performed or
the engine switch is operated incorrectly.
Follow the instructions shown on the multi-
information display to operate the engine
switch again.

●

If a message about a shift lever operation

is shown

To prevent the shift lever from being oper-
ated incorrectly or the vehicle from moving
unexpectedly, a message that requires
shifting the shift lever may be shown on the
multi-information display. In that case, fol-
low the instruction of the message and shift
the shift lever.

●

If a message or image about an

open/close state of a part or replenish-

ment of a consumable is shown

Confirm the part indicated by the multi-
information display or a warning light, and
then perform the coping method such as
closing the open door or replenishing a
consumable.

■

If a message that indicates the need for

referring to Owner’s Manual is dis-

played

●

If the following messages are shown, fol-

low the instructions, accordingly.

• “Engine Coolant Temp High Stop in a

Safe Place” (



P.528)

• “Blind Spot Monitor Unavailable”

(



P.257)

• “Rear Cross Traffic Alert Unavailable”

(



P.268)

• “Rear Camera Detection Unavailable”

(



P.274)

●

If the following messages are shown,

there may be a malfunction.

Immediately have the vehicle inspected

by your Lexus dealer.

• “Transmission Oil Temp. High Stop in a

safe place and See owner’s manual”

• “Smart Entry & Start System malfunction”

• “Brake Hold Unavailable” (



P.201)

●

If the following messages are shown,

there may be a malfunction.

Immediately stop the vehicle in a safe

place and contact your Lexus dealer.

Continuing to drive the vehicle may be

dangerous.

• “Oil Pressure Low”

• “Braking Power Low”

●

If “12-Volt Battery Charging System Mal-

function Stop in a Safe Place” is shown

Indicates a malfunction in the vehicle’s
charging system. Pull over and stop the
vehicle as soon as it is safe to do so. While
the message is displayed, the functions of
the air conditioning, etc. may be partially
limited in order to reduce the power con-
sumption of the battery.

■

If “Shift into P before exiting vehicle” is

shown

Message is displayed when the driver’s

door is opened without turning the engine

switch to OFF with the shift lever in any

position other than P.
Shift the shift lever to P.

■

If “Auto Power Off to Conserve Bat-

tery” is shown

Power was turned off due to the automatic

power off function.
Next time when starting the engine,

increase the engine speed slightly and

maintain that level for approximately 5 min-

utes to recharge the battery.

■

If “Engine Oil Level Low Add or

Replace” is displayed

The engine oil level may be low. Check the

level of the engine oil, and add engine oil if

necessary. (



P.459) This message may be

displayed if the vehicle is stopped on a

slope. Move the vehicle to a level surface

and check if the message disappears.

■

If “Maintenance Required Soon” is dis-

played

Indicates that all maintenance according to

the driven distance on the maintenance
schedule

should be performed soon.

Comes on approximately 4500 miles

(7200 km) after the message has been

reset. If necessary, perform maintenance.

Please reset the message after the mainte-

nance is performed. (



P.448)

509

7-2. Steps to take in an emergency

When trouble

ari

ses

: Refer to the separate “Scheduled Main-

tenance” or “Owner’s Manual Supple-
ment” for the maintenance interval
applicable to your vehicle.

■

If “Maintenance Required Visit Your

Dealer” is displayed

Indicates that all maintenance is required to

correspond to the driven distance on the
maintenance schedule

Comes on approximately 5000 miles

(8000 km) after the message has been

reset. (The indicator will not work properly

unless the message has been reset.) Per-

form the necessary maintenance. Please

reset the message after the maintenance is

performed. (



P.448)

: Refer to the separate “Scheduled Main-

tenance” or “Owner’s Manual Supple-
ment” for the maintenance interval
applicable to your vehicle.

■

If “Engine Maintenance Required Visit

Your Dealer” is shown

The engine or an engine component is mal-

functioning. Have the vehicle inspected by

your Lexus dealer immediately.

■

If “Oil Maintenance Required Soon” is

displayed

Indicates that the engine oil should be

scheduled to be changed.
Check the engine oil and change it if neces-

sary. After changing the engine oil, make

sure to reset the message. (



P.459)

■

If “Oil Maintenance Required” is dis-

played

Indicates that the engine oil should be

changed.
Check and change the engine oil, and oil fil-

ter by your Lexus dealer. After changing

the engine oil, make sure to reset the mes-

sage. (



P.459)

■

If a message that indicates the malfunc-

tion of front camera is displayed

The following systems may be suspended

until the problem shown in the message is

resolved. (



P.218, 496)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

AHB (Automatic High Beam)

●

RSA (Road Sign Assist)

●

Dynamic radar cruise control with full-

speed range

: If equipped

■

If a message that indicates the malfunc-

tion of radar sensor is displayed

The following systems may be suspended

until the problem shown in the message is

resolved. (



P.218, 496)

●

PCS (Pre-Collision System)

●

LTA (Lane Tracing Assist)

●

Dynamic radar cruise control with full-

speed range

■

If “Radar Cruise Control Unavailable

See Owner’s Manual” is shown

The dynamic radar cruise control with full-

speed range is suspended temporarily or

until the problem shown in the message is

resolved. (causes and coping methods:



P.218)

■

If “Radar Cruise Control Unavailable” is

shown

The dynamic radar cruise control with full-

speed range cannot be used temporarily.

Use the system when it becomes available

again.

■

If a following message is shown, take

appropriate action and confirm that the

message has disappeared.

• “CRAWL Unavailable See Owner’s

Manual” (



P.358)

• “Turn Assist Function Unavailable Check

System Operation Conditions”

(



P.359)

• “Turn Assist Function Unavailable Acti-

vate CRAWL” (



P.357)

511

7-2. Steps to take in an emergency

n t

ris



Stop the vehicle in a safe place on a hard, flat surface.



Set the parking brake.



Shift the shift lever to P.



Turn off the intrusion sensor and tilt sensor (



P.70)



Turn off the AHC (if equipped). (



P.346)



Stop the engine.



Turn on the emergency flashers. (



P.488)

If you have a flat tire

Your vehicle is equipped with a spare tire. The flat tire can be replaced with
the spare tire.
For details about tires:



P.465

WARNING

■

If you have a flat tire

Do not continue driving with a flat tire.
Driving even a short distance with a flat tire can damage the tire and the wheel beyond

repair, which could result in an accident.

Before jacking up the vehicle

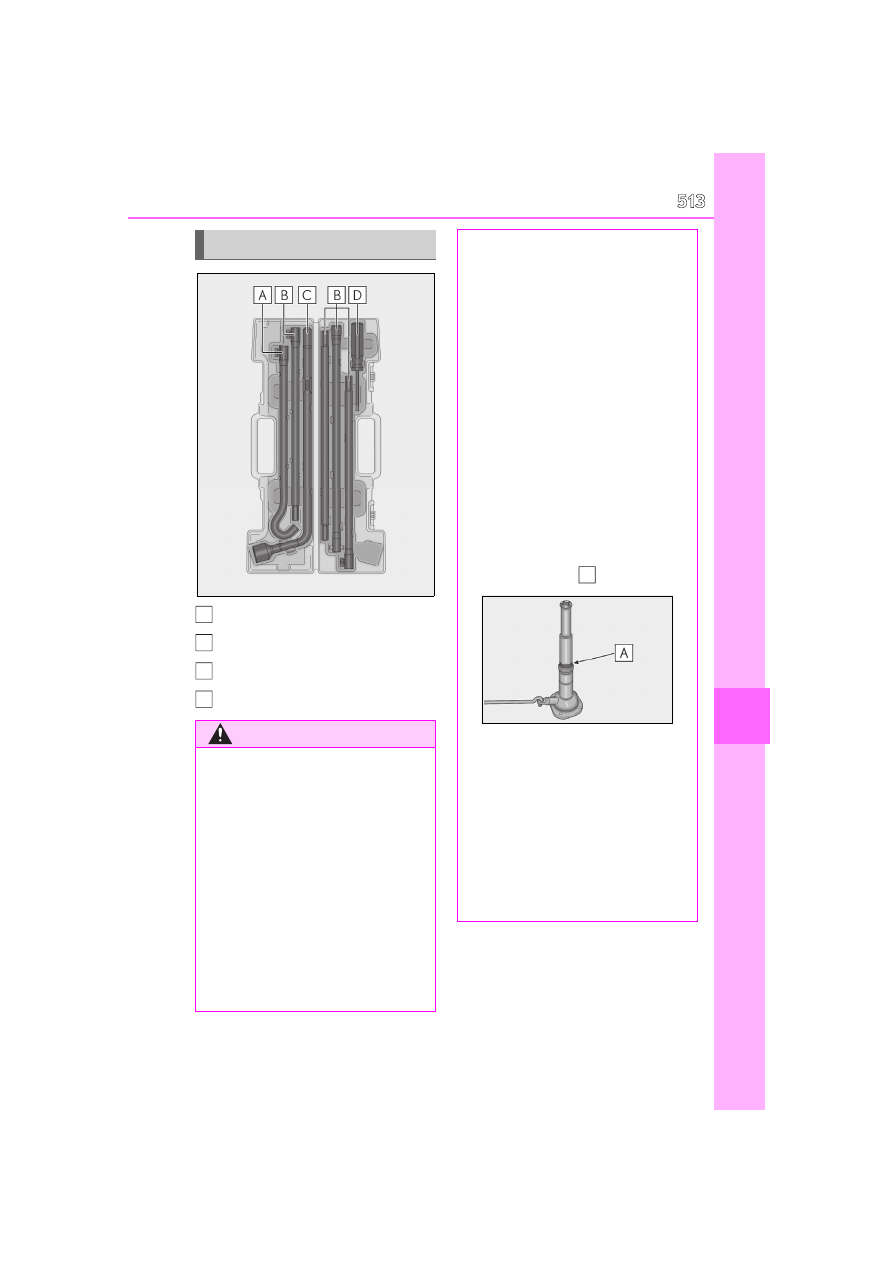

513

7-2. Steps to take in an emergency

n t

ris

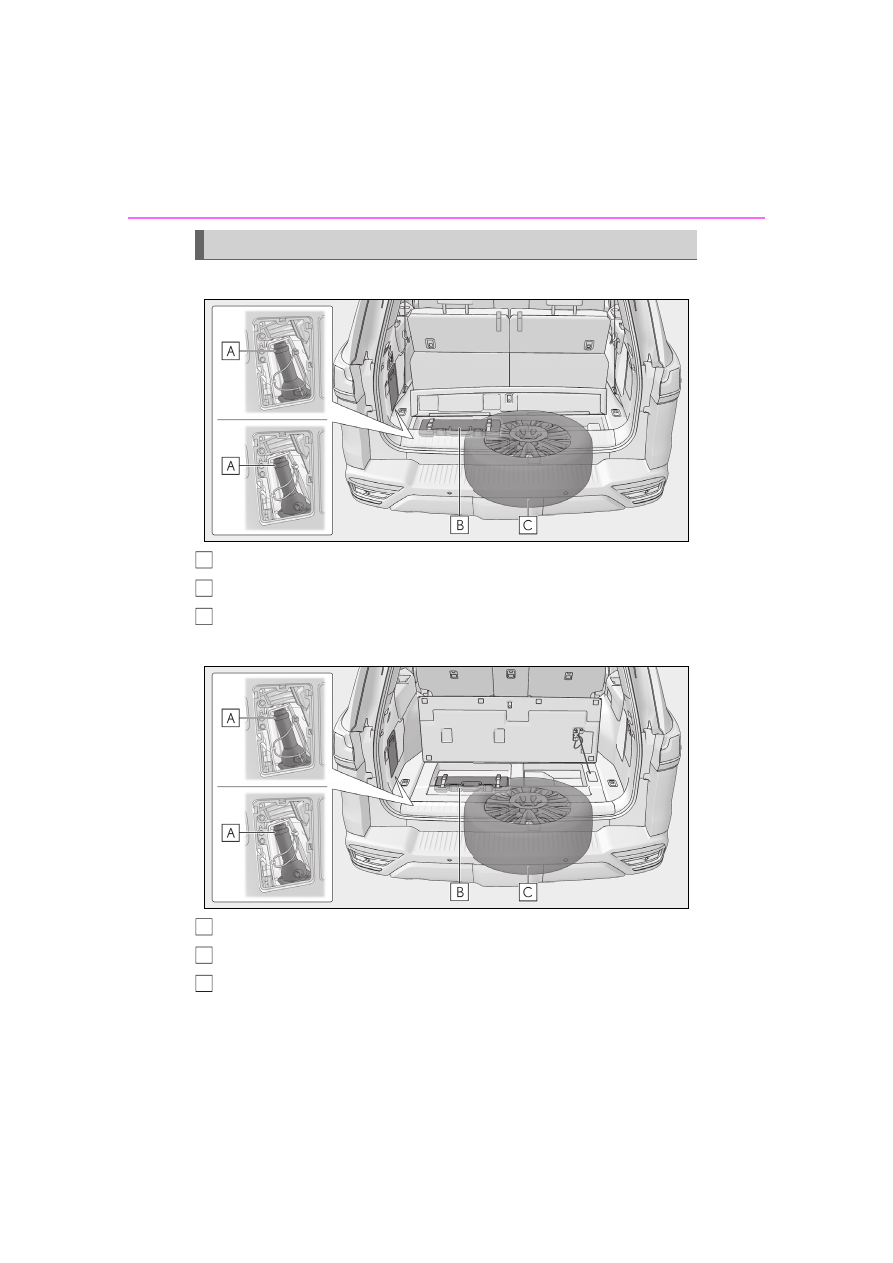

Jack handle bar

Jack handle extension bar

Wheel nut wrench

Screwdriver

Tools

WARNING

■

Using the tire jack

Observe the following precautions.
Improper use of the tire jack may cause

the vehicle to suddenly fall off the jack,

leading to death or serious injury.

●

Do not use the tire jack for any pur-

pose other than replacing tires or

installing and removing tire chains.

●

Only use the tire jack that comes with

this vehicle for replacing a flat tire.

Do not use it on other vehicles, and do

not use other tire jacks for replacing

tires on this vehicle.

●

Put the jack properly in its jack point.

●

Vehicles with AHC: Be sure to turn off

the AHC and stop the engine.

(



P.346)

●

Do not put any part of your body under

the vehicle while it is supported by the

jack.

●

Do not start the engine or drive the

vehicle while the vehicle is supported

by the jack.

●

Do not raise the vehicle while some-

one is inside.

●

When raising the vehicle, do not put an

object on or under the jack.

●

Do not raise the vehicle to a height

greater than that required to replace

the tire.

●

Do not continue jacking up once the
yellow caution line

has appeared.

●

Use a jack stand if it is necessary to get

under the vehicle.

Take particular care when lowering the
vehicle to ensure that no one working on
or near the vehicle will be injured.

■

Using the jack handle

Tighten all the jack handle bolts securely

using the wheel nut wrench, to prevent

the extension parts from coming apart

unexpectedly.

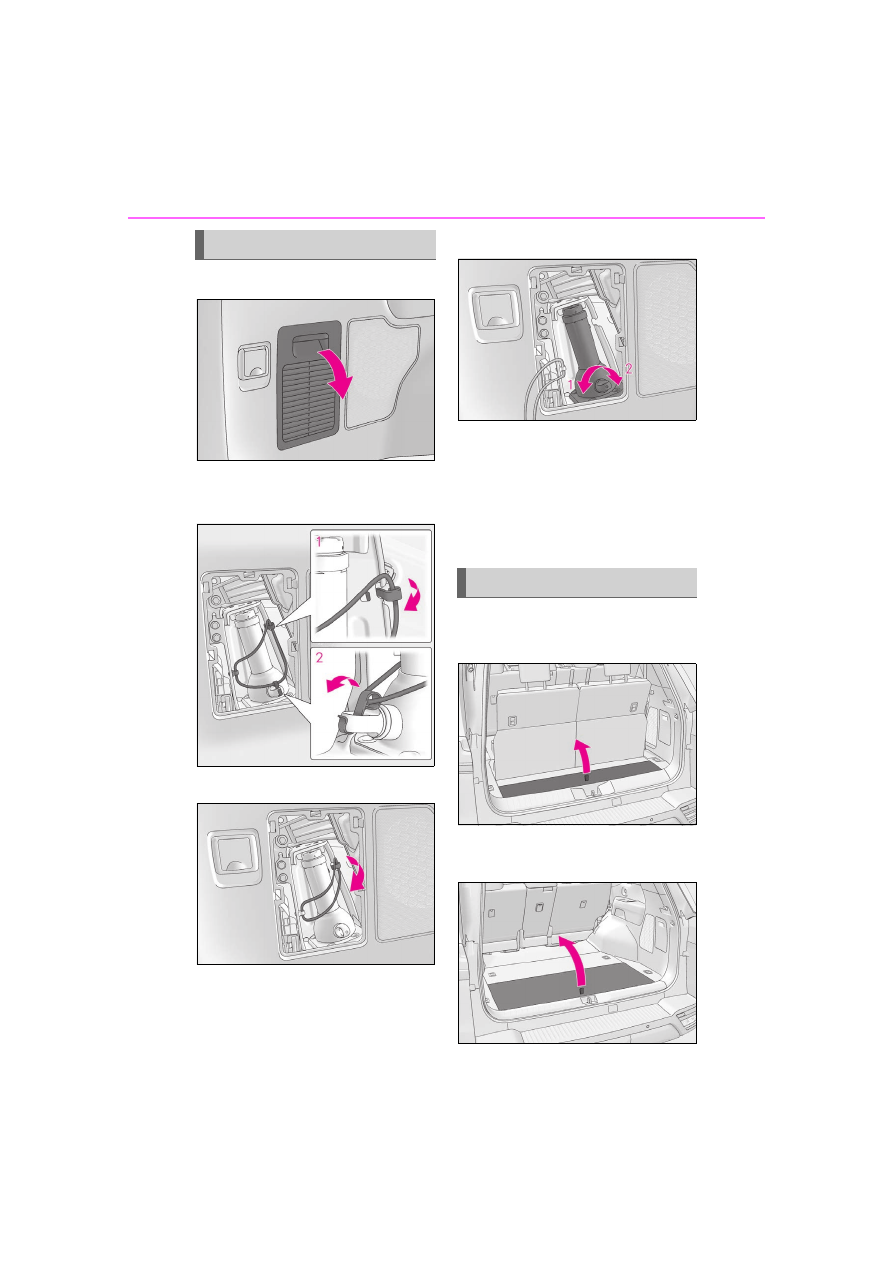

515

7-2. Steps to take in an emergency

When trouble

ari

ses

Take out the tool box.



7-passenger models



4-passenger and 5-passenger
models

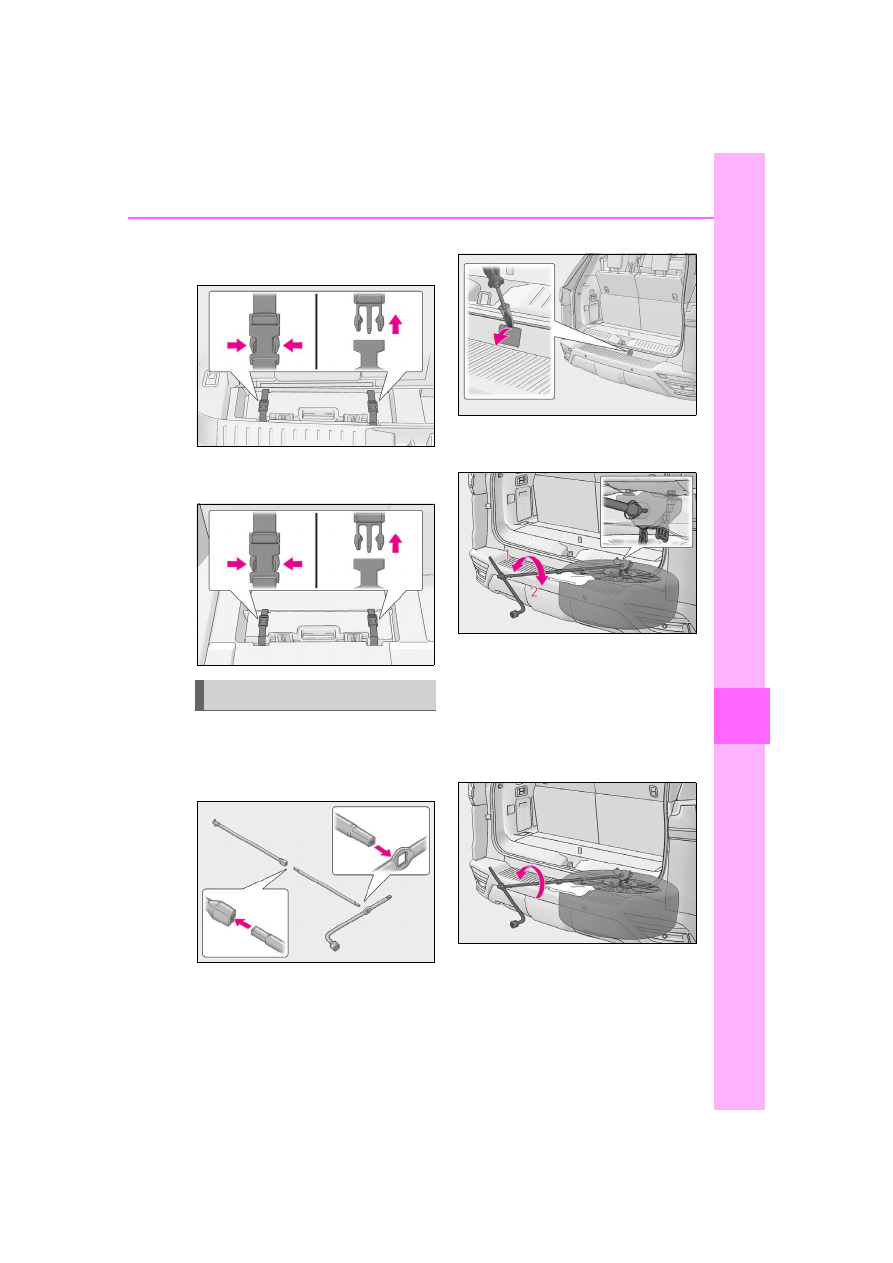

Assembling the jack handle.

Remove the jack handle extension bar and

wheel nut wrench from the tool box and

assemble by following these steps.

Remove the cover.

To prevent damage, cover the tip of the

screwdriver with a rag.

Insert the jack handle into the low-
ering screw.

Lower

Raise

Place a rag under the jack handle to pro-
tect the rear bumper.

Lower the spare tire completely to
the ground.

Taking out the spare tire

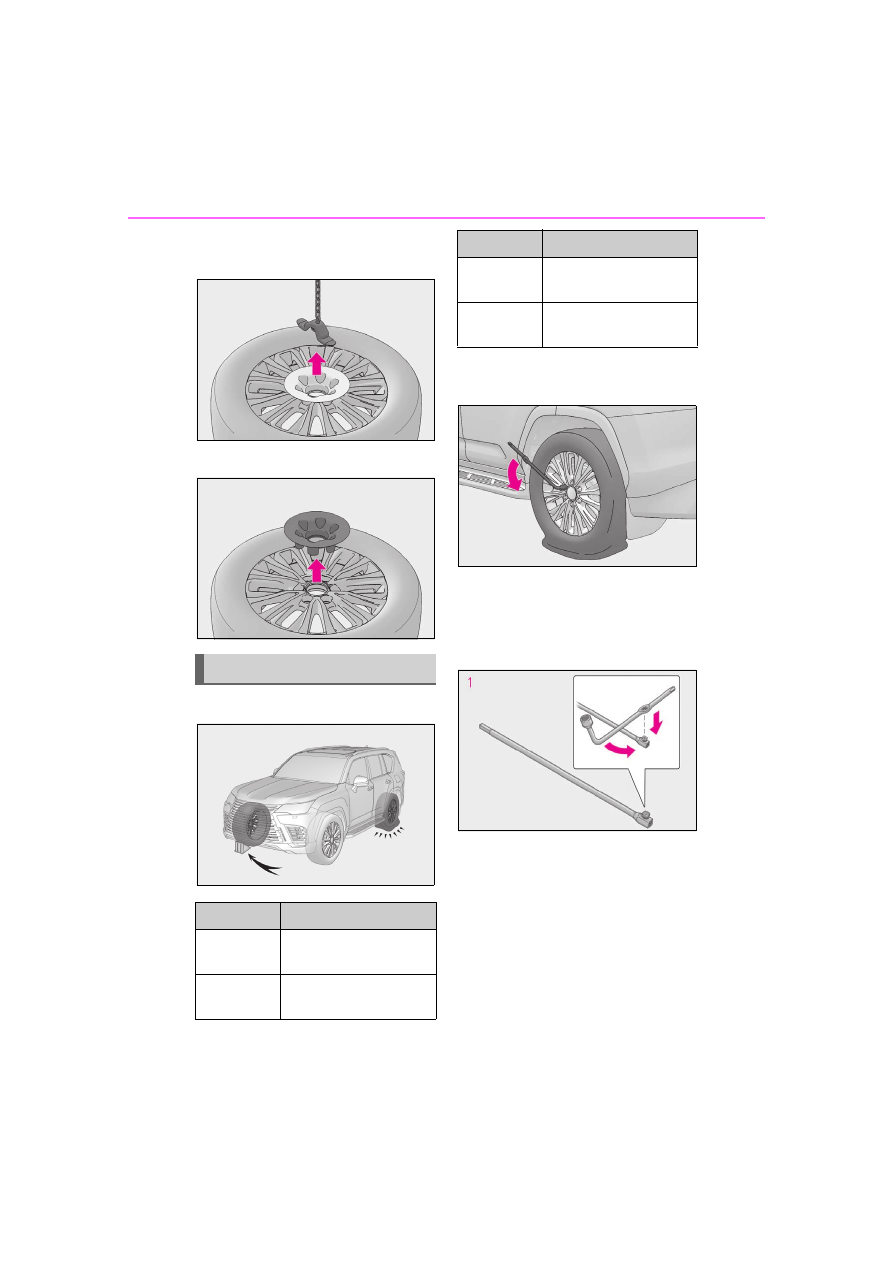

516

7-2. Steps to take in an emergency

Pull out the spare tire and remove
the holding bracket.

Remove the spare wheel cover.

Chock the tires.

Slightly loosen the wheel nuts (one
turn).

Assembling the jack handle.

Remove the jack handle bar, jack handle

extension bar and wheel nut wrench from

the tool box and assemble by following

these steps.

Loosen the bolt using a wheel nut

Replacing a flat tire

Flat tire

Wheel chock positions

Front left-
hand side

Behind the rear right-hand
side tire

Front right-
hand side

Behind the rear left-hand
side tire

Rear left-
hand side

In front of the front right-
hand side tire

Rear right-
hand side

In front of the front left-
hand side tire

Flat tire

Wheel chock positions

517

7-2. Steps to take in an emergency

n t

ris

wrench.

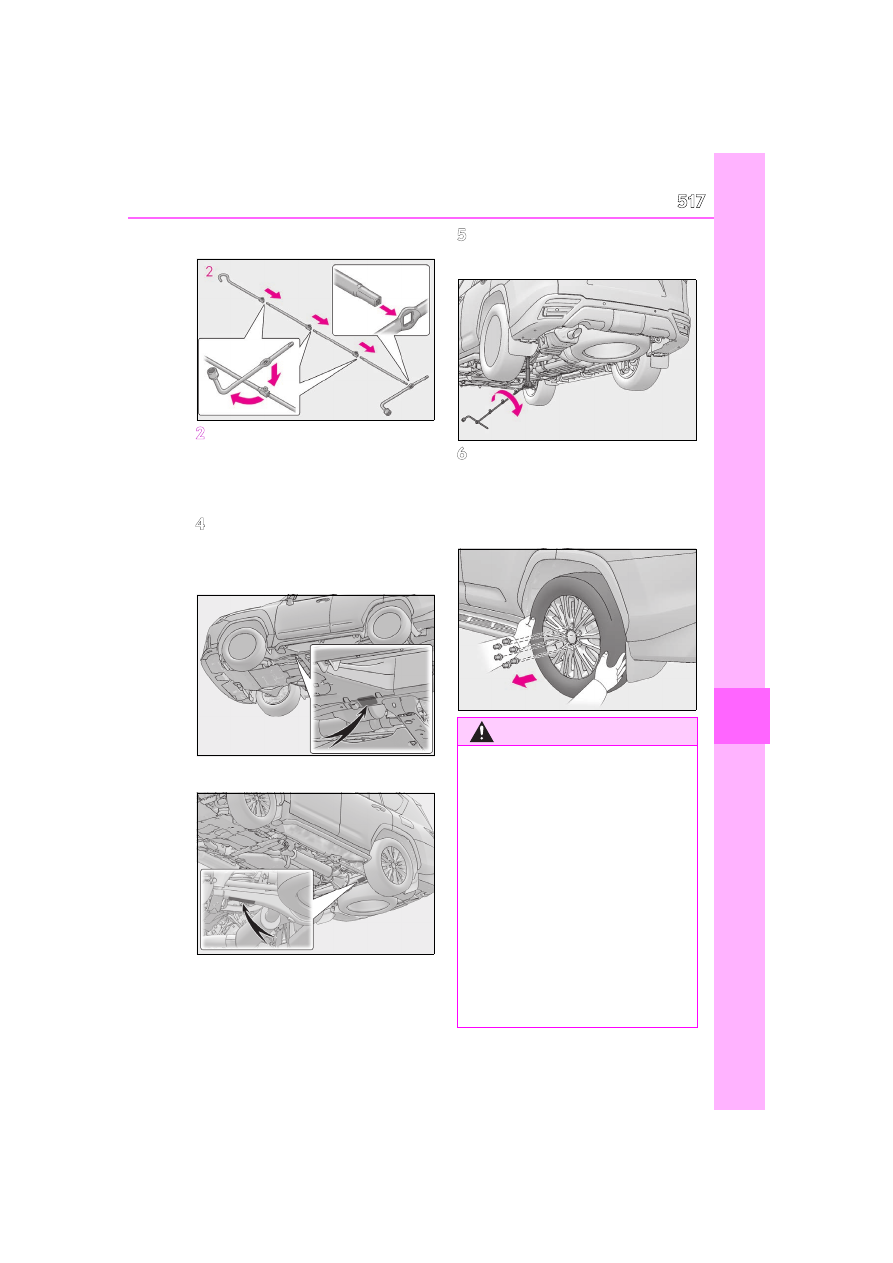

Assemble the jack handle bar, jack
handle extension bar and wheel nut
wrench and tighten the bolts.

Check that the bolts are firmly tightened.

Position the jack at the jack points
as shown.



Front



Rear

Raise the vehicle until the tire is
slightly raised off the ground.

Remove all the wheel nuts and the
tire.

When resting the tire on the ground, place

the tire so that the wheel design faces up to

avoid scratching the wheel surface.

WARNING

■

Replacing a flat tire

●

Do not touch the disc wheels or the

area around the brakes immediately

after the vehicle has been driven.

After the vehicle has been driven the

disc wheels and the area around the

brakes will be extremely hot. Touching

these areas with hands, feet or other

body parts while changing a tire, etc.

may result in burns.

●

Observe the following precautions.

Failure to do so may result in serious

injury:

• Lower the spare tire completely to the

ground before removing it from under

the vehicle.

518

7-2. Steps to take in an emergency

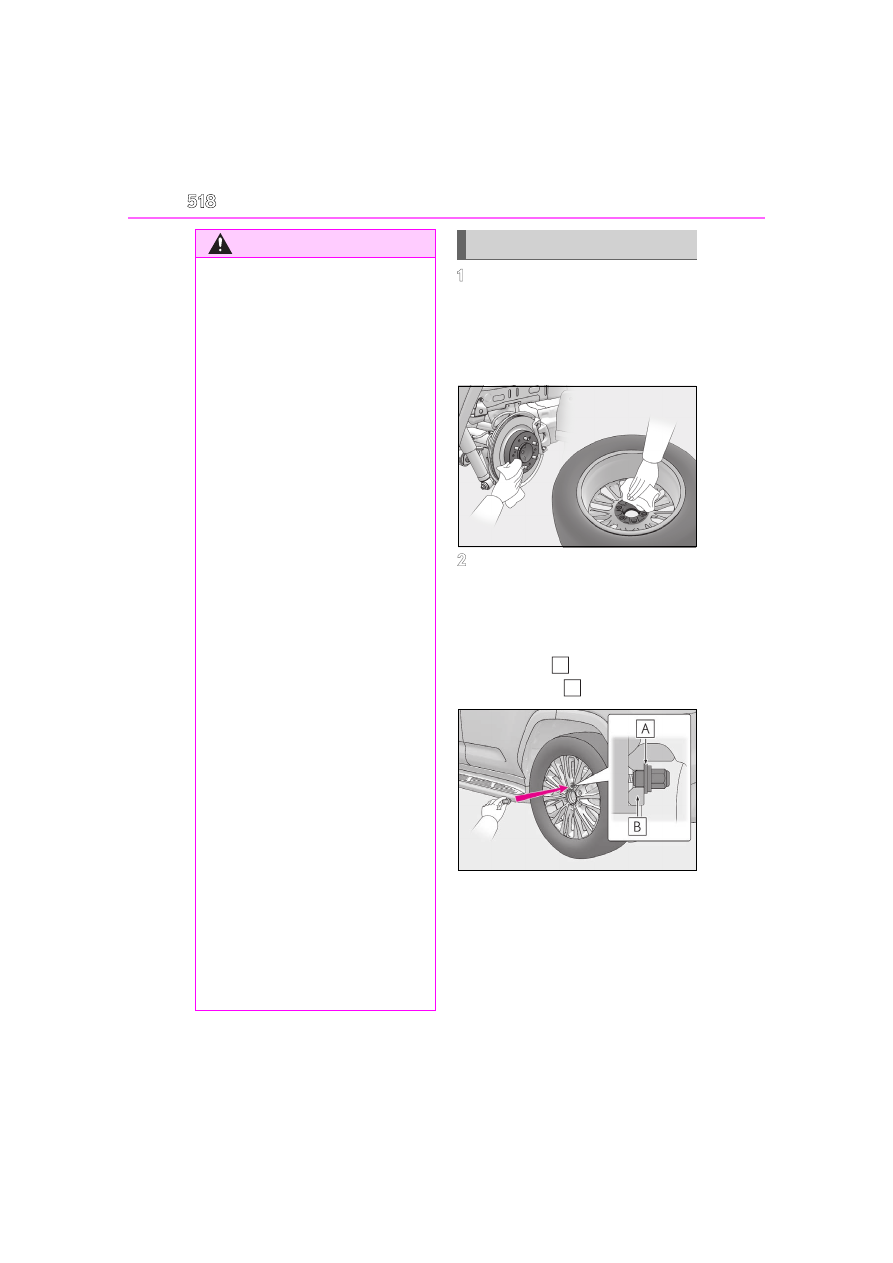

Remove any dirt or foreign matter
from the wheel contact surface.

If foreign matter is on the wheel contact

surface, the wheel nuts may loosen while

the vehicle is in motion, causing the tire to

come off.

Install the spare tire and loosely
tighten each wheel nut by hand by
approximately the same amount.

When replacing an aluminum wheel with

an aluminum wheel, turn the wheel nuts
until the washers

come into contact

with the disc wheel

WARNING

• Do not try to remove the wheel orna-

ment by hand. Take due care in han-

dling the ornament to avoid

unexpected personal injury.

• Vehicles with the AHC: Turn off the

AHC. The vehicle height may change

due to the automatic leveling function

and you may catch part of your body in

the vehicle, resulting in an accident.

(



P.346)

●

Failure to follow these precautions

could cause the wheel nuts to loosen

and the tire to fall off, resulting in death

or serious injury.

• Never use oil or grease on the wheel

bolts or wheel nuts. Oil and grease

may cause the wheel nuts to be exces-

sively tightened, leading to bolt or disc

wheel damage. Remove any oil or

grease that has adhered when install-

ing the wheel nuts.

• After replacing a tire, check the tight-

ening torque as soon as possible.

Wheel nut torque: 97 ft•lbf (131 N•m,

13.4 kgf•m)

• When installing a tire, only use wheel

nuts that have been specifically

designed for that wheel.

• If there are any cracks or deformations

in the bolt screws, nut threads or bolt

holes of the wheel, have the vehicle

inspected by your Lexus dealer.

• Do not attach a heavily damaged

wheel ornament, as it may fly off the

wheel while the vehicle is moving.

●

In cases such as when replacing tires,

make sure to cancel the power back

door system. (



P.116) Failure to do so

may cause the back door to operate

unintentionally if the power back door

switch is accidentally touched, result-

ing in hands and fingers being caught

and injured.

Installing the spare tire

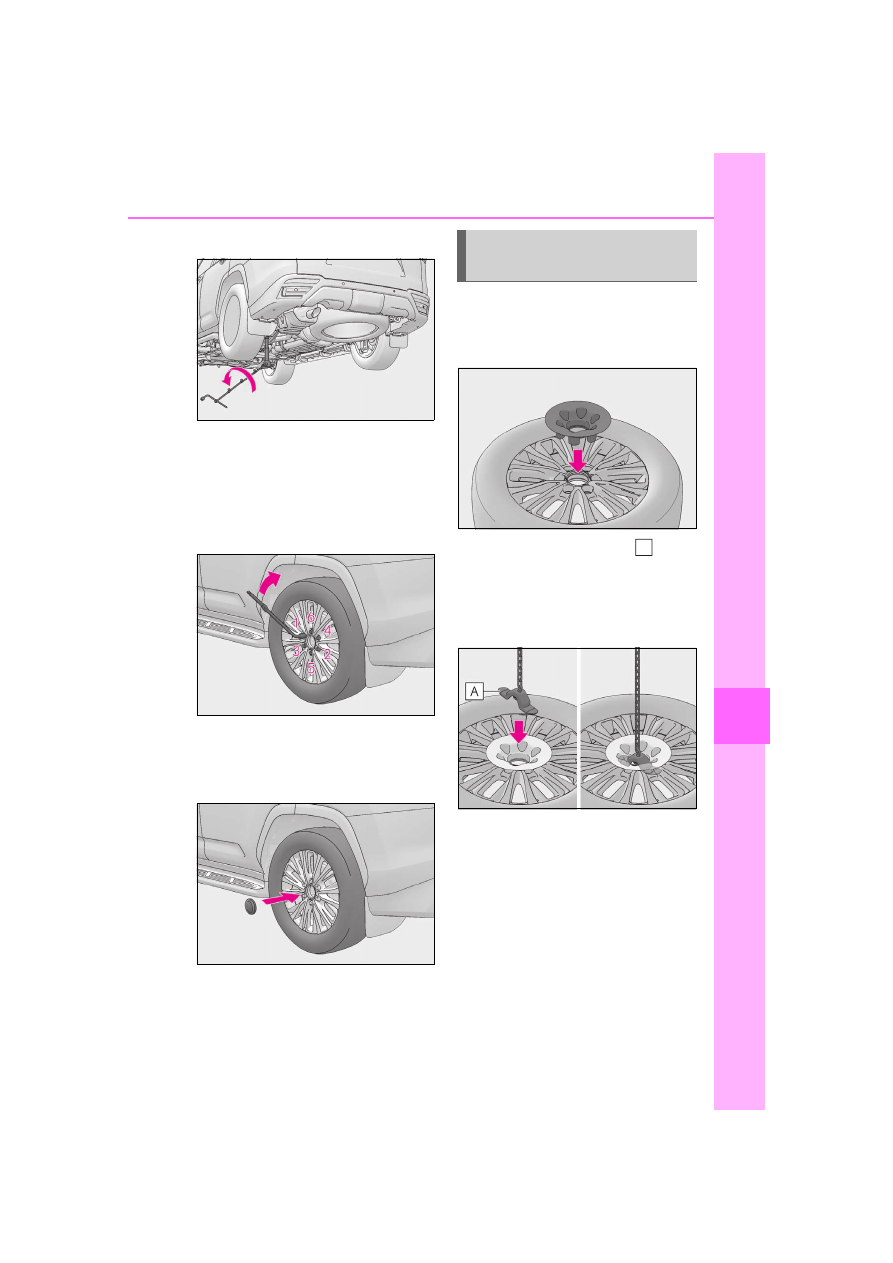

519

7-2. Steps to take in an emergency

When trouble

ari

ses

Lower the vehicle.

Securely tighten the wheel nuts two
or three times in the order shown in
the illustration using a wheel nut
wrench.

Tightening torque:

97 ft•lbf (131 N•m, 13.4 kgf•m)

Reinstall the wheel ornament.

Remove the center wheel ornament from

the flat tire by pushing from the reverse

side, and reinstall it.

Lay down the tire with the valve
stem facing up

Install the spare wheel cover.

Install the holding bracket

. Turn

the jack handle extension clock-
wise to take up slack in the chain.

Then, check to ensure the holding bracket

is centered in the wheel hub.

Raise the tire.

Place a rag under the jack handle to pro-

tect the rear bumper.
While raising, secure the tire, taking care

that the tire goes straight up without catch-

ing on any surrounding part, to prevent it

from flying forward during a collision or

sudden braking.
After the tire goes half way up, check that

the suspended chain is able to enter the

tire hole, for proper storage.

Tightening torque

Stowing the flat/spare tire, jack
and tools

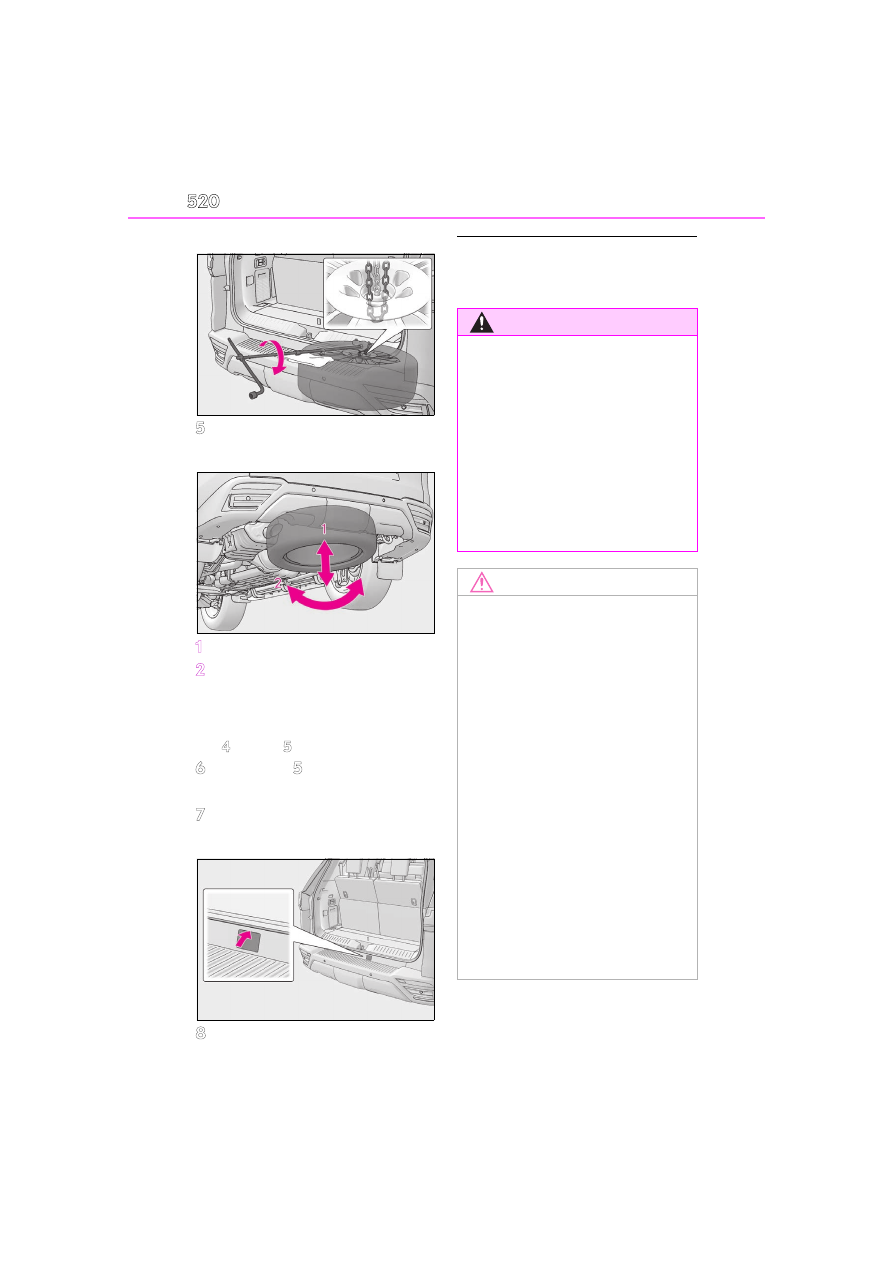

520

7-2. Steps to take in an emergency

34.7 ft•lbf (47 N•m, 4.8 kgf•m)

Confirm that the tire is not loose
after tightening:

Push and pull the tire

Try rotating

Visually check to ensure the tire is not

hung on surrounding parts.
If looseness or misassembly exists, repeat

step

and step

Repeat step

, any time the tire is

lowered or disturbed.

Install the cover as shown in the
illustration.

Stow the tools and jack securely.

■

After completing the tire change

The tire pressure warning system must be

reset. (



P.467)

WARNING

■

Stowing the flat tire

Failure to follow the proper steps listed

under stowing the tire may result in dam-

age to the spare tire carrier and loss of

the tire, which could result in death or

serious injury.

■

After using the tools and jack

Before driving, make sure all the tools

and jack are securely in place in their

storage location to reduce the possibility

of personal injury during a collision or

sudden braking.

NOTICE

■

When stowing the flat tire

Ensure that there is no object caught

between the tire and the vehicle under-

body.

■

When replacing the tires

When removing or fitting the wheels,

tires or the tire pressure warning valve

and transmitter, contact your Lexus

dealer as the tire pressure warning valve

and transmitter may be damaged if not

handled correctly.

■

To avoid damage to the tire pressure

warning valves and transmitters

When a tire is repaired with liquid seal-

ants, the tire pressure warning valve and

transmitter may not operate properly. If a

liquid sealant is used, contact your Lexus

dealer or other qualified service shop as

soon as possible. Make sure to replace

the tire pressure warning valve and

transmitter when replacing the tire.

(



P.469)

521

7-2. Steps to take in an emergency

When trouble

ari

ses

One of the following may be the cause
of the problem:



There may not be sufficient fuel in
the vehicle’s tank.
Refuel the vehicle.



The engine may be flooded.
Try to restart the engine again fol-
lowing correct starting procedures.
(



P.188)



There may be a malfunction in the
engine immobilizer system.
(



P.68)

One of the following may be the cause
of the problem:



The battery may be discharged.
(



P.525)



The battery terminal connections
may be loose or corroded.

The engine starting system may be
malfunctioning due to an electrical
problem such as electronic key battery
depletion or a blown fuse. However, an
interim measure is available to start the
engine. (



P.521)

One of the following may be the cause
of the problem:



The battery may be discharged.
(



P.525)



One or both of the battery terminals
may be disconnected.



There may be a malfunction in the
steering lock system.

Contact your Lexus dealer if the prob-
lem cannot be repaired, or if repair
procedures are unknown.

When the engine does not start, the
following steps can be used as an
interim measure to start the engine if
the engine switch is functioning nor-
mally:

Pull the parking brake switch to
check that the parking brake is set.
(



P.197)

Parking brake indicator will come on.

If the engine will not start

If the engine will not start even
though correct starting procedures
are being followed (



P.188), con-

sider each of the following points:

The engine will not start even
though the starter motor oper-
ates normally

The starter motor turns over
slowly, the interior lights and
headlights are dim, or the horn
does not sound or sounds at a low
volume

The starter motor does not turn
over

The starter motor does not turn
over, the interior lights and
headlights do not turn on, or the
horn does not sound

Emergency start function

523

7-2. Steps to take in an emergency

n t

ris

■

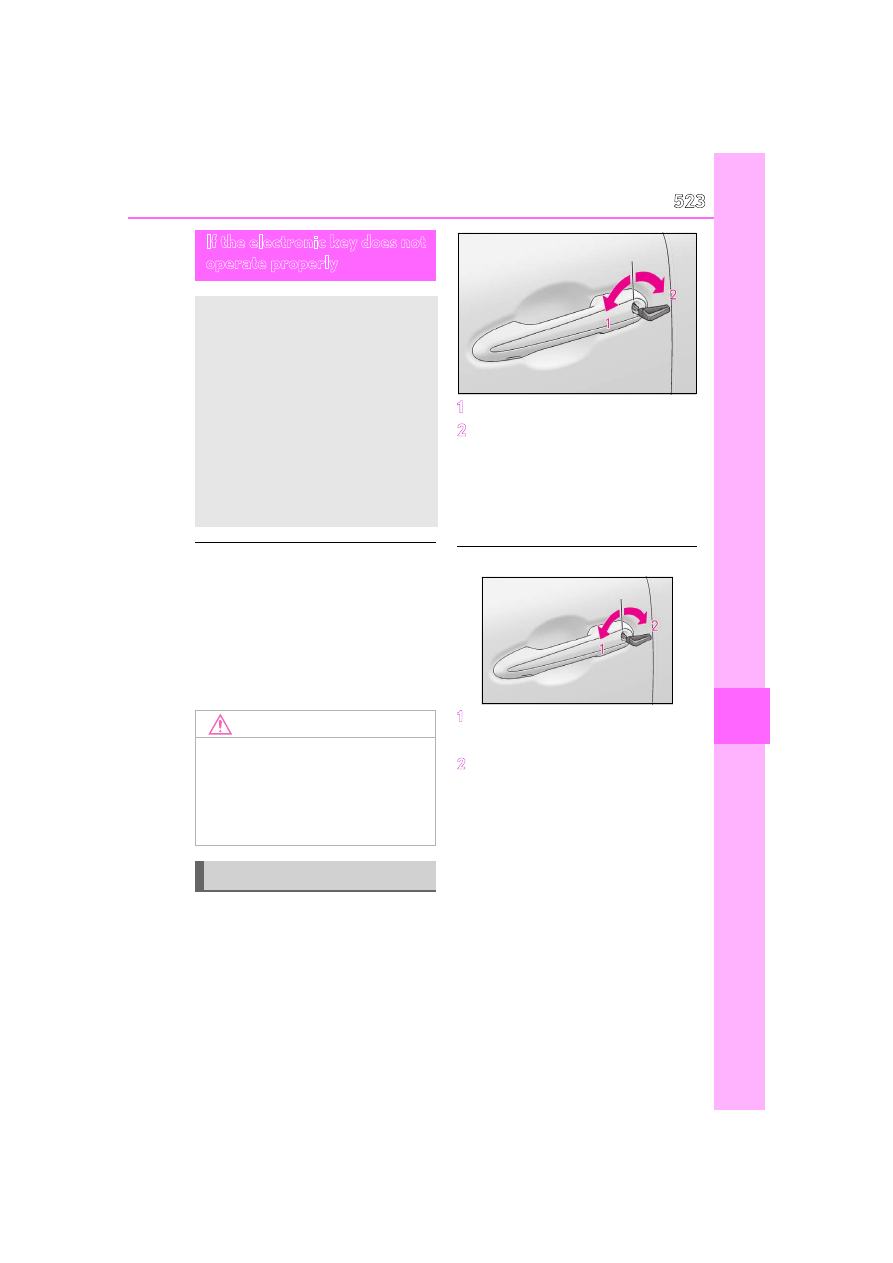

When the electronic key does not work

properly

●

Make sure that the smart access system

with push-button start has not been deac-

tivated in the customization setting. If it is

off, turn the function on.

(Customizable features:



P.555)

●

Check if battery-saving mode is set. If it is

set, cancel the function. (



P.118)

Use the mechanical key (



P.97) in

order to perform the following opera-
tions.

Locks all the doors

Unlocks the door

Turning the key rearward unlocks the
driver’s door. Turning the key once
again within 5 seconds unlocks the
other doors.

■

Key linked functions

Closes the windows and the moon roof
(turn and hold)

Opens the windows and the moon roof
(turn and hold)

: These settings must be customized at

your Lexus dealer.

If the electronic key does not
operate properly

If communication between the
electronic key and vehicle is inter-
rupted (



P.118) or the electronic

key cannot be used because the
battery is depleted, the smart
access system with push-button
start and wireless remote control
cannot be used. In such cases, the
doors can be opened and the
engine can be started by following
the procedure below.

NOTICE

■

In case of a smart access system with

push-button start malfunction, or

other key related problems

Take your vehicle with all the electronic

keys provided with your vehicle (includ-

ing the card key) to your Lexus dealer.

Locking and unlocking the doors

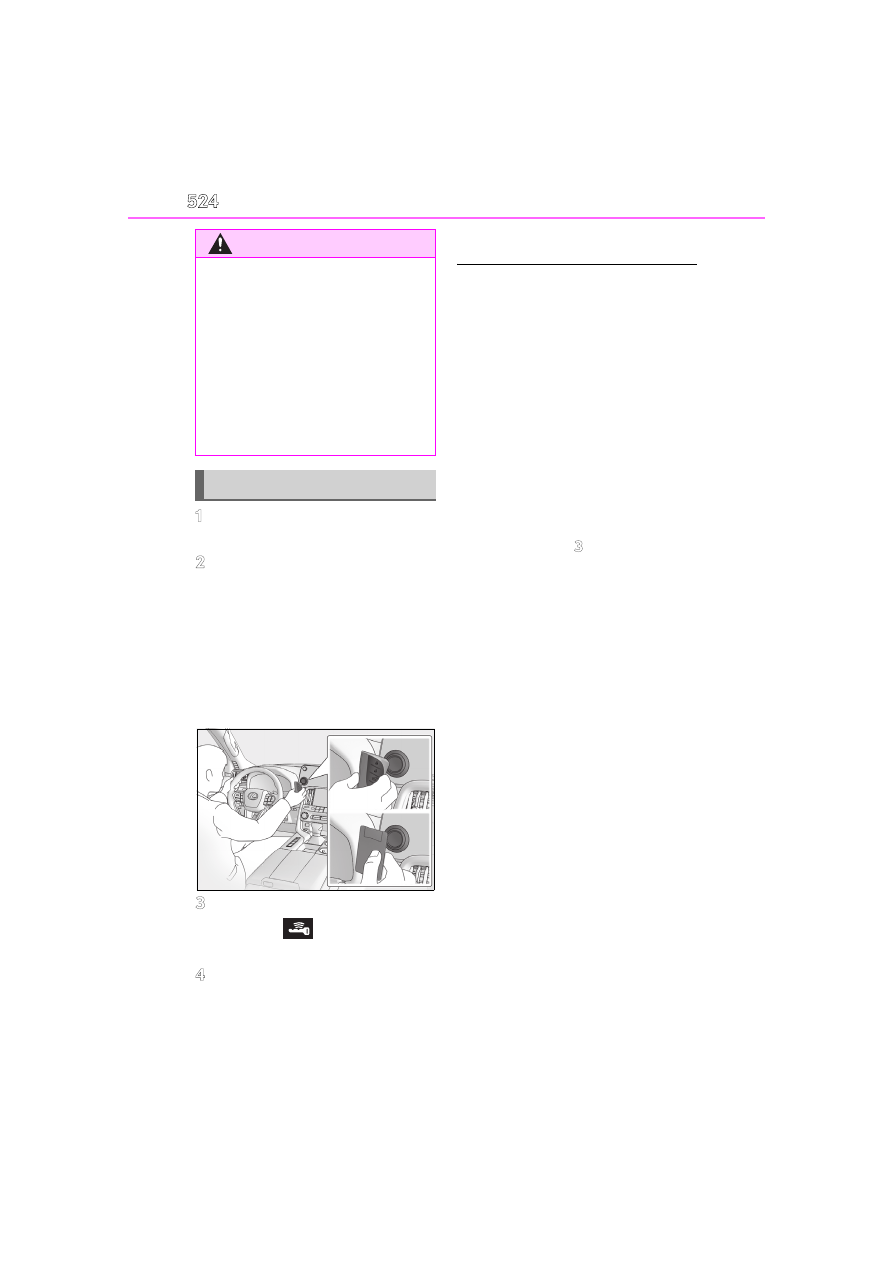

524

7-2. Steps to take in an emergency

Ensure that the shift lever is in P and
depress the brake pedal.

Touch the electronic key or card
key (if equipped) to the engine
switch as shown in the illustration.

When the electronic key is detected, a

buzzer sounds and the engine switch will

turn to ON.
When the smart access system with push-

button start is deactivated in customization

setting, the engine switch will turn to ACC.

Firmly depress the brake pedal and
check that

is displayed on the

multi-information display.

Press the engine switch shortly and
firmly.

In the event that the engine still cannot

be started, contact your Lexus dealer.

■

Stopping the engine

Shift the shift lever to P, set the parking

brake and press the engine switch as you

normally do when stopping the engine.

■

Replacing the key battery

As the above procedure is a temporary

measure, it is recommended that the elec-

tronic key battery be replaced immediately

when the battery is depleted. (



P.479)

■

Alarm

If a door is unlocked using the mechanical

key when the alarm system is set, the alarm

may be triggered. (



P.69)

■

Changing engine switch modes

Release the brake pedal and press the

engine switch in step

above.

The engine does not start and modes will be

changed each time the switch is pressed.

(



P.191)

WARNING

■

When using the mechanical key and

operating the power windows or

moon roof

Operate the power window or moon

roof after checking to make sure that

there is no possibility of any passenger

having any of their body parts caught in

the window or moon roof. Also, do not

allow children to operate the mechanical

key. It is possible for children and other

passengers to get caught in the power

window or moon roof.

Starting the engine

525

7-2. Steps to take in an emergency

When trouble

ari

ses

If you have a set of jumper (or booster)
cables and a second vehicle with a bat-
tery, you can jump start your vehicle by
following the steps below.

Confirm that the electronic key is
being carried.

When connecting the jumper (or booster)

cables, depending on the situation, the

alarm may activate and the doors locked.

(



P.69)

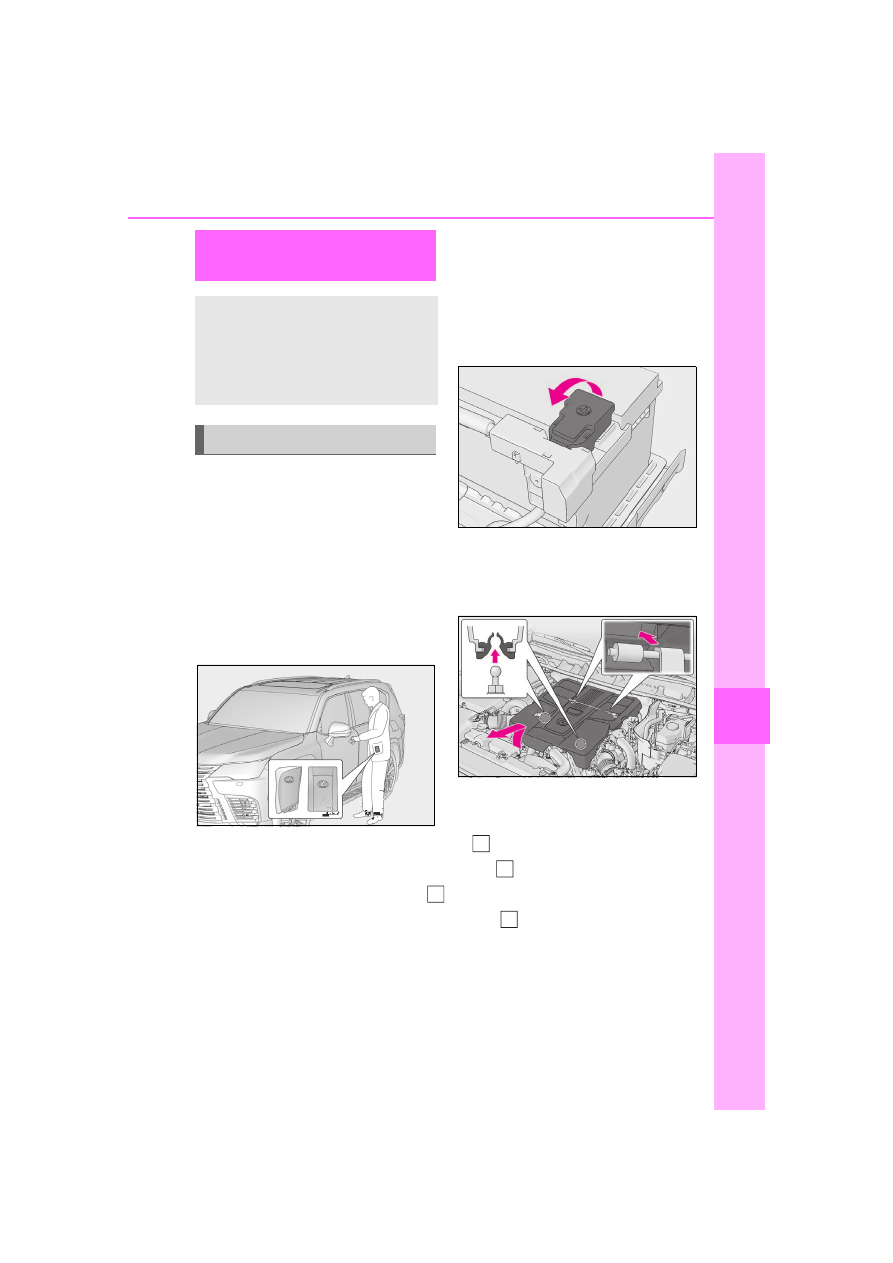

Open the hood (



P.455) and

keep the engine compartment
cover opened or removing the
cover. (



P.457)

Open the positive (+) battery ter-
minal cover.

Remove the engine cover.

Lift the edge of the cover to disengage the

fixed pins, and then pull the cover towards

you to remove it.

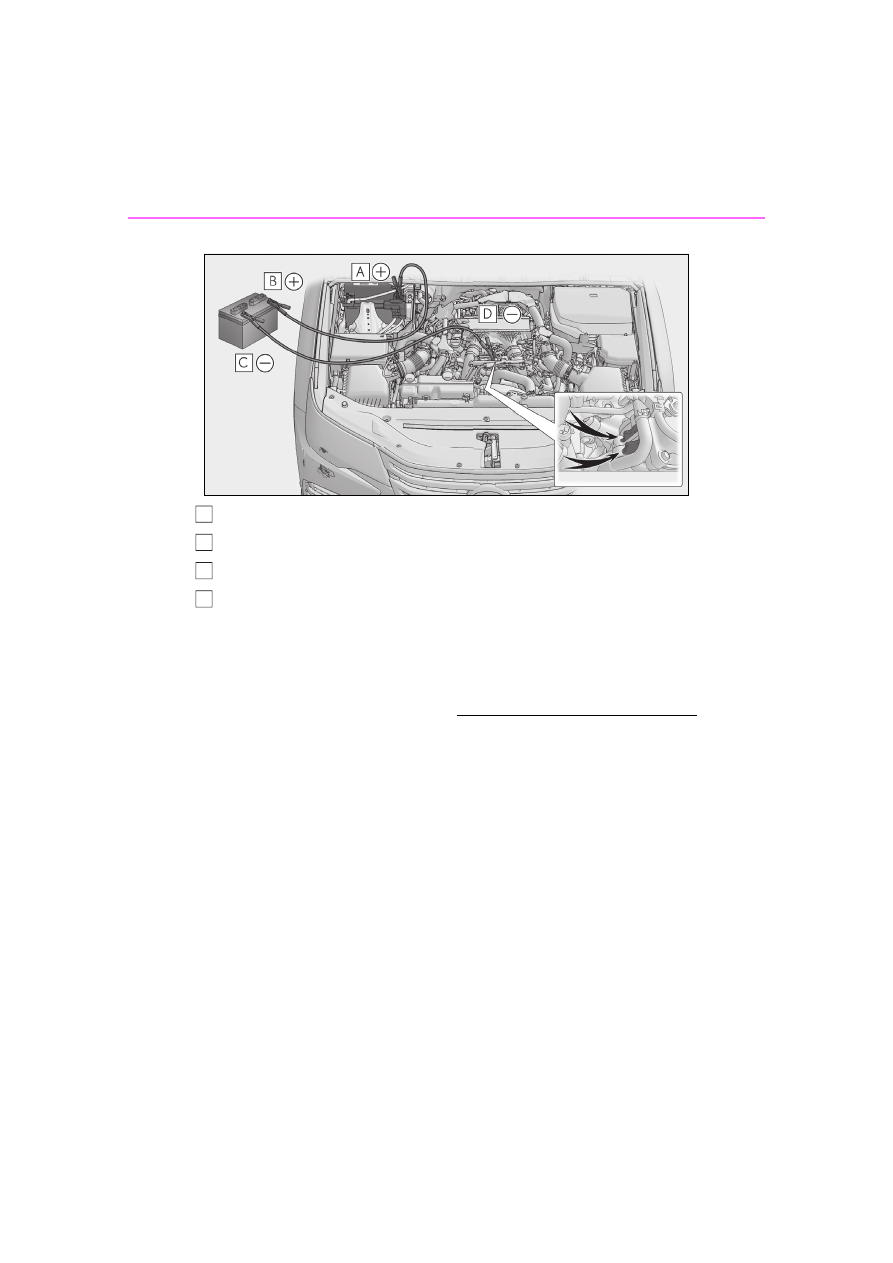

Connect a positive jumper cable clamp to

on your vehicle and connect the

clamp on the other end of the positive cable to

on the second vehicle. Then,

connect a negative cable clamp to

on the second vehicle and connect the

clamp at the other end of the negative cable to

If the vehicle battery is dis-
charged

The following procedures may be
used to start the engine if the vehi-
cle’s battery is discharged.
You can also call your Lexus dealer
or a qualified repair shop.

Restarting the engine

526

7-2. Steps to take in an emergency

Use jumper cables that can reach the specified terminals and connecting point.

Positive (+) battery terminal (your vehicle)

Positive (+) battery terminal (second vehicle)

Negative (-) battery terminal (second vehicle)

Metallic point shown in the illustration

Start the engine of the second vehi-
cle. Increase the engine speed
slightly and maintain at that level for
approximately 5 minutes to
recharge the battery of your vehi-
cle.

Open and close any of the doors of
your vehicle with the engine switch
off.

Maintain the engine speed of the
second vehicle and start the engine
of your vehicle by turning the
engine switch to ON.

Once the vehicle’s engine has
started, remove the jumper cables
in the exact reverse order from
which they were connected.

To install the engine cover, conduct the

removal procedure in reverse. After

installing, check that the fixed pins are

inserted securely.

Once the engine starts, have the vehi-
cle inspected at your Lexus dealer as
soon as possible.

■

Starting the engine when the battery is

discharged

The engine cannot be started by push-start-

ing.

■

To prevent battery discharge

●

Turn off the headlights, the air condition-

ing system, the audio system, etc. while

the engine is off.

●

Turn off any unnecessary electrical com-

ponents when the vehicle is running at a

low speed for an extended period, such

as in heavy traffic.

■

When the battery is removed or dis-

charged

●

Information stored in the ECU is cleared.

When the battery is depleted, have the

vehicle inspected at your Lexus dealer.

●

Some systems may require initialization.

A
B
C
D

527

7-2. Steps to take in an emergency

n t

ris

(



P.567)

■

When removing the battery terminals

When the battery terminals are removed,

the information stored in the ECU is

cleared. Before removing the battery termi-

nals, contact your Lexus dealer.

■

Charging the battery

The electricity stored in the battery will dis-

charge gradually even when the vehicle is

not in use, due to natural discharge and the

draining effects of certain electrical appli-

ances. If the vehicle is left for a long time,

the battery may discharge, and the engine

may be unable to start. (The battery

recharges automatically during driving.)

■

Replacing the battery

●

Use a genuine battery specifically

designed for use with the Stop & Start

system or a battery with equivalent speci-

fications to a genuine battery. If an unsup-

ported battery is used, Stop & Start

system functions may be restricted to

protect the battery. Also, battery perfor-

mance may decrease and the engine may

not be able to restart. Contact your

Lexus dealer for details.

●

Use a battery that conforms to European

regulations.

●

Use a battery that the case size is same as

the previous one (LN4), 20 hours rate

capacity (20HR) is equivalent (75Ah) or

greater, and performance rating (CCA)

is equivalent (776A) or greater.

• If the sizes differ, the battery cannot be

properly secured.

• If the 20 hour rate capacity is low, even if

the time period where the vehicle is not

used is a short time, the battery may dis-

charge and engine may not be able to

start.

●

For details, consult your Lexus dealer.

■

When recharging or replacing the bat-

tery

The Stop & Start system may not automati-

cally stop the engine for up to an hour.

WARNING

■

When removing the battery termi-

nals

Always remove the negative (-) terminal

first. If the positive (+) terminal contacts

any metal in the surrounding area when

the positive (+) terminal is removed, a

spark may occur, leading to a fire in addi-

tion to electrical shocks and death or

serious injury.

■

Avoiding battery fires or explosions

Observe the following precautions to

prevent accidentally igniting the flamma-

ble gas that may be emitted from the bat-

tery:

●

Make sure each jumper cable is con-

nected to the correct terminal and that

it is not unintentionally in contact with

any other than the intended terminal.

●

Do not allow the other end of the

jumper cable connected to the “+” ter-

minal to come into contact with any

other parts or metal surfaces in the

area, such as brackets or unpainted

metal.

●

Do not allow the + and - clamps of the

jumper cables to come into contact

with each other.

●

Do not smoke, use matches, cigarette

lighters or allow open flame near the

battery.

■

Battery precautions

The battery contains poisonous and cor-

rosive acidic electrolyte, while related

parts contain lead and lead compounds.

Observe the following precautions when

handling the battery:

●

When working with the battery, always

wear safety glasses and take care not

to allow any battery fluids (acid) to

come into contact with skin, clothing

or the vehicle body.

●

Do not lean over the battery.

528

7-2. Steps to take in an emergency

Stop the vehicle in a safe place and
turn off the air conditioning system,
and then stop the engine.

If you see steam:
Carefully lift the hood after the
steam subsides.
If you do not see steam:
Carefully lift the hood.

WARNING

●

In the event that battery fluid comes

into contact with the skin or eyes,

immediately wash the affected area

with water and seek medical attention.

Place a wet sponge or cloth over the

affected area until medical attention

can be received.

●

Always wash your hands after han-

dling the battery support, terminals,

and other battery-related parts.

●

Do not allow children near the battery.

■

When replacing the battery

For information regarding battery

replacement, contact your Lexus dealer.

NOTICE

■

When handling jumper cables

When connecting the jumper cables,

ensure that they do not become entan-

gled in the cooling fan or engine drive

belt.

■

When connecting jumper cables

Make sure to connect jumper cables to

the specified terminals and connecting

point. Failure to do so may adversely

affect the electronic devices or damage

to them.

If your vehicle overheats

The following may indicate that
your vehicle is overheating.



The needle of the engine coolant
temperature gauge (



P.79)

enters the red zone or a loss of
engine power is experienced.
(For example, the vehicle speed
does not increase.)



“Engine Coolant Temp High Stop
in a Safe Place See Owner’s
Manual” is shown on the multi-
information display.



Steam comes out from under the
hood.

Correction procedures

529

7-2. Steps to take in an emergency

When trouble

ari

ses

After the engine has cooled down
sufficiently, inspect the hoses and
radiator core (radiator) for any
leaks.

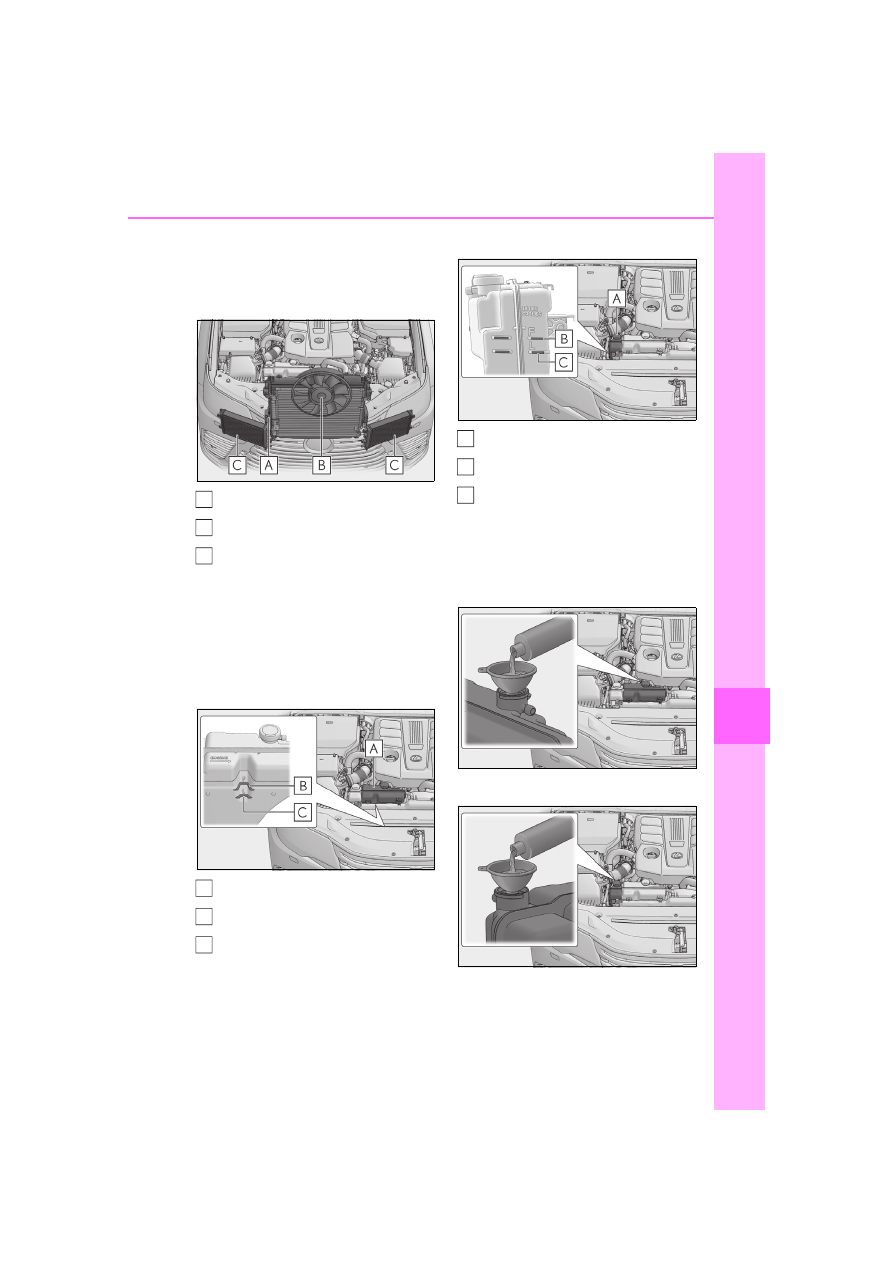

Engine radiator

Cooling fan

Intercooler radiators

If a large amount of coolant leaks, immedi-

ately contact your Lexus dealer.

The coolant level is satisfactory if it
is between the “F” and “L” lines on
the reservoir.



Engine coolant

Reservoir

“F” line

“L” line



Intercooler coolant

Reservoir

“F” line

“L” line

Add coolant if necessary.

Water can be used in an emergency if

coolant is unavailable.



Engine coolant



Intercooler coolant

Start the engine to check that the
radiator cooling fan operates and

A
B
C

530

7-2. Steps to take in an emergency

to check for coolant leaks from the
radiators or hoses.

If the fans are not operating:
Stop the engine immediately and
contact your Lexus dealer.
If the fans are operating:
Have the vehicle inspected at the
nearest Lexus dealer.

Check if “Engine Coolant Temp
High Stop in a Safe Place See
Owner’s Manual” is shown on the
multi-information display.

If the message does not disappear: Stop

the engine and contact your Lexus dealer.
If the message is not displayed: Have the

vehicle inspected at the nearest Lexus

dealer.

WARNING

■

When inspecting under the hood of

your vehicle

Observe the following precautions.
Failure to do so may result in serious

injury such as burns.

●

If steam is seen coming from under the

hood, do not open the hood until the

steam has subsided. The engine com-

partment may be very hot.

●

Keep hands and clothing (especially a

tie, a scarf or a muffler) away from the

fans and belts. Failure to do so may

cause the hands or clothing to be

caught, resulting in serious injury.

●

Do not loosen the engine coolant res-

ervoir cap while the engine and engine

radiator are hot. High temperature

steam or coolant could spray out.

NOTICE

■

When adding engine coolant

Add coolant slowly after the engine has

cooled down sufficiently. Adding cool

coolant to a hot engine too quickly can

cause damage to the engine.

■

To prevent damage to the cooling

system

Observe the following precautions:

●

Avoid contaminating the coolant with

foreign matter (such as sand or dust

etc.).

●

Do not use any coolant additive.

531

7-2. Steps to take in an emergency

n t

ris

Stop the engine. Set the parking
brake and shift the shift lever to P.

Do not press the shift release button after

shifting the shift lever to P.

Remove the mud, snow or sand
from around the rear wheels.

Place wood, stones or some other
material under the rear wheels to
help provide traction.

Restart the engine.

Shift the shift lever to D or R and
release the parking brake. Then,
while exercising caution, depress
the accelerator pedal.

■

When it is difficult to free the vehicle

Try the followings.

●

Turn off the Active TRAC (



P.366)

●

Switching the four-wheel drive control

switch (



P.354)

●

Using the center differential lock

(



P.354)

●

Using Crawl Control (with Turn Assist

function) (



P.356)

●

Using Multi-terrain Select (



P.360)

If the vehicle becomes stuck

Carry out the following procedures
if the tires spin or the vehicle
becomes stuck in mud, dirt or snow:

Recovering procedure

WARNING

■

When attempting to free a stuck vehi-

cle

If you choose to push the vehicle back

and forth to free it, make sure the sur-

rounding area is clear to avoid striking

other vehicles, objects or people. The

vehicle may also lunge forward or lunge

back suddenly as it becomes free. Use

extreme caution.

■

When shifting the shift lever

Be careful not to shift the shift lever with

the accelerator pedal depressed.
This may lead to unexpected rapid accel-

eration of the vehicle that may cause an

accident resulting in death or serious

injury.

NOTICE

■

To avoid damaging the transmission

and other components

●

Avoid spinning the wheels and

depressing the accelerator pedal

more than necessary.

●

If the vehicle remains stuck even after

these procedures are performed, the

vehicle may require towing to be

freed.

●

When a warning message for the

automatic transmission fluid tempera-

ture is displayed while attempting to

free a stuck vehicle, immediately

remove your foot from the accelerator

pedal and wait until the warning mes-

sage disappears. Otherwise, the trans-

mission may become damaged.

(



P.506)

534

8-1. Specifications

8-1.Specifications

: Unladen vehicle

: Vehicles with 18-inch tires or 20-inch tires

: Vehicles with 22-inch tires

: Vehicles with AHC

: Vehicles without AHC

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

Vehicles without sports
package

200.6 in. (5095 mm)

Vehicles with sports pack-
age

200.2 in. (5085 mm)

Overall width

78.3 in. (1990 mm)

Overall height

Vehicles without roof
antenna

73.0 in. (1855 mm)

*2, 4

73.4 in. (1865 mm)

*3, 4

74.2 in. (1885 mm)

*2, 5

74.6 in. (1895 mm)

*3, 5

Vehicles with roof antenna

74.2 in. (1885 mm)

*2, 4

74.6 in. (1895 mm)

*3, 4

75.4 in. (1915 mm)

*2, 5

75.8 in. (1925 mm)

*3, 5

Wheelbase

112.2 in. (2850 mm)

Tread

Front

66.0 in. (1675 mm)

Rear

66.0 in. (1675 mm)

Vehicle capacity weight (Occupants + luggage)

1285 lb. (580 kg)

TWR (trailer weight +
cargo weight)

With brake

8000 lb. (3630 kg)

Without brake

1650 lb. (750 kg)

535

8-1. Specifications

Vehi

cle

spec

ifi

tions

■

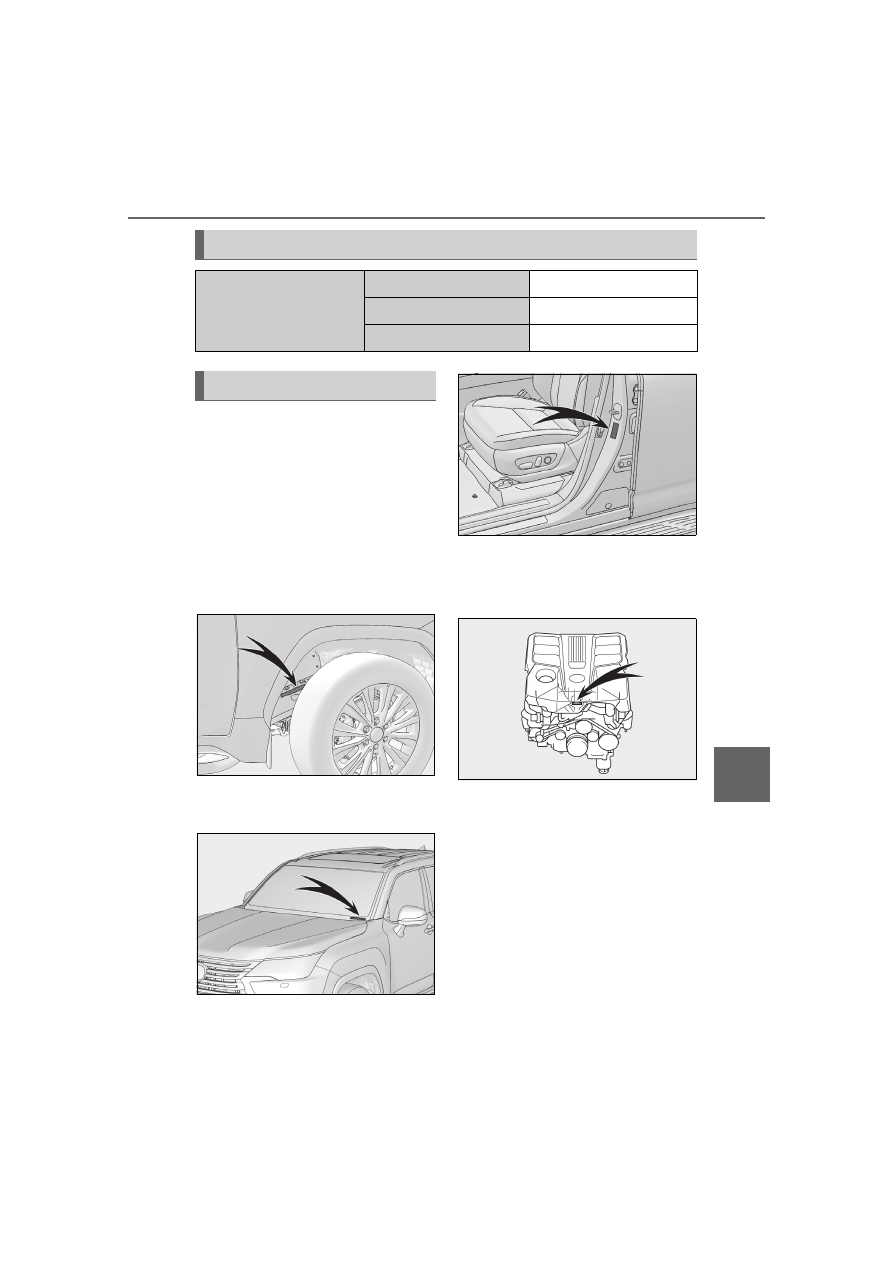

Vehicle identification number

The vehicle identification number
(VIN) is the legal identifier for your
vehicle. This is the primary identifica-
tion number for your Lexus. It is used in
registering the ownership of your vehi-
cle.
This number is stamped on the front
right frame.

On some models, this number is also
on the top left of the instrument panel.

This number is also on the Certification
Label.

■

Engine number

The engine number is stamped on the
engine block as shown.

Seating capacity

4-passenger models

4 (Front 2, Rear 2)

5-passenger models

5 (Front 2, Rear 3)

7-passenger models

7 (Front 2, Rear 5)

Vehicle identification

536

8-1. Specifications

■

Oil capacity (Drain and refill [Ref-
erence

])

: The engine oil capacity is a reference

quantity to be used when changing the
engine oil. When actually adding the
engine oil, make sure that the oil level is
between the low level mark and refill
upper limit mark (



P.459). Warm up

and turn off the engine, wait about 5
minutes, and check the oil level on the
dipstick.

■

Engine oil selection

“Toyota Genuine Motor Oil” is used in
your Lexus vehicle. Use Lexus

approved “Toyota Genuine Motor
Oil” or equivalent to satisfy the follow-
ing grade and viscosity.
Oil grade:
ILSAC GF-6A multigrade engine oil
Recommended viscosity:
SAE 0W-20
SAE 0W-20 is the best choice for
good fuel economy and good starting
in cold weather.
If SAE 0W-20 is not available, SAE
5W-20 oil may be used. However, it
must be replaced with SAE 0W-20 at
the next oil change.

Engine

Model

3.5 L V6 (V35A-FTS)

Type

6-cylinder V type, 4-cycle, gasoline
(with turbocharger)

Bore and stroke

3.37



3.94 in. (85.5



100.0 mm)

Displacement

210.2 cu.in. (3445 cm

)

Valve clearance

Automatic adjustment

Drive belt tension

Automatic adjustment

Fuel

Fuel type

Unleaded gasoline only

Octane rating

91 (Research Octane Number 96) or higher

Fuel tank capacity (Reference)

21.1 gal. (80 L, 17.6 Imp. gal.)

Lubrication system

With filter

7.7 qt. (7.3 L, 6.4
Imp. qt.)

Without filter

7.4 qt. (7.0 L, 6.2
Imp. qt.)

537

8-1. Specifications

Vehi

cle

spec

ifi

tions

Outside temperature

Oil viscosity (0W-20 is explained here
as an example):
• The 0W in 0W-20 indicates the

characteristic of the oil which allows
cold startability. Oils with a lower
value before the W allow for easier
starting of the engine in cold
weather.

• The 20 in 0W-20 indicates the vis-

cosity characteristic of the oil when
the oil is at high temperature. An oil

with a higher viscosity (one with a
higher value) may be better suited if
the vehicle is operated at high
speeds, or under extreme load con-
ditions.

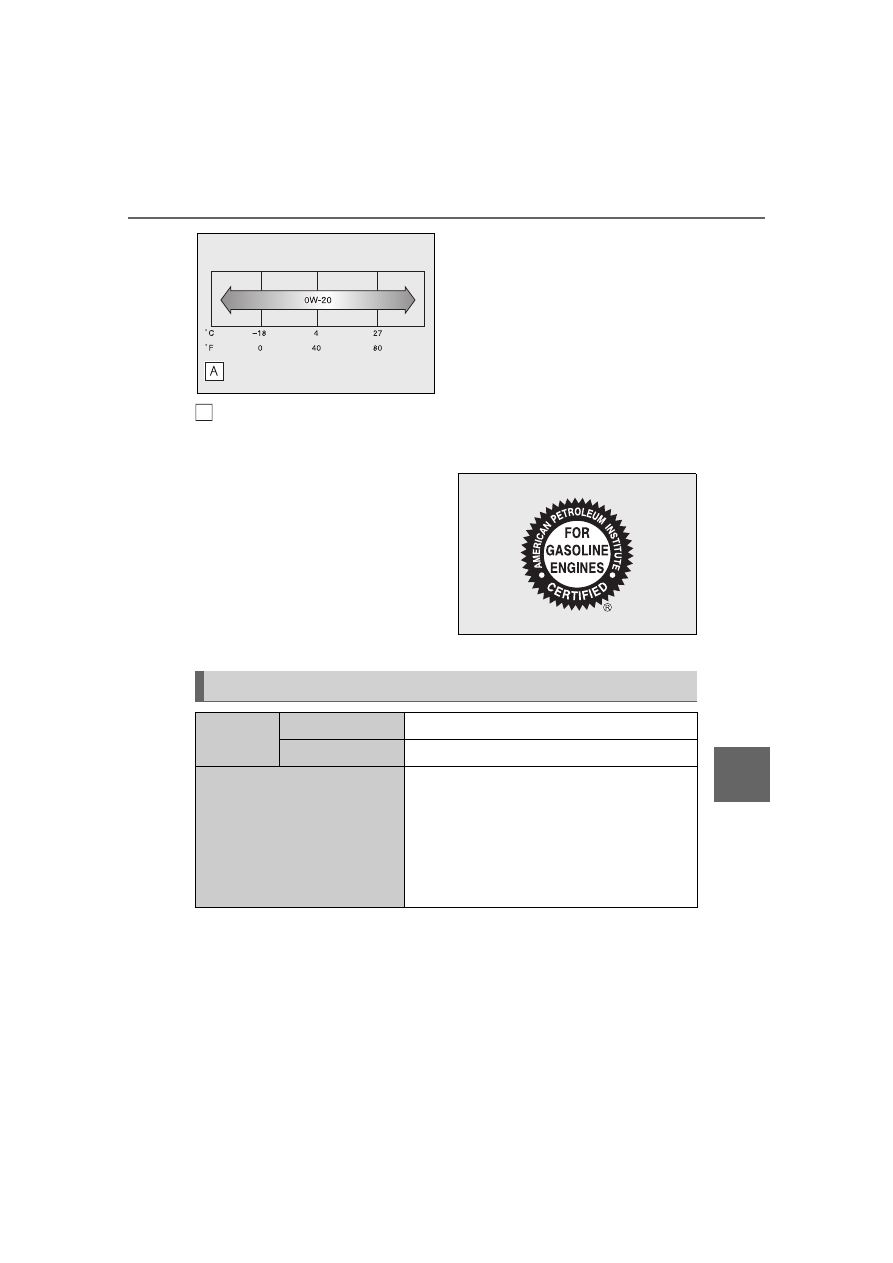

How to read oil container label:
The International Lubricant Specifica-
tion Advisory Committee (ILSAC)
Certification Mark is added to some oil
containers to help you select the oil
you should use.

: The coolant capacity is the quantity of reference. If replacement is necessary, contact

your Lexus dealer.

Cooling system

Capacity

Intercooler coolant

4.0 qt. (3.8 L, 3.3 Imp. qt.)

Engine coolant

15.5 qt. (14.7 L, 12.9 Imp. qt.)

Coolant type

Use either of the following:
• “Toyota Super Long Life Coolant”
• Similar high-quality ethylene glycol-based non-

silicate, non-amine, non-nitrite, and non-borate
coolant with long-life hybrid organic acid technol-
ogy

Do not use plain water alone.

538

8-1. Specifications

■

Spark plug

■

Battery

■

Charging rates

Your Lexus vehicle is filled with “Toyota Genuine Differential Gear Oil” at the fac-
tory.

Ignition system

Make

DENSO EC22HPR-D7

Gap

0.028 in. (0.7 mm)

NOTICE

■

Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust gap when tuning engine.

Electrical system

Open voltage at 68°F (20°C):

12.3 V or higher
(Voltage is checked 20 minutes after the engine
and all lights are turned off.)
If the voltage is lower than the standard value,
charge the battery.

5 A max.

Differential

Oil capacity

Front

1.23 qt. (1.16 L, 1.02 Imp. qt.)

Rear

Without rear Limited-slip differential:
5.76 qt. (5.45 L, 4.80 Imp. qt.)
With rear Limited-slip differential:
5.55 qt. (5.25 L, 4.62 Imp. qt.)

Oil type and vis-
cosity

Without Lim-
ited-slip differ-
ential

Toyota Genuine Differential Gear Oil LT 75W-85
GL-5 or equivalent

With Limited-
slip differential

Toyota Genuine Differential Gear Oil LX 75W-85
GL-5 or equivalent

539

8-1. Specifications

icle

ific

atio

Use Lexus approved “Toyota Genuine Differential Gear Oil” or an equivalent of
matching quality to satisfy the above specification. Please contact your Lexus
dealer for further details.

The fluid capacity is the quantity of reference. If replacement is necessary, contact
your Lexus dealer.

: Your Lexus vehicle is filled with “Toyota Genuine Transfer Gear oil LF” at the factory.

Use Lexus approved “Toyota Genuine Transfer Gear oil LF” or an equivalent of match-
ing quality to satisfy the above specification. Please contact your Lexus dealer for further
details.

Automatic transmission

Fluid capacity (Reference)

12.13 qt. (11.48 L, 10.10 Imp. qt.)

Fluid type

Toyota Genuine ATF WS

NOTICE

■

Automatic transmission fluid type

Using transmission fluid other than the above type may cause abnormal noise or vibra-

tion, or damage the transmission of your vehicle.

Transfer

Oil capacity

1.89 qt. (1.79 L, 1.58 Imp. qt.)

Oil type

Toyota Genuine Transfer Gear oil LF or equivalent

Recommended oil viscosity

SAE 75W

Suspension (vehicles with AHC)

Fluid type

Suspension fluid AHC

Brakes

Pedal clearance

5.08 in. (129 mm)

Pedal free play

0.04



0.24 in. (1



6 mm)

Lexus LX600 (2024 year). Manual in english - page 16
