Custom mode indicator

(7)

Trail Mode indicator

(1)

These lights come on when the power switch is turned to ON to indicate that a system

check is being performed. They will turn off after the hybrid system is on, or after a few

seconds. There may be a malfunction in a system if the lights do not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the outside rear view mirrors.

(3)

This light comes on when the system is turned off.

(4)

When the outside temperature is approximately 37°F (3°C) or lower, this indicator

will flash for approximately 10 seconds, then stay on.

(5)

This light illuminates on the front interior/personal lights.

(6)

Except F SPORT models

(7)

F SPORT models



 Related Links

Customizable features(P. 763)

5-1. Functions and displays of the meter

332

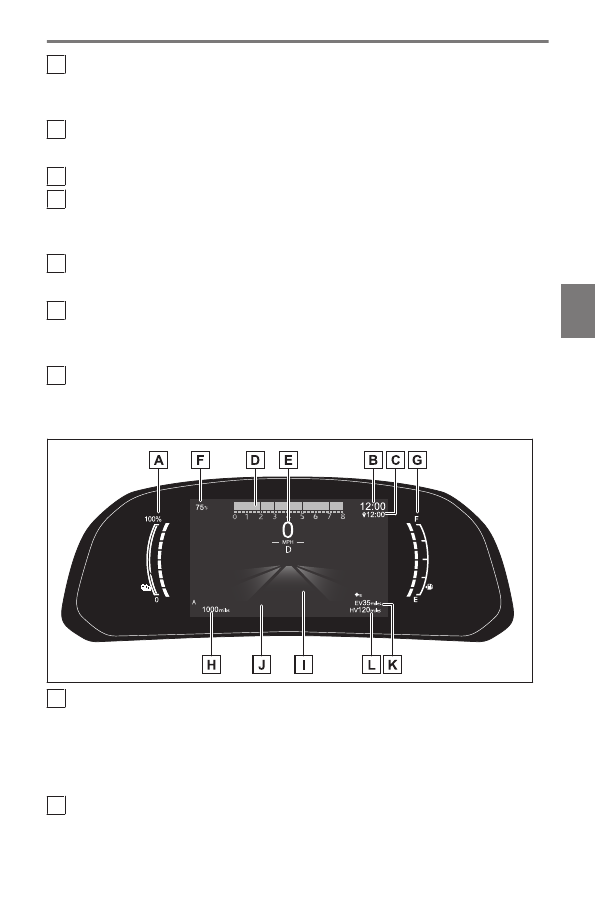

Gauges and meters (except F SPORT models)

▶

Vehicles without a head-up display

A

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the gauge is in the
blue zone, EV driving is no longer possible (in this situation, the vehicle switches to HV
mode). Charge the hybrid battery (traction battery) to allow EV driving.

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Tachometer

Displays the engine speed in revolutions per minute
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Speedometer
Depending on the selected drive mode or certain settings, the display will change.

D

Shift position/shift range

E

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 122°F
(50°C).

F

Fuel gauge

Displays the quantity of fuel remaining in the tank.

G

Odometer and trip meter display

H

Multi-information display

5-1. Functions and displays of the meter

333

5

Vehicle st

at

us information and indicator

s

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

I

Background color of driving mode

Background color changes according to the driving mode.

▶

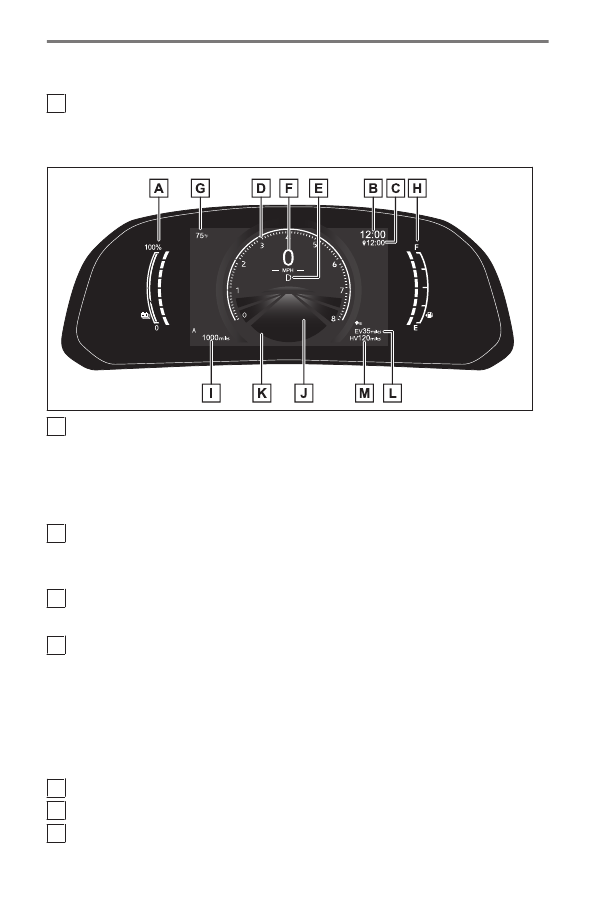

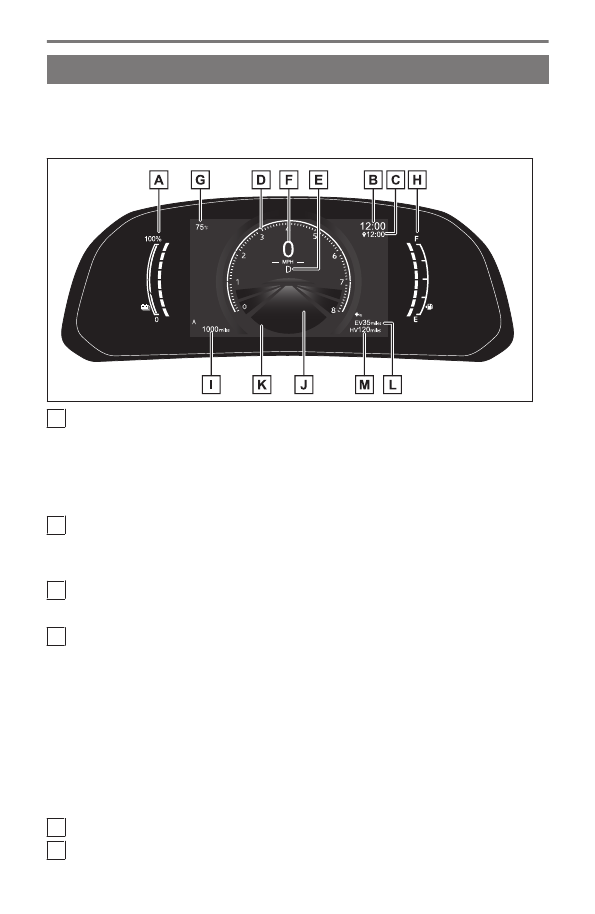

Vehicles with a head-up display

A

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the gauge is in the
blue zone, EV driving is no longer possible (in this situation, the vehicle switches to HV
mode). Charge the hybrid battery (traction battery) to allow EV driving.

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute
Hybrid System Indicator
Displays hybrid system output or regeneration level.
Analog speedometer
Depending on the selected drive mode or certain settings, the display will change.

E

Shift position/shift range

F

Digital speedometer

G

Outside temperature

5-1. Functions and displays of the meter

334

Displays the ambient temperature within the range of -40°F (-40°C) to 122°F
(50°C).

H

Fuel gauge

Displays the quantity of fuel remaining in the tank.

I

Odometer and trip meter display

J

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

K

Background color of driving mode

Background color changes according to the driving mode.

L

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery (traction
battery).

M

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

■

The meters and display illuminate when

The power switch is in ON.

■

Engine speed

On hybrid electric vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehicle
operation and driving conditions are the same.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

•

When stopped, or driving at low speeds (less than 12 mph [20 km/h])

•

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

●

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.

■

EV driving range

*

●

When the air conditioning system is operating,

 is displayed next to the

EV driving range and the EV driving range with the air conditioning system on is
displayed.

5-1. Functions and displays of the meter

335

5

Vehicle st

at

us information and indicator

s

●

The EV driving range may shorten even when not driving due to power consumption
by the system.

■

Distance to empty

*

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the display.
This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

■

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.

https://www.denso.com/global/en/opensource/meter/toyota/

WARNING

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

●

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

●

* :

If equipped

5-1. Functions and displays of the meter

336

 Related Links

Customizable features(P. 763)

Hybrid system indicator

The hybrid system indicator displays the hybrid system output or regeneration
level.
The displayed content of the hybrid system indicator are different in EV mode or
AUTO EV/HV mode and HV mode.
This illustration is for explanation only and may differ depending on the specifica-
tions of the vehicle.



A

Charge area

Shows regeneration status.
Regenerated energy will be used to charge the
hybrid battery (traction battery).
When used in this manual, "regeneration" refers
to the conversion of energy created by the
movement of the vehicle into electrical energy.

B

Eco area

Shows that the vehicle is being driven in an Eco-
friendly manner.
By keeping the indicator needle within Eco area,
more Eco-friendly driving can be achieved.

C

Power area

Shows that an Eco-friendly driving range is be-
ing exceeded (during full power driving etc.)

D

Hybrid Eco area (HV mode)

Shows that gasoline engine power is not being
used very often.
The gasoline engine will automatically stop and
restart under various conditions.

E

EV driving area (EV mode or AUTO
EV/HV mode)

Shows that the vehicle is driven using only the
electric motor (traction motor).

Changing between the tachometer/hybrid system indicator/speedom-
eter displays

5-1. Functions and displays of the meter

337

5

Vehicle st

at

us information and indicator

s

Depending on the current drive mode or settings, the displays will change as
follows. Settings can be changed on the center display.

■

Vehicles without a head-up display

●

Tachometer

The tachometer will be displayed in the following situations when the meter display type
setting is set to display type 1 or display type 3.

•

When the tachometer setting is set to always display the tachometer

•

When the tachometer setting is set to change according to the driving mode and
sport mode is selected

●

Hybrid System Indicator

The hybrid system indicator will be displayed in the following situations when the meter
display type setting is set to display type 1 or display type 3.

•

When the tachometer setting is set to always display the hybrid system indicator

•

When the tachometer setting is set to change according to the driving mode and a
driving mode other than sport mode is selected

●

Speedometer

Always displayed.
The display will change between a digital speedometer and/or analog speedometer
depending on the meter display type setting.

■

Vehicles with a head-up display

●

Tachometer

Displayed when the meter display type setting is set to display type 1.
F SPORT models: Also displayed in the following situations when the setting is set to
display type 3.

•

When the tachometer setting is set to always display the tachometer

•

When the tachometer setting is set to change according to the driving mode and
sport mode is selected

●

Hybrid System Indicator

Displayed when the meter display type setting is set to display type 1.
F SPORT models: Also displayed in the following situations when the setting is set to
display type 3.

•

When the tachometer setting is set to always display the hybrid system indicator

•

When the tachometer setting is set to change according to the driving mode and a
driving mode other than sport mode is selected

●

Speedometer

5-1. Functions and displays of the meter

338

A digital speedometer is always displayed.
When the meter display type setting is set to display type 2, an analog speedometer will
also be displayed.

 Related Links

Customizable features(P. 763)

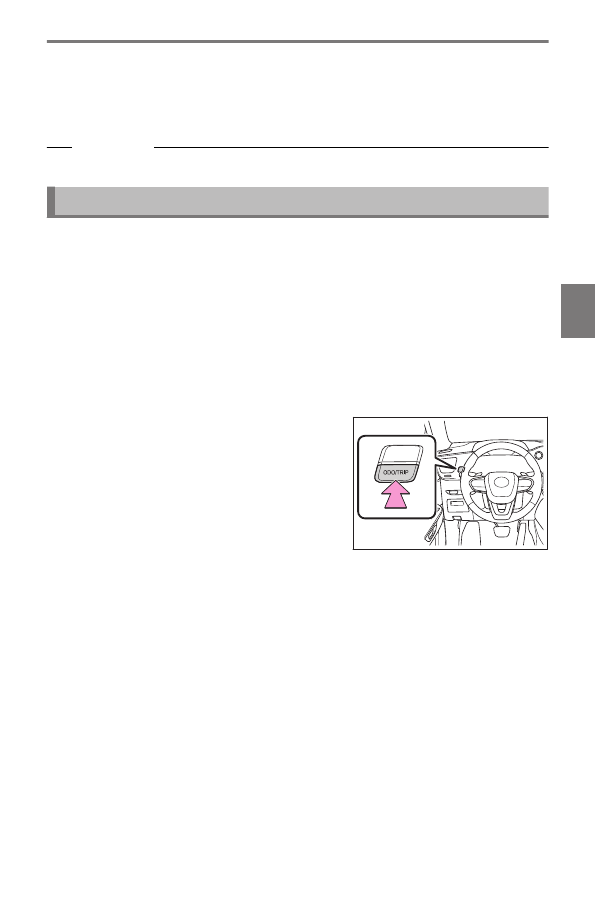

Changing the distance driven display/resetting the distance driven

The display can be changed between the following items.

●

Odometer

Displays the total distance the vehicle has been driven.

●

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record and display different distances independently.

●

Distance until next engine oil change

Displays the distance the vehicle can be driven until an oil change is necessary.

Each time the switch is pressed, the displayed
item will be changed.
When the trip meter is displayed, pressing and
holding the switch will reset the trip meter.

5-1. Functions and displays of the meter

339

5

Vehicle st

at

us information and indicator

s

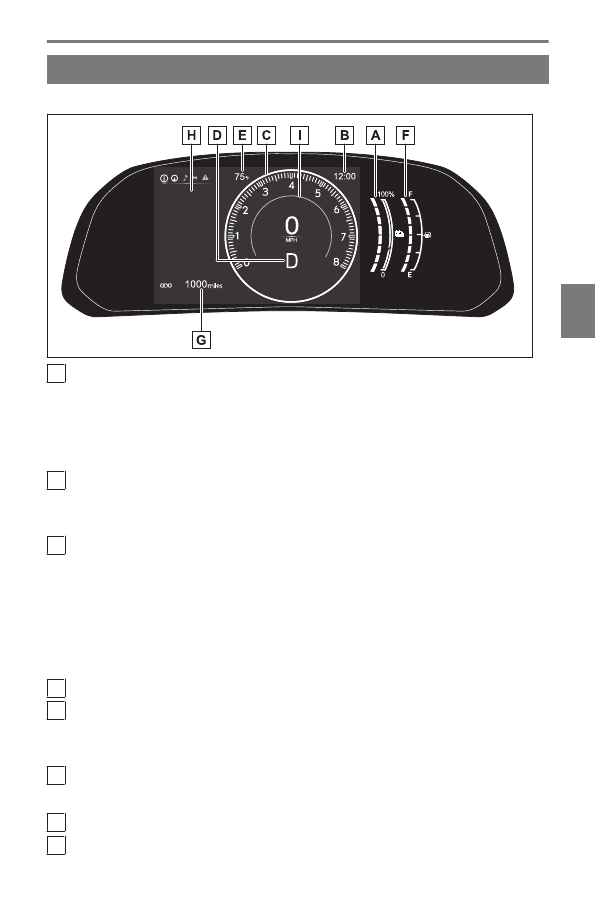

Gauges and meters (F SPORT models)

Depending on the shift position or current drive mode, the meter displays or
position of some gauges will change.

▶

Ring display state

A

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the gauge is in the
blue zone, EV driving is no longer possible (in this situation, the vehicle switches to HV
mode). Charge the hybrid battery (traction battery) to allow EV driving.

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

C

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute

●

Rev indicator

●

Rev peak

Hybrid System Indicator
Displays hybrid system output or regeneration level.
Analog speedometer
Depending on the selected drive mode or certain settings, the display will change.

E

Shift position/shift range

F

Digital speedometer

5-1. Functions and displays of the meter

340

G

Outside temperature

Displays the ambient temperature within the range of -40°F (-40°C) to 122°F
(50°C).

H

Fuel gauge

Displays the quantity of fuel remaining in the tank.

I

Odometer and trip meter display

J

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs.

K

Background color of driving mode

Background color changes according to the driving mode.

L

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery (traction
battery).

M

Distance to empty

Displays the driving range with remaining fuel.

▶

Bar display state

A

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.
When the gauge is in the green zone, EV driving is possible. When the gauge is in the
blue zone, EV driving is no longer possible (in this situation, the vehicle switches to HV
mode). Charge the hybrid battery (traction battery) to allow EV driving.

B

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "MULTIMEDIA OWNER'S MANUAL".

5-1. Functions and displays of the meter

341

5

Vehicle st

at

us information and indicator

s

C

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

D

Tachometer

Displays the engine speed in revolutions per minute

●

Rev indicator

●

Rev peak

Hybrid System Indicator
Displays hybrid system output or regeneration level.
Depending on the selected drive mode or certain settings, the display will change.

E

Shift position/shift range/digital speedometer

F

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C).

G

Fuel gauge

Displays the quantity of fuel remaining in the tank.

H

Odometer and trip meter display

I

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

J

Background color of driving mode

Background color changes according to the driving mode.

K

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery (traction
battery).

L

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

■

The meters and display illuminate when

The power switch is in ON.

■

Engine speed

On hybrid electric vehicles, engine speed is precisely controlled in order to help improve
fuel efficiency and reduce exhaust emissions etc.
There are times when the engine speed that is displayed may differ even when vehicle
operation and driving conditions are the same.

5-1. Functions and displays of the meter

342

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

•

When stopped, or driving at low speeds (less than 12 mph [20 km/h])

•

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

●

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to your Lexus dealer.

■

EV driving range

●

When the air conditioning system is operating,

 is displayed next to the

EV driving range and the EV driving range with the air conditioning system on is
displayed.

●

The EV driving range may shorten even when not driving due to power consumption
by the system.

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the display.
This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

■

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.

https://www.denso.com/global/en/opensource/meter/toyota/

WARNING

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

5-1. Functions and displays of the meter

343

5

Vehicle st

at

us information and indicator

s

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

●

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

●

 Related Links

Hybrid system indicator(P. 337)
Changing between the tachometer/hybrid system indicator/speedometer displays(P.
337)
Changing the distance driven display/resetting the distance driven(P. 339)
Customizable features(P. 763)

Rev indicator/Rev peak display

■

Rev indicator

When the engine speed reaches a set speed or the red zone, the tachometer will
be highlighted.

The indicators will be displayed in amber when the engine speed reaches a set speed, and
in red when the engine speed reaches the red zone.

The engine speed at which the Rev indicator is displayed can be changed on the
center display.

■

Rev peak

When the engine speed reaches or exceeds 4000 rpm, an afterimage of the
tachometer will be displayed at the highest engine speed for approximately 1
second.

 Related Links

Customizable features(P. 763)

5-1. Functions and displays of the meter

344

Functions of the displays

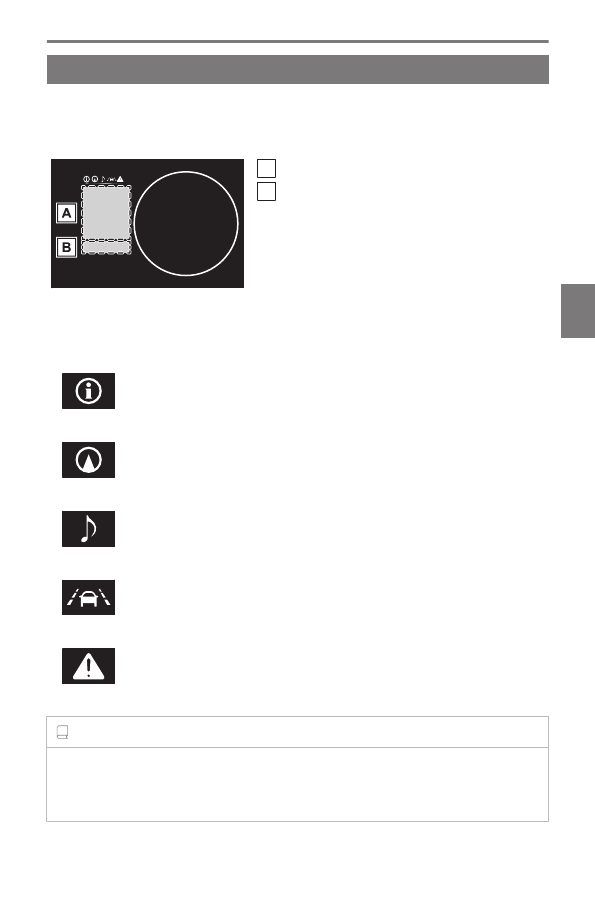

Multi-information display (vehicles without a head-up display)

A variety of driving-related information can be displayed. Depending on the
situation, warning or advice pop-up displays will also be displayed.

■

Display area



A

Content display area

B

Driving support system information display
area

■

Items displayed in the content display area

By selecting menu icons on the multi-information display, the following items can
be displayed.

●

Driving information display

●

Navigation system-linked display

●

Audio system-linked display

●

Driving support system information display

●

Warning message

INFORMATION

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of
liquid crystal displays, and there is no problem continuing to use the display.

5-2. Functions of the displays

345

5

Vehicle st

at

us information and indicator

s

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

■

Cautions during setting up the display

As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.

NOTICE

To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

 Related Links

Displayed content(P. 351)
Changing the instrument panel light brightness(P. 363)

5-2. Functions of the displays

346

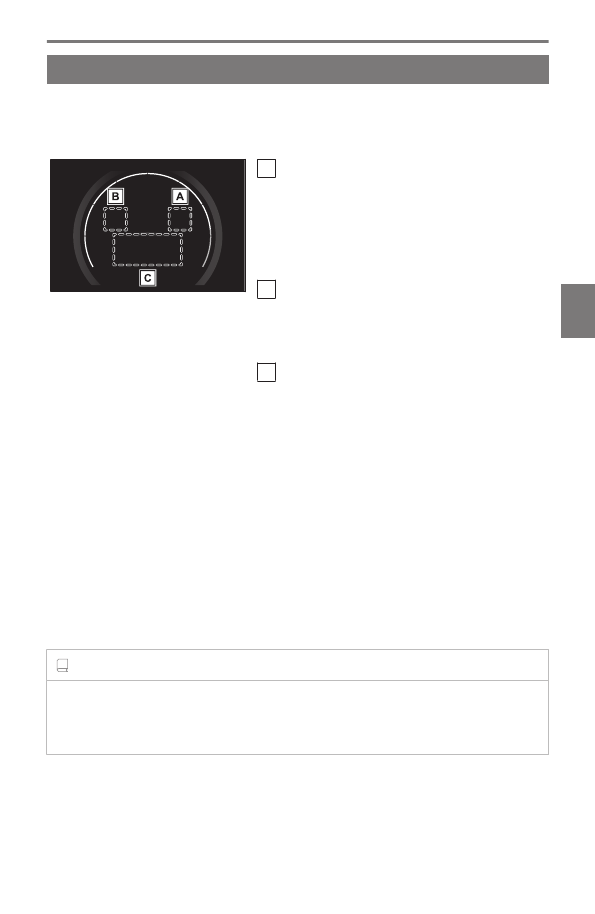

Multi-information display (vehicles with a head-up display)

A variety of driving-related information can be displayed. Depending on the
situation, warning or advice pop-up displays will also be displayed.

■

Display area



A

Driving support system information display
area

When driving support system information is not
displayed in the content display area, if the driv-
ing support system operates, the system operat-
ing state will be displayed.

B

Navigation system-linked display area

If the navigation system linked-display is not dis-
played in the content display area, route guid-
ance will be displayed.

C

Content display area

■

Items displayed in the content display area

The following items can be displayed.

●

Drive information 1

●

Drive information 2

●

Energy monitor/EV driving ratio

●

Audio system-linked display

●

Navigation system-linked display

*1

●

G-force

●

Driving support system information display

*1

●

Blank (No items)

INFORMATION

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of
liquid crystal displays, and there is no problem continuing to use the display.

*1 :

Displayed on the head-up display when the display mode is set to display the maxi-

mum.

5-2. Functions of the displays

347

5

Vehicle st

at

us information and indicator

s
