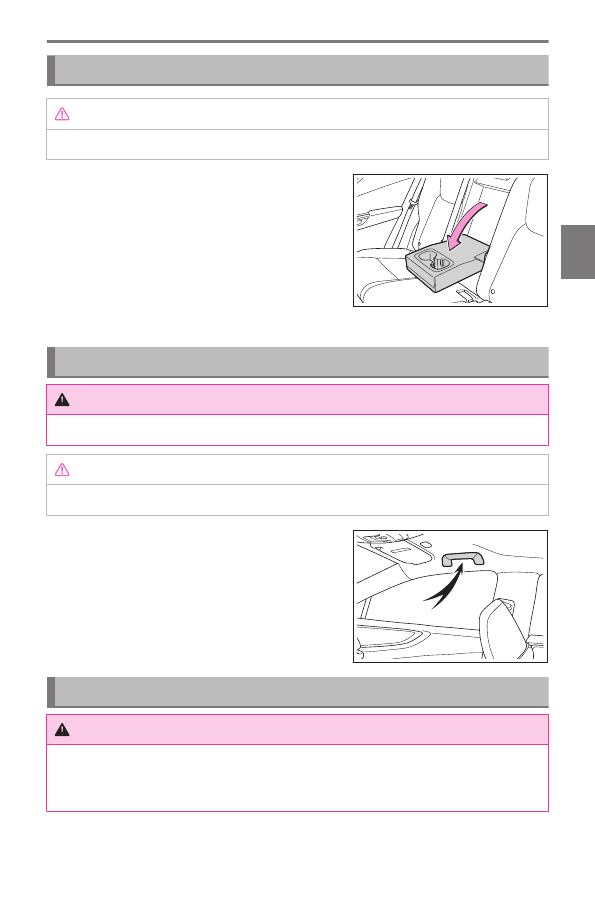

Using the armrest

NOTICE

Do not apply excessive load to the armrest. Doing so may damage the armrest.

●

Fold down the armrest for use.

Assist grip functions and operation

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

Do not hang any heavy object or put a heavy load on the assist grip.

An assist grip installed on the ceiling can be used
to support your body while sitting on the seat.

Locations of coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain
shield airbags deploy, these items may become projectiles, causing death or serious
injury.

4-5. Using the interior features

315

Interior feat

The coat hooks are provided with the rear assist
grips.

Using the vanity mirrors

●

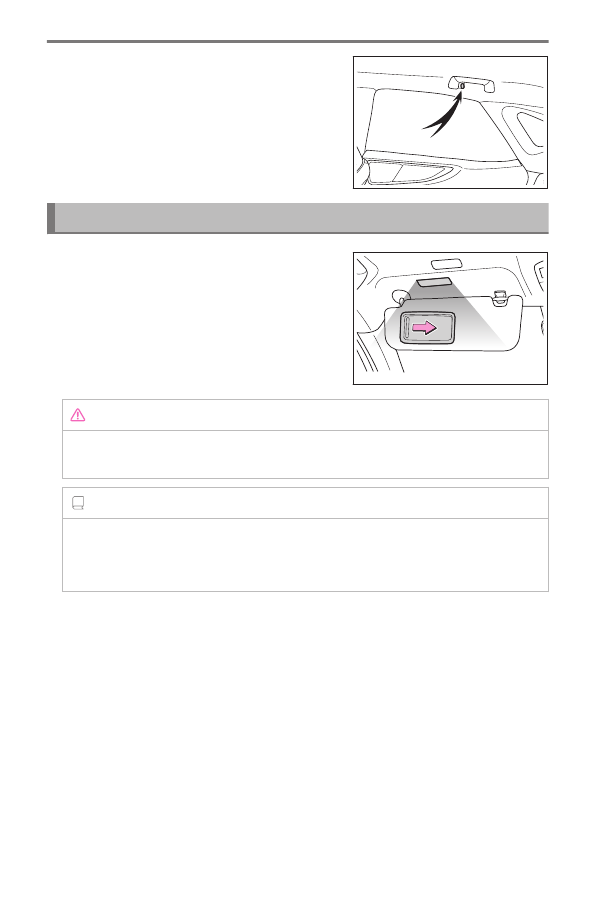

Slide the cover to open.

The vanity light turns on when the cover is opened.

NOTICE

Do not leave the vanity lights on longer than necessary with the hyprid system
stopped. Doing so may lead to the 12-volt battery becoming discharged.

INFORMATION

■

Automatic light off function

When the power switch is off, if the vanity lights are turned on, they will be turned off
automatically after 20 minutes.

4-5. Using the interior features

316

Using the luggage compartment

Using the cargo hooks

The cargo hooks are provided for securing loose items.

●

Raise the hook to use.

WARNING

To avoid injury, when the cargo hooks are not in use, make sure to return them to their
stowed position.

4-6. Using the luggage compartment

317

Interior feat

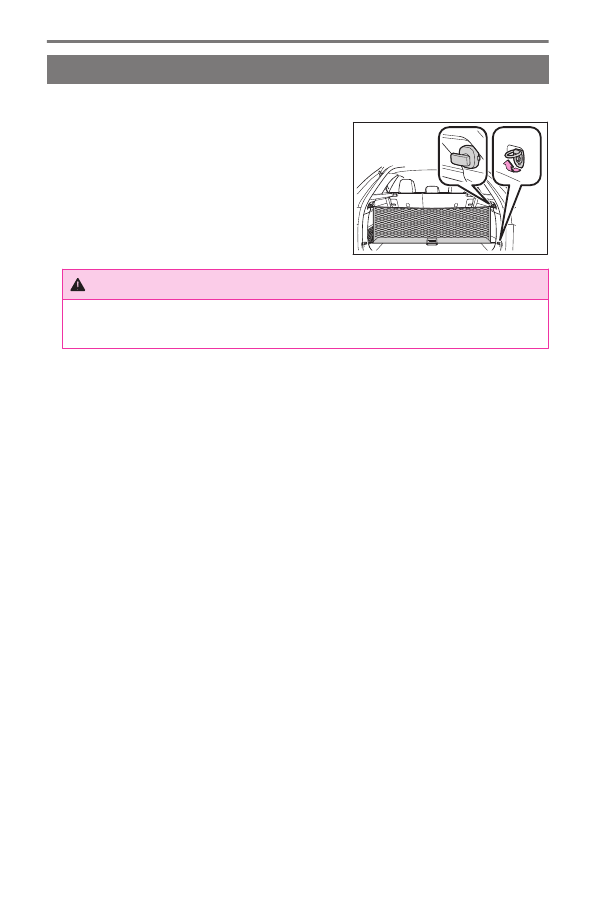

Using the cargo net hooks

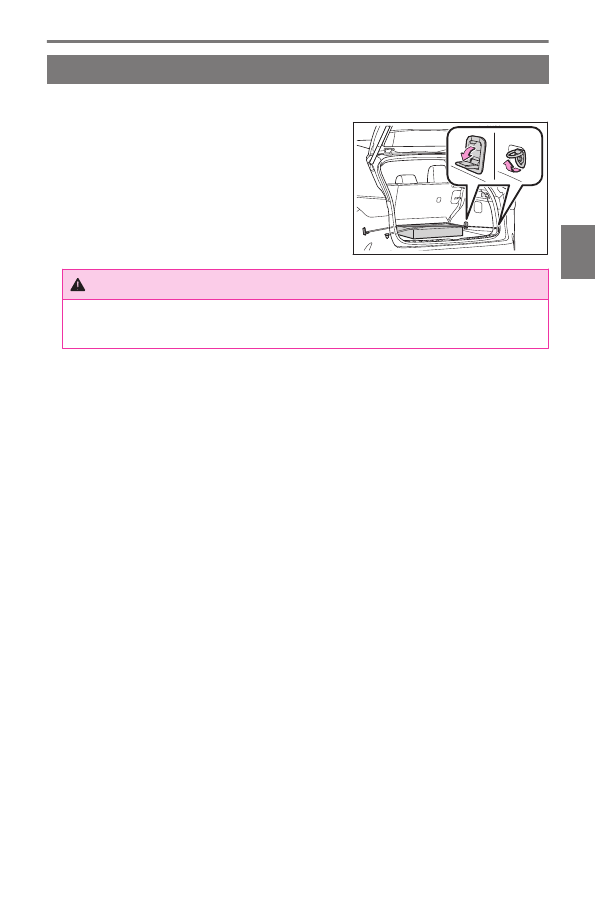

The cargo net can be hung using the cargo net hooks.

●

Raise the hook to use.

WARNING

To avoid injury, when the cargo net hooks are not in use, make sure to return them to
their stowed position.

4-6. Using the luggage compartment

318

Using the grocery bag hooks

●

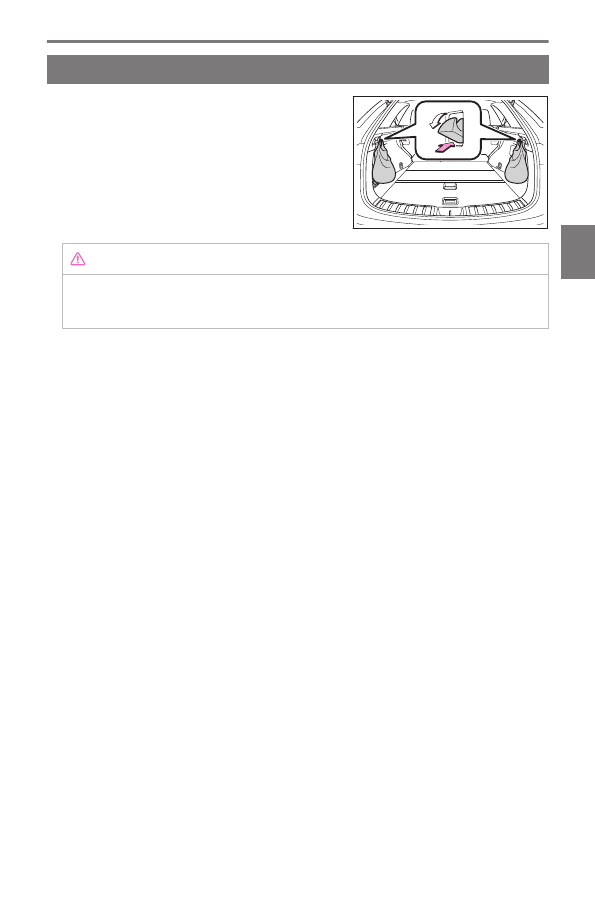

Push the grocery back hook to use.

NOTICE

Do not hang objects heavier than 8.8 lb. (4 kg) on the grocery bag hooks.
Doing so may damage the grocery bag hook.

4-6. Using the luggage compartment

319

Interior feat

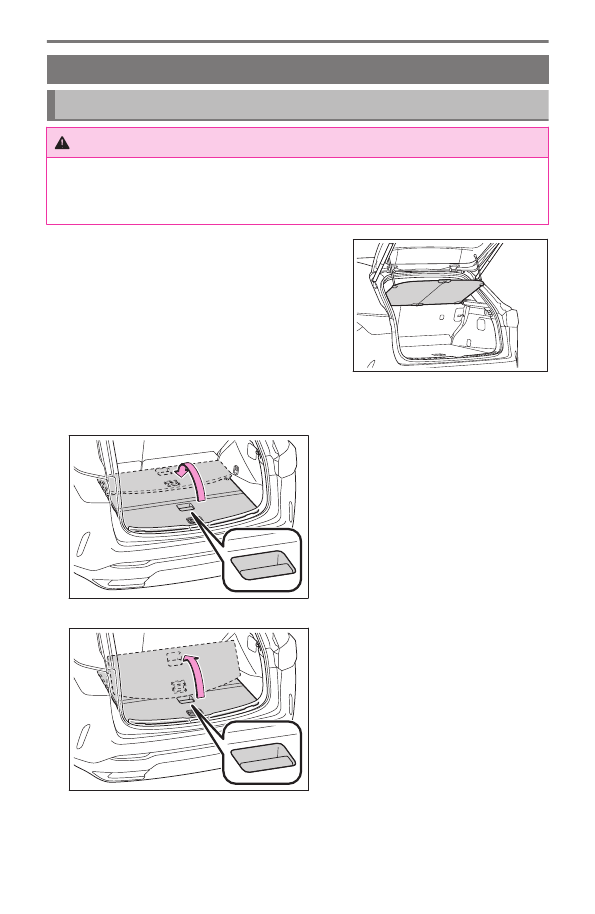

Deck board

Opening the deck board

WARNING

If a deck board has been opened or removed, return it to its original position before
driving. Otherwise, in the event of sudden braking or an accident, a deck board or stored
items may fly out and strike an occupant.

Open the back door.

Open the deck board.

▶

Pattern A

▶

Pattern B

4-6. Using the luggage compartment

320

▶

Pattern C

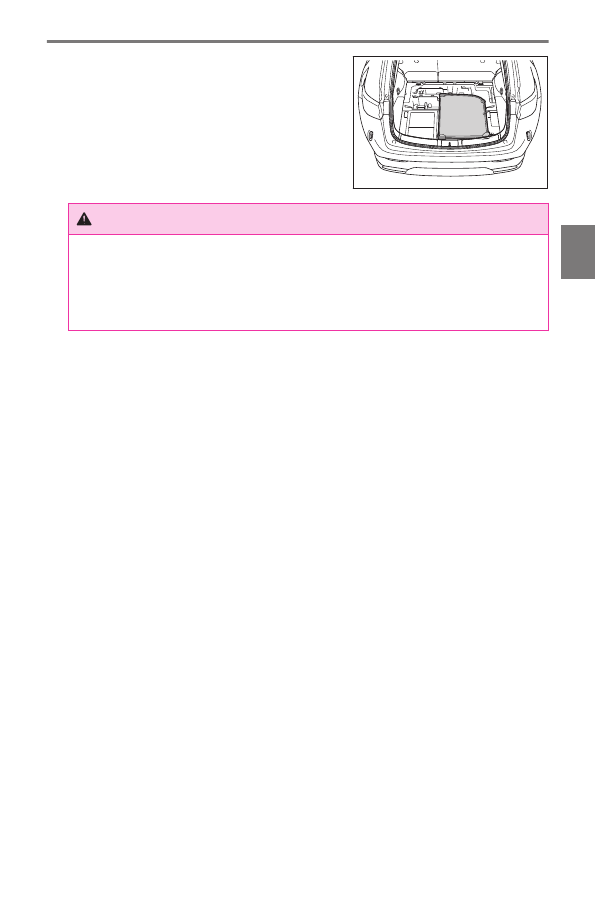

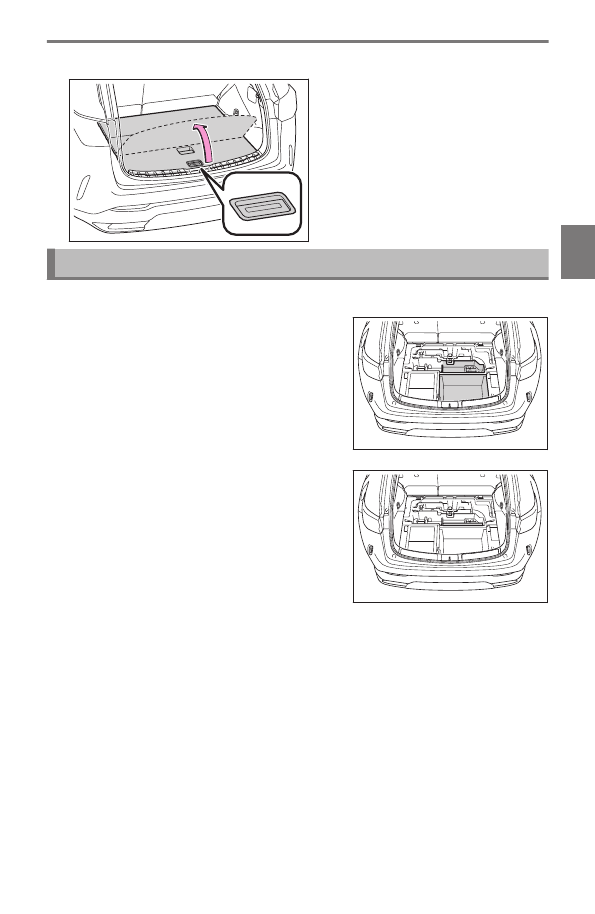

Storing items in the deck under tray

The following items can be stowed.

●

Accessories

●

Warning reflector

*1 :

A warning reflector itself is not included as an original equipment.

4-6. Using the luggage compartment

321

Interior feat

Stowing the luggage cover

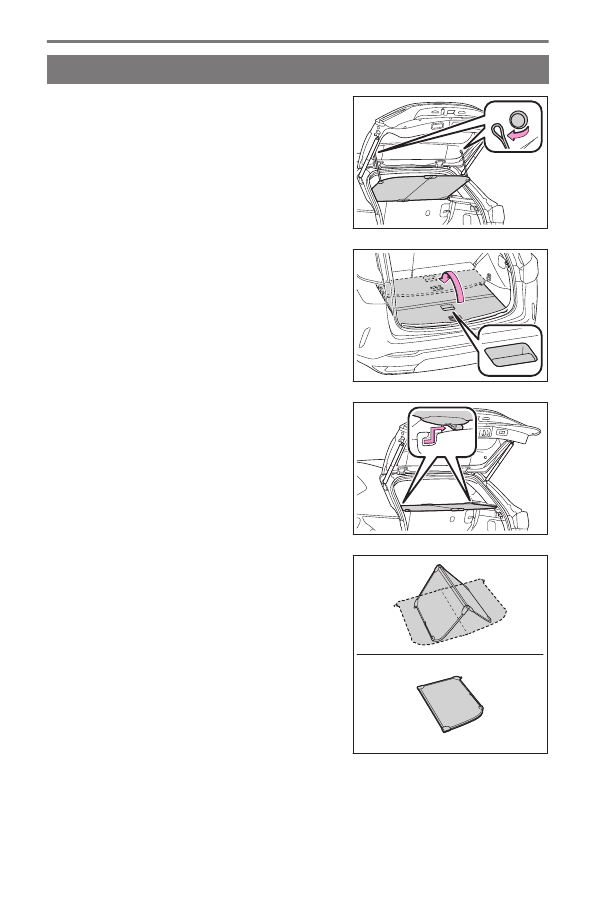

Unhook each cord.

Pull the lever upwards and fold the deck
board.

Remove the luggage cover.

If a rear seat seatback is reclined, remove the
luggage cover after moving the seatback to the
upright position.

Fold the luggage cover.

4-6. Using the luggage compartment

322

Lift the deck board and stow the luggage
cover in the deck under tray.

WARNING

●

Do not stow items on the luggage cover. In the event of sudden braking or
swerving, the items may fly about and strike an occupant.

●

Do not allow children to climb on the luggage cover. Doing so may damage the
luggage cover.

4-6. Using the luggage compartment

323

Interior feat

Vehicle status information and indicators

5-1. Functions and displays of the

meter

Warning lights and indica-

tors..............................................

326

Gauges and meters (except

F SPORT models)................

333

Gauges and meters (F

SPORT models)...................

340

5-2. Functions of the displays

Multi-information display

(vehicles without a head-
up display) ...............................

345

Multi-information display

(vehicles with a head-up
display)......................................

347

Head-up display.......................

349

Displayed content ....................

351

5-3. Changing the settings of the

displays

Changing the instrument

panel light brightness..........

363

Changing settings for the

head-up display....................

364

325

Vehicle st

us information and indicator

Functions and displays of the meter

Warning lights and indicators

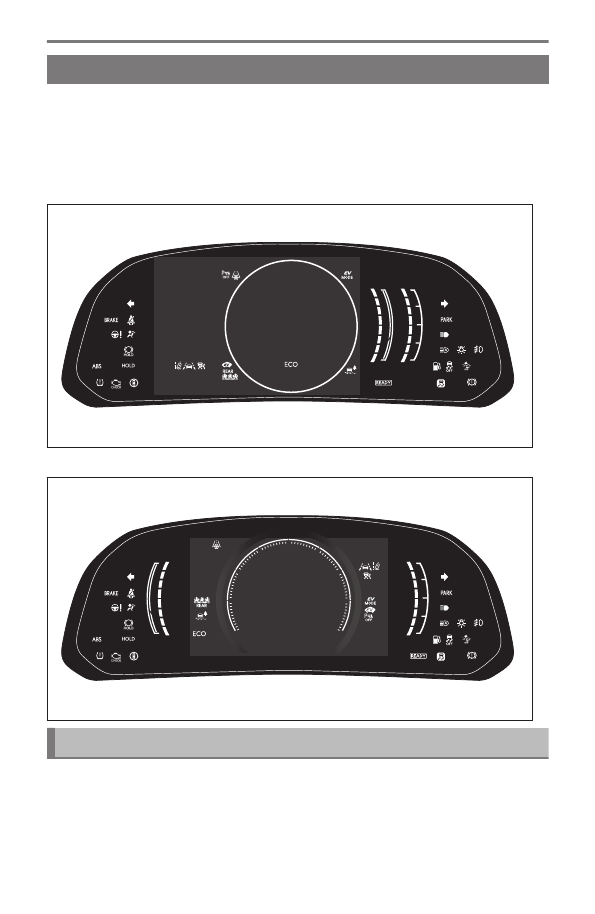

The warning lights and indicators on the instrument cluster and outside rear view
mirrors inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

▶

Vehicles without a head-up display

▶

Vehicles with a head-up display

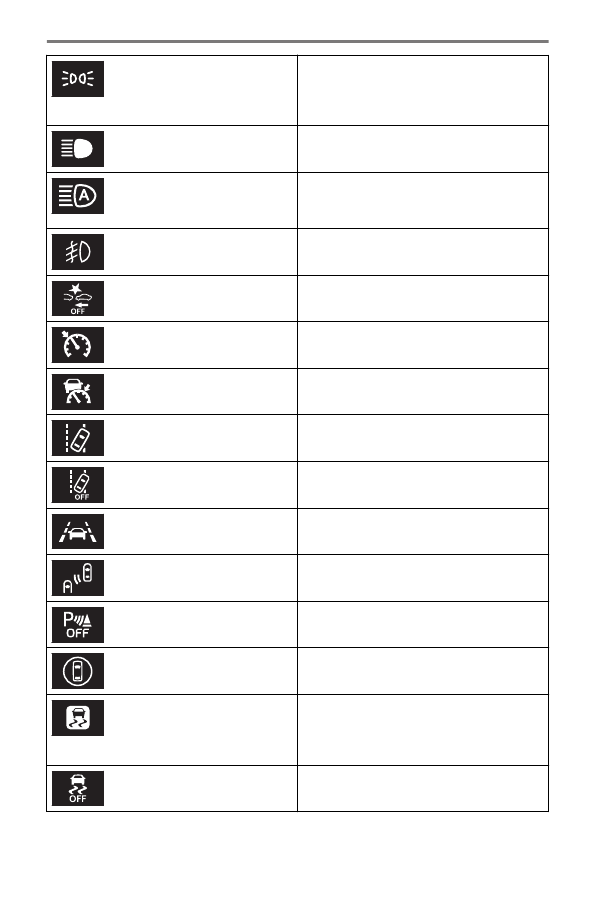

List of warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.

5-1. Functions and displays of the meter

326

(U.S.A.)

(Canada)
(red)

Brake system warning light

(1)

(yellow)

Brake system warning light

(1)

High coolant temperature warning light

(2)

Hybrid system overheat warning light

(2)

Charging system warning light

(2)

Low engine oil pressure warning light

(2)

(U.S.A.)

(Canada)

Malfunction indicator lamp

(1)

SRS warning light

(1)

(U.S.A.)

(Canada)

ABS warning light

(1)

Inappropriate pedal operation warning
light

(2)

5-1. Functions and displays of the meter

327

Vehicle st

us information and indicator

(red)

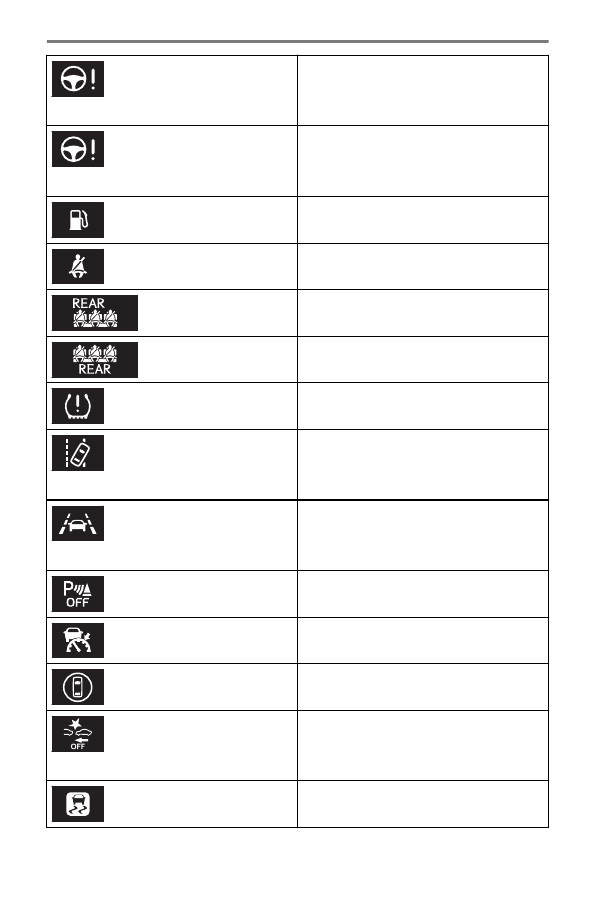

Electric power steering system warning
light

(1)

(yellow)

Electric power steering system warning
light

(1)

Low fuel level warning light

Driver’s and front passenger’s seat belt re-
minder light

Rear passengers’ seat belt reminder lights
(vehicles without a head-up display)

Rear passengers’ seat belt reminder lights
(vehicles with a head-up display)

Tire pressure warning light

(1)

(orange)

LDA indicator

(orange)

LTA indicator

Intuitive parking assist OFF indicator

*(1)

Dynamic radar cruise control indicator

Driving assist infomation indicator

(1)

(flashes or illuminates)

PCS warning light

(1)

Slip indicator

(1)

* :

If equipped

5-1. Functions and displays of the meter

328

(U.S.A.)
(flashes)

(Canada)
(flashes)

Parking brake indicator

(flashes)

Brake hold operated indicator

(1)

These lights come on when the power switch is turned to ON to indicate that a system

check is being performed. They will turn off after the hybrid system is on, or after a few

seconds. There may be a malfunction in a system if the lights do not come on, or turn

off. Have the vehicle inspected by your Lexus dealer.

(2)

This light illuminates on the multi-information display.

WARNING

Should a safety system light such as the ABS and SRS warning light not come on when
you start the hybrid system, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by your Lexus dealer immediately if this occurs.
