Lexus NX450H+ (2022 year). Manual in english

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

■

Cautions during setting up the display

As the hybrid system needs to be operating during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area such as a
garage, exhaust gases including harmful carbon monoxide (CO) may collect and enter
the vehicle. This may lead to death or a serious health hazard.

NOTICE

To prevent 12-volt battery discharge, ensure that the hybrid system is operating while
setting up the display features.

5-2. Functions of the displays

348

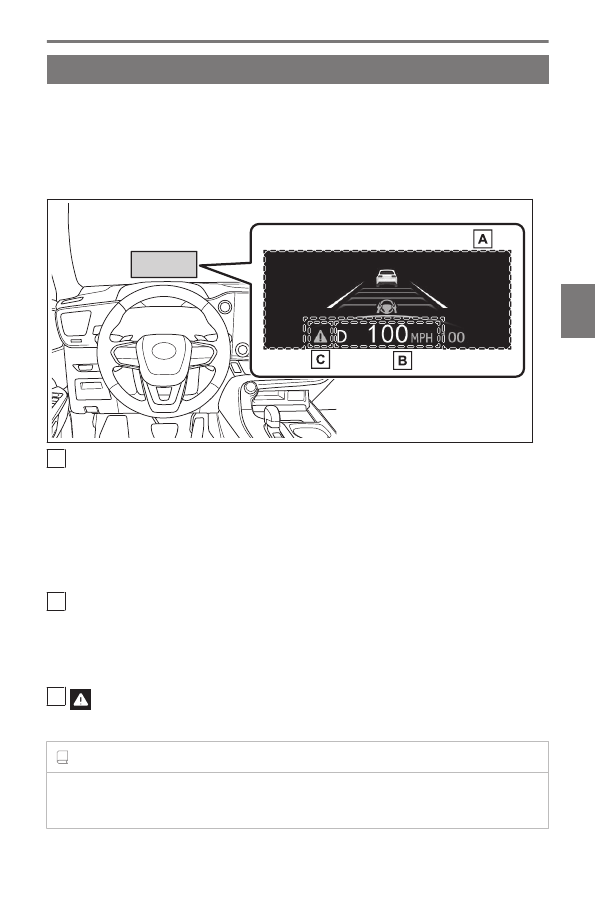

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.
The content displayed will differ according to the driving conditions and display
mode of the head-up display. Depending on the situation, pop-up displays will also
be displayed.

Main display area

Displays the following items:

●

Driving support system information display

●

Hybrid System Indicator/tachometer

●

Compass

●

Speed limit of the current road (linked to the navigation system) (U.S.A. only)

Driving information display area

Displays the following items:

●

Speedometer

●

Shift position/shift range

: Master warning icon

Displayed when a warning message is displayed.

INFORMATION

■

Head-up display will operate when

The power switch is in ON.

* :

If equipped

5-2. Functions of the displays

349

Vehicle st

us information and indicator

■

When using the head-up display

The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses. Adjust the brightness of the head-up display or remove
your sunglasses.

WARNING

Do not continuously look at the head-up display while driving as you may fail to see
pedestrians, objects on the road, etc. ahead of the vehicle.

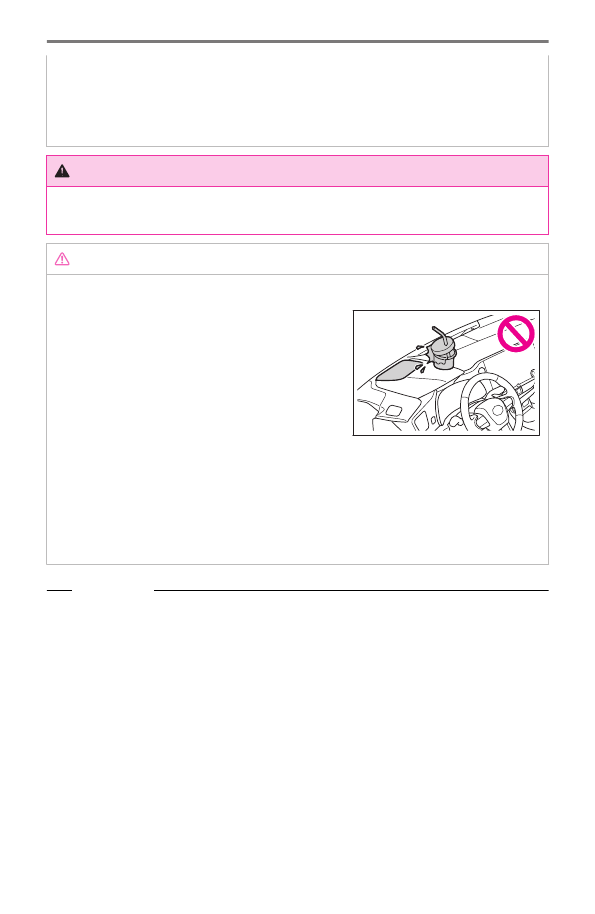

NOTICE

Observe the following precautions.

●

Do not place any drinks near the head-up display
projector. If the projector gets wet, electrical mal-
functions may result.

●

Do not place anything on or put stickers onto the head-up display projector.
Doing so could interrupt head-up display indications.

●

Do not touch the inside of the head-up display projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunctions.

5-2. Functions of the displays

350

Displayed content

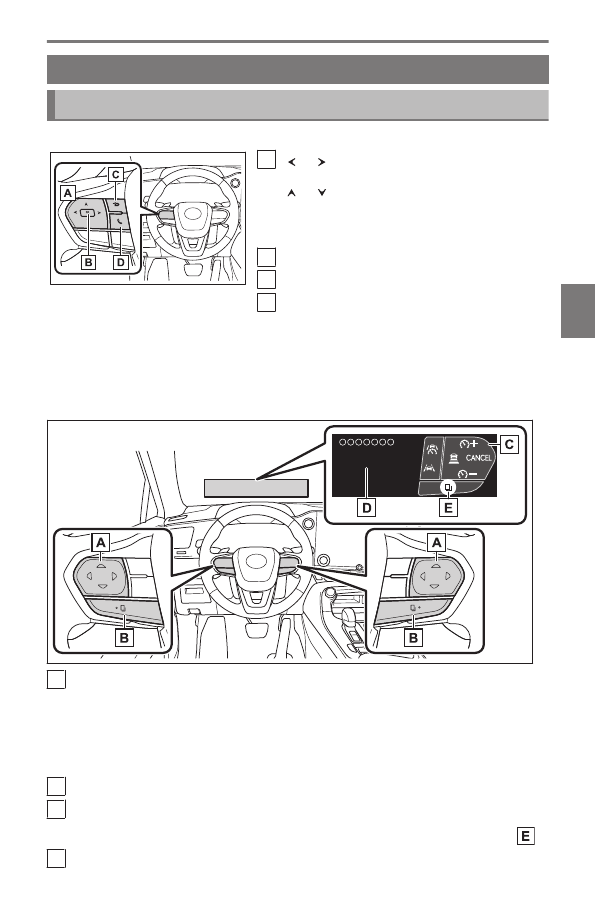

Operating the meters/displays

▶

Vehicles without a head-up display

: Select menu icons

: Change displayed content, scroll

up/down the screen and move the cursor
up/down

Enter/Set

Return to the previous screen

Start/receive call

Linked with the hands-free system, sending or
receiving call is displayed. For details regarding
the hands-free system, refer to the "MULTIME-
DIA OWNER'S MANUAL".

▶

Vehicles with a head-up display

The function of each switch differs depending on the conditions and settings.

When a switch is touched, the function of each switch is displayed on the head-up dis-
play. If the head-up display is off, the functions will be displayed on the multi-information
display.
Also, preferred functions for each switch can be set on the center display.

Each time this switch is pressed, the functions will change.

Switch icon display

The icon of each switch will be displayed. The touched switch will be highlighted. (

)

Switch function guide display

5-2. Functions of the displays

351

Vehicle st

us information and indicator

The function guide for the touched switch will be displayed.

INFORMATION

■

If the steering wheel switches do not respond when touched

●

It is easier to make the steering wheel switches respond by moving your thumb while
touching them.

●

If the surface of a steering wheel switch is dirty, turn the power switch off and then
clean the switches.

●

By turning winter glove mode on, the sensitivity of the switch sensors can be increased.

Related Links

Customizable features(P. 763)

Switching the display of the multi-information display (vehicles without a
head-up display)

●

Press

of the meter control switch.

Switching driving information (vehicles without a head-up display)

●

Press the

meter control switch to select

. Then press

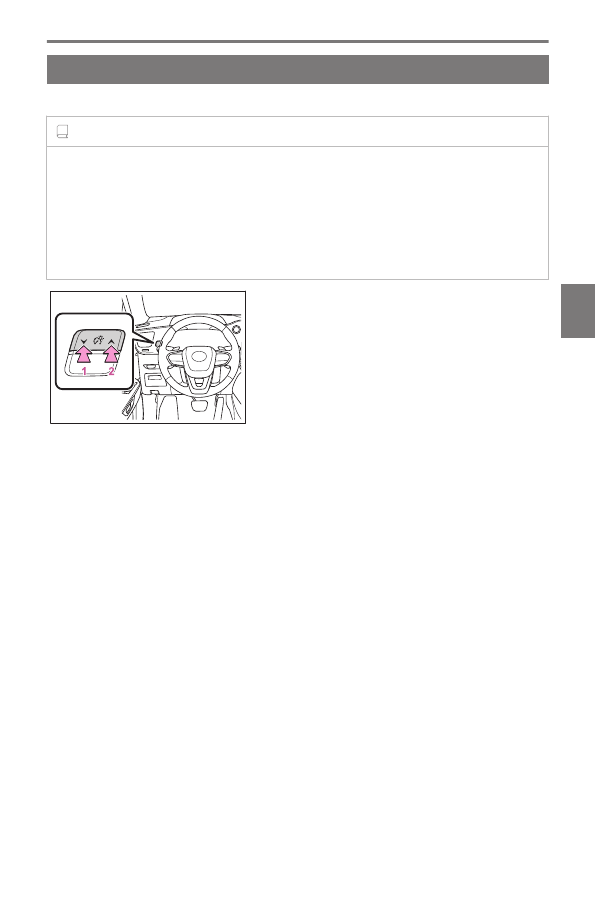

Switching the display of the multi-information display (vehicles with a head-
up display)

INFORMATION

■

Switching with the steering wheel switches

is set as a favorite steering wheel switch function, the display can be

switched by pushing

Select

on the center display.

Select [Vehicle customize].

Select [Meter].

Select

of "Display switching".

The display changes each time the switch is selected.

Display of drive information

Driving related information is displayed on the following displays.

5-2. Functions of the displays

352

●

Multi-information display

●

Head-up display

●

Center display

The items displayed will differ depending on the display.

Drive information 1

The following items can be displayed on the multi-information display.
Use the displayed values as a reference only.
The display contents are different in EV mode or AUTO EV/HV mode, and HV
mode.

■

EV mode or AUTO EV/HV mode

●

Current electricity consumption

Displays the instantaneous current electricity consumption.

●

Average electricity consumption

■

HV mode

●

Current fuel consumption

Displays instantaneous current fuel consumption

●

Average fuel consumption

INFORMATION

■

Electricity consumption

●

When the unit is set to "MPH":
Electricity consumption is the consumption rate of the electricity when EV driving is
performed and equivalent to the fuel consumption for the gasoline vehicles. For this
vehicle, driven distance per kWh of electricity consumed ("miles/kWh") is displayed
as electricity consumption on each screen.

●

When the unit is set to "km/h":
Electricity consumption is the consumption rate of the electricity when EV driving is
performed and equivalent to the fuel consumption for the gasoline vehicles. For this
vehicle, electricity consumed per 100 km ("kWh/100 km") is displayed as electricity
consumption on each screen.

Drive information 2

The following items can be displayed on the multi-information display.

* :

If equipped

5-2. Functions of the displays

353

Vehicle st

us information and indicator

●

Average vehicle speed

●

Total driving time

Drive information 3 (vehicles without a head-up display)

The following items can be displayed on the multi-information display.

■

EV mode or AUTO EV/HV mode

●

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery (traction
battery).

●

Distance to empty

Displays the driving range with remaining fuel.

●

Average electricity consumption since starting

Displays the average electricity consumption since starting.

■

HV mode

●

EV driving range

Displays the EV driving range with charge remaining in the hybrid battery (traction
battery).

●

Distance to empty

Displays the driving range with remaining fuel.

●

Average fuel consumption since starting

Displays the average fuel consumption since starting.

INFORMATION

■

EV driving range

●

When the air conditioning system is operating,

is displayed next to the

EV driving range and the EV driving range with the air conditioning system on is
displayed.

●

The EV driving range may shorten even when not driving due to power consumption
by the system.

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the power switch off. If the vehicle is refueled without turning the
power switch off, the display may not be updated.

5-2. Functions of the displays

354

■

Electricity consumption

●

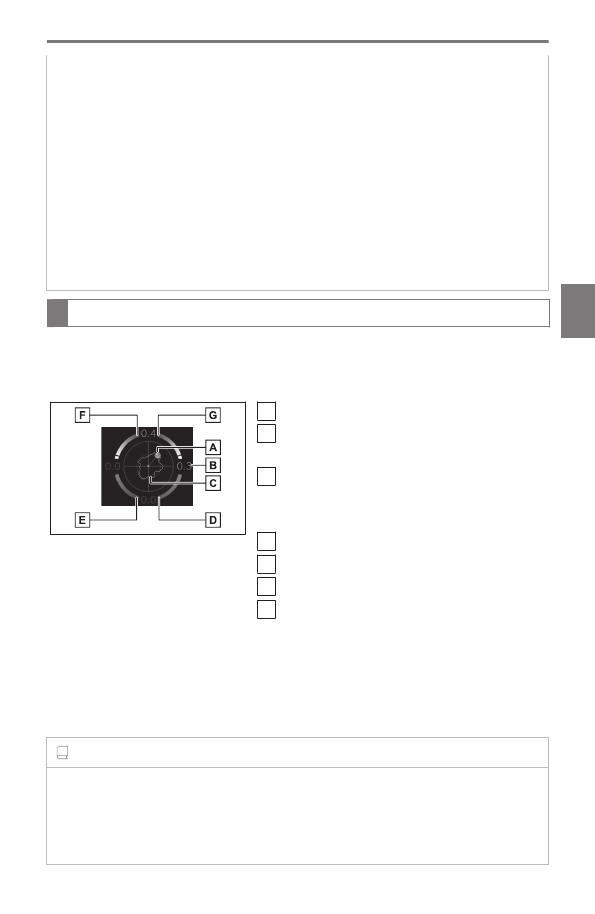

G-force

Displays lateral G-forces on the vehicle on the multi-information display.
Displays around the periphery of the G-force display, the left and right steering
amount, accelerator pedal input, and brake fluid pressure.

Acceleration G-force on the vehicle

Current G-force value (analyzed value of
front/rear and left/right G-forces)

Record of the maximum G-forces

The display is reset each time the hybrid system
is started.

Accelerator pedal input

Brake fluid pressure

Left steering amount

Right steering amount

If lateral G-forces of 0.5 G or greater are generated, the G-force value display will
turn amber and be held for 2 seconds. (Peak hold function)
This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.

INFORMATION

●

The G-force values may not be zero even when the vehicle is parked, such as when it
is parked on an incline.

●

Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.

5-2. Functions of the displays

355

Vehicle st

us information and indicator

●

If a 12-volt battery terminal is disconnected and reconnected, the steering amount
display may be disabled temporarily. After driving the vehicle for a while, the display
will be enabled.

Energy monitor/EV driving ratio

The energy monitor and EV can be displayed on the multi-information display.
The energy monitor screen can be displayed on the center display.

■

EV driving ratio since starting

Displays the percentage of EV driving since starting.
It is reset each time the hybrid system stops.

■

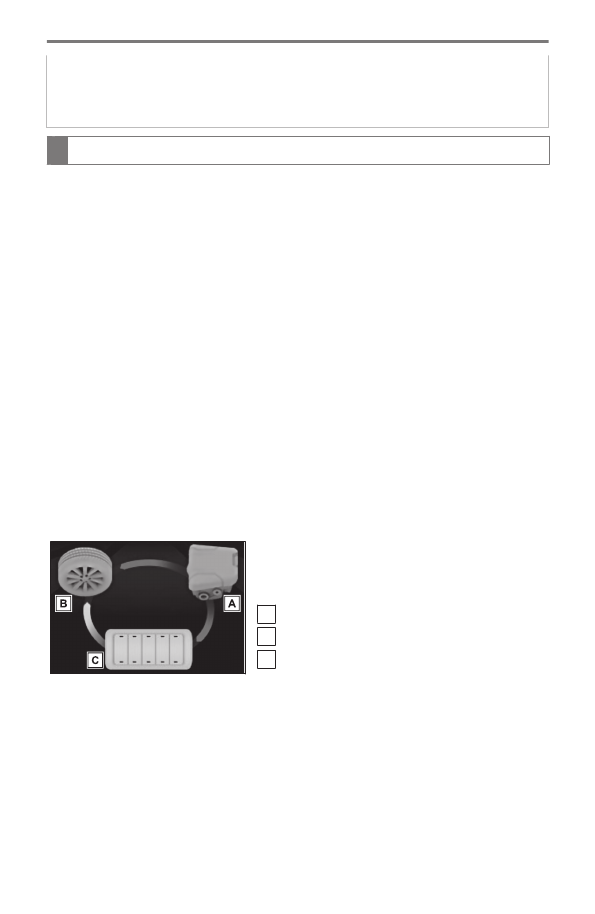

Energy monitor

The energy monitor can be used to check the vehicle drive status, hybrid system
operation status and energy regeneration status.
The arrows will appear in accordance with the energy flow. When there is no
energy flow, arrows will not be displayed.
The color of the arrows will change as follows

●

Blue: When the hybrid battery (traction battery) is regenerated or charged.

●

Orange: When the hybrid battery (traction battery) is in use.

●

Red: When the gasoline engine is in use.

▶

Multi-information display

The image shows all the arrows as an example.
The actual display will vary depending on condi-
tions.

Gasoline engine

Tires

Hybrid battery (traction battery)

This illustration is for explanation only and may differ
depending on the specifications of the vehicle.

* :

If equipped

5-2. Functions of the displays

356

▶

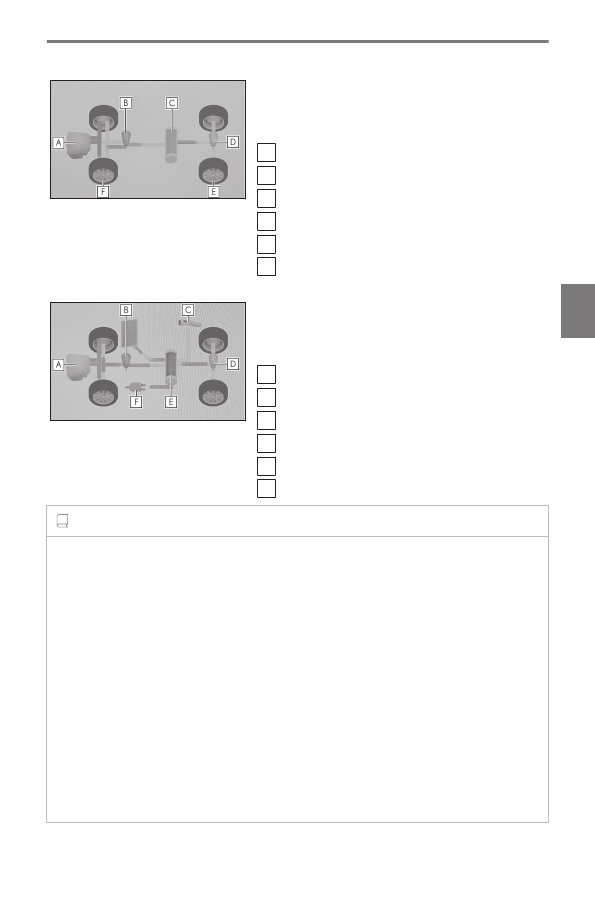

Center display (except when charging)

The image shows all the arrows as an example.
The actual display will vary depending on condi-
tions.

Gasoline engine

Front electric motor (traction motor)

Hybrid battery (traction battery)

Rear electric motor (traction motor)

Rear tires

Front tires

▶

Center display (when charging)

The image shows all the arrows as an example.
The actual display will vary depending on condi-
tions.

Gasoline engine

Front electric motor (traction motor)

Charging connector

→

P.356

Rear electric motor (traction motor)

Hybrid battery (traction battery)

Power outlet (120 VAC) (if equipped)

INFORMATION

■

Color of the hybrid battery (traction battery) on the center display

It will be green when the hybrid battery (traction battery) is being charged, and yellow
when the hybrid battery (traction battery) is being used.

■

Remaining charge amount warning of hybrid battery (traction battery)

●

The buzzer sounds intermittently when the hybrid battery (traction battery) remains
without charging while the shift position is in N, or the remaining charge amount drops
below a certain level. If the remaining charge amount drops further, the buzzer sounds
continuously.

●

When a warning message is shown on the multi-information display and the buzzer
sounds, follow the instructions displayed on the screen to perform troubleshooting.

■

Color of the gasoline engine on the center display

It will be blue when the engine is warming up, and it will turn to red when the warming up
is finished.

5-2. Functions of the displays

357

Vehicle st

us information and indicator

Displaying Energy montor screen on the center display

Select

on the main menu.

Select [Energy flow].

Blank (No items)

Displays no drive information contents on the multi-information display.

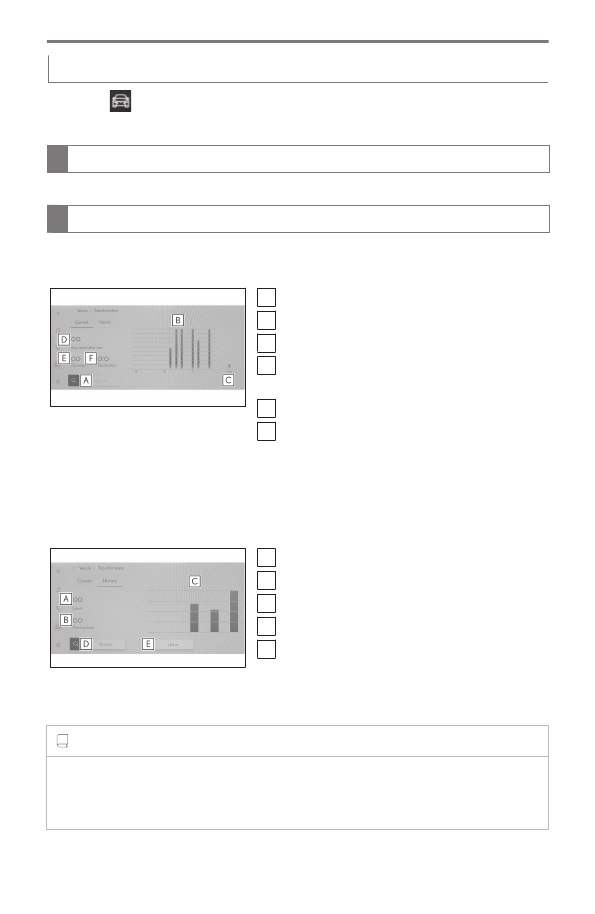

Current fuel consumption/history screen

Fuel consumption information can be displayed on the center display.

■

Current fuel consumption screen

Resetting the history data

Fuel consumption in the past 15 minutes

Current fuel consumption

Average vehicle speed since the hybrid sys-
tem was started.

Trip range

Elapsed time since the hybrid system was
started.

Use the displayed average fuel consumption as a reference. The image is an
example only, and may vary slightly from actual conditions.

■

History fuel cunsumption screen

Latest fuel consumption

Best recorded fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consumption data

Use the displayed average fuel consumption as a reference. The image is an
example only, and may vary slightly from actual conditions.

INFORMATION

■

Updating the history data

Update the latest fuel consumption by selecting [Update] to measure the current fuel
consumption again.

5-2. Functions of the displays

358

■

Resetting the data

The fuel consumption data can be deleted by selecting [Clear data].

■

Trip range

Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining. This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

Displaying fuel consumption/history screen on the center display

Select

on the main menu.

Select [Trip information].

Select [Current] or [History].

AWD operation status display

AWD operation status display can be displayed
on the center display.
The illustration used is intended as an example,
and may differ from the image that is actually
displayed on the center display.
Torque distribution display:
Displays the drive status of each wheel in 6 steps
from 0 to 5.

Displaying AWD operation status display on the center display

Select

on the main menu.

Select [All wheel drive].

Tire pressure

The tire pressure detected by the tire pressure warning system can be displayed on
the center display.

Displaying the tire pressure on the center display

Select

on the main menu.

Select [Tire pressure].

5-2. Functions of the displays

359

Vehicle st

us information and indicator

Driving support system information display

The operating state of the following systems can be displayed on the multi-informa-
tion display or head-up display

●

Dynamic radar cruise control

●

LTA (Lane Tracing Assist)

●

LDA (Lane Departure Alert)

●

LCA (Lane Change Assist)

●

RSA (Road Sign Assist)

●

PCS (Pre-Collision System)

INFORMATION

■

Display position (vehicles with a head-up display)

When the display mode of the head-up display is set to display the maximum, driving
support system information will be displayed on the head-up display and not in the
content display area of the multi-information display.

Audio system-linked display

The audio system-linked display displays the operating state of the audio system on
the multi-information display.
Operations such as selecting the audio source or track, etc. can be performed.

Navigation system-linked display

The following information is displayed on the multi-information display.

●

Route guidance to destination

●

Speed limit of the current road (linked to the navigation system) (U.S.A. only)

●

Street name

●

Compass

INFORMATION

■

Display position (vehicles with a head-up display)

Depending on the display settings of the head-up display, some content may be displayed
on the head-up display and not in the content display area of the multi-information
display.

* :

If equipped

5-2. Functions of the displays

360

Pop-up display information

Pop-up displays will be displayed on the multi-information display or the head-up
display

when necessary.

When a pop-up display is displayed, a current display may no longer be displayed. In this
case, the display will return after the pop-up display disappears.

Driving support systems

Displays a warning/suggestion/advice message or the operating state of a relevant
system.

●

Dynamic radar cruise control

●

LTA (Lane Tracing Assist)

●

LDA (Lane Departure Alert)

●

LCA (Lane Change Assist)

●

PCS (Pre-Collision System)

●

RSA (Road Sign Assist)

●

Safe Exit Assist (with door opening control)

●

FCTA (Front Cross Traffic Alert)

Warning message

Some warning messages are displayed when necessary, according to certain
conditions.

Hands-free system status

Displayed when the hands-free system is operated.

Suggestion function

Displays suggestions to the driver in the following situations. To select a response
to a displayed suggestion, use the steering switches.

■

Suggestion to enable the power back door

If the power back door system is disabled (setting on the center display set to off)
and the power back door switch on the instrument panel is operated, a suggestion
message will be displayed asking if you wish to enable the power back door
system.
To enable the power back door system, select [Yes].

* :

If equipped

5-2. Functions of the displays

361

Vehicle st

us information and indicator

After enabling the power back door system, press the power back door switch
again to open or close the power back door.

Related Links

Customizable features(P. 763)

Steering wheel switch operation display

■

Vehicles without a head-up display

Displayed when an audio remote control switch on the steering wheel is operated.

■

Vehicles with a head-up display

When a steering wheel switch is touched, the icon of each switch and a function
guide is displayed.

Related Links

Operating the meters/displays(P. 351)

Navigation system-linked information

In certain situations, the following items which are linked to the navigation system
will be displayed:

●

Route guidance to destination

●

Map display (displayed on the head-up display

)

Items displayed when the power switch is turned off

The following items will be displayed on the multi-information display when the
power switch is turned off.

●

Charging schedule

●

Average fuel consumption since starting

●

Distance driven since starting

●

Driving time since starting

●

EV driving ratio since starting

Displays the percentage of EV driving since starting.

* :

If equipped

*1 :

It is reset each time the hybrid system stops.

5-2. Functions of the displays

362

Changing the settings of the displays

Changing the instrument panel light brightness

The brightness of the instrument panel lights can be adjusted.

INFORMATION

The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will
not change the instrument panel brightness.
At this time, any adjustments made to the instrument panel brightness levels will be
applied to both settings at once.

Darker

Brighter

5-3. Changing the settings of the displays

363

Vehicle st

us information and indicator

Lexus NX450H+ (2022 year). Manual in english - page 21
