2-2. Charging

WARNING

Warnings for using My Room Mode

Observe the following precautions.
Failure to do so may result in death or a

serious health hazard.

Do not leave children, people who

need care, or pets inside the vehicle.

The temperature inside the vehicle

may become high or low due to fea-

tures such as the automatic shut-off.

The children, people who need care,

or pets left inside the vehicle may suf-

fer heatstroke dehydration or hypoth-

ermia. Also, since the wipers, etc., can

be operated, there may be accidental

operation, possibly leading to an acci-

dent.

Use the mode after sufficiently check-

ing the vicinity of the vehicle for safety

hazards.

143

2-2. Charging

ect
ric V
eh

icle

Refer to the following table and carry out the appropriate correction procedure.

The power indicator on the CCID (Charging Circuit Interrupting Device)
does not illuminate, even though the plug of the AC charging cable is con-
nected to an electrical socket

When charging cannot be performed normally

When charging does not start, even though the normal procedure is followed,
check each of the following items. If a message is displayed on the multi-infor-
mation display, refer to P.150.

When AC charging cannot be performed normally

Likely cause

Correction procedure

Plug is not properly connected to the electri-
cal socket

Check that the plug is properly connected
to the electrical socket.

Power outage

After power is restored, perform the
charging procedure again.

Remote switch is off

If the electrical socket is equipped with a
remote switch, turn the switch on.

Building breaker is tripped and power is cut
off

Check that the breaker is connected and if
there is no malfunction, check if the vehicle
can be charged through another electrical
socket. If charging is possible, the first elec-
trical socket may have a malfunction. Con-
tact the building or facility manager, or an
electrician.

Short circuit between CCID (Charging Cir-
cuit Interrupting Device) and plug

Immediately stop charging and contact any
authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.

144

2-2. Charging

The error warning indicator on the CCID (Charging Circuit Interrupting
Device) flashes

The AC charging indicator does not illuminate, even though the AC charging
connector is connected

Likely cause

Correction procedure

Electrical leakage detection function or self-
diagnostic function operates and power is
cut

When the voltage is insufficient, the error
warning indicator may flash when there is
noise interference. Perform a reset and con-
nect to a proper power source. (



P.97)

If charging does not start, immediately stop
charging and contact any authorized Lexus
retailer or Lexus authorized repairer, or any
reliable repairer.

Likely cause

Correction procedure

Plug is not properly connected to the electri-
cal socket

Properly connect the plug to the electrical
socket.

AC charging connector is not securely con-
nected to AC charging inlet

Check the connection of the AC charging
connector.
• When connecting the AC charging con-

nector, insert the AC charging connector
securely.

• After connecting the AC charging con-

nector, make sure that the AC charging
indicator is turned on.

If the AC charging indicator does not illumi-
nate, even though the AC charging connec-
tor is securely connected, there may be a
malfunction in the system. Immediately stop
charging and contact any authorized Lexus
retailer or Lexus authorized repairer, or any
reliable repairer.

Traction battery is already fully charged

When the traction battery is fully charged,
AC charging cannot be performed.

The charger does not operate

Please contact the charging station manager
when there is a problem with charger.

145

2-2. Charging

ect
ric V
eh

icle

AC charging indicator flashes and charging cannot be carried out.

: Refer to P.91 for details regarding illumination/flashing patterns of the AC charging indi-

cator.

Refer to the following table and carry out the appropriate correction procedure.

DC charging does not start

Likely cause

Correction procedure

When the AC charging indicator flashes
normally

: Charging schedule is registered

When you want to charge according to the
charging schedule, wait until the set time.
To start charging, set “Charge Now” to
“On”.

When the AC charging indicator flashes
rapidly

: An external power source or the

vehicle is malfunctioning

Start the EV system and follow the instruc-
tion messages displayed on the multi-infor-
mation display. (



P.150)

When DC charging cannot be performed normally

Likely cause

Correction procedure

The DC charging connector is not properly
connected to the vehicle.

Check the connection status of the DC
charging connector and be sure that it is
locked.
If the DC charging does not start, even
though the DC charging connector is
securely connected, there may be a mal-
function with the DC charger or charging
system.

The DC charging connector is not securely
locked.

• If there is a malfunction with the DC char-

ger, contact the charging station man-
ager.

• If there is not a malfunction with the DC

charger, there may be a malfunction in the
system. Contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

146

2-2. Charging

When DC charging is interrupted

Error is detected by the DC charger or vehi-
cle’s system check.

There may be a malfunction with the DC
charger or charging system.
• If there is a malfunction with the DC char-

ger, contact the charging station man-
ager.

• If there is not a malfunction with the DC

charger, there may be a malfunction in the
system. Contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

• If the EV system can not be started, con-

tact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

The DC charger power goes off.

Contact the charging station manager and
check the power status.

Traction battery is already fully charged

When the traction battery is fully charged,
DC charging cannot be performed.

AC charging connector is also connected.

DC charging and AC charging can not be
performed together.

The EV system is started.

When the EV system is started, DC
charging cannot be started.
Also, if the shift position is not in P, DC
charging cannot be performed.

Likely cause

Correction procedure

Likely cause

Correction procedure

The timer for the DC charger operates.

Depending on the type of the DC charger,
the timer may be set to stop charging after a
certain time.
Check with the charging station manager.

The power for the DC charger is off.

Check the power status of the DC charger.
If there are uncertainties with the power sta-
tus, contact the charging station manager.

147

2-2. Charging

ect
ric V
eh

icle

EV system does not start after DC charging

The temperature of the traction battery is
extremely high or low.

DC charging may not be performed in
extremely high or extremely low tempera-
ture environments. Charge the traction bat-
tery after the temperature has been
stabilized.

Error is detected by the DC charger or vehi-
cle’s system check.

There may be a malfunction with the DC
charger or charging system.
• If there is a malfunction with the DC char-

ger, contact the charging station man-
ager.

• If there is not a malfunction with the DC

charger, there may be a malfunction in the
system. Contact any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

• If the EV system can not be started, con-

tact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

The electrical components such as the air
conditioning system stop operating while the
traction battery is approximately fully
charged.

Keep the electrical components such as the
air conditioning system in the OFF state, and
then perform the charging procedure again.

Likely cause

Correction procedure

Likely cause

Correction procedure

System check is not completed properly
after charging.

Do a system check following the procedures
on P.127. If the system check can not be
completed properly even after these proce-
dures are performed, contact any autho-
rized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

148

2-2. Charging

Refer to the following tables and carry out the appropriate correction procedures.

Charging is not performed at desired time

: The automatic adjustment of the clock by GPS is set to “On”. If the clock has been

adjusted in an area where a GPS signal cannot be received, set the automatic adjust-
ment of the clock by GPS to “On” in an area where a GPS signal can be received. For
details regarding GPS, refer to the “NAVIGATION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

The DC charging connector is still con-
nected.

For safety, the EV system can not be started
when the DC charging connector is con-
nected. (



P.114)

Remove the DC charging connector imme-
diately after the charging is completed.

The DC charging system is malfunctioning

• Depending on the type of malfunction, the

EV system can be started after closing the
DC charging port lid.

• If the EV system can not be started, con-

tact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable
repairer.

When charging schedule function cannot be performed normally

Likely cause

Correction procedure

Likely cause

Correction procedure

Vehicle clock is not properly adjusted or the
day of the week is not proper

Check the clock settings and adjust it to the
proper time

. (



P.161)

AC charging cable is not connected to vehi-
cle

Before using the charging schedule, make
sure to connect the AC charging cable.

Incorrect charging mode is selected

Check the charging mode setting. (



P.129)

When the charging mode is “Start”, charging
starts at the set time, but when it is “Depar-
ture”, charging is completed by the set time.
(The charging start time is automatically
controlled by the system.)

149

2-2. Charging

ect
ric V
eh

icle

Charging starts, even though the charging schedule is registered

Charging ends earlier than time set in “Departure”

Likely cause

Correction procedure

“Charge Now” is set to “On”

When charging according to the schedule,
set “Charge Now” to “Off”. (



P.135)

“Charging Schedule” is set to “Off”

Set the “Charging Schedule” to “On”.
(



P.134)

Charging mode is set to “Departure” and
schedule departure time is close to current
time

When the system determines that there is no
time to complete charging by the set depar-
ture time, it will start charging. Check the
charging schedule.

AC charging cable is removed and recon-
nected while the AC charging indicator is
flashing

If the AC charging cable is removed and
reconnected while the AC charging indica-
tor is flashing, the charging schedule will be
canceled (



P.120).

Temporarily remove the AC charging cable,
and then reconnect it.

My Room Mode or remote air conditioning
system is operating, and charging schedule
is ignored.

To perform charging schedule, stop each of
the functions and then reconnect the AC
charging cable.

Traction battery heater (



P.110) is oper-

ated

When the charging mode is set to “Depar-
ture”, traction battery heater may operate
before charging starts. Check the status of
the AC charging indicator. (



P.91)

Outside temperature is low and the traction
battery warming control (



P.111) is oper-

ated

When the traction battery warming control
or traction battery heater operates, the
charging schedule settings are ignored and
charging starts. In order to protect the trac-
tion battery, allow charging to continue.

Likely cause

Correction procedure

Charging end time does not match esti-
mated end time due to condition of power
source or outside temperature

If sudden changes in temperature or
changes in the condition of the power
source occur while charging, charging may
end earlier than the time estimated by the
system.

150

2-2. Charging

Charging is not complete, even though it is time set in “Departure”

Charging does not start, even though it is time set in “Start”

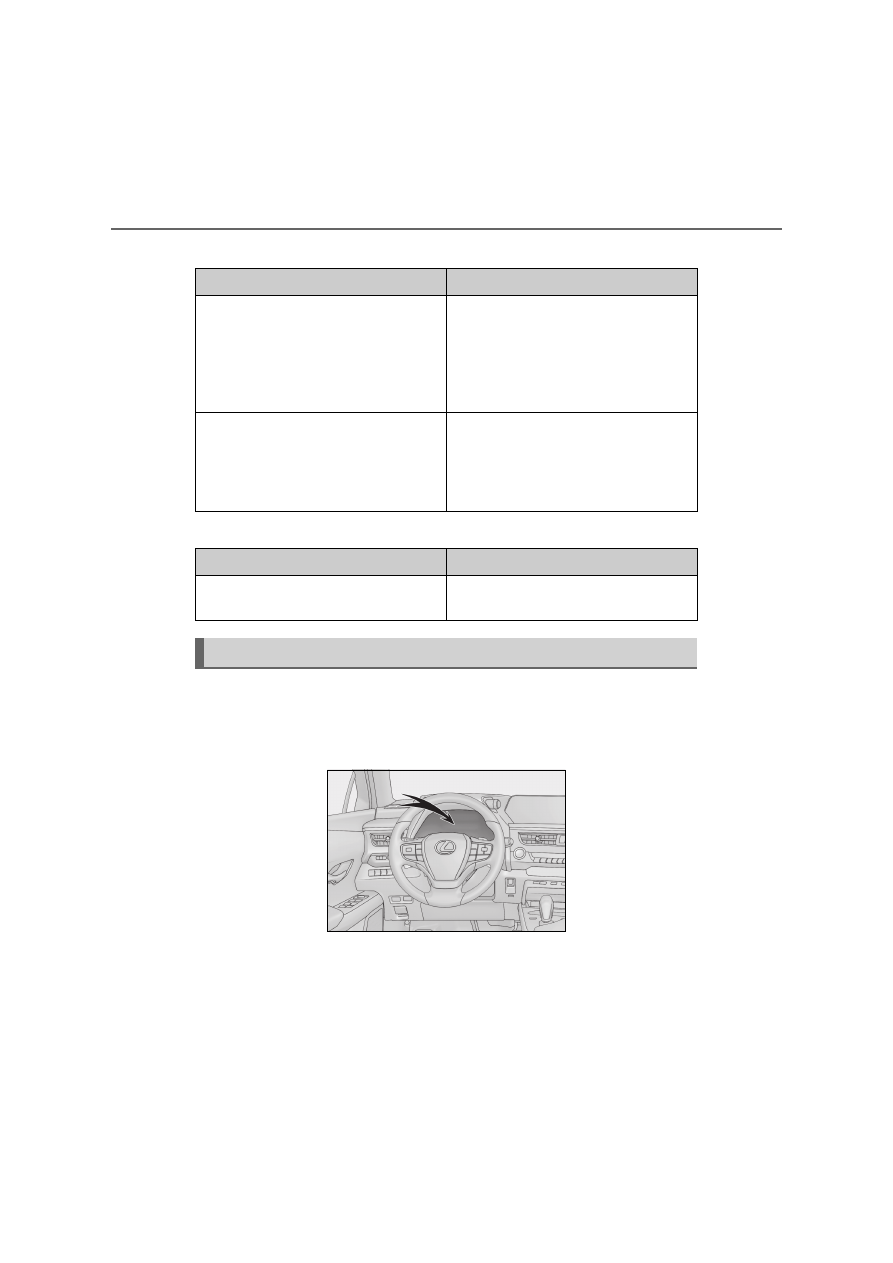

When a door is opened while the power switch is off after charging, a message will
be displayed on the multi-information display.

If any of the following messages are displayed, refer to the corresponding table and per-
form the appropriate correction procedures.

Likely cause

Correction procedure

“Climate Prep” is set to “On”

When “Climate Prep” is set to “On”, the air
conditioning operates until the time set in
“Departure”. Therefore, charging may not
complete by the set time due to charging
conditions. To have the traction battery fully
charged, allow charging to continue.

Charging end time does not match esti-
mated end time due to condition of power
source or outside temperature

If sudden changes in temperature or
changes in the condition of the power
source occur while charging, charging may
not end exactly at the time estimated by the
system.

Likely cause

Correction procedure

AC charging cable is connected after set
time

Connect the AC charging cable before the
time set in “Start”.

When charging related message is displayed

151

2-2. Charging

ect
ric V
eh

icle

If “Charging Stopped Due to Pulled Charging Connector” is displayed

If “Charging complete Limited charge due to battery temp” is displayed

Likely cause

Correction procedure

AC charging connector is disconnected
during charging

To continue charging, reconnect the AC
charging connector.

After the traction battery is fully charged, the
AC charging connector is disconnected
while the traction battery is being recharged
again because the electricity-consuming
functions

have been used and the remain-

ing charge is now reduced.

: Electricity is consumed when the air con-

ditioning-linked function, traction battery
heater, My Room Mode or Remote Air
Conditioning System is operating.

AC charging connector is not securely con-
nected

Check the connection status of the AC
charging connector.
• When connecting the AC charging con-

nector, insert the AC charging connector
securely.

• After connecting the AC charging con-

nector, make sure that the AC charging
indicator is turned on.

If charging cannot be performed, even
though the correct procedures were fol-
lowed, have the vehicle inspected by any
authorized Lexus retailer or Lexus autho-
rized repairer, or any reliable repairer.

Likely cause

Correction procedure

Charging is stopped to protect the traction
battery as it continued to remain hot for a
certain period of time.

Allow the traction battery to cool down and
perform charging again if the charging
amount has not reached the desired amount.

152

2-2. Charging

If “Charging stopped Check charging source” is displayed

Likely cause

Correction procedure

Problem in power supply from external
power source

Check the following items.
• The plug is securely inserted.
• Extension cord is not used and electrical

socket is not overloaded.

• The remote switch is not off.
• Connected to a dedicated power line.
• Power outage has occurred or not.
• The power indicator on the CCID

(Charging Circuit Interrupting Device) is
illuminated.

• The circuit breakers have not tripped.
If all of the above conditions are met, the
electrical socket may be malfunctioning.
Contact an electrician and request an
inspection.
Furthermore, if the error warning indicator
on the CCID (Charging Circuit Interrupting
Device) is flashing, there may be electrical
leakage. Contact any authorized Lexus
retailer or Lexus authorized repairer, or any
reliable repairer.
If charging cannot be performed, even
though there is no problem with the power
source path, there may be a malfunction in
the system. Have the vehicle inspected by
any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

153

2-2. Charging

ect
ric V
eh

icle

Charging is stopped by charger

Depending on the specifications of charger,
charging may be canceled by an interrup-
tion of power supply. Charging may be
stopped by the following. Refer to charger
handling methods.
• The charging stop button of charger is

pressed.

• Charger with off timer function canceled

charging

• Charger that is not compatible with the

charging schedule function of the vehicle

• Check if it is possible to charge with the

AC charging cable equipped with the
vehicle. If charging cannot be carried out
even when using the genuine AC
charging cable, contact any authorized
Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

The AC charger is not compatible with the
vehicle

Check if it is possible to charge with the AC
charging cable equipped with the vehicle. If
charging cannot be carried out even when
using the genuine AC charging cable, con-
tact any authorized Lexus retailer or Lexus
authorized repairer, or any reliable repairer.

The DC charger is malfunctioning.

If the message above is displayed when DC
charging has not stopped operations, the
DC charger may be damaged, so do not use
that DC charger.
Check if it is possible to charge with another
DC charger.
If the message is still displayed and charging
cannot be performed, drive the vehicle for
several kilometers and then charge the trac-
tion battery with another DC charger.

The DC charger is not compatible with the
vehicle.

Likely cause

Correction procedure

154

2-2. Charging

If “Charging stopped High energy use See Owner’s Manual” is displayed

If “Traction battery temp is low System has prioritised charging to preserve
battery condition” is displayed

If “Check Charging System Close Charging Port Lid See Owner’s Manual” is
displayed

Likely cause

Correction procedure

Power is being consumed by electrical com-
ponents of vehicle

Check the following items, and then perform
the charging procedure again.
• If the headlights and audio are turned on,

turn them off.

• Turn the power switch off.
If charging cannot be carried out, even after
performing the above, the 12-volt battery
may not be sufficiently charged. Start the EV
system and wait for approximately 15 min-
utes or more to charge the 12-volt battery.

Likely cause

Correction procedure

Malfunction occurred in charging system

Have the vehicle inspected by any autho-
rized Lexus retailer or Lexus authorized
repairer, or any reliable repairer.

Likely cause

Correction procedure

The traction battery warming control is
operated

When the traction battery warming control
operates, the charging schedule settings are
ignored and charging starts immediately. It is
a control to protect the traction battery, and
is not a malfunction.

Likely cause

Correction procedure

System check is not completed properly
after DC charging.

The EV system can not be started until the
system check is completed properly. Per-
form a system check following the proce-
dures on P.127.

155

2-2. Charging

ect
ric V
eh

icle

If “Charging Stopped Time Limit Reached” is displayed

Likely cause

Correction procedure

The DC charging is not completed within
the restricted time with DC charger.

• Depending on the type of DC charger,

the timer may be set to stop charging after
a certain time. Check with the charging
station manager.

Depending on the condition of the vehicle,
the charging time may become longer than
normal, and the DC charging may not be
completed within the restricted time.
• When the A/C, headlights, audio system,

etc., are turned on, the electricity con-
sumption of the vehicle will be increased.
Perform the DC charging after turning off
all of the above.

• The temperature of the traction battery

may be low. Perform the DC charging
after warming up the traction battery.

157

icle

ion
an

d i

ica

tor

Vehicle status information

and indicators

3-1. Instrument cluster

Warning lights and indicators

158

Gauges and meters ...................

161

Multi-information display........

164

Head-up display .........................

168

158

3-1. Instrument cluster

3-1.Instrument cluster

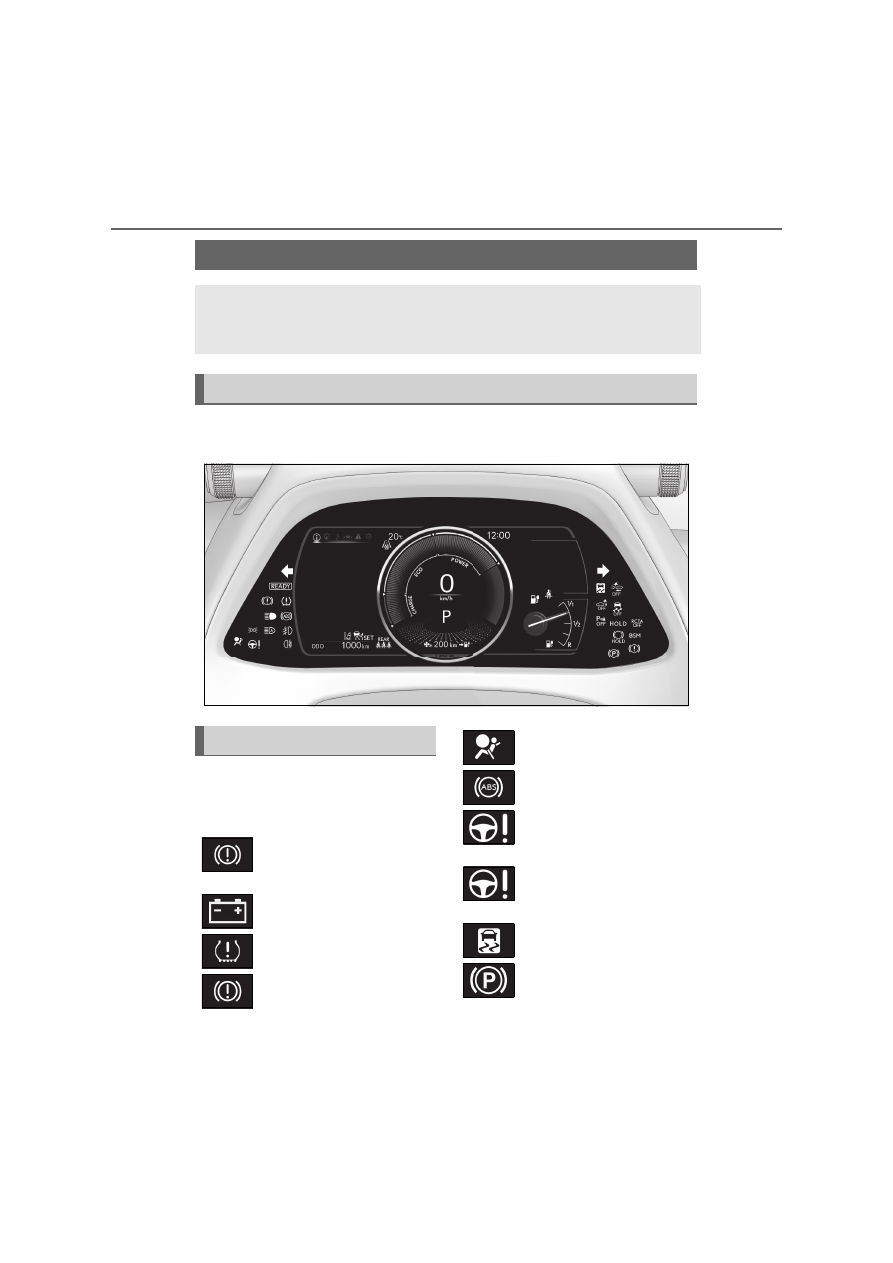

For the purpose of explanation, the following illustration display all warning lights
and indicators illuminated.

Warning lights inform the driver of
malfunctions in the indicated vehicle’s
systems.

Warning lights and indicators

The warning lights and indicators on the instrument cluster, center panel and
outside rear view mirrors inform the driver of the status of the vehicle’s various
systems.

Warning lights and indicators displayed on the instrument cluster

Warning lights

(red)

Brake system warning light

(



P.432)

12-volt battery charging system
warning light

(



P.432)

Tire pressure warning light

(



P.433)

(yellow)

Brake system warning light

(



P.433)

SRS warning light

(



P.433)

ABS warning light

(



P.433)

(red)

Electric power steering system
warning light

(



P.434)

(yellow)

Electric power steering system
warning light

(



P.434)

Slip indicator

(



P.434)

(flashes)

Parking brake indicator
(



P.434)

Lexus UX 300e (2022 year). Manual in english - page 8
