Lexus UX 300e (2022 year). Manual in english

159

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

: These lights come on when the power

switch is turned to ON to indicate that a
system check is being performed. They
will turn off after the EV system is on, or
after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by any authorized Lexus
retailer or Lexus authorized repairer, or
any reliable repairer.

: This light illuminates on the multi-infor-

mation display.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

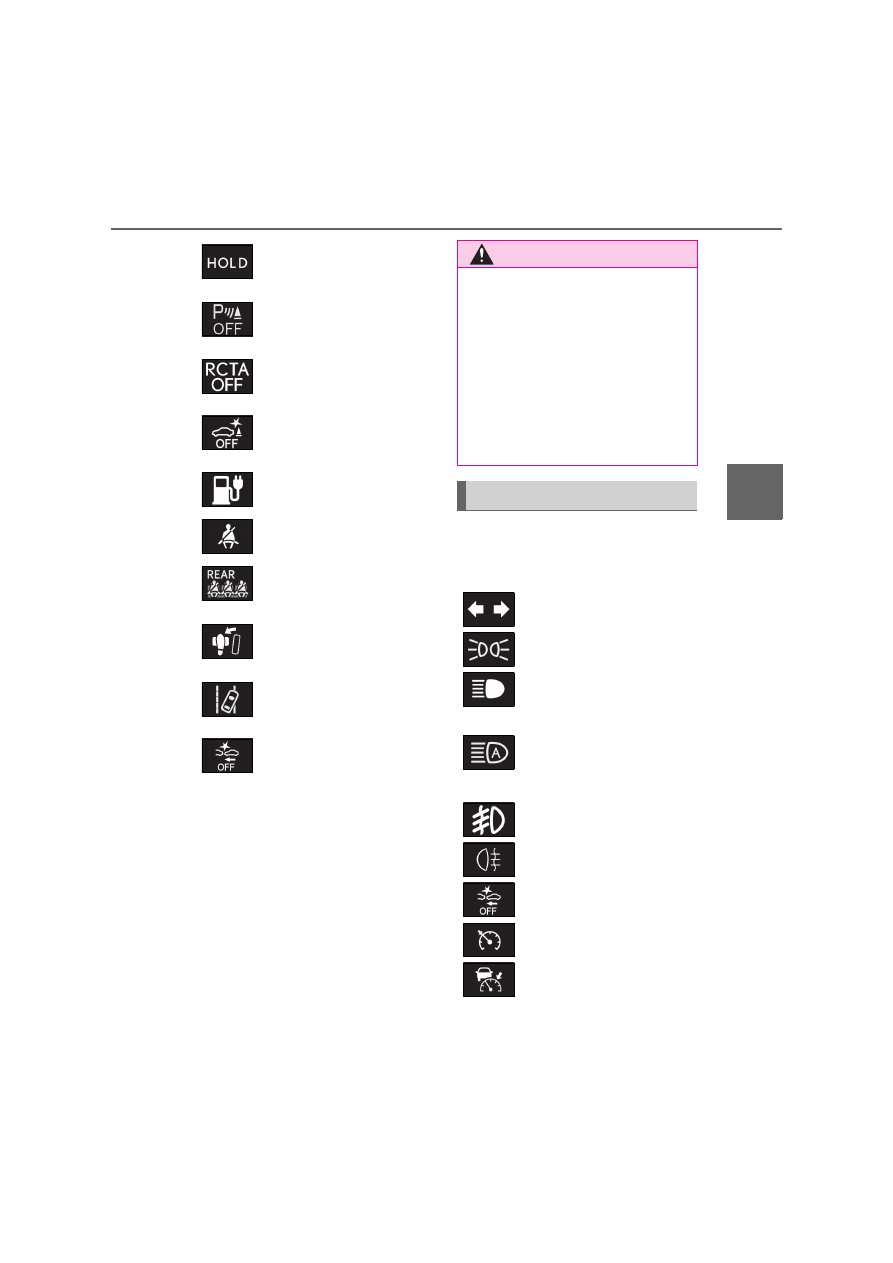

(flashes)

Brake hold operated indica-
tor

(



P.434)

(flashes)

Lexus parking assist-sensor
OFF indicator

(if equipped)

(



P.435)

(flashes)

RCTA OFF indicator

(if

equipped) (



P.435)

(flashes)

PKSB OFF indicator

(if

equipped) (



P.435)

Traction battery charge warn-
ing light (



P.436)

Driver’s and front passenger’s
seat belt reminder light
(



P.436)

Rear passengers’ seat belt
reminder lights

(



P.436)

Brake Override System warn-
ing light/Drive-Start Control
warning light/PKSB warning
light

(



P.437)

(orange)

LTA indicator

(



P.437)

(flashes or

illuminates)

PCS warning light

(



P.438)

WARNING

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the EV system, this could

mean that these systems are not avail-

able to help protect you in an accident,

which could result in death or serious

injury. Have the vehicle inspected by any

authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer immediately if this occurs.

Indicators

Turn signal indicator (



P.233)

Tail light indicator (



P.240)

Headlight high beam indicator
(



P.241)

AHS indicator

(if equipped)

(



P.242)

Automatic High Beam indica-
tor

(if equipped) (



P.246)

Front fog light indicator (if
equipped) (



P.249)

Rear fog light indicator
(



P.249)

PCS warning light

*1, 2

(



P.262)

Cruise control indicator

(



P.282)

Dynamic radar cruise control
indicator

(



P.282)

160

3-1. Instrument cluster



Drive mode indicators

: These lights come on when the power

: This light comes on when the system is

turned off.

: This light illuminates on the multi-infor-

mation display.

: Depending on the operating condition,

the color and illuminating/flashing state
of the light change.

: This light flashes to indicate that the sys-

tem is operating.

: This light illuminates on the outside rear

view mirrors.

: When the outside temperature is

approximately 3°C (37°F) or lower,
this indicator will flash for approxi-
mately 10 seconds, then stay on.

: This light illuminates on the center

panel.

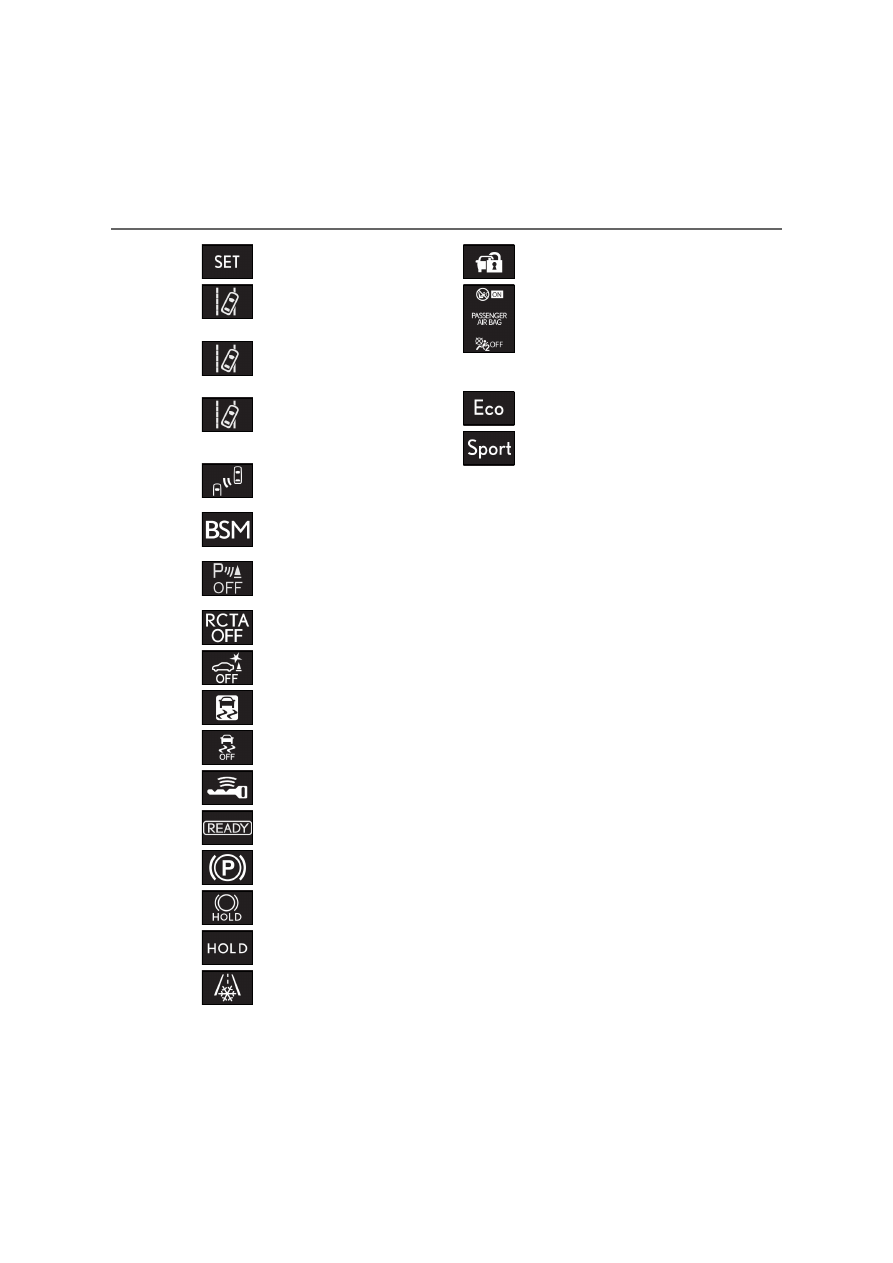

Cruise control “SET” indica-
tor

(



P.282)

(white)

LTA indicator

*3, 4

(



P.274)

(green)

LTA indicator

*3, 4

(



P.274)

(orange)

LTA indicator

*3, 4, 5

(



P.274)

BSM outside rear view mirror
indicators

*1, 6

(if equipped)

(



P.293)

BSM indicator (if equipped)
(



P.293)

Lexus parking assist-sensor
OFF indicator

*1, 2

(if equipped)

(



P.307)

RCTA OFF indicator

*1, 2

(if

equipped) (



P.314)

PKSB OFF indicator

*1, 2

(if

equipped) (



P.320)

Slip indicator

*1, 5

(



P.329)

VSC OFF indicator

*1, 2

(



P.329)

Smart entry & start system indi-
cator

(



P.224)

“READY” indicator (



P.224)

Parking brake indicator
(



P.234)

Brake hold standby indicator

(



P.237)

Brake hold operated indica-
tor

(



P.237)

Low outside temperature indi-
cator

*3, 7

(



P.161)

Security indicator

(



P.71,

73)

“PASSENGER AIR BAG” indi-
cator

*1, 8

(



P.44)

Eco drive mode indicator
(



P.327)

Sport mode indicator
(



P.327)

161

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

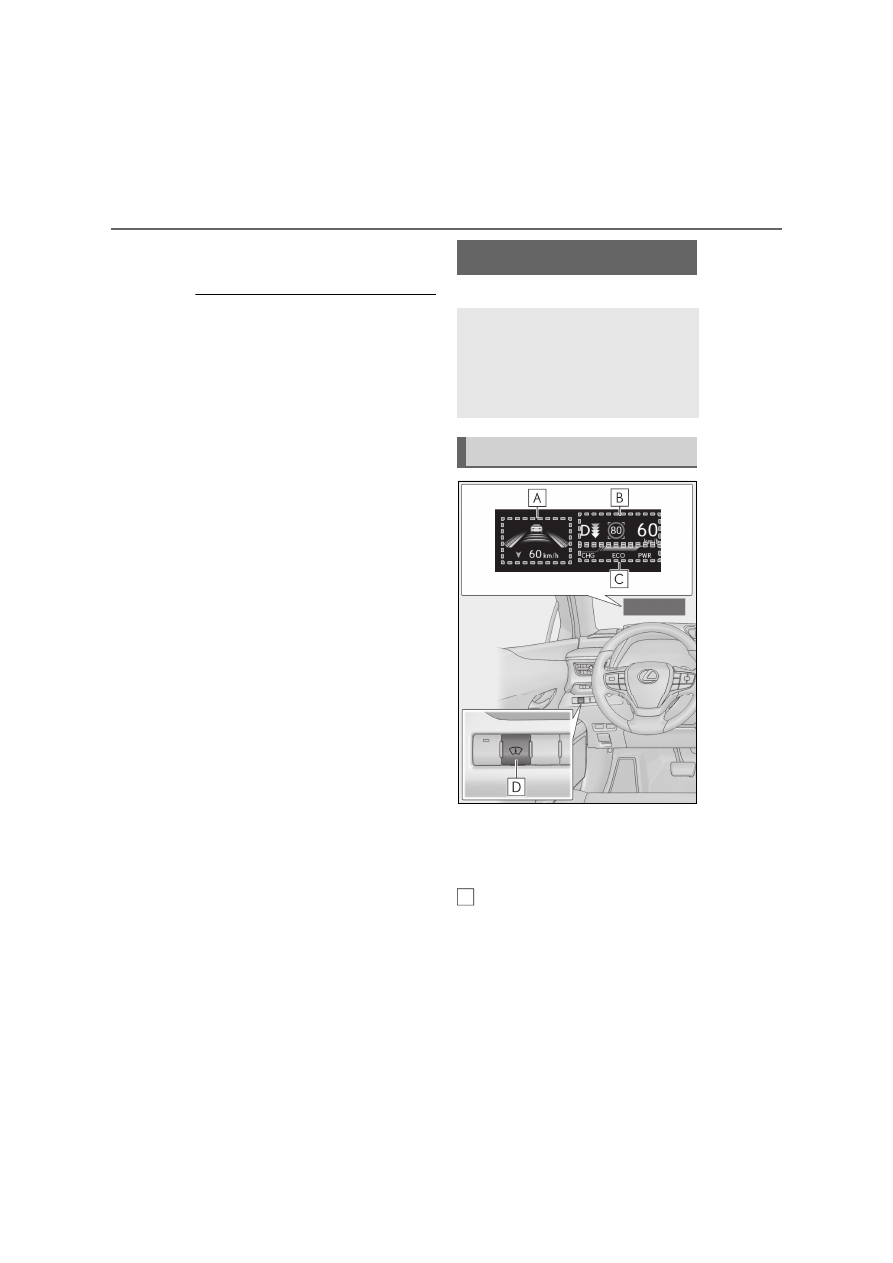

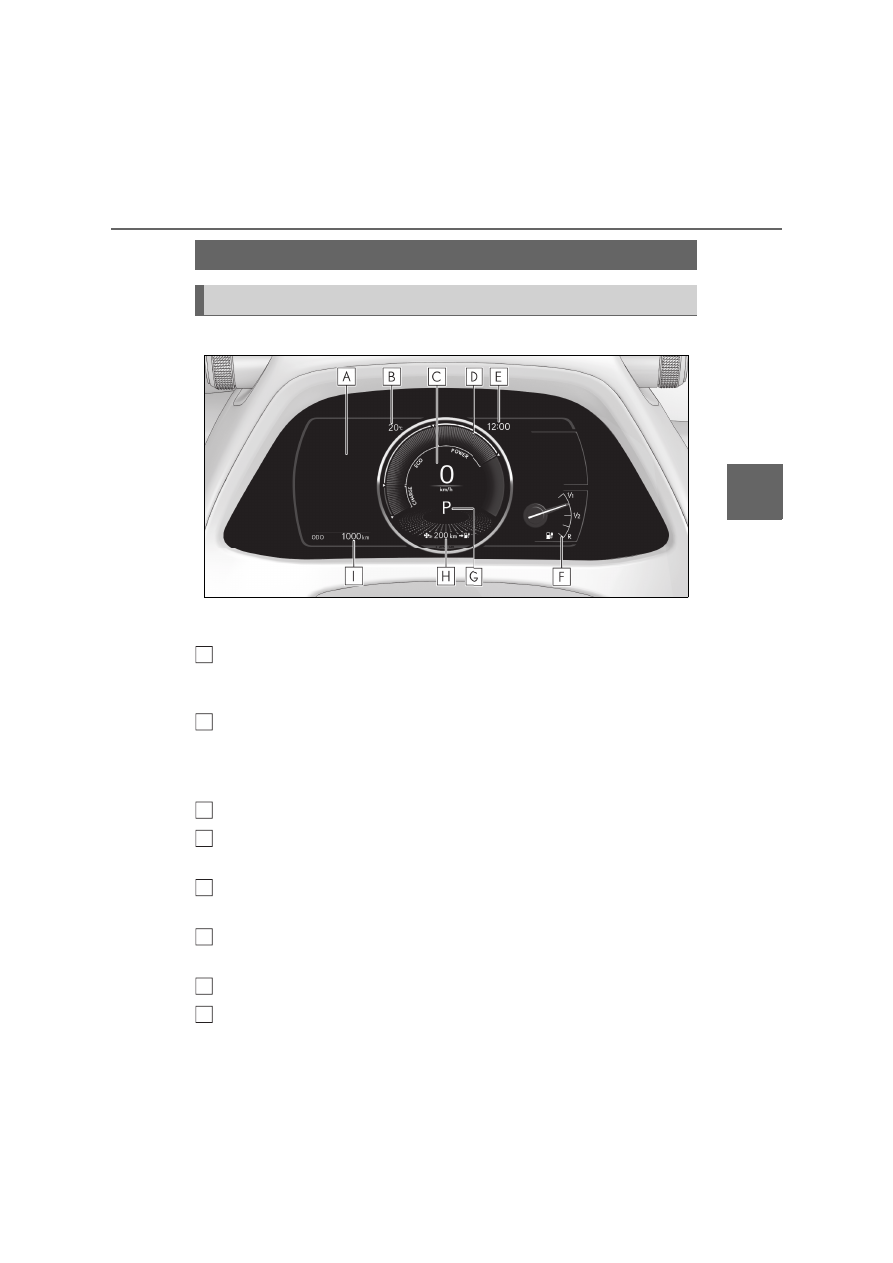

Locations of gauges and meters

The location of some displayed items and the units of measure may differ depending on the
intended destination of the vehicle.

Multi-information display

Presents the driver with a variety of vehicle data (



P.164)

Displays warning messages if a malfunction occurs (



P.440)

Outside temperature

Displays the outside temperature within the range of -40°C (-40°F) to 50°C (122°F)
Low outside temperature indicator comes on when the ambient temperature is 3°C
(37°F) or lower

Speedometer

EV System Indicator

Displays EV system output or regeneration level (



P.162)

Clock

Time displayed is linked to the analog clock on the center panel. (



P.371)

SOC (State of Charge) gauge

Displays the amount of charge remaining in the traction battery.

Shift position/regenerative braking power indicator (



P.228, 232)

Driving range

Gauges and meters

Meter display

C
D

162

3-1. Instrument cluster

Displays driving range with remaining charge. (



P.165)

When the air conditioning system is operating,

and the driving range with the air con-

ditioning system on are displayed.

Odometer and trip meter display (



P.162)

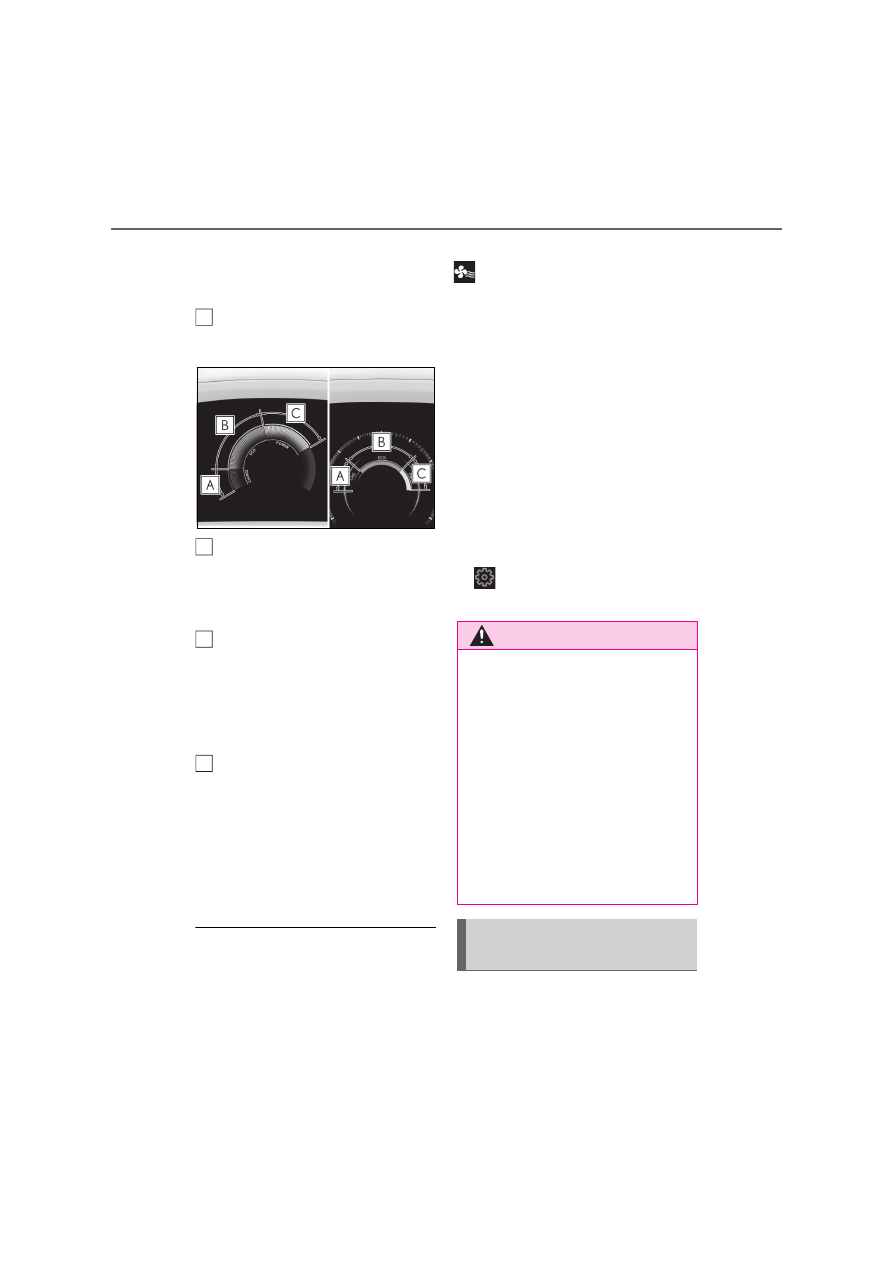

EV System Indicator

Charge area

Shows regeneration

status.

Regenerated energy will be used to
charge the traction battery.

Eco area

Shows that the vehicle is being driven in an
Eco-friendly manner.
By keeping the bar display within Eco area,
more Eco-friendly driving can be
achieved.

Power area

Shows that an Eco-friendly driving range is
being exceeded (during full power driving
etc.)

: When used in this manual, regeneration

refers to the conversion of energy cre-
ated by the movement of the vehicle into
electrical energy.

Outside temperature display

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

Liquid crystal display



P.164

Customization

The gauges and meters can be customized
on

of the multi-information display.

(



P.476)

Display items



Odometer

WARNING

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the regenerative

braking power appearing on the display.

This lag could cause the driver to down-

shift again, causing rapid and excessive

regenerative braking and possibly an

accident resulting in death or injury.

Odometer and trip meter dis-
play

163

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

Displays the total distance the vehicle has
been driven.



Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

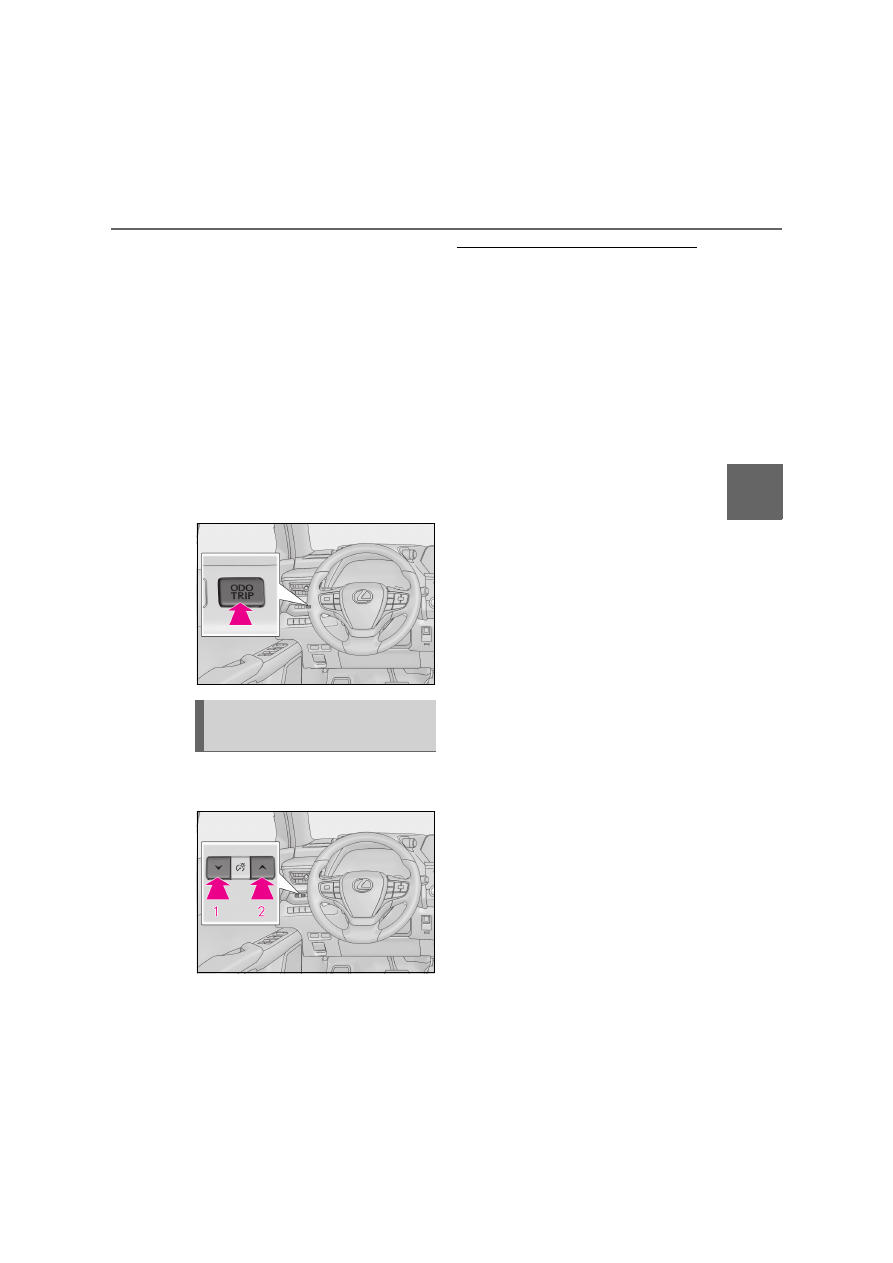

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

Instrument panel brightness adjustment

The instrument panel brightness levels

when the surroundings are bright (daytime

etc.) and dark (nighttime etc.) can be

adjusted individually.

Changing the instrument panel
light brightness

164

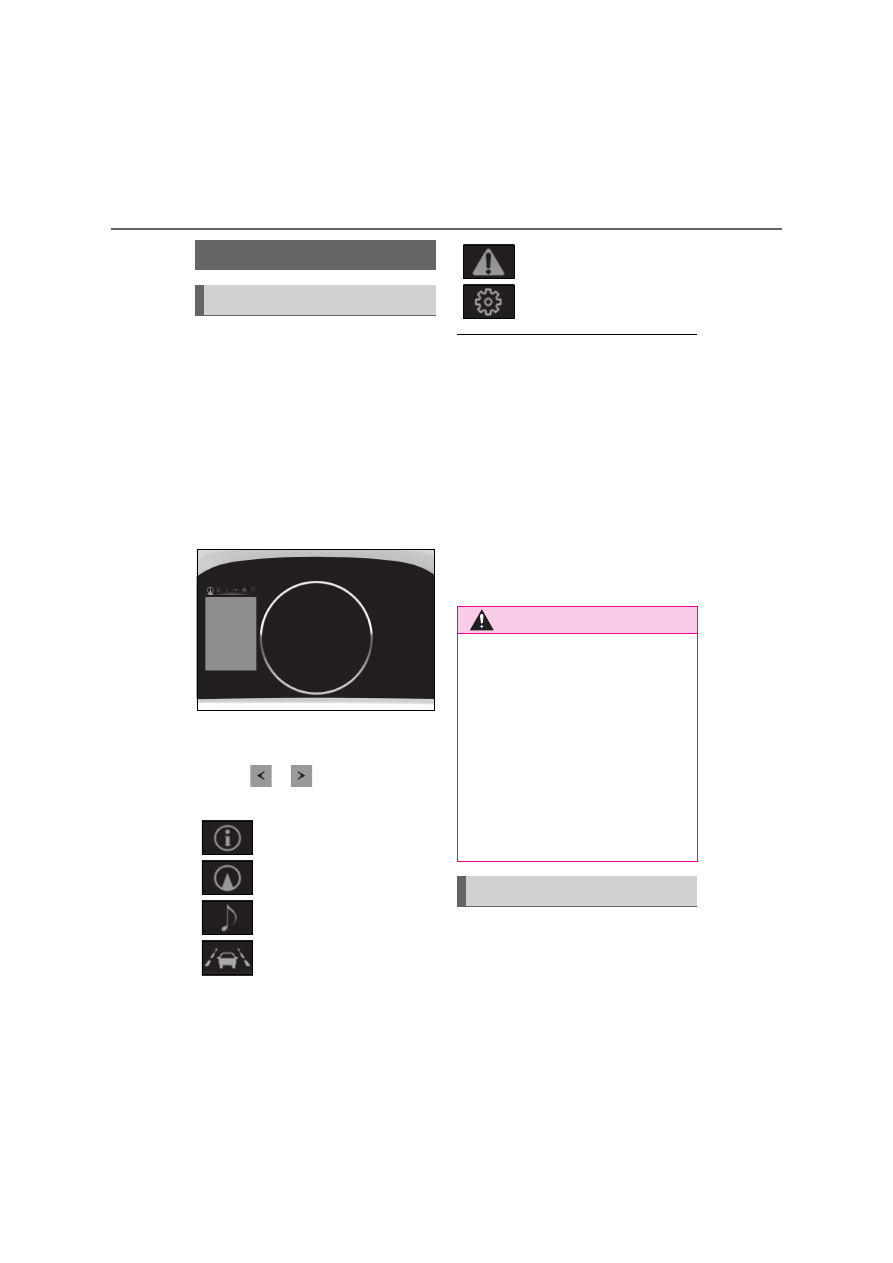

3-1. Instrument cluster

Display

By selecting menu icons on the multi-
information display, a variety of driv-
ing-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switches (



P.164).

Opening image display

When the power switch is in ACC or ON,

the opening image is displayed on the multi-

information display.
While the opening image is being dis-

played, the meter display cannot be

changed even if the drive mode is changed.

When the opening image is finished, the

meter display for the currently selected

mode will be displayed.

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

Multi-information display

Display and menu icons

Driving information display
(



P.165)

Navigation system-linked dis-
play (if equipped) (



P.166)

Audio system-linked display
(



P.166)

Driving support system infor-
mation display (



P.166)

Warning message display
(



P.440)

Settings display (



P.166)

WARNING

Caution for use while driving

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around

the vehicle.

Do not look continuously at the multi-

information display while driving as

you may fail to see pedestrians, objects

on the road, etc. ahead of the vehicle.

The information display at low tem-

peratures



P.162

Changing the meter display

165

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

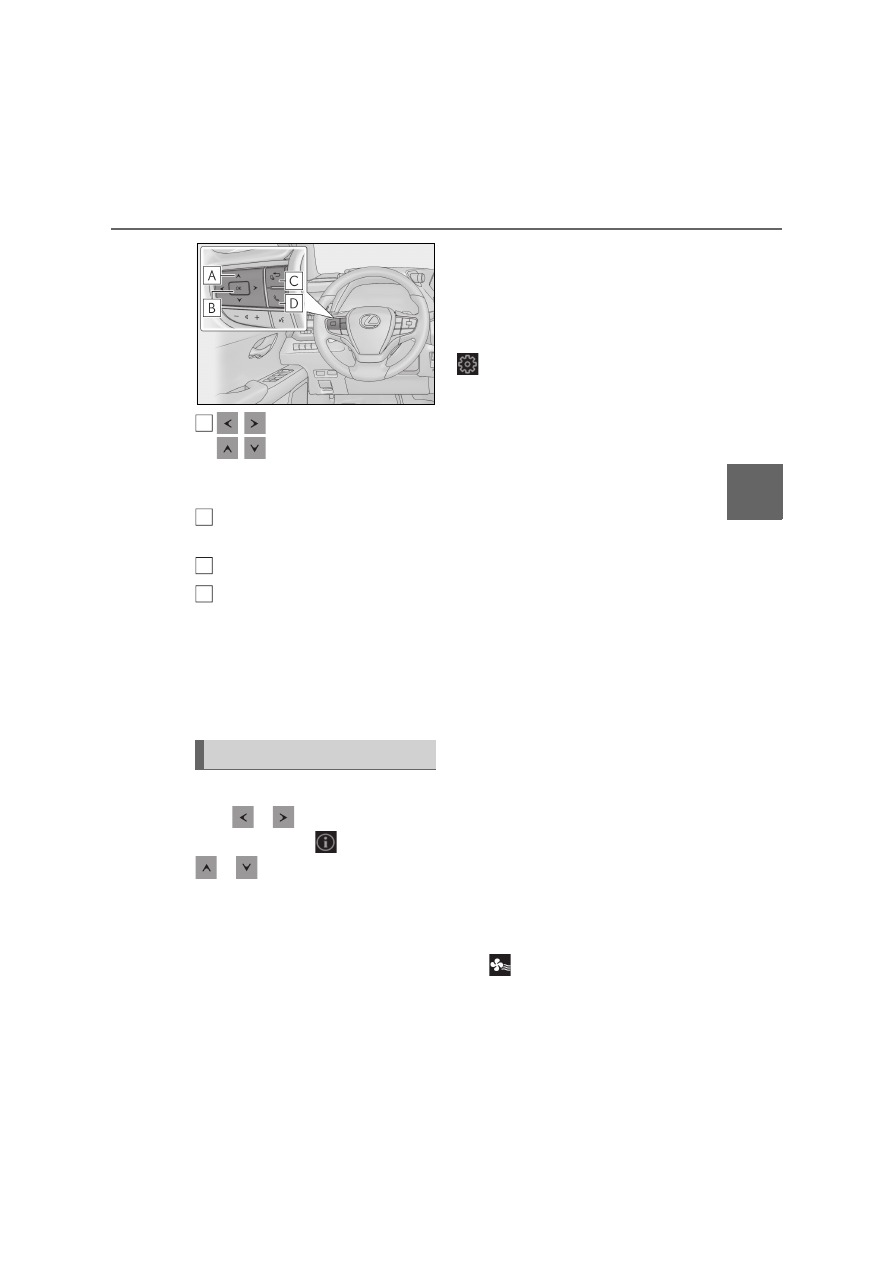

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen or
move the cursor up/down

Press: Enter/Set
Press and hold: Reset

Return to the previous screen

Call sending/receiving and history
display

Linked with the hands-free system, sending
or receiving call is displayed. For details
regarding the hands-free system, refer to
the “NAVIGATION AND MULTIME-
DIA SYSTEM OWNER’S MANUAL”.

Display items

Press

of the meter control

switches and select

. Then press

to display the following

items:



Drive information 1



Drive information 2



Tire pressure



Display off

Drive information 1/Drive informa-
tion 2

2 of the following drive information can
be displayed in each screen.
Displayed items can be changed on

. (



P.164)

Use the displayed values as a reference
only.



Current electricity consumption

Displays instantaneous current electricity
consumption



Average electricity consumption

After reset: Displays average electricity
consumption since the display was reset



Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since the EV system was started



Driven distance

Displays the distance driven since the EV
system was started



Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since the
EV system was started



Driving range

Displays driving range with remaining
charge

When the air conditioning system is oper-
ating,

and the driving range with the air

conditioning system on are displayed



Other

Drive information

C
D

166

3-1. Instrument cluster

No item

: To reset, display the desired item and

press and hold “OK” of the meter con-
trol switches.

: This distance is computed based on the

remaining charge of the traction bat-
tery. (



P.87)

The actual distance that can be driven
may differ from that displayed.

: When the air conditioning system is on,

the displayed driving range is less than
that with the air conditioning system off.

Tire pressure



P.399

Display OFF

Displays a blank screen.

Select to display the following naviga-
tion system-linked information.



Route guidance to destination



Compass display

Route guidance to destination display

When the route guidance to destination

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (



P.168)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:



LTA (Lane Tracing Assist)
(



P.269)



Dynamic radar cruise control with
full-speed range (



P.282)



RSA (Road Sign Assist) (



P.278)

Select to display warning messages
and measures to be taken if a malfunc-
tion is detected. (



P.440)

Meter display settings that can be
changed



Language

Select to change the language displayed.



Units

Select to change the units of measure dis-
played.



Speedometer display

Select to set the display of the speedome-
ter to digital/analog.



Drive information 1/Drive informa-
tion 2

Select to select up to 2 items (



P.165)

that will be displayed on each Drive infor-
mation screen (Drive information 1 screen
and Drive information 2 screen) respec-
tively.



Clock

Navigation system-linked dis-
play (if equipped)

Audio system-linked display

Driving support system informa-
tion display

Warning message display

Settings display

167

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

Select to switch between 24-hour display
and 12-hour display.



Pop-up display

Select to enable/disable some pop-up dis-
plays for each relevant system.



Accent color

Select to change the accent color on the
screen, such as the cursor color.



Default settings

Select to reset the meter display settings to
the default setting.

Suspension of the settings display

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

Suggestion to enable the power
back door (if equipped)

If the power back door system is dis-
abled on

of the multi-information

display (



P.164) and the power back

door switch on the instrument panel is
operated, a suggestion message will

be displayed asking if you wish to
enable the power back door system.
To enable the power back door sys-
tem, select “Yes”.
After enabling the power back door
system, press the power back door
switch again to open or close the
power back door.

Suggestion to turn on the head-
lights

If the headlight switch is in other than

position, and the vehicle

speed is 5 km/h (3 mph) or higher for
a certain amount of time when the sur-
roundings are dark, a suggestion mes-
sage will be displayed.

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight
switch in

after the power switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the power
switch is turned off, this suggestion mes-
sage will not be displayed.

Suggestion to close the power win-
dows (linked to windshield wiper
operation)

If the windshield wipers are operated
with a power window open, a sugges-
tion message will be displayed asking if
you wish to close the power windows.

NOTICE

During setting up the display

To prevent 12-volt battery discharge,

ensure that the EV system is operating

while setting up the display features.

Suggestion function

169

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

• Street name
• Compass (heading-up display)

Driving information display area

Displays the following items:
• Speedometer
• Shift position/regenerative braking

power (



P.232)

• RSA (Road Sign Assist) (



P.278)

EV System Indicator (



P.172)

Head-up display switch

Head-up display will operate when

The power switch is in ON.

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

Street name display

Only street names which are included in the

map data will be displayed.

Outside temperature display

In the following situations, the outside

temperature is displayed.

• When the ambient temperature is

approximately 3°C (37°F) or lower (In

this case, the outside temperature display

will be displayed and the low outside tem-

perature indicator will flash for approxi-

mately 10 seconds.)

• After the opening image (



P.164) is dis-

played (The outside temperature display

will be displayed for approximately 10

seconds.)

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 20 km/h [12 mph])

• When the outside temperature has

changed suddenly (at the entrance/exit

of a garage, tunnel, etc.)

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to any authorized Lexus retailer or Lexus

authorized repairer, or any reliable

repairer.

C
D

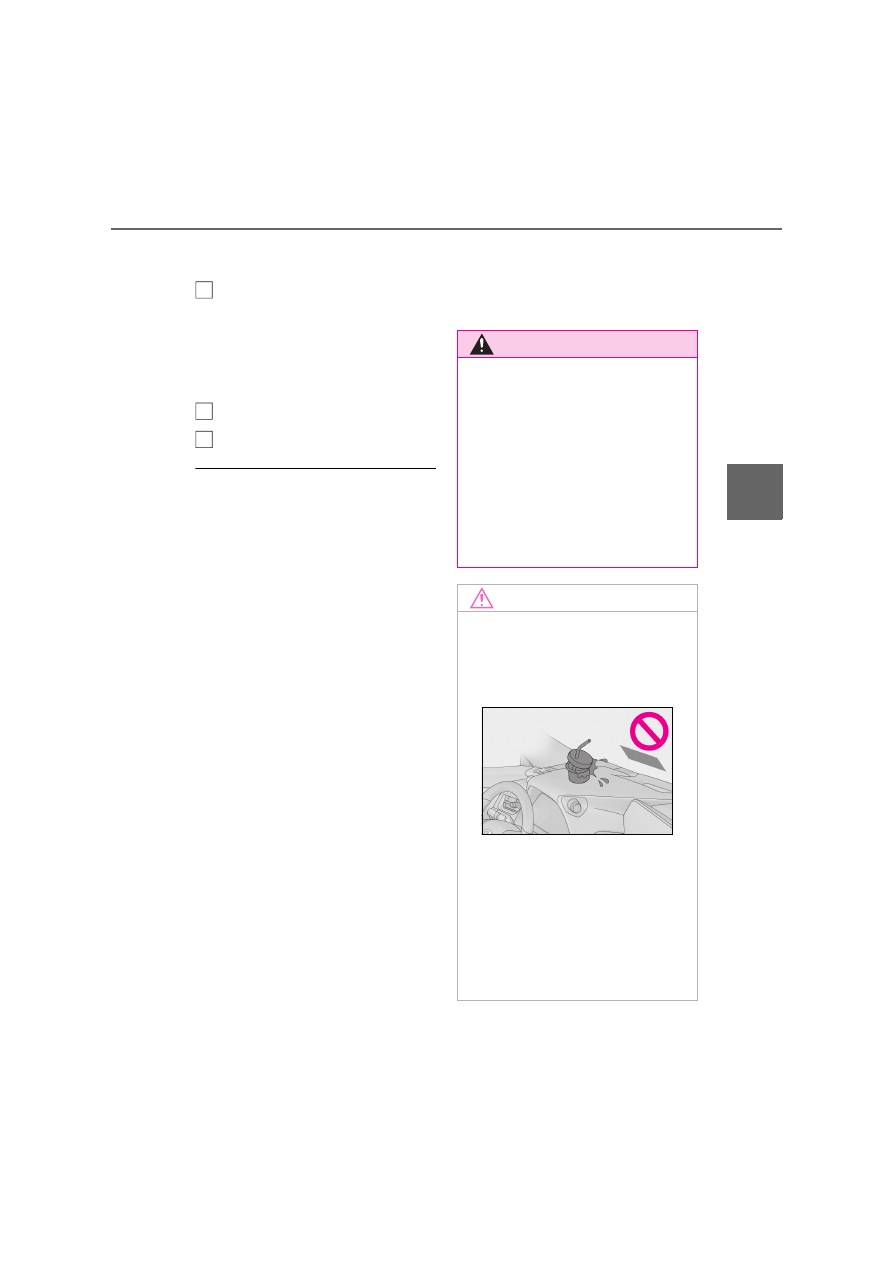

WARNING

When using the head-up display

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

Do not continuously look at the head-

up display while driving as you may fail

to see pedestrians, objects on the

road, etc. ahead of the vehicle.

NOTICE

Head-up display projector

Do not place any drinks near the head-

up display projector. If the projector

gets wet, electrical malfunctions may

result.

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

170

3-1. Instrument cluster

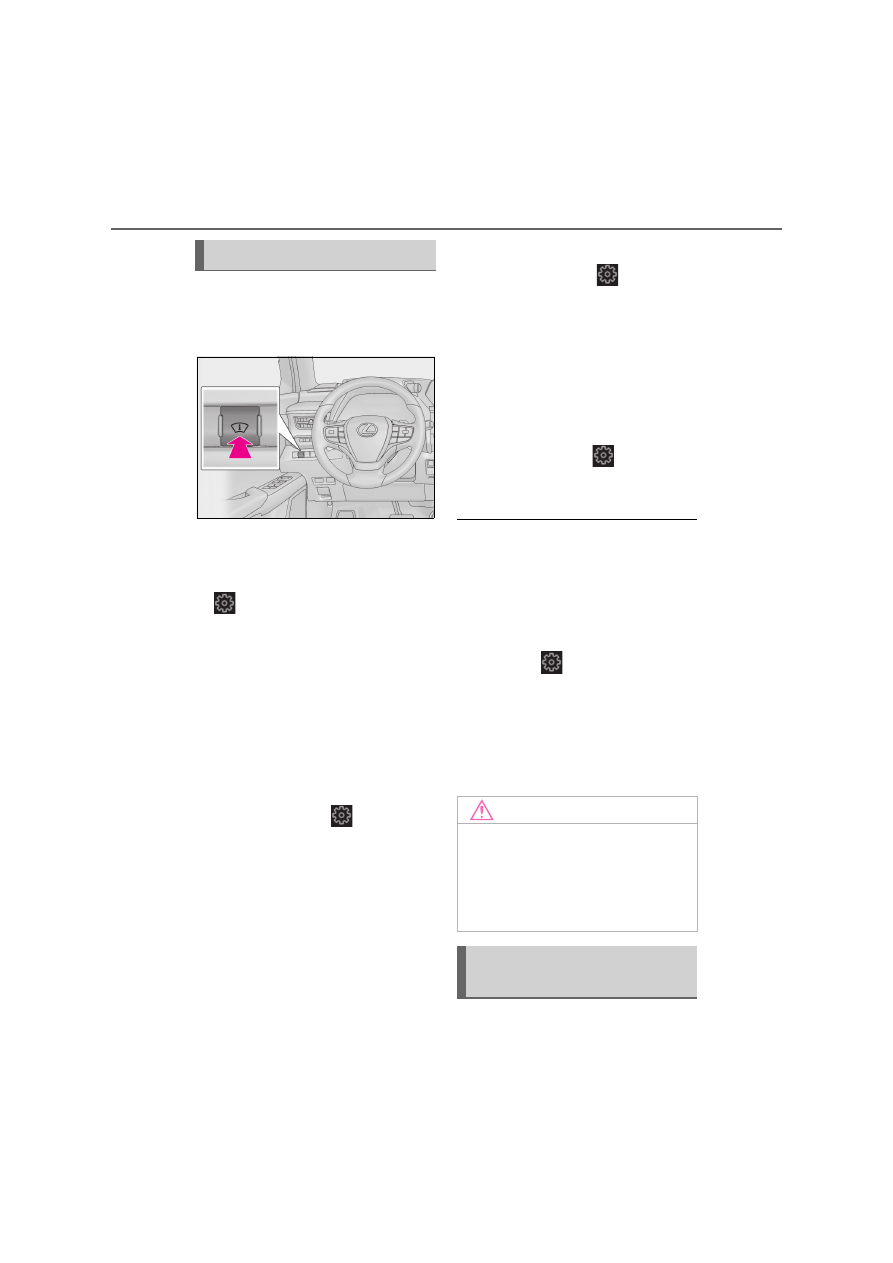

Enabling/disabling the head-up
display

Press the head-up display switch.

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(



P.164)



Brightness and vertical position of
the head-up display

Select to adjust the brightness or vertical
position of the head-up display.



EV System Indicator

Select to display the EV System Indicator
or no content.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.



Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)

• Audio system operation status

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

: Make sure to enable this display when

using the driving support systems



Display angle

Select to adjust the angle of the head-up
display.

: To set this item, select

on the multi-

information display, select “Vehicle Set-
tings” and select “HUD”.

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the power switch is

turned off then back to ON.

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

When the 12-volt battery is discon-

nected

The customize settings of the head-up dis-

play will be reset.

Displays the operational status of the

Using the head-up display

NOTICE

When changing the settings of the

head-up display

To prevent 12-volt battery discharge,

ensure that the EV system is operating

while changing the settings of the head-

up display.

Driving support system display
area

171

3-1. Instrument cluster

icle

ion
an

d i

ica

tor

following systems:



LTA (Lane Tracing Assist)
(



P.269)



Dynamic radar cruise control with
full-speed range (



P.282)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.



PCS (Pre-Collision System)
(



P.262)



Lexus parking assist-sensor (if
equipped) (



P.306)



Parking Support Brake function
(static objects) (if equipped)
(



P.323)



Brake Override System (



P.217)



Drive-Start Control (



P.217)

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display. For
details, refer to the explanation of each sys-
tem.

icons

These icons are linked to the multi-
information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(



P.440)

: Information icon

Displayed when a suggestion pop-up dis-
play (



P.167) or advice pop-up display is

displayed on the multi-information display.

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the head-
up display may differ from that displayed
on the multi-information display.

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

Hands-free system status

Displayed when the hands-free system
is operated.

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

Pop-up display

173

Before drivi

Before driving

4-1. Key information

Keys .................................................

174

4-2. Opening, closing and locking the

doors

Side doors .....................................

178

Back door......................................

182

Smart entry & start system.....

195

4-3. Adjusting the seats

Front seats....................................

200

Rear seats......................................

201

Head restraints...........................

202

4-4. Adjusting the steering wheel and

mirrors

Steering wheel ...........................

204

Inside rear view mirror............

205

Outside rear view mirrors.....

206

4-5. Opening, closing the windows

and moon roof

Power windows .........................

209

Moon roof ......................................

211

174

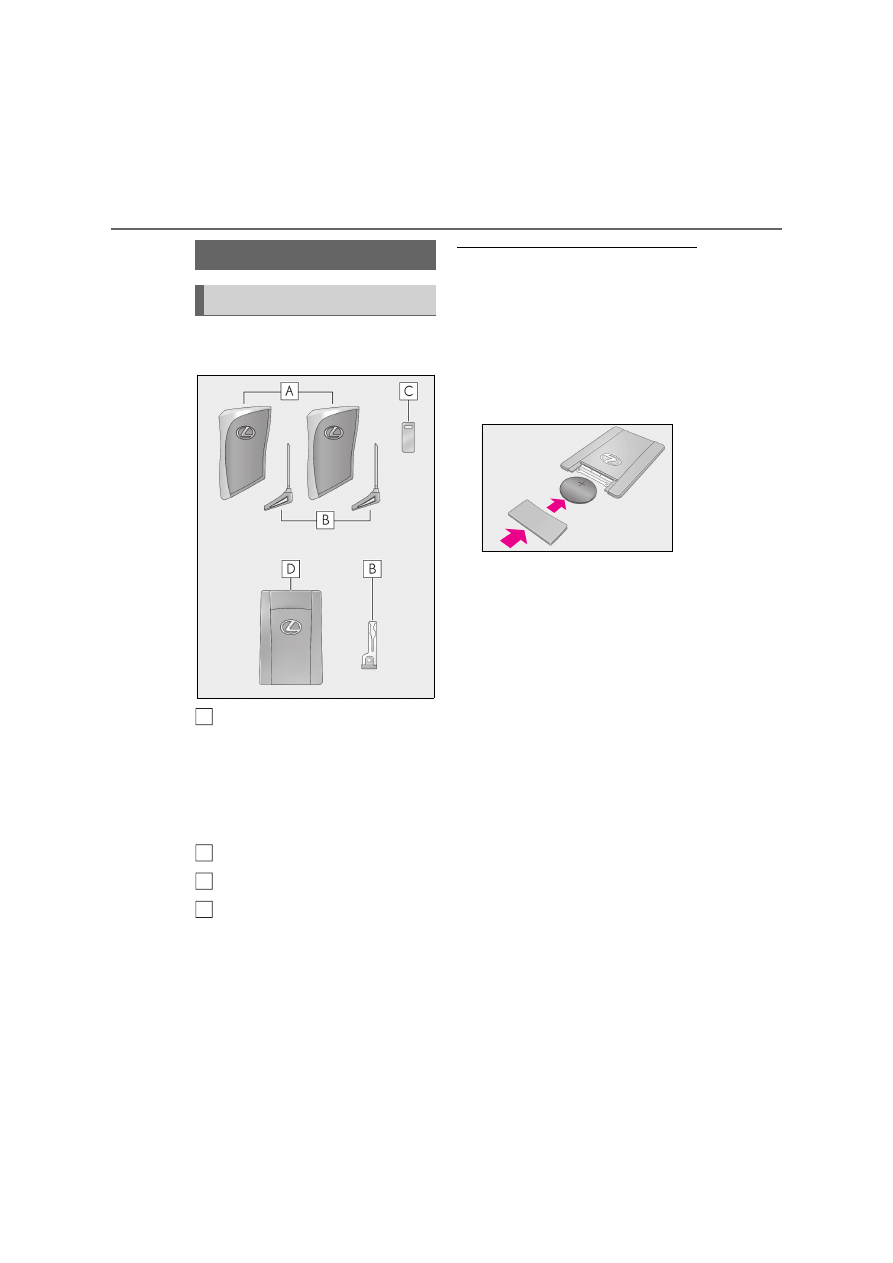

4-1. Key information

4-1.Key information

The following keys are provided with
the vehicle.

Electronic keys

• Operating the smart entry & start sys-

tem (if equipped) (



P.195)

• Operating the wireless remote control

function

• Operating the Remote Air Conditioning

System (



P.355)

Mechanical keys

Key number plate

Card key (electronic key) (if
equipped)

Operating the smart entry & start system
(



P.195)

Card key (if equipped)

The mechanical key that is stored inside

the card key should be used only if a

problem arises, such as when the card

key does not operate properly.

If the battery cover is not installed and the

battery falls out or if the battery was

removed because the key got wet, rein-

stall the battery with the positive terminal

facing the Lexus emblem.

The card key is not waterproof.

When riding in an aircraft

When bringing an electronic key onto an

aircraft, make sure you do not press any

buttons on the electronic key while inside

the aircraft cabin. If you are carrying an

electronic key in your bag, etc., ensure that

the buttons are not likely to be pressed

accidentally. Pressing a button may cause

the electronic key to emit radio waves that

could interfere with the operation of the air-

craft.

Electronic key battery depletion

The standard battery life is 1 to 2 years.

(The card key battery life is from one year

to one year and a half.)

If the battery becomes low, an alarm will

sound in the cabin when the EV system

stops.

To reduce key battery depletion when

the electronic key is to not be used for

long periods of time, set the electronic

key to the battery-saving mode.

(



P.197)

As the electronic key always receives

radio waves, the battery will become

depleted even if the electronic key is not

used. The following symptoms indicate

Keys

Key types

B
C
D

Lexus UX 300e (2022 year). Manual in english - page 9
