Changing settings for the head-up display

WARNING

●

Check that the position and brightness of the head-up display image does not inter-
fere with safe driving.
Incorrect adjustment of the image’s position or brightness may obstruct the driver’s
view and lead to an accident, resulting in death or serious injury.

●

As the engine needs to be running while changing the settings of the head-up display,
ensure that the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO) may collect
and enter the vehicle. This may lead to death or a serious health hazard.

NOTICE

To prevent battery discharge, ensure that the engine is running while the changing the
settings of the head-up display.

INFORMATION

■

Changing settings with the steering wheel switches

If any of the following items have been set as as a favorite steering wheel switch function,
settings of the head-up display can be changed using the steering wheel switches.

●

: Display on/off

●

: Display mode

●

: Height

●

: Brightness

■

Enabling/disabling of the head-up display

If the head-up display is disabled, it will remain disabled when the engine switch is turned
off then back to ON.

■

Display brightness

In addition to the brightness setting, the brightness of the display will change automatical-
ly according to the ambient brightness.

5-3. Changing the settings of the displays

313

Vehicle st

us information and indicator

■

Head-up display automatic position adjustment (vehicles with driving position
memory)

If the display position is recorded into memory, the head-up display will be automatically
adjusted to the desired position.

Select

on the center display.

Select [Vehicle customise].

Select [Head-up display].

The following settings for the head-up display can be changed.

●

Display on/off

●

Display mode

●

Height

●

Brightness

●

Angle

Related Links

Customizable features(P. 650)

5-3. Changing the settings of the displays

314

Features of the safe driving support functions

Lexus Safety System +

Lexus Safety System + consists of the driving assist systems and contributes to a
safe and comfortable driving experience.

WARNING

■

Lexus Safety System +

Lexus Safety System + operates under the assumption that the driver will drive safely, and
is designed to help reduce the impact to the occupants in a collision and assist the driver
under normal driving conditions.
As there is a limit to the degree of recognition accuracy and control performance that
this system can provide, do not overly rely on this system. The driver is solely responsible
for paying attention to the vehicle’s surroundings and driving safely.

■

For safe use

●

Do not overly rely on this system. The driver is solely responsible for paying attention
to the vehicle’s surroundings and driving safely. This system may not operate in all
situations and provided assistance is limited. Over-reliance on this system to drive the
vehicle safely may lead to an accident resulting in death or serious injury.

●

Do not attempt to test the operation of the system, as it may not operate properly,
possibly leading to an accident.

●

If attention is necessary while performing driving operations or a system malfunction
occurs, a warning message or warning buzzer will be operated. If a warning message
is displayed on the display, follow the instructions displayed.

●

Depending on external noise, the volume of the audio system, etc. it may be difficult to
hear the warning buzzer. Also, depending on the road conditions, it may be difficult to
recognize the operation of the system.

■

When it is necessary to disable the system

In the following situations, make sure to disable the system.
Failure to do so may lead to the system not operating properly, possibly leading to an
accident resulting in death or serious injury.

●

When the vehicle is tilted due to being overloaded or having a flat tire

●

When driving at extremely high speeds

●

When towing another vehicle

●

When the vehicle is being transported by a truck, ship, train, etc.

●

When the vehicle is raised on a lift and the tires are allowed to rotate freely

●

When inspecting the vehicle using a drum tester such as a chassis dynamometer or
speedometer tester, or when using an on vehicle wheel balancer

6-1. Features of the safe driving support functions

316

WARNING

●

When the vehicle is driven in a sporty manner or off-road

●

When using an automatic car wash

●

When a sensor is misaligned or deformed due to a strong impact being applied to the
sensor or the area around the sensor

●

When accessories which obstruct a sensor or light are temporarily installed to the
vehicle

●

When a compact spare tire or tire chains are installed to the vehicle or an emergency
tire puncture repair kit has been used

●

When the tires are excessively worn or the inflation pressure of the tires is low

●

When tires other than the manufacturer specified size are installed

●

When the vehicle cannot be driven stably, due to a collision, malfunction, etc.

■

Driving assist systems

●

AHS (Adaptive High-beam System)

→

P.176

●

AHB (Automatic High Beam)

→

P.180

●

PCS (Pre-Collision System)

→

P.334

●

LTA (Lane Tracing Assist)

→

P.347

●

LCA (Lane Change Assist)

→

P.352

●

LDA (Lane Departure Alert)

→

P.356

●

FCTA (Front Crossing Traffic Alert)

→

P.362

●

RSA (Road Sign Assist)

→

P.410

* :

If equipped

6-1. Features of the safe driving support functions

317

Driving suppor

t s

ystem

●

Dynamic radar cruise control

→

P.416

●

Emergency Driving Stop System

→

P.434

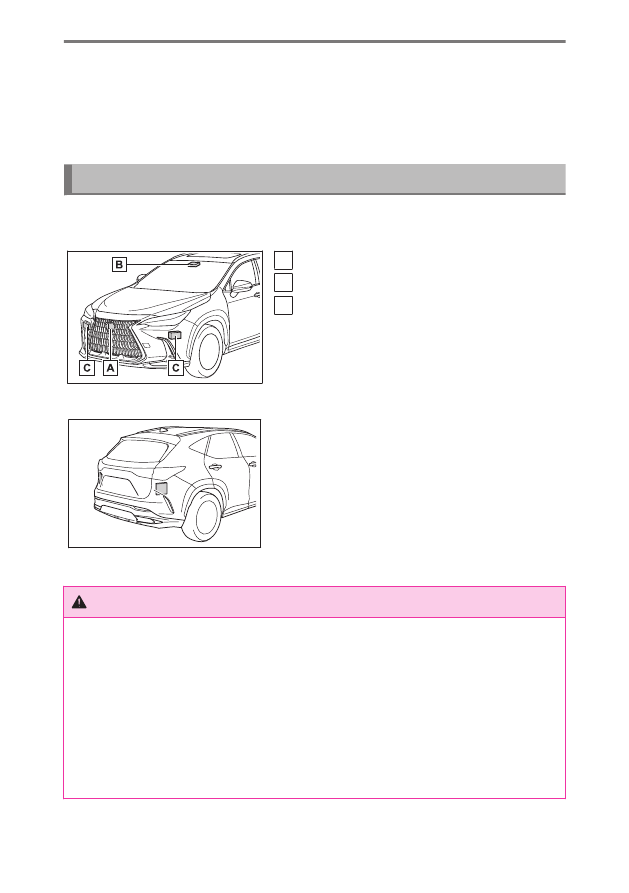

Sensors used by Lexus Safety System +

Various sensors are used to obtain the necessary information for system operation.

■

Front

Front radar sensor

Front camera

Front side radar sensors

■

Rear

Rear side radar sensors

WARNING

■

To prevent malfunction of the radar sensors

Observe the following precautions. Failure to do so may lead to a radar sensor not
operating properly, possibly leading to an accident resulting in death or serious injury.

●

Keep the radar sensors and radar sensor covers clean at all times.
Clean the front of a radar sensor or the front or back of a radar sensor cover if it is
dirty or covered with water droplets, snow, etc.
Clean the radar sensor and radar sensor cover with a soft cloth so as to not mark or
damage them.

* :

If equipped

6-1. Features of the safe driving support functions

318

WARNING

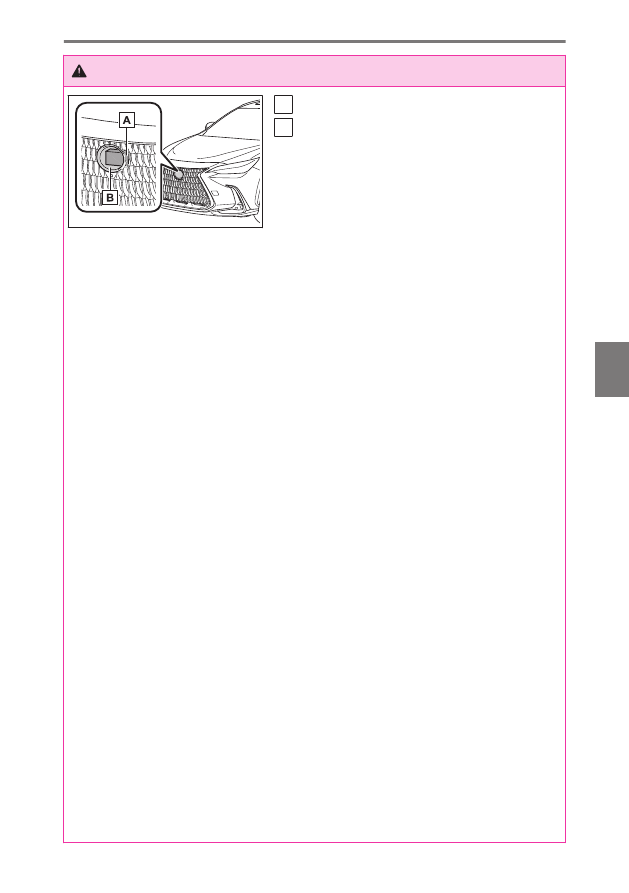

Radar sensor

Radar sensor cover

●

Do not attach accessories, stickers (including transparent stickers), aluminum tape,
etc. to a radar sensor or radar sensor cover and their surrounding area.

●

Do not subject a radar sensor or its surrounding area to impact.

●

If a radar sensor, the front grille, or front bumper has been subjected to a impact, have
the vehicle inspected by any authorized Lexus retailer or Lexus authorized repairer, or
any reliable repairer.

●

Do not disassemble the radar sensors.

●

Do not modify or paint the radar sensors or radar sensor cover, or replace them with
anything other than Lexus genuine parts.

●

In the following situations, recalibration of the radar sensors will be necessary.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer for details.

•

When a radar sensor is removed and installed, or replaced

•

When the front bumper or the front grille has been replaced

■

To prevent malfunction of the front camera

Observe the following precautions. Failure to do so may lead to the front camera not
operating properly, possibly leading to an accident resulting in death or serious injury.

●

Always keep the windshield clean.

•

If the windshield is dirty or covered with an oily film, water droplets, snow, etc., clean
the windshield.

•

Even if a glass coating agent is applied to the windshield, it will still be necessary
to use the windshield wipers to remove water droplets, etc. from the area of the
windshield in front of the front camera.

•

If the inner side of the windshield where the front camera is installed is dirty, contact
any authorized Lexus retailer or Lexus authorized repairer, or any reliable repairer
for details.

●

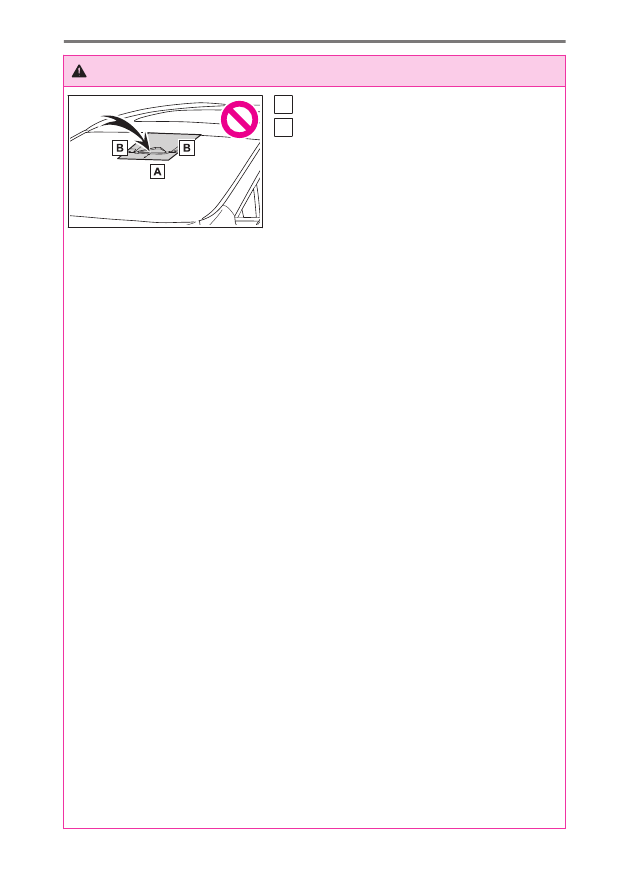

Do not attach stickers (including transparent stickers) or other items to the area of the
windshield in front of the front camera (shaded area in the illustration).

6-1. Features of the safe driving support functions

319

Driving suppor

t s

ystem

WARNING

Approximately 4cm (1.6 in.)

●

If the part of the windshield in front of the front camera is fogged up or covered with
condensation or ice, use the windshield defogger to remove the fog, condensation, or
ice.

●

If water droplets cannot be properly removed from the area of the windshield in front
of the front camera by the windshield wipers, replace the wiper insert or wiper blade.

●

Do not attach window tint to the windshield.

●

Replace the windshield if it is damaged or cracked.
If the windshield has been replaced, recalibration of the front camera will be necessa-
ry.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer for details.

●

Do not allow liquids to contact the front camera.

●

Do not allow bright lights to shine into the front camera.

●

Do not damage the lens of the front camera or allow it to become dirty.
When cleaning the inside of the windshield, do not allow glass cleaner to contact the
lens of the front camera. Do not touch the lens of the front camera.
If the lens of the front camera is dirty or damaged, contact any authorized Lexus
retailer or Lexus authorized repairer, or any reliable repairer for details.

●

Do not subject the front camera to a strong impact.

●

Do not change the position or orientation of the front camera or remove it.

●

Do not disassemble the front camera.

●

Do not modify any parts around the front camera, such as the inside rear view mirror
or ceiling.

●

Do not attach accessories which may obstruct the front camera to the hood, front
grille, or front bumper.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer for details.

6-1. Features of the safe driving support functions

320

WARNING

●

If a surfboard or other long object is to be mounted on the roof, make sure that it will
not obstruct the front camera.

●

Do not modify or change the headlights and other lights.

■

Front camera installation area on the windshield

If the system determines that the windshield may be fogged up, it will automatically
operate the heater to defog the part of the windshield around the front camera. When
cleaning, etc., be careful not to touch the area around the front camera until the wind-
shield has cooled sufficiently, as touching it may cause burns.

INFORMATION

■

Situations in which the sensors may not operate properly

●

When the height or inclination of the vehicle has been changed due to modifications

●

When the windshield is dirty, fogged up, cracked or damaged

●

When a sensor is extremely hot

●

When mud, water, snow, dead insects, foreign matter, etc., is attached to the front of
the sensor

●

When in inclement weather such as heavy rain, fog, snow, or a sandstorm

●

When water, snow, dust, etc. is thrown up in front of the vehicle, or when driving
through mist or smoke

●

When the headlights are not illuminated while driving in the dark, such as at night or
when in a tunnel

●

When the lens of a headlight is dirty and illumination is weak

●

When the headlights are misaligned

●

When a headlight is malfunctioning

●

When a the headlights of another vehicle, sunlight, or reflected light shines directly
into the front camera

●

When the brightness of the surrounding area changes suddenly

●

When driving near a TV tower, broadcasting station, electric power plant, radar
equipped vehicles, etc., or other location where strong radio waves or electrical noise
may be present

●

When a wiper blade is blocking the front camera

●

When in a location or near objects which strongly reflect radio waves, such as the
following:

•

Tunnels

6-1. Features of the safe driving support functions

321

Driving suppor

t s

ystem

•

Truss bridges

•

Gravel roads

•

Rutted, snow-covered roads

•

Walls

•

Large trucks

•

Manhole covers

•

Metal plates

•

Guardrail

●

When near a step or protrusion

●

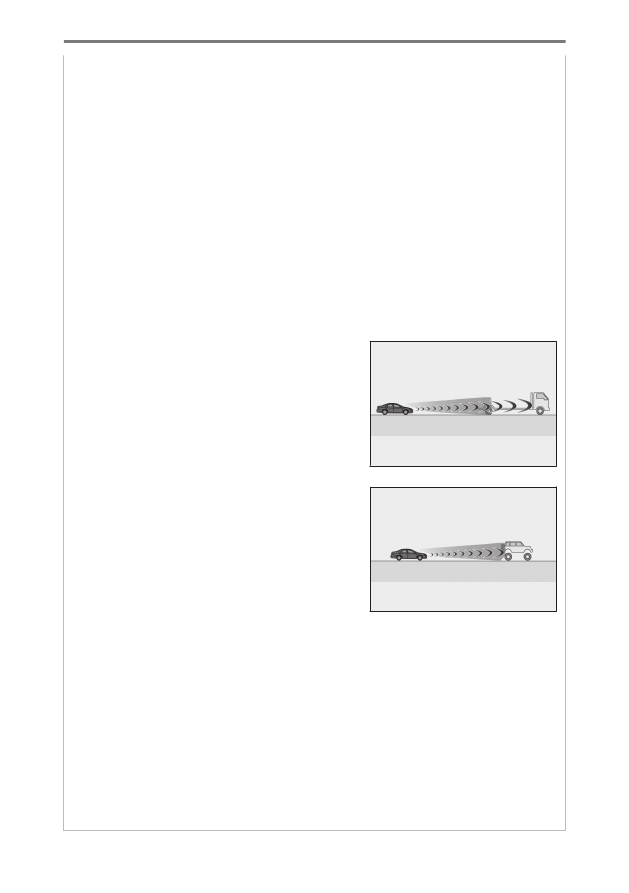

When a detectable vehicle is narrow, such as a small mobility vehicle

●

When a detectable vehicle has a small front or rear end, such as an unloaded truck

●

When a detectable vehicle has a low front or rear
end, such as a low bed trailer

●

When a detectable vehicle has extremely high
ground clearance

●

When a detectable vehicle is carrying a load which protrudes from its cargo area

●

When a detectable vehicle has little exposed metal, such as a vehicle which is partially
covered with cloth, etc.

●

When a detectable vehicle is irregularly shaped, such as a tractor, sidecar, etc.

●

When the distance between the vehicle and a detectable vehicle has become ex-
tremely short

●

When a detectable vehicle is at an angle

●

When a large amount of snow, mud, etc. is attached to a detectable vehicle

●

When driving on the following kinds of roads:

6-1. Features of the safe driving support functions

322

•

Roads with sharp curves or winding roads

•

Roads with changes in grade, such as sudden inclines or declines

•

Roads which is sloped to the left or right

•

Roads with deep ruts

•

Roads which are rough and unmaintained

•

Roads which frequently undulate or are bumpy

●

When the steering wheel is being operated frequently or suddenly

●

When the vehicle is not in a constant position within a lane

●

When parts related to this system, the brakes, etc. are extremely hot or cold, wet, etc.

●

When the wheels are misaligned

●

When driving on slick road surfaces, such as when it is covered with ice, snow, gravel,
etc.

●

When the course of the vehicle differs from the shape of a curve

●

When the vehicle speed is excessively high when entering a curve

●

When entering/exiting a parking lot, garage, car elevator, etc.

●

When driving in a parking lot

●

When driving through an area where there are obstructions which may contact your
vehicle, such as tall grass, tree branches, a curtain, etc.

■

Situations in which the lane may not be detected

●

When the lane is extremely wide or narrow

●

Immediately after changing lanes or passing through an intersection

●

When driving in a temporary lane or lane regulated by construction

●

When there are structures, patterns, shadows which are similar to lane lines in the
surrounding

●

When the lane lines are not clear or driving on a wet road surface

●

When a lane line is on a curb

●

When driving on a bright, reflective road surface, such as concrete

■

Situations in which some or all of the functions of the system cannot operate

●

When a malfunction is detected in this system or a related system, such as the brakes,
steering, etc.

●

When the VSC, TRC, or other safety related system is operating

●

When the VSC, TRC, or other safety related system is off

6-1. Features of the safe driving support functions

323

Driving suppor

t s

ystem

Driving assist systems

To keep driving safety and performance, the following systems operate automat-
ically in response to various driving situations. Be aware, however, that these
systems are supplementary and should not be relied upon too heavily when
operating the vehicle.

■

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the brakes are applied suddenly, or if the brakes
are applied while driving on a slippery road surface.

■

Brake assist

Generates an increased level of braking force after the brake pedal is depressed
when the system detects a panic stop situation.

■

VSC (Vehicle Stability Control)

Helps the driver to control skidding when swerving suddenly or turning on slippery
road surfaces.

■

VSC+ (Vehicle Stability Control+)

Provides cooperative control of the ABS, TRC, VSC and EPS.
Helps to maintain directional stability when swerving on slippery road surfaces by
controlling steering performance.

■

Trailer Sway Control

Helps the driver to control trailer sway by selectively applying brake pressure for
individual wheels and reducing driving torque when trailer sway is detected.

■

TRC (Traction Control)

Helps to maintain drive power and prevent the drive wheels from spinning when
starting the vehicle or accelerating on slippery roads

■

Active Cornering Assist (ACA)

Helps to prevent the vehicle from drifting to the outer side by performing inner
wheel brake control when attempting to accelerate while turning.

■

Hill-start assist control

Helps to reduce the backward movement of the vehicle when starting on an uphill.

■

VGRS (Variable Gear Ratio Steering)

Adjusts the front wheel turning angle in accordance with the vehicle speed and
steering wheel movement.

6-1. Features of the safe driving support functions

325

Driving suppor

t s

ystem

■

EPS (Electric Power Steering)

Employs an electric motor to reduce the amount of effort needed to turn the
steering wheel.

■

Dynamic Torque Control AWD system (NX250: AWD models)

Automatically controls the drive system such as to front-wheel drive or AWD (all
wheel drive) according to various running conditions including normal driving,
during cornering, on a uphill, when starting off, during acceleration, on a slippery
roads due to snow or rain, thus contributing to stable operability and driving
stability.

■

Automatic Rear Flashing Hazard Lights

The rear side radar sensors detect following vehicles driving in the same lane. If the
system determines that the possibility of a rear-end collision is high, the emergency
flashers will flash rapidly to warn the driver of the following vehicle. Simultaneously,
a message will be displayed on the multi-information display to notify the driver of
the approach of the following vehicle.

■

Adaptive Variable Suspension System

By independently controlling the damping force of the shock absorbers for each of
the 4 wheels according to the road and driving conditions, this system helps riding
comfort with superior vehicle stability, and helps good vehicle posture.
Also, the damping force changes depending on the selected driving mode.

■

Emergency brake signal

When the brakes are applied suddenly, the stop lights automatically flash to alert
the vehicle behind.

■

The Secondary Collision Brake

When the SRS airbag sensor detects a collision and the system operates, the
brakes and brake lights are automatically controlled to reduce the vehicle speed
and help reduce the possibility of further damage due to a secondary collision.

* :

If equipped

6-1. Features of the safe driving support functions

326

INFORMATION

■

When the TRC/VSC/Trailer Sway Control systems are operating

The slip indicator light will flash while the TRC/VSC/
Trailer Sway Control systems are operating.

■

Disabling the TRC system

If the vehicle gets stuck in mud, dirt or snow, the TRC system may reduce power from the

engine to the wheels. Pressing [

] to turn the system off may make it easier for

you to rock the vehicle in order to free it.

To turn the TRC system off, quickly press and release [

The "Traction Control Turned OFF"will be shown on the multi-information display. Press

[

] again to turn the system back on.

■

Turning off both TRC, VSC and Trailer Sway Control systems

To turn the TRC, VSC and Trailer Sway Control systems off, press and hold [

] for

more than 3 seconds while the vehicle is stopped.

6-1. Features of the safe driving support functions

327

Driving suppor

t s

ystem

The VSC OFF indicator light will come on and the "Traction Control Turned OFF" will be

shown on the multi-information display. Press

again to turn the system back on.

■

When the message is displayed on the multi-information display showing that TRC

has been disabled even if [

] has not been pressed

TRC is temporary deactivated.
If the indicator light continues to remain on, contact any authorized Lexus retailer or
Lexus authorized repairer, or any reliable repairer.

■

Operating conditions of hill-start assist control

When the following four conditions are met, the hill-start assist control will operate:

●

The shift position is in a position other than P or N (when starting off forward/back-
ward on an upward incline)

●

The vehicle is stopped

●

The accelerator pedal is not depressed

●

The parking brake is not engaged

●

Engine switch is turned to ON

■

Automatic system cancelation of hill-start assist control

The hill-start assist control will turn off in any of the following situations:

●

The shift position is shifted to P or N

●

The accelerator pedal is depressed

●

The parking brake is engaged

●

2 seconds at maximum elapsed after the brake pedal is released

●

Engine switch is turned to OFF

■

VGRS is disabled when

VGRS may stop operating in the following situations. In this event, the steering wheel may
move from its straight forward position, but it will return when the system restarts.

●

When the steering wheel is operated for an extended period of time while the vehicle
is stopped or is moving very slowly

●

When the steering wheel has been held fully to the left or right

The center position of the steering wheel may change when VGRS is disabled. However,
the position will return to normal after VGRS is reactivated.

6-1. Features of the safe driving support functions

328

Lexus NX (2022 year). Manual in english - page 19
