Should a safety system light such as the ABS and SRS warning light not come on
when you start the engine, this could mean that these systems are not available to help
protect you in an accident, which could result in death or serious injury. Have the vehicle
inspected by any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer immediately if this occurs.

List of indicators

The indicators inform the driver of the operating state of the vehicle’s various
systems.

Turn signal indicator

Tail light indicator

Headlight high beam indicator

* :

If equipped

5-1. Functions and displays of the meter

281

Vehicle st

us information and indicator

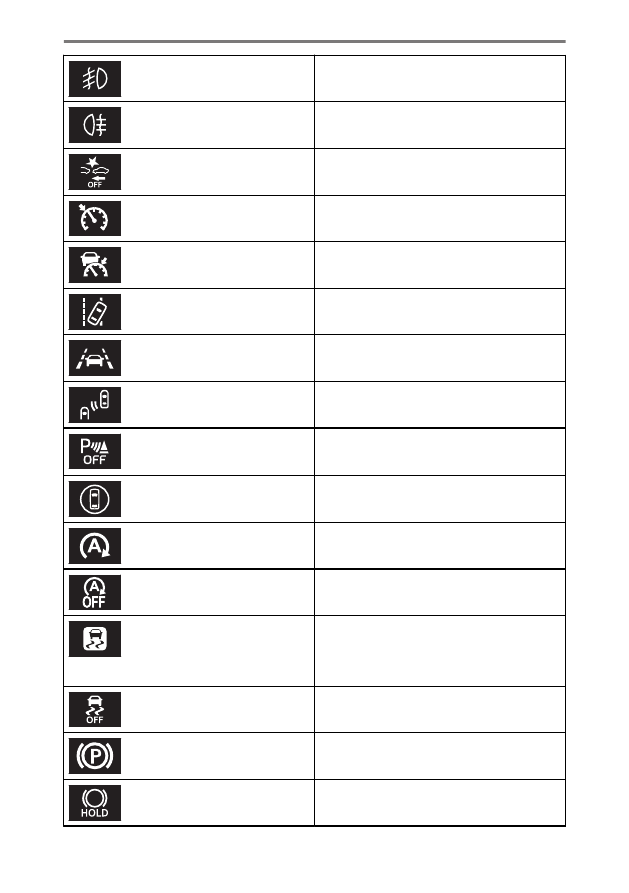

Front fog light indicator

Rear fog light indicator

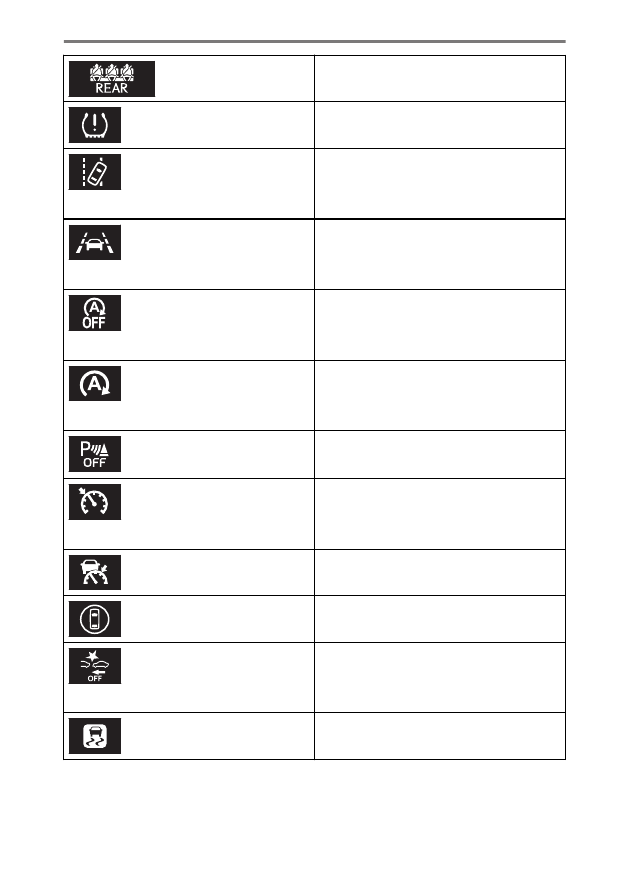

PCS warning light

(1)(3)

Cruise control indicator

Dynamic radar cruise control indicator

LDA indicator

LTA indicator

BSM outside rear view mirror indicators

*(2)

Lexus parking assist-sensor OFF indica-
tor

*(3)(1)

Driving assist infomation indicator

(1)(3)

Stop & Start indicator

*(1)

Stop & Start cancel indicator

(flashes)

Parking brake indicator

(1)

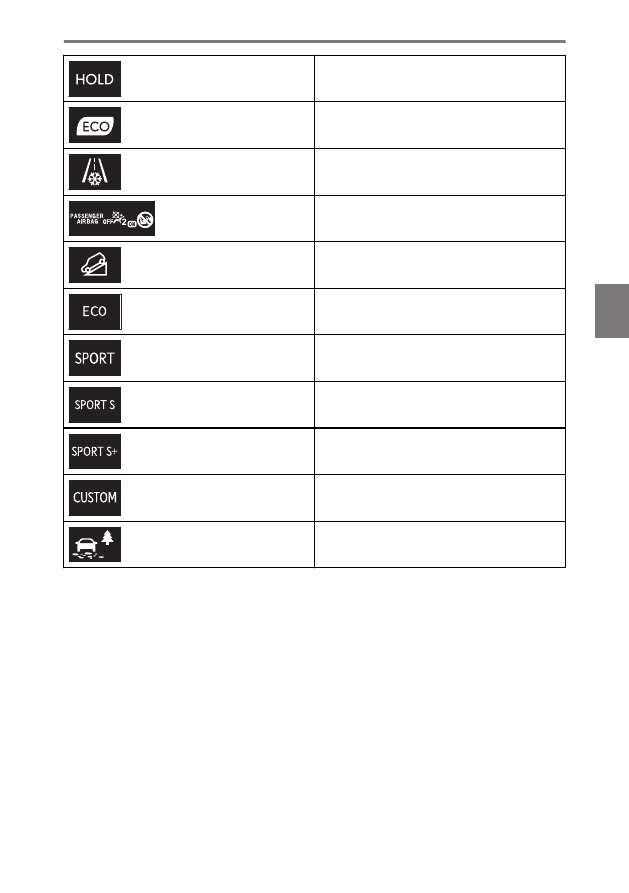

Brake hold standby indicator

(1)

5-1. Functions and displays of the meter

282

Brake hold operated indicator

(1)

Eco driving indicator light

(1)

Low outside temperature indicator

(4)

[PASSENGER AIR BAG] indicator

(5)

Downhill assist control system indicator

Eco drive mode indicator

Sport mode indicator

(6)

Sport S mode indicator

(7)

Sport S+ mode indicator

(7)

Custom mode indicator

(7)

Trail Mode indicator

(1)

These lights come on when the engine switch is turned to ON to indicate that a system

check is being performed. They will turn off after the engine is started, or after a few

seconds. There may be a malfunction in a system if the lights do not come on, or turn

off. Have the vehicle inspected by any authorized Lexus retailer or Lexus authorized

repairer, or any reliable repairer.

(2)

This light illuminates on the outside rear view mirrors.

(3)

This light comes on when the system is turned off.

(4)

When the outside temperature is approximately 3°C (37°F) or lower, this indicator

will flash for approximately 10 seconds, then stay on.

(5)

This light illuminates on the front interior/personal lights.

(6)

Except F SPORT models

(7)

F SPORT models

5-1. Functions and displays of the meter

283

Vehicle st

us information and indicator

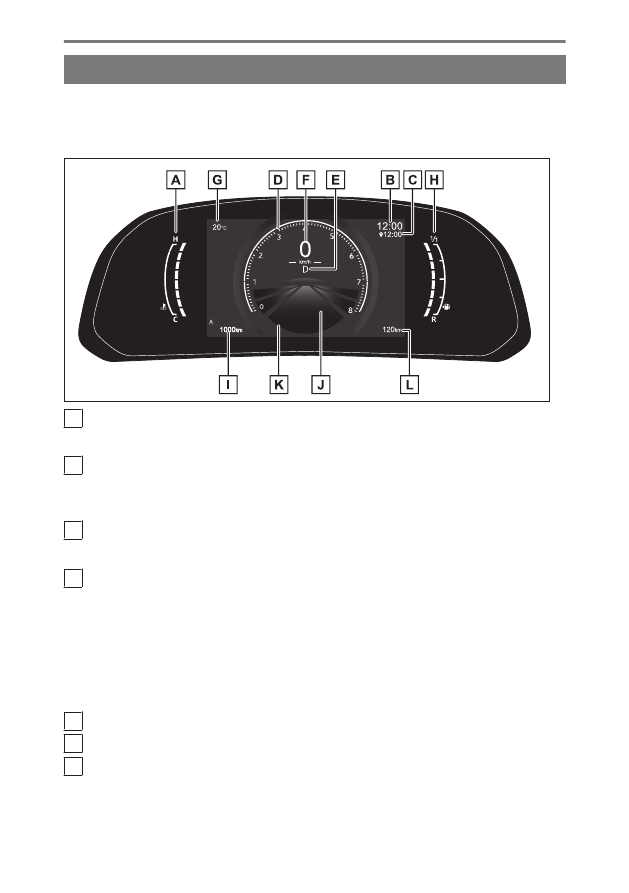

Gauges and meters (except F SPORT models)

▶

Vehicles without a head-up display

Engine coolant temperature gauge

Displays the engine coolant temperature

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "Multimedia owner's manual".

Tachometer

Displays the engine speed in revolutions per minute
Speedometer
Depending on the certain settings, the display will change.

Shift position/shift range/gear position

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 50°C
(122°F).

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

Background color of driving mode

Background color changes according to the driving mode.

5-1. Functions and displays of the meter

285

Vehicle st

us information and indicator

▶

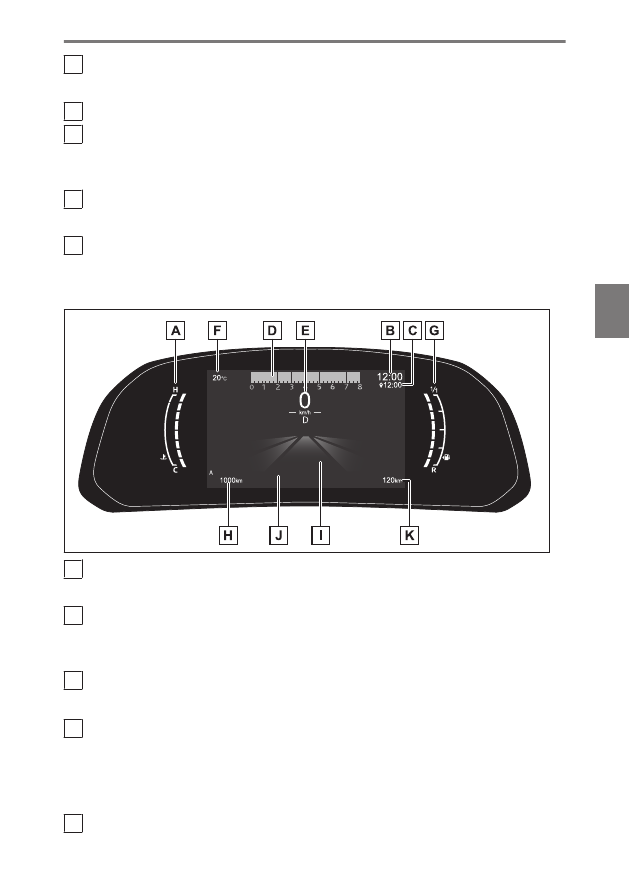

Vehicles with a head-up display

Engine coolant temperature gauge

Displays the engine coolant temperature

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "Multimedia owner's manual".

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

Tachometer

Displays the engine speed in revolutions per minute
Analog speedometer
Depending on the certain settings, the display will change.

Shift position/shift range/gear position

Digital speedometer

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 50°C
(122°F).

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

* :

If equipped

5-1. Functions and displays of the meter

286

Background color of driving mode

Background color changes according to the driving mode.

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

■

The meters and display illuminate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

•

When stopped, or driving at low speeds (less than 20 km/h [12 mph])

•

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

●

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.

■

Liquid crystal display

Small spots or light spots may appear on the display.
This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

■

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.

https://www.denso.com/global/en/opensource/meter/toyota/

WARNING

5-1. Functions and displays of the meter

287

Vehicle st

us information and indicator

WARNING

For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

●

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is in the red
zone (H); or "Engine Coolant Temp High Stop in a Safe Place See Owner's Manual"
is shown on the multiinformation display. In this case, immediately stop the vehicle in a
safe place, and check the engine after it has cooled completely.

Related Links

Customizable features(P. 650)

Changing between the tachometer/speedometer displays

Depending on the current drive mode or settings, the displays will change as
follows. Settings can be changed on the center display.

■

Vehicles without a head-up display

●

Tachometer

Displayed when the meter display type setting is set to display type 1 or display type 3.

●

Speedometer

Always displayed.
The display will change between a digital speedometer and/or analog speedometer
depending on the meter display type setting.

■

Vehicles with a head-up display

●

Tachometer

Displayed when the meter display type setting is set to display type 1.
F SPORT models: Also displayed when set to display type 3.

●

Speedometer

A digital speedometer is always displayed.

5-1. Functions and displays of the meter

288

When the meter display type setting is set to display type 2, an analog speedometer will
also be displayed.

Related Links

Customizable features(P. 650)

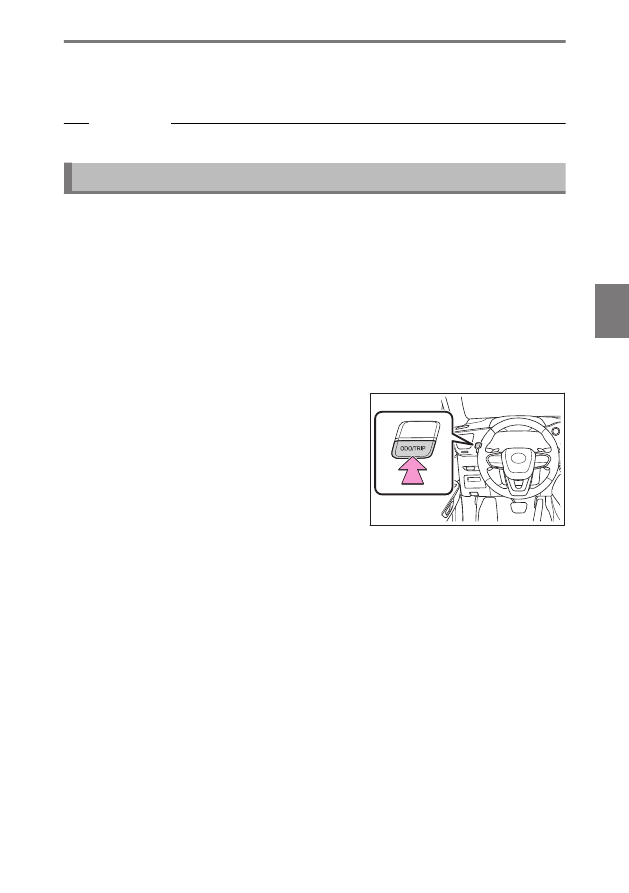

Changing the distance driven display/resetting the distance driven

The display can be changed between the following items.

●

Odometer

Displays the total distance the vehicle has been driven.

●

Trip meter A/trip meter B

Displays the distance the vehicle has been driven since the meter was last reset. Trip
meters A and B can be used to record and display different distances independently.

●

Distance until next engine oil change

Displays the distance the vehicle can be driven until an oil change is necessary.

Each time the switch is pressed, the displayed
item will be changed.
When the trip meter is displayed, pressing and
holding the switch will reset the trip meter.

5-1. Functions and displays of the meter

289

Vehicle st

us information and indicator

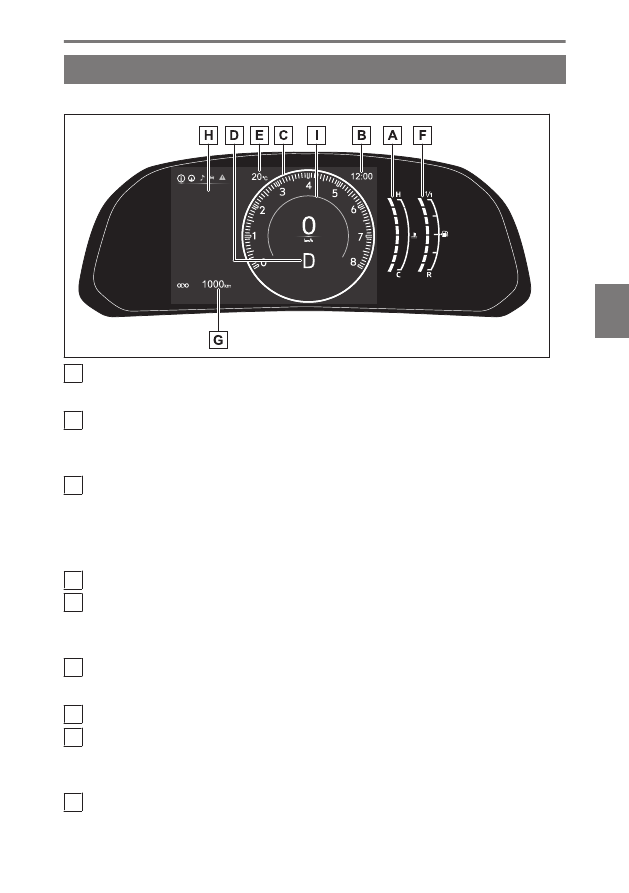

Gauges and meters (F SPORT models)

Depending on the shift position or current drive mode, the meter displays or
position of some gauges will change.

▶

Ring display state

Engine coolant temperature gauge

Displays the engine coolant temperature

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "Multimedia owner's manual".

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

Tachometer

Displays the engine speed in revolutions per minute

●

Rev indicator

●

Rev peak

Analog speedometer
Depending on the selected drive mode or certain settings, the display will change.

Shift position/shift range/gear position

Digital speedometer

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 50°C
(122°F).

* :

If equipped

5-1. Functions and displays of the meter

290

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs.

Background color of driving mode

Background color changes according to the driving mode.

Distance to empty

Displays the driving range with remaining fuel.

▶

Bar display state

Engine coolant temperature gauge

Displays the engine coolant temperature

Clock

Automatically adjusts the time by using the GPS time information (GPS clock). For
details, refer to "Multimedia owner's manual".

Navigation system estimated time of arrival display

Displays the estimated time of arrival according to the navigation system.

Tachometer

Displays the engine speed in revolutions per minute

●

Rev indicator

●

Rev peak

Shift position/shift range/gear position/digital speedometer

5-1. Functions and displays of the meter

291

Vehicle st

us information and indicator

Outside temperature

Displays the ambient temperature within the range of -40°C (-40°F) to 50°C
(122°F).

Fuel gauge

Displays the quantity of fuel remaining in the tank.

Odometer and trip meter display

Multi-information display

Presents the driver with a variety of vehicle data and displays warning messages if a
malfunction occurs .

Background color of driving mode

Background color changes according to the driving mode.

Distance to empty

Displays the driving range with remaining fuel.

INFORMATION

■

The meters and display illuminate when

The engine switch is in ON.

■

Outside temperature display

●

In the following situations, the correct outside temperature may not be displayed, or
the display may take longer than normal to change:

•

When stopped, or driving at low speeds (less than 20 km/h [12 mph])

•

When the outside temperature has changed suddenly (at the entrance/exit of a
garage, tunnel, etc.)

●

When "--" or "E" is displayed, the system may be malfunctioning.
Take your vehicle to any authorized Lexus retailer or Lexus authorized repairer, or any
reliable repairer.

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

■

Liquid crystal display

Small spots or light spots may appear on the display.

5-1. Functions and displays of the meter

292

This phenomenon is characteristic of liquid crystal displays, and there is no problem
continuing to use the display.

■

Free/Open Source Software Information

This product contains Free/Open Source Software (FOSS). The license information
and/or the source code of such FOSS can be found at the following URL.

https://www.denso.com/global/en/opensource/meter/toyota/

WARNING

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

NOTICE

To prevent the engine or components from being damaged, observe the following
precautions.

●

Do not let the indicator needle of the tachometer enter the red zone, which indicates
the maximum engine speed.

●

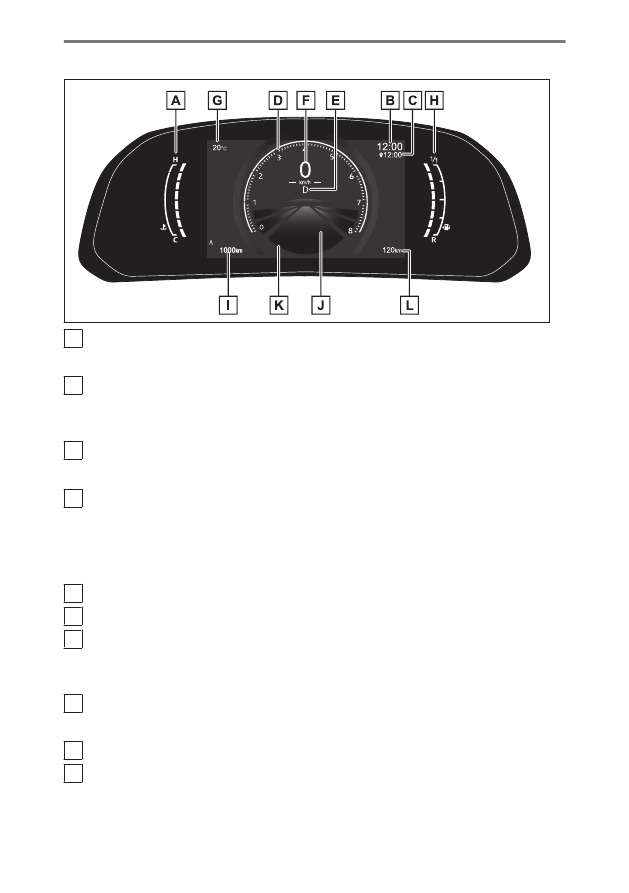

Rev indicator/Rev peak display

■

Rev indicator

When the engine speed reaches a set speed or the red zone, the tachometer will
be highlighted.

The indicators will be displayed in amber when the engine speed reaches a set speed, and
in red when the engine speed reaches the red zone.

5-1. Functions and displays of the meter

293

Vehicle st

us information and indicator

The engine speed at which the Rev indicator is displayed can be changed on the
center display.

■

Rev peak

When the engine speed reaches or exceeds 5000 r/min, an afterimage of the
tachometer will be displayed at the highest engine speed for approximately 1
second.

Related Links

Customizable features(P. 650)

5-1. Functions and displays of the meter

294

Functions of the displays

Multi-information display (vehicles without a head-up display)

A variety of driving-related information can be displayed. Depending on the
situation, warning or advice pop-up displays will also be displayed.

■

Display area

Content display area

Driving support system information display
area

When a menu icon other than

is se-

lected, if the driving support system operates,
the system operating state will be displayed.

■

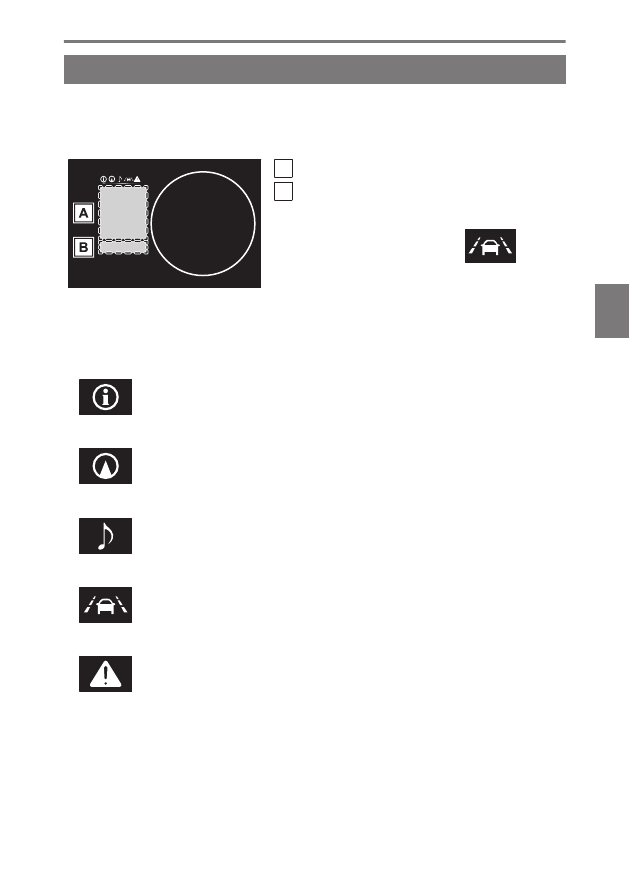

Items displayed in the content display area

By selecting menu icons on the multi-information display, the following items can
be displayed.

●

Driving information display

●

Navigation system-linked display

●

Audio system-linked display

●

Driving support system information display

●

Warning message

* :

If equipped

5-2. Functions of the displays

295

Vehicle st

us information and indicator

INFORMATION

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of
liquid crystal displays, and there is no problem continuing to use the display.

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.

NOTICE

To prevent battery discharge, ensure that the engine is running while setting up the
display features.

5-2. Functions of the displays

296

Content .. 15 16 17 18 ..
