Multi-information display (vehicles with a head-up display)

A variety of driving-related information can be displayed. Depending on the
situation, warning or advice pop-up displays will also be displayed.

■

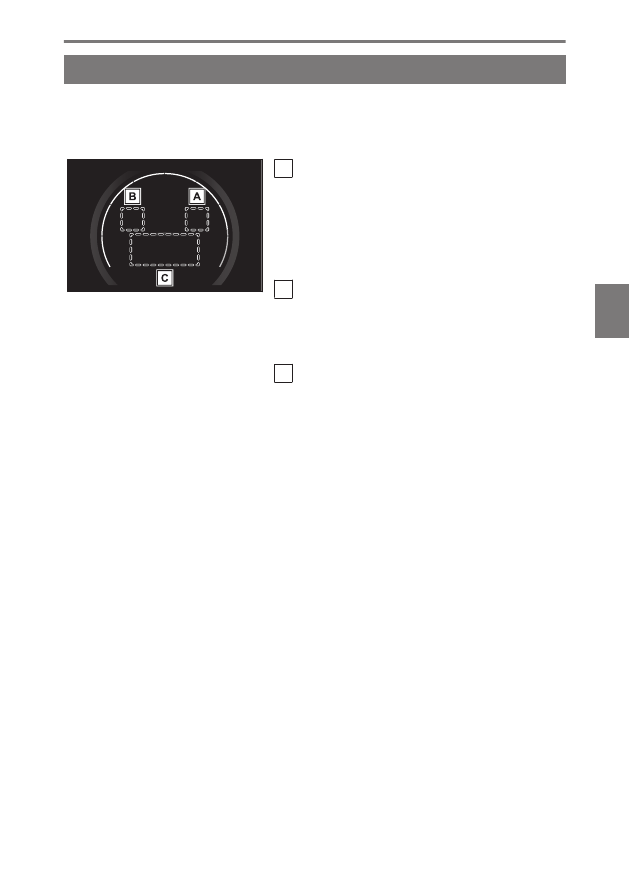

Display area

Driving support system information display
area

When driving support system information is not
displayed in the content display area, if the driv-
ing support system operates, the system operat-
ing state will be displayed.

Navigation system-linked display area

If the navigation system linked-display is not dis-
played in the content display area, route guid-
ance will be displayed.

Content display area

■

Items displayed in the content display area

The following items can be displayed.

●

Drive information 1

●

Drive information 2

●

Eco Driving Indicator

●

Audio system-linked display

●

Navigation system-linked display

**1

●

Boost gauge/engine oil temperature gauge/engine oil pressure gauge

●

G-force

●

Gear Position

●

Driving support system information display

●

Blank (No items)

* :

If equipped

*1 :

Displayed on the head-up display when the display mode is set to display the maxi-

mum.

5-2. Functions of the displays

297

Vehicle st

us information and indicator

INFORMATION

■

Liquid crystal display

Small spots or light spots may appear on the display. This phenomenon is characteristic of
liquid crystal displays, and there is no problem continuing to use the display.

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra attention to the
safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as you may fail
to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

The information display at low temperatures

Allow the interior of the vehicle to warm up before using the liquid crystal information
display. At extremely low temperatures, the information display monitor may respond
slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear number
appearing on the display. This lag could cause the driver to downshift again, causing rapid
and excessive engine braking and possibly an accident resulting in death or injury.

■

Cautions during setting up the display

As the engine needs to be running during setting up the display, ensure that the vehicle
is parked in a place with adequate ventilation. In a closed area such as a garage, exhaust
gases including harmful carbon monoxide (CO) may collect and enter the vehicle. This
may lead to death or a serious health hazard.

NOTICE

To prevent battery discharge, ensure that the engine is running while setting up the
display features.

5-2. Functions of the displays

298

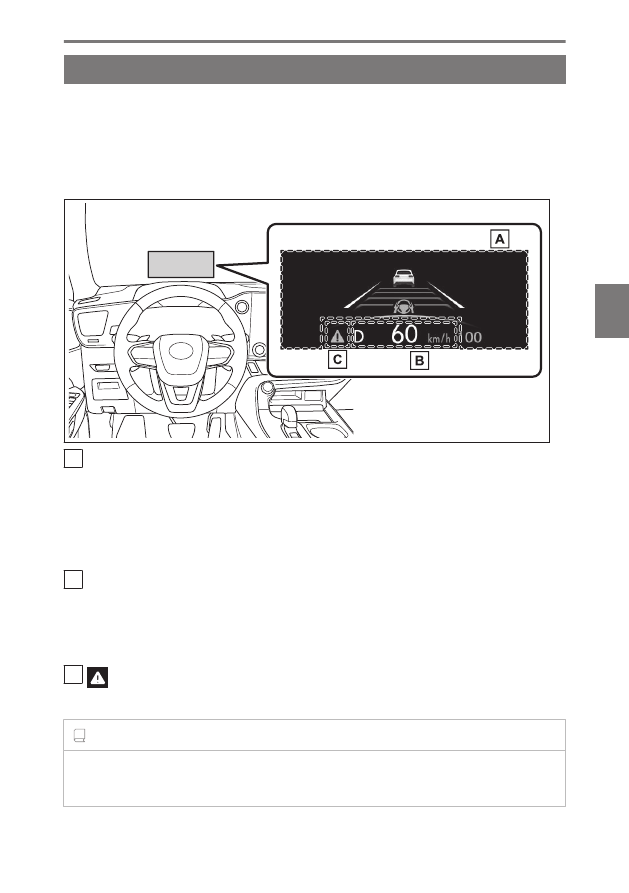

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.
The content displayed will differ according to the driving conditions and display
mode of the head-up display. Depending on the situation, pop-up displays will also
be displayed.

Main display area

Displays the following items:

●

Driving support system information display

●

Tachometer/Eco Driving Indicator

●

Compass

Driving information display area

Displays the following items:

●

Speedometer

●

Shift position/shift range/gear position

: Master warning icon

Displayed when a warning message is displayed.

INFORMATION

■

Head-up display will operate when

The engine switch is in ON.

* :

If equipped

5-2. Functions of the displays

299

Vehicle st

us information and indicator

■

When using the head-up display

The head-up display may seem dark or hard to see when viewed through sunglasses,
especially polarized sunglasses. Adjust the brightness of the head-up display or remove
your sunglasses.

WARNING

Do not continuously look at the head-up display while driving as you may fail to see
pedestrians, objects on the road, etc. ahead of the vehicle.

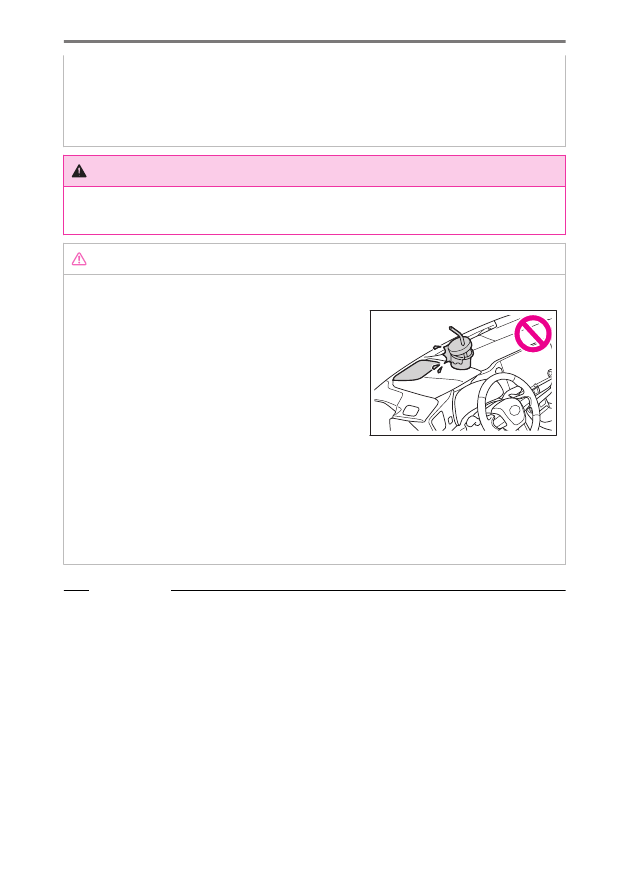

NOTICE

Observe the following precautions.

●

Do not place any drinks near the head-up display
projector. If the projector gets wet, electrical mal-
functions may result.

●

Do not place anything on or put stickers onto the head-up display projector.
Doing so could interrupt head-up display indications.

●

Do not touch the inside of the head-up display projector or thrust sharp edges or the
like into the projector.
Doing so could cause mechanical malfunctions.

5-2. Functions of the displays

300

Displayed content

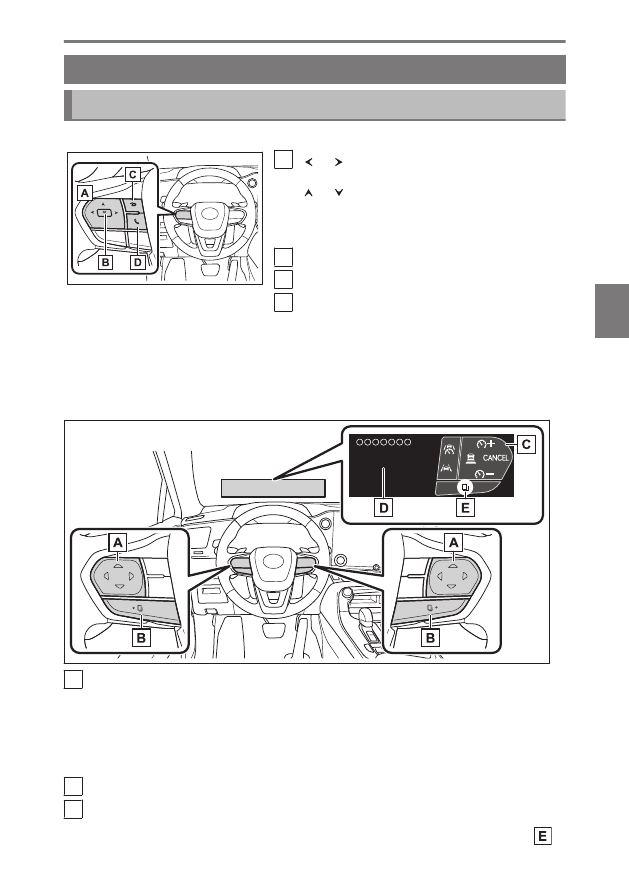

Operating the meters/displays

▶

Vehicles without a head-up display

: Select menu icons

: Change displayed content, scroll

up/down the screen and move the cursor
up/down

Enter/Set

Return to the previous screen

Start/receive call

Linked with the hands-free system, sending or
receiving call is displayed. For details regarding
the hands-free system, refer to the "Multimedia
owner's manual".

▶

Vehicles with a head-up display

The function of each switch differs depending on the conditions and settings.

When a switch is touched, the function of each switch is displayed on the head-up dis-
play. If the head-up display is off, the functions will be displayed on the multi-information
display.
Also, preferred functions for each switch can be set on the center display.

Each time this switch is pressed, the functions will change.

Switch icon display

The icon of each switch will be displayed. The touched switch will be highlighted. (

)

5-2. Functions of the displays

301

Vehicle st

us information and indicator

Switch function guide display

The function guide for the touched switch will be displayed.

INFORMATION

■

If the steering wheel switches do not respond when touched

●

It is easier to make the steering wheel switches respond by moving your thumb while
touching them.

●

If the surface of a steering wheel switch is dirty, turn the engine switch off and then
clean the switches.

●

By turning winter glove mode on, the sensitivity of the switch sensors can be increased.

Related Links

Customizable features(P. 650)

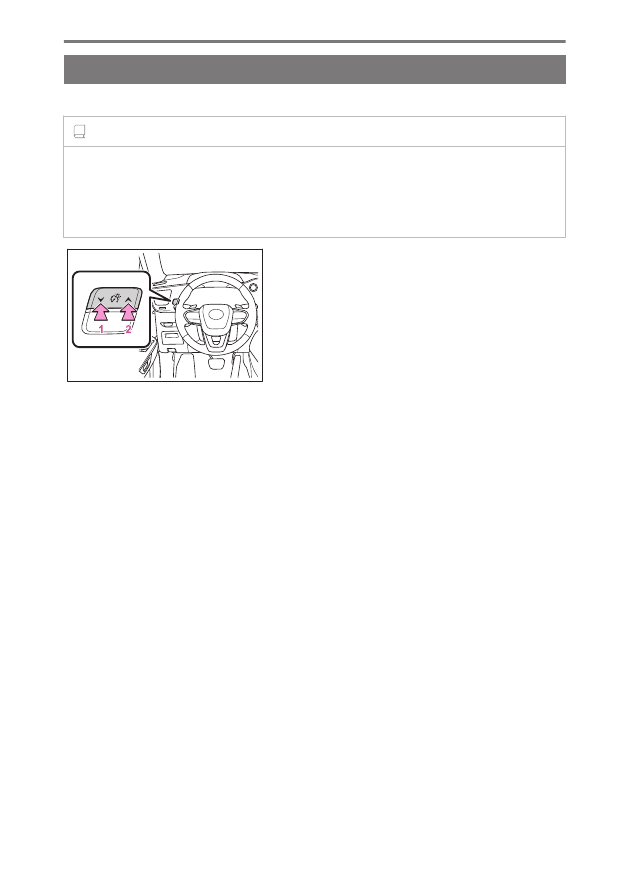

Switching the display of the multi-information display (vehicles without a
head-up display)

●

Press

of the meter control switch.

Switching driving information (vehicles without a head-up display)

●

Press the

meter control switch to select

. Then press

Switching the display of the multi-information display (vehicles with a head-
up display)

INFORMATION

■

Switching with the steering wheel switches

is set as a favorite steering wheel switch function, the display can be

switched by pushing

Select

on the center display.

Select [Vehicle customise].

Select [Meter].

Select

of "Display switching".

The display changes each time the switch is selected.

5-2. Functions of the displays

302

Display of drive information

Driving related information is displayed on the following displays.

●

Multi-information display

●

Head-up display

●

Center display

The items displayed will differ depending on the display.

Drive information 1

The following items can be displayed on the multi-information display.
Use the displayed values as a reference only.

●

Current fuel consumption

Displays instantaneous current fuel consumption

●

Average fuel consumption

Drive information 2

The following items can be displayed on the multi-information display.

●

Average vehicle speed

●

Total driving time

Drive information 3 (vehicles without a head-up display)

The following items can be displayed on the multi-information display.

●

Distance to empty

Displays the driving range with remaining fuel.

●

Average fuel economy since starting

Displays the average fuel consumption since starting.

INFORMATION

■

Distance to empty

●

This distance is computed based on your average fuel consumption. As a result, the
actual distance that can be driven may differ from that displayed.

●

When only a small amount of fuel is added to the tank, the display may not be updated.
When refueling, turn the engine switch off. If the vehicle is refueled without turning the
engine switch off, the display may not be updated.

* :

If equipped

5-2. Functions of the displays

303

Vehicle st

us information and indicator

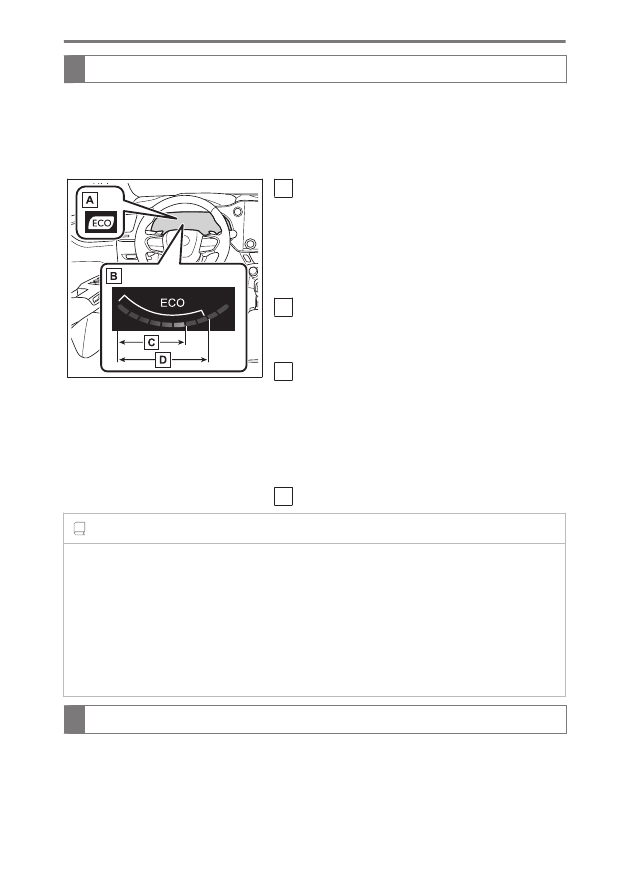

Eco Driving Indicator

Eco Driving Indicator can be displayed on the multi-information display and the
head-up display

This illustration is for explanation only and may differ depending on the specifica-
tions of the vehicle.

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco driving),
the Eco Driving Indicator Light will turn on.
When the acceleration exceeds the Zone of Eco
driving, or when the vehicle is stopped, the light
turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with current
Eco driving ratio based on acceleration.

Eco driving ratio based on acceleration

If the acceleration exceeds the Zone of Eco
driving, the right side of the Eco Driving Indica-
tor Zone Display will illuminate.
At this time, the Eco Driving Indicator Light will
turn off.

Zone of Eco driving

INFORMATION

Eco Driving Indicator will not operate under the following conditions:

●

The shift position is in any position other than D.

●

A paddle shift switch is operated.

●

The driving mode is set to sport mode.

●

The driving mode is set to custom mode

and the powertrain control is set to power.

●

The vehicle speed is approximately 130 km/h (80 mph) or higher.

Boost gauge/engine oil temperature gauge/engine oil pressure gauge

The following items can be displayed on the multi-information display.

●

Boost gauge

* :

If equipped

5-2. Functions of the displays

304

Displays the boost pressure. The display will change color if the specified pressure is
exceeded.

●

Engine oil temperature gauge

Displays the engine oil temperature. The display will flash if the engine oil temperature
exceeds 140 °C (284 °F).

●

Engine oil pressure gauge

Displays the engine oil pressure. A buzzer will sound and warning message will be
displayed if the engine oil pressure becomes low.

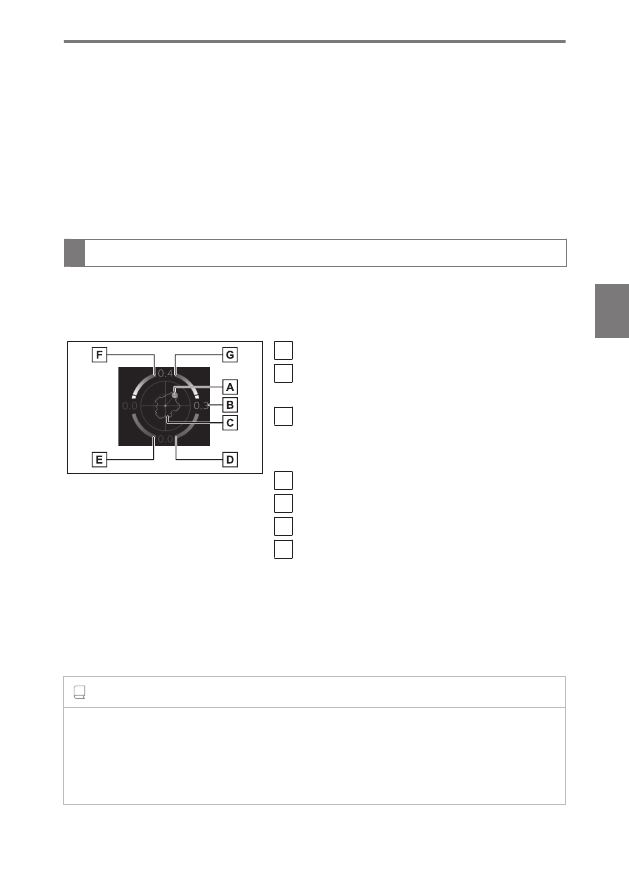

G-force

Displays lateral G-forces on the vehicle on the multi-information display.
Displays around the periphery of the G-force display, the left and right steering
amount, accelerator pedal input, and brake fluid pressure.

Acceleration G-force on the vehicle

Current G-force value (analyzed value of
front/rear and left/right G-forces)

Record of the maximum G-forces

The display is reset each time the engine is start-
ed.

Accelerator pedal input

Brake fluid pressure

Left steering amount

Right steering amount

If lateral G-forces of 0.5 G or greater are generated, the G-force value display will
turn amber and be held for 2 seconds. (Peak hold function)
This display is intended for use as a guideline. Depending on factors such as the
road surface condition, temperature and vehicle speed, the display may not show
the actual condition of the vehicle.

INFORMATION

●

The G-force values may not be zero even when the vehicle is parked, such as when it
is parked on an incline.

●

Depending on the vehicle usage conditions, the brake fluid pressure display may not
reach its maximum reading even though the brake pedal is fully depressed.

5-2. Functions of the displays

305

Vehicle st

us information and indicator

●

If a battery terminal is disconnected and reconnected, the steering amount display
may be disabled temporarily. After driving the vehicle for a while, the display will be
enabled.

Gear Position

Displays the current shift range or gear position when the shift position is in D or M.

Blank (No items)

Displays no drive information contents on the multi-information display.

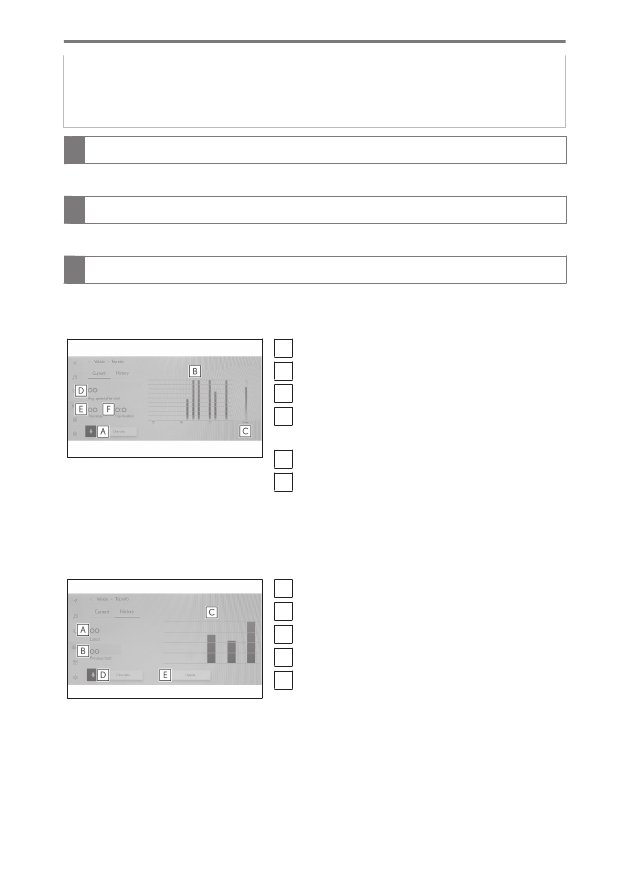

Current fuel consumption/history screen

Fuel consumption information can be displayed on the center display.

■

Current fuel consumption screen

Resetting the history data

Fuel consumption in the past 15 minutes

Current fuel consumption

Average vehicle speed since the engine was
started.

Trip range

Elapsed time since the engine was started.

Use the displayed average fuel consumption as a reference. The image is an
example only, and may vary slightly from actual conditions.

■

History fuel cunsumption screen

Latest fuel consumption

Best recorded fuel consumption

Previous fuel consumption record

Resetting the history data

Updating the latest fuel consumption data

Use the displayed average fuel consumption as a reference. The image is an
example only, and may vary slightly from actual conditions.

5-2. Functions of the displays

306

INFORMATION

■

Updating the history data

Update the latest fuel consumption by selecting [Update] to measure the current fuel
consumption again.

■

Resetting the data

The fuel consumption data can be deleted by selecting [Clear data].

■

Trip range

Displays the estimated maximum distance that can be driven with the quantity of fuel
remaining. This distance is computed based on your average fuel consumption. As a
result, the actual distance that can be driven may differ from that displayed.

Displaying fuel consumption/history screen on the center display

Select

on the main menu.

Select [Trip information].

Select [Current] or [History].

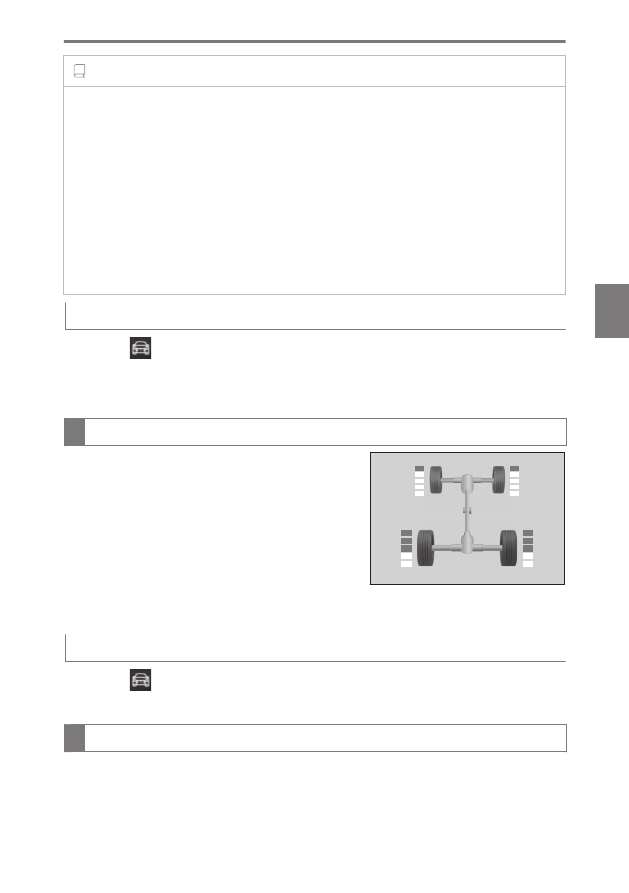

AWD operation status display (AWD models)

AWD operation status display can be displayed
on the center display.
The illustration used is intended as an example,
and may differ from the image that is actually
displayed on the center display.
Torque distribution display:
Displays the drive status of each wheel in 6 steps
from 0 to 5.

Displaying AWD operation status display on the center display

Select

on the main menu.

Select [All wheel drive].

Tire pressure

The tire pressure detected by the tire pressure warning system can be displayed on
the center display.

5-2. Functions of the displays

307

Vehicle st

us information and indicator

Displaying the tire pressure on the center display

Select

on the main menu.

Select [Tyre pressure].

Driving support system information display

The operating state of the following systems can be displayed on the multi-informa-
tion display or head-up display

●

Dynamic radar cruise control

●

LTA (Lane Tracing Assist)

●

LDA (Lane Departure Alert)

●

LCA (Lane Change Assist)

●

RSA (Road Sign Assist)

●

Proactive Driving Assist

●

PCS (Pre-Collision System)

INFORMATION

■

Display position (vehicles with a head-up display)

When the display mode of the head-up display is set to display the maximum, driving
support system information will be displayed on the head-up display and not in the
content display area of the multi-information display.

Audio system-linked display

The audio system-linked display displays the operating state of the audio system on
the multi-information display.
Operations such as selecting the audio source or track, etc. can be performed.

Navigation system-linked display

The following information is displayed on the multi-information display.

●

Route guidance to destination

●

Street name

●

Compass

* :

If equipped

5-2. Functions of the displays

308

INFORMATION

■

Display position (vehicles with a head-up display)

Depending on the display settings of the head-up display, some content may be displayed
on the head-up display and not in the content display area of the multi-information
display.

Pop-up display information

Pop-up displays will be displayed on the multi-information display or the head-up
display

when necessary.

When a pop-up display is displayed, a current display may no longer be displayed. In this
case, the display will return after the pop-up display disappears.

Driving support systems

Displays a warning/suggestion/advice message or the operating state of a relevant
system.

●

Dynamic radar cruise control

●

LTA (Lane Tracing Assist)

●

LDA (Lane Departure Alert)

●

LCA (Lane Change Assist)

●

Proactive Driving Assist

●

PCS (Pre-Collision System)

●

RSA (Road Sign Assist)

●

Safe Exit Assist (with door opening control)

●

FCTA (Front Cross Traffic Alert)

Warning message

Some warning messages are displayed when necessary, according to certain
conditions.

Hands-free system status

Displayed when the hands-free system is operated.

* :

If equipped

5-2. Functions of the displays

309

Vehicle st

us information and indicator

Suggestion function

Displays suggestions to the driver in the following situations. To select a response
to a displayed suggestion, use the steering switches.

■

Suggestion to enable the power back door

If the power back door system is disabled (setting on the center display set to off)
and the power back door switch on the instrument panel is operated, a suggestion
message will be displayed asking if you wish to enable the power back door
system.
To enable the power back door system, select [Yes].
After enabling the power back door system, press the power back door switch
again to open or close the power back door.

■

Suggestion to close the power windows (linked to windshield wiper operation)

If the windshield wipers are operated with a power window open, a suggestion
message will be displayed asking if you wish to close the power windows.
To close all of the power windows, select [Yes].

Related Links

Customizable features(P. 650)

Steering wheel switch operation display

■

Vehicles without a head-up display

Displayed when an audio remote control switch on the steering wheel is operated.

■

Vehicles with a head-up display

When a steering wheel switch is touched, the icon of each switch and a function
guide is displayed.

Related Links

Operating the meters/displays(P. 301)

Navigation system-linked information

In certain situations, the following items which are linked to the navigation system
will be displayed:

●

Route guidance to destination

●

Map display (displayed on the head-up display

)

* :

If equipped

5-2. Functions of the displays

310

Items displayed when the engine switch is turned off

The following items will be displayed on the multi-information display when the
engine switch is turned off.

●

Average fuel consumption since starting

●

Distance driven since starting

●

Driving time since starting

*1 :

It is reset each time the engine stops.

5-2. Functions of the displays

311

Vehicle st

us information and indicator

Changing the settings of the displays

Changing the instrument panel light brightness

The brightness of the instrument panel lights can be adjusted.

INFORMATION

The instrument panel brightness levels when the tail lights are on and off can be adjusted
individually.
However, when the surroundings are bright (daytime, etc.), turning on the tail lights will
not change the instrument panel brightness.

Darker

Brighter

5-3. Changing the settings of the displays

312

Lexus NX (2022 year). Manual in english - page 18
