Portable devices compatible with the Qi wireless charging standard can be charged
by the wireless charger. However, compatibility with all devices which meet the Qi
wireless charging standard is not guaranteed.

●

The wireless charger is designed to supply low power electricity (5 W or less) to a
cellular phone, smartphone, or other portable device.

●

Failure to do so may result in the possibility of fire,However, portable devices, such as
the following, can be charged with more than 5 W.

•

7.5 W charging compatible iPhones can be charged at 7.5 W or less.

•

Portable devices which conform to WPC Ver 1.2.4

（

Extended Power profile

）

can be charged at 10 W or less.

■

Using the smart entry & start system

During charging, when the smart entry & start system searches for an electronic key,
charging may be temporarily suspended.

■

If a cover or accessory is attached to the portable device

Do not charge a portable device if a cover or accessory which is not Qi compatible is
attached.
Even if a device is “Qi” compatible, charging may not be possible if a cover or accessories
are attached. (

→

P.266

）

■

Charging precautions

While charging, the wireless charger and the portable device will become warm. This is
not a malfunction.
If a portable device becomes warm while charging and charging stops due to the
protection function of the portable device, wait until the portable device cools down and
charge it again.
Also, to decrease the temperature inside the wireless charger, a fan may operate. This
does not indicate a malfunction.

■

Sound generated during operation

Operation sounds may be heard when the engine switch is pressed to change to ACC or
ON, or when a portable device is being detected. This does not indicate a malfunction.

■

“Qi” symbol

The “Qi” logo is a trademark of the Wireless Power Consortium.

4-5. Using the interior features

264

Names of the parts of the wireless charger

Operation indicator light

Charging area

Charging tray

Use the wireless charger

●

Place a portable device on the charging tray.

Depending on the portable device, its charging coil
may not be in the center of the device. In this case,
place the portable device so that its charging coil is
centered in the charging area.
While charging, the operation indicator light on the
charging tray (orange) will be illuminated.
If charging does not begin, move the portable de-
vice as close to the center of the charging area as possible.
When charging is complete, the operation indicator light on the charging tray (green)
will illuminate.

INFORMATION

■

Recharging function

●

If a certain amount of time has elapsed since charging completed and the portable
device has not been moved, the wireless charger will restart charging.

●

If a portable device is moved significantly within the charging area, the charging coil
may disconnect and charging may temporarily be stopped. However, if a charging
coil is detected within the charging area, the charging coil inside the wireless
charger will move near the other coil and charging will resume.

■

Rapid charging function

Portable devices, such as the following, can be rapidly charged.

●

Rapid charging capable devices which conform to WPC Ver1.2.4 EPP

（

Extended

Power profile)

4-5. Using the interior features

265

Interior feat

●

7.5 W charging capable iPhones (iPhone 8 and later)

■

Situations in which the wireless charger may not operate correctly

In the following situations, the wireless charger may not operate correctly:

●

When a portable device is fully charged

●

When a portable device is being charged by a wired connection.

●

When there is foreign matter between the charging area and portable device

●

When the temperature of a portable device becomes high while charging

●

When the temperature near the charging tray is 35°C (95°F) or more due to being
in direct sunlight, etc.

●

When a portable device is placed with its charging surface facing up

●

When a portable device is not centered on the charging area

●

When a portable device is larger than the charging tray

●

When a foldable portable device is placed outside of the charging area

●

When the vehicle is near a TV tower, electric power plant, fuel station, radio station,
large display, airport, or other facility that generates strong radio waves or electrical
noise

●

When the any of the following objects are between or attached to a portable device
and cause a gap of 2 mm (0.08 in.) or more between the charging surface of a
portable device and the charging area:

•

Thick cases or covers

•

Thick decorations

•

Cases or covers which the charging surface is not flat, but is grooved or changes
in thickness

•

Accessories, such as finger rings, straps, etc.

●

When the portable device is in contact with, or is covered by any of the following
metallic objects:

•

Cards covered with metal, such as aluminum foil

•

Cigarette boxes that have aluminum foil inside

•

Metallic wallets or bags

•

Coins

•

Heat packs

•

Recorded media such as CDs and DVDs

•

Metallic decorations

•

Metallic cases or covers

4-5. Using the interior features

266

●

When wireless keys (that emit radio waves) other than those of your vehicle are
being used nearby

●

When 2 or more portable devices are placed on the charging tray at the same time

In situations other than above, if the wireless charger does not operate properly
or the operation indicator light blinks continuously, the wireless charger may be
malfunctioning.
Contact any authorized Lexus retailer or Lexus authorized repairer, or any reliable
repairer.

Wireless charger operation indicator light status

The operation indicator light of the wireless charger indicates the operating state
of the wireless charger as follows:

Operation indicator light

State

Charging tray

Center dis-

play

Off

The Wireless charger is off

Green (illumi-

nated)

Gray

Standby (charging is possible)

(1)

Charging is complete

(2)

Orange (illu-

minated)

Blue

A portable device has been placed on the charging area
(identifying the portable device)

A portable device, such as the following, is being rapidly
charged

●

Rapid charging capable devices which conform to
WPC Ver 1.2.4.

●

7.5 W charging capable iPhone (iPhone 8 and later)

(1)

While in standby, charging power is not output. If a metal object is placed on the

charging tray in this state, the object will not heat up.

(2)

Depending on the portable device, the operation indicator light may stay illuminated

(orange) after charging has completed.

Using the armrest

NOTICE

Do not apply excessive load to the armrest. Doing so may damage the armrest.

4-5. Using the interior features

267

Interior feat

●

Fold down the armrest for use.

Assist grip functions and operation

WARNING

Do not use the assist grip when getting in or out of the vehicle or rising from your seat.

NOTICE

Do not hang any heavy object or put a heavy load on the assist grip.

An assist grip installed on the ceiling can be used
to support your body while sitting on the seat.

Locations of coat hooks

WARNING

Do not hang coat hangers or other hard or sharp objects on the hook. If the SRS curtain
shield airbags deploy, these items may become projectiles, causing death or serious
injury.

The coat hooks are provided with the rear assist
grips.

4-5. Using the interior features

268

Using the vanity mirrors

●

Slide the cover to open.

The vanity light turns on when the cover is opened.

NOTICE

Do not leave the vanity lights on longer than necessary with the engine stopped. Doing
so may lead to the battery becoming discharged.

INFORMATION

■

Automatic light off function

When the engine switch is off, if the vanity lights are turned on, they will be turned off
automatically after 20 minutes.

4-5. Using the interior features

269

Interior feat

Using the luggage compartment

Using the cargo hooks

The cargo hooks are provided for securing loose items.

●

Raise the hook to use.

WARNING

To avoid injury, when the cargo hooks are not in use, make sure to return them to their
stowed position.

4-6. Using the luggage compartment

270

Using the cargo net hooks

The cargo net can be hung using the cargo net hooks.

●

Raise the hook to use.

WARNING

To avoid injury, when the cargo net hooks are not in use, make sure to return them to
their stowed position.

4-6. Using the luggage compartment

271

Interior feat

Using the grocery bag hooks

●

Push the grocery back hook to use.

NOTICE

Do not hang objects heavier than 4 kg (8.8 lb.) on the grocery bag hooks.
Doing so may damage the grocery bag hook.

4-6. Using the luggage compartment

272

Deck board

Opening the deck board

WARNING

If a deck board has been opened or removed, return it to its original position before
driving. Otherwise, in the event of sudden braking or an accident, a deck board or stored
items may fly out and strike an occupant.

Open the back door.

Open the deck board.

▶

Pattern A

▶

Pattern B

4-6. Using the luggage compartment

273

Interior feat

▶

Pattern C

Storing items in the deck under tray

The following items can be stowed.

●

Accessories

●

Warning reflector

*1 :

A warning reflector itself is not included as an original equipment.

4-6. Using the luggage compartment

274

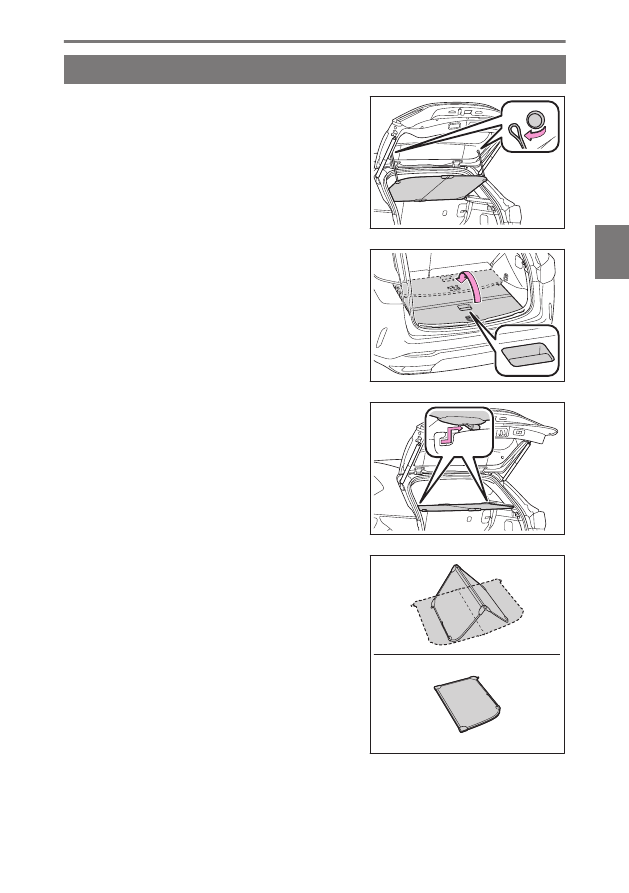

Stowing the luggage cover

Unhook each cord.

Pull the lever upwards and fold the deck
board.

Remove the luggage cover.

If a rear seat seatback is reclined, remove the
luggage cover after moving the seatback to the
upright position.

Fold the luggage cover.

4-6. Using the luggage compartment

275

Interior feat

Lift the deck board and stow the luggage
cover in the deck under tray.

WARNING

●

Do not stow items on the luggage cover. In the event of sudden braking or
swerving, the items may fly about and strike an occupant.

●

Do not allow children to climb on the luggage cover. Doing so may damage the
luggage cover.

4-6. Using the luggage compartment

276

Vehicle status information and indicators

5-1. Functions and displays of the me-

ter

Warning lights and indicators..

278

Gauges and meters (except F

SPORT models)........................

285

Gauges and meters (F

SPORT models)........................

290

5-2. Functions of the displays

Multi-information display (ve-

hicles without a head-up dis-
play).................................................

295

Multi-information display (ve-

hicles with a head-up dis-
play).................................................

297

Head-up display............................

299

Displayed content ........................

301

5-3. Changing the settings of the dis-

plays

Changing the instrument pan-

el light brightness........................

312

Changing settings for the

head-up display...........................

313

277

Vehicle st

us information and indicator

Functions and displays of the meter

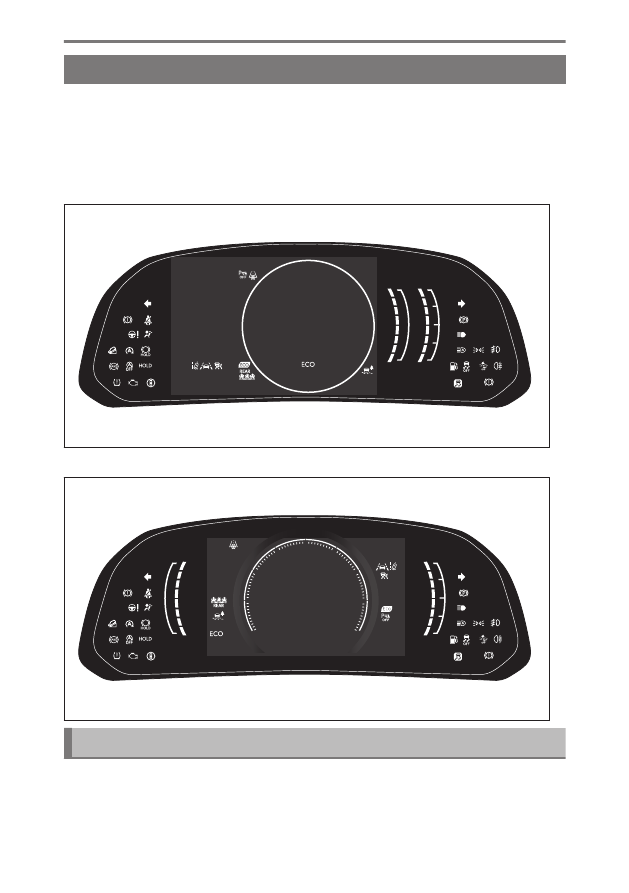

Warning lights and indicators

The warning lights and indicators on the instrument cluster and outside rear view
mirrors inform the driver of the status of the vehicle’s various systems.
For the purpose of explanation, the following illustrations display all warning lights
and indicators illuminated.

▶

Vehicles without a head-up display

▶

Vehicles with a head-up display

List of warning lights

Warning lights inform the driver of malfunctions in the indicated vehicle’s systems.
