5-1. Remote Touch/Display

LS500h_OM_(U)_1809

■

Menu screen

Press the “MENU” button on the
Remote Touch to display the menu
screen.
The displays shown in the illustrations
are used for example only and may dif-
fer from the actual vehicle.

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

: This function is not available on some

models.

■

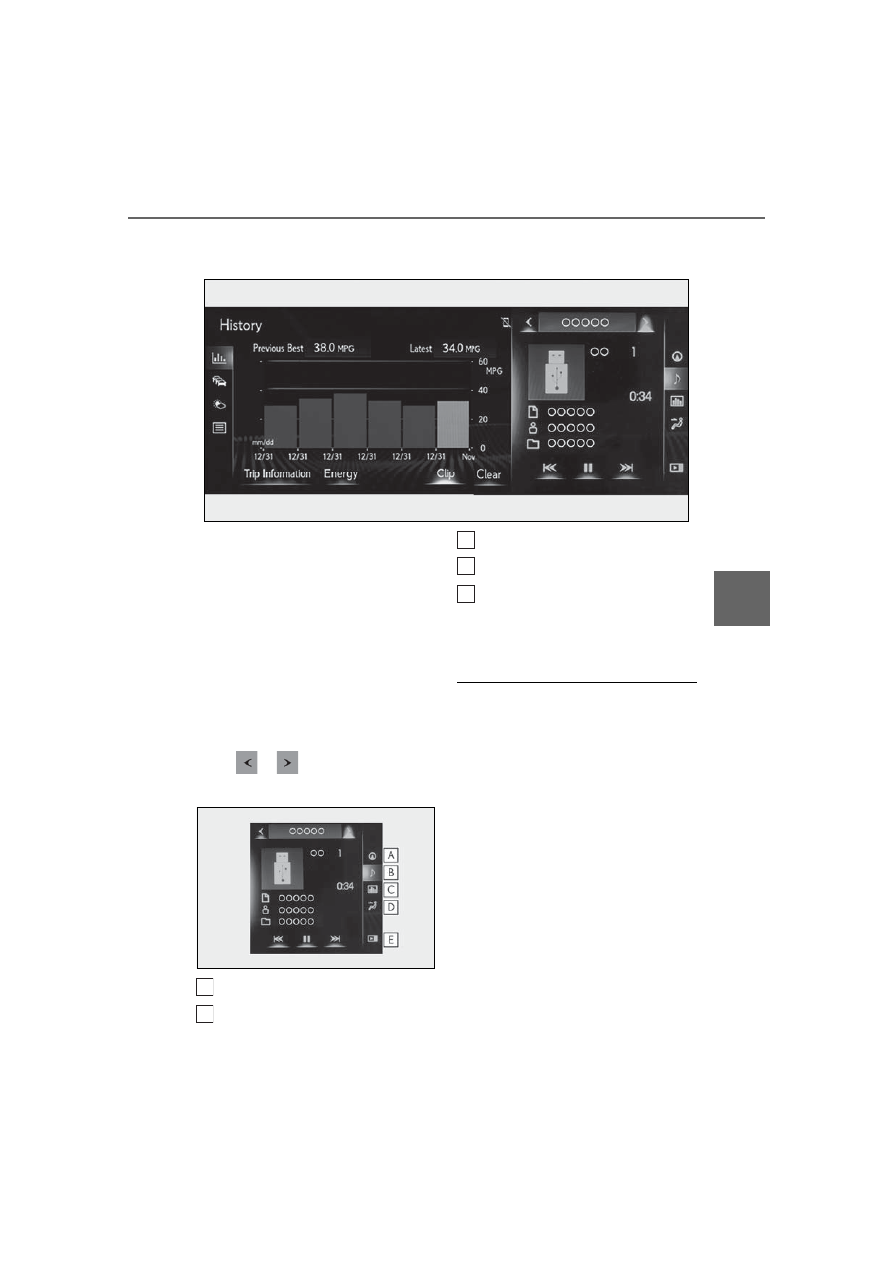

Split-screen display

Different information can be displayed on the left and right sides of the screen. For
example, air conditioning system screen can be displayed and operated while the
fuel consumption information screen is being displayed. The large screen on the

Center Display

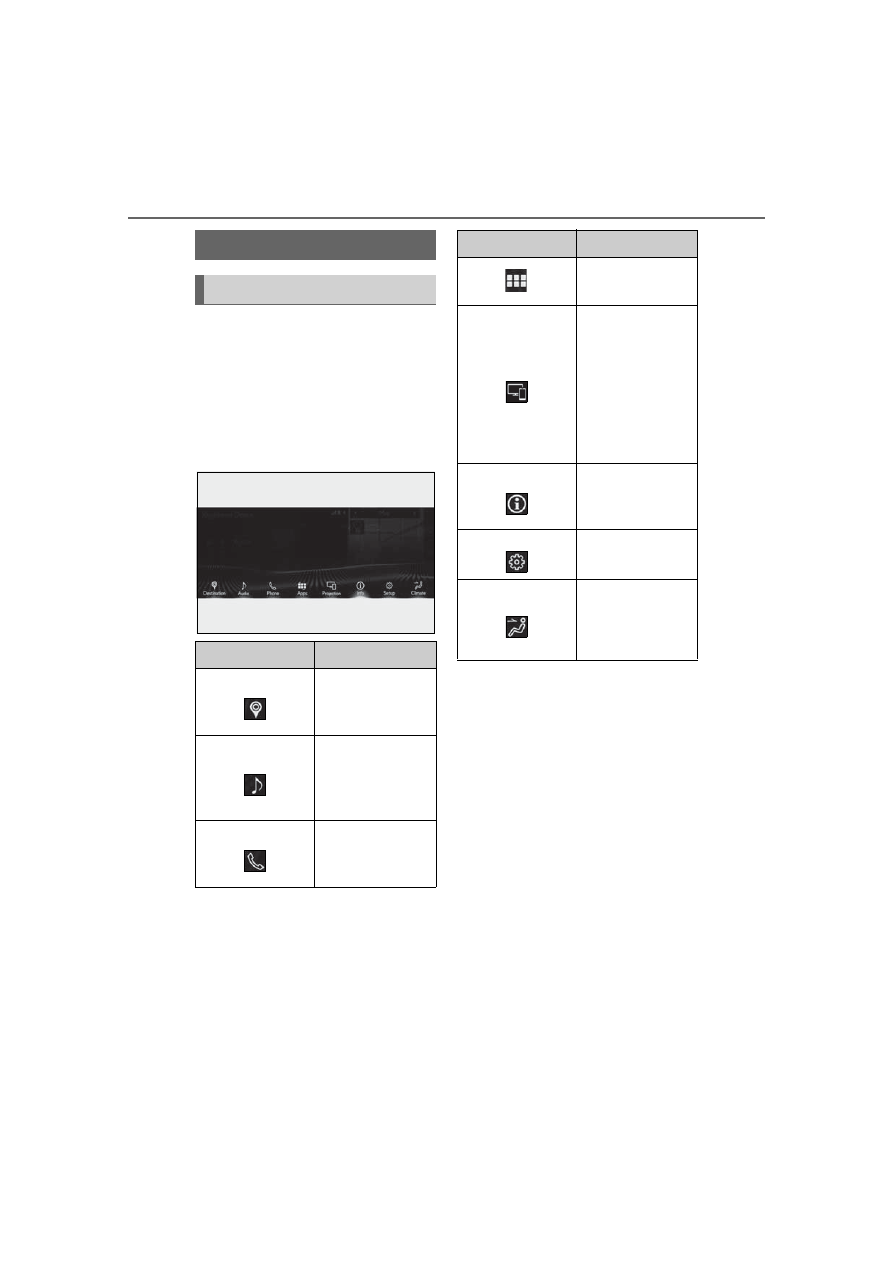

Center Display overview

Switch

Function

Select to display the
“Destination”
screen.

Select to display the
media control
screen or the audio
control screen.

Select to display the
hands-free control
screen.

Select to display the
“Apps” screen.

*1, 2

When an Apple
CarPlay connection
is established and
button displays

“Apple CarPlay”,

select to display the
home screen of
Apple CarPlay.

*1, 2

Select to display the
information screen.

(

P.101)

Select to display the
setup screen.

Select to display the
air conditioning con-
trol screen.
(

P.326)

Switch

Function

317

5-1. Remote Touch/Display

LS500h_OM_(U)_1809

Interio

r fe

atures

left of the display is called the main display, and the small screen to the right is
called the side display.

■

Main display

For details about the functions and
operation of the main display, refer to
the respective section and “NAVIGA-
TION AND MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

■

Side display

The following functions can be dis-
played and operated on the side dis-
play.
Select

to display the desired

screen.

Navigation system

Audio

Vehicle information (

P.104)

Air conditioning system (

P.329)

Show/hide the side display

: Refer to the “NAVIGATION AND

MULTIMEDIA SYSTEM OWNER’S
MANUAL”.

■

Screen display during low temperatures

When the ambient temperature is

extremely low, screen response may be

delayed even if the Remote Touch is oper-

ated.

A
B

C
D

318

5-1. Remote Touch/Display

LS500h_OM_(U)_1809

: If equipped

■

Home screen

Touch to display the audio control
screen.
Refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.
Touch to display the rear air condi-
tioning control screen. (

P.335)

Touch to display the rear seat
adjustment screen. (

P.138)

Touch to display the relaxation seat
(if equipped) control screen.
(

P.141)

Touch to display the rear sunshade
(if equipped)/rear interior light con-
trol screen. (

P.357)

Touch to display the Rear Multi
Operation Panel settings screen.
(

P.318)

Rear Multi Operation Panel unlock
button
Touch and hold until the unlock sta-
tus indicators are completely illumi-
nated to unlock the Rear Multi
Operation Panel.
Touch “Screen Lock” to lock the
Rear Multi Operation Panel sys-
tem. (

P.318)

Shortcut button
Shortcut screen is displayed. Touch
to display/hide commonly used
buttons for a selected mode on the
bottom portion of the screen.

button

Press to display the home screen.
When the screen is on, press and
hold to turn the screen off.

■

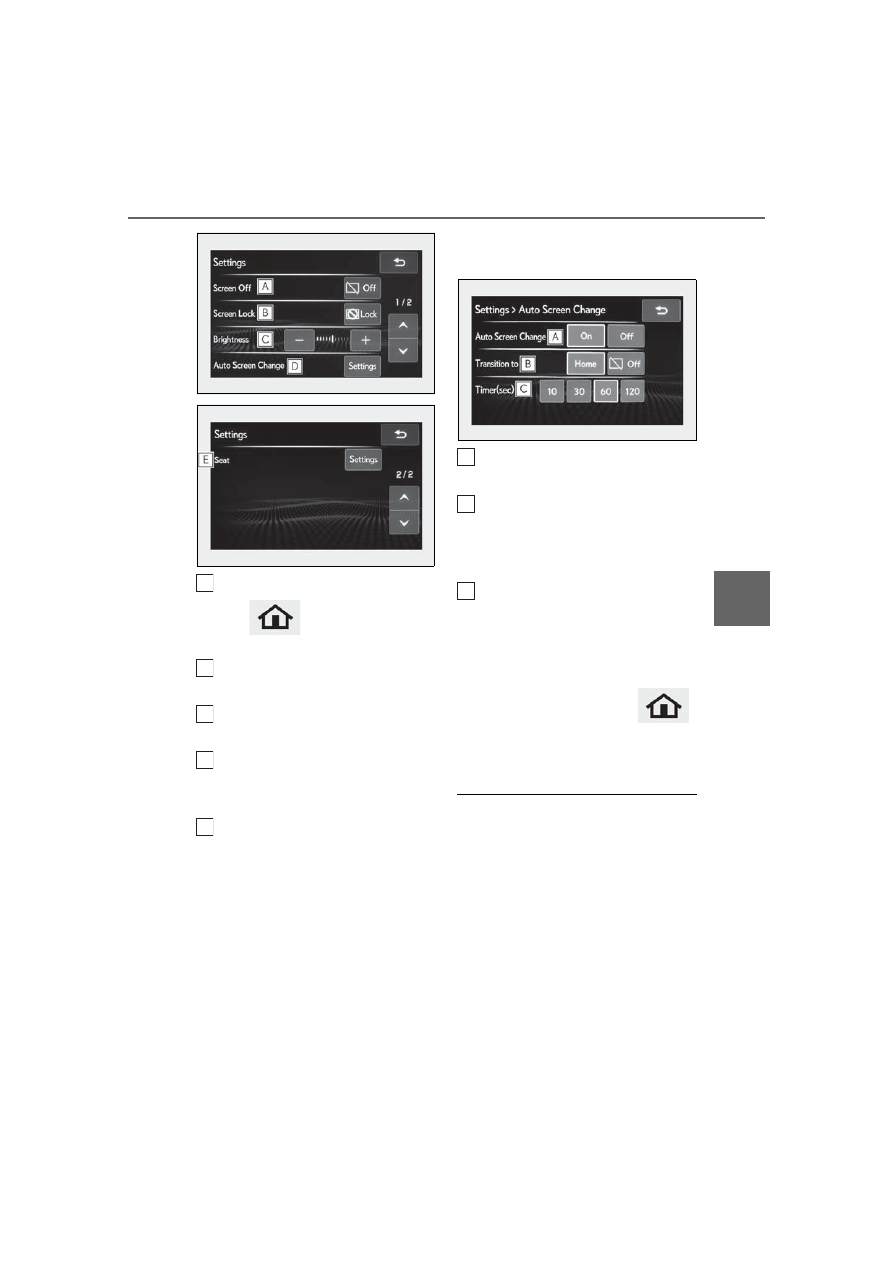

Rear Multi Operation Panel set-
tings screen

Screen operation settings and the
brightness of the screen can be
changed.

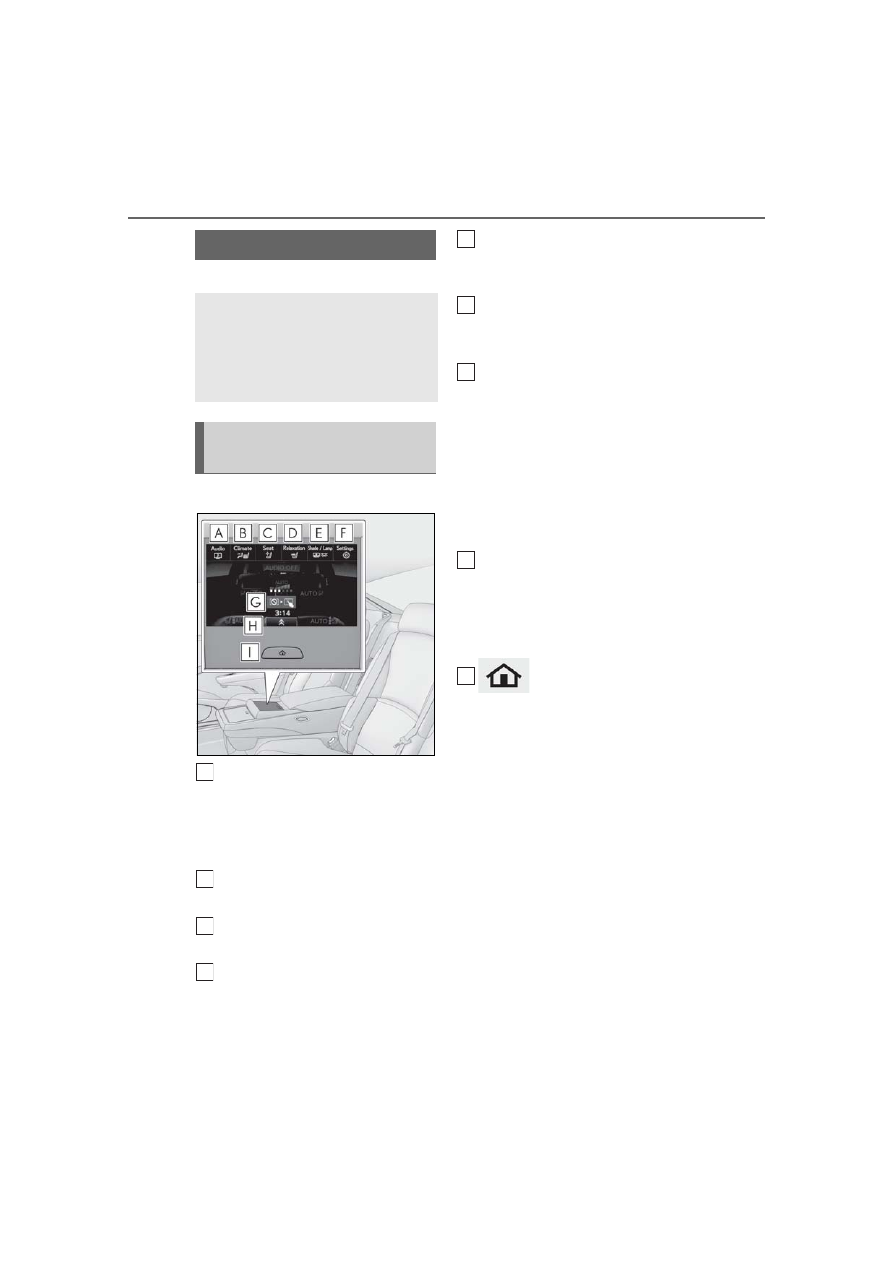

Rear Multi Operation Panel

The Rear Multi Operation Panel
built-into the rear armrest can be
used to operate the rear audio sys-
tem, air conditioning system, seat,
relaxsation, shade or lamp.

Rear Multi Operation Panel
overview

319

5-1. Remote Touch/Display

LS500h_OM_(U)_1809

Interio

r fe

atures

Touch to turn the screen off.

Press the

buttun to display the

home screen.

Touch to lock the Rear Multi Oper-
ation Panel.
Touch to adjust the brightness of
the screen.
Touch to display the automatic
screen transition settings screen.
(

P.319)

Touch to display the rear seat set-
tings screen.

• Touch to set the seat return function

linked to the door opening opera-
tion/shift-linked rear seat reclining func-
tion (

P.140) on/off.

• For the rear seat with an ottoman (if

equipped): Touch to set the position the
seatback will move to when the seat is
occupied and the door-linked rear seat
return function operates. (

P.140)

■

Auto screen change settings
screen

Touch to turn the automatic screen
transition function on/off.
Touch to set whether the screen will
transition to the home screen or
turn off when the automatic screen
transition function operates.
Touch to set the amount of time
(10/30/60/120 seconds) the Rear
Multi Operation Panel must be idle
before the automatic screen transi-
tion function operates.

When the screen is off, press the

button to turn the screen on and display
the previously displayed screen. Press
again to display the home screen.

■

Operating the Rear Multi Operation

Panel

●

When operating the Rear Multi Opera-

tion Panel, only use the tip of a finger. The

Rear Multi Operation Panel cannot be

operated with a fingernail, pen, etc.

●

Use only one finger when operating the

Rear Multi Operation Panel. The Rear

Multi Operation Panel cannot be oper-

ated with multiple fingers.

●

When the power switch is changed to

ACCESSORY or ON mode, if a hand

object, liquid or foreign matter is touch-

ing the Rear Multi Operation Panel, it

may not operate correctly. In this case,

320

5-1. Remote Touch/Display

LS500h_OM_(U)_1809

remove anything touching the Rear Multi

Operation Panel and wait for approxi-

mately 30 seconds before operating it

again.

If the Rear Multi Operation Panel still

cannot be operated normally, press and

hold the

button to turn the Rear

Multi Operation Panel off, and then press

the

button again to turn it back

on and operate it.

●

In the following situations, the Rear Multi

Operation Panel may not operate prop-

erly:

• If wearing gloves during operation, non

response may occur.

• If a wet hand is used to operate the Rear

Multi Operation Panel.

• If a screen cover or coating is applied to

on the Rear Multi Operation Panel.

• If the Rear Multi Operation Panel is dirty

or has liquid attached to it, incorrect

operation or non-response may occur.

• If the Rear Multi Operation Panel

receives electro magnetic waves, incor-

rect operation or non-response may

occur.

• If a mobile phone or other wireless com-

munication device brought near the Rear

Multi Operation Panel.

●

If the a metal object, such as the follow-

ing, is touching or covering the Rear

Multi Operation Panel:

• Coins

• Keys

• Metallic wallets or bags

• Magnetic isolation cards

• Metallic foil, such as the inner packaging

of a cigarette box

• Disposable heat packs

• Discs, such as a CD or DVD, Cables,

such as a USB cable

• Mobile devices, such as smartphones,

mobile phones, tablets, etc.

●

Make sure to keep the Rear Multi Oper-

ation Panel clean. If the Rear Multi Oper-

ation Panel is dirty, it may not operate

correctly. (When cleaning the Rear Multi

Operation Panel, turn the screen off to

avoid unexpected operation.)

NOTICE

■

To prevent damage to the Rear Multi

Operation Panel

Observe the following precautions. Fail-

ure to do so may cause damage to the

Rear Multi Operation Panel.

●

Keep the Rear Multi Operation Panel

free of liquids, such as drinks or rain, as

they may cause a short circuit.

●

Do not sit on or set heavy objects on

the Rear Multi Operation Panel.

●

Do not push the Rear Multi Operation

Panel with a strong force or use a

sharp pointed object to operate the

panel.

321

5-2. Lexus Climate Concierge

LS500h_OM_(U)_1809

Interio

r fe

atures

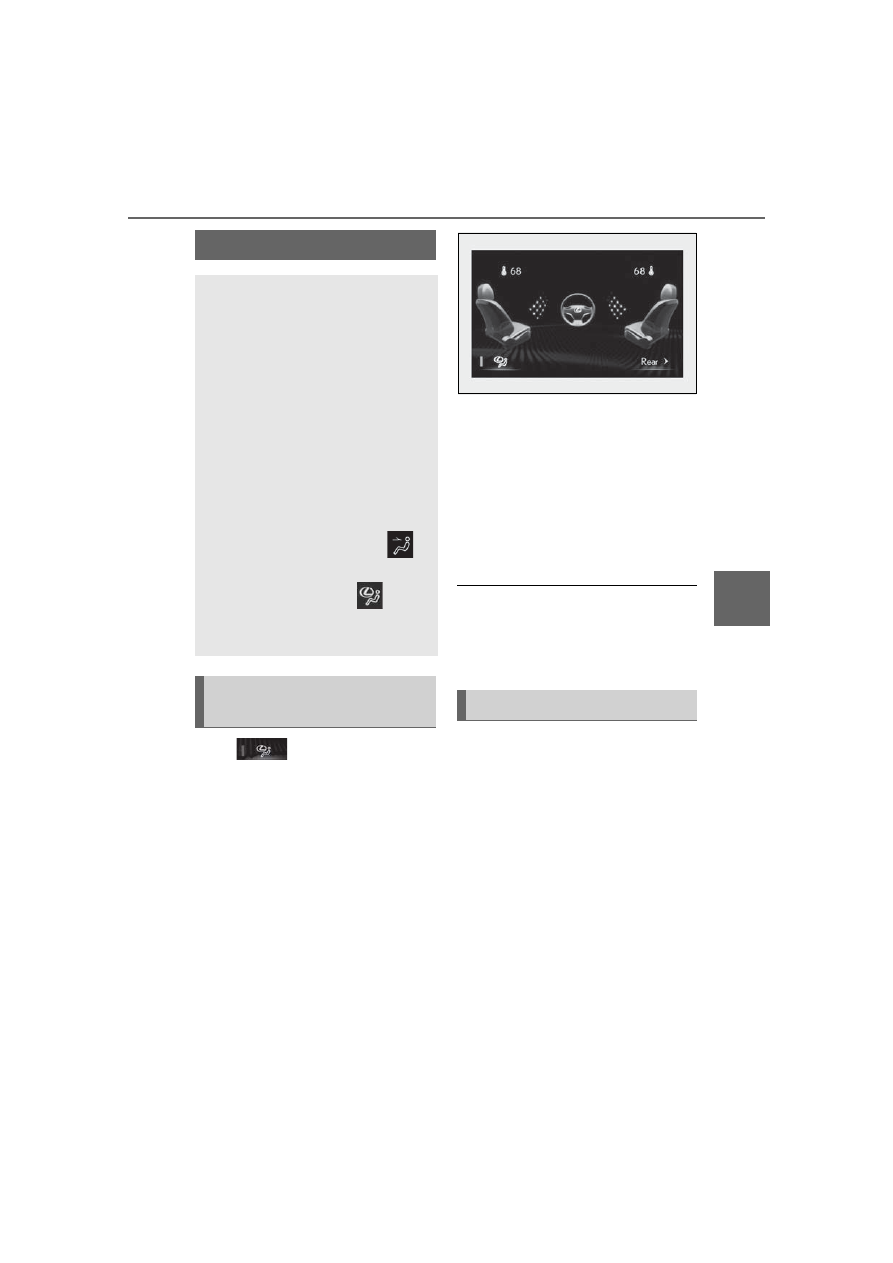

5-2.Lexus Climate Concierge

Select .

The indicator on the Lexus Climate Con-
cierge control screen illuminates, and the
automatic air conditioning system, seat
heaters and ventilators, and heated steer-
ing wheel operate in automatic mode.
If any of the system is operated manually,
the indicator turns off. However, all other
functions continue to operate in automatic
mode.

■

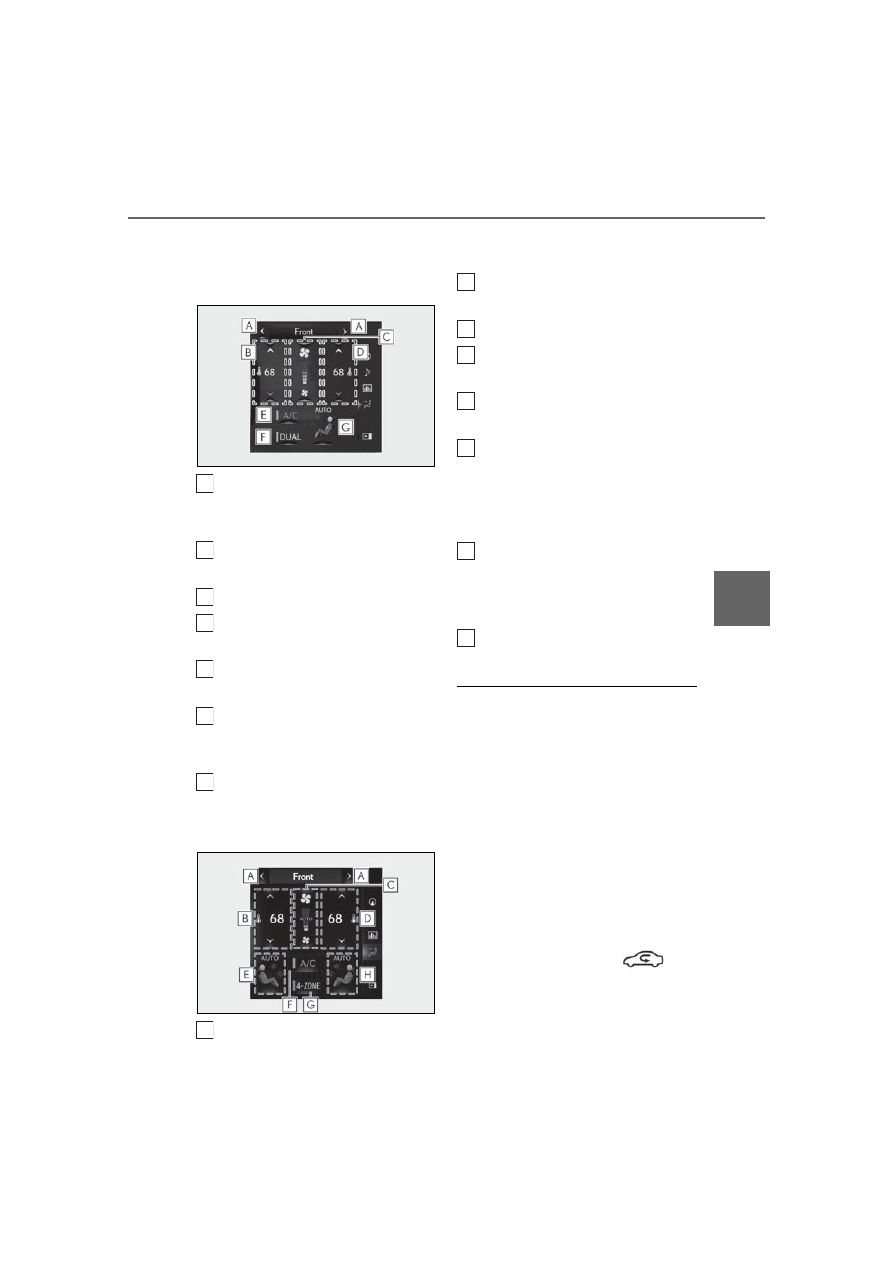

Changing Lexus Climate Con-
cierge control screen between
front/rear (vehicles with 4-ZONE
climate control)

Select “Rear” to display the rear air
conditioning system screen.

Select “Front” to display the front air condi-
tioning system screen.

■

When using the Lexus Climate Con-

cierge

Lexus Climate Concierge can be operated

on the sub function menu or option control

screen. (

P.326)

■

Automatic air conditioning system
(

P.323, 3 34)

The temperature can be adjusted inde-
pendently for each seat.

■

Seat heaters and ventilators
(

P.337)

Heating or ventilation is automatically
selected according to the set tempera-
ture of the air conditioning system, the
outside temperature, etc.

■

Heated steering wheel (if
equipped) (

P.337)

Heated steering wheel operates auto-
matically according to the set tempera-

Lexus Climate Concierge

The seat heaters, seat ventilators
and heated steering wheel (if
equipped) are each automatically
controlled according to the set
temperature of the air conditioning
system, the outside and cabin tem-
perature, etc. Lexus Climate Con-
cierge allows a comfortable
condition to be maintained without
adjusting each system.

Press the “MENU” button on the
Remote Touch to display the main
menu and move the cursor to

to display the climate control short-
cut buttons. Then, select

to dis-

play the Lexus Climate Concierge
control screen.

Turning on Lexus Climate Con-
cierge

Operation of each system

322

5-2. Lexus Climate Concierge

LS500h_OM_(U)_1809

ture of the air conditioning system, the
outside temperature, etc.

■

Passenger detection functions

●

When a passenger is detected in the

front passenger seat, the seat heater and

ventilator will operate automatically.

●

When a passenger is detected in a rear

seat, the seat heater and ventilator will

operate automatically. (vehicles with

4-ZONE climate control)

■

Seat heater/ventilator operation

When automatic mode is selected using the

seat heater/ventilator switch, passenger

detection is not performed.

■

Rear seat heater operation (vehicles

with power rear seat)

The rear seat heaters are not controlled by

the Lexus Climate Concierge.

323

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

Interio

r fe

atures

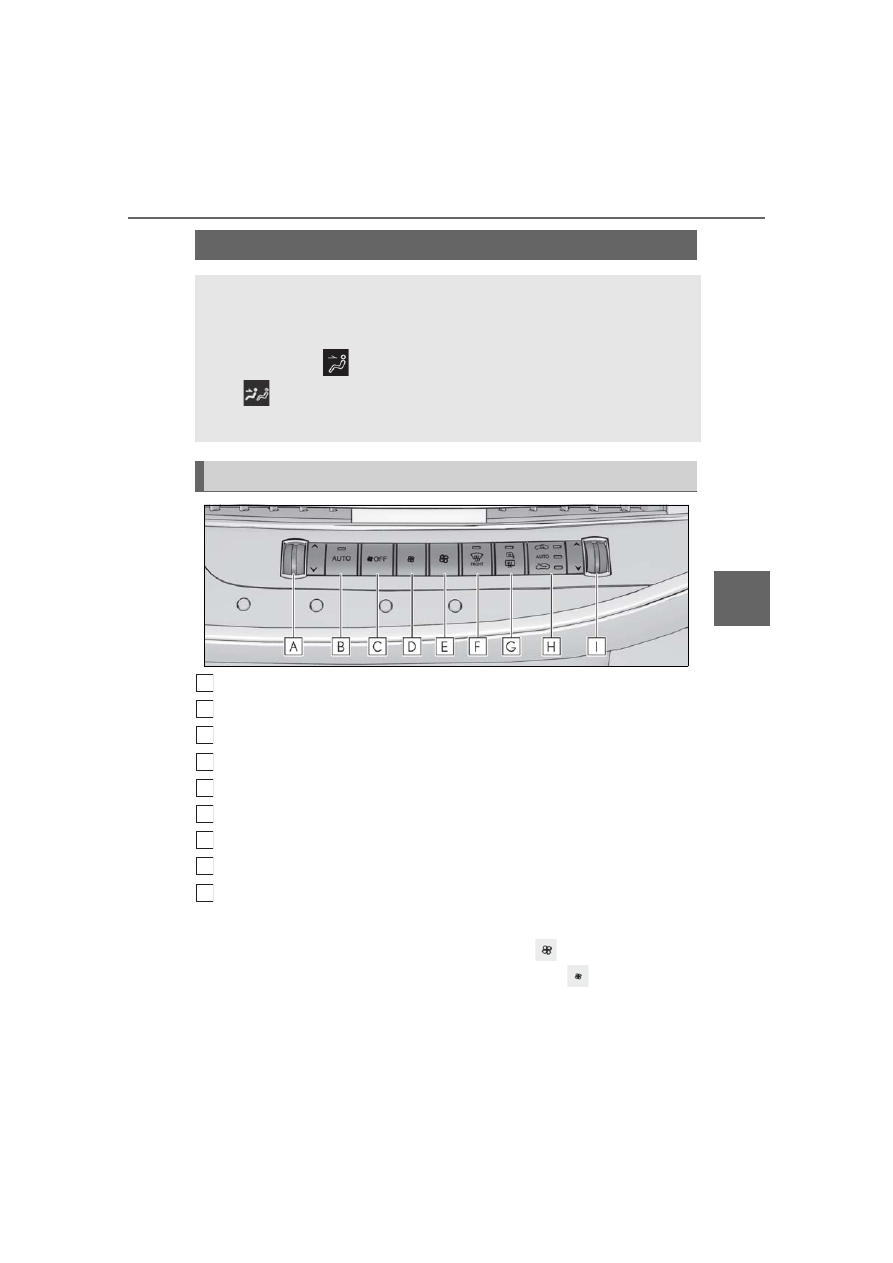

5-3.Using the air conditioning system and defogger

Left-hand side temperature control switch
Automatic mode switch
Off switch
Fan speed decreases switch
Fan speed increases switch
Windshield defogger switch
Rear window defogger and outside rear view mirror defoggers switch
Outside/recirculated air mode switch
Right-hand side temperature control switch

■

Adjusting the temperature

Operate the temperature control
switch upwards to increase the tem-
perature and downwards to decrease
the temperature.

■

Setting the fan speed

Operate the

switch to increase the

fan speed and the

switch to

decrease the fan speed.

Press the off switch to turn the fan off.

Front automatic air conditioning system

Air outlets and fan speed are automatically adjusted according to the tem-
perature setting.

Press the “MENU” button on the Remote Touch to display the main menu and
move the cursor to

to display the climate control shortcut buttons. Then,

select

to display the air conditioning control screen.

The air conditioning system can be displayed and operated on the side display.

Air conditioning controls

A
B
C
D

E
F

324

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

■

Changing the air flow mode

P.326

■

Switching between outside air and
recirculated air modes

Press the outside/recirculated air
mode switch.

The mode changes as follows each time
the switch is pressed.

automatic mode



(outside air

mode)



(recirculated air mode)

 automatic mode
When the system is switched to automatic
mode, the air conditioning system operates
automatically.

■

Defogging the windshield

Defoggers are used to defog the wind-
shield and front side windows.
Press the windshield defogger switch.

Set the outside/recirculated air mode
switch to outside air mode if the recircu-
lated air mode is used. (It may switch auto-
matically.)
To defog the windshield and the side win-
dows quickly, turn the air flow and tem-
perature up.
To return to the previous mode, press the
windshield defogger switch again when the
windshield is defogged.

■

Defogging the rear window and
outside rear view mirrors

Defoggers are used to defog the rear
window, and to remove raindrops, dew
and frost from the outside rear view
mirrors.
Press the rear window and outside rear
view mirror defoggers switch.

The defoggers will automatically turn off

after a while. The operation time changes
according to the ambient temperature and
vehicle speed.

■

Windshield wiper de-icer (if
equipped)

P.329

■

When the outside temperature exceeds

75°F (24°C) and the air conditioning

system is on

●

In order to reduce the air conditioning

power consumption, the air conditioning

system may switch to recirculated air

mode automatically. This may also

reduce fuel consumption.

●

It is possible to switch to outside air mode

at any time by pressing the outside/recir-

culated air mode switch.

■

Fogging up of the windows

The windows will easily fog up when the

humidity in the vehicle is high. Turning

“A/C” on will dehumidify the air from the

outlets and defog the windshield effectively.

●

If you turn “A/C” off, the windows may

fog up more easily.

●

The windows may fog up if the recircu-

lated air mode is used.

■

Outside/recirculated air mode

●

When driving on dusty roads such as tun-

nels or in heavy traffic, set the out-

side/recirculated air mode switch to the

recirculated air mode. This is effective in

preventing outside air from entering the

vehicle interior. During cooling opera-

tion, setting the recirculated air mode will

also cool the vehicle interior effectively.

●

Outside/recirculated air mode may auto-

matically switch depending on the tem-

perature setting or the inside

temperature.

■

Registering air conditioning settings to

electronic keys

●

Unlocking the vehicle using an electronic

key and turning the power switch to ON

mode will recall that key’s registered air

conditioning settings.

325

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

Interio

r fe

atures

●

When the power switch is turned off, the

current air conditioning settings will auto-

matically be registered to the electronic

key that was used to unlock the vehicle.

●

The system may not operate correctly if

more than one electronic key is in the

vicinity or if the smart access system with

push-button start is used to unlock a pas-

senger door.

●

The doors that can recall the air condi-
tioning setting

when unlocked using the

smart access system with push-button

start can be changed. For details, contact

your Lexus dealer.

: The doors that can recall the driving

position memory are changed at the
same time.

■

Operation of the air conditioning sys-

tem in Eco drive mode

In Eco drive mode, the air conditioning sys-

tem is controlled as follows to prioritize fuel

efficiency:

●

Engine speed and compressor operation

controlled to restrict heating/cooling

capacity

●

Fan speed restricted when automatic

mode is selected

To improve air conditioning performance,

perform the following operations:

●

Turn off eco air conditioning mode

(

P.326)

●

Adjust the fan speed

●

Turn off Eco drive mode (

P.297)

■

When the outside temperature falls to

nearly 32°F (0°C)

The dehumidification function may not

operate even when “A/C” is selected.

■

Ventilation and air conditioning odors

●

To let fresh air in, set the air conditioning

system to the outside air mode.

●

During use, various odors from inside and

outside the vehicle may enter into and

accumulate in the air conditioning sys-

tem. This may then cause odor to be

emitted from the vents.

●

To reduce potential odors from occur-

ring:

• It is recommended that the air condition-

ing system be set to outside air mode

prior to turning the vehicle off.

• The start timing of the blower may be

delayed for a short period of time imme-

diately after the air conditioning system is

started in automatic mode or with the

micro dust and pollen filter on.

●

When parking, the system automatically

switches to outside air mode to encour-

age better air circulation throughout the

vehicle, helping to reduce odors that

occur when starting the vehicle.

■

Using the voice command system

Air conditioning system can be operated

using voice commands. For details, refer to

the “NAVIGATION AND MULTIMEDIA

SYSTEM OWNER’S MANUAL”.

■

Air conditioning filter

P.408

■

Customization

Some functions can be customized.

(

P.479)

WARNING

■

To prevent the windshield from fog-

ging up

Do not use the windshield defogger

switch during cool air operation in

extremely humid weather. The difference

between the temperature of the outside

air and that of the windshield can cause

the outer surface of the windshield to fog

up, blocking your vision.

■

When the outside rear view mirror

defoggers are operating

Do not touch the outside rear view mir-

ror surfaces, as they can become very

hot and burn you.

326

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

■

Main control screen

Using the touchpad of the Remote
Touch, select the button on the screen.

to and can be adjusted by

performing the following operations.
Flick operation: Move the pointer to
the desired item and flick the touchpad
up or down.

The item can be adjusted by one level.

Trace operation: After selecting the
desired item, trace the pad surface.

The item can be adjusted by the amount
that you trace.
Trace operation cannot be used while driv-
ing.



Vehicles with DUAL-ZONE climate
control

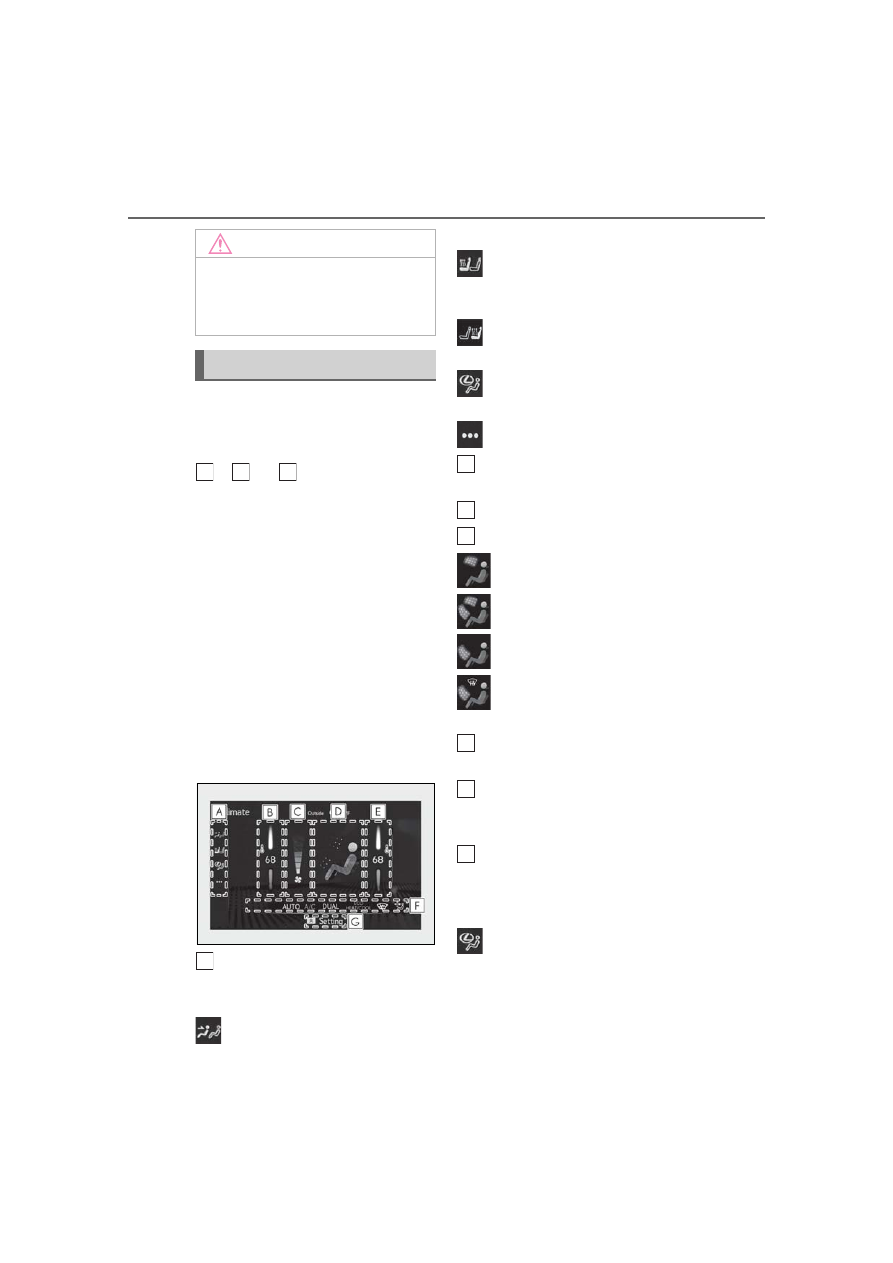

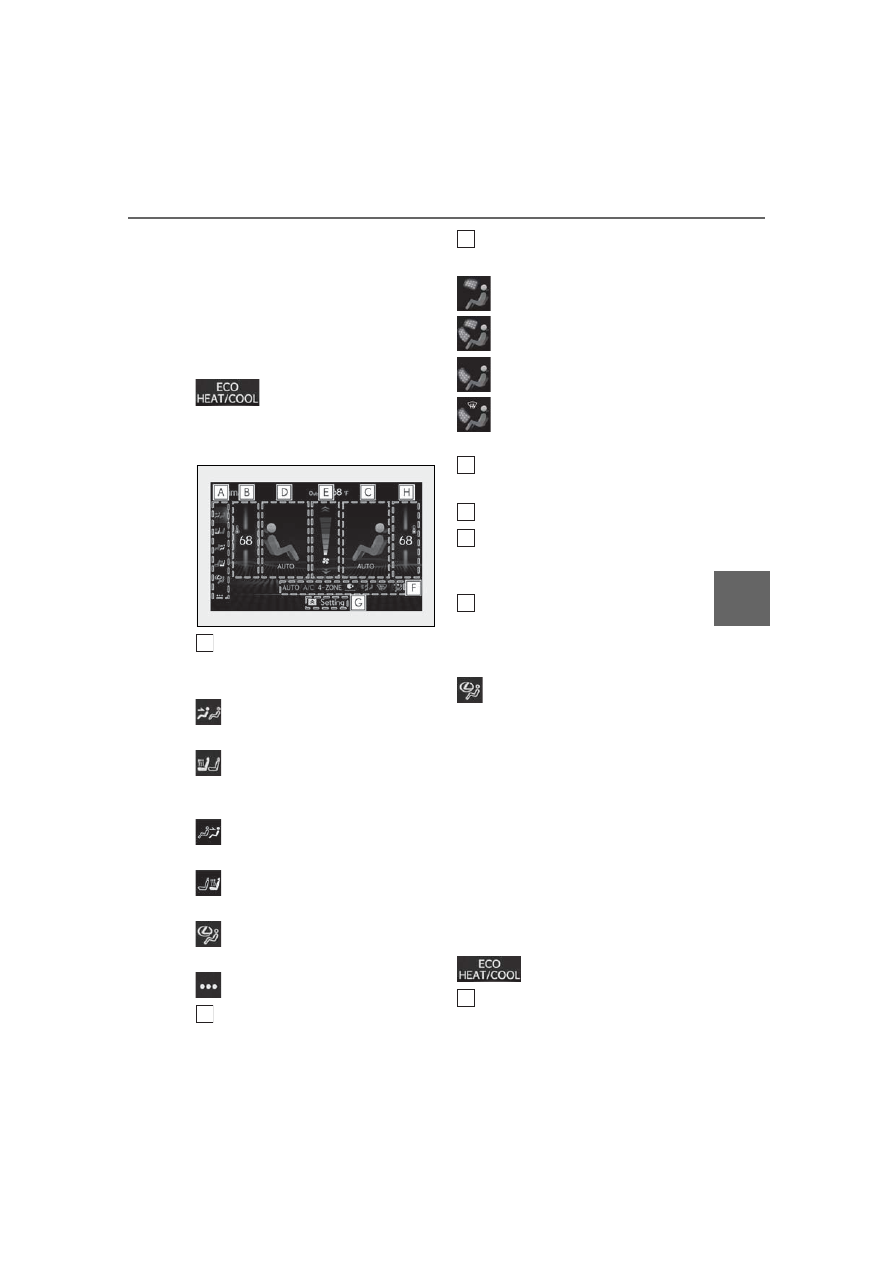

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the air conditioning control

screen

: Display the heated steering

wheel/front seat heater/front seat ventila-
tor control screen

: Display the rear seat heater/rear seat

ventilator control screen (if equipped)

: Display the Lexus Climate Con-

cierge control screen

: Display the option control screen

Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Select the air flow mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Adjust the right side seat tempera-
ture setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

: Set Lexus Climate Concierge

(

P.321)

“AUTO”: Set automatic mode on/off
(

P.330)

“OFF”: Turn the fan off

NOTICE

■

To prevent 12-volt battery discharge

Do not leave the air conditioning system

on longer than necessary when the

hybrid system is off.

Air conditioning control screen

C
D

327

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

Interio

r fe

atures

“A/C”: Set cooling and dehumidification
function
If the “A/C” display is turned off, the system
will blow ambient temperature airor
heated air.
“DUAL”: Adjust the temperature for driver
and passenger seats separately (“DUAL”
mode) (

P.332)

: Set eco air conditioning mode



Vehicles with 4-ZONE climate con-
trol

Sub menu

Selecting the sub menu item to switch the
main screen.

: Display the front air conditioning

control screen

: Display the heated steering

wheel/front seat heater/front seat ventila-
tor control screen

: Display the rear air conditioning con-

trol screen

: Display the rear seat heater/rear seat

ventilator control screen

: Display the Lexus Climate Con-

cierge control screen

: Display the option control screen

Adjust the left side seat tempera-
ture setting

Select the right side seat air flow
mode

: Air flows to the upper body

: Air flows to the upper body and feet

: Air flows to the feet

: Air flows to the feet and the wind-

shield defogger operates

Select the left side seat air flow
mode
Adjust the fan speed setting
Function on/off indicators

When the function is on, the indicator illu-
minates on the control screen.

Sub function menu

When the sub function button on the
Remote Touch is pressed, the following
functions can be switched on and off.

: Set Lexus Climate Concierge

(

P.321)

“AUTO”: Set automatic mode on/off
(

P.330)

“OFF”: Turn the fan off
“A/C”: Set cooling and dehumidification
function
If the “A/C” display is turned off, the system
will blow ambient temperature airor
heated air.
“4-ZONE”: Adjust the temperature for the
driver, front passenger and left and right
rear passenger seats separately
(“4-ZONE” mode) (

P.332)

: Set eco air conditioning mode

Adjust the right side seat tempera-
ture setting

E
F

328

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

■

Option control screen

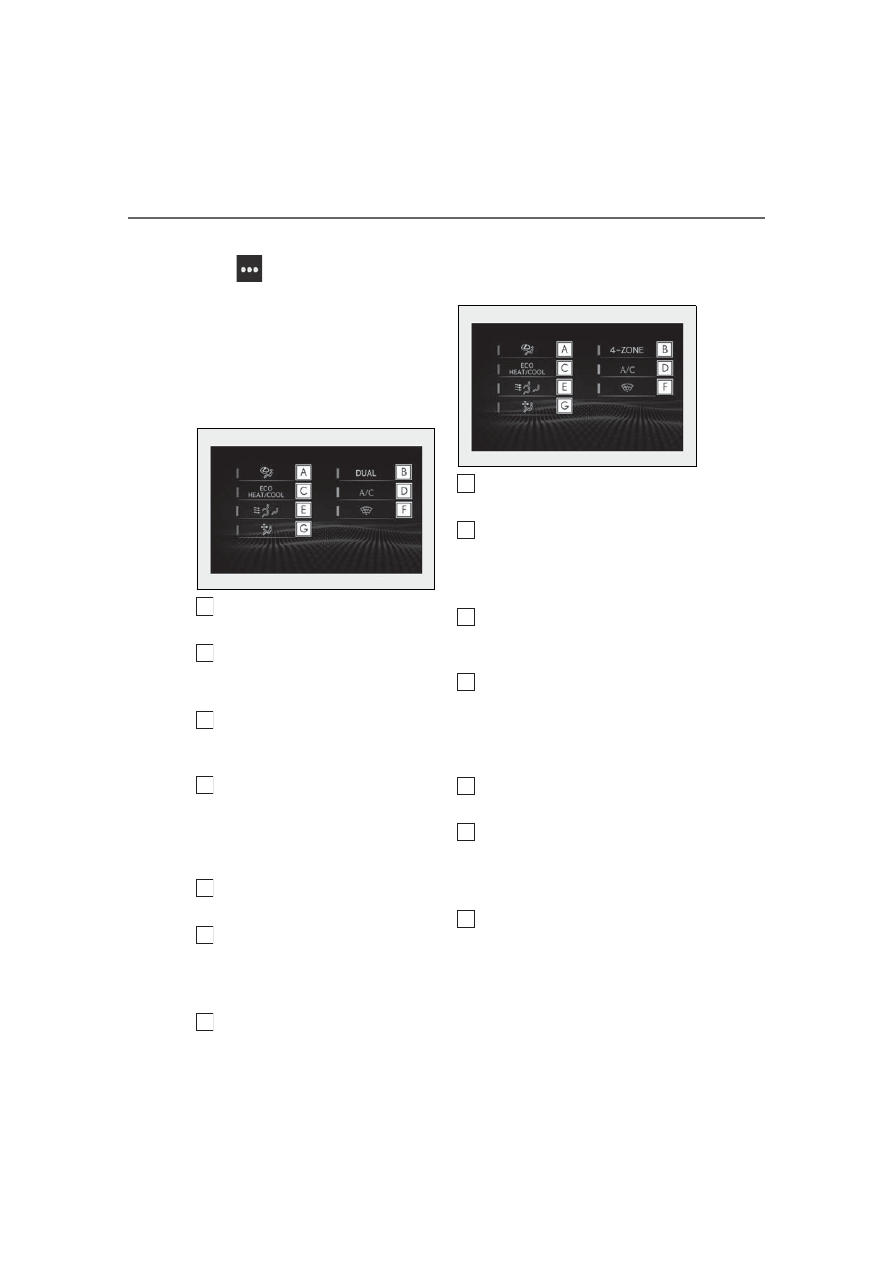

Select

on the sub menu to display

the option control screen.

The functions can be switched on and off.
When the function is on, the indicator illu-
minates on the screen.



Vehicles with DUAL-ZONE climate
control

Set Lexus Climate Concierge
(

P.321)

Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (

P.332)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

Select the S-FLOW mode
(

P.330)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air

(Micro dust and pollen filter)



Vehicles with 4-ZONE climate con-
trol

Set Lexus Climate Concierge
(

P.321)

Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“4-ZONE” mode)
(

P.332)

Set eco air conditioning mode

Air conditioning and heater output is lim-
ited to prioritize fuel economy.

Cooling and dehumidification func-
tion

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

Select the S-FLOW mode
(

P.330)

Prevent ice from building up on the
windshield and wiper blades
(Windshield wiper de-icer) (if
equipped)
Removing pollen from the air
(Micro dust and pollen filter)

329

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

Interio

r fe

atures

■

Side display



Vehicles with DUAL-ZONE climate
control

Display the front seat heaters/front
seat ventilators control screen
(

P.338)

Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Adjust the right side seat tempera-
ture setting
Set cooling and dehumidification
function on/off
Adjusting the temperature for
driver and passenger seats sepa-
rately (“DUAL” mode) (

P.332)

Select the air flow mode



Vehicles with 4-ZONE climate con-
trol

Display the front seat heaters/front

seat ventilators control screen
(

P.338)

Adjust the left side seat tempera-
ture setting
Adjust the fan speed setting
Adjust the right side seat tempera-
ture setting
Select the left side seat air flow
mode
Set cooling and dehumidification
function on/off

If the “A/C” indicator is turned off, the sys-
tem will blow ambient temperature airor
heated air.

Adjust the temperature for driver,
passenger and rear seats sepa-
rately (“4-ZONE” mode)
(

P.332)

Select the right side seat air flow
mode

■

Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from

building up on the windshield and wiper

blades.
The windshield de-icer will automatically

turn off after a while.

■

Eco air conditioning mode

When Eco drive mode is selected using the

driving mode select switch, eco air condi-

tioning mode turns on.
When a drive mode other than Eco drive

mode is selected, eco air conditioning

mode may turn off.

■

Micro dust and pollen filter

Outside air mode switches to

(recirculated air) mode. Pollen is removed

from the air and the air flows to the upper

part of the body.
Usually the system will automatically turn

C
D

330

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

off after a while.
In order to prevent the windshield from fog-

ging up when the outside air is cold, the

dehumidification function may operate or

the outside/recirculated air mode may not
switch to

(recirculated air) mode.

Pollen is filtered even if the micro dust and

pollen filter is turned off.

Press the automatic mode switch or
select “AUTO” on the sub function
menu. (

P.326)

Press the outside/recirculated air
mode switch to switch to automatic
air intake mode.

The air conditioning system automatically

switches between outside air and recircu-

lated air modes.

Adjust the temperature setting.

To stop the operation, press the off
switch or select “OFF” on the sub
function menu. (

P.326)

If the fan speed setting or air flow modes

are operated, the automatic mode indica-

tor goes off. However, automatic mode for

functions other than that operated is main-

tained.

■

Using automatic mode

Fan speed is adjusted automatically accord-

ing to the temperature setting and the

ambient conditions.
Therefore, the fan may stop for a while until

warm or cool air is ready to flow immedi-

ately after the automatic mode switch is

pressed or “AUTO” is selected.
Cool air may blow around the upper body

even when the heater is on due to sunlight.

■

Windshield fog detection function

When automatic mode is set, the humidity

sensor detects fog on the windshield and

controls the air conditioning system to pre-

vent fog.

■

Automatic mode for air intake control

In automatic mode, the system detects

exhaust gas and other pollutants and auto-

matically switches between outside air and

recirculated air modes.
When the dehumidification function is off,

and the fan is operating, turning automatic

mode on will activate the dehumidification

function.

In S-FLOW mode, priority for the air-

WARNING

■

To prevent burns (vehicles with wind-

shield wiper de-icer)

Do not touch the glass at lower part of

the windshield or to the side of the front

pillars when the windshield wiper de-icer

is on.

Using automatic mode

NOTICE

■

Humidity sensor

In order to detect fog on the windshield,

a sensor which monitors the temperature

of the windshield, the surround humidity,

etc. is installed.
Follow these points to avoid damaging

the sensor:

●

Do not disassemble the sensor

●

Do not spray glass cleaner on the sen-

sor or subject it to strong impacts

●

Do not stick anything on the sensor

S-FLOW mode

331

5-3. Using the air conditioning system and defogger

LS500h_OM_(U)_1809

Interio

r fe

atures

flow is given to the front seats, reducing
the airflow and air conditioning effect
on the rear seats. When in S-FLOW
mode, airflow from the rear air condi-
tioning system is stopped.
Operation in S-FLOW mode differs
according to the following conditions:
 Priority is given to the driver’s seat

only when:
Manual S-FLOW mode: When no
passenger is judged to be in the
front passenger seat.
Automatic S-FLOW mode: When
no passengers are judged to be in
the front passenger seat or rear
seats.

 Priority is given to the front seats

when: Manual S-FLOW mode is
selected or no passengers are
judged to be in the rear seats when
in automatic S-FLOW mode.

 S-FLOW mode will be disabled

when: A passenger is judged to be
in a rear seat when in automatic
S-FLOW mode.

Depending on the set temperature, opera-
tion in S-FLOW mode may not change as
described above.
When certain conditions are met and pri-
ority is given to the driver’s seat only, the
temperature indicator for the front passen-
ger side will turn off.
How the system judges if a passenger is in
the vehicle: P.331

The following S-FLOW modes are
available:



Automatic S-FLOW mode

In this mode, when a passenger is

judged to be in a rear seat, S-FLOW
mode will be automatically disabled.
(

P.331)

The indicator will illuminate on the air con-
ditioning control screen when S-FLOW
mode is enabled.
To enable/disable S-FLOW mode and
enter manual S-FLOW mode, select the
S-FLOW mode switch.
How the system judges if a passenger is in
the vehicle: P.331



Manual S-FLOW mode

When the S-FLOW mode switch is
selected, S-FLOW mode will be manu-
ally enabled/ disabled.

The indicator will illuminate on the air con-
ditioning control screen when S-FLOW
mode is enabled.
In manual S-FLOW mode, as the system
does not judge if a passenger is in a rear
seat.
If the rear air conditioning control screen
on the Rear Multi Operation Panel (if
equipped) is operated, S-FLOW mode will
automatically be disabled

■

How the system judges if a passenger is

in the vehicle when in S-FLOW mode

In S-FLOW mode, the system judges if a

passenger is in the vehicle as follows:

●

Front passenger seat: A passenger is

judged to be in the front passenger seat

when the system detects an object on the

front passenger seat, fastening of the

front passenger seat belt, changing of the

set temperature for the front passenger

seat, changing of the air outlets for the

front passenger seat or the opening and

closing of the front passenger door.

(However, when only opening and clos-

ing of the front passenger door is

detected, the system will judge that a pas-

senger is not in the front passenger seat

after the vehicle speed reaches approxi-

Content .. 18 19 20 21 ..
