4-5. Using the driving support systems

LS500h_OM_(U)_1809

*

: If  equipped

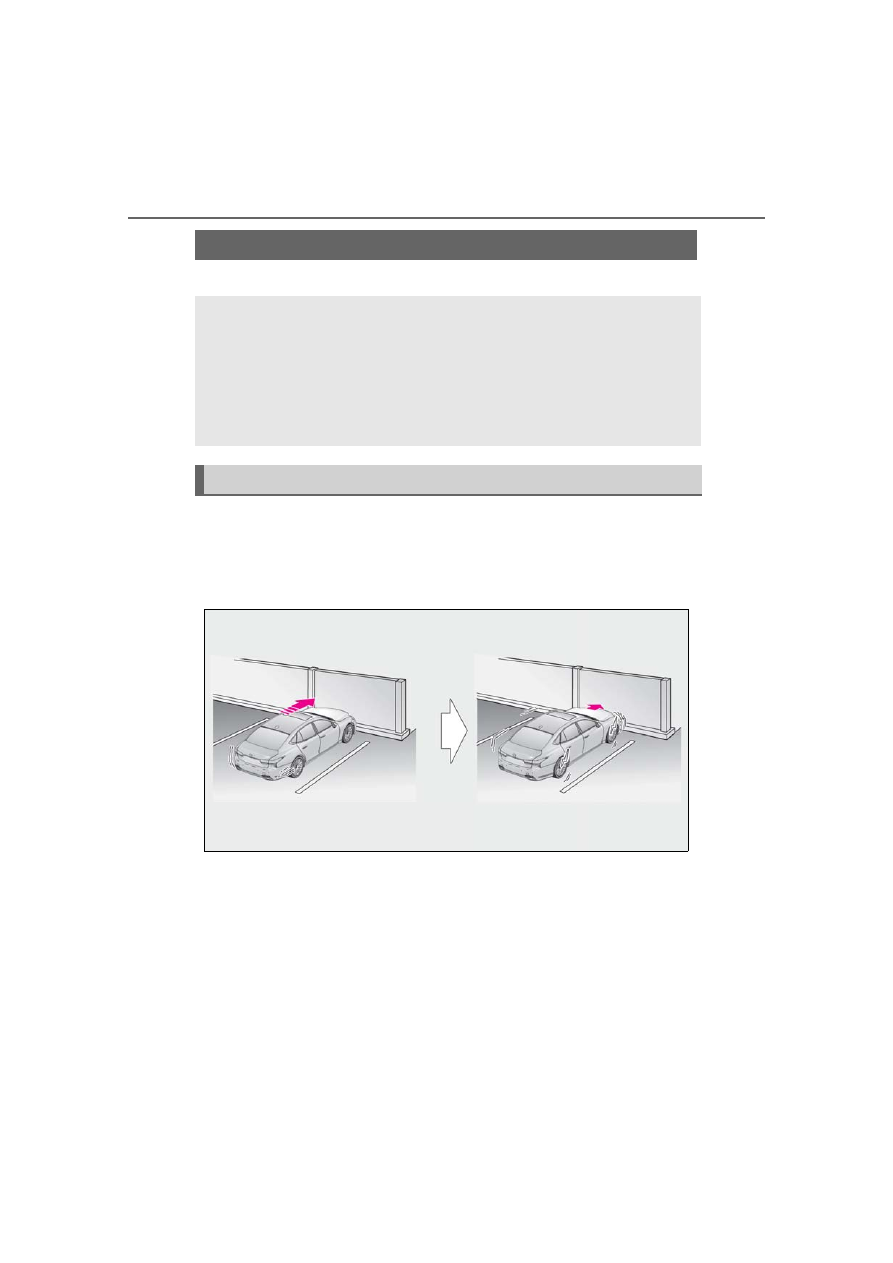

This function will operate in situations such as the following if an object is detected
in the traveling direction of the vehicle.

■

When traveling at a low speed and the brake pedal is not depressed, or is
depressed late

Parking Support Brake function (static objects)

*

If the sensors detect a static object, such as a wall, in the travelling direction of
the vehicle and the system determines that a collision may occur due to the
vehicle suddenly moving forward due to an accidental accelerator pedal oper-
ation, the vehicle moving the unintended direction due to the wrong shift posi-
tion being selected, or while parking or traveling at low speeds, the system will
operate to lessen the impact with the detected static object and reduce the
resulting damage.

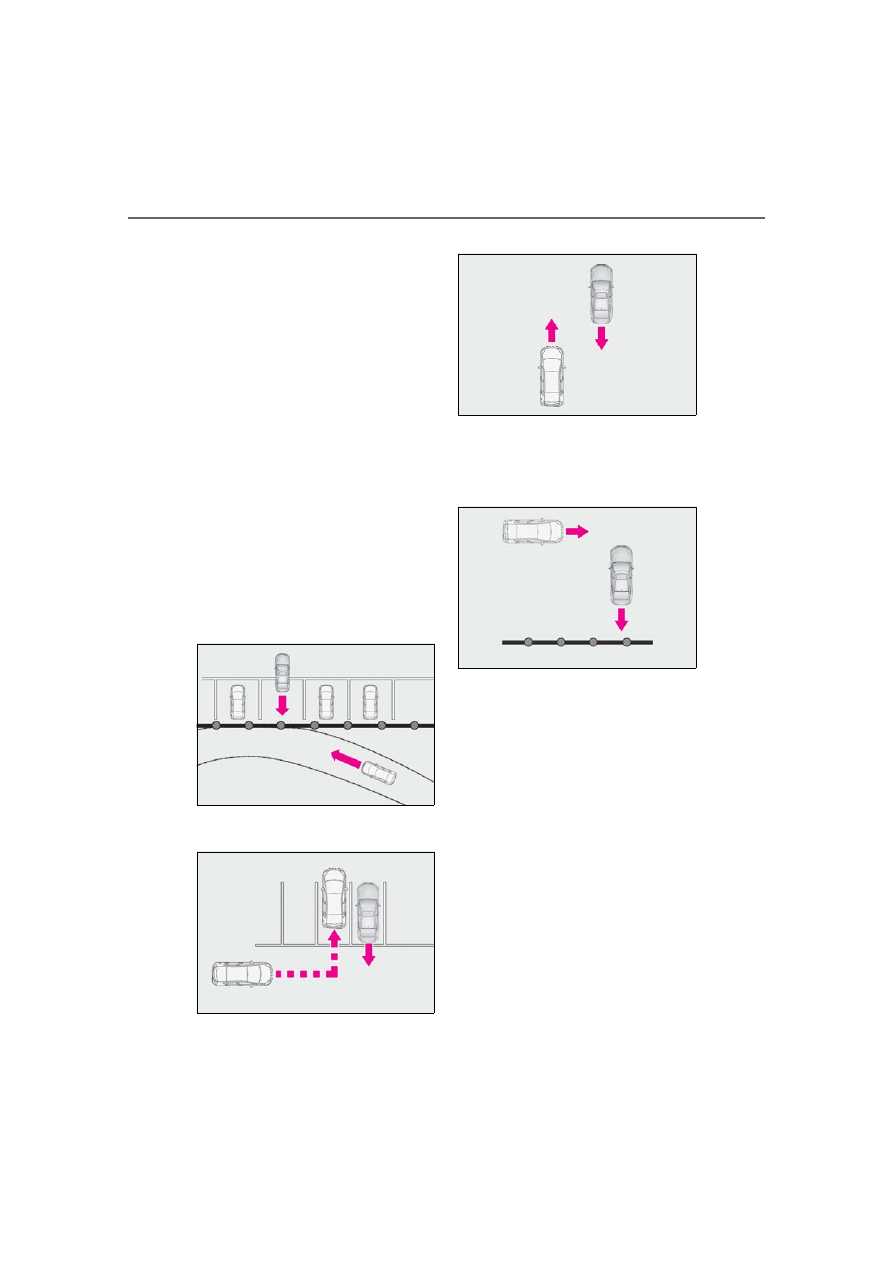

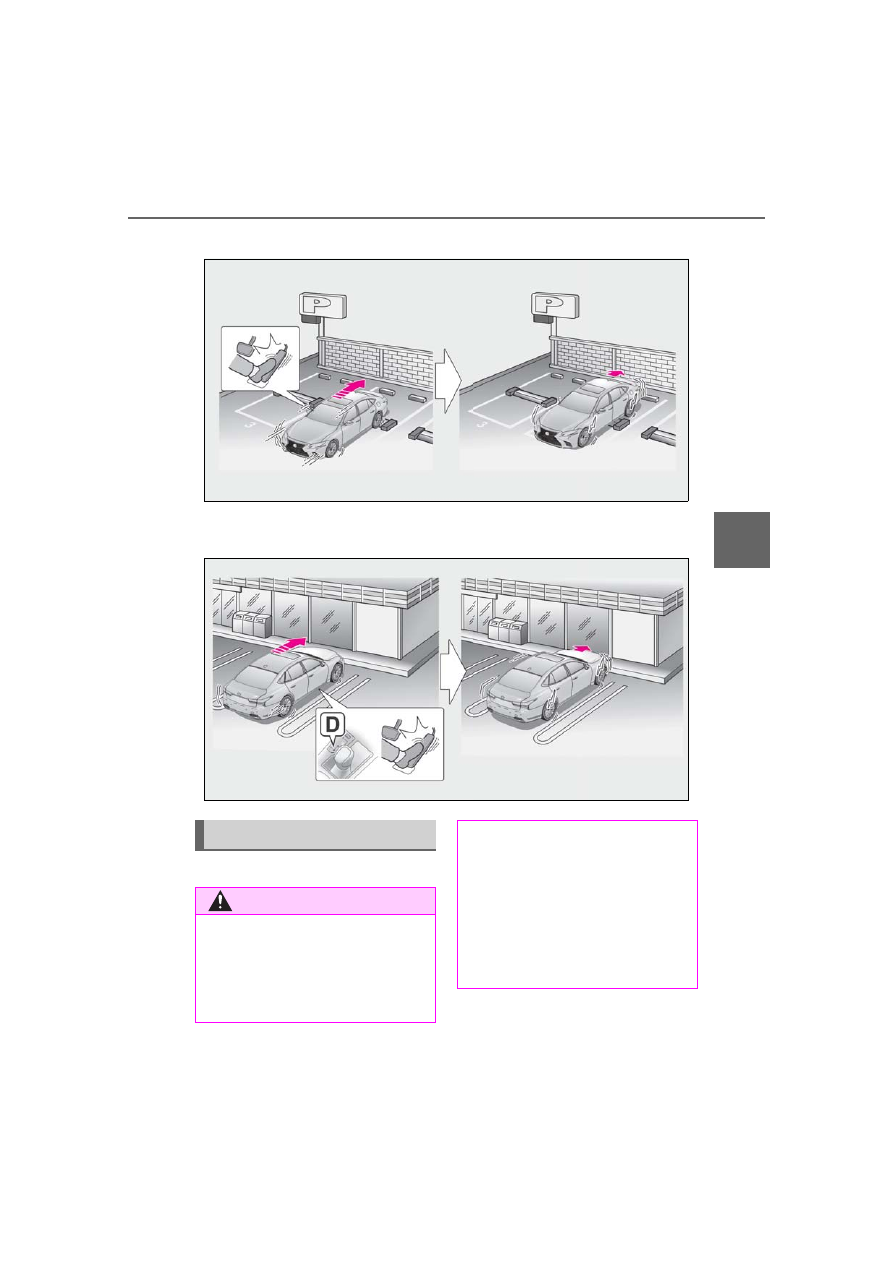

Examples of function operation

285

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

■

When the accelerator pedal is depressed excessively

■

When the vehicle moves in the unintended direction due to the wrong shift
position being selected

P.265

Types of sensors

WARNING

■

To ensure the Parking Support Brake

can operate properly

Observe the following precautions

regarding the sensors (

P.265). Failure

to do so may cause a sensor to not oper-

ate properly, and may cause an accident.

●

Do not modify, disassemble or paint

the sensors.

●

Do not replace a sensor with a part

other than a genuine part.

●

Do not subject a sensor or its sur-

rounding area to a strong impact.

●

Do not damage the sensors, and

always keep them clean.

286

4-5. Using the driving support systems

LS500h_OM_(U)_1809

■

The Parking Support Brake function

(static object) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated or flashing

(

P.77, 78) and all of the following condi-

tions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is 9 mph (15 km/h) or

less.

• There is a static object in the traveling

direction of the vehicle and 6 to 13 ft. (2

to 4 m) away.

• The Parking Support Brake determines

that a stronger-than-normal brake opera-

tion is necessary to avoid a collision.

●

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an immediate brake operation is nec-

essary to avoid a collision.

■

The Parking Support Brake function

(static objects) will stop operating when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The system determines that the collision

WARNING

●

If the area around a radar sensor is

subjected to an impact, the system

may not operate properly due to a

sensor malfunction. Have the vehicle

inspected by your Lexus dealer.

■

Handling the suspension

Do not modify the suspension, as

changes to the height or inclination of the

vehicle may prevent the sensors from

detecting objects correctly or cause the

system to not operate or operate unnec-

essarily.

■

If the Parking Support Brake function

(static objects) operates unnecessar-

ily, such as at a railroad crossing

In the event that the Parking Support

Brake function (static objects) operates

unnecessarily, such as at a railroad cross-

ing, brake control will be canceled after

approximately 2 seconds, allowing you

to proceed forward and leave the area,

brake control can also be canceled by

depressing the brake pedal. Depressing

the accelerator pedal after brake control

is canceled will allow you to proceed for-

ward and leave the area.

■

Notes when washing the vehicle

Do not apply intensive bursts of water or

steam to the sensor area.
Doing so may result in the sensor mal-

functioning.

●

When using a high pressure washer to

wash the vehicle, do not spray the sen-

sors directly, as doing so may cause a

sensor to malfunction.

●

When using steam to clean the vehicle,

do not direct steam too close to the

sensors as doing so may cause a sen-

sor to malfunction.

■

When to disable the Parking Support

Brake

In the following situations, disable the

Parking Support Brake as the system

may operate even though there is no

possibility of a collision.

●

When inspecting the vehicle using a

chassis roller, chassis dynamo or free

roller

●

When loading the vehicle onto a boat,

truck or other transport vessel

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or

lowered due to the carried load

●

When equipment that may obstruct a

sensor is installed, such as a towing

eyelet, bumper protector (an addi-

tional trim strip, etc.), bicycle carrier, or

snow plow

●

When using an automatic car wash

287

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

has become avoidable with normal brake

operation.

• The static object is no longer 6 to 13 ft. (2

to 4 m) away from the vehicle or in the

traveling direction of the vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The static object is no longer 6 to 13 ft. (2

to 4 m) away from the vehicle or in the

traveling direction of the vehicle.

■

Re-enabling the Parking Support Brake

function (static objects)

P.282

■

Detection range of the Parking Support

Brake function (static objects)

The detection range of the Parking Support

Brake function (static objects) differs from

the detection range of the intuitive parking

assist. (

P.269) Therefore, even if the intu-

itive parking assist detects an object and

provides a warning, the Parking Support

Brake function (static objects) may not start

operating.

■

Objects that the Parking Support Brake

function (static objects) may not detect

The sensors may not be able to detect cer-

tain objects, such as the following:

●

Pedestrian

●

Cotton cloth, snow, and other materials

that are poor reflectors of ultrasonic

waves

●

Objects which are not perpendicular to

the ground, are not perpendicular to the

traveling direction of the vehicle, are

uneven or are waving

●

Low objects

●

Thin objects such as wires, fences, ropes

and signposts

●

Objects that are extremely close to the

bumper

●

Sharply-angled objects

●

Tall objects with upper sections project-

ing outwards in the direction of your vehi-

cle

■

Intuitive parking assist buzzer

Regardless of whether the intuitive parking

assist system is enabled or not (

P.266), if

the Parking Support Brake function (static

objects) is enabled (

P.279), the front or

rear sensors detect an object and brake

control is performed, the intuitive parking

assist buzzer will sound to notify the driver

of the approximate distance to the object.

■

Situations in which the Parking Support

Brake function (static objects) may

operate even if there is no possibility of a

collision

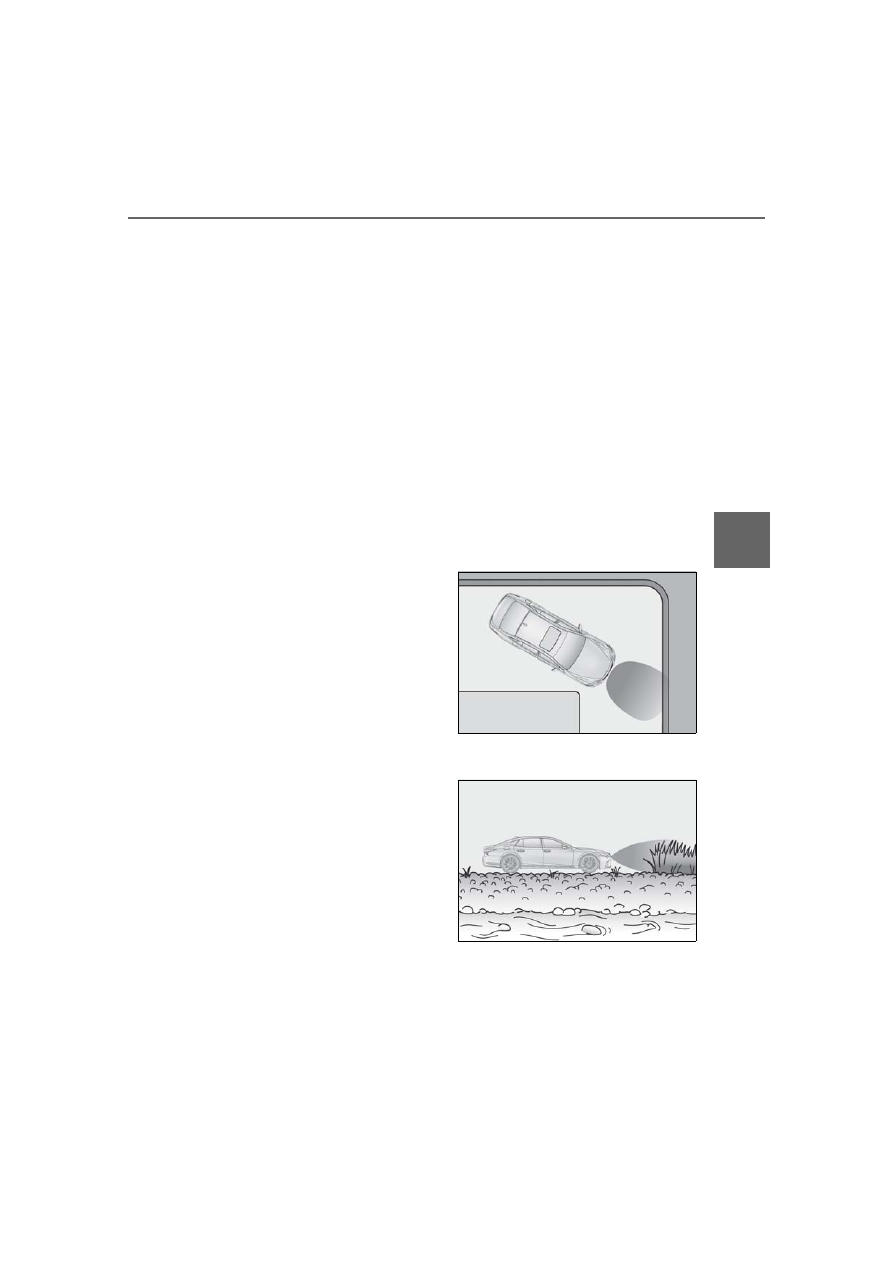

In some situations, such as the following, the

Parking Support Brake function (static

objects) may operate even though there is

no possibility of a collision.

●

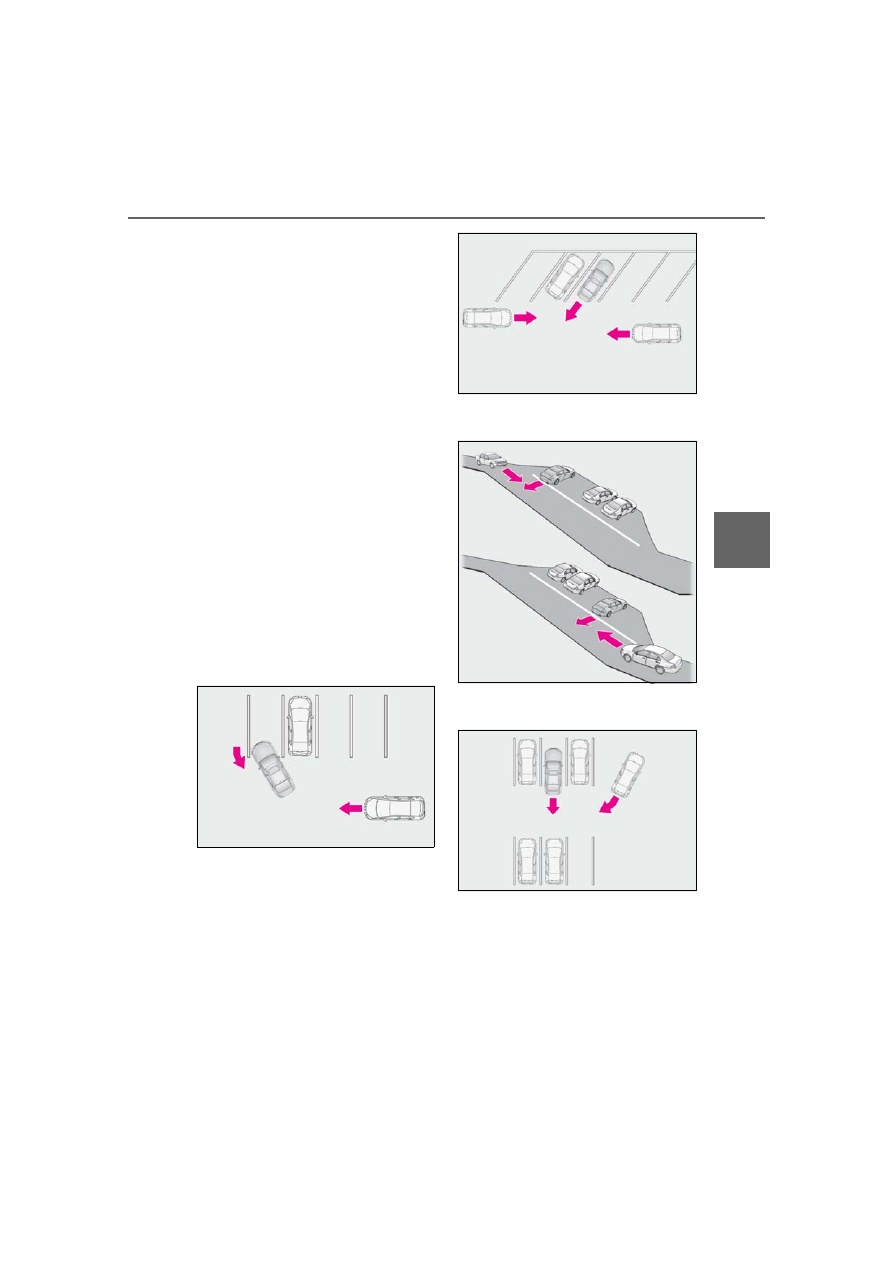

Vehicle surroundings

• When driving on a narrow road

• When driving on a gravel road or in an

area with tall grass

• When driving toward a banner, flag,

low-hanging branch or boom barrier

(such as those used at railroad crossings,

toll gates and parking lots)

• When driving on a narrow path sur-

rounded by a structure, such as in a tun-

288

4-5. Using the driving support systems

LS500h_OM_(U)_1809

nel or on an iron bridge

• When parallel parking

• When there is a rut or hole in the surface

of the road

• When driving on a metal cover (grating),

such as those used for drainage ditches

• When driving on a steep slope

• If a sensor is hit by a large amount of

water, such as when driving on a flooded

road

●

Weather

• If a sensor is covered with ice, snow, dirt,

etc. (when cleared, the system will return

to normal)

• If heavy rain or water strikes a sensor

• When driving in inclement weather such

as fog, snow or a sandstorm

• When strong winds are blowing

●

Other ultrasonic wave sources

• When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

• If a sticker or an electronic component,

such as a backlit license plate (especially

fluorescent type), fog lights, fender pole

or wireless antenna is installed near a

sensor

●

Changes in the vehicle posture

• If the vehicle is significantly tilted

• If the front of the vehicle is raised or low-

ered due to the carried load

• If the orientation of a sensor has been

changed due to a collision or other

impact

■

Situations in which the Parking Support

Brake function (static objects) may not

operate properly

In some situations, such as the following, this

function may not operate properly.

●

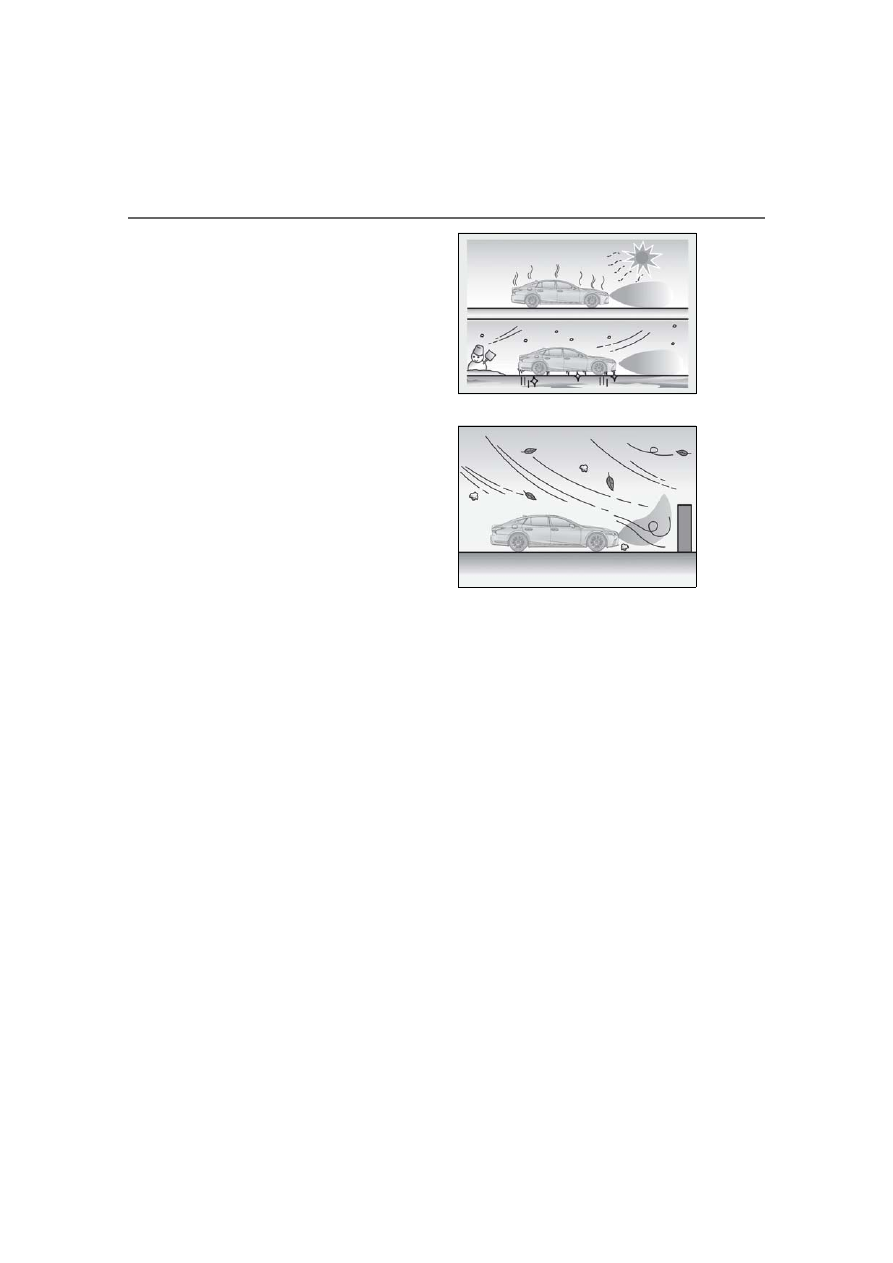

Weather

• When a sensor or the area around a sen-

sor is extremely hot or cold

• When strong winds are blowing

• If a sensor is covered with ice, snow, dirt,

etc. (when cleared, the system will return

to normal)

• If heavy rain or water strikes a sensor

• When driving in inclement weather such

as fog, snow or a sandstorm

• When the sensor is frozen (Once the

sensor thaws, the system will return to

normal)

●

Vehicle surroundings

• When an object that cannot be detected

is between the vehicle and a detected

object

• If an object such as a vehicle, motorcycle,

bicycle or pedestrian cuts in front of the

vehicle or runs out from the side of the

vehicle

• The vehicle is approaching a tall or

curved curb.

• On an extremely bumpy road, on an

incline, on gravel, or on grass.

• If objects draw too close to the sensor.

●

Other ultrasonic waves sources

• When vehicle horns, vehicle detectors,

motorcycle engines, air brakes of large

vehicles, the clearance sonar of other

vehicles or other devices which produce

ultrasonic waves are near the vehicle

• If a sticker or an electronic component,

289

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

such as a backlit license plate (especially

fluorescent type), fog lights, fender pole

or wireless antenna is installed near a

sensor

●

Changes in the vehicle posture

• If the vehicle is significantly tilted

• If the front of the vehicle is raised or low-

ered due to the carried load

• If the orientation of a sensor has been

changed due to a collision or other

impact

• When equipment that may obstruct a

sensor is installed, such as a bumper pro-

tector (an additional trim strip, etc.), bicy-

cle carrier, or snow plow

• If the suspension has been modified or

tires of a size other than specified are

installed

• If a sensor has been painted or covered

with a sticker, etc.

290

4-5. Using the driving support systems

LS500h_OM_(U)_1809

*

: If  equipped

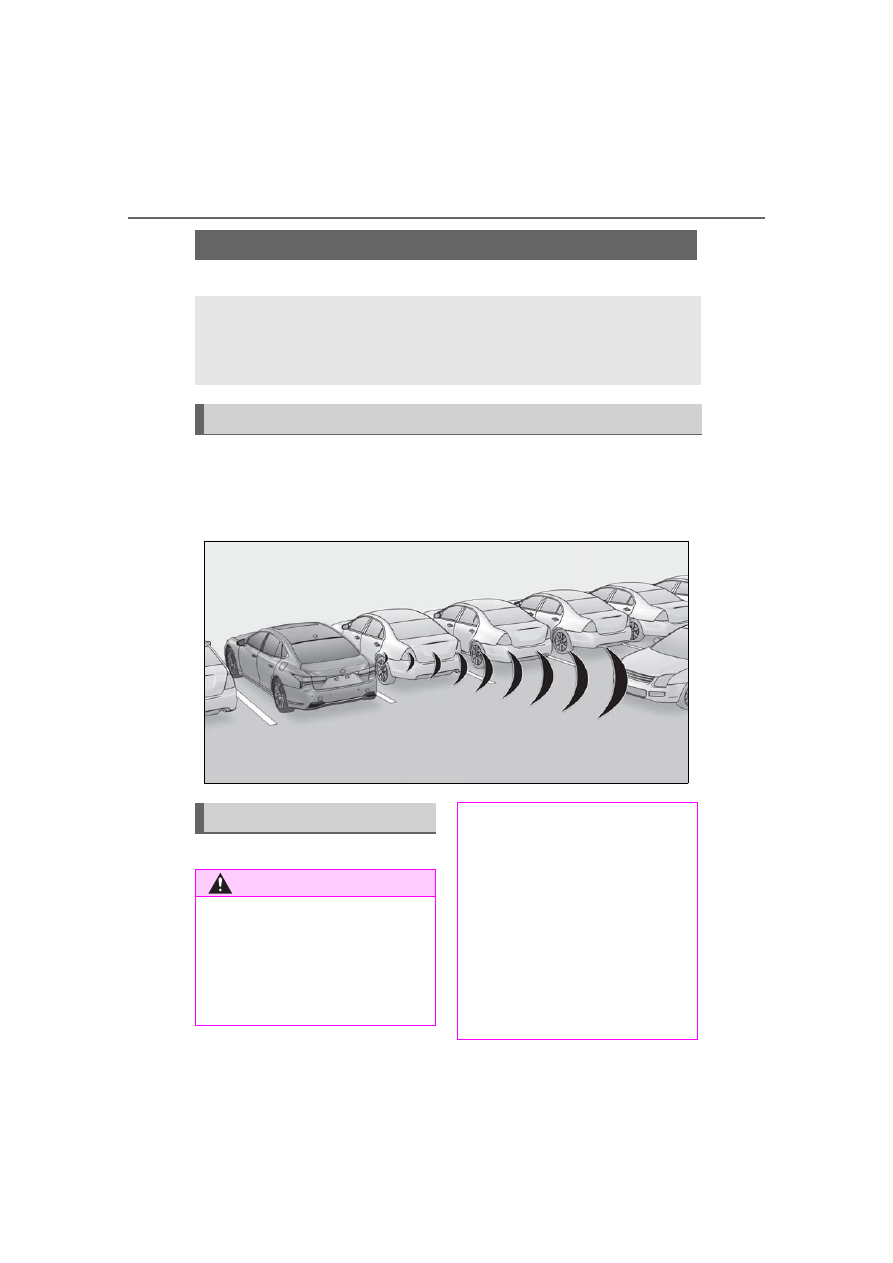

This function will operate in situations such as the following if a vehicle is detected
in the traveling direction of the vehicle.

■

When reversing, a vehicle is approaching and the brake pedal is not
depressed, or is depressed late

P.260

Parking Support Brake function (rear-crossing vehicles)

*

If a rear radar sensor detects a vehicle approaching from the right or left at the
rear of the vehicle and the system determines that the possibility of a collision
is high, this function will perform brake control to reduce the likelihood of an
impact with the approaching vehicle.

Examples of function operation

Types of sensors

WARNING

Observe the following precautions

regarding the rear radar sensors

(

P.260). Failure to do so may cause a

sensor to not operate properly, and may

cause an accident.

●

Do not modify, disassemble or paint

the sensors.

●

Do not replace a rear radar sensor

with a part other than a genuine part.

●

Do not damage the rear radar sensors,

and always keep the radar sensors and

their surrounding area on the bumper

clean.

■

To prevent a rear radar sensor from

malfunctioning

●

If the area around a rear radar sensor

is subjected to an impact, the system

may not operate properly due to a

sensor malfunction. Have the vehicle

inspected by your Lexus dealer.

291

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

■

The Parking Support Brake function

(rear-crossing vehicles) will operate

when

The function will operate when the PKSB

OFF indicator is not illuminated or flashing

(

P.77, 78) and all of the following condi-

tions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is 9 mph (15 km/h) or

less.

• Vehicles which are approaching from the

right or left at the rear of the vehicle at a

traveling speed of less than approxi-

mately 5 mph (8 km/h)

• The shift position is in R.

• The Parking Support Brake determines

that a stronger than normal brake opera-

tion is necessary to avoid a collision with

an approaching vehicle.

●

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an emergency brake operation is

necessary to avoid a collision with an

approaching vehicle.

■

The Parking Support Brake function

(rear-crossing vehicles) will stop operat-

ing when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The collision becomes avoidable with

normal brake operation.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• A vehicle is no longer approaching from

the right or left at the rear of the vehicle.

■

Re-enabling the Parking Support Brake

function (rear-crossing vehicles)

P.282

■

Detection area of the Parking Support

Brake function (rear-crossing vehicles)

The detection area of the Parking Support

Brake function (rear-crossing vehicles) dif-

fers from the detection area of the RCTA

function (

P.273). Therefore, even if the

RCTA function detects a vehicle and pro-

vides an alert, the Parking Support Brake

function (rear-crossing vehicles) may not

start operating.

■

Conditions under which the Parking

Support Brake function (rear-crossing

vehicles) will not detect a vehicle

The Parking Support Brake function

(rear-crossing vehicles) is not designed to

detect the following types of vehicles and/or

objects:

●

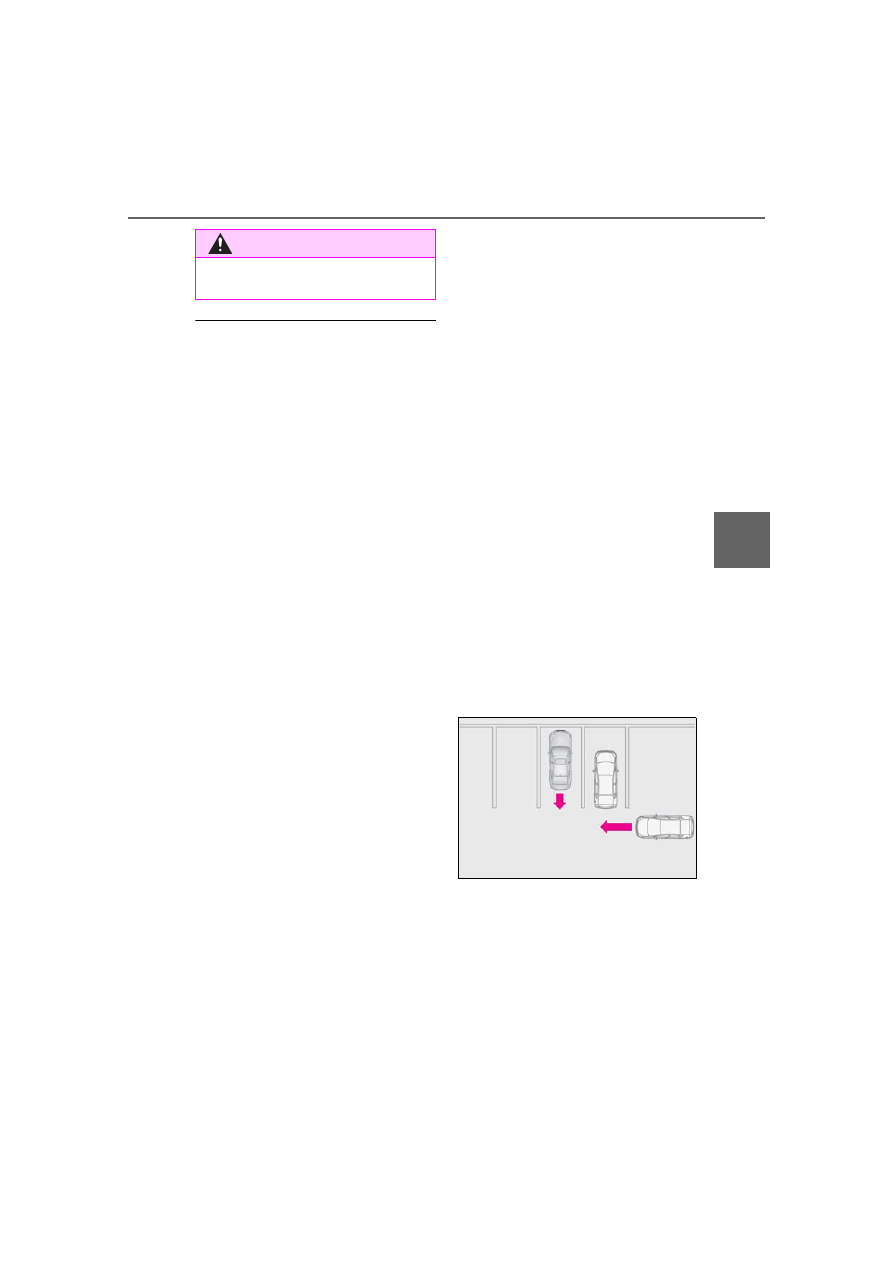

Vehicles approaching from directly

behind

●

Vehicles backing up in a parking space

next to your vehicle

●

Vehicles that the sensors cannot detect

due to obstructions

●

Vehicles which suddenly accelerate or

decelerate near your vehicle

●

Guardrails, walls, signs, parked vehicles

and similar stationary objects

●

Small motorcycles, bicycles, pedestrians,

etc.

●

Vehicles moving away from your vehicle

●

Vehicles approaching from the parking

spaces next to your vehicle

WARNING

●

Observe the rear radar sensor han-

dling precautions. (

P.279)

292

4-5. Using the driving support systems

LS500h_OM_(U)_1809

●

Objects which are extremely close to a

radar sensor

●

Vehicles which are approaching from the

right or left at the rear of the vehicle at a

traveling speed of less than approxi-

mately 5 mph (8 km/h)

●

Vehicles which are approaching from the

right or left at the rear of the vehicle at a

traveling speed of more than approxi-

mately 15 mph (24 km/h)

■

PKSB buzzer

If the Parking Support Brake is enabled and

brake control is performed, a buzzer will

sound to notify the driver.

■

Situations in which the system may

operate even though there is no possi-

bility of a collision

In some situations such as the following, the

Parking Support Brake function

(rear-crossing vehicles) may operate even

though there is no possibility of a collision.

●

When the parking space faces a street

and vehicles are being driven on the

street

●

When a detected vehicle turns while

approaching the vehicle

●

When a vehicle passes by the side of your

vehicle

●

When the distance between your vehicle

and metal objects, such as a guardrail,

wall, sign, or parked vehicle, which may

reflect electrical waves toward the rear of

the vehicle, is short

●

When there are spinning objects near

your vehicle such as the fan of an air con-

ditioning unit

●

When water is splashed or sprayed

toward the rear bumper, such as from a

sprinkler

■

Situations in which the Parking Support

Brake function (rear-crossing vehicles)

may not operate properly

In some situations, such as the following, the

radar sensors may not detect an object and

this function may not operate properly

●

Stationary objects

●

When a sensor or the area around a sen-

sor is extremely hot or cold

●

If the rear bumper is covered with ice,

snow, dirt, etc.

●

When it is raining heavily or water strikes

the vehicle

●

If the vehicle is significantly tilted

293

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

●

When equipment that may obstruct a

sensor is installed, such as a towing eye-

let, bumper protector (an additional trim

strip, etc.), bicycle carrier, or snow plow

●

If the suspension has been modified or

tires of a size other than specified are

installed

●

If the front of the vehicle is raised or low-

ered due to the carried load

●

If an electronic component, such as a

backlit license plate (especially fluores-

cent type), fog lights, fender pole or wire-

less antenna is installed near a radar

sensor

●

If the orientation of a radar sensor has

been changed

●

When multiple vehicles are approaching

with only a small gap between each vehi-

cle

●

If a vehicle is approaching the rear of

your vehicle rapidly

●

Situations in which the radar sensor may

not detect a vehicle

• When a vehicle approaches from the

right or left at the rear of the vehicle while

you are turning while backing up

• When turning while backing up

• When backing out of a shallow angle

parking spot

• When backing up on a slope with a sharp

change in grade

• When a vehicle turns into the detection

area

294

4-5. Using the driving support systems

LS500h_OM_(U)_1809

*

: If  equipped

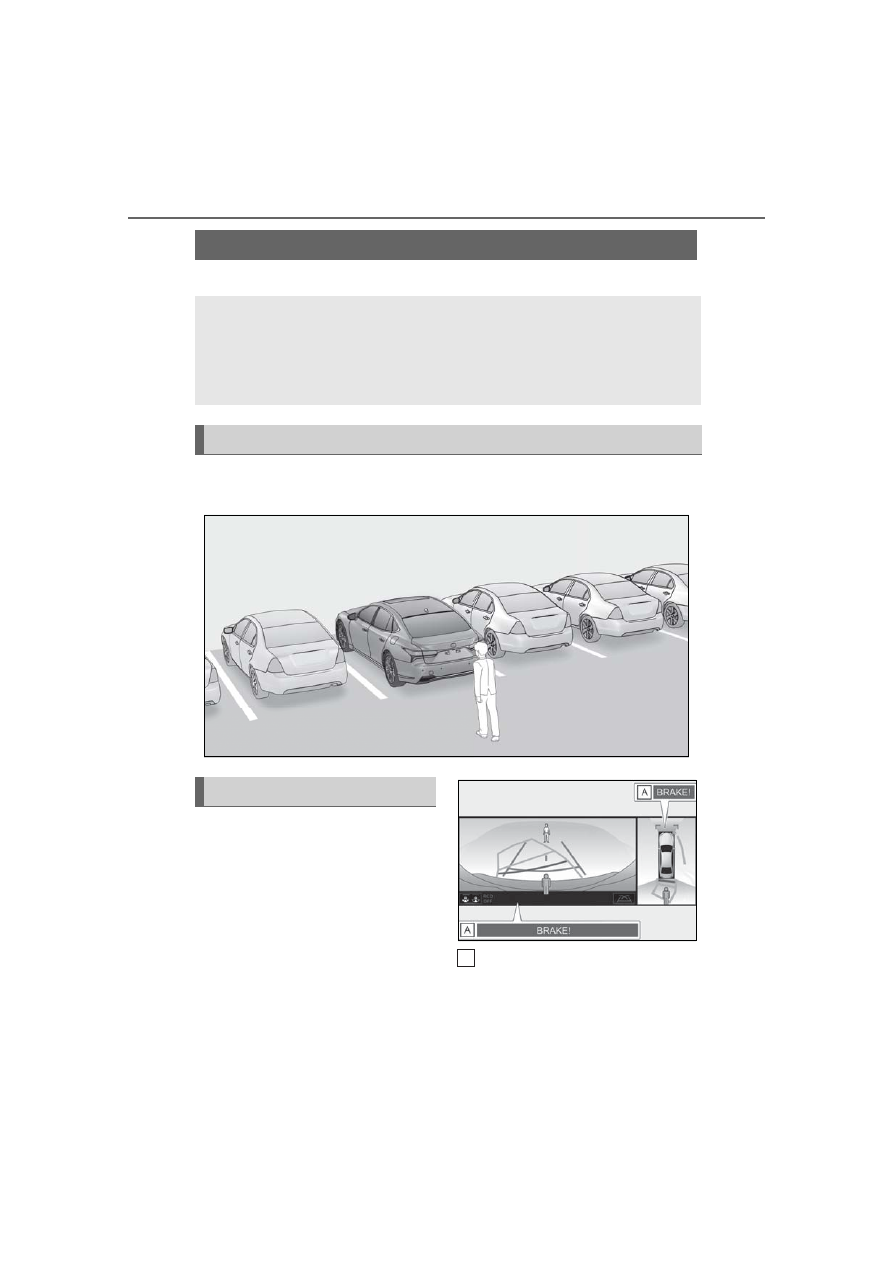

When a pedestrian is detected behind the vehicle while backing up, the brake
pedal is not depressed or is depressed late.

Displays a message to urge the driver
to take evasive action when a pedes-
trian is detected in the detection area
behind the vehicle. (A message will
also be displayed on the multi-informa-
tion display and head-up display (if
equipped).)

Pedestrian detection icon with
brake reminder

Parking Support Brake function (rear pedestrians)

*

If the rear camera sensor detects a pedestrian behind the vehicle while back-
ing up and the system determines that the possibility of colliding with the
detected pedestrian is high, a buzzer will sound. If the system determines that
the possibility of colliding with the detected pedestrian is extremely high, the
brakes will be applied automatically to help reduce the impact of the collision.

Examples of system operation

Center Display

A

295

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

■

Parking Support Brake function (rear

pedestrians) will operate when

The function will operate when the PKSB

OFF indicator is not illuminated or flashing

(

P.77, 78) and all of the following condi-

tions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is enabled.

• The vehicle speed is 9 mph (15 km/h) or

less.

• The shift position is in R.

• The rear camera sensor detects a pedes-

trian behind the vehicle while backing up

and the system determines that the possi-

bility of colliding with the detected

pedestrian is high.

●

Brake control

• Hybrid system output restriction control

is operating.

• The Parking Support Brake determines

that an emergency brake operation is

necessary to avoid a collision with a

pedestrians.

■

The Parking Support Brake function

(rear pedestrians) will stop operating

when

The function will stop operating if any of the

following conditions are met:

●

Hybrid system output restriction control

• The Parking Support Brake is disabled.

• The collision becomes avoidable with

normal brake operation.

• The pedestrian is no longer detected

behind your vehicle.

●

Brake control

• The Parking Support Brake is disabled.

• Approximately 2 seconds have elapsed

since the vehicle was stopped by brake

control.

• The brake pedal is depressed after the

vehicle is stopped by brake control.

• The pedestrian is no longer detected

behind your vehicle.

■

Re-enabling the Parking Support Brake

function (rear pedestrians)

P.282

■

Detection area of the Parking Support

Brake function (rear pedestrians)

The detection area of the Parking Support

Brake function (rear pedestrians) differs

from the detection area of the RCD func-

tion (

P.276). Therefore, even if the RCD

function detects a vehicle and provides an

alert, the Parking Support Brake function

(rear-crossing vehicles) may not start oper-

ating.

■

Situations in which the system may not

operate properly

●

Some pedestrians, such as the following,

may not be detected by the Parking Sup-

port Brake function (rear pedestrians),

preventing the function from operating

properly:

• Pedestrians who are bending forward or

squatting

• Pedestrians who are lying down

• Pedestrians who are running

• Pedestrians who suddenly enter the

detection area

WARNING

■

If the Parking Support Brake function

(rear pedestrians) operates unneces-

sarily

Depress the brake pedal immediately

after the Parking Support Brake function

(rear pedestrians) operates. (Operation

of the function is canceled by depressing

the brake pedal.)

■

Correct use of the Parking Support

Brake function (rear pedestrians)

Do not overly rely on the Parking Sup-

port Brake function (rear pedestrians).

Depending on the road conditions, vehi-

cle conditions and weather, this function

may not operate correctly. As the detec-

tion performance of the rear camera is

limited, always drive safely, taking care to

observe your surroundings.

Additionally, if the PKSB OFF indictor is

flashing or a warning message is dis-

played on the center display indicating

that the Parking Support Brake function

(rear pedestrians) is unavailable, the

function cannot be used. Even if these

warnings are not output, the driver is

always responsible for paying attention

to the vehicle’s surroundings and driving

safely.

296

4-5. Using the driving support systems

LS500h_OM_(U)_1809

• People riding a bicycle, skateboard, or

other light vehicle

• Pedestrians wearing oversized clothing

such as a rain coat, long skirt, etc., making

their silhouette obscure

• Pedestrians whose body is partially hid-

den by an object, such as a cart or

umbrella

• Pedestrians which are obscured by dark-

ness, such as at night

●

In some situations, such as the following,

pedestrians may not be detected by the

Parking Support Brake function (rear

pedestrians), preventing the function

from operating properly:

• When backing up in inclement weather

(rain, snow, fog, etc.)

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• When a very bright light, such as the sun,

or the headlights of another vehicle,

shines directly into the rear camera

• When backing up in a place where the

surrounding brightness changes sud-

denly, such as at the entrance or exit of a

garage or underground parking lot

• When backing up in a dim environment

such as during dusk or in an underground

parking lot

●

Even though there are no pedestrians in

the detection area, some objects, such as

the following, may be detected, possibly

causing the Parking Support Brake func-

tion (rear pedestrians) to operate.

• Three dimensional objects, such as a

pole, traffic cone, fence, or parked vehi-

cle

• Moving objects, such as a car or motor-

cycle

• Objects moving toward your vehicle

when backing up, such as flags or pud-

dles (or airborne matter, such as smoke,

steam, rain, or snow)

• Cobblestone or gravel roads, tram rails,

road repairs, white lines, pedestrian

crossings or fallen leaves on the road

• Metal covers (gratings), such as those

used for drainage ditches

• Objects reflected in a puddle or on a wet

road surface

• The roadside or bumps on the road

• Shadows  on  the  road

●

In some situations, such as the following,

the Parking Support Brake function (rear

pedestrians) may operate even though

there are no pedestrians in the detection

area.

• When backing up toward the roadside or

a bump on the road

• If the vehicle is significantly tilted, such as

when carrying a heavy load

• When backing up toward an

incline/decline

• If the suspension has been modified or

tires of a size other than specified are

installed

• If the rear of the vehicle is raised or low-

ered due to the carried load

• If an electronic component, such as a

backlit license plate or rear fog light, is

installed near the rear camera

• If a bumper protector, such as an addi-

tional trim strip, is installed to the rear

bumper

• If the orientation of the rear camera has

been changed

• If a towing eyelet is installed to the rear of

the vehicle

• When water is flowing over the rear cam-

era lens

• When the rear camera is obscured (dirt,

snow, ice, etc. are attached) or scratched

• If there is a flashing light in the detection

area, such as the emergency flashers of

another vehicle

297

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

Except F SPORT models
F SPORT models

1

Normal mode/Custom mode

Normal mode and custom mode are
selected by pressing the driving mode
select switch. Each time the switch is
pressed, the driving mode changes
between normal mode and custom mode.
When normal mode is selected, the normal
mode indicator comes on.
When custom mode is selected, the cus-
tom mode indicator comes on.
Press the switch to change the driving
mode to normal mode when not in normal
mode.
• Normal  mode

Provides an optimal balance of fuel econ-
omy, quietness, and dynamic performance.
Suitable for city driving.
When the shift position is in D, an appropri-
ate gear for sporty driving may automati-
cally be selected according to driver
performance and driving conditions.
• Custom mode
Allows you to drive with the powertrain,
chassis and air conditioning system func-
tions set to your preferred settings. Cus-
tom mode settings can only be changed on
the drive mode customization display of
the Center Display. (

P.316)

2

Comfort mode

By controlling the suspension, riding com-
fort is further enhanced. Suitable for city
driving.
When not in comfort mode and the driving
mode select switch is turned backward, the
comfort mode indicator comes on.

3

Eco drive mode

Helps the driver accelerate in an
eco-friendly manner and improve fuel
economy through moderate throttle char-
acteristics and by controlling the operation
of the air conditioning system (heat-
ing/cooling).
When in comfort mode, if the driving mode
select switch is turned backward, the Eco
drive mode indicator comes on.

4

Sport mode

• Sport S mode
Controls the hybrid system to provide
quick, powerful acceleration. This mode is
suitable for when agile driving response is
desired, such as when driving on roads
with many curves.
When not in Sport S mode, if the driving
mode select switch is turned forward, the
Sport S mode indicator comes on.
• Sport  S+  mode

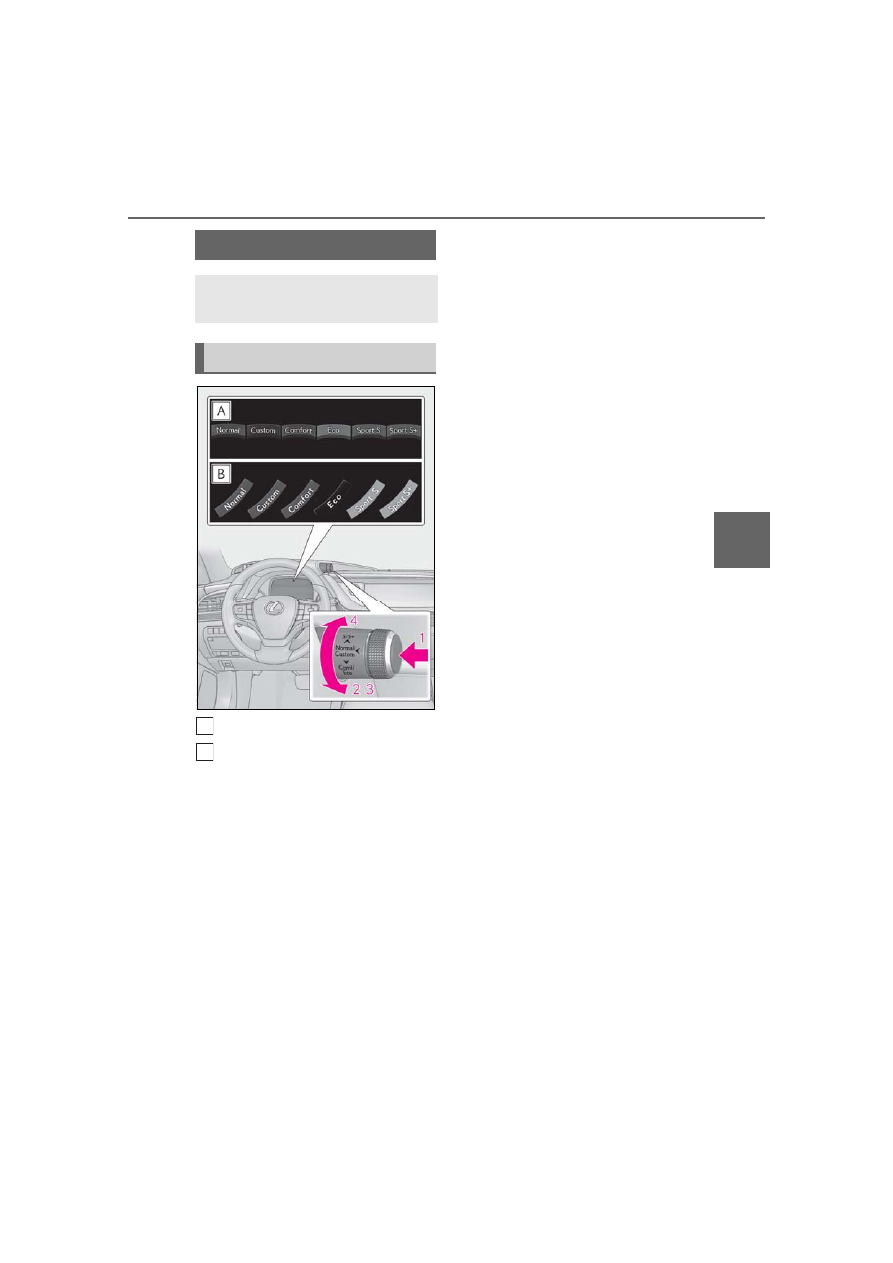

Driving mode select switch

The driving modes can be selected
to suit driving condition.

Selecting a drive mode

A
B

298

4-5. Using the driving support systems

LS500h_OM_(U)_1809

Helps to ensure steering performance and
driving stability by simultaneously con-
trolling the steering and suspension in
addition to the hybrid system. Suitable for
sportier driving.
When in Sport S mode, if the driving mode
select switch is turned forward, the Sport
S+ mode indicator comes on.

■

If the driving mode select switch is oper-

ated while the opening screen is being

displayed

If the driving mode select switch is operated

while the opening screen is being displayed,

the driving mode will be changed and the

meter display will change accordingly after

the opening screen operation has com-

pleted.

■

Operation of the air conditioning sys-

tem in Eco drive mode

Eco drive mode controls the heating/cool-

ing operations and fan speed of the air con-

ditioning system to enhance fuel efficiency.

To improve air conditioning performance,

perform the following operations:

●

Turn off eco air conditioning mode

(

P.328)

●

Adjust the fan speed (

P.323)

●

Turn off Eco drive mode

■

Automatic deactivation of sport mode

and custom mode

If the power switch is turned off after driving

in sport mode or custom mode, the drive

mode will be changed to normal mode.

■

Driving mode pop-up display

When the driving mode is changed, the

selected driving mode will be temporarily

displayed on the side display. (

P.317)

*

: If equipped

■

Situations in which the vehicle height

control may not operate properly

●

In the following situations, the vehicle

height may change slowly or may not

change to the correct height:

• When the vehicle comes into contact

with snow, ice, stone, etc.

• When the ambient temperature is low

• When the accumulator tank pressure is

low

●

In the following situations, the vehicle

height may not change:

• If the hood or trunk is not fully closed

• If the brake pedal depressed and the

vehicle is stopped

• When the vehicle is on a significantly

uneven or undulating road

• When the vehicle is on a slanted road or a

slope

■

Operating sound of the air suspension

compressor and valves

When the vehicle height is changed, such

as due to passengers entering the vehicle or

cargo being loaded, or when the vehicle

height is changed using the vehicle height

adjustment switch, the air suspension com-

pressor and valves may operate and a

Electronically modulated air
suspension

*

The height of the vehicle when driv-
ing can be selected using the vehi-
cle height adjustment switch. The
selected height level will be main-
tained regardless of the number of
passengers or weight of cargo.

Additionally, settings of the follow-
ing functions can be changed:

 Enabling/Disabling controls of

access mode

 Temporarily disabling vehicle

height control

299

4-5. Using the driving support systems

LS500h_OM_(U)_1809

4

Driving

sound may be heard. This does not indicate

a malfunction.

■

When the accumulator tank pressure is

low

When the accumulator tank pressure is low,

the air suspension compressor and valves

may operate repeatedly even though the

vehicle height is not being changed. This

does not indicate a malfunction.

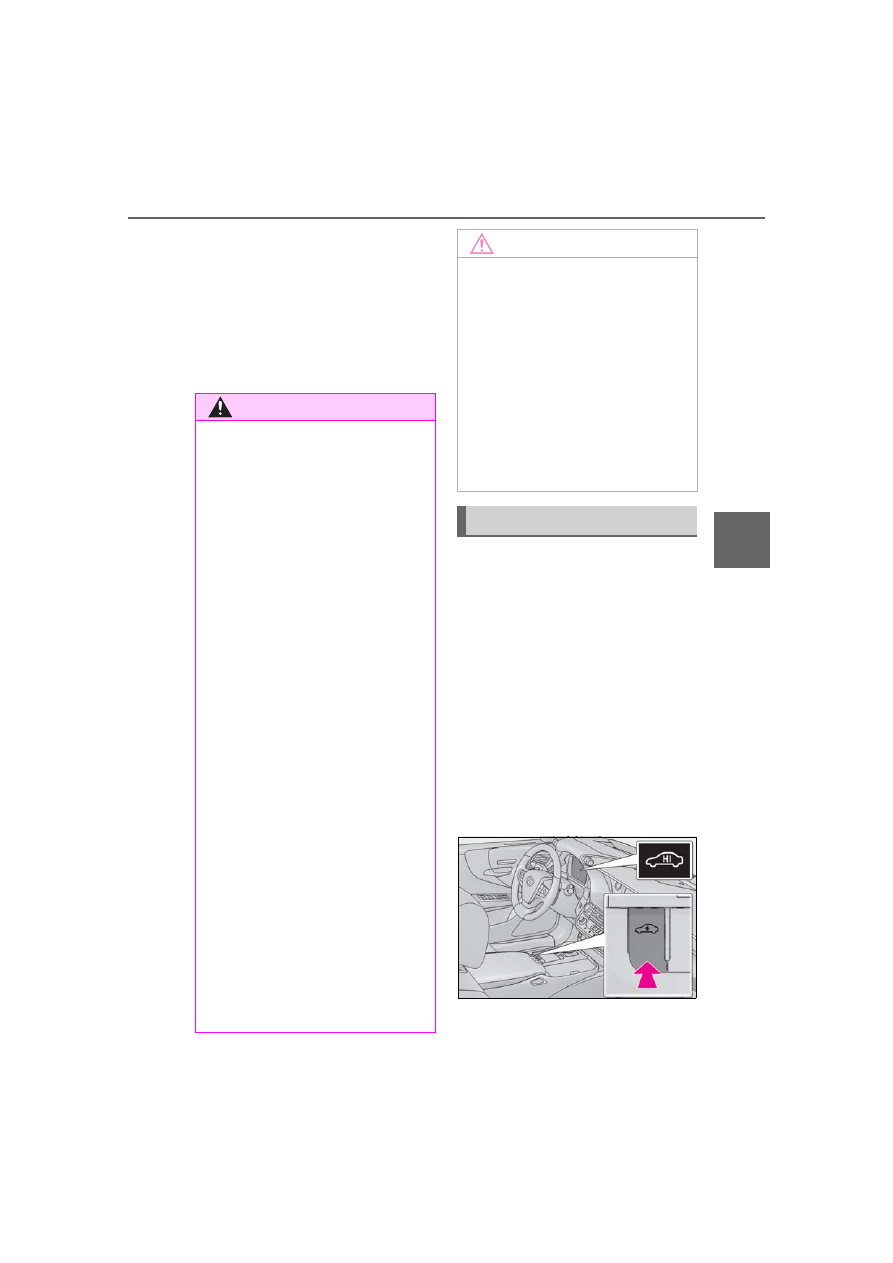

To adjust the vehicle height to one
appropriate for road and driving con-
ditions, press the vehicle height adjust-
ment switch.
Turns high mode on/off.

When high mode is enabled, the high
mode indicator on the meter will illuminate.
The vehicle height will increase by approxi-
mately 0.8 in. (20 mm) from its normal
position.
When the vehicle height is increased by a
control of access mode press the vehicle
height adjustment switch twice to
enable/disable high mode.

WARNING

■

Situations in which the operation of

the electronically modulated air sus-

pension should be temporarily dis-

abled

In the following situations, make sure to

temporarily disable all functions of the

vehicle height control of the electroni-

cally modulated air suspension and then

stop the hybrid system. Otherwise, the

vehicle height may change and part of

your body may be caught under the vehi-

cle, possibly causing injury.

●

When the vehicle is parked on a curb

●

If any of the wheels is not touching the

ground

●

If the vehicle needs to be jacked up

●

If the vehicle is to be tied down

●

If the vehicle is to be towed

■

Vehicle height control precautions

In the following situations, make sure to

check the safety of the area around the

vehicle, as the vehicle height may change

and part of someone’s body may be

caught in the vehicle, possibly causing

injury or the vehicle may be damaged.

●

When opening a door

●

When unlocking the doors using the

smart access system with push-button

start

●

When changing the vehicle height

using the vehicle height adjustment

switch

NOTICE

■

Parking precaution

If the vehicle is parked for a long time, the

vehicle height may change due to

changes in the ambient temperature.

When parking the vehicle, make sure

that the area above and below the vehi-

cle is clear, so that the vehicle will not

contact anything if its height changes.
Be careful when parking the vehicle in an

area with a low ceiling or near low hang-

ing objects, as the vehicle height will

increase when passengers exit the vehi-

cle and exit control of access mode

operates.

Selecting the vehicle height
