The vehicle height adjustment switch

can be used to change the mode when

The power switch is in ON mode.

■

System protection function

If the vehicle height is repeatedly increased

and decreased using the vehicle height

adjustment switch, etc., the system may not

operate temporarily.

In order to improve the ease of enter-
ing and exiting the vehicle, the vehicle
height will increase automatically.



Enter control

If any of the following operations are
performed, the vehicle height will
increase automatically:
 When the doors are unlocked using

the smart access system with
push-button start

 When the doors are unlocked using

the wireless remote control and
then a door is opened.

The vehicle height will increase by approxi-
mately 1.2 in. (30 mm) from its normal
position.
The vehicle height may not increase, if the
vehicle height already reaches the
selected height.
The vehicle will return to its normal height
when the vehicle speed reaches approxi-
mately 12 mph (20 km/h).



Exit control

When “Select Parking Height” is set to
“High”, the vehicle height will automati-
cally increase when the P shift position

is selected and a door is opened.

Press

to select

Press

to select “Vehicle

Settings” and then press

Press

to select

and then press

Press

to select “Select

Parking Height” and then press

The vehicle height will increase by approxi-
mately 0.4 in. (10 mm) from its normal
position.
The vehicle height may not increase, if the
vehicle height already reaches the
selected height.
The vehicle will return to its normal height
when the vehicle speed reaches approxi-
mately 12 mph (20 km/h).

■

Enabling/Disabling access mode

Press the

meter control

switch to select

Press the

meter control

switch to select “Vehicle Settings”
and then press

Press the

meter control

switch to select

and then

press .

Press the

meter control

switch to select “Access Mode”
and then press

The setting will change between
enabled/disabled each time the

Vehicle height control when
entering/exiting the vehicle
(“Access Mode”)

301

4-5. Using the driving support systems

LS500h_OM_(U)_1809

Driving

meter control switch is pressed.

■

When the vehicle height has been

increased by a control of access mode

Press the vehicle height adjustment switch

with the power switch in any mode to return

the vehicle to its previous vehicle height.

■

Access mode operation

●

Access mode will not operate if the vehi-

cle is not parked on a level road surface.

●

When the P shift position is selected, if

the doors are not locked and any door is

opened from the outside, exit control will

operate.

Vehicle height control can be tempo-
rarily disabled using the meter control
switches. (

P.91)

When to temporarily disable vehicle height
control:

P.299

Press

to select

Press

to select “Vehicle

Settings” and then press

Press

to select

and then press

Press

to select “Height

Control” and then press

This setting is memorized even if the power
switch is turned off.

Even if the vehicle height control func-
tions are disabled, they will be enabled
automatically when the vehicle speed
reaches approximately 19 mph (30
km/h).

■

When “Check Air Suspension System”

is displayed on the multi-information

display

The system may not operate properly. Have

the vehicle inspected by your Lexus dealer.

■

Customization

Some functions can be customized.

(

P.479)

Temporarily disabling vehicle
height control

302

4-5. Using the driving support systems

LS500h_OM_(U)_1809

■

ECB (Electronically Controlled
Brake System)

The electronically controlled system
generates braking force correspond-
ing to the brake operation

■

ABS (Anti-lock Brake System)

Helps to prevent wheel lock when the
brakes are applied suddenly, or if the
brakes are applied while driving on a
slippery road surface

■

Brake assist

Generates an increased level of brak-
ing force after the brake pedal is
depressed when the system detects a
panic stop situation

■

VSC (Vehicle Stability Control)

Helps the driver to control skidding
when swerving suddenly or turning on
slippery road surfaces.

■

Secondary Collision Brake

When the airbag sensor detects a colli-
sion, the brakes and stop lights are
automatically controlled to reduce the

vehicle speed and that helps reduce
the possibility of further damage due to
a secondary collision.

■

TRAC (Traction Control)

Helps to maintain drive power and pre-
vent the drive wheels from spinning
when starting the vehicle or accelerat-
ing on slippery roads

■

Hill-start assist control

Helps to reduce the backward move-
ment of the vehicle when starting on an
uphill

■

VGRS (Variable Gear Ratio Steer-
ing) (if equipped)

Adjusts the front wheel turning angle in
accordance with the vehicle speed and
steering wheel movement

■

DRS (Dynamic Rear Steering) (if
equipped)

Contributes to the turning characteris-
tics and responsiveness of the vehicle
by adjusting the rear wheel angle of the
vehicle in accordance with steering
wheel movement.

■

EPS (Electric Power Steering)

Employs an electric motor to reduce
the amount of effort needed to turn the
steering wheel.

■

Adaptive Variable Suspension Sys-
tem

By independently controlling the
damping force of the shock absorbers
for each of the 4 wheels according to
the road and driving conditions, this
system helps riding comfort with supe-
rior vehicle stability, and helps good

Driving assist systems

To keep driving safety and perfor-
mance, the following systems oper-
ate automatically in response to
various driving situations. Be aware,
however, that these systems are
supplementary and should not be
relied upon too heavily when oper-
ating the vehicle.

Summary of the driving assist
systems

303

4-5. Using the driving support systems

LS500h_OM_(U)_1809

Driving

vehicle posture.
Also, the damping force changes
depending on the selected driving
mode. (

P.297)

■

LDH (Lexus Dynamic Handling
system) (if equipped)

Provides integrated control of the
VGRS, DRS and EPS. Contributes to
turning characteristics at low speeds,
responsiveness at medium speeds and
safety at high speeds by controlling the
steering angle of the front and rear
wheels in accordance with the steering
wheel operation and vehicle speed.

■

VDIM (Vehicle Dynamics Inte-
grated Management)

Provides integrated control of the
ABS, brake assist, TRAC, VSC,
hill-start assist control, EPS, VGRS (if
equipped), DRS (if equipped) and
Adaptive Variable Suspension System
Helps to maintain vehicle stability when
swerving on slippery road surfaces by
controlling the brakes, hybrid system
output, steering assist, and steering
ratio

■

When the TRAC/VSC/ABS systems are

operating

The slip indicator light will flash while the

TRAC/VSC/ABS systems are operating.

■

Disabling the TRAC system

If the vehicle gets stuck in mud, dirt or snow,

the TRAC system may reduce power from

the hybrid system to the wheels. Pressing
the

switch to turn the system off may

make it easier for you to rock the vehicle in

order to free it.

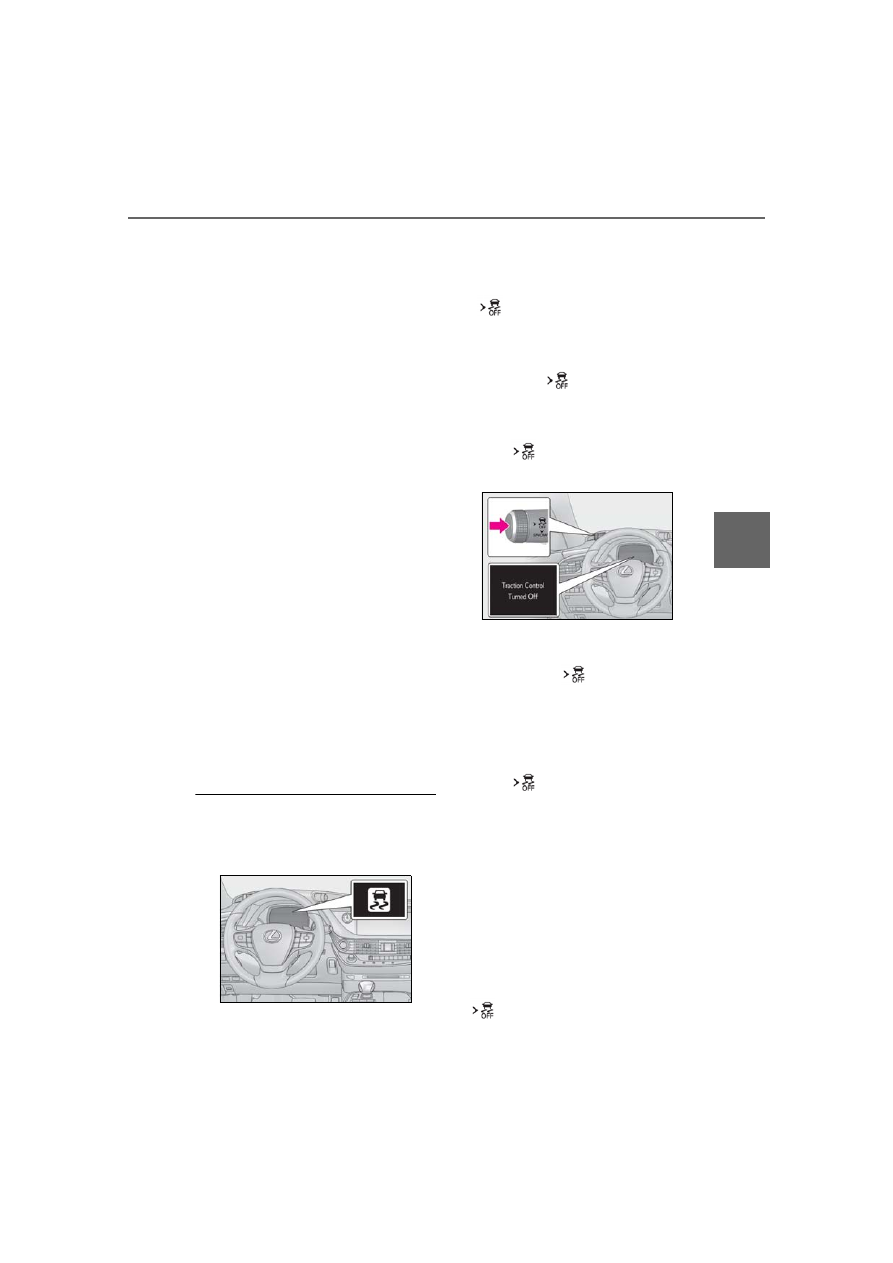

To turn the TRAC system off, quickly press
and release the

switch.

The “Traction Control Turned Off” will be
shown on the multi-information display.

Press the

switch again to turn the sys-

tem back on.

■

Disabling both TRAC and VSC systems

To turn the TRAC and VSC systems off,
press and hold the

switch for more

than 3 seconds while the vehicle is stopped.
The VSC OFF indicator light will come on
and the “Traction Control Turned Off” will
be shown on the multi-information display.

Press the

switch again to turn the sys-

tem back on.

: On vehicles with PCS (Pre-Collision

System), PCS will also be disabled (only
Pre-Collision warning is available). The
PCS warning light will come on and a
message will be displayed on the
multi-information display. (

P.222,

230)

■

When the message is displayed on the

multi-information display showing that

TRAC has been disabled even if the

switch has not been pressed

TRAC cannot be operated. Contact your

304

4-5. Using the driving support systems

LS500h_OM_(U)_1809

Lexus dealer.

■

Operating conditions of hill-start assist

control

When the following four conditions are met,

the hill-start assist control will operate:

●

The shift position is in a position other

than P or N (when stating off for-

ward/backward on an upward incline)

●

The vehicle is stopped

●

The accelerator pedal is not depressed

●

The parking brake is not engaged

■

Automatic system cancelation of

hill-start assist control

The hill-start assist control will turn off in any

of the following situations:

●

Shift the shift position to P or N

●

The accelerator pedal is depressed

●

The parking brake is engaged

●

2 seconds at maximum elapsed after the

brake pedal is released

■

VGRS is disabled when

VGRS may stop operating in the following

situations.

In this event, the steering wheel may move

from its straight forward position, but it will

return when the system restarts.

●

When the steering wheel is operated for

an extended period of time while the

vehicle is stopped or is moving very

slowly (on vehicles with LDH, DRS is dis-

abled together with VGRS)

●

When the steering wheel has been held

fully to the left or right

The center position of the steering wheel

may change when VGRS is disabled. How-

ever, the position will return to normal after

VGRS is reactivated.

■

When the 12-volt battery is discon-

nected (vehicles with VGRS)

The steering wheel may move from its

straight forward position, but this will be

corrected automatically when driving.

■

Sounds and vibrations caused by the

ABS, brake assist, VSC, TRAC, hill-start

assist control and VGRS systems

●

A sound may be heard from the engine

compartment when the brake pedal is

depressed repeatedly, when the hybrid

system is started or just after the vehicle

begins to move. This sound does not indi-

cate that a malfunction has occurred in

any of these systems.

●

Any of the following conditions may

occur when the above systems are oper-

ating. None of these indicates that a mal-

function has occurred.

• Vibrations may be felt through the vehicle

body and steering.

• A motor sound may be heard also after

the vehicle comes to a stop.

■

ECB operating sound

ECB operating sound may be heard in the

following cases, but it does not indicate that

a malfunction has occurred.

●

Operating sound heard from the engine

compartment when the brake pedal is

operated.

●

Motor sound of the brake system heard

from the front part of the vehicle when

the driver’s door is opened.

●

Operating sound heard from the engine

compartment when one or two minutes

passed after the stop of the hybrid sys-

tem.

■

EPS, VGRS and DRS operation sound

When the steering wheel is operated, a

motor sound (whirring sound) may be

heard. This does not indicate a malfunction.

■

Automatic reactivation of TRAC and

VSC systems

After turning the TRAC and VSC systems

off, the systems will be automatically

re-enabled in the following situations:

●

When the power switch is turned off

●

If only the TRAC system is turned off, the

TRAC will turn on when vehicle speed

increases

If both the TRAC and VSC systems are

turned off, automatic re-enabling will not

occur when vehicle speed increases.

305

4-5. Using the driving support systems

LS500h_OM_(U)_1809

Driving

■

Reduced effectiveness of the EPS sys-

tem

The effectiveness of the EPS system is

reduced to prevent the system from over-

heating when there is frequent steering

input over an extended period of time. The

steering wheel may feel heavy as a result.

Should this occur, refrain from excessive

steering input or stop the vehicle and turn

the hybrid system off. The EPS system

should return to normal within 10 minutes.

■

Secondary Collision Brake operating

conditions

The vehicle speed is approximately 6 mph

(10 km/h) or more and the airbag sensor

detects a collision. (The Secondary Colli-

sion Brake will not operate when the vehicle

speed is below approximately 6 mph [10

km/h].)

■

Secondary Collision Brake automatic

cancellation

The Secondary Collision Brake is automati-

cally canceled in the following situations:

●

The vehicle speed drops below approxi-

mately 6 mph (10 km/h)

●

A certain amount of time elapses during

operation

●

The accelerator pedal is depressed a

large amount

■

When “Check VGRS System” or

“CHECK DRS” is displayed on the

multi-information display

The VGRS or DRS may not operate prop-

erly. Have the vehicle inspected by your

Lexus dealer.

WARNING

■

The ABS does not operate effectively

when

●

The limits of tire gripping performance

have been exceeded (such as exces-

sively worn tires on a snow covered

road).

●

The vehicle hydroplanes while driving

at high speed on wet or slick roads.

■

Stopping distance when the ABS is

operating may exceed that of normal

conditions

The ABS is not designed to shorten the

vehicle’s stopping distance. Always main-

tain a safe distance from the vehicle in

front of you, especially in the following

situations:

●

When driving on dirt, gravel or

snow-covered roads

●

When driving with tire chains

●

When driving over bumps in the road

●

When driving over roads with potholes

or uneven surfaces

■

TRAC/VSC may not operate effec-

tively when

Directional control and power may not

be achievable while driving on slippery

road surfaces, even if the TRAC/VSC

system is operating. Drive the vehicle

carefully in conditions where stability and

power may be lost.

■

Hill-start assist control does not oper-

ate effectively when

●

Do not overly rely on hill-start assist

control. Hill-start assist control may

not operate effectively on steep

inclines and roads covered with ice.

●

Unlike the parking brake, hill-start

assist control is not intended to hold

the vehicle stationary for an extended

period of time. Do not attempt to use

hill-start assist control to hold the vehi-

cle on an incline, as doing so may lead

to an accident.

■

When the TRAC/ABS/VSC is acti-

vated

The slip indicator light flashes. Always

drive carefully. Reckless driving may

cause an accident. Exercise particular

care when the indicator light flashes.

306

4-5. Using the driving support systems

LS500h_OM_(U)_1809

WARNING

■

When the TRAC/VSC systems are

turned off

Be especially careful and drive at a speed

appropriate to the road conditions. As

these are the systems to help ensure

vehicle stability and driving force, do not

turn the TRAC/VSC systems off unless

necessary.

■

Secondary Collision Brake

Do not overly rely on the Secondary Col-

lision Brake. This system is designed to

help reduce the possibility of further

damage due to a secondary collision,

however, that effect changes according

to various conditions. Overly relying on

the system may result in death or serious

injury.

■

Replacing tires

Make sure that all tires are of the speci-

fied size, brand, tread pattern and total

load capacity. In addition, make sure that

the tires are inflated to the recom-

mended tire inflation pressure level.
The ABS, TRAC and VSC systems will

not function correctly if different tires are

installed on the vehicle.

Contact your Lexus dealer for further

information when replacing tires or

wheels.

■

Handling of tires and the suspension

Using tires with any kind of problem or

modifying the suspension will affect the

driving assist systems, and may cause a

system to malfunction.

307

4-6. Driving tips

LS500h_OM_(U)_1809

Driving

4-6.Driving tips

When using Eco drive mode, the
torque corresponding to the accelera-
tor pedal depression amount can be
generated more smoothly than it is in
normal conditions. In addition, the
operation of the air conditioning sys-
tem (heating/cooling) will be mini-
mized, improving the fuel economy.
(

P.297)

The Eco-friendly driving is possible by
keeping the indicate of Hybrid System
Indicator within Eco area. (

P.82, 87)

Shift the shift position to D when
stopped at a traffic light, or driving in
heavy traffic etc. Shift the shift position
to P when parking. When using the N
position, there is no positive effect on
fuel consumption. In the N position, the
gasoline engine operates but electric-
ity cannot be generated. Also, when
using the air conditioning system, etc.,
the hybrid battery (traction battery)
power is consumed.

 Drive your vehicle smoothly. Avoid

abrupt acceleration and decelera-
tion. Gradual acceleration and
deceleration will make more effec-
tive use of the electric motor (trac-
tion motor) without having to use
gasoline engine power.

 Avoid repeated acceleration.

Repeated acceleration consumes
hybrid battery (traction battery)
power, resulting in poor fuel con-
sumption. Battery power can be
restored by driving with the acceler-
ator pedal slightly released.

Make sure to operate the brakes gently
and in a timely manner. A greater
amount of electrical energy can be
regenerated when slowing down.

Repeated acceleration and decelera-
tion, as well as long waits at traffic
lights, will lead to bad fuel economy.
Check traffic reports before leaving
and avoid delays as much as possible.
When driving in a traffic jam, gently
release the brake pedal to allow the
vehicle to move forward slightly while
avoiding overuse of the accelerator
pedal. Doing so can help control
excessive gasoline consumption.

Hybrid vehicle driving tips

For economical and ecological
driving, pay attention to the follow-
ing points:

Using Eco drive mode

Use of Hybrid System Indicator

Changing the shift position

Accelerator pedal/brake pedal
operation

When braking

Delays

308

4-6. Driving tips

LS500h_OM_(U)_1809

Control and maintain the vehicle at a
constant speed. Before stopping at a
toll booth or similar, allow plenty of
time to release the accelerator and
gently apply the brakes. A greater
amount of electrical energy can be
regenerated when slowing down.

Use the air conditioning only when
necessary. Doing so can help reduce
excessive gasoline consumption.
In summer: When the ambient tem-
perature is high, use the recirculated
air mode. Doing so will help to reduce
the burden on the air conditioning sys-
tem and reduce fuel consumption as
well.
In winter: Because the gasoline engine
will not automatically cut out until it and
the interior of the vehicle are warm, it
will consume fuel. Also, fuel consump-
tion can be improved by avoiding over-
use of the heater.

Make sure to check the tire inflation
pressure frequently. Improper tire infla-
tion pressure can cause poor fuel
economy.
Also, as snow tires can cause large
amounts of friction, their use on dry
roads can lead to poor fuel economy.
Use tires that are appropriate for the
season.

Carrying heavy luggage will lead to
poor fuel economy. Avoid carrying
unnecessary luggage. Installing a large
roof rack will also cause poor fuel
economy.

Since the gasoline engine starts up and
cuts out automatically when cold,
warming up the engine is unnecessary.
Moreover, frequently driving short dis-
tances will cause the engine to repeat-
edly warm up, which can lead to excess
fuel consumption.

Highway driving

Air conditioning

Checking tire inflation pressure

Luggage

Warming up before driving

309

4-6. Driving tips

LS500h_OM_(U)_1809

Driving

 Use fluids that are appropriate to

the prevailing outside temperatures.

• Engine oil
• Engine/power control unit coolant
• Washer fluid

 Have a service technician inspect

the condition of the 12-volt battery.

 Have the vehicle fitted with four

snow tires or purchase a set of tire
chains for the rear tires.

Ensure that all tires are the specified size
and brand, and that chains match the size
of the tires.

: Tire chains cannot be mounted on vehi-

cles with front and rear tires of differing
sizes.

Winter driving tips

Carry out the necessary prepara-
tions and inspections before driving
the vehicle in winter. Always drive
the vehicle in a manner appropriate
to the prevailing weather condi-
tions.

Preparation for winter

WARNING

■

Driving with snow tires

Observe the following precautions to

reduce the risk of accidents.

Failure to do so may result in a loss of

vehicle control and cause death or seri-

ous injury.

●

Use tires of the specified size.

●

Maintain the recommended level of air

pressure.

●

Do not drive in excess of 75 mph (120

km/h), regardless of the type of snow

tires being used.

●

Use snow tires on all, not just some

wheels.

■

When installing tire chains

Before installing tire chains, make sure to

disable all functions of the vehicle height

control of the electronically modulated

air suspension. Otherwise, the vehicle

height may change while installing the

tire chains and part or your body may be

caught under the vehicle, possibly caus-

ing injury. (

P.301)

■

Driving with tire chains

Observe the following precautions to

reduce the risk of accidents.

Failure to do so may result in the vehicle

being unable to be driven safely, and may

cause death or serious injury.

●

Do not drive in excess of the speed

limit specified for the tire chains being

used, or 30 mph (50 km/h), which-

ever is lower.

●

Avoid driving on bumpy road surfaces

or over potholes.

●

Avoid sudden acceleration, abrupt

steering, sudden braking and shifting

operations that cause sudden engine

braking.

●

Slow down sufficiently before entering

a curve to ensure that vehicle control is

maintained.

●

Do not use LTA (Lane Tracing Assist)

system.

310

4-6. Driving tips

LS500h_OM_(U)_1809

Perform the following according to the
driving conditions:
 Do not try to forcibly open a window

or move a wiper that is frozen. Pour
warm water over the frozen area to
melt the ice. Wipe away the water
immediately to prevent it from
freezing.

 To ensure proper operation of the

climate control system fan, remove
any snow that has accumulated on
the air inlet vents in front of the
windshield.

 Check for and remove any excess

ice or snow that may have accumu-
lated on the exterior lights, vehicle’s
roof, chassis, around the tires or on
the brakes.

 Remove any snow or mud from the

bottom of your shoes before getting
in the vehicle.

Accelerate the vehicle slowly, keep a
safe distance between you and the
vehicle ahead, and drive at a reduced
speed suitable to road conditions.

Park the vehicle and shift the shift posi-
tion to P without setting the parking
brake. The parking brake may freeze
up, preventing it from being released. If
the vehicle is parked without setting
the parking brake, make sure to block
the wheels.
Failure to do so may be dangerous
because it may cause the vehicle to
move unexpectedly, possibly leading to
an accident.



Vehicles with front and rear tires of
the same size

Use the correct tire chain size when
mounting the tire chains.
Chain size is regulated for each tire
size.

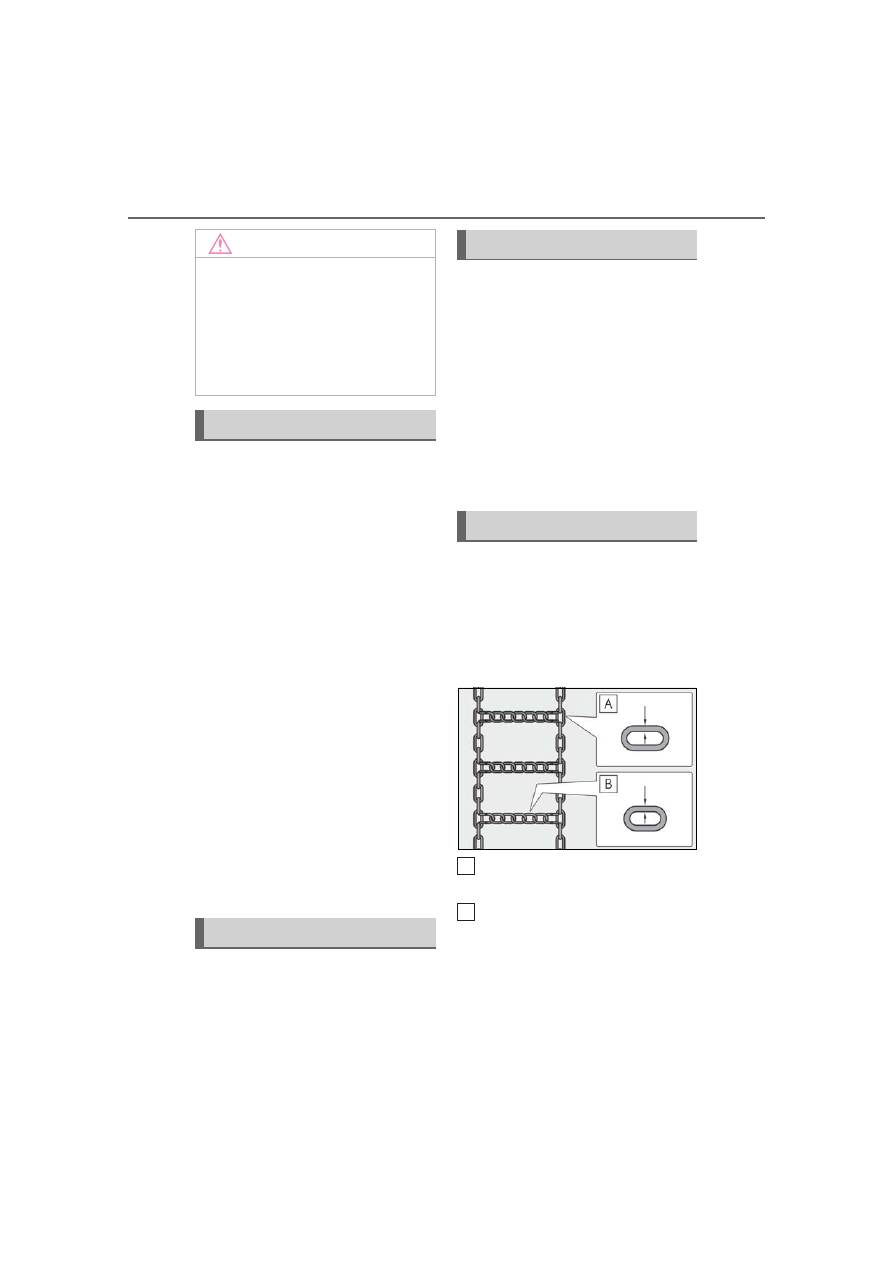

Side chain (0.12 in. [3 mm] in diam-
eter)
Cross chain (0.16 in. [4 mm] in
diameter)



Vehicles with front and rear tires of
differing sizes

Tire chains cannot be mounted.
Snow tires should be used instead.

NOTICE

■

Repairing or replacing snow tires

Request repairs or replacement of snow

tires from Lexus dealers or legitimate tire

retailers.

This is because the removal and attach-

ment of snow tires affects the operation

of the tire pressure warning valves and

transmitters.

Before driving the vehicle

When driving the vehicle

When parking the vehicle

Selecting tire chains

311

4-6. Driving tips

LS500h_OM_(U)_1809

Driving

Regulations regarding the use of tire
chains vary depending on location and
type of road. Always check local regu-
lations before installing chains.

■

Tire chain installation

Observe the following precautions when

installing and removing chains:

●

Install and remove tire chains in a safe

location.

●

Install tire chains on the rear tires. Do not

install tire chains on the front tires.

●

Install tire chains on the rear tires as

tightly as possible. Retighten chains after

driving 1/4

1/2 mile (0.51.0 km).

●

Install tire chains following the instruc-

tions provided with the tire chains.

To enable the windshield wipers to be
lifted when heavy snow or icy condi-
tions are expected, change the rest
position of the windshield wipers from
the retracted position below the hood
to the service position using the wiper
lever. (

P.195)

Regulations on the use of tire
chains

NOTICE

■

Fitting tire chains

The tire pressure warning valves and

transmitters may not function correctly

when tire chains are fitted.

Windshield wipers

312

4-6. Driving tips

LS500h_OM_(U)_1809

313

LS500h_OM_(U)_1809

Interio

r fe

atures

Interior features

5-1. Remote Touch/Display

Remote Touch.............................

314

Center Display............................

316

Rear Multi Operation Panel

.........................................................

318

5-2. Lexus Climate Concierge

Lexus Climate Concierge......

321

5-3. Using the air conditioning system

and defogger

Front automatic air conditioning

system .........................................

323

Rear automatic air conditioning

system .........................................

334

Heated steering wheel/seat heat-

ers/seat ventilators................

337

5-4. Using the interior lights

Interior lights list..........................

341

5-5. Using the storage features

List of storage features............

345

Trunk features.............................

350

5-6. Using the other interior features

Other interior features ...........

353

Garage door opener...............

360

314

5-1. Remote Touch/Display

LS500h_OM_(U)_1809

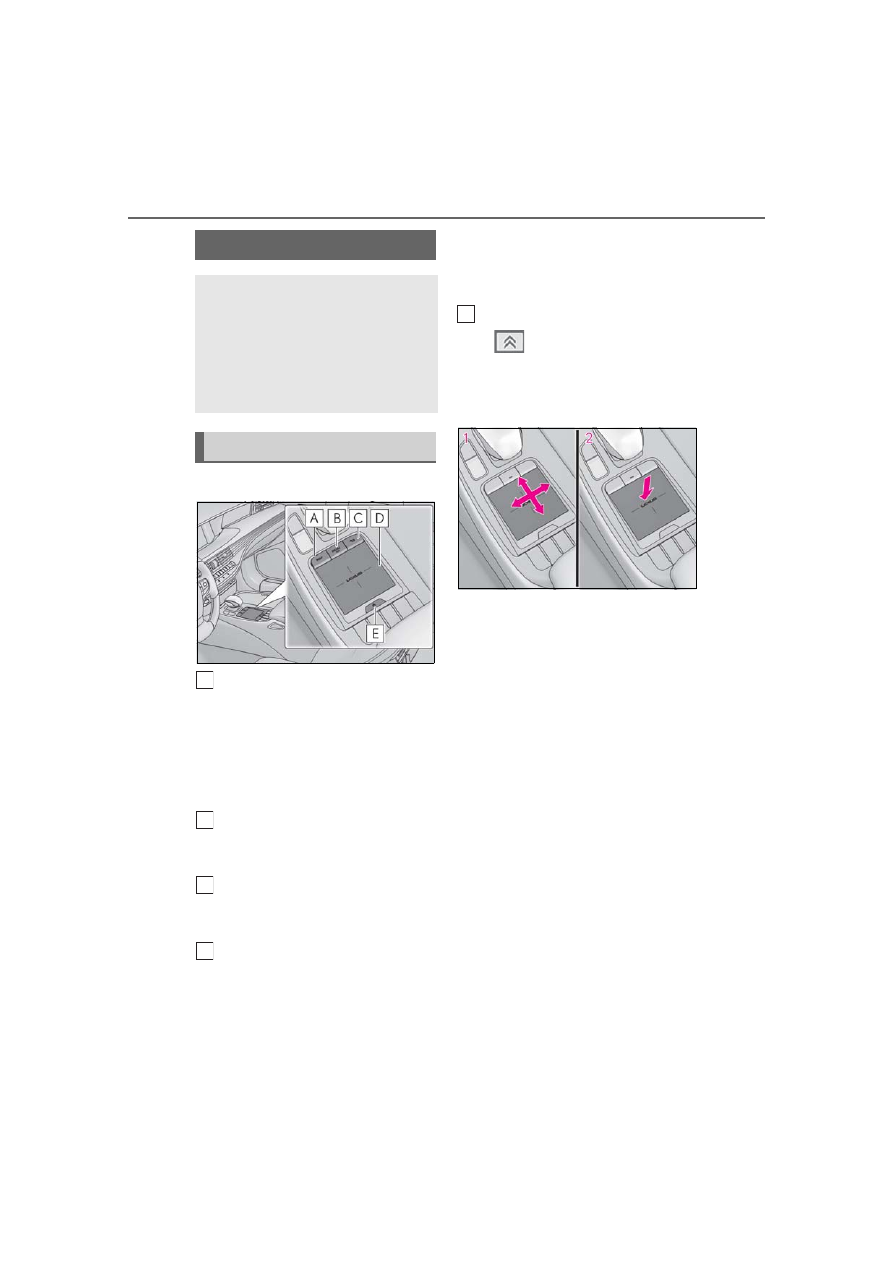

5-1.Remote Touch/Display

■

Switches

“MAP” button

Vehicles with navigation function:
Press this button to display the vehicle’s
current position.
Vehicles without navigation function:
Press this button to display the compass
mode screen.

“MENU” button

Press this button to display the menu
screen.

Back button

Press this button to display the previous
screen.

Touchpad

Slide your finger on the touchpad and
move the pointer to select a function, letter
and screen button.
Press the touchpad to enter the selected

function, letter or screen button. Certain
finger movements on the touchpad can
perform functions, such as changing map
scalings and scrolling list screens.

Sub function button

When

is displayed on the screen, a

function screen assigned to the screen can
be displayed.

■

Using the touchpad

Select: Touch the touchpad to
select the desired button on the
screen.

Enter: Buttons on the screen can be
selected by either depressing or
double tapping the touchpad.
Once a button has been selected,
the screen will change.

■

Touch operation

Operations are performed by touching
the touchpad with your finger.
 Trace

Trace the pad surface while maintaining
contact with the touchpad. Moving the
cursor and the pointer.

Remote Touch

The Remote Touch can be used to
operate the Center Display.

For details on the Remote touch,
refer to “NAVIGATION AND
MULTIMEDIA SYSTEM
OWNER’S MANUAL”.

Remote Touch operation

315

5-1. Remote Touch/Display

LS500h_OM_(U)_1809

Interio

r fe

atures

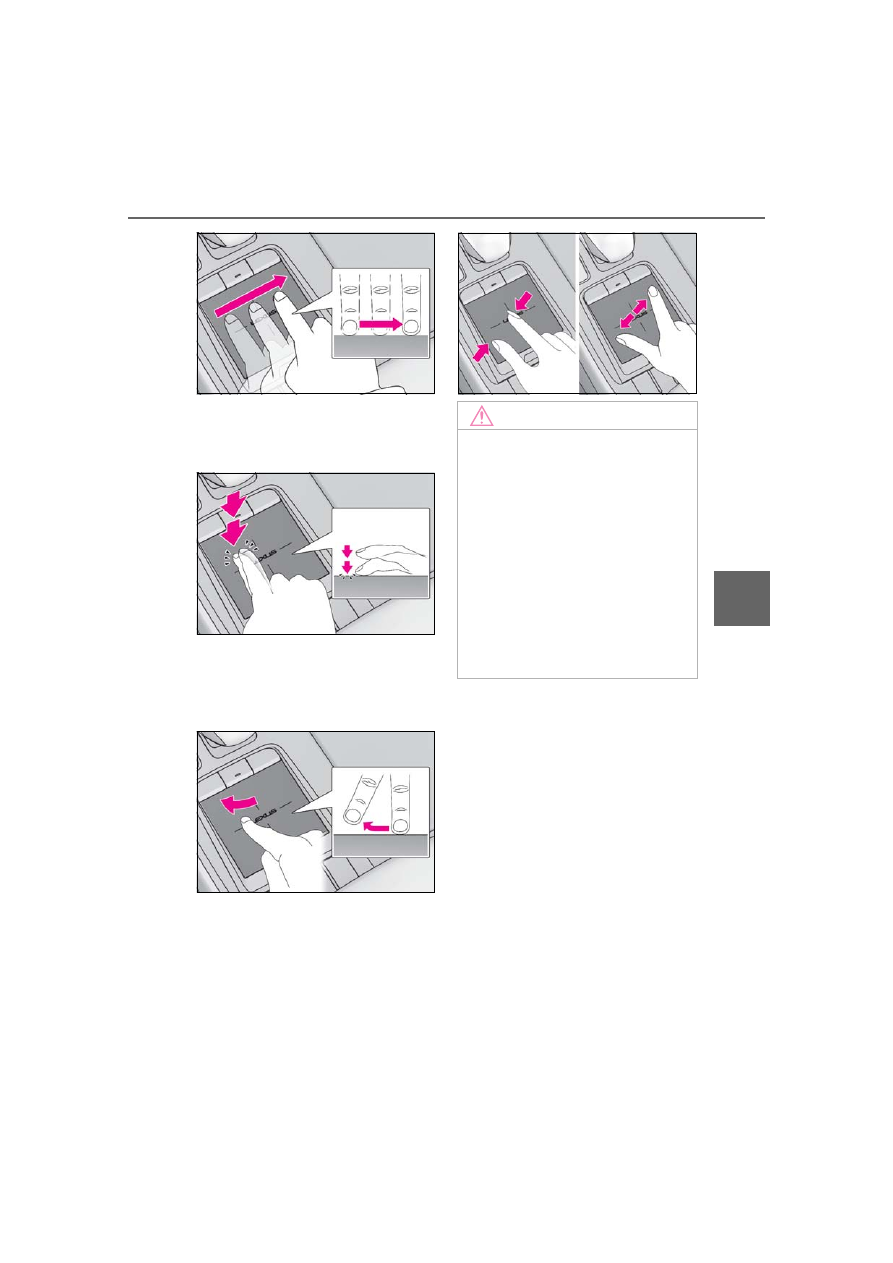

 Double tap

Tap the touchpad twice, quickly. Select the
button on the screen.

 Flick

Quick and short movement along the
touchpad with you finger. Move the list
screen.

 Pinch in/Pinch out

Slide fingers toward each other or apart on
the touchpad. Change the scale of the
map.

NOTICE

■

To prevent damage to the Remote

Touch

Observe the following precautions. Fail-

ure to do so may cause damage to the

Remote Touch.

●

Do not allow food, liquid, stickers or lit

cigarettes to contact the Remote

Touch.

●

Do not subject the Remote Touch to

excessive pressure or strong impact.

●

Do not push the touchpad with a

strong force or use a sharp pointed

object to operate the pad.

Content .. 17 18 19 20 ..
