LEXUS LS 500 (2019 year). Instruction

2-1. Instrument cluster

LS500_OM_(U)_1809

■

Locations of gauges and meters

When the main meter is moved to the right, some of the meter displays and the
gauge layout will change. (

P.80)



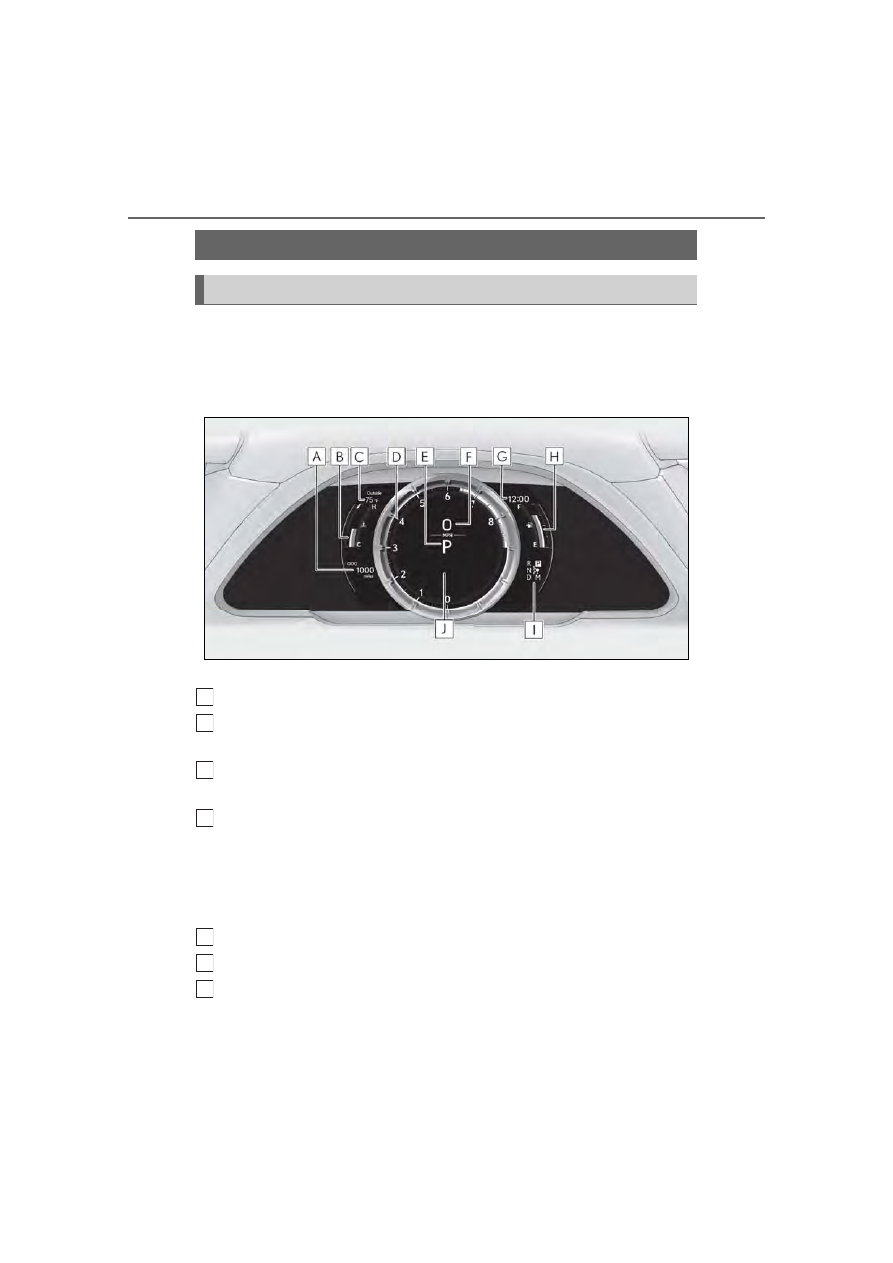

Main meter in center position

The units of measure may differ depending on the intended destination of the vehicle.

Odometer and trip meter display (

P.79)

Engine coolant temperature gauge

Displays the engine coolant temperature

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.
• Rev indicator (



P.78

)

• Rev peak (



P.78

)

Shift position/shift range/gear position (

P.167)

Speedometer
Clock

Time displayed is linked to the analog clock on the center panel. (

P.345)

Gauges and meters (F SPORT models)

Meter display

A
B

E
F

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Fuel gauge

Displays the quantity of fuel remaining in the tank

Shift position indicator (

P.169)

Multi-information display

Presents the driver with a variety of vehicle data (

P.80)

Displays warning messages if a malfunction occurs (

P.425)



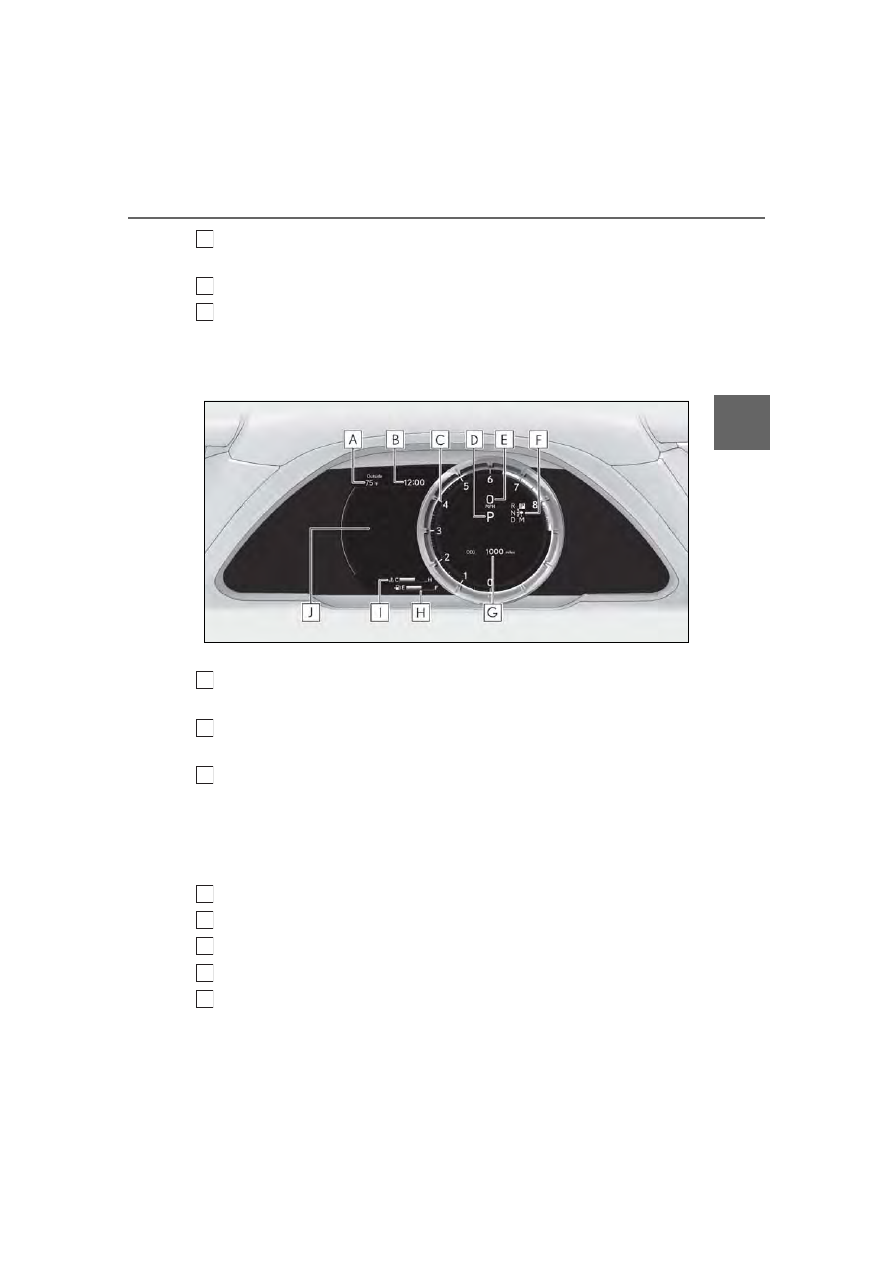

Main meter moved to the right

The units of measure may differ depending on the intended destination of the vehicle.

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Clock

Time displayed is linked to the analog clock on the center panel. (

P.345)

Tachometer



P.78

)

• Rev peak (



P.78

)

Shift position/shift range/gear position (

P.167)

Speedometer
Shift position indicator (

P.169)

Odometer and trip meter display (

P.79)

Fuel gauge

Displays the quantity of fuel remaining in the tank

E
F

2-1. Instrument cluster

LS500_OM_(U)_1809

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (

P.80)

Displays warning messages if a malfunction occurs (

P.425)

■

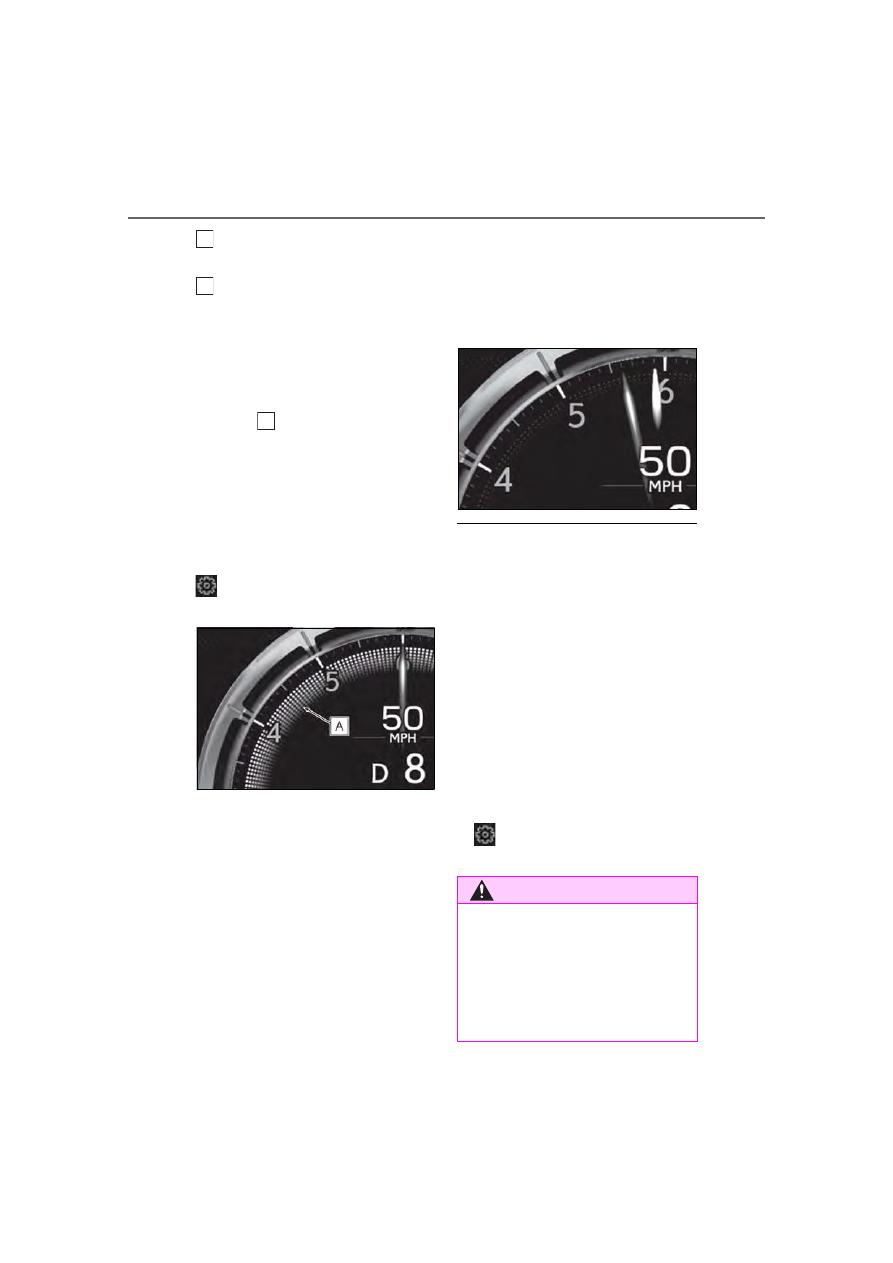

Rev indicator

When the engine speed reaches a set
speed or the red zone, a ring-shaped
indicator ( ) will be displayed on the
tachometer.

The indicators will be displayed in amber
when the engine speed reaches a set
speed, and in red when the engine speed
reaches the red zone.
The engine speed at which the rev indica-
tor will begin to be displayed can be set on

of the multi-information display.

(

P.85)

■

Rev peak

When the engine speed reaches or
exceeds 5000 rpm, an afterimage of
the tachometer will be displayed at the
highest engine speed for approxi-
mately 1 second.

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display

P.81

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(

P.85)

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Display items

 Odometer

Displays the total distance the vehicle has
been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

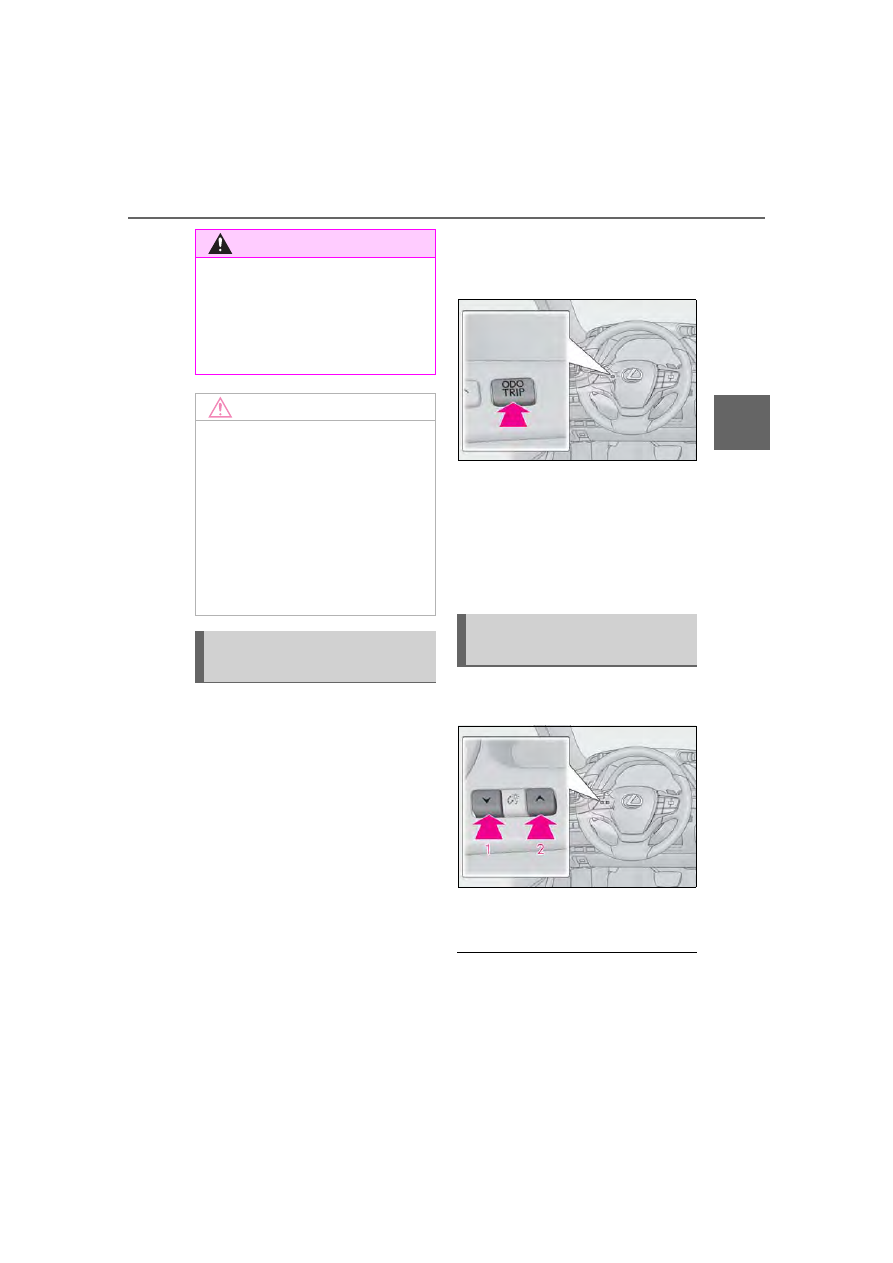

Changing the display

Each time the “ODO TRIP” switch is
pressed, the displayed item will be

changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

■

Pop-up display

The distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

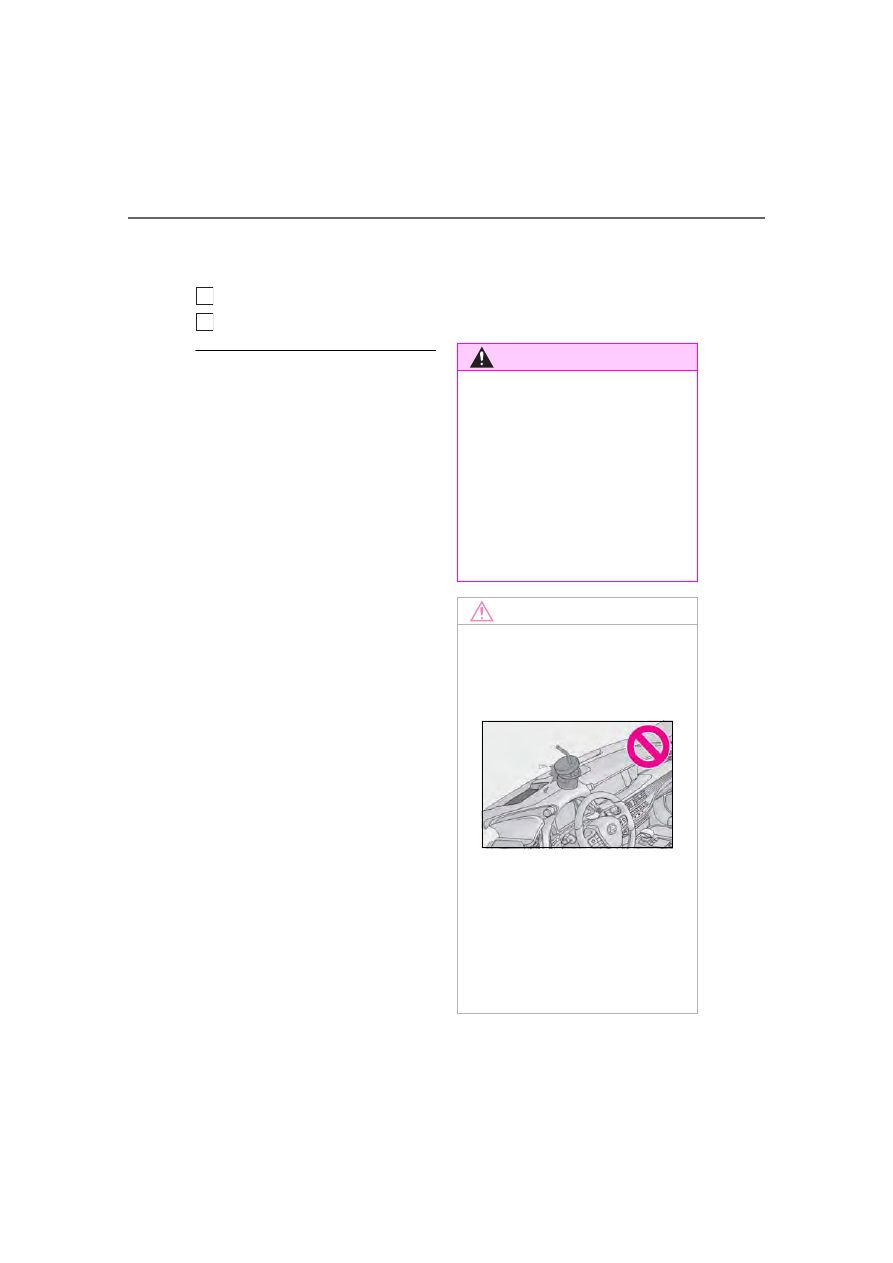

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

WARNING

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.440)

Odometer and trip meter dis-
play

Changing the instrument panel
light brightness

2-1. Instrument cluster

LS500_OM_(U)_1809

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

The display can be switched between
the center and side positions.

■

Display (except F SPORT models)

By selecting menu icons on the
multi-information display, a variety of
driving-related information can be dis-
played. The multi-information display
can also be used to change display set-
tings and other vehicle settings.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

■

Display (F SPORT models)



Main meter in center position

The multi-information display presents
the driver with a variety of driv-
ing-related information.
Warning or suggestion/advice pop-up
displays are also displayed in certain
situations.

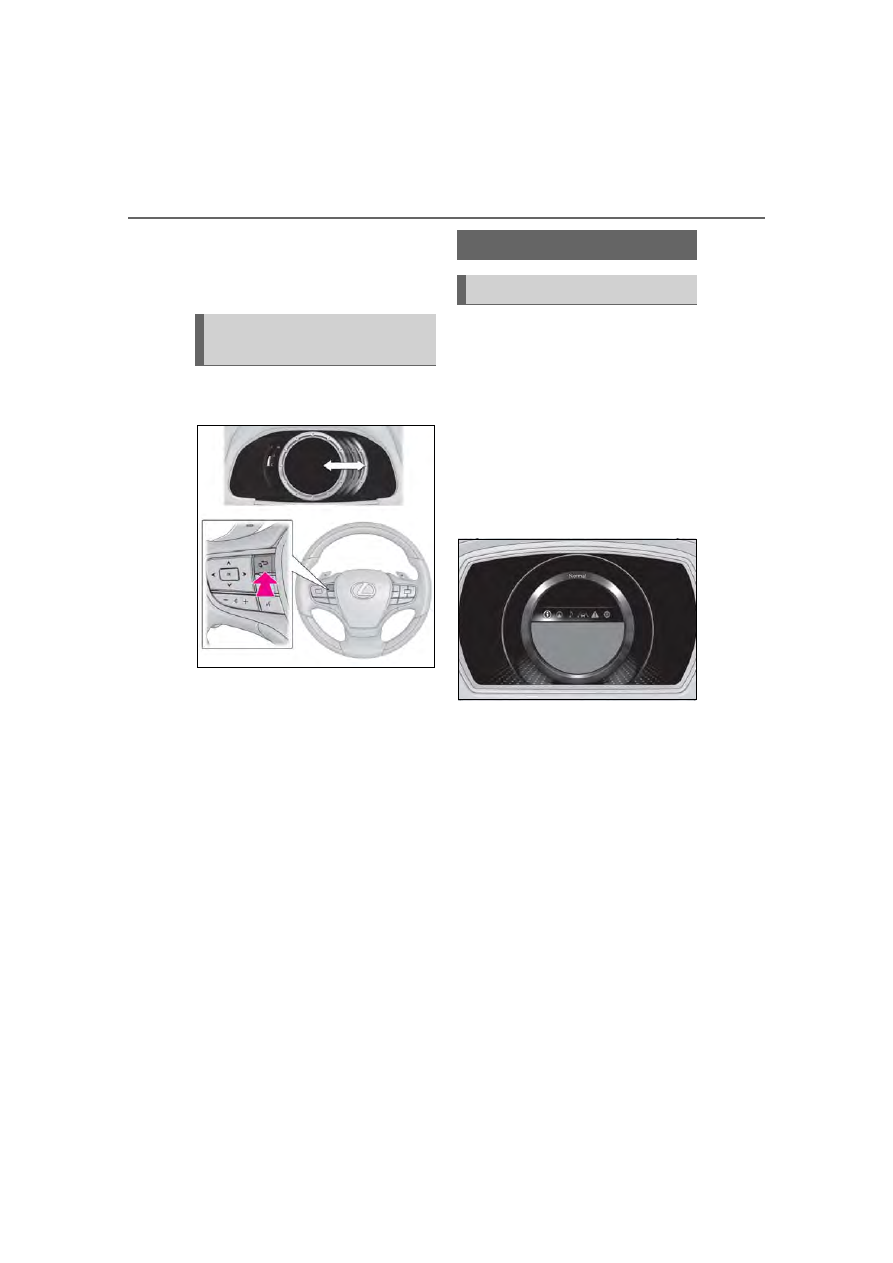

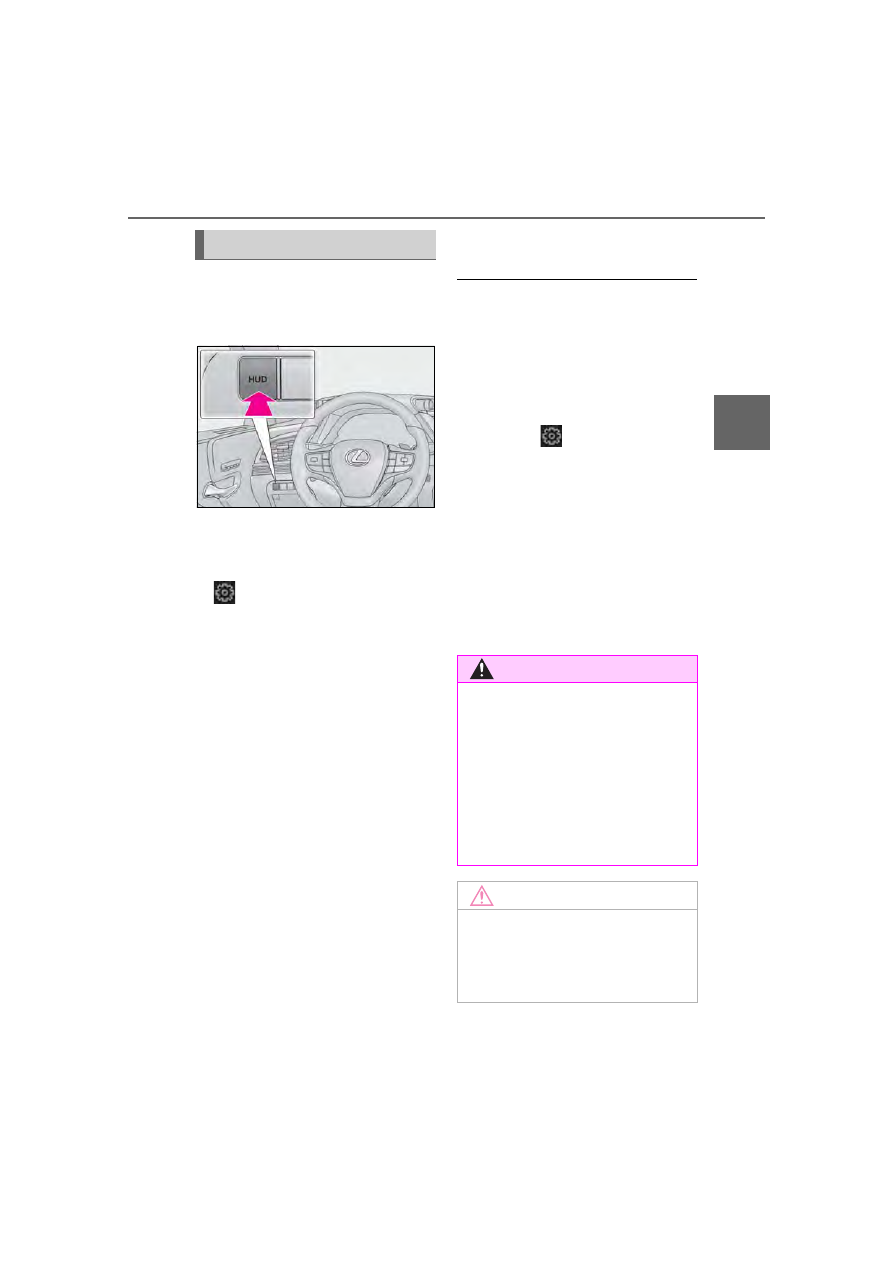

Changing the main meter loca-
tion

Multi-information display

Display and menu icons

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators



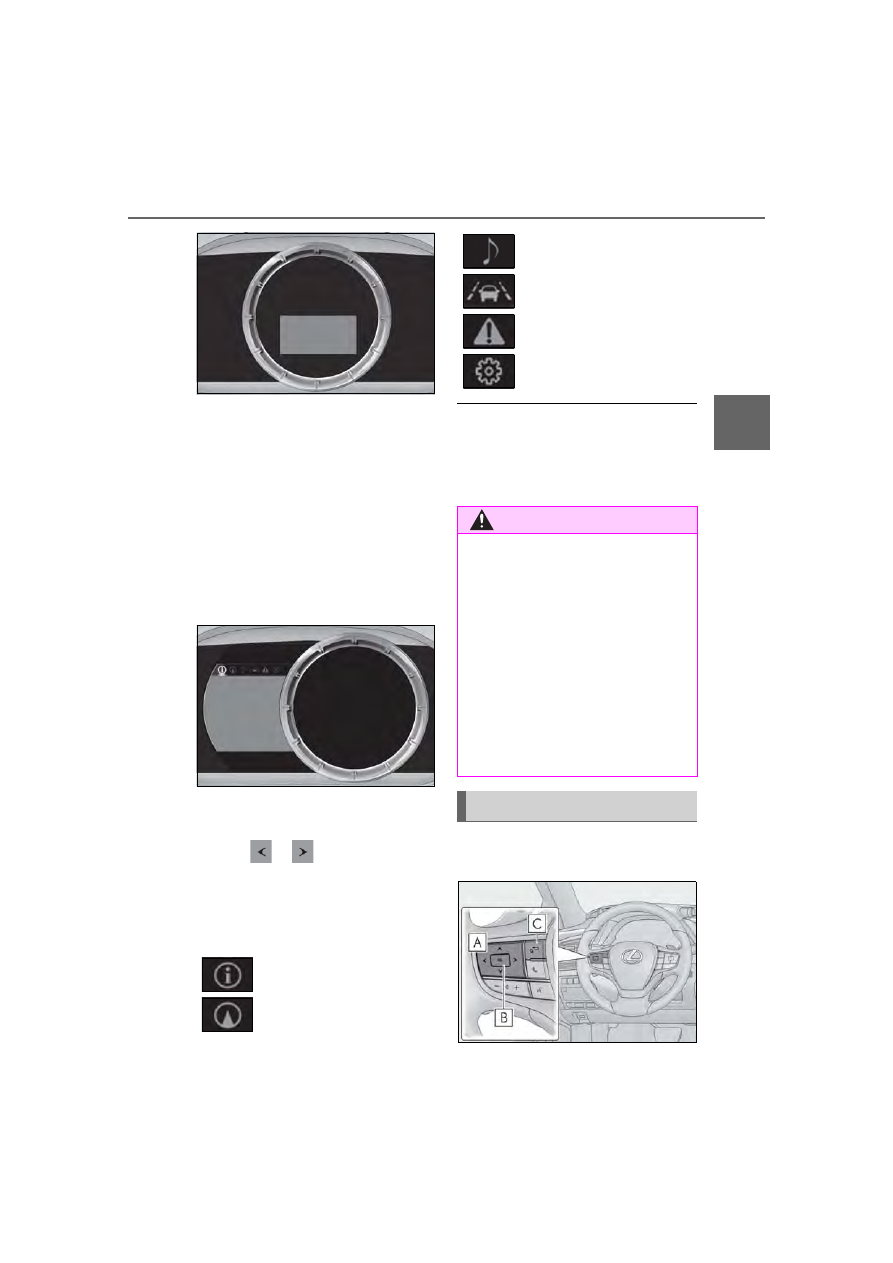

Main meter moved to the right

■

Menu icons

The menu icons will be displayed by
pressing

of the meter con-

trol switch.

F SPORT models: The menu icons can be
displayed when the main meter is moved to
the right.

■

Liquid crystal display

Small spots or light spots may appear on the

display. This phenomenon is characteristic

of liquid crystal displays, and there is no

problem continuing to use the display.

The multi-information display is oper-
ated using the meter control switches.

Driving information display
(

P.82)

Navigation system-linked dis-
play (if equipped) (

P.84)

Audio system-linked display
(

P.85)

Driving support system infor-
mation display (

P.85)

Warning message display
(

P.425)

Settings display (

P.85)

WARNING

■

Caution for use while driving

●

When operating the multi-information

display while driving, pay extra atten-

tion to the safety of the area around the

vehicle.

●

Do not look continuously at the

multi-information display while driving

as you may fail to see pedestrians,

objects on the road, etc. ahead of the

vehicle.

■

The information display at low tem-

peratures

P.74, 78

Changing the meter display

2-1. Instrument cluster

LS500_OM_(U)_1809

: Select menu icons

: Change displayed con-

tent, scroll up/down the screen and
move the cursor up/down
Press: Enter/Set
Press and hold: Reset

Move the main meter

and return

to the previous screen

: F SPORT models

■

Display items (except F SPORT
models)

Press

of the meter control

switch and select

. Then press

to display the following items:

 Drive information 1
 Drive information 2
 Eco Driving Indicator
 Boost gauge
 Tire pressure (

P.384)

 Display off

■

Display items (F SPORT models)



Main meter in center position

Press

of the meter control

switch to display the following items:
 Drive information 1
 Drive information 2
 Tire pressure (

P.384)

 Gear positions
 Units
 Display off

 Driving support system information

(

P.85)

: Can be selected when a driving support

system is enabled. (

P.225, 237)



Main meter moved to the right

Press

of the meter control

switch and select

. Then press

to display the following items:

 Drive information 1
 Drive information 2
 Eco Driving Indicator
 Boost gauge
 G-force
 Gear Position
 Tire pressure (

P.384)

 Display off

■

Drive information 1/Drive infor-
mation 2

Displays drive information such as the
following:

Use the displayed values as a reference
only.

 Drive information 1

• Current fuel consumption
• Average fuel economy (after reset)

 Drive information 2

• Distance (driving range)
• Average vehicle speed (after reset)

Displayed items (listed below) can be
changed on

. (

P.85)

 Current fuel consumption

Bar type: Displays instantaneous current
fuel consumption

Content of driving information

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

 Average fuel economy

After reset: Displays average fuel con-
sumption since the display was reset

After start: Displays average fuel con-
sumption since engine start
After refuel: Displays average fuel con-
sumption since refuel

 Average vehicle speed

After reset: Displays average vehicle
speed since the display was reset

After start: Displays average vehicle speed
since engine start

 Elapsed time

After reset: Displays elapsed time since the
display was reset

After start: Displays elapsed time since
engine start

 Distance

Driving range: Displays driving range with
remaining fuel

*2, 3

After start: Displays the distance driven
since engine start

 Other

Blank: No item

: To reset, display the desired item and

press and hold

of the meter control

switch.

: This distance is computed based on

your average fuel consumption. As a
result, the actual distance that can be
driven may differ from that displayed.

: When only a small amount of fuel is

added to the tank, the display may not
be updated.
When refueling, turn the engine switch
off. If the vehicle is refueled without
turning the engine switch off, the display

may not be updated.

■

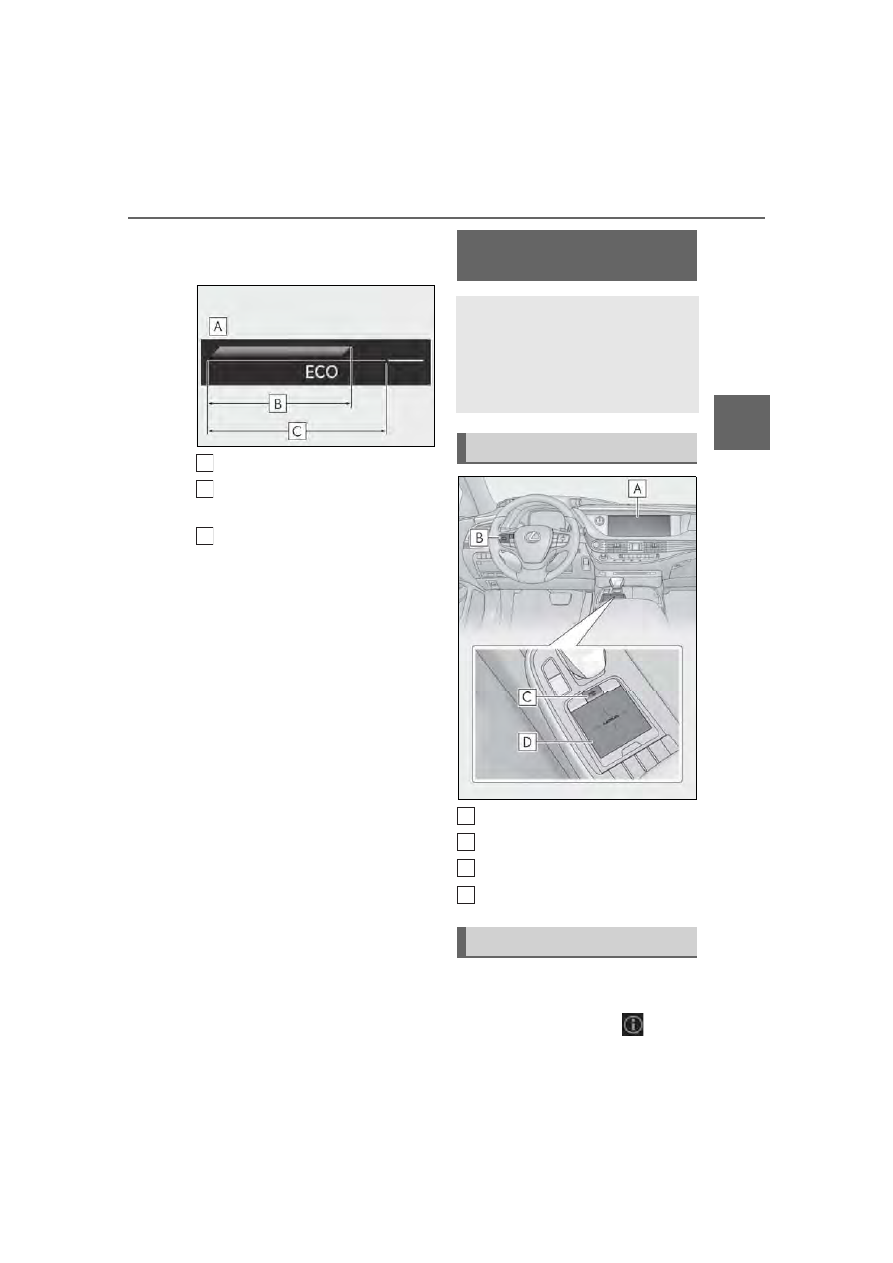

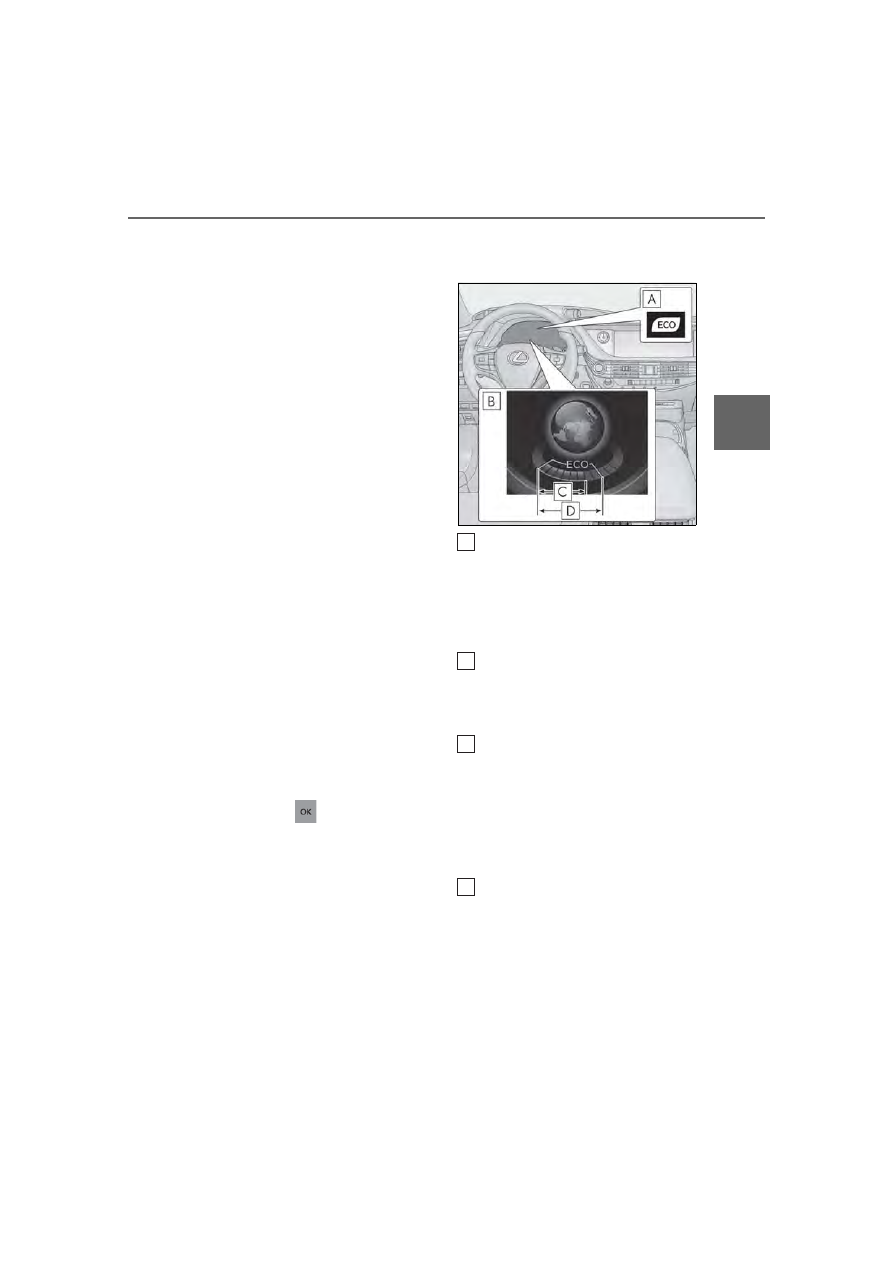

Eco Driving Indicator

Eco Driving Indicator Light

During Eco-friendly acceleration (Eco
driving), the Eco Driving Indicator Light
will turn on. When the acceleration
exceeds the Zone of Eco driving, or when
the vehicle is stopped, the light turns off.

Eco Driving Indicator Zone Display

Suggests the Zone of Eco driving with cur-
rent Eco driving ratio based on accelera-
tion.

Eco driving ratio based on acceler-
ation

If the acceleration exceeds the Zone of
Eco driving, the right side of the Eco Driv-
ing Indicator Zone Display will illuminate.
At this time, the Eco Driving Indicator Light
will turn off.

Zone of Eco driving

■

Boost gauge

Displays the boost pressure. The dis-
play will change color if the specified
pressure is exceeded.

This display is intended for use as a guide-
line. Depending on factors such as the road

2-1. Instrument cluster

LS500_OM_(U)_1809

surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

■

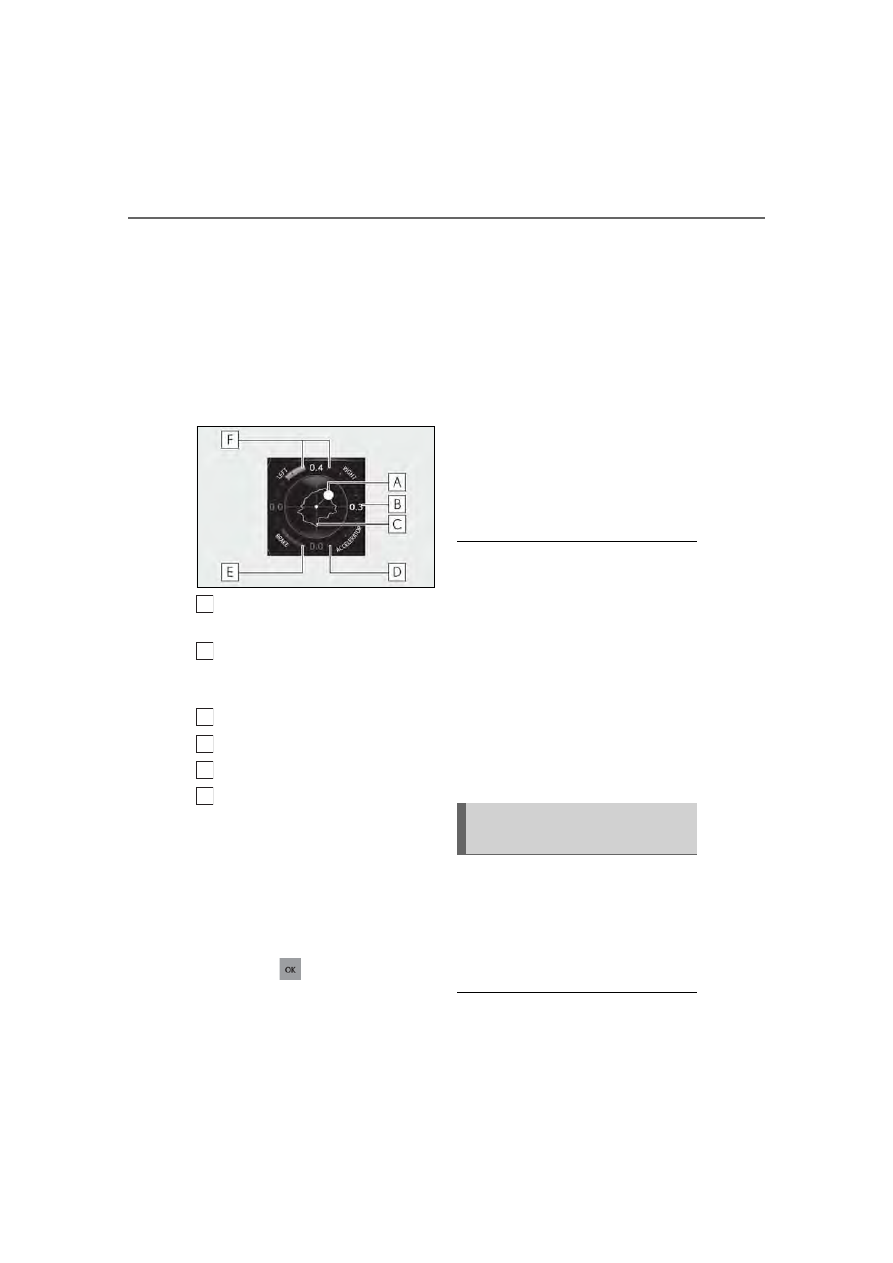

G-force (F SPORT models)

Displays lateral G-forces on the vehi-
cle. Also displays, around the periph-
ery of the G-force display, the left and
right steering amount, accelerator
pedal input, and brake fluid pressure.

Acceleration G-force on the vehi-
cle
Current G-force value (analyzed
value of front/rear and left/right
G-forces)
Record of the maximum G-forces
Accelerator pedal input
Brake fluid pressure
Steering amount

This display is intended for use as a guide-
line. Depending on factors such as the road
surface condition, temperature and vehicle
speed, the display may not show the actual
condition of the vehicle.

 Resetting the record of maximum

G-forces

Press and hold

of the meter control

switch to reset the record.

 Peak hold function

If lateral G-forces of 0.5 G or greater are
generated, the G-force value display will
turn amber and be held for 2 seconds.

■

Gear Position (F SPORT models)

Displays the current shift range or gear
position when the shift position is in D
or M.

■

Units (F SPORT models)

The units of measure used can be
changed while driving.

Unlike the units setting performed on the
settings display, the units setting per-
formed on the drive information display
can be changed while driving.

■

Eco Driving Indicator

Eco Driving Indicator will not operate

under the following conditions:

●

The shift position is in any position other

than D.

●

A paddle shift switch is operated.

●

The driving mode is set to sport mode.

●

The driving mode is set to custom mode

and the powertrain control is set to power

(

P.289)

●

Snow mode is selected.

●

The vehicle speed is approximately 80

mph (130 km/h) or higher.

Select to display the following naviga-
tion system-linked information.
 Route guidance to destination
 Compass display (heading-up dis-

play)

■

Route guidance to destination display

When the route guidance to destination

C
D

E
F

Navigation system-linked dis-
play (if equipped)

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

display is enabled on the head-up display, it

will not be displayed on the multi-informa-

tion display. (

P.89)

Select to enable selection of an audio
source or track on the meter using the
meter control switches.

Select to display the operational status
of the following systems:
 LTA (Lane Tracing Assist) (

P.225)

 Dynamic radar cruise control with

full-speed range (

P.237)

 RSA (Road Sign Assist) (if

equipped) (

P.247)

■

Meter display settings that can be
changed

 Language

Select to change the language displayed.

 Units

Select to change the units of measure dis-
played.

 Speedometer display (except F

SPORT models)

Select to set the display of the speedome-
ter to digital/analog/both digital and ana-
log.

 Drive information 1/Drive informa-

tion 2

Select to select up to 2 items (

P.82) that

will be displayed on each Drive information

screen (Drive information 1 screen and
Drive information 2 screen) respectively.

 Clock

Select to switch between 12-hour display
and 24-hour display.

 Pop-up display

Select to enable/disable pop-up displays
for each relevant system.

 Accent color

Select to change the accent color on the
screen, such as the cursor color.

 Rev indicator (F SPORT models)

• Select to enable/disable the rev indica-

tor.

• Select to set the engine speed at which

the rev indicator (amber) will begin to be
displayed.

 Rev peak (F SPORT models)

Select to enable/disable the rev peak.

 Eco Driving Indicator Light

Select to enable/disable the Eco Driving
Indicator Light.

 Default setting

Select to reset the meter display settings to
the default setting.

■

Vehicle functions and settings that
can be changed

P.466

■

Suspension of the settings display

●

Some settings cannot be changed while

driving. When changing settings, park

the vehicle in a safe place.

●

If a warning message is displayed, opera-

tion of the settings display will be sus-

pended.

Audio system-linked display

Driving support system informa-
tion display

Settings display

2-1. Instrument cluster

LS500_OM_(U)_1809

Displays suggestions to the driver in
the following situations. To select a
response to a displayed suggestion,
use the meter control switches.

■

Suggestion to turn off the head-
lights

If the headlights are left on for a certain
amount of time with the headlight

switch in

after the engine switch

has been turned off, a suggestion mes-
sage will be displayed asking if you
wish to turn the headlights off.
To turn the headlights off, select “Yes”.

If a front door is opened after the engine
switch is turned off, this suggestion mes-
sage will not be displayed.

■

Customization

Some functions can be customized.

(

P.466)

WARNING

■

Cautions during setting up the dis-

play

As the engine needs to be running

during setting up the display, ensure that

the vehicle is parked in a place with ade-

quate ventilation. In a closed area such as

a garage, exhaust gases including harm-

ful carbon monoxide (CO) may collect

and enter the vehicle. This may lead to

death or a serious health hazard.

NOTICE

■

During setting up the display

To prevent battery discharge, ensure that

the engine is running while setting up the

display features.

Suggestion function

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

: If equipped

Illustrations used in this text are intended as examples, and may differ from the image that is
actually displayed by the head-up display.

Navigation system-linked display area (if equipped)

Displays the following items which are linked to the navigation system:
• Route guidance to destination
• Street name
• Compass (heading-up display)

Driving support system display area (

P.90)

Speed limit/RSA (Road Sign Assist) display area (if equipped)

Displays the following items:
• Speed limit of the current road (linked to the navigation system) (U.S.A. only)
• RSA (Road Sign Assist) display (



P.247

)

Outside temperature display area
Driving information display area

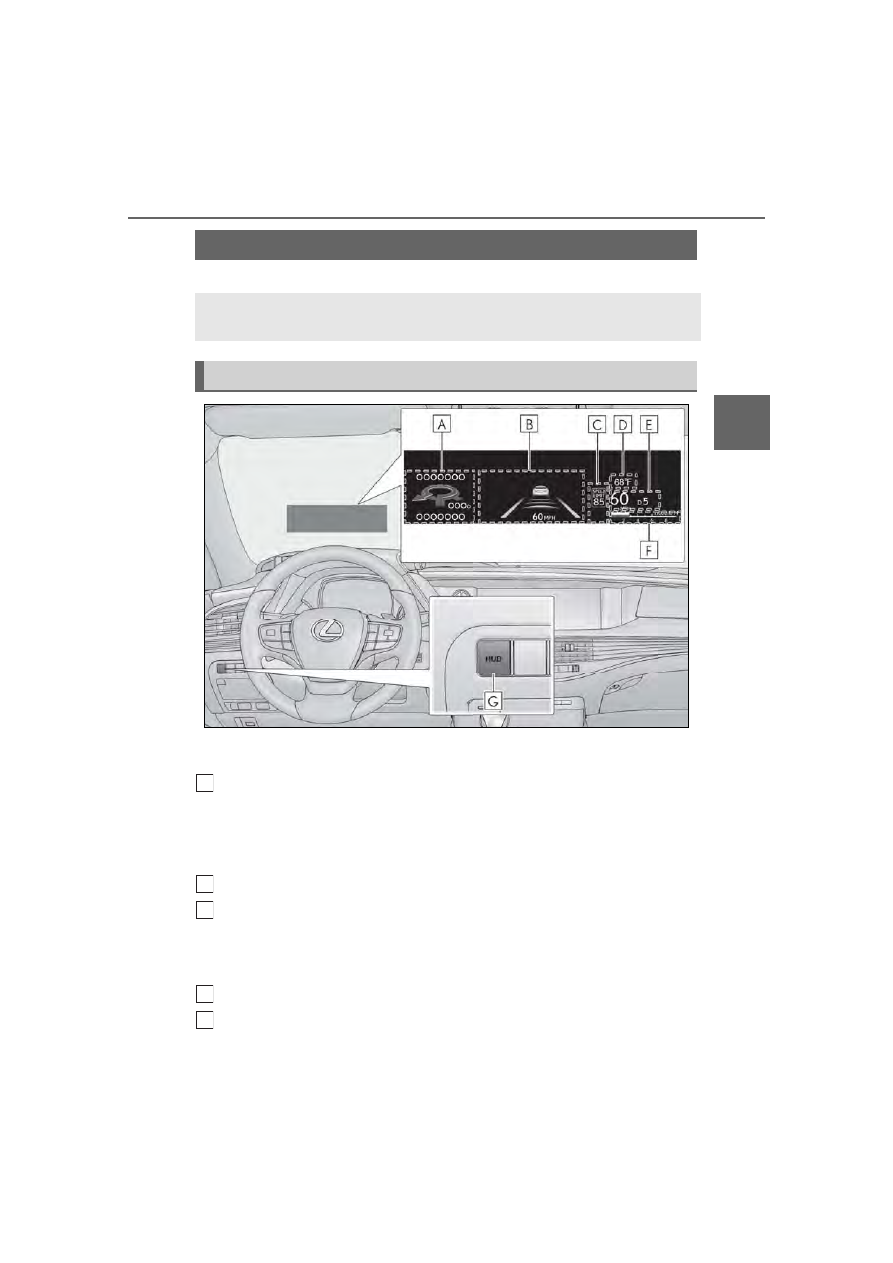

Head-up display

The head-up display projects a variety of driving-related information and the
operating state of the driving support systems on the windshield.

System components

B
C

2-1. Instrument cluster

LS500_OM_(U)_1809

Displays the following items:
• Speedometer
• Shift position/shift range/gear position (



P.167

)

Tachometer/Eco Driving Indicator display area (

P.90)

HUD (Head-up display) switch

■

Head-up display will operate when

The engine switch is in IGNITION ON

mode.

■

When using the head-up display

The head-up display may seem dark or hard

to see when viewed through sunglasses,

especially polarized sunglasses. Adjust the

brightness of the head-up display or

remove your sunglasses.

■

Street name display

Only street names which are included in the

map data will be displayed.

■

Outside temperature display

●

When the ambient temperature is

approximately 37°F (3°C) or lower, the

low outside temperature indicator will

flash for approximately 10 seconds and

the outside temperature display will turn

off. In this case, the display will be dis-

played again when the outside tempera-

ture becomes approximately 41°F (5°C)

or higher.

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

WARNING

■

When using the head-up display

●

Check that the position and brightness

of the head-up display image does not

interfere with safe driving. Incorrect

adjustment of the image’s position or

brightness may obstruct the driver’s

view and lead to an accident, resulting

in death or serious injury.

●

Do not continuously look at the

head-up display while driving as you

may fail to see pedestrians, objects on

the road, etc. ahead of the vehicle.

NOTICE

■

Head-up display projector

●

Do not place any drinks near the

head-up display projector. If the pro-

jector gets wet, electrical malfunctions

may result.

●

Do not place anything on or put stick-

ers onto the head-up display projector.

Doing so could interrupt head-up dis-

play indications.

●

Do not touch the inside of the head-up

display projector or thrust sharp edges

or the like into the projector.

Doing so could cause mechanical mal-

functions.

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Enabling/disabling the head-up dis-
play

Press the HUD switch.

■

Changing settings of the head-up
display

The following settings can be changed
on

of the multi-information display.

(

P.466)

 Brightness and vertical position of

the head-up display

Select to adjust the brightness or vertical
position of the head-up display.

 Tachometer/Eco Driving Indicator

Select to display the tachometer, Eco Driv-
ing Indicator or no content.

 Display content

Select to enable/disable the following
items:
• Route guidance to destination/street

name

• Driving support system display

• Compass (heading-up display)
• Audio system operation status

: Make sure to enable this display when

using the driving support systems

 Display angle

Select to adjust the angle of the head-up
display.

■

Enabling/disabling of the head-up dis-

play

If the head-up display is disabled, it will

remain disabled when the engine switch is

turned off then back to IGNITION ON

mode.

■

Display brightness

The brightness of the head-up display can
be adjusted on

of the multi-information

display. Also, it is automatically adjusted

according to the ambient brightness.

■

Head-up display automatic position

adjustment

If the display position is recorded into mem-

ory, the head-up display will be automati-

cally adjusted to the desired position.

(

P.130)

■

When the battery is disconnected

The customize settings of the head-up dis-

play will be reset.

Using the head-up display

WARNING

■

Caution for changing settings of the

head-up display

As the engine needs to be running while

changing the settings of the head-up dis-

play, ensure that the vehicle is parked in a

place with adequate ventilation. In a

closed area such as a garage, exhaust

gases including harmful carbon monox-

ide (CO) may collect and enter the vehi-

cle. This may lead to death or a serious

health hazard.

NOTICE

■

When changing the settings of the

head-up display

To prevent battery discharge, ensure that

the engine is running while the changing

the settings of the head-up display.

2-1. Instrument cluster

LS500_OM_(U)_1809

Displays the operational status of the
following systems:
 LTA (Lane Tracing Assist) (

P.225)

 Dynamic radar cruise control with

full-speed range (

P.237)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

Pop-up displays for the following sys-
tems will be displayed when necessary.

■

Driving support systems

Displays a warning/suggestion/advice
message or the operating state of a rel-
evant system.
 PCS (Pre-Collision System)

(

P.204, 2 15)

 FCTA (Front Cross Traffic Alert) (if

equipped) (

P.222)

 Intuitive parking assist (if equipped)

(

P.257)

 Parking Support Brake function (for

static objects) (if equipped)
(

P.276)

 Brake Override System (

P.155)

 Drive-Start Control (

P.155)

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display. For
details, refer to the explanation of each sys-
tem.

■

icons

These icons are linked to the
multi-information display

: Master warning icon

Displayed when a warning message is dis-
played on the multi-information display.
(

P.425)

: Information icon

Displayed when a suggestion pop-up dis-
play (

P.86) or advice pop-up display is

displayed on the multi-information display.

■

Warning message

Some warning messages are displayed
when necessary, according to certain
conditions.

Details of content displayed on the
head-up display may differ from that dis-
played on the multi-information display.

■

Audio system operation status

Displayed when an audio remote con-
trol switch on the steering wheel is
operated.

■

Hands-free system status

Displayed when the hands-free system
is operated.

■

When a pop-up display is displayed

When a pop-up display is displayed, a cur-

rent display may no longer be displayed. In

this case, the display will return after the

pop-up display disappears.

■

Tachometer

Displays the engine speed in revolu-

Driving support system display
area

Pop-up display

Tachometer/Eco Driving Indica-
tor

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

tions per minute.

■

Eco Driving Indicator

Eco Driving Indicator Zone Display
Eco driving ratio based on acceler-
ation
Zone of Eco driving

Displayed content is the same as that dis-
played on the multi-information display
(Eco Driving Indicator). For details, refer to
P.83.

Center Display
Meter control switches
“MENU” button
Touchpad

■

Trip information

Press the “MENU” button on the
Remote Touch, then select

on the

A
B

Fuel consumption informa-
tion

Fuel consumption information can
be displayed on the Center Display.

The fuel consumption information
can be displayed and operated on
the side display.

System components

Consumption

A
B
C
D

LEXUS LS 500 (2019 year). Instruction - part 5
