LEXUS LS 500 (2019 year). Instruction

After you have signed the Telematics
Subscription Service Agreement and
are enrolled, you can begin receiving
services.
A variety of subscription terms is avail-
able for purchase. Contact your Lexus
dealer, call the following or push the
“SOS” button in your vehicle for fur-
ther subscription details.
 The United States

1-800-25-LEXUS (1-800-255-3987)

 Canada

1-800-26-LEXUS (1-800-265-3987)

 Puerto Rico

1-877-539-8777

■

Safety Connect Services Information

●

Phone calls using the vehicles Blue-
tooth

technology will not be possible

during Safety Connect.

●

Safety Connect is available beginning Fall

2009 on select Lexus models (in the

contiguous United States only). Contact

with the Safety Connect response center

is dependent upon the telematics device

being in operative condition, cellular con-

nection availability, and GPS satellite sig-

nal reception, which can limit the ability to

reach the response center or receive

emergency service support. Enrollment

and Telematics Subscription Service

Agreement required. A variety of sub-

scription terms is available; charges vary

by subscription term selected and loca-

tion.

●

Automatic Collision Notification, Emer-

gency Assistance and Stolen Vehicle

Location will function in the United

States, including Hawaii and Alaska,

Puerto Rico and in Canada, and

Enhanced Roadside Assistance will func-

tion in the United States, Puerto Rico and

in Canada.

●

Automatic Collision Notification, Emer-

gency Assistance, Stolen Vehicle and

Enhanced Road Assistance will not func-

tion in the United States Virgin Islands.

For vehicles first sold in the USVI, no

Safety Connect services will function in

and outside the United States Virgin

Islands.

●

Safety Connect services are not subject

to section 255 of the Telecommunica-

tions Act and the device is not TTY com-

patible.

■

Languages

The Safety Connect response center will

offer support in multiple languages. The

Safety Connect system will offer voice

prompts in English, Spanish, and French.

Please indicate your language of choice

when enrolling.

■

When contacting the response center

You may be unable to contact the response

center if the network is busy.

When the engine switch is turned to
IGNITION ON mode, the red indica-
tor light comes on for 2 seconds then
turns off. Afterward, the green indica-

Subscription

Safety Connect LED light Indi-
cators

1-3. Lexus Enform

LS500_OM_(U)_1809

For safety and security

tor light comes on, indicating that the
service is active.
The following indicator light patterns
indicate specific system usage condi-
tions:
 Green indicator light on = Active

service

 Green indicator light flashing =

Safety Connect call in process

 Red indicator light (except at vehi-

cle start-up) = System malfunction
(contact your Lexus dealer)

 No indicator light (off) = Safety

Connect service not active

■

Automatic Collision Notification

In case of either airbag deployment or
severe rear-end collision, the system is
designed to automatically call the
response center. The responding agent
receives the vehicle’s location and
attempts to speak with the vehicle
occupants to assess the level of emer-
gency. If the occupants are unable to
communicate, the agent automatically
treats the call as an emergency, con-
tacts the nearest emergency services
provider to describe the situation, and
requests that assistance be sent to the
location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect
can work with local authorities to assist
them in locating and recovering the
vehicle. After filing a police report, call
the Safety Connect response center at

1-800-25-LEXUS
(1-800-255-3987) in the United
States, 1-877-539-8777 in Puerto
Rico or 1-800-265-3987 in Canada,
and follow the prompts for Safety Con-
nect to initiate this service.
In addition to assisting law enforce-
ment with recovery of a stolen vehicle,
Safety-Connect-equipped vehicle
location data may, under certain cir-
cumstances, be shared with third par-
ties to locate your vehicle. Further
information is available at Lexus.com.

■

Emergency Assistance Button
(“SOS”)

In the event of an emergency on the
road, push the “SOS” button to reach
the Safety Connect response center.
The answering agent will determine
your vehicle’s location, assess the
emergency, and dispatch the neces-
sary assistance required.

If you accidentally press the “SOS” button,
tell the response-center agent that you are
not experiencing an emergency.

■

Enhanced Roadside Assistance

Enhanced Roadside Assistance adds
GPS data to the already included war-
ranty-based Lexus roadside service.
Subscribers can press the “SOS” but-
ton to reach a Safety Connect
response-center agent, who can help
with a wide range of needs, such as:
towing, flat tire, fuel delivery, etc. For a
description of the Roadside Assistance
services and their limitations, please
see the Safety Connect Terms and
Conditions, which are available at

Safety Connect services

1-3. Lexus Enform

LS500_OM_(U)_1809

Lexus.com.

Important! Read this information about
exposure to radio frequency signals
before using Safety Connect;
The Safety Connect system installed in
your vehicle is a low-power radio trans-
mitter and receiver. It receives and also
sends out radio frequency (RF) signals.
In August 1996, the Federal Commu-
nications Commission (FCC) adopted
RF exposure guidelines with safety lev-
els for mobile wireless phones. Those
guidelines are consistent with the
safety standards previously set by the
following U.S. and international stan-
dards bodies.
 ANSI (American National Stan-

dards Institute) C95.1 [1992]

 NCRP (National Council on Radia-

tion Protection and Measurement)
Report 86 [1986]

 ICNIRP (International Commission

on Non-Ionizing Radiation Protec-
tion) [1996]

Those standards were based on com-
prehensive and periodic evaluations of
the relevant scientific literature. Over
120 scientists, engineers, and physi-
cians from universities, and govern-
ment health agencies and industries
reviewed the available body of
research to develop the ANSI Stan-
dard (C95.1).
The design of Safety Connect com-

plies with the FCC guidelines in addi-
tion to those standards.

Safety information for Safety
Connect

1-4. Theft deterrent system

LS500_OM_(U)_1809

For safety and security

1-4.Theft deterrent system

The indicator light flashes after the
engine switch has been turned off to
indicate that the system is operating.
The indicator light stops flashing after
the engine switch has been turned to
ACCESSORY or IGNITION ON
mode to indicate that the system has
been canceled.

■

System maintenance

The vehicle has a maintenance-free type

engine immobilizer system.

■

Conditions that may cause the system to

malfunction

●

If the grip portion of the key is in contact

with a metallic object

●

If the key is in close proximity to or touch-

ing a key to the security system (key with

a built-in transponder chip) of another

vehicle

■

Certification for the engine immobilizer system



For vehicles sold in the U.S.A., Hawaii, Guam and Puerto Rico

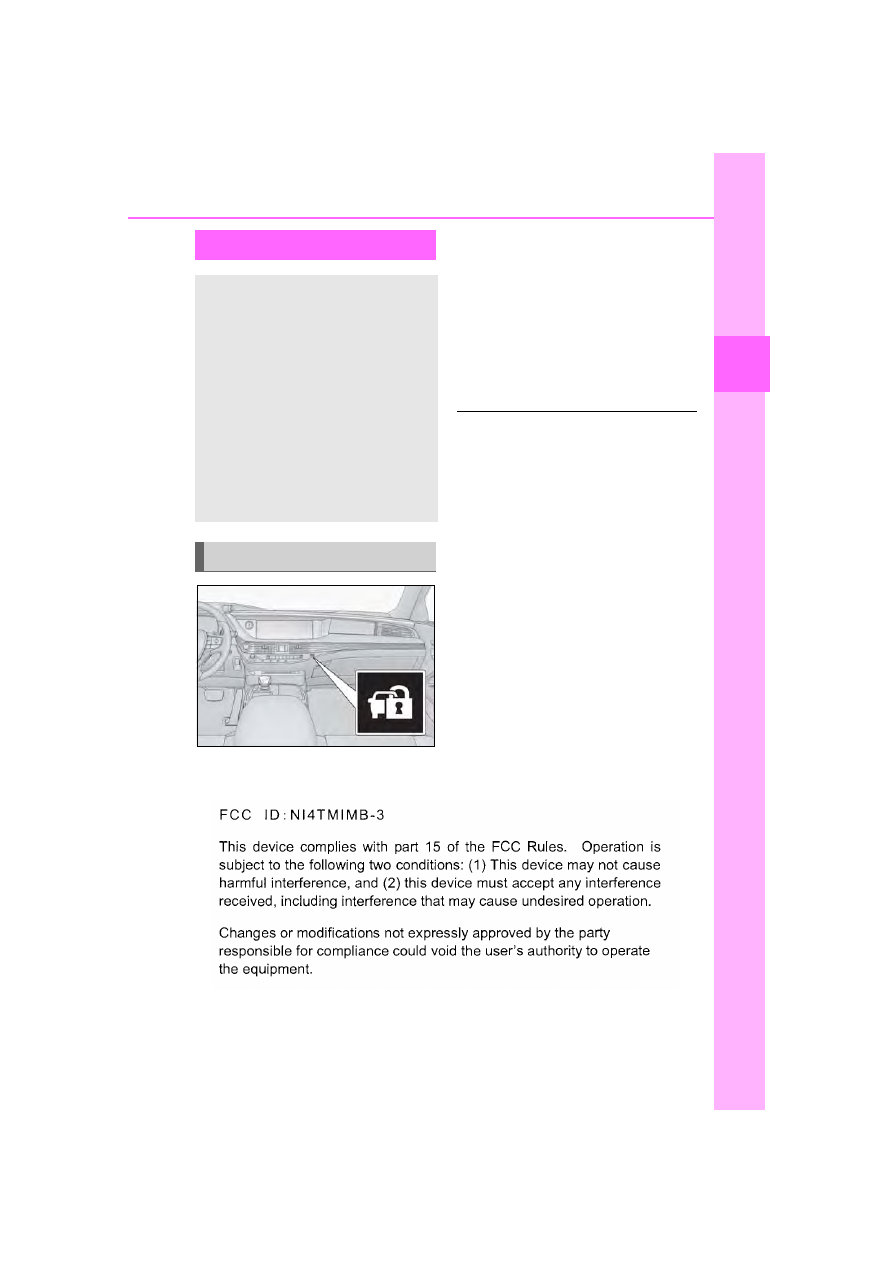

Engine immobilizer system

The vehicle’s keys have built-in tran-
sponder chips that prevent the
engine from starting if a key has not
been previously registered in the
vehicle’s on-board computer.

Never leave the keys inside the
vehicle when you leave the vehicle.

This system is designed to help pre-
vent vehicle theft but does not
guarantee absolute security
against all vehicle thefts.

Operating the system

1-4. Theft deterrent system

LS500_OM_(U)_1809

For safety and security

■

Items to check before locking the
vehicle

To prevent unexpected triggering of
the alarm and vehicle theft, make sure
of the following:
 Nobody is in the vehicle.
 The windows, moon roof (if

equipped) and panoramic moon
roof (if equipped) are closed before
the alarm is set.

 No valuables or other personal

items are left in the vehicle.

■

Setting

Close the doors, trunk and hood, and
lock all the doors. The system will be
set automatically after 30 seconds.

The indicator light changes from being on
to flashing when the system is set.

■

Canceling or stopping

Do one of the following to deactivate
or stop the alarms:
 Unlock the doors.
 Turn the engine switch to ACCES-

SORY or IGNITION ON mode, or
start the engine. (The alarm will be
deactivated or stopped after a few
seconds.)

■

System maintenance

The vehicle has a maintenance-free type

alarm system.

■

Triggering of the alarm

The alarm may be triggered in the following

situations:

(Stopping the alarm deactivates the alarm

system.)

●

The trunk is opened using the mechanical

key.

●

A person inside the vehicle opens a door,

the trunk or hood, or unlocks the vehicle.

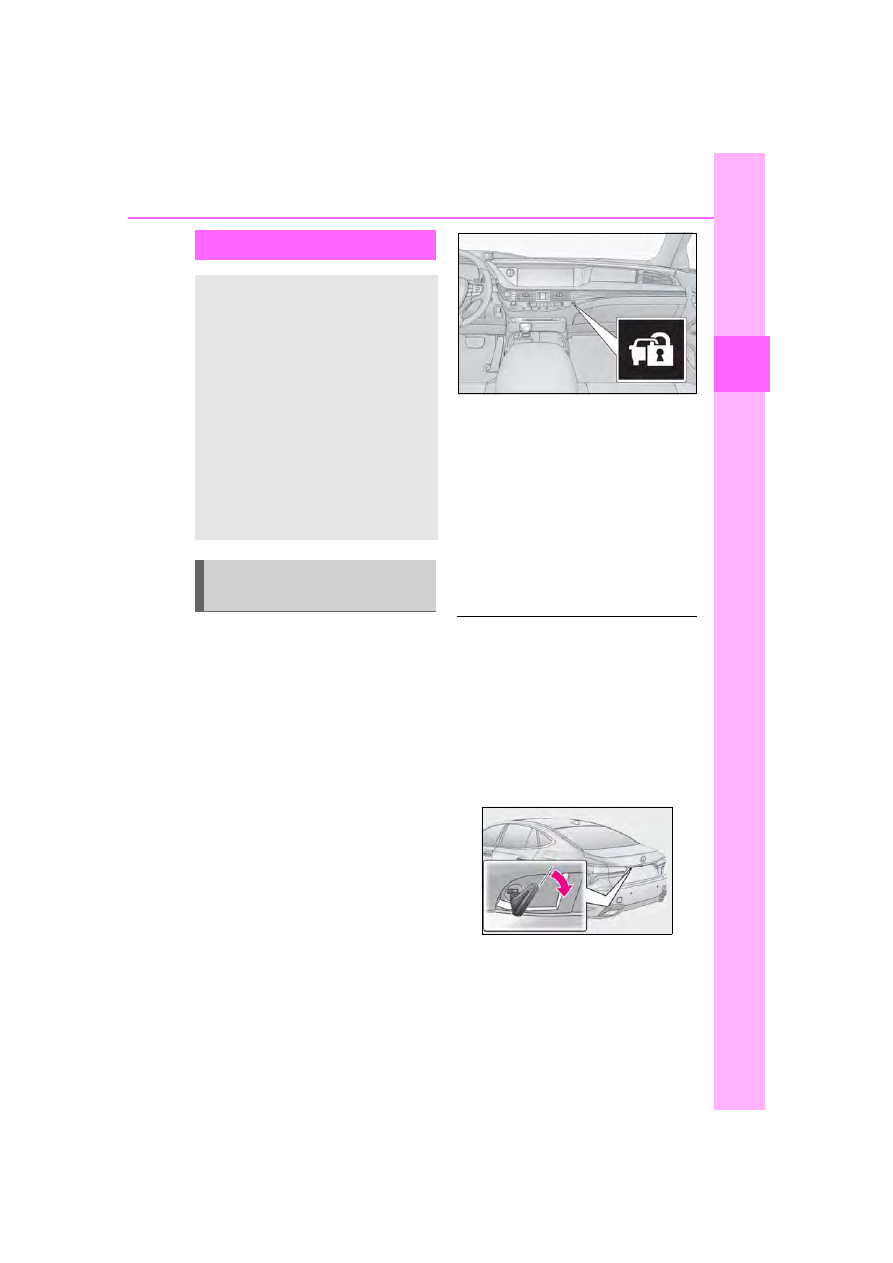

Alarm

The alarm uses light and sound to
give an alert when an intrusion is
detected.
The alarm is triggered in the follow-
ing situations when the alarm is set:

 A locked door or trunk is

unlocked or opened in any way
other than using the entry func-
tion, wireless remote control or
mechanical key. (The doors will
lock again automatically.)

 The hood is opened.

Setting/canceling/stopping the
alarm system

1-4. Theft deterrent system

LS500_OM_(U)_1809

●

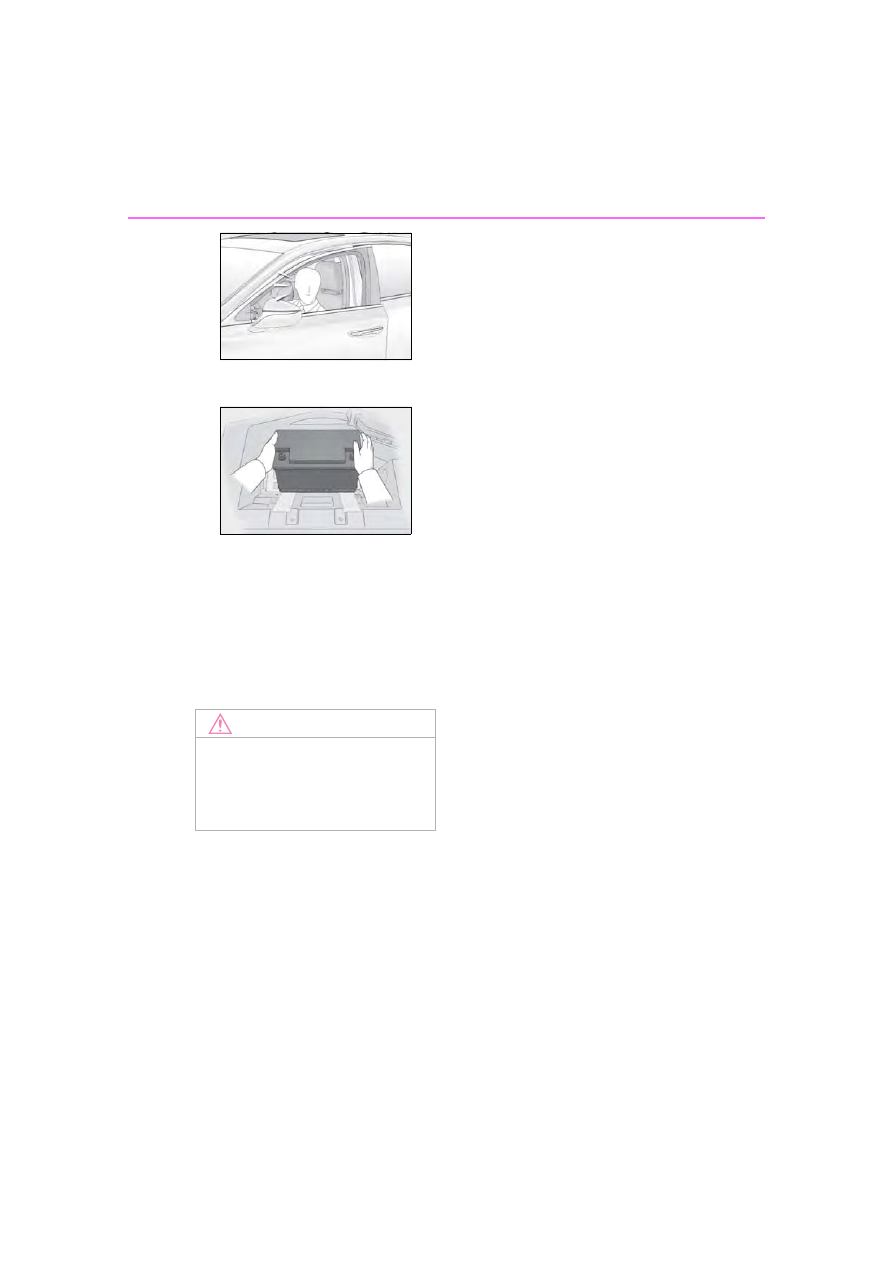

The battery is recharged or replaced

when the vehicle is locked. (

P.438)

■

Alarm-operated door lock

In the following cases, depending on the sit-

uation, the door may automatically lock to

prevent improper entry into the vehicle:

●

When a person remaining in the vehicle

unlocks the door and the alarm is acti-

vated.

●

While the alarm is activated, a person

remaining in the vehicle unlocks the door.

NOTICE

■

To ensure the system operates cor-

rectly

Do not modify or remove the system. If

modified or removed, the proper opera-

tion of the system cannot be guaranteed.

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

Vehicle status information

and indicators

2-1. Instrument cluster

Warning lights and indicators

...........................................................

Gauges and meters (except F

SPORT models) ........................

Gauges and meters (F SPORT

models)..........................................

Multi-information display..........

Head-up display ...........................

Fuel consumption information

............................................................

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

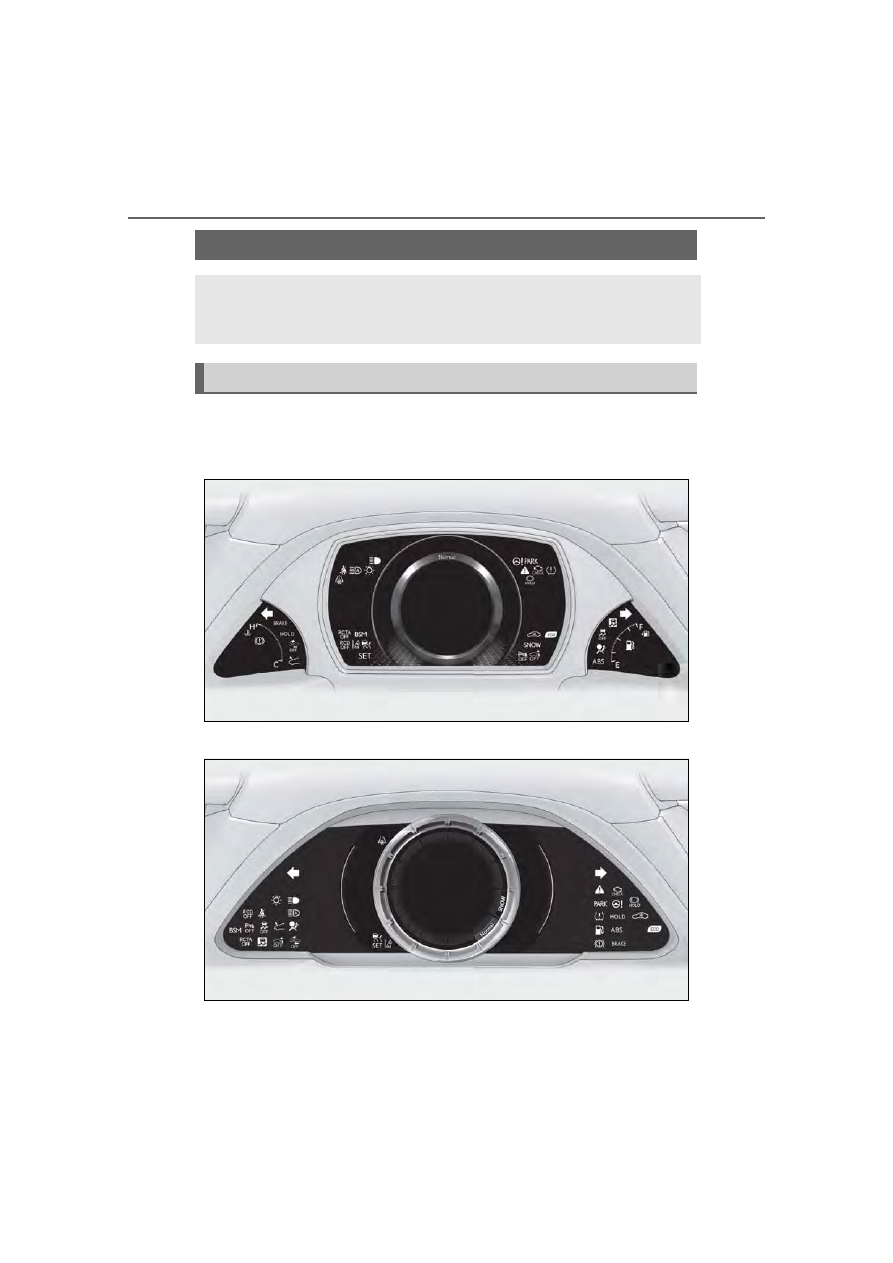

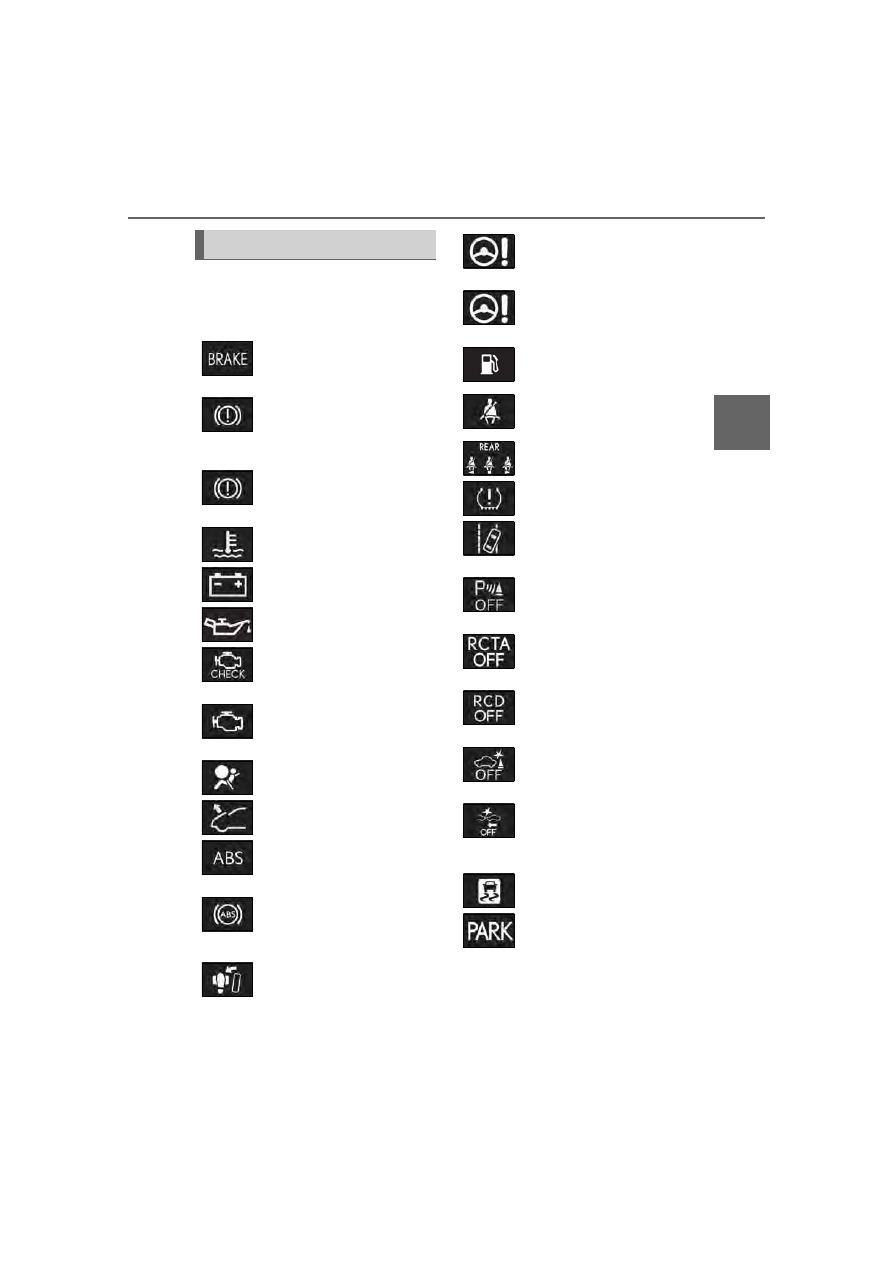

Warning lights inform the driver of mal-
functions in the indicated vehicle’s sys-
tems.

Warning lights

(U.S.A.)

Brake system warning light

(

P.415)

(red)

(Canada)

Brake system warning light

(

P.415)

(yellow)

Brake system warning light

(

P.415)

High coolant temperature
warning light

(

P.415)

Charging system warning
light

(

P.416)

Low engine oil pressure warn-
ing light

(

P.416)

(U.S.A.)

Malfunction indicator lamp

(

P.416)

(Canada)

Malfunction indicator lamp

(

P.416)

SRS warning light

(

P.416)

Pop Up Hood warning light

(

P.417)

(U.S.A.)

ABS warning light

(

P.417)

(Canada)

ABS warning light

(

P.417)

Brake Override System warn-
ing light/Drive-Start Control
warning light

(

P.417)

(red)

Electric power steering system
warning light

(

P.418)

(yellow)

Electric power steering system
warning light

(

P.418)

Low fuel level warning light
(

P.418)

Driver’s and front passenger’s
seat belt reminder light
(

P.418)

Rear passengers’ seat belt
reminder lights

(

P.419)

Tire pressure warning light

(

P.419)

(orange)

LTA indicator (

P.419)

(flashes)

Intuitive parking assist OFF indi-
cator

(if equipped) (

P.420)

(flashes)

RCTA OFF indicator

(if

equipped) (

P.420)

(flashes)

RCD OFF indicator (if
equipped) (

P.420)

(flashes)

PKSB OFF indicator

(if

equipped) (

P.421)

(flashes or

illuminates)

PCS warning light

(

P.421)

Slip indicator

(

P.421)

(flashes)

(U.S.A.)

Parking brake indicator
(

P.422)

2-1. Instrument cluster

LS500_OM_(U)_1809

: These lights come on when the engine

switch is turned to IGNITION ON
mode to indicate that a system check is
being performed. They will turn off after
the engine is started, or after a few sec-
onds. There may be a malfunction in a
system if the lights do not come on, or
turn off. Have the vehicle inspected by
your Lexus dealer.

: This light illuminates on the multi-infor-

mation display.

: This light illuminates on the center

panel.

: F SPORT models: This light comes on

when the engine switch is turned to
IGNITION ON mode to indicate that a
system check is being performed. They
will turn off after the engine is started, or
after a few seconds. There may be a
malfunction in a system if the lights do
not come on, or turn off. Have the vehi-
cle inspected by your Lexus dealer.

The indicators inform the driver of the
operating state of the vehicle’s various
systems.

(flashes)

(Canada)

Parking brake indicator
(

P.422)

(flashes)

Brake hold operated indicator

(

P.422)

Master warning light

(

P.422)

WARNING

■

If a safety system warning light does

not come on

Should a safety system light such as the

ABS and SRS warning light not come on

when you start the engine, this could

mean that these systems are not available

to help protect you in an accident, which

could result in death or serious injury.

Have the vehicle inspected by your

Lexus dealer immediately if this occurs.

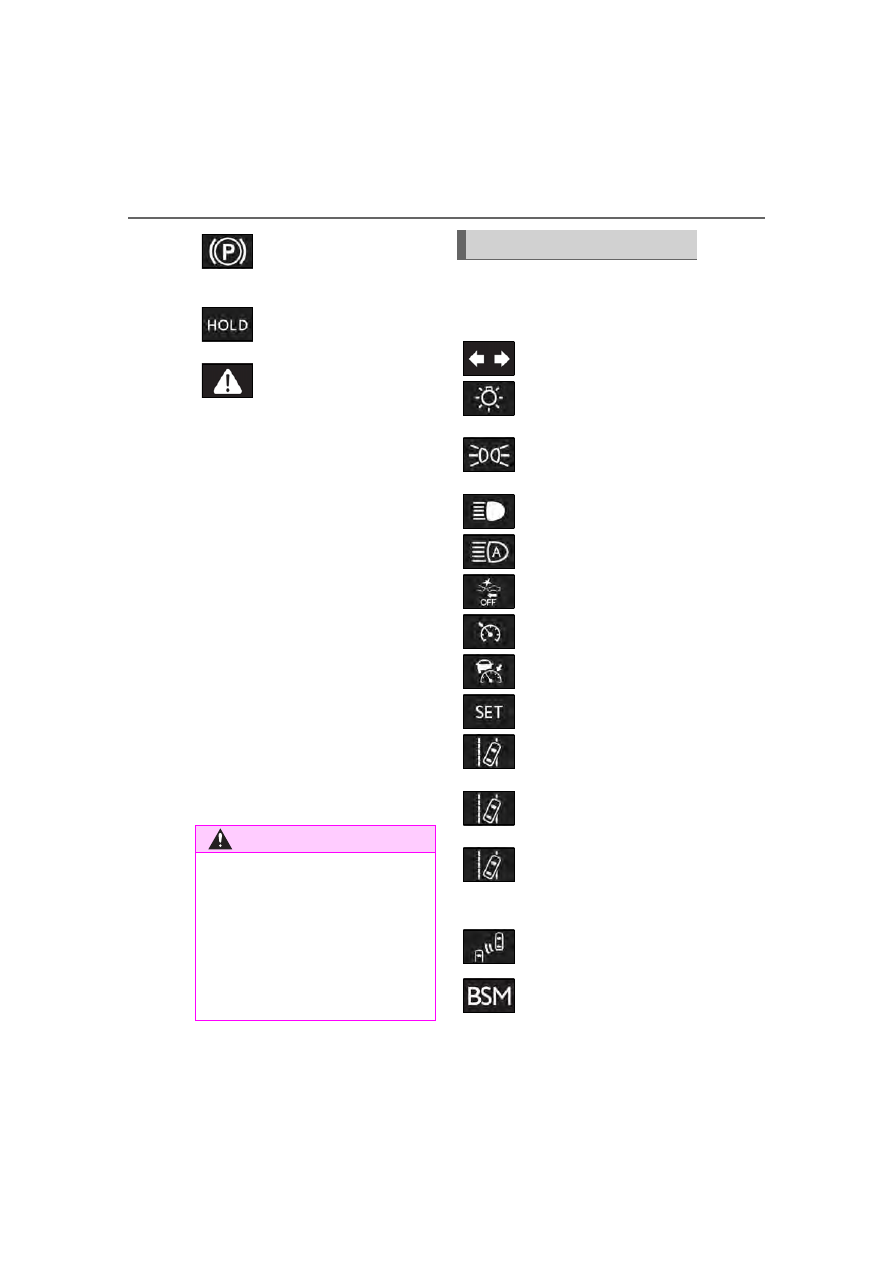

Indicators

Turn signal indicator (

P.173)

(U.S.A.)

Headlight indicator (

P.179)

(Canada)

Tail light indicator (

P.179)

Headlight high beam indicator
(

P.180)

AHB indicator (

P.182)

PCS warning light

*1, 2

(

P.207, 217)

Cruise control indicator
(

P.244)

Dynamic radar cruise control
indicator (

P.237)

Cruise control “SET” indicator
(

P.237)

(white)

LTA indicator (

P.231)

(green)

LTA indicator (

P.231)

(orange)

(flashes)

LTA indicator (

P.231)

BSM outside rear view mirror
indicators

*1, 3

(if equipped)

(

P.250, 263)

BSM indicator (if equipped)
(

P.250)

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

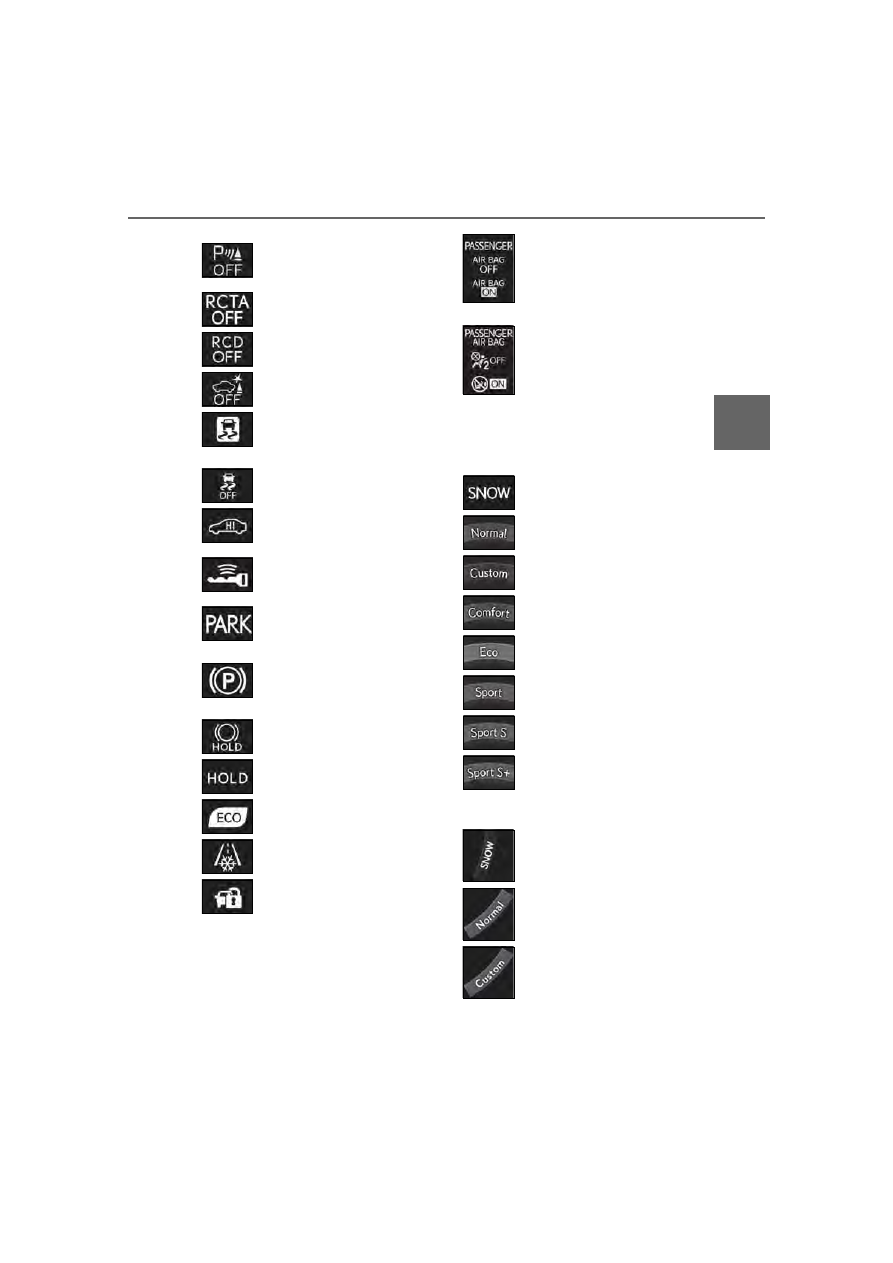

 Drive mode indicators



Except F SPORT models



F SPORT models

Intuitive parking assist OFF indi-
cator

*1, 2

(if equipped)

(

P.258)

RCTA OFF indicator

*1, 2

(if

equipped) (

P.263)

RCD OFF indicator

(if

equipped) (

P.267)

PKSB OFF indicator

*1, 2

(if

equipped) (

P.271)

(flashes)

Slip indicator

(

P.296)

VSC OFF indicator

*1, 2

(

P.296)

High mode indicator (if
equipped) (

P.292)

Smart access system with
push-button start indicator

(

P.164)

(U.S.A.)

Parking brake indicator
(

P.174)

(Canada)

Parking brake indicator
(

P.174)

Brake hold standby indicator

(

P.177)

Brake hold operated indicator

(

P.177)

Eco Driving Indicator Light

(

P.83)

Low outside temperature indi-
cator

(

P.73, 76)

Security indicator

(

P.63,

65)

(U.S.A.)

“AIR BAG ON/OFF” indica-
tor

*1, 6

(

P.40)

(Canada)

“AIR BAG ON/OFF” indica-
tor

*1, 6

(

P.40)

Snow mode indicator (

P.171)

Normal mode indicator
(

P.289)

Custom mode indicator (if
equipped) (

P.289)

Comfort mode indicator (if
equipped) (

P.289)

Eco drive mode indicator
(

P.289)

Sport mode indicator (if
equipped) (

P.289)

Sport S mode indicator (if
equipped) (

P.289)

Sport S+ mode indicator (if
equipped) (

P.289)

Snow mode indicator (

P.171)

Normal mode indicator
(

P.289)

Custom mode indicator
(

P.289)

2-1. Instrument cluster

LS500_OM_(U)_1809

: These lights come on when the engine

: This light comes on when the system is

turned off.

: This light illuminates on the outside rear

view mirrors.

: This light illuminates on the multi-infor-

mation display.

: When the outside temperature is

approximately 37°F (3°C) or lower, this
indicator will flash for approximately 10
seconds, then stay on.

: This light illuminates on the center

panel.

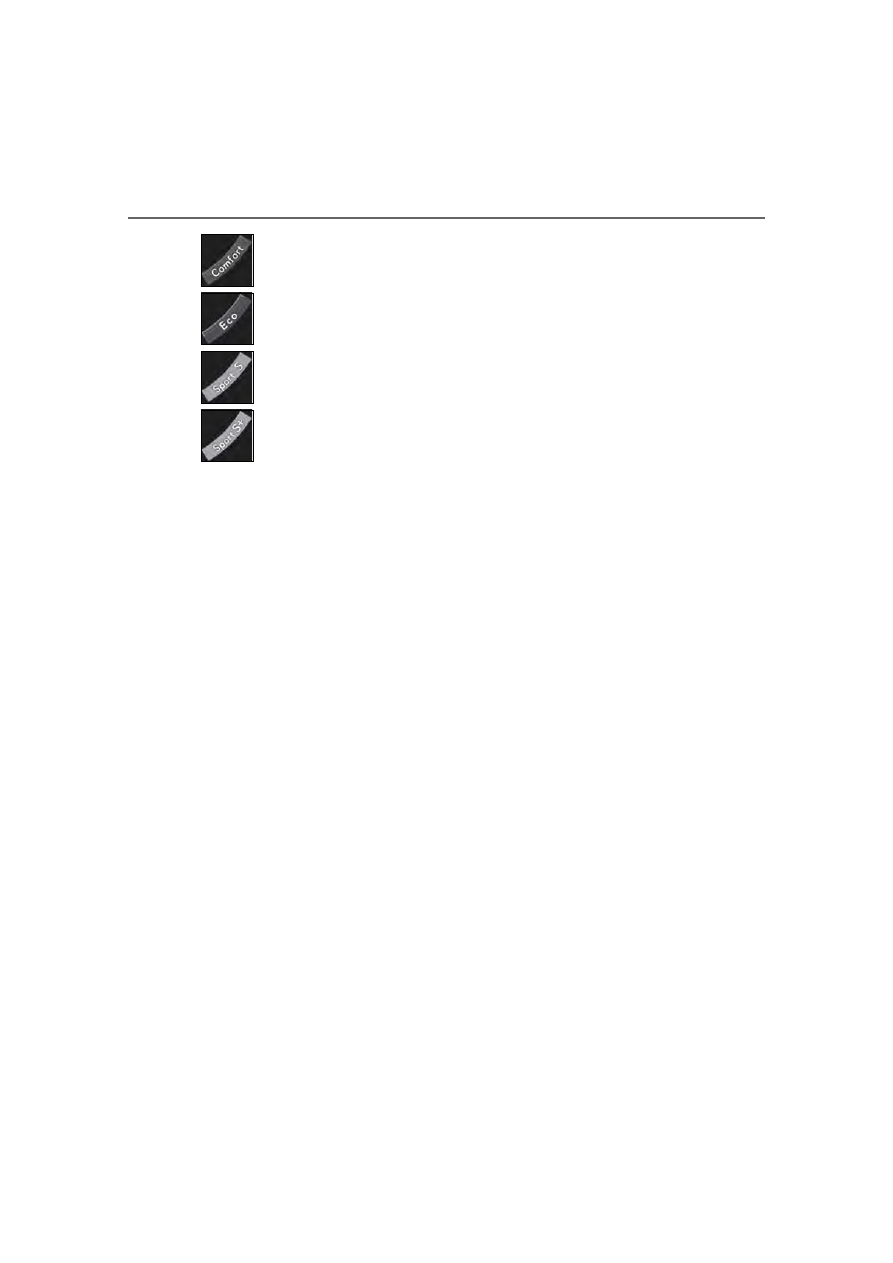

Comfort mode indicator
(

P.289)

Eco drive mode indicator
(

P.289)

Sport S mode indicator
(

P.289)

Sport S+ mode indicator
(

P.289)

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

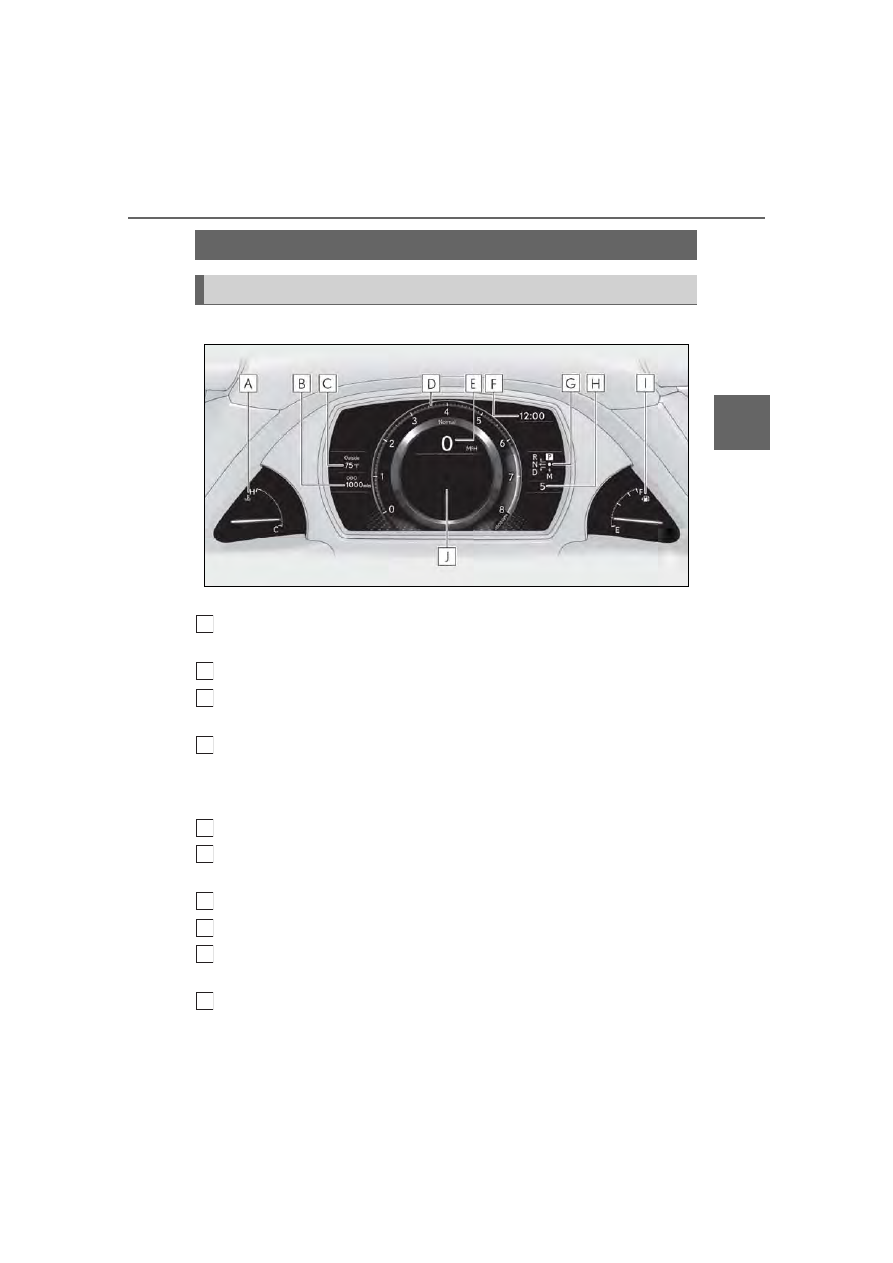

Locations of gauges and meters

The units of measure may differ depending on the intended destination of the vehicle.

Engine coolant temperature gauge

Displays the engine coolant temperature

Odometer and trip meter display (

P.74)

Outside temperature

Displays the outside temperature within the range of -40°F (-40°C) to 122°F (50°C)

Tachometer

Displays the engine speed in revolutions per minute
When sport mode is selected for the driving mode, the periphery of the tachometer will
change color and the scale of the tachometer will be emphasized.

Speedometer
Clock

Time displayed is linked to the analog clock on the center panel. (

P.345)

Shift position indicator (

P.169)

Shift range/gear position (

P.167)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Multi-information display

Presents the driver with a variety of vehicle data (

P.80)

Gauges and meters (except F SPORT models)

Meter display

B
C

E
F

2-1. Instrument cluster

LS500_OM_(U)_1809

Displays warning messages if a malfunction occurs (

P.425)

■

Outside temperature display

●

In the following situations, the correct

outside temperature may not be dis-

played, or the display may take longer

than normal to change:

• When stopped, or driving at low speeds

(less than 12 mph [20 km/h])

• When the outside temperature has

changed suddenly (at the entrance/exit of

a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system

may be malfunctioning. Take your vehicle

to your Lexus dealer.

■

Liquid crystal display

P.81

■

Customization

The gauges and meters can be customized
on

of the multi-information display.

(

P.85)

■

Display items

 Odometer

Displays the total distance the vehicle has
been driven.

 Trip meter A/trip meter B

Displays the distance the vehicle has been
driven since the meter was last reset. Trip
meters A and B can be used to record and
display different distances independently.

 Distance until next engine oil

change

Displays the distance the vehicle can be
driven until an oil change is necessary.

■

Changing the display

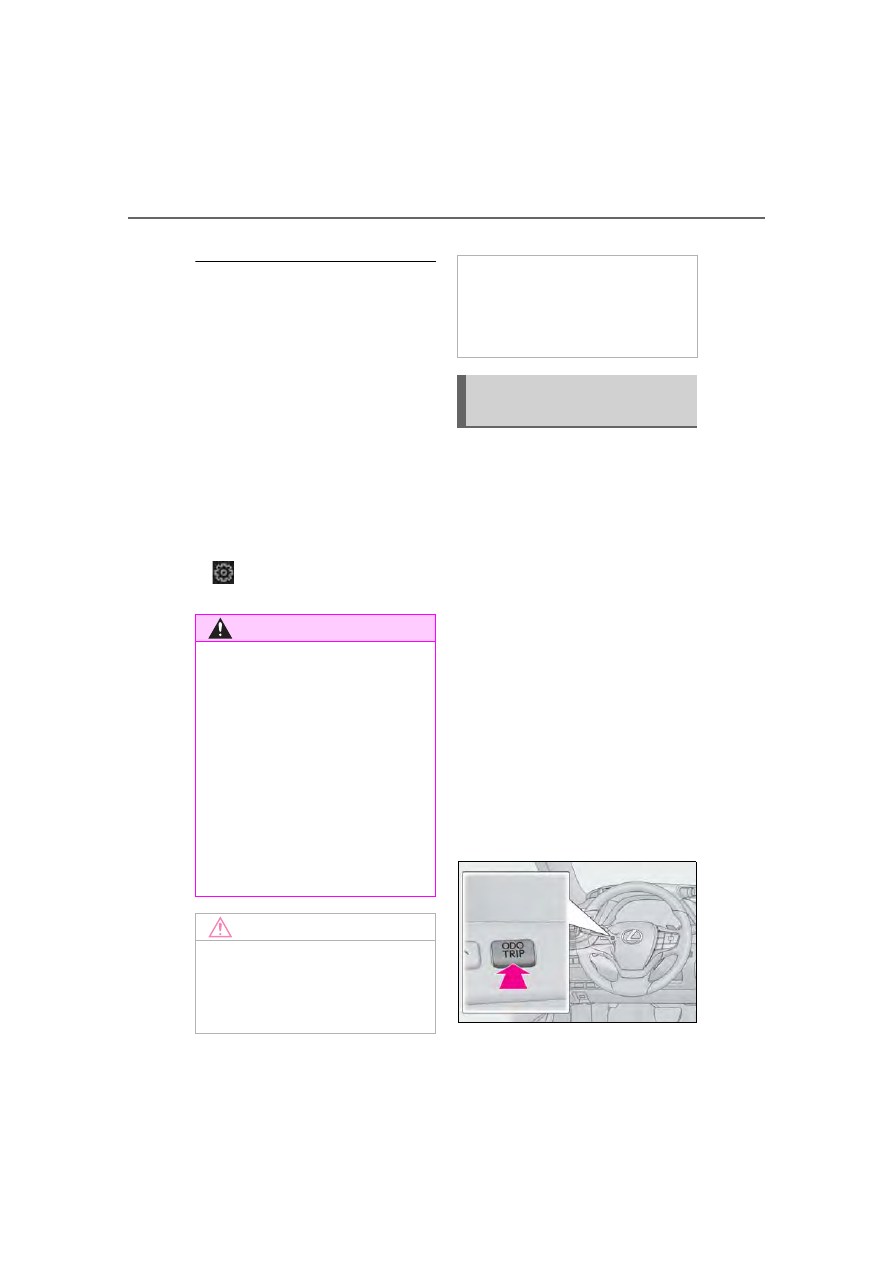

Each time the “ODO TRIP” switch is
pressed, the displayed item will be
changed. When the trip meter is dis-
played, pressing and holding the switch
will reset the trip meter.

WARNING

■

The information display at low tem-

peratures

Allow the interior of the vehicle to warm

up before using the liquid crystal infor-

mation display. At extremely low tem-

peratures, the information display

monitor may respond slowly, and display

changes may be delayed.

For example, there is a lag between the

driver’s shifting and the new gear number

appearing on the display. This lag could

cause the driver to downshift again,

causing rapid and excessive engine brak-

ing and possibly an accident resulting in

death or injury.

NOTICE

■

To prevent damage to the engine and

its components

●

Do not let the indicator needle of the

tachometer enter the red zone, which

indicates the maximum engine speed.

●

The engine may be overheating if the

engine coolant temperature gauge is

in the red zone (H). In this case, imme-

diately stop the vehicle in a safe place,

and check the engine after it has

cooled completely. (

P.440)

Odometer and trip meter dis-
play

2-1. Instrument cluster

LS500_OM_(U)_1809

Vehi

cle

status

inform

ati

on a

nd i

ndic
ators

■

Pop-up display

Distance until the next engine oil
change will displayed when a warning
message indicating that oil mainte-
nance should be performed soon or is
required is displayed.

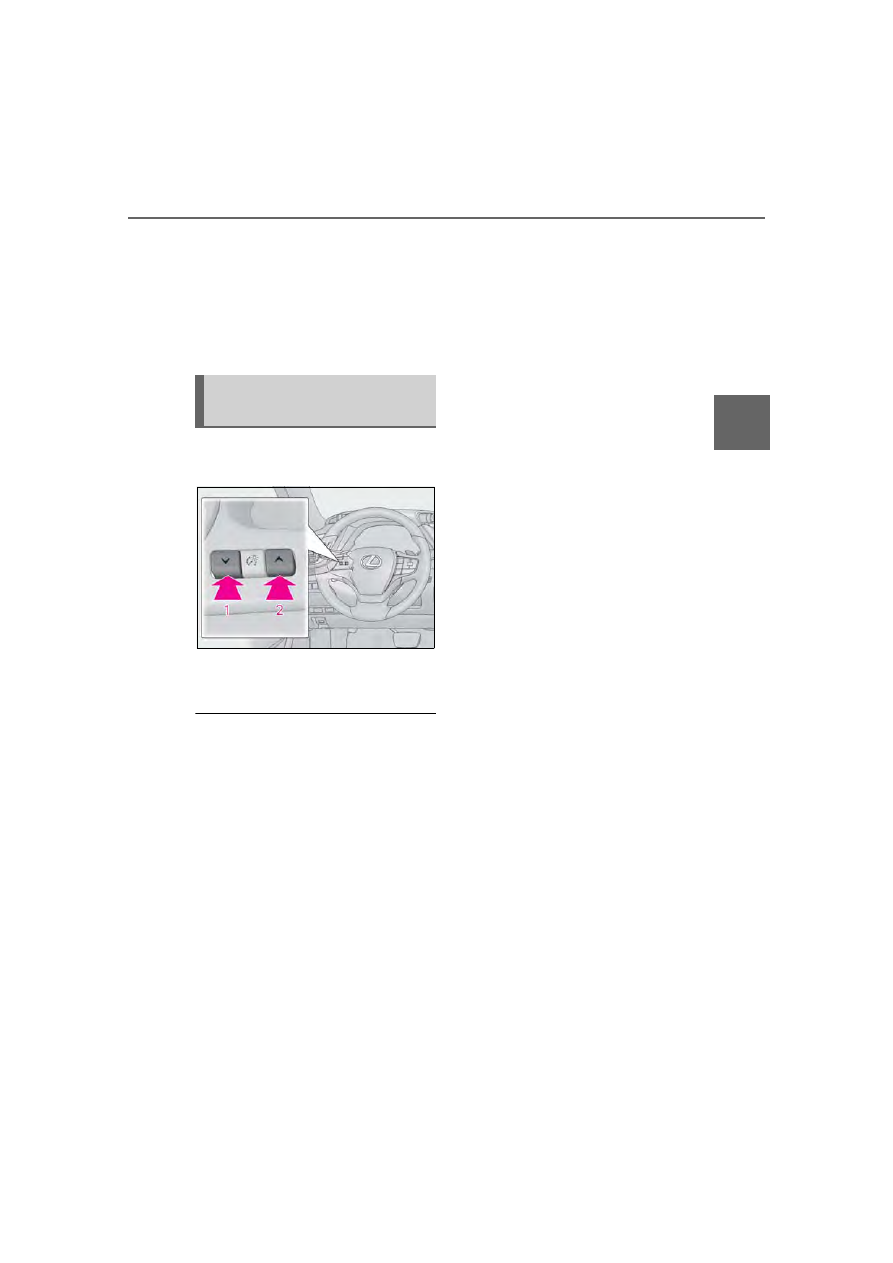

The brightness of the instrument panel
lights can be adjusted.

Darker

Brighter

■

Brightness of the meters (day mode and

night mode)

The brightness of the meters changes

between day mode and night mode.

●

Day mode: When the tail lights are off or

when the tail lights are on but the sur-

rounding area is bright

●

Night mode: When the tail lights are on

and the surrounding area is dark

Changing the instrument panel
light brightness

LEXUS LS 500 (2019 year). Instruction - part 4
